Mainspring Data Express™
MDTCSG2 Version 11.0 Connectivity Guide
Technical Reference Manual
Medtronic, Medtronic with rising man logo, and Medtronic logo are trademarks of Medtronic. Third-party trademarks (“TM*”) belong to their respective owners. The following list includes trademarks or registered trademarks of a Medtronic entity in the United States and/or in other countries.
CareLink™, Export™, Integrity™, Medtronic CareLink™, Paceart Optima™, Paceart™, Vitatron™

Contents

3 Installing Mainspring Data Express . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.1 Installation steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2 Automatically Starting the Connected Systems Gateway After Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3 Log File Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Paceart System Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1 About Paceart System Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.2 General Paceart System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.3 CareLink Scheduling Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.4 Paceart Optima System HL7 Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.5 Local Data Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.6 Local Data Interface Plus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.7 CareLink Transmission Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.8 Mainspring Health Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 CareLink Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.1 About CareLink Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.2 CareLink Report Export . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.3 CareLink EHR Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6 HL7 Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.1 About HL7 Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.2 Inbound Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.3 Outbound Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
6.4 HL7 Update Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
7 IDCO 1.1 Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
8 Uninstalling Mainspring Data Express . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
3

1 About Mainspring Data Express

1.1 Mainspring Data Express

Mainspring – because like the inner workings of a clock – it is the power source that facilitates the movement of cardiac data within your clinic, and between various departments within your organization.
Mainspring Data Express is a comprehensive solution for your cardiac patients, bringing together device andpatient data from the Paceart System, the Medtronic CareLink Network, the CareLink Programmer, the Boston Scientific LATITUDE® Patient Management system, the St. Jude Medical Merlin.net® Patient Care Network, your EHR System, and local network.
In order to simplify the process of connecting and sharing demographic, scheduling, and device data between Medtronic applications and electronic health record systems (EHRs), Medtronic has developed Mainspring Data Express. This software application serves as the primary tool to move and share data for device patients. Mainspring Data Express helps to streamline the implementation and on-going maintenance of data movement between applications.
This manual explains the process for installing the Mainspring Data Express software and configuring the features.

1.2 Explanation of symbols

Consult instructions for use
Manufacturer
Lot number
Reorder number
Date of Manufacture
Do not dispose of this product in the unsorted municipal waste stream. Dispose of this product according to local regulations. See http://recycling.medtronic.com for instructions on proper disposal of this product.
Storage temperature limit
Transit temperature limit
Humidity Limitation
Software
Model number
Manufactured in
Authorized Representative in the European Community

1.3 Indications

Mainspring Data Express is an optional component of the Medtronic CareLink Network and the Paceart Optima System. Mainspring Data Express can be used to provide data integration between disparate systems, using a defined mapping.
For more information on the Paceart Optima System, refer to the Paceart Optima System Software User Manual or the Paceart Optima System Online Help.

1.4 Precautions

Mainspring Data Express USBs must be operating in an environment within the following conditions :
Storage Environment
Temperature -20°C (-4°F) to +70°C (158°F) Relative Humidity 20% to 75%
Mainspring Data Express USBs must be operating in an environment within the following conditions :
4
Operating Environment
Temperature 0°C (32°F) to +65°C (149°F) Relative Humidity 20% to 75%
Call customer service or your biomedical department for service and repairs.

1.5 Contraindications

No known contraindications.

1.6 Mainspring Data Express Authorized Users

Medtronic representatives provide the Mainspring Data Express orientation and training materials at the timeof the installation. Users should be familiar with the Mainspring Data Express documents before using Mainspring Data Express.

1.7 Technical Support

In the US and Canada, call 1-800-929-4043 and select option 3. For all other countries contact your local Medtronic representative.

2 Mainspring Data Express software prerequisites

2.1 Installation prerequisites

Before you install and configure the Mainspring Data Express software you must install and Configure MS Message Queuing.
First time installation
If you are installing the Mainspring Data Express software for the first time, and not an upgrade, you must complete the following prerequisites before you can install the Mainspring Data Express software.
• Create an External Systems Account on the CareLink Network. For instructions on how to create an External Systems Account, refer to the CareLink Network Online Help.
• Create a Paceart SystemExternal System Account User and Role. For instructions refer to the Paceart Optima System online help.
• Install and configure MS Message Queuing.
• If you will be using the EHR Integration feature, install the Java Runtime Environment version 1.8 or higher.
Upgrade installation
If you are upgrading to a new version of Mainspring Data Express software you must first stop the existing Connected Systems Gateway service.
You do not need to uninstall your existing Mainspring Data Express software. The new version of the softwarewill import any existing configurations. For example, if you have an existing Paceart System-CareLink scheduling integration configuration, the settings will be saved and used in the new version of the Mainspring Data Express software.

2.1.1 Installing and Configuring MS Message Queuing for Windows 8.1

Membership in the local Administrators group, or equivalent, is the minimum required to complete this procedure.
1. From the Charms bar, click Settings.
2. Click Control Panel.
3. Click Programs, and then under Programs and Features, click Turn Windows features on or off.
4. Under the Microsoft Message Queue (MSMQ) Server option, check the Microsoft Message Queue (MSMQ) Server Core option. This enables all of the MSMQ Server Core subfeatures.
5. Click OK.
6. If you are prompted to restart the computer, click OK to complete the installation.

2.1.2 Installing and Configuring MS Message Queuing for Windows 10

Membership in the local Administrators group, or equivalent, is the minimum required to complete this procedure.
1. Open the Control Panel.
2. Click Programs, and then under Programs and Features, click Turn Windows features on or off.
3. Under the Microsoft Message Queue (MSMQ) Server option, check the Microsoft Message Queue (MSMQ) Server option. This enables all of the MSMQ Server Core subfeatures.
4. Click OK.
5. If you are prompted to restart the computer, click Restart now to complete the installation.
5

2.1.3 Installing and Configuring MS Message Queueing for Windows Server 2012, 2012 R2, 2016, and 2019

Membership in the local Administrators group, or equivalent, is the minimum required to complete this procedure.
1. Launch Server Manager.
2. In the Server Manager, click Add Roles and Features to start the Add Roles and Features.
3. Click Next until the Features page opens.
4. Expand Message Queuing, expand Message Queuing Services, and then select the Message Queuing Server option.
5. Click Next, and then click Install.
6. If you are prompted to restart the computer, click OK to complete the installation.

2.1.4 Installing Open JDK

If you will be installing the EHR Integration feature, you will need to install Open JDK version 16 or higher. You do not need to be connected to the internet to install the files.
1. Insert the Mainspring Data Express software USB drive into your USB port.
2. Browse to Resources\Mirth on the USB and right-click on openjdk-16.0.1_windows-x64_bin.zip to extract the files needed.
3. Select a location to extract the files. This location will be needed later on, take note on where these files are being extracted to. A progress window is displayed.
4. Once the files have been extracted, close any file system windows still open.

3 Installing Mainspring Data Express

3.1 Installation steps

Complete the items listed in the prerequisites section before you install and configure the Mainspring Data Express software.
1. To start the installation, insert the Mainspring Data Express installation USB into the computer and click CSGInstall.exe on the installation USB.
2. Click Next.
3. If there are any prerequisites that must be installed, they are displayed in a list. Select and then click Install for each of the prerequisites. You may need to restart your computer depending on which prerequisites are installed.
4. On the License Agreement step, click Next.
6
5. Enter a destination folder. Click Change to change from the default location. If you have a previous version of Mainspring Data Express installed, use the same filepath as the previous version.
7
6. Click Next.
7. Click Install. A progress bar shows the installation progress.
8. Select Launch Medtronic Mainspring Data Express and then click Finish to exit the installation wizard and open the Medtronic Mainspring Data Express window.
8
9. In the Medtronic Mainspring Data Express window, select the features you want to enable, then click Configurations. You can select multiple features under Paceart Integration, but you can only select one feature under CareLink Integration.
The configuration window for the feature you selected is displayed.
9
10. Make your configuration changes and click OK. Refer to the following sections for information on configuring each feature. The configuration window closes.
11. Click OK to close the Medtronic Mainspring Data Express window.
If you selected EHR Integration for the first time, follow the installation steps in Section 5.3.2, Installing and configuring Mirth Connect, page 30 of this document to install and configure Mirth Connect.

3.2 Automatically Starting the Connected Systems Gateway After Restart

1. After you verify that your implementation was successful you can set this service to automatically connect. Go to Start > Control Panel > Administrative Tools > Services.
2. Right-click on the Connected Systems Gateway service and select Properties.
3. Select Automatic in the Startup type field. If you restart your computer this service will automatically restart.
4. Click OK.
10

3.3 Log File Configuration

The default location for log files is C:\Medtronic\Connected Systems Gateway\Logs.
The default log file retention count is 10. You can save up to 99 log files.

4 Paceart System Integration

4.1 About Paceart System Integration

The Paceart System Integration section of Mainspring Data Express has the following features:
• CareLink Scheduling Integration: Allows you to exchange scheduling data between the CareLink Network and the Paceart System.
• HL7 Integration: Allows you to import demographic information, scheduling information, and interrogated device data using ORU^R01 messages that conform to the IHE IDCO profile, from electronic medical record systems or practice management systems. Also allows you to export device data to electronic medical record systems via HL7.
• Local Data Interface: Allows you to configure the service that receives patient session data transmitted from local sources, such as a device programmer or Latitude.
• Local Data Interface Plus: Allows you to configure the service that receives patient session data transmitted from local sources using a newer security model.
• CareLink Transmission Integration: Allows you to configure the service that imports patient session data into the Paceart System from CareLink.

4.2 General Paceart System Settings

General Paceart System External System Account
This section gives you a simple way to configure a single account to use with all your all the integration features. To enable this account for all Paceart System features, select the Use General Paceart External System Account Settings check box on the feature-specific tab. To use different external system accounts for eachfeature, clear the Use General Paceart External System
Account Settings check box on the feature-specific tab, then enter the Username and Password of the account.
Paceart Optima System Application Server
These settings contain information about the computer on which the Paceart Optima System Application Serveris installed. Mainspring Data Express communicates with the Paceart Optima System Application Server using this hostname and port to exchange data between the Paceart System and external sources.

4.2.1 Configuring Paceart System Settings

General Paceart System Settings can be modified by editing the paths. For each of the Paceart Web Services, the localhost need to be replaced with the hostname and port number.
1. To start Mainspring Data Express, go to Start > Programs > Medtronic Mainspring Data Express > Medtronic Mainspring Data Express.
2. In the Medtronic Mainspring Data Express window, select at least one of the following Paceart Integration features and click Configurations:
• CareLink Scheduling Integration
• HL7 Integration
• Local Data Interface
• Local Data Interface Plus
• Remote Data Interface
• Data Bridge Gateway The Paceart Integration configuration window is displayed.
3. In the General Paceart Settings section, edit the settings as needed.
• Update the Username and Password for the external system account set up in the Paceart System.
• Change the Hostname to the domain name or IP address of the computer on which the Paceart Optima System Application Server is installed.
• Change the Port to the port number the Paceart Optima System Application Server uses on that computer.The default value is 333.
4. Click OK.
11

4.2.2 Paceart System Integration Configuration Values

This table explains the fields under General Paceart Settings on the Paceart Integration configuration window.
Field Name Explanation General Paceart External System Account
Username The Paceart System External System Account username. Thi-
susername is defined in the Paceart System on the External Sys­tem Accounts tab.
Password The Paceart System External System Account password. This-
password is defined in the Paceart System on the External Sys­tem Accounts tab.
Paceart Optima Application Server
Hostname The domain name or IP address of the computer on which the
Paceart Optima System Application Server is installed.
Port The port number the Paceart Optima System Application Server
domain interface uses. The default value is 333.

4.3 CareLink Scheduling Integration

The Paceart System-CareLink Scheduling Integration feature provides a way to automatically synchronize scheduling between the CareLink Network and the Paceart System. If you schedule an appointment in CareLink, it will be downloaded to the Paceart System; if you schedule an appointment in the Paceart System, it will be sent to CareLink.
The Paceart System regularly requests status information for appointments scheduled in CareLink. Schedules are either updated nightly or when a clinician makes a request from the Paceart System.
If an appointment is created in CareLink, CareLink retains ownership until the appointment is sent to the Paceart System. Once the Paceart System is updated to reflect the CareLink Network appointment, the appointmentis owned by the Paceart System.
If a remote appointment is created or modified in the Paceart System, the appointment is automatically created or updated in CareLink. Ownership of the appointment remains with the Paceart System.
The Paceart System receives appointment status information that reflects the last known status as reportedby CareLink. The remote status is displayed in patient appointment information on the Paceart System. The Paceart System records the completion and failure status details of this information in its log. The Paceart System scheduling requests that violate CareLink Network scheduling rules are displayed as errors in the Paceart System Remote Status field.
When you schedule a remote appointment in the Paceart System, the Remote Status will show "Processing." Once the appointment is successfully acknowledged by CareLink, the Remote Status will show "Scheduled."
If the appointment is not successfully sent to CareLink or if CareLink reports an error, the Remote Status will show "Error." An "Error" status can be manually changed to "Ignore." Once the transmission is received by CareLink, the Remote Status will show "Completed." If CareLink determines that an appointment was missed, the Remote Status will show "Missed".
Contact your Paceart technical support specialists regarding support for appointment scheduling transfers on the MedtronicCareLink Network.

4.3.1 CareLink Scheduling Integration Prerequisites

Before you configure CareLink Scheduling Integration, you must complete the following prerequisite:
• On the CareLink website, create an External System Account for Mainspring Data Express and enable the Scheduling Integration feature.
Before you use CareLink Scheduling Integration, you must ensure that the Paceart System patient records and appointments meet the following criteria:
• The Paceart System patient record must have a birth date, a patient ID number, and a patient ID number type.
• Appointments created or updated in the Paceart System must have the patient remote follow-up service set to Medtronic CareLink Network, and the patient must have an active Medtronic ICD, ICM, or pacemaker that is supported by the Medtronic CareLink Network. To find out if a device is supported, log into CareLink and click Resources > CareLink Supported Implantable
Devices.
4.3.1.1 Paceart System/CareLink patient matching for a single patient
The primary match is on the patient ID number, patient ID number type, and the birth date. If either of these are not present in the Paceart System, appointments will not be sent to CareLink. If the patient ID number and patient ID number type is not present in the CareLink system, a demographic match is performed. The configurable matching criteria include first name, middle initial, and gender
12
in addition to the last name and birth date which are always used. If the demographic match succeeds, CareLink will record the patient number so future matches will be simpler and quicker.
This matching is performed on CareLink and is used when adding, updating and removing appointments, and when updating remote appointment status.
4.3.1.2 Paceart System/CareLink patient matching for a batch download
In this scenario, the Paceart System downloads a list of all CareLink patients and appointments and then matches CareLink patients to Paceart System patients. The primary matching is on the patient ID number, patient ID number type, and the birth date. If the patient ID number and ID number type is not present in the CareLink system a much stricter demographic match is performed. This requires a match on the first name, middle initial, last name, gender, and birth date.

4.3.2 Configuring CareLink Scheduling Integration

1. To start Mainspring Data Express, go to Start > Programs > MedtronicMainspring Data Express > MedtronicMainspring Data Express
2. In the Medtronic Mainspring Data Express window, select CareLink Scheduling Integration and click Configurations. The Paceart Integration window is displayed.
3. On the CareLink Scheduling Integration tab, enter the applicable values for your CareLink implementation.Refer to the CareLink Scheduling Integration Configuration Values table for more explanation on the fields.
4. Click OK.
4.3.2.1 CareLink Scheduling Integration Configuration Values
This table explains the fields on the CareLink Scheduling Integration configuration tab.
Field name Explanation CareLink Settings
CareLink Scheduling Service The name of the CareLink scheduling service that the adapter will use. The defaultvalue
is "Endpoint_CSA_basicHttpsBinding".
CareLink Scheduling Service Site The fully qualified path of the CareLink scheduling service that the adapter will use.The
default value is: https://clscheduling.medtroniccarelink.net/ SchedulingGateway/SchedulingGateway.svc
External System Account Name The account name of the dedicated user that will be used to connect to the CareLink-
Scheduling service. This account name is created and configured on the External System Accounts tab on the CareLink website.
External System Authorization Code The account authorization code that will be used to authenticate the CareLink UserID
with the CareLink Scheduling service. This authorization code is created andconfigured on the External System Accounts tab on the CareLink website.
Send Patient First Name A Boolean value indicating if the Patient First Name value is sent to CareLink. If "True",
it will be used by CareLink for patient matching. The default value is "True".
Send Patient Middle Name A Boolean value indicating if the Patient Middle Name value is sent to CareLink. If "True",
it will be used by CareLink for patient matching. The default value is "True".
Send Patient Gender A Boolean value indicating if the Patient Gender value is sent to CareLink. If "True", it will
be used by CareLink for patient matching. The default value is "True".
Paceart Settings
Patient ID Type Description The Paceart Patient ID Type Description to associate with the CareLink Remote Patient
ID. The default value is "Default".
Appointment Resource The Paceart Appointment Resource to associate with CareLink remote appointments.
The default value is "Default Resource".

4.3.3 Troubleshooting CareLink Scheduling Integration

Troubleshooting scheduling connectivity problems.
CareLink
• Verify that the CareLink account used to connect to Connected Systems Gateway has a Transmission Permission selection of View changes transmission status from new to viewed.
• Verify that the CareLink account used to connect to Mainspring Data Express does not have an expired password.
13
• If the CareLink clinic has sub-clinics, verify that the CareLink account used to connect to the MedtronicMainspring Data Express has access to the sub-clinics’ patients integrated with the Paceart System.
• Verify that you created an External System Account in CareLink.
• Verify that the created External System Account was configured to include Scheduling Integration external system associations.
• Verify that scheduling integration has not been unlinked and verify the "Last Connected on" date/time displayed. Go to the CareLink Network website and click Manage My Clinic > Clinic Profile > External Systems Integration.
Paceart
• Verify the Paceart External System Account password associated with the Mainspring Data Express user.
• Verify that the patient’s Demographics tab in the Paceart System has the patient remote follow-up service set to Medtronic CareLink Network, and that the patient has a Medtronic ICD or pacemaker that is supported by the Medtronic CareLink Network. To view the CareLink Network supported devices list, login to the CareLink website and go to Resources > CareLink Supported Implantable Devices.
• Verify that the Paceart System patient record has a date of birth and a valid patient ID number.
Mainspring Data Express
• Verify that the Mainspring Data Express software and features were properly installed and configured.
• Verify that the correct CareLink hosting system was entered in the CareLink Scheduling Integration tab of the Paceart Integration dialog box. The CareLink hosting system must match what was entered in the Remote Data Interface tab. To verify these details, the Remote Data Interface feature should be selectedin the Medtronic Mainspring Data Express window.
• Verify that the Connected Systems Gateway service was started.

4.4 Paceart Optima System HL7 Integration

Viewing and Resolving Errors
In the Paceart Optima System, you can view and resolve HL7 errors in Administration > Activity Log. The Patient Management service logs all patient information changes from the HL7 protocol. Any additions, deletions,and updates to patient records from HL7-based systems are logged under this service in the Activity Log. In some instances, a work item is created and requires a Paceart System user or workgroup to resolve the issue.
For a complete list of Activity Log Results, refer to the Paceart Optima System Software User Manual or thePaceart Optima System online Help.
Paceart Optima System Patient ID Configuration
In the Paceart Optima System, a patient can have multiple patient IDs. You can configure patient IDs on the Administration > Demographics > Patient ID Type tab. Matching an inbound patient ID involves matching both the ID number and the ID type. By
default, the Paceart System matches the first occurrence of the PID-3segment to patient ID number and patient ID type.
For example, your Paceart Optima System has a patient ID type called "EMR".
You receive the following PID segment in an HL7 message:
PID|||1335579^^^^EMR~654321^^^^MRN|
This would match a patient in the Paceart System with an "EMR" type ID and a patient ID number of "1335579".
Paceart Optima System Patient Matching Configuration
In the Paceart Optima System, you must configure patient matching on the Administration > Connectivity Management > Patient Matching Configuration tab.
Patient matching is initially based on the patient ID only. You can configure a second level of patient matching in the Verify Patient Match Configuration section. If a patient match cannot be made using the patient ID, matching can also be configured based on patient demographic information in the Demographics Only Match Configuration section. These levels of matching can determine when a new patient is created in the Paceart System, when an error is logged, and when a work item is created.
For more information on configuring Paceart Optima System patient matching, refer to the Paceart Optima System Software User Manual or the Paceart Optima System online Help.

4.4.1 Configuring Paceart HL7 Integration

1. 1. To start Mainspring Data Express, click Start > Programs > MedtronicMainspring Data Express > MedtronicMainspring Data Express
2. 2. In the MedtronicMainspring Data Express window, select HL7 Integration and click Configurations. The Paceart Integration configuration window is displayed.
14
3. 3. In the HL7 Integration tab, enter the values for your configuration.
4. 4. Click OK to close the Paceart Integration configuration window.
4.4.1.1 HL7 Integration Configuration Values
This table explains the fields on the HL7 Integration configuration tab.
Field name Explanation HL7 Outbound
Outbound Include Episode Observations Boolean value providing an option to include episode data in the HL7 mes-
sage sent to the receiving system. Inclusion of this data may add to the size of the message. The default value is "False" (do not send episode data).
Include Nonconforming Data Boolean value providing an option to include nonconforming data in the HL7
message sent to the receiving system. Inclusion of this data may add to the size of the message. The default value is "True".
Include IDCO Nonconforming Data Boolean value providing an option to include IDCO nonconforming data in
the HL7 message sent to the receiving system. Inclusion of this data may add to the size of the message. The default value is "True".
Include Medtronic OBX Segments Boolean value providing an option to include Medtronic OBX segments in
the HL7 message sent to the receiving system. Inclusion of this data may add to the size of the message. The default value is "True".
Include PV2 Segment Boolean value providing an option to include the PV2 segment in the HL7
message sent to the receiving system. Inclusion of this data may add to the size of the message. The default value is "True".
IDCO Message Version The version of IDCO used to generate the HL7 message. Valid values are
"1.0" or "1.1".
Paceart
Paceart XML Version The version of Paceart XML that will be exported from the Paceart System to
HL7. This value is for reference only and cannot be edited.

4.4.2 Installing the Corepoint Integration Engine

2016.3 or earlier installed, you need to remove it and install the Corepoint Integration Engine.
1. On the Corepoint Health Solutions - InstallShield Wizard window, click Next.
2. Read the license agreement. Click Next to accept it.
3. Specify a destination folder. Click Change to change the default location, and then click Next.
4. Select the type of installation you want and click Next.
5. Select the type of authentication you want and click Next.
6. Specify the administrator password or Windows user depending on what authentication type was selected.
7. Click Install to install the Corepoint Integration Engine.
8. When the installation is complete, you can launch the license manager. If you already have your license string select this option and click Finish.
Note: If you do not have your license string deselect the Launch the License Manager option and call Paceart Technical Support for licensing information.
After you click Finish, the Log On dialog is displayed. The Medtronic Mainspring Data Express window also opens in front of the Log On dialog. Move the window out of the way.
9. Enter the username and password you specified in step 6, and then click OK.
10. On the LicenseManager window, click License wizard. The License Wizard starts.
11. Click Next.
12. Select the Request a license using a product key option, and then click Next.
15
13. On the Machine description dialog box, enter a description of how this license is used, and then click Next. For example, "St. Elsewhere Hospital Production Server"
14. On the Connection and login information dialog box, enter the Web login provided by Operations and Technical Services and connection details and click Next.
15. Click Connect to contact Corepointhealth.com to obtain your license.
16. After you have connected to Corepointhealth.com click Next.
17. Click Finish.
18. On the LicenseManager window, click Exit.
19. After exiting the license manager, you can load the Corepoint Health configuration import/export file. Run the Corepoint Integration Engine Administration console by clicking Start > All Programs > CorepointHealth > Corepoint Integration Engine > Corepoint Integration Engine - Administration.
20. Enter the user name and password you specified when installing the Corepoint Integration Engine and click OK. The Corepoint Integration Engine Administration Console window is displayed.
21. Ensure that the Integration Engine Service is started.
22. Close the Corepoint Integration Engine Administration Console window.
23. Open the Corepoint Integration Engine Configuration console by clicking Start > All Programs > CorepointHealth > Corepoint Integration Engine > Corepoint Integration Engine - Configuration.
24. Enter the user name and password you specified when installing the Corepoint Integration Engine and click OK. The Corepoint Integration Engine Configuration window is displayed.
25. Click File > Import. The Open File window is displayed.
26. Navigate to the configuration file folder at C:\Program Files\Medtronic\Connected SystemsGateway\HL7SubSystem. The Import selected components window is displayed.
27. Double-click the HL7 Source and Destination Transformation.nix file. The Import selected components window is displayed.
28. Select all of the components and click Import.
29. Click OK after the components have been loaded.
30. Commit the update to the Corepoint Integration Engine by clicking Version > Commit All... The Commit Changes dialog box is displayed.
31. Click Commit and Activate at the bottom of the dialog box.
32. When the Confirm Engine Reconfiguration dialog box is displayed, click Commit and Activate again to confirm your changes.
The Corepoint Integration Engine pauses and restarts to commit the update.
33. Close the Corepoint Integration Engine Configuration window.

4.4.3 Troubleshooting Paceart HL7 Integration

Troubleshooting Paceart HL7 integration problems.
Paceart
• Verify the Paceart External System Account password associated with the Mainspring Data Express user.
• Verify that the Paceart System patient record has a date of birth and a valid patient ID number.
Mainspring Data Express
• Verify that the Mainspring Data Express software and features were properly installed and configured.
• Verify that the Connected Systems Gateway service was started.
4.4.3.1 Programmer Acquisition service cannot start Event Log message
If in the Event Log for the Programmer Acquisition service you receive an error message that says "Programmer Acquisition service cannot start", you need to change the Corepoint Integration Engine port value.
1. Click Start > Programs > Corepoint Health > Corepoint Integration Engine > Corepoint Integration Engine - Configuration.
2. Click Service > Corepoint Integration Engine Monitor Service Configuration. The Corepoint Integration Engine Monitor Service Configuration window is displayed.
16
3. Change the port value.
4. Click OK.

4.5 Local Data Interface

The Local Data Interface allows you to configure the service that receives patient session data transmitted from local sources, such as a programmer or LATITUDE. You can start and stop the service, configure advanced options, and enable or disable transmissions from enabled sources.

4.5.1 Updating the Local Data Interface Port Number

The value in the Port field on the Local Data Interface tab identifies the port Mainspring Data Express uses to receive data from local sources. This value must match the value of the port configured for the programmer or for LATITUDE.
1. If needed, change the value in the Port field to match the port configured for the local source. The default value is 443.
2. Click OK to save your changes.

4.5.2 Local Data Interface Extended Configurations

This table explains the fields on the LDI Extended Configurations window.
Field name Explanation
Manufacturer Name The manufacturer name of the data provided by a specific sys-
tem. For example, "Medtronic".
Encounter Type The type of data provided by a specific system. The default value
is "InClinic".
Username The username for a user-defined local data interface extended
configuration.
Password The password for a user-defined local data interface extended
configuration.

4.5.3 Local Data Interface certificate installation

The digital certificate allows a secure connection to be established between a data import source and the Paceart System. You must complete the certificate installation before you can import data from other sources.
You will generate a certificate request that you will email to Paceart Technical Support. Then Technical Support will email you back the certificate file that you will import into your system and install.
If you have questions please call Paceart Technical Support.
4.5.3.1 Installing the certificate
1. On the Local Data Interface tab, click Generate Request. The Export Certificate Request window is displayed.
2. In the Customer Information section, enter your information in the following required fields:
• Organization
• State or Province
• Country
3. In the Contact Information section, enter your information in the following required field:
• Email - must be in standard email format (the certificate will be emailed to this email address)
4. In the Public Key Information section, select the desired key length.
5. From the Server Addressing section, select how you would like the data import source to address the Local Data Interface. Select the check box next to Host Name or IP Address.
6. Click Export Certificate Request to a File.
7. Select the location where you would like to save the certificate request file. You must save to a location that can be accessed by a workstation or computer that has email. The default file location is C:\PaceartGatewayCertificateRequest.McertReq.
8. Once the file has been successfully exported, click OK.
9. Send an e-mail with the exported certificate request file to Paceart Technical Support at CertSupport@Medtronic.com.
10. Technical Support will then send the certificate file to the email address you specified. Note: Some days may elapse before you receive the certificate. The certificate is usually sent out within one business day.
11. Save the certificate file to a location that is accessible from the Paceart System computer. The default filename is C: \PaceartGatewayCertificate.MCert.
17
12. Click Install Certificate.
13. Find and select the file using the standard Windows dialog and click Open.
14. If you have completed the installation successfully, the Digital Certificate section will display Digital Certificate has been
installed. If you receive an error message, call Paceart Technical Support.

4.5.4 Enabling a data import source

You must install the certificate before you can enable a source for data import.
1. Click on the source ID listed in the Available for Data Import table to select it.
2. Click Add.
3. The source ID will now be in the Enabled for Data Import table.
4. Click OK for the changes to take effect. This source is now able to import data to the Paceart System.

4.6 Local Data Interface Plus

The Local Data Interface Plus allows you to configure the service that receives patient session data transmitted from local sources using a newer security model and technologies. You can start and stop the service, configure advanced options, and enable or disable transmissions from enabled clients.

4.6.1 Updating the Local Data Interface Plus Port Number

The value in the Port field on the Local Data Interface Plus tab identifies the port Mainspring Data Express uses to receive data from local sources. This value must match the value of the port configured for the clients connecting to the Local Data Interface Plus. This value cannot be the same value that is configured for the Local Data Interface if that feature is also enabled.
1. If needed, change the value in the Port field to match the port configured for the local source. The default value is 334.
2. Click OK to save your changes.

4.6.2 Local Data Interface Plus certificate installation

The digital certificate allows a secure connection to be established between a data import source and thePaceart System. You must complete the certificate installation before you can import data from other sources.
You may select an existing certificate in the personal store on the local computer or generate a certificate request that you will send to a third-party certificate authority. If you generate a certificate request, the third-party certificate authority will return to you the certificate file that you need to import into your system and install.
If you have questions please call Paceart Technical Support.
4.6.2.1 Selecting an existing certificate
1. On the Local Data Interface Plus tab, click Select Existing Cert. A Digital Certificate selection dialog will displayed for the personal store of the local machine.
2. Select the desired Digital Certificate and click OK.
3. If you have completed the installation successfully, the Digital Certificate section will display details about the installed digital certificate. If you receive an error message, call Paceart Technical Support.
4.6.2.2 Installing a new certificate
1. On the Local Data Interface Plus tab, click Create Cert Request. The Export Certificate Request window is displayed.
2. In the Customer Information section, enter your information in the following required fields:
• Organization
• Organizational Unit
• City/Locality
• State or Province
• Country
3. In the Contact Information section, enter your information in the following required field:
• Email - must be in standard email format (the certificate will be emailed to this email address)
4. From the Server Addressing section, select how you would like the data import source to address the Local Data Interface Plus. The default, and most commonly used, is the fully qualified domain name of the machine.
5. In the Public Key Information section, select the desired key length. Note: Larger public key sizes increase security, but can affect performance.
18
6. Click Export Certificate Request to a File.
7. Select the location where you would like to save the certificate request file. The default file location is C: \PaceartGatewayCertificateRequest.McertReq.
8. Once the file has been successfully exported, click OK.
9. Send the certificate request to the third-party certificate authority to be processed.
10. The third-party certificate authority will then return a certificate file to you. This is typically a *.cer or *.crtfile.
11. Save the certificate file to a location that is accessible from the Paceart System computer.
12. Click Complete Cert Request.
13. Find and select the file using the standard Windows dialog and click Open.
14. If you have completed the installation successfully, the Digital Certificate section will display details about the installedDigital
Certificate. If you receive an error message, call Paceart Technical Support.

4.6.3 Enabling a data import source

You must install the certificate before you can enable a source for data import.
1. Click on the Client ID listed in the Unauthorized Clients table to select it.
2. Verify it is the same Client ID and Username listed on the Clients User Interface.
3. Click Add. The Client ID is added to the Authorized Clients table.
4. Click OK for the changes to take effect. This client is now able to import data to the Paceart System.

4.7 CareLink Transmission Integration

The CareLink Transmission Integration options control how the Paceart Optima System receives transmissions from the CareLink Network through Mainspring Data Express.
• Configure the Remote Data Interface service to import patient session data from the CareLink Network upon request by the Paceart System.
The Remote Data Interface service allows patient session data to be imported from Carelink when requested from within the Paceart Optima System. This service also allows you to import historical transmissions from CareLink over the period you specify.
• Configure the Data Bridge Gateway service to export patient session data from the CareLink Network and import it into the Paceart Optima System.

4.7.1 Remote Data Interface

The Remote Data Interface allows you to configure the service that imports patient session data from remotesources, such as the Medtronic CareLink Network. You can start and stop the service, specify the polling interval, select the service’s auto start options, and configure the login information for remote follow-up services.
4.7.1.1 Configuring Remote Data Interface
1. To start Mainspring Data Express, go to Start > Programs > Medtronic Mainspring Data Express > Medtronic Mainspring Data Express.
2. In the Medtronic Mainspring Data Express window, select Remote Data Interface and click Configurations.
19
The Paceart Integration configuration window is displayed.
3. On the Remote Data Interface tab enter the applicable values for your implementation. Refer to the Section 4.7.1.2, Remote Data Interface Configuration Values, page 20 table for more explanation on the fields.
4. If you receive data from more than one remote system, you must have a separate Remote Data Interface configuration for each system. Click Add to create additional configurations for additional remote systems. You can create up to 5 configurations.
5. Click OK.
4.7.1.2 Remote Data Interface Configuration Values
This table explains the fields on the Remote Data Interface configuration tab.
Field name Explanation CareLink 1
Data Service The name of the service. The default value is "End-
point_CSA_basicHttpsBinding".
20
Field name Explanation
Data Service Site The URL to access the data service(s) of a specific system. For
CareLink, this is referred to as the Transmission Gateway Serv­ice.
System Account Name The account name used to connect to the CareLink system. This
account name is created and configured on the External Sys- tem Accounts tab on the CareLink website.
System Account Access Code The authorization code used to connect to the CareLink website.
This authorization code is configured on the External System Accounts tab on the CareLink website.
Manufacturer Name The manufacturer name of the data provided by a specific sys-
tem. For CareLink, this value is "Medtronic".
Application ID The name of the external system. For CareLink, this value is
"CareLink".
Encounter Type The type of data provided by a specific system. For CareLink, this
value is "Remote".
Clinic Request (Days of History) The value indicating how many days of history to request from the
external system. The default value is 7.
4.7.1.3 Enabling remote data acquisition in the Paceart System
After you have configured Remote Data Interface for Mainspring Data Express, you need to enable remotedata acquisition in the Paceart System.
1. Log in to the Paceart System.
2. Use the connectivity tools available in the Paceart System administration to set up remote encounter acquisition. You can enable remote encounter acquisition and set up nightly imports.
For instructions, refer to the Paceart Optima System online help or the Paceart Optima System Software User Manual.

4.7.2 Data Bridge Gateway

The CareLink Data Bridge Gateway allows you to export patient session data from the CareLink Network and import it into your Paceart Optima System.
When a CareLink Clinic Administrator enables the EHR Integration feature, an External System Account is created that has privileges to retrieve data for that clinic. These External System Account credentials are used by Mainspring Data Express to access the Data Bridge Gateway.
4.7.2.1 Enabling Data Bridge Gateway Integration in CareLink
Before you can configure the Data Bridge Gateway integration, you need to set up an external system account for Mainspring Data Express in the CareLink Network.
1. On the CareLink Network website, create an External System Account for Mainspring Data Express. For that External System Account, enable and configure the EHR Integration feature.
The EHR Integration feature in CareLink sets up the credentials needed for Mainspring Data Express to access the Data Bridge Gateway and retrieve patient session data.
2. On your network, install and configure the Mainspring Data Express software (install prerequisites first).
3. Enable and configure the Data Bridge Gateway feature in Mainspring Data Express.
4. Test your configuration by putting it into Test on the CareLink Network and export data. After you have tested your integration, move your configuration to Production on the CareLink Network.
4.7.2.2 Configuring Data Bridge Gateway
1. To start Mainspring Data Express, go to Start > Programs > Medtronic Mainspring Data Express > Medtronic Mainspring Data Express
2. In the Medtronic Mainspring Data Express window, select Data Bridge Gateway and click Configurations. The Paceart Integration configuration window is displayed.
3. On the CareLink DataBridge Gateway tab, enter the applicable values for your implementation. Refer to the Section 4.7.2.3, CareLink DataBridge Gateway Configuration Values, page 22 table for more explanation on the fields.
21
4. If you receive data from more than one remote CareLink Network system, you must have a separate DataBridge Gateway configuration for each system. Click Add to create additional configurations for additional remote systems. You can create up to 15 configurations.
5. Click OK.
4.7.2.3 CareLink DataBridge Gateway Configuration Values
This table explains the fields on the Data Bridge Gateway configuration tab.
Field Name Explanation Configuration 1
Description An optional field for entering the name of your configuration. Limit 15 configurations. Data Bridge Service The name of the CareLink Data Bridge service the adapter will use. The default is "End-
point_CSA_basicHttpsBinding"
Data Bridge Service Site The path of the CareLink Data Bridge Service site that the adapter will use.
• To connect in the US and Canada, select https://cl-emr.medtroniccarelink.net/DataBridgeGateway/DataBridgeGatewayService.svc
• To connect in Europe and Asia, select http://cl-emr.europe.medtroniccarelink.net/DataBridgeGateway/DataBridgeGatewayService.svc
External System Account Name
External System Account Authorization Code

4.7.3 Troubleshooting Data Bridge Gateway Integration

CareLink EHR Integration
• Verify that the Mainspring Data Express software prerequisites were installed or configured correctly.
• Verify that you selected the correct Data Bridge Service Site for your geography.
• Verify that the External System Account Name and External System Account Authorization Code match what was created in CareLink on the External System Accounts tab.
• Verify that you’ve selected True in the Use Specified Credentials field if the report destination requires you to enter a Windows username and password. Then verify that the Windows username and password were entered correctly in the Username and Password fields.
• Verify that the Connected Systems Gateway service was started.
The account name used to connect to the CareLink system. This account name is created and configured on the External System Accounts tab on the CareLink website.
The authorization code used to connect to the CareLink website. This authorization code is con­figured on the External System Accounts tab on the CareLink website.
Paceart Integration
• Verify the Paceart External System Account password associated with the Mainspring Data Express user.

4.8 Mainspring Health Interface

The Mainspring Health Interface allows you to configure the service that sends Mainspring health information to the Paceart Optima System. This information includes which Mainspring features are enabled, which of those enabled features are running and which of them are down, and Digital Certificate management messages.

4.8.1 Configuring Mainspring Health Interface

1. To start Mainspring Data Express, go to Start > Programs > Medtronic Mainspring Data Express > Medtronic Mainspring Data Express.
In the Medtronic Mainspring Data Express window, if any of the Paceart Integration features are enabled, the Mainspring Health Interface is also enabled.
2. Click Configurations. The Paceart Integration configuration window is displayed.
3. In the Mainspring Health Interface tab, enter the values for your configuration.
4. Click OK to close the Paceart Integration configuration window.

4.8.2 Mainspring Health Interface Configuration Values

This table explains the fields on the Mainspring Health Interface configuration tab.
22
Field Name Explanation
Mainspring Server Name This value is the name of the Windows machine that Mainspring is running on. The
default value is the machine’s short name.

5 CareLink Integration

5.1 About CareLink Integration

The CareLink Integration section of Mainspring Data Express has the following features:
• Report Export allows you to save CareLink Network reports to a network location.
• EHR Integration allows you to export patient data from the CareLink Network and integrate into your clinic’s Electronic Health Records (EHR) system.

5.2 CareLink Report Export

Reports can be exported from CareLink to an external system, like your clinic’s Electronic Health Records (EHR) system.
When the Report Export feature is enabled, you can use a default file naming format, or customize the filename format by adding an additional field. You must have full administrative privileges in CareLink to edit the filename format.
To export reports, Mainspring Data Express must be installed and configured, and a CareLink Network Connection between Mainspring Data Express and the CareLink Network must be established.
There is a process to install and configure the Report Export feature.
1. On the CareLink Network website, create an External System Account for Mainspring Data Express. Enable and configure the EHR Export feature with the Export Report feature with the Report Export option for that External System Account. For instructions, refer to the CareLink Network Online Help.
2. On your network, install and configure Mainspring Data Express (install prerequisites first).
3. Enable the Report Export feature in Mainspring Data Express.
4. On the CareLink website, export a report from CareLink and ensure that it arrives in the correct location.

5.2.1 Configuring CareLink Report Export

1. To start Mainspring Data Express, go to Start > Programs > Medtronic Mainspring Data Express > Medtronic Mainspring Data Express.
2. In the Medtronic Mainspring Data Express window, select Report Export and click Configurations.
23
The CareLink Report Export configuration window is displayed.
3. On the Configuration1 tab enter the applicable values for your CareLink implementation. Refer to the CareLink Report Export Configuration Values table for more explanation on the fields.
4. If you have satellite clinics in CareLink you must have a separate Report Export configuration for each clinic. Click Add to create additional configurations for other clinics.
24
5. Click OK.
25
5.2.1.1 CareLink Network Report Export Configuration Values
If you have satellite clinics in CareLink you must have a separate configuration for each clinic. Click Add to create additional configurations for other clinics. You may have up to 15 configurations. Each configuration must have a unique External System Account Name.
This table explains the fields on the CareLink Report Export configuration window.
Callout num­ber Field name Explanation
1 Description An optional field for entering the name of your configuration. Limit 15 configurations. 2 Data Bridge Service The name of the CareLink reporting service the adapter will use.
The default is "Endpoint_CSA_basicHttpsBinding".
3 Data Bridge Service Site The path of the CareLink Data Bridge Service site that the adapter will use.
• To connect in the US and Canada select "https://cl-emr.medtronicCareLink.net/DataBridgeGateway/
DataBridgeGatewayService.svc"
• To connect in Europe and Asia select "http://cl-emr.europe.medtronicCareLink.net/DataBridgeGateway/
DataBridgeGatewayService.svc"
4 External System Account
Name
The account name used to connect to the CareLink system. This account name is created and configured on the External System Accounts tab on the CareLink web- site.
5 External System Account
Authorization Code
The authorization code used to connect to the CareLink website. This authorization code is configured on the External System Accounts tab on the CareLink website.
6 File Folder Location The file destination path where CareLink PDF reports are exported. On the CareLink
website this is called the document folder. The file destination path can be specified as a UNC path (\\ComputerName\SharedFolder\Reports) or a mapped drive (z: \\com­puter\reports). Using a mapped drive allows you to use a shorter file name but the computer hosting Mainspring Data Express must have the network drive mapped to it.
7 Use Specified Credentials A "True" value indicates that the Windows Username and Password field values should
be used as authentication credentials when accessing the destination path. A "False"
26
Callout num­ber Field name Explanation
value indicates that a username and password are not required to access the desti­nation path. The default is "False".
8 Username When Use Specified Credentials is "True", this is the Windows username that will be
used when accessing the destination file system. The Windows username value should follow the UPN (User Principal Name) format username@domain. For example BSMITH@ENT.
9 Password When Use Specified Credentials is "True", this is the password associated to the Win-
dows Username that will be used when accessing the destination file system.
10 Overwrite Existing File(s) A "True" value indicates that the adapter will overwrite an existing file with a new file of
the same name. A "False" value indicates that the adapter will not overwrite an existing file with a new file of the same name. The default is "True".
11 Minimum Available Disk
Space

5.2.2 Enabling and Verifying Mainspring Report Export

After you install and configure Mainspring Report Export you need to enable the Report Export feature on the CareLink website.
1. Log into the CareLink website.
2. Click Manage My Clinic > Clinic Profile > External Systems Integration.
3. In the Report Export section, select Yes to enable report export. Note: You can configure the report filename. For more information on configuring the filename refer to the Editing Report
Filename for Report Export topic in the CareLink online Help.
4. Click Save.
5. After you have enabled the feature, export a sample report from CareLink.
6. Browse to the documentation folder location and verify that the sample report was successfully exported.
The minimum amount of free space in MB on the destination file system required for the adapter to initialize. The default is "15" MB.

5.2.3 Troubleshooting Report Export

CareLink Report Export
• Verify that the Mainspring Data Express software prerequisites were installed or configured correctly.
• Verify that you have selected the correct Data Bridge Service Site for your geography.
• Verify that the External System Account Name and External System Account Authorization Code match what was created in CareLink on the External System Accounts tab.
• Verify that you’ve selected True in the Use Specified Credentials field if the report destination requires you to enter a Windows username and password. Then verify that the Windows username and password were entered correctly in the Username and Password fields.
• Verify that the Connected Systems Gateway service was started.
Mainspring Report Export on CareLink
• Verify that you created an External System Account in CareLink.
• Verify that the created External System Account was configured to include Report Export external system associations.
• Verify that Report Export was enabled on the External System Integration tab of the CareLink website.
• Verify that the Report Export file naming format was configured as desired.

5.3 CareLink EHR Integration

CareLink EHR Integration allows you to export patient data from the CareLink Network and import it into your clinic’s Electronic Health Records (EHR) system. This feature uses Mirth Connect to route the data exported from the CareLink Network to your EHR.
There is a process to install and configure the Mainspring Report Export feature.
1. On the CareLink Network website, create an External System Account for Mainspring Data Express. For that External System Account enable and configure the EHR Integration feature.
2. On your network, install and configure the Mainspring Data Express software (install prerequisites first).
3. Enable the EHR Integration feature in Mainspring Data Express.
27
4. Install and configure the Mirth Connect software.
5. Test your configuration by putting it into Test on the CareLink Network and export data. After you have tested your integration, move your configuration to Production on the CareLink Network.

5.3.1 Configuring EHR Integration

1. To start Mainspring Data Express, go to Start > Programs > Medtronic Mainspring Data Express > Medtronic Mainspring Data Express.
2. In the Medtronic Mainspring Data Express window, select EHR Integration and click Configurations. The CareLink EHR Integration configuration window is displayed.
3. On the Configuration1 tab enter the applicable values for your CareLink implementation. Refer to the CareLink EHR Integration Configuration Values table for more explanation on the fields.
4. If you have satellite clinics in CareLink you must have a separate Report Export configuration for each clinic. Click Add to create additional configuration for other clinics.
5. Click OK. You will need to install and configure Mirth Connect.
5.3.1.1 CareLink EHR Integration Configuration Values
This table explains the fields on the CareLink EHR Integration configuration window.
28
Callout num­ber Field name Explanation
1 Description An optional field for entering the name of your configuration. Limit 15 configura-
tions.
2 Data Bridge Service The name of the CareLink Data Bridge service the adapter will use.
The default is "Endpoint_CSA_basicHttpsBinding"
3 Data Bridge Service Site The path of the CareLink Data Bridge Service site that the adapter will use.
• To connect in the US and Canada select https://cl-emr.medtronicCareLink.net/ DataBridgeGateway/
DataBridgeGatewayService.svc
• To connect in Europe and Asia select http://cl-emr.europe.medtronicCare­Link.net/DataBridgeGateway/
DataBridgeGatewayService.svc
4 External System Account
Name
The account name used to connect to the CareLink system. This account name is created and configured on the External System Accounts tab on the CareLink website.
5 External System Account
Authorization Code
The authorization code used to connect to the CareLink website. This authori­zation code is configured on the External System Accounts tab on the CareLink website.
6 Document Folder Location The file destination path where files will be written. On the CareLink website this
is called the document folder. The file destination path can be specified as a UNC path (\\ComputerName\SharedFolder\Reports) or a mapped drive (z:\\computer \reports). Using a mapped drive allows you to use a shorter file name but the computer hosting Mainspring Data Express must have the network drive mapped to it.
7 Use Specified Credentials A "True" value indicates that the Windows Username and Password field values
should be used as authentication credentials when accessing the destination path. A "False" value indicates that a username and password are not required to access the destination path. The default is "False".
29
Callout num­ber Field name Explanation
8 Username When Use Specified Credentials is "True", this is the Windows username that will
be used when accessing the destination file system. The Windows username value should follow the UPN (User Principal Name) format username@domain. For example BSMITH@ENT.
9 Password When Use Specified Credentials is "True", this is the password associated to the
Windows Username that will be used when accessing the destination file system.
10 Overwrite Existing File(s) A "True" value indicates that the adapter will overwrite an existing file with a new
file of the same name. A "False" value indicates that the adapter will not overwrite an existing file with a new file of the same name. The default is "True".
11 Minimum Available Disk
Space
12 Mirth Inbound Path Specifies a file system path where HL7 messages will be available for Mirth Con-
13 Mirth Error Path The file system path where Mirth is configured to write failed HL7 messages. 14 Minimum Available Disk
Space

5.3.2 Installing and configuring Mirth Connect

After you have installed the Mainspring Data Express software and selected the EHR Integration feature, you will need to install and configure Mirth Connect.
1. Browse to Resources\Mirth on the USB and double-click on mirthconnect-3.11.0.b2609-windows-x64.exe.
2. In the Welcome to the Mirth Connect Setup Wizard window, click Next.
3. If you are promted to select a location for Java, use the location that was noted when unzipping OpenJDK.
4. Read the license agreement, select I accept the agreement, and then click Next.
5. Select the destination directory and click Next.
6. Make sure all of the components are selected and then click Next.
7. Select the Start menu folder settings and then click Next.
8. Configure the network port settings and then click Next.
9. Configure your password requirements and then click Next.
10. Configure your server settings and then click Next.
11. Select Install service and then click Next.
12. Click Finish. Mirth Connect has been installed.
13. Open a text editor with administrator privileges.
a. Navigate to C:\Program Files\Mirth Connect and open the following files.
mcserver.vmoptions mcservice.vmoptions
b. Append the contents of C:\Program Files\Mirth Connect\docs\mcservice-java9+.vmoptions to the end of both files. c. In both files, modify the -Xmx option to 512m. d. Save and close both files.
14. In the system tray, right-click on the Mirth Connect Server Manager icon and select Show Manager.
The minimum amount of free space in MB on the destination file system required for the adapter to initialize. The default is "15" MB.
nect software to use.
The minimum amount of free space in MB on the file system specified in the Mirth Inbound Path field, required for the adapter to initialize. The default is "15" MB.
The Mirth Connect Server Manager is displayed.
15. In the Mirth Connect Server Manager, click Administrator.
16. If a Security Information dialog box appears, click Run.
17. In the Mirth Connect Login dialog box, in the Username field enter “admin” and in the Password field enter “admin”.
30
18. Click Login. The Welcome to Mirth Connect dialog box is displayed.
19. Create and enter a new username and password. Enter the other required information and then click Finish.
20. In the Mirth Connect Administrator window, click Channels.
21. In the Channel Tasks pane, click Import Channel. An Open dialog box is displayed.
22. Select the File to MLLP.xml file located at the default path of C:\Program Files\Medtronic\Connected Systems Gateway \MLLPSubsystem.
The Edit Channel window is displayed.
23. Click the Destinations tab.
24. Enter the Host Address and Host Port that the HL7 message should be sent to.
25. Click Save Changes.
26. In the Mirth Connect pane, click Channels.

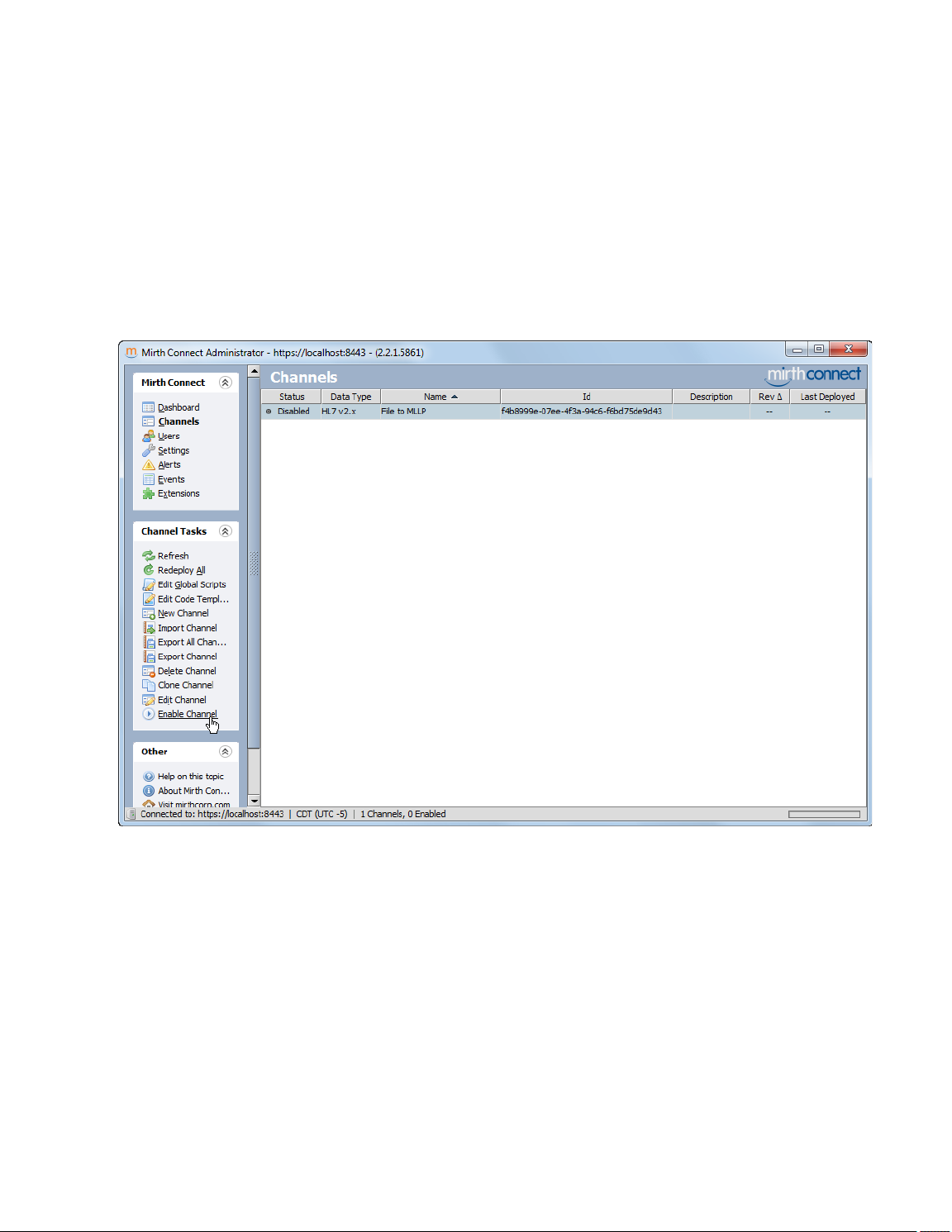

27. Click the File to MLLP channel in the Channels pane, and the click Enable Channel from the Channel Tasks pane.
The channel status is Enabled.
28. In the Channel Tasks pane, click Deploy Channel. The Dashboard shows that the File to MLLP status is “Started”.

5.3.3 Troubleshooting EHR Integration

CareLink EHR Integration
• Verify that the Mainspring Data Express software prerequisites were installed or configured correctly.
• Verify that you have selected the correct Data Bridge Service Site for your geography.
• Verify that the External System Account Name and External System Account Authorization Code match what was created
in CareLink on the External System Accounts tab.
• Verify that you’ve selected True in the Use Specified Credentials field if the report destination requires you to enter a Windows
username and password. Then verify that the Windows username and password were entered correctly in the Username and Password fields.
• Verify that the Connected Systems Gateway service was started.
Mirth Connect
31
• Verify that the File to MLLP status is “Started”.
• Verify that the Mirth Connect windows service status is “Started”.

6 HL7 Integration

6.1 About HL7 Integration

The Medtronic CareLink Network and the Paceart System support the HL7 protocol which allows those systems to integrate with your existing HL7-based Electronic Health Record (EHR) and Practice Management Systems. This allows you to import patient demographic information, scheduling information, and interrogated devicedata that conforms to the IHE IDCO profile into the Paceart System. And allows you to export transtelephonic, in-clinic, and remote encounter data from the Paceart System and CareLink to your EHR system.
If you want to integrate Merlin.net into your Paceart System, you can do so with an HL7 ORU message that conforms to the IDCO profile.
The information contained in this section assumes an understanding of the HL7 Message Specification and a working knowledge of the Paceart System.
The sections below reflect the latest supported mappings for Mainspring; including both IDCO 1.0 and 1.1 definitions. IDCO 1.0 is the IDCO profile defined in revision 3 of the Devices Technical Framework, and only includes version 1.0.0 terms of the IEEE 11073-10103 standard. IDCO 1.1 is an in-progress update that includes the proposed addition of version 1.1.0 terms in IEEE 11073-10103 standard. For a list of Mainspring mappings specific to IDCO 1.1, refer to Chapter 7, IDCO 1.1 Support, page 267.

6.2 Inbound Messages

The Paceart System integrates with the HL7 protocol for inbound messages from external systems to the Paceart System by mapping HL7 values to Paceart System parameters.

6.2.1 Inbound Patient Administration Messages (ADT)

The Medtronic Mainspring Data Express HL7 integration can receive demographic information from any system or interface engine that is using HL7 messaging. This feature allows for consistent patient demographic information across systems and reduces duplication of data entry.
The patient administration transaction set provides for the transmission of new or updated demographic information about patients. Information that is entered in a patient administration system can be passed to the Paceart System as an unsolicited HL7 message.
The Medtronic Mainspring Data Express HL7 integration supports a wide array of ADT trigger events to allow you to configure the HL7 integration to capture the desired changes to patient demographic information.
6.2.1.1 Table: Supported HL7 ADT Triggers
The Patient Add, Patient Update, or Patient Add-Update Paceart System requests can be configured for the A04, A08, and A28 messages. Patient Update is most often used.
HL7 Message Paceart Request
ADT^A04 Patient Add ADT^A08 Patient Update ADT^A28 Patient Add-Update ADT^A29 Patient Delete ADT^A47 Patient Change ID
6.2.1.2 Table: Patient Processing
Paceart Request Description
Patient Add Adds the patient to the Paceart System if there is no matching patient record found. Patient Update Updates the patient record if a single matching patient is found in the Paceart System. Patient Add-Update Adds the patient to the Paceart System if there is no matching patient record found. Updates
the patient record if a single matching patient is found in the Paceart System.
Patient Delete Deletes the patient from the Paceart System only if a single matching patient is found, and the
Paceart System patient record does not have any associated device, encounter, or appoint­ment.
Patient Change ID Changes the specified patient ID if a single matching patient is found.
32

6.2.2 Inbound Patient Administration Message Segments

6.2.2.1 PID - Patient Identification Segment
The PID segment provides important identification information about the patient and is used as the primary means of communicating the identifying and demographic information about a patient between systems.
Sub-compo-
Field Component
nent Occurrence Parameter Name Parameter Type Paceart values
PID-3* 1 N/A 1 Patient ID Value String 50 N/A PID-3* 5 N/A 1 Patient ID Type
String 50 N/A
Description PID-3 1 N/A 2..21 Patient ID Value String 50 N/A PID-3 5 N/A 2..21 Patient ID Type
String 50 N/A
Description PID-5* 1 1 1 Patient Last Name String 50 N/A PID-5 2 N/A 1 Patient First Name String 50 N/A PID-5 3 N/A 1 Patient Middle Ini-
String 1 N/A
tial PID-7 N/A N/A N/A Patient Date Of
DateTime N/A
Birth PID-8 N/A N/A N/A Patient Gender ENUM
a
F, Female, M, Male, O, Other, U, Unknown, A, Ambiguous, N, Not applicable
PID-11 1 N/A 1 Patient Address
String 50 N/A
Line 1
PID-11 2 N/A 1 Patient Address
String 50 N/A
Line 2
PID-11 3 N/A 1 Patient Address
String 50 N/A
City
PID-11 4 N/A 1 Patient Address
String 10 N/A
State
PID-11 5 N/A 1 Patient Address
String 10 N/A
Postal Code
PID-11 6 N/A 1 Patient Address
String 50 N/A
Country
PID-13 4 N/A 1 Patient Email
String 100 N/A
Address
PID-13 1 N/A N/A Patient Phone
String 20 N/A
Number
PID-14 1 N/A N/A Patient Phone
String 20 N/A
Number Other
PID-15 1 N/A N/A Patient Language ENUM English, French, Italian,
German, Spanish, Man­darin, Hindi, Arabic, Russian, Portuguese, Bengali, Malay Indone­sian, Japanese, Farsi Persianb, Urdu, Punjabi, Vietnamese, Tamil, Wu, Javanese, Turkish, Telugu, Korean, Mara­thi, Thai, Cantonese, Gujarati, Polish, Kan­nada, Burmese, Other
PID-16 1 N/A N/A Patient Marital
Status
ENUM
a
A, Separated, D, Divorced, M, Married, S, Single, W, Widowed, C, Common law, G, Living
33
Sub-compo-
Field Component
PID-29 1 N/A N/A Patient Date of
nent Occurrence Parameter Name Parameter Type Paceart values
DateTime N/A
Death
PID-30 1 N/A N/A Patient Death Indi-
ENUM N, Y
cator
a
Paceart values are not case-sensitive for Patient Gender and Patient Marital Status.
b
The HL7 value ’Persian’ is mapped to the Paceart value ’Farsi Persian’.
6.2.2.2 PDA - Patient Death and Autopsy
The PDA segment is used to communicate information about a patient’s death or autopsy.
Sub-compo-
Field Component
PDA-1 2 N/A 1 Patient Death
nent Occurrence Parameter Name Parameter Type Paceart values
String 250 N/A
Cause
6.2.2.3 PV1 - Patient Visit Information
The PV1 segment is used by registration applications to communicate information on a visit-specific basis.
together, P, Domestic partner, R, Registered domestic partner, E, Legally Separated, N, Annulled, I, Interlocu­tory, B, Unmarried, U, Unknown, O, Other, T, Unreported
Field Component Sub-component Occurrence
Parameter Name Parameter Type
Paceart val­ues
PV1-2 1 N/A N/A Patient Status String 1 N/A PV1-3 1 N/A N/A Patient Location
Reference_Only N/A
of Care
6.2.2.4 PV2 - Patient Visit Information
The PV2 segment is a continuation of visit-specific information contained in the PV1 segment.
Parameter
Field Component Sub-component Occurrence
PV2-7 1 N/A 1 Patient Code
Name Parameter Type Paceart values
String 6 N/A
Value 1
PV2-7 1 N/A 2 Patient Code
String 6 N/A
Value 2
PV2-7 1 N/A 3 Patient Code
String 6 N/A
Value 3
PV2-7 1 N/A 4 Patient Code
String 6 N/A
Value 4
6.2.2.5 MRG - Merge Patient Identification Segment
The MRG segment provides receiving applications with information necessary to update patient ID data.
Field Component Sub-component Occurrence
Parameter Name
Parameter Type Paceart values
MRG-1 1 N/A 1 Patient ID Value String 50 N/A MRG-1 5 N/A 1 Patient ID Type
String 50 N/A
Description
6.2.2.6 IN1 - Insurance Segment
The IN1 segment is used to communicate information about a patient’s insurance.
34
Sub- compo-
Field Component
IN1-3 N/A N/A N/A Insurance Com-
IN1-4 N/A N/A N/A Insurance Com-
IN1-8 N/A N/A N/A Patient Insur-
IN1-11 N/A N/A N/A Patient Insur-
IN1-12 N/A N/A N/A Patient Insur-
IN1-15 N/A N/A N/A Patient Insur-
IN1-16 N/A N/A N/A Patient Insur-
IN1-36 N/A N/A N/A Patient Insur-
IN1-49 N/A N/A N/A Patient Insur-
N/A N/A N/A N/A Patient Insur-
nent Occurrence
Parameter Name Parameter Type Paceart values
pany Code
pany Name
ance Policy Number
ance Policy Holder Employer
ance Effective Date
ance Type
ance Policy Holder Name
ance Policy Holder Certifi­cate Number
ance Policy Holder Social Security Number
ance Status
String 60 N/A
String 50 N/A
String 20 N/A
String 50 N/A
Date N/A
ENUM PRIMARY, SEC-
ONDARY, OTHER
String 50 N/A
String 20 N/A
String 11 N/A
ENUM ACTIVE, INAC-
TIVE

6.2.3 Inbound Scheduling Messages (SIU)

The Medtronic Mainspring Data Express HL7 integration can accept unsolicited schedule notification messages (SIU) from a scheduling filler application. The HL7 standard defines four roles that the system can assume in scheduling integration. The Paceart System operates as an Auxiliary application or an "interested third-party." This allows for existing scheduling systems to serve as the Filler application and to send schedule notification messages to the Paceart System. The Filler application is said to own the schedule for the specified resources meaning it is the authoritative source for scheduling information.
6.2.3.1 Supported Transaction Types
The schedule notification messages can be processed to not only create, delete, cancel, and modify appointments in the Paceart System, but also can be used to add or modify patient information. This allows for a patient to be added to the Paceart System based on their first appointment with a clinic.
Updating, rescheduling, deleting, or canceling, an appointment can only be performed as long as the appointment exists in Paceart.
A single matching Paceart System appointment for a single matching patient is said to exist if the Appointment External ID is the same as the Request Appointment External ID (matching appointment is found by ID) or there is an appointment with the same start date, time, and appointment type (matching appointment is found by start date, time, and type).
6.2.3.2 Table: Supported SIU Triggers
HL7 Message Paceart Request
SIU^S12 Add Appointment SIU^S13 Update Appointment SIU^S14 Add Update Appointment SIU^S15 Cancel Appointment SIU^S17 Delete Appointment
35
6.2.3.3 Table: Appointment Processing
Paceart Request Description
Add Appointment Creates a new appointment in the Paceart System if the appointment ID does not already exist in the Paceart
System. If the appointment does exist then no appointment will be added. Update Appointment Modifies the appointment in the Paceart System if the appointment ID already exists in the Paceart System. Add Update Appoint-
ment
Cancel Appointment Cancels/Removes the appointment in the Paceart System if the appointment ID already exists in the Paceart
Delete Appointment Deletes the appointment in the Paceart System if the appointment ID already exists in the Paceart System.

6.2.4 Inbound Scheduling Segments

The schedule notification message should contain information on what type of appointment has been booked. The information can be transformed in the message to map to one of the following values. If no encounter type information is available in the scheduling messages, the appointment will fail to add/update the Paceart System database.
In the following tables, required fields are marked with an * (asterisk).
6.2.4.1 SCH - Schedule Activity Information
The SCH segment contains general information about a scheduled appointment.
Field Component
SCH-1 1 N/A N/A Appointment ID String 75 N/A SCH-2* 1 N/A N/A Appointment ExternalIDString 75, cannot
SCH-8 1 N/A N/A Appointment Type ENUM INCLINIC, TTM,
SCH-9 N/A N/A N/A Appointment Duration TimeSpan(00:01,
SCH-11* 4 N/A N/A Appointment Start Date
Updates the appointment information in the Paceart System if the appointment exists in the Paceart System.
If the appointment does not exist in the Paceart System, then it creates a new appointment in the Paceart
System.
System.
Sub-compo­nent Occurrence Parameter Name Parameter Type Paceart values
N/A contain characters [, _, and %
REMOTE, MISCEL-
LANEOUS,
IMPLANT, PHONE-
NOTE
N/A
1.00:00) ENUM N/A
Time
6.2.4.2 NTE - Notes and Comments
The NTE segment is an optional segment used to provide notes and comments.
Field Component Sub-component Occurrence Parameter Name Parameter Type Paceart values
NTE-3 1 N/A 1 Appointment Comment String 255 N/A
6.2.4.3 PID - Patient Identification Segment
The PID segment provides important identification information about the patient and is used as the primary means of communicating the identifying and demographic information about a patient between systems.
Sub-compo-
Field Component
PID-3* 1 N/A 1 Patient ID Value String 50 N/A PID-3* 5 N/A 1 Patient ID Type
PID-3 1 N/A 2..21 Patient ID Value String 50 N/A PID-3 5 N/A 2..21 Patient ID Type
PID-5* 1 1 1 Patient Last Name String 50 N/A PID-5 2 N/A 1 Patient First Name String 50 N/A
nent Occurrence Parameter Name Parameter Type Paceart values
String 50 N/A
Description
String 50 N/A
Description
36
Sub-compo-
Field Component
PID-5 3 N/A 1 Patient Middle Ini-
nent Occurrence Parameter Name Parameter Type Paceart values
String 1 N/A
tial
PID-7 N/A N/A N/A Patient Date Of
DateTime N/A
Birth
PID-8 N/A N/A N/A Patient Gender ENUM
a
F, Female, M, Male, O, Other, U, Unknown, A, Ambiguous, N, Not applicable
PID-11 1 N/A 1 Patient Address
String 50 N/A
Line 1
PID-11 2 N/A 1 Patient Address
String 50 N/A
Line 2
PID-11 3 N/A 1 Patient Address
String 50 N/A
City
PID-11 4 N/A 1 Patient Address
String 10 N/A
State
PID-11 5 N/A 1 Patient Address
String 10 N/A
Postal Code
PID-11 6 N/A 1 Patient Address
String 50 N/A
Country
PID-13 4 N/A 1 Patient Email
String 100 N/A
Address
PID-13 1 N/A N/A Patient Phone
String 20 N/A
Number
PID-14 1 N/A N/A Patient Phone
String 20 N/A
Number Other
PID-15 1 N/A N/A Patient Language ENUM English, French, Italian,
German, Spanish, Man­darin, Hindi, Arabic, Russian, Portuguese, Bengali, Malay Indone­sian, Japanese, Farsi Persianb, Urdu, Punjabi, Vietnamese, Tamil, Wu, Javanese, Turkish, Telugu, Korean, Mara­thi, Thai, Cantonese, Gujarati, Polish, Kan­nada, Burmese, Other
PID-16 1 N/A N/A Patient Marital
Status
ENUM
a
A, Separated, D, Divorced, M, Married, S, Single, W, Widowed, C, Common law, G, Living together, P, Domestic partner, R, Registered domestic partner, E, Legally Separated, N, Annulled, I, Interlocu­tory, B, Unmarried, U, Unknown, O, Other, T, Unreported
PID-29 1 N/A N/A Patient Date of
DateTime N/A
Death
PID-30 1 N/A N/A Patient Death Indi-
ENUM N, Y
cator
a
Paceart values are not case-sensitive for Patient Gender and Patient Marital Status.
b
The HL7 value ’Persian’ is mapped to the Paceart value ’Farsi Persian’.
37
6.2.4.4 PV1 - Patient Visit Information
The PV1 segment is used by registration applications to communicate information on a visit-specific basis.
Parameter
Field Component Sub-component Occurrence
PV1-2 1 N/A N/A Patient Status String 1 N/A PV1-3 1 N/A N/A Patient Location
PV1-19 1 N/A N/A Appointment
6.2.4.5 PV2 - Patient Visit Information
The PV2 segment is a continuation of visit-specific information contained in the PV1 segment.
Field Component Sub-component Occurrence
PV2-7 1 N/A 1 Patient Code
PV2-7 1 N/A 2 Patient Code
PV2-7 1 N/A 3 Patient Code
PV2-7 1 N/A 4 Patient Code
6.2.4.6 AIG - General Resource Segment
The AIG segment contains information about various kinds of resources that can be scheduled.
Name Parameter Type
Reference_Only N/A
of Care
String 50 N/A
Visit ID
Parameter Name Parameter Type Paceart values
String 6 N/A
Value 1
String 6 N/A
Value 2
String 6 N/A
Value 3
String 6 N/A
Value 4
Paceart val­ues
Parameter
Field Component Sub-component Occurrence
AIG-3 1 N/A N/A Appointment

6.2.5 Inbound Observation Requests (ORU)

The ORU-R01 message transmits observations and results. Mainspring Data Express and the Paceart Optima System comply with the IDCO standard for how to use an HL7 ORU message for implantable cardiac device observations.
Table: Supported HL7 ORU Triggers
HL7 Message Paceart Request
ORU^R01 Transmission Data
Paceart Request Description
Transmission Data Sends transmission data from one system to another system.

6.2.6 Inbound Observation Request Segments

6.2.6.1 MSH - Message Header
The MSH segment is present in every HL7 message type and defines the message’s source, purpose, destination, and certain syntax specifics like delimiters (separator characters) and character sets.
Field Component Sub-component Occurrence Parameter Name
MSH-3 1 N/A N/A Sending Application ID String 100 N/A MSH-4 1 N/A N/A Sending Application SubIDString 100 N/A
Name Parameter Type
Reference_Only N/A
Resource
Parameter Type Paceart values
Paceartval­ues
6.2.6.2 PID - Patient Identification Segment
The PID segment provides important identification information about the patient and is used as the primarymeans of communicating the identifying and demographic information about a patient between systems.
38
Sub-compo-
Field Component
PID-3 1 N/A 1 Patient Device
PID-3 1 N/A 2.21 Patient ID
PID-3 4 N/A 1 Encounter
PID-3 5 N/A 2.21 Patient ID
PID-5 1 N/A 1 Patient Last
PID-5 2 N/A 1 Patient First
PID-5 3 N/A 1 Patient Middle
PID-7 N/A N/A 1 Patient Date
PID-8 N/A N/A N/A Patient Gen-
PID-11 1 N/A 1 Patient
PID-11 2 N/A 1 Patient
PID-11 3 N/A 1 Patient
PID-11 4 N/A 1 Patient
nent Occurrence
Parameter Name
Model and Serial Number
Value
Session Device Manu­facturer
Type Descrip­tion
Name
Name
Initial
Of Birth
der
Address Line 1
Address Line 2
Address City
Address State
Parameter Type Paceart values
String 100 N/A
String 50 N/A
ENUM MDC_IDC_ENUM_MFG_ANG
MDC_IDC_ENUM_MFG_APC MDC_IDC_ENUM_MFG_BIO MDC_IDC_ENUM_MFG_BSC MDC_IDC_ENUM_MFG_CCS MDC_IDC_ENUM_MFG_CIM MDC_IDC_ENUM_MFG_CPM MDC_IDC_ENUM_MFG_CKP MDC_IDC_ENUM_MFG_CATM MDC_IDC_ENUM_MFG_COR MDC_IDC_ENUM_MFG_ELA MDC_IDC_ENUM_MFG_GDT MDC_IDC_ENUM_MFG_IMC MDC_IDC_ENUM_MFG_MCO MDC_IDC_ENUM_MFG_MDT MDC_IDC_ENUM_MFG_OSC MDC_IDC_ENUM_MFG_PCS MDC_IDC_ENUM_MFG_SIE MDC_IDC_ENUM_MFG_SOR MDC_IDC_ENUM_MFG_SJM MDC_IDC_ENUM_MFG_TEL MDC_IDC_ENUM_MFG_VEN MDC_IDC_ENUM_MFG_VIT MDC_IDC_ENUM_MFG_ABT MDC_IDC_ENUM_MFG_MPT
String 50 N/A
String 50 N/A
String 50 N/A
String 1 N/A
DateTime N/A
ENUM F, f, M, m, O, o, U, u, A, a, N, n
String 50 N/A
String 50 N/A
String 50 N/A
String 10 N/A
39
Sub-compo-
Field Component
PID-11 5 N/A 1 Patient
PID-11 6 N/A 1 Patient
6.2.6.3 PV1 - Patient Visit Information
The PV1 segment is used by registration applications to communicate information on a visit-specific basis.
nent Occurrence
Parameter Name
Address Postal Code
Address Country
Parameter Type Paceart values
String 10 N/A
String 50 N/A
Sub-compo-
Field Component
PV1-2 1 N/A N/A Patient Status String 1 N/A PV1-19 1 N/A N/A Appointment
6.2.6.4 OBR - Observation Request
The OBR segment transmits information about an exam, diagnostic study/observation, or assessment that is specific to an order or result.
Field Component Sub-component Occurrence Parameter Name
OBR-3 1 N/A N/A Sending Application
OBR-4 1 N/A N/A Encounter Type ENUM IMPLANT, INCLINIC,
OBR-7 1 N/A N/A Encounter Date and
6.2.6.5 OBX - Observation Mapping
The OBX segment is primarily used to carry key clinical observation and result reporting information within report messages.
6.2.6.6 MDC_IDC_DEV
nent Occurrence
Event ID
Time
Parameter Name Parameter Type PaceartValues
String 50 N/A
Visit ID
Parameter Type Paceart values
String 100 N/A
REMOTE, TTM, PHO­NENOTE, MISC, PRO­GRAMMING
DateTime N/A
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 IDCO Supported Values OBX-5
720897 MDC_IDC_DEV
_TYPE
720898 MDC_IDC_DEV
_MODEL
720899 MDC_IDC_DEV
_SERIAL
720900 MDC_IDC_DEV
_MFG
753665^MDC_IDC_ENUM_PG_TYPE_IPG^MDC Device Type ENUM
753666^MDC_IDC_ENUM_PG_TYPE_ICD^MDC 753667^MDC_IDC_ENUM_PG_TYPE_CRT_D^MDC 753668^MDC_IDC_ENUM_PG_TYPE_CRT_P^MDC 753669^MDC_IDC_ENUM_PG_TYPE_Monitor^MDC N/A Device Model String 50
N/A Device Serial
753729^MDC_IDC_ENUM_MFG_ANGN^MDC Device Manufac-
753730^MDC_IDC_ENUM_MFG_APC^MDC 753731^MDC_IDC_ENUM_MFG_BIO^MDC 753732^MDC_IDC_ENUM_MFG_BSX^MDC 753733^MDC_IDC_ENUM_MFG_CCS^MDC 753734^MDC_IDC_ENUM_MFG_CIM^MDC
40
Name Parameter Type
Number
turer
String 20
ENUM
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 IDCO Supported Values OBX-5
753735^MDC_IDC_ENUM_MFG_CPM^MDC 753736^MDC_IDC_ENUM_MFG_CKP^MDC 753737^MDC_IDC_ENUM_MFG_CATM^MDC 753738^MDC_IDC_ENUM_MFG_COR^MDC 753739^MDC_IDC_ENUM_MFG_ELA^MDC 753740^MDC_IDC_ENUM_MFG_GDT^MDC 753741^MDC_IDC_ENUM_MFG_IMC^MDC 753742^MDC_IDC_ENUM_MFG_IMT^MDC 753743^MDC_IDC_ENUM_MFG_MCO^MDC 753744^MDC_IDC_ENUM_MFG_MDT^MDC 753745^MDC_IDC_ENUM_MFG_OSC^MDC 753746^MDC_IDC_ENUM_MFG_OSY^MDC 753747^MDC_IDC_ENUM_MFG_PCS^MDC 753748^MDC_IDC_ENUM_MFG_SIE^MDC 753749^MDC_IDC_ENUM_MFG_SOM^MDC 753750^MDC_IDC_ENUM_MFG_SOR^MDC 753751^MDC_IDC_ENUM_MFG_STJ^MDC 753752^MDC_IDC_ENUM_MFG_STO^MDC 753753^MDC_IDC_ENUM_MFG_TEL^MDC 753754^MDC_IDC_ENUM_MFG_VEN^MDC 753755^MDC_IDC_ENUM_MFG_VIT^MDC 753757^MDC_IDC_ENUM_MFG_ABT^MDC 753758^MDC_IDC_ENUM_MFG_MPT^MDC
Name Parameter Type
6.2.6.7 MDC_IDC_SESS
IDCO Paceart OBX
3-1 OBX 3-2 Supported Values (OBX 5)
721025MDC_IDC_SESS_DTM Encounter
721027MDC_IDC_SESS_
REPROGRAMMED
721026MDC_IDC_SESS_TYPE754052^MDC_IDC_SESS_TYPE_RemoteDeviceIniti-
755201^MDC_IDC_ENUM_SESS_REPROGRAMMED_ YES^MDC
755202^MDC_IDC_ENUM_SESS_REPROGRAMMED_ NO^MDC
755203^MDC_IDC_ENUM_SESS_REPROGRAMMED_ Unknown^MDC
ated^MDC
754053^MDC_IDC_SESS_TYPE_RemoteDeviceSched­uled^MDC
754054^MDC_IDC_SESS_TYPE_RemoteDevicePatientI­nitiated^MDC
Parameter Name Parameter Type
Session Time­stamp
Encounter Session Reprogram­med
Encounter Session Type Initiated
DateTime
NUM
ENUM
41
6.2.6.8 MDC_IDC_MSMT
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
721216 MDC_IDC_MSMT_BATTERY_DTM Encounter
721280 MDC_IDC_MSMT_BATTERY_STATUS 754113^MDC_IDC_ENUM_BATTERY_
STATUS_BOS^MDC 754114^MDC_IDC_ENUM_BATTERY_
STATUS_EOS^MDC 754115^MDC_IDC_ENUM_BATTERY_
STATUS_RRT^MDC 754116^MDC_IDC_ENUM_BATTERY_
STATUS_MOS^MDC 754117^MDC_IDC_ENUM_BATTERY_
STATUS_Unknown^MDC
721344 MDC_IDC_MSMT_BATTERY_VOLTAGE Encounter
721408 MDC_IDC_MSMT_BATTERY_IMPE-
DANCE
721472 MDC_IDC_MSMT_BATTERY_REMAIN-
ING_LONGEVITY
721536 MDC_IDC_MSMT_BATTERY_REMAIN-
ING_PERCENTAGE
721600 MDC_IDC_MSMT_BATTERY_RRT_TRIG-
GER
when 721856^MDC_IDC_MSMT_CAP_CHARGE_TYPE^MDC has OBX-5 value of 754177^MDC_IDC_ENUM_CHARGE_ TYPE_Shock^MDC
721664 MDC_IDC_MSMT_CAP_CHARGE_DTM Encounter
721728 MDC_IDC_MSMT_CAP_CHARGE_TIME Encounter
Name
Measured Device Battery Timestamp
Encounter Measured Device Battery Status
Measured Device Battery Voltage
Encounter Measured Device Battery Impedance
Encounter Measured Device Battery Remaining Longevity
Encounter Measured Device Battery Remaining Per­centage
Encounter Measured Device Battery Status RRT Trigger
Measured Device Capaci­tor Last Full Energy Charge Timestamp or Encounter Measured Device Capaci­tor Last Ther­apy Charge Timestamp
Measured Device Capaci­tor Last Full
Parame­ter Type
Date­Time
ENUM
Numeric
Numeric
Integer
Numeric
String 50
Date­Time
Numeric
42
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
721792 MDC_IDC_MSMT_CAP_CHARGE_
ENERGY
when 721856^MDC_IDC_MSMT_CAP_CHARGE_TYPE^MDC has OBX-5 value of 54177^MDC_IDC_ENUM_CHARGE_TYPE_ Reformation^MDC
721664 MDC_IDC_MSMT_CAP_CHARGE_DTM Encounter
721728 MDC_IDC_MSMT_CAP_CHARGE_TIME Encounter
721792 MDC_IDC_MSMT_CAP_CHARGE_
ENERGY
721856 MDC_IDC_MSMT_CAP_CHARGE_TYPE 754177^MDC_IDC_ENUM_CHARGE_
TYPE_Shock^MDC 754178^MDC_IDC_ENUM_CHARGE_
TYPE_Reformation^MDC 754179^MDC_IDC_ENUM_CHARGE_
TYPE_Unknown^MDC
721921 MDC_IDC_MSMT_LEADCHNL_RA_
DTM_START
721922 MDC_IDC_MSMT_LEADCHNL_RA_
DTM_END
Name
Energy Charge Interval or Encounter Measured Device Capaci­tor Last Ther­apy Charge Interval
Encounter Measured Device Capaci­tor Last Full Energy Charge or Encounter Measured Device Capaci­tor Last Ther­apy Charge Energy
Measured Device Capaci­tor Last Refor­mation Time­stamp
Measured Device Capaci­tor Last Refor­mation Interval
Encounter Measured Device Capaci­tor Last Refor­mation Energy
Encounter Measured Device Capaci­tor Charge Type
Encounter Measured Right Atrium Lead Low Power Channel Sensing Integrity Coun­ter Start Date
Encounter Measured Right Atrium Lead Low Power Channel Sensing
Parame­ter Type
Numeric
Date­Time
Numeric
Numeric
ENUM
Date­Time
Date­Time
43
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
Name
Integrity Coun­ter End Date
721925 MDC_IDC_MSMT_LEADCHNL_RV_
DTM_START
Encounter Measured Right Ventricle Lead Low Power Channel Sensing Integrity Coun­ter Start Date
721926 MDC_IDC_MSMT_LEADCHNL_RV_
DTM_END
Encounter Measured Right Ventricle Lead Low Power Channel Sensing Integrity Coun­ter End Date
721929 MDC_IDC_MSMT_LEADCHNL_LA_DTM_
START
721930 MDC_IDC_MSMT_LEADCHNL_LA_DTM_
END
721933 MDC_IDC_MSMT_LEADCHNL_LV_DTM_
START
Encounter Measured Left Ventricle Lead Low Power Channel Sens­ing Integrity Counter Start Date
721934 MDC_IDC_MSMT_LEADCHNL_LV_DTM_
END
Encounter Measured Left Ventricle Lead Low Power Channel Sens­ing Integrity Counter End Date
721984 MDC_IDC_MSMT_LEADCHNL_RA_
LEAD_CHANNEL_STATUS
754241^MDC_IDC_ENUM_CHANNEL_ STATUS_CheckLead^MDC
754242^MDC_IDC_ENUM_CHANNEL_ STATUS_Null^MDC
Encounter Measured Right Atrium Lead Low Power Channel Status
721985 MDC_IDC_MSMT_LEADCHNL_RV_
LEAD_CHANNEL_STATUS
754241^MDC_IDC_ENUM_CHANNEL_ STATUS_CheckLead^MDC
754242^MDC_IDC_ENUM_CHANNEL_ STATUS_Null^MDC
Encounter Measured Right Ventricle Lead Low Power Channel Status
721986 MDC_IDC_MSMT_LEADCHNL_LA_
LEAD_CHANNEL_STATUS
754241^MDC_IDC_ENUM_CHANNEL_ STATUS_CheckLead^MDC
754242^MDC_IDC_ENUM_CHANNEL_ STATUS_Null^MDC
Parame­ter Type
Date­Time
Date­Time
Date­Time
Date­Time
Date­Time
Date­Time
ENUM
ENUM
ENUM
44
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
721987 MDC_IDC_MSMT_LEADCHNL_LV_
LEAD_CHANNEL_STATUS
754241^MDC_IDC_ENUM_CHANNEL_ STATUS_CheckLead^MDC
754242^MDC_IDC_ENUM_CHANNEL_ STATUS_Null^MDC
Name
Encounter Measured Left Ventricle Lead Low Power Channel Status
722048 MDC_IDC_MSMT_LEADCHNL_RA_
SENSING_INTR_AMPL
722049 MDC_IDC_MSMT_LEADCHNL_RA_
SENSING_INTR_AMPL_MAX
722050 MDC_IDC_MSMT_LEADCHNL_RA_
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Amplitude
SENSING_INTR_AMPL_MIN
722051 MDC_IDC_MSMT_LEADCHNL_RA_
SENSING_INTR_AMPL_MEAN
722052 MDC_IDC_MSMT_LEADCHNL_RV_
SENSING_INTR_AMPL
722053 MDC_IDC_MSMT_LEADCHNL_RV_
SENSING_INTR_AMPL_MAX
722054 MDC_IDC_MSMT_LEADCHNL_RV_
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Amplitude
SENSING_INTR_AMPL_MIN
722055 MDC_IDC_MSMT_LEADCHNL_RV_
SENSING_INTR_AMPL_MEAN
722056 MDC_IDC_MSMT_LEADCHNL_LA_
SENSING_INTR_AMPL
722057 MDC_IDC_MSMT_LEADCHNL_LA_
SENSING_INTR_AMPL_MAX
722058 MDC_IDC_MSMT_LEADCHNL_LA_
SENSING_INTR_AMPL_MIN
722059 MDC_IDC_MSMT_LEADCHNL_LA_
SENSING_INTR_AMPL_MEAN
722060 MDC_IDC_MSMT_LEADCHNL_LV_
SENSING_INTR_AMPL
722061 MDC_IDC_MSMT_LEADCHNL_LV_
SENSING_INTR_AMPL_MAX
722062 MDC_IDC_MSMT_LEADCHNL_LV_
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Amplitude
SENSING_INTR_AMPL_MIN
722063 MDC_IDC_MSMT_LEADCHNL_LV_
SENSING_INTR_AMPL_MEAN
722112 MDC_IDC_MSMT_LEADCHNL_RA_
SENSING_POLARITY
722113 MDC_IDC_MSMT_LEADCHNL_RV_
SENSING_POLARITY
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
Encounter Measured Right Atrium Lead Sensing Threshold Polarity
Encounter Measured Right Ventricle Lead Sensing Threshold Polarity
Parame­ter Type
ENUM
Numeric
Numeric
Numeric
Numeric
ENUM
ENUM
45
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
722114 MDC_IDC_MSMT_LEADCHNL_LA_
SENSING_POLARITY
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
Name
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
722115 MDC_IDC_MSMT_LEADCHNL_LV_
SENSING_POLARITY
722176 MDC_IDC_MSMT_LEADCHNL_RA_PAC-
ING_THRESHOLD_AMPLITUDE
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
Encounter Measured Left Ventricle Lead Sensing Threshold Polarity
Encounter Measured Right Atrium Lead Capture Threshold Amplitude
722177 MDC_IDC_MSMT_LEADCHNL_RV_PAC-
ING_THRESHOLD_AMPLITUDE
Encounter Measured Right Ventricle Lead Capture Threshold Amplitude
722178 MDC_IDC_MSMT_LEADCHNL_LA_PAC-
ING_THRESHOLD_AMPLITUDE
722179 MDC_IDC_MSMT_LEADCHNL_LV_PAC-
ING_THRESHOLD_AMPLITUDE
Encounter Measured Left Ventricle Lead Capture Threshold Amplitude
722240 MDC_IDC_MSMT_LEADCHNL_RA_PAC-
ING_THRESHOLD_PULSEWIDTH
Encounter Measured Right Atrium Lead Capture Threshold Duration
722241 MDC_IDC_MSMT_LEADCHNL_RV_PAC-
ING_THRESHOLD_PULSEWIDTH
Encounter Measured Right Ventricle Lead Capture Threshold Duration
722242 MDC_IDC_MSMT_LEADCHNL_LA_PAC-
ING_THRESHOLD_PULSEWIDTH
722243 MDC_IDC_MSMT_LEADCHNL_LV_PAC-
ING_THRESHOLD_PULSEWIDTH
Encounter Measured Left Ventricle Lead Capture Threshold Duration
Parame­ter Type
ENUM
ENUM
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
46
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
722304 MDC_IDC_MSMT_LEADCHNL_RA_PAC-
ING_THRESHOLD_MEASUREMENT_ METHOD
754369^MDC_IDC_ENUM_MEASURE­MENT_METHOD_ProgrammerMa­nual^MDC
754370^MDC_IDC_ENUM_MEASURE­MENT_METHOD_ProgrammerAuto­matic^MDC
754371^MDC_IDC_ENUM_MEASURE-
Name
Encounter Measured Right Atrium Lead Capture Threshold Measurement Method
MENT_METHOD_DeviceAutomatic^MDC
722305 MDC_IDC_MSMT_LEADCHNL_RV_PAC-
ING_THRESHOLD_MEASUREMENT_ METHOD
754369^MDC_IDC_ENUM_MEASURE­MENT_METHOD_ProgrammerMa­nual^MDC
754370^MDC_IDC_ENUM_MEASURE­MENT_METHOD_ProgrammerAuto­matic^MDC
754371^MDC_IDC_ENUM_MEASURE-
Encounter Measured Right Ventricle Lead Capture Threshold Measurement Method
MENT_METHOD_DeviceAutomatic^MDC
722306 MDC_IDC_MSMT_LEADCHNL_LA_PAC-
ING_THRESHOLD_MEASUREMENT_ METHOD
754369^MDC_IDC_ENUM_MEASURE­MENT_METHOD_ProgrammerMa­nual^MDC
754370^MDC_IDC_ENUM_MEASURE­MENT_METHOD_ProgrammerAuto­matic^MDC
754371^MDC_IDC_ENUM_MEASURE­MENT_METHOD_DeviceAutomatic^MDC
722307 MDC_IDC_MSMT_LEADCHNL_LV_PAC-
ING_THRESHOLD_MEASUREMENT_ METHOD
754369^MDC_IDC_ENUM_MEASURE­MENT_METHOD_ProgrammerMa­nual^MDC
754370^MDC_IDC_ENUM_MEASURE­MENT_METHOD_ProgrammerAuto­matic^MDC
754371^MDC_IDC_ENUM_MEASURE-
Encounter Measured Left Ventricle Lead Capture Threshold Measurement Method
MENT_METHOD_DeviceAutomatic^MDC
722368 MDC_IDC_MSMT_LEADCHNL_RA_PAC-
ING_THRESHOLD_POLARITY
722369 MDC_IDC_MSMT_LEADCHNL_RV_PAC-
ING_THRESHOLD_POLARITY
722370 MDC_IDC_MSMT_LEADCHNL_LA_PAC-
ING_THRESHOLD_POLARITY
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
Encounter Measured Right Atrium Lead Capture Threshold Polarity
Encounter Measured Right Ventricle Lead Capture Threshold Polarity
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
Parame­ter Type
ENUM
ENUM
ENUM
ENUM
ENUM
ENUM
ENUM
47
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
722371 MDC_IDC_MSMT_LEADCHNL_LV_PAC-
ING_THRESHOLD_POLARITY
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
722432 MDC_IDC_MSMT_LEADCHNL_RA_
IMPEDANCE_VALUE
Name
Encounter Measured Left Ventricle Lead Capture Threshold Polarity
Encounter Measured Right Atrium Lead Low Power Channel Impedance Measurement Value
722433 MDC_IDC_MSMT_LEADCHNL_RV_
IMPEDANCE_VALUE
Encounter Measured Right Ventricle Lead Low Power Channel Impedance Measurement Value
722434 MDC_IDC_MSMT_LEADCHNL_LA_IMPE-
DANCE_VALUE
722435 MDC_IDC_MSMT_LEADCHNL_LV_IMPE-
DANCE_VALUE
Encounter Measured Left Ventricle Lead Low Power Channel Impe­dance Meas­urement Value
722496 MDC_IDC_MSMT_LEADCHNL_RA_
IMPEDANCE_POLARITY
722497 MDC_IDC_MSMT_LEADCHNL_RV_
IMPEDANCE_POLARITY
722498 MDC_IDC_MSMT_LEADCHNL_LA_IMPE-
DANCE_POLARITY
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
Encounter Measured Right Atrium Lead Low Power Channel Impedance Polarity
Encounter Measured Right Ventricle Lead Low Power Channel Impedance Polarity
? ENUM
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
Parame­ter Type
ENUM
Numeric
Numeric
Numeric
Numeric
ENUM
ENUM
48
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
722499 MDC_IDC_MSMT_LEADCHNL_LV_IMPE-
DANCE_POLARITY
754305^MDC_IDC_ENUM_POLARITY_ UNI^MDC
754306^MDC_IDC_ENUM_POLARITY_ BI^MDC
754307^MDC_IDC_ENUM_POLARITY_ Unknown^MDC
Name
Encounter Measured Left Ventricle Lead Low Power Channel Impe­dance Polarity
722560 MDC_IDC_MSMT_LEADHVCHNL_DTM Encounter
Measured Right Ventricle Lead High Power Channel Impedance Start Date
722561 MDC_IDC_MSMT_LEADHVCHNL_DTM_
START
Encounter Measured Right Ventricle Lead High Power Channel Impedance Start Date
722562 MDC_IDC_MSMT_LEADHVCHNL_DTM_
END
Encounter Measured Right Ventricle Lead High Power Channel Impedance End Date
722624 MDC_IDC_MSMT_LEADHVCHNL_IMPE-
DANCE
Encounter Measured Right Ventricle Lead High Power Channel Impedance Measurement Value
Parame­ter Type
ENUM
Date­Time
Date­Time
Date­Time
Numeric
6.2.6.9 Table: MDC_IDC_SET
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
729344 MDC_IDC_SET_CRT_LVRV_
DELAY
Name
Encounter Programmed VV Delay
729408 MDC_IDC_SET_CRT_
PACED_CHAMBERS
729536 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ SENSITIVITY
755265^MDC_IDC_ENUM_CRT_PACED_CHAMBERS_ RV_ Only^MDC 755266^MDC_IDC_ENUM_CRT_PACED_CHAMBERS_ LV_ Only^MDC 755267^MDC_IDC_ENUM_CRT_PACED_CHAMBERS_ BiV^MDC
Encounter Programmed Heart Failure Ventricular Pacing Con­figuration
Encounter Programmed Bradycardia Right Atrium Sensing Amplitude
49
Parame­ter Type
Numeric
ENUM
Numeric
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
729600 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ POLARITY
729920 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ ADAPTATION_MODE
729664 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ ANODE_LOCATION
729665 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ ANODE_LOCATION_1
729666 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ ANODE_LOCATION_2
729667 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ ANODE_LOCATION_3
729792 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ CATHODE_LOCATION
729793 MDC_IDC_SET_
LEADCHNL_RA_SENS­ING_CATHODE_LOCA­TION_1
729794 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ CATHODE_LOCATION_2
729795 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ CATHODE_LOCATION_3
754305^MDC_IDC_ENUM_POLARITY_UNI^MDC 754306^MDC_IDC_ENUM_POLARITY_BI^MDC
754625^MDC_IDC_ENUM_SENSING_ADAPTATION_ MODE_AdaptiveSensing^MDC 754626^MDC_IDC_ENUM_SENSING_ADAPTATION_ MODE_FixedPacing^MDC
754497^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RA^MDC 754498^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RV^MDC 754499^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LA^MDC 754500^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LV^MDC 754501^MDC_IDC_ENUM_ELECTRODE_LOCATION_ SVC^MDC 754503^MDC_IDC_ENUM_ELECTRODE_LOCATION_ Unknown^MDC
Name
Encounter Programmed Bradycardia Right Atrium Sensing Polarity
Encounter Programmed Bradycardia Right Atrium Sensing Amplitude Adaptation Mode
Encounter Programmed Bradycardia Right Atrium Sensing Pathway Location
Parame­ter Type
ENUM
ENUM
ENUM
50
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
729728 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ ANODE_ELECTRODE
729729 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ ANODE_ELECTRODE_1
729730 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ ANODE_ELECTRODE_2
729731 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ ANODE_ELECTRODE_3
729856 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ CATHODE_ELECTRODE
729857 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ CATHODE_ELECTRODE_1
729858 MDC_IDC_SET_
754561^MDC_IDC_ENUM_ELECTRODE_NAME_ Tip^MDC 754562^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring^MDC 754563^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring1^MDC 754564^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring2^MDC 754565^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring3^MDC 754566^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring4^MDC 754567^MDC_IDC_ENUM_ELECTRODE_NAME_ Coil^MDC 754568^MDC_IDC_ENUM_ELECTRODE_NAME_Sub­QPatch^MDC 754569^MDC_IDC_ENUM_ELECTRODE_NAME_ Can^MDC 754580^MDC_IDC_ENUM_ELECTRODE_NAME_ Unknown^MDC
Name
Encounter Programmed Bradycardia Right Atrium Sensing Pathway Electrode
LEADCHNL_RA_SENSING_ CATHODE_ELECTRODE_2
729859 MDC_IDC_SET_
LEADCHNL_RA_SENSING_ CATHODE_ELECTRODE_3
729537 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ SENSITIVITY
Encounter Programmed Bradycardia Right Ventri­cle Sensing Amplitude
729601 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ POLARITY
754305^MDC_IDC_ENUM_POLARITY_UNI^MDC 754306^MDC_IDC_ENUM_POLARITY_BI^MDC
Encounter Programmed Bradycardia Right Ventri­cle Sensing Polarity
729921 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ ADAPTATION_MODE
754625^MDC_IDC_ENUM_SENSING_ADAPTATION_ MODE_AdaptiveSensing^MDC 754626^MDC_IDC_ENUM_SENSING_ADAPTATION_ MODE_FixedPacing^MDC
Encounter Programmed Bradycardia Right Ventri­cle Sensing Amplitude Adaptation Mode
Parame­ter Type
ENUM
Numeric
ENUM
ENUM
51
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
729668 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ ANODE_LOCATION
729669 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ ANODE_LOCATION_1
729670 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ ANODE_LOCATION_2
729671 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ ANODE_LOCATION_3
754497^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RA^MDC 754498^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RV^MDC 754499^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LA^MDC 754500^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LV^MDC 754501^MDC_IDC_ENUM_ELECTRODE_LOCATION_ SVC^MDC 754503^MDC_IDC_ENUM_ELECTRODE_LOCATION_ Unknown^MDC
Name
Encounter Programmed Bradycardia Right Ventri­cle Sensing Pathway Location
729796 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ CATHODE_LOCATION
729797 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ CATHODE_LOCATION_1
729798 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ CATHODE_LOCATION_2
729799 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ CATHODE_LOCATION_3
729732 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ ANODE_ELECTRODE
729733 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ ANODE_ELECTRODE_1
729734 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ ANODE_ELECTRODE_2
729735 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ ANODE_ELECTRODE_3
729860 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ CATHODE_ELECTRODE
729861 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ CATHODE_ELECTRODE_1
729862 MDC_IDC_SET_
754561^MDC_IDC_ENUM_ELECTRODE_NAME_ Tip^MDC 754562^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring^MDC 754563^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring1^MDC 754564^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring2^MDC 754565^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring3^MDC 754566^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring4^MDC 754567^MDC_IDC_ENUM_ELECTRODE_NAME_ Coil^MDC 754568^MDC_IDC_ENUM_ELECTRODE_NAME_Sub­QPatch^MDC 754569^MDC_IDC_ENUM_ELECTRODE_NAME_ Can^MDC 754580^MDC_IDC_ENUM_ELECTRODE_NAME_ Unknown^MDC
Encounter Programmed Bradycardia Right Ventri­cle Sensing Pathway Electrode
LEADCHNL_RV_SENSING_ CATHODE_ELECTRODE_2
729863 MDC_IDC_SET_
LEADCHNL_RV_SENSING_ CATHODE_ELECTRODE_3
729538 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ SENSITIVITY
Encounter Programmed Bradycardia Left Atrium Sensing Amplitude
Parame­ter Type
ENUM
ENUM
Numeric
52
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
729602 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ POLARITY
729922 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ ADAPTATION_MODE
729672 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ ANODE_LOCATION
729673 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ ANODE_LOCATION_1
729674 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ ANODE_LOCATION_2
729675 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ ANODE_LOCATION_3
729800 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ CATHODE_LOCATION
729801 MDC_IDC_SET_
LEADCHNL_LA_SENS­ING_CATHODE_LOCA­TION_1
729802 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ CATHODE_LOCATION_2
729803 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ CATHODE_LOCATION_3
754305^MDC_IDC_ENUM_POLARITY_UNI^MDC 754306^MDC_IDC_ENUM_POLARITY_BI^MDC
754625^MDC_IDC_ENUM_SENSING_ADAPTATION_ MODE_AdaptiveSensing^MDC 754626^MDC_IDC_ENUM_SENSING_ADAPTATION_ MODE_FixedPacing^MDC
754497^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RA^MDC 754498^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RV^MDC 754499^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LA^MDC 754500^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LV^MDC 754501^MDC_IDC_ENUM_ELECTRODE_LOCATION_ SVC^MDC 754503^MDC_IDC_ENUM_ELECTRODE_LOCATION_ Unknown^MDC
Name
Encounter Programmed Bradycardia Left Atrium Sensing Polarity
Encounter Programmed Bradycardia Left Atrium Sensing Amplitude Adaptation Mode
Encounter Programmed Bradycardia Left Atrium Sensing Pathway Location
Parame­ter Type
ENUM
ENUM
ENUM
53
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
729736 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ ANODE_ELECTRODE
729737 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ ANODE_ELECTRODE_1
729738 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ ANODE_ELECTRODE_2
729739 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ ANODE_ELECTRODE_3
729864 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ CATHODE_ELECTRODE
729865 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ CATHODE_ELECTRODE_1
729866 MDC_IDC_SET_
754561^MDC_IDC_ENUM_ELECTRODE_NAME_ Tip^MDC 754562^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring^MDC 754563^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring1^MDC 754564^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring2^MDC 754565^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring3^MDC 754566^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring4^MDC 754567^MDC_IDC_ENUM_ELECTRODE_NAME_ Coil^MDC 754568^MDC_IDC_ENUM_ELECTRODE_NAME_Sub­QPatch^MDC 754569^MDC_IDC_ENUM_ELECTRODE_NAME_ Can^MDC 754580^MDC_IDC_ENUM_ELECTRODE_NAME_ Unknown^MDC
Name
Encounter Programmed Bradycardia Left Atrium Sensing Pathway Electrode
LEADCHNL_LA_SENSING_ CATHODE_ELECTRODE_2
729867 MDC_IDC_SET_
LEADCHNL_LA_SENSING_ CATHODE_ELECTRODE_3
729539 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ SENSITIVITY
Encounter Programmed Bradycardia Left Ventricle Sensing Amplitude
729603 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ POLARITY
754305^MDC_IDC_ENUM_POLARITY_UNI^MDC 754306^MDC_IDC_ENUM_POLARITY_BI^MDC
Encounter Programmed Bradycardia Right Ventri­cle Sensing Polarity
729923 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ ADAPTATION_MODE
754625^MDC_IDC_ENUM_SENSING_ADAPTATION_ MODE_AdaptiveSensing^MDC 754626^MDC_IDC_ENUM_SENSING_ADAPTATION_ MODE_FixedPacing^MDC
Encounter Programmed Bradycardia Left Ventricle Sensing Amplitude Adaptation Mode
Parame­ter Type
ENUM
Numeric
ENUM
ENUM
54
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
729676 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ ANODE_LOCATION
729677 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ ANODE_LOCATION_1
729678 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ ANODE_LOCATION_2
729679 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ ANODE_LOCATION_3
754497^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RA^MDC 754498^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RV^MDC 754499^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LA^MDC 754500^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LV^MDC 754501^MDC_IDC_ENUM_ELECTRODE_LOCATION_ SVC^MDC 754503^MDC_IDC_ENUM_ELECTRODE_LOCATION_ Unknown^MDC
Name
Encounter Programmed Bradycardia Left Ventricle Sensing Pathway Location
729804 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ CATHODE_LOCATION
729805 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ CATHODE_LOCATION_1
729806 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ CATHODE_LOCATION_2
729807 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ CATHODE_LOCATION_3
729740 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ ANODE_ELECTRODE
729741 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ ANODE_ELECTRODE_1
729742 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ ANODE_ELECTRODE_2
729743 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ ANODE_ELECTRODE_3
729868 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ CATHODE_ELECTRODE
729869 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ CATHODE_ELECTRODE_1
729870 MDC_IDC_SET_
754561^MDC_IDC_ENUM_ELECTRODE_NAME_ Tip^MDC 754562^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring^MDC 754563^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring1^MDC 754564^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring2^MDC 754565^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring3^MDC 754566^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring4^MDC 754567^MDC_IDC_ENUM_ELECTRODE_NAME_ Coil^MDC 754568^MDC_IDC_ENUM_ELECTRODE_NAME_Sub­QPatch^MDC 754569^MDC_IDC_ENUM_ELECTRODE_NAME_ Can^MDC 754580^MDC_IDC_ENUM_ELECTRODE_NAME_ Unknown^MDC
Encounter Programmed Bradycardia Left Ventricle Sensing Pathway Electrode
LEADCHNL_LV_SENSING_ CATHODE_ELECTRODE_2
729871 MDC_IDC_SET_
LEADCHNL_LV_SENSING_ CATHODE_ELECTRODE_3
729984 MDC_IDC_SET_
LEADCHNL_RA_PACING_ AMPLITUDE
Encounter Programmed Bradycardia Right Atrium Pacing Amplitude
Parame­ter Type
ENUM
ENUM
Numeric
55
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
730048 MDC_IDC_SET_
LEADCHNL_RA_PACING_ PULSEWIDTH
Name
Encounter Programmed Bradycardia Right Atrium Pacing Pulse Width
730112 MDC_IDC_SET_
LEADCHNL_RA_PACING_ POLARITY
754305^MDC_IDC_ENUM_POLARITY_UNI^MDC 754306^MDC_IDC_ENUM_POLARITY_BI^MDC
Encounter Programmed Bradycardia Right Atrium Pacing Polar­ity
730432 MDC_IDC_SET_
LEADCHNL_RA_PACING_ CAPTURE_MODE
754689^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ AdaptiveCapture^MDC 754690^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ FixedPacing^MDC 754691^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ MonitorCapture^MDC
Encounter Programmed Bradycardia Right Atrium Pacing Adaptation Mode
730176 MDC_IDC_SET_
LEADCHNL_RA_PACING_ ANODE_LOCATION
730177 MDC_IDC_SET_
LEADCHNL_RA_PACING_ ANODE_LOCATION_1
730178 MDC_IDC_SET_
LEADCHNL_RA_PACING_ ANODE_LOCATION_2
730179 MDC_IDC_SET_
LEADCHNL_RA_PACING_ ANODE_LOCATION_3
754497^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RA^MDC 754498^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RV^MDC 754499^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LA^MDC 754500^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LV^MDC 754501^MDC_IDC_ENUM_ELECTRODE_LOCATION_ SVC^MDC 754503^MDC_IDC_ENUM_ELECTRODE_LOCATION_ Unknown^MDC
Encounter Programmed Bradycardia Right Atrium Pacing Path­way Location
730304 MDC_IDC_SET_
LEADCHNL_RA_PACING_ CATHODE_LOCATION
730305 MDC_IDC_SET_
LEADCHNL_RA_PACING_ CATHODE_LOCATION_1
730306 MDC_IDC_SET_
LEADCHNL_RA_PACING_ CATHODE_LOCATION_2
730307 MDC_IDC_SET_
LEADCHNL_RA_PACING_ CATHODE_LOCATION_3
Parame­ter Type
Numeric
ENUM
ENUM
ENUM
56
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
730240 MDC_IDC_SET_
LEADCHNL_RA_PACING_ ANODE_ELECTRODE
730241 MDC_IDC_SET_
LEADCHNL_RA_PACING_ ANODE_ELECTRODE_1
730242 MDC_IDC_SET_
LEADCHNL_RA_PACING_ ANODE_ELECTRODE_2
730243 MDC_IDC_SET_
LEADCHNL_RA_PACING_ ANODE_ELECTRODE_3
730368 MDC_IDC_SET_
LEADCHNL_RA_PACING_ CATHODE_ELECTRODE
730369 MDC_IDC_SET_
LEADCHNL_RA_PACING_ CATHODE_ELECTRODE_1
730370 MDC_IDC_SET_
754561^MDC_IDC_ENUM_ELECTRODE_NAME_ Tip^MDC 754562^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring^MDC 754563^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring1^MDC 754564^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring2^MDC 754565^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring3^MDC 754566^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring4^MDC 754567^MDC_IDC_ENUM_ELECTRODE_NAME_ Coil^MDC 754568^MDC_IDC_ENUM_ELECTRODE_NAME_Sub­QPatch^MDC 754569^MDC_IDC_ENUM_ELECTRODE_NAME_ Can^MDC 754580^MDC_IDC_ENUM_ELECTRODE_NAME_ Unknown^MDC
Name
Encounter Programmed Bradycardia Right Atrium Pacing Path­way Elec­trode
LEADCHNL_RA_PACING_ CATHODE_ELECTRODE_2
730371 MDC_IDC_SET_
LEADCHNL_RA_PACING_ CATHODE_ELECTRODE_3
729985 MDC_IDC_SET_
LEADCHNL_RV_PACING_ AMPLITUDE
Encounter Programmed Bradycardia Right Ventri­cle Pacing Amplitude
730049 MDC_IDC_SET_
LEADCHNL_RV_PACING_ PULSEWIDTH
Encounter Programmed Bradycardia Right Ventri­cle Pacing Pulse Width
730113 MDC_IDC_SET_
LEADCHNL_RV_PACING_ POLARITY
754305^MDC_IDC_ENUM_POLARITY_UNI^MDC 754306^MDC_IDC_ENUM_POLARITY_BI^MDC
Encounter Programmed Bradycardia Right Ventri­cle Pacing Polarity
730433 MDC_IDC_SET_
LEADCHNL_RV_PACING_ CAPTURE_MODE
754689^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ AdaptiveCapture^MDC 754690^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ FixedPacing^MDC 754691^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ MonitorCapture^MDC
Encounter Programmed Bradycardia Right Ventri­cle Pacing Adaptation Mode
Parame­ter Type
ENUM
Numeric
Numeric
ENUM
ENUM
57
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
730180 MDC_IDC_SET_
LEADCHNL_RV_PACING_ ANODE_LOCATION
730181 MDC_IDC_SET_
LEADCHNL_RV_PACING_ ANODE_LOCATION_1
730182 MDC_IDC_SET_
LEADCHNL_RV_PACING_ ANODE_LOCATION_2
730183 MDC_IDC_SET_
LEADCHNL_RV_PACING_ ANODE_LOCATION_3
754497^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RA^MDC 754498^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RV^MDC 754499^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LA^MDC 754500^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LV^MDC 754501^MDC_IDC_ENUM_ELECTRODE_LOCATION_ SVC^MDC 754503^MDC_IDC_ENUM_ELECTRODE_LOCATION_ Unknown^MDC
Name
Encounter Programmed Bradycardia Right Ventri­cle Pacing Pathway Location
730308 MDC_IDC_SET_
LEADCHNL_RV_PACING_ CATHODE_LOCATION
730309 MDC_IDC_SET_
LEADCHNL_RV_PACING_ CATHODE_LOCATION_1
730310 MDC_IDC_SET_
LEADCHNL_RV_PACING_ CATHODE_LOCATION_2
730311 MDC_IDC_SET_
LEADCHNL_RV_PACING_ CATHODE_LOCATION_3
730244 MDC_IDC_SET_
LEADCHNL_RV_PACING_ ANODE_ELECTRODE
730245 MDC_IDC_SET_
LEADCHNL_RV_PACING_ ANODE_ELECTRODE_1
730246 MDC_IDC_SET_
LEADCHNL_RV_PACING_ ANODE_ELECTRODE_2
730183 MDC_IDC_SET_
LEADCHNL_RV_PACING_ ANODE_ELECTRODE_3
730372 MDC_IDC_SET_
LEADCHNL_RV_PACING_ CATHODE_ELECTRODE
730373 MDC_IDC_SET_
LEADCHNL_RV_PACING_ CATHODE_ELECTRODE_1
730374 MDC_IDC_SET_
754561^MDC_IDC_ENUM_ELECTRODE_NAME_ Tip^MDC 754562^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring^MDC 754563^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring1^MDC 754564^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring2^MDC 754565^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring3^MDC 754566^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring4^MDC 754567^MDC_IDC_ENUM_ELECTRODE_NAME_ Coil^MDC 754568^MDC_IDC_ENUM_ELECTRODE_NAME_Sub­QPatch^MDC 754569^MDC_IDC_ENUM_ELECTRODE_NAME_ Can^MDC 754580^MDC_IDC_ENUM_ELECTRODE_NAME_ Unknown^MDC
Encounter Programmed Bradycardia Right Ventri­cle Pacing Pathway Electrode
LEADCHNL_RV_PACING_ CATHODE_ELECTRODE_2
730375 MDC_IDC_SET_
LEADCHNL_RV_PACING_ CATHODE_ELECTRODE_3
729986 MDC_IDC_SET_
LEADCHNL_LA_PACING_ AMPLITUDE
Encounter Programmed Bradycardia Left Atrium Pacing Amplitude
Parame­ter Type
ENUM
ENUM
Numeric
58
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
730050 MDC_IDC_SET_
LEADCHNL_LA_PACING_ PULSEWIDTH
Name
Encounter Programmed Bradycardia Left Atrium Pacing Pulse Width
730114 MDC_IDC_SET_
LEADCHNL_LA_PACING_ POLARITY
754305^MDC_IDC_ENUM_POLARITY_UNI^MDC 754306^MDC_IDC_ENUM_POLARITY_BI^MDC
Encounter Programmed Bradycardia Left Atrium Pacing Polar­ity
730434 MDC_IDC_SET_
LEADCHNL_LA_PACING_ CAPTURE_MODE
754689^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ AdaptiveCapture^MDC 754690^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ FixedPacing^MDC 754691^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ MonitorCapture^MDC
Encounter Programmed Bradycardia Left Atrium Pacing Adaptation Mode
730184 MDC_IDC_SET_
LEADCHNL_LA_PACING_ ANODE_LOCATION
730185 MDC_IDC_SET_
LEADCHNL_LA_PACING_ ANODE_LOCATION_1
730186 MDC_IDC_SET_
LEADCHNL_LA_PACING_ ANODE_LOCATION_2
730187 MDC_IDC_SET_
LEADCHNL_LA_PACING_ ANODE_LOCATION_3
754497^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RA^MDC 754498^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RV^MDC 754499^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LA^MDC 754500^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LV^MDC 754501^MDC_IDC_ENUM_ELECTRODE_LOCATION_ SVC^MDC 754503^MDC_IDC_ENUM_ELECTRODE_LOCATION_ Unknown^MDC
Encounter Programmed Bradycardia Left Atrium Pacing Path­way Location
730312 MDC_IDC_SET_
LEADCHNL_LA_PACING_ CATHODE_LOCATION
730313 MDC_IDC_SET_
LEADCHNL_LA_PACING_ CATHODE_LOCATION_1
730314 MDC_IDC_SET_
LEADCHNL_LA_PACING_ CATHODE_LOCATION_2
730315 MDC_IDC_SET_
LEADCHNL_LA_PACING_ CATHODE_LOCATION_3
Parame­ter Type
Numeric
ENUM
ENUM
ENUM
59
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
730248 MDC_IDC_SET_
LEADCHNL_LA_PACING_ ANODE_ELECTRODE
730249 MDC_IDC_SET_
LEADCHNL_LA_PACING_ ANODE_ELECTRODE_1
730250 MDC_IDC_SET_
LEADCHNL_LA_PACING_ ANODE_ELECTRODE_2
730251 MDC_IDC_SET_
LEADCHNL_LA_PACING_ ANODE_ELECTRODE_3
730376 MDC_IDC_SET_
LEADCHNL_LA_PACING_ CATHODE_ELECTRODE
730377 MDC_IDC_SET_
LEADCHNL_LA_PACING_ CATHODE_ELECTRODE_1
730378 MDC_IDC_SET_
754561^MDC_IDC_ENUM_ELECTRODE_NAME_ Tip^MDC 754562^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring^MDC 754563^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring1^MDC 754564^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring2^MDC 754565^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring3^MDC 754566^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring4^MDC 754567^MDC_IDC_ENUM_ELECTRODE_NAME_ Coil^MDC 754568^MDC_IDC_ENUM_ELECTRODE_NAME_Sub­QPatch^MDC 754569^MDC_IDC_ENUM_ELECTRODE_NAME_ Can^MDC 754580^MDC_IDC_ENUM_ELECTRODE_NAME_ Unknown^MDC
Name
Encounter Programmed Bradycardia Left Atrium Pacing Path­way Elec­trode
LEADCHNL_LA_PACING_ CATHODE_ELECTRODE_2
730379 MDC_IDC_SET_
LEADCHNL_LA_PACING_ CATHODE_ELECTRODE_3
729987 MDC_IDC_SET_
LEADCHNL_LV_PACING_ AMPLITUDE
Encounter Programmed Bradycardia Left Ventricle Pacing Amplitude
730051 MDC_IDC_SET_
LEADCHNL_LV_PACING_ PULSEWIDTH
Encounter Programmed Bradycardia Left Ventricle Pacing Pulse Width
730115 MDC_IDC_SET_
LEADCHNL_LV_PACING_ POLARITY
754305^MDC_IDC_ENUM_POLARITY_UNI^MDC 754306^MDC_IDC_ENUM_POLARITY_BI^MDC
Encounter Programmed Bradycardia Left Ventricle Pacing Polar­ity
730435 MDC_IDC_SET_
LEADCHNL_LV_PACING_ CAPTURE_MODE
754689^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ AdaptiveCapture^MDC 754690^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ FixedPacing^MDC 754691^MDC_IDC_ENUM_PACING_CAPTURE_MODE_ MonitorCapture^MDC
Encounter Programmed Bradycardia Left Ventricle Pacing Adaptation Mode
Parame­ter Type
ENUM
Numeric
Numeric
ENUM
ENUM
60
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
730188 MDC_IDC_SET_
LEADCHNL_LV_PACING_ ANODE_LOCATION
730189 MDC_IDC_SET_
LEADCHNL_LV_PACING_ ANODE_LOCATION_1
730190 MDC_IDC_SET_
LEADCHNL_LV_PACING_ ANODE_LOCATION_2
730191 MDC_IDC_SET_
LEADCHNL_LV_PACING_ ANODE_LOCATION_3
754497^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RA^MDC 754498^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RV^MDC 754499^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LA^MDC 754500^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LV^MDC 754501^MDC_IDC_ENUM_ELECTRODE_LOCATION_ SVC^MDC 754503^MDC_IDC_ENUM_ELECTRODE_LOCATION_ Unknown^MDC
Name
Encounter Programmed Bradycardia Left Ventricle Pacing Path­way Location
730316 MDC_IDC_SET_
LEADCHNL_LV_PAC­ING_CATHODE_ LOCATION
730317 MDC_IDC_SET_
LEADCHNL_LV_PAC­ING_CATHODE_ LOCA­TION_1
730318 MDC_IDC_SET_
LEADCHNL_LV_PACING_ CATHODE_LOCATION_2
730319 MDC_IDC_SET_
LEADCHNL_LV_PACING_ CATHODE_LOCATION_3
730252 MDC_IDC_SET_
LEADCHNL_LV_PACING_ ANODE_ELECTRODE
730253 MDC_IDC_SET_
LEADCHNL_LV_PACING_ ANODE_ELECTRODE_1
730254 MDC_IDC_SET_
LEADCHNL_LV_PACING_ ANODE_ELECTRODE_2
730255 MDC_IDC_SET_
LEADCHNL_LV_PACING_ ANODE_ELECTRODE_3
730380 MDC_IDC_SET_
LEADCHNL_LV_PACING_ CATHODE_ELECTRODE
730381 MDC_IDC_SET_
LEADCHNL_LV_PACING_ CATHODE_ELECTRODE_1
730382 MDC_IDC_SET_
754561^MDC_IDC_ENUM_ELECTRODE_NAME_ Tip^MDC 754562^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring^MDC 754563^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring1^MDC 754564^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring2^MDC 754565^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring3^MDC 754566^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring4^MDC 754567^MDC_IDC_ENUM_ELECTRODE_NAME_ Coil^MDC 754568^MDC_IDC_ENUM_ELECTRODE_NAME_Sub­QPatch^MDC 754569^MDC_IDC_ENUM_ELECTRODE_NAME_ Can^MDC 754580^MDC_IDC_ENUM_ELECTRODE_NAME_ Unknown^MDC
Encounter Programmed Bradycardia Left Ventricle Pacing Path­way Elec­trode
LEADCHNL_LV_PACING_ CATHODE_ELECTRODE_2
730383 MDC_IDC_SET_
LEADCHNL_LV_PACING_ CATHODE_ELECTRODE_3
730752 MDC_IDC_SET_BRADY_
MODE
754753^MDC_IDC_ENUM_BRADY_MODE_AAI^MDC 754754^MDC_IDC_ENUM_BRADY_MODE_AAIR^MDC 754755^MDC_IDC_ENUM_BRADY_MODE_AAT^MDC 754756^MDC_IDC_ENUM_BRADY_MODE_AATR^MDC
Encounter Programmed Bradycardia
Pacing Mode 754757^MDC_IDC_ENUM_BRADY_MODE_AOO^MDC 754758^MDC_IDC_ENUM_BRADY_MODE_AOOR^MDC 754759^MDC_IDC_ENUM_BRADY_MODE_DAD^MDC
Parame­ter Type
ENUM
ENUM
ENUM
61
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
754760^MDC_IDC_ENUM_BRADY_MODE_DDD^MDC 754761^MDC_IDC_ENUM_BRADY_MODE_DDDR^MDC 754762^MDC_IDC_ENUM_BRADY_MODE_DDI^MDC 754763^MDC_IDC_ENUM_BRADY_MODE_DDIR^MDC 754764^MDC_IDC_ENUM_BRADY_MODE_DOO^MDC 754765^MDC_IDC_ENUM_BRADY_MODE_DOOR^MDC 754766^MDC_IDC_ENUM_BRADY_MODE_DVI^MDC 754767^MDC_IDC_ENUM_BRADY_MODE_DVIR^MDC 754768^MDC_IDC_ENUM_BRADY_MODE_VAT^MDC 754769^MDC_IDC_ENUM_BRADY_MODE_VDD^MDC 754770^MDC_IDC_ENUM_BRADY_MODE_VDDR^MDC 754771^MDC_IDC_ENUM_BRADY_MODE_VOO^MDC 754772^MDC_IDC_ENUM_BRADY_MODE_VOOR^MDC 754773^MDC_IDC_ENUM_BRADY_MODE_VVI^MDC 754774^MDC_IDC_ENUM_BRADY_MODE_VVIR^MDC 754775^MDC_IDC_ENUM_BRADY_MODE_VVT^MDC 754776^MDC_IDC_ENUM_BRADY_MODE_OOO^MDC 754777^MDC_IDC_ENUM_BRADY_MODE_OOOR^MDC 754778^MDC_IDC_ENUM_BRADY_MODE_VDI^MDC 754779^MDC_IDC_ENUM_BRADY_MODE_VDIR^MDC 754780^MDC_IDC_ENUM_BRADY_MODE_ODO^MDC 754781^MDC_IDC_ENUM_BRADY_MODE_VVTR^MDC 754782^MDC_IDC_ENUM_BRADY_MODE_DDTR^MDC 754783^MDC_IDC_ENUM_BRADY_MODE_OVO^MDC 754784^MDC_IDC_ENUM_BRADY_MODE_DVTR^MDC 754785^MDC_IDC_ENUM_BRADY_MODE_DDT^MDC 754786^MDC_IDC_ENUM_BRADY_MODE_VDTR^MDC 754787^MDC_IDC_ENUM_BRADY_MODE_VDT^MDC 754788^MDC_IDC_ENUM_BRADY_MODE_ADIR^MDC 754789^MDC_IDC_ENUM_BRADY_MODE_ADI^MDC 754790^MDC_IDC_ENUM_BRADY_MODE_Unknown
730880 MDC_IDC_SET_BRADY_
LOWRATE
730944 MDC_IDC_SET_BRADY_
HYSTRATE
731008 MDC_IDC_SET_BRADY_
NIGHT_RATE
731136 MDC_IDC_SET_BRADY_
MAX_TRACKING_RATE
731200 MDC_IDC_SET_BRADY_
MAX_SENSOR_RATE
731264 MDC_IDC_SET_BRADY_
SAV_DELAY
Name
Encounter
Programmed
Bradycardia
Lower Rate
Encounter
Programmed
Bradycardia
Hysteresis
Rate
Encounter
Programmed
Bradycardia
Sleep Rate
Encounter
Programmed
Bradycardia
Maximum
Tracking
Rate
Encounter
Programmed
Bradycardia
Maximum
Sensor Rate
Encounter
Programmed
Bradycardia
Parame­ter Type
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
62
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
Name
AV Delay
Adaptive
Sensed Mini-
mum
731265 MDC_IDC_SET_BRADY_
SAV_DELAY_HIGH
Encounter
Programmed
Bradycardia
AV Delay
Adaptive
Sensed Mini-
mum
731266 MDC_IDC_SET_BRADY_
SAV_DELAY_LOW
Encounter
Programmed
Bradycardia
AV Delay
Sensed
731328 MDC_IDC_SET_BRADY_
PAV_DELAY
Encounter
Programmed
Bradycardia
AV Delay
Adaptive
Paced Mini-
mum
731329 MDC_IDC_SET_BRADY_
PAV_DELAY_HIGH
Encounter
Programmed
Bradycardia
AV Delay
Adaptive
Paced Mini-
mum
731330 MDC_IDC_SET_BRADY_
PAV_DELAY_LOW
Encounter
Programmed
Bradycardia
AV Delay
Paced
731392 MDC_IDC_SET_BRADY_
AT_MODE_SWITCH_MODE
754753^MDC_IDC_ENUM_BRADY_MODE_AAI^MDC 754754^MDC_IDC_ENUM_BRADY_MODE_AAIR^MDC 754755^MDC_IDC_ENUM_BRADY_MODE_AAT^MDC 754756^MDC_IDC_ENUM_BRADY_MODE_AATR^MDC 754757^MDC_IDC_ENUM_BRADY_MODE_AOO^MDC 754758^MDC_IDC_ENUM_BRADY_MODE_AOOR^MDC 754759^MDC_IDC_ENUM_BRADY_MODE_DAD^MDC
Encounter
Programmed
Bradycardia
Automatic
Mode Switch
Therapy
Pacing Mode 754760^MDC_IDC_ENUM_BRADY_MODE_DDD^MDC 754761^MDC_IDC_ENUM_BRADY_MODE_DDDR^MDC 754762^MDC_IDC_ENUM_BRADY_MODE_DDI^MDC 754763^MDC_IDC_ENUM_BRADY_MODE_DDIR^MDC 754764^MDC_IDC_ENUM_BRADY_MODE_DOO^MDC 754765^MDC_IDC_ENUM_BRADY_MODE_DOOR^MDC 754766^MDC_IDC_ENUM_BRADY_MODE_DVI^MDC 754767^MDC_IDC_ENUM_BRADY_MODE_DVIR^MDC 754768^MDC_IDC_ENUM_BRADY_MODE_VAT^MDC 754769^MDC_IDC_ENUM_BRADY_MODE_VDD^MDC 754770^MDC_IDC_ENUM_BRADY_MODE_VDDR^MDC 754771^MDC_IDC_ENUM_BRADY_MODE_VOO^MDC 754772^MDC_IDC_ENUM_BRADY_MODE_VOOR^MDC 754773^MDC_IDC_ENUM_BRADY_MODE_VVI^MDC 754774^MDC_IDC_ENUM_BRADY_MODE_VVIR^MDC 754775^MDC_IDC_ENUM_BRADY_MODE_VVT^MDC
Parame­ter Type
Numeric
Numeric
Numeric
Numeric
Numeric
ENUM
63
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
Name
754776^MDC_IDC_ENUM_BRADY_MODE_OOO^MDC 754777^MDC_IDC_ENUM_BRADY_MODE_OOOR^MDC 754778^MDC_IDC_ENUM_BRADY_MODE_VDI^MDC 754779^MDC_IDC_ENUM_BRADY_MODE_VDIR^MDC 754780^MDC_IDC_ENUM_BRADY_MODE_ODO^MDC 754781^MDC_IDC_ENUM_BRADY_MODE_VVTR^MDC 754782^MDC_IDC_ENUM_BRADY_MODE_DDTR^MDC 754783^MDC_IDC_ENUM_BRADY_MODE_OVO^MDC 754784^MDC_IDC_ENUM_BRADY_MODE_DVTR^MDC 754785^MDC_IDC_ENUM_BRADY_MODE_DDT^MDC 754786^MDC_IDC_ENUM_BRADY_MODE_VDTR^MDC 754787^MDC_IDC_ENUM_BRADY_MODE_VDT^MDC 754788^MDC_IDC_ENUM_BRADY_MODE_ADIR^MDC 754789^MDC_IDC_ENUM_BRADY_MODE_ADI^MDC 754790^MDC_IDC_ENUM_BRADY_MODE_Unknown
731456 MDC_IDC_SET_BRADY_
AT_MODE_SWITCH_RATE
Encounter
Programmed
Bradycardia
Automatic
Mode Switch
Detection
Criteria Rate
731648 MDC_IDC_SET_ZONE_
TYPE
731712 MDC_IDC_SET_ZONE_
VENDOR_TYPE
754945^MDC_IDC_ENUM_ZONE_TYPE_Zone_VF^MDC 754946^MDC_IDC_ENUM_ZONE_TYPE_Zone_VT^MDC 754947^MDC_IDC_ENUM_ZONE_TYPE_Zone_ ATAF^MDC
770113^MDC_IDC_ENUM_ZONE_VENDOR_TYPE_ BIO-Zone_VF^MDC 770118^MDC_IDC_ENUM_ZONE_VENDOR_TYPE_ BIO-Zone_ATAF^MDC
Encounter
Programmed
Tachycardia
Zone Type
Encounter
Programmed
Tachycardia
Zone Type 770121^MDC_IDC_ENUM_ZONE_VENDOR_TYPE_ BIO-Zone_AT^MDC 771137^MDC_IDC_ENUM_ZONE_VENDOR_TYPE_ BSX_ Zone_VT^MDC 771138^MDC_IDC_ENUM_ZONE_VENDOR_TYPE_ BSX_ Zone_VT-1^MDC 771139^MDC_IDC_ENUM_ZONE_VENDOR_TYPE_ BSX-Zone_VF 771142^MDC_IDC_ENUM_ZONE_VENDOR_TYPE_ BSX-Zone_AF 771143^MDC_IDC_ENUM_ZONE_VENDOR_TYPE_ BSX-Zone_AT 773188^MDC_IDC_ENUM_ZONE_VENDOR_TYPE_ STJ-Zone_VT1^MDC 773189^MDC_IDC_ENUM_ZONE_VENDOR_TYPE_ STJ-Zone_VT2^MDC
731776 MDC_IDC_SET_ZONE_STA-
TUS
731840 MDC_IDC_SET_ZONE_
DETECTION_INTERVAL
755009^MDC_IDC_ENUM_ZONE_STATUS_Active ^MDC 755010^MDC_IDC_ENUM_ZONE_STATUS_Inactive ^MDC 755011^MDC_IDC_ENUM_ZONE_STATUS_Monitor ^MDC
Encounter
Programmed
Tachycardia
Zone Detec-
tion Status
Encounter
Programmed
Tachycardia
Zone Detec-
tion Interval
Parame­ter Type
Numeric
ENUM
ENUM
ENUM
Numeric
64
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
731904 MDC_IDC_SET_ZONE_
DETECTION_BEATS_ NUMERATOR
731968 MDC_IDC_SET_ZONE_
DETECTION_BEATS_ DENOMINATOR
732225 MDC_IDC_SET_ZONE_
SHOCK_ENERGY_1
732226 MDC_IDC_SET_ZONE_
SHOCK_ENERGY_2
732227 MDC_IDC_SET_ZONE_
SHOCK_ENERGY_3
732228 MDC_IDC_SET_ZONE_
SHOCK_ENERGY_4
732229 MDC_IDC_SET_ZONE_
SHOCK_ENERGY_5
732230 MDC_IDC_SET_ZONE_
SHOCK_ENERGY_6
732231 MDC_IDC_SET_ZONE_
SHOCK_ENERGY_7
732232 MDC_IDC_SET_ZONE_
SHOCK_ENERGY_8
732233 MDC_IDC_SET_ZONE_
SHOCK_ENERGY_9
732234 MDC_IDC_SET_ZONE_
SHOCK_ENERGY_10
Name
Encounter
Programmed
Tachycardia
Zone Shared
Detection
Duration
Beat Ratio
Numerator
Encounter
Programmed
Tachycardia
Zone Shared
Detection
Duration
Beat Ratio
Denominator
Encounter
Programmed
Tachycardia
Shock Ther-
apy Energy
Parame­ter Type
Numeric
Numeric
Numeric
65
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
732097 MDC_IDC_SET_ZONE_
TYPE_ATP_1
732098 MDC_IDC_SET_ZONE_
TYPE_ATP_2
732099 MDC_IDC_SET_ZONE_
TYPE_ATP_3
732100 MDC_IDC_SET_ZONE_
TYPE_ATP_4
732101 MDC_IDC_SET_ZONE_
TYPE_ATP_5
732102 MDC_IDC_SET_ZONE_
TYPE_ATP_6
732103 MDC_IDC_SET_ZONE_
TYPE_ATP_7
732104 MDC_IDC_SET_ZONE_
TYPE_ATP_8
732105 MDC_IDC_SET_ZONE_
TYPE_ATP_9
732106 MDC_IDC_SET_ZONE_
TYPE_ATP_10
732161 MDC_IDC_SET_ZONE_
NUM_ATP_SEQS_1
732162 MDC_IDC_SET_ZONE_
NUM_ATP_SEQS_2
732163 MDC_IDC_SET_ZONE_
NUM_ATP_SEQS_3
732164 MDC_IDC_SET_ZONE_
NUM_ATP_SEQS_4
732165 MDC_IDC_SET_ZONE_
NUM_ATP_SEQS_5
732166 MDC_IDC_SET_ZONE_
NUM_ATP_SEQS_6
732167 MDC_IDC_SET_ZONE_
NUM_ATP_SEQS_7
732168 MDC_IDC_SET_ZONE_
NUM_ATP_SEQS_8
732169 MDC_IDC_SET_ZONE_
NUM_ATP_SEQS_9
732170 MDC_IDC_SET_ZONE_
NUM_ATP_SEQS_10
755073^MDC_IDC_ENUM_ATP_TYPE_Burst^MDC 755074^MDC_IDC_ENUM_ATP_TYPE_Ramp^MDC 755075^MDC_IDC_ENUM_ATP_TYPE_BurstScan^MDC 755076^MDC_IDC_ENUM_ATP_TYPE_RampScan^MDC 755078^MDC_IDC_ENUM_ATP_TYPE_Unknown^MDC
Name
Encounter
Programmed
Tachycardia
ATP Therapy
Type
Encounter
Programmed
Tachycardia
ATP Therapy
Sequence ID
Parame­ter Type
ENUM
Numeric
66
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
730497 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_ANODE_LOCA­TION_1
730498 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_ANODE_LOCA­TION_2
730499 MDC_IDC_SET_
LEADHVCHNL_SHOCK_
754497^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RA^MDC 754498^MDC_IDC_ENUM_ELECTRODE_LOCATION_ RV^MDC 754499^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LA^MDC 754500^MDC_IDC_ENUM_ELECTRODE_LOCATION_ LV^MDC 754501^MDC_IDC_ENUM_ELECTRODE_LOCATION_ SVC^MDC
Name
Encounter
Programmed
Tachycardia
Shock Ther-
apy Pathway
Location
VECTOR_ANODE_LOCA­TION_3
730625 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_CATHODE_LOCA­TION_1
730626 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_CATHODE_LOCA­TION_2
730627 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_CATHODE_LOCA­TION_3
730561 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_ANODE_ELEC­TRODE_
730562 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_ANODE_ELEC­TRODE_2
730563 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_ANODE_ELEC­TRODE_3
730689 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_CATHODE_ELEC­TRODE_1
730690 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_CATHODE_ELEC-
754561^MDC_IDC_ENUM_ELECTRODE_NAME_ Tip^MDC 754562^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring^MDC 754563^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring1^MDC 754564^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring2^MDC 754565^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring3^MDC 754566^MDC_IDC_ENUM_ELECTRODE_NAME_ Ring4^MDC 754567^MDC_IDC_ENUM_ELECTRODE_NAME_ Coil^MDC 754568^MDC_IDC_ENUM_ELECTRODE_NAME_Sub­QPatch^MDC 754569^MDC_IDC_ENUM_ELECTRODE_NAME_ Can^MDC 754580^MDC_IDC_ENUM_ELECTRODE_NAME_ Unknown^MDC
Encounter
Programmed
Tachycardia
Shock Ther-
apy Pathway
Electrode
TRODE_2
730691 MDC_IDC_SET_
LEADHVCHNL_SHOCK_ VECTOR_CATHODE_ELEC­TRODE_3
Parame­ter Type
ENUM
ENUM
6.2.6.10 Table: MDC_IDC_STAT
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
Name
737617 MDC_IDC_STAT_HEART_RATE_DTM_START Encounter
Measured Phys­iological Meas-
67
Parame­ter Type
Date­Time
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
737618 MDC_IDC_STAT_HEART_RATE_DTM_END Encounter
737632 MDC_IDC_STAT_HEART_RATE_ATRIAL Encounter
737633 MDC_IDC_STAT_HEART_RATE_ATRIAL_MAX Encounter
737634 MDC_IDC_STAT_HEART_RATE_ATRIAL_MIN Encounter
737635 MDC_IDC_STAT_HEART_RATE_ATRIAL_MEAN Encounter
737648 MDC_IDC_STAT_HEART_RATE_VENTRICULAR Encounter
737649 MDC_IDC_STAT_HEART_RATE_VENTRICULAR_
MAX
Name
urements Since Last Session Start Date
Measured Phys­iological Meas­urements Since Last Session End Date
Measured Phys­iological Meas­urements Since Last Session Right Atrium Measured Heart Rate
Measured Phys­iological Meas­urements Since Last Session Right Atrium Maximum Heart Rate
Measured Phys­iological Meas­urements Since Last Session Right Atrium Minimum Heart Rate
Measured Phys­iological Meas­urements Since Last Session Right Atrium Mean Heart Rate
Measured Phys­iological Meas­urements Since Last Session Right Ventricle Measured Heart Rate
Encounter Measured Phys­iological Meas­urements Since Last Session Right Ventricle Maximum Heart Rate
Parame­ter Type
Date­Time
Integer
Integer
Integer
Integer
Integer
Integer
68
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
737650 MDC_IDC_STAT_HEART_RATE_VENTRICULAR_
MIN
737651 MDC_IDC_STAT_HEART_RATE_VENTRICULAR_
MEAN
737505 MDC_IDC_STAT_BRADY_DTM_START Encounter
737506 MDC_IDC_STAT_BRADY_DTM_END Encounter
737520 MDC_IDC_STAT_BRADY_RA_PERCENT_PACED Encounter
737536 MDC_IDC_STAT_BRADY_RV_PERCENT_PACED Encounter
737552 MDC_IDC_STAT_BRADY_AP_VP_PERCENT Encounter
737568 MDC_IDC_STAT_BRADY_AS_VP_PERCENT Encounter
737584 MDC_IDC_STAT_BRADY_AP_VS_PERCENT Encounter
Name
Encounter Measured Phys­iological Meas­urements Since Last Session Right Ventricle Minimum Heart Rate
Encounter Measured Phys­iological Meas­urements Since Last Session Right Ventricle Mean Heart Rate
Measured Bra­dycardia Meas­urements Since Last Session Start Date
Measured Bra­dycardia Meas­urements Since Last Session End Date
Measured Bra­dycardia Meas­urements Since Last Session Right Atrium Percent Paced
Measured Bra­dycardia Meas­urements Since Last Session Right Ventricle Percent Paced
Measured Bra­dycardia Meas­urements Since Last Session AP VP Percent
Measured Bra­dycardia Meas­urements Since Last Session AS VP Percent
Measured Bra­dycardia Meas­urements Since
Parame­ter Type
Integer
Integer
Date­Time
Date­Time
Numeric
Numeric
Numeric
Numeric
Numeric
69
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
737600 MDC_IDC_STAT_BRADY_AS_VS_PERCENT Encounter
737665 MDC_IDC_STAT_AT_DTM_START Encounter
737666 MDC_IDC_STAT_AT_DTM_END Encounter
737680 MDC_IDC_STAT_AT_MODE_SW_MAX_DURATION Encounter
737696 MDC_IDC_STAT_AT_BURDEN_PERCENT Encounter
737712 MDC_IDC_STAT_AT_MODE_SW_PERCENT_TIME Encounter
737728 MDC_IDC_STAT_AT_MODE_SW_PERCENT_TIME_
PER_DAY
737744 MDC_IDC_STAT_AT_MODE_SW_COUNT Encounter
Name
Last Session AP VS Percent
Measured Bra­dycardia Meas­urements Since Last Session AS VS Percent
Measured Atrial Tachycardia Counters Since Last Session Start Date
Measured Atrial Tachycardia Counters Since Last Session End Date
Measured Atrial Tachycardia Counters Since Last Session Mode Switch Maximum Dura­tion
Measured Atrial Tachycardia Counters Since Last Session AT AF Burden
Measured Atrial Tachycardia Counters Since Last Session Mode Switch Burden
Encounter Measured Atrial Tachycardia Counters Since Last Session Mode Switch Average Daily Burden
Measured Atrial Tachycardia Counters Since Last Session Mode Switch Count
Parame­ter Type
Numeric
Date­Time
Date­Time
Numeric
Numeric
Integer
Integer
Integer
70
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
737760 MDC_IDC_STAT_AT_MODE_SW_COUNT_PER_
DAY
737777 MDC_IDC_STAT_CRT_DTM_START Encounter
737778 MDC_IDC_STAT_CRT_DTM_END Encounter
737792 MDC_IDC_STAT_CRT_LV_PERCENT_PACED Encounter
737808 MDC_IDC_STAT_CRT_PERCENT_PACED Encounter
737824 MDC_IDC_STAT_TACHYTHERAPY_SHOCKS_
DELIVERED_RECENT
737840 MDC_IDC_STAT_TACHYTHERAPY_SHOCKS_
DELIVERED_TOTAL
737856 MDC_IDC_STAT_TACHYTHERAPY_SHOCKS_
ABORTED_RECENT
Name
Encounter Measured Atrial Tachycardia Counters Since Last Session Mode Switch Average Daily Count
Measured Heart Failure Counters Since Last Ses­sion Start Date
Measured Heart Failure Counters Since Last Ses­sion End Date
Measured Bra­dycardia Meas­urements Since Last Session Left Ventricle Percent Paced
Measured Heart Failure Counters Since Last Ses­sion CRT Per­cent Paced
Encounter Measured Tachycardia Therapy Coun­ters Since Last Counter Reset Right Ventricle Shocks Deliv­ered
Encounter Measured Tachycardia Therapy Coun­ters Lifetime Right Ventricle Shocks Deliv­ered
Encounter Measured Tachycardia Therapy Coun­ters Since Last Counter Reset Right Ventricle Shocks Aborted
Parame­ter Type
Integer
Date­Time
Date­Time
Numeric
Numeric
Integer
Integer
Integer
71
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
737872 MDC_IDC_STAT_TACHYTHERAPY_SHOCKS_
ABORTED_TOTAL
Name
Encounter Measured Tachycardia Therapy Coun­ters Lifetime Right Ventricle Shocks Aborted
737888 MDC_IDC_STAT_TACHYTHERAPY_ATP_DELIV-
ERED_RECENT
Encounter Measured Tachycardia Therapy Coun­ters Since Last Counter Reset Right Ventricle ATP Delivered
737904 MDC_IDC_STAT_TACHYTHERAPY_ATP_DELIV-
ERED_TOTAL
Encounter Measured Tachycardia Therapy Coun­ters Lifetime Right Ventricle ATP Delivered
737921 MDC_IDC_STAT_TACHYTHERAPY_TOTAL_DTM_
START
Encounter Measured Tachycardia Therapy Coun­ters Lifetime Start Date
737922 MDC_IDC_STAT_TACHYTHERAPY_TOTAL_DTM_
END
Encounter Measured Tachycardia Therapy Coun­ters Lifetime End Date
737937 MDC_IDC_STAT_TACHYTHERAPY_RECENT_
DTM_START
Encounter Measured Tachycardia Therapy Coun­ters Since Last Counter Reset Start Date
737938 MDC_IDC_STAT_TACHYTHERAPY_RECENT_
DTM_END
Encounter Measured Tachycardia Therapy Coun­ters Since Last Counter Reset End Date
737940 MDC_IDC_STAT_TACHYTHERAPY_SHOCKS_SUC-
CESSFUL_RECENT
Encounter Measured Tachycardia Therapy Coun­ters Since Last Counter Reset Right Ventricle Shocks Suc­cessful
Parame­ter Type
Integer
Integer
Integer
Date­Time
Date­Time
Date­Time
Date­Time
Integer
72
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
737941 MDC_IDC_STAT_TACHYTHERAPY_SHOCKS_SUC-
CESSFUL_TOTAL
Name
Encounter Measured Tachycardia Therapy Coun­ters Lifetime Right Ventricle Shocks Suc­cessful
737942 MDC_IDC_STAT_TACHYTHERAPY_ATP_SUC-
CESSFUL_RECENT
Encounter Measured Tachycardia Therapy Coun­ters Since Last Counter Reset Right Ventricle ATP Successful
737943 MDC_IDC_STAT_TACHYTHERAPY_ATP_SUC-
CESSFUL_TOTAL
Encounter Measured Tachycardia Therapy Coun­ters Lifetime Right Ventricle ATP Successful
737944 MDC_IDC_STAT_TACHYTHER-
APY_ATRIAL_ATP_DELIVERED_RECENT
Encounter Measured Tachycardia Therapy Coun­ters Since Last Counter Reset Right Atrium ATP Delivered
737945 MDC_IDC_STAT_TACHYTHER-
APY_ATRIAL_ATP_DELIVERED_TOTAL
Encounter Measured Tachycardia Therapy Coun­ters Lifetime Reset Right Atrium ATP Delivered
737946 MDC_IDC_STAT_TACHYTHER-
APY_ATRIAL_ATP_SUCCESSFUL_RECENT
Encounter Measured Tachycardia Therapy Coun­ters Since Last Counter Reset Right Atrium ATP Successful
737947 MDC_IDC_STAT_TACHYTHER-
APY_ATRIAL_ATP_SUCCESSFUL_TOTAL
Encounter Measured Tachycardia Therapy Coun­ters Lifetime Right Atrium ATP Successful
737948 MDC_IDC_STAT_TACHYTHERAPY_VENTRICU-
LAR_ATP_DELIVERED_RECENT
Encounter Measured Tachycardia Therapy Coun-
Parame­ter Type
Integer
Integer
Integer
Integer
Integer
Integer
Integer
Integer
73
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
737949 MDC_IDC_STAT_TACHYTHERAPY_VENTRICU-
LAR_ATP_DELIVERED_TOTAL
737950 MDC_IDC_STAT_TACHYTHERAPY_VENTRICU-
LAR_ATP_SUCCESSFUL_RECENT
737951 MDC_IDC_STAT_TACHYTHERAPY_VENTRICU-
LAR_ATP_SUCCESSFUL_TOTAL
when 737984^MDC_IDC_STAT_EPISODE_VENDOR_TYPE^MDC has OBX-5 value of 773124^STJ-Epis_VT1^MDC 738000 MDC_IDC_STAT_EPISODE_RECENT_COUNT Encounter
when 737984^MDC_IDC_STAT_EPISODE_VENDOR_TYPE^MDC has OBX-5 value of 773125^STJ-Epis_VT2^MDC 738000 MDC_IDC_STAT_EPISODE_RECENT_COUNT Encounter
Name
ters Since Last Counter Reset Right Ventricle ATP Delivered
Encounter Measured Tachycardia Therapy Coun­ters Lifetime Right Ventricle ATP Delivered
Encounter Measured Tachycardia Therapy Coun­ters Since Last Counter Reset Right Ventricle ATP Successful
Encounter Measured Tachycardia Therapy Coun­ters Lifetime Right Ventricle ATP Successful
Measured Tachycardia Detection Coun­ters Since Last Counter Reset VT1 Monitor Epi­sode Count or Encounter Measured Tachycardia Detection Coun­ters Since Last Counter Reset VT1 Episode Count
Measured Tachycardia Detection Coun­ters Since Last Counter Reset VT2 Monitor Epi­sode Count or Encounter Measured Tachycardia Detection Coun­ters Since Last Counter Reset
Parame­ter Type
Integer
Integer
Integer
74
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754881^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ VF^MDC
738000 MDC_IDC_STAT_EPISODE_RECENT_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754882^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ VT^MDC
738000 MDC_IDC_STAT_EPISODE_RECENT_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754883^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ ATAF^MDC
738000 MDC_IDC_STAT_EPISODE_RECENT_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754884^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ SVT^MDC
738000 MDC_IDC_STAT_EPISODE_RECENT_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754885^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ Monitor^MDC
738000 MDC_IDC_STAT_EPISODE_RECENT_COUNT Encounter
Name
VT2 Episode Count
Measured Tachycardia Detection Coun­ters Since Last Counter Reset VF VT Episode Count
Measured Tachycardia Detection Coun­ters Since Last Counter Reset VT Episode Count
Measured Tachycardia Detection Coun­ters Since Last Counter Reset AF AT Episode Count
Measured Tachycardia Detection Coun­ters Since Last Counter Reset SVT Episode Count
Measured Tachycardia Detection Coun­ters Since Last Counter Reset VF VT Monitor Episode Count Encounter Measured Tachycardia Detection Coun­ters Since Last
Parame­ter Type
75
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754886^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ PeriodicEGM^MDC
738000 MDC_IDC_STAT_EPISODE_RECENT_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754887^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ PatientActivated^MDC
738000 MDC_IDC_STAT_EPISODE_RECENT_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754888^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ Other^MDC
738000 MDC_IDC_STAT_EPISODE_RECENT_COUNT Encounter
738016 MDC_IDC_STAT_EPISODE_RECENT_COUNT_
DTM
738017 MDC_IDC_STAT_EPISODE_RECENT_COUNT_
DTM_START
Name
Counter Reset VT Monitor Epi­sode Count Encounter Measured Tachycardia Detection Coun­ters Since Last Counter Reset AF AT Monitor Episode Count
Measured Tachycardia Detection Coun­ters Since Last Counter Reset Periodic Epi­sode Count
Measured Tachycardia Detection Coun­ters Since Last Counter Reset Patient Activa­ted Episode Count
Measured Tachycardia Detection Coun­ters Since Last Counter Reset Other Episode Count
Encounter Measured Tachycardia Detection Coun­ters Since Last Counter Reset Start Date
Encounter Measured Tachycardia Detection Coun­ters Since Last Counter Reset Start Date
Parame­ter Type
Date­Time
Date­Time
76
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
738018 MDC_IDC_STAT_EPISODE_RECENT_COUNT_
DTM_END
when 737984^MDC_IDC_STAT_EPISODE_VENDOR_TYPE^MDC has OBX-5 value of 773124^STJ-Epis_VT1^MDC 738032 MDC_IDC_STAT_EPISODE_TOTAL_COUNT Encounter
when 737984^MDC_IDC_STAT_EPISODE_VENDOR_TYPE^MDC has OBX-5 value of 773125^STJ-Epis_VT2^MDC 738032 MDC_IDC_STAT_EPISODE_TOTAL_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754881^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ VF^MDC
738032 MDC_IDC_STAT_EPISODE_TOTAL_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754882^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ VT^MDC
738032 MDC_IDC_STAT_EPISODE_TOTAL_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754883^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ ATAF^MDC
738032 MDC_IDC_STAT_EPISODE_TOTAL_COUNT Encounter
Name
Encounter Measured Tachycardia Detection Coun­ters Since Last Counter Reset End Date
Measured Tachycardia Detection Coun­ters Lifetime VT1 Episode Count or Encounter Measured Tachycardia Detection Coun­ters Lifetime VT1 Monitor Episode Count
Measured Tachycardia Detection Coun­ters Lifetime VT2 Episode Count or Encounter Measured Tachycardia Detection Coun­ters Lifetime VT2 Monitor Episode Count
Measured Tachycardia Detection Coun­ters Lifetime VF VT Episode Count
Measured Tachycardia Detection Coun­ters Lifetime VT Episode Count
Measured Tachycardia
Parame­ter Type
Date­Time
77
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754884^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ SVT^MDC
738032 MDC_IDC_STAT_EPISODE_TOTAL_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754885^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ Monitor^MDC
738032 MDC_IDC_STAT_EPISODE_TOTAL_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754886^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ PeriodicEGM^MDC
738032 MDC_IDC_STAT_EPISODE_TOTAL_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754887^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ PatientActivated^MDC
738032 MDC_IDC_STAT_EPISODE_TOTAL_COUNT Encounter
when 737952^MDC_IDC_STAT_EPISODE_TYPE^MDC has OBX-5 value of 754888^MDC_IDC_ENUM_EPISODE_TYPE_Epis_ Other^MDC
Name
Detection Coun­ters Lifetime AF AT Episode Count
Measured Tachycardia Detection Coun­ters Lifetime SVT Episode Count
Measured Tachycardia Detection Coun­ters Lifetime VF VT Monitor Epi­sode Count, Encounter Measured Tachycardia Detection Coun­ters Lifetime VT Monitor Episode Count, Encoun­ter Measured Tachycardia Detection Coun­ters Lifetime AF AT Monitor Epi­sode Count
Measured Tachycardia Detection Coun­ters Lifetime Periodic Epi­sode Count
Measured Tachycardia Detection Coun­ters Lifetime Patient Activa­ted Episode Count
Parame­ter Type
78
IDCO Paceart
Parameter
OBX 3-1 OBX 3-2 Supported Values (OBX 5)
738032 MDC_IDC_STAT_EPISODE_TOTAL_COUNT Encounter
738048 MDC_IDC_STAT_EPISODE_TOTAL_COUNT_DTM Encounter
738049 MDC_IDC_STAT_EPISODE_TOTAL_COUNT_DTM_
START
738050 MDC_IDC_STAT_EPISODE_TOTAL_COUNT_DTM_
END
Name
Measured Tachycardia Detection Coun­ters Lifetime Other Episode Count
Measured Tachycardia Detection Coun­ters Lifetime Start Date
Encounter Measured Tachycardia Detection Coun­ters Lifetime Start Date
Encounter Measured Tachycardia Detection Coun­ters Lifetime End Date
Parame­ter Type
Date­Time
Date­Time
Date­Time
6.2.6.11 Table: MDC_IDC_EPISODE
IDCO Paceart
OBX 3-1 OBX 3-2 Supported Values (OBX 5) Parameter Name
739536 MDC_IDC_EPISODE_ID Encounter Epi-
sodes Episode Id
739552 MDC_IDC_EPISODE_DTM Encounter Epi-
sodes Episode Start
739568 MDC_IDC_EPISODE_TYPE 754881^MDC_IDC_ENUM_EPISODE_TYPE_Epis_
VF^MDC 754882^MDC_IDC_ENUM_EPISODE_TYPE_Epis_
VT^MDC 754883^MDC_IDC_ENUM_EPISODE_TYPE_Epis_
ATAF^MDC 754884^MDC_IDC_ENUM_EPISODE_TYPE_Epis_
SVT^MDC 754886^MDC_IDC_ENUM_EPISODE_TYPE_Epis_
PeriodicEGM ^MDC 754887^MDC_IDC_ENUM_EPISODE_TYPE_
Epis_PatientActivated^MDC 754888^MDC_IDC_ENUM_EPISODE_TYPE_Epis_
Other^MDC
Encounter Epi­sodes Episode Type
Parame­ter Type
Integer
Date­Time
ENUM
79
IDCO Paceart
OBX 3-1 OBX 3-2 Supported Values (OBX 5) Parameter Name
739600 MDC_IDC_EPISODE_VEN-
DOR_TYPE
770049^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BIO-Epis_VF^MDC
770053^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BIO-Epis_NSVT^MDC
770054^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BIO-Epis_SVT^MDC
770055^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BIO-Epis_ATAF^MDC
770057^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BIO-Epis_AFib^MDC
770058^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BIO-Epis_AT^MDC
770059^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BIO-Epis_ModeSw^MDC
770060^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BIO-Epis_AMon^MDC
770066^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BIO-Epis_PIEGM^MDC
770067^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BIO-Epis_PAT^MDC
771074^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BSX-Epis_VT^MDC
771075^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BSX-Epis_VT-1^MDC
771077^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BSX-Epis_NSVT^MDC
773123^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_STJ-Epis_SVT^MDC
773124^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_STJ-Epis_VT1^MDC
773125^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_STJ-Epis_VT2^MDC
773127^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_STJ-Epis_AMS^MDC
773146^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_STJ-Epis_Non-sustained^MDC
771096^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BSX-EPIS_ICM_Brady^MDC
771097^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BSX-EPIS_ICM_Pause^MDC
771098^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BSX-EPIS_ICM_AF^MDC
771099^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BSX-EPIS_ICM_AT^MDC
771100^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BSX-EPIS_ICM_Tachy^MDC
Encounter Epi­sodes Episode Type
Parame­ter Type
ENUM
80
IDCO Paceart
OBX 3-1 OBX 3-2 Supported Values (OBX 5) Parameter Name
739600 MDC_IDC_EPISODE_VEN-
DOR_TYPE
771101^MDC_IDC_ENUM_EPISODE_VEN­DOR_TYPE_BSX-EPIS_ICM_TachyVT^MDC
771102^MDC_IDC_ENUM_EPISODE_VEN-
Encounter Epi­sodes Episode
Type DOR_TYPE_BSX-EPIS_ICM_TachySVT^MDC 771103^MDC_IDC_ENUM_EPISODE_VEN-
DOR_TYPE_BSX-EPIS_ICM_TachytoVF^MDC 771104^MDC_IDC_ENUM_EPISODE_VEN-
DOR_TYPE_BSX-EPIS_ICM_TachyVTtoVF^MDC 771105^MDC_IDC_ENUM_EPISODE_VEN-
DOR_TYPE_BSX-EPIS_ICM_TachySVTtoVF^MDC 771106^MDC_IDC_ENUM_EPISODE_VEN-
DOR_TYPE_BSX-EPIS_ICM_TachyVF^MDC 771107^MDC_IDC_ENUM_EPISODE_VEN-
DOR_TYPE_BSX-EPIS_ICM_Symptom^MDC 771108^MDC_IDC_ENUM_EPISODE_VEN-
DOR_TYPE_BSX-EPIS_ICM_Brady_Symptom^MDC 771109^MDC_IDC_ENUM_EPISODE_VEN-
DOR_TYPE_BSX-EPIS_ICM_Pause_Symptom^MDC 771110^MDC_IDC_ENUM_EPISODE_VEN-
DOR_TYPE_BSX-EPIS_ICM_AF_Symptom^MDC 771111^MDC_IDC_ENUM_EPISODE_VEN-
DOR_TYPE_BSX-EPIS_ICM_AT_Symptom^MDC 771112^MDC_IDC_ENUM_EPISODE_VEN-
DOR_TYPE_BSX-EPIS_ICM_Tachy_Symptom^MDC
739696 MDC_IDC_EPISODE_
THERAPY_RESULT
755137^MDC_IDC_ENUM_EPISODE_THERAPY_ RESULT_Successful^MDC
755138^MDC_IDC_ENUM_EPISODE_THERAPY_
Encounter Epi-
sodes Episode
Result RESULT_Unsuccessful^MDC 755139^MDC_IDC_ENUM_EPISODE_THERAPY_
RESULT_Unknown^MDC
739712 MDC_IDC_EPISODE_
DURATION
Encounter Epi-
sodes Episode
Duration
739714 MDC_IDC_EPI-
SODE_ATRIAL_INTER-
Encounter Epi-
sode Atrial Max
VAL_DURING_EPI­SODE_MAX
739715 MDC_IDC_EPI-
SODE_ATRIAL_INTER-
Encounter Epi-
sode Atrial Min
VAL_DURING_EPI­SODE_MIN
739716 MDC_IDC_EPI-
SODE_ATRIAL_INTER-
Encounter Epi-
sode Atrial Mean
VAL_DURING_EPI­SODE_MEAN
739718 MDC_IDC_EPISODE_VEN-
TRICULAR_INTER­VAL_DURING_EPI-
Encounter Epi-
sode Ventricular
Max
SODE_MAX
739719 MDC_IDC_EPISODE_VEN-
TRICULAR_INTER­VAL_DURING_EPI-
Encounter Epi-
sode Ventricular
Min
SODE_MIN
Parame­ter Type
ENUM
ENUM
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
81
IDCO Paceart
OBX 3-1 OBX 3-2 Supported Values (OBX 5) Parameter Name
739720 MDC_IDC_EPISODE_VEN-
TRICULAR_INTER­VAL_DURING_EPI-
Encounter Epi-
sode Ventricular
Mean
SODE_MEAN
739721 MDC_IDC_EPI-
SODE_TACHYTHER­APY_ATP_DELIVERED
Encounter Epi-
sode Tachy Ther-
apy ATP Deliv-
ered
739722 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCKS_DELIV­ERED
739723 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY
739724 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY_1
Encounter Epi-
sode Tachy Ther-
apy Shocks Deliv-
ered
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
1
739725 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY_2
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
2
739726 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY_3
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
3
739727 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY_4
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
4
739728 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY_5
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
5
739729 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY_6
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
6
739730 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY_7
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
7
739731 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY_8
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
8
739732 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY_9
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
9
739733 MDC_IDC_EPI-
SODE_TACHYTHER­APY_SHOCK_ENERGY_10
Encounter Epi-
sode Tachy Ther-
apy Shock Energy
10
Parame­ter Type
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
82
IDCO Paceart
OBX 3-1 OBX 3-2 Supported Values (OBX 5) Parameter Name
739735 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks
739736 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS_1
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks 1
739737 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS_2
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks 2
739738 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS_3
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks 3
739739 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS_4
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks 4
739740 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS_5
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks 5
739741 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS_6
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks 6
739742 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS_7
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks 7
739743 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS_8
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks 8
739744 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS_9
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks 9
739745 MDC_IDC_EPI-
SODE_TACHYTHER­APY_NUM_SHOCKS_10
Encounter Epi-
sode Tachy Ther-
apy Number
Shocks 10
739747 MDC_IDC_EPI-
SODE_TYPE_IN_PRO­GRESS
739584 MDC_IDC_STAT_EPI-
SODE_TYPE_INDUCED
Encounter Epi-
sode Type In Pro-
gress
Encounter Epi-
sode Type
Induced
Parame­ter Type
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Numeric
Boolean
Boolean
83
6.2.6.12 MDC_IDC_NOTIFICATION
IDCO Paceart OBX 3-1 OBX 3-2 Supported Values (OBX 5) Parameter Name Parameter Type
740033 MDC_IDC_NOTIFICATION _ID Encounter Notifica-
tion ID
740035 MDC_IDC_NOTIFICATION _
DTM_START
740036 MDC_IDC_NOTIFICA-
TION_DTM_END
740039 MDC_IDC_NOTIFICATION
_TYPE_1
740040 MDC_IDC_NOTIFICATION
_TYPE_2
740041 MDC_IDC_NOTIFICATION
_TYPE_3
755457^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_DEVICE ^MDC
755458^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_Device _ Set­tings^MDC
755459^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_ Lead^MDC
755460^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_Atrial_ Arrhyth­mia^MDC
755461^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_ Ventricular_ Arrhythmia^MDC
755461^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_ Ventricular_ Arrhythmia^MDC
755463^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_Heart_ Failure^MDC
755464^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_Shock _Therapy_ Delivered^MDC
755465^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_ATP_ Therapy_ Delivered^MDC
755466^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_Pacing_ Therapy ^MDC
755467^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_Other_ Clini­cal^MDC
755468^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_Follow_ Up^MDC
755469^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_Patient_ Request ^MDC
755470^MDC_IDC_ENUM_ NOTIFI­CATION_TYPE_ Connectiv­ity_Administrative ^MDC
Same as MDC_IDC_NOTIFICA­TION_ TYPE_1
Same as MDC_IDC_NOTIFICA­TION_ TYPE_1
Encounter Notifica­tion Start Date
Encounter Notifica­tion End Date
Encounter Notifica­tion Type 1
Encounter Notifica­tion Type 2
Encounter Notifica­tion Type 3
String 100
Date Time
Date Time
ENUM
ENUM
ENUM
84
IDCO Paceart OBX 3-1 OBX 3-2 Supported Values (OBX 5) Parameter Name Parameter Type
740042 MDC_IDC_NOTIFICATION
_PRIORITY
740043 MDC_IDC_NOTIFICATION
_DESCRIPTION
6.2.6.13 Embedded PDF
HL7 Paceart
OBX 2 OBX 3-1 OBX 3-3 OBX 3-4 OBX 3-5 OBX 5-2
ED 18750-0 LN Attachment
755521^MDC_IDC_ENUM_ NOTIFI­CATION_PRIORITY_ High^MDC
755522^MDC_IDC_ENUM_ NOTIFI­CATION_PRIORITY_ Medium^MDC
755523^MDC_IDC_ENUM_ NOTIFI­CATION_PRIORITY_ Low^MDC
755524^MDC_IDC_ENUM_ NOTIFI­CATION_PRIORITY_ Informa­tive^MDC
755525^MDC_IDC_ENUM_ NOTIFI­CATION_PRIORITY_Not_ Indica­ted^MDC
File Name
Attachment Description
Attachment File Name Extension
Encounter Notifica­tion Priority
Encounter Notifica­tion Description
Supported Values (OBX 5-5)
Base-64 Encoded
Parameter Name
Attachment File
ENUM
String 250
Parameter Type
Binary 50 MB
6.2.6.14 Referenced PDF
HL7 Paceart
Supported Values
OBX 2 OBX 3-1 OBX 3-3
RP 18750-0 LN Attachment File
OBX 5 Parameter Name Parameter Type
String 260
Name

6.3 Outbound Messages

The Paceart System and CareLink integrate with the HL7 protocol for outgoing messages from the Paceart System and CareLink to an external system by mapping a parameter and a parameter type to HL7 values. This section describes outbound message mapping.

6.3.1 Outbound MSH Message Segments

The HL7 MSH (Message Header) segment is present in every HL7 message type and defines the message’s source, purpose, destination, and certain syntax specifics like delimiters (separator characters) and character sets.
Source of Data or Literal Value Field Component
| MSH-1 N/A ^~\& MSH-2 N/A Paceart MSH-3 1 Medtronic MSH-4 1 Local date and time in the format YYYMMDDhhmmss MSH-7 N/A ORU MSH-9 1 R01 MSH-9 2 ORU_R01 MSH-9 3 Message ID in the format YYYYMMDDhhmmss###### MSH-10 N/A P MSH-11 1
2.6 MSH-12 1 AL MSH-15 N/A NE MSH-16 N/A
85
Source of Data or Literal Value Field Component
IHE_PCD_ORU_R01 MSH-21 1 IHE PCD MSH-21 2
1.3.6.1.4.1.19376.1.6.1.9.1 MSH-21 3 ISO MSH-21 4

6.3.2 Outbound PID Message Segments

The PID (Patient Identification) segment provides important identification information about the patient and is used as the primary means of communicating the identifying and demographic information about a patient between systems.
Parameter Parameter Type Field Component Occurrence
Patient ID Value String 50 PID-3 1 2..21 Patient Last Name String 50 PID-5 1 1 Patient First Name String 50 PID-5 2 1 Patient Middle Initial String 1 PID-5 3 1 Patient Birth Date DateTime PID-7 N/A 1 Patient Gender ENUM PID-8 N/A 1 Patient Address Line 1 String 50 PID-11 1 1 Patient Address Line 2 String 50 PID-11 2 1 Patient Address City String 50 PID-11 3 1 Patient Address State String 10 PID-11 4 1 Patient Address Postal Code String 10 PID-11 5 1 Patient Address Country String 50 PID-11 6 1 Patient Email Address String 100 PID-13 4 1 Patient Marital Status ENUM PID-16 1 1 Patient Date of Death DateTime PID-29 1 1 Death Indicator Boolean PID-30 1 1

6.3.3 Outbound PV1 Message Segments

The PV1 (Patient Visit) segment is used by registration applications to communicate information on a visit-specific basis.
Parameter Parameter Type Field Component Sub-Component Occurrence
Patient Status String 1 PV1-2 1 N/A N/A Patient Location of
Care Encounter Visit ID String 50 PV1-19 1 N/A N/A

6.3.4 Outbound PV2 Message Segments

The PV2 (Patient Visit) segment is a continuation of visit-specific information contained in the PV1 segment.
Parameter Parameter Type Field Component Sub-Component Occurrence
Patient Code Value (Paceart)
Custom Patient Field(s) (CareLink)

6.3.5 Outbound NTE Message Segments

The NTE segment is an optional segment that appears after the PID and is used to provide notes and comments.
Note: There is another NTE Message Segments table after the Outbound OBR Message Segments table.
Parameter
Patient Record Com­ment
String PV1-3 1 N/A N/A
String 6 PV2-7 1 N/A m
Parameter Type NTE-3
String 65000 /PaceartXML/PatientRecord/Comment
86

6.3.6 Outbound OBR Message Segments

The OBR (Observation Request) segment transmits information about an exam, diagnostic study/observation, or assessment that is specific to an order or result.
Sub-Compo-
Parameter Parameter Type Field Component
nent Occurrence
Encounter Key String 32 OBR-3 1 N/A N/A Encounter Type ENUM OBR-4 1 N/A N/A Encounter Type String 20 OBR-4 4 N/A N/A Encounter Type String 20 OBR-4 5 N/A N/A Encounter Type String 20 OBR-4 6 N/A N/A Encounter Date and Time DateTime OBR-7 1 N/A N/A Encounter Signature Date and
DateTime OBR-8 1 N/A N/A
Time REFERRING1 Provider Code String 6 OBR-16 1 N/A N/A REFERRING1 Provider Last
String 50 OBR-16 2 N/A N/A
Name REFERRING1 Provider First
String 50 OBR-16 3 N/A N/A
Name REFERRING1 Provider Middle
String 1 OBR-16 4 N/A N/A
Initial REFERRING1 Provider Cre-
String 20 OBR-16 5 N/A N/A
dentials Encounter Lock
a
String 1 OBR-25 1 N/A N/A Encounter Parent Key String 32 OBR-26 1 N/A N/A REFERRING2 Provider Code String 6 OBR-28 1 N/A 1 REFERRING2 Provider Last
String 50 OBR-28 2 N/A 1 Name
REFERRING2 Provider First
String 50 OBR-28 3 N/A 1 Name
REFERRING2 Provider Middle
String 1 OBR-28 4 N/A 1 Initial
REFERRING2 Provider Cre-
String 20 OBR-28 5 N/A 1 dentials
REFERRING3 Provider Code String 6 OBR-28 1 N/A 2 REFERRING3 Provider Last
String 50 OBR-28 2 N/A 2 Name
REFERRING3 Provider First
String 50 OBR-28 3 N/A 2 Name
REFERRING3 Provider Middle
String 1 OBR-28 4 N/A 2 Initial
REFERRING3 Provider Cre-
String 20 OBR-28 5 N/A 2 dentials
FOLLOWING Provider Code String 6 OBR-28 1 N/A 3 FOLLOWING Provider Last
String 50 OBR-28 2 N/A 3 Name
FOLLOWING Provider First
String 50 OBR-28 3 N/A 3 Name
FOLLOWING Provider Middle
String 1 OBR-28 4 N/A 3 Initial
FOLLOWING Provider Creden-
String 20 OBR-28 5 N/A 3 tials
Provider Code/Signer ID String 6 OBR-32 1 1 N/A Provider Last Name/Signer
String 50 OBR-32 1 2 N/A Name
Provider First Name String 50 OBR-32 1 3 N/A
87
Sub-Compo-
Parameter Parameter Type Field Component
nent Occurrence
Provider Middle Initial String 1 OBR-32 1 4 N/A Provider Credentials String 20 OBR-32 1 5 N/A
a
In the Paceart System, if Encounter Lock is false, then the value is "P" for preliminary. If Encounter Lock is true, then the value is "F" for final. In CareLink, when an encounter is first sent to the EHR the Encounter Lock value is "F" for final. If subsequent values are sent then the Encounter Lock value is "A" for amended.
OBR:4 Coded Elements
The OBR:4 segment maps the following values to the IDCO Profile values. The items below identify the referenced Universal Service Identifiers.
CareLink integrations will only export the “REMOTE” value.
Value OBR:4.1 OBR:4.2
INCLINIC 754050 MDC_IDC_ENUM_SESS_TYPE_InClinic PROGRAMMING 754055 MDC_IDC_ENUM_SESS_TYPE_Other REMOTE 754051 MDC_IDC_ENUM_SESS_TYPE_Remote TTM 754055 MDC_IDC_ENUM_SESS_TYPE_Other IMPLANT 754049 MDC_IDC_ENUM_SESS_TYPE_Implant PHONENOTE 754055 MDC_IDC_ENUM_SESS_TYPE_Other MISC 754055 MDC_IDC_ENUM_SESS_TYPE_ Other

6.3.7 Outbound NTE Message Segments

The NTE segment is an optional segment following the OBR and is used to provide notes and comments.
Parameter
Parameter
Type NTE-3
Encounter Comment String 65000 /PaceartXML/PatientRecord/Encounters/Encounter[1]/Comment

6.3.8 Outbound OBX Messages

The OBX segment is primarily used to carry key clinical observation and result reporting information within report messages.
IDCO 1.0 and 1.1 Profiles
Nonconforming and discriminator OBX values
Each OBX message segment has a value to specify nonconforming values. An OBX-8 value of "NC-PA" means that the data was nonconforming in the Paceart System or CareLink. An OBX-8 value of "NC-IDCO" means that the data does not conform to the IDCO profile definition for the data.
The OBX-8 value is also used to specify a discriminator value for numerical data. For example, a numerical message segment allows the less-than (<) and greater-than (>) symbols, but not the less-than or equal to (<=) and greater-than or equal to (>=) symbols. The following segment is for valid values of the number:
Parameter Parameter type OBX-2 OBX-3 OBX-6 OBX-8
Encounter Pro­grammed Brady­cardia Automatic
Numeric NM 731456^MDC_IDC_SET_
BRADY_AT_MODE_ SWITCH_RATE^MDC
{beats}/min^ heart­beats per minute^MDC
>, <
Mode Switch Ther­apy Pacing Rate
While the following segment is for nonconforming values of the number:
Parameter Parameter type OBX-2 OBX-3 OBX-6 OBX-8
Encounter Pro­grammed Brady­cardia Automatic
Numeric NM 731456^MDC_IDC_SET_
BRADY_AT_MODE_ SWITCH_RATE^MDC
{beats}/min^ heart­beats per minute^MDC
>=^NC-IDCO, <=^NC-IDCO
88
Parameter Parameter type OBX-2 OBX-3 OBX-6 OBX-8
Mode Switch Ther­apy Pacing Rate
Enumerations
For OBX message segments that have a Parameter Type of ENUM, there are multiple OBX-5 values for each possible value of the enumeration. These values are not listed in the OBX message segment tables.
6.3.8.1 Outbound OBX Nomenclature Version Segments
OBX-2 OBX-3
ST 740065^MDC_IDC_NOMENCLATURE_VERSION^MDC ST 740066^MDC_IDC_NOMENCLATURE_VERSION_QUALIFIER^MDC
6.3.8.2 Outbound OBX Encounter Message Segments
OB
Parameter Parameter type OBX-2 OBX-3
Encounter Summary Indicator Boolean CWE 1001351^MDT_ENCOUNTER_SUM-
MARY_FLAG^MDT
Encounter Location of Care String 50 ST 721033^MDC_IDC_SESS_CLINIC_NAME^MD
C
Medtronic defined enumeration values
Encounter Summary Indicator – You can map a Medtronic defined OBX-5 value for the following segment:
X-6
Parameter Parameter type OBX-2 OBX-3
Encounter Summary Indicator Boolean CWE 1001351^MDT_ENCOUNTER_SUM-
MARY_FLAG^MDT
The OBX-5 value can be the following Medtronic defined value:
OBX-5-1 OBX-5-2 OBX-5-3
200300 MDT_ENCOUNTER_SUMMARY_YES MDT
6.3.8.3 Outbound OBX Session Message Segments
Parameter
Parameter
Encounter Session Timestamp DateTime DTM 721025^MDC_IDC_SESS_DTM^MDC Encounter Type ENUM CWE 721026^MDC_IDC_SESS_TYPE^MDC Encounter Session Reprogrammed ENUM CWE 721027^MDC_IDC_SESS_REPROG-
Encounter Session Device Type ENUM CWE 720897^MDC_IDC_DEV_TYPE^MDC Encounter Session Device Manufacturer ENUM CWE 720900^MDC_IDC_DEV_MFG^MDC Encounter Session Device Model String 50 ST 720898^MDC_IDC_DEV_MODEL^MDC Encounter Session Device Serial Number String 50 ST 720899^MDC_IDC_DEV_SERIAL^MDC Encounter Session Active Device Implant
Date Encounter Session Active Device Advisory
Status Encounter Session Active Device Advisory
Details Encounter Session Active Device Advisory
URL
type OBX-2 OBX-3 OBX-6
RAMMED^MDC
DateTime DTM 720901^MDC_IDC_DEV_IMPLANT_DT^
MDC
ENUM CWE 720905^MDC_IDC_DEV_ADVI-
SORY_INFO_STATUS^MDC
ENUM CWE 720906^MDC_IDC_DEV_ADVI-
SORY_INFO^MDC
ENUM CWE 720907^MDC_IDC_DEV_ADVI-
SORY_INFO_URL^MDC
IDCO enumeration values
Encounter Type can have the following IDCO OBX-5 values:
89
OBX-5-1 OBX-5-2 OBX-5-3
754050 MDC_IDC_ENUM_SESS_TYPE_InClinic MDC 754055 MDC_IDC_ENUM_SESS_TYPE_Other MDC 754051 MDC_IDC_ENUM_SESS_TYPE_Remote MDC 754049 MDC_IDC_ENUM_SESS_TYPE_Implant MDC 754052 MDC_IDC_ENUM_SESS_TYPE_RemoteDeviceIniti-
ated 754053 MDC_IDC_ENUM_SESS_TYPE_RemoteScheduled MDC 754054 MDC_IDC_ENUM_SESS_TYPE_RemotePatientIniti-
ated
Encounter Session Reprogrammed can have the following IDCO OBX-5 values:
OBX-5-1 OBX-5-2 OBX-5-3
755201 MDC_IDC_ENUM_SESS_REPROGRAMMED _YES MDC 755202 MDC_IDC_ENUM_SESS_REPROGRAMMED _NO MDC
Encounter Session Device Type can have the following IDCO OBX-5 values:
OBX-5-1 OBX-5-2 OBX-5-3
753665 MDC_IDC_ENUM_DEV_TYPE_IPG MDC 753666 MDC_IDC_ENUM_DEV_TYPE_ICD MDC 753667 MDC_IDC_ENUM_DEV_TYPE_CRT_D MDC 753668 MDC_IDC_ENUM_DEV_TYPE_CRT_P MDC 753669 MDC_IDC_ENUM_DEV_TYPE_Monitor MDC
MDC
MDC
Encounter Session Device Manufacturer can have the following IDCO OBX-5 values:
OBX-5-1 OBX-5-2 OBX-5-3
753729 MDC_IDC_ENUM_MFG_ANGN MDC 753730 MDC_IDC_ENUM_MFG_APC MDC 753756 MDC_IDC_ENUM_MFG_Other MDC 753731 MDC_IDC_ENUM_MFG_BIO MDC 753732 MDC_IDC_ENUM_MFG_BSX MDC 753738 MDC_IDC_ENUM_MFG_COR MDC 753739 MDC_IDC_ENUM_MFG_ELA MDC 753740 MDC_IDC_ENUM_MFG_GDT MDC 753741 MDC_IDC_ENUM_MFG_IMC MDC 753744 MDC_IDC_ENUM_MFG_MDT MDC 753747 MDC_IDC_ENUM_MFG_PCS MDC 753748 MDC_IDC_ENUM_MFG_SIE MDC 753750 MDC_IDC_ENUM_MFG_SOR MDC 753751 MDC_IDC_ENUM_MFG_STJ MDC 753753 MDC_IDC_ENUM_MFG_TEL MDC 753754 MDC_IDC_ENUM_MFG_VEN MDC 753755 MDC_IDC_ENUM_MFG_VIT MDC 753757 MDC_IDC_ENUM_MFG_ABT MDC 753758 MDC_IDC_ENUM_MFG_MPT MDC
Encounter Session Active Device Status can have the following IDCO OBX-5 values:
OBX-5-1 OBX-5-2 OBX-5-3
755393 MDC_IDC_ENUM_ADVISORY_STATUS_Advisory MDC 755394 MDC_IDC_ENUM_ADVISORY_STATUS_No_Advisory MDC
90
6.3.8.4 Outbound OBX Leads Message Segments
Parameter
Parameter
Lead Manufac­turer
Lead Model String 50 ST 720961^MDC_IDC_LEAD_MODEL^MDC Lead Serial
Number Lead Implant
Date Lead Chamber ENUM CWE 720966^MDC_IDC_LEAD_LOCATION^MDC Lead Explanted
Date Lead Aban-
doned Date Lead Partially
Explanted Date Lead Advisory
Status Lead Advisory
Details Lead Advisory
URL
type OBX-2 OBX-3 OBX-6
ENUM ST 720963^MDC_IDC_LEAD_MFG^MDC
String 20 ST 720962^MDC_IDC_LEAD_SERIAL^MDC
DateTime DTM 720964^MDC_IDC_LEAD_IMPLANT_DT^MDC
DateTime DTM 1001044^MDT_LEAD_EXPLANTEDATE^MDT
DateTime DTM 1001045^MDT_LEAD_ABANDONEDATE^MDT
DateTime DTM 1001046^MDT_LEAD_PARTIALEXPLANTDATE^MDT
ENUM CWE 720972^MDC_IDC_LEAD_ADVISORY_INFO_STA-
TUS^MDC
String ST 720973^MDC_IDC_LEAD_ADVISORY_INFO^MDC
String ST 720974^MDC_IDC_LEAD_ADVI-
SORY_INFO_URL^MDC
IDCO enumeration values
Lead Manufacturer can have the following IDCO OBX-5 Values:
OBX-5-1 OBX-5-2 OBX-5-3
753741 MDC_IDC_ENUM_MFG_IMC MDC 753742 MDC_IDC_ENUM_MFG_IMT MDC 753743 MDC_IDC_ENUM_MFG_MCO MDC 753744 MDC_IDC_ENUM_MFG_MDT MDC 753745 MDC_IDC_ENUM_MFG_OSC MDC 753746 MDC_IDC_ENUM_MFG_OSY MDC 753747 MDC_IDC_ENUM_MFG_PCS MDC 753748 MDC_IDC_ENUM_MFG_SIE MDC 753749 MDC_IDC_ENUM_MFG_SOM MDC 753750 MDC_IDC_ENUM_MFG_SOR MDC 753751 MDC_IDC_ENUM_MFG_STJ MDC 753752 MDC_IDC_ENUM_MFG_STO MDC 753753 MDC_IDC_ENUM_MFG_TEL MDC 753754 MDC_IDC_ENUM_MFG_VEN MDC 753755 MDC_IDC_ENUM_MFG_VIT MDC 753756 MDC_IDC_ENUM_MFG_Other MDC 753756 MDC_IDC_ENUM_MFG_Other MDC 753756 MDC_IDC_ENUM_MFG_Other MDC 753756 MDC_IDC_ENUM_MFG_Other MDC 753756 MDC_IDC_ENUM_MFG_Other MDC 753756 MDC_IDC_ENUM_MFG_Other MDC 753756 MDC_IDC_ENUM_MFG_Other MDC 753756 MDC_IDC_ENUM_MFG_Other MDC 753756 MDC_IDC_ENUM_MFG_Other MDC 753757 MDC_IDC_ENUM_MFG_ABT MDC 753758 MDC_IDC_ENUM_MFG_MPT MDC
91
Lead Chamber can have the following IDCO OBX-5 values:
OBX-5-1 OBX-5-2 OBX-5-3
753857 MDC_IDC_ENUM_LEAD_LOCATION_CHAMBER _LA MDC 753859 MDC_IDC_ENUM_LEAD_LOCATION_CHAMBER _RA MDC 753858 MDC_IDC_ENUM_LEAD_LOCATION_CHAMBER _LV MDC 753860 MDC_IDC_ENUM_LEAD_LOCATION_CHAMBER _RV MDC
6.3.8.5 Outbound OBX Programming Bradycardia Message Segments
Parameter
Parameter
Encounter Pro­grammed Bra­dycardia Pac­ing Mode
Encounter Pro­grammed Bra­dycardia Lower Rate
Encounter Pro­grammed Bra­dycardia Maxi­mum Tracking Rate
Encounter Pro­grammed Bra­dycardia Maxi­mum Sensor Rate
Encounter Pro­grammed Bra­dycardia Hyste­resis Rate
Encounter Pro­grammed Bra­dycardia Sleep Rate
Encounter Pro­grammed Bra­dycardia Pace­maker Medi­ated Tachycar­dia Intervention
Encounter Pro­grammed Bra­dycardia Pre­mature Ventric­ular Contrac­tion Interven­tion
Encounter Pro­grammed Bra­dycardia Rate Modulation Threshold
Encounter Pro­grammed Bra­dycardia Rate
type OBX-2 OBX-3 OBX-6
ENUM CWE 730752^MDC_IDC_SET_BRADY_MODE^MDC
Numeric NM 730880^MDC_IDC_SET_BRADY_LOWRATE^MDC {beats}/min^heartbeats per
Numeric NM 731136^MDC_IDC_SET_ADY_MAX_TRACKING_RAT
E^MDC
Numeric NM 731200^MDC_IDC_SET_BRADY_MAX_SEN-
SOR_RATE^MDC
Numeric NM 730944^MDC_IDC_SET_BRADY_HYSTRATE^MDC {beats}/min^heartbeats per
Numeric NM 731008^MDC_IDC_SET_BRADY_NIGHT_RATE^MDC{beats}/min^heartbeats per
String 50 ST 100001^MDT_PROG_BRADY_PMT_INTERVEN-
TION^MDT
String 50 ST 100002^MDT_PROG_BRADY_PVC_RESPONSE^MD
T
String 50 ST 100003^MDT_PROG_BRADY_RATEMODULA-
TION_THRESHOLD^MDT
String 50 ST 100004^MDT_PROG_BRADY_RATEMODULA-
TION_SLOPE^MDT
minute^UCUM
{beats}/min^heartbeats per minute^UCUM
{beats}/min^heartbeats per minute^UCUM
minute^UCUM
minute^UCUM
92
Parameter
Modulation Slope
Encounter Pro­grammed Bra­dycardia Rate Modulation Slope Exertion
Encounter Pro­grammed Bra­dycardia Rate Modulation Acceleration Reaction
Encounter Pro­grammed Bra­dycardia Rate Modulation Deceleration Recovery
Encounter Pro­grammed Bra­dycardia Rate Modulation Activities of Daily Living Rate
Encounter Pro­grammed Bra­dycardia AV Delay Sensed Minimum
Encounter Pro­grammed Bra­dycardia AV Delay Paced Minimum
Encounter Pro­grammed Bra­dycardia AV Delay Adaptive Status
Encounter Pro­grammed Bra­dycardia AV Delay Paced
Encounter Pro­grammed Bra­dycardia AV Delay Sensed
Encounter Pro­grammed Bra­dycardia AV Delay Adaptive Start Rate
Encounter Pro­grammed Bra­dycardia AV
Parameter type OBX-2 OBX-3 OBX-6
String 50 ST 100005^MDT_PROG_BRADY_RATEMODULA-
TION_SLOPE_EXERTION^MDT
Numeric NM 100006^MDT_PROG_BRADY_RATEMODULA-
s^seconds^UCUM
TION_ACCELERATIONREACTION^MDT
Numeric NM 100007^MDT_PROG_BRADY_RATEMODULA-
m^minutes^UCUM
TION_DECELERATIONRECOVERY^MDT
Numeric NM 100008^MDT_PROG_BRADY_RATEMODULA-
TION_ADLRATE^MDT
Numeric NM 731265^MDC_IDC_SET_BRADY_SAV_DELAY_HIGH
{beats}/min^heartbeats per minute^UCUM
ms^milliseconds^UCUM
^MDC
Numeric NM 731329^MDC_IDC_SET_BRADY_PAV_DELAY_HIGH
ms^milliseconds^UCUM
^MDC
ENUM ST 100009^MDT_PROG_BRADY_AVDELAY_ADAP-
TIVE_STATUS^MDT
Numeric NM 731330^MDC_IDC_SET_BRADY_PAV_DELAY_LOW^
ms^milliseconds^UCUM
MDC
Numeric NM 731266^MDC_IDC_SET_BRADY_SAV_DELAY_LOW^
ms^milliseconds^UCUM
MDC
Numeric NM 100012^MDT_PROG_BRADY_AVDELAY_ADAP-
TIVE_STARTRATE^MDT
Numeric NM 100013^MDT_PROG_BRADY_AVDELAY_ADAP-
TIVE_STOPRATE^MDT
{beats}/min^heartbeats per minute^UCUM
{beats}/min^heartbeats per minute^UCUM
93
Parameter
Delay Adaptive Stop Rate
Encounter Pro­grammed Bra­dycardia AV Delay Adaptive Curve Descrip­tion
Encounter Pro­grammed Bra­dycardia Auto­matic Mode Switch Status
Encounter Pro­grammed Bra­dycardia Auto­matic Mode Switch Detec­tion Criteria Rate
Encounter Pro­grammed Bra­dycardia Auto­matic Mode Switch Detec­tion Duration Fixed
Encounter Pro­grammed Bra­dycardia Auto­matic Mode Switch Detec­tion Duration Beat Ratio Numerator
Encounter Pro­grammed Bra­dycardia Auto­matic Mode Switch Detec­tion Duration Beat Ratio Denominator
Encounter Pro­grammed Bra­dycardia Auto­matic Mode Switch Detec­tion Duration Beat Count
Encounter Pro­grammed Bra­dycardia Auto­matic Mode Switch Therapy Pacing Rate
Encounter Pro­grammed Bra­dycardia Auto-
Parameter type OBX-2 OBX-3 OBX-6
String 50 ST 100010^MDT_PROG_BRADY_AVDELAY_CURVEDE-
SCRIPTION^MDT
ENUM ST 100011^MDT_PROG_BRADY_AUTOMATICEMODES-
WITCH_STATUS^MDT
Numeric NM 731456^MDT_IDC_SET_BRADY_AT_MODE_SWITC
H^MDC
Numeric NM 100015^MDT_PROG_BRADY_AUTOMATICEMODES-
{beats}/min^heartbeats per minute^UCUM
s^seconds^UCUM WITCH_DETECTION_CRITERIA_DURA­TION_FIXED^MDT
Numeric NM 100016^MDT_PROG_BRADY_AUTOMATICEMODES-
{beats}^heartbeats^UCUM WITCH_DETECTION_CRITERIA_DURATION_BEA­TRATIO_NUMERATOR^MDT
Numeric NM 100017^MDT_PROG_BRADY_AUTOMATICEMODES-
{beats}^heartbeats^UCUM WITCH_DETECTION_CRITERIA_DURATION_BEA­TRATIO_DENOMINATOR^MDT
Numeric NM 100018^MDT_PROG_BRADY_AUTOMATICEMODES-
{beats}^heartbeats^UCUM WITCH_DETECTION_CRITERIA_DURATION_BEAT­COUNT^MDT
Numeric NM 731456^MDC_IDC_SET_BRADY_AT_MODE_SWITC
H_ RATE^MDC
{beats}/min^heartbeats per
minute^UCUM
ENUM CWE 731392^MDC_IDC_SET_BRADY_AT_MODE_SWITC
H_MODE^MDC
94
Parameter
matic Mode Switch Therapy Pacing Mode
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Polarity
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Summary
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra-
Parameter type OBX-2 OBX-3 OBX-6
ENUM CWE 729603^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_POLARITY^MDC
String ST 1001334^MDT_PROG_BRADY_POLARITYCONFIGU-
RATION_LV_ SENSING_PATHWAY_SUMMARY^MDT
ENUM CWE 729677^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_ANODE_LOCATION_1^MDC
ENUM CWE 729741^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_ANODE_ELECTRODE_1^MDC
ENUM CWE 729678^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_ANODE_LOCATION_2^MDC
ENUM CWE 729742^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_ANODE_ELECTRODE_2^MDC
ENUM CWE 729679^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_ANODE_LOCATION_3^MDC
ENUM CWE 729743^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_ANODE_ELECTRODE_3^MDC
ENUM CWE 729805^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_CATHODE_LOCATION_1^MDC
ENUM CWE 729869^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_CATHODE_ELECTRODE_1^MDC
95
Parameter
dycardia Left Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Blanking Previous Event Chamber
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Refractory Period Interval
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Blanking Previous Event Chamber
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Blanking Previous Event Type
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens-
Parameter type OBX-2 OBX-3 OBX-6
ENUM CWE 729806^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_CATHODE_LOCATION_2^MDC
ENUM CWE 729870^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_CATHODE_ELECTRODE_2^MDC
ENUM CWE 729807^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_CATHODE_LOCATION_3^MDC
ENUM CWE 729871^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_CATHODE_ELECTRODE_3^MDC
ENUM ST 101043^MDT_PROG_BRADY_REFRACTORYPER-
IOD_PREVIOUSEVENTCHAMBER_LV^MDT
Numeric NM 101044^MDT_PROG_BRADY_REFRACTORYPER-
IOD_INTERVAL_LV^MDT
ENUM ST 101051^MDT_PROG_BRADY_BLANKINGPER-
IOD_PREVIOUSEVENTCHAMBER_LV^MDT
ENUM ST 101052^MDT_PROG_BRADY_BLANKINGPER-
IOD_EVENTTYPE_LV^MDT
Numeric NM 101053^MDT_PROG_BRADY_BLANKINGPER-
IOD_INTERVAL_LV^MDT
ms^milliseconds^UCUM
ms^milliseconds^UCUM
96
Parameter
ing Blanking Interval
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Amplitude
Encounter Pro­grammed Bra­dycardia Left Ventricle Sens­ing Amplitude Adaptation Mode
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Polarity
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Sum­mary
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Loca­tion
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Elec­trode
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Loca­tion
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Elec­trode
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Loca­tion
Encounter Pro­grammed Bra­dycardia Right
Parameter type OBX-2 OBX-3 OBX-6
Numeric NM 729539^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_SENSITIVITY^MDC
ENUM CWE 729923^MDC_IDC_SET_LEADCHNL_LV_SENS-
ING_ADAPTATION_MODE^MDC
ENUM CWE 729600^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_POLARITY^MDC
String ST 1001335^MDT_PROG_BRADY_POLARITYCONFIGU-
RATION_ RA_SENSING_PATHWAY_SUMMARY^MDT
ENUM CWE 729665^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_ANODE_LOCATION_1^MDC
ENUM CWE 729729^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_ANODE_ELECTRODE_1^MDC
ENUM CWE 729666^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_ANODE_LOCATION_2^MDC
ENUM CWE 729730^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_ANODE_ELECTRODE_2^MDC
ENUM CWE 729667^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_ANODE_LOCATION_3^MDC
ENUM CWE 729731^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_ANODE_ELECTRODE_3^MDC
mV^millivolts^UCUM
97
Parameter
Atrium Sensing Pathway Elec­trode
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Loca­tion
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Elec­trode
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Loca­tion
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Elec­trode
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Loca­tion
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Pathway Elec­trode
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Blanking Previ­ous Event Chamber
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Refractory Period Interval
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Blanking Previ-
Parameter type OBX-2 OBX-3 OBX-6
ENUM CWE 729793^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_CATHODE_LOCATION_1^MDC
ENUM CWE 729857^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_CATHODE_ELECTRODE_1^MDC
ENUM CWE 729794^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_CATHODE_LOCATION_2^MDC
ENUM CWE 729858^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_CATHODE_ELECTRODE_2^MDC
ENUM CWE 729795^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_CATHODE_LOCATION_3^MDC
ENUM CWE 729859^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_CATHODE_ELECTRODE_3^MDC
ENUM ST 101045^MDT_PROG_BRADY_REFRACTORYPER-
IOD_PREVIOUSEVENTCHAMBER_RA^MDT
Numeric NM 101046^MDT_PROG_BRADY_REFRACTORYPER-
IOD_INTERVAL_RA^MDT
ENUM ST 101054^MDT_PROG_BRADY_BLANKINGPER-
IOD_PREVIOUSEVENTCHAMBER_RA^MDT
ms^milliseconds^UCUM
98
Parameter
ous Event Chamber
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Blanking Previ­ous Event Type
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Blanking Inter­val
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Amplitude
Encounter Pro­grammed Bra­dycardia Right Atrium Sensing Amplitude Adaptation Mode
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Polarity
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Summary
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Right
Parameter type OBX-2 OBX-3 OBX-6
ENUM ST 101055^MDT_PROG_BRADY_BLANKINGPER-
IOD_EVENTTYPE_RA^MDT
Numeric NM 101056^MDT_PROG_BRADY_BLANKINGPER-
IOD_INTERVAL_RA^MDT
Numeric NM 729536^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_SENSITIVITY^MDC
ENUM CWE 729920^MDC_IDC_SET_LEADCHNL_RA_SENS-
ING_ADAPTATION_MODE^MDC
ENUM CWE 729601^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_POLARITY^MDC
String ST 1001336^MDT_PROG_BRADY_POLARITYCONFIGU-
RATION_RV_ SENSING_PATHWAY_SUMMARY^MDT
ENUM CWE 729669^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_ANODE_LOCATION_1^MDC
ENUM CWE 729733^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_ANODE_ELECTRODE_1^MDC
ENUM CWE 729670^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_ANODE_LOCATION_2^MDC
ENUM CWE 729734^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_ANODE_ELECTRODE_2^MDC
ms^milliseconds^UCUM
mV^millivolts^UCUM
99
Parameter
Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Location
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Pathway Electrode
Encounter Pro­grammed Bra­dycardia Right Ventricle Sens­ing Refractory Period Previous Event Chamber
Parameter type OBX-2 OBX-3 OBX-6
ENUM CWE 729671^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_ANODE_LOCATION_3^MDC
ENUM CWE 729735^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_ANODE_ELECTRODE_3^MDC
ENUM CWE 729797^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_CATHODE_LOCATION_1^MDC
ENUM CWE 729861^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_CATHODE_ELECTRODE_1^MDC
ENUM CWE 729798^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_CATHODE_LOCATION_2^MDC
ENUM CWE 729862^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_CATHODE_ELECTRODE_2^MDC
ENUM CWE 729799^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_CATHODE_LOCATION_3^MDC
ENUM CWE 729863^MDC_IDC_SET_LEADCHNL_RV_SENS-
ING_CATHODE_ELECTRODE_3^MDC
ENUM ST 101047^MDT_PROG_BRADY_REFRACTORYPER-
IOD_PREVIOUSEVENTCHAMBER_RV^MDT
100
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
