Medtronic D00U003 Instructions for Use

CareLink SmartSync™ Azure™ Astra™ Application Help

Caution: Federal law (USA) restricts this device to sale by or on the order of a physician.

The following list includes trademarks or registered trademarks of Medtronic in the United States and possibly in other countries. All other trademarks are the property of their respective owners.

Astra, Azure, Capture Management, Cardiac Compass, CareAlert, CareLink, CareLink SmartSync, Medtronic, Medtronic CareAlert, MVP, Paceart, Paceart Optima, Quick Look, SessionSync, SureScan

1 Introduction ................................................................................................ 5

1.1 Description ................................................................................................ 5

1.2 About the device manager ................................................................................... 5

1.3 Intended use .............................................................................................. 5

1.4 Contraindications .......................................................................................... 5

1.5 Warnings and precautions ................................................................................... 5

1.6 Potential adverse events .................................................................................... 6

1.7 Download or order the instructions for use ..................................................................... 6

1.8 Symbols .................................................................................................. 6

1.9 IT network, tablet, and data information ........................................................................ 6

2 Overview of the interface ................................................................................... 7

2.1 Areas ..................................................................................................... 7

2.2 Buttons ................................................................................................... 8

2.3 Status indicators ........................................................................................... 8

3 Reinterrogating the implanted device ....................................................................... 10

3.1 Reinterrogate the implanted device .......................................................................... 10

4 Responding to device status indicator warnings ............................................................. 10

4.1 About device status indicator warnings ....................................................................... 10

4.2 Respond to the AT/AF THERAPIES DISABLED warning ........................................................ 10

4.3 Respond to the ATTENTION – ATRIAL LEAD NOT DETECTED DURING IMPLANT warning ......................... 10

4.4 Respond to the WARNING – DEVICE RESET warning .......................................................... 10

5 Using the Live Rhythm Monitor ............................................................................. 11

5.1 About the Live Rhythm Monitor .............................................................................. 11

5.2 Markers .................................................................................................. 11

5.3 Adjust the Live Rhythm Monitor display ....................................................................... 12

5.4 Freeze live waveform traces ................................................................................ 13

6 Using the eStrip recorder .................................................................................. 13

6.1 About the eStrip recorder ................................................................................... 13

6.2 Modify the display of waveform traces ........................................................................ 13

6.3 Configure waveform strip preferences ........................................................................ 13

6.4 Access waveform strips .................................................................................... 14

6.5 Change the length of a waveform strip ........................................................................ 14

6.6 Measure time intervals ..................................................................................... 14

6.7 Draw notes ............................................................................................... 14

6.8 Rename a waveform strip .................................................................................. 15

6.9 Use the Holter feature ...................................................................................... 15

7 Viewing summary data using the Quick Look screen ......................................................... 15

7.1 About the Quick Look screen ............................................................................... 15

7.2 View the Quick Look screen ................................................................................ 15

8 Using emergency VVI pacing ............................................................................... 16

8.1 Enable emergency VVI pacing .............................................................................. 16

9 Programming patient information ........................................................................... 16

9.1 Program the patient information ............................................................................. 16

9.2 Program MRI SureScan system and other implanted hardware information ........................................ 17

10 Programming implantable device settings ................................................................. 18

10.1 Parameter symbols ....................................................................................... 18

10.2 Program the parameters .................................................................................. 19

10.3 Create custom parameter sets ............................................................................. 19

10.4 Retrieve parameter sets ................................................................................... 19

10.5 Program data collection preferences ........................................................................ 19

10.6 View parameter changes .................................................................................. 20

11 Viewing and analyzing diagnostic data .................................................................... 21

11.1 View CareAlert events .................................................................................... 21

11.2 View clinical diagnostic data ............................................................................... 21

11.3 View device and lead diagnostic data ....................................................................... 23

12 Performing system tests .................................................................................. 24

12.1 Configure the test preferences for the Live Rhythm Monitor .................................................... 24

12.2 Perform an Underlying Rhythm Test ......................................................................... 24

12.3 Perform a Sensing Test ................................................................................... 24

12.4 Perform a Pacing Threshold Test ........................................................................... 25

12.5 Perform a Lead Impedance Test ............................................................................ 26

12.6 Perform a Magnet Test .................................................................................... 26

12.7 Perform EP Study tests to induce arrhythmias ................................................................ 26

12.8 Perform EP Study tests to deliver manual therapies ........................................................... 28

13 Using the SessionSync feature ............................................................................ 29

13.1 View the SessionSync connection status .................................................................... 29

13.2 Send device data and reports to the Paceart Optima system ................................................... 30

13.3 End the patient session with the automatic SessionSync feature ................................................ 30

14 Using session tools ...................................................................................... 30

14.1 Turn on standby mode for the implantable device ............................................................. 30

14.2 Turn off standby mode for the implantable device ............................................................. 30

14.3 Connect to the base ...................................................................................... 31

14.4 Start or return to a concurrent analyzer session ............................................................... 31

14.5 Save the implantable device data ........................................................................... 31

14.6 About Read From File sessions ............................................................................ 31

14.7 End the patient session ................................................................................... 32

15 Working with reports and saved device data ............................................................... 32

15.1 Configure the report preferences ........................................................................... 32

15.2 Generate reports ......................................................................................... 32

15.3 View or export saved reports and implantable device data ..................................................... 32

1 Introduction

1.1 Description

The CareLink SmartSync Azure Astra Application (referred to as the implantable device app) communicates with Azure MRI SureScan and Astra MRI SureScan devices and allows you to program the device settings and view stored device data.

Use the implantable device app to perform the following tasks:

• Review the presenting rhythm

• Verify the status of the implantable device

• Assess the clinical effectiveness of the implantable device

• View or enter patient information

• Program parameters

• Save or export data

The implantable device app is a component of the CareLink SmartSync device manager.

The features described in this help apply to the Azure XT DR MRI SureScan devices. To determine which features are available for another model in the Azure MRI SureScan or Astra MRI SureScan families, refer to the reference manual for the device.

Note: The CareLink SmartSync Azure Astra Application model number is D00U003.

1.2 About the device manager

The CareLink SmartSync device manager includes the following components:

• CareLink SmartSync Model 24970A base (referred to as the base)

• Model 24967 patient connector (referred to as the patient connector)

• CareLink SmartSync Device Manager Application (referred to as the device manager app)

The device manager app is the primary interface of the device manager. The device manager app provides access to the implantable device app and the CareLink SmartSync PSA (Pacing System Analyzer) Application (referred to as the analyzer).

1.3 Intended use

The implantable device app is intended to be used as part of the device manager. Clinicians use the implantable device app with the patient connector to adjust programmable parameters and evaluate the performance of implantable Azure MRI SureScan and Astra MRI SureScan systems.

The implantable device app is intended for use by healthcare professionals or Medtronic representatives in a clinical or hospital environment.

For information about indications for the implantable devices that are compatible with the implantable device app, refer to the device manual.

1.4 Contraindications

There are no known contraindications for the use of the implantable device app.

For information about contraindications for the implantable devices that are compatible with the implantable device app, refer to the device manual.

1.5 Warnings and precautions

These warnings and precautions apply when using the implantable device app in combination with the other device manager components.

Note: For warnings and precautions about the use of the implantable devices that are compatible with the implantable device app, refer to the device manual.

Electrical and patient safety – The device manager is compliant with the requirements of IEC 60601-1 for electrical and patient safety.

Importance of instructions for use – Before using the implantable device app, Medtronic recommends that you do the following:

• Read the implantable device instructions for use.

• Read the device manager instructions for use.

• Carefully assess the patient’s condition and the implantable device system to determine the appropriate settings for tests and device programming.

Improper use of the implantable device app could result in erroneous programming, inadvertent pacing, improper operation of telemetry, and incorrect operation of measurement functions.

Tablet and app interaction – Due to the dynamic nature of the tablet environment, operating system events such as notifications, alarms, and messaging can take priority and therefore move the implantable device app to the background. Tapping, pressing buttons, and using gestures on the tablet can also result in moving the implantable device app to the background or closing the implantable device app. For example, the implantable device app moves to the background if you lock the tablet.

When the implantable device app moves to the background or closes, telemetry with the implantable device is paused or lost, which results in the following scenarios:

• If detection has been suspended and there is no magnet present, the implantable device resumes detection within a few seconds.

• If a test is in progress, the test stops or continues, depending on the type of test. For more information, refer to the section on performing system tests in this help.

When you restore the implantable device app from the background, the implantable device app attempts to re-establish communication with the implantable device and displays the system status. If the implantable device app was closed, you must interrogate the implantable device to re-establish communication with the implantable device.

Electromagnetic interference – If electromagnetic interference (EMI) occurs during a telemetry session, EMI can prevent the proper programming or confirmation of values. For more information about EMI, refer to the Medical Procedure and EMI Warnings and Precautions Manual for Health Care Professionals.

1.6 Potential adverse events

There are no known potential adverse events related to the use of this implantable device app.

For information about potential adverse events related to the use of the implantable devices that are compatible with the implantable device app, refer to the device manual.

1.7 Download or order the instructions for use

Download or order the instructions for use from the Medtronic Manual Library.

To download the instructions for use, go to www.medtronic.com/manuals. For best results, use Adobe Acrobat® Reader.

To order paper copies of the instructions for use, go to www.medtronic.com/manuals or contact a Medtronic representative. Paper copies of the instructions for use are free of charge and arrive in approximately 3 to 7 days.

1.8 Symbols

Symbol Description

Manufacturer

Authorized representative in the European Community

Caution: Federal law (USA) restricts this device to sale by or on the order of a physician

1.9 IT network, tablet, and data information

1.9.1 Required IT network characteristics and configuration

To use the implantable device app, your tablet must have Bluetooth® wireless technology1. A connection to the Internet is optional.

Bluetooth wireless technology

You must enable Bluetooth wireless technology on your tablet. The hardware components of the device manager communicate with the device manager app, installed on the tablet, through a Bluetooth connection.

Failure to provide Bluetooth communication access prevents the device manager components from communicating with each other and with implantable devices. As a result, the device manager app is unable to establish a Bluetooth connection with the patient connector. The patient connector is used to interrogate and program the implantable cardiac device.

Internet

To configure your network, follow the processes and policies of your organization.

Internet access is not required to export and print reports. However, failure to provide information technology (IT) network access (for example, Wi-Fi or cellular) results in the inability to export and print reports using a wireless connection.

The Bluetooth® word mark is a registered trademark of Bluetooth SIG, Inc. Any use of the word mark by Medtronic is under license.

1.9.2 Supported tablets and technical specifications

To use the device manager, your tablet must meet certain requirements.

Note: The device manager app may not be compatible with the most current version of the tablet operating system.

For more information on the requirements, refer to the CareLink SmartSync Tablet Compatibility Technical Manual. To download or order the CareLink SmartSync Tablet Compatibility Technical Manual, go to medtronic.com/manuals.

1.9.3 Intended information flows

Data from the implantable device flows through the device manager components in the following sequential order:

• Implantable device

• Patient connector

• Implantable device app

All information in transit is protected for security.

2 Overview of the interface

2.1 Areas

The implantable device app is divided into 4 areas.

Area Description

1 Status bar – Displays status information about the device man-

ager components and the patient session. The status bar also

displays the SUSPEND, RESUME, and EMERGENCY buttons. 2 Live Rhythm Monitor – Displays real-time waveform traces. 3 Work area – Displays the parameters, fields, and controls for the

current window. 4 Navigation – Displays the menu.

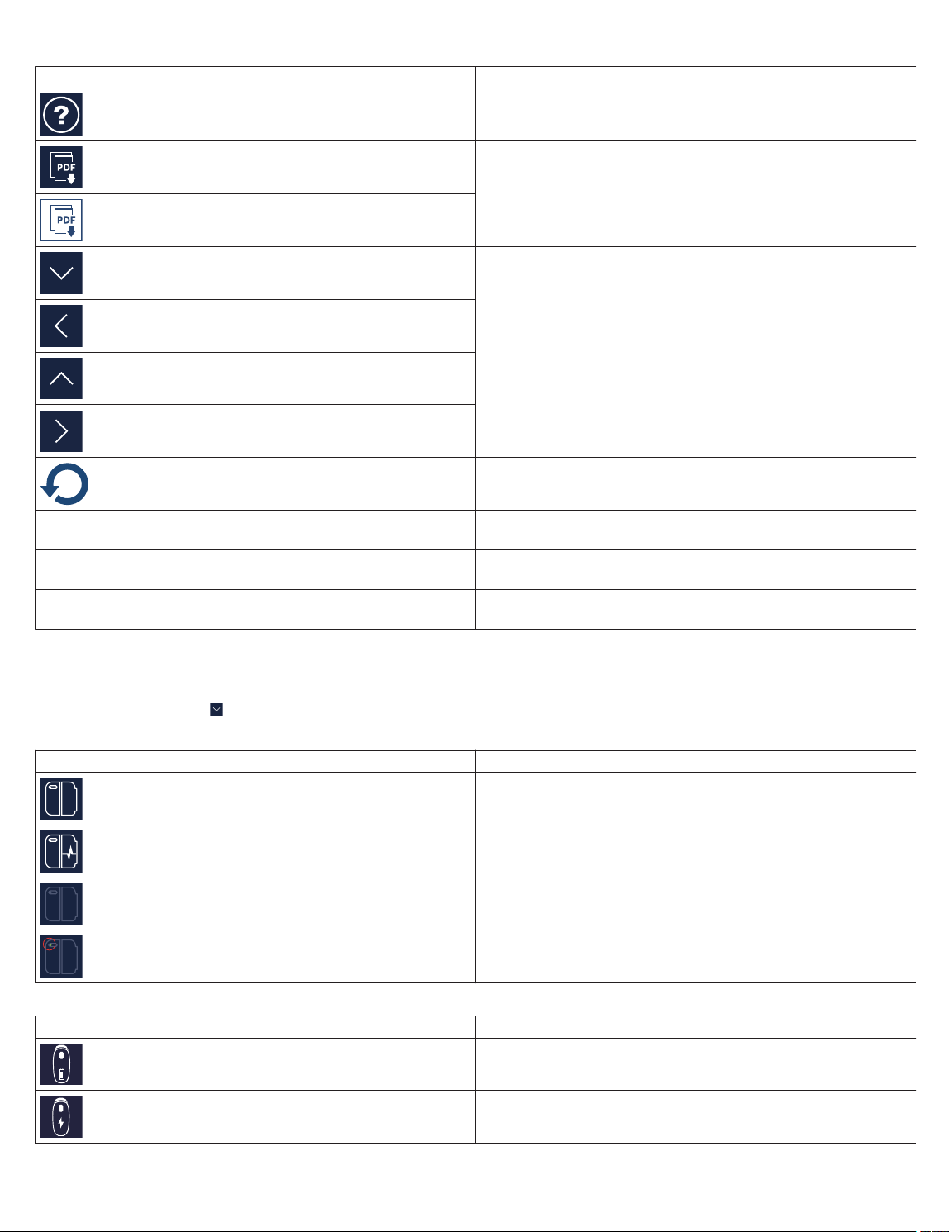

2.2 Buttons

Button Description

Opens the help

Generates a PDF report

Expands or collapses a menu or window

Note: The arrows are shown in various sizes and background

colors, such as blue and grey.

Reverses the change

SUSPEND Temporarily suspends the tachyarrhythmia detection within the

implantable device RESUME Resumes the tachyarrhythmia detection within the implantable

device EMERGENCY Opens the EMERGENCY - VVI PACING window that enables

you to provide emergency VVI pacing

2.3 Status indicators

The status bar displays the status of the base, the patient connector, the tablet, and the implantable device.

For more information, tap on the status bar.

Table 1. Base status indicators Indicator Description

The base is connected to the device manager app.

The base is connected to the device manager app, and an ana-

lyzer session is in progress.

There is no base connected to the device manager app.

Note: A green dot indicates that a base was recently connected

to the device manager app, but is not connected now.

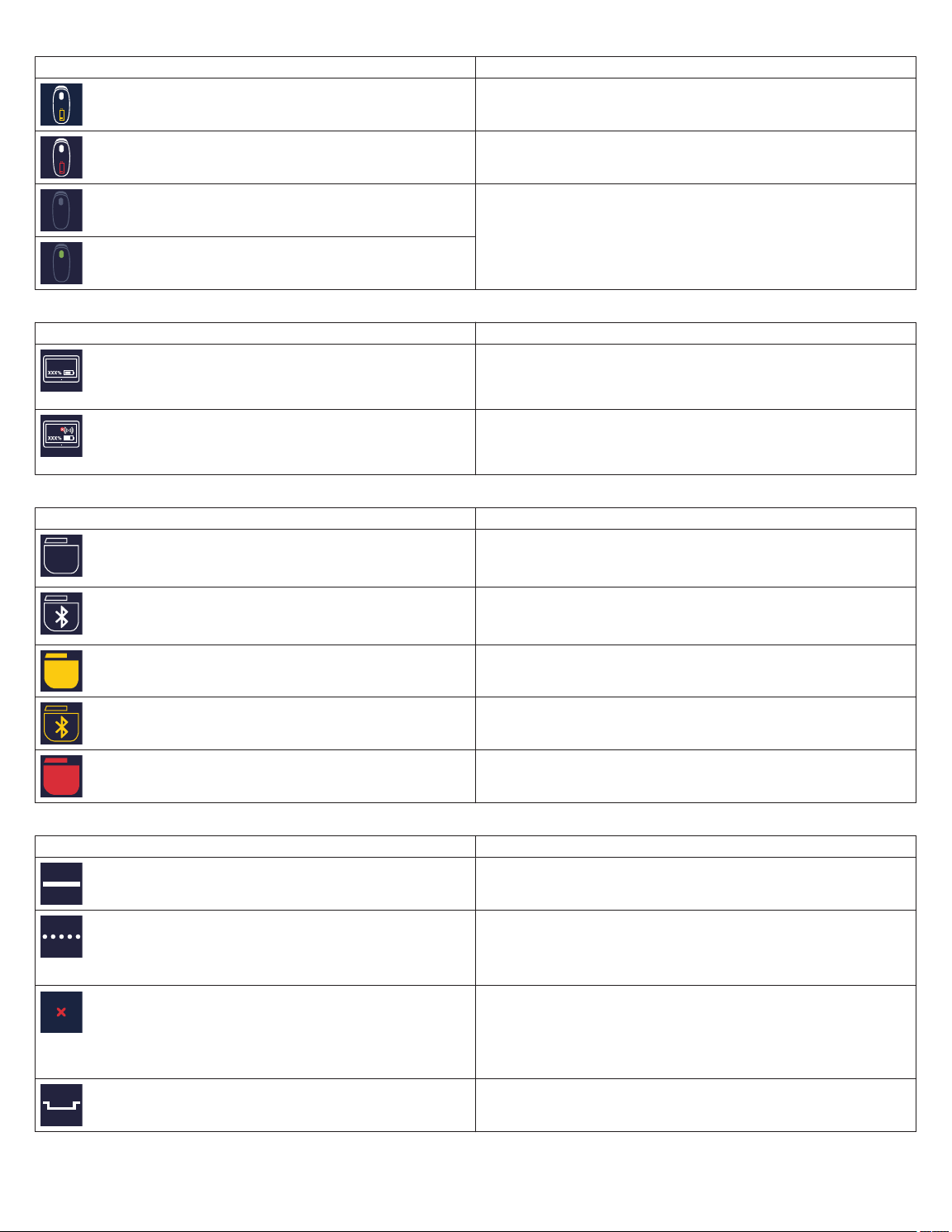

Table 2. Patient connector status indicators Indicator Description

The patient connector battery is good.

The patient connector is charging.

Table 2. Patient connector status indicators (continued) Indicator Description

The patient connector battery is low.

The patient connector battery is critically low.

There is no patient connector connected to the device manager

app.

Note: A green dot indicates that a patient connector was recently

connected to the device manager app, but is not connected now.

Table 3. Tablet status indicators Indicator Description

The tablet is connected to an IT network.

Note: The status indicator shows the remaining percentage of

the tablet battery.

The tablet is not connected to an IT network.

Note: The status indicator shows the remaining percentage of

the tablet battery.

Table 4. Implantable device status indicators Indicator Description

The implantable device is connected to the patient connector

using low-frequency inductive telemetry. The connection is either

strong or moderate.

The implantable device is connected to the patient connector

using Bluetooth wireless technology. The connection is either

strong or moderate.

The implantable device is connected to the patient connector

using low-frequency inductive telemetry. The connection is weak.

The implantable device is connected to the patient connector

using Bluetooth wireless technology. The connection is weak.

The connection with the implantable device has been lost.

Table 5. Connection status indicators Indicator Description

The Bluetooth connection between the device manager app and

the base or the patient connector is strong.

The Bluetooth connection is moderate.

To improve the connection, move the tablet closer to the base or

the patient connector and away from anything else that causes

interference.

The Bluetooth connection has been lost.

The device manager attempts to establish the connection and

restore communication. Move the tablet closer to the base or the

patient connector and away from anything else that causes inter-

ference.

There is a USB connection between the base and the patient

connector.

Table 5. Connection status indicators (continued) Indicator Description

The connection with the implantable device is weak.

To improve the connection, move the implantable device and the

instruments closer together and away from anything else that

causes interference.

The connection with the implantable device is moderate.

To improve the connection, move the implantable device and the

instruments closer together and away from anything else that

causes interference.

The connection with the implantable device is strong.

3 Reinterrogating the implanted device

3.1 Reinterrogate the implanted device

During a device implant or a patient follow-up appointment, you can reinterrogate the implanted device.

Note: For information on how to perform an initial interrogation, refer to the device manager app help.

1. Tap

2. If the INTERROGATE HOW MUCH? window appears, select one of the following options, then tap START:

, then tap INTERROGATE.

• To display all of the information stored on the implanted device, tap All.

• To display only the information stored on the implanted device since the last patient session, tap Since Last Session.

4 Responding to device status indicator warnings

4.1 About device status indicator warnings

The implantable device automatically monitors for internal conditions that affect implantable device operation and require attention. If any such conditions occur, the implantable device saves the status indicator to its memory, and the implantable device app displays the status indicator warning when you interrogate the implantable device.

The implantable device app displays the status indicator warning in a message window and in the OBSERVATIONS area on the Quick

Look screen.

Caution: If the implantable device app displays a status indicator warning for the implantable device, contact your Medtronic

representative.

4.2 Respond to the AT/AF THERAPIES DISABLED warning

Respond to the AT/AF THERAPIES DISABLED status indicator warning for the implantable device:

1. Complete one of the following actions:

• If the status indicator warning has a CLEAR button, tap CLEAR to remove the status indicator.

• If the status indicator warning has an OK button, tap OK to close the message.

2. Review the arrhythmia episode records and evaluate atrial lead integrity.

3. Adjust therapy parameters as needed.

4.3 Respond to the ATTENTION – ATRIAL LEAD NOT DETECTED DURING IMPLANT warning

To respond to the ATTENTION – ATRIAL LEAD NOT DETECTED DURING IMPLANT status indicator warning for the implantable device, tap CLEAR. If an atrial lead is not present, consider programming Atrial Sensitivity to Off and changing the pacing mode to VVI or VVIR to maximize longevity.

4.4 Respond to the WARNING – DEVICE RESET warning

To respond to the WARNING – DEVICE RESET status indicator warning, use the information in this topic.

If the device is not yet implanted, do not implant the device. Contact a Medtronic representative.

A device reset is a safety feature that can automatically change parameter values or clear diagnostic data in response to a problem with the implantable device memory. If a device status indicator warning for a reset appears, you must clear the device status indicator. You may need to reprogram the implantable device to the desired parameters.

After a device reset, the device records a status indicator. For a device reset that requires attention, the status indicator warning for the implantable device describes how the reset affected device data. Read the message accompanying the indicator and follow the on-screen instructions carefully. If the message indicates that the reset affected implantable device parameters, you must reprogram the implantable device to restore the previous settings.

1. Respond to the status indicator warning: a. Remove any sources of electromagnetic interference (EMI). b. Notify a Medtronic representative. c. To clear the status indicator, tap CLEAR in the window.

A confirmation window appears, indicating that all previously interrogated data in the implantable device app will be cleared.

d. Tap CONTINUE.

Note: If a device reset occurred while the MRI SureScan parameter was programmed to On, the MRI SureScan window appears. Program the MRI SureScan parameter to Off before continuing with the next step.

e. Interrogate the implantable device.

2. Determine the events leading up to the device reset: a. To determine the time and date of the device reset, view the CareAlert EVENTS log.

Note: If the implantable device does not have a CareAlert EVENTS log, note the time and date when counter data was last

cleared. b. If the device is implanted, determine what the patient was doing at the time and date of the device reset. c. Save the implantable device data. d. Send the implantable device data to your Medtronic representative.

3. Reprogram the implantable device: a. Verify the programmed device parameters and reprogram them as necessary.

Note: If the reset affected the parameters, the implantable device automatically paces in VVI mode at 65 bpm until the parameters are reprogrammed.

b. Verify that the implantable device date and time are correct. If necessary, a Medtronic representative can reprogram the date

and time.

c. To verify that the battery voltage of the implantable device is acceptable, check the BATTERY AND LEAD

MEASUREMENTS window.

d. Conduct lead impedance and pacing threshold tests as desired.

5 Using the Live Rhythm Monitor

5.1 About the Live Rhythm Monitor

The Live Rhythm Monitor displays markers and telemetered EGM waveform traces from the implanted device. If the device manager app is connected to the base, the Live Rhythm Monitor displays ECG waveform traces from the base.

During patient sessions, you can view live waveform traces, freeze waveform traces, and access waveform strips.

In addition to waveform traces, the Live Rhythm Monitor displays the following information:

• The current heart rate and interval measured by the implantable device

• Annotations above the waveform trace showing when programming occurred (if parameters have been programmed)

The display of waveform traces in the Live Rhythm Monitor varies, depending on the EGM sources that you select during data collection setup.

5.2 Markers

Markers on the waveform trace indicate events such as pacing, sensing, detection, and delivered therapies.

Note: Any interruption in telemetry with the implantable device can result in missing markers on the waveform trace display.

Markers that indicate atrial events appear above the waveform trace. Markers that indicate ventricular events appear below the waveform trace.

Table 6. Pacing markers Marker Description

Atrial pace

Atrial sense

Table 6. Pacing markers (continued) Marker Description

Atrial refractory sense

Atrial sense in PVAB

Ventricular pace

Ventricular sense

Proactive pace

Mode switch

Marker buffer full

Table 7. Detection and therapy markers Marker Description

AT/AF sense

Fast AT/AF sense

AT/AF detection

Fast AT/AF detection

Tachycardia pace

VT monitor detection

Fast A&V detection

5.3 Adjust the Live Rhythm Monitor display

To change the size, order, and presentation of waveforms, complete the following actions:

1. To expand the Live Rhythm Monitor, tap .

2. To change the size, color, and order of the waveform traces, complete the following actions:

• To change the waveform source, tap on the waveform source list and select a source.

• To decrease the size of the displayed waveform trace, tap .

• To adjust the size of the displayed waveform trace to its maximum size without clipping or overlapping other waveform traces,

tap .

• To increase the size of the displayed waveform trace, tap .

• To change the color of the waveform trace, tap and select a color, then close the window.

3. Configure the following additional adjustment options:

Option Description Clipping When ON, truncates the tops and bottoms of waveforms that

have high amplitudes.

ECG Filter When ON, can improve the clarity of the ECG in the presence

of interference.

Option Description Artifacts When ON, displays line boundaries at the beginning and end

of each wave. This feature is also known as pacing artifact enhancement.

Sweep Speed Allows you to select a sweep speed for the waveform traces.

For example, when you select 12.5 mm/s, the waveform trace appears narrow. When you select 100.0 mm/s, the waveform trace appears wide.

NORMALIZE Adjusts the size of all displayed waveform traces to their max-

imum size without clipping or overlapping.

CALIBRATE Adds a reference signal to the waveform trace of ECG. OK Closes the adjustment options.

4. To minimize the Live Rhythm Monitor, tap .

5.4 Freeze live waveform traces

To capture a waveform strip and to generate a report, complete the following actions:

1. From the Live Rhythm Monitor, tap .

2. To modify the waveform strip, use the options on the FROZEN STRIP window.

3. To generate a report of the waveform strip, complete the following actions: a. Tap the PDF button. b. Select the strips that you want to include in the report. c. Tap GENERATE REPORT > OK.

6 Using the eStrip recorder

6.1 About the eStrip recorder

You can view waveform strips, add and modify waveform strips, and generate reports of waveform strips using the eStrip recorder.

To open the eStrip recorder, tap and then tap ESTRIP RECORDER. You can also open the eStrip recorder by freezing live waveform traces ( ) from the Live Rhythm Monitor.

When you open the eStrip recorder, the FROZEN STRIP window appears and displays the last 30 min of all waveform traces from the Live Rhythm Monitor. You can scroll the view of waveform traces, or you can quickly navigate along a waveform trace by using the Holter feature. Highlights on the waveform traces indicate waveform strips.

Waveform strips are available to view for the duration of the patient session, including strips that are older than 30 min. To view the waveform strips, use the strips list or the Holter feature.

6.2 Modify the display of waveform traces

Modify the display of waveform traces using the following options from the FROZEN STRIP window:

• To change the sweep speed for the waveform traces, tap For example, when you select 12.5 mm/s, the waveform trace appears narrow. When you select 200.0 mm/s, the waveform trace

appears wide.

• To change the waveform source, tap on the waveform source list and select a source.

• To increase the size of the displayed waveform trace, tap . This option decreases the mV/mm value.

• To decrease the size of the displayed waveform trace, tap . This option increases the mV/mm value.

on the sweep speed list and select a value.

6.3 Configure waveform strip preferences

To set clipping and artifacts options, or to set the default duration for new waveform strip highlights, configure waveform strip preferences:

1. From the FROZEN STRIP window, tap .

2. Use the following options:

Option Description Clipping When ON, truncates the tops and bottoms of waveforms that

have high amplitudes.

Show Artifacts When ON, displays line boundaries at the beginning and end

of each wave. This feature is also known as pacing artifact enhancement.

HIGHLIGHT DURATION Allows you to set the default duration for all new waveform strip

highlights.

3. To save your preferences, tap OK.

6.4 Access waveform strips

View, modify, and generate reports of waveform strips:

1. Open the FROZEN STRIP window.

2. To view waveform strips, do one of the following:

• To select a waveform strip, tap STRIPS, then tap a waveform strip from the list. The list displays the STRIP TITLE, TIME, DURATION, and NOTES associated with the waveform strip. The NOTES field displays or when the waveform strip includes a pinned caliper measurement or annotation.

• To view the previous or next waveform strip, tap or .

3. To add or remove a waveform strip, do either of the following:

• To add a waveform strip, tap the following button:

• To remove a waveform strip, tap the following button:

Note: You cannot remove test strips or any strips that were automatically generated when you started the session.

4. To modify the waveform strip, use the options on the FROZEN STRIP window.

5. To generate a report of the waveform strip, complete the following actions: a. Tap the PDF button. b. Select the strips you want to include in the report. c. Tap GENERATE REPORT > OK.

6.5 Change the length of a waveform strip

To change the length of a waveform strip, complete the following actions.

Note: You cannot change the length of test strips or any strips that were automatically generated when you started the session.

1. Open the FROZEN STRIP window.

2. Select a strip.

3. Drag the vertical border of the waveform strip to make it longer or shorter.

If you want to move the waveform strip, drag the horizontal border to the right or left.

6.6 Measure time intervals

To measure time intervals on the waveform strip, use the caliper tool:

1. From the FROZEN STRIP window, tap

2. Use the following options:

• To adjust the caliper, drag .

• To walk the caliper, tap .

• To pin the caliper and include the caliper measurement in a strip report that you generate, tap .

• To undo or redo a pinned caliper, tap or .

To close the caliper tool, tap .

6.7 Draw notes

To annotate the waveform strip, draw notes on the waveform strip. If you generate a report of the strip, the notes that you draw on the waveform strip are included in the report.

1. From the FROZEN STRIP window, tap .

2. Draw on the waveform strip.

3. Optionally, tap and to remove or reinsert drawings.

To disable the drawing mode, tap .

6.8 Rename a waveform strip

To rename a waveform strip, complete the following actions.

Note: You cannot rename test strips or any strips that were automatically generated when you started the session.

1. Open the FROZEN STRIP window.

2. To select the waveform strip, tap its green header.

3. To edit the name, tap the green header and enter a new name.

6.9 Use the Holter feature

To navigate quickly along a waveform trace, use the Holter feature:

1. Open the FROZEN STRIP window.

2. To select the waveform trace that you want to view, tap

3. Tap HOLTER.

The blue rectangle indicates the section of the waveform trace that is displayed in the FROZEN STRIP window. A green rectangle indicates a waveform strip.

4. Use the following options:

• To navigate along the waveform trace, tap and .

• Tap an area of the waveform trace to display that area in the FROZEN STRIP window.

on the top waveform source list and select a source.

7 Viewing summary data using the Quick Look screen

7.1 About the Quick Look screen

The Quick Look screen provides a summary of the most important indicators of the implanted-system operation and the patient’s condition since the last patient session. The screen includes links to more detailed status and diagnostic information stored in the implanted device.

Use the Quick Look screen to view the following information:

• Device and lead status information that indicates whether the implanted system is operating as expected

• Information about arrhythmia episodes and provided therapies, which helps to assess the patient’s clinical status since the last follow-up appointment

• System-defined observations about unexpected conditions, along with suggestions on how to optimize the implanted device settings

Note: The Quick Look screen displays the information collected since the last patient session and stored in the implanted device memory. Programming changes made during the current patient session can also affect the Quick Look observations.

To update the Quick Look data during a patient session, reinterrogate the implanted device.

7.2 View the Quick Look screen

To view the Quick Look screen, tap

Section Description REMAINING LONGEVITY Displays the estimated time remaining until Recommended Replacement Time (RRT).

LEAD TRENDS Displays information about the lead status, which allows you to assess the performance

, then tap Quick Look. You can view the following information.

To view more details, tap REMAINING LONGEVITY.

and integrity of leads and identify any unusual conditions. The graphs display lead impedance, capture threshold, and sensing amplitude measurements recorded over the last 12 months. The graph legends show the most recent measurements for each lead. Use the following options:

Section Description

• To view detailed lead trend data, tap LEAD TRENDS.

• To view more details about the most recent measurements, tap LAST MEASURED.

• Where applicable, to hide or show the atrial or RV lead data on the graphs, tap A or

RV.

% OF TIME Displays information that helps you to assess the patient’s AV conduction status and to

evaluate the effectiveness of programmed implanted device settings.

Notes:

• MVP On and MVP Off refer to the currently programmed pacing mode, not the usage of MVP mode pacing since the last patient session. If the implanted device was programmed to an MVP mode during the reporting period, a high percentage of ventricular pacing may indicate that the patient has heart block.

• The paced and sensed event counters do not count all events recorded by the implanted device. Some device features (for example, Ventricular Safety Pacing) affect the way events are counted. Also, due to rounding, the percentages may not add up to 100%.

TREATED Displays the number of treated arrhythmia episodes that occurred since the last patient

session. To view more details, tap TREATED.

MONITORED Displays the number of monitored arrhythmia episodes that occurred since the last patient

session. To view more details, tap MONITORED.

Cardiac Compass Opens the Cardiac Compass TRENDS window, which provides a picture of the patient’s

condition during the last 14 months. The trend information can help you assess whether the implanted device therapies or antiarrhythmic drugs are effective.

RATE HISTOGRAMS Opens the RATE HISTOGRAMS window, which displays information about heart rates

recorded between patient sessions. The data can help you to monitor the patient’s condition and assess the effectiveness of therapies.

OBSERVATIONS Displays observations that are based on an analysis of programmed parameters and data

collected since the last patient session. Observations alert you to unexpected conditions related to implanted device and lead status, parameter settings, arrhythmia episodes, and clinical status. When you select one of the displayed observations, the arrow next to the OBSERVATIONS section title becomes active if more information about the selected observation is available. To view the relevant details, tap OBSERVATIONS.

8 Using emergency VVI pacing

8.1 Enable emergency VVI pacing

To quickly enable high-output ventricular pacing, program emergency VVI pacing.

Note: When you program emergency VVI pacing, the implantable device app disables MRI SureScan operation.

1. Verify that telemetry is established between the implanted device and the patient connector.

2. Tap EMERGENCY.

3. Tap PROGRAM. The implanted device delivers emergency VVI pacing and the EMERGENCY PROGRAM - SUCCESSFUL window appears.

4. Close the EMERGENCY PROGRAM - SUCCESSFUL window.

5. When the emergency is resolved, tap EXIT EMERGENCY to close the EMERGENCY - VVI PACING window.

6. Reprogram the implanted device settings to values appropriate for the patient.

9 Programming patient information

9.1 Program the patient information

To store information about the patient, the implantable device, and the lead for later use, enter and program the patient information into the implantable device memory. When you program the information into the memory, the implantable device app includes the patient name, the patient ID, and the serial number of the implantable device on reports.

Typically, you enter the patient information at the time of implant, but you can revise it at any time.

Note: The PATIENT INFORMATION screen should not be used in place of the patient’s medical chart. The PATIENT INFORMATION screen is provided as an informational tool for the end user. The user is responsible for accurate input of patient information into the software. Medtronic makes no representation as to the accuracy or completeness of the patient information that end users enter into the PATIENT INFORMATION screen. MEDTRONIC SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES TO ANY THIRD PARTY WHICH RESULT FROM THE USE OF THE PATIENT INFORMATION SUPPLIED BY END USERS TO THE SOFTWARE.

1. Tap , then tap PATIENT INFORMATION.

2. On the PATIENT INFORMATION screen, tap each field, then enter or select the information.

Field Description Patient… Opens the PATIENT window, which allows you to enter the patient’s name.

Note: Enter up to 29 characters.

ID Allows you to enter the patient ID.

Note: Enter up to 15 characters. Date of Birth Allows you to select the patient’s date of birth. Serial Number Displays the serial number of the implantable device. Lead 1… Opens the LEAD 1 window, which allows you to select the patient lead information.

If the lead information is not listed, tap MODIFY LIST and add the information. Lead 2… Opens the LEAD 2 window, which allows you to select the patient lead information.

If the lead information is not listed, tap MODIFY LIST and add the information. Implant… Opens the IMPLANT window, which allows you to enter the implant date and lead measurements. Alter-

natively, you can export lead data from a concurrent analyzer session.

Note: During the device implant, consider making the measurements in a concurrent analyzer session. You

can export measurements directly to the IMPLANT window. Otherwise, select a value for each parameter.

History… Opens the HISTORY window, which allows you to select the patient’s clinical conditions. EF, on Opens the Ejection Fraction window, which allows you to select the ejection fraction value. Also allows you

to select the measurement date. Physician Opens the PHYSICIAN NAME/PHONE window, which allows you to select the physician’s name and phone

number from a list.

To add physician information to the list, tap MODIFY LIST and add the information. Phone Opens the PHYSICIAN NAME/PHONE window, which allows you to select the physician’s name and phone

number from a list.

To add physician information to the list, tap MODIFY LIST and add the information. Hospital Opens the HOSPITAL window, which allows you to select the physician’s hospital.

To add hospital information to the list, tap MODIFY LIST and add the information. Last Update Displays the last date on which changes to patient information were programmed into the implantable device

memory.

MRI SureScan System/Other Hardware…

Notes… Opens the NOTES window, which allows you to enter notes about the patient or other information.

Note: When the entries are too long to display in the fields, the implantable device app displays truncated versions of the entries. For example, the Patient… field displays a truncated version of the patient name if the name does not fit in the display field. The Patient Information Report displays the full entry.

3. Tap PROGRAM.

4. To create the Patient Information Report, tap the PDF button.

Opens the MRI SureScan SYSTEM/OTHER HARDWARE window, which allows you to enter the informa-

tion about leads and other hardware that affect the decision to perform an MRI scan on the patient.

Note: Enter up to 80 characters.

9.2 Program MRI SureScan system and other implanted hardware information

Enter and program information about leads and other implanted hardware, such as abandoned implanted devices and leads, lead extenders, or lead adaptors:

1. Tap

2. Tap MRI SureScan System, then tap each field and enter the information.

, then tap PATIENT INFORMATION > MRI SureScan System/Other Hardware….

Field Description MR Conditional Device Implan-

ted MR Conditional Lead 1 Implan-

ted Lead 1 Model Allows you to select the model information for Lead 1. MR Conditional Lead 2 Implan-

ted Lead 2 Model Allows you to select the model information for Lead 2. Last Update Displays the last date on which changes to patient information were programmed into the

3. On the MRI SureScan SYSTEM/OTHER HARDWARE window, tap Other Hardware, then tap each field and enter the information.

Field Description Other Devices Allows you to specify whether any other in-use or abandoned implanted devices are present. Other Leads Allows you to specify whether any other in-use or abandoned leads are present. Lead Extend-

ers/Adaptors Other Hardware

Notes…

Last Update Displays the last date on which changes to patient information were programmed into the implantable

4. Tap OK > PROGRAM.

Allows you to specify whether any in-use or abandoned lead extenders or adaptors are present.

Opens the OTHER HARDWARE NOTES window, which allows you to enter up to 50 characters of notes about other implanted hardware.

Note: The presence of other hardware in the patient may have an impact on whether the patient can have an MRI scan.

device memory.

Displays the MR Conditional status of the implanted device.

Allows you to specify whether Lead 1 is MR Conditional.

Allows you to specify whether Lead 2 is MR Conditional.

implantable device memory.

10 Programming implantable device settings

10.1 Parameter symbols

The implantable device app can display symbols next to parameter values to convey their status or other information.

Table 8. Symbols that appear with parameter values Symbol Name Description

Interlock The parameter value conflicts with the setting of another present or pending value. Select another

value or resolve the conflicting parameter value before programming the parameter.

Warning A warning message is available regarding that value. To view the message, tap the message symbol

next to the PROGRAM button or reselect that parameter.

Adaptive The programmed value can be changed automatically by the device. The symbol does not neces-

sarily indicate that the parameter value has been adapted from a previously programmed value, only that it is able to be adapted.

Nominal The value is the Medtronic nominal value.

Note: If the nominal value is also the programmed value, the Programmed symbol appears instead of the Nominal symbol.

Programmed Indicates that the value is the programmed value.

The implantable device app displays message symbols next to the PROGRAM button. When you tap the message symbol, additional parameter information appears.

If there are multiple messages about the pending parameter values, the symbol for the most significant message appears.

Table 9. Message symbols Symbol Name Description

Interlock A parameter interlock exists. Until you resolve the conflict, programming is restricted.

Warning There is a warning associated with programming 1 or more of the pending parameter values.

Informational There is an informational message regarding 1 or more of the parameter values.

10.2 Program the parameters

To control the implantable device functions and data collection capabilities, program the parameters.

The parameters that you can view and program appear as active fields. Some active fields pertain to only 1 parameter, while other fields provide access to groups of parameters. If a parameter cannot be programmed, no active field appears next to its name.

1. Tap , then tap PARAMETERS.

2. Tap each field and change the value. The implantable device app displays the new values with a dashed border, which signifies that the values are pending.

3. Tap PROGRAM. The pending values are programmed to the implantable device memory.

10.3 Create custom parameter sets

Create and save sets of parameter values for retrieval in either the current patient session or in subsequent patient sessions.

You can save and access a custom set of parameter values for a particular clinical situation. For example, you may want to save a set of parameter values for an initial implant setting, for a specific disease state, or for situations in which you must repeatedly program a particular set of parameters. The set of parameter values that you save can include both programmed and pending values.

1. Tap

2. On the PARAMETERS screen, make the desired parameter selections.

3. Tap SAVE & GET… > ADD NEW.

4. Enter a name for the parameter set.

5. Tap OK > SAVE.

, then tap PARAMETERS.

If a parameter set exists with that name, confirm that you want to replace the existing set with a new set or change the name of the new parameter set.

10.4 Retrieve parameter sets

Parameter sets are collections of parameter values.

The implantable device app includes 3 types of parameter sets:

• Medtronic Nominals – Parameter values suggested for the implantable device by Medtronic. You are unable to customize or delete

• Initial Interrogation Values – Permanently programmed parameter values as determined by the first interrogation of the implantable device during the patient session. You are unable to customize or delete Initial Interrogation Values.

• Custom parameter sets – Sets of parameter values that you create for a particular clinical situation. For example, you may want to save a set of parameter values for an initial implant setting, for a specific disease state, or for situations in which you must repeatedly program a particular set of parameters.

1. Tap , then tap PARAMETERS > SAVE & GET….

2. Tap the parameter set you want to retrieve, then tap SET PENDING.

3. On the PARAMETERS screen, tap PROGRAM. The pending values are programmed to the implantable device memory.

Medtronic Nominals.

10.5 Program data collection preferences

To control how the implantable device collects and transmits data, program the data collection preferences:

1. Tap , then tap PARAMETERS > Data Collection Setup….

2. Configure the following options.

Note: Data collection is automatic and you cannot turn it off.

Option Description SOURCE For EGM 1, EGM 2, and EGM 3, allows you to select the source electrodes that the

implantable device uses to record EGM signals. The SOURCE parameters control the signal that appears on the Live Rhythm Monitor.

Note: The cardiac interval measurements of the implantable device are based on the signals sensed through the programmed sensing polarity (not the stored diag-

Option Description

nostic EGM). Your EGM source selection does not affect bradycardia pacing or tachyarrhythmia detection.

RANGE For EGM 1, EGM 2, and EGM 3, allows you to select the range of the EGM signal.

The lower the setting, the higher the resolution. When the EGM signal is illegible or clipped, change the range selection. The RANGE parameters control the signal that appears on the Live Rhythm Monitor.

Monitored Sources Allows you to select the 2 EGM channels on which to store episode records. Pre-arrhythmia EGM Allows you to choose if you want to store the EGM data that the implantable device

collects before an episode begins. Pre-arrhythmia EGM storage keeps the EGM circuitry enabled at all times, which reduces implantable device longevity. When you select On − 1 months or On − 3 months, the implantable device auto- matically turns off pre-arrhythmia EGM storage when the time period expires.

Device Date/Time… Allows you to select the time zone offset from Coordinated Universal Time (UTC).

• Current Device Date/Time – Displays the date and time that the implantable device currently uses.

• New Device Date/Time – Displays the new date and time that the implantable device will use based on your selection for Time Zone.

• Time Zone – Allows you to select the time zone offset to adjust the implantable device time.

Note: The implantable device app expresses time in the 24-hour format or in the 12-hour format, depending on your tablet settings.

Holter Telemetry Duration Allows you to either enter the duration for Holter telemetry or to disable Holter tele-

metry. When you enable Holter telemetry, the implantable device continuously transmits EGM and marker data for the selected duration, regardless of the presence of the patient connector.

Wireless Telemetry with Monitor Allows you to turn the wireless telemetry for remote monitoring on and off.

Notes:

• You can use wireless telemetry for remote monitoring and Medtronic CareAlert Monitoring (if available) only when Wireless Telemetry with Monitor is pro- grammed to On.

• When important clinical management and system performance events occur between scheduled patient sessions, a CareAlert notification is elicited when Wireless Telemetry with Monitor is programmed to On.

• When Wireless Telemetry with Monitor is programmed to Off, you are still able to use wireless telemetry with the device manager.

AT/AF Settings… Allows you to select the thresholds for the following Quick Look observations:

• AT/AF Daily Burden

• Avg. V. Rate During AT/AF

Notes:

• AT/AF observations are only available for certain implantable devices.

• If Wireless Telemetry with Monitor is programmed to On, the AT/AF settings are shown instead in the Medtronic CareAlert Setup window (PARAME- TERS > Alert…).

3. Tap OK > PROGRAM.

10.6 View parameter changes

Review the list of parameter changes that you made during the patient session:

1. Tap

2. Review the list of parameter changes.

3. To create a report, tap the PDF button.

, then tap SESSION > CHANGES THIS SESSION.

11 Viewing and analyzing diagnostic data

11.1 View CareAlert events

11.1.1 About CareAlert events

Important clinical management and system performance events may occur between scheduled patient sessions, eliciting a CareAlert notification (if remote monitoring is available). You can program notifications for certain CareAlert events.

You can program CareAlert notifications for clinical management events and lead and device integrity events. The CareAlert notification for a device reset occurs automatically and is not programmable. CareAlert notification settings can be programmed during implant, at patient discharge, or during a patient follow-up appointment. Changes to CareAlert notification settings take effect immediately in the implanted device upon successful completion of programming.

11.1.2 View CareAlert event logs

View the logs of CareAlert EVENTS that are stored in the implanted device:

1. Tap

2. To create a report, tap the PDF button.

11.2 View clinical diagnostic data

11.2.1 About clinical diagnostic data

The implanted device collects and stores diagnostic data, which you can use to assess the patient’s clinical conditions and the effectiveness of therapies.

11.2.2 View arrhythmia episode data

View summary and detailed diagnostic data for arrhythmia episodes:

1. Tap , then tap DATA > ARRHYTHMIA EPISODES.

2. Optionally, tap the PDF button to create a report that includes data for all arrhythmia episodes.

3. On the ARRHYTHMIA EPISODES window, use the following options:

4. Tap the episode you want to view, then tap .

5. To change the display of the episode data, use the available options:

6. To create a report that includes data for the episode that you are viewing, tap the PDF button.

7. Optionally, complete the following actions:

, then tap DATA > CareAlert EVENTS.

Note: The implantable device app is unable to display the data for an episode that is in progress. These episodes are labeled as Episode in progress and are unavailable to view in the episode records until the episode terminates and an interrogation is performed.

• To filter the list by episode type, tap VT/VF, AT/AF, or Fast A&V.

• To filter the data by type, tap the View list, then select the data type.

• To display episodes that are longer than a specific amount of time, tap the box next to and choose the minimum episode duration.

Option Description FLASHBACK Displays a graph of atrial and ventricular intervals, including any stored flashback data, that

the implanted device captured. In the FLASHBACK view, use the available options:

• To switch the y-axis, tap Interval or Rate.

• To show or hide interval data, tap A-A or V-V.

• To select a portion of the data to view in PLOT format, tap and to position the yellow box.

PLOT Displays a graph of cardiac events. In the PLOT view, use the available options:

• To switch the y-axis, tap Interval or Rate.

• To show or hide interval data, tap A-A or V-V.

• To select a portion of the data to view in EGM format, scroll horizontally to position the yellow box.

EGM Displays the stored EGM data.

To choose an interval to display, tap the atrial interval list.

TEXT Displays a text summary of the episode.

• To view the previous or next episode in the list, tap or .

• To minimize the view of episode details, tap .

11.2.3 View rate drop response episode data

View and analyze rate drop episodes and the events that cause rate drop episodes:

1. Tap , then tap DATA > RATE DROP RESPONSE EPISODES.

2. Optionally, tap the PDF button to create a report that includes data for all rate drop response episodes.

3. Tap the episode you want to view, then tap .

4. To change the display of the episode data, use the available options:

Option Description PLOT Displays a graph of cardiac events. In the PLOT view, use the available options:

• To switch the y-axis, tap Interval or Rate.

• To show or hide interval data, tap A-A or V-V.

• To select a period for which to view markers, tap and to position the yellow box.

MARKERS Displays markers for the episode.

To choose an interval to display, tap the atrial interval list.

TEXT Displays the Rate Drop Response settings that were in effect at the start of the program-

ming session.

5. To create a report that includes data for the episode that you are viewing, tap the PDF button.

6. Optionally, complete the following actions:

• To view the previous or next episode in the list, tap or .

• To minimize the view of episode details, tap .

11.2.4 View interrogation flashback data

View a graph that shows atrial and ventricular intervals that occurred prior to the most recent interrogation. The interrogation flashback data allows you to assess the patient’s heart rhythm and performance of other features, such as Rate Response.

1. Tap , then tap DATA > INTERROGATION FLASHBACK.

2. Use the available options:

Option Description FLASHBACK Displays a graph of atrial and ventricular intervals, including any stored flashback data, that

the implanted device captured. In the FLASHBACK view, use the available options:

• To switch the y-axis, tap Interval or Rate.

• To show or hide interval data, tap A-A or V-V.

• To select a portion of the data to view in PLOT format, tap and to position the yellow box.

PLOT Displays a graph of cardiac events. In the PLOT view, use the available options:

• To switch the y-axis, tap Interval or Rate.

• To show or hide interval data, tap A-A or V-V.

• To view more of the data, scroll horizontally.

3. To generate a report, tap FLASHBACK, then tap the PDF button.

11.2.5 View Cardiac Compass trend data

To assess the effectiveness of implanted device therapies and antiarrhythmia drugs, view the data about the patient’s conditions:

1. Tap , then tap DATA > Cardiac Compass TRENDS.

2. To create a report, tap the PDF button.

11.2.6 View rate histogram data

View the heart rate data that the implanted device records between patient sessions. Use the heart rate data to monitor the patient’s condition and the effectiveness of therapies.

1. Tap , then tap DATA > RATE HISTOGRAMS.

2. To create a report, tap the PDF button.

11.2.7 View MVP mode switch data

View the 10 most recent MVP mode switches to DDD(R):

1. Tap , then tap DATA > MVP MODE SWITCHES.

2. To create a report, tap the PDF button.

11.2.8 View counter data

View the counter data, which allows you to analyze information about VT/VF episodes, AT/AF episodes, and therapy occurrences:

1. Tap , then tap DATA > COUNTERS.

2. Select one of the following data types:

• VT/VF EPISODES

• AT/AF EPISODES

• AT/AF RX

3. To create a report, tap the PDF button.

11.3 View device and lead diagnostic data

11.3.1 About device and lead diagnostic data

The implanted device automatically measures and records daily device and lead performance data.

11.3.2 View battery and lead measurement data

To assess the most recent measurements and trended measurements of implanted device and lead performance, view the battery and lead measurement data.

Warning: Replace the implanted device immediately if the implantable device app displays an End of Service (EOS) indicator. The implanted device may lose the ability to pace, sense, and deliver therapy adequately after the EOS indicator appears.

Note: If the implantable device app displays the Recommended Replacement Time (RRT) indicator, contact your Medtronic representative and the patient to schedule a replacement procedure.

1. Tap , then tap DATA > BATTERY AND LEAD MEASUREMENTS.

2. Select the type of data you want to view:

• Remaining Longevity / Battery Voltage

• Sensing Integrity Counter

• Atrial Lead Position Check

• Lead Impedance

• Sensing

3. To create a report, tap the PDF button.

11.3.3 View lead impedance trend data

To analyze the automatic daily lead impedance measurements, view the lead impedance trend data:

1. Tap , then tap DATA > LEAD IMPEDANCE TRENDS.

2. Configure the display options:

• Select a measurement trend.

• If applicable, tap the polarity type you want to view.

3. To create a report, tap the PDF button.

The graph displays up to 15 daily measurements and up to 60 weekly summary measurements. Gaps in the graph occur when the implanted device fails to complete automatic lead impedance measurements.

Note: Significant and sudden changes in lead impedance can indicate a problem with the lead.

11.3.4 View capture threshold trend data

To evaluate Capture Management operations and the effectiveness of the pacing output values, view and analyze the capture threshold trend data:

1. Tap , then tap DATA > CAPTURE THRESHOLD TRENDS.

2. Configure the display options:

• Select the chamber data you want to view.

• To view the last 15 days of threshold measurement data, tap LAST 15 DAYS DETAIL.

3. To create a report, tap the PDF button.

The graph displays up to 15 daily measurements and up to 60 weekly summary measurements. Gaps in the graph occur when the implanted device fails to complete daily capture threshold measurement.

The implanted device measures the capture threshold data only when the Capture Management parameter is configured as Adaptive or Monitor.

Note: Significant and sudden changes in the pacing threshold can indicate a problem with the lead.

11.3.5 View P/R wave amplitude trend data

View and analyze the daily sensing amplitude measurements:

1. Tap , then tap DATA > P/R WAVE AMPLITUDE TRENDS.

2. Select the amplitude measurement type that you want to view.

3. To create a report, tap the PDF button.

The graph displays up to 15 daily measurements and up to 60 weekly summary measurements. The daily measurements are the median values of the amplitudes of 9 normal intrinsic sensed events. Gaps in the graph occur when the implanted device is unable to collect 9 amplitude measurements on a given day.

Note: Significant and sudden changes in the sensing amplitude can indicate a problem with the lead.

12 Performing system tests

12.1 Configure the test preferences for the Live Rhythm Monitor

To view the EGM for the heart chamber you test, configure the test preferences for the Live Rhythm Monitor:

1. Tap

2. Select one of the following options:

3. Tap OK.

, then tap SESSION > PREFERENCES > TESTS.

• To display the EGM for the heart chamber you test, tap Auto-arrange waveforms.

• To leave the waveform display unchanged during a test, tap Do not auto-arrange waveforms.

12.2 Perform an Underlying Rhythm Test

To evaluate the patient’s intrinsic heart rhythm by temporarily inhibiting the pacing output of the implanted device, use the Underlying Rhythm Test.

Caution: While the Underlying Rhythm Test is in progress, patients are not receiving pacing support because the implanted device is temporarily programmed to a nonpacing mode. Pacing is inhibited as long as you press and hold the INHIBIT Press and Hold button. Carefully consider the implications of performing this test on pacemaker-dependent patients.

Notes:

• If telemetry between the implantable device app and the implanted device is paused or lost during an Underlying Rhythm Test, the test stops and the implanted device parameters revert to permanently programmed values.

• During system tests, tachyarrhythmia detection is suspended.

1. Tap

2. Verify the permanent values for Mode and Lower Rate.

3. To help avoid sudden changes in ventricular rate, consider lowering the programmed lower rate:

4. Press and hold INHIBIT Press and Hold.

5. Observe the display of the heart’s intrinsic rhythm.

6. Release the INHIBIT Press and Hold button.

7. If Lower Rate was changed before conducting the Underlying Rhythm Test, return to the PARAMETERS screen to return the rate

, then tap TESTS > UNDERLYING RHYTHM.

a. Tap , then tap PARAMETERS > Lower Rate. b. Select an appropriate rate. c. To program any pending changes, tap PROGRAM. d. To return to the UNDERLYING RHYTHM screen, tap , then tap TESTS > UNDERLYING RHYTHM.

Note: Pacing is inhibited until you release the INHIBIT Press and Hold button.

to its original value.

12.3 Perform a Sensing Test

To assess lead integrity and sensing performance, perform the Sensing Test, which measures P-wave and R-wave amplitudes.

The Sensing Test allows you to temporarily program pacing parameters to increase the likelihood that sensed events will occur. Sensing amplitude measurements taken during a Sensing Test may include events that are atypical or a result of oversensing (for example, PVCs or far-field R-waves). These events are excluded from the daily automatic sensing amplitude measurements that the implanted device collects and reports in the sensing amplitude trends. Because of the difference in measurement operations, Sensing Test results can differ from the measurements reported in the sensing amplitude trend data.

Caution: Use caution when selecting temporary settings for pacemaker-dependent patients. These patients may not receive adequate pacing support while sensing amplitude measurements are being obtained.

Notes:

• The Sensing Test does not function when the device is operating in an asynchronous pacing mode, such as VOO. Program the device to a pacing mode other than an asynchronous pacing mode before performing a Sensing Test.

• The Sensing Test does not function when polarity parameters are set to Configure. Program polarity parameter values manually or allow implant detection to complete before performing a Sensing Test.

• During a Sensing Test, reduce the pacing rate gradually to minimize patient symptoms associated with abrupt changes in heart rate.

• If telemetry between the implantable device app and the implanted device is paused or lost during a Sensing Test, the test stops and the implanted device parameters revert to permanently programmed values.

• During system tests, tachyarrhythmia detection is suspended.

1. Tap , then tap TESTS > SENSING.

2. Verify or change the TEST VALUE parameter values for Mode and AV Delay.

3. Tap START Measurement.

4. Observe the Live Rhythm Monitor for an intrinsic rhythm. If consistent pacing continues to occur, tap to decrease the Lower Rate.

The implanted device measures amplitudes only for intrinsic events. The maximum amplitude value that the Sensing Test measures is 20 mV. When the amplitude measures over 20 mV, the implantable device app displays the results as >20 mV. When there are no intrinsic events and the pacing rate remains the same, the Sensing Test automatically stops.

When the Sensing Test successfully completes, it automatically stops. The implantable device app displays the measurements and the pacing settings return to their programmed values. To stop the test manually before it completes, tap STOP and Restore.

5. To compare the Sensing Test measurements with the automatic daily sensing amplitude measurements, tap P/R WAVE AMPLITUDE TRENDS.

6. To create a report, tap the PDF button.

Note: Do not adjust the A. Sensitivity and RV Sensitivity values based on the results of the Sensing Test. For more information, refer to the reference manual for the implanted device.

12.4 Perform a Pacing Threshold Test

To determine the patient’s pacing thresholds, use the Pacing Threshold Test. Use the test results to help you select amplitude and pulse width settings that ensure capture while minimizing output to maximize battery longevity.

Notes:

• If telemetry between the implantable device app and the implanted device is paused or lost during a Pacing Threshold Test, the test stops and the implanted device parameters revert to permanently programmed values.

• During system tests, tachyarrhythmia detection is suspended.

1. Tap

2. Verify or change the values:

3. Press and hold TEST Press and Hold, then observe the Live Rhythm Monitor for loss of capture.

4. When loss of capture occurs, release TEST Press and Hold.

5. On the results window, verify the detected pacing threshold for the loss of capture:

6. Ensure that the amplitude and pulse width values provide an adequate safety margin above the pacing threshold.

, then tap TESTS > PACING THRESHOLD.

• To change how the test operates, tap Test Type, select new values, then tap OK.

• To change the pacing parameters applied during the test, select new values in the TEST VALUE column.

• To change the sensing parameters applied during the test, tap Additional Settings…, select new values in the TEST

VALUE column, then tap OK.

Note: The programmable and default values depend on the programmed values for bradycardia pacing therapy.

• To update the detected pacing threshold, tap the value in the THRESHOLD column.

• To view the test strip from the most recent pacing threshold test, tap the Test Strip icon.

7. To change the programmed pace polarity value, tap the pace polarity value in the PERMANENT column, select the desired value, then tap PROGRAM.

8. To change the programmed amplitude or pulse width values, complete the following actions:

a. In the PERMANENT column, tap the value. b. On the CAPTURE window, select the desired values, then tap OK. c. Tap PROGRAM.

9. To view the ending value and permanent value for the ventricular pace blanking, atrial pace blanking, or PVARP parameters, complete the following actions:

a. Tap Additional Settings…. b. To return to the results window, tap OK.

10. To view a test strip from the most recent pacing threshold test, complete the following actions: a. Tap the Test Strip icon. b. Close the window to return to the results window.

12.5 Perform a Lead Impedance Test

To test the integrity of the implanted lead system by measuring the impedance of the atrial and ventricular pacing electrodes, use the Lead Impedance Test.

Notes:

• If telemetry between the implantable device app and the implanted device is paused or lost during a Lead Impedance Test, the implanted device continues to measure impedance values. When the test completes, the implanted device parameters revert to permanently programmed values.

• During system tests, tachyarrhythmia detection is suspended.

1. Tap , then tap TESTS > LEAD IMPEDANCE.

2. Tap START Measurement. When the Lead Impedance Test completes, the implantable device app displays the measured impedance values for the tested

polarities. To stop the test manually before it completes, tap STOP.

3. Complete the following actions:

• To view the measurements for all lead polarities, tap ALL MEASURED POLARITIES.

• To compare the test results to daily automatic lead impedance measurements, tap LEAD IMPEDANCE TRENDS.

• To save the Lead Impedance Test Report, tap the PDF button.

12.6 Perform a Magnet Test

To observe and document magnet mode operation while the implantable device is in a telemetry session, use the Magnet Test.

During magnet mode operation, the implantable device provides asynchronous pacing at a fixed rate. While the implantable device is in a telemetry session, you cannot initiate magnet mode operation by placing a magnet over the device. The Magnet Test can automatically record Live Rhythm Monitor strips showing magnet mode and non-magnet mode operation.

Notes:

• If telemetry between the implantable device app and the implanted device is paused or lost during a Magnet Test, the test stops and the implanted device parameters revert to permanently programmed values.

• During system tests, tachyarrhythmia detection is suspended.

1. Tap , then tap TESTS > MAGNET.

2. To automatically record a strip that shows non-magnet operation, select the Non-Magnet Strip checkbox.

3. To select a strip duration value for the automatically collected strips, tap Strip Durations.

4. Tap START Test. Note: To stop the test manually before it completes, tap STOP Test.

5. Tap the Magnet Strip icon or the Non-Magnet Strip icon to view the collected strip in the FROZEN STRIP window.

6. To create a report, tap the PDF button.

12.7 Perform EP Study tests to induce arrhythmias

12.7.1 About arrhythmia inductions

You can use electrophysiology study (EP Study) test functions to induce arrhythmias in order to evaluate the effectiveness of tachyarrhythmia therapies.

The available arrhythmia induction methods are 50 Hz Burst, Fixed Burst, and Programmed Electrical Stimulation (PES).

Warning: Monitor the patient carefully when using an EP study function. Have an external defibrillator ready for use when inducing any tachyarrhythmia. An induced tachyarrhythmia may degenerate to ventricular fibrillation.

Tachyarrhythmia detection is automatically suspended during all EP Study tests. If you manually suspend detection before the induction, detection is not resumed automatically when the induction is delivered. All EP study inductions provide the option to resume detection automatically after the induction is delivered.

The EP study functions use test values that do not change the programmed parameters of the implanted device. The test values take effect when the induction or therapy begins. After the induction or therapy, the implanted device reverts to its programmed parameter values for bradycardia pacing and tachyarrhythmia therapy.

12.7.2 Induce AT/AF with an atrial 50 Hz Burst

Use a 50 Hz Burst to induce AT/AF by delivering a rapid burst of AOO pacing pulses to the atrium.

You can also use an atrial 50 Hz Burst to treat AF episodes manually.

Note: If telemetry between the implantable device app and the implanted device is paused or lost during the test, the test stops and the implanted device parameters revert to permanently programmed values.

1. Ensure that telemetry is established between the implanted device and the patient connector. Note: Successful interrogation or programming confirms proper communication between the implanted device and the patient

connector.

2. Tap , then tap TESTS > EP STUDY > 50 Hz Burst.

3. Set up the test using the following options:

• To maintain automatic detection and therapy during the test, select the Resume at BURST checkbox.

• To disable automatic detection and therapy in order to treat the induced episode with a manual therapy, clear the Resume at BURST checkbox, then tap SUSPEND.

4. Verify or change the displayed test values. Note: To provide VOO Backup pacing during the pacing burst, tap VOO Backup… and set the VOO Backup pacing parameters.

5. Press and hold 50 Hz BURST Press and Hold. As long as you hold the 50 Hz BURST Press and Hold button, the implanted device continues delivering the induction (up to a maximum of 10 s). To end the induction, release the button.

Notes:

• To abort a therapy, tap ABORT.

• To resume detection after a manual therapy or after an induction that was delivered with the Resume at BURST checkbox cleared, tap RESUME.

12.7.3 Induce AT or VT with Fixed Burst

Use Fixed Burst to induce AT or VT by delivering a set of asynchronous AOO or VOO pacing pulses.

connector.

2. Tap , then tap TESTS > EP STUDY > Fixed Burst.

3. If the SELECT CHAMBER window appears, tap Atrium or RV to select the chamber in which to perform the test. Note: If you select RV, set the Chamber parameter to the desired ventricular setting.

4. Verify or change the value of the Chamber field.

5. Set up the test using the following options:

• To maintain automatic detection and therapy during the test, select the Resume at BURST checkbox.

• To disable automatic detection and therapy in order to treat the induced episode with a manual therapy, clear the Resume at BURST checkbox, then tap SUSPEND.

6. Verify or change the displayed test values.

Note: To provide VVI Backup pacing during an atrial Fixed Burst induction, tap VVI Backup… and set the VVI Backup pacing parameters. If the test value for atrial Amplitude is greater than 6 V, crosstalk can inhibit VVI Backup pacing.

7. Press and hold Fixed BURST Press and Hold. To end the induction, release the button.

Notes:

• To abort a therapy, tap ABORT.

• To resume detection after a manual therapy or after an induction that was delivered with the Resume at BURST checkbox cleared, tap RESUME.

12.7.4 Induce AT or VT with PES

Use Programmed Electrical Stimulation (PES) to induce AT or VT by delivering a selectable number of pacing pulses and individually selectable intervals. PES delivers a selectable number of pacing pulses at the S1S1 interval and then delivers up to 3 asynchronous pacing pulses at S1S2, S2S3, and S3S4 intervals.

Note: If telemetry between the implantable device app and the implanted device is paused or lost during the test, the implanted device continues the test. When the test completes, the implanted device parameters revert to permanently programmed values.

connector.

2. Tap , then tap TESTS > EP STUDY > PES.

3. If the SELECT CHAMBER window appears, tap Atrium or RV to select the chamber in which to perform the test. Note: If you select RV, set the Chamber parameter to the desired ventricular setting.

4. Verify or change the value of the Chamber field.

5. On the EP STUDY - PES screen, set up the test using the following options:

• To maintain automatic detection and therapy during the test, select the Resume at DELIVER checkbox.

• To disable automatic detection and therapy in order to treat the induced episode with a manual therapy, clear the Resume at DELIVER checkbox, then tap SUSPEND.

6. Verify or change the displayed test values. Note: To provide VVI Backup pacing during an atrial PES induction, tap VVI Backup… and set the VVI Backup pacing

parameters. If the test value for atrial Amplitude is greater than 6 V, crosstalk can inhibit VVI Backup pacing.

7. Tap DELIVER PES. To end the induction, release the button.

Notes:

• To abort a therapy, tap ABORT.

• To resume detection after a manual therapy or after an induction that was delivered with the Resume at DELIVER checkbox cleared, tap RESUME.

12.8 Perform EP Study tests to deliver manual therapies

12.8.1 Perform manual therapies

You can use manual therapies to provide backup therapy during EP testing and to assess therapy effectiveness during follow-up appointments.

The available manual therapies include Atrial Burst+, Atrial Ramp, Ventricular Ramp, Ventricular Burst, and Ventricular Ramp+ pacing therapies.

Warning: Monitor the patient carefully when delivering a manual therapy. Have an external defibrillator nearby and ready for immediate use. Potentially harmful tachyarrhythmias may occur during device testing.

Notes:

• If the test value for Atrial Amplitude is greater than 6 V, VVI Backup pacing during a manual atrial ATP therapy may be inhibited by crosstalk.

• When a manual therapy is delivered, the device automatically aborts any induction or automatic therapy already in progress.

• If telemetry between the implantable device app and the implanted device is paused or lost during a manual therapy, the implanted device continues the manual therapy. When the manual therapy completes, the implanted device parameters revert to permanently programmed values.

• During system tests, tachyarrhythmia detection is suspended. Once a test is completed, detection remains suspended until you tap RESUME.

The EP Study functions use test values that do not change the programmed parameters of the device. The test values take effect when the induction or therapy begins. After the induction or therapy, the device reverts to its programmed parameter values for bradycardia pacing and tachyarrhythmia therapy.

connector.

2. Tap , then tap TESTS > EP STUDY.

3. Tap the desired manual therapy from the list of inductions and therapies.

4. If the SELECT CHAMBER window appears, tap Atrium or RV to select the chamber in which to perform the test.

5. To change the selected chamber, tap the Chamber field and choose the chamber.

6. Verify or change the displayed test values.

7. Tap the appropriate button: DELIVER Burst+, DELIVER Ramp, DELIVER Burst, or DELIVER Ramp+.

Notes:

• To abort a therapy, tap ABORT.

• To resume detection after a manual therapy, tap RESUME.

12.8.2 Operation of manual therapies

In general, each manual therapy with a corresponding automatic therapy operates the same as its automatic counterpart.

Note: Manual ATP therapies deliver 1 sequence of the selected therapy.

Atrial Burst+ pacing therapy – Manual Atrial Burst+ pacing therapy delivers the selected number of initial atrial pulses, followed by

up to 2 additional pulses in AOO mode. All the initial atrial pulses are delivered at the same pacing interval, which is determined as a percentage of the atrial tachycardia cycle length using the selected %AA Interval value. If the S1S2 option is selected, an additional atrial pulse is delivered at an interval determined using the selected percentage. If the S2S3 Dec option is also selected, another atrial pulse is delivered at an interval that is calculated by subtracting the selected decrement value from the previous interval.

Atrial Ramp pacing therapy – Manual Atrial Ramp pacing therapy delivers the selected number of pacing pulses to the atrium in AOO mode. The pacing interval for the first pulse of the Ramp sequence is determined as a percentage of the atrial tachycardia cycle length using the selected %AA Interval value. Each subsequent pulse in the sequence is delivered at progressively shorter intervals by subtracting the selected interval decrement (Dec/Pulse) from each pulse.

Ventricular Ramp pacing therapy – Manual Ventricular Ramp pacing therapy delivers the selected number of pacing pulses in VVI mode. The pacing interval for the first pulse of the Ramp sequence is determined as a percentage of the ventricular tachycardia cycle length using the selected %RR Interval value. Each subsequent pulse in the sequence is delivered at progressively shorter intervals by subtracting the selected interval decrement (Dec/Pulse) from each pulse.

Ventricular Burst pacing therapy – Manual Ventricular Burst pacing therapy delivers the selected number of pacing pulses in VOO mode. The pacing interval for the Burst sequence is determined as a percentage of the ventricular tachycardia cycle length using the selected %RR Interval value. The pulses within the sequence are delivered at the same pacing interval.

Ventricular Ramp+ pacing therapy – Manual Ventricular Ramp+ pacing therapy delivers the selected number of pacing pulses in VOO mode. The pacing interval for the first pulse of the Ramp+ sequence is determined as a percentage of the ventricular tachycardia cycle length using the selected R-S1(%RR) value. The second pulse is delivered at an interval determined using the selected

S1S2(%RR) percentage. Any remaining pulses in the sequence are delivered at the selected S2SN(%RR) percentage.

13 Using the SessionSync feature

13.1 View the SessionSync connection status

If your clinic uses a Paceart Optima system, the SessionSync feature enables you to transfer saved implantable device data and reports to that system.

To view the SessionSync connection status, use the DATA SYNCHRONIZATION STATUS window.

Notes:

• The SessionSync connection status is only visible if you configure the SessionSync feature. To configure the SessionSync feature, refer to the device manager app help.

• The Paceart Optima system is only available in supported regions.

1. On the status bar, tap .

2. From DATA EXPORT STATUS, tap DETAILS….

3. On the DATA SYNCHRONIZATION STATUS window, view the SessionSync connection status:

• Available – The SessionSync feature is enabled and there is a connection between the device manager app and the Paceart Optima system.

• Disconnected – The SessionSync feature is enabled, but the tablet is disconnected from the network.

• Not Available – The SessionSync feature is enabled, but the connection to the Paceart Optima system is unavailable.

The DATA SYNCHRONIZATION STATUS window also shows the following information.

Field Description Clinic Name Name of the clinic that receives SessionSync transfers. Gateway address IP address or hostname of the SessionSync gateway. Transfers The implantable device data and reports that the SessionSync feature transfers to

the Paceart Optima system. The Transfers table displays the most recent transfer at the top of the table.

• GENERATED – Date and time of the transfer

• RECEIVING CLINIC – Name of the clinic that receives the transfer

• STATUS – Status of the transfer

13.2 Send device data and reports to the Paceart Optima system

If your clinic uses a Paceart Optima system, the SessionSync feature enables you to transfer device data and reports to that system without ending the patient session:

1. Tap , then tap SESSION > SessionSync > TRANSFER.

2. To close the message, tap OK.

13.3 End the patient session with the automatic SessionSync feature

If your clinic uses a Paceart Optima system, end the current session and use the automatic SessionSync feature to transfer implantable device data and reports from the device manager to the Paceart Optima system:

1. Tap , then tap END SESSION.

2. Ensure that the Automatic SessionSync checkbox is selected.

3. Tap END NOW > TRANSFER.

4. On the transfer message window, tap END NOW.

14 Using session tools

14.1 Turn on standby mode for the implantable device

When you need a period of inactivity during a patient session, turn on standby mode for the implantable device.

Note: Standby mode is only available when the implantable device is connected to the patient connector using Bluetooth wireless technology.

When standby mode is on for the implantable device, the following implantable device app functions are limited:

• Emergency VVI pacing is unavailable.

• System tests are unavailable.

• EGM waveform traces and markers from the implantable device are unavailable.

• You are unable to program parameters.

• You are unable to reinterrogate the implantable device.

Note: When standby mode is on for the implantable device, the implantable device app prompts you to turn off standby mode when you attempt to enable emergency VVI pacing, perform tests, program parameters, or reinterrogate the implantable device.

To turn on standby mode for the implantable device, complete the following actions:

1. On the status bar, tap

2. Set STANDBY MODE to ON.

14.2 Turn off standby mode for the implantable device

To turn off standby mode for the implantable device, complete the following actions:

1. On the status bar, tap .

2. Set STANDBY MODE to OFF.

14.3 Connect to the base

Connect to the base before starting an analyzer session or to view ECG waveforms during a patient session:

1. Plug in the base to the AC power outlet (AC mains).

2. Verify that the base is disconnected from any previously connected device manager app.

3. To turn on the Bluetooth wireless technology in the base, press the grey button on the base. When the base is available for a connection with the device manager app, the Bluetooth light on the base slowly flashes.

4. On the status bar, tap .

5. Near the base status indicator, tap SELECT.

6. Tap CONTINUE.

7. From the device manager app, follow the prompts to complete the base connection. For more information, refer to the device manager app help.

For information on connecting the surgical cable or patient cable and ECG cable to the base, refer to the base technical manual, the patient cable or surgical cable instructions for use (IFU), and the ECG cable IFU.

14.4 Start or return to a concurrent analyzer session

To assess the correct placement and electrical performance of implanted leads, start or return to a concurrent analyzer session:

1. Verify that the base is on and connected to the implantable device app.

2. Tap

To return to the concurrent patient session from the analyzer, tap , then tap the name of the implantable device.

, then tap one of the following:

• To start an analyzer session, tap LAUNCH ANALYZER.

• To return to a concurrent analyzer session, tap ANALYZER.

14.5 Save the implantable device data

Save the interrogated device data from a patient session to the SAVED REPORTS window. The save operation generates a PKG file that includes the implantable device data (PDD file) and any reports that you generated during the session.

Implantable device data automatically saves when you end the patient session. However, implantable device data does not save when the implantable device app closes from the tablet operating system. To avoid permanent loss of implantable device data, save the implantable device data.

Note: During the save operation, the EMERGENCY button is available. However, if an error occurs during a save operation, there may be a delay in initiating the EMERGENCY - VVI PACING window. Do not save implantable device data while performing a system test or when it is possible that the Emergency function will be needed immediately. If the Emergency function is used during a save operation, the implantable device app aborts the save operation.

1. Tap

2. If the INTERROGATE HOW MUCH? window appears, tap All, then tap START.

3. When the interrogation is complete, tap then tap SESSION > SAVE SESSION.

4. On the SESSION DATA SAVED window, tap OK.

, then tap INTERROGATE.

Note: Selecting All provides more data for analysis of issues.

The implantable device data saves to SAVED REPORTS.

14.6 About Read From File sessions

Use a Read From File session to view saved implantable device data, to save and export reports, and to display all programmed parameter values.

To start a Read From File session, end the patient session and refer to the device manager app help.

Warning: A Read From File session is designed only for viewing saved implantable device data while no patient session is in progress. You cannot program a device or deliver emergency therapies from a Read From File session.

A Read From File session presents implantable device data in a slightly different way than what is seen during a patient session. Because you are not in a live patient session, the Live Rhythm Monitor is replaced with the device model and the words Read From File.

When you generate reports during a Read From File session, the retention of those reports is the same as the saved implantable device data.

14.7 End the patient session

When you finish with the patient session, end the session.

Note: After 45 min of inactivity, the implantable device app displays a message that prompts you to extend or end the session. If you do not respond to the message and there is 60 min of inactivity, the patient session ends automatically.

1. Tap , then tap END SESSION.

2. On the END SESSION? window, tap END NOW.

15 Working with reports and saved device data

15.1 Configure the report preferences

15.1.1 Configure the Initial Interrogation Report preferences

Enable the Initial Interrogation Report, then select the reports that you want to include in the Initial Interrogation Report:

1. Tap , then tap SESSION > PREFERENCES > INITIAL REPORT.

2. Complete the following actions:

a. Select the Automatically generate initial interrogation report after first interrogation checkbox. b. Select the reports to include in the Initial Interrogation Report.

Note: The Quick Look Report is always included in the Initial Interrogation Report.

c. Tap OK.

To generate an Initial Interrogation Report for a patient session that is in progress, end and restart the patient session.

15.1.2 Configure the Final Report preferences

Select the reports that you want to include in the Final Report:

1. Tap , then tap SESSION > PREFERENCES > FINAL REPORT.

2. Complete the following actions:

a. Select the reports to include in the Final Report. If you are configuring Final Report preferences for the first time, select All

Settings in the PARAMETERS section. Note: The Session Summary Report is always included in the Final Report.

b. Tap OK.

15.2 Generate reports

15.2.1 Generate a report using the PDF button

A PDF button appears on many windows and screens throughout the implantable device app. To generate a report from one of these screens or windows, tap the PDF button.

15.2.2 Generate a final report

To view summaries of selected data at the end of a session, generate the Final Report.

, then tap SESSION > FINAL REPORT.

Tap

15.2.3 Generate a set of reports

To generate available reports, select a set of reports:

1. Tap , then tap SESSION > AVAILABLE REPORTS.

2. Select the reports that you want to generate, then tap GENERATE REPORTS.

15.3 View or export saved reports and implantable device data

When you generate a report or save implantable device data during a session, the report or data is saved to the SAVED REPORTS window. From the SAVED REPORTS window, you can view or export the reports and data. The export options depend on the email, network, and printing apps or connections set up on your tablet.

1. Tap , then tap SAVED REPORTS / DATA.

2. On the SAVED REPORTS window, view reports or export reports and device data:

• To view a report, tap VIEW next to the report.

• To export reports, select the reports, tap SEND TO…, then select the export option or location.

• To export device data and the reports associated with the device data, select the PKG file, tap SEND TO…, then select the export option or location.

Notes:

• To select all files, tap the checkbox in the upper left corner.

• When you select multiple reports to export, the reports export as a single PDF file.

Note: You are responsible for the management of patient and device data that you export from SAVED REPORTS. Examples of patient and device data include printed paper reports, data transferred to a hospital network, and emailed attachments.

Medtronic, Inc.

*M995883A001*

710 Medtronic Parkway Minneapolis, MN 55432 USA www.medtronic.com +1 763 514 4000

Medtronic USA, Inc.

Toll-free in the USA (24-hour technical consultation for physicians and medical professionals) Bradycardia: +1 800 505 4636 Tachycardia: +1 800 723 4636

Technical manuals

www.medtronic.com/manuals

Medtronic D00U003 Instructions for Use

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

1 Introduction

1.1 Description

1.2 About the device manager

1.3 Intended use

1.4 Contraindications

1.5 Warnings and precautions

1.6 Potential adverse events

1.7 Download or order the instructions for use

1.8 Symbols

1.9 IT network, tablet, and data information

1.9.1 Required IT network characteristics and configuration

1.9.2 Supported tablets and technical specifications

1.9.3 Intended information flows

2 Overview of the interface

2.1 Areas

2.2 Buttons

2.3 Status indicators

Table 1. Base status indicators Indicator Description

Table 2. Patient connector status indicators Indicator Description

Table 3. Tablet status indicators Indicator Description

Table 4. Implantable device status indicators Indicator Description

Table 5. Connection status indicators Indicator Description

3 Reinterrogating the implanted device

3.1 Reinterrogate the implanted device

4 Responding to device status indicator warnings

4.1 About device status indicator warnings

4.2 Respond to the AT/AF THERAPIES DISABLED warning

4.3 Respond to the ATTENTION – ATRIAL LEAD NOT DETECTED DURING IMPLANT warning

4.4 Respond to the WARNING – DEVICE RESET warning

5 Using the Live Rhythm Monitor

5.1 About the Live Rhythm Monitor

5.2 Markers

Table 6. Pacing markers Marker Description

Table 7. Detection and therapy markers Marker Description

5.3 Adjust the Live Rhythm Monitor display

5.4 Freeze live waveform traces

6 Using the eStrip recorder

6.1 About the eStrip recorder

6.2 Modify the display of waveform traces

6.3 Configure waveform strip preferences

6.4 Access waveform strips

6.5 Change the length of a waveform strip

6.6 Measure time intervals

6.7 Draw notes

6.8 Rename a waveform strip

6.9 Use the Holter feature

7 Viewing summary data using the Quick Look screen

7.1 About the Quick Look screen

7.2 View the Quick Look screen

8 Using emergency VVI pacing

8.1 Enable emergency VVI pacing

9 Programming patient information

9.1 Program the patient information

9.2 Program MRI SureScan system and other implanted hardware information

10 Programming implantable device settings

10.1 Parameter symbols

Table 8. Symbols that appear with parameter values Symbol Name Description

Table 9. Message symbols Symbol Name Description

10.2 Program the parameters

10.3 Create custom parameter sets

10.4 Retrieve parameter sets

10.5 Program data collection preferences

10.6 View parameter changes

11 Viewing and analyzing diagnostic data

11.1 View CareAlert events

11.1.1 About CareAlert events

11.1.2 View CareAlert event logs

11.2 View clinical diagnostic data

11.2.1 About clinical diagnostic data

11.2.2 View arrhythmia episode data

11.2.3 View rate drop response episode data

11.2.4 View interrogation flashback data

11.2.5 View Cardiac Compass trend data

11.2.6 View rate histogram data

11.2.7 View MVP mode switch data
