User Manual for Fall Warner with Pedometer Function

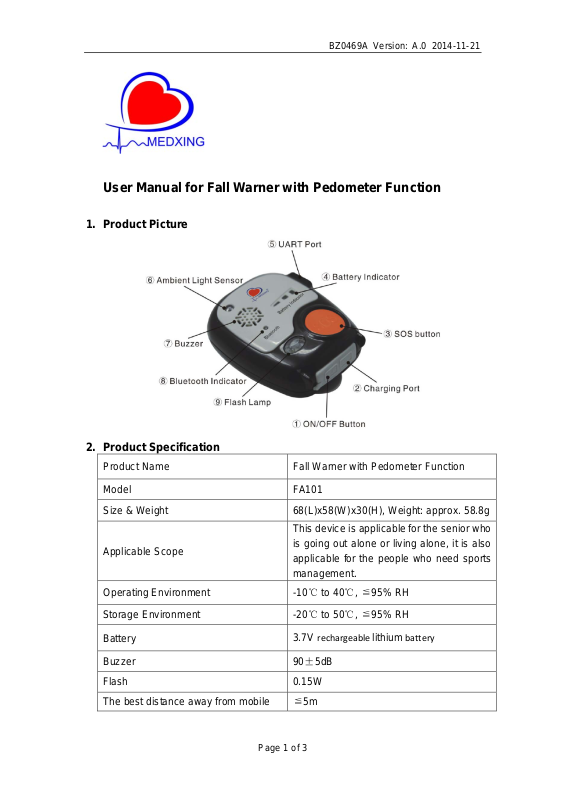

1. Product Picture
2. Product Specification
Product Name Fall Warner with Pedometer Function
Model FA101
Size & Weight 68(L)x58(W)x30(H), Weight: approx. 58.8g
This device is applicable for the senior who
Applicable Scope
Operating Environment -10℃ to 40℃, ≦95% RH
Storage Environment -20℃ to 50℃, ≦95% RH
Battery
Buzzer 90±5dB
Flash 0.15W
The best distance away from mobile ≦5m
is going out alone or living alone, it is also
applicable for the people who need sports
management.
3.7V
rechargeablelithiumbattery
Page 1 of 3
BZ0469A Version: A.0 2014-11-21
3. Main Function
1) SOS Function
When you are in an emergency and want to ask for help, please hold SOS Button ③
for 1 second thus Buzzer ⑦ and Flash Lamp ⑨ will alarm with a frequency of 0.5Hz. If
you press ③ in 5 seconds the alarm will be stopped. If not, an emergency call
message will be sent to appointed mobile and alarm is continued. After that when you
press ③ again alarm will be stopped and a message of cancelling emergency call will
be sent.
2) Fall Alarm Function
This function is divided to four stages: fall detection and indication, mobile pre-alarm,
alarm confirming and emergency call message sending stage. Please see followings
for details:
a) Fall detection and indication stage
When fall is detected and maintained for 5 seconds (tilt angle＞60°which comparing
with the angle of normal standing status) Buzzer ⑦ and Flash Lamp ⑨ will alarm with
a frequency of 0.5Hz. Then if you press SOS Button or stand up ③ in 7 seconds the
alarm will be stopped. Otherwise the device will enter to the next stage.
b) Mobile pre-alarm stage
In this stage Buzzer ⑦ and Flash Lamp ⑨ will alarm with a frequency of 1Hz and an
emergency call message will be sent to your mobile and alarm is continued. You can
cancel the alarm only after you pressed or stood up or pressed the [cancel] on ③
mobile interface. Otherwise the device will enter to the next stage.
c) Alarm confirming stage
In this stage Buzzer ⑦ and Flash Lamp ⑨ will alarm with a frequency of 1Hz. The
alarm will be canceled only after you pressed or stood up or pressed the [cancel] ③
on mobile interface. Then a command of clearing emergency call will be sent.
Note: During fall status the fall detection and alarm function will be recovery only after
you stood up.
d) Emergency call message sending stage
In this stage your mobile will send a emergency call message (including the GPS
coordinate of your position) to appointed emergency contact person’s mobile. At the
same time your mobile will call appointed emergency call number with the voice “hello,
I need your help”) once per 10 minutes till your call is answered by someone or you
have incoming call.
Note: When you wear the device and lie down the device will misjudge that you are
falling down and it will alarm till you press SOS Button ③ or stand up.
3) Power Supply and Mobile Wireless Repeater Function
This device can also serve as power supply and mobile wireless repeater for Med-link
Wrist Watch Blood Pressure Monitor, Digital Infrared Thermometer, ECG recorder. In
this case you can turn on or off fall alarm function via mobile APP setting menu.
Page 2 of 3
BZ0469A Version: A.0 2014-11-21
4) Battery Indicator Function
There are three battery indicator lamps indicating the battery status.
Battery Volume Status of Battery Indicator Lamps
100-75% Three lamps light up.
75-50% Two lamps light up.
50-15% One lamp lights up.
15-5% Three lamps flash.
The total battery volume is 1000±20mAh. When battery volume is less than 0% the
device will be powered off automatically.
5) Pedometer Function
a) The pedometer function will turn on automatically when the device powers on. You
can set this function via mobile APP setting menu. The step counter result will be
cleared when the device is power off.
b) When the device is served as power supply and mobile wireless repeater this
pedometer function will be paused and it will be recoveried after shut off power supply
or wireless transmission.
Shenzhen Med-link Electronics Tech Co., Ltd.
Building 2, HuaFu Industrial, HuaWang Road, DaLang, LongHua District, 518109
Shenzhen City, P.R.China
Hotline: 400-058-0755
E-mail: kefu@medxing.com
Website: www.medxing.com
Page 3 of 3
BZ0469A Version: A.0 2014-11-21
