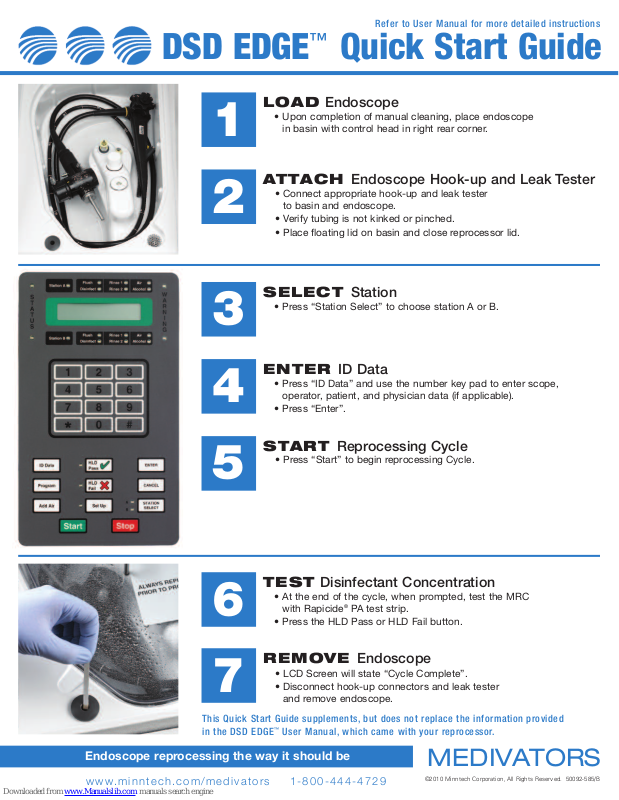

Medivators DSD EDGE Quick Start Manual

Page 1

DSD EDGE

LOA D Endoscope

• Upon completion of manual cleaning, place endoscope

in basin with control head in right rear corner.

AT TA C H Endoscope Hook-up and Leak Tester

• Connect appropriate hook-up and leak tester to basin and endoscope.

• Verify tubing is not kinked or pinched.

• Place floating lid on basin and close reprocessor lid.

SEL ECT Station

• Press “Station Select” to choose station A or B.

Refer to User Manual for more detailed instructions

™

Quick Start Guide

ENT ER ID Data

• Press “ID Data” and use the number key pad to enter scope, operator, patient, and physician data (if applicable).

• Press “Enter”.

START Reprocessing Cycle

• Press “Start” to begin reprocessing Cycle.

TES T Disinfectant Concentration

• At the end of the cycle, when prompted, test the MRC with Rapicide

• Press the HLD Pass or HLD Fail button.

REM OVE Endoscope

• LCD Screen will state “Cycle Complete”.

• Disconnect hook-up connectors and leak tester

and remove endoscope.

PA test strip.

This Quick Start Guide supplements, but does not replace the information provided in the DSD EDGE™User Manual, which came with your reprocessor.
