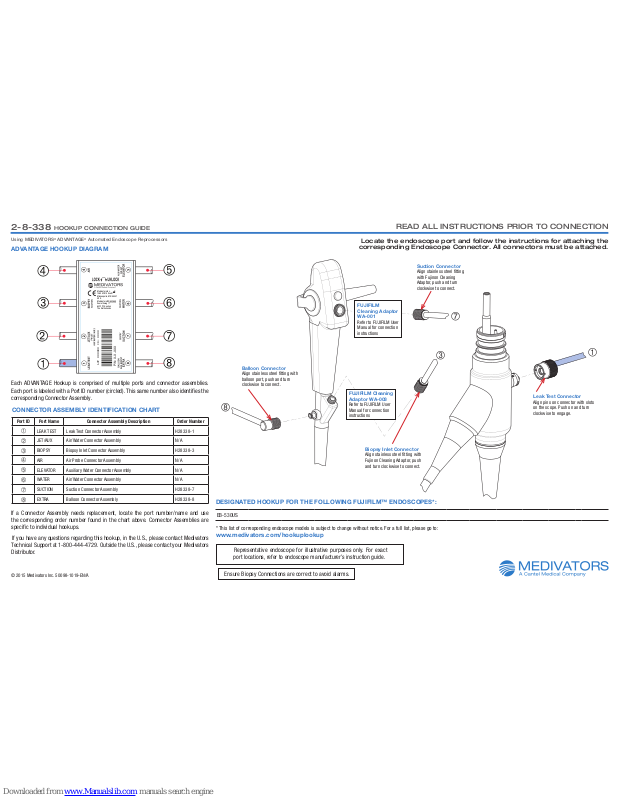

2-8-338 HOOKUP CONNECTION GUIDE
Using MEDIVATORS® ADVANTAGE® Automated Endoscope Reprocessors

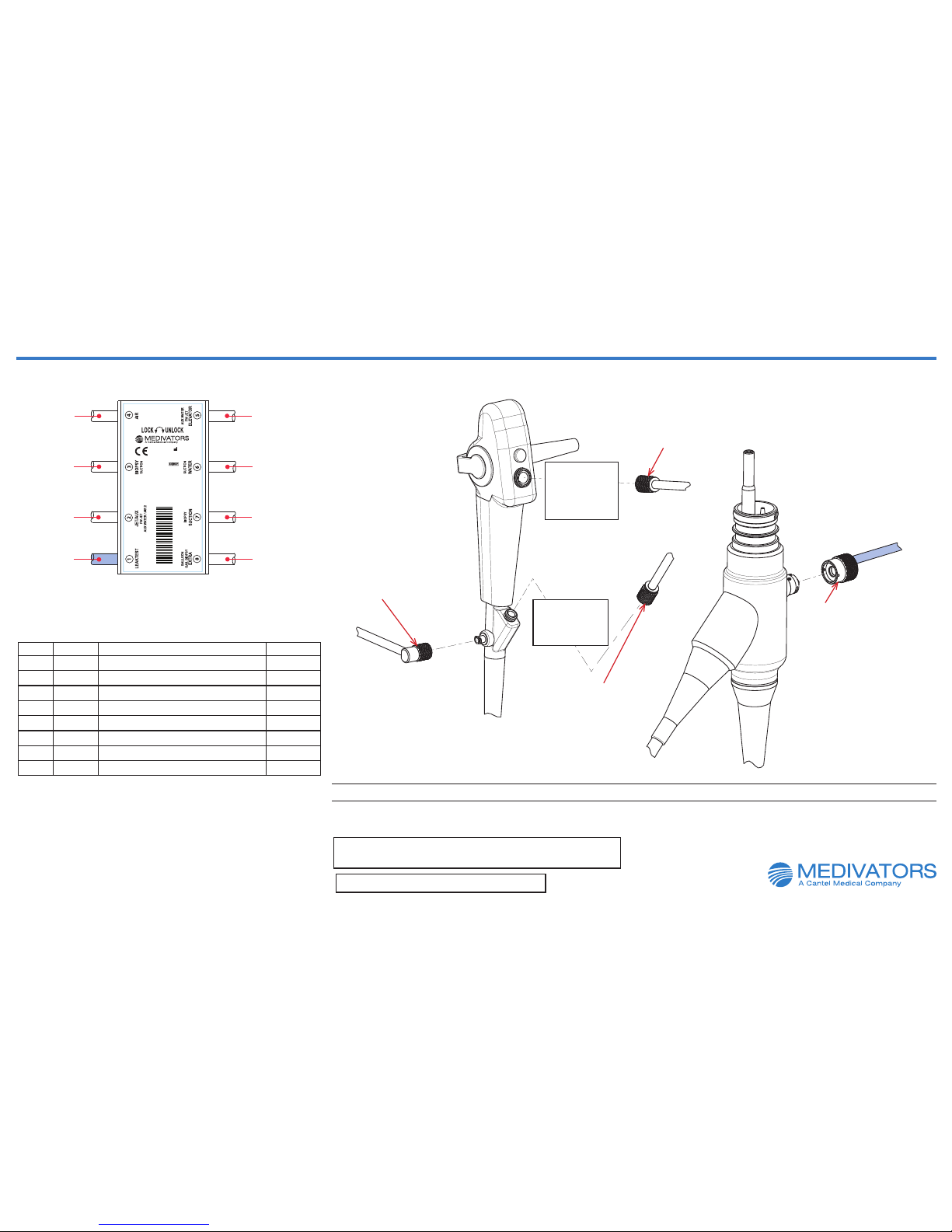

ADVANTAGE HOOKUP DIAGRAM
Representative endoscope for illustrative purposes only. For exact
port locations, refer to endoscope manufacturer’s instruction guide.
Each ADVANTAGE Hookup is comprised of multiple ports and connector assemblies.
Each port is labeled with a Port ID number (circled). This same number also identies the
corresponding Connector Assembly.
READ ALL INSTRUCTIONS PRIOR TO CONNECTION
Locate the endoscope port and follow the instructions for attaching the
corresponding Endoscope Connector. All connectors must be attached.
LOT XXXXXX ID: XXXX
P/N: X-X-XXX
Medivators Inc.
14605 28th Ave N.
Minneapolis, MN 55447
USA
Medivators BV
Sourethweg 11
6422PC Heerlen
The Netherlands
DESIGNATED HOOKUP FOR THE FOLLOWING FUJIFILM™ ENDOSCOPES*:
EB-530US
* This list of corresponding endoscope models is subject to change without notice. For a full list, please go to:
www.medivators.com/hookuplookup
© 2015 Medivators Inc. 50098-1019-EN/A
Port ID Port Name Connector Assembly Description Order Number
LEAK TEST Leak Test Connector Assembly H28338-1
JET/AUX Air/Water Connector Assembly N/A
BIOPSY Biopsy Inlet Connector Assembly H28338-3
AIR Air Probe Connector Assembly N/A
ELEVATOR Auxiliar y Water Connector Assembly N/A
WATER Air/Water Connector Assembly N/A
SUCTION Suction Connector Assembly H28338-7
EXTRA Balloon Connector Assembly H28338-8
If a Connector Assembly needs replacement, locate the port number/name and use
the corresponding order number found in the chart above. Connector Assemblies are
specic to individual hookups.
If you have any questions regarding this hookup, in the U.S., please contact Medivators
Technical Support at 1-800-444-4729. Outside the U.S., please contact your Medivators
Distributor.
CONNECTOR ASSEMBLY IDENTIFICATION CHART
Leak Test Connector
Align pins on connector with slots
on the scope. Push on and turn
clockwise to engage.
Suction Connector
Align stainless steel tting
with Fujinon Cleaning
Adaptor, push and turn
clockwise to connect.
Balloon Connector
Align stainless steel tting with
balloon port, push and turn
clockwise to connect.
Biopsy Inlet Connector
Align stainless steel tting with
Fujinon Cleaning Adaptor, push
and turn clockwise to connect.
FUJIFILM Cleaning
Adaptor WA-003
Refer to FUJIFILM User
Manual for connection
instructions
FUJIFILM
Cleaning Adaptor
WA-001
Refer to FUJIFILM User
Manual for connection
instructions
Ensure Biopsy Connections are correct to avoid alarms.
Page 2

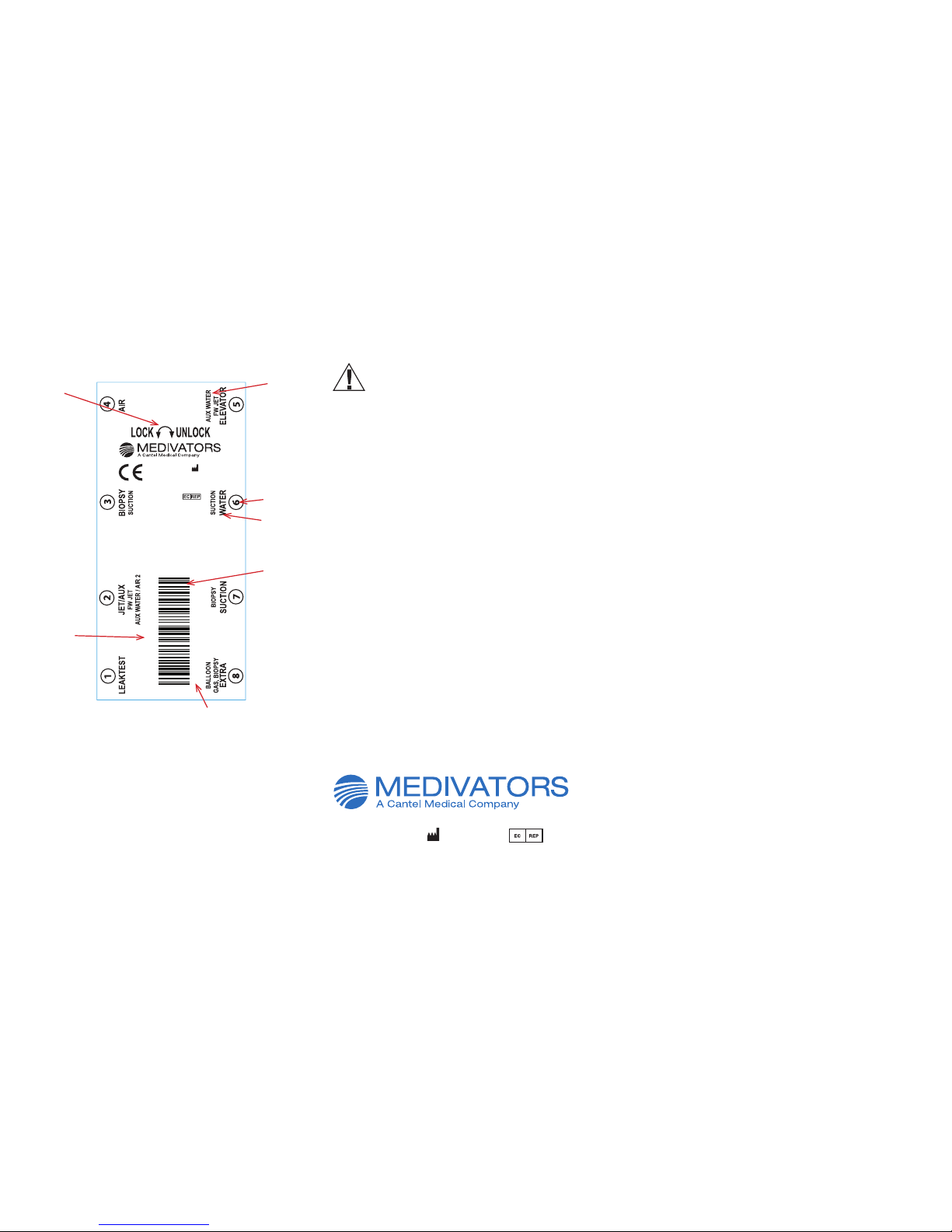

HOOKUP CONNECTOR BLOCK LABEL
The Hookup Connector Block Label contains useful information for quick reference.
Handle Locking Instructions - insert block onto basin channel manifold and
move handle to the left to lock. Move to the right to unlock.
Lot Number - identies date of manufacture.
Hookup Part Number - identies hookup.
Hookup Barcode - barcode of part number.
Port Name - identier of port location in ADVANTAGE system. Error logs identify
issues using these names. Also identier of Connector Assembly replacements for
older model hookups.
Port ID Number - identier for Connector Assembly replacements. Not found on
older model hookups.
Alternative Channel Connector Names - connector names vary depending
on specic endoscope channel conguration.
WARNINGS & CAUTIONS
This hookup is intended for connection only with the specic endoscope models identied in the appropriate MEDIVATORS online hookup guide. Use of this
hookup with endoscopes other than those specied by the hookup application guide may result in inadequate HLD.
Users operating MEDIVATORS AERs and hookups must be trained and competent in the understanding of endoscope channel systems.
Prior to reprocessing, users must verify that the hookup used contains connections for all appropriate channels that require a separate reprocessing connection
according to the hookup instructions.
All connectors and adapters must remain rmly attached and unrestricted for the entire disinfection cycle to ensure adequate HLD. Users must inspect the
endoscope and hookup combination to verify proper connection and ow.
Modications or repairs to hookups which do not correspond to the manufacturer’s specications may result in inadequate HLD and/or damage to endoscopes.
Failure to properly clean and prepare endoscope for immersion prior to hookup connection may result in inadequate HLD and/or damage to the endoscope.
Endoscopes must be inspected for damage and veried to be in proper working order prior to hookup connection. Connection of hookups to damaged
endoscopes or endoscopes with obstructed/restricted channels could result in inadequate HLD.
Manual leak testing must be carried out in accordance with manufacturer’s recommendations prior to reprocessing.
Install all necessary waterproof caps, plugs and cleaning adapters prior to immersion.
Do NOT autoclave MEDIVATORS hookups.
Medivators makes no claim on high-level disinfection efcacy when these reprocessing instructions are not followed, or when this hookup kit is applied to
endoscopes other than those specied in the online interactive hookup guide.
Avoid biological contamination. Always wear personal protective equipment when handling endoscopes.
