Page 1
Monoblock
SANERO M201
User Manual
Page 2
2
Content
Content .................................................................................................................................................... 2
Introduction ............................................................................................................................................. 3
Safety Information ................................................................................................................................... 4
ES Conformity Declaration ...................................................................................................................... 5
Guarantee Certificate .............................................................................................................................. 6
Product Description ................................................................................................................................. 7
Technical Parameters .............................................................................................................................. 8
Operating Instructions ........................................................................................................................... 10
Positioning of the footrest ................................................................................................................ 10
Positioning of the backrest ................................................................................................................ 11
Side folding grab handles .................................................................................................................. 12
Positioning of the rear legs ................................................................................................................ 13
Positioning of the front legs .............................................................................................................. 14
Unlocking of front wheels whirl ........................................................................................................ 15
Drive into ambulance car .................................................................................................................. 16
Drive into ambulance car .................................................................................................................. 17
Basic Accessories ................................................................................................................................... 18
Belt system and mattress with pillow ............................................................................................... 18
Maintenance ......................................................................................................................................... 19
Maintenance schedule ...................................................................................................................... 19
Revision ............................................................................................................................................. 19
Cleaning ............................................................................................................................................. 19
Disinfection ........................................................................................................................................ 19
Oiling.................................................................................................................................................. 19
Inspectional Note .................................................................................................................................. 20
Monoblock ......................................................................................................................................... 20
Mattress ............................................................................................................................................ 20
Belt system ........................................................................................................................................ 20
Training Note ......................................................................................................................................... 21
Note from inspection ............................................................................................................................ 22
Page 3
3
Introduction
Thank you for purchasing a monoblock SANERO M201. To take full advantage of all features of the
product, carefully read all instructions and put it onto available place in order to it is accessible for all
potential users.
Attention
This manual contains general instructions for use, operation and maintenance of this product.
Directions can not cover all the details, so safe and proper use of this product is entirely on user.
Safety information is provided as a service to users. All other security measures taken by the user
should be under the applicable regulations. It is recommended arranging training about the correct
use of this product in specific situation before use.
No part of the manuals delivered with this product may not be reproduced, copied, transmitted,
stored in a backup system or translated in any form into another language without prior written
permission of Medirol.
Although maximum effort has been made to achieve accuracy and completeness of the information
contained in this manual, we will welcome, if you tell about any discrepancies or missing information
to Medirol regional representative.
Page 4
4
Safety Information
This icon indicates a warning. To avoid possible injury to operator or patient, read all
warnings before using this product.
Warning
The product may be operated only by trained personnel.
Untrained personnel may cause injury.
Use the product only for purposes described in this manual.
Improper use of product may cause injury.
Always stay with the patient.
Health of patient without supervision may be in danger.
Always use the restraint system to secure patient.
Unsecure patient may be injured.
Maintain the product as described in this manual.
Improper maintenance may cause injury.
Use only original accessories and parts for service.
Improper parts and service may cause injury.
Do not tamper with the product design.
Modifications of product may cause injury or product damage.
COMPATIBILITY WITH FASTENING SYSTEM
Integral part of the monoblock SANERO is fastening system ROLFIX, fixing the ambulance cot in
ambulance car. MEDIROL Company Ltd. strongly recommended to fasten the monoblock only using
fastening system Medirol® ROLFIX F102, which with the monoblock Medirol®SANERO M201 complies
with European standard EN 1789 in section 4.5.9. Using products from other manufactures greatly
increases the risk of personal injury or risk of harm to the patient or stretcher.
Page 5
5
ES Conformity Declaration
According § 13 sec. 2 law no.22/1997 about technical requirements for products and according
government regulation no. 336/2004 by which is stated technical requirements at medical means.
Producer:
MEDIROL s.r.o., Na Strži 126/4, 140 00 Praha 4, Czech Republic, VAT no.: CZ64506592
Manufacturing plant:
MEDIROL s.r.o., Dolní Dubňany 58, 671 73 Tulešice, Czech Republic
Product´s name and type:
SANERO M201
Description:
Medical device for transport of recumbent patient into and outside of ambulance car.
Registered in class:
Non-invasive I
Statement
Meet basic requirements, in common use in accordance with user manual is safe, effective, and
appropriate for providing health care. Producer accepted precautions by which ensure conformity of
all medical means with the technical documentation and the basic requirements of the Government,
which apply to it.
To proof the conformity was used following documentation:
• Technological regulation M201
• Government regulation no. 336/2004
• ČSN EN 1865, 1789
• Protocol no. 120247-10-TAC about test according regulation ČSN EN 1789 issued by TÜV SÜD
Czech s.r.o. 7.4.2010 in Prague
Prague 6. 9. 2011
Ing. Diana Rysková
Managing Director and CEO
Page 6
6
Guarantee Certificate
The producer MEDIROL Ltd. provides a guarantee for each product against defects in materials and
workmanship:
With two years guarantee-
• monoblock frame and all its components
• pillow
• mattress
• restraint system
• wheels
This warranty does not cover:
• standard wear
• improper installation
• improper maintenance
• installation of parts or accessories which are not originally intended for this product (or are
not compatible with it)
• damage or failure due to accident, improper use, misuse or negligence
In case of any modification of frame or any parts of the product this warranty expires completely.
Producer proceeds repair in guarantee time by product´s repair or exchange for another.
Producer does not cover the freight charge for defective product or its parts.
Production label and this confirmed guarantee certificate are documents for claiming the guarantee.
Product´s name and type: Monoblock SANERO Model: M201
Serial number: Date of sale:
Dealer:
Signature and stamp:
Page 7
7
Product Description
The monoblock Medirol® SANERO M201 is equipment designed for transport of recumbent patient
on paved surface.
Standard Features
•
High-strength aluminum construction
•
Ergonomic design
•
Fixed patient section allowing cardiac massage
•
One-hand release, fold-down side rails
•
Infinite positioning, lift assist, pneumatic backrest and legrest
•
Seven height positions
•
Oversized wheels absorbing shaking from unevenness
•
Remote steer lock system
•
Roll-in loading with two-step load release mechanism
•
One four-point shoulder harness restraint
•
One belt restraints
•
Anatomic mattress
•
Anatomic pillow
Technical Specification
Length 195 cm
Width 56 cm
Height 32, 66, 74, 81, 88, 95, 102 cm
Weight (without mattress and restraints) 43 kg
Wheels Diameter: 20cm, Width: 5 cm
Articulation
Backrest 0° - 85°
Legrest 0° - 30°
Maximum load capacity 275 kg
Recommended loading height 70 cm
Recommended fastener system F102 ROLFIX
Specifications are rounded to the nearest whole number.
Page 8
8

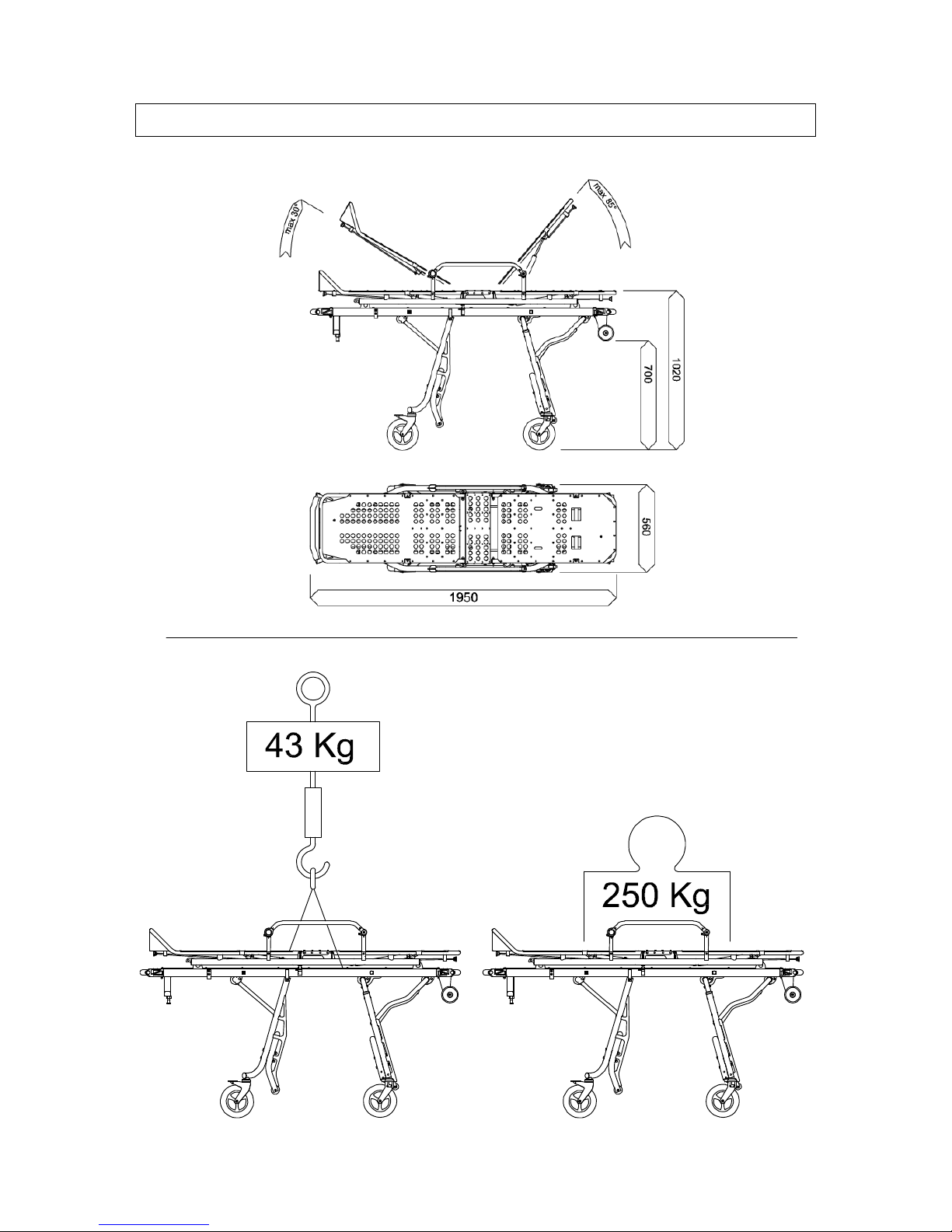

Technical Parameters

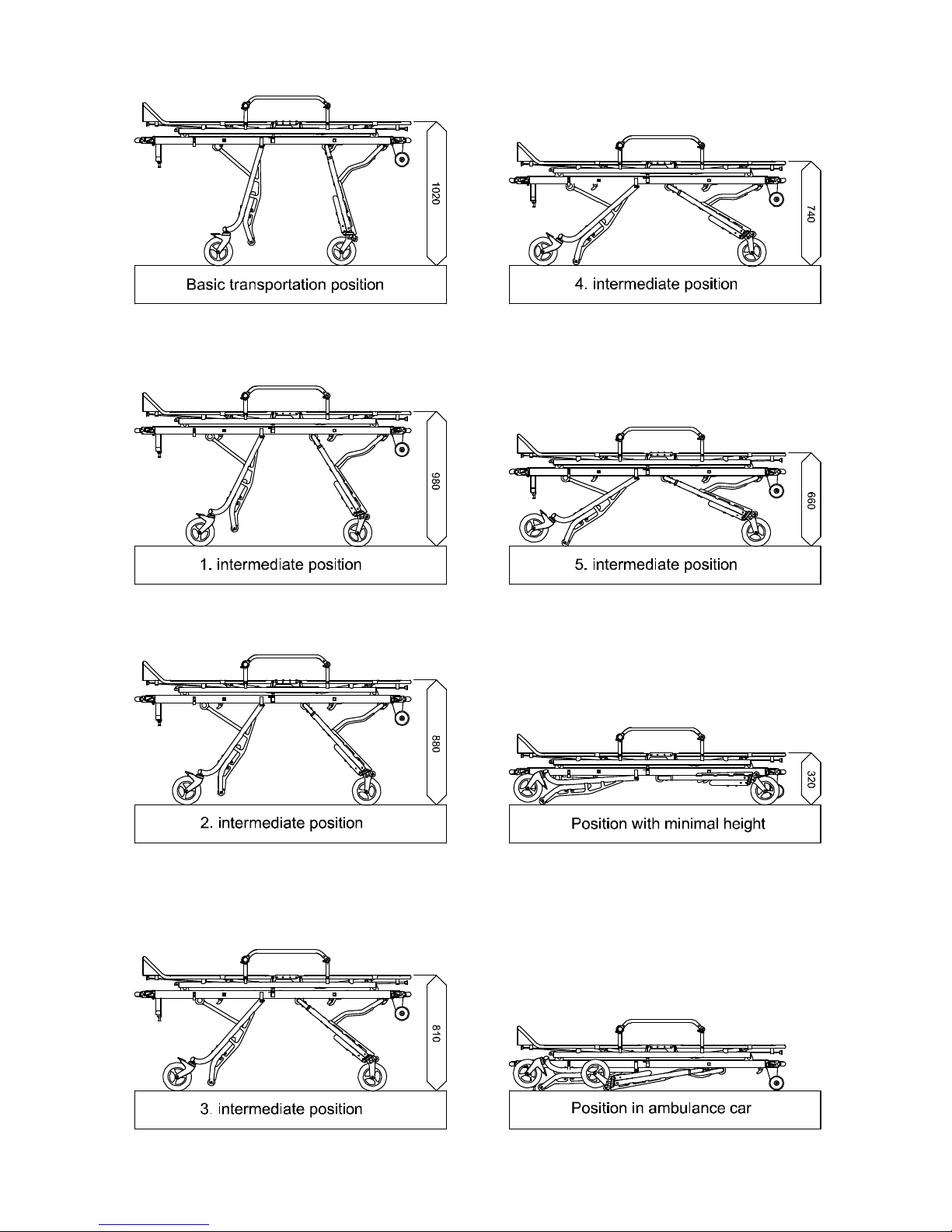

Page 9
9
Page 10
10
Operating Instructions

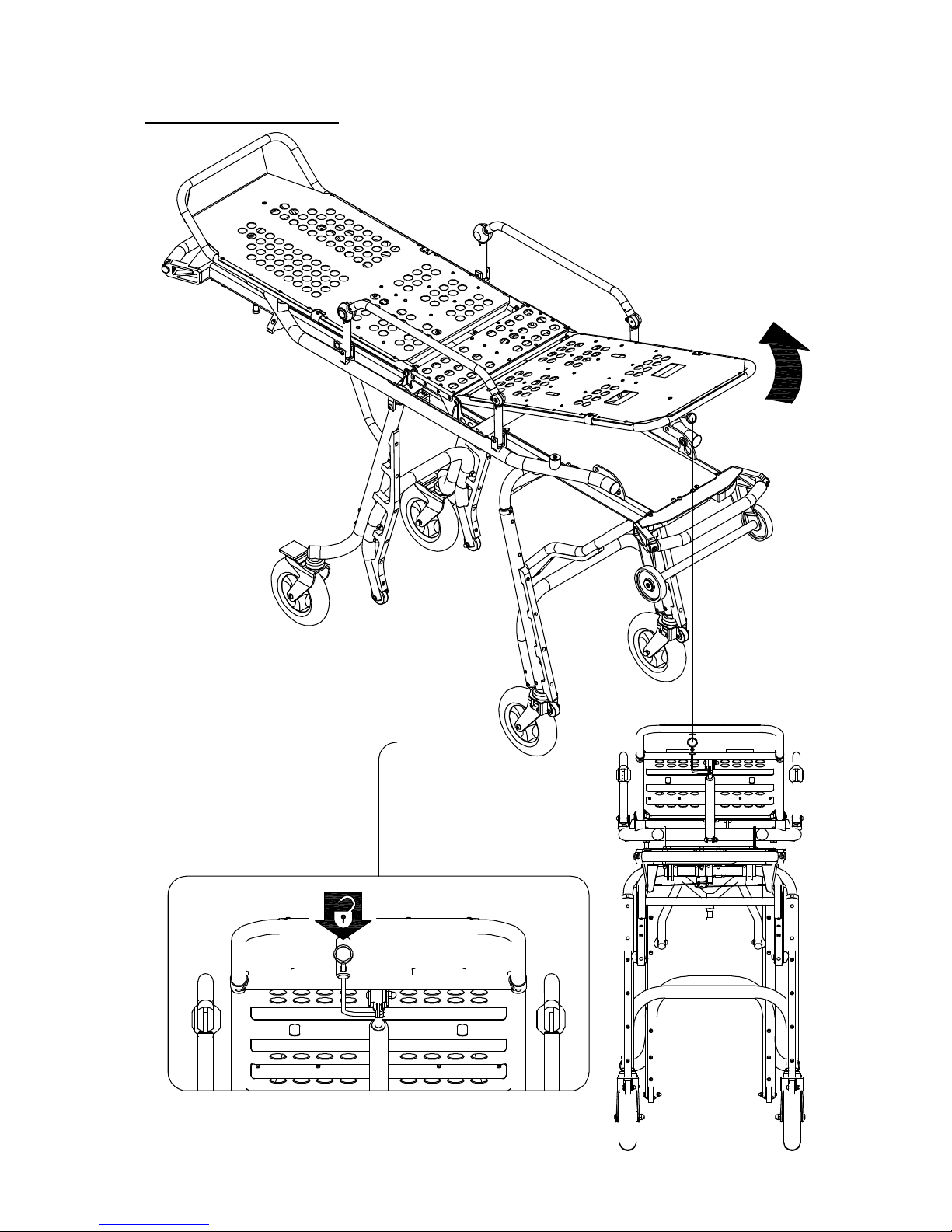

Positioning of the footrest
Page 11
11

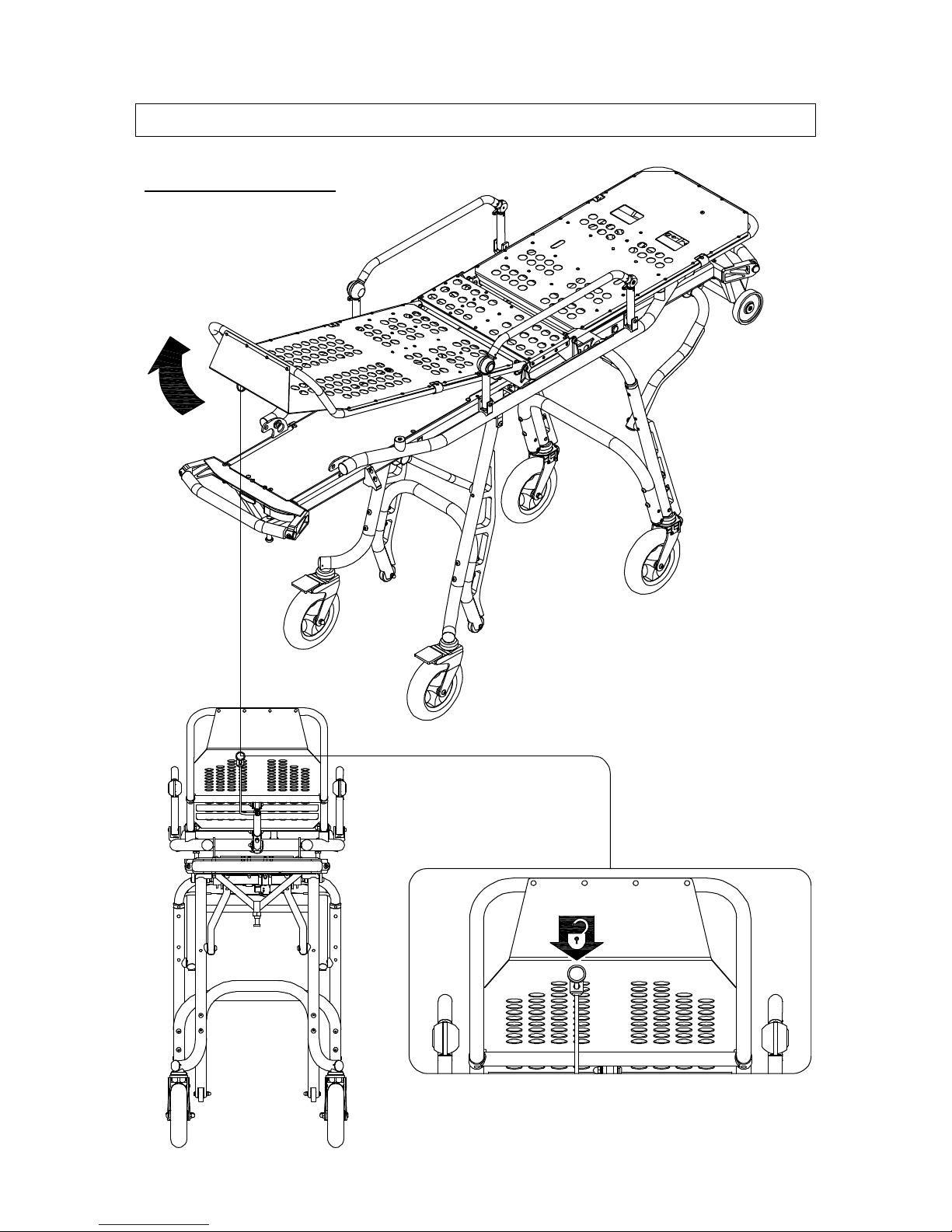

Positioning of the backrest
Page 12
12

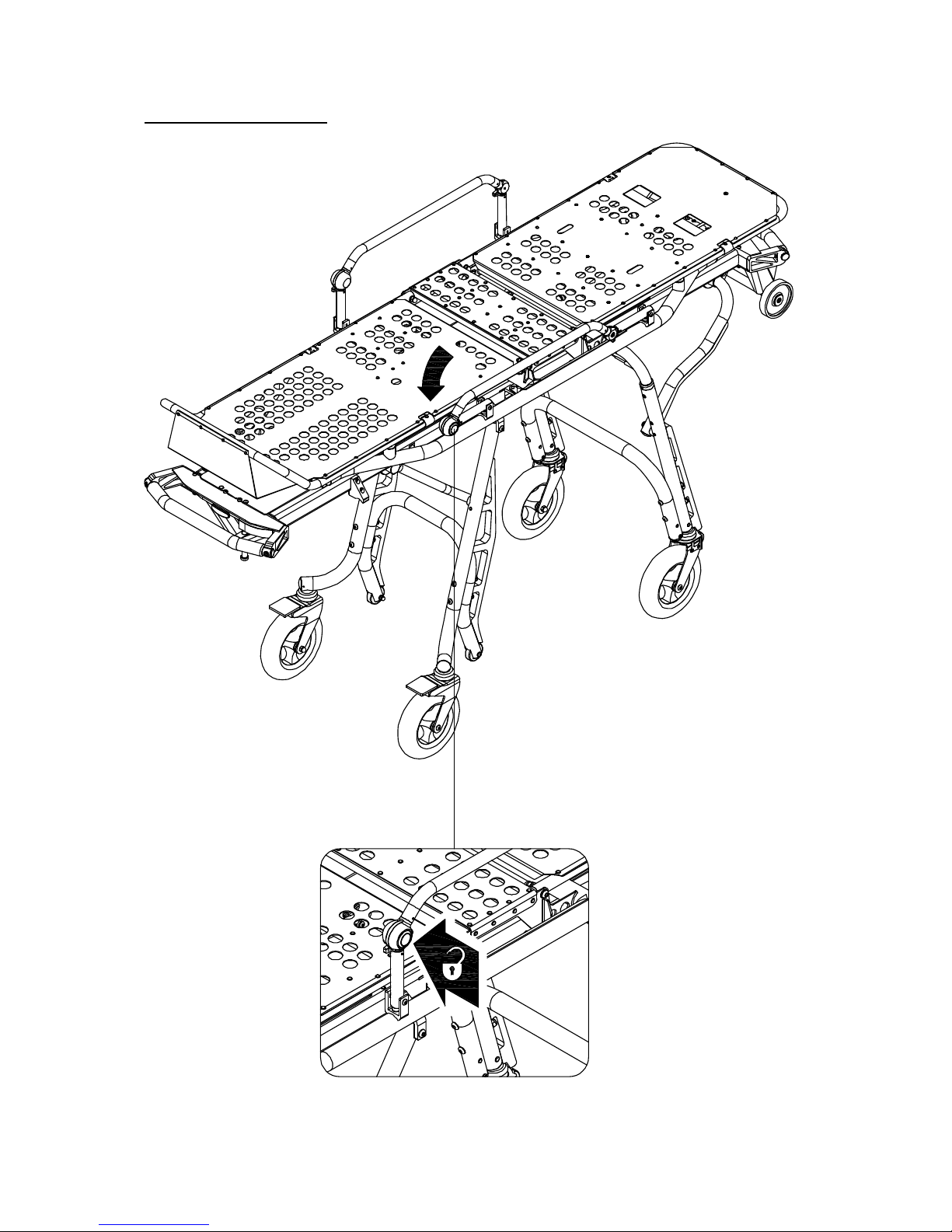

Side folding grab handles
Page 13
13

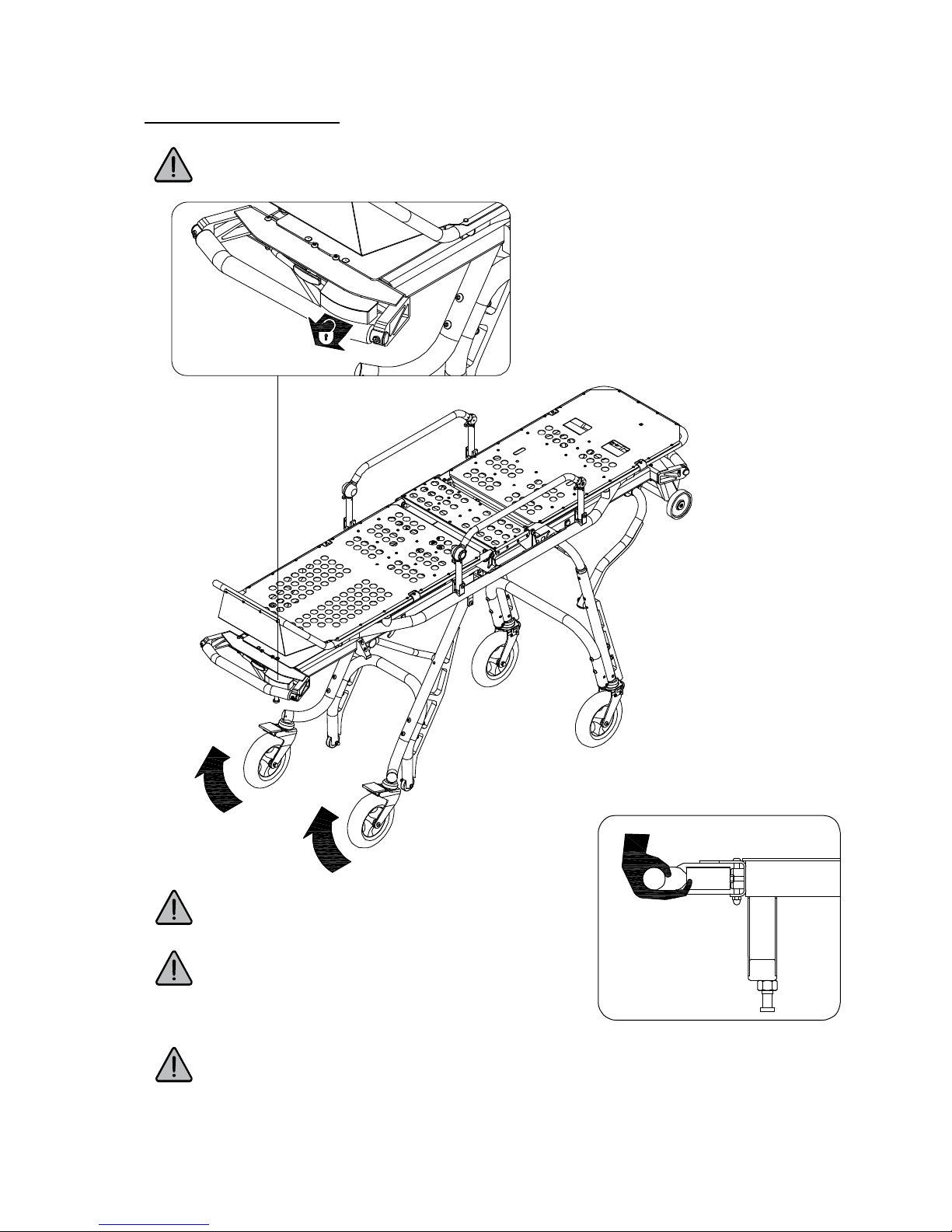

Positioning of the rear legs
It is not allowed to brake the trolley during positioning – rear swivel wheels have to find
their position themselves.
During positioning the monoblock always uplift to
decrease the action of force at the positioning locker.
Handle of monoblock´s carriage during legs positioning,
entry and exit from ambulance car always hold from
under, as presented at the picture to avoid tripping
of the carriage from hands.
During monoblock riding in any case do not manipulate with lever for back legs release.
With forward riding might happen unwanted folding of front legs.
Page 14
14

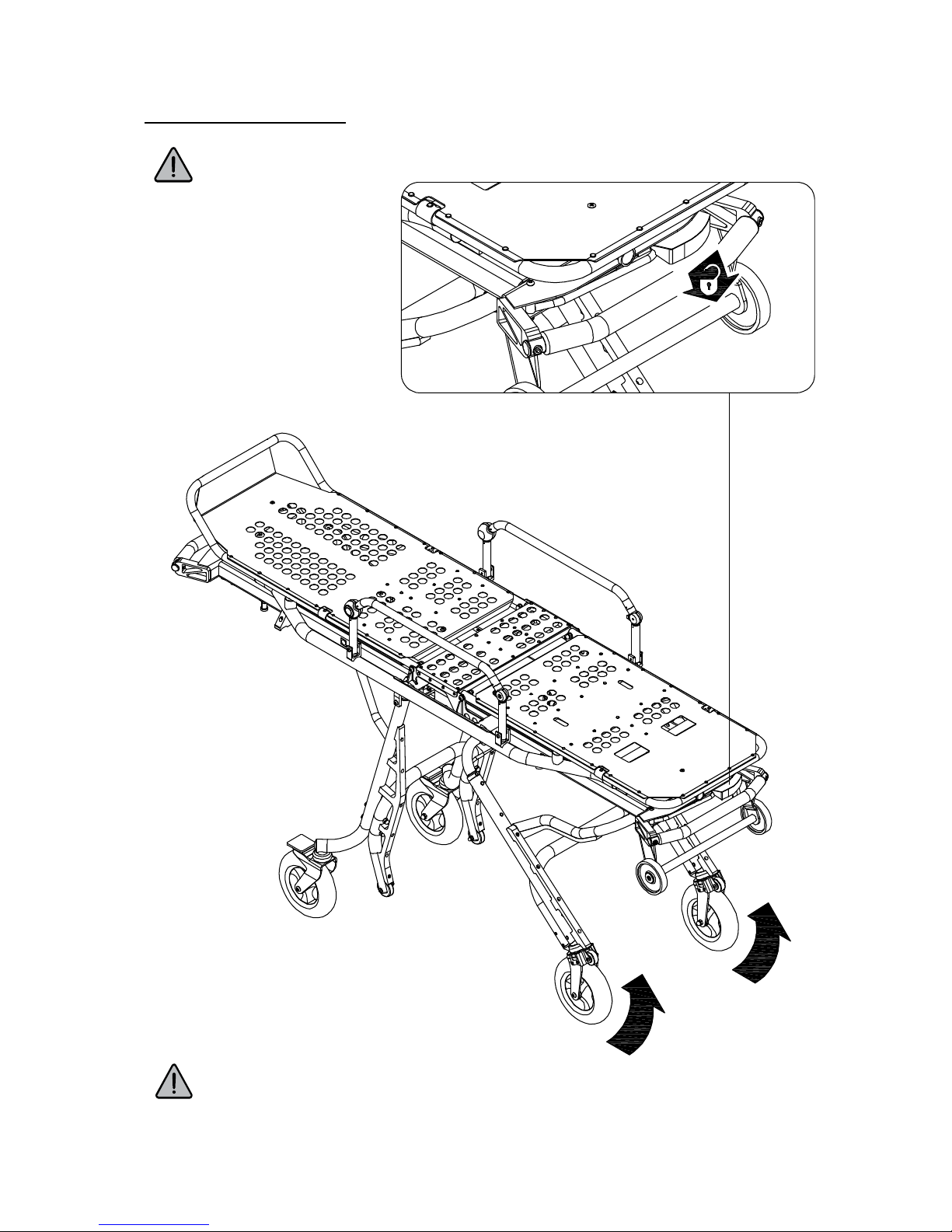

Positioning of the front legs
It is not allowed to brake the trolley during positioning – rear swivel wheels have to find
their position themselves.
During positioning the monoblock always uplift to decrease the action of force at the
positioning locker.
Page 15
15

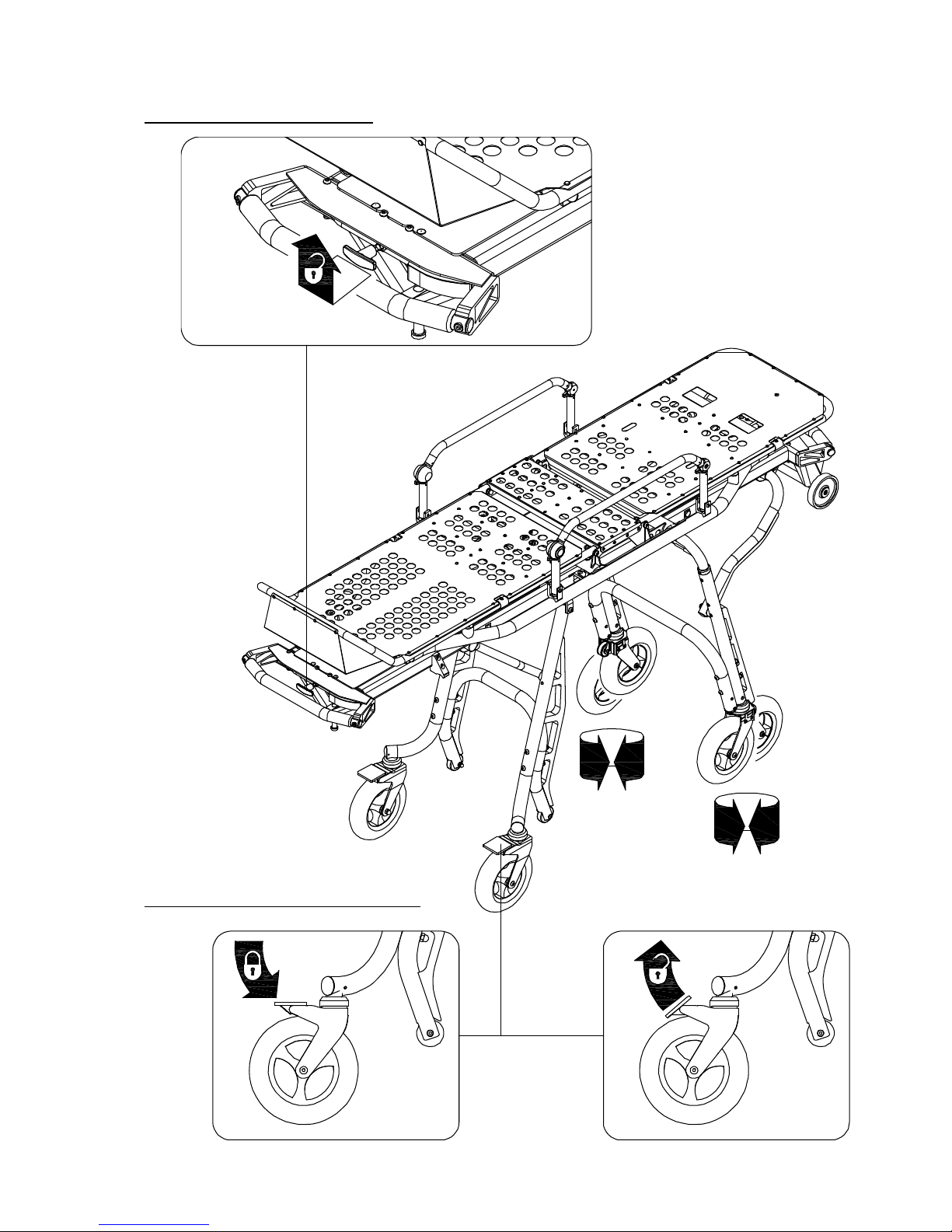

Unlocking of front wheels whirl
Set the brake of monoblock´s carriage
Page 16
16

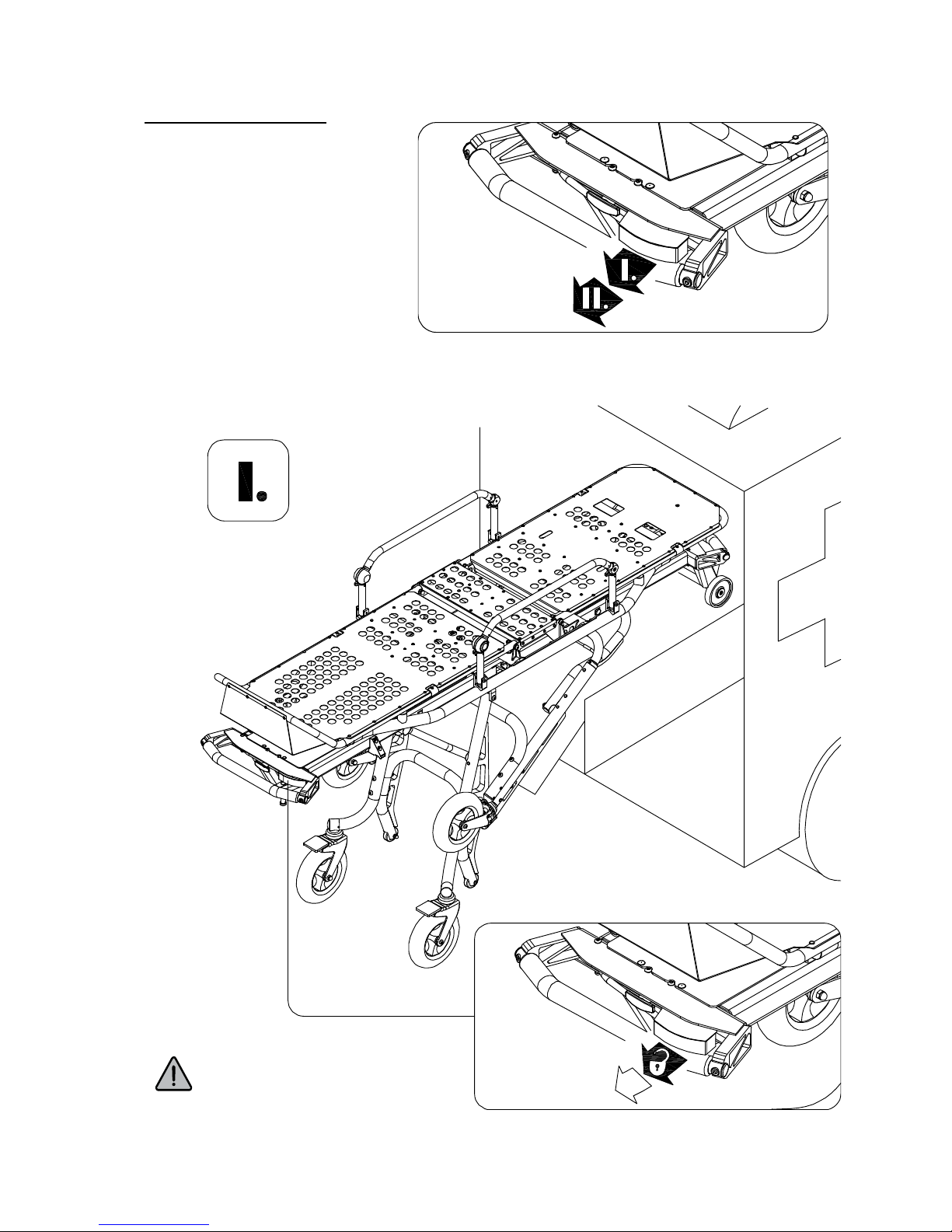

Drive into ambulance car
During drive into ambulance car is possible to take advantege to sequent unlock of the locker front
and rear legs in two positions of the operating lever.
During drive into ambulance car
monoblock must be always in basic
transport position.
Page 17
17

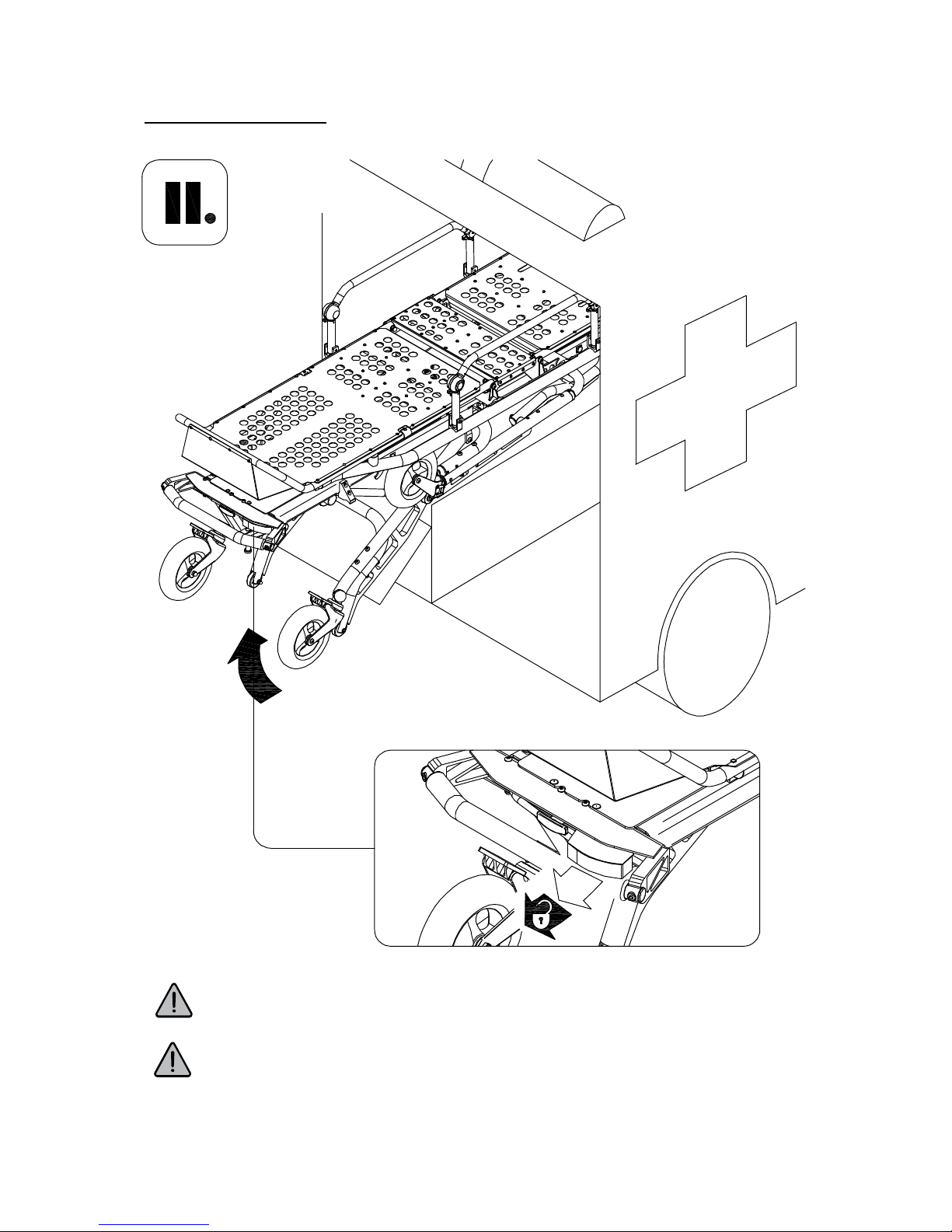

Drive into ambulance car
During drive into ambulance car and unlocking the locker for positioning monoblock always
uplift in order to reduce action of force at locker for positioning.
During drive out from ambulance car is necessary hold lever of the lock off legs locker
during unfold rear legs. Especially care about right unfold of front legs which must be safely
secured in unfolded position before front carriage wheels ride down from ambulance car´s
deck.
Page 18
18

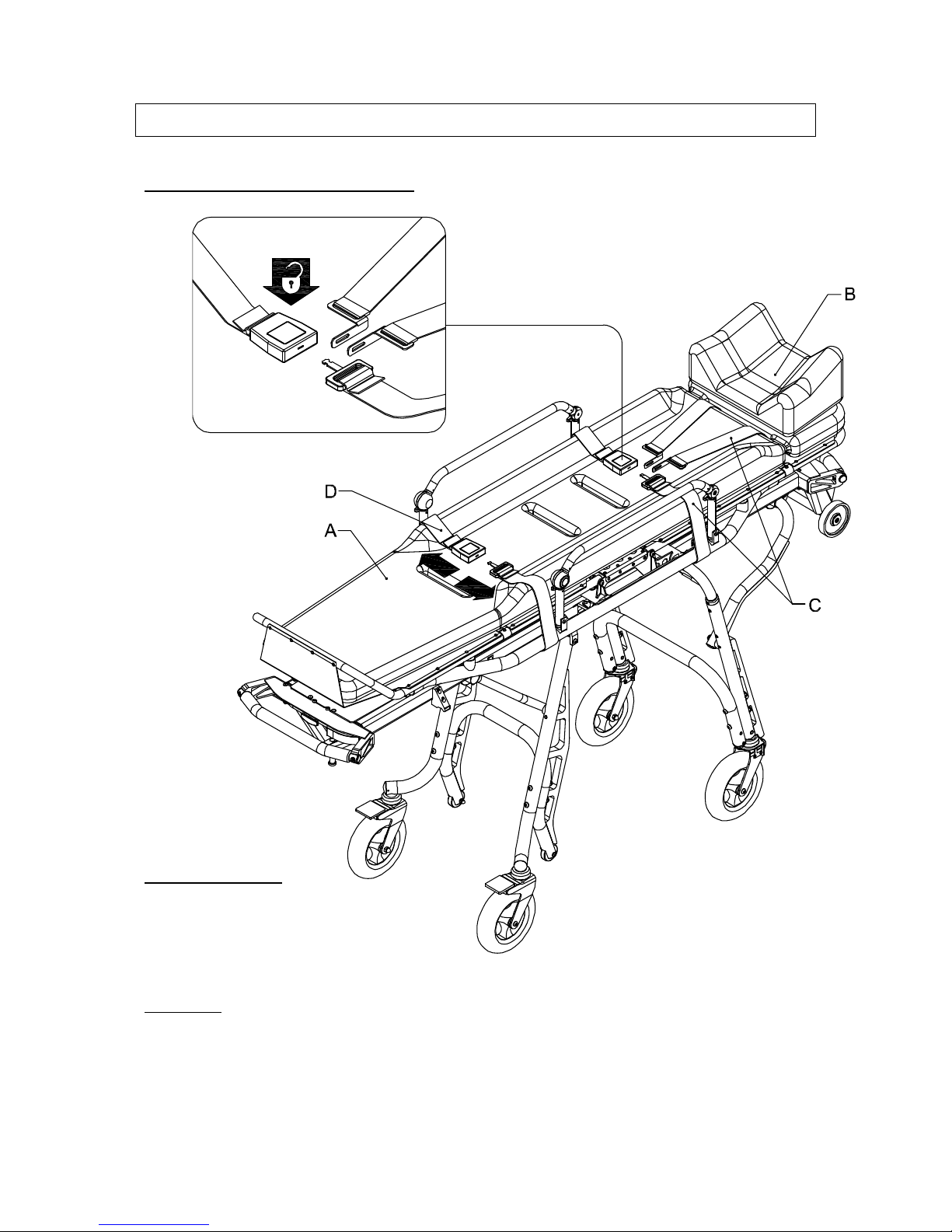

Basic Accessories
Belt system and mattress with pillow
Mattress with pillow
A – 1806 Anatomical mattress
B – 1803 Anatomical pillow
Belt system
C – 1707 Four-point belt
D – 1712 Cross belt E
Page 19
19
Maintenance
Maintenance schedule
The stretcher requires regular maintenance. Build your maintenance schedule and follow it. The
table below represents the minimum maintenance intervals.
Activity Plan
Cleaning and disinfection After every use
Inspection (see checklist)
•
By use frequency 1-25x a month
maintain inspection every 6 months
• By use frequency 26-200x a month
maintain inspection every 3 months
• By use frequency over 200x times a
month maintain inspection every month
Revision
MEDIROL recommend doing revision regularly. First revision inspection performs after 2 years and
then regularly ones a year.
Cleaning
• wash all parts with warm water
• remove blood stains with brush or solvent
• blow the water with compressed air and wipe with soft cloth
• surface treat with universal agent WD-40 and polish
Disinfection
• common disinfectants based on active and hydrogen peroxide can be used to disinfect
• the producer recommends to perform test on hidden unused place if used disinfectant is
inert to the surface of the surface of the product cover
Warning
Long-term use of disinfectants in excessive concentration without neutralization may change color of
surface, or damage the surface. For cleaning and disinfection of surface do not use the products
containing organic solvents such as acetone, toluene and gasoline.
Oiling
Lubricate all hinged and sliding joints with the universal product WD-40. Disinfectant may cause
undesirable degreasing of moving joints. Therefore pay attention to correct lubrication.
Page 20
20
Inspectional Note
Serial number: Name:
Type number: Date:
Monoblock
All mechanical and screw joints are solid
All welded joints are unbroken, without craks
No part of framework is not dismounted
Overrunning wheels easily rotating, in wheel axis are not any impurities
Main riding wheels are tightly attached, freely rotating and without impurities in wheel axis
Wheel brake system is fully functional
Monoblock can properly drive into ambulance car and drive out from ambulance car
Mechanism for safety monoblock height positioning is fully functional in all positions
Mechanism for safety folding and unfolding legs by drive into and out from ambulance car is
fully functional
Control bar of height trolley safety is unbroken
Sides folding grab handles are fully functional
Backrest and footrest can be fixed in arbitrary position and is fully functional
Monoblock can be easily locked into fastener in ambulance car
Optional accessories is undisturbed and fully functional
Mattress
Any breaks on surface by graze, tear, rip up
Belt system
Fully functional locking buckles and reduction of length buckles
Any breaks on belt surface by graze, tear, rip up
Any breaks of sawn belt joints
Do not use the product once the fault is detected and contact authorized service partner or
producer.
Page 21
21
Training Note
Date Name Type of training
Page 22
22
Note from inspection
Date Performed maintenance Name
Page 23
23
Keep for future use. Deliver with the product when you pass new user. Additional copies are
available free of charge on request from the Customer Care.
If you have other questions about the product, its operation or maintenance, ask your dealer. Our
dealers have extensive experience with the products MEDIROL. They can help you with your
individual questions and find the right solution.
© Copyright MEDIROL Ltd.
All rights reserved.
MEDIROL logo is a registered trademark of MEDIROL Ltd.
Loading...
