Page 1

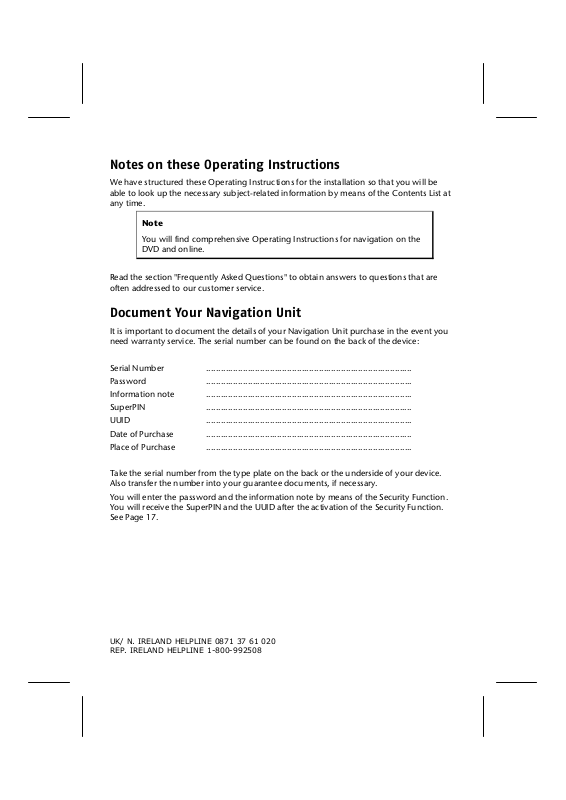

Notes on these Operating Instructions
We have structured these Operating Instructions for the installation so that you will be
able to look up the necessary subject-related information by means of the Contents List at
any time.
Note
You will find comprehensive Operating Instructions for navigation on the
DVD and online.
Read the section "Frequently Asked Questions" to obtain answers to questions that are
often addressed to our customer service.
Document Your Navigation Unit
It is important to document the details of your Navigation Unit purchase in the event you
need warranty service. The serial number can be found on the back of the device:
Serial Number ....................................................................................
Password ....................................................................................
Information note ....................................................................................
SuperPIN ....................................................................................
UUID ....................................................................................
Date of Purchase ....................................................................................
Place of Purchase ....................................................................................
Take the serial number from the type plate on the back or the underside of your device.
Also transfer the number into your guarantee documents, if necessary.
You will enter the password and the information note by means of the Security Function.
You will receive the SuperPIN and the UUID after the activation of the Security Function.
See Page 17.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
Page 2
Quality
In selecting the components we have aimed for a high level of functionality, simple handling, safety and reliability. A well-balanced hardware and software design allows us to
offer you a technologically advanced navigation system that will give great satisfaction in
both work and leisure use.
Service
Our individual customer care is there to support you when you have questions or problems. Please get in touch – we look forward to helping you. This manual contains a special
section on Customer Service starting on page 42.
Copyright © 2008, version 01/02/2008. All rights reserved. Microsoft®, MS-DOS®, and Windows are
registered trademarks of Microsoft Corporation in the U.S. and other countries. Pentium
tered trademark of Intel Corporation. The names of actual companies and products mentioned herein
may be the trademarks of their respective owners. Information in this document is subject to change
without notice
.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-ii-
®
is a regis-
Page 3
Contents
Safety and Maintenance ..................................................................................1
Safety Instructions......................................................................................................... 1
Data Security................................................................................................................. 1
Operating Environment................................................................................................. 2
Repair............................................................................................................................ 2
Ambient temperature.................................................................................................... 2
Electromagnetic Compatibility ...................................................................................... 3
Connection ................................................................................................................... 3
Power supply through Car Adapter............................................................................ 3
Cabling .........................................................................................................................3
Battery Operation.......................................................................................................... 4
Maintenance ................................................................................................................. 4
Care of the Display ........................................................................................................ 4
Recycling and Disposal.................................................................................................. 5
Transport ...................................................................................................................... 5
Supplied Items .............................................................................................................. 6
Views ...............................................................................................................7
Front Components........................................................................................................ 7
Back Components ......................................................................................................... 8
Bottom Components..................................................................................................... 8
Top Components .......................................................................................................... 9
Left Components......................................................................................................... 10
Initial Set up ..................................................................................................11
I. Charging the Battery ................................................................................................ 11
II. Power Supply .......................................................................................................... 12
Car Adapter.............................................................................................................. 12
Alternative possibility of charging the battery........................................................... 12
III. Switching on the Device ......................................................................................... 13
IV. Installing the Navigation Software.......................................................................... 14
General Operating Instructions .....................................................................15
Switching on/off the device......................................................................................... 15
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
- iii -
Page 4
Security .........................................................................................................17
Storing the password and the information note .......................................................... 17
Making settings........................................................................................................... 18
SuperPIN and UUID..................................................................................................... 19
Saves changes in the security function ........................................................................ 19
Making subsequent settings........................................................................................ 20
Password interrogation ............................................................................................... 21
Resetting the Navigation System ................................................................................. 22
Reset ...........................................................................................................................22
Switching the Device off Completely / Hard Reset ....................................................... 22
Navigation .....................................................................................................24
Safety Instructions for Navigation................................................................................ 24
General Instructions................................................................................................. 24
Notes for Use in a Vehicle ......................................................................................... 25
Additional Notes for Use on a Bicycle or a Motorcycle .............................................. 25
Aerial Orientation ........................................................................................................ 26
I. Mounting the Car Holder ......................................................................................... 26

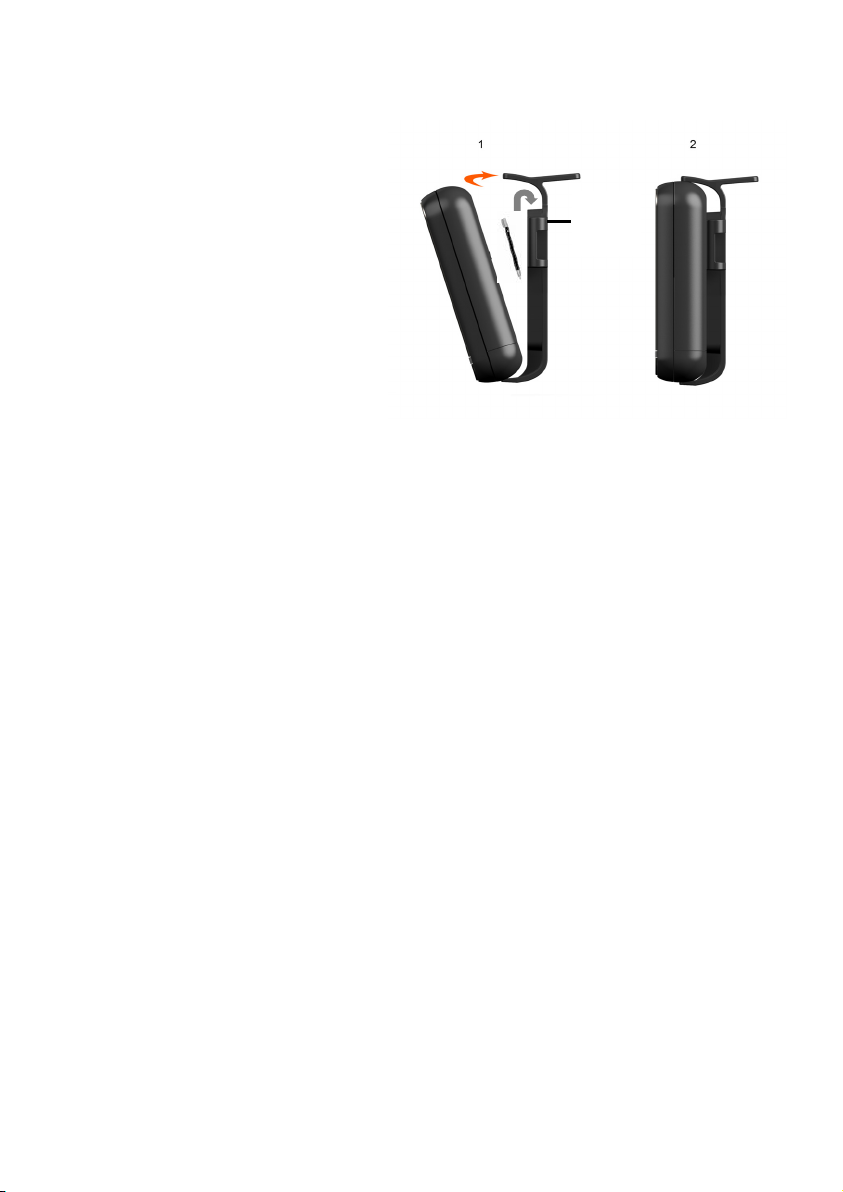

II. Attaching the Navigation System............................................................................. 27
III. Connecting the Car Adapter ................................................................................... 28
IV. Starting the Navigation Software............................................................................ 29
Warning function for traffic monitoring points ............................................................ 30
Picture Viewer...............................................................................................32
Operating the Picture Viewer....................................................................................... 32
Main Screen ................................................................................................................ 32

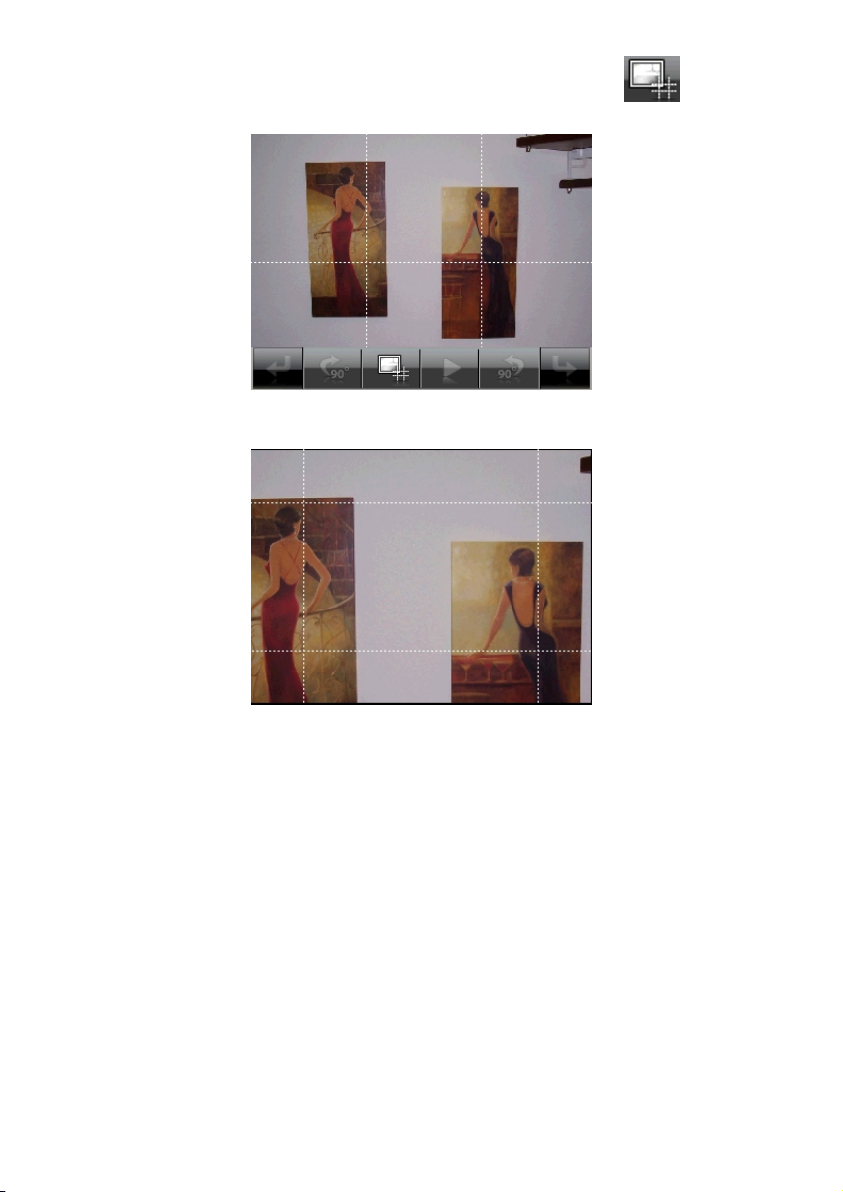

Full Image View........................................................................................................ 33

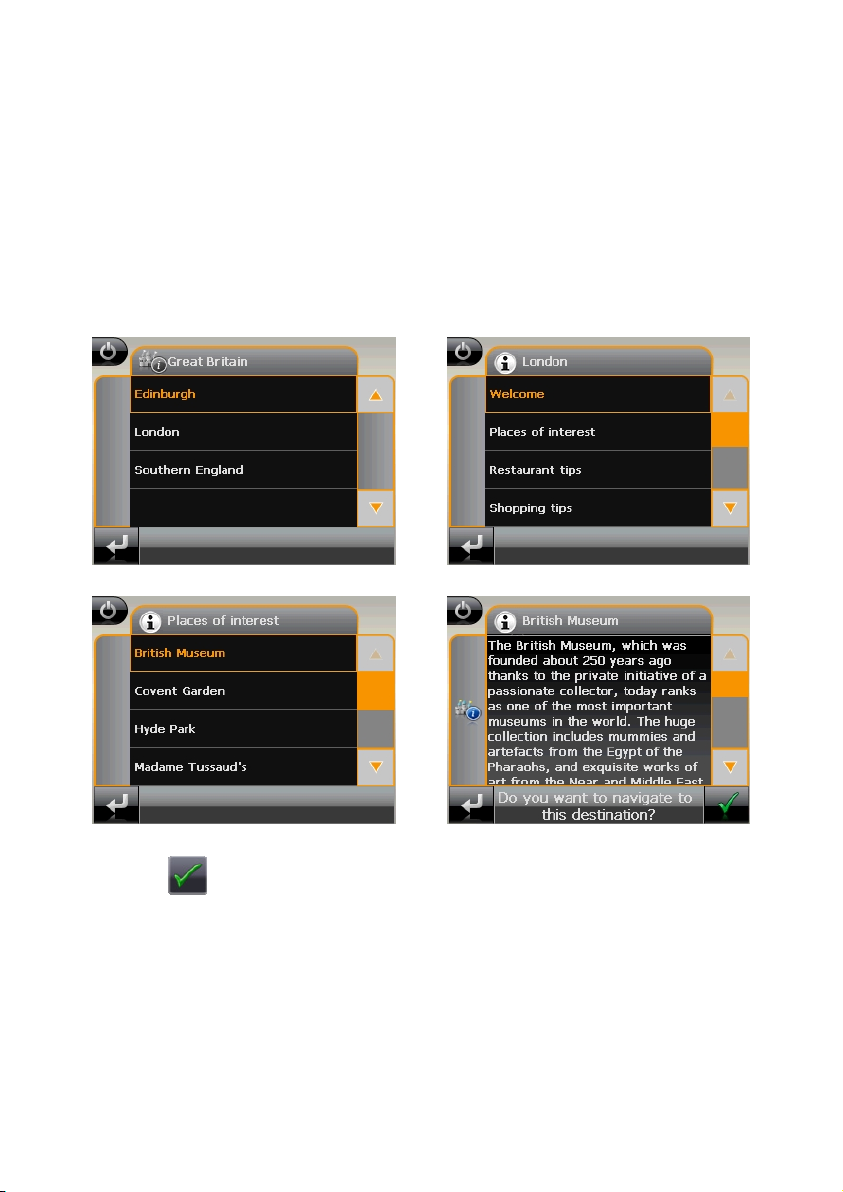

Travelguide ...................................................................................................35
AlarmClock (Wake up function) ....................................................................36
Overview of the main screen ....................................................................................... 36
Description of the Interfaces........................................................................................ 37
Setting the System Time........................................................................................... 38
Selecting an Alarm Signal......................................................................................... 39
Setting the Volume .................................................................................................. 39
Snooze Function ...................................................................................................... 40
Ending the AlarmClock Application.......................................................................... 40
FAQ ................................................................................................................41
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-iv-
Page 5
Customer Service ...........................................................................................42
Faults and Possible Causes .......................................................................................... 42
Additional Support...................................................................................................... 42
Appendix .......................................................................................................43
Special CleanUp Function............................................................................................ 43
Synchronisation with the PC........................................................................................ 46
I. Installing Microsoft® ActiveSync®............................................................................ 46
II. Connecting with the PC ....................................................................................... 47
Alternative possibility of charging the battery........................................................... 47
III. Working with Microsoft® ActiveSync®.................................................................... 47
GPS (Global Positioning System) ................................................................................. 48
External GPS antenna............................................................................................... 48
TMC (Traffic Message Channel)................................................................................... 49
TMCPro....................................................................................................................... 49

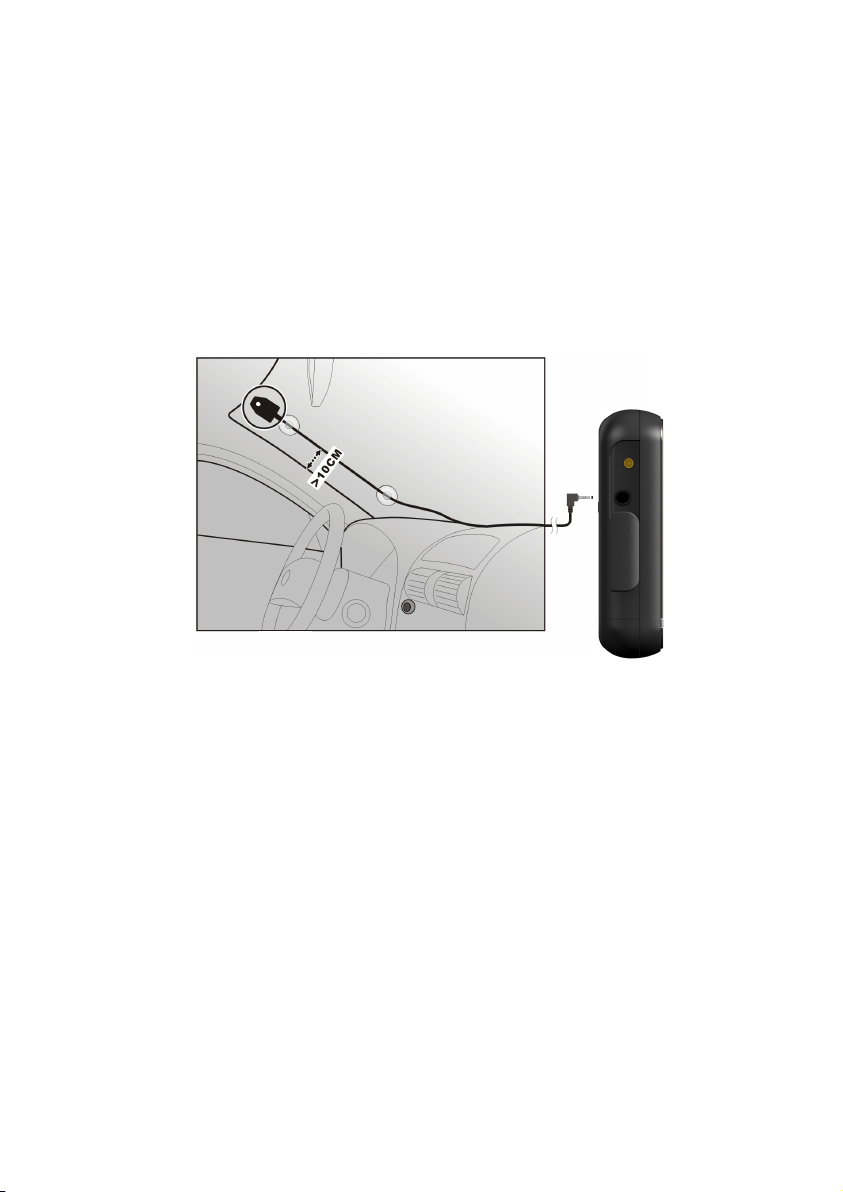

Connecting the TMC Dipole Aerial........................................................................... 50
Working with Memory Cards....................................................................................... 51
Inserting Memory Cards........................................................................................... 51
Removing Memory Cards......................................................................................... 51
Accessing Memory Cards ......................................................................................... 51
Data Exchange via Card Reader ................................................................................ 52
Additional Card Material.............................................................................................. 52
Transfer of card material to a memory card .............................................................. 52
Alternative Installation of the Navigation Software from a Memory Card................. 53
Transferring Installation Files and Map Material to the Internal Memory .................. 53
Specifications ................................................................................................54
Index .............................................................................................................55
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-v-
Page 6
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-vi-
Page 7
Safety and Maintenance
Safety Instructions
Please read this section carefully and follow all the instructions given. This will help ensure
reliable operation and extend the service life for your appliance.
Keep the packaging and the user instructions for future reference or inquiries at a later
date. If you pass the article on to another person, you must pass on these instructions.
• Never allow children to play with electrical equipment unsupervised.
• Keep the packing materials, such as foil away from children as there is a danger of
suffocation.
• Never open up the housing of the appliance or the power adapter. These contain
no user-serviceable parts. If the housing is opened there is a danger of electric
shock.
• Do not place any objects on the appliance and do not exert any pressure on the
display. Otherwise there is a danger that the screen will break.
• To avoid damage, do not touch the screen with sharp objects. Use only the stylus
provided, a finger or another blunt implement.
• There is a risk of injury if the display breaks. If this should occur, use protective
gloves to pack the broken parts and contact customer support to arrange for disposal. Then wash your hands with soap, since there is a possibility that chemicals
may have escaped.
Remove the power adapter from the outlet, switch the appliance off immediately, or do
not switch it on, and contact Customer Service...
• if the housing of the appliance or the power pack becomes damaged or fluids leak
into it. Components must be checked by Customer Service in order to avoid damage!
Data Security
• Every time you update your data make backup copies on an external storage me-
dium. The supplier does not assume liability for data loss or damage to data storage units, and no claims can be accepted for damages resulting from the loss of
data or for consequential damages.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
Page 8
Operating Environment
Failure to follow these instructions may lead to damage to your appliance. The guarantee
will be excluded in such cases.
• Keep your navigation System and all connected devices away from moisture and
avoid dust, heat and direct sunlight, especially in the car.
• Make sure you protect your appliance from getting wet, e.g. from rain and hail, at
all times. Please pay attention that moisture can even build up in a protective
pouch because of condensation.
• Avoid heavy vibrations and shaking, such as can arise, for example, in the case of
transverse field intrusions.
• Install the device as vertically as possible to prevent the device from releasing itself
from its holder.
Repair
• Please contact our Service Center if you encounter technical problems with your
appliance.
• In the event repair becomes necessary, please use only our authorized Service
Partners. You will find the address on the back of your guarantee card.
Ambient temperature
• The appliance is most reliably operated at an ambient temperature of between
+32°F and +95°F (0° C and 35° C) and at a relative humidity of between 10% and
90% (non-condensing).
• In the powered down state the appliance can be stored at between
-4°F and +140°F (-20° C + bis 60° C).
• Store the appliance in a safe location to avoid high temperatures (e.g. when park-
ing or from direct sunlight).
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-2-
Page 9
Electromagnetic Compatibility
• When connecting additional or other components the “Electromagnetic Com-
patibility Directive” (EMC) must be adhered to. Please also note that only screened
cable (maximum 10ft) should be used with this appliance.
• For optimal performance, maintain a distance of at least 10 ft. from sources of
high-frequency and magnetic interference (televisions, loudspeaker systems, mobile telephones etc. This will help avoid malfunctions and loss of data.
• Electronic devices emit electromagnetic waves during operation.
These emissions are harmless, but can interfere with other devices operated in
close proximity.
While our devices are tested and optimized for electromagnetic compliance in our
laboratories, interference during operation may still occur in the device itself and
with other devices in its proximity.
Should such interference occur, try to eliminate it by adjusting the positions of
and the distances between the devices.
Before driving a car, please ensure that the electronic systems of the car are working properly.
Connection
When connecting your appliance be sure to correctly observe the following instructions:
Power supply through Car Adapter
• The car adapter should only be connected to the lighter socket of a car
(car battery = DC 12V , truck battery = DC 24V !). If you are in any doubt
about the power source in your car, contact your car manufacturer.
Cabling
• Arrange cables so that no-one can tread on them or trip over them.
• Do not place any items on the cable.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-3-
Page 10
Battery Operation
Your appliance is operated with a removable battery. In order to prolong the life and efficiency of your battery and to ensure safe operation, follow the instructions below:
• Batteries cannot withstand heat. Avoid overheating of the appliance and the inte-
grated battery. Failure to comply with this instruction may lead to damage to and
even explosion of the battery.
• Use only the original power pack (optional) to charge the battery or the car
adapter from the optional navigation kit.
•
The batteries are special category waste. When disposing of the appliance en-
sure that this is done correctly. Contact Customer Service for more details.
Maintenance
Warning
There are no user-serviceable or cleanable parts inside the housing of the
appliance.
You can prolong the life of the appliance by taking the following simple steps:
• Always remove the power plug and all connecting cables before cleaning.
• Clean the appliance only with a damp, lint-free cloth.
• Do not use solvents, caustic or gaseous cleaners .
• The device and its packaging are recyclable.
Care of the Display
• Avoid scratching the display surface as this is easily damaged. It is strongly rec-
ommended to use a display protection mylar to avoid scratches. Please ask your
nearest dealer for this accessory.
The foil on the display at delivery is purely for protection during transportation!
• Ensure that no traces of water remain on the screen. Water can cause irreversible
discoloration.
• Use only a soft, lint-free cloth to clean the screen.
• Do not expose the screen to either strong sunlight or ultraviolet radiation.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-4-
Page 11
Recycling and Disposal
Device
At the end of its life, the appliance must not be disposed of in household rubbish. Enquire
about the options for environmentally-friendly disposal with your local waste disposal
company.
Packaging
To avoid damage during transport, the PC is stored in a packaging. Packaging is produced
mostly from materials which can be disposed of in an environmentally friendly manner
and be professionally recycled.
Transport
If you wish to transport the appliance follow the instructions below:
• Following transport of the appliance wait until the unit has acclimatized before us-
ing it.
• In the case of wide fluctuations in temperature or humidity condensation or mois-
ture may form inside the appliance and this can cause an electrical short-circuit.
• In order to protect the appliance from dirt, knocks and scratching, use either the
protective case.
• Before travelling ensure that you are aware of the power and communications
provision at your destination. Before travelling obtain any power or communications adapters that may be needed.
• When shipping your appliance use only the original packaging and advise the car-
rier accordingly.
• When passing through the hand luggage control at airports, it is recommended
that you pass the appliance and all magnetic storage media (external hard drives)
through the X-ray system (the machine on which you place your bags). Avoid the
magnetic detector (the structure through which you yourself pass) or the magnetic wand (the hand device that the security staff use), since this may corrupt
your data.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-5-
Page 12
Supplied Items
Please check the integrity and completeness of the supplied items and, if it is not complete, forward us any possible claims within 14 days from the purchase date. The purchase
package includes:
• Navigation system
• Power cable for cigarette lighter
• USB cable
• TMC dipole antenna
• Car holder
• DVD with navigation software, digital maps, ActiveSync
the contents of the memory card/internal memory
• Instruction manual and warranty card
®
, data for rapidly resetting
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-6-
Page 13
Views
Front Components
n
Ref Component Description
Touch Screen Displays the output of your appliance. Tap on
n
Battery charge
o
indicator
o
the screen with the stylus (will be found in the
holder, see page 27) to select menu commands
or enter data.
The loading display will flash orange during
the charging process. It will shine green when
the accumulator is completely charged.
Attention: The integrated battery is also
charged if the appliance is completely turned
off by means of the main switch!
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-7-
Page 14
Back Components
Ref Component Description
Main switch Switches the device completely off (Hard Reset).
n
Loudspeaker Plays back language statements and warnings.
o
n
o
Bottom Components
Ref Component Description
Mini-USB-
n
Connector
SD/MMC Slot
o
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
n
o
Connection for connecting to a PC by means of a
USB cable (for data matching) as well as connection
to external power supply.
Accepts an optional SD (Secure Digital) or MMC
(MultiMediaCard) card for removable storage.
-8-
Page 15
Top Components
GPS
aerial
Ref Component Description
On/Off switch Switches the device on or off (standby mode).
n
n
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-9-
Page 16
Left Components
with closed cover with open cover
Ref Component Description
External
n
aerial
connection
Earphone
o
connector
n
o
Connection for an optional second aerial.
Connects to a pair of stereo headphones (3.5 mm).
Using this appliance at full
volume for extended periods
of time may cause damage to
the hearing capacity of the
listener.
You also have the possibility to connect a TMC
dipole antenna.
n
o
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-10-
Page 17
Initial Set up
The following guides you step by step through the initial Set-up of the navigation system.
Firstly, remove the foil from the display.
I. Charging the Battery
You have the following possibilities to charge the battery of your navigation system:
• by means of the car adapter,
• by means of the USB cable
Attention!
It can be necessary to recharge the battery for some time initially before it
is possible to run through the initial installation, according to the state of
charging of the battery installed.
Please pay attention to the following notes when handling the battery:
• The charging status display flashes orange until the navigation system is charged.
If possible, do not interrupt the charging process before the
battery is fully charged. This may take a few hours. The navigation system
is fully charged if the charging display lights green.
• You can use the navigation system during the charging process, but the power
supply must not be interrupted during initial set-up.
• Leave the external power supply connected to the navigation system for around
24 hours, so that the backup battery also charges-up fully.
• You can leave the external power supply connected, and this is very handy for
continuous operation. However, the mains adapter (optional) also requires power
even when it is not charging up the battery of the navigation system.
• It can take several minutes until the device is ready to operate again, following the
connection of the external power supply, if the charging state of the battery is
very low.
• The battery can be charged while the device is switched off completely.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-11-
Page 18
II. Power Supply
Car Adapter
o
n
(similar picture)
1. Plug the jack (n) of the connection cable into the corresponding receptor at the
bottom of your navigation system.
2. Insert the power adapter (o) into the cigarette lighter socket and ensure, that it will
not lose contact while driving. This could cause a malfunction.
Alternative possibility of charging the battery
The battery will charge as soon as you connect your navigation device to a switched-on PC
or notebook by means of a USB cable (optional). No type of software or drivers installation
will be necessary for this. Do not interrupt the charging process if possible during the
initial bringing into operation.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-12-
Page 19
III. Switching on the Device
Switch the main switch to ON.
Attention!
Always leave the main switch in the ON position, unless you want to carry
out a new reinstallation. If the main switch is in the OFF position, all data
will be deleted in the temporary memory.
The Navigation System will start the initial installation automatically. The brand logo will
appear and your device will display the application screen after a few seconds.
Button Description Main Screen
Navigation,
page 24
Travelguide,
page 35
AlarmClock,
page 36
Picture Viewer,
page 32
Settings
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-13-
Page 20
Note
Brief pressure on the on/off button will be enough to switch the de-
vice on or off, provided that your navigation system is connected to an
external source of electricity or is running in battery operation (standby
mode).
You can adjust the period of operation to suit your needs using the
Settings button on the main screen of your device. Your device is delivered in a status in which it will not switch off independently.
To switch your navigation system completely off, push the on/off button
at the bottom of the device to the OFF position.
No data will be lost during this because of the storage of data in the internal memory. The starting process will only last slightly longer.
Your navigation system will use a low amount of electricity and the batteries will be discharged, even when it is in the standby mode.
IV. Installing the Navigation Software
The final installation of the navigation software will take place automatically from the internal memory, during the initial setting up, if your device has already been equipped with
the basic data of the navigation software at the factory. Follow the instructions on the
screen.
An optional memory card must always have to be inserted in the device while the navigation system is being used.
It will be necessary to carry out a Reset to restart the navigation system if the memory card
has been removed (see page 22).
Please also read the chapter Navigation starting on page 24.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-14-
Page 21
General Operating Instructions
Switching on/off the device
Your device will be in its normal operating state after the initial setting up. You can activate
and deactivate your device with the On-/Off switch.
1. To start your navigation system press briefly the On-/Off switch
Note
Your device is delivered in a status in which it will not switch off independently. You can adjust the period of operation to suit your needs using the
Settings button on the main screen of your device.
Your navigation system will use a low amount of electricity and the batteries will be discharged, even when it is in the standby mode.
2. To switch off your navigation system press briefly the On-/Off switch .
The following screen will appear:
.
You have three possible choices now here:
Button Description
Cancel/Back
Return to previous view with this key, if you have accidently called
up this screen.
Standby Mode
The device will go into Standby Mode if this key is clicked.
Reset
You will carry out a Reset by clicking this key.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-15-
Page 22
The device will go into the Standby mode automatically after a few seconds if you do not
want to select any of these three possibilities.
For further settings within the Standby mode also see chapter Special CleanUp Function,
page 43, point 8.
This display will also appear after the delay period of a few seconds has expired, if you
have activated the DC AutoSuspend Comfort Function.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-16-
Page 23
Security
You have the possibility of protecting your device against external access by means of this
function. Some one-off settings will have to be made before you will be able to use this
function. Proceed as follows to do this:
Storing the password and the information note
1. Go to the settings by means of the main display.
2. Click on Security, in order to start the respective function. The following display
will appear:
3. Click on the left interface, in order to enter a password.
4. Click on the first field. A keyboard will appear. Enter a password with it.
Note
The password must consist of at least 4 symbols. Use a combination of
letters (A-Z and numbers (0-9) for it. Keep the password in a safe place.
5. Confirm the password with the symbol after you have entered it.
6. Enter the password in the second field to reconfirm it and in order to avoid potential careless mistakes.
Note
The password will be displayed in the form of small stars (****).
7. An additional text field will appear after you have entered the password. Enter an
information note here that will serve as a support for remembering your password.
You will be able to call up this information if you have forgotten or mislaid the
password.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-17-
Page 24
Making settings
The following selection window, though which you will make the settings for the Security
Function, will appear after you have entered the password and the information note successfully.
Button Description
Set here whether the device should interrogate the password after
a hard reset.
Set here whether the device should interrogate the password after
a restart.
Set here whether the device should interrogate the password after
the device has been switched on from the Standby mode.
Switch off the password interrogation temporarily for all eventualities (hard reset, restart or standby) by means of the icon. The
interfaces will be faded out and the icon next to it will appear.
Confirm the settings made here.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-18-
Page 25
SuperPIN and UUID
The SuperPIN and the UUID (Universally Unique IDentifier = definite device identification)
will appear on the display after you have made the settings.
Note
Record this data in your Operating Instructions (see Page 1) and keep
them in a safe place.
You will need this information if you have entered the password incorrectly 3 times. The navigation device can then only be released with this
information.
Saves changes in the security function
You will be asked whether you would like to store the changes in the Security Function
after you have noted and confirmed the SuperPIN and the UUID.
• Save your changes with
• All the settings made will be rejected with the
tings display will appear.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
.
symbol and the Security Set-
-19-
Page 26
Making subsequent settings
Start the Security Function if you have already entered a password and would like to make
a subsequent setting or to change the password. The following display will appear:
1. Click on the right field to make changes.
2. Enter the current password. Click on the question symbol if you have forgotten the
password. The information note entered by you will appear .
3. The following display will appear if you have entered the password successfully
Button Description
Leave Security Function
Making settings (see page 18)
Enter password (see page 21)
Enter information note (see page 21)
Show SuperPIN and UUID (see page 19)
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-20-
Page 27
Password interrogation
A password interrogation will appear at the restarting of the device, according to the setting, if you have established a password by means of the Security Function.
1. Enter the password stored by you by means of the keyboard.
Note
The password will be displayed in the form of small stars (****).
2. Click on the question symbol to have the information note displayed, if you have
forgotten the password and need the Help setting.
3. Click on the tick to confirm the entry.
Note
You will have to enter the SuperPIN if you have entered the password
incorrectly 3 times. Contact your Service Center, giving the UUID, if you
have also mislaid it. The UUID will be faded out in the lower display.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-21-
Page 28
Resetting the Navigation System
You will have the possibility of resetting your navigation system if it is no longer reacting
or working properly.
This option restarts the navigation system, without reinstallation being necessary. A reset is
often used in order to reorganize the memory. In doing so all programs that are running
are interrupted and the working memory is reinitialized.
You will have the possibility of carrying out two different Reset procedures with your device.
Reset
The following screen will appear if you press the On/Off switch for a short time:
If you want to carry out a Reset, tap on
You will find further information in chapter Fehler! Verweisquelle konnte nicht ge-
funden werden., page 15.
.
Switching the Device off Completely / Hard Reset
Attention!
A hard reset will delete all data in the temporary memory.
Your navigation system will normally be in the Standby Mode, if you have switched it off
by pressing the on/off button briefly. In addition, the system can be switched off completely; the consumption of energy can be kept as low as possible through this. All the
data in the temporary memory will be lost if the device is switched off completely (hard reset).
Switch your navigation system off completely in this way:
1. Push the Main switch to the position OFF to swich the device off.
2. Push the Main switch to the position ON agian to carry out the Hard Reset.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-22-
Page 29
A reinstallation will be necessary after a hard reset if your device has already been
equipped with the basic data of the navigation software in the permanent memory at the
factory.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-23-
Page 30
Navigation
Safety Instructions for Navigation
The bundled product DVD contains a comprehensive instruction manual.
General Instructions
• Do not manipulate the navigation system while driving to protect yourself and
others from accidents!
• In the event that you do not understand the voice instruction or if you are in any
doubt about what to do at the next intersection, then the map or arrow display
will provide you with a quick orientation. Only look at the display when you are in
a safe driving situation!
Legal remark
The use of devices that warn for traffic monitoring systems (like „speed
traps”) is prohibited in some countries, like Austria, Germany, Ireland and
Switzerland. Please obtain information about the legal situation and apply
the waning function only where allowed. We cannot be held liable for
damages caused by the use of the warning function.
Attention!
The road layout and driving rules take precedence over the instructions of
the navigation system. Only follow the instructions when circumstances
and driving rules permit it! The navigation system will guide you to your
destination even when you have to deviate from your planned route.
• The direction statements of the navigation system given do not release the driver
of the vehicle from his or her duty of care or personal responsibility.
• Plan routes before you leave. If you want to plan a new route whilst on the road
pull over and stop driving.
• In order to receive the GPS signal correctly, keep away from metal objects as they
may hinder reception. Attach the navigation system onto the inside of the windscreen or near the windscreen with the suction cup. Try out different positions in
your vehicle in order to find the best reception.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-24-
Page 31
Notes for Use in a Vehicle
• Take care that the holder does not present any risk to safety, even in the case of an
accident, when installing it.
• Take care that the cable does not impede any safety components.
• The display of your navigation system may show “light reflections”. Please take
care of not being “blinded” during operation.
• Do not mount the components within the operating range of any airbags.
• Check the secure adherence of the suction cup at regular intervals.
• The power plug will consume power, even if no device is connected. Remove it
when not in use to avoid draining the car battery.
• Check all safety equipment in your car after installation.
Note
Do not leave your navigation software in the vehicle when you leave it.
You should also uninstall the holder for security reasons.
Additional Notes for Use on a Bicycle or a Motorcycle
• Pay attention during installation that the ability to steer is not impaired.
• Do not cover any instruments during installation.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-25-
Page 32
Aerial Orientation
The aerial must have unrestricted access to the sky to receive GPS satellite signals. Orient
the aerial as horizontally as possible for this reason. Try out aerial and installation possibilities in the vehicle in the case of inadequate reception. It may be necessary to install an
external GPS antenna (see page 48) under certain circumstances.
I. Mounting the Car Holder
Attention!
Only fix the holder for the navigation system to the windscreen, if it does
not impede the view. Should this not be possible, then mount the holder
with the enclosed suction plate in any way that will allow peril-free and
safe operation.
Snap-in lever
(similar picture)
Note
Clean the disk thoroughly with a glass cleaner. Warm the disk and the
nipple slightly at temperatures below 15° C.
Place the holder with the suction head directly onto the wind screen and press the lever on
the suction head downwards. The sucker will attach itself to the background firmly.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-26-
Page 33
II. Attaching the Navigation System
1. Connect the car adapter (see
page 12) and, if necessary, the
TMC aerial and the external
GPS aerial, to your navigation
system and insert the memory
card.
2. Place the device below in the
centre of the holder.
3. Press it gently backwards until it engages audibly.
Stylus in
holder
(similar picture)
4. Place the holder on the fixing catches of the car holder.
5. Now, push the unit downwards until it engages audibly.
6. Now you will be able to place the complete unit on the cleaned windscreen or the
suction plate.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-27-
Page 34
III. Connecting the Car Adapter
o
n
(similar picture)
1. Plug the jack (n) of the connection cable into the corresponding receptor at the
bottom of your navigation system (p. 8).
2. Insert the power adapter (o) into the cigarette lighter socket and ensure, that it will
not lose contact while driving. This could cause a malfunction.
Note
Remove the power adapter from the cigarette lighter socket when ending a trip or when parking the car for a extended period of time. Otherwise the car battery could be drained. In this case use the power switch
to turn off the navigation system.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-28-
Page 35
IV. Starting the Navigation Software
Note
Your memory card will always have to be inserted into the device during
the use of the navigation system, if the card contains (additional) mapping
material.
It will be necessary to carry out a reset to restart the navigation system if
the memory card has been removed while the system was being used (see
page 22). According to the navigation system the reset is carried out
automatically.
1. Switch on your navigation system.
2. The Navigation software will start automatically or after tapping on the naviga-
tion control button on the main screen, according to the version.
3. Tap on Navigation on the screen for entering the destination and enter the
address of your navigation destination. Confirm your entry by clicking the 9
symbol to start the navigation. You will receive the route information on the
screen, augmented by language statements, after a short time, if the satellite reception is adequate.
Further information regarding the navigation software can be found in the comprehen-
sive manual on your navigation DVD. This is a pdf-file you can read and print with
the any Acrobat Reader.
Note
The GPS-receiver will require some minutes for initialization when deployed for the first time. Even when GPS signal reception is indicated the
navigation could be imprecise. In all future instances it will take about 3060 seconds until a correct GPS-signal is available, sufficient “sight” of the
satellite is a prerequisite.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-29-
Page 36
Warning function for traffic monitoring points
The following display will appear if the warning function for traffic monitoring points
(optional) has been installed:
Confirm with , if you want to use navigation with the warning function for traffic
monitoring points.
Click on the Configure special destinations interface in the Settings Menu, in order
to configure the warning function.
The following screen appears:
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-30-
Page 37
Click on (Radars) fixes here, in order to make the settings for the ‘radar fixes’:
Here, you have the option of having the traffic monitoring points represented on a map or
faded out. You can also set whether you would like to be informed by acoustic signals
before reaching a traffic monitoring point here.
Acoustic information about a traffic monitoring point will be given by a warning sound
approx. 15 seconds before it is reached. Then, another double warning sound will be
given approx. 7 seconds before it is reached. Four warning sounds will give information
that the speed is too high. In addition, the distance to a monitoring point will be indicated
by a bar indicating closeness (left lower edge of the display).
Sample view if map presentation has been activated:
Note
Please pay attention to the fact that traffic monitoring points are not present in all countries.
* Legal remark
The use of devices that warn for traffic monitoring systems (like „speed
traps”) is prohibited in some countries, like Austria, Germany, Ireland and
Switzerland. Please obtain information about the legal situation and apply
the waning function only where allowed. We cannot be held liable for
damages caused by the use of the warning function.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-31-
Page 38
Picture Viewer
Your navigation system is equipped with a Picture Viewer.
You can view the jpg format images on your memory card on your navigation system,
with the Picture Viewer. All the images on the memory card will be available immediately.
Operating the Picture Viewer
Start the Picture Viewer from the main screen by tapping on the ‘Picture Viewer’
switch area. Alternatively, the Picture Viewer can also be started from the navigation software itself.
Main Screen
Fig.: Miniature view
Move the miniature view to the left or to the right with the arrow keys. Tap on a specific
images to display it in the Full Image Mode.
Return to the start in miniature view by tapping on
You can end the application by tapping on the
Start the slide show by tapping the
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
symbol.
-32-
.
symbol.
Page 39
Full Image View
Fig.: Full image view without service strip
Tap in the lower area of the screen in the full image view, in order to activate the service
strip:
Fig.: Full image view with service strip
Button Description
Previous picture
Turn it clockwise by 90°
in stages
Fade in grid
Start the slide show
Pause the slide show
Turn it counter-clockwise by 90° in stages
Next picture
You will return to the miniature view by tapping in the centre of the image.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-33-
Page 40
The image displayed will be subdivided into 6 fields by tapping on the symbol
(fade in grid).
Fig.: Full image mode with grid
Tap on a square in the grid to zoom in on that area of the picture:
Fig.: Zoom-in Mode
Tap on the centre of the image to go back to viewing the full picture.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-34-
Page 41
Travelguide
Your navigation system is equipped with a Travelguide.
The Travelguide will supply general information about the different areas of individual
towns and cities or regions in Europe, such as sights, restaurants, culture and travel information.
Start the Travelguide from the main screen by tapping the ‘Travelguide’ switch areas.
Alternatively, the Travelguide can also be started from the navigation software itself.
Select the country initially, then the town or city (or the region). Then, select the category.
Abb. 1 Abb. 2
Abb. 3 Abb. 4
Confirm with , if you want to navigate to the destination displayed. The address will
then be available to the navigation software as the destination.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-35-
Page 42
AlarmClock (Wake up function)
Your navigation system is equipped with an AlarmClock/waking function.
Start this function from the main screen by tapping on the ‘AlarmClock’ button.
The waking function can work both as a normal when the device is switched off (Standby
Mode / Power Saving Mode) and as a reminder during the current navigation.
Overview of the main screen
This view will appear if you have not yet set up a waking time. Enter an alarm time in the
24-hour format and confirm your entry with .
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-36-
Page 43
Description of the Interfaces
Button Description
Current system time
Setting-up mode (Setting volumes, system time and
alarm)
Night mode (Standby mode)
Reset/deactivate the waking function
Setting the alarm time
Delete the entry
Confirmation interface
Reduce the volume
Increase the volume
Back to the previous menu
Close the application
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-37-
Page 44
Setting the System Time
The display of the current time will be located in the upper right corner of the screen. You
can adjust it as follows:
1. Tap on
2. Tap on
in the main screen. The following screen will appear:
to change the time setting.
Note
The system time is updated by GPS reception. Pay attention to the correct
time zone setting during it.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-38-
Page 45
Selecting an Alarm Signal
1. To select an alarm signal touch the symbol.
2. Select the desired alarm sound and confirm the selection with .
3. The selected alarm signal is marked by a
4. Close the application with .
.
Setting the Volume
You can adjust the volume of the alarm signal by tapping on the interface.
Note
The volume configured here only relates to the alarm signal and will not
change the volume of the language output of the navigation system or
other functions of the system.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-39-
Page 46
Snooze Function
You will have the possibility of making the waking signal repeat at regular intervals by
means of the Snooze function, once it has sounded at the alarm time set.
1. Tap on to activate the Snooze function.
Current
system time
Waking time set
2. To be wakened again at the same time on the following day tap on the
ton.
3. Bei Tap on
to return to the screen before the alarm signal started.
Ending the AlarmClock Application
1. Tap on to deactivate the alarm time set.
2. You will find yourself in the Setting-up mode.
3. Tap on
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
in order to leave the application. An alarm time is not set.
-40-
but-
Page 47
FAQ
Where can I find more information on the navigation
system?
Detailed operating instructions for navigation can be found on the
corresponding DVD, which accompany your navigation system.
Also use the additional Help functions that are available with a single
touch of a button (usually F1 on the PC), or by selecting the Help
option, as additional assistance. These aids will be provided to you
while you are using the computer or the device.
What do I need the accompanied DVD for?
The DVD containS:
• the ActiveSync
gation system and the PC.
• Additional programs (optional).
• This User manual in digital form.
®
program for balancing data between the navi-
• digital maps
• PC-application for rapidly resetting the data material
• Manual of the navigation software
The navigation system is no longer responding. What should I do?
Carry out a reset (see page 22).
How can I adjust the lighting?
Under Settings.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-41-
Page 48
Customer Service
Faults and Possible Causes
The navigation system no longer reacts or is behaving atypically.
• Carry out a reset (see page 22).
The navigation system is recognized only as a guest by ActiveSync®.
• See information on page 47.
The GPS receiver cannot be initialized or found.
If a GPS signal continues not to be reported on the screen, in spite of the correct installation of the system, this can be caused by the following factors:
• Sufficient satellite reception is not possible.
Solution:
Change the position of your navigation system and ensure that unrestricted
“sight” of the aerial is not impaired.
No language statements can be heard.
• Check the volume setting.
Additional Support
If the suggestions in the above section have not solved your problem, please contact our
customer service hotline. However, before you contact your customer service hotline,
please have the following information available:
• How is your navigation unit configured?
• What additional peripherals do you use?
• What messages, if any, appear on your screen?
• What software were you using when the error occurred?
• What steps have you already undertaken to solve the problem?
• If you have been given a customer number previously, please give this number to
the technician.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-42-
Page 49
Appendix
Special CleanUp Function
The CleanUp function serves the targeted deletion of data, without using a PC.
Note
Please use this function very carefully, because it is possible for data to be
deleted that can only be entered again manually afterwards.
The CleanUp function is activated when the ‘o’ is pressed in the Gopal lettering of the
Main Menu, immediately after the start tone following a reset.
The CleanUp function offers 8 options:
1. Remove Installation Only
Removes the software installed from the ‘My Flash Disk’
memory [= part of the permanent memory in which the executable parts of the navigation
software will be located following the initial alignment (\My Flash Disk\Navigation)].
2. Remove MAP Only
Removes the digital maps from the ‘My Flash Disk’ memory (\My Flash
Disk\MapRegions).
3. Remove Preload Only
Removes the data needed for the installation of the navigation software from the permanent memory (\My Flash Disk\Install).
4. Remove All
Deletes the whole contents of the ‘My Flash Disk’ memory. It will not be necessary to
recalibrate the screen after this function has been carried out.
5. Factoryreset
Sets the device back to the delivery status in the case of an intact main installation.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-43-
Page 50
6. Format Flash
Formats the internal ‘My Flash Disk’ memory. This formatting can be necessary in the
case of a prolonged removal of errors. It will be necessary to recalibrate the screen after the
formatting function has been carried out. All data will be deleted from the internal ‘My
Flash Disk’ memory irrevocably.
7. Reset GPS
Performs a factory reset of the GPS receiver. When using the GPS function after having
performed a factory reset, the GPS receiver must orientate itself again. This process may
take a while.
8. DC AutoSuspend
You can select here when your navigation system should go into Standby mode automatically after the withdrawal of the external power supply. For example, this function is useful
in the case of vehicles where the cigarette lighter also switches off when the ignition is
switched off.
The AutoSuspend function will be activated several seconds after the discontinuation of
the external power supply and the Standby display will appear for the time set (see
Page 15).
The DC AutoSuspend function will be deactivated again if the power has been reconnected within the total period (in the case that the engine has been switched off for a short
time, for example). Otherwise, the navigation system will go into the Standby mode after
the expiry of the time set.
Set the required time by clicking on it and confirm your selection with OK.
Note
This function is deactivated and can be set individually in the status at
delivery and after a hard reset (see Page 22).
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-44-
Page 51
Exit
Leaving the CleanUp function and restarting the device (like reset).
Note
The deletion of the data must be confirmed before the action actually takes
place. To do this, press on YES. There will be a corresponding report if the
data to be deleted is no longer available.
Please read the „Transferring Installation Files and Map Material to
the Internal Memory“ chapter on Page 53, in order to recreate the files
(installation files and map material) in the internal memory.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-45-
Page 52
Synchronisation with the PC
I. Installing Microsoft® ActiveSync®
In order to transfer data between your PC and your navigation system you need the Microsoft® ActiveSync® program.
The cost of the navigation system includes a license for this program which can be found
on the DVD.
Hinweis
You will not need the ActiveSync® communications software, if you are a
user of the Windows Vista® operating system. The system files necessary
for the simple data transfer are already integrated into your Vista® operating system.
Procedure for Vista users:
Please connect your device to your PC with the help of the USB synchronization cable. The necessary drivers will be installed automatically, after the
new device has been found. Your new device will be listed under the
‘Portable Devices’ point in the Windows Explorer overview, following a
successful installation.
Attention!
Important files can be overwritten or changed during the installation of
software. You should create a hard disk backup, in order to be able to have
access to the original files in the case of possible problems following the
installation.
You must have administrator rights to install the software under Windows® 2000 or XP.
Important
You should not connect the navigation system to your computer yet.
1. Insert the DVD and wait until the program starts automatically.
Note
If it does not function, the Auto Run function is probably deactivated. The
Setup program on the DVD must be started, to start installation manually.
2. Choose the language, click then Install ActiveSync® and follow the instructions
on the screen.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-46-
Page 53
Note
When installing the GoPal Assistant, ActiveSync® will be installed automatically.
II. Connecting with the PC
1. Press the On/Off button to start your navigation system.
2. Connect the USB cable (optional) to your navigation system.
3. Push the USB connector into a free USB port on your computer.
4. The hardware installation assistant will recognize a new appliance and installs a
suitable driver which can take some minutes. Repeat the die connection search if it
fails the first time.
5. Follow the instructions on the screen. The program will now set up a partnership
between your PC and the device.
Alternative possibility of charging the battery
The battery will charge as soon as you connect your navigation device to a switched-on PC
or notebook by means of a USB cable (optional). No type of software or drivers installation
will be necessary for this. Do not interrupt the charging process if possible during the
initial bringing into operation.
III. Working with Microsoft® ActiveSync®
ActiveSync® will be started automatically if you connect your navigation system to the PC.
The program will check whether the device is one with which a partnership has been entered. If this is the case, the changes that have taken place on the PC and on the navigation
system since the last synchronisation will be compared and adjusted to each other. You
will be able to define exactly which data will have priority during the synchronisation in
the settings of the ActiveSync
ton), in order to become familiar with the effects of the respective settings. A restricted
Guest Access, with which you will be able to exchange data, for example, will become
active automatically if the navigation system has not been recognised as a partner. If this is
the case, although the process concerns the registered partner device, separate your navigation system from the PC and switch it off and on again. Now connect your navigation
system to the PC, to restart the recognition process. Repeat the process and, restart your
PC in addition, if your device continues to be recognised as a guest.
Note
Make sure that you always connect your navigation system to your PC
with the same USB connection, otherwise your PC will allocate an
additional ID and reinstall the device.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
®
Program. Call up the Help of the Program (with the F1 But-
-47-
Page 54
GPS (Global Positioning System)
GPS is a satellite-backed system for determining your position. With the help of 24 satellites revolving around the earth, it is possible to determine your position on earth with the
accuracy of a few meters. The satellite signals are received by the antenna of the built-in
GPS receiver, which must have a "line of sight" to at least 4 of these.
Note
When the line of sight (e.g. in tunnels, between houses, in woods or also
in vehicles with metal-coated windows) it is not possible to determine the
position. The satellite reception however automatically picks up again as
soon as the obstacle has been passed and the line of sight is re-established.
Moving slowly (e.g. slow walking) also limits the accuracy of the navigation.
The GPS receiver consumes additional power. This is especially of concern, when running
on batteries. To conserve power do not turn on the GPS receiver unnecessarily. Also terminate the Navigation Software, if it is not needed or satellite reception is not possible for
a longer period. However, you can also switch the device off by means of the On/Off
switch in the case of a shorter interruption to your journey. Pressing the same switch again
will activate a restart. The GPS receiver will also be reactivated at the same time, if navigation software is still active. Here, it can take a short time for the position to be updated
again, according to the reception situation.
Note
Please note, that your appliance is preset to not shut down automatically
after a few minutes without activity. You can change this preset in the
Settings mode. If the GPS receiver has not been active for some hours, it
must orientate itself again. This process may take a while.
External GPS antenna
This second optional GPS antenna makes it possible to receive the signals of satellites better (e. g. in the case of vehicles with a metallized windscreen).
1. The antenna should be pointing upwards.
2. Push the plug of the external GPS antenna into the opening provided for it.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-48-
Page 55
TMC (Traffic Message Channel)
Traffic Message Channel (TMC) ist ein digitaler Radio-Datendienst, der ähnlich wie RDS
funktioniert und zur Übertragung von Verkehrsstörungen an ein geeignetes Empfangsgerät verwendet wird.
Die Verkehrsinformationen werden ständig über FM übertragen.
Da das Signal ständig übertragen wird, ist der Benutzer weniger von den nur halbstünd-
lich ausgestrahlten Verkehrshinweisen abhängig. Außerdem können wichtige Informationen, wie z.B. bei Geisterfahrern sofort weitergegeben werden.
Die Ausstrahlung ist für ganz Europa geplant und wird bereits in vielen Ländern von Radiosendern angeboten. Die Präzision der TMC Meldungen kann je nach Land stark
schwanken.
TMCPro
TMCpro (a service of T-Systems Traffic GmbH) mainly uses an automatic system to record
the traffic situation, while the normal TMC relies on information from the police, ADAC
and reports of traffic jams. Sensors on autobahn bridges, strips of sensors set into the carriageway and a large number of vehicles equipped with ‘Floating Car Data’ technology
quickly supply a precise and more current image of the traffic situation on German autobahns, including predictions of possibilities.
Your navigation system will support both services and is set for the reception of both of
them in the status at delivery.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-49-
Page 56
Connecting the TMC Dipole Aerial
A TMC receiver is integrated into your navigation system, to receive traffic information.
However, reception will only be guaranteed if the TMC angled aerial supplied with the
device has been connected.
Plug the jack plug of the TMC angled aerial into the earphones connection of your
navigation system.
Attach the aerial, on the edge or your windscreen, for example, with the help of the
sucker.
Place the aerial so that a distance of approx. 10 cm from the metal frame of the screen is
maintained.
TMC reception can be improved by different aerial positioning, according to the vehicle.
(similar pictures)
Your navigation system will now be able to receive traffic information through the TMC
receiver and thus to avoid potential disruptions to traffic.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-50-
Page 57
Working with Memory Cards
Your navigation system supports MMC and SD memory cards.
Inserting Memory Cards
1. Carefully take the optional memory card out of its packing (if included). Take care
not to touch or dirty the contacts.
2. Insert the memory card carefully into the card bay with contacts pointing forward.
The card must lock easily.
Removing Memory Cards
Note
Only remove the memory card if the navigation software has been closed
and the device has been switched off by means of the On/Off button beforehand. Otherwise you will risk a loss of data.
1. To remove the card press lightly onto the upper edge until it ejects.
2. Pull the card out without touching the contacts.
3. Store the memory card in the packing or in another safe location.
Note
Memory cards are very fragile. Take care not to dirty the contacts and not
to force the card.
Accessing Memory Cards
• The appliance only supports memory cards in the FAT16/32 file format. If you
insert a card prepared with a different format (e.g. in cameras, MP3 players),
your navigation
system may not recognize it and will ask you to format it again.
Attention!
Formatting the memory card irretrievably wipes out all data.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-51-
Page 58
Data Exchange via Card Reader
If you wish to copy large quantities of data (MP3 files, navigation maps) to the memory
card, these can also be stored directly to the memory card.
Many computers already have memory card devices. Insert the card in this and copy the
data directly to the card.
Because of the direct access you can achieve a much higher transfer rate compared to
using ActiveSync®.
Additional Card Material
Your navigation system is already equipped with digitalized map material in the internal
memory and/or memory card at the factory. Depending on the configuration, additional
maps may be included on your your navigation CDs/DVDs. You will be able to transfer
these cards to a memory card immediately. Here, it is recommended to use an external
card reader (see also page 52). The GoPal Assistant supplied with the device enables a
simple and individual compilation of the map material to be transferred.
Depending on the amount of map data on the navigation CDs/DVDs, memory cards with
capacities of 256 MB, 512 MB, 1.024 MB or more may be required.
You can obtain additional memory cards (MMC or SD cards) in specialist stores.
Transfer of card material to a memory card
The transfer of additional card material to a memory card can take place through the Explorer of your PCs. Proceed as follows:
1. Insert the CD/DVD with the card material required.
2. Start your workstation and select your CD/DVD Drive.
3. Copy the file with the .psf ending out of the Directory of the region that you re-
quire to the MapRegions Directory on your memory card, from the CD/DVD.
You can transfer several files with map material to your memory card, depending on the
capacity of the memory card.
If you have copied digitized maps of several countries or country groups onto your memory card, you will be required to select the desired map in the navigation
application of your device.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-52-
Page 59
Alternative Installation of the Navigation Software from a
Memory Card
The software for your navigation system can also be installed directly from a memory card.
The pre-installed software may have to be uninstalled beforehand (see special CleanUp
function, Page 43).
You will be requested to install the navigation software during the initial adjustment.
Please proceed as follows:
1. Remove the memory card from the packaging carefully. Pay attention that the con-
tacts are not touched or soiled.
2. Push the memory card into the SD-/MMC slot until it engages.
3. Click on OK, in order to install the application.
The main screen, through which you will now be able to carry out the navigation settings,
will appear after all data has been copied to your navigation system.
Transferring Installation Files and Map Material to the Internal
Memory
Note
The navigation system must be connected to a computer by means of
ActiveSync® for the transfer of the data.
Your device has an internal, permanent memory, which is located in the \My Flash Disk
directory.
You will be able to make this directory, and others, visible with ActiveSync®, by means of
the Search option. Directories and files can be manipulated as in Windows Explorer.
The required directory must have been stored, in order to make the installation files and
the map material for the device available.
Deposit the INSTALL directory for the installation files at (\My Flash Disk\INSTALL). Deposit the map material in the MapRegions directory (\My Flash Disk\MapRegions). Please
pay attention to the modes of lettering given above when naming the directories.
Pay attention to the fact that sufficient drive capacity must be available, if you have stored
additional data on your navigation device. Remove files not needed if sufficient drive capacity is not available.
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-53-
Page 60
Specifications
Parameter Information
Power supply
Power supply cable for a cigarette
lighter
Input
Output
Earphones Stereo earphones (3.5 mm)
Memory card type MMC and SD
Connector type of the external GPS
receiver
USB interface
Dimensions
Weight incl. battery
Temperatures
Humidity (without condensation)
UDID/L&K G12PCL-535-L031
12-24V DC, 800mA / fuse 2A
(T2AL/250V)
5V / 1A (max.)
MMCX
USB 1.1
approx. 91.5 mm x 87.8 mm x 21.6 mm
approx. 140 g (without packaging)
Operating
Storage
0 – 90 %
+32°F and +95
0° C - +35° C
-4°F and +140°F
-20° C - +60° C
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-54-
Page 61
Index
A
Accessing Memory cards ....................50
Additional card material......................51
Aerial Orientation ...............................25
Akkubetrieb ..........................................4
AlarmClock (Wake up function)
Ending the application....................39
Interfaces ........................................36
Selecting an alarm signal ................38
Setting the system time ..................37
Setting the volume .........................38
Snooze function..............................39
Main screen ....................................35
Alternative installation of the
navigation software from a memory
card ................................................52
Auto run .............................................45
Auto start............................................45
B
Battery charge indicator........................7
Battery operation..................................4
C
Cabling.................................................3
Card reader.........................................51
Care of the display................................4
CleanUp .......................................16, 42
Copyright .............................................ii
Customer service ................................41
D
Data exchange....................................51
Data security.........................................1
DC AutoSuspend................................43
E
Earphone connector ...........................10
Electromagnetic Compatibility..............3
EMC .....................................................3
External aerial connection...................10
External GPS antenna .........................47
F
FAQ.................................................... 40
G
GPS.................................................... 47
External GPS antenna..................... 47
H
Hard Reset.......................................... 22
Hotline............................................... 41
I
Initial set up
Charging the battery...................... 11
Installing the navigation software .. 14
Power supply ................................. 12
Switching on the device ................. 13
L
Loudspeaker ........................................ 8
M
Main switch ......................................... 8
Memory cards.................................... 50
Microsoft
®
ActiveSync®........................ 45
Mini-USB-Connector ............................ 8
Mounting the car holder .................... 25
N
Navigation
Attaching the navigation system .... 26
Autoadapter anschließen ......... 12, 27
Mounting the car holder ................ 25
Safety instructions.......................... 23
Starting the navigation software..... 28
Note...................................................... i
O
On/Off switch ...................................... 9
Operating
Switching on/off the device............ 15
Operating Environment ....................... 2
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-55-
Page 62
P
Password ...................................i, 17, 20
Picture Viewer
Main screen ....................................31
Operation .......................................31
Q
Quality ................................................. ii
R
Recycling and Disposal .........................5
Repair ...................................................2
Reset...................................................22
Resetting the navigation system
Hard Reset ......................................22
Soft Reset........................................22
S
Safety and Maintenance .......................1
Safety instructions
Navigation ......................................23
Connection.......................................3
Data security.....................................1
Operating environment ....................2
Repair ...............................................2
Cabling.............................................3
Battery operation..............................4
Care of the display ............................4
Transport..........................................5
SD/MMC Slot .......................................8
Security .....................................i, 17, 20
Serial Number........................................i
Service.................................................. ii
Faults and possible causes ..............41
Hotline ........................................... 41
Specifications..................................... 53
Starting the navigation software ........ 28
SuperPIN....................................i, 19, 20
Supplied Items..................................... 6
Synchronisation with the PC .............. 45
T
TMC................................................... 48
Connecting a TMC dipole aerial ..... 49
TMCPro.............................................. 48
Touch Screen ....................................... 7
Transfer of card material to a memory
card................................................ 51
Transferring Installation Files and
Map Material to the Internal
Memory ......................................... 52
Transport ............................................. 5
Travelguide........................................ 34
U
UUID..........................................i, 19, 20
V
Views
Back components............................. 8
Bottom components ........................ 8
Front components ........................... 7
Left components ............................ 10
Top components.............................. 9
W
Warning function for traffic
monitoring points .......................... 29
Wartung .............................................. 4
UK/ N. IRELAND HELPLINE 0871 37 61 020
REP. IRELAND HELPLINE 1-800-992508
-56-
Loading...
