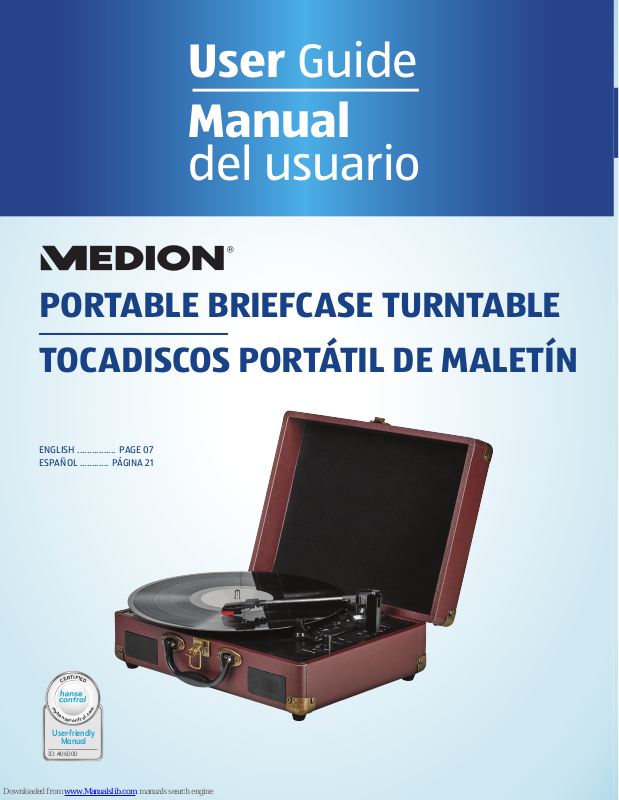

Medion e64065 User Manual
User Guide
ID: #06000
m
y
h
a
n
s
e
c
o
n
t
r
o
l
.
c
o
m
C
E
R
T
I
F
I
E
D
User-friendly
Manual
Manual
del usuario
PORTABLE BRIEFCASE TURNTABLE
TOCADISCOS PORTÁTIL DE MALETÍN
ENGLISH ................ PAGE 07
ESPAÑOL ............ PÁGINA 21
Contents
Overview ........................................................................................................................................ 4
Scope of delivery/device parts ...................................................................................................... 6
About these instructions ................................................................................................................7
Warning symbols and key words used in these instructions ..................................................7
Intended use .................................................................................................................................. 8
Safety information ......................................................................................................................... 9
Operating safety ....................................................................................................................... 9
Installation location ................................................................................................................. 9
Repairs ...................................................................................................................................... 9
Ambient temperature .............................................................................................................10
Power supply ...........................................................................................................................10
Package contents .......................................................................................................................... 11
Getting started .............................................................................................................................. 11
Unpack ing ................................................................................................................................ 11
Using the device for the fi rst time ................................................................................................ 12
Setting up the device .............................................................................................................. 12
Connecting the headphones ...................................................................................................12
Connecting the power supply ................................................................................................. 12
Switching the device on/off ....................................................................................................12
Connecting an external amplifi er ........................................................................................... 12
Setting the volume .................................................................................................................. 12
Phono operation ...........................................................................................................................13
AUX IN operation ........................................................................................................................... 13
Copying recordings .......................................................................................................................14
Track separation ...................................................................................................................... 14
End of operation ...........................................................................................................................14
Cleaning .........................................................................................................................................14
FCC Compliance Statement ............................................................................................................15
Disposal .......................................................................................................................................... 15
Technical data ...............................................................................................................................16
Legal notice ................................................................................................................................... 17
Warranty card ................................................................................................................................19
Warranty conditions ..................................................................................................................... 20
A
21
3
DC 5V
LR
4
5
6
7
8
9
10
11
12
13
14
16 1515 17
Scope of delivery⁄device parts
1
Tur nt abl e
2
Spindle adapter for singles (“puck”)
3
Lever for lifting / lowering of the pick-up arm
4
Connection for power adaptor
5
Connection for an amplifier
6
USB port
7
Start/stop recording on USB stick
8
Speed controller (33/45/78 rpm)
9
Switch off autostop function
10
Select operation mode USB / AUX IN
11
AUX-IN input
12
On/off switch / volume controller
13
Headphone socket
14
Power LED
15
Speaker (front side)
16
Pick-up arm with pick-up cartridge
17
Locking click for the pick-up arm
About these instructions
Read the safety instructions carefully before use. Note the warnings on the device and in the operating
instructions.
Always keep the operating instructions close to hand. If you sell the device or give it away, please ensure
that you also pass on these instructions.
Warning symbols and key words used in these instructions
DANGER!
Warning of immediate mortal danger!
WARNING!
Warning of possible risk of fatal injury and/or serious irreversible injuries!
WARNING!
Warning: danger of electric shock
WARNING!
Warning: danger due to excessive volume!
USA
About these instructions
CAUTION!
Danger of possible minor or moderate injuries!
NOTICE!
Please follow the instructions to avoid property damage!
Additional information on using the device!
NOTICE!
Please follow the instructions in the operating instructions!
AFTER SALES SUPPORT
USA
866-633-4660
7
www.medionusa.com
USA
Intended use
Intended use
The record player and digital converter is exclusively designed for playing and digitally converting standard long play
records (LPs) and singles. Any other use is deemed as improper.
• The device is intended for private use only and not for industrial/commercial use.
Please note that we shall not be liable in cases of improper use:
• Do not modify the device without our consent and do not use any auxiliary equipment that we have not
approved or supplied.
• Use only spare parts and accessories that we have supplied or approved.
• Heed all the information in these operating instructions, especially the safety instructions. Any other use is
deemed improper and can cause personal injury or damage to the device.
• Do not use the device in areas where there is a risk of explosion. These areas include e.g. tank systems, fuel
storage depots, or areas in which solvents are being used. It is also not permitted to use this device in areas
where the air is contaminated with fi ne particles (e.g. fl our dust or sawdust).
• Do not expose the device to any extreme conditions. The following should be avoided:
• High levels of humidity or moisture
• Extremely high or low temperatures
• Direct sunlight
• Naked fl ames
8
www.medionusa.com 866-633-4660
AFTER SALES SUPPORT
USA
USA
Safety information
Safety information
Operating safety
• Ensure that children do not play with the device by never allowing them to use the device unsupervised.
• This device is not intended for use by people (including children) with reduced physical, sensory or mental
abilities or by those without experience and/or knowledge, unless they are supervised by a person responsible
for their safety or they have been instructed in its use by that person.
DANGER!
Risk of suffocation!
Packaging fi lm can be swallowed or used improperly. Therefore, there is a risk of
suffocation!
− Keep packaging material such as plastic fi lm or plastic bags away from children.
Installation location
• Keep your device and all connected devices away from moisture and avoid dust, heat, direct sunlight and open
fl ames (candles or similar). Non-compliance with these instructions can lead to faults or damage to the device.
• Do not use the device outdoors because external elements such as rain, snow, etc. could damage it.
• Avoid exposing the device to water droplets or spray and do not place any liquid-fi lled containers (vases or
similar) on or next to the device or the power adapter. Liquids penetrating the device may impair the electrical
safety of the product.
• The slots and openings on the device are for ventilation purposes. Do not cover these openings (risk of
overheating, fi re hazard)!
• Position the cable so that it cannot be stepped on or tripped over.
• Make sure that there is enough clearance from the sides of the furniture unit. Ensure a minimum clearance of 10
cm around the device for suffi cient ventilation.
• Place and operate all the components on a stable, level and vibration-free surface in order to prevent the device
from falling down.
Repairs
• Contact customer services if:
• The power cable is burnt or damaged.
• Liquid has penetrated the device.
• The device is not operating correctly.
• The device has fallen or the housing is damaged.
• Repairs to your device should only be carried out by qualifi ed specialists.
• If a repair must be carried out, please contact only our authorized service partner.
AFTER SALES SUPPORT
USA
866-633-4660
9
www.medionusa.com
USA
Safety information
Ambient temperature
• The device can be operated at an ambient temperature of 32°F to +95°F with a relative humidity of < 80%
(non-condensing).
• When switched off, the device may be stored at temperatures between -4°F and +140°F
DANGER!
Risk of electric shock!
Major changes in temperature or fl uctuations in humidity can cause moisture to build up
within the product due to condensation – this can cause an electrical short circuit.
− After transporting the device, wait until the device has reached room temperature
before switching it on.
Power supply
DANGER!
Risk of electric shock!
Even when the power switch is off, some components of the device are live.
− In order to disconnect the power to your device or to completely isolate the device from
voltage sources, disconnect the plug from the power socket.
• Only operate the device from an easily accessible and earthed 230 V~ 50 Hz power socket that is located near to
the device.
• To disconnect the power supply from your device, disconnect the plug from the power socket.
DANGER!
Risk of electric shock!
There are live parts inside the device. There is a risk of an electric shock or a fi re if these live
parts are unintentionally short circuited.
− Never open the housing of the device and never insert any objects through the slots
and openings into the device!
• Do not place any objects on the cables to avoid damaging them.
• Keep the device at a distance of at least one meter from sources of high-frequency or magnetic interference
(televisions, speakers, mobile telephones, etc.) to avoid malfunctions and data loss.
10
www.medionusa.com 866-633-4660
AFTER SALES SUPPORT
USA
Package contents
Package contents
Please check your purchase to ensure that all the items are present and contact us within 14 days of purchase if any
parts are missing. The product you have purchased includes:
• Record player
• Power adapter model: GKYPS0100050UL1
• Documentation
DANGER!
Risk of suffocation!
Packaging fi lm can be swallowed or used improperly. Therefore, there is a risk of
suffocation!
− Keep packaging material such as plastic fi lm or plastic bags away from children.
Getting started
Unpacking
USA
− Remove all packaging materials.
DANGER!
Risk of suffocation!
Packaging fi lm can be swallowed or used improperly. Therefore, there is a risk of
suffocation!
− Keep packaging material such as plastic fi lm or plastic bags away from children.
− Also remove the adhesive strips from the turntable so that it can rotate freely.
− Remove the wire fi xing the pick-up arm to the arm rest.
NOTICE!
The protective cover for the needle on the pick-up arm is not part of the packaging
material. Do not throw it away!
AFTER SALES SUPPORT
USA
866-633-4660
11
www.medionusa.com
USA
Using the device for the fi rst time
Using the device for the fi rst time
Setting up the device
Place the device on a sturdy, level surface.
Connecting the headphones
− You can connect headphones with a 3.5 mm jack plug to the socket on the right side of the device. The speakers
switch off automatically whenever the headphones are connected.
CAUTION!
Loud volumes when using headphones or earphones generate excessive acoustic
pressure that can cause hearing loss.
− Before putting on headphones, set the volume to a minimum.
Connecting the power supply
− Once you have made all the connections, connect the plug to an easily accessible power socket (100-240 V ~
50/60 Hz.).
Switching the device on/off
− Switch the device on by turning the volume controller in a clockwise direction. The operating display will light up.
When the device has been switched off, it will continue to consume electricity. In order to switch it off completely,
please disconnect the plug.
If you do not need to use the device for a relatively long time, please take it out of operation. Disconnect the plug for
this purpose.
Connecting an external amplifi er
You can optionally connect an external amplifi er that takes over the sound output from the device.
− For the sound transmission, also connect an audio cinch cable to the
of the plugs and sockets match.
L/R OUT connection. Ensure that the colors
Setting the volume
− Turn the volume controller on the device lightly in a clockwise or anti-clockwise direction to increase or decrease
the volume of the device.
12
www.medionusa.com 866-633-4660
AFTER SALES SUPPORT
USA
Phono operation
− Remove the protective cap from the pick-up arm 16.
− If necessary, press the
MODE button
− Place a record on the turntable
− Before playing a single with a larger hole, place the adapter (“puck”)
NOTICE!
Make sure that the record is free of dust. You can fi nd appropriate record-cleaning brushes
and cloths in specialist retail shops.
− Select the desired speed with the speed controller 8:
• 33 rpm for LPs
• 45 rpm for singles
• 78 rpm for special singles
− Set the
AUTO STOP switch
− Release the latch for the pick-up arm
− Move the pick-up arm
record. The turntable 1 starts to rotate.
− Carefully place the pick-up arm
− If necessary, move the lever for lowering the pick-up arm
starts to play.
− Control the volume with the volume controller
− Depending on the setting of the
pick-up arm remains in its end position.
− If you want to interrupt playback, move the lever for lowering the pick-up arm
the pick-up arm back into its mount.
9
to decide whether the record automatically stops at the end of playback (ON).
16
inwards over the edge of the record or over the point from which you want to play the
10
if the operating light 14 is not lit up in red.
1
.
2
17
and carefully lift up the pick-up arm 16.
16
onto the position from which you want to play the record.
3
backwards. The needle goes down and the record
12
.
AUTO STOP function
9
, the turntable will stop when the record ends and the
onto the spindle.
3
forwards and carefully move
USA
Phono operation
NOTICE!
On some records, playback may stop before the record has completely ended. In this case,
switch off the
(
OFF). Switch this function back on (ON) once playback has been completed otherwise the
AUTO STOP function with the AUTO STOP switch on the rear of the device
turntable will not stop rotating.
AUX IN operation
You can connect a device with a LINE OUT output or a headphone socket (e.g. a CD player or mobile telephone) to the
device’s AUX INinput 11 using a cable with a 3.5mm jack plug.
− Switch the device on by turning the volume controller
up in red.
− Press the
MODE button
− Start the playback at the connected device.
− If necessary, adjust the volume with the volume controller
AFTER SALES SUPPORT
USA
866-633-4660
10
. The LED fl ashes in red and blue alternately.
12
in a clockwise direction. The operating light 14 lights
12
on the record player and on the connected device.
www.medionusa.com
13
Loading...
