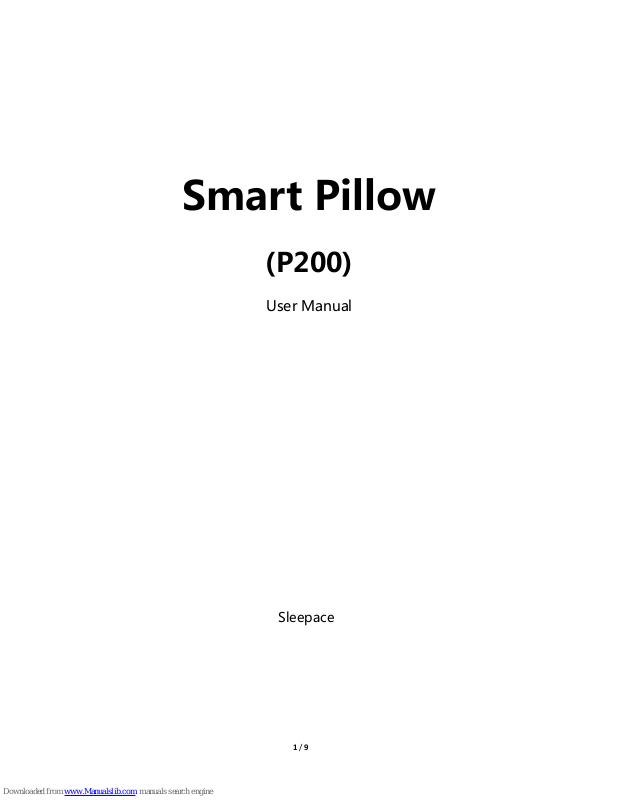

1 / 9
Smart Pillow
(P200)
User Manual
Sleepace
2 / 9
Product introduction .................................................................................................................. 3
Device Description ...................................................................................................................... 3
Operation guide .......................................................................................................................... 4
LED Indicator ................................................................................................................................ 6
Technical Specifications ............................................................................................................ 6
Precautions ................................................................................................................................... 7
Safety Notice ................................................................................................................................ 7
Warranty ........................................................................................................................................ 7
3 / 9
(English)
1.Product introduction：
P200 is used to track your sleep data including heart rate, respiratory rate, turning over,
sleep cycle etc and provides a comprehensive sleep analysis and sleep advice to help improve
your sleep quality.
02Device Description
Pillow Front View
4 / 9

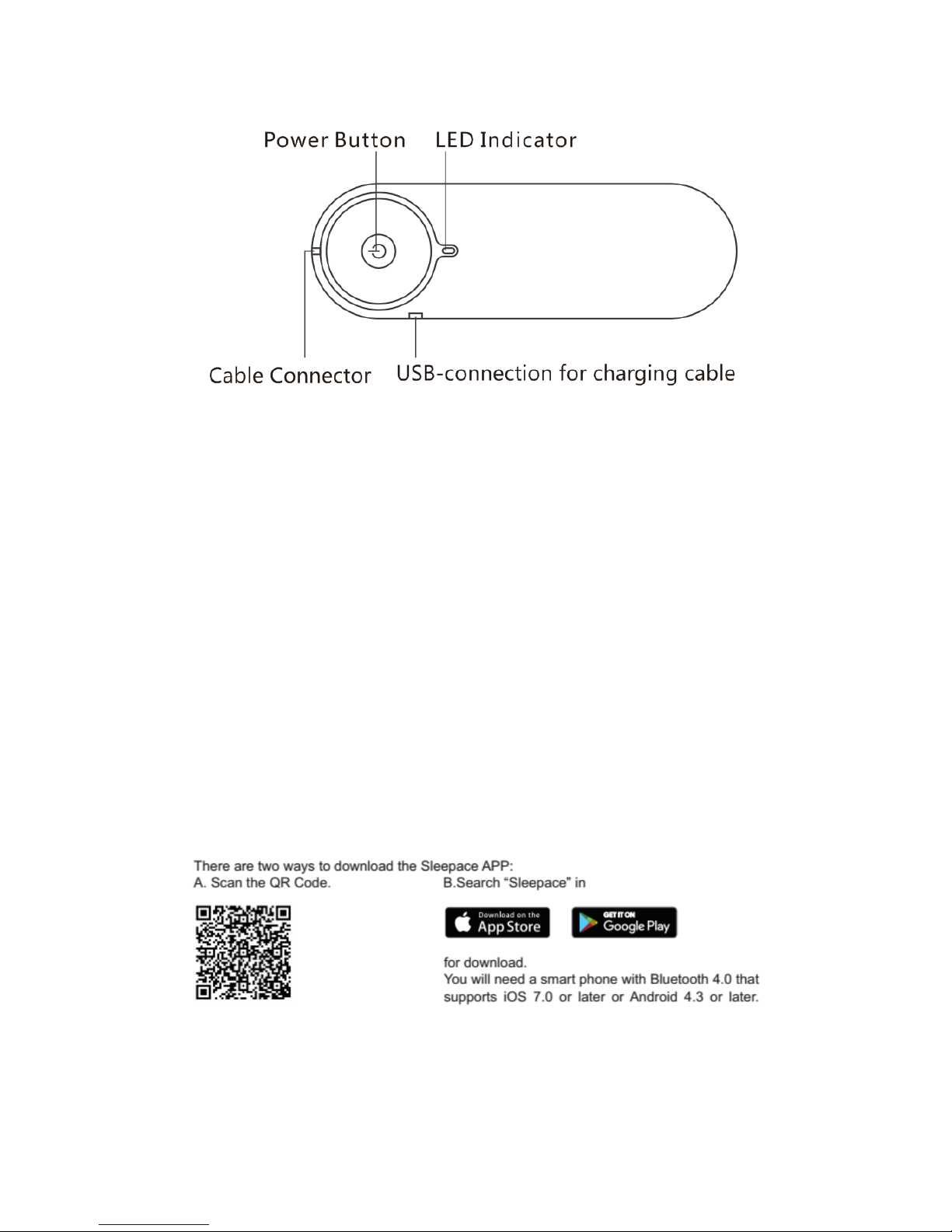

Controller
Box Contents:
1 *Smart Pillow 1 *USB charging cable 1 *User Manuel

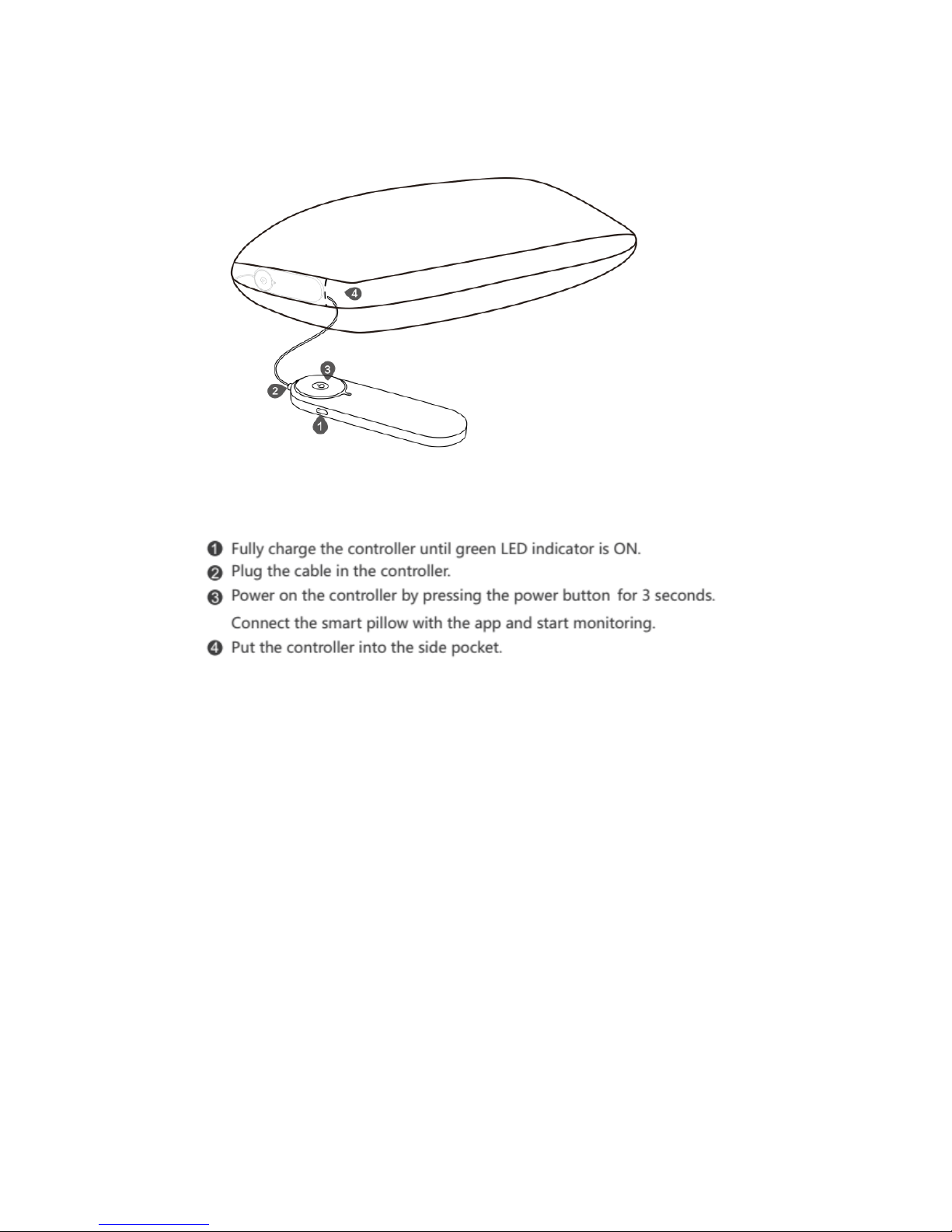

3： Operation guide
Step 1: Download the’ Sleepace’ APP and register an account
Step 2: Connect smart pillow to APP.
5 / 9
Make sure the controller and your smart phone are switched on and Bluetooth® is activated on
your smart phone. Follow the instructions given by the app to connect the device.
Step 3: Start Sleep monitoring
Click’ Start Sleep’ in the homepage of APP to start sleep monitoring. During short interruptions
of sleep (e.g. going to the bathroom) the device keeps on recording. If longer interruptions (more
than 60 minutes) occur, the pillow will stop monitoring and switch itself off. You may have to
re-activate it.
Step 4: Read Sleep report
Click ‘ Get Up’ to stop sleep monitoring after awakening, the recorded data will automatically be
transferred to the app and the app offers comprehensive sleep report including heart rate,
respiratory rate, sleep time and sleep cycle; analyzes your sleep quality and offer personal sleep
guidance.
If not clicking ‘Get Up’,the pillow will stop monitoring automatically after 60 minutes of leaving
bed. Connect the app with the pillow again to sync the sleep data for sleep report.
6 / 9
I04LED Indicator
SN
Status
Display
1
Power On（Press the Power
button for 3 seconds）
Green LED indicator is ON for 5 seconds.
2
Power Off（Press the Power
button for 3 seconds）
Red LED indicator is ON for one second.
3
Low battery
Red LED indicator fleshes every two seconds, please charge
the device immediately.
4
Charging device
Red LED indicator stays ON.
5
Charging complete
Green LED indicator stays ON.
05Technical Specifications
Pillow size
750mm*500mm
Controller size
125mm*40mm*12mm
Controller weight
50g
Bluetooth
Transmission range
max. 10 meters
Communication
mode
Bluetooth 4.0
Batterylife
Up to 2 weeks
Compatibility
Bluetooth 4.0 and
up, IOS7.1 or later,
Android 4.3 or later.
Battery
Re-chargeablLithium-ion-battery
3.7V, 900mAH. Charging current 5.0V
1A
7 / 9
06Precautions
Please note, this device is not a medical device and cannot be used to prevent sudden death.
Please do not wholly rely on the device, users should be well taken care of. For users with existing
health problem, family member should check the monitoring status now and then.
07Safety Notice
● Do not over bend the product. The build-in sensor may be damaged.
● Please keep the product away from high-temperature equipment, and do not use the product when using an
electrical blanket.
● Do not touch the metal end of power plug when plugging into power socket.
● The sensor belt is nonconductive, safe to users.
● For long term non-use of the device, please power off.
● For children and the elders, please use the product with the involvement of a guardian.
● Do not use the product during charging process
● The device must not be used close to any source of vibration (e.g. washing machines, loud music etc.) as the
vibrations could affect the functions of the device.
● NOTE: DO NOT disassemble or replace battery.
● When wash the pillow or expose it to sunlight, please take the sensor band out.
08Warranty
Please contact your dealers for warranty service. For more information about the
product, warranty or service, please go to www.sleepace.com.
FCC statements:
8 / 9
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that
may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications or changes to this equipment. Such modifications
or changes could void the user' s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Notice:
The suitable temperature for the product and accessories is -10℃-45℃.
Observe the national local regulations in the location where the device is to be
used.
Frequency Band
Max output Power
BLE（2402-2480MHz）
0.59dBm
Hereby, Shenzhen Medica Technology Development Co., Ltd declares that the radio
equipment type smart pillow is in compliance with Directive 2014/53/EU. The full text of
the EU declaration of conformity is available at the following internet
address: http://www.sleepace.com
Shenzhen Medica Technology Development Co., Ltd
9 / 9
2F Building A, Tongfang Information Harbor, No. 11, East Langshan Road, Nanshan
District, Shenzhen, P.R. China
Importer: anixx s.r.o.
Address: Kaukazska 3385101 Bratislava, Slovakia
TEL: +43 664 1674310
