Mediatrix® 1104

User’s Manual

SIP Version

Product Version 4.4 Document Revision F

April 2, 2004

Mediatrix Telecom, Inc. User’s Manual

Mediatrix Telecom, Inc. 4229 Garlock Street Sherbrooke, Québec, Canada J1L 2C8

Mediatrix® 1104 User’s Manual (SIP Version)

All rights reserved. No part of this publication may be reproduced or used in any form or by any means – graphic, electronic, or mechanical, including photocopying, recording, taping, or information storage and retrieval systems – without the express written permission of the publisher.

Mediatrix Telecom, Inc. reserves the right to revise this publication and make changes at any time and without the obligation to notify any person and/or entity of such revisions and/or changes.

Trademarks

Microsoft and Windows are registered trademarks of Microsoft Corporation.

Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.

All other trademarks and registered trademarks are the property of their respective owners.

Mediatrix Telecom, Inc. User’s Manual

Supplementary Copyright Information

CMU/UCD copyright notice: (BSD like)

Permission to use, copy, modify and distribute this software and its documentation for any purpose and without fee is hereby granted, provided that the above copyright notice appears in all copies and that both that copyright notice and this permission notice appear in supporting documentation, and that the name of CMU and The Regents of the University of California not be used in advertising or publicity pertaining to distribution of the software without specific written permission.

CMU AND THE REGENTS OF THE UNIVERSITY OF CALIFORNIA DISCLAIM ALL WARRANTIES WITH REGARD TO THIS SOFTWARE, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL CMU OR THE REGENTS OF THE UNIVERSITY OF CALIFORNIA BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER RESULTING FROM THE LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

Networks Associates Technology, Inc copyright notice (BSD)

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

• Neither the name of the NAI Labs nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDERS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Mediatrix Telecom, Inc. User’s Manual

Cambridge Broadband Ltd. copyright notice (BSD)

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

• The name of Cambridge Broadband Ltd. may not be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDER “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

OpenSSL License

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgment:

• “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)”

4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to endorse or promote products derived from this software without prior written permission. For written permission, please contact openssl-core@openssl.org.

5. Products derived from this software may not be called “OpenSSL” nor may “OpenSSL” appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment:

• “This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)”

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO

Mediatrix Telecom, Inc. User’s Manual

EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product includes software written by Tim Hudson (tjh@cryptsoft.com).

Original SSLeay License

This package is an SSL implementation written by Eric Young (eay@cryptsoft.com). The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are adhered to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com).

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this package is used in a product, Eric Young should be given attribution as the author of the parts of the library used. This can be in the form of a textual message at program startup or in documentation (online or textual) provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following disclaimer.

3. All advertising materials mentioning features or use of this software must display the following acknowledgement:

• “This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)”.

The word “cryptographic” can be left out if the routines from the library being used are not cryptographic related :-).

4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement:

• “This product includes software written by Tim Hudson (tjh@cryptsoft.com)”

THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Mediatrix Telecom, Inc. User’s Manual

The licence and distribution terms for any publicly available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]

Contents User’s Manual (SIP Version)

Contents

Preface

Introduction ............................................................................................. ix

Intended Audience.......................................................................................................ix

Before you Begin ......................................................................................................... ix

SCN vs PSTN......................................................................................................................... ix

Related Documentation .......................................................................................................... ix

Overview.................................................................................................................................. x

Using this Manual .........................................................................................................x

Safety Warnings ......................................................................................................... xii

Safety Recommendations ......................................................................................... xiii

End User Technical Support...................................................................................... xiv

Chapter 1

Using the Mediatrix 1104......................................................................... 1

Call Processes............................................................................................................. 1

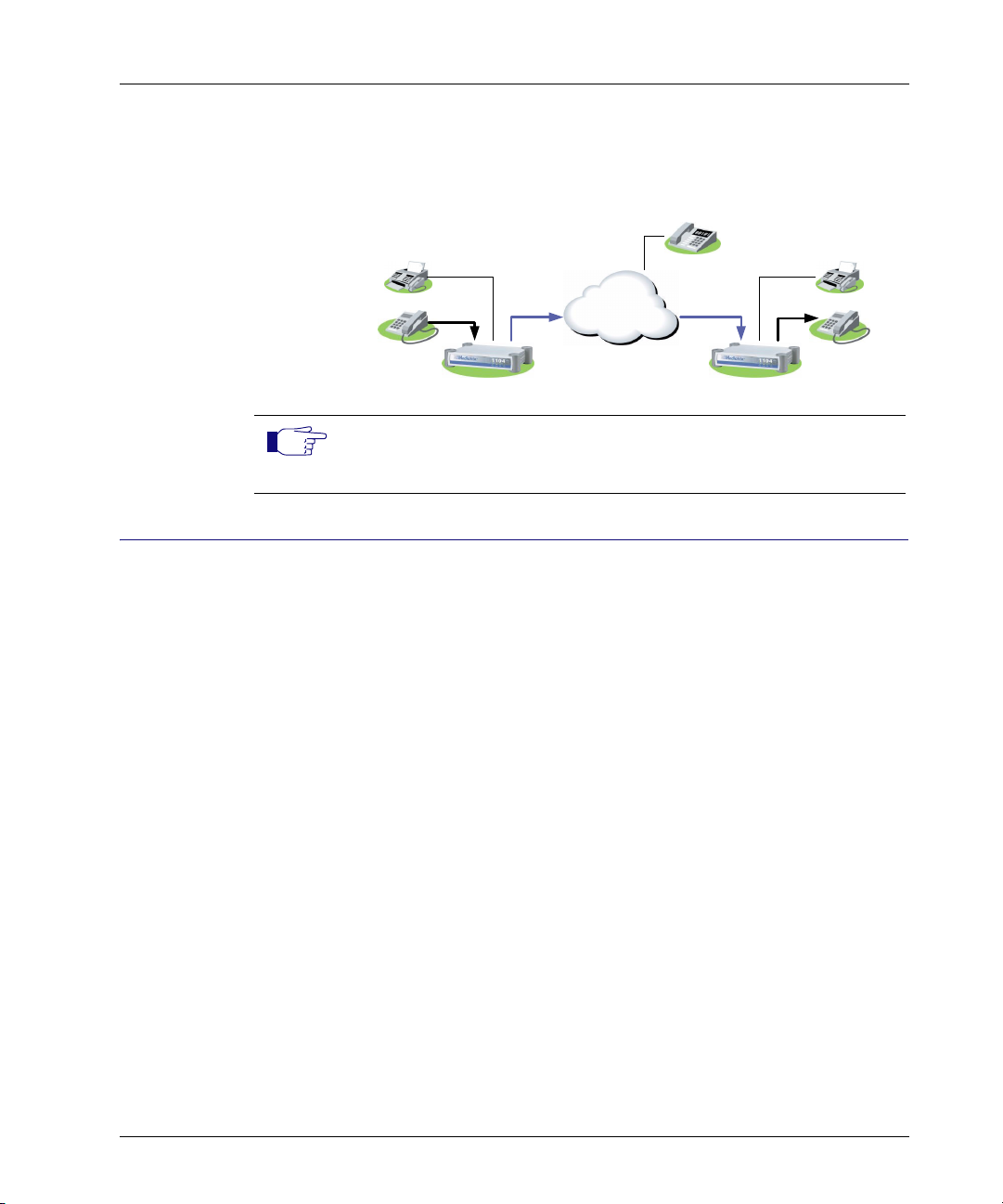

Calls Involving Another Access Device ...................................................................................2

Calls Involving an Access Device and a LAN Endpoint...........................................................2

Calls Involving an Analog Gateway .........................................................................................3

Making Calls ................................................................................................................ 4

Complete Dialing Sequence ....................................................................................................4

Dialing a Telephone Number or Numerical Alias.....................................................................5

Dialing an IP Address ..............................................................................................................6

Using Basic Telephony Services ................................................................................. 7

Call Hold ..................................................................................................................................7

Second Call .............................................................................................................................7

Using the Call Waiting Feature.................................................................................... 8

Removing the Call Waiting Tone .............................................................................................8

Using the Call Transfer Features................................................................................. 9

Attended Call Transfer............................................................................................................. 9

Blind Call Transfer .................................................................................................................10

Using the Call Forward Feature................................................................................. 11

Call Forward Unconditional ................................................................................................... 11

Call Forward on Busy ............................................................................................................12

Call Forward on No Answer...................................................................................................13

Conferencing Calls .................................................................................................... 14

Requirements ........................................................................................................................ 14

Managing a Conference Call .................................................................................................15

Using the Automatic Speed Dialing ........................................................................... 16

Mediatrix 1104

vii

Contents User’s Manual (SIP Version)

Appendix A

Standards Compliance .......................................................................... 17

Standards Supported................................................................................................. 17

Disclaimers ................................................................................................................ 18

Federal Communications Commission (FCC) Part 15........................................................... 18

Federal Communications Commission (FCC) Part 68........................................................... 19

Industry Canada ....................................................................................................................20

CE Marking............................................................................................................................ 21

Appendix B

Glossary.................................................................................................. 23

Appendix C

List of Acronyms.................................................................................... 27

Mediatrix 1104

viii

P REFACE

Introduction

Thank you for purchasing the Mediatrix 1104 from Mediatrix Telecom, Inc.

This manual illustrates some of the various call processes the Mediatrix 1104 supports. It also describes how to make and receive calls, as well as how to use the services the Mediatrix 1104 offers.

Intended Audience This manual provides all the information needed to use the Mediatrix

1104. It is intended for end-users that will use the product on a regular basis.

Before you Begin This manual assumes that your Mediatrix 1104 has been properly set

up by your system administrator. If you need to install and configure the Mediatrix 1104 yourself, please refer to the Administration Manual provided with your Mediatrix 1104 or contact your system administrator.

SCN vs PSTN In Mediatrix Telecom, Inc.’s and other vendor’s documentation, the

terms SCN and PSTN are used. A SCN (Switched Circuit Network) is a general term to designate a communication network in which any user may be connected to any other user through the use of message, circuit, or packet switching and control devices. The Public Switched Telephone Network (PSTN) or a Private Branch eXchange (PBX) are examples of SCNs.

Overview The Mediatrix 1104 is an IP Telephony adaptor that connects up to four

(4) analog terminals to a LAN or a WAN with access to an IP Packet Network to permit high-quality, full duplex, audio/fax communications. Capable of performing all required IP Telephony tasks in one standalone enclosure, the Mediatrix 1104 offers the same enhanced features present in the Mediatrix Telecom, Inc. line of products, and can be an integral part of a cost-effective IP telephony solution by complementing the existing VoIP infrastructure. In addition, a bypass line allows calls to be routed to the SCN, in case of a network failure or power outage.

This version of the Mediatrix 1104 uses the Session Initiation Protocol (SIP), which is a protocol for transporting call setup, routing, authentication, and other feature messages to endpoints within the IP domain.

Using this Manual The following information provides an explanation of the symbols

which appear on the Mediatrix 1104 and in the documentation for the product.

Warning: Means danger. You are in a situation that could cause

bodily injury. Before you work on any equipment, you must be aware of the hazards involved with electrical circuitry and familiar with standard practices for preventing accidents.

Waarschuwing: Dit waarschuwingssymbool betekent gevaar. U

overtreat in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van standaard maatregelen om ongelukken te voorkomen.

Varoitus: Tämä varoitusmerkki merkitsee vaaraa. Olet tilanteessa,

joka voi johtaa ruumiinvammaan. Ennen kuin työskentelet minkään laitteiston parissa, ota selvää sähkökytkentöihin liittyvistä vaaroista ja tavanomaisista onnettomuuksien ehkäisykeinoista.

Mediatrix 1104

Preface - Introduction User’s Manual (SIP Version)

Attention: Ce symbole d'avertissement indique un danger. Vous vous

trouvez dans une situation pouvant causer des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers posés par les circuits électriques et familiarisezvous avec les procédures couramment utilisées pour éviter les accidents.

Warnung: Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in

einer Situation, die zu einer Körperverletzung führen könnte. Bevor Sie mit der Arbeit an irgendeinem Gerät beginnen, seien Sie sich der mit elektrischen Stromkreisen verbundenen Gefahren und der Standardpraktiken zur Vermeidung von Unfällen bewußt.

Avvertenza: Questo simbolo di avvertenza indica un pericolo. La

situazione potrebbe causare infortuni alle persone. Prima di lavorare su qualsiasi apparecchiatura, occorre conoscere i pericoli relativi ai circuiti elettrici ed essere al corrente delle pratiche standard per la prevenzione di incidenti.

Advarsel: Dette varselsymbolet betyr fare. Du befinner deg i en

situasjon som kan føre til personskade. Før du utfører arbeid på utstyr, må du vare oppmerksom på de faremomentene som elektriske kretser innebærer, samt gjøre deg kjent med vanlig praksis når det gjelder å unngå ulykker.

Aviso: Este símbolo de aviso indica perigo. Encontra-se numa

situação que lhe poderá causar danos físicos. Antes de começar a trabalhar com qualquer equipamento, familiarize-se com os perigos relacionados com circuitos eléctricos, e com quaisquer práticas comuns que possam prevenir possíveis acidentes.

¡Advertencia!: Este símbolo de aviso significa peligro. Existe riesgo

para su integridad física. Antes de manipular cualquier equipo, considerar los riesgos que entraña la corriente eléctrica y familiarizarse con los procedimientos estándar de prevención de accidentes.

Varning!: Denna varningssymbol signalerar fara. Du befinner dig i en

situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanligt förfarande för att förebygga skador.

Mediatrix 1104

Caution: Caution indicates a potentially hazardous situation which,

if not avoided, may result in minor or moderate injury and/or damage to the equipment or property.

Preface - Introduction User’s Manual (SIP Version)

Note: Note indicates important information about the current topic.

Safety Warnings This section lists the following safety warnings:

 Circuit Breaker (15A) Warning

 TN Power Warning  Product Disposal Warning

 No. 26 AWG Warning

 LAN Port Warning  Socket Outlet Warning

Circuit Breaker (15A) Warning

Warning: This product relies on the building's installation for short-

circuit (overcurrent) protection. Ensure that a fuse or circuit breaker no larger than 120 VAC, 15A U.S. (240 VAC, 10A international) is used on the phase conductors (all current-carrying conductors).

Mediatrix 1104

TN Power Warning

Warning: The device is designed to work with TN power systems.

Product Disposal Warning

Warning: Ultimate disposal of this product should be handled

according to all national laws and regulations.

No. 26 AWG Warning

Warning: To reduce the risk of fire, use only No. 26 AWG or larger

telecommunication line cord.

xii

Preface - Introduction User’s Manual (SIP Version)

LAN Port Warning

Warning: Do not connect the LAN port directly to the Public

Switched Telephone Network (PSTN), to an off premise application, an out of plant application, any exposed plant application, or to any equipment other than the intended application. Such connection may result in a safety hazard, and/or defective operation and/or equipment damage.

Exposed plant means where any portion of the circuit is subject to accidental contact with electric lighting or power conductors operating at a voltage exceeding 300V between conductors or is subject to lightning strikes.

Socket Outlet Warning

Warning: The socket outlet, if used, shall be located near the

equipment and shall be easily accessible by the user.

Safety Recommendations

To insure general safety follow these guidelines:

 Do not open or disassemble this product.

 Do not get this product wet or pour liquids into it.

 Do not perform any action that creates a potential hazard

to people or makes the equipment unsafe.

Caution: When using this equipment, basic safety precautions

should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

• Do not use this product near water, for example, near a bath tub,

wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

• Avoid using a telephone (other than a cordless type) during an

electrical storm. There may be a remote risk of electric shock from lightning.

• Do not use the telephone to report a gas leak in the vicinity of

the leak.

Mediatrix 1104

xiii

Preface - Introduction User’s Manual (SIP Version)

End User Technical Support

In order to maximize technical support resources, Mediatrix Telecom, Inc. works through its partners to resolve technical support issues. All end users requiring technical support are encouraged to contact their vendor directly.

Mediatrix 1104

xiv

C HAPTER

Using the Mediatrix 1104

Now that your administrator has properly set up the Mediatrix 1104, you can dial any number on your phone (which is connected to the Mediatrix 1104) and place the call.

However, you should be aware that the administrator has probably set permissions and restrictions regarding local and long distance calls. Should you encounter any calling problem, please discuss it with your administrator to remedy the problem.

Call Processes The following examples illustrate some of the various calling processes

the Mediatrix 1104 supports. These processes can be adapted at will to suit your needs and requirements.

The Mediatrix 1104 can communicate with the following devices:

 Another telephone or fax connected to the same

Mediatrix 1104.

 Another access device on the IP network such as the

Mediatrix 1102 or Mediatrix 1124.

 Any LAN Endpoint on the IP network such as:

• a Soft Phone

• an IP phone directly connected to the IP network

 A SCN phone or fax. However, the Mediatrix 1104 would

need to contact an analog gateway such as the Mediatrix

1204.

Mediatrix 1104

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

Calls Involving Another Access Device

X Phone/Fax -> Mediatrix 1104 A -> Mediatrix 1104 B -> Phone/Fax

Calls Involving an Access Device and a LAN Endpoint

The following example illustrates how to reach a phone or fax on another Mediatrix 1104 access device.

A user makes a call with the phone/fax connected to a Mediatrix 1104, which in turn contacts another Mediatrix 1104, then reaches the corresponding phone/fax.

y IP phone y Soft Phone

LAN Endpoint

Fax

Telephone

Mediatrix 1104 Mediatrix 1104

Server

The following examples illustrate how a phone/fax connected to a Mediatrix 1104 access device can communicate with a LAN Endpoint on the IP network.

Telephone

Mediatrix 1104

X Phone/Fax -> Mediatrix 1104 -> LAN Endpoint

A user makes a call with the phone/fax connected to a Mediatrix 1104, which reaches the corresponding LAN Endpoint on the IP network.

y IP phone y Soft Phone

LAN Endpoint

Fax

Telephone

Mediatrix 1104 Mediatrix 1104

Server

Telephone

Fax

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

X LAN Endpoint -> Mediatrix 1104 -> Phone/Fax

A LAN Endpoint contacts the Mediatrix 1104, which reaches the corresponding phone/fax connected to the Mediatrix 1104 access device.

y IP phone y Soft Phone

LAN Endpoint

Calls Involving an Analog Gateway

X Phone/Fax -> Mediatrix 1104 -> Mediatrix 1204 (Gateway) -> SCN

Fax

Telephone

Mediatrix 1104 Mediatrix 1104

Server

The following example illustrates how a telephone/fax connected to a Mediatrix 1104 access device and a SCN phone can communicate via an analog gateway.

A user makes a call with the phone/fax connected to a Mediatrix 1104, which in turn contacts a Mediatrix 1204 gateway, then reaches the corresponding SCN phone.

A SCN user can also contact the Mediatrix 1204 gateway, which in turn contacts the Mediatrix 1104, then reaches the corresponding phone/ fax.

Telephone

SCN

Mediatrix 1104

Fax

Telephone

Mediatrix 1104

SCN

Telephone

4 telephone lines

connected to the SCN

Mediatrix 1204

(Gateway)

Server

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

Calls Without a SIP Server

You can dial another unit (gateway or access device) without the help of a SIP Server by entering its IP address. See “Dialing an IP Address”

on page 6 for more details.

y IP phone y Soft Phone

LAN Endpoint

Fax

Telephone

Mediatrix 1104 Mediatrix 1104

Note: This type of dialing is only possible when the Mediatrix 1104 is

configured to allow it. See your network administrator or the Administration manual for more details.

Making Calls Users with telephones or faxes connected to a Mediatrix 1104 dial as

if they were on a standard telephony system.

Complete Dialing Sequence

There are three ways to indicate the dialed number sequence is complete and the Mediatrix 1104 can dial the number:

 Your administrator has set up the dialing process so that

you must end the telephone number with a particular character to indicate it is complete, e.g. a “#”.

 Your administrator has set up the dialing process with a

timer. This timer checks the dialing process and, when no further digits have been dialed for the time set by the administrator, it assumes the number is complete and dials it.

 Your administrator has set up the Mediatrix 1104 so it

knows exactly how many digits it must collect before it places the call. It finds the number of digits to collect by looking at the first few numbers dialed. For example: a telephone number beginning by 1 should be followed by 10 more digits in North America.

Check with your administrator to determine which dialing process is defined.

Telephone

Mediatrix 1104

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

Dialing a Telephone Number or Numerical Alias

X To dial a Standard Call:

This section assumes that the Mediatrix 1104 is configured to do SCN emulation. The Mediatrix 1104 could be configured to do any other kind of emulation, thus its users would simply have to dial as if they were using their old system.

1. Dial the telephone number as if you were using a standard

telephone, with country code and area code when required.

Examples:

8298749 15145701234

A Standard Call uses the server to contact the remote dialed user. The server takes the decision as to redirect the call on the SCN or to keep it on the network. Keeping the call on the network takes precedence over redirecting it on the SCN. If the call needs to go on the SCN, the server redirects it to a proper analog gateway (such as the Mediatrix 1204) that will place the call to the SCN network.

Note: You can dial one star numbers *xx (such as *69). These

numbers are automatically inserted in the Request-URL of the SIP INVITE request.

Mediatrix 1104

X To dial a Forced SCN call:

1. Dial “**”.

2. Dial the telephone number as if you were using a standard

telephone, with country code and area code when required.

Examples:

**8298749 **15145701234

A Forced SCN Call allows you to specify that the user you want to reach is located on the SCN network. This leaves no decisions to the server; it must find a proper gateway and place the call on the SCN. This option can be useful only when a SCN number is shadowed by a network number.

Note: A forced SCN call is only be possible if an analog gateway

such as the Mediatrix 1204 is available on the IP network.

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

Making an Urgent Call

In case of emergency, you can make 911-style calls to a pre-defined urgent gateway. The emergency number to dial and the address of the urgent gateway have been set up by your network administrator. You should ask for the number that has been set up so you can make emergency calls if required.

Dialing an IP Address

You can dial another Mediatrix 1104 without the help of a SIP server by entering its IP address and the line you want to reach.

Note: This assumes that your system administrator has properly

enabled the IP address call service.

X To make an IP address call:

1. Dial “**” (IP address prefix).

2. Dial the numerical digits of the IP address and use the “*” for

the “.” of the IP address.

3. Dial “#” to terminate the IP address.

4. Dial the telephone number of the specific line you want to

reach.

For example, let’s say you want to reach the telephone connected to Line 2 of the Mediatrix 1104 with the IP address

192.168.0.23. The phone number assigned to Line 2 of this Mediatrix 1104 is 1234. You must then dial the following digits:

**192*168*0*23#1234

In this case, the Mediatrix 1104 sends an INVITE 1234@192.168.0.23.

Mediatrix 1104

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

Using Basic Telephony Services

Call Hold The Call Hold service allows you to temporarily put an existing call on

Second Call The Second Call service allows you to put an active call on hold, then

The Mediatrix 1104 offers some basic telephony services.

hold.

This assumes that your system administrator has properly enabled the Call Hold service.

X To put the current call on hold:

1. Perform a Flash-Hook.

This puts the call on hold. You can resume the call in the same way.

initiate a new call on the second line. This service is most useful with the transfer and conference services.

This assumes that your system administrator has properly enabled the Second Call service.

X To use the second call service:

1. Perform a Flash-Hook.

This puts the call on hold and the second line is automatically connected to your line.

Mediatrix 1104

2. Initiate the second call.

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

Using the Call Waiting Feature

The call waiting feature alerts you if you are already on the phone and a second call happens. A “beep” (the call waiting tone) is heard and repeated every ten (10) seconds to indicate there is a second incoming call. This assumes that your system administrator has properly enabled the Call Waiting service.

X To put the current call on hold:

1. Perform a Flash-Hook.

This puts the call on hold and the second line is automatically connected to your line.

2. Answer the call on the second line.

X To switch from one line to the other:

1. Perform a Flash-Hook each time you want to switch between

lines.

X To terminate the first call before answering the second call:

1. Hang up the phone.

2. Wait for the phone to ring.

3. Answer the phone.

The second call is on the line.

Removing the Call Waiting Tone

Mediatrix 1104

You can temporarily activate/deactivate the call waiting tone indicating a call is waiting. This is especially useful when transmitting faxes. If you are about to send a fax, you can thus deactivate the call waiting tone to ensure that the fax transmission is not disrupted by an unwanted second call. When the fax transmission is completed and the line is onhook, the call waiting tone is automatically reactivated.

This assumes that your system administrator has properly enabled the Call Waiting Cancel service.

X To deactivate the call waiting tone:

1. Take the receiver off-hook.

2. Wait for the dial tone.

3. Dial the sequence your system administrator has

implemented to deactivate the call waiting tone.

This sequence could be something like *70.

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

4. Wait for the transfer tone (three “beeps”) followed by the dial

tone.

The call waiting tone is disabled.

X To re-enable the call waiting tone:

1. Take the receiver off-hook.

2. Replace the receiver on-hook.

The call waiting tone is re-enabled.

Using the Call Transfer Features

Attended Call Transfer

The call transfer features allow you to transfer a current call to any other extension or phone number. There are two (2) types of call transfer features available:

 attended transfer  blind transfer

The attended call transfer (also known as call transfer with consultation) allows you to transfer a current call to any other extension or phone number. The individual at the other extension or phone number must answer to complete the transfer.

This assumes that your system administrator has properly enabled the Attended Call Transfer service.

X To transfer a current call attended:

1. Perform a Flash-Hook.

This puts the call on hold.

2. Wait for the transfer tone (three “beeps”).

3. Dial the number to which you want to transfer the call.

The third party answers.

4. Hang up your phone.

The call is transferred.

Mediatrix 1104

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

5. If you want to get back to the first call (the call on hold), you

must perform two Flash-Hooks.

You are back with the first call and the third party is released.

Note: If the number to which you want to transfer the call is busy or

does not answer, quickly perform a Flash-Hook. The busy tone or ring tone is cancelled and you are back with the first call.

Blind Call Transfer

The blind call transfer (also known as call transfer without consultation or unattended) allows you to transfer a current call to any other extension or phone number. The individual at the other extension or phone number does not need to answer to complete the transfer.

This assumes that your system administrator has properly enabled the Blind Call Transfer service.

X To transfer a current call blind:

1. Perform a Flash-Hook.

This puts the call on hold.

2. Wait for the transfer tone (three “beeps”).

3. Dial the number to which you want to transfer the call.

4. Wait for the ringback tone, then hang up your phone.

The call is transferred. You can also wait for the third party to answer if you want. In this case, the call transfer becomes attended.

5. If you want to get back to the first call (the call on hold), you

must perform two Flash-Hooks.

You are back with the first call and the third party is released.

Mediatrix 1104

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

Using the Call Forward Feature

Call Forward Unconditional

X To forward calls:

There are three types of Call Forward:

 Unconditional

 On Busy  On No Answer

The Call Forward – Unconditional feature allows you to forward your calls to another extension or line. When forwarding your calls outside the system, a brief ring is heard on your phone to remind you that the call forward service is active. You can still make calls from your phone.

This assumes that your system administrator has properly enabled the Call Forward – Unconditional service.

1. Take the receiver off-hook.

2. Wait for the dial tone.

3. Dial the sequence your system administrator has

implemented to activate the call forward – unconditional service.

This sequence could be something like *70.

4. Wait for the transfer tone (three “beeps”) followed by the dial

tone.

Mediatrix 1104

5. Dial the number to which you want to forward your calls.

Dial any access code if required.

6. Wait for three “beeps” followed by a silent pause.

The call forward is established.

7. Hang up your phone.

The calls are checked against the digit maps set up by your system administrator. See your system administrator for more information.

X To check if the call forward has been properly established:

1. Take the receiver off-hook.

2. Wait for the dial tone.

3. Dial your extension or phone number.

The call is forwarded to the desired phone number.

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

4. Hang up your phone.

X To cancel the call forward:

1. Take the receiver off-hook.

2. Wait for the dial tone.

3. Dial the sequence your system administrator has

implemented to deactivate the call forward – unconditional service.

This sequence could be something like *71.

4. Wait for the transfer tone (three “beeps”) followed by the dial

tone.

The call forward is cancelled.

5. Hang up your phone.

Call Forward on Busy

The Call Forward – On Busy feature allows you to forward your calls to a pre-determined extension if you are already on the line.

This assumes that your system administrator has properly enabled the Call Forward on Busy service.

X To forward calls:

1. Take the receiver off-hook.

2. Wait for the dial tone.

3. Dial the sequence your system administrator has

implemented to activate the call forward on busy service.

This sequence could be something like *72.

4. Wait for the transfer tone (three “beeps”) followed by the dial

tone.

5. Dial the number to which you want to forward your calls.

Dial any access code if required.

6. Wait for three “beeps” followed by a silent pause.

The call forward is established.

7. Hang up your phone.

The calls are checked against the digit maps set up by your system administrator. See your system administrator for more information.

Mediatrix 1104

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

X To cancel the call forward:

1. Take the receiver off-hook.

2. Wait for the dial tone.

3. Dial the sequence your system administrator has

implemented to deactivate the call forward on busy service.

This sequence could be something like *73.

4. Wait for the transfer tone (three “beeps”) followed by the dial

tone.

The call forward is cancelled.

5. Hang up your phone.

Call Forward on No Answer

The Call Forward – On No Answer feature allows you to forward your calls to a pre-determined extension if you do not answer before a specific amount of time. This amount of time has been set up by your system administrator.

This assumes that your system administrator has properly enabled the Call Forward on No Answer service.

X To forward calls:

1. Take the receiver off-hook.

2. Wait for the dial tone.

3. Dial the sequence your system administrator has

implemented to activate the call forward on no answer service.

This sequence could be something like *74.

4. Wait for the transfer tone (three “beeps”) followed by the dial

tone.

5. Dial the number to which you want to forward your calls.

Dial any access code if required.

6. Wait for three “beeps” followed by a silent pause.

The call forward is established.

Mediatrix 1104

7. Hang up your phone.

The calls are checked against the digit maps set up by your system administrator. See your system administrator for more information.

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

X To cancel the call forward:

1. Take the receiver off-hook.

2. Wait for the dial tone.

3. Dial the sequence your system administrator has

implemented to deactivate the call forward on no answer service.

This sequence could be something like *75.

4. Wait for the transfer tone (three “beeps”) followed by the dial

tone.

The call forward is cancelled.

5. Hang up your phone.

Conferencing Calls

Requirements For the conference call to occur successfully, all parties must meet the

A conference call between two or more parties can be set up.

Note that:

 Only 3-way conferences are supported.

 Any participant of the conference can put the conference

on hold and make other calls. This participant may then rejoin the conference at a later time by unholding it. The participant that has initiated the conference cannot put the conference on hold.

This assumes that your system administrator has properly enabled the Conference service.

following requirements:

 Support at least one of the PCM codecs (G.711 µ-law

and G.711 A-law) enabled on the line that is having the conference.

 Ability to dynamically change codec during a call.  The packetization period (ptime) should be the same for

all the partcipants of the conference. If this is not the case, then part of the conversation may be lost, resulting in a choppy voice. For better results, Mediatrix Telecom, Inc. recommends to set the packetization period of all participants of a 3-way conference to 30 milliseconds.

Mediatrix 1104

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

Managing a Conference Call

If you are on the phone with one person and want to conference with a third one, you can do so. In the following examples, let’s assume that:

 A is the conference initiator.  B is the person called on the first line.

 C is the person called on the second line.

X To initiate a three-way conference (A and B already connected):

1. A performs a Flash-Hook.

This puts B on hold and the second line is automatically connected. A hears a dial tone.

2. A dials C’s number.

A and C are now connected.

3. A performs another Flash-Hook.

The call on hold (B) is reactivated. A is now conferencing with B and C.

X A wants to transfer B to C during the conference:

1. A hangs up.

The conference is terminated. B and C are now connected.

Mediatrix 1104

X A wants to terminate the call with C and get back to the call with B

during the conference:

1. A performs a Flash-Hook.

The conference is terminated and the call with C is disconnected. A and B are still connected and can go on with their conversation.

X B (or C) hangs up during the conference:

1. B (or C) hangs up during the conference.

The conference is terminated, but the call between A and C (or B) is not affected and they are still connected.

Chapter 1 - Using the Mediatrix 1104 User’s Manual (SIP Version)

Using the Automatic Speed Dialing

When using the automatic speed dialing, a specific number is automatically dialed upon taking the receiver off hook. This number has been set up by your system administrator.

Mediatrix 1104

A PPENDIX

Standards Compliance

This Appendix lists the various standards compliance of the Mediatrix

1104.

Standards Supported

The Mediatrix 1104 complies to the following standards:

Table 1: Standards Compliance

Category Specification

Agency approvals • cULus

•JATE

• European Union, CE mark (Declaration of Conformity)

Safety standards • UL60950 3

• CAN/CSA-C22.2 No. 60950-00

• AS/NZS 3260:1993

• ACA TS001:1997

• IEC 60950 (3 national deviations)

Emissions • FCC Part 15:1998 Class B

• EN55022 (1994) Class B(With amendments A1 and A2)

• AS/NZS 3548:1995 Class B

• EN61000-3-2 (1995) Harmonic current emissions

• EN61000-3-3 (1995) Voltage fluctuations and flicker

Edition (2000)

Edition (1999) with all

Mediatrix 1104

Immunity EN55024:1998 including the following:

• EN61000-4-2 (1995), ESD

• EN61000-4-3 (1996), Radiated RF

• EN61000-4-4 (1995), Burst Transients

• EN61000-4-5 (1995), Surge

• EN61000-4-6 (1996), Conducted RF

• EN61000-4-11 (1995), Voltage Dips and Interruptions

Appendix A - Standards Compliance User’s Manual (SIP Version)

Table 1: Standards Compliance (Continued)

Category Specification

Telecom • FCC Part 68:Subpart D

• Industry Canada (CS-03, Issue 8, Part

• TBR 21: January 1998

• ACA TS002 - 1997

Note: The standards compliance of the Mediatrix 1104 are printed

on a sticker located on the bottom of the unit.

Disclaimers The following are the disclaimers related to the Mediatrix 1104.

Federal Communications Commission (FCC) Part 15

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and

receiver.

 Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician

for help

Note: Any changes or modifications not expressly approved by

Mediatrix Telecom, Inc. could void the user’s authority to operate the equipment.

Mediatrix 1104

Appendix A - Standards Compliance User’s Manual (SIP Version)

Federal Communications Commission (FCC) Part 68

This equipment complies with Part 68 of the FCC Rules. On the underside of this equipment is a label that contains, among other information, the FCC Registration Number, Ringer Equivalence Number (REN) and USOC jack type for this equipment. You must, upon request, provide this information to your telephone company.

The REN is useful to determine the quantity of devices you may connect to your telephone line and still have all of those devices ring when your telephone number is called. In most, but not all areas, the sum of the REN’s of all devices connected to one line should not exceed five (5.0). To be certain of the number of devices you may connect to your line, as determined by the REN, you should contact your telephone company to determine the maximum REN for your calling area. If your telephone equipment causes harm to the telephone network, the Telephone Company may discontinue your service temporarily. If possible, they will notify you in advance, but if advance notice is not practical, you will be notified as soon as possible. You will be informed of your right to file a complaint with the FCC.

Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.

If you experience trouble with this telephone equipment, please contact Mediatrix Telecom, Inc. for information on how to obtain service or repairs. The telephone company may ask that you disconnect this equipment from the network until the problem has been corrected or until you are sure that the equipment is not malfunctioning.

This equipment may not be used on coin service provided by the telephone company.

Connection to party lines is subject to state tariffs.

INSTALLATION

This device is equipped with an USOC RJ-11C connector.

Mediatrix 1104

Appendix A - Standards Compliance User’s Manual (SIP Version)

Industry Canada

The Industry Canada Label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user's satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Warning: Users should not attempt to make such connections

themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

Mediatrix 1104

Note: The Ringer Equivalence Number (REN) for this terminal

equipment is 0.0. The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Number of all the devices does not exceed

Note: This equipment meets the applicable Industry Canada

Terminal Equipment Technical Specifications. This is confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.

Appendix A - Standards Compliance User’s Manual (SIP Version)

CE Marking DECLARATION OF CONFORMITY

We Mediatrix Telecom, Inc. located at 4229 Garlock st. Sherbrooke, Québec, Canada J1L 2C8 declare that for the

hereinafter mentioned product the presumption of conformity with the applicable essential requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT (RTTE DIRECTIVE) is given.

Any unauthorized modification of the product voids this declaration.

For a copy of the original signed Declaration Of Conformity please contact Mediatrix Telecom, Inc. at the above address.
