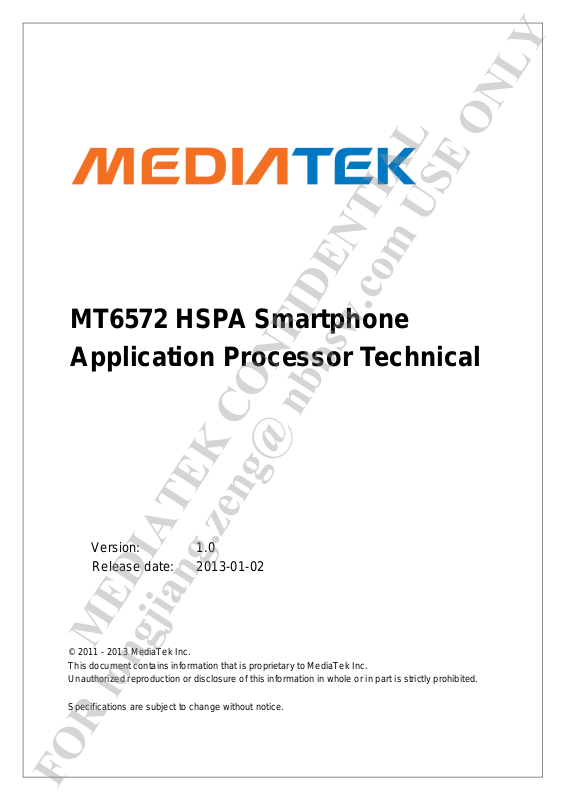

MT6572 HSPA Smartphone
Application Processor Technical
Version: 1.0
Release date: 2013-01-02
MEDIATEK CONFIDENTIAL
© 2011 - 2013 MediaTek Inc.
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Specifications are subject to change without notice.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Page 2
MT6572
HSPA Smartphone Application Processor Technical
Brief
V1.0 Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 2 of 64
Revision
Date
Author
Description
1.0
2013-01-02
SY Jan
First release
Document Revision History
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 3
MT6572
HSPA Smartphone Application Processor Technical
Brief
V1.0 Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 3 of 64
Table of Contents
Document Revision History .................................................................................... 2
Table of Contents ..................................................................................................... 3
Preface ...................................................................................................................... 5
1 System Overview ................................................................................................ 6
1.1 Platform Features ................................................................................................................... 7
1.2 MODEM Features ................................................................................................................... 9
1.3 Connectivity Features ........................................................................................................... 10
1.4 Multimedia Features ............................................................................................................. 11
1.5 General Description .............................................................................................................. 13
2 Product Description .......................................................................................... 15
2.1 Pin Description ...................................................................................................................... 15
2.2 Electrical Characteristic ........................................................................................................ 34
2.3 EMI Timing Diagram ............................................................................................................. 36
2.4 System Configuration ........................................................................................................... 40
2.5 Power-on Sequence ............................................................................................................. 41
2.6 Analog Baseband ................................................................................................................. 43
2.7 Package Information ............................................................................................................. 62
2.8 Ordering Information ............................................................................................................. 64
Lists of Tables and Figures
Table 1. Pin coordinate (use LPDDR1) ................................................................................................. 16
Table 2. Acronym for pin type ............................................................................................................... 24
Table 3. Detailed pin description (use LPDDR1) .................................................................................. 24
Table 4. Absolute maximum ratings for power supply ........................................................................... 34
Table 5. Recommended operating conditions for power supply ........................................................... 34
Table 6. EMI clock timing parameters ................................................................................................... 36
Table 7. EMI LPDDR1 timing parameters ............................................................................................. 37
Table 8. EMI LPDDR2 timing parameters ............................................................................................. 38
Table 9 Mode selection ......................................................................................................................... 40
Table 10 Constant tied pins ................................................................................................................... 40
Table 11. Baseband downlink specifications ......................................................................................... 44
MEDIATEK CONFIDENTIAL
Table 12. Baseband uplink transmitter specifications ........................................................................... 46
Table 13. APC-DAC specifications ........................................................................................................ 47
Table 14. VBIAS-DAC specifications .................................................................................................... 48
Table 15. Definitions of AUXADC channels .......................................................................................... 49
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 4
MT6572
HSPA Smartphone Application Processor Technical
Brief
V1.0 Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 4 of 64
Table 16. AUXADC specifications ......................................................................................................... 50
Table 17. Clock squarer 1 & 2 specifications ........................................................................................ 51
Table 18. MT6572 PLL list ..................................................................................................................... 52
Table 19. ARMPLL specifications .......................................................................................................... 52
Table 20. MAINPLL specifications ......................................................................................................... 53
Table 21. UNIVPLL specifications ......................................................................................................... 53
Table 22. MDPLL specifications ............................................................................................................ 53
Table 23. WPLL specifications .............................................................................................................. 54
Table 24. WHPLL specifications ............................................................................................................ 54
Table 25. MCUPLL1 specifications ....................................................................................................... 55
Table 26. BTPLL specifications ............................................................................................................. 55
Table 27. WFPLL specifications ............................................................................................................ 56
Table 28. Temperature sensor specifications ........................................................................................ 57
Table 29. Wi -Fi/BT receiver specifications ........................................................................................... 58
Table 30. Wi-Fi/BT transmitter specifications ........................................................................................ 59
Table 31 . GPS receiver specifications ................................................................................................. 60
Table 32 Thermal operating specifications ............................................................................................ 62
Figure 1. Block diagram of MT6572 ...................................................................................................... 14
Figure 2. Ball map view for LPDDR1 .................................................................................................... 15
Figure 3. Ball map view for LPDDR2 .................................................................................................... 16
Figure 4. EMI clock EDCLKx and EDCLKx_B ...................................................................................... 36
Figure 5. Differential signals of EMI clock ............................................................................................. 36
Figure 6. EMI LPDDR1 write timing ...................................................................................................... 37
Figure 7 . EMI LPDDR1 Read timing .................................................................................................... 37
Figure 8. EMI LPDDR2 write timing ...................................................................................................... 38
Figure 9. EMI LPDDR2 read timing ...................................................................................................... 38
Figure 10. Power on/off sequence with XTAL ....................................................................................... 41
Figure 11. Power on/off sequence without XTAL .................................................................................. 42
Figure 12. Block diagram of BBRX-ADC .............................................................................................. 44
Figure 13. Block diagram of APC-DAC ................................................................................................. 47
Figure 14. Block diagram of VBIAS-DAC .............................................................................................. 48
Figure 15. Block diagram of AUXADC .................................................................................................. 49
Figure 16. Wi-Fi/BT receiver analog based-band ................................................................................. 58
Figure 17. Wi -Fi/BT transmitter analog based-band ............................................................................ 59
Figure 18. GPS receiver analog based-band........................................................................................ 60

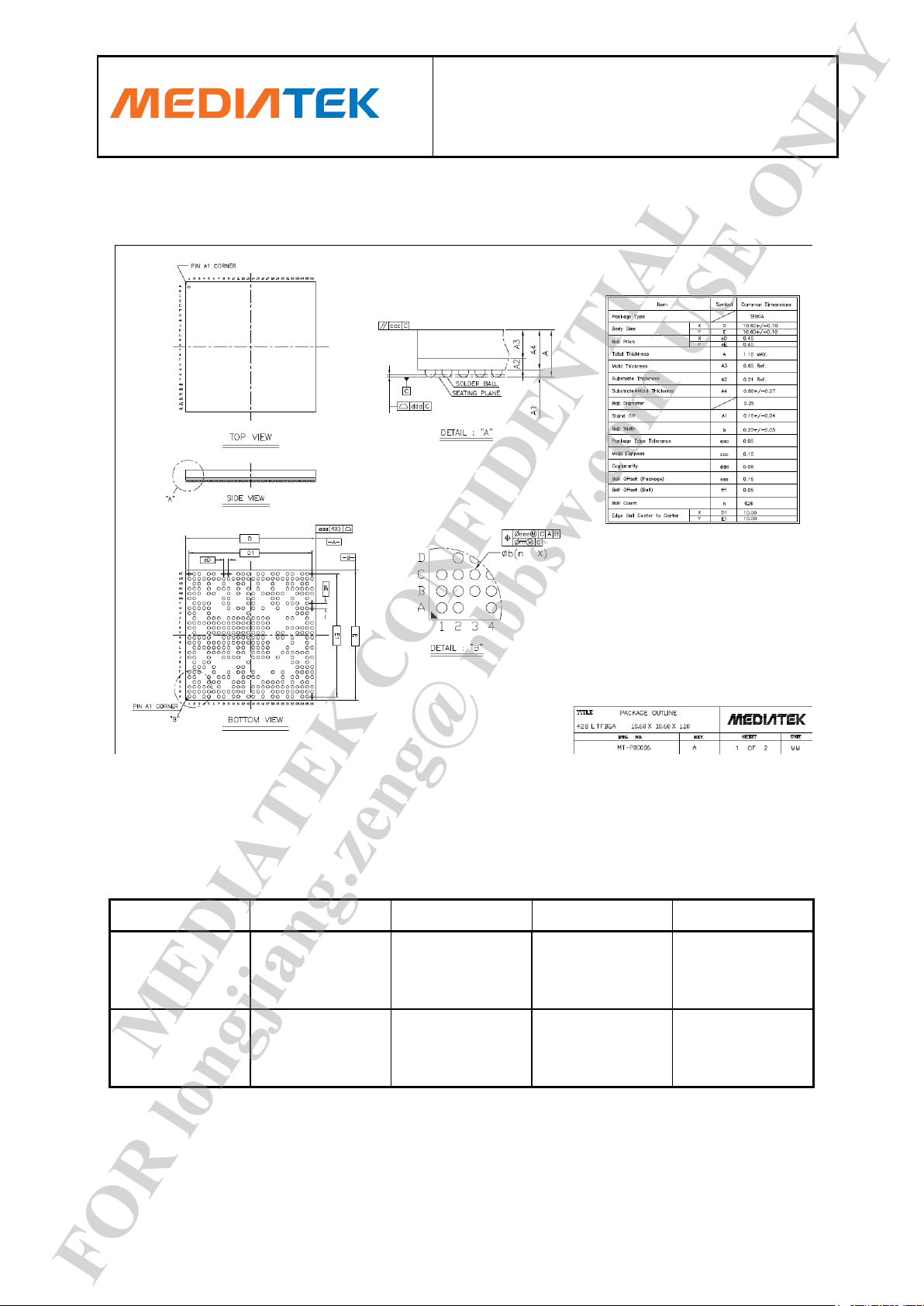

Figure 19 Outlines and dimensions of TFBGA 10.6mm*10.6mm, 428-ball, 0.4mm pitch package ...... 62
MEDIATEK CONFIDENTIAL
Figure 20. Top mark of MT6572 ............................................................................................................ 64
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 5
MT6572
HSPA Smartphone Application Processor Technical
Brief
V1.0 Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 5 of 64
R/W
For both read and write access
RO
Read only
RC
Read only. After the register bank is read, every bit that is HIGH(1) will be cleared to LOW(0)
automatically.
WO
Write only
W1S
Write only. When data bits are written to the register bank, every bit that is HIGH(1) will
cause the corresponding bit to be set to 1. Data bits that are LOW(0) have no effects on the
corresponding bit.
W1C
Write only. When data bits are written to the register bank, every bit that is HIGH(1) will
cause the corresponding bit to be cleared to 0. Data bits that are LOW(0) have no effects on
the corresponding bit.
Preface
Acronyms for register types
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 6
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 6 of 64
1 System Overview
MT6572 is a highly integrated baseband
platform incorporating both modem and
application processing subsystems to enable 3G
smart phone applications, with integrated
Bluetooth, WiLAN and GPS modules. The chip
integrates a Dual-core ARM® Cortex-A7
MPCore
Cortex-R4 MCU and a powerful multi-standard
video accelerator. MT6572 supports various
interfaces, including parallel/serial NAND flash
memory and 32-bit LPDDR2 for optimal
performance, and supports booting from SLC
NAND or eMMC to minimize the overall BOM
cost. In addition, an extensive set of interfaces
and connectivity peripherals are included to
interface to cameras, touch-screen displays,
MMC/SD cards.
TM
operating up to 1.2GHz, an ARM®
An ARM® Cortex-R4, DSP, and 2G and 3G
coprocessors provide a powerful modem
subsystem capable of supporting WCDMA
Category 14 (21 Mbps) HSDPA downlink and
Category 6 (5.76 Mbps) HSUPA uplink data
rates or TD-SCDMA Category 14 (2.8 Mbps)
HSDPA downlink, Category 6 (2.2 Mbps)
HSUPA , as well as Class 12 GPRS and EDGE.
MT6572 also embodies wireless communication
device, including WLAN, Bluetooth and GPS.
With four advanced radio technologies
integrated into one single chip, MT6572 provides
the best and most convenient connectivity
solution among the industry. MT6572
implements advanced and sophisticated radio
coexistence algorithms and hardware
mechanisms. It also supports single antenna
sharing among 2.4 GHz antenna for Bluetooth,
WLAN and 1.575 GHz for GPS.
The application processor, a Dual-core ARM®
Cortex-A7 MPCoreTM which includes a NEON
multimedia processing engine, offers processing
power necessary to support the latest OpenOS
along with its demanding applications such as
web browsing, email, GPS navigation and
games. All are viewed on a high resolution touch
screen display with graphics enhanced by the
2D and 3D graphics acceleration. The
multi-standard video accelerator and an
advanced audio subsystem are also included to
provide advanced multimedia applications and
services such as streaming audio and video, a
multitude of decoders and encoders such as
H.264 and MPEG-4. Audio supported includes
FR, HR, EFR, AMR FR, AMR HR and
Wide-Band AMR vocoders, polyphonic ringtones
and advanced audio functions such as echo
MEDIATEK CONFIDENTIAL
cancellation, hands-free speakerphone
operation and noise cancellation.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 7
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 7 of 64
1.1 Platform Features
General
Smartphone,3 MCU subsystems
architecture
SLC NAND flash and eMMC
bootloader
Supports
LPDDR-1/LPDDR-2/LPDDR-3/P
MD external interfaces
Supports dual SIM/USIM
interface
Interface pins with RF and
radio-related peripherals
(antenna tuner, PA, …)
UART for modem
logging/debugging purpose
D-DDR3
AP MCU subsystem
Dual-core ARM® Cortex-A7
MPCore
NEON multimedia processing
TM
operating at 1.2GHz
engine with SIMDv2/VFPv4 ISA
support
32KB L1 I-cache and 32KB L1
D-cache
256KB unified L2 cache
DVFS technology with adaptive
operating voltage from 1.05V to
1.26V
MD MCU subsystem
ARM® Cortex-R4 processor with
maximum 480MHz operation
frequency
32KB I-cache, 16KB D-cache
256KB TCM (tightly-coupled
memory)
DSP for running modem/voice
tasks, with maximum 245.76MHz
operation frequency
High-performance AXI and AHB
bus
General DMA engine and
dedicated DMA channels for
peripheral data transfer
Watchdog timer for system error
MEDIATEK CONFIDENTIAL
recovery
Power management for clock
gating control
External memory interface
Supports LPDDR1/2/3, PC-DDR3
up to 2GB
32-bit data bus width
Memory clock up to 333MHz
Supports self-refresh/partial
self-refresh mode
Low-power operation
Programmable slew rate for
memory controller’s IO pads
Supports dual rank memory
device
Advanced bandwidth arbitration
control
Peripherals
USB2.0 high-speed OTG
supporting 8 Tx and 8 Rx
endpoints
USB2.0 full-speed host
NAND flash controller supporting
NAND bootable, iNAND2® and
MoviNAND®
2 UART for debugging and
applications
SPI for external device
2 I2C to control peripheral
devices, e.g. CMOS image
sensor, LCM or FM receiver
module
Maximum 5 PWM channels
(depending on system
configuration/IO usage)
I2S for connection with optional
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 8
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 8 of 64
external hi-end audio codec
GPIOs
2 sets of memory card controllers
supporting
SD/SDHC/MS/MSPRO/MMC and
SDIO2.0/3.0 protocols
Operating conditions
Core voltage: 1.15V
Processor DVFS voltage: 1.15V ~
1.26V (Typ. 1.15V; sleep mode
1.05V)
Processor SRAM voltage: 1.15V
~ 1.26V (Typ. 1.15V; sleep mode
1.05V)
GPU voltage: 1.15V
I/O voltage: 1.8V/2.8V/3.3V
Memory: 1.2V/1.8V/1.35V/1.5V
NAND: 1.8V
LCM interface: 1.8V
Clock source: 26MHz, 32.768kHz
Package
Type: TFBGA
10.6mm x 10.6mm
Height: 1.1mm maximum
Ball count: 428 balls
Ball pitch: 0.4mm
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 9
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 9 of 64
1.2 MODEM Features
3G UMTS FDD supported features
(with MT6166)
CPC (DTX in CELL_DCH, UL
DRX DL DRX), HS-SCCH-less,
HS-DSCH
MAC-ehs
Uplink Cat.6, throughput up to
GSM modem and voice CODEC
5.7Mbps
Downlink Cat. 14, throughput up
to 21Mbps
Fast dormancy
ETWS
Network selection enhancements
3G TDD supported features
TD-SCDMA/HSDPA/HSUPA
baseband
Supports TD-SCDMA Bands 34,
39 & 40 and Quad band
GSM/EDGE
Circuit-switched voice and data,
and packet-switched data
384/384Kbps class in UL/DL for
TD-SCDMA
TD-HSDPA: 2.8Mbps DL (Cat.14)
TD-HSUPA: 2.2Mbps UL (Cat.6)
F8/F9 ciphering/integrity
protection
Radio interface and baseband
front-end
High dynamic range delta-sigma
ADC converts the downlink
analog I and Q signals to digital
baseband
10-bit D/A converter for Automatic
Power Control (APC)
Programmable radio Rx filter with
adaptive gain control
MEDIATEK CONFIDENTIAL
Dedicated Rx filter for FB
with programmable driving
strength (shared by 2G & 3G
modem)
Supports multi-band
Dial tone generation
Noise reduction
Echo suppression
Advanced sidetone oscillation
reduction
Digital sidetone generator with
programmable gain
Two programmable acoustic
compensation filters
GSM quad vocoders for adaptive
multi-rate (AMR), enhanced full
rate (EFR), full rate (FR) and half
rate (HR)
GSM channel coding,
equalization and A5/1, A5/2 and
A5/3 ciphering
GPRS GEA1, GEA2 and GEA3
ciphering
Programmable
GSM/GPRS/EDGE modem
Packet switched data with
CS1/CS2/CS3/CS4 coding
schemes
GSM circuit switch data
GPRS/EDGE Class 12
Supports SAIC (single antenna
interference cancellation)
technology
Supports VAMOS (Voice services
over Adaptive Multi-user channels
on One Slot) technology in R9
spec
acquisition
Baseband Parallel Interface (BPI)
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 10
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 10 of 64
1.3 Connectivity Features
Supports integrated
WIFI/BlueTooth/GPS
Supports single antenna for
Bluetooth and WLAN, GPS
Self calibration
Supports TCXO & TSX
Best-in-class current
consumption performance
Intelligent BT/WLAN coexistence
scheme that goes beyond PTA
signaling (for example, transmit
window and duration that take
into account protocol exchange
sequence, frequency, etc.)
Wi-Fi
Single-band (2.4GHz) single
stream 802.11 b/g/n MAC/BB/RF
802.11 d/h/k compliant
Security: WFA WPA/WPA2
personal, WPS2.0, WAPI
(Hardware)
QoS: WFA WMM, WMM PS
Supports 802.11n optional
features: STBC, A-MPDU,
Blk-Ack, RIFS, MCS feedback,
20/40MHz coexistence (PCO),
unscheduled PSMP
Supports 802.11w protected
managed frames
Supports Wi-Fi Direct (WFA P-2-P
standard) Supports HotSpot 2.0
Passpoint
Per packet TX power control
BlueTooth
Bluetooth specification v2.1+EDR
Bluetooth specification 3.0+HS
compliance
Bluetooth v4.0 Low Energy (LE)
Rx sensitivity: GFSK -95dBm,
DQPSK -94dBm, 8-DPSK
-88dBm
Best-in-class BT/Wi-Fi
coexistence performance
Up to 4 piconets simultaneously
with background inquiry/page
scan
Supports Scatternet
Packet Loss Concealment (PLC)
function for better voice quality
Low-power scan function to
reduce power consumption in
scan modes
GPS
Supports GPS/QZSS/SBAS
(WAAS/MSAS/EGNOS/GAGAN)
Best-in-class sensitivity
performance
Full A-GPS capability
(E911/SUPL/EPO/HotStill)
Active interference cancellation
for up to 8 in-band tones
Low-power operational modes
5Hz update rate
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 11
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 11 of 64
1.4 Multimedia Features
Display
Supports landscape or portrait
panel resolution up to qHD
(960x540)
Supports 8/9/16/18-bit host
interface (MIPI DBI)
Supports 8/9/16/18/24/32-bit
serial interfaces
Supports landscape or portrait
panel resolution up to qHD
(960x540)
Supports 8/9/16/18-bit host
interface (MIPI DBI)
Supports 8/9/16/18/24/32-bit
serial interfaces
Supports 16/18/24-bit RGB
interfaces (MIPI DPI)
MIPI DSI interface (3 data lanes)
Embedded LCD gamma
correction
Supports true colors
4 overlay layers with per-pixel
alpha channel and gamma table
Supports spatial and temporal
dithering
Supports side-by-side format
output to stereo 3D panel in both
portrait and landscape modes
Supports color enhancement
Supports adaptive contrast
enhancement
Supports image/video/graphic
sharpness enhancement
Supports dynamic backlight
scaling
Graphics
OpenGL ES 1.1/2.0 3D graphic
accelerator
MEDIATEK CONFIDENTIAL
OpenVG1.1 vector graphics
accelerator
Supports 5 MP Capture up to
15fps
Supports MIPI CSI-2 high-speed
camera serial interface with 2
data lane (for main) + 2 data lane
(for sub)
Supports face detection and
visual tracking
Supports zero shutter delay
image capture
Supports capturing image when
recording video
Supports JPEG decoder for
baseline decoding up to 29.4M
pixel/sec; supports progressive
format decoding
Supports JPEG encoder for
baseline encoding up to 17.5M
pixel/sec
Video
H.264 decoder: Baseline 720p @
30fps
H.264 decoder: Main/high profile
720p@30fps
MPEG-4 SP/ASP decoder: 720p
@ 30fps
DIVX3/DIVX4/DIVX5/DIVX6/DIV
X HD/XVID decoder: 720p @
30fps
VP8 decoder: 720p @ 30fps
VC-1 decoder: 720p @ 30fps
MPEG-4 encoder: Simple profile
720p @ 30fps
H.263 encoder: 720p @ 30fps
H.264 encoder: Baseline profile
VGA @ 24fps
Audio
Sampling rates supported: 8kHz
to 48kHz
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 12
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 12 of 64
Sample formats supported:
8-bit/16-bit, Mono/Stereo
Interfaces supported: I2S,
proprietary audio interface for
MT6323
Customizable multiband
loudspeaker and headphone
compensation IIR filter
MediaTek proprietaty audio
post-processing, BesSound
Series: BesAudEnh (earphone
enhancer), BesLoudness (volume
maximizer), BesSurround (virtual
3D surround), BesEQ (multiband
equalizer), BesBass (bass
booster), BesLive (virtual auditory
space), BesRecord (mono/stereo
record, up-to 48KHz sampling
rate, with Stereo-widening)
Android built-in post processing
Audio encode: AMR-NB,
AMR-WB, AAC, OGG, ADPCM
Audio decode: WAV, MP3, MP2,
AAC, AMR-NB, AMR-WB, MIDI,
Vorbis, APE, AAC-plus v1,
AAC-plus v2, FLAC, WMA,
ADPCM
Speech
Speech codec (FR, HR, EFR,
AMR FR, AMR HR and
Wide-Band AMR)
CTM
Noise reduction
Noise suppression
Noise cancellation
Dual-MIC noise cancellation
Echo cancellation
Echo suppression
Dual-MIC input
Digital MIC input
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 13
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 13 of 64
1.5 General Description
MediaTek MT6572 is a highly integrated 3G System-on-chip (SoC) which incorporates advanced
features, e.g. HSPA modem, Dual-core ARM® Cortex-A7 MPCore
(OpenGL|ES 2.0), 5M camera, LPDDR2 up to 667MHz and high-definition 720p video decoder.
MT6572 helps phone manufacturers build high-performance 3G smart phones with PC-like browser,
3D gaming and cinema class home entertainment experiences.
World-leading technology
Based on MediaTek’s world-leading mobile chip SoC architecture with advanced 28nm process,
MT6572 is the brand-new generation smart phone SoC integrating MediaTek HSPA modem, 1.2GHz
Dual-core ARM® Cortex-A7 MPCoreTM, 3D graphics and high-definition 720pp video decoder.
Rich in features, high-valued product
To enrich the camera features, MT6572 equips a 5M camera with advanced features, e.g. auto focus,
anti-handshake, auto sensor defect pixel correction, continuous video AF, face detection, burst shot,
optical zoom and panorama view.
TM
operating at 1.2 GHz, 3D graphics
Incredible browser experience
The 1.2GHz Dual-core ARM® Cortex-A7 MPCoreTM with NEON multimedia processing engine brings
PC-like browser experiences and helps accelerate OpenGL|ES 2.0 3D Adobe Flash 10 rendering
performance to an unbeatable level.
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 14
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 14 of 64
MT6323
PMIC
ARM®
MALI-400
Graphics
accelerator
SIM
SIM
MMC/SD/SDIO
Qwerty
Keypad
LPDDR1
/LPDDR2
/LPDDR3
/PCDDR3
USB2.0
OTG
I2C
LCD
Control
Post-process
Video
Codec
Multimedia
Internal
Memory
DMA
ARM®
Cortex-R4
GP Timer
Modem MCU
External
Memory
Interface
Power
Management
TD-
SCDMA
UART
5MP
Camera
LCD
Battery
Speaker
MIC2
MIC1
MT6628
Touch Panel
GPIO
NAND
Flash
HSPA
GSM/GPRS/
EDGE
Modem
RX
ADCTXADC
AFCAPC
Modem Analog
SW
JTAG
Headset
MT6572
MT6166
W-CDMA/
TD-SCDMA/
GSM
RF
EDGE
RF
WCDMA
RF
TDSCDMA
RF
MT6627
WIFI/BT/GPS/FM
RF
ARM®
Cortex-A7
MPCore
TM
ARM®
Cortex-A7
MPCore
TM
NEON
L2 Cache
AP MCU
PLL DAC
Cellular Modem ABB
ADC
PLL DAC
WiFi/BTGPS ABB
ADC
Combo
WIFI
BT
GPS
JTAG
Camera
Multimedia
Figure 1. Block diagram of MT6572
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 15
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 15 of 64
2 Product Description
2.1 Pin Description
2.1.1 Ball Map View
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Figure 2. Ball map view for LPDDR1
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 16
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 16 of 64
Ball Loc.
Ball name
Ball Loc.
Ball name
Ball Loc.
Ball name
A1
AVSS18_MD
K5
AUD_CLK_MOSI
U21
RDP0_A
A2
UL_I_P
K6
VCCK
U22
RDN0_A
2.1.2 Pin Coordinate
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Figure 3. Ball map view for LPDDR2
Table 1. Pin coordinate (use LPDDR1)
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 17
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 17 of 64
Ball Loc.
Ball name
Ball Loc.
Ball name
Ball Loc.
Ball name
A4
AVSS18_MD
K7
VCCK
U25
DVSS18_MIPIRX
A5
AUX_IN5_YM
K8
VCCK
V1
ND15
A7
VM1
K9
VCCK
V2
LPD0
A8
VM0
K11
VCCK
V5
ND13
A10
BPI_BUS7
K12
VCCK
V13
VSS
A11
BPI_BUS3
K14
VCCK
V23
RDP1_A
A13
BPI_BUS6
K15
VCCK
V24
RDN1_A
A14
GND_WBG
K16
VCCK
V25
RCN_A
A16
GPS_RXIP
K17
VCCK
W1
ND2
A18
WB_TXQP
K20
DVDD18_CAM
W2
ND8
A19
WB_TXIN
K21
VSS
W3
ND3
A21
WB_RXIN
K22
MC1_DAT0
W4
ND6
A22
WB_RXIP
K23
MC1_CMD
W5
NCEB
A24
KROW1
K24
DVDD3_MC1
W9
VCCIO_EMI
A25
KCOL2
K25
CMRST2
W11
VSS
A26
DUMMY
L2
PMIC_SPI_MOSI
W12
VCCIO_EMI
B1
DL_Q_P
L3
DVDD18_VIO_1
W14
VCCIO_EMI
B2
UL_I_N
L4
PMIC_SPI_SCK
W16
VCCIO_EMI
B3
UL_Q_N
L5
PMIC_SPI_MISO
W19
VCCIO_EMI
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 18
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 18 of 64
Ball Loc.
Ball name
Ball Loc.
Ball name
Ball Loc.
Ball name
B4
UL_Q_P
L6
VCCK
W23
VSS
B5
AUX_IN3_YP
L7
VCCK
W24
DVDD3_LCD
B6
AUX_IN1
L8
VCCK
W25
RCP_A
B7
AUX_IN0
L9
VCCK
W26
VSS
B8
BPI_BUS13
L11
VSS
Y2
ND1
B9
BPI_BUS12
L12
VSS
Y3
ND9
B10
BPI_BUS8
L14
VSS
Y4
ND12
B11
BPI_BUS1
L15
VSS
Y5
NWRB
B12
BPI_BUS0
L16
VSS
Y8
EDQS2
B14
GPS_RXQN
L17
VCCK
Y9
EDQS3_B
B15
GPS_RXQP
L21
MC1_CK
Y13
EDQS1
B16
GPS_RXIN
L25
CMPDN2
Y14
EDQS0_B
B18
WB_TXQN
L26
MC1_DAT3
Y18
EDCLK0_B
B19
WB_TXIP
M1
SIM2_SIO
Y19
EDCLK1
B20
WB_RXQN
M2
SYSRSTB
Y21
VSS
B21
WB_RXQP
M3
SIM1_SIO
Y22
CMMCLK
B22
GND_WBG
M5
VSS
Y23
CMPCLK
B23
SDA_1
M6
VCCK
Y25
CMDAT2
B24
SCL_1
M7
VCCK
Y26
CMDAT3
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 19
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 19 of 64
Ball Loc.
Ball name
Ball Loc.
Ball name
Ball Loc.
Ball name
B25
KROW0
M8
VCCK
AA1
DVDD18_MC0
B26
KROW2
M9
VCCK
AA2
ND0
C1
DL_Q_N
M10
VCCK
AA8
EDQS2_B
C2
DL_I_N
M11
VSS
AA9
EDQS3
C3
AVSS18_MD
M12
VSS
AA13
EDQS1_B
C4
AUX_IN4_XM
M13
VSS
AA14
EDQS0
C5
AUX_IN2_XP
M14
VSS
AA18
EDCLK0
C7
BSI_DATA1
M15
VSS
AA19
EDCLK1_B
C10
DVDD28_BPI
M16
VSS
AA22
LPRDB
C11
BPI_BUS5
M17
VCCK
AA25
CMDAT1
C12
BPI_BUS2
M22
MC1_DAT1
AB1
ND4
C14
CONN_RSTB
M25
MC1_DAT2
AB2
NREB
C15
GND_WBG
N1
LPD17
AB3
NWPB
C16
GND_WBG
N2
LPD16
AB5
VSS
C17
GND_WBG
N3
LPD15
AB6
ED16
C18
GND_WBG
N4
LPD13
AB9
ED24
C19
GND_WBG
N5
LPD11
AB11
VSS
C20
GND_WBG
N8
VSS
AB13
EDQM0
C21
GND_WBG
N9
VSS
AB14
VSS
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 20
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 20 of 64
Ball Loc.
Ball name
Ball Loc.
Ball name
Ball Loc.
Ball name
C22
CONN_WB_CTRL4
N10
VSS
AB16
ED0
C23
CONN_WB_CTRL5
N11
VSS
AB17
VREF1
C24
KCOL0
N12
VSS
AB18
EA18
C25
SCL_0
N13
VSS
AB19
EA14
C26
SDA_0
N14
VSS
AB20
ECAS_B
D2
DL_I_P
N15
VSS
AB23
LPA0
D3
AVDD18_MD
N16
VSS
AB24
DVDD18_LCD
D5
TXBPI
N19
TCP
AB25
CMDAT0
D6
BSI_DATA2
N20
TCN
AB26
LPTE
D7
BPI_BUS15
N22
VSS
AC1
ND11
D10
BPI_BUS9
N25
TDN1
AC2
ND10
D11
BPI_BUS4
N26
TDP1
AC3
NCLE
D12
PWM_A
P2
LPD14
AC5
ED20
D16
GND_WBG
P5
LPD9
AC7
ED25
D17
GND_WBG
P6
VCCK_CPU
AC8
VSS
D18
GND_WBG
P7
VCCK_CPU
AC9
ED26
D19
GND_WBG
P8
VCCK_CPU
AC11
VREF0
D20
GND_WBG
P9
VCCK_CPU
AC13
ED8
D22
CONN_WB_CTRL2
P10
VSS
AC15
ED1
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 21
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 21 of 64
Ball Loc.
Ball name
Ball Loc.
Ball name
Ball Loc.
Ball name
D24
KCOL1
P11
VSS
AC18
EA3
D25
URXD1
P12
VSS
AC21
VSS
E1
CLK26M
P13
VSS
AC22
ERESET
E2
AVSS18_MD
P14
VSS
AC23
EA12
E5
AVDD18_AP
P15
VSS
AC24
FSOURCE
E7
BPI_BUS14
P16
VSS
AC25
LPWRB
E8
BPI_BUS11
P19
TDN0
AC26
LRSTB
E9
BPI_BUS10
P20
TDP0
AD2
ND5
E12
PWM_B
P23
TDN2
AD3
NALE
E13
CONN_F2W_DAT
P24
TDP2
AD5
ED21
E14
CONN_SDATA
P25
DVSS18_MIPITX
AD8
EDQM2
E15
CONN_SEN
P26
VRT
AD11
VSS
E20
CONN_WB_CTRL0
R1
LPD10
AD12
EDQM1
E22
CONN_WB_CTRL3
R2
LPD12
AD15
ED14
E23
SPI_CS
R5
LPD7
AD18
EA10
E25
UTXD1
R6
VCCK_CPU
AD21
ERAS_B
E26
UTXD2
R7
VCCK_CPU
AD22
EA11
F1
AVDD28_DAC
R8
VCCK_CPU
AD24
ECKE
F2
APC
R9
VCCK_CPU
AD25
LPCE0B
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 22
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 22 of 64
Ball Loc.
Ball name
Ball Loc.
Ball name
Ball Loc.
Ball name
F3
VBIAS
R10
VSS
AE1
ND7
F6
REFP
R11
VSS
AE2
ND14
F9
BSI_DATA0
R12
VSS
AE3
NRNB
F11
BSI_EN
R13
VSS
AE4
ED19
F12
CONN_F2W_CLK
R14
VSS
AE5
ED22
F14
CONN_XO_IN
R15
VSS
AE6
ED30
F18
AVDD18_WBG
R16
VSS
AE7
ED28
F20
CONN_WB_CTRL1
R17
VCCK
AE8
ED27
F23
SPI_SCK
R21
RDP1
AE9
ED12
F24
SPI_MISO
R22
RDN1
AE10
ED13
F25
SPI_MOSI
R23
RDP0
AE11
ED15
F26
URXD2
R24
RDN0
AE12
EDQM3
G2
WATCHDOG
R25
DVDD18_MIPITX
AE13
ED6
G3
VSS
R26
RCN
AE14
ED4
G4
TESTMODE
T1
LPD8
AE15
ED5
G6
REFN
T2
LPD6
AE16
ED7
G11
BSI_CLK
T3
LPD3
AE17
EA16
G12
CONN_SCLK
T4
LPD1
AE18
EA17
G23
AVSS33_USB
T5
LPD5
AE19
EA2
G24
AVDD33_USB
T6
VCCK_CPU
AE20
EA1
G25
USB_DP
T7
VCCK_CPU
AE21
EA15
G26
USB_DM
T8
VCCK_CPU
AE22
EA13
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 23
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 23 of 64
Ball Loc.
Ball name
Ball Loc.
Ball name
Ball Loc.
Ball name
H2
CLK32K_IN
T9
VCCK_CPU
AE23
EA8
H4
SRCLKENA
T10
VSS
AE24
EA6
H5
SIM1_SCLK
T11
VSS
AE25
EA9
H13
DVDD18_VIO_3
T12
VSS
AE26
EA4
H22
CMPDN
T13
VSS
AF1
VSS
H23
AVDD18_USB
T14
VSS
AF2
ED17
H25
USB_VRT
T15
VSS
AF3
ED18
J1
AUD_DAT_MISO
T16
VCCK
AF5
ED23
J2
EINTX
T17
VCCK
AF6
ED31
J5
SIM2_SCLK
T25
DVDD18_MIPIRX
AF8
ED29
J8
VCCK
T26
RCP
AF9
ED9
J9
VCCK
U2
LPD4
AF11
ED10
J10
VCCK
U5
LPD2
AF12
ED11
J11
VCCK
U6
VCCK_CPU
AF13
VSS
J14
VCCK
U7
VCCK_CPU
AF15
ED3
J15
VCCK
U9
DVDD18_PLLGP
AF16
ED2
J16
VCCK
U10
VSS
AF18
EA0
J17
VCCK
U11
VSS
AF19
ECS1_B
J19
DVDD18_VIO_2
U12
VCCK
AF21
EWR_B
J22
CMRST
U13
VCCK
AF22
ECS0_B
J25
CHD_DM
U14
VCCK
AF24
EA5
J26
CHD_DP
U15
VCCK
AF25
EA7
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 24
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 24 of 64
Ball Loc.
Ball name
Ball Loc.
Ball name
Ball Loc.
Ball name
K1
AUD_DAT_MOSI
U16
VCCK
AF26
VSS
K2
PMIC_SPI_CSN
U17
VCCK
Abbreviation
Description
AI
Analog input
AO
Analog output
AIO
Analog bi-direction
DI
Digital input
DO
Digital output
DIO
Digital bi-direction
P
Power
G
Ground
Pin name
Type
Description
Power domain
SYSTEM
SYSRSTB
DIO
System reset input
DVDD18_VIO_1
WATCHDOG
DO
Watchdog reset output
DVDD18_VIO_1
TESTMODE
DIO
Test mode
DVDD18_VIO_1
RTC32K_IN
DIO
32K clock intput
DVDD18_VIO_1
SRCLKENA
DIO
26MHz co-clock enable output
DVDD18_VIO_1
PMIC
PMIC_SPI_MOSI
DIO
PMIC SPI control interface
DVDD18_VIO_1
PMIC_SPI_MISO
DIO
PMIC SPI control interface
DVDD18_VIO_1
PMIC_SPI_CSN
DIO
PMIC SPI control interface
DVDD18_VIO_1
PMIC_SPI_SCK
DIO
PMIC SPI control interface
DVDD18_VIO_1
EINTX
DIO
PMIC SPI control interface
DVDD18_VIO_1
AUD_CLK_MOSI
DIO
PMIC audio input interface
DVDD18_VIO_1
AUD_DAT_MOSI
DIO
PMIC audio input interface
DVDD18_VIO_1
ADC_DAT_MISO
DIO
PMIC audio input interface
DVDD18_VIO_1
SIM
SIM1_SIO
DIO
SIM1 data, PMIC interface
DVDD18_VIO_1
SIM1_SCLK
DIO
SIM1 clock, PMIC interface
DVDD18_VIO_1
SIM2_SIO
DIO
SIM2 data, PMIC interface
DVDD18_VIO_1
SIM2_SCLK
DIO
SIM2 clock, PMIC interface
DVDD18_VIO_1
LCD
2.1.3 Detailed Pin Description
Table 2. Acronym for pin type
Table 3. Detailed pin description (use LPDDR1)
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 25
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 25 of 64
Pin name
Type
Description
Power domain
LPCE0B
DIO
Parallel display interface chip
select 0 output
DVDD3_LCD/DVDD18_LCD
LPTE
DIO
Parallel display interface tearing
effect
DVDD3_LCD/DVDD18_LCD
LRSTB
DIO
Parallel display interface Reset
Signal
DVDD3_LCD/DVDD18_LCD
LPWRB
DIO
Parallel display interface Write
Signal
DVDD3_LCD/DVDD18_LCD
LPRDB
DIO
Parallel display interface Read
Signal
DVDD3_LCD/DVDD18_LCD
LPA0
DIO
Parallel display interface
Address Signal
DVDD3_LCD/DVDD18_LCD
LPD17
DIO
Data pin 17 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD16
DIO
Data pin 16 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD15
DIO
Data pin 15 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD14
DIO
Data pin 14 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD13
DIO
Data pin 13 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD12
DIO
Data pin 12 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD11
DIO
Data pin 11 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD10
DIO
Data pin 10 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD9
DIO
Data pin 9 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD8
DIO
Data pin 8 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD7
DIO
Data pin 7 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD6
DIO
Data pin 6 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD5
DIO
Data pin 5 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD4
DIO
Data pin 4 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD3
DIO
Data pin 3 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD2
DIO
Data pin 2 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD1
DIO
Data pin 1 for DBI parallel LCD
interface
DVDD18_VIO_1
LPD0
DIO
Data pin 0 for DBI parallel LCD
interface
DVDD18_VIO_1
PWM
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 26
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 26 of 64
Pin name
Type
Description
Power domain
PWM_A
DIO
PWM_A
DVDD18_VIO_3
PWM_B
DIO
PWM_B
DVDD18_VIO_3
UART1
UTXD1
DIO
UART1 TX
DVDD18_VIO_2
URXD1
DIO
UART1 RX
DVDD18_VIO_2
UART2
UTXD2
DIO
UART2 TX
DVDD18_VIO_2
URXD2
DIO
UART2 RX
DVDD18_VIO_2
SPI
SPI_CS
DIO
SPI chip select
DVDD18_VIO_2
SPI_MISO
DIO
SPI data in
DVDD18_VIO_2
SPI_MOSI
DIO
SPI data out
DVDD18_VIO_2
SPI_SCK
DIO
SPI clock
DVDD18_VIO_2
BPI
BPI_BUS0
DIO
BPI BUS0
DVDD28_BPI/DVDD18_VIO_3
BPI_BUS1
DIO
BPI BUS1
DVDD28_BPI/DVDD18_VIO_3
BPI_BUS2
DIO
BPI BUS2
DVDD28_BPI/DVDD18_VIO_3
BPI_BUS3
DIO
BPI BUS3
DVDD28_BPI/DVDD18_VIO_3
BPI_BUS4
DIO
BPI BUS4
DVDD28_BPI/DVDD18_VIO_3
BPI_BUS5
DIO
BPI BUS5
DVDD28_BPI/DVDD18_VIO_3
BPI_BUS6
DIO
BPI BUS6
DVDD28_BPI/DVDD18_VIO_3
BPI_BUS7
DIO
BPI BUS7
DVDD18_VIO_3
BPI_BUS8
DIO
BPI BUS8
DVDD18_VIO_3
BPI_BUS9
DIO
BPI BUS9
DVDD18_VIO_3
BPI_BUS10
DIO
BPI BUS10
DVDD18_VIO_3
BPI_BUS11
DIO
BPI BUS11
DVDD18_VIO_3
BPI_BUS12
DIO
BPI BUS12
DVDD18_VIO_3
BPI_BUS13
DIO
BPI BUS13
DVDD18_VIO_3
BPI_BUS14
DIO
BPI BUS14
DVDD18_VIO_3
BPI_BUS15
DIO
BPI BUS15
DVDD18_VIO_3
VM
VM1
DIO
PA mode selection
DVDD18_VIO_3
VM0
DIO
PA mode selection
DVDD18_VIO_3
BSI
BSI_EN
DIO
BSI CS
DVDD18_VIO_3
BSI_CLK
DIO
BSI CLK
DVDD18_VIO_3
BSI_DATA0
DIO
BSI DATA0
DVDD18_VIO_3
BSI_DATA1
DIO
BSI DATA1
DVDD18_VIO_3
BSI_DATA2
DIO
BSI DATA2
DVDD18_VIO_3
TXBPI
DIO
RF MT6166 TXBPI
DVDD18_VIO_3
MSDC1
MC1_CLK
DIO
MSDC1 clock output
DVDD3_MC1/DVDD18_CAM
MC1_CMD
DIO
MSDC1 command pin
DVDD3_MC1/DVDD18_CAM
MC1_DAT0
DIO
MSDC1 data0 pin
DVDD3_MC1/DVDD18_CAM
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 27
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 27 of 64
Pin name
Type
Description
Power domain
MC1_DAT1
DIO
MSDC1 data1 pin
DVDD3_MC1/DVDD18_CAM
MC1_DAT2
DIO
MSDC1 data2 pin
DVDD3_MC1/DVDD18_CAM
MC1_DAT3
DIO
MSDC1 data3 pin
DVDD3_MC1/DVDD18_CAM
MSDC0
ND11/MC0_CLK
DIO
Nand-Flash Data 11 / MSDC0
clock output
DVDD18_MC0
NRNB/MC0_CMD
DIO
Parallel NAND interface chip
ready input/MSDC0 command
pin
DVDD18_MC0
ND10/MC0_DAT0
DIO
Nand-Flash Data 10/MSDC0
data0 pin
DVDD18_MC0
ND14/MC0_DAT1
DIO
Nand-Flash Data 14/MSDC0
data1 pin
DVDD18_MC0
NALE/MC0_DAT2
DIO
Parallel NAND interface
address latch enable
output/MSDC0 data2 pin
DVDD18_MC0
NREB/MC0_DAT3
DIO
Parallel NAND interface read
strobe output/MSDC0 data3 pin
DVDD18_MC0
NWPB/MC0_DAT4
DIO
Parallel NAND interface write
protect output/MSDC0 data4
pin
DVDD18_MC0
ND5/MC0_DAT5
DIO
Nand-Flash Data 5/MSDC0
data5 pin
DVDD18_MC0
ND7/MC0_DAT6
DIO
Nand-Flash Data 7/MSDC0
data6 pin
DVDD18_MC0
NCLE/MC0_DAT7
DIO
Parallel NAND interface
command latch enable
output7/MSDC0 data7 pin
DVDD18_MC0
ND4/MC0_RSTB
DIO
Nand-Flash Data 4/MSDC0
reset output
DVDD18_MC0
NFI
NCEB
DIO
Parallel NAND interface chip
select output
DVDD18_VIO_1
NWRB
DIO
Parallel NAND interface write
strobe output
DVDD18_MC0
NLD0
DIO
Nand-Flash Data 0
DVDD18_MC0
NLD1
DIO
Nand-Flash Data 1
DVDD18_VIO_1
NLD2
DIO
Nand-Flash Data 2
DVDD18_VIO_1
NLD3
DIO
Nand-Flash Data 3
DVDD18_VIO_1
NLD6
DIO
Nand-Flash Data 6
DVDD18_VIO_1
NLD8
DIO
Nand-Flash Data 8
DVDD18_VIO_1
NLD9
DIO
Nand-Flash Data 9
DVDD18_MC0
NLD12
DIO
Nand-Flash Data 12
DVDD18_MC0
NLD13
DIO
Nand-Flash Data 13
DVDD18_VIO_1
NLD15
DIO
Nand-Flash Data 15
DVDD18_VIO_1
EFUSE
FSOURCE
DIO
E-FUSE blowing power control
FSOURCE
EMI
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 28
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 28 of 64
Pin name
Type
Description
Power domain
ERESET
DIO
DDR3 reset output #
VCCIO_EMI
EDCLK0
DIO
DRAM clock 0 output
VCCIO_EMI
EDCLK0_B
DIO
DRAM clock 0 output #
VCCIO_EMI
EDCLK1
DIO
DRAM clock 1 output
VCCIO_EMI
EDCLK1_B
DIO
DRAM clock 1 output #
VCCIO_EMI
ECKE
DIO
DRAM command output CKE
VCCIO_EMI
ECS0_B
DIO
DRAM chip select 0 #
VCCIO_EMI
ECS1_B
DIO
DRAM chip select 1 #
VCCIO_EMI
ECAS_B
DIO
DRAM command output CAS#
VCCIO_EMI
ERAS_B
DIO
DRAM command output RAS#
VCCIO_EMI
ERW_B
DIO
DRAM command output WR#
VCCIO_EMI
EA0
DIO
DRAM address output 0
VCCIO_EMI
EA1
DIO
DRAM address output 1
VCCIO_EMI
EA2
DIO
DRAM address output 2
VCCIO_EMI
EA3
DIO
DRAM address output 3
VCCIO_EMI
EA4
DIO
DRAM address output 4
VCCIO_EMI
EA5
DIO
DRAM address output 5
VCCIO_EMI
EA6
DIO
DRAM address output 6
VCCIO_EMI
EA7
DIO
DRAM address output 7
VCCIO_EMI
EA8
DIO
DRAM address output 8
VCCIO_EMI
EA9
DIO
DRAM address output 9
VCCIO_EMI
EA10
DIO
DRAM address output 10
VCCIO_EMI
EA11
DIO
DRAM address output 11
VCCIO_EMI
EA12
DIO
DRAM address output 12
VCCIO_EMI
EA13
DIO
DRAM address output 13
VCCIO_EMI
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 29
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 29 of 64
Pin name
Type
Description
Power domain
EA14
DIO
DRAM address output 14
VCCIO_EMI
EA15
DIO
DRAM address output 15
VCCIO_EMI
EA16
DIO
DRAM address output 16
VCCIO_EMI
EA17
DIO
DRAM address output 17
VCCIO_EMI
EDQM0
DIO
DRAM DQM 0
VCCIO_EMI
EDQM1
DIO
DRAM DQM 1
VCCIO_EMI
EDQM2
DIO
DRAM DQM 2
VCCIO_EMI
EDQM3
DIO
DRAM DQM 3
VCCIO_EMI
EDQS0
DIO
DRAM DQS 0
VCCIO_EMI
EDQS0_B
DIO
DRAM DQS 0 #
VCCIO_EMI
EDQS1
DIO
DRAM DQS 1
VCCIO_EMI
EDQS1_B
DIO
DRAM DQS 1 #
VCCIO_EMI
EDQS2
DIO
DRAM DQS 2
VCCIO_EMI
EDQS2_B
DIO
DRAM DQS 2 #
VCCIO_EMI
EDQS3
DIO
DRAM DQS 3
VCCIO_EMI
EDQS3_B
DIO
DRAM DQS 3 #
VCCIO_EMI
ED0
DIO
DRAM data pin 0
VCCIO_EMI
ED1
DIO
DRAM data pin 1
VCCIO_EMI
ED2
DIO
DRAM data pin 2
VCCIO_EMI
ED3
DIO
DRAM data pin 3
VCCIO_EMI
ED4
DIO
DRAM data pin 4
VCCIO_EMI
ED5
DIO
DRAM data pin 5
VCCIO_EMI
ED6
DIO
DRAM data pin 6
VCCIO_EMI
ED7
DIO
DRAM data pin 7
VCCIO_EMI
ED8
DIO
DRAM data pin 8
VCCIO_EMI
ED9
DIO
DRAM data pin 9
VCCIO_EMI
ED10
DIO
DRAM data pin 10
VCCIO_EMI
ED11
DIO
DRAM data pin 11
VCCIO_EMI
ED12
DIO
DRAM data pin 12
VCCIO_EMI
ED13
DIO
DRAM data pin 13
VCCIO_EMI
ED14
DIO
DRAM data pin 14
VCCIO_EMI
ED15
DIO
DRAM data pin 15
VCCIO_EMI
ED16
DIO
DRAM data pin 16
VCCIO_EMI
ED17
DIO
DRAM data pin 17
VCCIO_EMI
ED18
DIO
DRAM data pin 18
VCCIO_EMI
ED19
DIO
DRAM data pin 19
VCCIO_EMI
ED20
DIO
DRAM data pin 20
VCCIO_EMI
ED21
DIO
DRAM data pin 21
VCCIO_EMI
ED22
DIO
DRAM data pin 22
VCCIO_EMI
ED23
DIO
DRAM data pin 23
VCCIO_EMI
ED24
DIO
DRAM data pin 24
VCCIO_EMI
ED25
DIO
DRAM data pin 25
VCCIO_EMI
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 30
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 30 of 64
Pin name
Type
Description
Power domain
ED26
DIO
DRAM data pin 26
VCCIO_EMI
ED27
DIO
DRAM data pin 27
VCCIO_EMI
ED28
DIO
DRAM data pin 28
VCCIO_EMI
ED29
DIO
DRAM data pin 29
VCCIO_EMI
ED30
DIO
DRAM data pin 30
VCCIO_EMI
ED31
DIO
DRAM data pin 31
VCCIO_EMI
VREF0
VREF1
DIO
VREF for DRAM IO
VCCIO_EMI
CAM
CMPCLK
DIO
Pixel clock from sensor
DVDD18_LCD
CMMCLK
DIO
Master clock to sensor
DVDD18_LCD
CMDAT0
DIO
Pixel data[0] from sensor
DVDD18_LCD
CMDAT1
DIO
Pixel data[1] from sensor
DVDD18_LCD
CMDAT2
DIO
Pixel data[2] from sensor
DVDD18_LCD
CMDAT3
DIO
Pixel data[3] from sensor
DVDD18_LCD
CMRST
DIO
Reset control to 1st sensor
DVDD18_CAM
CMPDN
DIO
Power down to 1st sensor
DVDD18_CAM
CMRST2
DIO
Reset control to 2nd sensor
DVDD18_CAM
CMPDN2
DIO
Power down to 2nd sensor
DVDD18_CAM
I2C0
SCL_0
DIO
I2C0 clock
DVDD18_VIO_2
SDA_0
DIO
I2C0 data
DVDD18_VIO_2
I2C1
SCL_1
DIO
I2C1 clock
DVDD18_VIO_2
SDA_1
DIO
I2C1 data
DVDD18_VIO_2
CONN
CONN_WB_CTRL5
DIO
WB control for CONN_RF
DVDD18_VIO_2
CONN_WB_CTRL4
DIO
WB control for CONN_RF
DVDD18_VIO_2
CONN_WB_CTRL3
DIO
WB control for CONN_RF
DVDD18_VIO_2
CONN_WB_CTRL2
DIO
WB control for CONN_RF
DVDD18_VIO_2
CONN_WB_CTRL1
DIO
WB control for CONN_RF
DVDD18_VIO_2
CONN_WB_CTRL0
DIO
WB control for CONN_RF
DVDD18_VIO_2
CONN_RSTB
DIO
Reset for CONN_RF
DVDD18_VIO_3
CONN_SEN
DIO
SPI for CONN_RF
DVDD18_VIO_3
CONN_SCLK
DIO
SPI for CONN_RF
DVDD18_VIO_3
CONN_SDATA
DIO
SPI for CONN_RF
DVDD18_VIO_3
CONN_F2W_CLK
DIO
AUD_IN from CONN_RF
DVDD18_VIO_3
CONN_F2W_DAT
DIO
AUD_IN from CONN_RF
DVDD18_VIO_3
ABB
UL_Q_N
AIO
UMTS uplink for UMTSTX_QN
AVDD18_MD
UL_Q_P
AIO
UMTS uplink for UMTSTX_QP
AVDD18_MD
UL_I_P
AIO
UMTS uplink for UMTSTX_IP
AVDD18_MD
UL_I_N
AIO
UMTS uplink for UMTSTX_IN
AVDD18_MD
VBIAS
AIO
3G PA analog control
AVDD28_DAC
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 31
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 31 of 64
Pin name
Type
Description
Power domain
APC
AIO
Automatic power control for
modem
AVDD28_DAC
CLK26M
AIO
26MHz clock input for AP &
modem
AVDD18_MD
DL_Q_P
AIO
UMTS downlink for
UMTSRX_QP
AVDD18_MD
DL_Q_N
AIO
UMTS downlink for
UMTSRX_QN
AVDD18_MD
DL_I_N
AIO
UMTS downlink for
UMTSRX_IN
AVDD18_MD
DL_I_P
AIO
UMTS downlink for
UMTSRX_IP
AVDD18_MD
REFN
AIO
Negative reference port for
internal circuit
AVDD18_AP
REFP
AIO
Positive reference port for
internal circuit
AVDD18_AP
AUX_IN0
AIO
AuxADC external input channel
0
AVDD18_AP
AUX_IN1
AIO
AuxADC external input channel
1
AVDD18_AP
AUX_IN2_XP
AIO
AuxADC channel for touch
screen TP_X+
AVDD18_AP
AUX_IN3_YP
AIO
AuxADC channel for touch
screen TP_Y+
AVDD18_AP
AUX_IN4_XM
AIO
AuxADC channel for touch
screen TP_X-
AVDD18_AP
AUX_IN5_YM
AIO
AuxADC channel for touch
screen TP_Y-
AVDD18_AP
MIPI
TDN2
AIO
DSI0 lane2 N
DVDD18_MIPITX
TDP2
AIO
DSI0 lane2 P
DVDD18_MIPITX
TDN1
AIO
DSI0 lane1 N
DVDD18_MIPITX
TDP1
AIO
DSI0 lane1 P
DVDD18_MIPITX
TDN0
AIO
DSI0 lane0 N
DVDD18_MIPITX
TDP0
AIO
DSI0 lane0 P
DVDD18_MIPITX
TCN
AIO
DSI0 CK lane N
DVDD18_MIPITX
TCP
AIO
DSI0 CK lane P
DVDD18_MIPITX
VRT
AO
External resistor for DSI bias
Connect 1.5K ohm 1% resistor
to ground.
DVDD18_MIPITX
RDN1
AIO
CSI0 lane1 N
DVDD18_MIPIRX
RDP1
AIO
CSI0 lane1 P
DVDD18_MIPIRX
RDN0
AIO
CSI0 lane0 N
DVDD18_MIPIRX
RDP0
AIO
CSI0 lane0 P
DVDD18_MIPIRX
RCN
AIO
CSI0 CK lane N
DVDD18_MIPIRX
RCP
AIO
CSI0 CK lane P
DVDD18_MIPIRX
RDN1_A
AIO
CSI1 lane1 N/Pixel data [7] from
sensor
DVDD18_MIPIRX
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 32
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 32 of 64
Pin name
Type
Description
Power domain
RDP1_A
AIO
CSI1 lane1 P/Pixel data [6] from
sensor
DVDD18_MIPIRX
RDN0_A
AIO
CSI1 lane0 N/Pixel data [5] from
sensor
DVDD18_MIPIRX
RDP0_A
AIO
CSI1 lane0 P/Pixel data [4] from
sensor
DVDD18_MIPIRX
RCN_A
AIO
CSI1 CK lane P/HREF from
sensor
DVDD18_MIPIRX
RCP_A
AIO
CSI1 CK lane P/VREF from
sensor
DVDD18_MIPIRX
USB
USB_DP
AIO
USB D+ differential data line
AVDD33_USB
USB_DM
AIO
USB D- differential data line
AVDD33_USB
CHD_DP
AIO
BC1.1 Charger DP
AVDD33_USB
CHD_DM
AIO
BC1.1 Charger DM
AVDD33_USB
USB_VRT
AO
USB output for bias current;
connect with 5.11K 1% Ohm to
GND
AVDD18_USB
WBG
WB_RX_QN
AIO
RX_QN for WIFI/BT Rx
AVDD18_WBG
WB_RX_QP
AIO
RX_QP for WIFI/BT Rx
AVDD18_WBG
WB_RX_IP
AIO
RX_IN for WIFI/BT Rx
AVDD18_WBG
WB_RX_IN
AIO
RX_IP for WIFI/BT Rx
AVDD18_WBG
WB_TX_QP
AIO
TX_QP for WIFI/BT Tx
AVDD18_WBG
WB_TX_QN
AIO
TX_QN for WIFI/BT Tx
AVDD18_WBG
WB_TX_IN
AIO
TX_IN for WIFI/BT Tx
AVDD18_WBG
WB_TX_IP
AIO
TX_IP for WIFI/BT Tx
AVDD18_WBG
GPS_RXQN
AIO
RX_QN for GPS Rx
AVDD18_WBG
GPS_RXQP
AIO
RX_QP for GPS Rx
AVDD18_WBG
GPS_RXIP
AIO
RX_IN for GPS Rx
AVDD18_WBG
GPS_RXIN
AIO
RX_IP for GPS Rx
AVDD18_WBG
CONN_XO_IN
AIO
26MHz clock input for WBG
AVDD18_WBG
Analog power
DVDD18_PLLGP
P
Analog power input 1.8V for
PLL
AVDD18_AP
P
Analog power input 1.8V for
AuxADC, TSENSE
AVDD18_MD
P
Analog power input 1.8V for
BBTX, BBRX
AVDD28_DAC
P
Analog power input 2.8V for
APC
DVDD18_MIPITX
P
Analog power for MIPI DSI
DVDD18_MIPIRX
P
Analog power for MIPI CSI0 &
CSI1
AVDD33_USB
P
Analog power 3.3V for USB
AVDD18_USB
P
Analog power 1.8V for USB
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 33
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 33 of 64
Pin name
Type
Description
Power domain
AVDD18_WBG
P
Analog power 1.8V for WBTX,
WBRX, GPSRX
Digital power
DVDD18_VIO_1
P
Digital power input
-
DVDD18_VIO_2
P
Digital power input
-
DVDD18_VIO_3
P
Digital power input
-
DVDD28_BPI
P
Digital power input for 2.8V BPI
IO - VCCIO_EMI
P
Digital power input for EMI
-
DVDD18_MC0
P
Digital power input for MSDC0
-
DVDD33_MC1
P
Digital power input for MSDC1
transmitter
-
DVDD33_LCD
P
Digital power input for LCD
control pins’ transmitter
-
DVDD18_LCD
P
Digital power input for LCD
control pins’ receiver
-
DVDD18_CAM
P
Digital power input for CAM
control pins
-
VCCK
P
Digital power input for core
-
VCCK_CPU
P
Digital power input for
processor
-
Analog ground
AVSS18_MD
G
DVSS18_MIPITX
G
DVSS18_MIPIRX
G
AVSS33_USB
G
GND_WBG
G
Digital ground
VSS
G
-
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 34
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 34 of 64
Symbol or pin
name
Description
Min.
Max.
Unit
DVDD18_PLLGP
Analog power input 1.8V for PLL
1.7
1.9
V
AVDD18_AP
Analog power input 1.8V for AuxADC, TSENSE
1.7
1.9
V
AVDD18_MD
Analog power input 1.8V for BBTX, BBRX
1.7
1.9
V
AVDD28_DAC
Analog power input 2.8V for APC
2.66
2.94
V
DVDD18_MIPITX
Analog power for MIPI DSI
1.7
1.9
V
DVDD18_MIPIRX
Analog power for MIPI CSI0 & CSI1
1.7
1.9
V
AVDD33_USB
Analog power 3.3V for USB
3.135
3.465
V
AVDD18_USB
Analog power 1.8V for USB
1.7
1.9
V
DVDD18_VIO_1
DVDD18_VIO_2
DVDD18_VIO_3
Digital power input for 1.8V IO
1.62
1.98
V
DVDD28_BPI
Digital power input for BPI
1.7
3.6
V
DVDD18_MC0
Digital power input for MSDC0
1.62
1.98
V
DVDD3_MC1
Digital power input for MSDC1
1.7
3.6
V
DVDD3_LCD
Digital power input for LCD control pins’ transmitter
1.7
3.6
V
DVDD18_LCD
Digital power input for LCD control pins’ receiver
1.62
1.98
V
DVDD18_CAM
Digital power input for CAM control pins
1.62
1.98
V
VCCIO_EMI
Digital power input for EMI
1.08
1.98
V
VCCK
Digital power input for core
0.95
1.15
V
VCCK_CPU
Digital power input for processor
0.77
1.26
V
Symbol or pin
name
Description
Min.
Typ.
Max.
Unit
DVDD18_PLLGP
Analog power input 1.8V for PLL
1.7
1.8
1.89
V
AVDD18_AP
Analog power input 1.8V for AuxADC,
TSENSE
1.71
1.8
1.89
V
AVDD18_MD
Analog power input 1.8V for BBTX, BBRX
1.71
1.8
1.89
V
2.2 Electrical Characteristic
2.2.1 Absolute Maximum Ratings
Table 4. Absolute maximum ratings for power supply
Warning: Stressing the device beyond the absolute maximum ratings may cause permanent damage.
These are stress ratings only.
2.2.2 Recommended Operating Conditions
Table 5. Recommended operating conditions for power supply
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Page 35
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 35 of 64
Symbol or pin
name
Description
Min.
Typ.
Max.
Unit
AVDD28_DAC
Analog power input 2.8V for APC
2.66
2.8
2.94
V
DVDD18_MIPITX
Analog power for MIPI DSI
1.71
1.8
1.89
V
DVDD18_MIPIRX
Analog power for MIPI CSI0 & CSI1
1.71
1.8
1.89
V
AVDD33_USB
Analog power 3.3V for USB
3.135
3.3
3.465
V
AVDD18_USB
Analog power 1.8V for USB
1.71
1.8
1.89
V
DVDD28_BPI
Digital power input for BPI
1.7
1.8
1.95 V 2.7
3.3
3.6
DVDD18_VIO1
DVDD18_VIO2
DVDD18_VIO3
Digital power input for 1.8V IO
1.62
1.8
1.98
V
DVDD18_MC0
Digital power input for MSDC0
1.62
1.8
1.98
V
DVDD3_MC1
Digital power input for MSDC1
1.7
1.8
1.95 V 2.7
3.3
3.6
DVDD3_LCD
Digital power input for LCD control pins
1.7
1.8
1.95 V 2.7
3.3
3.6
DVDD18_LCD
Digital power input for LCD control pins
1.62
1.8
1.98
V
DVDD18_CAM
Digital power input for CAM control pins
1.62
1.8
1.98
V
VCCIO_EMI
Digital power input for EMI (LPDDR1)
1.7
1.8
1.9
V
Digital power input for EMI (LPDDR2/3)
1.08
1.2
1.32
Digital power input for EMI (LVDDR3)
1.215
1.35
1.485
Digital power input for EMI (DDR3)
1.35
1.5
1.65
VCCK
Digital power input for core
0.85
1.15
1.20
V
VCCK_CPU
Digital power input for processor
0.85
1.15
1.20
V
2.2.3 Storage Condition
1. Shelf life in sealed bag: 12 months at < 40°C and < 90% relative humidity (RH).
2. After bag opened, devices subjected to infrared reflow, vapor-phase reflow or equivalent
processing must be:
Mounted within 168 hours at factory conditions of 30°C/60% RH, or
Stored at 20% RH.
3. Devices require baking before mounting, if:
192 hours at 40°C +5°C/-0°C and < 5% RH for low temperature device containers, or
24 hours at 125°C +5°C/-0°C for high temperature device containers.
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 36
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 36 of 64
Symbol
Parameter
Min.
Max.
Unit
tCK
Clock cycle time
TBD
TBD
ns
tCH
Clock high-level width
0.45
0.55
tCK
tCL
Clock low-level width
0.45
0.55
tCK
VIX
Differential clock crosspoint voltage
TBD
TBD
V
2.3 EMI Timing Diagram
2.3.1 Introduction
The measurement point for all signals follows definition in JEDEC DRAM standard. Timing symbols in
this section are matched with the JEDEC DRAM standard. This section describes the timing
characteristics when LPDDR/LPDDR2/LPDDR2/PCDDR3 SDRAM are used.
2.3.2 EMI Clock
Figure 4. EMI clock EDCLKx and EDCLKx_B
Figure 5. Differential signals of EMI clock
Table 6. EMI clock timing parameters
2.3.3 EMI Read and Write Timing
2.3.3.1 Read and Write Timing of LPDDR1
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 37
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 37 of 64
Symbol
Parameter
Min.
Max.
Unit
tIS
Address and control setup input setup time
TBD
TBD
ns
tIH
Address and control input hold time
TBD
TBD
ns
tIPW
Address and control input pulse width
TBD
TBD
ns
Timing of read cycle
tRPRE
Write preamble
TBD
TBD
tCK
tRPST
Write postamble
TBD
TBD
tCK
tDQSQ
DQS-DQ skew
TBD
TBD
ns
tDV
DQ/DQS valid window
TBD
TBD
ns
Timing of write cycle
tDQSS
Write command to the 1st DQS latching
transition
TBD
TBD
tCK
tWPST
Write postamble
TBD
TBD
tCK
tDS
DQ and DQM setup time
TBD
TBD
ns
tDH
DQ and DQM hold time
TBD
TBD
ns
tDIPW
DQ and DQM pulse width
TBD
TBD
ns
tDQSH
DQS high-level width
TBD
TBD
tCK
tDQSL
DQS low-level width
TBD
TBD
tCK
tDQSCK
DQS access time from CK/CK_B
TBD
TBD
ns
Figure 6. EMI LPDDR1 write timing
Figure 7 . EMI LPDDR1 Read timing
Table 7. EMI LPDDR1 timing parameters
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 38
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 38 of 64
Symbol
Parameter
Min.
Max.
Unit
tIS
Address and control setup input setup time
TBD
TBD
ns
tIH
Address and control input hold time
TBD
TBD
ns
tIPW
Address and control input pulse width
TBD
TBD
ns
Timing of read cycle
tRPRE
Write preamble
TBD
TBD
tCK
tRPST
Write postamble
TBD
TBD
tCK
tDQSQ
DQS-DQ skew
TBD
TBD
ns
tDV
DQ/DQS valid window
TBD
TBD
ns
Timing of write cycle
tDQSS
Write command to the 1st DQS latching
transition
TBD
TBD
tCK
tWPST
Write postamble
TBD
TBD
tCK
tDS
DQ and DQM setup time
TBD
TBD
ns
tDH
DQ and DQM hold time
TBD
TBD
ns
tDIPW
DQ and DQM pulse width
TBD
TBD
ns
2.3.3.2 Read and Write Timing of LPDDR2
Figure 8. EMI LPDDR2 write timing
Figure 9. EMI LPDDR2 read timing
Table 8. EMI LPDDR2 timing parameters
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 39
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 39 of 64
Symbol
Parameter
Min.
Max.
Unit
tDQSH
DQS high-level width
TBD
TBD
tCK
tDQSL
DQS low-level width
TBD
TBD
tCK
tDQSCK
DQS access time from CK/CK_B
TBD
TBD
ns
2.3.3.3 Read and Write Timing of LPDDR3
TBD
2.3.3.4 Read and Write Timing of PCDDR3
TBD
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 40
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 40 of 64
Pin name
Description
[0] PMIC_SPI_CSN
[1] AUD_DAT_MOSI
00: Use pin map for LPDDR1
01: Use pin map for LPDDR2
1x: Use pin map for PCDDR3
KCOL0
0: Force USB download mode in bootrom
1: NA (default)
BPI_BUS4
0: Boot from eMMC/NAND (default)
1: Boot from SD/SPI-NAND
[0] SIM1_SCK
[1] SIM2_SCK
00: No dedicate JTAG
01: Use KP pin for S-JTAG
10: Use MC1 pins for legacy JTAG
11: Use CM pins for legacy JTAG
Pin name
Description
TESTMODE
Test mode (tied to GND)
FSOURCE
EFUSE burning (tied to GND)
2.4 System Configuration
2.4.1 Mode Selection
Table 9 Mode selection
2.4.2 Constant Tie Pins
Table 10 Constant tied pins
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 41
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 41 of 64
VBAT
DDLO
UVLO
PWRKEY
BBWAKEUP
VCORE
VSYS
VIO18/VEMC_3V3
VA28/VIO28
VM
VUSB_3V3
VMC/VMCH
VTCXO
RESETB
De-bounce
time = 50ms
4ms
2ms
2ms
2ms
2ms
2ms
2ms
2ms
20ms
2ms
2ms
2ms

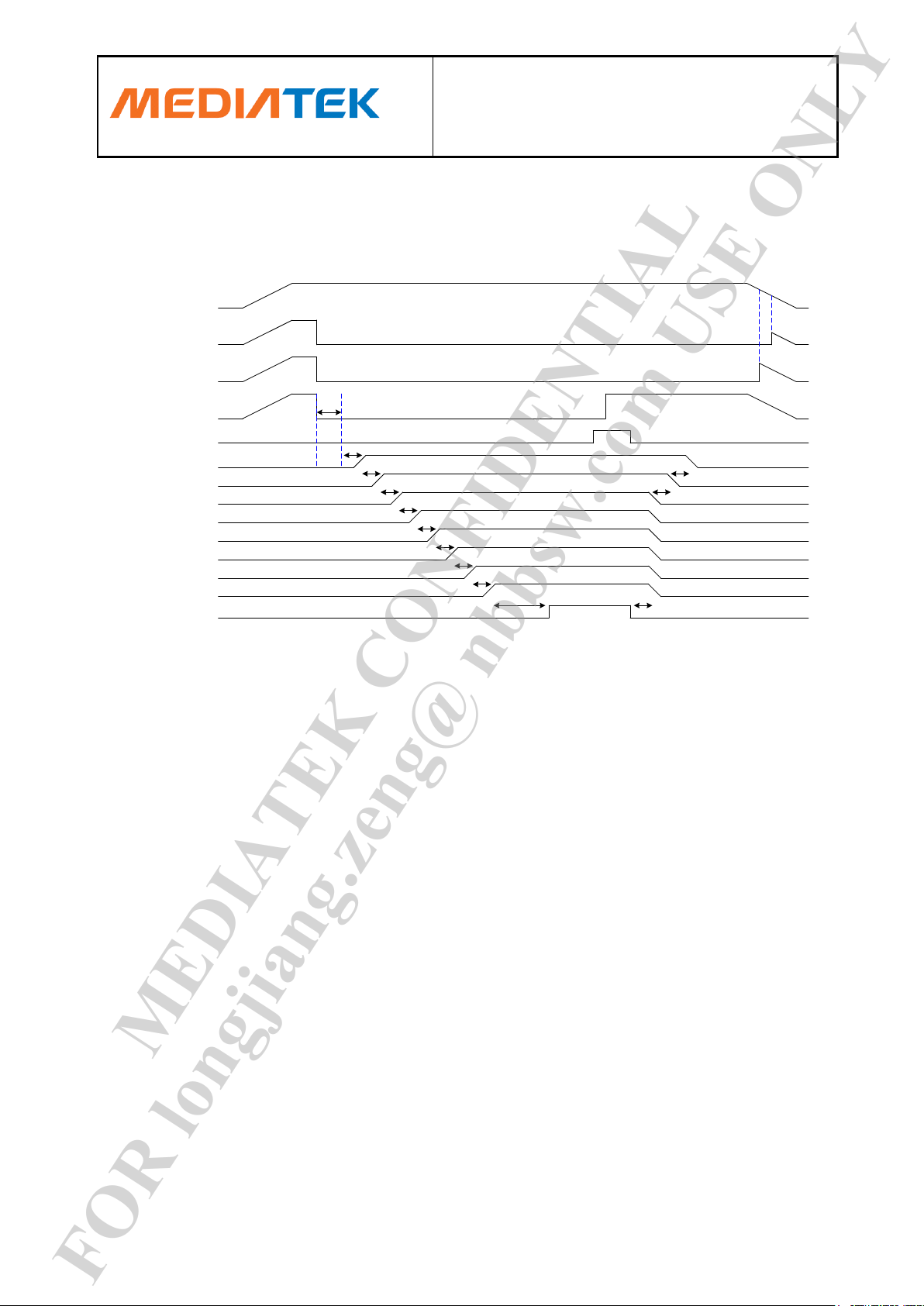

2.5 Power-on Sequence
The power-on/off sequence with XTAL is shown in the following figure:
Figure 10. Power on/off sequence with XTAL
Note that the above figure only shows one power-on/off condition with XTAL. The external PMIC for
application processor handles the power ON and OFF of the handset. The following three different
methods switch on the handset (when VBAT ≥ 3.2V):
1. Pulling PWRKEY low (The user presses PWRKEY.)
2. Pulling BBWAKEUP high
3. Valid charger plug-in
Pulling PWRKEY low is a normal way to turn on the handset, which turns on regulators as long as the
PWRKEY is kept low. PMIC outputs reset signal RESETB to application processor SYSRSTB input.
After SYSRSTB is de-asserted, the microprocessor starts and pulls BBWAKEUP high. After that
PWRKEY can be released. Pulling BBWAKEUP high will also turn on the handset. This is the case
when the alarm in the RTC expires.
MEDIATEK CONFIDENTIAL
Besides, applying a valid external supply on CHRIN will also turn on the handset. However, if the
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
battery is in the UV state (VBAT < 3.2V), the handset cannot be turned on in any way.
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 42
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 42 of 64
VBAT
DDLO
UVLO
PWRKEY
BBWAKEUP
VCORE
VSYS
VIO18/VEMC_3V3
VA28/VIO28
VM
VUSB_3V3
VMC/VMCH
VTCXO
RESETB
De-bounce
time = 50ms
4ms
2ms
2ms
2ms
2ms
2ms
2ms
20ms
2ms
2ms
2ms
The UVLO function in PMIC prevents system startup when the initial voltage of the main battery is
below the 3.2V threshold. When the battery voltage is bigger than 3.2V, the UVLO comparator
switches and threshold are reduced to 2.9V, which allows the handset to start smoothly unless the
battery decays to 2.9V and below.
Once PMIC enters the UVLO state, it draws very low quiescent current. The VRTC LDO will still be
active until the DDLO disables it.
The figure above shows the power-on/off sequence without XTAL. VTCXO is always turned on when
VBAT is above the DDLO threshold.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Figure 11. Power on/off sequence without XTAL
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 43
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 43 of 64
2.6 Analog Baseband
To communicate with analog blocks, a common control interface for all analog blocks is implemented.
In addition, there are some dedicated interfaces for data transfer. The common control interface
translates the APB bus write and read cycle for specific addresses related to analog front-end control.
During the writing or reading of any of these control registers, there is a latency associated with the
transfer of data to or from the analog front-end. Dedicated data interface of each analog block is
implemented in the corresponding digital block. An analog block includes the following analog
functions for the complete GSM/GPRS/WCDMA base-band signal processing:
Base-band Rx: For I/Q channels base-band A/D conversion
Base-band Tx: For I/Q channels base-band D/A conversion and smoothing
filtering.
RF control: Two DACs for automatic power control (APC) are included. Their
outputs are provided to the external RF power amplifier respectively, according to
the system dual-talk configuration. One more DAC for voltage bias control (VBIAS)
is included for the WCDMA system, and the output is provided to the external RF
power amplifier.
Auxiliary ADC: Provides an ADC for the battery and other auxiliary analog
functions monitoring.
Clock generation: Includes two clock-squarers for shaping the dual-talk system
clock and 14 PLLs providing clock signals to base-band TRx, DSP, MCUUSB,
MSDC, LVDS and HDMI units.
The analog blocks include the following analog functions for complete GSM/GPRS/WCDMA
base-band signal processing:
BBRX
BBTX
APC-DAC
VBIAS-DAC
AUXADC
Phase locked loop
2.6.1 BBRX
2.6.1.1 Block Descriptions
The receiver (Rx) performs baseband I/Q channels downlink analog-to-digital conversion:
1. Analog input multiplexer: For each channel, a 2-input multiplexer is included.
2. A/D converter: 2 high performance sigma-delta ADCs perform I/Q digitization for
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
further digital signal processing.
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 44
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 44 of 64
DL_I_P1
DL_I_N1
VCM1
VCM1
MUX
ΔΣ
Modulator
Encoder
Thermometer
(fS)
DOUT_I1[3:0]
2's complement
(fS)
DL_Q_P1
DL_Q_N1
VCM1
VCM1
MUX
ΔΣ
Modulator
Encoder
DOUT_Q1[3:0]
CKOUT_208M_IQ1
INT_SEL_VIN_IQ1
Main path
Symbol
Parameter
Min.
Typ.
Max.
Unit
VIN
Differential analog input voltage (peak-to-peak)
2.4
V
ICM
Common mode input current magnitude
1
uA
VCM
Common mode input voltage
0.65
0.7
0.75
V
FC
Input clock frequency
Clock rate (SC mode & GSM mode)
208
MHz
Input clock duty cycle
49.5
50
50.5
%
Input clock period jitter, SC mode & GSM mode
0.61
% (rms)
RIN
Differential input resistance
SC mode & GSM mode
11.2 16 20.8 kΩ
FS
Output sampling rate
208
MSPS
2.6.1.2 Function Specifications
See the table below for the function specifications of the base-band downlink receiver.
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Figure 12. Block diagram of BBRX-ADC
Table 11. Baseband downlink specifications
This document contains information that is proprietary to MediaTek Inc.
Page 45
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 45 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
VOS
Differential input referred offset
10
mV
SIN
Signal to in-band noise
SC mode, 2.4Vpp (2.7MHz) sinewave, 1kHz ~
2.1MHz band
GSM mode: 2.4Vpp(570kHz) sinewave, 70kHz ~
270kHz band
72
84
75
87
dB
dB
DVDD18
Digital power supply
1.7
1.8
1.9
V
AVDD18
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
−20 80
°C
Current consumption (per channel)
Power-up
Power-down
3
1
mA
uA
2.6.2 BBTX
2.6.2.1 Block Descriptions
BBTX includes two channel DACs with the 1st order low pass filter. The DACs are PMOS
current-steering topology with NMOS constant sinking current, and the active RC filter performs
current to voltage buffer.
The bitwidth of DACs is 10-bit which is encoded into 7 bits of thermometer code and 7 binary code by
mixedsys hardware. The encoded bits are timing synchronized by D-type flip-flop which is toggled by
the analog local clock. The MD-PLL delivers 832MHz differential clock to BBTX. A clock divider
translates the 832MHz to 416MHz for DACs and AFIFO inside mixedsys.
The IO power, DVDD18_MD is regulated to a voltage around 1.55V to supply analog component. The
required bias currents are generated by BBRX.
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 46
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 46 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
Vocm
DC output common mode voltage
0.615
0.65
0.685
V
IK
HF leakage current @ supply,
Irms @416*2 = 832MHz
3.5
uA
Vfs
DAC output swing
2100
mV
N
DAC resolution
10.0
bit
Fs
Sampling clock
416 MHz
Imis
1-sgma DAC unit cell mismatch
1
%
Gmis
3-sigma I/Q gain mismatch
-0.2
0.2
dB
Vos_T
3-sigma output differential DC offset over temp.
4
mV
Vos
3-sigma output differential DC offset
10
mV
F3dB
3dB corner freq.
20
25
30
MHz
SLPF
LPF selectivity @832MHz
28 dB
NOOB
Output noise level @45MHz
15.1
30.1.
nVrms/sqrt(Hz)
CN
Signal to noise ratio@45MHz
-146
-140
dBc/Hz
IM3
In-band two-tone test swing V1=V2=290/sqrt(2)
mV
-60
-56
dBc
T
Operating temperature
-20 80
°C
2.6.2.2 Function Specifications
Table 12. Baseband uplink transmitter specifications
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 47
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 47 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
Current consumption
Power-up
Power-down
4.1
10
mA
uA
Symbol
Parameter
Min.
Typ.
Max.
Unit
N
Resolution
10 Bit
FS
Clock rate
1.0833
2.1666
MS/s
SNDR
Signal-to-noise-and-distortion ratio
(10kHz sine wave with 1.0V swing)
50
dB
TS
Settling time (99% full-swing settling)
5
us
V
O,max
Maximum output
AVDD 0.2
V
CL
Output loading capacitance
1,000
2,200
pF
DNL
Differential nonlinearity (code 30 ~ 970)
1.0
LSB
INL
Integral nonlinearity (code 30 ~ 970)
2.0
LSB
DVDD
Digital power supply
0.9
1.0
1.1
V
AVDD
Analog power supply
2.6
2.8
3.0
V
T
Operating temperature
20
85
C
Reference buffer
& bias gen.
R-string DAC core
10-bit DFF
APC-DAC
APC_EN
Output
Buffer
PAD_APC
APC_BUS[9:0]
APC_RSTB
RG_APC_TGSEL
APC_TG
VBG
(from bandgap)
RG_APCBUF_TRIM[3:0]
PA
2.6.3 APC-DAC
2.6.3.1 Block Descriptions
See the figure below. APC-DAC is designed to produce a single-ended output signal at the APC pin.
Figure 13. Block diagram of APC-DAC
2.6.3.2 Function Specifications
See the table below for the function specifications of APC-DAC.
Table 13. APC-DAC specifications
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 48
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 48 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
ION
Current consumption (power-on state)
300 uA
I
OFF
Current consumption (power-down state)
1
uA
Symbol
Parameter
Min.
Typ.
Max.
Unit
N
Resolution
10 Bit
FS
Clock rate
1.0833
2.1666
MS/s
SNDR
Signal-to-noise-and-distortion ratio
(10KHz sine wave with 1.0V swing)
50 dB
TS
Settling time (99% full-swing settling)
5
us
VO,max
Maximum output
AVDD 0.2
V
CL
Output loading capacitance
1000 pF
DNL
Differential nonlinearity (code 20 ~ 970)
1.0
LSB
INL
Integral nonlinearity (code 20 ~ 970)
2.0
LSB
DVDD
Digital power supply
0.9
1.0
1.1
V
AVDD
Analog power supply
2.6
2.8
3.0
V
T
Operating temperature
20
85
C
ION
Current consumption (power-on state)
300 uA
IOFF
Current consumption (power-down state)
1
uA
Reference buffer
& bias gen.
R-string DAC core
10-bit DFF
VBIAS-DAC
VBIAS_EN
Output
Buffer
PAD_VBIAS
VBIAS_BUS[9:0]
VBIAS_RSTB
RG_VBIAS_TGSEL
VBIAS_TG
VBG
(from bandgap)
RG_VBIASBUF_TRIM[3:0]
PA
2.6.4 VBIAS-DAC
2.6.4.1 Block Descriptions
Figure 14. Block diagram of VBIAS-DAC
2.6.4.2 Function Specifications
The functional specifications of the VBIAS-DAC are listed in the following table.
Table 14. VBIAS-DAC specifications
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 49
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 49 of 64
AUXADC channel ID
Description
Channel 0
External use (AUX_IN0)
Channel 1
External use (AUX_IN1)
Channel 2
NA
2.6.5 AUXADC
2.6.5.1 Block Descriptions
The auxiliary ADC measures ADC and is the resistive touch panel controller. The auxiliary ADC
includes the following functional blocks:
1. Analog multiplexer: Selects signal from one of the auxiliary input channels. There are 16 input
channels of AUXADC. Some are for internal voltage measuring and some for external voltage
measuring. Environmental messages to be monitored, e.g. temperature, should be transferred to
the voltage domain.
2. 12-bit A/D converter: Converts the multiplexed input signal to 12-bit digital data.
The touch screen controller drives the external touch panel via Pads XP, XM, YP and YM, and
AUXADC as a voltage meter, obtains the X/Y-position of the touched point on the external touch
screen. The touch screen interface contains 3 main blocks, which are touch screen pads control logic,
ADC interface logic and interrupt generation logic. The touch screen interface supports 2 conversion
modes, separate X/Y position conversion mode and auto (sequential) X/Y position conversion mode.
See for brief descriptions of AUXADC input channels.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Figure 15. Block diagram of AUXADC
Table 15. Definitions of AUXADC channels
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 50
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 50 of 64
AUXADC channel ID
Description
Channel 3
NA
Channel 4
Optional external use (AUX_IN4)
Channel 5
NA
Channel 6
NA
Channel 7
NA
Channel 8
NA
Channel 9
NA
Channel 10
NA
Channel 11
NA
Channel 12
XM (touch panel)
Channel 13
XP (touch panel)
Channel 14
YP (touch panel)
Channel 15
YM (touch panel)
Symbol
Parameter
Min.
Typ.
Max.
Unit
N
Resolution
12 Bit
FC
Clock rate
4
MHz
FS
Sampling rate @ N-Bit
4/(N+4)
MSPS
Input swing
0 AVDD
V
CIN
Input capacitance
Unselected channel
Selected channel
50
4
fF
pF
RIN
Input resistance
Unselected channel
400
MΩ
Clock latency
N+4
1/FC
DNL
Differential nonlinearity
+1.0/-1.0
LSB
INL
Integral nonlinearity
+1.0/-1.0
LSB
OE
Offset error
+/- 5 mV
FSE
Full swing error
+/- 5 mV
SINAD
Signal to noise and distortion ratio (10kHz full
swing input & 1.0833MHz clock rate)
62
68 dB
DVDD
Digital power supply
1.0
1.1
1.2
V
2.6.5.2 Function Specifications
See the table below for the function specifications of auxiliary ADC.
Table 16. AUXADC specifications
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 51
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 51 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
AVDD
Analog power supply
1.75
1.8
1.85
V
T
Operating temperature
-20 80
°C
Current consumption
Power-up
Power-down
250 1 uA
uA
Ztp
Supports touch panel impedance
200 2K
Ω
Symbol
Parameter
Min.
Typ.
Max.
Unit
Fin
Input clock frequency
13
26 MHz
Fout
Output clock frequency
13
26 MHz
Vin
Input signal amplitude
350
500
1,000
mVpp
DcycIN
Input signal duty cycle
50 %
DcycOUT
Output signal duty cycle
DcycIN-5
DcycIN+5
%
TR
Rise time on pin CLKSQOUT
5
ns/pF
TF
Fall time on pin CLKSQOUT
5
ns/pF
DVDD
Digital power supply
1.0
1.1
1.2
V
AVDD
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
-20 80
Current consumption
500 uA
2.6.6 Clock Squarer
2.6.6.1 Block Descriptions
For most VCXO, the output clock waveform is sinusoidal with too small amplitude (about several
hundred mV) to make MT6589 digital circuits function well. Clock squarer is designed to convert such
a small signal to a rail-to-rail clock signal with excellent duty-cycle.
2.6.6.2 Function Specifications
See the table below for the function specifications of clock squarer.
Table 17. Clock squarer 1 & 2 specifications
2.6.7 Phase Locked Loop
MEDIATEK CONFIDENTIAL
2.6.7.1 Block Descriptions
There are total 10 PLLs in PLL macro, providing several clocks for CPU, BUS, modem, analog modem,
GPU, Wi-Fi, BlueTooth and GPS. The usage of each PLL is listed below:
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 52
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 52 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
Fin
Input clock frequency
26 MHz
Fout
Output clock frequency
754
1,508
MHz
Settling time
20 us
Output clock duty cycle
47
50
53
%
Output clock jitter (period jitter)
30 ps
DVDD
Digital power supply
0.95
1.05
1.15
V
AVDD
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
-20 80
°C
Table 18. MT6572 PLL list
2.6.7.2 Function Specifications
See the table below for the function specifications of PLL.
Table 19. ARMPLL specifications
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 53
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 53 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
Current consumption
1.2 mA
Power-down current consumption
1
uA
Symbol
Parameter
Min.
Typ.
Max.
Unit
Fin
Input clock frequency
26 MHz
Fout
Output clock frequency
500
806
884
MHz
Settling time
20 us
Output clock duty cycle
47
50
53
%
Output clock jitter (period jitter)
60 ps
DVDD
Digital power supply
0.95
1.05
1.15
V
AVDD
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
-20 80
°C
Current consumption
0.8 mA
Power-down current consumption
1
uA
Symbol
Parameter
Min.
Typ.
Max.
Unit
Fin
Input clock frequency
26 MHz
Fout
Output clock frequency
N/A
624
N/A
MHz
Settling time
20 us
Output clock duty cycle
45
50
55
%
Output clock jitter (period jitter)
60 ps
DVDD
Digital power supply
0.95
1.05
1.15
V
AVDD
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
-20 80
°C
Current consumption
0.8 mA
Power-down current consumption
1
uA
Symbol
Parameter
Min.
Typ.
Max.
Unit
Fin
Input clock frequency
26 MHz
Fout
Output clock frequency
N/A
416
N/A
MHz
Settling time
20 w/o Calib
us
Table 20. MAINPLL specifications
Table 21. UNIVPLL specifications
Table 22. MDPLL specifications
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 54
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 54 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
100 w/I Calib
Output clock duty cycle
47
50
53
%
Output clock jitter (period jitter)
30 ps
DVDD
Digital power supply
0.95
1.05
1.15
V
AVDD
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
-20 80
°C
Current consumption
2.5 mA
Power-down current consumption
1
uA
Symbol
Parameter
Min.
Typ.
Max.
Unit
Fin
Input clock frequency
26 MHz
Fout
Output clock frequency
N/A
245.76
N/A
MHz
Settling time
20 us
Output clock duty cycle
47
50
53
%
Output clock jitter (period jitter)
60 ps
DVDD
Digital power supply
0.95
1.05
1.15
V
AVDD
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
-20 80
°C
Current consumption
0.8 mA
Power-down current consumption
1
uA
Symbol
Parameter
Min.
Typ.
Max.
Unit
Fin
Input clock frequency
26 MHz
Fout
Output clock frequency
N/A
250.25
N/A
MHz
Settling time
20 us
Output clock duty cycle
47
50
53
%
Output clock jitter (period jitter)
60 ps
DVDD
Digital power supply
0.95
1.05
1.15
V
AVDD
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
-20 80
°C
Current consumption
0.8 mA
Power-down current consumption
1
uA
Table 23. WPLL specifications
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Table 24. WHPLL specifications
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 55
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 55 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
Fin
Input clock frequency
26 MHz
Fout
Output clock frequency
481 MHz
Settling time
20 us
Output clock duty cycle
47
50
53
%
Output clock jitter (period jitter)
60 ps
DVDD
Digital power supply
0.95
1.05
1.15
V
AVDD
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
-20 80
°C
Current consumption
2
mA
Power-down current consumption
1
uA
Symbol
Parameter
Min.
Typ.
Max.
Unit
Fin
Input clock frequency
26
MHz
Fout
Output clock frequency
N/A
832
N/A
MHz
Settling time
20 w/o Calib
150 w/I Calib
us
Output clock duty cycle
47
50
53
%
PN
-80@10kHz.
-87@100kHz
-87@400kHz
-87@1MHz
-107@10MHz
dBc/(Hz)^0.5
Spur
416MHz spur
-46@2M
-40@26M
-40@52M
-40@78M
<-46@others
dBc
DVDD
Digital power supply
0.95
1.15
1.25
V
AVDD
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
-20 80
°C
Current consumption
1
mA
Power-down current consumption
1
uA
Table 25. MCUPLL1 specifications
Below table shows the function specifications of the CONN_PLL.
Table 26. BTPLL specifications
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 56
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 56 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
Fin
Input clock frequency
32
MHz
Fout
Output clock frequency
N/A
960
N/A
MHz
Settling time
20 w/o Calib
150 w/I Calib
us
Output clock duty cycle
47
50
53
%
PN
-80@10kHz.
-87@100kHz
-87@400kHz
-87@1MHz
-107@10MHz
dBc/(Hz)^0.5
Spur
960MHz spur
-46@2M
-40@26M
-40@32M
-46@64M
-46@96M
<-52@others
dBc
DVDD
Digital power supply
0.95
1.15
1.25
V
AVDD
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
-20
80
°C
Current consumption
2
mA
Power-down current consumption
1 uA
Table 27. WFPLL specifications
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 57
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 57 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
Resolution
0.15 °C
Temperature range
0 85
°C
Accuracy
-5 5
°C
Active current
300 uA
Quiescent current
3
uA
2.6.8 Temperature Sensor
2.6.8.1 Block Descriptions
In order to monitor the temperature of CPUs, several temperature sensors are provided. The
temperature sensor is made of substrate BJT in the CMOS process. The voltage output of temperature
sensor is measured by AUXADC.
2.6.8.2 Function Specifications
See the table below for the function specifications of temperature sensor.
Table 28. Temperature sensor specifications
2.6.9 Connectivity ABB
The analog blocks include the following analog functions for complete connectivity analog base-band
signal processing:
WBRX, Wi-Fi and BT receiver analog based-band
WBTX, Wi-Fi and BT transmitter analog based-band
GPSRX, GPS receiver analog based-band
For the Wi-Fi and BT in ISM-band, there is only one ISM can be used at the same time. Use TDD
(Time-Division-Duplex) to dynamically switch between Wi-Fi and BT mode.
2.6.9.1 Wi-Fi/BT RX
The Wi-Fi/BT receiver (Rx) performs connectivity baseband I/Q channels analog-to-digital conversion:
MEDIATEK CONFIDENTIAL
Analog input buffer: Deliver driving capability.
A/D converter: I/Q channels of ADCs perform I/Q digitization for further digital
signal processing.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 58
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 58 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
VIN
Differential analog input voltage (peak-to-peak)
950
mV
VCM
Common mode input voltage
0.5
0.55
0.6
V
FS
Input clock frequency
Clock rate (WiFi-mode)
Clock rate (BT-mode)
80
32
MHz
MHz
RIN
Differential input resistance
WiFi-mode
BT-mode
3.5
14
5
20
6.5
26
kΩ
kΩ
VOS
Differential input referred offset
10
mV
DR
Dynamic range
WF:Sig=20M@-10dBF
BW=+-20M@fs=80M
BT:Sig=1M@-10dBF
BW=+1M@fs=32M
GPS:Sig=4M@-10dBF
BW=+-8M@fs=16M
WF:53
BT:69
dB
AVDD18
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
−20 80
°C
Current consumption (per channel)
WF mode
BT mode
Power down
2.2
5.8
0.001
mA
At the same time, there is only one standard that is operating for Wi-Fi/BT (ISM-band).
Figure 16. Wi-Fi/BT receiver analog based-band
2.6.9.2 WB RX Function Specifications
See the table below for the function specifications of the Wi-Fi/BT base-band receiver.
Table 29. Wi -Fi/BT receiver specifications
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 59
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 59 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
VIN
Differential analog input voltage (peak-to-peak)
2 V
VCM
Common mode input voltage
0.6
0.65
0.7
V
FS
Input clock frequency
Clock rate (WiFi-mode)
Clock rate (BT-mode)
480
64
MHz
MHz
BW
LPF bandwidth
WiFi-mode
BT-mode
55
12
MHz
VOS
Differential input referred offset
30
mV
IM3
IM3
WiFi-mode
38M@-11dBm+40M@-11dBm
BT-mode
0.5M@4dBm+0.6M@4dBm
WF:60
BT:34
dB
A-die
loading
10p//1.3k
F//ohm
AVDD18
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
−20 80
°C
Current consumption (per channel)
WF mode
BT mode
Power down
8.7
3.4
0.001
mA
2.6.9.3 Wi -Fi/BT TX
Figure 17. Wi -Fi/BT transmitter analog based-band
2.6.9.4 WB TX Function Specifications
See the table below for the function specifications of the Wi -Fi/BT base-band transmitter.
Table 30. Wi-Fi/BT transmitter specifications
MEDIATEK CONFIDENTIAL
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Page 60
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 60 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
VIN
Differential analog input voltage (peak-to-peak)
950
mV
VCM
Common mode input voltage
0.5
0.55
0.6
V
FS
Input clock frequency
16
64
MHz
RIN
Differential input resistance
14
20
26
kΩ
VOS
Differential input referred offset
10
mV
DR
Dynamic range
GPS:Sig=4M@-10dBF
BW=+-8M@fs=16M
52 dB
AVDD18
Analog power supply
1.7
1.8
1.9
V
T
Operating temperature
−20
80
°C
Current consumption (per channel)
2.6.9.5 GPS RX
The GPS receiver (Rx) performs connectivity baseband I/Q channels analog-to-digital conversion:
Analog input buffer: Deliver driving capability.
A/D converter: I/Q channels of ADCs perform I/Q digitization for further digital
signal processing.
Figure 18. GPS receiver analog based-band
2.6.9.6 GPS Function Specifications
See the table below for the function specifications of the GPS base-band receiver. There are two
modes for GPS; one is 16MHz, and the other is 64MHz sampling clock.
Table 31 . GPS receiver specifications
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
This document contains information that is proprietary to MediaTek Inc.
Page 61
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 61 of 64
Symbol
Parameter
Min.
Typ.
Max.
Unit
Power on-16MHz mode
Power down
1.8
0.001
mA
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 62
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 62 of 64
Symbol
Description
Value
Unit
Note
Maximum
operating junction
temperature
125
°C
Package thermal
resistances in
nature convection
°C/Watt
2.7 Package Information
2.7.1 Package Outlines
Figure 19 Outlines and dimensions of TFBGA 10.6mm*10.6mm, 428-ball, 0.4mm pitch package
2.7.2 Thermal Operating Specifications
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
Table 32 Thermal operating specifications
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 63
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 63 of 64
2.7.3 Lead-free Packaging
The chip is provided in a lead-free package and meets RoHS requirements.
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
This document contains information that is proprietary to MediaTek Inc.
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
Page 64
MT6572
HSPA+ Smartphone Application Processor
Technical Brief
Confidential A
MediaTek Confidential
© 2013 MediaTek Inc.
Page 64 of 64
MT6572 %A
DDDD - ####
LLLLL
MTXXXXXX Part No.
%: W : WCDMA
T : TD-SCDMA
E : Edge
DDDD: Date Code
####: Subcontractor Code
LLLLL: Die Lot No.
S: Special Code
2.8 Ordering Information
2.8.1 Top Marking Definition
Figure 20. Top mark of MT6572
loginid=longjiang.zeng@nbbsw.com,time=2013-01-07 12:43:58,ip=218.75.87.37,doctitle=MT6572 HSPA Smartphone Application Processor Technical Brief v1.0.pdf,company=Bird_WCX
FOR longjiang.zeng@ nbbsw.com USE ONLY
MEDIATEK CONFIDENTIAL
Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.
This document contains information that is proprietary to MediaTek Inc.
Loading...
