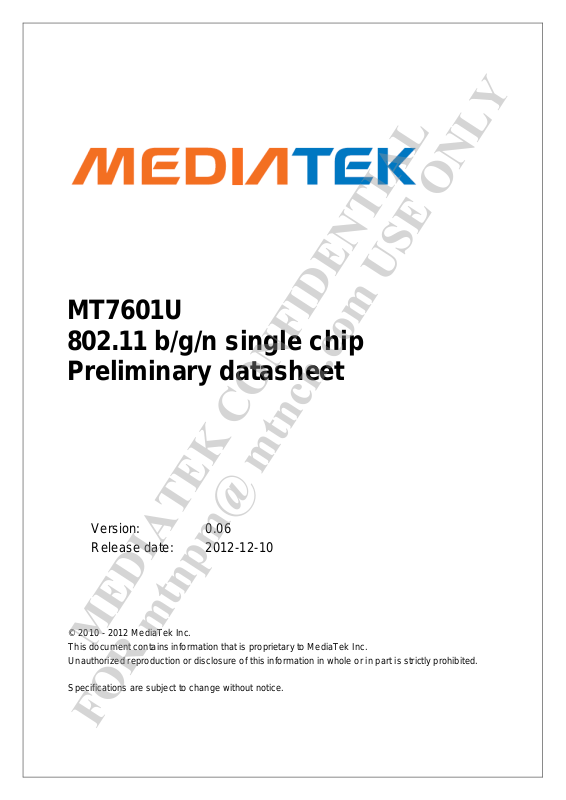

Mediatek H650e Datasheet

MT7601U

802.11 b/g/n single chip
Preliminary datasheet

Version: 0.06
Release date: 2012-12-10

© 2010 - 2012 MediaTek Inc.
This document contains information that is proprietary to MediaTek Inc.

MEDIATEK CONFIDENTIAL

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

Specifications are subject to change without notice.

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

FOR mtnpm@ mtncn.com USE ONLY

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 2 of 14

Revision

Date

Author

Description

0.01

2012/03/30

Alex Lin

First formal release

0.02

2012/08/13

Ben Lin

1. Change the thickness of the package to 0.8mm.

2. Update power consumption information

0.03

2012/08/21

Alex Lin

Update bootstrap infomation

0.04

2012/8/26

Ben Lin

Update thermal information

0.05

2012/9/27

Alex Lin

1. Fix pin order

2. Update POD

0.06

2012/12/10

Alex Lin

1. Correct pin description typo

2. Correct strapping option typo

Document Revision History

MEDIATEK CONFIDENTIAL

FOR mtnpm@ mtncn.com USE ONLY

This document contains information that is proprietary to MediaTek Inc.

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 3 of 14

Me
dia
Tek
Co
nfid
enti
al

Table of Contents

Document Revision History .................................................................................................................. 2

Table of Contents ................................................................................................................................... 3

1 System Overview .......................................................................................................................... 4

1.1 General Descriptions ......................................................................................................... 4

1.2 Features ............................................................................................................................... 4

1.3 Applications ........................................................................................................................ 5

1.4 Block Diagram .................................................................................................................... 5

2 Product Descriptions ................................................................................................................... 6

2.1 Pin Layout ........................................................................................................................... 6

2.2 PIN Description ................................................................................................................... 7

2.3 Strapping option ................................................................................................................... 9

2.4 Package Information ........................................................................................................... 10

2.4.1 QFN Packaging ................................................................................................. 10

2.5 Ordering Information ........................................................................................................ 12

2.6 TOP Marking Information ................................................................................................. 12

3 Electrical characteristics ........................................................................................................... 13

3.1 Absolute maximum rating ................................................................................................... 13

3.2 Recommended operating range ......................................................................................... 13

3.3 DC characteristics .............................................................................................................. 13

3.4 Thermal characteristics ...................................................................................................... 13

3.5 Current consumption .......................................................................................................... 14

MEDIATEK CONFIDENTIAL

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

FOR mtnpm@ mtncn.com USE ONLY

This document contains information that is proprietary to MediaTek Inc.

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 4 of 14

1 System Overview

1.1 General Descriptions

The MT7601U is a highly integrated Wi-Fi single chip which supports 150 Mbps PHY rate. It fully
complies with IEEE 802.11n and IEEE 802.11 b/g standards, offering feature-rich wireless connectivity
at high standards, and delivering reliable, cost-effective throughput from an extended distance.
Optimized RF architecture and baseband algorithms provide superb performance and low power
consumption. Intelligent MAC design deploys a high efficient DMA engine and hardware data
processing accelerators which offloads the host processor.
The MT7601U is designed to support standard based features in the areas of security, quality of
service and international regulations, giving end users the greatest performance any time and in any
circumstance.

1.2 Features

 IEEE 802.11 b/g/n client
 Embedded high-performance 32-bit RISC microprocessor
 Highly integrated RF with 55nm CMOS technology
 1T1R mode with support of 150Mbps PHY rate
 Integrate high efficiency switching regulator
 Best-in-class power consumption performance
 Compact 5mm x 5mm QFN40L package
 1/2/3/4-wire PTA Wi-Fi / Bluetooth coexistence support
 802.11 d/h/k compliant
 Security support for WFA WPA/WPA2 personal, WPS2.0, WAPI
 Supports 802.11w protected managed frames
 QoS support of WFA WMM, WMM PS
 Supports Wi-Fi Direct
 Fully compliance with USB v2.0 High-speed mode
 Per packet transmit power control
 Antenna diversity
 Auto-calibration

MEDIATEK CONFIDENTIAL

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

FOR mtnpm@ mtncn.com USE ONLY

This document contains information that is proprietary to MediaTek Inc.

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 5 of 14

RF

receiver

RF

transmitter

Baseband

MAC /

Packet
buffer /
security

engine

USB

System
control

RF_IN

RF_OUTP
RF_OUTN

USB

GPIO/LED

1.3 Applications

 Desk-Top PC
 Note-book
 TV
 Blue-ray Disk
 Tablet PC
 Set-top box

1.4 Block Diagram

Figure 1 MT7601U block diagram

MEDIATEK CONFIDENTIAL

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

FOR mtnpm@ mtncn.com USE ONLY

This document contains information that is proprietary to MediaTek Inc.

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 6 of 14

BG_EXTR

RF_LDO

RF_LDO

XTAL_XI

XTAL_XO

RF_LDO

PLL_LDO

VDDPST

VDD

GPIO0

40

39

38

37

36

35

34

33

32

31

RF_ LDO

1

30

GPIO1

RF_IN

2

29

GPIO2

RF_V33A

3

28

GPIO3

RF_OUTP

4

27

GPIO4

RF_OUTN

5

MT7601U

26

GPIO5

RF_V33A

6

25

GPIO6

VDDPST

7

24

LDO_RST_N

EE_MISO

8

23

PHASE

EE_MOSI

9

22

DCDC_V33D

EE_CLK

10

21

COMP

11

12

13

14

15

16

17

18

19

20

EEFL_CS

VDD
PADP
PADM

USB_VDDA

VRES

VOUT_1P2

LDO_V15A
DCDC_V33A

FB

2 Product Descriptions

2.1 Pin Layout

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

Figure 2 Top view of MT7601U QFN pin-out.

MEDIATEK CONFIDENTIAL

FOR mtnpm@ mtncn.com USE ONLY

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

This document contains information that is proprietary to MediaTek Inc.

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 7 of 14

QFN40

Pin Name

Pin description

Default
PU/PD

I/O

Supply domain
Reset and clocks

24

LDO_RST_N

External system reset active low

N/A

Input

VDDPST

37

XTAL_XI

Crystal input or external clock input

N/A

Input

36

XTAL_XO

Crystal output

N/A

Input

USB interface

15

USB_VDDA

USB 3.3V power supply

N/A

16

VRES

USB BG reference

N/A

13

PADP

USB D+ signal

N/A

In/out

USB_VDDA

14

PADM

USB D- signal

N/A

In/out

USB_VDDA

EEPROM/flash interface

8

EE_MISO

External memory data input / Antenna select

PD

Input

VDDPST

9

EE_MOSI

External memory data output / Antenna select

PD

Output

VDDPST

10

EE_CLK

External clock

PU

Output

VDDPST

11

EEFL_CS

External chip select

PU

Output

VDDPST

Programmable I/O

31

GPIO0

Programmable input/output / Bluetooth coexistence

PD

In/out

30

GPIO1

Programmable input/output / Bluetooth coexistence

PD

In/out

VDDPST

29

GPIO2

Programmable input/output

PD

In/out

VDDPST

28

GPIO3

Programmable input/output / Bluetooth coexistence

PD

In/out

VDDPST

27

GPIO4

Programmable input/output / Bluetooth coexistence

PD

In/out

VDDPST

26

GPIO5

Programmable input/output

PD

In/out

VDDPST

25

GPIO6

Programmable input/output

PD

In/out

VDDPST

WIFI radio interface

40

BG_EXTR

RF BG reference

N/A

2

RF_IN

RF auxiliary RX input

N/A

4

RF_OUTP

RF port

N/A

5 RF_OUTN

RF port

N/A

PMU/SMPS

17

VOUT_1P2

LDO 1.2V output

N/A

Output

18

LDO_V15A

SMPS 1.5V input

N/A

Iutput

19,22

DCDC_V33

SMPS 3.3V power supply

N/A

Input

20

FB

SMPS control

N/A

2.2 PIN Description

MEDIATEK CONFIDENTIAL

FOR mtnpm@ mtncn.com USE ONLY

This document contains information that is proprietary to MediaTek Inc.

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 8 of 14

21

COMP

SMPS control

N/A

23

PHASE

SMPS control

N/A

Power supplies

7,33

VDDPST

Digital I/O power supply

N/A

Input

12,32

VDD

Digital core power supply

N/A

Input

3,6

RF_V33A

RF 3.3V power supply

N/A

Input

1,35,
38,39

RF _LDO

RF power supply

N/A
Input

34

PLL_LDO

RF power supply

N/A

Input

E-PAD

DVSS

Digital ground

N/A

Table 1 Pin descriptions

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

MEDIATEK CONFIDENTIAL

FOR mtnpm@ mtncn.com USE ONLY

This document contains information that is proprietary to MediaTek Inc.

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 9 of 14

QFN40

Pin Name

Pin description

Default PU/PD

8

EE_MISO

XTAL_20_SEL
XTAL is 20MHz: Pull up
XTAL is 40MHz: Pull down

PD
27

GPIO4

EXT_EE_SEL: Pull down

PD

25

GPIO6

CHIP_MODE[2]: Pull down

PD

10

EE_CLK

CHIP_MODE[1]: Pull down

PD

9

EE_MOSI

CHIP_MODE[0]: Pull up

PU

2.3 Strapping option

Table 2 Strapping option

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

MEDIATEK CONFIDENTIAL

FOR mtnpm@ mtncn.com USE ONLY

This document contains information that is proprietary to MediaTek Inc.

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 10 of 14

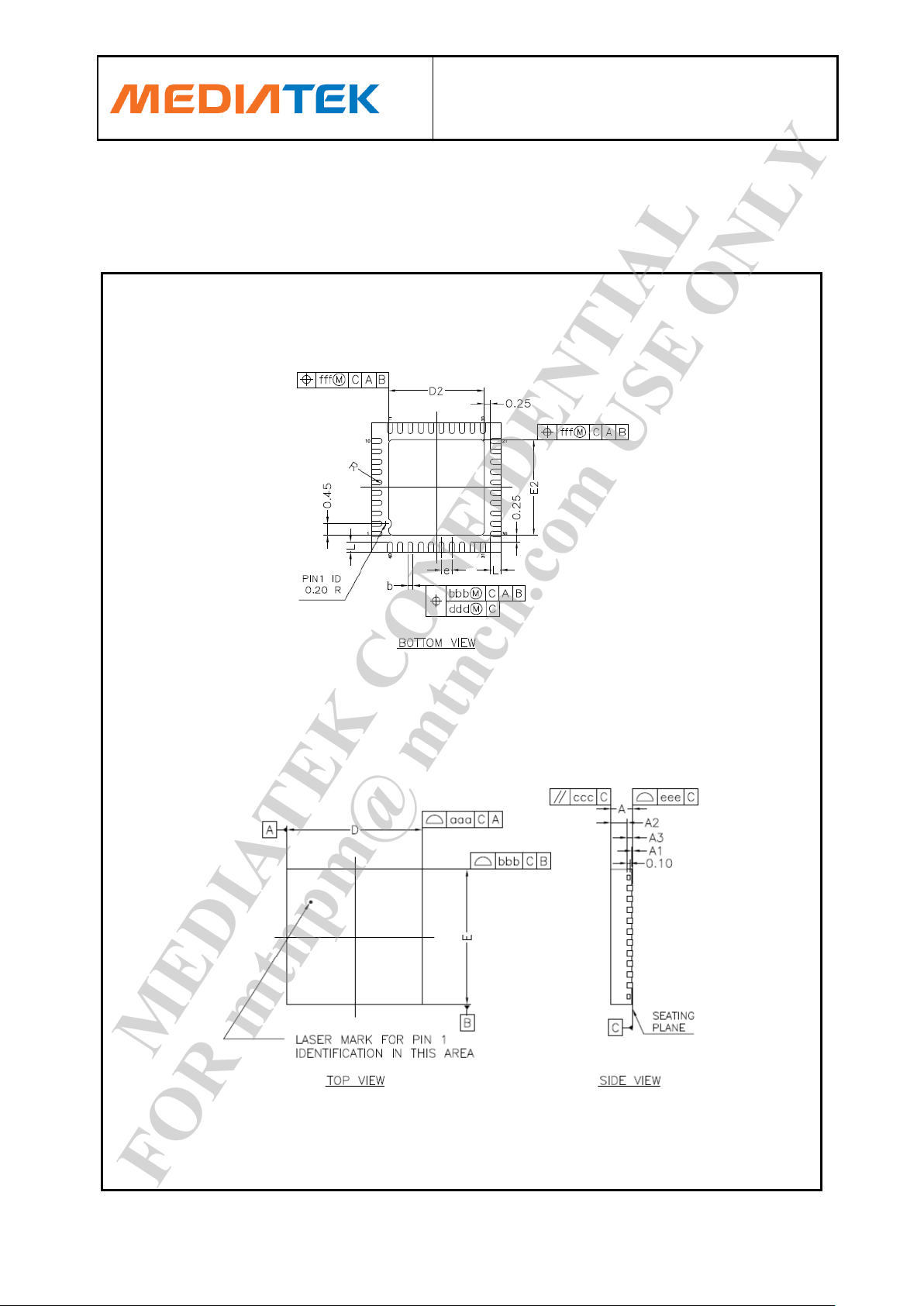

2.4 Package Information

2.4.1 QFN Packaging

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

MEDIATEK CONFIDENTIAL

FOR mtnpm@ mtncn.com USE ONLY

This document contains information that is proprietary to MediaTek Inc.

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 11 of 14

MEDIATEK CONFIDENTIAL

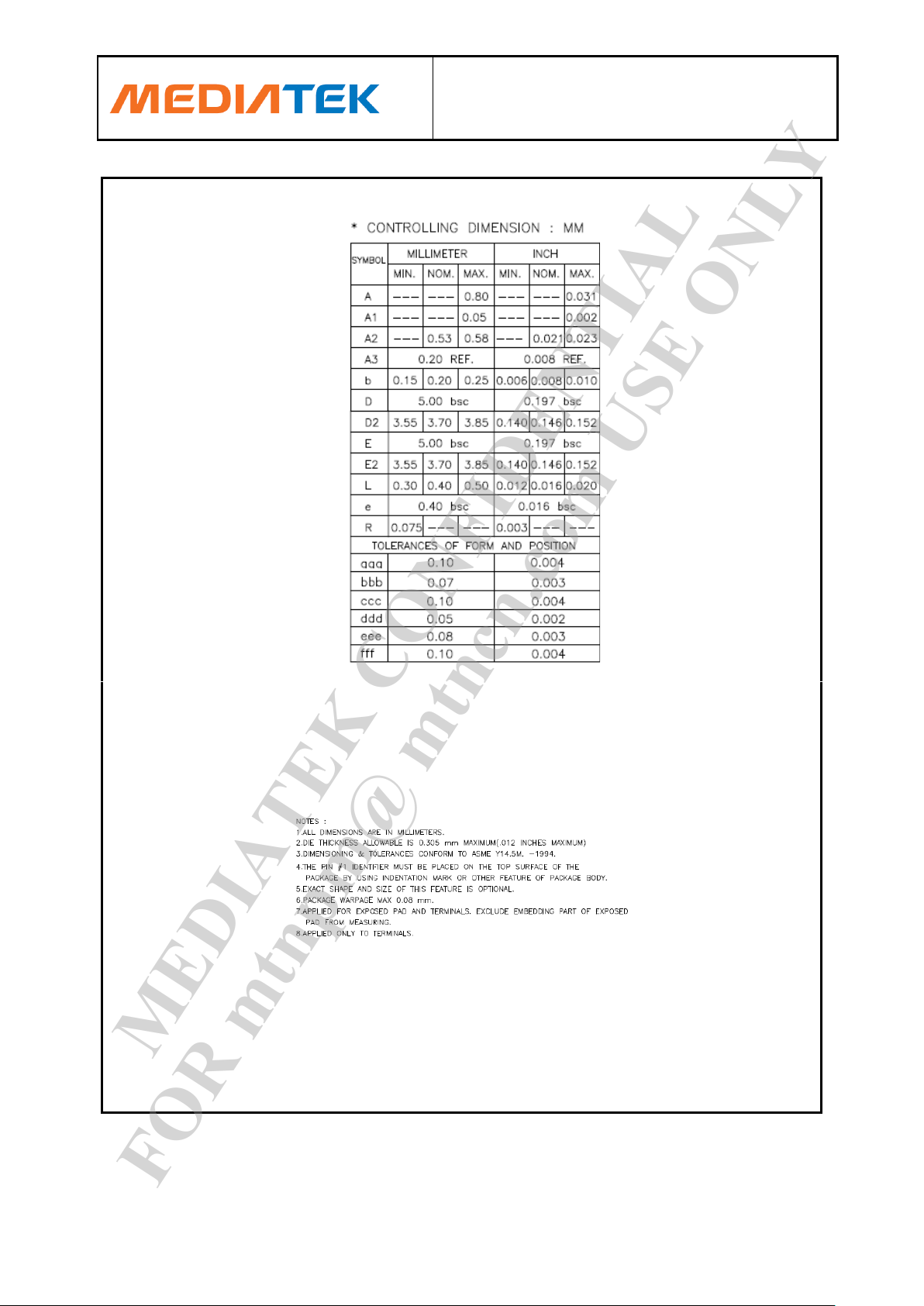

Figure 3 Package outline drawing

FOR mtnpm@ mtncn.com USE ONLY

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

This document contains information that is proprietary to MediaTek Inc.

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 12 of 14

Part number

Package

Operational temperature range

MT7601UN/A-L

5x5x0.8 mm 40-QFN

-10~70°C

MTK

MT7601UN
DDDD-####
BBBBBBB

MT7601UN : Part number
DDDD : Date code
#### : Internal control code
BBBBBBB : Lot number

2.5 Ordering Information

Table 3 Ordering information

2.6 TOP Marking Information

MEDIATEK CONFIDENTIAL

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

FOR mtnpm@ mtncn.com USE ONLY

Figure 4 Top marking

This document contains information that is proprietary to MediaTek Inc.

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 13 of 14

Symbol

Parameters

Maximum rating

Unit

VDD33

3.3V Supply Voltage

-0.3 to 3.6

V

VDD12

1.2V Supply Voltage

-0.3 to 1.5

V

VDD15

1.5V Supply Voltage

-0.3 to 1.8

V

T

STG

Storage Temperature

-40 to +125

°C

VESD

ESD protection (HBM)

2000

V

Symbol

Rating

MIN

TYP

MAX

Unit

VDD33

3.3V Supply Voltage

2.97

3.3

3.63 V VDD12

1.2V Supply Voltage

1.14

1.2

1.26

V

VDD15

1.5V Supply Voltage

1.425

1.5

1.575

V

T

AMBIENT

Ambient Temperature

-10 - 70

°C

Symbol

Parameter

Conditions

MIN

MAX

Unit

VIL

Input Low Voltage

LVTTL

-0.28

0.6

V

VIH

Input High Voltage

2.0

3.63

V

VT-

Schmitt Trigger Negative Going

Threshold Voltage

LVTTL

0.68

1.36

V

VT+

Schmitt Trigger

Positive Going Threshold Voltage

1.36

1.7

V

VOL

Output Low Voltage

|IOL| = 1.6~14 mA

-0.28

0.4

V

VOH

Output High Voltage

|IOH| = 1.6~14 mA

2.4

VDD33+0.33

V

RPU

Input Pull-Up Resistance

PU=high, PD=low

40

190

KΩ

RPD

Input Pull-Down Resistance

PU=low, PD=high

40

190

KΩ

Symbol

Description

Performance

TYP

Unit

TJ

Maximum Junction Temperature (Plastic Package)

125

°C

Θ

JA

Junction to ambient temperature thermal resistance

[1][2]

48.11

°C/W

Θ

JC

Junction to case temperature thermal resistance

TBD

°C/W

3 Electrical characteristics

3.1 Absolute maximum rating

Table 4 Absolute maximum ratings

3.2 Recommended operating range

Table 5 Recommended operating range

3.3 DC characteristics

Table 6 DC description

3.4 Thermal characteristics

MEDIATEK CONFIDENTIAL

FOR mtnpm@ mtncn.com USE ONLY

This document contains information that is proprietary to MediaTek Inc.

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

MT7601U

Preliminary datasheet

Confidential A

MediaTek Confidential

© 2012 MediaTek Inc.

Page 14 of 14

Ψ

Jt

Junction to the package thermal resistance

[3]

3.23

°C/W

Description

Performance

TYP

Unit

Sleep mode

1.1

mA

RX Active, HT40, MCS7

151

mA

RX Power saving, DTIM=1

15

mA

RX Listen

6

mA

TX HT40, MCS7 @15dBm

210

mA

TX CCK, 11Mbps @19dBm

242

mA

Note:
[1] Air flow condition: Natural convection. 0.5m/s.
[2] PCB dimension 21mm x 11mm. 4-layer.
[3] 5mm x 5mm QFN40L package

Table 7 Thermal information

3.5 Current consumption

Note: All result is measured at the antenna port and VDD33 is 3.3V

Table 8 WLAN 2.4GHz Current Consumption

ESD CAUTION

MT7601 is ESD (electrostatic discharge) sensitive device and may be damaged with ESD or spike
voltage. Although MT5931 is with built-in ESD protection circuitry, please handle with care to avoid the
permanent malfunction or the performance degradation.

MEDIATEK CONFIDENTIAL

FOR mtnpm@ mtncn.com USE ONLY

Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.

[email protected],time=2013-03-13 19:20:47,ip=113.90.248.190,doctitle=MT7601_Data_Sheet_v0_06.pdf,company=MTN Electronics Co. Ltd深圳市邁騰電子有限公司_RLT

This document contains information that is proprietary to MediaTek Inc.
