U-DRIVE
NAVIGATION
MT 4058
User manual
2
EN
Overview

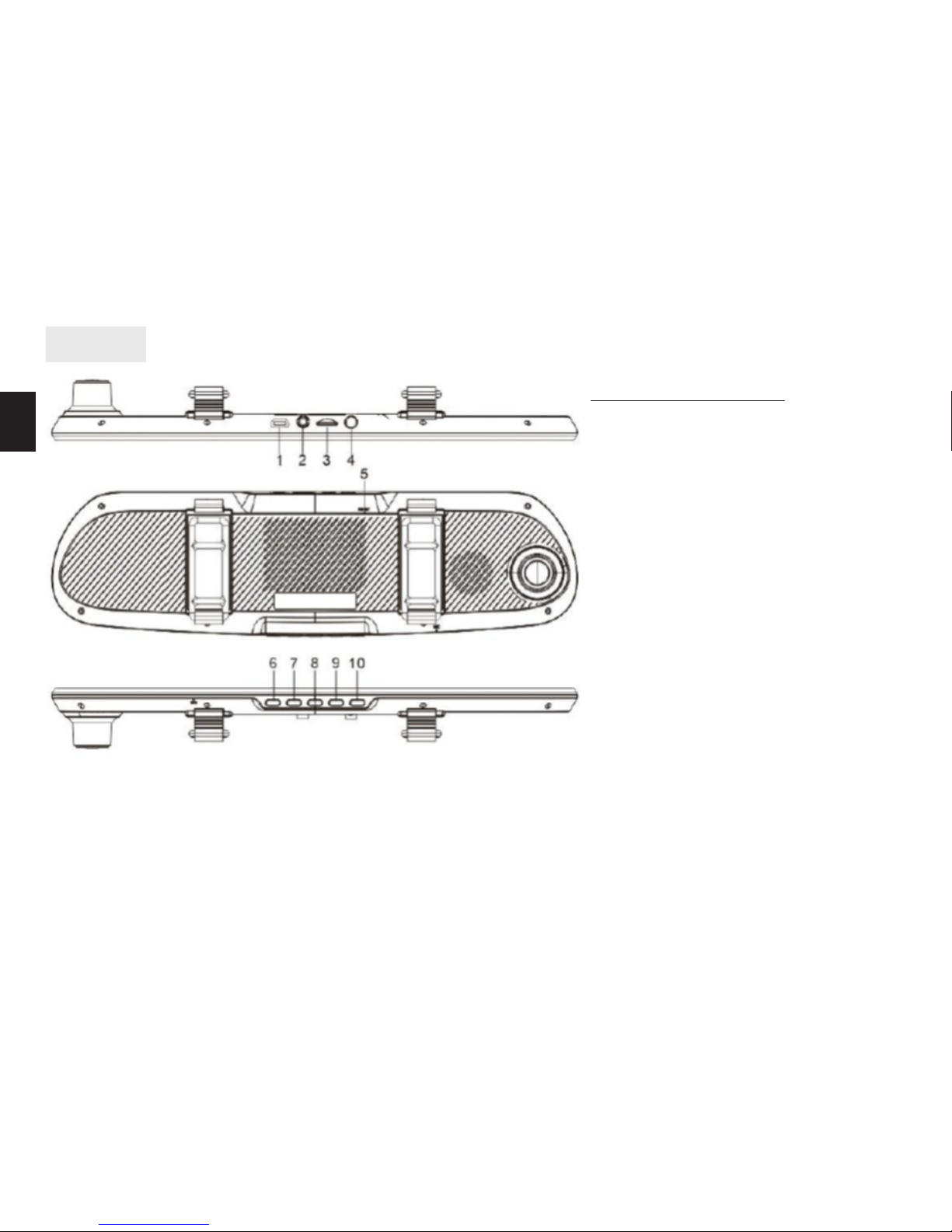

Buttons and sockets
1. USB socket (charger socket)
2. Rear camera input
3. microSD slot
4. GPS receiver input
5. Reset switch
6. Power button (press long - power
on/o; press short - LCD screen saver
on/o)
7. Navigation button (open assigned
application)
8. Home button (resume home screen)
9. DVR button (open DVR module)
10. Screenshot button (take a front
camera snapshot)
3
EN
Mounting rubbers
GPS antenna
Rear camera
Car charger
DVR mirror (main device)
Package content
Schemat instalacji
Note! Rear camera is powered from main device. Connection
for reverse light is used to detect when reverse gear is switched
on – then back camera image will be displayed in full screen.
When you switch o reverse gear, screen will be resumed.
Note! There is a cable loop at the end of rear camera, if you
want to have a mirrored image - cut this loop.
rear
camera
front camera
reverse light
