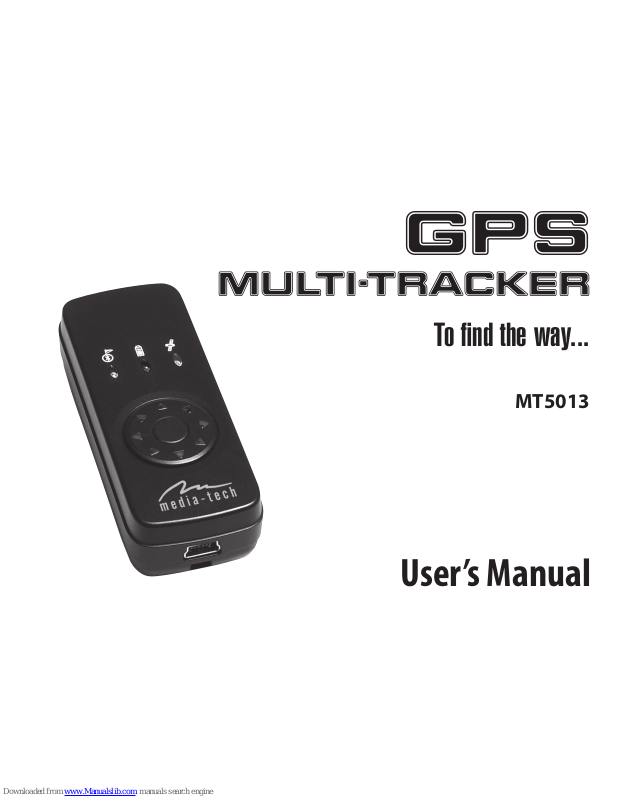

GPS
MULTI-TRACKER
User’s Manual
To fi nd the way...
MT5013
2
EN
Package content
1. GPS MULTI-TRACKER
2. Li-ion rechargeable battery
3. Car charger
4. USB cable
5. Strap
6. Software CD
7. Anti-slide pad
Features
GPS chipset:
■ SkyTraq Venus 6 chipset with 65-Channel for fast acquisition and reacquisition
■ High sensitivity (up to -160dBm)
■ Excellent performance TTFF - Cold/Warm/Hot start
time: 29/25/1 sec. (average)
■ Support standard NMEA0183
■ WAAS / EGNOS supported
Hardware:
■ Capable of keeping up to 100,000 records or positions, including longitude, latitude, speed, UTC and
tag data
■ Smart power saving / 650mAh Li-Ion rechargeable
battery – up to 14 hours usage
Description
Media-Tech GPS MULTI-TRACKER is a new GPS invention. It includes four innovative and useful functions,
especially for travelers.
Location Finder: With eight LEDs, GPS MULTI-TRACKER
directs you to reach the position you have saved previously, such as car position, or hotel position or exit from
the forest. Searching your favorite location, you can upload it to GPS MULTI-TRACKER for getting there.
Data Logger: Along with you, GPS MULTI-TRACKER offers simultaneous use of real-time GPS reception and
data logging to know where you have been. What is
more, GPS MULTI-TRACKER is able to record POIs.
Photo Tagger: With installation of Photo Tagger software, GPS MULTI-TRACKER shows you the locations
you have taken the photos. Sharing your memories
with others!
GPS Receiver: Working with a laptop PDA or mobile
phone, GPS MULTI-TRACKER becomes your personal
navigator.
3
EN
Icons and Indicators
■ Eight LEDs indicating clear directions
■ No installation needed, user friendly
■ Slick and slim design, light and portable, 70.0(L) X
28.0 (W) X 20.0 (H) mm/ 25g (without battery)
■ USB Interface
■ Bluetooth Interface
■ Able to record POI
■ Two direction switch for two modes: Location Finder
and Data Logger
Photo Tagger Software:
■ Support Windows, XP, and Vista
■ Free update
■ User friendly interface
■ Able to upload to www.fl ickr.com
■ Able to export to KMZ, NMEA183 and GPX format
■ Able to view speed and altitude
■ Multi-language
■ Photo slide show
■ Track management
■ Support Video playback (AVI, MP4) on the Tracks
■ Able to upload any location on to GPS MULTI-TRACK-
ER
Power & mode
switch
Bluetooth
LED
Destination
LED
Power LED
USB/power socket
GPS LED
Setting
Button
Direction
LEDs
4
EN
LED Indicators
1. GPS Indicator (Green): Automatic search for GPS
(i) Steady light on indicate searching for position.
(ii) Steady fl ash indicates fi xed GPS position.
2. Power Indicator (Red):
(i) Steady fl ashing every second indicates insuffi cient
power
(ii) Steady light on indicate power charging
LED Status Flash ON OFF
1 GPS (Green) GPS position is fi xed GPS Searching Not connected
2 Power (Red) Low Power Recharging Suffi cient Power
3 Destination (Blue) < 15M to destination
4 Direction (Red) Destination is set
(all direction LEDs fl ash once)
<50M to destination
(One of the direction LEDs fl ashes)
Indicate the direction
3. Destination Indicator (Blue):
(i)
Steady fl ash indicate distance to destination is <50M;
(ii)
Steady light on indicate distance to destination is <15M
4. 8 Direction Indicator:
(i) Once destination has been successfully established,
all 8 arrow direction lights would sequentially fl ash
once.
(ii) Once destination has been established with LF func-
tion, direction arrow would light steadily, pointing
to the destination direction continuously.
Operations
Before you use
For the fi rst time using GPS MULTI-TRACKER, please
charge battery until it is fully charged. Take the USB
cable and connect it to the power jack then connect
5
EN
To use Location Finder
Switch to LF mode for starting location fi nder
1. Set a destination:
(a) Confi rm GPS indicator is fl ashing. Current loca-
tion would be stored after 2 second press into set
up button. Once destination has been successfully
established, all 8 arrow direction lights would sequentially fl ash once. After destination has been es-
another side to PC, Laptop or car cigarette adaptor.
This will begin to charge the battery. Charging time is
3 hours typically. A fully charged battery can last for up
to 14 hours continuously operation.
Start to use
Turn on GPS MULTI-TRACKER with switch into either LF
or DL mode. Once GPS MULTI-TRACKER power is turned
on automatic search for GPS signal would begin. Once
GPS position is fi xed, the GPS (Green) LED will start to
fl ash once every second.
NOTE:
GPS MULTI-TRACKER is only workable outdoors.
tablished, GPS MULTI-TRACKER is available to switch
into DL or OFF mode. Switch into LF mode, with 2
second press into set up button would rewrite new
destination over old.
(b) Using software pre-set destination.
Note: Only DL enables data log.
2. Search for destination:
(a) Once destination has been established with LF func-
tion, direction arrow would light steadily, pointing
to the destination direction continuously. Switch
into DL mode, 8 direction arrow light would continue to light steadily towards the destination position.
(b) When approach to destination within 50M of dis-
tance, direction arrow light would fl ash once every
second guiding you to your destination.
(c) When approach to destination within 15M of dis-
tance, direction arrow would light steadily guiding
you to your destination.
The switch arrow must point to LF.
6
EN
Set up a destination
Make sure the GPS (Green) LED is fl ashing.
NOTE: The USB port side must face the user and the
power switch side must be toward the direction the
user head to.
Press the setting button for 2 seconds, and then all direction (Red) LEDs will fl ash together for 3 seconds.
The Destination (Blue) LED fl ashes after all direction
(Red) LEDs have fl ashed, which indicates the position
has been saved. When its at LF mode the device is not
storing any track, therefore, please switch device DL
mode for data log. DL mode can also be used as LF lock
key; to prevent destination stored in LF been erased.
Note: If Destination LED (Blue) doesn’t fl ash after
the Direction LED (Red), please try again.
Upload your favorite location from Photo
Tagger software
In addition to setting up the destination on GPS MULTITRACKER, you can also upload the coordinate location
from Photo Tagger software. For further instruction, please refer to the user manual of Photo Tagger software.
Using software to preset destination
1. Places that you’ve never been: Find a search engine
on the left hand bottom of software. After entering
the desired address, press search to fi nd your target.
After the target location has been indicated, add a
blue “balloon” sign (indicate on the right hand top
of the map displaying screen).
7
EN
2. Places you’ve been or a place has been marked: Upload your data/ photo, and fi nd the marked red “balloon” signs. Use “Save as target” function appeared
in the dialog box, and automatic connection with
hardware would store the appointed location as a
destination within GPS MULTI-TRACKER. After the
location has been saved, a successful storage dialog
box would appear.
Look for the destination
Change the power switch to LF mode. Once the GPS
position is fi xed, one of the direction arrows (Red) LEDs
will start to indicate the directions.

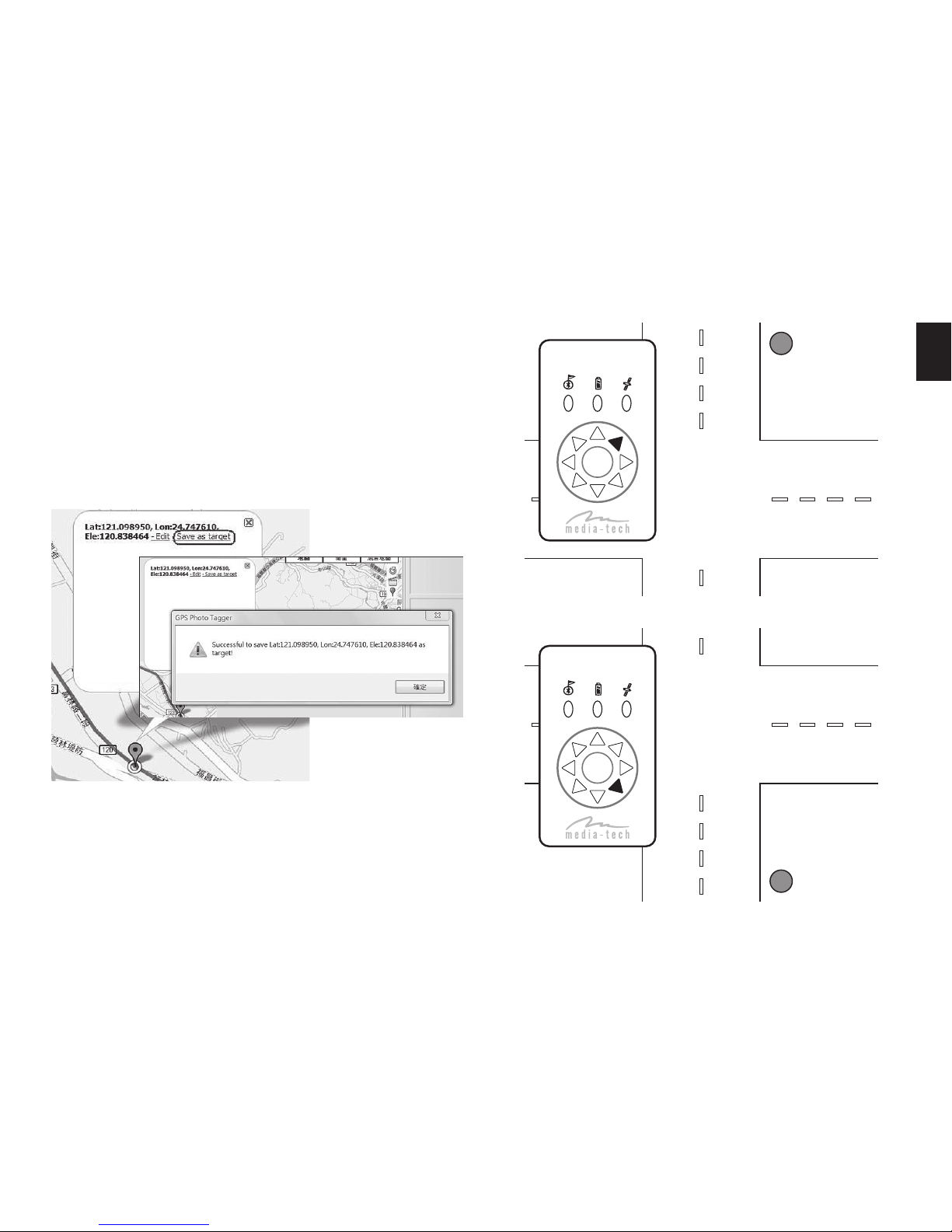

The signaled position
The signaled position
8
EN
The signaled position
15 meter
NOTE: The power Jack side must face the user.
When you are within 50 meters of the destination, one
of the direction (Red) LEDs will fl ash for indicating you
to approach the destination.
When you are within 15 meters of the destination, the
destination (Blue) LED will be on. Following the indication of the direction (Red) LEDs, you can simply fi nd the
position saved before.
The signaled position
Over 50 meter
To use Data Logger
Data Log: Data log function correctly when GPS indication light is fl ashing.

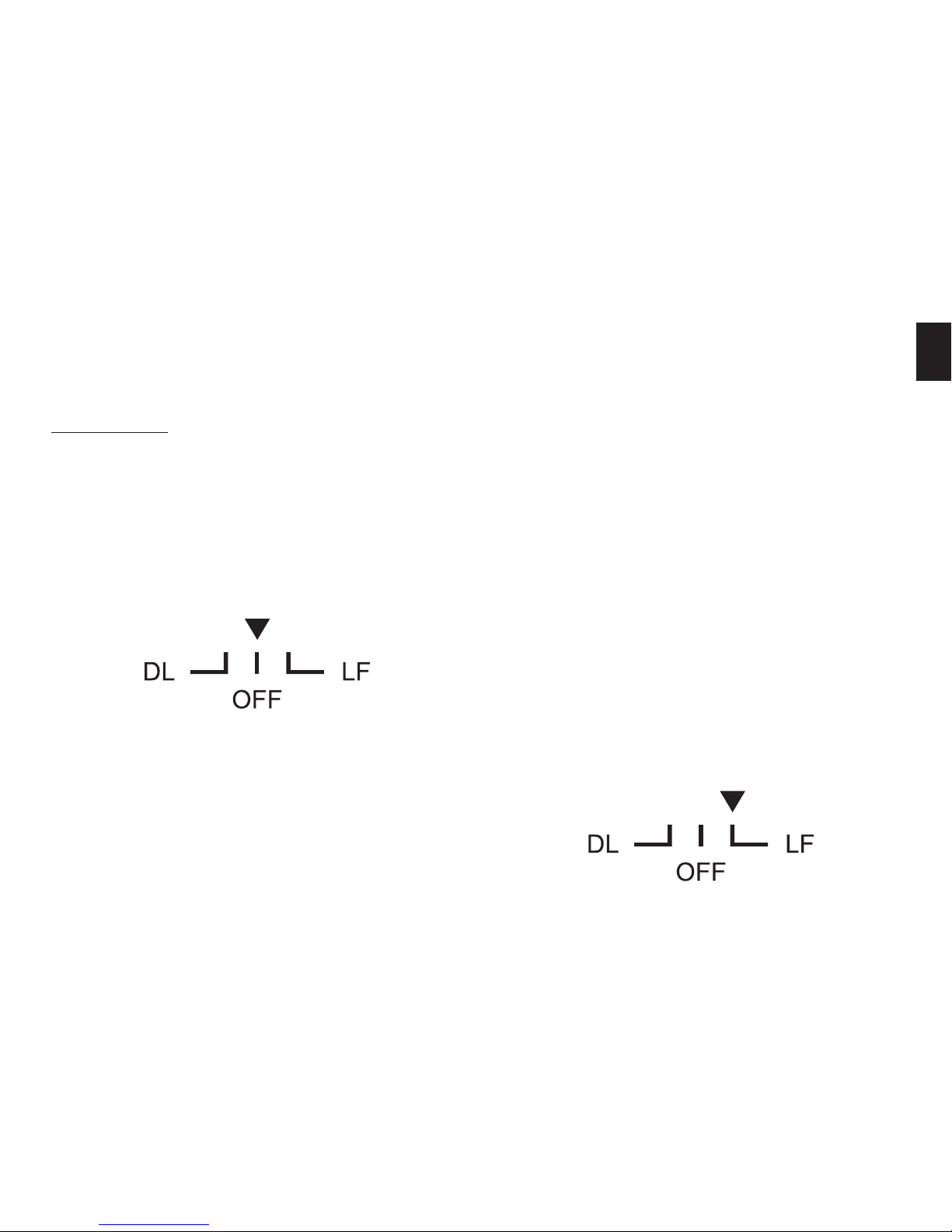

Switch to DL mode for logging tracks
The switch arrow must point to DL.
9
EN
As long as the GPS (Green) LED fl ashes, GPS MULTITRACKER is logging tracks.
Record Points of Interest (POIs)
In DL mode, GPS MULTI-TRACKER is
able to record POIs. Press the setting
button for 2 seconds, the position will
be recorded. All direction LEDs fl ashing together for 1 second indicates
the position has been recorded.
While uploading the tracks to PC,
you can also see the POIs you have
recorded.
Note: The direction (Red) LEDs still keep indicating
to the destination you have set in LF mode before,
even though GPS MULTI-TRACKER is in DL mode.
To use as GPS receiver
To use GPSMULTI-TRACKER as GPS receiver, proper
map/navigation software installed on notebook,
PDA or mobile phone device
Plug the USB cable and connect with a laptop.
The laptop must have mapping software installed. (We
don’t provide it) After connecting with laptop by USB
cable, GPS MULTI-TRACKER becomes your personal
navigator.
To use as Bluetooth GPS receiver
To use GPS MULTI-TRACKER as GPS receiver, proper
map/navigation software installed on notebook, PDA
or mobile phone device.
1. Switch ON device to DL mode (Bluetooth is not
working in LF mode)
2. Activate Bluetooth function in Your PDA, notebook
or mobile phone
3. Start pairing process (refer PDA, mobile phone,
notebook manual)
4. When asked for password, enter: 0000
5. After completed device pairing, click “Serial port”
tag in Bluetooth setting and make sure that “Outbound COM port” has been assigned. If not, add it
manually.
6. Set correct serial port in Your navigation software
(refer to software manual)
10
EN
To use Photo Tagger
Install Photo Tagger software and enter the
product key
The Photo Tagger software supports Windows, XP, and
Vista. After completing installation, enter the product
key which is on the package of the CD.
Read the user manual of Photo Tagger
software
Go to <Help> to bring up the user manual of Photo
Tagger software.
Battery maintenance
GPS MULTI-TRACKER is equipped with high-quality LiIon rechargeable battery. Battery is covered only by
limited warranty as supply for device
Every rechargeable battery has “memory eff ect” which
causes shrinking capacity after period of time and depend of charging-recharging cycles. To decrease “memory-eff ect” please try to do not charge battery if is not
completely discharged or for every 4th cycle, discharge
battery completely before charging.
11
EN
12
EN
