media-tech MT4205 User Manual

Download

Version 1.1

PORTABLE WLAN SERVER

ROUTER 3,5G PRO

User Manual

Version 1.1

Table of Content

FCC CAUTION ...................................................................................................................................... 9

SAFE SEATING GESTURES .............................................................................................................. 10

CE STATEMENT OF CONFORMITY .................................................................................................. 10

CHAPTER 1 INTRODUCTION ............................................................................................................. 11

1.1 OVERVIEW ............................................................................................................................. 11

1.2 FEATURES ............................................................................................................................ 12

1.3 SPECIFICATIONS ................................................................................................................... 13

1.3.1 SIX VIEWS OF PRODUCT APPEARANCE .......................................................................... 14

1.4 SYSTEM REQUIREMENTS ....................................................................................................... 15

1.5 GET YOUR IP AUTOMATICALLY & MANUALLY ......................................................................... 15

1.5.1 Network Testing ....................................................................................................... 18

1.5.1.1 Testing with Internet Browser .......................................................................................... 18

1.5.1.2 Testing with DOS (Windows XP Platform) ...................................................................... 18

CHAPTER 2 HARDWARE INSTALLATION........................................................................................ 21

2.1 DIAGRAM OF CONNECTING HARDWARE TO MT4205 ............................................................... 21

2.1.1 Router Mode Hardware Connection and Application ........................................... 21

2.1.2 AP Mode Hardware Connection and Application ................................................. 22

2.1.3 Client Mode Hardware Connection and Application ............................................ 22

CHAPTER 3 ROUTER MODE ............................................................................................................. 23

3.1 ADMINISTRATOR QUICK SETUP INSTRUCTION ......................................................................... 23

3.2 QUICK SETUP ....................................................................................................................... 24

3.2.1 WAN Setup (Internet Connection) .......................................................................... 26

3.2.1.1 WAN Type – Static IP ........................................................................................................ 27

3.2.1.2 WAN Type – Dynamic IP ................................................................................................... 28

3.2.1.3 WAN Type – PPPoE........................................................................................................... 29

3.2.1.4 WAN Type – PPTP ............................................................................................................. 30

3.2.1.5 HSDPA/UMTS .................................................................................................................... 32

3.2.2 LAN Setup ................................................................................................................. 33

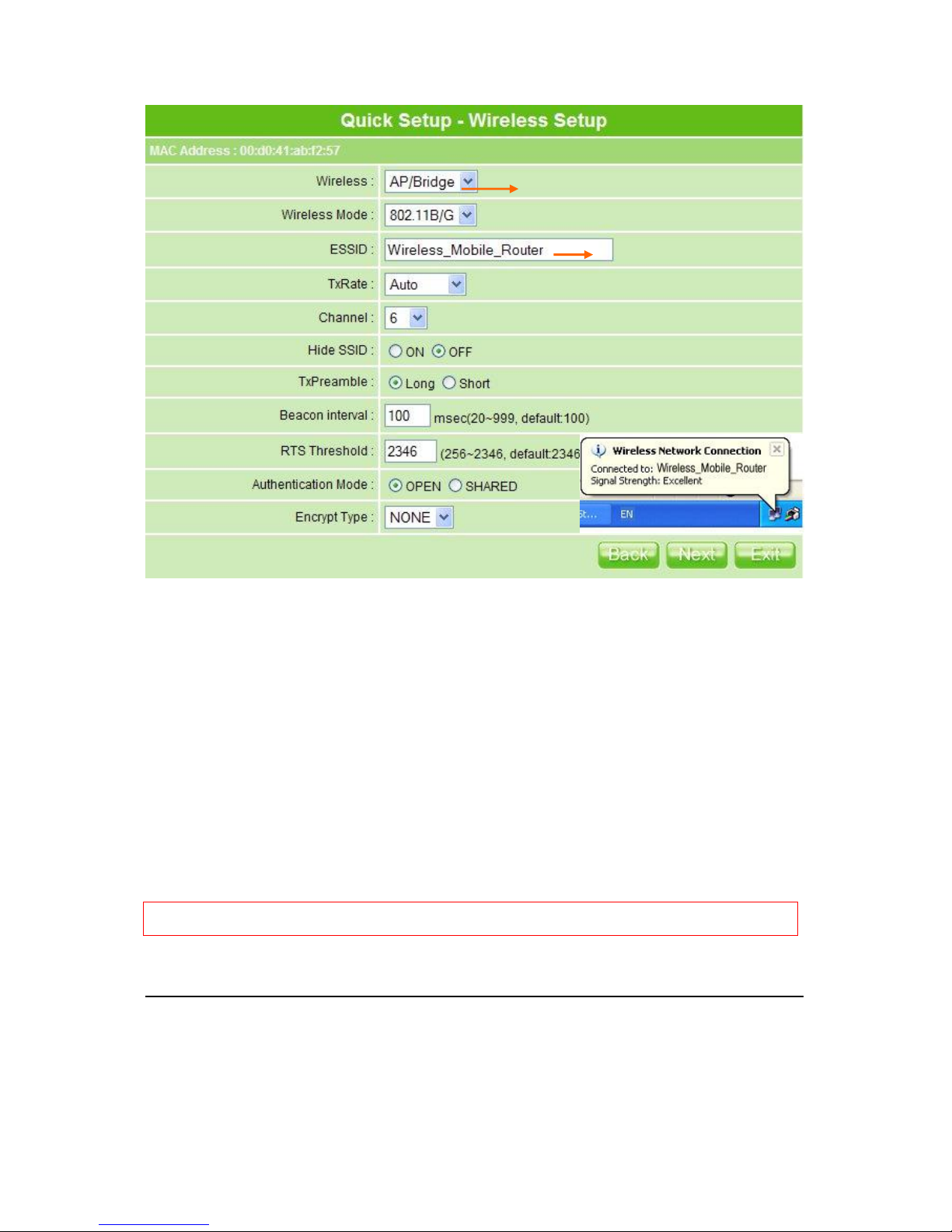

3.2.3 Wireless Setup ......................................................................................................... 34

3.2.4 Time Server Setup .................................................................................................... 35

3.2.5 Password Setup ....................................................................................................... 36

3.2.6 USB Disk Management Setup ................................................................................. 37

3.2.7 User Account Management Setup .......................................................................... 37

Version 1.1

3.2.8 Firewall Setup ........................................................................................................... 38

3.2.9 QoS Configuration Setup ........................................................................................ 39

3.2.10 FTP Server Setup ..................................................................................................... 40

3.2.11 Printer Server Setup ................................................................................................ 40

3.2.12 Web Camera Server Setup ...................................................................................... 40

3.2.13 Samba Server Setup ................................................................................................ 41

3.2.14 Quick Setup Finish................................................................................................... 41

3.3 IP CONFIGURATION ............................................................................................................... 42

3.3.1 WAN ........................................................................................................................... 42

3.3.2 LAN ............................................................................................................................ 51

3.3.3 Wireless .................................................................................................................... 52

3.3.4 DDNS ......................................................................................................................... 56

3.4 ADVANCED ........................................................................................................................... 57

3.4.1 NAT ............................................................................................................................ 58

3.4.1.1 Virtual Server .................................................................................................................... 58

3.4.1.2 Virtual DMZ ........................................................................................................................ 59

3.4.2 Firewall ...................................................................................................................... 60

3.4.2.1 Firewall Configuration ...................................................................................................... 60

3.4.2.2 IP Filter ............................................................................................................................... 63

3.4.2.3 MAC Filter .......................................................................................................................... 64

3.4.2.4 URL Filter ........................................................................................................................... 65

3.4.3 QoS ............................................................................................................................ 67

3.5 SERVER ................................................................................................................................ 68

3.5.1 Samba Server ........................................................................................................... 68

3.5.1.1 How to Access File Sharing Directory ............................................................................ 69

3.5.2 FTP Server ................................................................................................................ 71

3.5.3 Web Camera Server ................................................................................................. 72

3.5.3.1 Web Camera Server Basic Setup..................................................................................... 73

3.5.3.2 Web Camera Server Advanced Configuration ................................................................ 73

3.5.3.3 Application for Web Camera ............................................................................................ 74

3.5.3.3.1 Web Camera Monitoring Application .......................................................................... 74

3.5.3.3.1.1 Web Camera Monitoring via WAN connection .................................................. 75

3.5.3.3.1.2 Web Camera Monitoring via WiFi Mobile Phone ............................................... 76

3.5.3.3.2 Web Camera Recording ............................................................................................... 77

3.5.3.3.2.1 Administrator Setup ............................................................................................ 77

3.5.3.3.2.2 Personal Application ........................................................................................... 79

3.5.4 Printer Server ........................................................................................................... 80

3.5.4.1 Printer Setting on PC ........................................................................................................ 81

Version 1.1

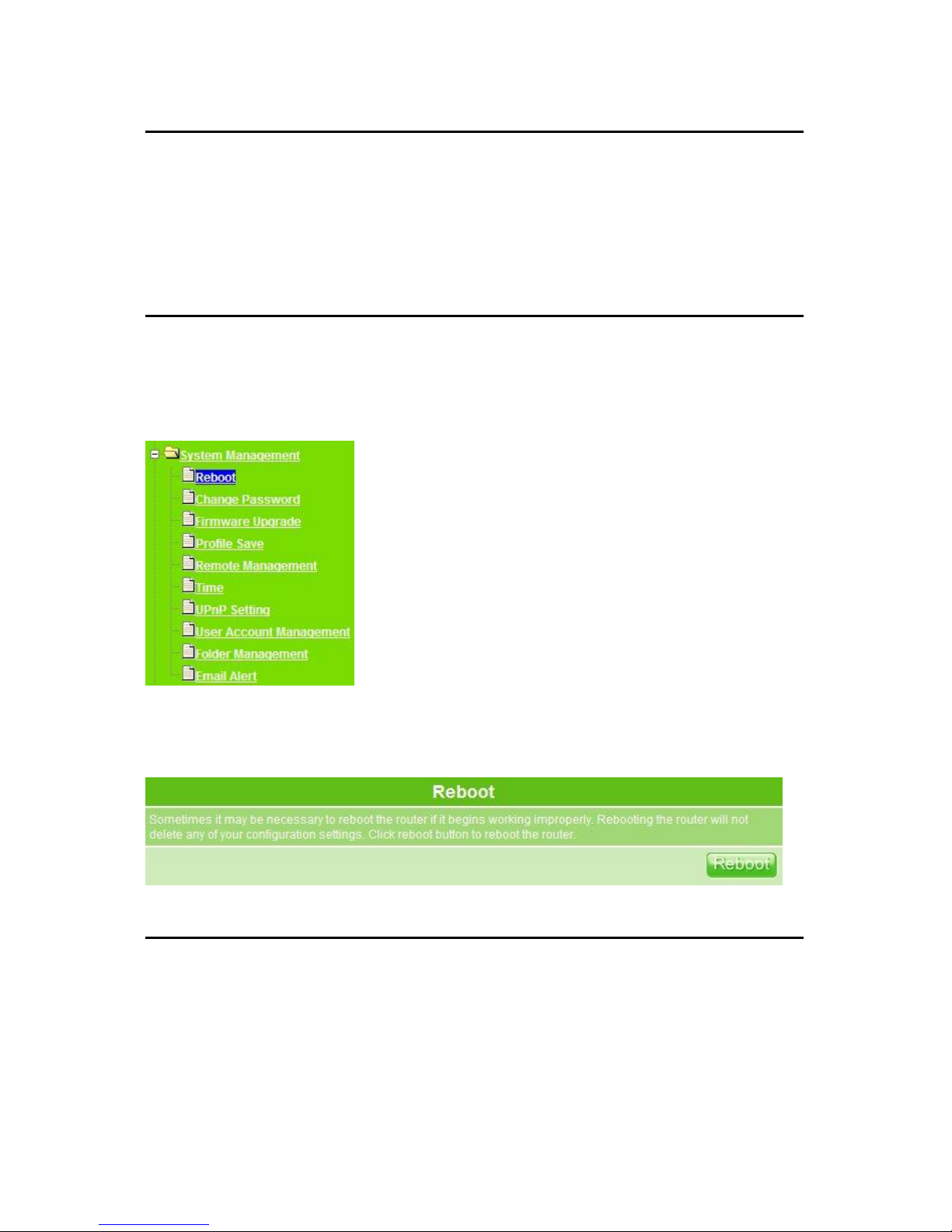

3.6 SYSTEM MANAGEMENT ......................................................................................................... 88

3.6.1 Reboot ....................................................................................................................... 88

3.6.2 Change Password .................................................................................................... 88

3.6.3 Firmware Upgrade.................................................................................................... 89

3.6.4 Profile Sasve ............................................................................................................. 90

3.6.5 Remote Management ............................................................................................... 91

3.6.6 Time ........................................................................................................................... 93

3.6.7 UPnP Setting ............................................................................................................ 94

3.6.8 User Account Management ..................................................................................... 94

3.6.9 Folder Management ................................................................................................. 96

3.6.10 Email Alert ................................................................................................................. 97

3.7 LOG & STATUS ..................................................................................................................... 99

3.7.1 Network Configuration ............................................................................................ 99

3.7.2 User Account List .................................................................................................. 100

3.7.3 Event Log ................................................................................................................ 101

3.8 LOGOUT ............................................................................................................................. 101

3.9 PERSONAL CONFIGURATION ................................................................................................ 101

3.9.1 Anonymous ............................................................................................................ 103

3.9.2 My Document .......................................................................................................... 104

3.9.3 My Webcam ............................................................................................................ 105

3.9.4 My Status ................................................................................................................ 105

3.10 SITE MAP ........................................................................................................................... 106

CHAPTER 4 AP MODE ..................................................................................................................... 107

4.1 ADMINISTRATOR QUICK SETUP INSTRUCTION ....................................................................... 107

4.2 QUICK SETUP ..................................................................................................................... 108

4.2.1 LAN Setup ................................................................................................................ 110

4.2.2 Wireless Setup ........................................................................................................ 111

4.2.3 Time Server Setup ................................................................................................... 113

4.2.4 Password Setup ...................................................................................................... 113

4.2.5 USB Disk Management Setup ................................................................................ 114

4.2.6 User Account Management Setup ......................................................................... 114

4.2.7 FTP Server Setup .................................................................................................... 115

4.2.8 Printer Server Setup ............................................................................................... 116

4.2.9 Web Camera Server Setup ..................................................................................... 116

4.2.10 Samba Server Setup ............................................................................................... 116

4.2.11 Quick Setup Finish.................................................................................................. 117

4.3 IP CONFIGURATION .............................................................................................................. 117

Version 1.1

4.3.1 LAN ........................................................................................................................... 117

4.3.2 Wireless ................................................................................................................... 119

4.4 SERVER .............................................................................................................................. 123

4.4.1 Samba Server ......................................................................................................... 124

4.4.1.1 How to Access File Sharing Directory .......................................................................... 124

4.4.2 FTP Server .............................................................................................................. 126

4.4.3 Web Camera Server ............................................................................................... 127

4.4.3.1 Web Camera Server Basic Setup................................................................................... 128

4.4.3.2 Web Camera Server Advanced Configuration .............................................................. 128

4.4.3.3 Application for Web Camera .......................................................................................... 129

4.4.3.3.1 Web Camera Monitoring Application ........................................................................ 129

4.4.3.3.1.1 Web Camera Monitoring via WAN connection ................................................ 130

4.4.3.3.2 Web Camera Recording ............................................................................................. 133

4.4.3.3.2.1 Administrator Setup .......................................................................................... 133

4.4.3.3.2.2 Personal Application ......................................................................................... 134

4.4.4 Printer Server ......................................................................................................... 136

4.4.4.1 Printer Setting on PC ...................................................................................................... 136

4.5 SYSTEM MANAGEMENT ....................................................................................................... 142

4.5.1 Reboot ..................................................................................................................... 142

4.5.2 Change Password .................................................................................................. 142

4.5.3 Firmware Upgrade.................................................................................................. 143

4.5.4 Profile Save ............................................................................................................. 144

4.5.5 Remote Management ............................................................................................. 145

4.5.6 Time ......................................................................................................................... 146

4.5.7 UPnP Setting .......................................................................................................... 146

4.5.8 User Account Management ................................................................................... 147

4.5.9 Folder Management ............................................................................................... 148

4.5.10 Email Alert ............................................................................................................... 149

4.6 LOG & STATUS ................................................................................................................... 151

4.6.1 Network Configuration .......................................................................................... 151

4.6.2 User Account List .................................................................................................. 152

4.6.3 Event Log ................................................................................................................ 152

4.7 LOGOUT ............................................................................................................................. 153

4.8 PERSONAL CONFIGURATION ................................................................................................ 153

4.8.1 Anonymous ............................................................................................................ 155

4.8.2 My Document .......................................................................................................... 156

4.8.3 My Webcam ............................................................................................................ 157

4.8.4 My Status ................................................................................................................ 157

Version 1.1

4.9 SITE MAP ........................................................................................................................... 158

CHAPTER 5 CLIENT MODE ............................................................................................................. 159

5.1 ADMINISTRATOR QUICK SETUP ............................................................................................ 159

5.2 QUICK SETUP ..................................................................................................................... 160

5.2.1 SITE SURVEY SETUP .................................................................................................. 161

5.2.2 Wireless Setup ....................................................................................................... 162

5.2.3 Time Server Setup .................................................................................................. 163

5.2.4 Password Setup ..................................................................................................... 163

5.2.5 USB Disk Management Setup ............................................................................... 163

5.2.6 User Account Management Setup ........................................................................ 164

5.2.7 FTP Server Setup ................................................................................................... 165

5.2.8 Web Camera Server Setup .................................................................................... 165

5.2.9 Printer Server Setup .............................................................................................. 165

5.2.10 Samba Server Setup .............................................................................................. 166

5.2.11 Quick Setup Finish................................................................................................. 166

5.3 IP CONFIGURATION ............................................................................................................. 167

5.3.1 LAN .......................................................................................................................... 167

5.3.2 Site Survey .............................................................................................................. 168

5.4 SERVER .............................................................................................................................. 170

5.4.1 Samba Server ......................................................................................................... 170

5.4.1.1 How to Access File Sharing Directory .......................................................................... 171

5.4.2 FTP Server .............................................................................................................. 173

5.4.3 Web Camera Server ............................................................................................... 174

5.4.3.1 Web Camera Server Basic Setup................................................................................... 174

5.4.3.2 Web Camera Server Advanced Configuration .............................................................. 175

5.4.3.3 Application for Web Camera .......................................................................................... 176

5.4.3.3.1 Web Camera Monitoring Application ........................................................................ 176

5.4.3.3.1.1 Web Camera Monitoring via WAN Connection ................................................ 176

5.4.3.3.2 Web Camera Recording ............................................................................................. 179

5.4.3.3.2.1 Administrator Setup .......................................................................................... 179

5.4.3.3.2.2 Personal Application ......................................................................................... 181

5.4.4 Printer Server ......................................................................................................... 182

5.4.4.1 Printer Setting on PC ...................................................................................................... 183

5.5 SYSTEM MANAGEMENT ....................................................................................................... 189

5.5.1 Reboot ..................................................................................................................... 189

5.5.2 Change Password .................................................................................................. 189

5.5.3 Firmware Upgrade.................................................................................................. 190

Version 1.1

5.5.4 Profile Save ............................................................................................................. 191

5.5.5 Remote Management ............................................................................................. 192

5.5.6 Time ......................................................................................................................... 193

5.5.7 UPnP Setting .......................................................................................................... 194

5.5.8 User Account Management ................................................................................... 194

5.5.9 Folder Management ............................................................................................... 196

5.5.10 Email Alert ............................................................................................................... 197

5.6 LOG & STATUS ................................................................................................................... 198

5.6.1 Network Configuration .......................................................................................... 198

5.6.2 User Account List .................................................................................................. 199

5.6.3 Event Log ................................................................................................................ 199

5.7 LOGOUT ............................................................................................................................. 200

5.8 PERSONAL CONFIGURATION ................................................................................................ 200

5.8.1 Anonymous ............................................................................................................ 202

5.8.2 My Document .......................................................................................................... 203

5.8.3 My Webcam ............................................................................................................ 204

5.8.4 My Status ................................................................................................................ 204

5.9 SITE MAP ........................................................................................................................... 205

CHAPTER 6 DDNS SERVICE APPLICATION .................................................................................. 206

CHAPTER 7 Q & A ............................................................................................................................ 210

7.1 INSTALLATION .......................................................................................................................... 210

7.2 LED ........................................................................................................................................ 210

7.3 IP ADDRESS ............................................................................................................................. 211

7.4 OS SETTING ............................................................................................................................. 211

7.5 MT4205 SETUP ....................................................................................................................... 213

7.6 WIRELESS LAN ....................................................................................................................... 215

7.7 SAMBA SERVER ....................................................................................................................... 218

7.8 USB FTP SERVER ................................................................................................................... 218

7.9 WEBCAM SERVER .................................................................................................................... 219

7.10 PRINTER SERVER ................................................................................................................... 220

7.11 SUPPORT ............................................................................................................................... 220

7.12 OTHERS ................................................................................................................................ 221

7.13 USB DEVICE ......................................................................................................................... 221

CHAPTER 8 APPENDICES .............................................................................................................. 221

8.1 PRINTER ............................................................................................................................. 221

8.2 WEB CAMERA ..................................................................................................................... 222

Version 1.1

8.3 USB DEVICES .................................................................................................................... 226

8.4 OPERATING SYSTEMS ......................................................................................................... 227

8.5 BROWSERS ........................................................................................................................ 227

8.6 EASY SETUP ....................................................................................................................... 228

8.7 COMMUNICATIONS REGULATION INFORMATION ..................................................................... 228

Version 1.1

FCC Caution

The device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:

1. This device may not cause harmful interference, and this device must accept any

interference received, including interference that may cause undesired operation.

2. FCC RF Radiation Exposure Statement: The equipment complies with FCC RF

radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.

3. This Transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

4. Changes or modifications to this unit not expressly approved by the party responsible

for compliance could void the user authority to operate the equipment.

Version 1.1

Safe Seating Gestures

You should follow the manufacturer’s instructions for adjusting the backrest to fit your body

properly.

An adjustable chair that provides firm, comfortable support is best. Adjust the height of the chair so your thighs are horizontal and your feet flat on the

floor.

The back of the chair should support your lower back (lumbar region).

CE Statement of Conformity

Our product has been tested in typical configuration by Ecom Sertech Corp and was found

to comply with the essential requirement of ―Council Directive on the Approximation of the

Laws of the Member States relating to Electromagnetic Compatibility‖ (89/336/EEC;

92/31/EEC; 93/68/EEC)

Version 1.1

Chapter 1 Introduction

1.1 Overview

MT4205 might be small in size, but is huge in functionality, supporting multiple operation modes, including Access Point (AP) mode, Router mode, and Wireless Client mode. You can switch among these modes easily by using MT4205's 3-way configuration switch. In addition to, there are 2 USB ports available for connecting any devices which allow LAN users to utilize shared printer and samba server. Also, apply MT4205 with a Webcam to monitor in real time, or with a USB-connected Flash/Drive to become a FTP server providing shared download service in the mean time. In other words, monitor your home with a Webcam by taking pictures via MT4205 and record all images into the USB HDD for reviewing. Often marketed as surveillance tools for home or office security, network Webcams are now being employed by early adopters for more personal matters, such as watching kids and monitoring pets. The Webcam can be remotely accessed and controlled via a browser. Moreover, while connectting MT4205 with

3.5G USB dongle to access Internet or work as connection backup, you can immediately speed up data transmission, as well as calling out and receiving phone calls via a cell phone.

Version 1.1

1.2 Features

MT4205’s main functions, including Wireless Access, Printer Server, Webcam Monitor, Samba Server, FTP Server and IP Sharing etc. are shown as below. These features and their applying instructions specified in User Manual will not only fulfill your requirements, but also ease your inconvenience from the job.

 Easy Setup Proprietary utility is designed to let users, even the beginners, complete their server setups easily and access Internet without any difficulty.  3 Operation Modes The unit provides Router, AP and Client operation modes by sliding side switches first.  Web GUI Friendly user interface only requires supported web browser to start advanced setup.  Printer Server MT4205 supports LPR protocol, so users can use shared printer from both WAN and LAN.  Webcam Server The product supports USB Web Camera, which provides easy and affordable solution for home security. It allows users monitoring home from anywhere via online webcam. Also, you might be alerted by an email with an intruder picture.  Samba Server It is located on your network places to provide shared information and printer for LAN users.  FTP Server MT4205 supports FAT32/EXT3 file system format. Plug with USB hard drive or thumb drive, it will become a FTP server, and the users can share files on the Internet.  Security/Encryption The unit is equipped with encryption types of WEP, WPA, 802.1x and so on to give more security assurance.  Real-time Monitoring MT4205 can save real-time images from connected webcamera for the purpose of home safety monitoring.  3.5G Internet Connection With a 3.5G USB dongle, MT4205 can upgrade its data transmission rate on the Internet.

Version 1.1

1.3 Specifications

Interface

Components CPU

Star 9105gu

Flash ROM

8Mbyte (NAND Gate)

DRAM

32MByte

WAN Port

1 x 10/100 Mbps RJ45, with auto MDI/MDIX

LAN Port

1 x 10/100 Mbps RJ45, with auto MDI/MDIX

USB2.0 Port

2 x Standard _A type—USB 2.0 for 3.5G USB Dongle, USB Webcam, USB printer, USB Flash/HDD

Wireless

Ralink 2561 Mini_PCI

Slide Switch

Router / AP / Client mode exchange function.

Function

Web-Base

Windows IE / Linux Firefox / MAC Safari

WAN Protocol

PPPoE / PPTP / Static IP/ Dynamic IP/ HSDPA/UMTS

WLAN

WDS / WEP Key / WPA / WPA-PSK / MAC Access Control /Hidden SSID

Routing

UPnP / DHCP / DNS / WINS / DDNS

NAT

Virtual Server / Virtual DMZ

Firewall

MAC Filter / URL Filter / SPI / DoS Protection / IP Packet Filter

QoS

3-level priority for each application port

Folder Management

Disk Format

User account Management

User account create and access control

Application

Management

Webcam Server

Webcam view via browser by internet real time Picture monitor from LAN/WAN PC Picture recording to FTP server or USB HDD

Printer Server

Printer Via WAN/LAN PC Printer Sharing

Samba Server

File Sharing

FTP Server

Anonymous login / User Login

Others

Administrator

Quick Setup Wizard / Site Map Setup wizard / General Setup

Personal Panel

My Document / My Webcam / My Status

Operation Requirement

Operating Temp. 0°C~40°C (32°F~104°F) Storage Temp. -20°C~70°C (-14°F~158°F) Operating Humidity 10% to 85% Non-Condensing Storage Humidity 5% to 90% Non-Condensing

Peak Gain of the Antenna

2dBi @ 2.45GHz

Transmitted Power (Typical)

15dBm @ Normal Temp. Range

Receive Sensitivity (Typical)

Normal Temp. Range: 11Mbps: 10-5 BER @ -83 dBm

Application

Dimension

91mm (L) x 80mm (W) x 29mm (H)

Power

Adapt AC 100 V ~ 240 V in / DC 12V 2.5A output

Notice: USB devices with power more than 0.5 mAh are not supported.

Notice: Firmware Upgrade available through download.

Version 1.1

1.3.1 Six Views of Product Appearance

Version 1.1

1.4 System Requirements

To begin with MT4205, you must have the following minimum system requirements. If your

system can’t correspond to the following requirements, you might get some unknown

troubles on your system.

 XDSL/Cable Modem and broadband Internet Account.  One Ethernet (10 BASE-T or 10/100 BASE-TX) network interface card.  TCP/IP and at least one web browser software installed (E.g.: Internet Explorer 5.0,

Netscape Navigator 7.x, Apple Safari 2.03 or higher version).

 At lease one 802.11g (54Mbps) or one 802.11b (11Mbps) wireless adapter for wireless

mobile clients.

 Recommended OS: Win2000 or WinXP / Linux.

1.5 Get Your IP Automatically & Manually

After MT4205 connected with your computer, please make sure your IP is in the automatic IP position or you adjust it manually in order to activate the Internet network from home to Internet. If you don’t know how to enter the settings, please follow the steps as below.

【Step 1】

Go to Start>Settings> Network Connections and then select Local Area Connection.

Version 1.1

【Step 2】

Click on Properties

【Step 3】

Double click on Internet Protocol (TCP/IP).

Version 1.1

【Step 4-1】

For getting IP automatically if you are one of the users under MT4205, please skip Use the following IP address and then select Obtain an IP address automatically and Obtain DNS server address automatically and then click on OK button.

【Step 4-2】

For getting IP manually in order to specify a Virtual Server, such as Print Server, FTP Server and so on, please skip Obtain an IP address automatically and then select Use the following IP address. And the following default setting of MT4205 should be noted:

 IP Address：192.168.1.10 (as your Print Server for example)  Subnet Mask：255.255.255.0  Default Gateway：192.168.1.1

Notice: If you configure your computer’s IP Address manually, it needs to be on the same

network segment.

For example:  IP Address: 192.168.1.xxx (xxx can be any number between 2 and 253, but it can’t be

repeated, we use 100 to be the example.)

 Subnet Mask: 255.255.255.0  Gateway: 192.168.1.1 (this is the IP address of MT4205 in Router Mode)  DNS: 192.168.1.1 (use MT4205’s IP address or on your own choice)

Notice: IP address and Default gateway cannot be the same.

Version 1.1

1.5.1 Network Testing

There are two ways to test your Network whether it can work on Internet or not. They are ―Testing with Internet Browser‖ and ―Testing with Dos‖.

1.5.1.1 Testing with Internet Browser

Open an Internet Browser, such as Internet Explore or Netscape. Input a valid web address you like, for example, http://www.yahoo.com in the web address blank and then press enter. If the website appears, that means your Internet is working under normal situation.

1.5.1.2 Testing with DOS (Windows XP Platform)

Version 1.1

【Step 1】

Go to start > Run.

【Step 2】

Input cmd in the blank, and then click OK button. The Command Prompt window appears.

【Step 3】

Input ipconfig in the flashing area then press enter. You will get an IP Address

192.168.1.100, for example, and Default Gateway as 192.168.1.1.

【Step 4】

Ping a legal WAN Address such as 192.168.1.1. If Internet works, it will show Reply from

192.168.1.1: bytes = 32 time = 3ms TTL =64, for example.

Version 1.1

If it can’t work, it will show Request timed out.

21 Version 1.0

Chapter 2 Hardware Installation

2.1 Diagram of Connecting Hardware to MT4205

MT4205 is a portable and convenient wireless solution for the traveling businessmen delivering 802.11g wireless connectivity with a maximum wireless signal rate of up to 54Mbps. Use it in conference rooms, hotel rooms, or even at hotspots. The Wireless Pocket Router/AP might be small in size, but is huge in functionality, supporting multiple operation modes, including Access Point (AP) mode, Router mode, and Wireless Client mode. You can switch among these modes easily by using MT4205's 3-way configuration slide switch. Moreover, there are 2 USB port support with MT4205; user can plug the USB devices, including Flash Disk, Web Camera, Printer and 3.5G USB Dongle.

Warning: Before sliding the switch modes, please power-off the router firstly. Moreover, please stay

over 5 seconds between power-off / power-on condition.

2.1.1 Router Mode Hardware Connection and Application

When MT4205 switches to Router Mode, there will be each WAN and LAN port existing, the administrator can do the Quick Setup including WAN Setup, LAN Setup, Wireless Setup, Time Server Setup, Password Setup, USB Disk Management Setup, User Account Management Setup, Firewall Setup, QoS Setup, FTP Server Setup, Web Camera Setup, Print Server Setup and Samba Server Setup.

22 Version 1.0

2.1.2 AP Mode Hardware Connection and Application

Under AP Mode, it supports 2 LAN ports as Bridge, and user can connect to MT4205 via LAN port or Wireless (WDS). The administrator can set up quickly, including LAN Setup, Wireless Setup, Time Server Setup, Password Setup, USB Disk Management Setup, User Account Management Setup, FTP Server Setup, Web Camera Setup, Printer Server Setup and Samba Setup.

2.1.3 Client Mode Hardware Connection and Application

As Client Mode, MT4205 will be a Wireless Adapter, and users can plug cable to each 2 LAN ports and then connect Internet via Wireless.

23 Version 1.0

Chapter 3 Router Mode

3.1 Administrator Quick Setup Instruction

Make sure to switch the mode into Router Mode, then open a Microsoft Internet Explorer, Mozilla Firefox or Apple Safari browser, and enter http://192.168.1.1 (Default Gateway) into browser’s blank.

Notice: If the homepage doesn’t appear, please check if the TCP/IP configuration is obtaining IP address

automatically or not. If you don’t know how to do it, please refer to ―1.5 Get your IP Automatically & Manually‖.

Homepage

Please click on Administrator button to log in setup at first time, also any settings can be changed in the future. Only the Administrator has the right to modify all settings.

24 Version 1.0

User Name and Password

The default values for User Name and Password are admin (all in lowercase letters). Click Login to enter.

Notice: Only the password can be changed, please read setup ―3.2.5 Password Setup‖ or ―3.6.2 Change

Password‖. In order to protect your own settings, it’s strongly recommended to change the password

before you finish the Router Basic Setup.

3.2 Quick Setup

Typical Configuration Manager Page consists of two separate frames. The left frame contains all the means available for device configuration. Menus are indicated by file icons, and related menus are grouped into categories, such as LAN, WAN and etc., and indicated by folder icon, depending on whether the group of menus are expanded or not. You can click on any of these to display a specific configuration page. And the right frame is designed as a site map.

25 Version 1.0

The above diagram shows all PCs and devices connected to your MT4205 and their status. Click Quick Setup on the left of the main menu. Then you’ll see the full functionality selection screen appears and detailed settings for each item, including ―Basic‖ and ―Application‖ two parts.

Note: The device models named of USB Device, Webcam and Printer will be shown under the picture of each

device if the product supports.

Quick Setup full function table list

 Click Basic, you see 5 major items set in Quick Setup Selection. Please click Next

button after confirmed.

 Click Application, you see 8 major items set here, including USB Disk Management

Setup, User Account Management Setup, Firewall Setup, QoS Setup, FTP Server Setup, Printer Server Setup, Web Camera Setup and Samba Server Setup. For the checked ones are recommended, all can be selected upon your demands.

Initiated as default

26 Version 1.0

Quick Setup Instruction

 WAN Setup: Setup the connecting type provided by your ISP, 5 modes of WAN

connection are supported by MT4205–Static IP, Dynamic IP, PPPoE, PPTP and HSDPA/UMTS.

 LAN Setup: Setup the IP Address for LAN and Group. If you are using the Router

with multiple PCs on your LAN, you must connect the LAN via the Ethernet ports on the built-in Ethernet switch. You should also assign a unique IP address to each device residing on your LAN.

 Wireless Setup: Define the Wireless Mode, ESSID, TxRate, Channel and other

wireless settings.

 Time Server Setup: Set time by NTP server or user defines.  Password Setup: To change administrator’s password.  USB Disk Management Setup: View the entire data folder inside each storage

devices, also can do formatting and disk partition.

 User Account Management Setup: Set maximum user number, account and right for

using personal services of your MT4205 for each user.

 Firewall Setup: To enable Firewall and set security level.  QoS Setup: To enable/disable QoS setup.  FTP Server Setup: To enable FTP server and set controlling rules.  Printer Server Setup: To enable /disable server.  Web Camera Setup: To enable Web camera function and set image format.  Samba Server Setup: To enable Samba server for shared documents and printer.

3.2.1 WAN Setup (Internet Connection)

WAN is short for Wide Area Network. The WAN settings can be referred to as the Public setting. All IP information in the WAN settings is public IP addresses which are accessible on the Internet. MT4205 supports 5 connection types to WAN. Select one of the WAN connection modes required by your ISP in the following Internet Connection Configuration page, the WAN setup pages will vary depending on what kind of WAN Type you select.

27 Version 1.0

Choose your WAN type as the above mentioned, and its associated settings will show up underneath at the same time.

3.2.1.1 WAN Type – Static IP

Choose Static IP Address if all WAN IP information is provided to you by your ISP. You will need to enter the IP address, IP Netmask and IP gateway as provided. Each entered fields must be in the appropriate IP form, which are four IP octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format. If ISP provides you DNS information, please select Specify DNS Server IP and fill in Primary field at least; otherwise, Domain Name can’t be used. In particular, here provides 3G or 3.5G transmission rate when the device is plugged, either a 3.5G USB Dongle or Card Bus; just check to apply for the backup. In other words, once Static IP connection is disconnected, the system automatically connects Internet via 3.5G adapter. If 3.5G signal is not available, it starts to search downward for 3/2.75/2.5G signals until none existed. The default interval between the two connection detection is 3 minutes. The interval range is from 1 to 3 minutes. The 3.5G feature is working as mutual backup for other 4 WAN Types, and the required information is listed as follows, such as user name, password and SIM PIN etc. That is, setting up the interval time to auto detect whether the Internet connection is lost or not. If yes, the system immediately switches to 3.5G Internet connection until the original Static IP connection is back during the next detection.

See 3.2.1.1

See 3.2.1.2

See 3.2.1.3

See 3.2.1.4

See 3.2.1.5

28 Version 1.0

Please click on Next button to go on 3.2.2 LAN Setup.

3.2.1.2 WAN Type – Dynamic IP

Choose Dynamic IP to obtain IP address information automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. This option is commonly used for Cable modem services. If ISP provided you DNS information, please select Specify DNS Server IP; otherwise, select No Default DNS Server. In particular, here provides 3G or 3.5G transmission rate when the device is plugged, either a 3.5G USB Dongle or Card Bus; just check to apply for the backup. In other words, once Dynamic IP connection is disconnected, the system automatically connects Internet via

3.5G adapter. If 3.5G signal is not available, it starts to search downward for 3/2.75/2.5G signals until none existed. The default interval between the two connection detection is 3 minutes. The interval range is from 1 to 3 minutes. The 3.5G feature is working as mutual backup for other 4 WAN Types, and the required information is listed as follows, such as user name, password and SIM PIN etc. That is, setting up the interval time to auto detect whether the Internet connection is lost or not. If yes, the system immediately switches to 3.5G Internet connection until the original Dynamic

29 Version 1.0

IP connection is back during the next detection.

Click on Next button to go on 3.2.2 LAN Setup.

3.2.1.3 WAN Type – PPPoE

This option is typically used for DSL services. Choose PPPoE (Point to Point Protocol over Ethernet) if your ISP uses PPPoE connection. Your ISP will provide you with a username and password. MTU stands for Maximum Transmission Unit. For PPPoE connections, you may need to change the MTU setting in order to work correctly with your

ISP. As Idle Time, it’s the amount of time of inactivity before disconnecting your PPPoE

session. Enter an Idle Time (in minutes) to define and period of time for which the Internet connection is maintained during inactivity. If the Auto-reconnect enabled, the Router will automatically connect to your ISP after your system is restarted, or if the connection is dropped. If ISP provides you DNS information, please select Specify DNS Server IP; otherwise, select No Default DNS Server.

Input it if requested by your ISP (Ex: Wireless Mobile Router)

MAC address

30 Version 1.0

In particular, here provides 3G or 3.5G transmission rate when the device is plugged, either a 3.5G USB Dongle or Card Bus; just check to apply for the backup. In other words, once Dynamic IP connection is disconnected, the system automatically connects Internet via

Click on Next button to go on 3.2.2 LAN Setup.

3.2.1.4 WAN Type – PPTP

Enter as provided.

31 Version 1.0

This option is typically used for DSL services. Some DSL service providers supply a special DSL modem. This kind of modem only supports the PPTP tunnel to access the Internet, you should create a PPTP tunnel that carries a PPP session and terminates on the DSL model. Once the tunnel has been established, this kind of DSL modem will forward the PPP session to the ISP. As long as the PPP session is connected, all the local users will be able to share this PPP session to access to the Internet. If ISP provided you DNS information, please select Specify DNS Server IP; otherwise, select No Default DNS Server. In particular, here provides 3G or 3.5G transmission rate when the device is plugged, either a 3.5G USB Dongle or Card Bus; just check to apply for the backup. In other words, once Dynamic IP connection is disconnected, the system automatically connects Internet via

32 Version 1.0

Please enter the account’s name and password which provided by your ISP, and then click on Next button to go on 3.2.2 LAN Setup.

3.2.1.5 HSDPA/UMTS

If you are using HSDPA/UMTS (3.5G connection) as the WAN Type, please check HSDPA/UMTS selection and fill in the required information as follows to directly access Internet via connected 3.5G adapter. At this moment, Backup of Connection is not available, for it is in use as the preferred—Always, Dial on demand or Manual. When 3.5G signal cannot be reached, the system starts to search downward for 3/2.75/2.5G signals until none existed.

PPTP Server IP, My WAN IP and My WAN Subnet Mask are all necessary inputs.

33 Version 1.0

 Always: Stay connected all the time. After the Quick Setup is finished, the Internet

connection is on automatically. If disconnection is detected, the system will carry on re-connection immediately in order to stay online.

 Dial on Demand: Connect to the Internet when it is needed. After the Quick Setup is

finished, the Internet connection is on automatically. When it is idled for the set-value (0~60 Minutes), the connection will be disconnected automatically. On the other hand, setting up the value as 0 or leaving it blank works the same as the above, Always.

 Manual: Connect to the Internet by setting up each time. After the Quick Setup is

finished, user has to go to Network Configuration page to manually set up the connection and disconnection.

If ISP provided you DNS information, please select Specify DNS Server IP; otherwise, select No Default DNS Server.

Click on Next button to go on 3.2.2 LAN Setup.

3.2.2 LAN Setup

If you are using MT4205 with multiple PCs on your LAN, you must connect the LAN via the Ethernet ports on the built-in Ethernet switch. You must assign a unique IP address to

34 Version 1.0

each device residing on your LAN. The LAN IP address identifies the router as a node on your network; that is, its IP address must be in the same subnet as the PCs on your LAN. The default LAN IP for the Internet Security Router is 192.168.1.1.

For Gateway IP Address, the IP address 192.168.1.xxx (xxx can be any number between 1 and 254 that is not used by another device.) Please don’t change the default LAN IP settings at this section until you have completed the rest of the configurations and confirm that your Internet connection is working. And the DHCP Server will automatically allocate an unused IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool.

Click on Next button to proceed.

3.2.3 Wireless Setup

MT4205 is based on industry standards to provide compatible high-speed wireless connectivity within your home, business or public access wireless networks. Strictly adhering to the IEEE standard, the router will allow you to access the data you want, when and where you want it. You will be able to enjoy the freedom that wireless networking delivers.

The setup of pre-assigned Gateway IP Address is suggested for good to use.

Requested to be as complied as LAN IP.

35 Version 1.0

For selecting configuration utility in AP/Bridge wireless connection, the Channel 6 is the default channel; all devices on the network must be set to the same channel to communication on the network. The default TxPreamble setting is Long (if you use high traffic networks should use the shorter preamble type). Authentication is the security function to prevent the connection requests from unauthorized wireless clients. As the Encryption Type, select WEP or WPA can protect your data from eavesdroppers, if you do not need the encryption, select ―None‖ to skip the following setting. For selecting configuration utility in WDS wireless connection, please refer to 3.3.3 Wireless for detail setting. After checking each above blank and choose the suitable item as your demand, click on Next button to proceed to next setting.

Notice: If use AP/Bridge as wireless connection to router, here suggests disabling the DHCP setup in LAN

Setup, please refer to 3.2.2 LAN.

3.2.4 Time Server Setup

The section provides time alteration. The Router keeps a record of the current date and time, which is used to calculate and report various performance data, but changing the

Select AP/Bridge or WDS from drop-down list.

You can use the default ESSID unless more than one AP/Router is deployed in the same area. And it will show when searching the wireless signal.

36 Version 1.0

router’s date and time does not affect the date and time on your PCs.

Select your time zone from the Time Zone drop-down list, or you may set the time manually; there is no real time clock inside the router, the system date and time are maintained by external network time server.

3.2.5 Password Setup

Here suggests changing the password for logging into the configuration manager in terms of security reason.

For changing password, please fills the password information into above blanks, and then click on Next button.

Notice 1: Only the password can be changed, the user name for administrator is admin and not to be changed.

Notice 2: If you forget administrator’s password, please reset MT4205 to default setting by pressing the ―Reset‖

button on the rear panel over 5 seconds. And the password will return to admin.

Select your time zone from the “Time Zone” drop-down list or you may set the time by manual.

The password may consist of A-Z, a-z, 0-9, underscores, and a single dot (.)

37 Version 1.0

3.2.6 USB Disk Management Setup

Easy to check all the USB storage devices connected to your MT4205, view the entire data folder inside each storage device, and you can manage the disk formatting/partitioning via click on the button of this page.

Select the USB Disk and click on OK button for refreshing all disks before you execute disk partition, and the Unplug button will appear. To partition/format the disk, please select the disk and click on Format button. Moreover, if you want to view the data inside the disk, please go to 3.2.10 FTP Sever Setup to enable FTP server and then click on Disk Explorer to view all folders inside the device.

Notice: You have to click on Unplug button before removing the USB devices from MT4205.

3.2.7 User Account Management Setup

Personal users can use each individual application such as My Status, My Webcam and My Document. This section is to set the user’s right. Also, all the users’ rights will be showed in User Account List and can be edited or deleted by clicking the meaning text.

38 Version 1.0

Set each user’s right and space arrangement, and then click on Add button for saving user’s account. Click on Next button after finished.

3.2.8 Firewall Setup

The Firewall rules of MT4205 are an advance feature used to deny or allow traffic from passing through the router.

Input the User’s name and password, and then click on “Add”, and you will see the user information appear on the “User Account List”

39 Version 1.0

The default setting for Firewall Protection Level security is Low, which attacks Blocking Policy, allow all Inbound and Outbound IP Filter Policy, and allow all router service access policy from WAN. Please change it as your demand, and click on Next button to next step (see also 3.4.2.1 Firewall Configuration).

3.2.9 QoS Configuration Setup

QoS management helps to set and evaluate QoS policies and goals. It is the particular concern for the continuous transmission of high-bandwidth video and multimedia information. Transmitting this kind of content dependably is difficult in public networks using ordinary best effort protocols.

Make sure your connecting bandwidth with ISP and set the priority percentage. Once setting the QoS service, the transmitting performance will be affected, so please ensure your connection setting before doing this setup. Click on Next button to next step after finishing the above.

Input the figures by demand to decide your priority order.

40 Version 1.0

3.2.10 FTP Server Setup

MT4205 can be the FTP Server providing users to transmit files, also for the guest to download the files from assigned website. Moreover, by connecting USB HDD, USB Flash to the router, user can easily set up a FTP Server to share or download files for local or remote users.

Set the FTP Server and related setting. Disable the function as demand, and click on Next button to continue.

3.2.11 Printer Server Setup

MT4205 supports LPR-protocol, as well as NetBIOS, and is convenient for sharing printer. In other words, it is an Internet access solution for your LAN/WAN, which provides you the shared web surfing, and supports USB interface printer. Any users in the same subnet of MT4205 can print their document via the network printers.

Enable the printer and click on Next button to next setup.

Notice: After above Printer Server in Quick Setup finished, the related printing settings on MT4205 and PC

have to be set up, too. Please refer to 3.5.4 Printer Server to set the details.

3.2.12 Web Camera Server Setup

If the USB device isn’t enabled first, you can’t enable FTP Server. (Not even click on “Enable”)

If the printer isn’t connected, you can’t choose “Enable”.

41 Version 1.0

If you plan to use MT4205 as a Web Camera site, connect a supported USB Web Camera to the USB port of MT4205. Check to enable the server and WAN access by demand.

Click on Next button to next step.

Notice: Before webcam server enabled, please make sure the webcam has connected to the product; otherwise,

the ―Enable‖ selection can’t be checked.

3.2.13 Samba Server Setup

MT4205 supports NetBIOS protocol, providing network neighbors to share file folders or printer.

Click on Next button to next setup.

3.2.14 Quick Setup Finish

The Quick Setup has been completed successfully when you see this screen.

Make sure the webcam already connected to 3.5G plus WLAN Mobile Server Router, and then select

“Enable” under your demand and situation; moreover, you have to make sure the “image format” which you want to see on the screen.

42 Version 1.0

To apply your new settings, please click on Finish button to reboot system automatically and go to the product’s diagram homepage. You may connect to Internet via wired or wireless at this moment according to above settings.

3.3 IP Configuration

This function allows you to add routing rules into MT4205. It is useful if you connect several computers behind MT4205 to share the same connection to Internet.

3.3.1 WAN

Select WAN under the IP Config menu. MT4205 supports four WAN connection types, i.e. Static IP Address, Dynamic IP Address, PPPoE, PPTP and HSDPA/UMTS. Follow the

instructions below for each to set up accordingly.

3.3.1.1 Static IP

The WAN (Wide Area Network) page shows the settings that are used to connect to your ISP (Internet Service Provider). Please select the Static IP for your specific ISP.

43 Version 1.0

If you applied for a Static IP connection type from ISP, please follow the steps to set up your WAN connection.

1. IP Address

Input your IP Address supplied by ISP. If you don’t know, please check with your ISP.

2. Subnet Mask

Input Subnet Mask, normally it is 255.255.255.0.

3. ISP Gateway Address

Input ISP Gateway Address. If you don’t know, please check with your ISP.

4. HSDPA/UMTS Backup

The default interval between the two connection detection is 3 minutes, and the range is from 1 to 3 minutes. Once Internet connection is disconnected, the system automatically connects Internet via 3.5G adapter. If 3.5G signal is not available, it starts to search downward for 3/2.75/2.5G signals until none existed. Please check to activate or not.

5. 3.5G

44 Version 1.0

This feature requires user to enter user name, password and SIM PIN etc.; also it is working as mutual backup for other 4 WAN Types. That is, setting up the interval time to auto detect whether the Internet connection is lost or not. If yes, the system immediately switches to 3.5G Internet connection until the original connection is back during the next detection.

6. DNS

If ISP provides you DNS information, please select Specify DNS Server IP and input the DNS information into the blank; otherwise, select No Default DNS Server.

7. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the settings on this page.

3.3.1.2 Dynamic IP

If you applied for a Dynamic IP connection type from ISP, please follow the steps to set up your WAN connection. Cable modem providers typically use dynamic assignment of IP Address.

45 Version 1.0

1. Host Name

The host name is optional; but if your ISP requires you to input a specific host name, please put it in, for example, MT4205 applied from ISP. Generally, Cable Modem will provide the hostname information.

2. MAC Address: Keep, Clone & Input MAC Address

Select Keep or Clone MAC Address for copying the MAC address of your Ethernet adapter to the gateway, or input a group of MAC Address. Generally, your ISP will inform you.

3. HSDPA/UMTS Backup

4. 3.5G

This feature requires user to enter user name, password and SIM PIN etc.; also it is

46 Version 1.0

working as mutual backup for other 4 WAN Types. That is, setting up the interval time to auto detect whether the Internet connection is lost or not. If yes, the system immediately switches to 3.5G Internet connection until the original connection is back during the next detection.

5. DNS

If ISP provides you DNS information, please select Specify DNS Server IP and input the DNS information into the blank; otherwise, select No Default DNS Server.

6. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the settings on this page.

3.3.1.3 PPPoE

If you applied for a PPPoE connection type from ISP, please follow the steps to set up your WAN connection.

47 Version 1.0

1. User Name

Input your user name supplied by ISP. If you don’t know, please check with your ISP.

2. Password

Input your Password supplied by ISP.

3. MTU

MTU stands for Maximum Transmission Unit. For PPPoE connection, you may need to

set the MTU setting in order to work correctly with your ISP.

4. Idle Time

It is the time of inactivity before disconnecting your PPPoE session. Enter an Idle Time

(in minutes) to define a maximum period of time for which the Internet connect is maintained during inactivity. If the connection is inactive for longer than the defined Idle Time, then the connection will be dropped. Either set this to zero or enable Auto-reconnect to disable this feature.

5. Auto-reconnect

If checked, the Router will automatically connect to your ISP after your system is

restarted or if the connection is dropped.

6. HSDPA/UMTS Backup

7. 3.5G

8. DNS

If ISP provides you DNS information, please select Specify DNS Server IP and input the DNS information into the blank; otherwise, select No Default DNS Server.

9. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the settings on this page.

3.3.1.4 PPTP

If you have applied for a PPTP connection type from ISP, please follow the steps to set up your WAN connection.

48 Version 1.0

1. PPTP

Select connect to PPTP by Dial On Demand, Always Online or Manual connects.

2. PPTP Account

Input the PPTP Account supplied by ISP, MT4205, for example. If you don’t know, please check with your ISP.

※

Notice: Don’t copy the mentioned example as yours.

3. PPTP Password

Input the Password supplied by ISP.

4. Retype your Password

Retype the password into this blank for confirming.

49 Version 1.0

5. PPTP Server IP

Input the Server IP supplied by ISP. If you don’t know, please check with your ISP. Input the WAN IP address provided by your ISP.

6. My WAN Subnet Mask

Input the WAN Subnet Mask supplied by your ISP. If you don’t know, please check with

your ISP.

7. MTU

MTU stands for Maximum Transmission Unit. For PPTP connections, you may need to set the MTU setting in order to work correctly with your ISP.

8. Maximum Idle Time

It is the time of inactivity before disconnecting your PPTP session. Enter an Idle Time (in minutes) to define a maximum period of time for which the Internet connect is maintained during inactivity. If the connection is inactive for longer than the defined Idle Time, then the connection will be dropped. Either set this to zero or enable Auto-reconnect to disable this feature.

9. HSDPA/UMTS Backup

10. 3.5G

10. DNS

If ISP provides you DNS information, please select Specify DNS Server IP and input the DNS information into the blank; otherwise, select No Default DNS Server.

11. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clean the setting on this page. If you don’t know how to do, please click on Help button.

3.3.1.5 HSDPA/UMTS

If you have applied for a HSDPA/UMTS connection type from ISP, please follow the steps to set up your WAN connection. At this moment, Backup of Connection is not available.

50 Version 1.0

When 3.5G signal cannot be reached, the system starts to search downward for 3/2.75/2.5G signals until none existed.

1. 3.5G

2. Always

Stay connected all the time. After the Setup is finished, the Internet connection is on automatically. If disconnection is detected, the system will carry on re-connection immediately in order to stay online.

3. Dial on Demand

Connect to the Internet when it is needed. After the Setup is finished, the Internet connection is on automatically. When it is idled for the set-value (0~60 Minutes), the connection will be disconnected automatically. On the other hand, setting up the value as 0 or leaving it blank works the same as the above, Always.

4. Manual

51 Version 1.0

Connect to the Internet by setting up each time. After the Setup is finished, user has to go to Network Configuration page to manually set up the connection and disconnection.

5. DNS

If ISP provides you DNS information, please select Specify DNS Server IP and input the DNS information into the blank; otherwise, select No Default DNS Server.

6. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the settings on this page.

3.3.2 LAN

Use this page to set up the local IP address and subnet mask for your router. Please select LAN under the IP Config menu and follow the instructions below to enter the LAN setting page to configure the settings you want.

1. IP Address

The default value of LAN IP address is 192.168.1.1 for this router.

2. IP Netmask

Input Subnet Mask, normally it is 255.255.255.0.

3. DHCP

Enable or disable DHCP services. The DHCP server will automatically allocate an unused IP address from the IP address pool to the requesting computer if enabled.

4. Start IP

This field specifies the first address in the pool to be assigned by the DHCP server in your local network. The default setting is 2.

5. End IP

This field specifies the last address in the pool to be assigned by the DHCP server in your local network. The default setting is 253.

6. Advanced

Enable the advance setting and then setup the Router, DNS and WINS value.

7. Router

This field indicates the IP address of DNS to provide to clients that request IP Address from DHCP Server, the default setting is the same with LAN IP address.

52 Version 1.0

8. DNS

This field indicates the IP address of DNS to provide to clients that request IP Address from DHCP Server, the default setting is the same with LAN IP address.

9. WINS

The Windows Internet Naming Service manages interaction of each PC with the Internet. If you use a WINS server, enter IP Address of server here.

10. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the settings on this page.

Besides, the DHCP information will be listed below, like DHCP Clients list, including IP Address and MAC address.

3.3.3 Wireless

MT4205 enables fastest 54 Mbps IEEE802.11g wireless transmissions and keeps compatibility with existing IEEE 802.11b devices. MT4205 complies with IEEE 802.11b standard. Please select Wireless under the main menu. Follow the instructions to configure the Wireless settings.

53 Version 1.0

1. Wireless

Select AP/Bridge or WDS to allow or disallow the wireless operation.

2. Wireless Mode

This field indicates the 802.11g interface mode. ―802.11G‖ prevents the 802.11b clients

from accessing the router. ―802.11B/G‖ allows both 802.11b and 802.11g clients to

access the router. ―802.11B‖ will enable the network as an 802.11b wireless network. By default, the mode is ―802.11B/G‖.

3. ESSID

You can use the default ESSID and radio channel unless more than one MT4205 or access point is deployed in the same area. Under this situation, it is advised that you should use a different ESSID and radio channel for each of MT4205 or access point in order to distinguish from each other. All of MT4205s and your wireless LAN cards must have the same ESSID to allow a wireless mobile client roaming inbetween. By default, the ESSID is set to Wireless_Mobile_Router.

4. TxRate

Select the transmission rate for the network. The default setting is Auto.

54 Version 1.0

5. Channel

IEEE 802.11g and 802.11b devices are direct sequence spread spectrum devices that spread a radio signal over a range of frequencies. The range of frequencies used by a direct sequence device is called Channel. The 802.11g and 802.11b specification supports up to 14 overlapping Channels for radio communication. But only 11 Channels are supported in the United States and therefore built-in on MT4205. To minimize interference, configure each of MT4205 to use Non-overlapping channels. Non-overlapping channels have 25 MHz separation beginning at the first allowed channel for the country (for the US and most of Europe, channel 1, 6 & 11 are used.) Make sure that MT4205 sharing the same Channel (or Channels close in number) is as far away from each other as possible, based on the results of your site survey of the facility. You can find the site survey utility in MT4205’s setup CD. By default, the channel is 6.

6. Hide SSID

This term is used to increase the security level. Check it to hide SSID information against the wireless clients that are sniffing radio. By default, this option is inactive.

7. TxPreamble

The default TxPreamble setting is Long (if you use high traffic networks should use the shorter preamble type)

8. Beacon Interval

Beacons are packets sent by an access point to synchronize a wireless network. Specify a beacon interval value. Default (100) is recommended.

9. RTS Threshold

This value should remain at its default setting of 2346. If you encounter inconsistent data flow, only minor modifications to the value range between 256 and 2346 are recommended

10. Authentication Mode

Four authentication methods are supported: Open and Shared. Select Open, your wireless network would be intruded by anonymous. Not only your network bandwidth would be shared; but also transmitting data might be intercepted. Select Shared function and it can be taken effect.

11. Encrypt Type - WEP

There are two types of encrypt type can be selected, including WEP and WPA. WEP Encryption: Enabling WEP can protect your data from eavesdroppers. If you do not need this feature, select ―None‖ to skip the following setting. MT4205 supports both 64-bit and 128-bit encryption using the Wired Equivalent Privacy (WEP) algorithm. Select the type of encryption you want to use (64 or 128 bit) and configure one to four

55 Version 1.0

WEP Keys. The ―1280bit‖ method is more secure than the ―64-bit‖.

Key Type: For 64bits WEP key, either 5 ASCII characters or 10 hexadecimal digitals leading by 0x can be entered. For 128bits WEP key, either 13 ASCII characters or 26 hexadecimal digits leading by 0x can be entered.

Note: 128 bits WEP is most secure, but has more encryption/decryption overhead. Note that all wireless

devices must support the same WEP encryption bit size and have the same key. Four keys can be entered here, but only one key can be selected at a time. The keys can be entered in ASCII or Hexadecimal. Select the item from drop-down list you wish to use.

Pass phrase: Automatically generate four WEP keys. A WEP key is either 10 or 26 hexadecimal digits (0~9, a~f, and A~F) based on whether you select 64 bit or 128 bit in the WEP drop-down menu. Type a combination of up to 64 letters, numbers, or symbols in the blank, MT4205 uses an algorithm to generate four WEP keys for encryption. If you want to type in the keys manually, leave this field blank.

Note: This function eases users from having to remember their passwords. But this isn’t as secure as

manual assignment.

WEP Key: At most four keys can be set. A WEP key is either 10 or 26 hexadecimal digits (0~9, a~f, and A~F) based on whether you select 64 bit or 128 bit in the WEP drop-down list. MT4205 must have at least the same default key.

12. Encrypt Type - WPA

The WPA encrypts each frame transmitted from the radio using the pre-shared key (PSK) which entered from this panel or a key got dynamically through 802.1x. WPA-PSK (TKSP): Allow the access from WPA clients simultaneously and the encryption keys are given from PSK respectively.

WPA Rekey Timer: Allows for the session keys to be refreshed over time, minimizing the amount of data that is encrypted with the same session key. ASKII: The 8~63 ASCII characters can be entered, for example, ―0123456789ABCD….‖

56 Version 1.0

Radius with 802.x: Check this circle to enable Radius client function.

WPA Rekey Timer: Allows for the session keys to be refreshed over time,

minimizing the amount of data that is encrypted with the same session key.

RADIUS Server IP: The IP address of RADIUS server. RADIUS Server Port: The UDP port number that the RADIUS server is listed.

The default value is 1812. Shared Secret: The RADIUS server and client share a secret that is used to authenticate the messages sent between them. You must configure both sides to sue the same shared secret.

13. Apply & Cancel

Click on Apply button to save the settings. If you want to clear the settings, please click on Cancel button. The functional button, Cancel can take effect after clicking on Apply button.

3.3.4 DDNS

Dynamic DNS allows you to make an assumed name as a dynamic IP address to a static hostname. Please configure the dynamic DNS below. Please select DDNS under the IP Config menu, and follow the instructions below to enter the DDNS setting page to configure the settings you want.

57 Version 1.0

1. Service Provider

Choose correct Service Provider from drop-down list, here including dyndns, dhs, ods and tzo embedded in MT4205.

2. Enable / Disable DDNS

Select enable to use DDNS function. Each time your IP address to WAN is changed, and the information will be updated to DDNS service provider automatically.

3. Host Name

This field represents the host name you register to Dynamic-DNS service and expect to export to the world.

4. User Name

User name is used as an identity to login Dynamic-DNS service.

5. Password

Password is applied to login Dynamic-DNS service.

6. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the setting on this page.

3.4 Advanced

There are NAT settings, Firewall setting and QoS setting included in advance setup. The advanced setting is in Router Mode only.

58 Version 1.0

3.4.1 NAT

NAT is a method of mapping one or more IP addresses and/or services ports into different specified services, where NAT stands for Network Address Translation. It allows the internal IP addresses of many computers on a Local Area Network (LAN) to be translated to one

public address, saving users’ cost. It also plays a security role by obscuring the true IP

addresses of important machines from potential hackers on the Internet. For convenience, we called a router having the NAT facility as a NAT-enabled router.

3.4.1.1 Virtual Server

To offer services, like WWW, FTP, provided by a server in your local network accessible for outside users, you should specify a local IP address to the server. Then, add the IP address and network protocol type, port number, and name of the service in the following list. Based on the list, the gateway will forward service request from outside users to the corresponding local server.

1. Enable Virtual Server: Check Enable to apply all those rules in Virtual Server List

59 Version 1.0

into MT4205.

2. Description: Enter the description of the virtual server, this field allows you to record

what this rule is used for.

3. Private IP: Specify the private IP address of the internal host offering the service.

4. Protocol Type: Specify the transport layer protocol (TCP or UDP).

5. Private Port: Specify the private port number of the service offered by the internal

host.

6. Public Port: Specify the private IP address of the internal host offering the service.

7. Schedule: Set up the schedule for server.

8. Add: Click on Add button to record this setting.

9. Apply & Cancel

Click on Apply button to add the settings into the list table. Click on Cancel button to clear the settings on this page.

10. Virtual Server List

Shows all IDs and relevant information on server for administrator to edit or delete.

3.4.1.2 Virtual DMZ

Virtual DMZ allows you to expose one computer to Internet, so that all inbound packets will be redirected to the computer you set. It is useful while you run some applications that use uncertain incoming ports. Please use it carefully.

1. Enable/Disable Virtual DMZ: Check Enable to apply Virtual DMZ for the Router.

2. IP Address: This field stands for the destination IP address that you like to redirect the

matched packet to.

3. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the setting on this page.

60 Version 1.0

3.4.2 Firewall

The Firewall function helps to protect your local network against attacks from outside. It also provides a way of restricting users on the local network from accessing the Internet. Additionally, it can filter out specific packets to trigger the router to place an outgoing connection.

3.4.2.1 Firewall Configuration

MT4205 provides built-in firewall functions, enabling you to protect the system against denial of service (DoS) attacks and other types of malicious accesses to your LAN while providing Internet access sharing at the same time. You can also specify how to monitor attempted attacks, and who should be automatically notified.

61 Version 1.0

1. Firewall Protection Level: Select the level from the drop-down list, including High,

Medium and Low. The below screen including SPI service and ICMP setting will change according to your level setup.

2. Enable SPI Service: MT4205 often monitor a wider range of activity, such as patterns

of traffic and the type of application sending traffic. With SPI, the router looks at individual packets for patterns similar to known hacker techniques, such as Denial of Service (DoS) attacks, Ping of Death (illegal ping packet sizes or excessive ICMP messages), SYN Flood, LAND Attack, and IP Spoofing. Enable it if you need.

3. Blocking ICMP Ping from WAN side: The purpose of ICMP is to provide feedback

regarding the network and datagram, it is not to make IP a reliable transport mechanism. ICMP messages use a basic IP datagram header with the IP data being the ICMP message. The IP source address is that of the host or gateway sending the ICMP message with the destination IP address being that of the original source IP address. You can enable ICMP Ping from WAN side or not.

4. DoS Attacks Blocking Settings

Enable DoS Attacks Blocking: The following sections will explain in more detail

about DoS Defense setup by using the web configuration. There are a total 8 kinds of defense function for the DoS Defense Setup. By default, the DoS Defense functionality is disabled. Further, once the DoS Defense functionality is enabled, the default values for the threshold and timeout values existing in some functions are set to 300 packets per second and 10 seconds, respectively. A brief description for each item in the DoS defense function is shown below. SYN Flooding: Check or uncheck this option to enable or disable protection against SYN Flood attacks. This attack involves sending connection requests to a server, but never fully completing the connections. This will cause some computers to get into a

―suck state‖ where they cannot accept connections from legitimate users. (―SYN‖ is

short for SYNchronize‖; this is the first step in opening an Internet connection). You

can select this box if you wish to protect the network from TCP SYN flooding. WinNuke: Check or un-check this option to enable or disable protection against WinNuke attacks. Some older versions of the Microsoft Windows OS are vulnerable to this attack. If the computers in the LAN are not updated with recent versions/patches, you are advised to enable this protection by checking this check box. MIME Flood: Check or un-check this option to enable or disable protection against MIME attacks. You can select this box to protect the mail server in your network against MIME flooding. FTP Bounce: Check or un-check this option to enable or disable protection against FTP bounce attack. In its simplest terms, the attack is based on the misuse of the PORT command in the FTP protocol. An attacker can establish a connection between

62 Version 1.0

the FTP server machine and an arbitrary port on another system. This connection may be used to bypass access controls that would otherwise apply. IP Unaligned Time-Stamp: Check or un-check this option to enable or disable protection against unaligned IP time stamp attack. Certain operating systems will crash if they receive a frame with the IP timestamp option that isn’t aligned on a 32-bit boundary. Sequence Number Prediction Check: For TCP packets, sequence number is used to guard against accidental receipt of unintended data and malicious use by the attackers if the ISN (Initial Sequence Number) is generated randomly. Forged packets with valid sequence numbers can be used to gain trust from the receiving host. Attackers can then gain access to the compromised system. Note that this attack affects only the TCP packets originated or terminated at the Internet Security Router. Sequence Number Out of Range Check: Protect against TCP out of range sequence number attacks. An attacker can send a TCP packet to cause an intrusion detection system (IDS) to become unsynchronized with the data in a connection. Subsequent frames sent in that connection may then be ignored by the IDS. This may indicate an unsuccessful attempt to hijack a TCP session. ICMP Verbose: Check or un-check this option to enable or disable protection against ICMP error message attacks. ICMP messages can be used to fold your network with undesired traffic. Max IP Fragment Count: Enter the maximum number of fragments the Firewall should allow for every IP packet. This option is required if your connection to the ISP is through PPPoE. This data is used during transmission or reception of IP fragments. When large sized packets are sent via MT4205, the packets are chopped into fragments as large as MTU (Maximum Transmission Unit). By default, this number is set to 45. If MTU of the interface is 1500(default for Ethernet), then there can be a maximum of 45 fragments per IP packet. If the MTU is less, then there can be more number of fragments and this number should be increased. Minimum IP Fragment Size: Enter the Minimum size of IP fragments to be allowed through Firewall. This limit will not be enforced on the last fragment of the packet. If the Internet traffic is such that it generates many small sized fragments, this value can be decreased. This can be found if there are lots of packet losses, degradation in

speed and if the flowing log message is generated very often: ―fragment of size less

than configured minimum fragment size detected‖.

5. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the settings on this page.

6. DoS Attacks Blocking List

63 Version 1.0

The list shows all the DoS attacks blocking items.

3.4.2.2 IP Filter

Use IP Filter to deny LAN IP addresses from accessing the Internet. You can deny specific port numbers or all ports for the specific IP address.

1. Enable IP Filter: Check enable or disable to apply IP Filter function.

64 Version 1.0

2. Enable Log: All packets between WAN and LAN will be logged.

3. Source: To specify the appropriate IP address / mask and enter the source port

number.

4. Destination: Allows you to set the destination address / mask to which this rule

should apply and enter the source port number.

5. In/Out: Select inbound or outbound ACL (Access Control List) rules, you can control

(allow or deny) incoming or external network access to computers on your LAN.

6. Protocol: This option allows you to select protocol type. Available settings are TCP,

UDP and ICMP.

7. Listen: To check if a computer is on the Internet. It sends ping packets and listens for

replies from the specific host.

8. Time Ranges: Apply IP filter by setting time ranges.

9. Action: Select Deny, the IP filter will deny for above time range, otherwise, to allow IP

filter in above time.

10. Side: Set the IP filter from LAN or WAN, or you may select both side.

11. Add, Apply & Cancel:

After finish the above, click Add button to create the new ACL rule and add the settings into the list table. Click on Apply button to save and Cancel button to clear the settings on this page.

12. IP Filter List

Shows all filtered IP information for administrator to edit or delete.

3.4.2.3 MAC Filter

Use MAC filters to deny LAN computers by their MAC addresses from accessing the Internet. You can manually add a MAC address that is currently connected to MT4205.

65 Version 1.0

1. MAC Filter Action: To deny or allow all MAC filter action.

2. Enable MAC Filter: Check enable or disable to apply MAC Filter function.

3. Enable Log: All packets between WAN and LAN will be logged.

4. Description: Enter the filter description into this blank.

5. MAC Address: Enter the MAC address manually that you want to filter.

6. Time Ranges: Apply MAC filter by setting time ranges.

7. Add, Apply & Cancel

After finish the above, click Add button to create the MAC configuration rule and add the settings into the list table. Click on Apply button to save and Cancel button to clear the settings on this page.

8. MAC filter list

Shows all filtered MAC information for administrator to edit or delete.

3.4.2.4 URL Filter

Keyword based URL (Uniform Resource Locator) filtering allows you to define one or more keywords that should not appear in URL’s. Any URL containing one or more of these keywords will be blocked. This is a policy independent feature i.e. it cannot be associated to ACL rules. This feature can be independently enabled / disabled, but works only if firewall is enabled.

66 Version 1.0

1. Enable URL Filter: Check enable or disable to apply URL filter function.

2. Enable log: All packets between WAN and LAN will be logged.

3. Description: Enter the filter description into this blank.

4. URL keyword: Enter the URL words into this blank to apply filter blocking, example:

―www.yahoo‖, then it’ll block all the websites from www.yahoo range.

5. Time Ranges: Apply URL filter by setting time ranges.

6. Add, Apply & Cancel

After finish the above, click Add button to create the URL rule and add the settings into the list table. Click on Apply button to save and Cancel button to clear the settings on this page.

7. URL Filter List

Shows all filtered URL information for administrator to edit or delete.

67 Version 1.0

3.4.3 QoS

Quality of Service (QoS) refers to the capability of a network to provide better service to selected network traffic over various technologies, including Frame Relay, Asynchronous Transfer Mode (ATM), Ethernet and 802.1x networks, and IP-routed networks that may use any or all of these underlying technologies. The primary goal of QoS is to provide priority including dedicated bandwidth, controlled jitter and latency (required by some real-time and interactive traffic), and improved loss characteristics. Also important is making sure that providing priority for one or more flows does not make other flows fail. QoS technologies provide the elemental building blocks that will be used for future business applications in campus, WAN and service provider networks. This chapter provides each setting of QoS.

68 Version 1.0

1. Enable QoS Service: One checkbox appears to activate the QoS control function or

not. Click it to force the router to perform QoS control over traffic flows. By default, it’s

enabled.

2. Current Upstream Bandwidth: Allows you to set the upper bound of the port

forwarding rate. It will be of great value to minimize the impact on other users from one user who would otherwise monopolize the network transmission bandwidth (e.g. playing games or downloading large files).

3. Priority: To limit the bandwidth consumed over a backbone link by FTP transfers or

give priority to an important database access. And the following applications can be selected individually and distribute the priority level.

4. Application: Including FTP, HTTP, E-mail, Telnet, Voice, Games, IM and Video

priority setting.

5. Apply & Cancel

Click on Apply button to save the setting or Cancel button to clear the settings on this page.

3.5 Server

MT4205 provides FTP Server, Web Camera Server, Printer Server and Samba Server applications.

3.5.1 Samba Server

By supporting NetBIOS Protocol, MT4205 provides LAN users to share files or printer via My Network Places. Click Samba Server to proceed.

69 Version 1.0

1. Enable Samba Server

Check to Enable/Disable while connecting.

2. Workgroup Name

Fill in the name, and the default is Workgroup.

3. Server Name

Name your server.

4. Server Description

Describe your server by demand, and the default is Wireless Mobile Router.

5. Printer Model

Printer model appears when connected.

6. Apply & Cancel

Click Apply to save or Cancel to clear settings.

3.5.1.1 How to Access File Sharing Directory

Please follow the steps below. 【Step 1】

Go to Start and click My Computer.

70 Version 1.0

【Step 2】 Fill in blank address field with \\192.168.1.1.

【Step 3】 A window pops up asking for user name and password. If log in as an administrator, please enter admin for both fields; otherwise, fill in with personal account and password. Click OK after finished.

【Step 4】 As the window below appears, login user has entered file sharing directory, and the folders underneath are all available for sharing locally.

71 Version 1.0

Note: Only 2 icons show up at most.

1. If a USB flash drive/hard disk is connected and enabled, the samba folder shows up.

2. If a USB printer is connected and enabled, the printer icon shows up.

3.5.2 FTP Server

By directly connecting USB storage devices to any USB port, FTP server can be created with simple configuration. FTP Server utility allows both local and remote users to upload or download files, pictures or music files from the same storage device in most easy and timely fashion. It is also cost effective where users do not need to purchase a dedicated PC to set up a 24 hours FTP service. Before configuring FTP Server, please make sure the storage device is properly plugged into any USB port on the router and make sure this USB storage device is detected by the router.

72 Version 1.0

1. Enable FTP Server: Enabling selection for FTP Server only can be checked when

USB storage device is plugged.

2. Enable Anonymous to Login: Allow anonymous to log in after check on enable.

3. Enable FTP Access from WAN: Allow FTP access from WAN side by checking on

enable for this item.

4. FTP Server Port: Define the FTP command transfer service port. If you want to

change this port number, also remember to change the service port setting of your FTP client.

5. Idle connection Time-Out: When a specific time value is added, FTP Server will be

de-activated if it has no activity within the time limit.

6. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the settings on this page.

7. User Account List

A list shows all user names, staus and directory/file opened.

Notice: FTP server is compatible with FAT32 or EXT3 format USB storage device. In case you need to format

your USB storage device. Please always make sure the device is formatted with FAT32 or EXT3 standard.

3.5.3 Web Camera Server

MT4205 has built-in Web Cam Server. By connecting web camera to the router, it allows user to monitor their home or office from remote locations. Motion Detection function has also been built-in and allows user to use webcam to detect any movements in their houses or offices and send email alert with captured images.

While USB storage device is plugged，FTP Server can be

checked as enabled.

73 Version 1.0

3.5.3.1 Web Camera Server Basic Setup

1. Enable Webcam Server: Allow using this function by checking on enable.

2. Access from WAN: Allow webcam can access from WAN side by checking on enable

for this item.

3. Image format: The default is 320x240 pixels.

4. Preview: Click on this button, you can preview the image from webcam.

5. Record Setting: Please see the detail advance setting in 3.5.3.2 Web Camera

Server Advanced Configuration.

6. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the settings on this page.

3.5.3.2 Web Camera Server Advanced Configuration

Click on Record Setting button, and the screen will appear as below.

1. Enable save image: If you want to save the image from webcam, please check on

enable.

2. Save image interval: For saving image, you can set the save interval time, the default

value is 5 seconds.

3. Save Location: Set the save location for webcam image, you may save into USB

74 Version 1.0

HDD or remote FTP; if select save to remote FTP, please continue follow-up remote FTP setting.

4. USB HDD Directory: The section provides option of which folder should be used for

saving webcam image.

5. Remote FTP URL: Input the FTP URL for saving webcam image.

6. Remote FTP port: Input the FTP port number under URL to save image.

7. Remote FTP user: Enter the user’s name you like and it will be used to save the

webcam image into the FTP server.

8. Remote FTP password: Put in a password for validation while accessing.

9. Remote FTP Directory: To provide option of which folder should be used for saving

webcam image.

10. Back: Click on Back button for returning to Webcam Basic Setup screen.

11. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the settings on this page.

3.5.3.3 Application for Web Camera

3.5.3.3.1 Web Camera Monitoring Application

Monitor your home or take pictures with a Webcam via MT4205; one can set up the

75 Version 1.0

monitoring or recording of all images into the USB HDD for reviewing. Often marketed as surveillance tools for home or office security; network Webcams are now being employed by early adopters for more personal matters, such as watching kids and monitoring pets. The Webcam can be remotely accessed and controlled via a browser. In addition, record and monitor live actions with USB webcam; then view the image through Internet browsers or WiFi mobile phones.

3.5.3.3.1.1 Web Camera Monitoring via WAN connection

The illustration below is an example for watching the webcam image via WAN connection.

 How to check your WAN IP address

To monitor the webcam image from outside, you need to know the WAN IP address. Select Network Configuration under Log & Status on main Menu after connected, and you will see the WAN IP Address used to connect to webcam monitor screen. Here uses

210.168.117.96 as an example.

 Monitor the webcam image via WAN

76 Version 1.0

Input the WAN IP Address (as you see on above screen) into browser blanks. You will see the personal account login screen appear, and then input your own user account and password. After logging in as a user, your will see the personal control panel screen as below, please click on My Webcam.

There will pop-up screen shows the image from web camera as example below.

3.5.3.3.1.2 Web Camera Monitoring via WiFi Mobile Phone

You may view the monitor live action through WiFi mobile phones.

77 Version 1.0

Please fill the WAN IP address plus ―/webcam.html‖ (e.g. http://210.64.134.25/webcam.html) into the mobile phone’s browser blank and you will see the webcam user login screen

appear as below.

After logging in with your own account, you will see the monitor image from web camera via WiFi mobile phone.

3.5.3.3.2 Web Camera Recording

3.5.3.3.2.1 Administrator Setup

78 Version 1.0

MT4205 also can record the pictures from Webcam; only Administrator can activate the settings. Select Web Camera Server from main Menu and enable this function, click on Record Setting button for further setting.

To set up the Webcam Advanced Configuration for each text field, the image from webcam will be recorded into your USB HDD or Remote FTP. Click on Apply after setup finished.

For administrator, you may view all the images from webcam recording, please select Folder Management and click on Disk Explorer to view entire folder inside the disk including webcam record files.

79 Version 1.0

After click on Disk Explorer, you will see the folder screen appear including all the folders inside MT4205. (Below is the example.)

For getting the images from web camera or any files inside router, you may copy the files into your own HDDs directly. In addition, all image files are stored in

webcam_recorded_files folder, click to examine the content inside.

3.5.3.3.2.2 Personal Application

All the users under administrator’s setting can view entire webcam recording images from My Document. Please log in with your own personal account. For viewing your own folder, please click on “My Document”.

80 Version 1.0

After click on My Document, you will see folder screen appear as the example below.

Notice: If you can’t open the folder, please check with administrator to set up your FTP access right.

3.5.4 Printer Server

81 Version 1.0

MT4205 has two USB ports for connecting with printers to be shared on the local area network. Follow the steps to set up your PC to connect to a printer server.

1. Enable Printer Server: Check enable for applying printer server.

2. Enable Printer Access From WAN: Allow printer can access from WAN side by

checking on enable for this item.

3. Printer Model: The printer model will be shown when the USB printer is plugged.

4. Printer Name: Enter the name you like.

5. Printer Description: Enter your description by demand.

6. Apply & Cancel

Click on Apply button to continue. Click on Cancel button to clear the settings on this page.

Besides the above is finished, the printer setting on PC also needs to be set as follows.

3.5.4.1 Printer Setting on PC

After enabling Printer Server in Quick Setup and Printer Server Configuration, please follow the steps to set the detail LPR settings on your PC. (The example below is for Windows XP platform.)

【Step 1】

82 Version 1.0

After setting USB printer on MT4205’s setup page, please go to Start > Printers and Faxes to add a printer.

【Step 2】

Click on Add a printer item.

【Step 3】

Click on Next button.

83 Version 1.0

【Step 4】

Select Local printer attached to this computer, and click Next.

【Step 5】

Select Create a new port and choose Standard TCP/IP Port from drop-down list, then click Next.

84 Version 1.0

【Step 6】

Click Next.

【Step 7】 Put in MT4205’s address: 192.168.1.1 and click Next.

85 Version 1.0

【Step 8】 Select Custom and click on Settings… button to set the detail setting.

【Step 9】 Select LPR and give it the same Queue Name as USB Printer Name has shown, and mark LPR Byte Counting Enabled. Finally, click on Next button.

86 Version 1.0

【Step 10】 Click Finish on the next screen after the aforesaid settings, you have to install the printer driver as well.

【Step 11】 Select the Manufacturer and Printers. If your printer is not listed in the table, please

It has to be the same with the Printer Name as shown in section 3.5.4 Printer Server Configuration.

87 Version 1.0

insert its driver CD and then click on Have Disk… button for installation. Or click on Next button to finish the setting.

You can name your printer, set it as default printer and share your printer as the next screen shown, the Printer Server setting is getting completed.

【Step 12】

It shows you the printer settings that you have specified, and then click Finish.

88 Version 1.0

3.6 System Management

MT4205 provides system management including password changing, firmware upgrade, time setting, user’s account setting and other detail settings. Following is detail explanation for each.

3.6.1 Reboot

If you had entered the wrong configuration while setting up your router or other utilities, you can always reboot your MT4205 by this setting.

It’s necessary to reboot the router if it begins working improperly, please click on Reboot

button to reboot the router.

3.6.2 Change Password

At this section, the administrator can change the system password. Only the password can be changed, the user name for administrator is admin and can’t be changed.

89 Version 1.0

1. Old Password: Enter the original password you set.

2. New Password: Enter the new password you want to change.

3. New Password (Confirm): Enter the new password again for confirming.

4. Apply & Cancel

Click Apply to continue or Cancel to clear the settings on this page.

3.6.3 Firmware Upgrade

There is certain risk while upgrading firmware. Upgrading firmware is not recommended unless the significant faulty is found. You can upgrade the firmware of MT4205 on this page. Make sure the firmware you want to use is on the local hard drive of the computer. Click Firmware Upgrade to proceed.

90 Version 1.0

1. Update Firmware: Click on Browse… button to search your local hard drive and

locate the firmware to be used for update.

2. OK & Cancel

Click OK to confirm or click Cancel to clear the setting on this page.

Notice: Before using a whole new disk, please format it on your PC first, so that it can be formatted on MT4205.

3.6.4 Profile Sasve

To back up the current configuration setting or load the backup data, also you can restore MT4205 to default setting by this function.

91 Version 1.0

1. Save Settings To PC: Click on Save button for saving the configuration setting into

assigned location.

2. Load Settings From PC: Click on ―Browse…‖ button for searching the saving

configuration from hard drive, and then click on Load button to load all the settings into the router.

3. Restore To Factory Default Settings: After you have tried other methods for

troubleshooting your network, you may choose to restore MT4205 to the factory default settings.

4. Apply

Click on Apply button to save the settings.

3.6.5 Remote Management

Remote Management allows MT4205 to be configured from the Internet by a web browser. In general, only a member of your network can browse the built-in web pages to perform ―Administrator‖ tasks. This feature enables you to perform the tasks from the remote (Internet) host.

92 Version 1.0

1. HTTP Connection Port: The port number used to access the router.

2. Remote Management: You can allow any Internet IP address to access the router, or

set up deny rule according to IP setting.

3. IP Address: Internet IP address of the computer that has access to the router.

4. Description: Enter the description for the remote configuration.

5. Add, Apply & Cancel

Click on Add button to add the remote list, click on Apply button to activate, or click on Cancel button to clear the settings on this page.

6. Remote Management IP List

Display, edit or delete IDs, description and IP address of allowed remote list.

93 Version 1.0

3.6.6 Time

The System time is the time used by MT4205 for scheduling services. You can manually set the time or connect to a NTP (Network Time Protocol) server. If a NTP server is set, you will only need to set the time zone. If you manually set the time, you may also set Daylight Saving dates and the system time will automatically adjust on those dates.

1. Local Time: The default time within.

2. Default NTP Server: Select the NTP Server from the drop-down list.

3. Time Zone: Select your time zone location from the drop-down list.

4. Daylight saving time: If you are in daylight saving time area, please enable this item.

5. Set the Time: Select this item to set up time by manual, select the date and time from

each drop-down list.

6. Set Time: Select User Setup and click Set Time to set local PC time on router.

7. Apply & Cancel

94 Version 1.0

Click on Apply button to activate, or Cancel button to clear the settings.

3.6.7 UPnP Setting

UPnP (Univsersal Plug and Play) allows users to connect their UPnP-enabled broadband router, printer server and other devices right to the network with zero-configuration, meaning easier setup for installing the device on the network. The automatic discovery feature enables the device to obtain an IP address, present and describe itself to other devices and PCs on the network without having to install drivers, but to configure and use those devices.

1. Enable/Disable UPnP: Select to enable or disable this service.

2. Apply, Cancel

Click on Apply button to activate this function or Cancel button to clear the setting.

3.6.8 User Account Management

Personal users can use each individual application such as My Status, My Webcam and My Document. This section is to set the user’s right. Also, all the users’ rights will be showed in User Account List and allowed to edit or delete by clicking the linking text.

95 Version 1.0

1. Max Login User: Set up the maximum users to log in at the same time, select the

number from drop-down list. If you want to change the maximum login users only without changing user’s information, please click on OK button after select login user’s number.

2. User Name: Create the user name in this blank.

3. Password: Set up the user’s password.

96 Version 1.0

4. User Right: Check to allow set-user accessing Samba folder, monitoring from

webcam or using FTP server.

5. Activated: Click On to allow the user’s right to be applied immediately.

6. Add, Apply & Cancel

After finishing the above, click Add button to create user account. Click on Apply button to add set-user into the account list or Cancel button to clear the settings on this page.

7. User Account List

The list shows all users’ names, passwords, status and rights.

3.6.9 Folder Management

Easy to check all the USB storage devices connected to MT4205, view the entire data folder inside each storage devices, and you can manage the disk formatting / partition via clicking the button on this page.

1. Select the USB Disk and click OK for refreshing all disks before you perform disk

partition, and the Unplug button appears afterwards.

2. To partition/format the disk, please select the disk and click on Format button.

3. Moreover, if you want to view the data inside the disk, please go to 3.2.10 FTP Sever

Setup to enable FTP server and then click on Disk Explorer to view all the folders inside the device.

97 Version 1.0

Notice: You have to click on Unplug button before removing the USB device from MT4205.

3.6.10 Email Alert

To monitor router activity, you can run on a local PC or a remote one elsewhere on the Internet. And MT4205 provides the email alert facility so that the log messages can be packed as an e-mail for someone who wants to receive these messages by scheduled time. In the following, here explains how to set up the email alert function.

98 Version 1.0

1. Email Alert: Check the enable box to activate the email alert service.

2. SMTP Server: Specify an IP address of the SMTP server which can send mails from

your MT4205 to the recipients’ mailboxes directly.

3. Your Mail (from): Enter the email address indicated the sending location.

4. SMTP Auth: If the email alert needs to be sent via SMTP authentication, please check

this item, and then enter the required account and password.

5. Account: Enter the email account from which you want to send the alert.

6. Password: Enter the email account password to validate.

7. Email Address (To): Enter the email address where to receive the alert.

8. Schedule: Arrange to send the alert when event happens or by regular time.

9. Add, Apply & Cancel

After finishing the above, click Add to set up the rule into email alert list. Then, click Apply to save or Cancel to clear the settings on this page.

10. Email Alert List

Display, edit or delete a list of relative information in regarding to the above mentioned.

99 Version 1.0

11. Refresh & Delete

Click on Refresh to renew the login data and other system status information, or click on Delete to clear these logs.

3.7 Log & Status

MT4205 provides the log list, connection status and user’s account.

3.7.1 Network Configuration

Network Configuration shows all connection status of LAN, WAN, Wireless and plugged USB devices.

Each block shows configuration status, you may click Refresh to update the screen list. If WAN connection is in dynamic, click Release to free the used IP or Renew to get a new one.

100 Version 1.0

3.7.2 User Account List

This section shows all users’ information.

Check the user name, status and opened directory/file on screen.
