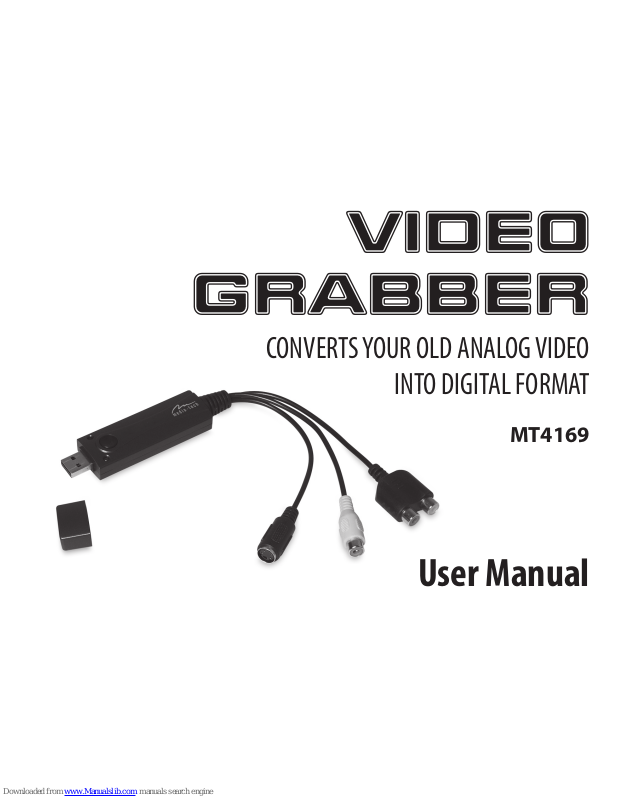

media-tech MT4169 User Manual

User Manual

VIDEO

GRABBER

CONVERTS YOUR OLD ANALOG VIDEO

INTO DIGITAL FORMAT

MT4169

2

EN

Introduction

Thank you for buying this video capture device. Please
take a moment and read this manual before using the
device.

System requirements

■ Processor Pentium4 2.8GHz or faster,

■ RAM 512MB or more,

■ Graphic card with DirectX9.0C support,

■ USB2.0 interface,

■ Windows XP/Vista/7

Installation

Insert Software CD into CD-ROM drive, you will see fol­lowing screen:

Select Install Driver

Follow on-screen messages to nish installation, if “no
windows logo” message appears – click “Continue Any­w a y ”.

If following screen appear select “No, I will reboot my
computer later”.

3

EN

Now plug device to USB port, “Found New Hardware
Wizard” will pop-up:

Click “Next” to automatically search for driver.

Click “Continue Anyway”.

Click “Finish” to end installation.

Now click Install Applications

Follow on-screen messages to nish installation.

Open “honestech VHS to DVD” icon to run application,
plug video source.

4

EN

Click “Video settings” button and select appro­priate input type, then click “Control” button to
open advanced options, select video source sys­tem (PAL, NTSC, SECAM)

To start capturing press “Record” button, to stop
and save sequence press “Stop” button. Saved
sequence will be added to the right panel.

Go to “Edit” tab and drag icons from right panel at bot­tom panel. Between clips you can drag transition ef­fects.

Video settings

Record Stop

5

EN

To burn project on CD/DVD click “Save compila­tion” go to “Burn” tab. Saved compilation will be
added to right panel.

Drag saved compilation icon from right panel to the
bottom panel, to burn click “Burn” button.

Save compilation

Burn

6

EN

Specication and appearance of product are subject to change without prior notice.
For technical support please visit www.media-tech.eu.
