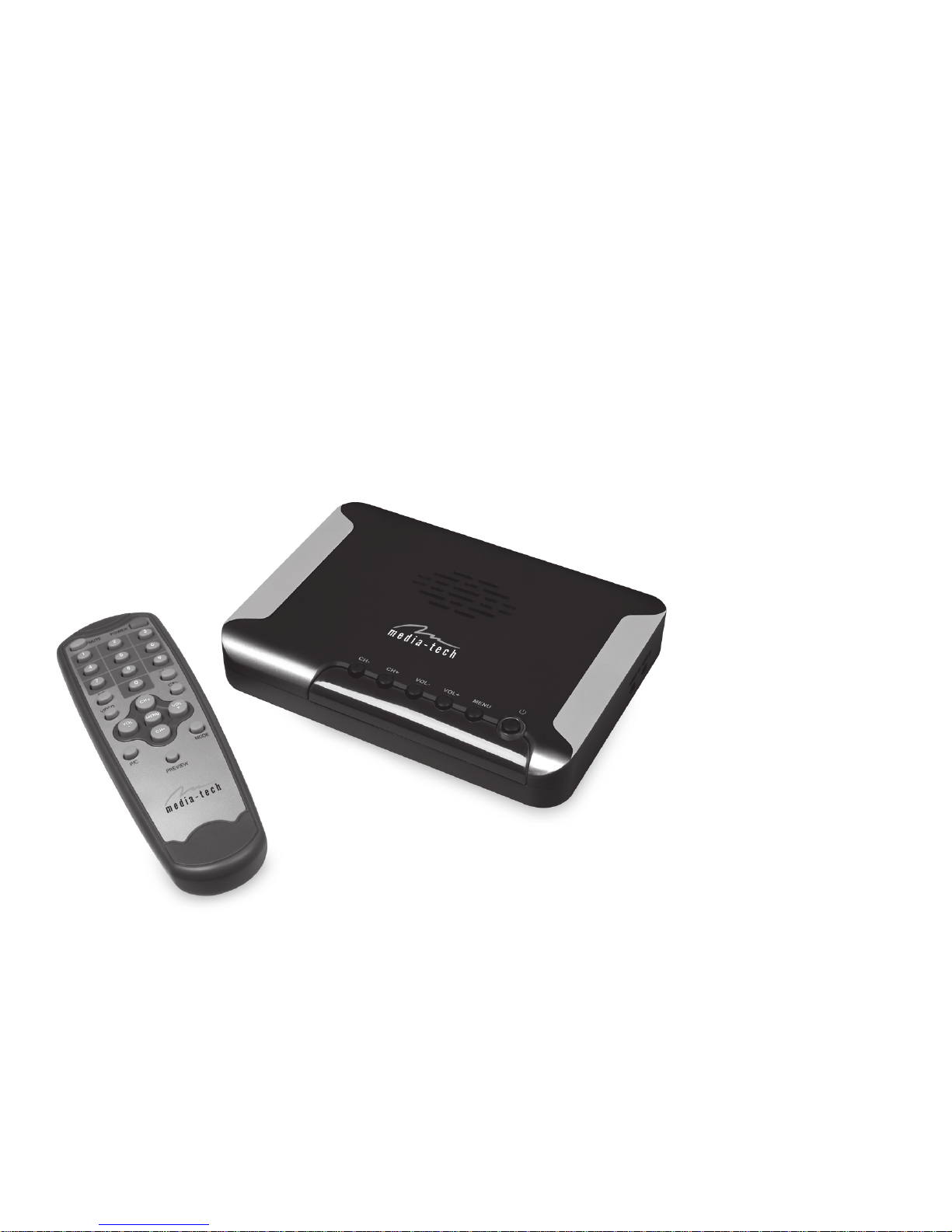

LCD TV BOX PRO
Instructions manual
Watch TV programs on Your monitor in super high resolution!
MT4157
Hardware Installation and Description
Turn off the computer when installing the hardware.
Turn on the computer after fi rmly connecting hardware to it. Please don’t pull and plug any cable or interface when the LCD TV box is working, otherwise it will
be possibly damaged.
When it is started for the fi rst time, the settings of the
TV Box are of default values.

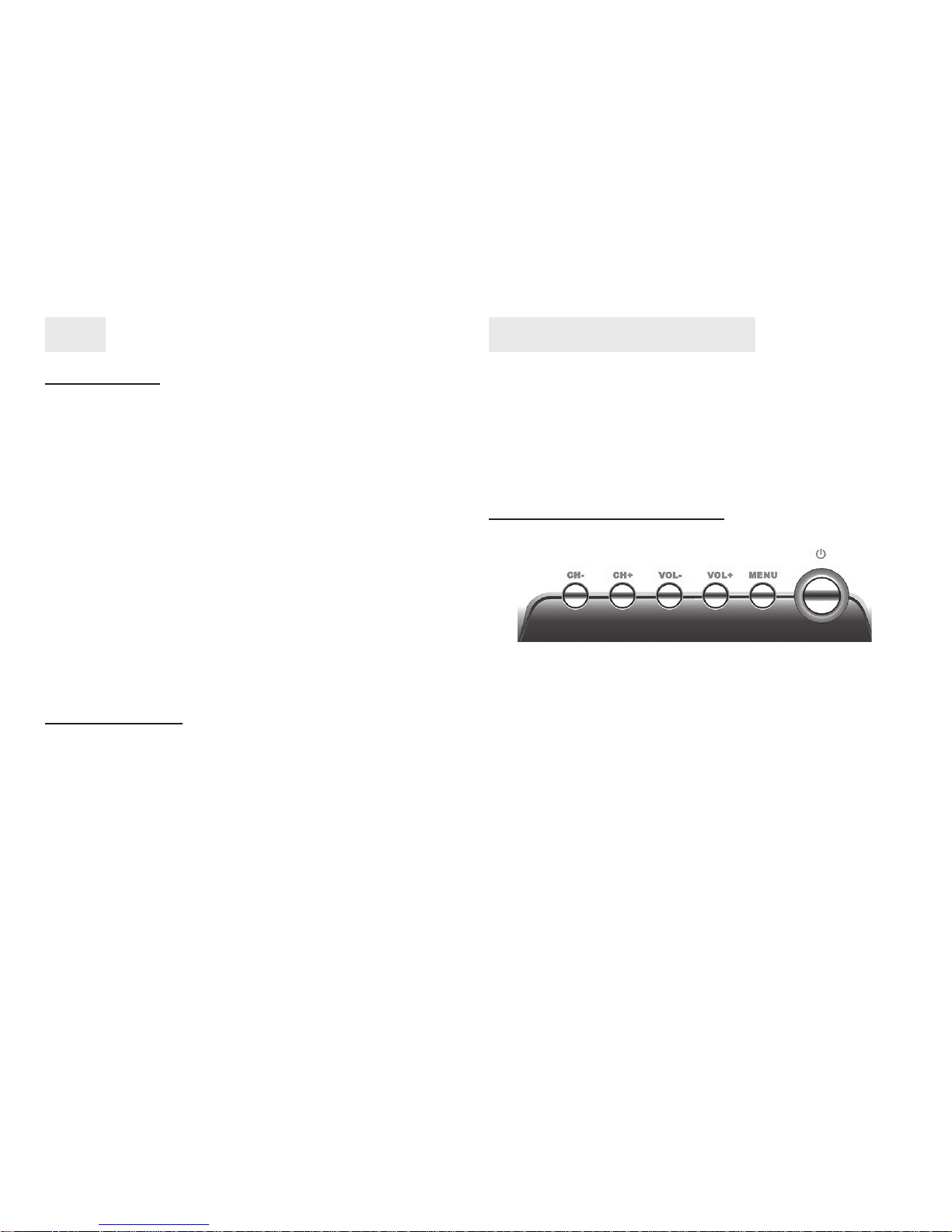

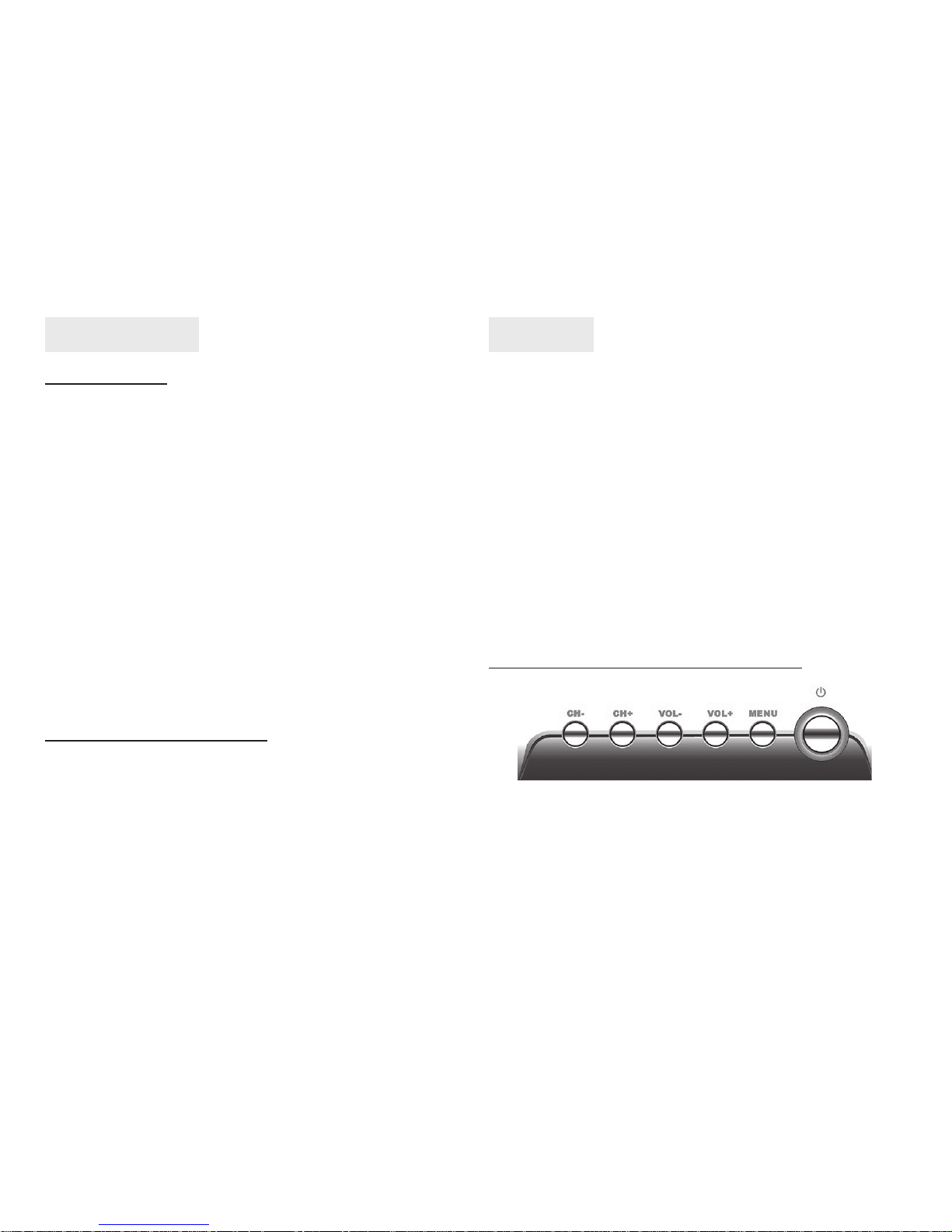

Front key-press instruction
2
Introduction
Specifi cation
■ Standalone LCD TV tuner with computer monitor
output
■ Independent of computer
■ High picture resolution, 8 modes up to 1680X1050
ppi @ 60Hz
■ Supported TV/CATV systems: PAL-DK/BG
■ Picture in picture (PIP) function
■ Program multi preview in 4, 9 and 16 pictures
■ Fully automatic channel scan
■ AV and S-Video input for connecting VCR, DVD, cam-
corder, etc.
■ AV, 15-pin D-SUB output
■ IR remote controller
■ Intuitive OSD display
■ Autodetect video signal loss
Package List:
■ TV receiver 1 pcs
■ User’s manual 1 pcs
■ Remote control 1 pcs
■ Stereo audio cable 1 pcs
■ S-Video/AV cable 1 pcs
■ Power adapter 1 pcs
MENU (menu key): Open/Close MENU
CH+/CH- (channel up/down key): TV channel up/down
key. And work with menu key to choose each item parameter.
VOL+/VOL- (volume up/down key): TV volume up/
down key. And work with menu key to choose each
item parameter.
(Power key):
1) Short press to switch between TV, VIDEO and S-VIDEO input sources
3
2) Long press to switch to VGA input when the screen
is displaying TV/VIDEO/S-VIDEO and vice versa.

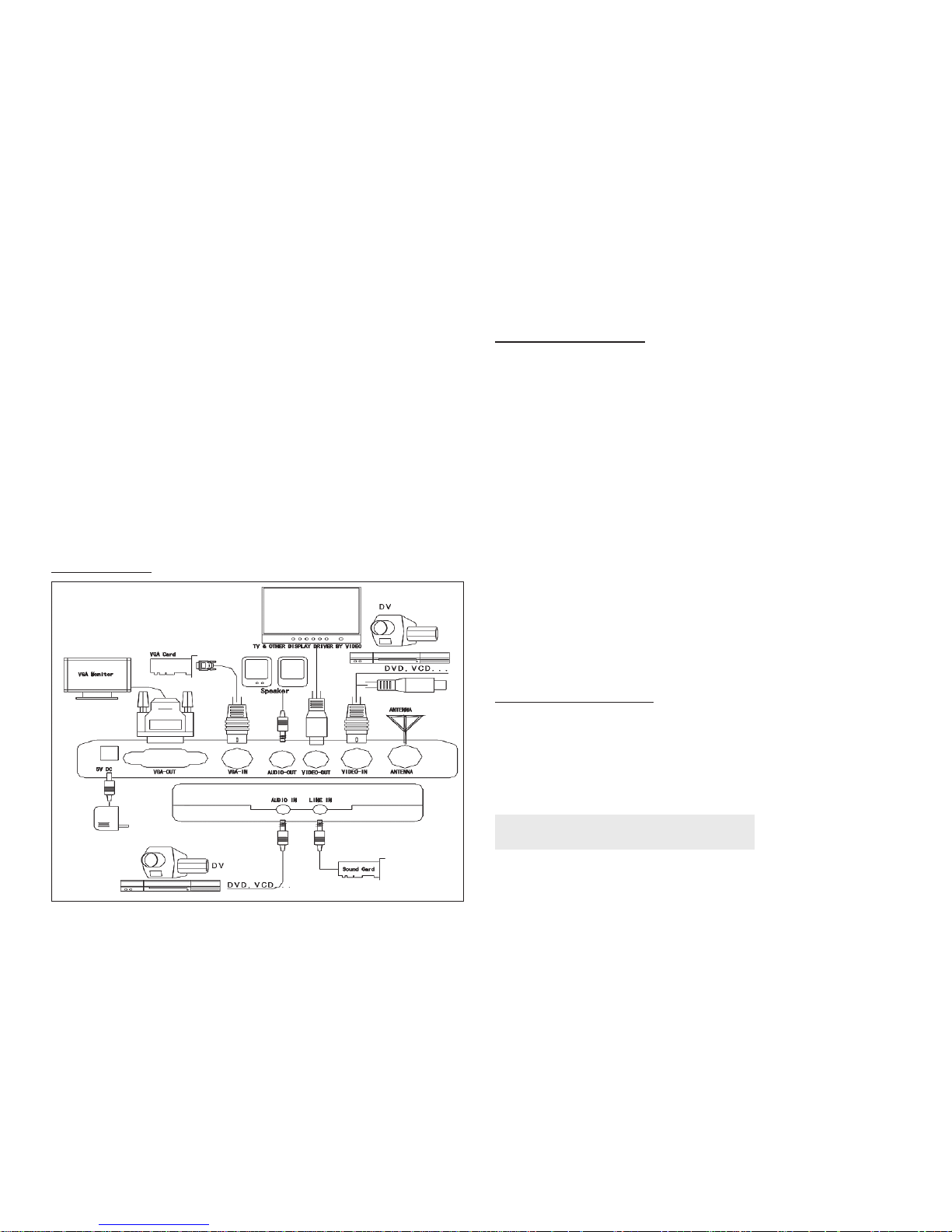

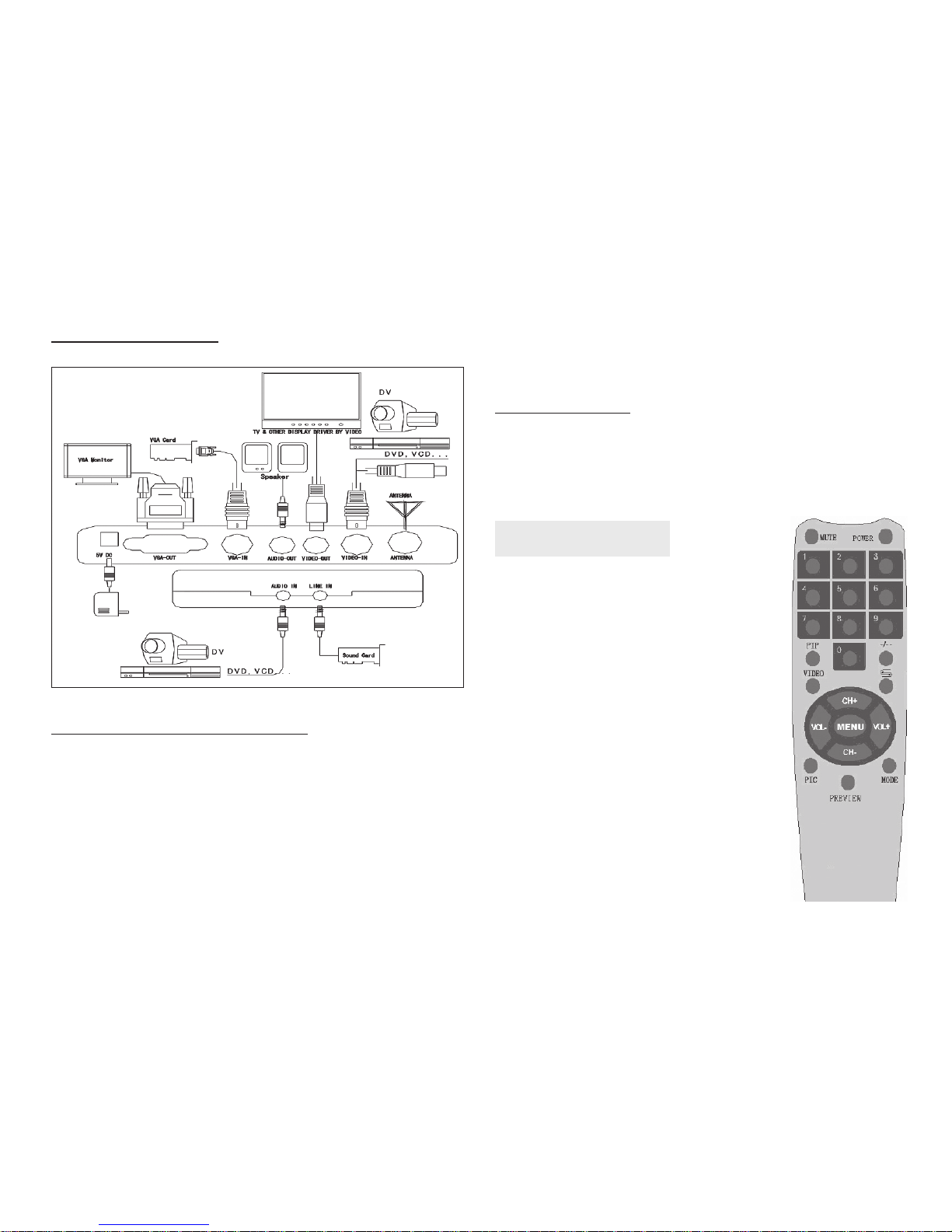

Interface Chart
Backside interfaces:
DC 5V (power supply): Connection for power adapter
VGA-OUT (display switch): Connection for monitor
VGA-IN (VGA input): Connection for VGA cable, the
other end of VGA cable should be connected to PC
card output.
AUDIO OUT (audio output): Connection to external

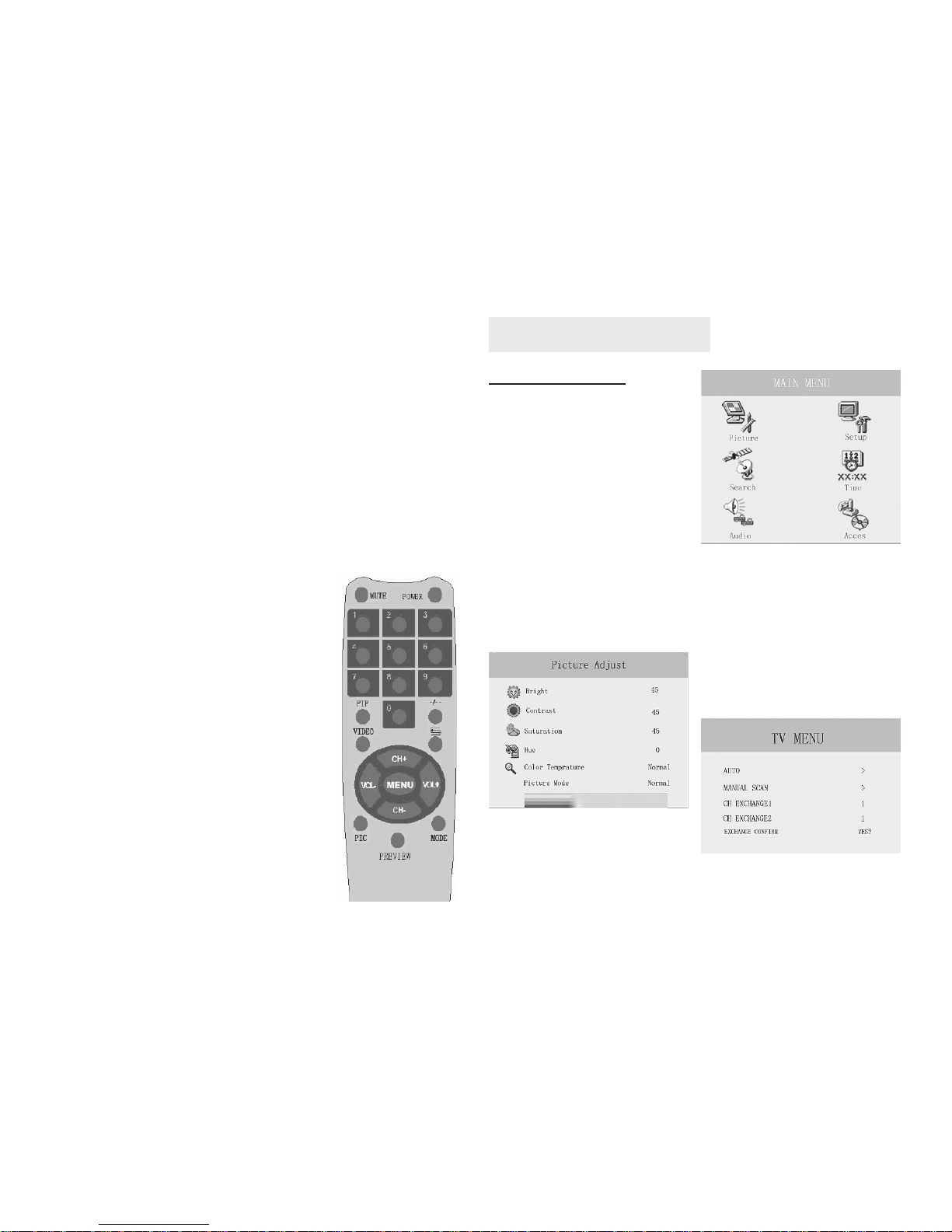

Remote Control
1) Power (power key): Switch between the PC status and TV status.
2) Preview (preview key): Select
4/9/16 pictures to preview. Please
refer to 4.6 previewing operation
in details.
3) Mute (mute key): Turn off TV
voice and renew it.
4) AV/S
(video switch key): Switch
TV, VIDEO, S-VIDEO signal sources.
speakers (if available) to output sound of TV programs
or connected devices such as VCD/DVD.
VIDEO-OUT (VIDEO output)
VIDEO-IN (VIDEO input): (default input is S-Video in-
put, switch it to composite video input by the S-Video/
Composite video cable in the package) Connection for
video devices such as: camera, VCD, DVD.
ANTENNA (Antenna switch): Connection for antenna
Side interfaces:
LINE-IN (Stereo audio cable input end): Connection for
signal from stereo PC sound card.
AUDIO-IN: Sound input from other device such as
DVD, VCR, etc
OSD
Menu
4
5) Mode (resolution switch key): Choose the following resolution:
(4:3) 800*600*60Hz, 800*600*75Hz,
1024*768*60Hz, 1024*768*75Hz,
1280*1024*60Hz, 1280*1024*75Hz
(16:9) 1280*720*60Hz, 1280*720*75Hz, 1600*900*600Hz
(16:10) 1440*900*60Hz, 1440*900*75Hz, 1680*1050*60Hz
6) CH+/- (channel up/down key): Please refer to 2.1
Front key-press instruction
7) VOL+/- (volume up/down key): Please refer to 2.1
Front key-press instruction
8) 0-9 (Num key): Press 0-9 Num key to choose the
channel you like
9) PIP (PIP key): PIP function operation. Please refer to
4.8 Picture in picture operation
10) -/-- (single/double key): Choose single or double
number channel (working with Num key)
11) 0 - 9 (channel number key): Choose the channel
number over 100
12) Recall (recall key): Switch back to the previous TV
channel
13) PIC (image key): Select the picture mode: Bright,
Standard, Mild, and Personal.

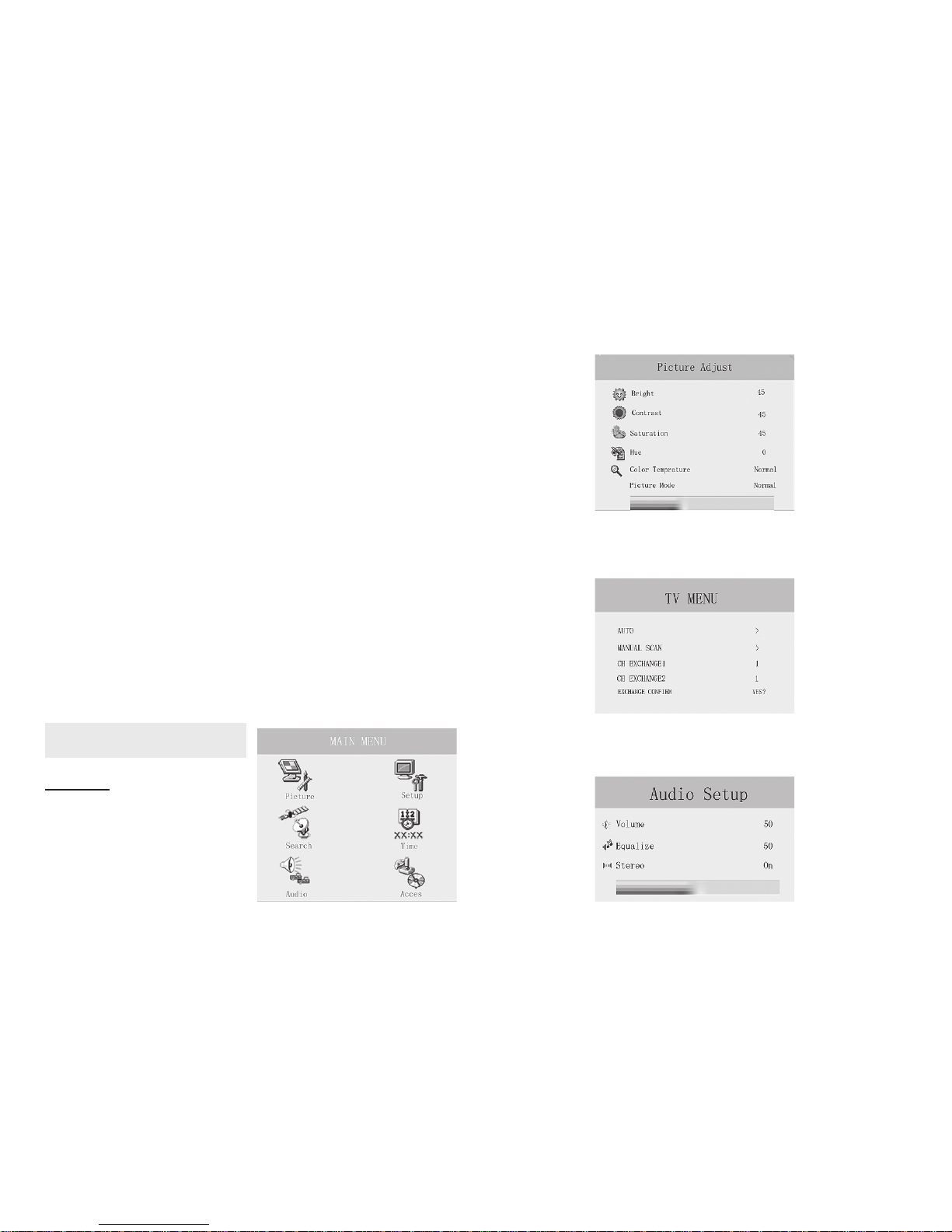

14) MENU: Display OSD menu on monitor screen
■ Search – searching frequencies for broadcasting
programs, setting channels
■ Picture – setting picture parameters:
5
Make sure that the connection is right. Then connect
the power adapter and put the batteries into the remote control. Press “MENU” key on the remote control.
Press “CH-” key and move to “Scan”. Then press “VOL+”
to enter the auto-scan channel preview window, and
press “CH-” to move to TV system, choose the input
“CABLE” or “AIR” according to the connection of TV signal. Move the scroll bar to “FAST SCAN” option, press
“VOL+” to start scanning. It will take some minutes to
scan the channels, and after that the screen will show
the fi rst channel it searched.
Please do not cut the power off or do other operations during the searching, otherwise it will miss some channels. Users only need to search
the channels for one time after fi x the connection.
Choose channel / Mute
After you fi nish searching the channels, press “CH+/-”
and choose the channel, press “VOL+/-” to adjust vol-
■ Setup – setting OSD position and displaying, ad-
vanced settings:
■ Time – setting time
for switching on/off
■ Audio – setting audio parameters:
■ Calendar – calendar
setting

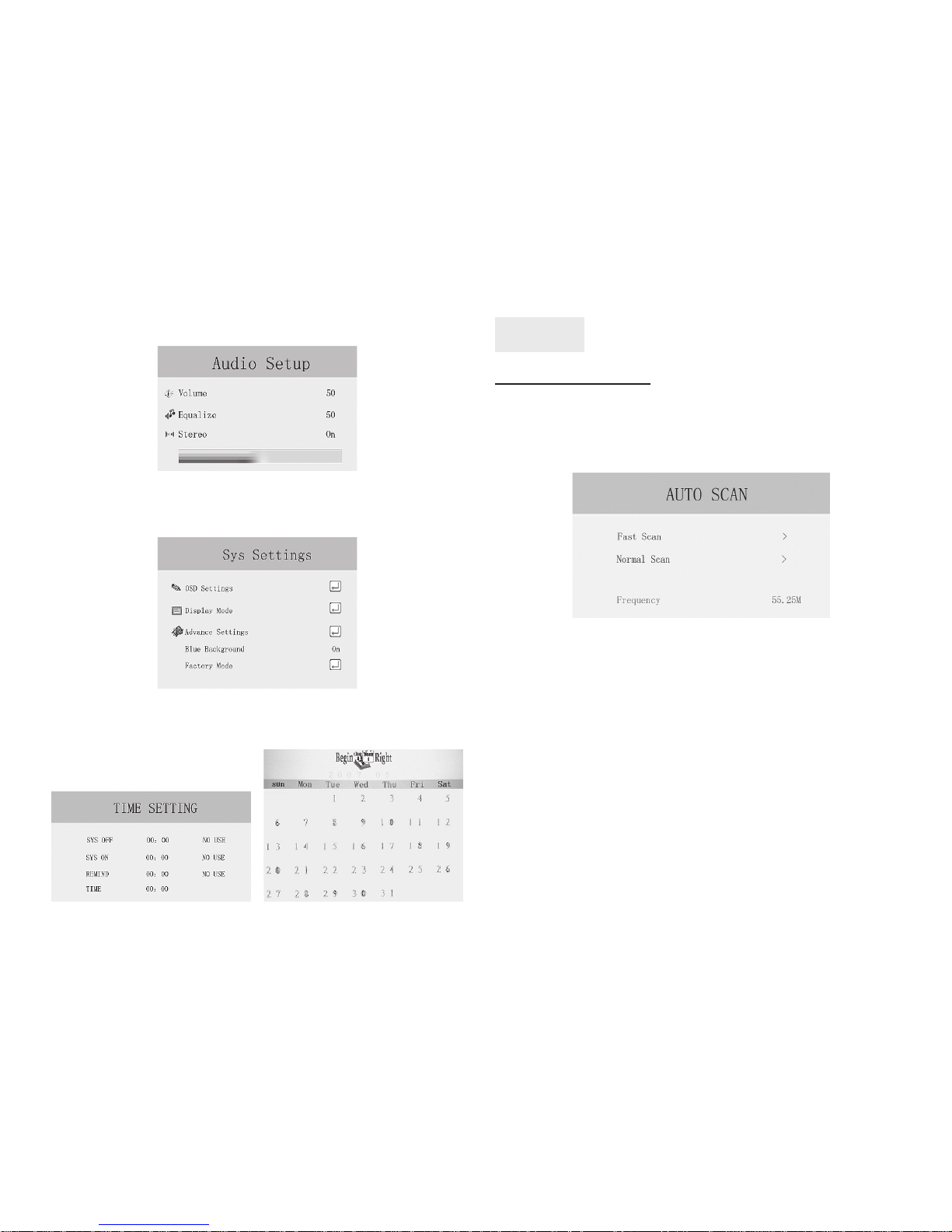

Search (Only in TV status)
6
ume. When you choose the channel you may directly
press NUM 0-9 key on the remote control to input the
number of the channel you like. Press “MUTE” key
and the sound disappear. Press it again to renew the
sound.
Choose Resolution
About the display, you may choose the resolution as
followings:
(4:3): 800x600x60Hz, 800x600x75Hz,
1024x768x60Hz, 1024x768x75Hz,
1280x1024x60Hz,1280x1024x75Hz;
(16:9): 1280x720x60Hz, 1280x720x75Hz,
1600x900x60Hz;
(16:10): 1440x900x60Hz, 1440x900x75Hz,
1680x1050x60Hz;
If your monitor supports high resolution, you may
press “MODE” key to choose the diff erent resolution. The highest resolution of this box can reach to
1680x1050x60Hz. If you choose the resolution over the
range of your PC display supporting, the monitor can
not display.
VCD or DVD Input Operation
a. Put AUDIO IN cable, VIDEO IN cable into AUDIO IN,
VIDEO IN interface with VCD or DVD
b. Open VCD, DVD
c. Press “AV/S” key on remote control and then you can
enjoy the programs of VCD or DVD player on your
monitor.

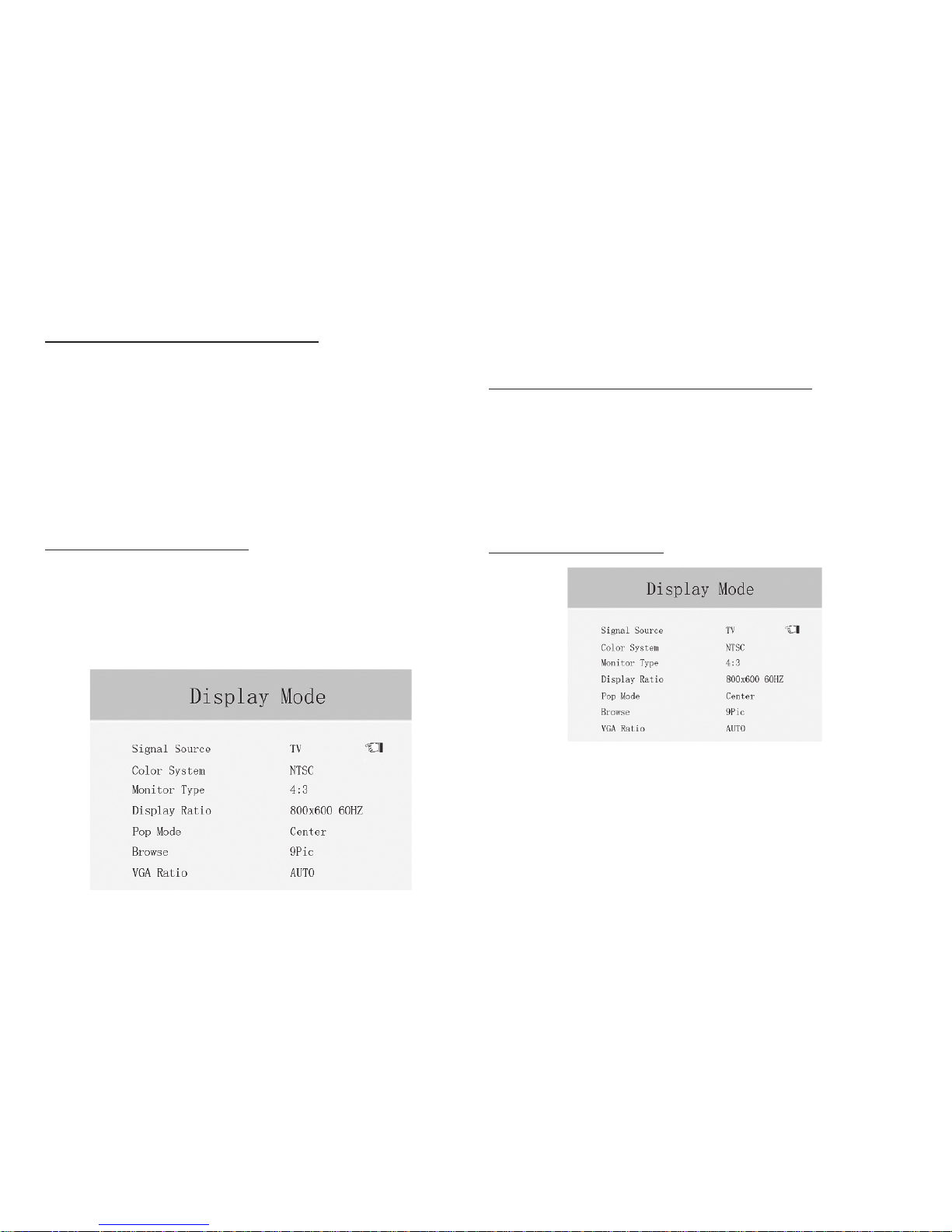

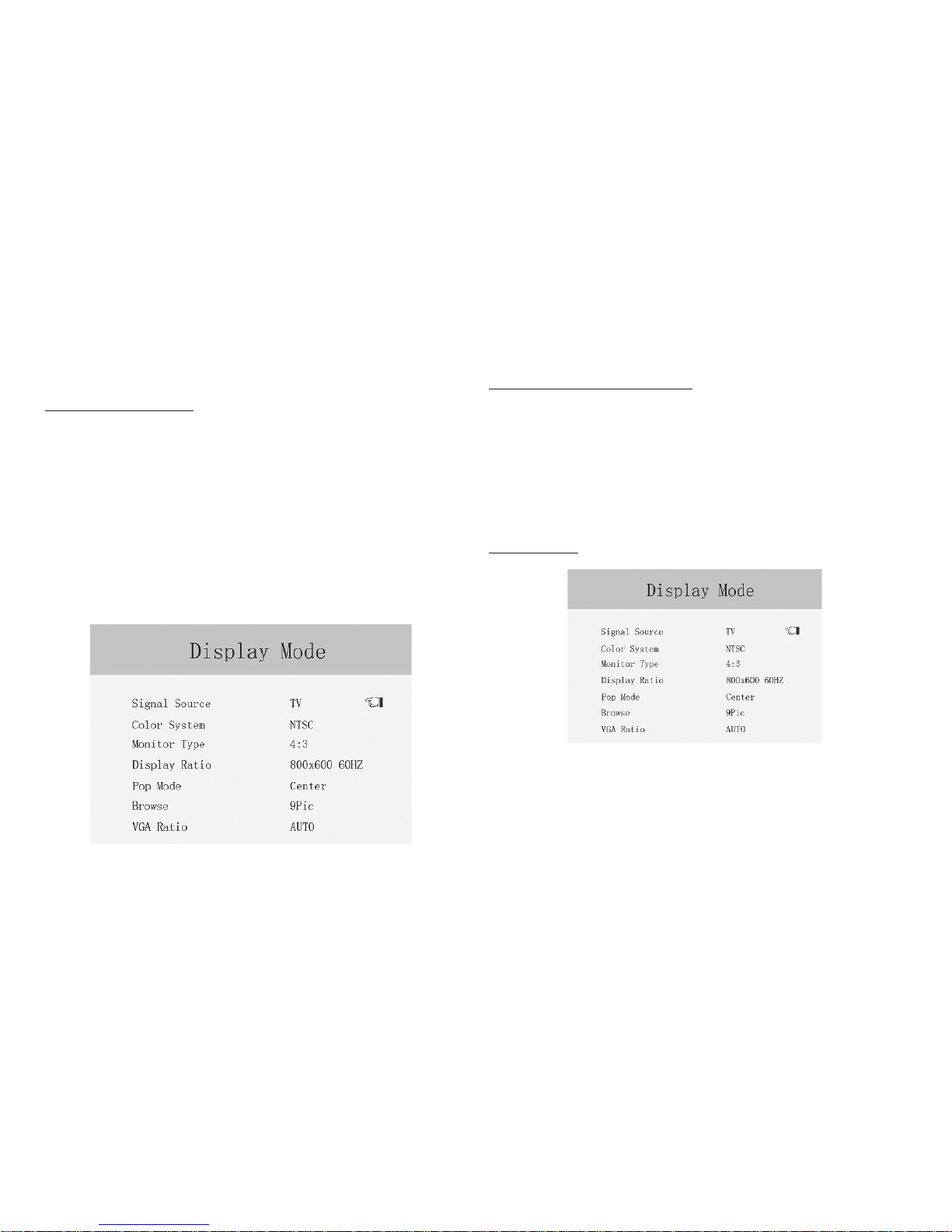

Previewing
Preview (preview key)
a. Press “MENU” key, “Setup”, “Display Mode”, “Browse”;
b. When you set 4 and press preview key, the TV chan-
7
nels will display in 4 pictures on the screen in turn;
c. Repeat “a” operation and change “Browse” into 9 or
16. Press preview key and the TV channels will display on the screen in 9 or 16 pictures in turn
d. When the screen shows the channel you want to
watch, you can select it and press PREVIEW key to
watch.

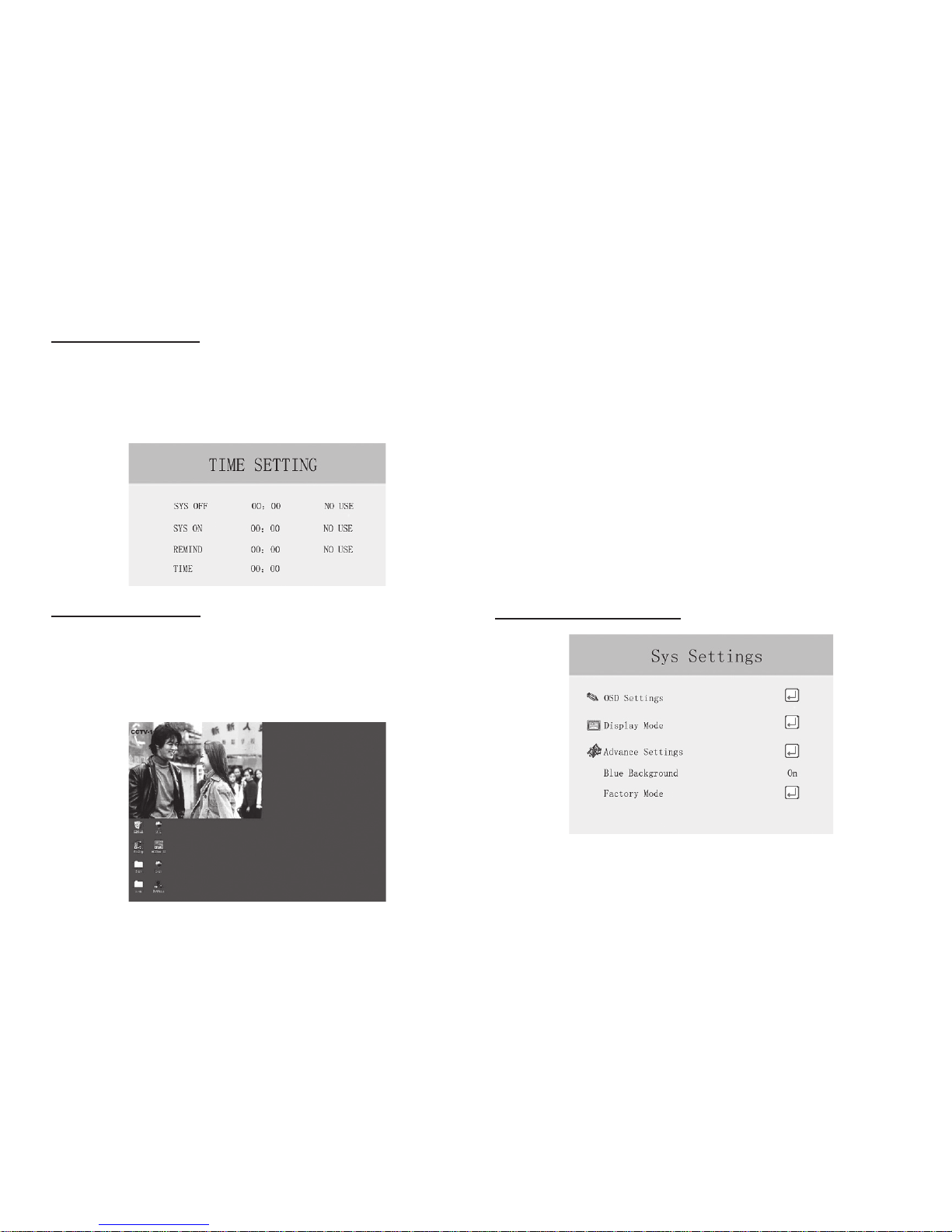

Time setting
Users can set: System time, System on, System off , Remind etc
First set “TIME”, move the scroll bar to “TIME”: press
“VOL+/-” to make adjustment

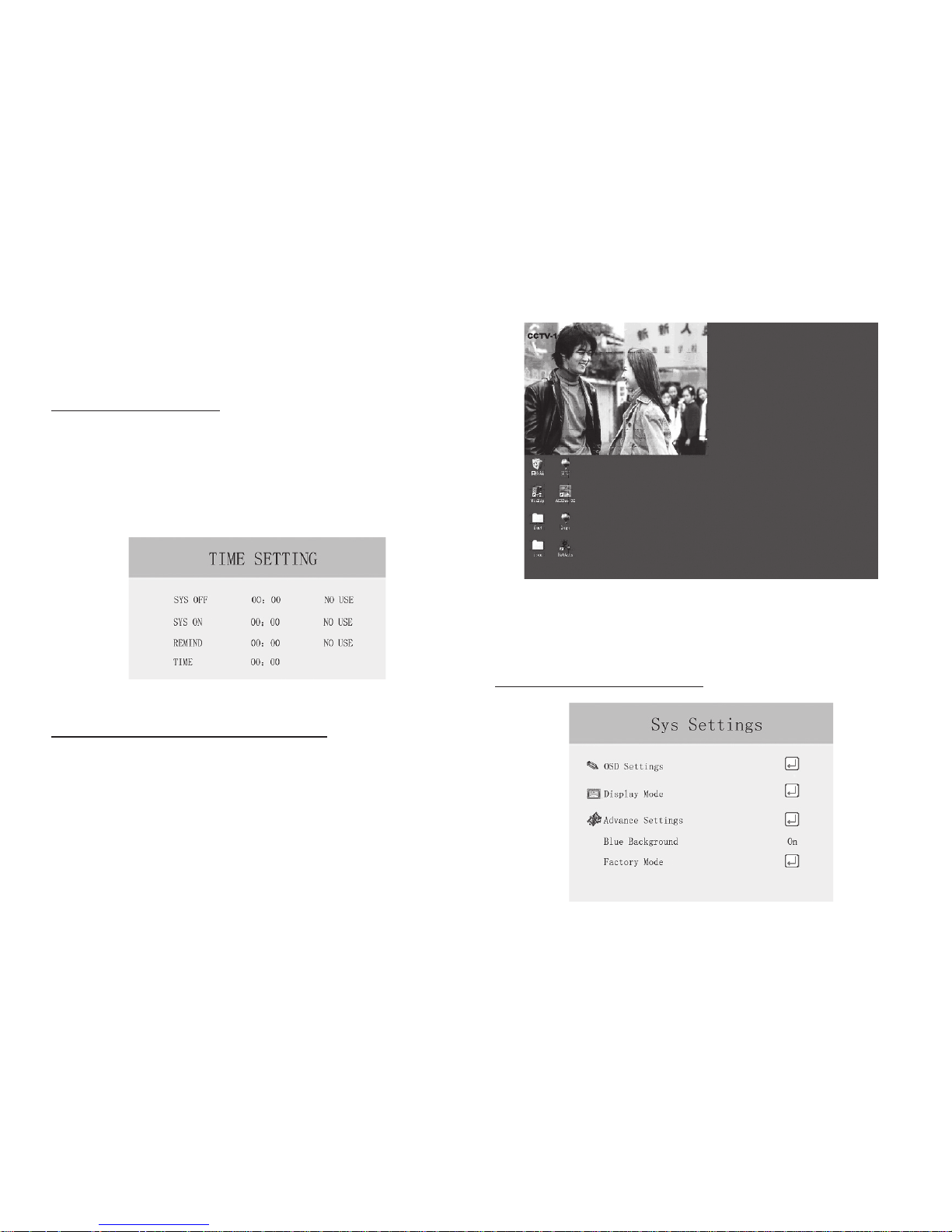

Picture in Picture Operation
When the product is working on the state of TV/AV/
S-VIDEO, please press PIP button on the remote and
open PIP condition. The screen will show a window on
your desktop.
PIP condition operating is as following:
a. Press “PIP” key, the TV picture will show on the PC
desktop.
b. Press “Preview” key, the picture will show in 1/4,
1/9, 1/16 size of PC desktop.
c. Press “MENU” to adjust the picture quality.
d. Press “VOL+/-” to adjust the picture position.
e. Press “PIP” key to quite the status.
Notice: In order to attain the best eff ect of PIP,
please set the resolution of PC and refresh rate in
accordance with that of the TV BOX.
8

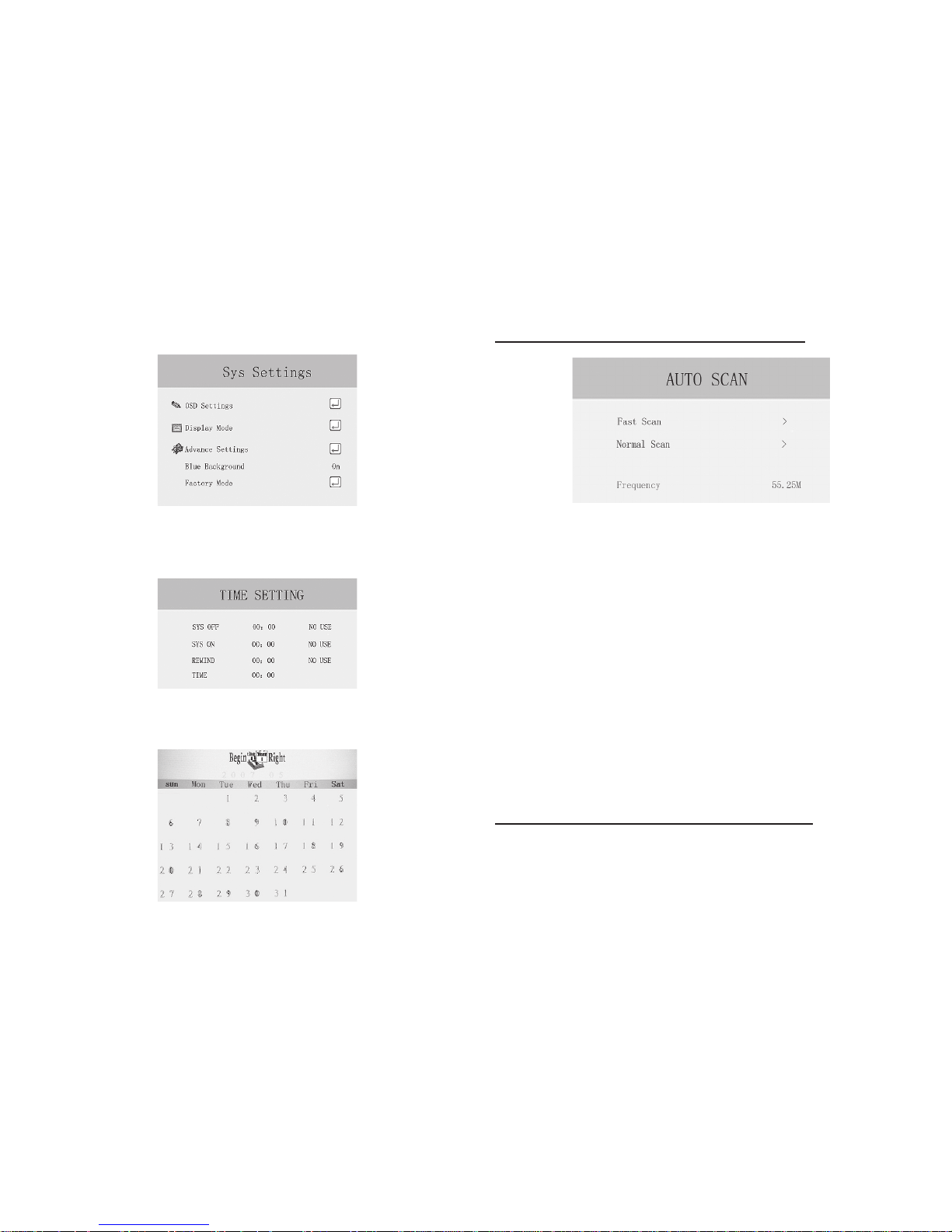

Default Settings
When users operate inappropriately causing problems
as OSD displaying in error, please set the settings in default data.
a. Press “MENU” key on remote control, press “CH-” to
move to settings, press “VOL+” to enter the system
settings, move the scroll bar to “Factory Mode”, then
press “VOL+”, the screen will fl ick.
b. Press “MENU” key to quite the setting.
c. Press “Power” key on remote control to save the
settings. Restart the TV box, the settings will be de-
fault values.
Note: If you accidentally press the “Factory Mode”,
please do not press “Power” key on the remote control. Please directly cut the power off , the TV box
will still keep your previous settings.
