media-tech MT4156 USB TV BOX XTREME, MT4156 User Manual

Download
USB TV BOX
XTREME
User’s Guide
MT4156
EN
2
Introduction
Features:
■ external USB TV BOX for analog TV
■ resolution: 352x288, 640x576, 720x576 ppi
■ supported TV systems: TV: PAL D/K, SECAM D/K, PAL
B/G
■ schedule recording and timeshift feature
■ AV and S-Video input for connecting VCR, DVD, ca-
mera, etc.
■ IR remote controller
■ saving still image snapshots to bitmap fi le
■ USB 2.0 interface
■ Windows 2000 SP4/ XP SP2 /Vista 32bit compatible
■ size 135x08x32mm
■ weight 204g
Contents
Introduction ................................................................................. 2
Features..........................................................................................2
Specifi cation .................................................................................3
System requirements ................................................................3
Package contents ....................................................................... 3
Device Installation Steps .........................................................3
How to use honestech TVR .....................................................7
Remote Controller ....................................................................13
Troubleshooting .......................................................................14
EN
3
Specifi cation:
■ standard RF socket (for TV antenna or cable)
■ standard S-Video input
■ standard AV input
■ audio input (stereo)
System requirements:
■ OS: Windows 2000 SP4/ XP SP2 /Vista 32bit
■ processor: Pentium 4 1,4 GHz or higher
■ RAM: 256MB lub or more
■ graphic card SVGA
■ sound card
■ 500MB of free hard disk space or more
■ CD-ROM drive
■ free PCI slot
■ compliant with DirectX 9.0c or higher
Package contents:
■ USB TV BOX XTREME
■ remote controller
■ user’s manual
■ USB cable
■ AV adapter (S-Video –> cinch)
■ audio adapter (jack –> cinch)
■ software CD (drivers and application)
Device Installation Steps:
Note! Read installation steps before connecting the device.
1. Put software CD into drive, if application does not start automatically, run „SETUPTV.EXE” fi le, then TV BOX installation window should appear.
2.
Select „Install DirectX 9.0c” to install required DirectX components (you can skip this step in Windows Vista). Follow on-screen commands, if restart will be required after reboot run again „SETUPTV.EXE” from CD.
3. Use USB cable to connect TV BOX to free USB 2.0 port of the computer. Make remaining connections according to following diagram:
EN
4
When you plug device to USB port system will fi nd new hardware, select „Install Device Driver” from TV BOX in­stallation window.
In some versions of Windows a massage box can ap­pear, showing that installed driver has no Windows logo. Click “Continue anyway” and system will go on with installation.
If driver installation is fi nished a message box will ap­pear,
and „Found New Hardware Wizard” window will be au­tomatically closed.
EN
5
4. From TV BOX installation window select „Install Re­mote Control” and then click “Install”.
5.
The last step is installation of honestech TVR, from TV BOX installation window select „Install Application”. When following window will appear click “Next”.
On next screen mark option„I accept the terms of the license agreement” and click “Next”
Choose installation path of program and click „Next”
EN
6
Click „Next” to confi rm program folder
Click „Finish” to end installation of honestech TVR. You can also close TV BOX installation window, press ALT+F4.
6. When you run application for the fi rst time you have to enter Product Key. You can fi nd it in text fi le „SN. TXT” on software CD or on the envelope of CD. Dou­ble click honestech icon on the desktop to run ap­plication.
When following window appear enter product key and click „OK”
After honestech TVR software is started, view window and application control panel are as below:
EN
7
Application control panel is operated as follows:
How to use honestech TVR
Switching AV source
Click on the following to make your choice:
CABLE or TV antenna AV composite input S-Video input FM radio (unavailable in this model)
Selecting channel
Click the arrow up or down to select channel (must be previously tuned up)
Utility icons
Property settings
This icon opens dialog window where you can set all settings to watch, seek and record TV programs.
TV setting tab
EN
8
Category Setting TV signal from Antenna (TV) or Cable (CATV)
Country Auto detect: automatically choose country of reception
Select your country: manually select country of reception
Operation method Order of stored channels: By Channel Number or By Order Number. For in-
stance (look at picture above), to select channel 27 enter “27” on remote con­troller if you have chosen option „By Channel Number” or enter “2” on remote controller if you have chosen option “By Order Number”.
Using favorite channels Mark your favorite channels fi rst, then you can switch between them using
button „up” and „down”
Reset and Fine Tune Slider Adjust slider to fi ne tune single channel, press reset to cancel changes
Auto Scan Run scanning for channels. When channel is found you can: store it, if you click
„Yes”; eject it, if you click „No”; store all found channels if you click „Yes to all” or cancel scanning by clicking „Cancel”.
Add/Delete Channels Manual adding channel: enter its number in “CH:” fi eld and then click „Enter”,
and then click „Add”. Manual deleting channel: enter its number in “CH:” fi eld and then click „Enter”, and then click „Del”.
Change the channel order You can sort list of stored channels by clicking „Up” and „Down” respectively.
EN
9
Video setting tab
Video source Video decoder tab: select video standard. To save changes click „apply”, then „OK” and then restart appli­cation. Don’t change other options on this tab.
Fine Adjustment Setting Brightness, Contrast, Hue and Saturation. Press „Default” to restore default settings.
Video capture device Select „OEM 5600AI„ as your video capturing device.
Using the internal audio streaming function Mark this option to capture audio from previously se­lected video capture device. Option should be marked, don’t change it.
Video Proc Amp tab: video adjustment
EN
10
Record setting tab
Profi le Select diff erent recording format. Select MPEG1 or MPEG2 to manually set parameters (some knowledge of video compression is needed) or select other profi les with pre-defi nite parameters.
Working Directory Set saving path for recorded video
Etc Dialog tab
Channel Surfi ng: Settings of TV programs preview
Auto Scan Mode Mark this option to enable auto scan for channels dur­ing channel surfi ng
TimeShift Recording Mark this option to use HDD space in timeshift mode
Disk Driver Info Information about capacity of available HDD
EN
11
Schedule recording
Click this icon to open dialog box of schedule recording.
Add – set a new schedule for recording Edit – rename a recorded video fi le Delete – delete selected video fi le Delete All – delete all video fi les from the list OK – confi rm all setting and exit Cancel – cancel all setting and exit
Channel Scan
Click this icon to run Auto Scan function.
Skin
Click this icon to change control panel skin color.
Snapshot
Snapshots and recorded video are listed in container below control panel. Container opens automatically when recording is stopped or snapshot is taken.
Channel surfi ng
Click this icon to open channel surfi ng window, chan­nel previewing is done according to parameters set in „Property Setting”. Click “exit” to close channel surfi ng.
EN
12
Volume control
Increase volume
Mute
Decrease volume
Function disabled for this model
Audio Mode
Click this icon to switch between mode: mono, stereo and main.
Video playback control
REC – start/stop recording Timeshift – activate/deactivate timeshifting mode Play – playback recorded video
Quick Menu
Right click on view window area to pop-up the quick menu:
Pause – pause playing recorded video Stop – stop playing recorded video Backward – rewind Forward – fast forward
EN
13
■ Close the menu
■ Screen: Full, Normal, Minimize
■ Select resolution: 352x288, 640x576, 720x576
■ Aspect ratio: 4:3, 16:9
■ Channel Up
■ Channel Down
■ Auto Scan
■ Channel Surfi ng
■ Property Setting
■ Schedule Recording
■ Mute
■ Always on top
■ Show control panel
■ Exit

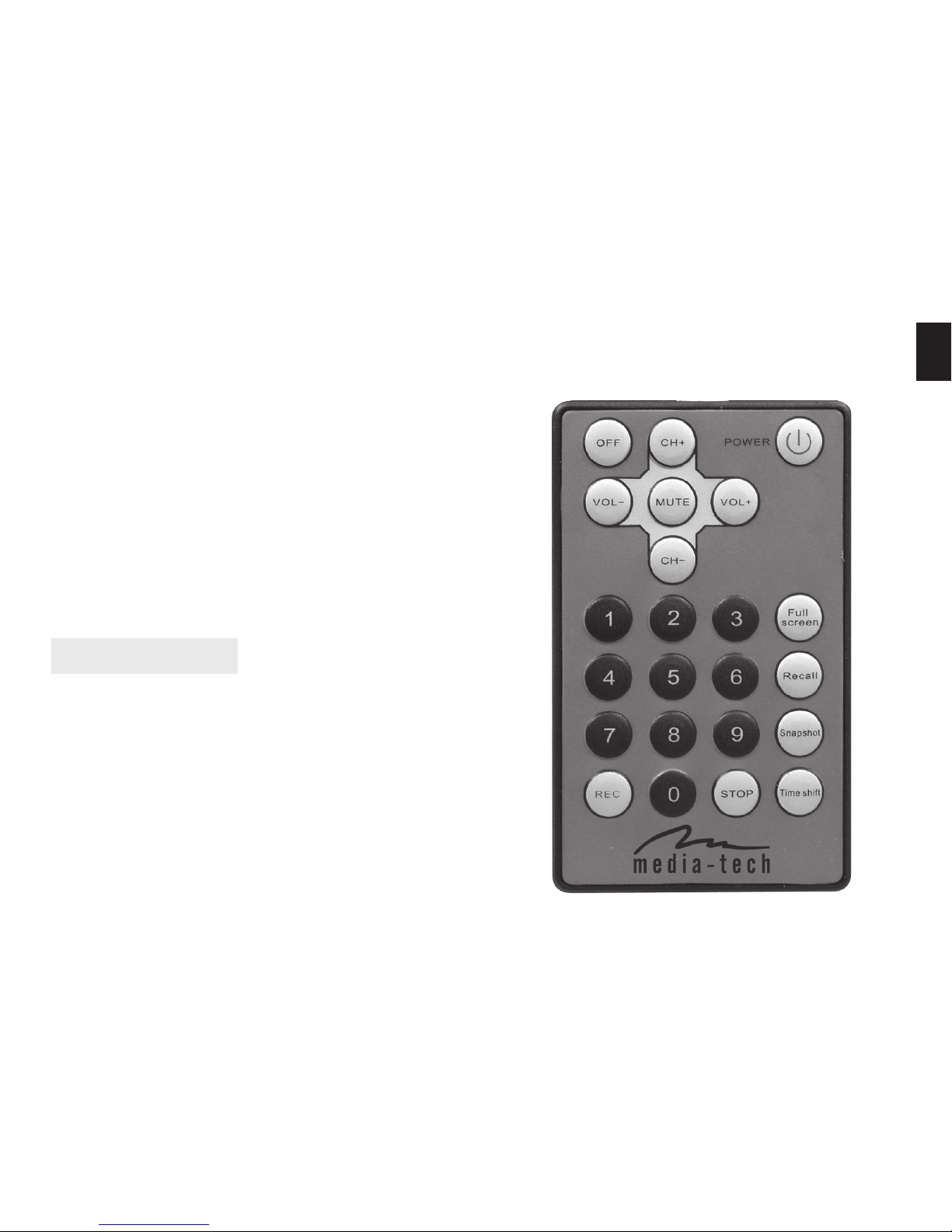

Remote Controller
Power: close application and shutdown system Off : open/close honestech TVR application Recall: back to last viewed channel VOL+: volume up VOL-: volume down CH+: channel up CH-: channel down 0~9: select channel number Full screen: activate/deactivate full screen mode Rec: start/stop recording
Timeshift: activate/deactivate timeshift mode Stop: stop playing recorded video Snapshot: take a snapshot
EN
14
Troubleshooting
Q: System could not fi nd device.
A: Connect TV BOX directly to USB 2.0 port, problems
may occur when you connect via USB hub. Try con­necting device to another USB port, or use another usb cable. When connection is good the red led is on (looking at upper side of TV BOX).
Q: Unable to run honestech TVR, only message „Could
not initialize capture device” appear.
A: Error could cause other video capture devices that
were installed before TV BOX. Uninstall TV BOX and all devices such internet camera, scanner, graphic card with “video-in” feature. Restart system and pro­ceed steps 3-5 of device installation. Check operat­ing of honestech TVR application, if error does not exist you can install other video capture devices.
Q: Video quality is very low.
A: Poor TV antenna signal may cause the problem,
check how it works with normal TV set.
If antenna signal is good, check operating when you
input signal from DVD or digital camera. If captured video is not good, check your system confi guration. Check if you have installed latest driver for graphic card.
To many connected usb devices may cause a prob-
lem on slower PC, disconnect other usb devices and check if there is any change.
Q: No sound.
A: Go to “Video settings” and check if „Use internal
streaming audio function” option is marked.
Q: Problems with recording. Poor video/audio quality.
A: Decrease image size or decrease quality of recorded
video fi le. Better quality of captured video requires more system power.
Q: Unable to save video adjustments.
A: Video adjustments are assigned to actual captured
AV source. Every time you change AV source video adjustment are reset to defaults.
Q: After installing honestech software there is „hon-
estech Product Agent” icon in system tray.
A: This plug-in automatically checks for honestech
software updates. It shouldn’t be removed.
EN
15
For more information, drivers, instruction manuals, please visit our website: www.media-tech.eu
Manufacturer is restricting right to modernize and making changes of this device. In accordance with continuous development of hardware and software some functions demonstrated on pictures might be presented diff erently in the future.
