Product introduction

Product summary

Thank you for choosing this high denition SmartP2P IP Camera, the IP Camera combines a high denition digital video camera with network connectivity and a powerful web server to bring high denition video to your desktop from anywhere on your local network or over the Internet� It is very suitable for family, shops, oce and so on�

Main features

■ Support Plug and Play function, view video via free

iSmartviewPro mobile phone or PC client software�

■ Support 3 kinds of H�264 video stream and 1 way MJPEG

video stream simultaneously, suitable for Local, Internet and Cross-platform view;

■ Support resolution for 1280x720/640x360/320x180;

■ Support 4 ways view in a video stream;

■ Support two-way intercom function, and G�711 and

G�726 audio encoding;

■ Support 802�11b/g protocol, build-in WiFi module to

perform wireless monitoring;

■ Support up to 32GB SD/TF card for storing the alarm

video and pictures, timing snapshot and recording;

■ Built-in web server, use one port to send all the data, us-

ers can facilitates network setting;

■ Support ONVIF and RTSP protocol, easy to integrate it to

NVR or large client software;

■ Support WPS/QSS function;

■ Support multi-languages web interface, support 1/4/9

split screen to perform several view at same time;

■ Manufacturer puts a label of DDNS at the bottom of

each IP Camera� When IP Camera is connected to the internet, this URL can be used to visit the device;

Package for typical production

■ Power adaptor 5V,

■ CD,

■ Cable,

■ Bracket L,

■ Antenna�

Notice: Please check carefully if all listed items are included in the package, if anything missing, please contact your vendor�

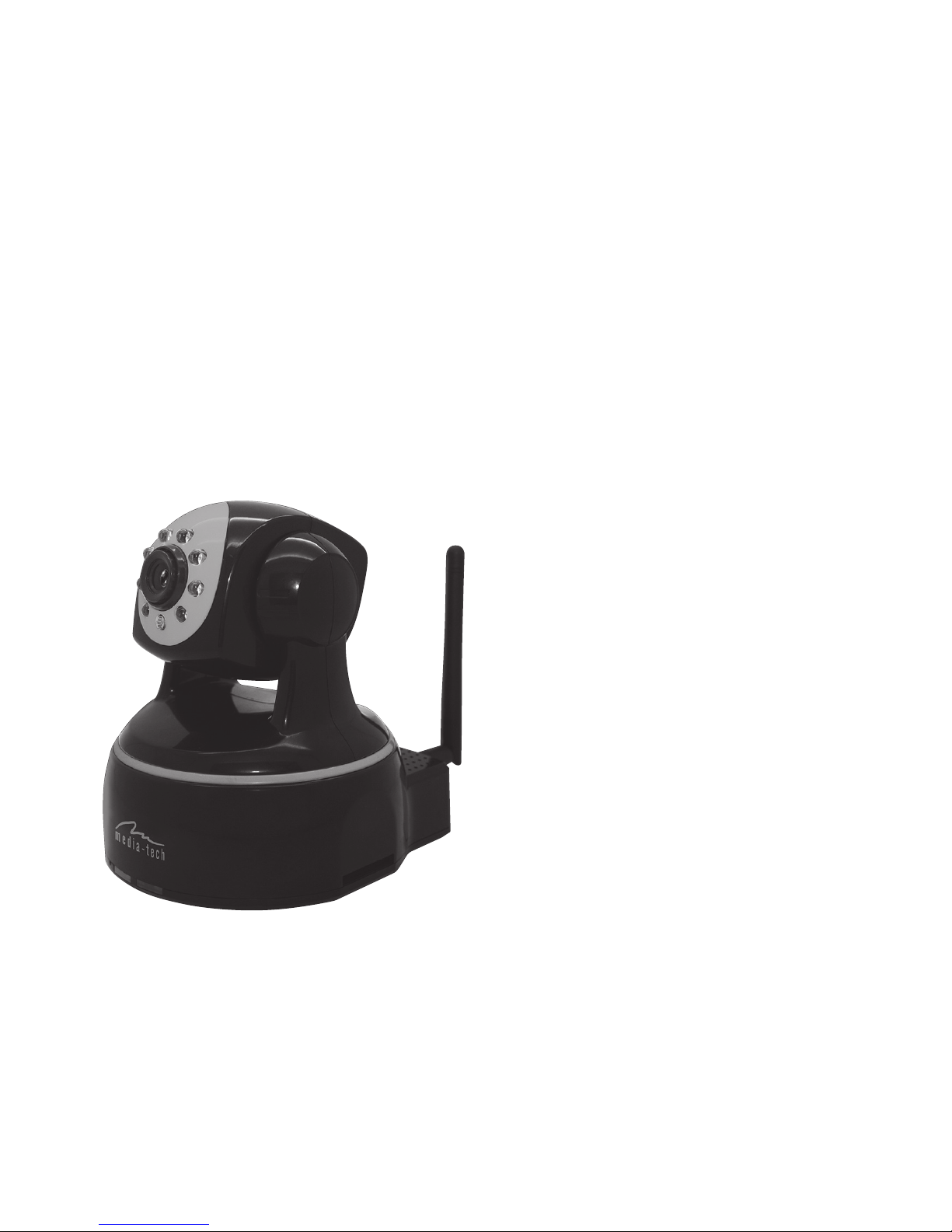

The camera features

■ Max� resolution is 720P, support two way intercom, build

in MIC;

■ Build in WIFI module, support 802�11b/g, easy for con-

necting wireless router;

■ Support rotate 350° horizontally and 100° vertically;

■ Build in IR-CUT, 3�6mm lens;

■ 8 pcs IR LED, up to 5 meter night vision;

■ Alarm in/out for external alarm system connection;

■ SD card socket for recording storage;

Overview

IR LED

Work status LED

Power status LED

MIC

Lens

Photoresistor

Antenna

SD Card

Socket

Power RJ45 Audio Out

Alarm In

Alarm Out

Reset Audio In

■ Work status LED indicate: Flash normally (1 time per second) means the device

runs normally, it means the camera was connected to wired network

Always on, it means the camera is searching WPS Flash very fast (3 times per second) it means the camera

was connected to wireless network�

MT4051

Router

Installation and Operation Guide

View video by mobile phone software

You need to download and install “iSmartviewPro” mobile phone client softwae from attached CD, and then scan QR code on the camera body to add camera for viewing video, for detail, please refer to application guide�

View video by wired connection in LAN

Power on the IP camera (please check carefully the voltage of power adaptor, don’t insert incorrect power, otherwise it will be damaged), connect IP camera to router by network cable and connect computer to the same router�

Insert attached CD to computer driver, double click “H&MSearch_en�exe” in the CD, will pop up the interface, please operate as the following steps:

1� Click “Search” (Please make sure your rewall will not

block up the item to be searched) 2� Choose a camera; 3� Change the IP address of the IP camera according to the

information in the red frame on the left� The numbers

in the red circle should not be the same� The Http port

should be a number between 80~65535;

4� Enter user name and password for the device, the de-

fault is “admin” and “123456”; 5� Click “update”; 6� After updating successfully, click “Search (F3)”, choose

the device again and click “Browse (F4)”� Then you can

run the web browser, enter user name and password

and login IP camera to view the video (please use IE

browser at rst time)�

Notice: Need to download ActiveX� Click “download ActiveX (when rst use)” click ‘run’ will download and install the ActiveX automatically�

Tips: You can hold on reset button on the camera for 10 seconds to restore factory default if you forget user name and password, or not sure the device parameters�

Click “Video View” to access video interface as below�

1. Status bar

5 6

1� Display connection status; 2� Display record status: if click “Record”, it will show “REC”

which stands for recording; click record button again, it

will stop; 3� Zoom out, zoom in and restore digital zoom; 4� Set saving le path: set the location for recording and

capturing le storage; 5� Talk button: Click this button to hear what the person

at the side of computer talks� Click it again, it will stop

playing; 6� Audio monitor button: Click this button to hear what

people talking about at the side of IP Cameras,

Note! In this window le location path are dened on local PC computer, in this window you can manually start/stop recording or make snapshot. For automatic surveillance function like motion detection go to “Settings” and dene SD card or FTP server as le storage.

2. Choose video stream

You can choose primary stream or second stream, third stream to view the video� Recommend to view by primary stream in LAN, by second stream in WAN and by third stream in mobile phone� This option is good for preview previously dened quality stream in “Settings”� You can view the video by four, nine pictures in same screen, but need to set the camera in multiple setting�

3. PTZ control

If the camera supports PTZ function, you can click up, down, left, right arrow to control the camera moving, click [󰎒 󰋼] button to center and stop the camera� When you set camera to a preset position, and then click [SET], after the camera is changed to other direction, click [CALL] can move the camera to the position you have set�

4. Snap /record / SD card / playback

■ Click “Snap” button, to save the picture to the specied

path�

■ Click “Record” button to start recording� Click again to

stop recording�

■ Click “Check TF/SD card” can browse the les in the SD

card (If the SD card already inside the camera), you can select le to download it;

■ Click “Playback” button, it will show a player which can play the record video� For these buttons [ 󰎘 󰋼 󰋁 󰋙 󰎋 ] means: play; stop; open video le; slow play; quick play�

View video by WiFi connection in LAN

After nishing the wired connection you can connect the camera by WiFi� Login camera in wired connection and enter wi setting, and then operate as the following step�

Select ‘On’ and click ‘Search’, and then select wireless router in pop-up menu, click ‘OK’ and enter password if needed, click ‘apply’ to save the wireless settings� And you can click ‘check’ to check if the wireless setting is successful� After setting successfully, please pull out network cable and reboot the camera to use the wireless connection to view video�

Because the camera supports WPS/QSS, so you can set wireless by simple way as below.

1� Please conrm if the router connected to camera sup-

ports WPS/QSS (you can check user manual of the router or get the support from router factory);

2� Press WPS/QSS button on the router, it will launch the

function�

3� Press and hold on reset button for 2~5 seconds after

it ran normally (not need connect cable), it will launch the WPS/QSS function, then match the setting with the router, the status LED always on when it was matching, and it will ash after matching successfully�

4� Unplug power adaptor and reboot the camera, then you

can use the wireless connect function�

Notice: The camera will automatically stop the function when the matching is unsuccessful after continuing 50 seconds� Due to dierence in the working of the routers, we don’t guarantee that WPS function can be used successfully�

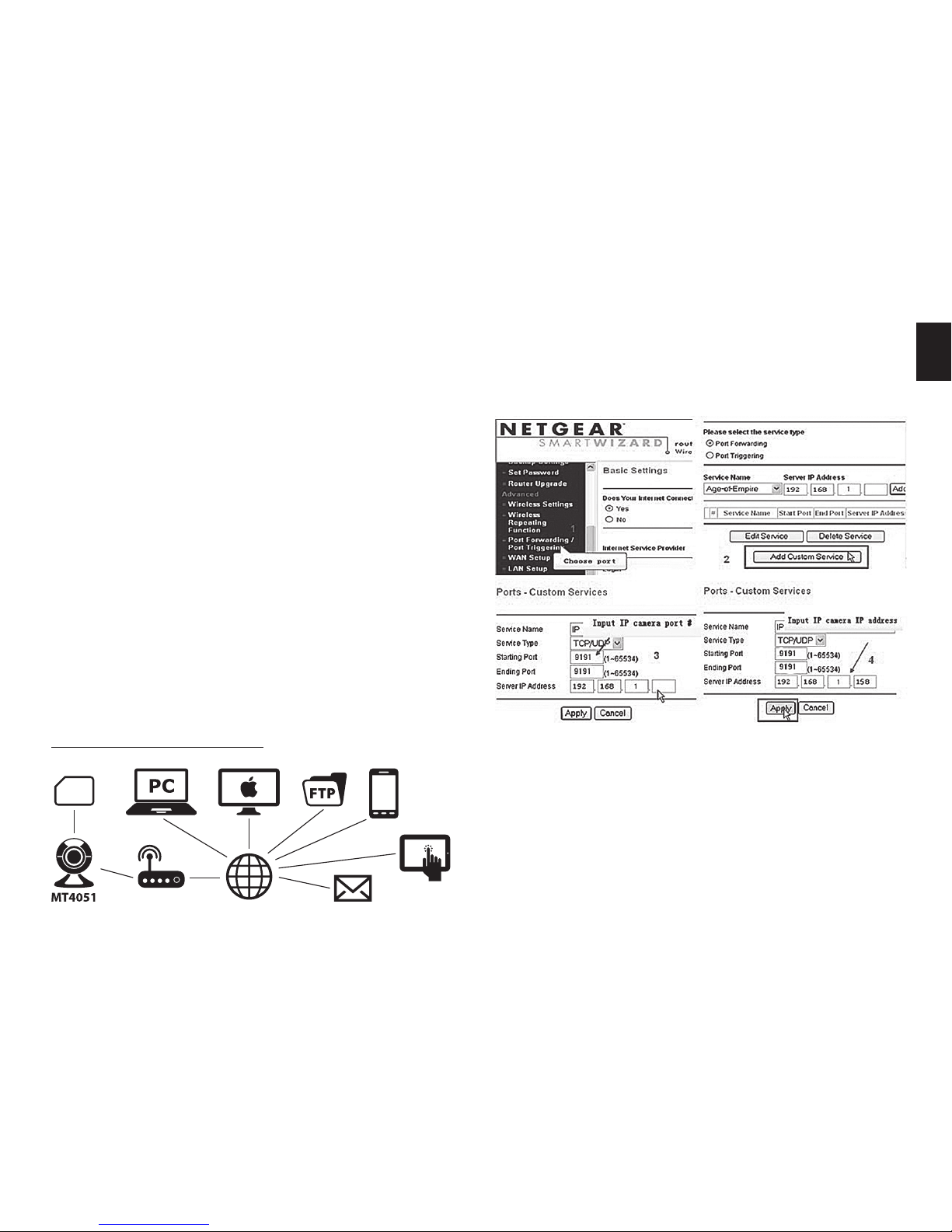

1� Please go to the setting interface of Router, and choose

“Port Forwarding”; 2� Choose “Add custom Service” ; 3� Input IP camera http port; 4� Input LAN IP Address of the camera, click “Apply”

After nishing the port forwarding, you can use WAN IP address of router and http port of camera to visit the camera by remote computer�

View video in internet

You should connect your internal network to the internet rst and congure port forwarding, please refer to your router manual for further details�

For example: operation step of port forwarding�

Notice: because the routers are dierent, so the interface and setting method of router are also dierent, how to do the port forwarding for various routers, please refer to the user manual of your router or consult with router manufacturer�

View Video by PC client software

You need to install “iSmartviewPro” PC client software from attached CD, and then add camera to view live video� For detail, please see the “User manual for iSmartViewPro”�

View Video by other way

Other Web Browser

In the Windows OS, for using browser with IE kernel, user must download the ActiveX� While for Safari and Firefox browsers, please Download “QuickTime” plug-in and install it to access the IP camera� After installation, please run the QuickTime program to access the QuickTime Preferences dialog box from Edit Menu, example as below� Click “Advanced”, select “custom�” in the Transport Setup� It pops up the Streaming Transport dialog box� Please select “HTTP” for transport protocol and “80” as port ID, click “ok”, and then return to Transport Setup to change “Custom��” to “Auto”� Finally, click “ok” at the bottom� After nishing these settings, run the Firefox or Safari browser to view the video�

folder and run the command program, enter command by command line mode: qtdefaultswriteTransportSettingsHTTP80

And then run the Safari browser to view the video�

Note: Please select the G�711 audio code format for audio playback in Quicktime plug-in�

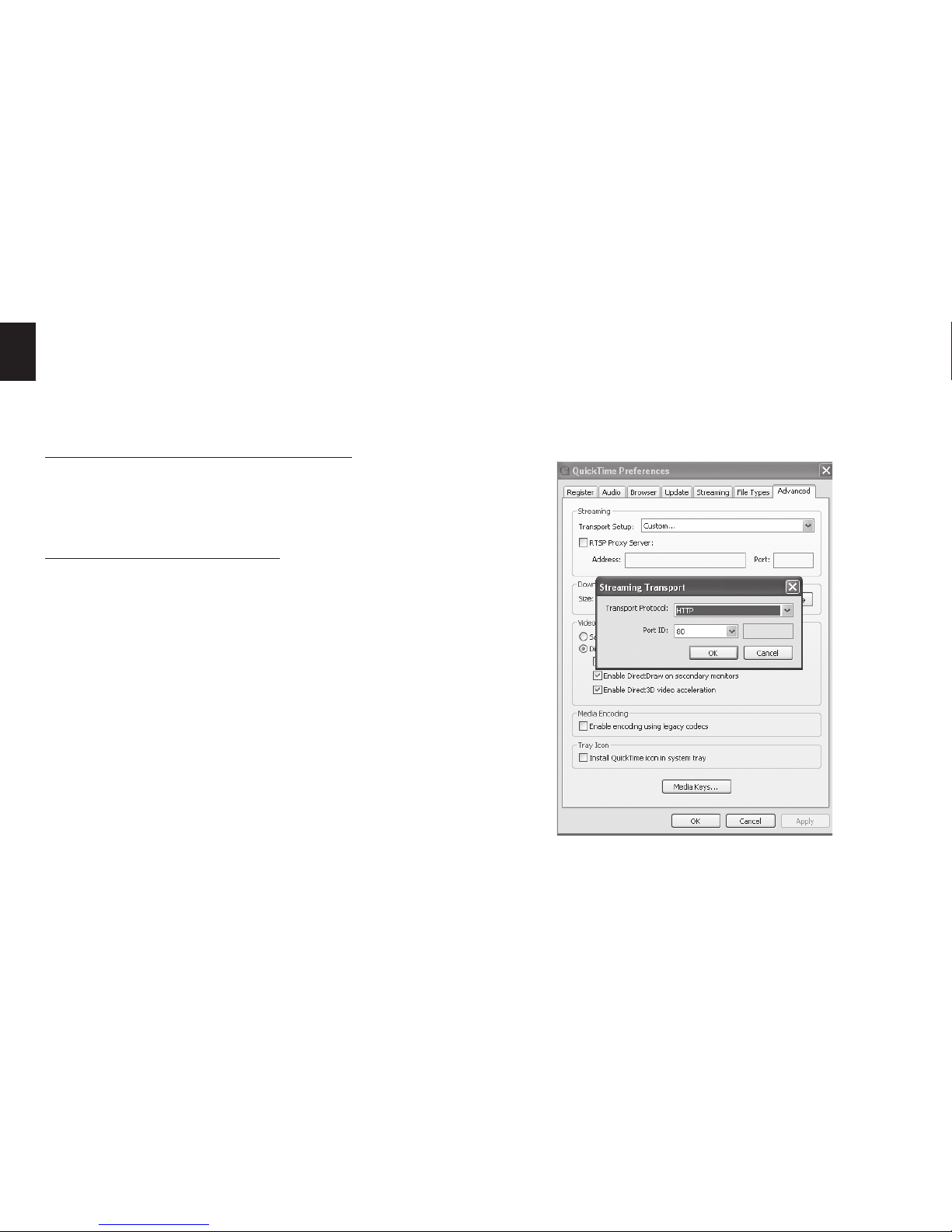

In Mac computer, the Quicktime is installed by default, so the user simply accesses setting tool folder at application

Other common software

As the device supports RTSP protocol, you can use VLC player to play IP Camera video� It is compatible with VLC

All settings

Video setting

In the setting, you can adjust the video, audio and image setting according to actual environment for getting best eect�

Video parameters

1�1�12 version or above� Please use below URL to visit: rtsp://ip:port/11 (View the video by rst stream) rtsp://ip:port/12 (View video by second stream) rtsp://ip:port/13 (View video by third stream)

The port is RTSP port�

JPEG stream is for some views by non windows platform, for example, click ‘mobile view’ in rst page, it will transmit JPEG stream actually�

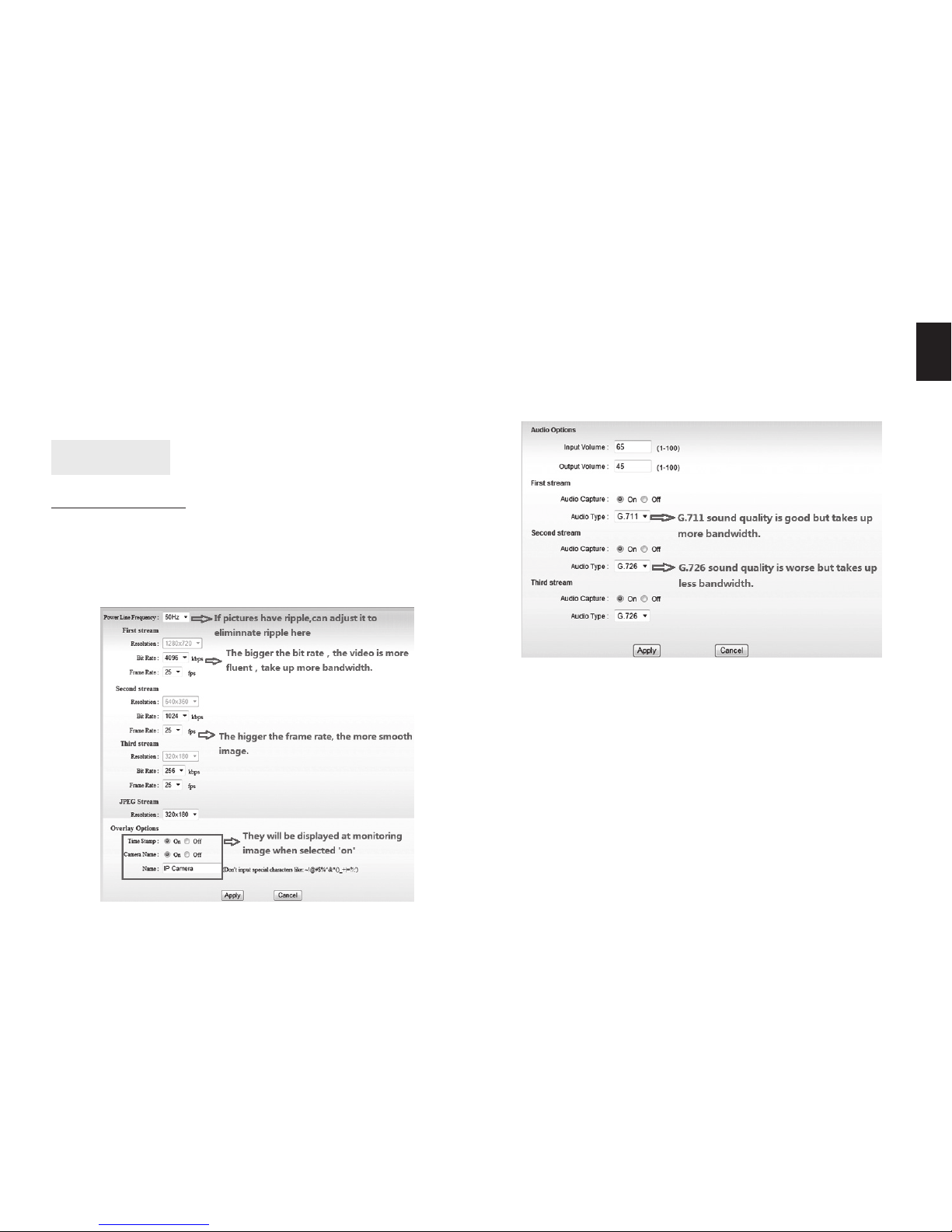

The camera supports G�711 and G�726 audio encoding format� The sound of the G�711 is better, but it occupies more bandwidth� If you click “On” of the audio capture, so it will transmit audio in corresponding video stream� Please open the audio here, should you hear the sound when clicking audio play button�

Audio parameters

Image parameters

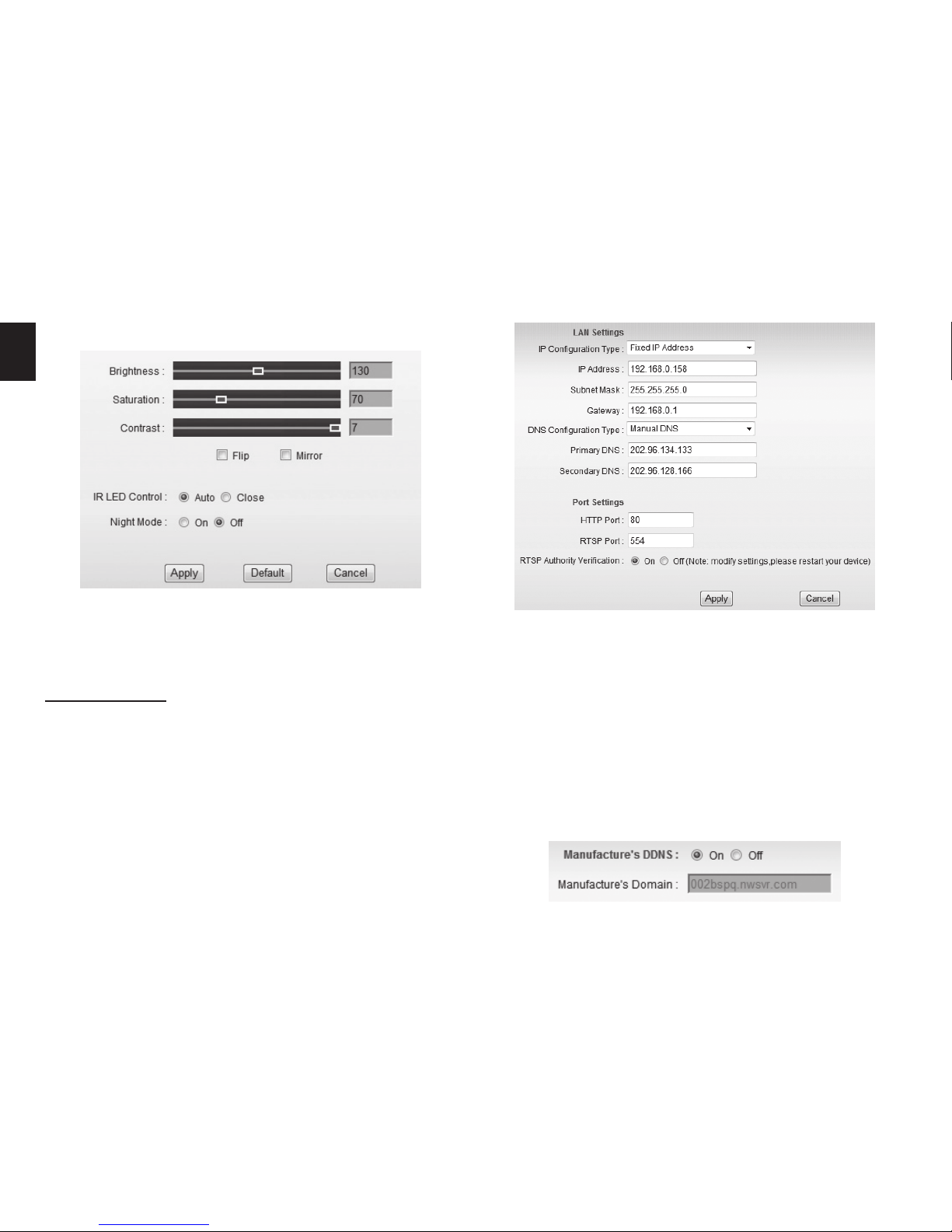

You can select “close” to disable IR LED when you don’t need it� At night mode, it will cut frame rate automatically to enhance night vision at night when you select “on”�

The cameras support RTSP protocol, if select “on” of “RTSP authority verication”, you need to enter user name and password when invoke video by RTSP protocol�

WIFI setting

Please refer to chapter “View video by WiFi connection in LAN”�

WAN access setting

In chapter “View video by WiFi connection in LAN”, you have known how to do port forwarding� After the success of the port forwarding, you can also visit camera by DDNS� The manufacturer has established a DDNS system, and allotted a DDNS to every device, the user can view it from remote PC�

Web setting

Basic web setting

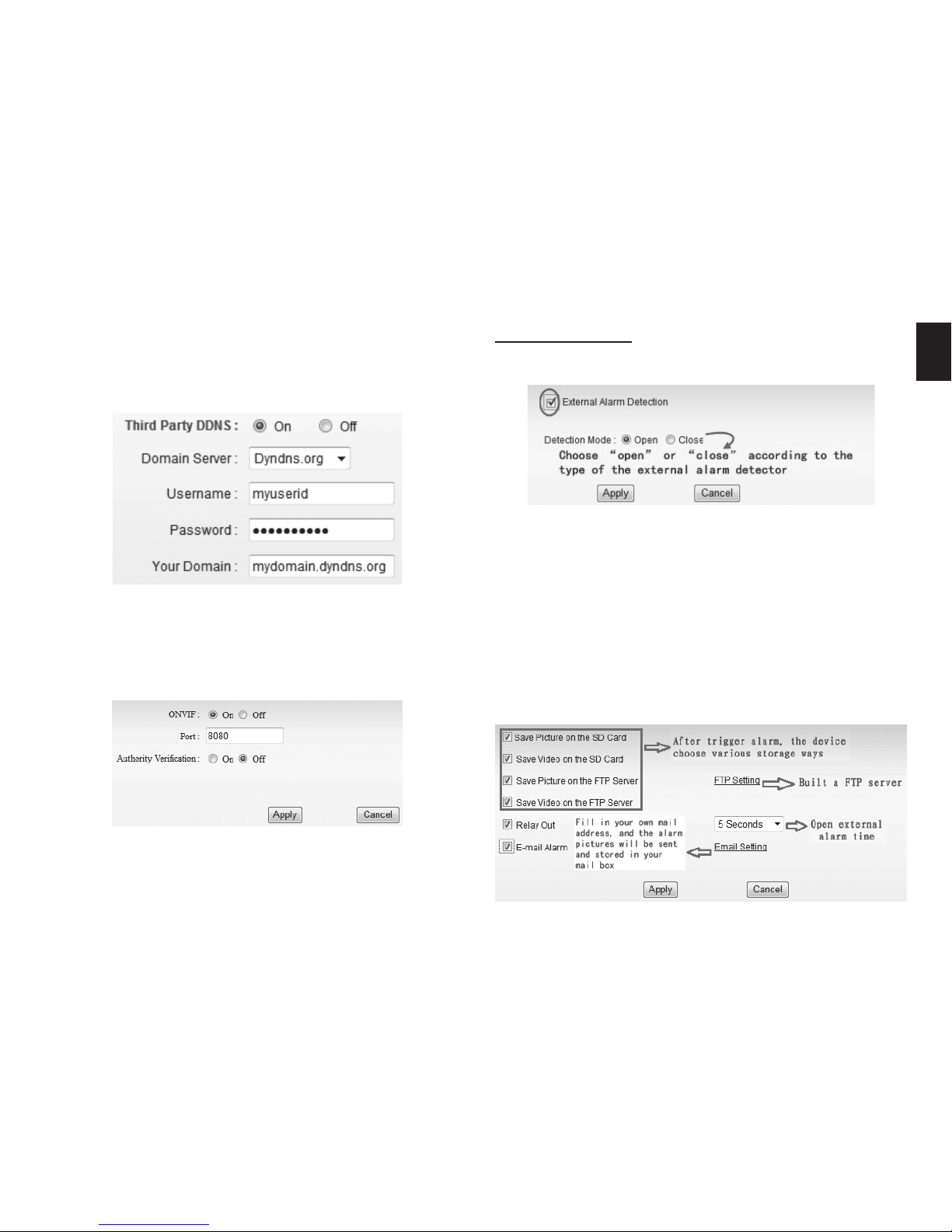

User can also use third party DDNS, such as www�dyndns� com� User applies a free domain name from this website and lls the info into below blanks and saves the settings� Then the domain name can be used�

The camera should have external alarm input port for enable this functions� Connect external alarm detector to the input port, the detector will output switching signal when it detects any abnormal, input port of the camera will detect the level change, so it will detect the alarm, therefore the detector should be switching sensor (same as switch) �

Alarm mode setting

After camera detects any change, it will alarm as several mode�

The camera supports ONVIF protocol, so it can be interconnected with other factory camera with ONVIF�

Tips: The device supports ONVIF 2�0�1 at present�

Notice: Using the third party DDNS, if the http port is not

80, the port number should be adding to the domain name with colon� Example: http://mydomain�dyndns�org:81�

ONVIF setting

Alarm setting

External Alarm Input

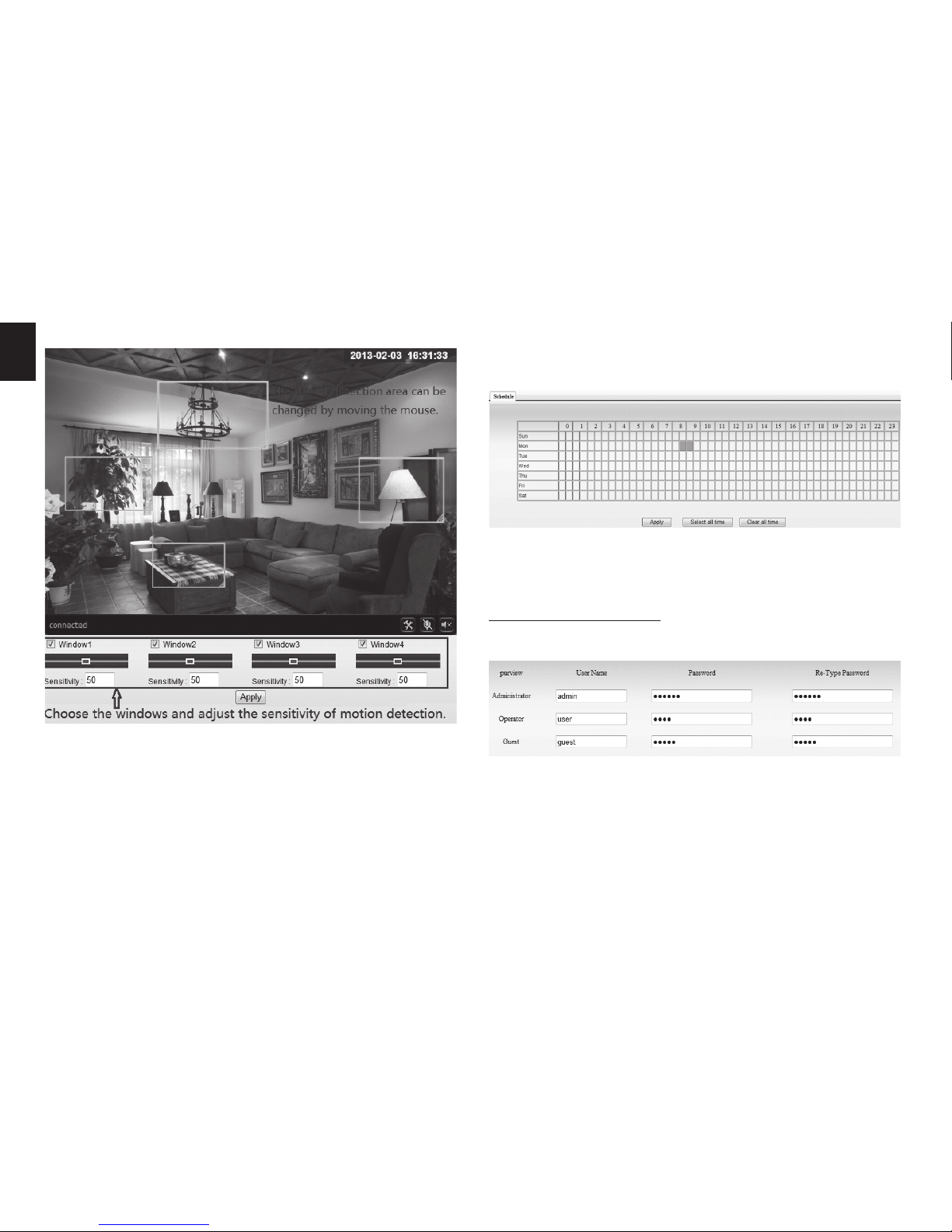

Motion Detection Setting

Please click “apply” after the settings are done, and motion detection takes eect� The higher value, the higher sensitivity� The camera will trigger corresponding alarm when any change occurs in the detection area�

Note: Please make sure your system time is correct before you set the alarm time period�

There are 3 levels of user authorization in it�

■ Administrator: “admin” has the highest authority� It can

do any settings� The factory default password: 123456.

■ User: user can only operate the device but can’t do any

settings� The default password is user�

■ Guest: User can view the video, but can’t operate the

device� The default password is guest�

Advanced setting

User management

Alarm time setting

The device will trigger the alarm only during the scheduled time period, you can select the scheduled time according to your request� Example of gure below, set armed time

from Mon 8:30 to 9:30, you only need to click the corresponding time block to set them, the time block will become green when you selected�

Note: Please change these 3 level passwords when your rst use to ensure your safety�

Tick “Save Images to the TF/SD card”, the snap pictures will be stored into SD card during the setting time�

Example: set recording time from Mon 8:30 to 9:30�

Tips: Please insert TF/SD card when the device power o�

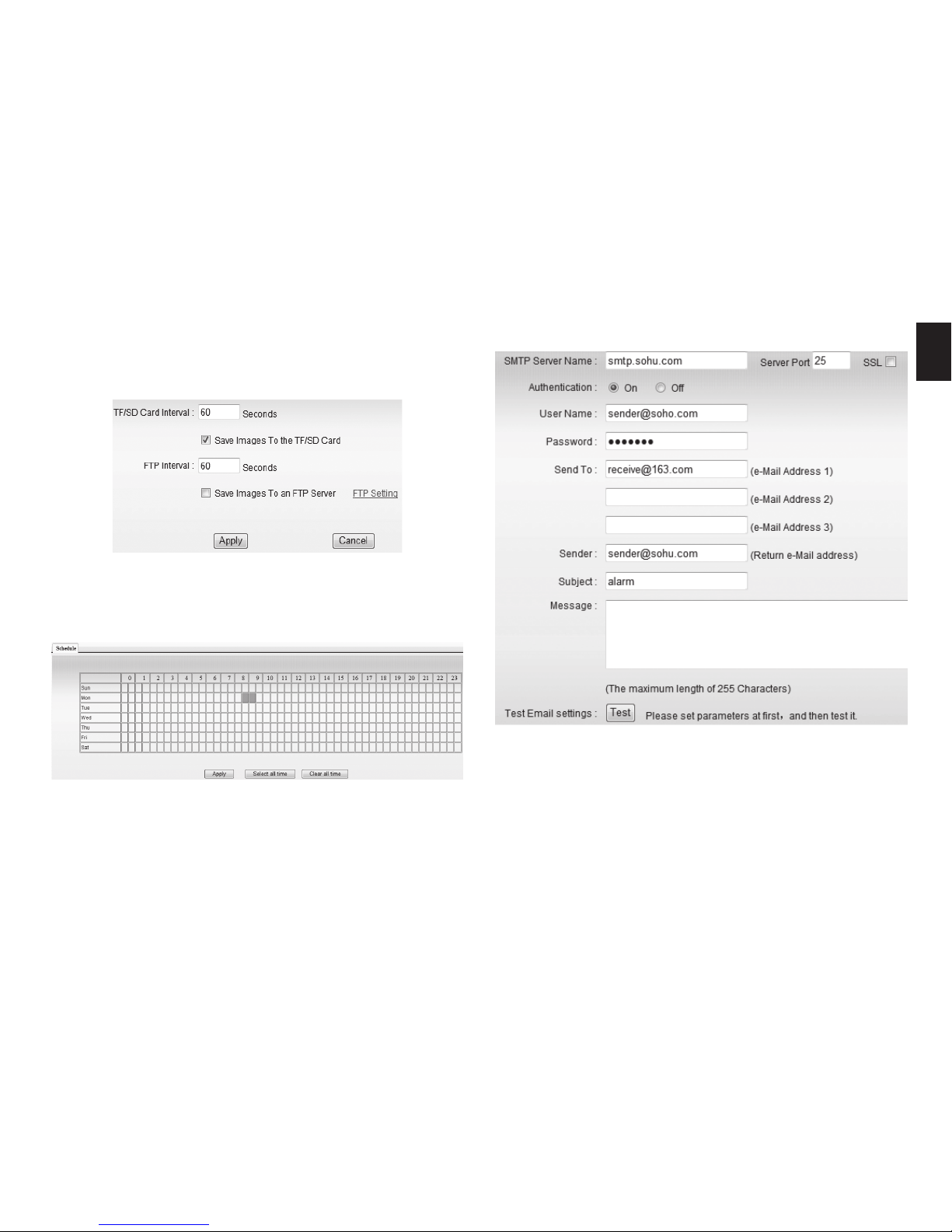

The SMTP server name: It is mailbox server, for example of SOHU mailbox, it is “smtp�sohu�com”� Please ll all blanks which we lled above as example� Otherwise, the settings will fail�

Please click “Test” to test if the E-mail setting is successful�

Auto Capture Setting

E-mail Setting

Timer recording

FTP setting

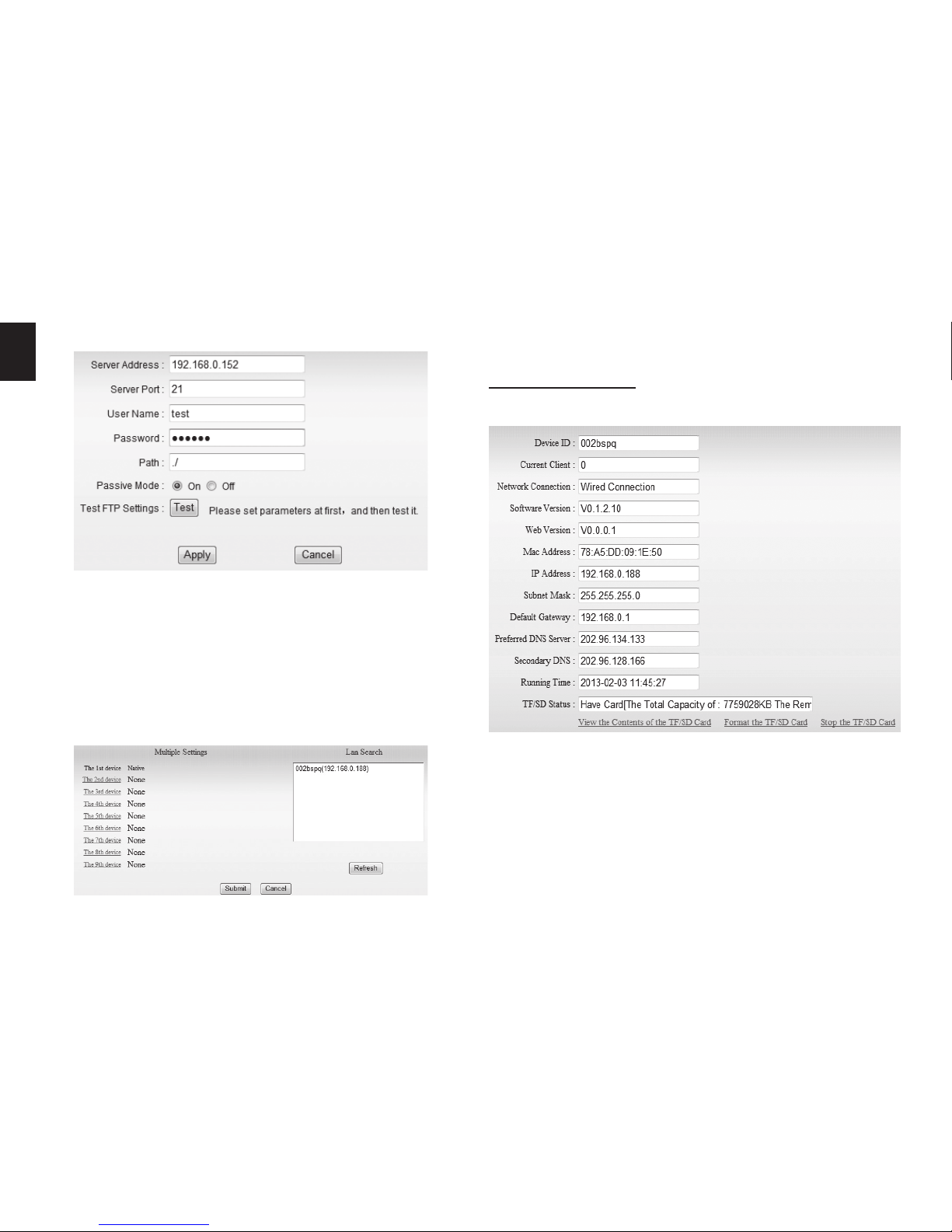

Before to use FTP function, please get the following ready� 1� FTP user name and password 2� FTP storage space and the authority 3� Create sub-category to store the video or pictures�

Notice: The password should not contain special characters�

Multiple settings

Please set multiple devices here rst to view 4 or 9 split screen�

System setting

Device information

SD status shows the free capacity if SD card is installed�

Notice: the device supports up to 32GB SD card� Please format the SD card to FAT32 before use the card on camera�

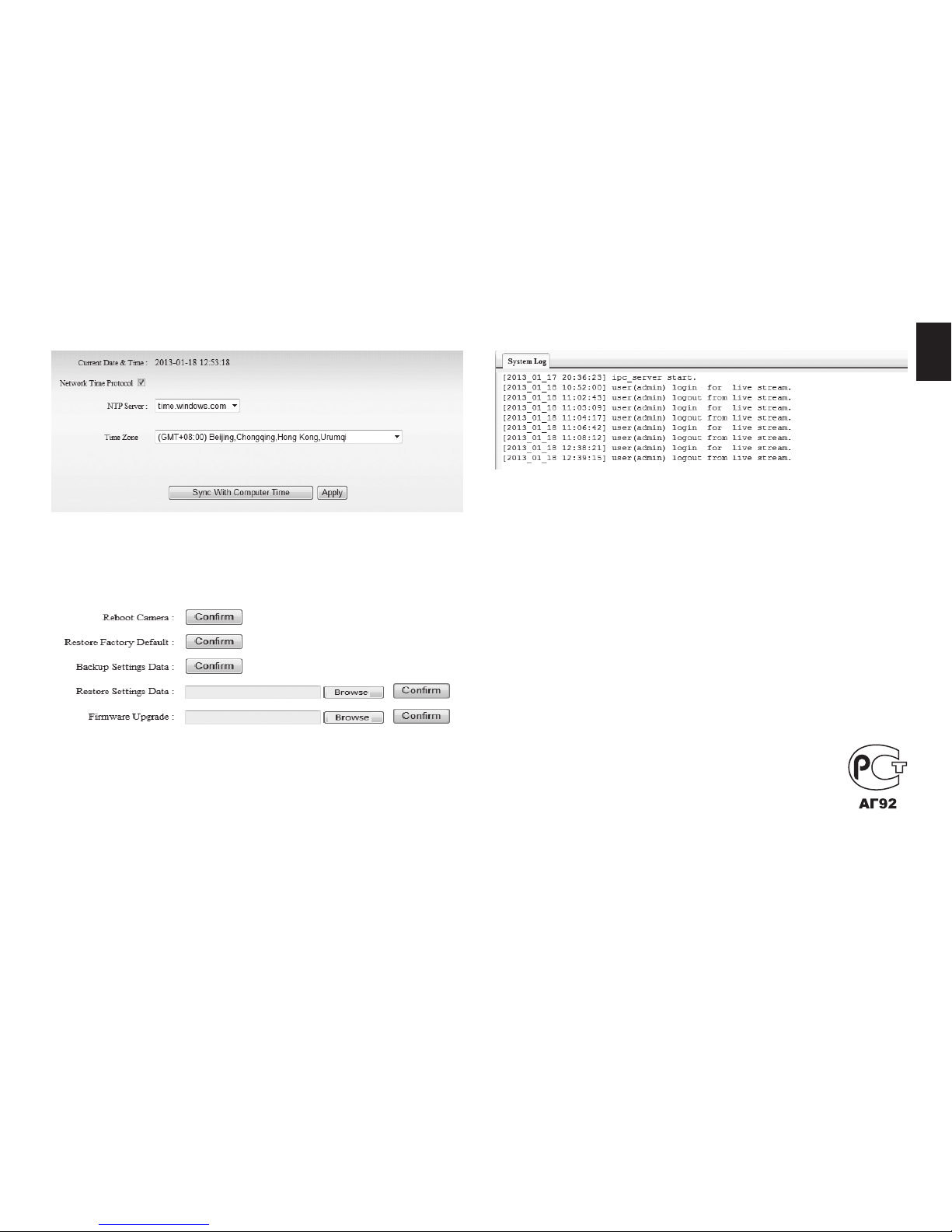

Date and time setting System Log

Initialize setting

Please select the time zone at rst and then select a NTP server and obtain time from network time server�

If you click “Conrm” of Backup setting data, the camera will create a le, you can store it to your computer, and you can directly call this le to restore the settings� The function helps to manage the cameras and no need to do all the settings again�

The rmware upgrade is for updating system rmware and web UI�

Due to continuous development specication and appearance of product are subject to change without prior notice. For technical support please visit www.media-tech.eu.

media-tech MT4051 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
