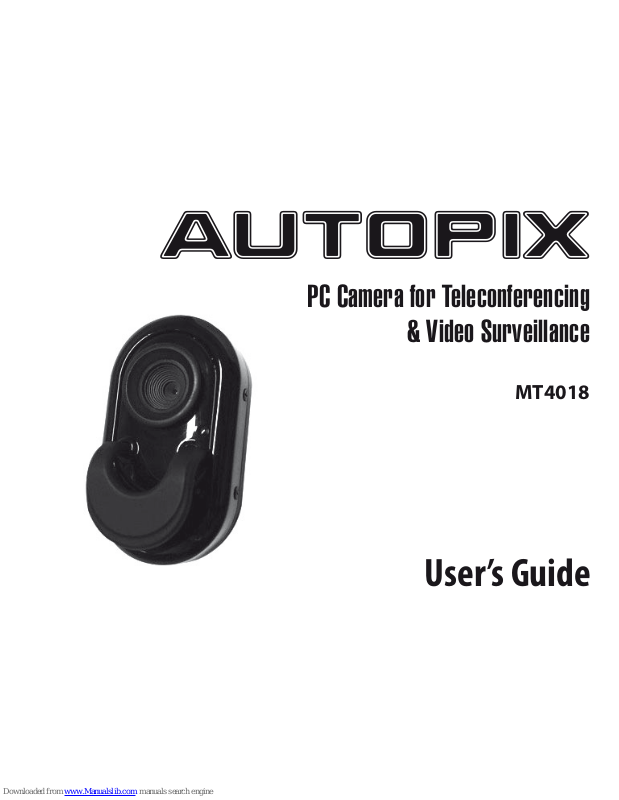

AUTOPIX
User’s Guide
MT4018
PC Camera for Teleconferencing
& Video Surveillance
2
EN
Introduction
Thank You for buying new Media-Tech PC camera. Following information will help you to use your camera to
its full capabilities.
For viewing pictures or video, camera must be connected to your personal computer.
This camera supports Microsoft Video Class and
plug & play directly without driver.
Package Contents
■ PC camera
■ USB cable
■ CD-disc
■ Manual
PC Camera Introduction
System Requirements
■ Pentium® P4 1.2G CPU
■ Free USB2.0 port
■ 256MB RAM internal memory minimum
■ 500MB free hard disk space
■ Internet connection
■ CD-ROM drive
■ Windows compatible sound card and speakers
■ Windows® XP Service Pack II
■ Windows Vista™
Note: If your system is Windows XP Service Pack I,
please go to www.microsoft.com. It’s free to update
your system to Windows XP Service Pack II.
Auto Focus Lens
LED
Clamp
USB
3
EN
3. The focus will adjust automatically according to the
subject moving.
4. Click “Take a new picture” for snapshot.
Auto Focusing and Snapshot
1. Click “My Computer”
2. Click “USB Video Device” from Scanners and Camera.
Set up PC camera
You can mount the PC camera on
your laptop as diagram shows below.
Plug the PC camera into the USB 2.0
port of PC or laptop properly.
The focus will be adjusted
automatically according to the
subject moving.
4
EN
Software Installation
ArcSoft VideoImpression 2.0
1. Turn on the computer and insert CD installation Disc
into your CD-ROM drive. Select and click “ArcSoft
VideoImpression2.0”
2. Choose Setup Language
3. Click “Next”
4. Click “Yes” 5. Click “Next”
ArcSoft PhotoImpression 5.0
1. Turn on the computer
and insert CD
installation Disc into
your CD-ROM drive.
Select and click “ArcSoft
PhotoImpression5.0”
6. Click “Next” 7. Click “Finish”
5
EN
2. Choose Setup Language
3. Click “Next”
Snapshot
by ArcSoft PhotoImpression 5.0
1. Click on the “PhotoImpression 2.0” icon on the desktop.
4. Click “Yes” 5. Click “Next”
6. Click “Next” 7. Click “Finish”
2. Click “Video” from “Get Photo”
6
EN
3. Click “Live”
4. Click “Capture” for capture image and the picture is
saved.
Live Video Playing
ArcSoft VideoImpression 2.0
1. Click on the “VideoImpression 2.0” icon on the desktop.
2. Click “Create a New Video”
3. Click “Capture From
Device”
7
EN
4. Click “Record”, save video name and then click
“Stop”.
5. Click “Done” to fi nish. Now you can play the video.
8
EN
Camera Specifi cation
Image Sensor .................................................
Lens Specifi cation ..........................................
White Balance ................................................
Exposure .........................................................
Frame Rate .....................................................
Focus Range ...................................................
Depth of Field ................................................
PC Interface ....................................................
Video Format..................................................
Audio ..............................................................
Video Capture Res. ........................................
System Requirements ...................................
Snapshot ........................................................
Still Capture Res. ............................................
Power ..............................................................
Bundled Software ..........................................
1280x1024 pixels, CMOS
F2.8, f=4.02mm, auto focus lens
Auto
Auto
1280x1024 pixels @ 8~10fps
640x480 pixels @ 30fps
Auto focus, 7cm to infi nity
50cm to infi nity
USB2.0
AVI
Built-in microphone
1.3mega/ 640x480/ 320x240
Support Microsoft Video Class
Win XP Service Pack II / Vista
Without driver
Software
Up to 1.3M pixels
From USB port
ArcSoft VideoImpression 2.0
ArcSoft PhotoImpression 5.0
Specifi cations are subject to change without prior notice.
