DVB-T2 DIGITAL
TV BOX
QUALITY OF DIGITAL TELEVISION
MT4159
User Manual
Index
EN
Index ................................................................................................ 2
Introduction .................................................................................. 3
Front panel.....................................................................................3
Rear panel ......................................................................................3
Remote control ............................................................................4
Hardware con guration ............................................................ 5
Connecting tuner to a TV .........................................................5
Connecting with Hi-Fi audio system .................................... 5
Software Con guration ............................................................. 6
Startup Menu ................................................................................ 6
Installation Menu ........................................................................6
Automatic Channel Scanning (Auto Scan) .........................6
Manual Channel Scanning ....................................................... 6
Aerial Adjustment .......................................................................7
Logical Channel Number .........................................................7
Watching TV ..................................................................................7
Changing channels .....................................................................7
Using Electronic Programme Guide (EPG) .........................7
Edit Channel Menu .....................................................................7
TV Channel list ..............................................................................8
Radio Channel List ......................................................................8
Delete All Channels from list ...................................................8
System Properties .......................................................................8
System Setup Menu ...................................................................8
2
Changing Language ...................................................................9
TV System Settings .....................................................................9
Local Time Setting ....................................................................... 9
Timer Setting ..............................................................................10
Parental Lock ...............................................................................10
On-Screen Display Settings ...................................................10
Favorite Channel Group ..........................................................11
Tools Menu ..................................................................................11
Receiver information ................................................................11
Load Factory Default ................................................................11
Software Upgrade .....................................................................12
Removing USB Device .............................................................12
Game ..............................................................................................12
Recording and external Media Devices .............................13
Media+ Explore External USB Device .................................13
Record Manager.........................................................................13
USB Storage Device Information .........................................14
USB HDD Formatting ...............................................................14
Recording Con guration ........................................................14
Jump Time Settings ..................................................................15
Recording with Timeshift .......................................................15
Start Video Bu ering ................................................................15
Preview with timeshift .............................................................15
Turning o timeshift function ..............................................15
Recording .....................................................................................15
Troubleshooting ........................................................................16
Technical Speci cation ............................................................16
Introduction
Front panel
Rear panel
EN
3
Remote control
EN
4
1. STANDBY On/O
2. INFO (active channel information)
3. PLAY
4. Previous / Next
5. PAUSE / TimeShift
6. MENU (Main Menu)
7. VOL- (Volume Down) / VOL+ (Volume Up) / CH- (Previous Channel) / CH+ (Next Channel) / Menu Navigation
(Left, Right, Up, Down)
8. OK (Con rm option)
9. RECORD
10. Numeric keys
11. USB Menu
12. MEDIA Menu
13. TTX (Teletext)
14. TIMER
15. MODE (switch RGB/CVBS mode)
16. SUBTITLE (On/O )
17. BACKWARD, FORWARD - fast scanning
18. EXIT
19. STOP (stop playing / recording)
20. EPG (Electronic Programme Guide)
21. BACK (Previous Channel)
22. TV/RADIO
23. AUDIO (choose audio track)
24. MUTE (On/O )
25. FAV (Favourite Channel Playlist)
26. RED/GREEN/YELLOW/BLUE – interactive buttons /
submenu / Teletext Navigation
Hardware con guration
The MT4159 DVB-T tuner can work with several devices. Most common con gurations are shown below.
Connecting tuner to a TV
Connect tuner to your TV with SCART, HDMI, component or composite cable as shown below. Note: Use only one
type of connection!
Connecting with Hi-Fi audio system
EN
5
Software Con guration
EN
Startup Menu
If you rst time turn on tuner there will be shown “Welcome” menu Then with navigation keys setup major
options: REGION, LANGUAGE, DISPLAY MODE, AS-
PECT MODE and con rm with “OK”.
Installation Menu
1. Press MENU button on the remote.
2. With UP/DOWN keys choose „Installation” menu,
press RIGHT to accept.
3.
Use UP/DOWN to select proper submenu and press OK
4. Press EXIT to leave menu.
6
Automatic Channel Scanning (Auto Scan)
1. Select „Auto Scan” option and press OK.
2. Using navigation keys choose “FTA Only – Yes or No”
option.
3. Choose „Search” option and press OK to start scanning available channels.
Manual Channel Scanning
1. Choose „Channel Scan” menu and press OK
2. Use direction buttons to switch between „Scan
Mode –By channel” and „Scan Mode – By frequency”.
Choose „Scan Band”, primary channel number „Ch
No.” and con rm „Search” option by pressing “OK”.
Aerial Adjustment
1. Choose „Aerial Adjustment” menu and press “OK”.
2. Switch between „Tuner Power” – ON/OFF. When this
option is turned “On” there is +5V voltage on antenna socket. If you do not use aerial that requires +5V
power supply set this option to “O ”.
3. Choose channel from channel list on the menu.
Using Electronic Programme Guide (EPG)
1. Press EPG button on remote.
2.
Use directional keys to explore list of available channels
3. Press GREEN button to enter „Timer Events”.
4. Press RED button to enter „Step time” menu.
EN
Logical Channel Number
When “Logical Channel Number” option is active you
cannot change channel number manually. When it
is turned o you can assign any number to available
channel.
Watching TV
Changing channels
You can select the channel you wish to watch in 3 ways:
1. By pressing CH- / CH+ buttons on remote.
2. Enter channel number manually by numeric keys on
remote.
Edit Channel Menu
1. Press MENU button on remote to enter main menu.
2. Use UP/DOWN keys to highlight „Edit Channel” option, next press RIGHT button to continue
3. Use UP/DOWN keys to select an item and press OK.
4. Press EXIT to leave menu.
7
TV Channel list
EN
1. Choose „Edit Channel” menu and select „TV Channel
List” option by pressing OK.
2. Use UP/DOWN keys to select proper channel and
press OK to show channel view.
3. Use color buttons on remote to access available options:
„LOCK” – to lock the channel position,
– to mark channel to be skipped while watching,
„SKIP”
„MOVE” – move channel position on the list,
„SORT” – to sort channel list,
„DELETE” – to delete channel from list,
„RENAME”- to change channel description.
4. Press FAV button on remote to enter your favorite
channel list and use color keys to edit list.
8
Radio Channel List
1. Choose „Radio Channel List” in „Edit Channel” menu
and press OK.
2. Use UP/DOWN keys to select channel and press OK
to listen selected radio station. In this mode preview
window is not available.
Delete All Channels from list
1. From „Edit Channel” menu select „Delete All” and
press OK.
2. When con rm window
appears choose „YES” to
con rm operation or „NO” to
cancel this operation.
System Properties
System Setup Menu
System properties will allow you to set language of
your system menu, TV mode, local time, TV display
mode, timer mode setup, parental lock, OSD settings
and Favorite channel list.
1. Press MENU button on remote to enter main menu.
2. Use UP/DOWN keys to select „System Setup” menu,
press RIGHT to continue.
3. Use UP/DOWN keys to select submenu and press OK.
4. To exit menu press EXIT button.
Changing Language
This option allows to change the language of menu,
audio track, subtitles and teletext.
TV System Settings
¯ „Display mode” - available options: PAL/NTSC/AUTO
¯ „Aspect mode” (screen proportions): Auto / 4:3PS /
4:3LB / 16:9
¯ „Video output” – available options: CVBS / RGB
¯ „Digital Audio Output” (audio compression format):
Bitstream / LPCM
EN
Local Time Setting
¯ „Region”: choose your country where you are receiv-
ing DVB-T TV signal
¯ „GMT Usage”: „ON”/„OFF” automatic time correction
¯ „GMT O set”: available only if “GMT Usage” is turned
on. Choose your GMT o set according the region of
your country
¯ „Date” and „Time”: manual date and time setting –
available only if “GMT Usage” option is inactive.
9
Timer Setting
EN
¯ „Timer Mode” – available options: „OFF”/„ONCE”/
„Daily”
¯ „Timer Service” (set type of action): „Channel” (pre-
view selected channel)/„Record” (recording selected
channel).
¯ Wakeup Channel: choose channel that will be
viewed after wake up.
¯ Wakeup Date: press OK and enter the date when the
device will wake up using numeric keys.
¯ Wakeup Time: press OK and enter the time when the
device will wake up using numeric keys.
¯ Duration: press OK and enter working time after
wake up.
¯ „Menu Lock”: „ON” – scanning and editing channels
will be secured by password.
¯ „Channel Lock”: „OFF” / „AGE10 / AGE12 / AGE16 /
AGE18” auditions will be blocked for spectators under 10/12/16/18 years old.
¯ „New Password”: change password.
¯ „Con rm Password”: con rm new password.
Parental Lock
1. Choose „System setup” menu and select „Parental
Lock” option. Press OK and when you will be asked
for password enter “0000”
2. When you enter correct password the menu will appear.
10
On-Screen Display Settings
¯ OSD Timeout: 1-10 seconds.
¯ OSD Transparency: available options: „OFF” / 10% /
20% / 30% / 40%.
¯ Load Default OSD setting: load default factory set-
tings.

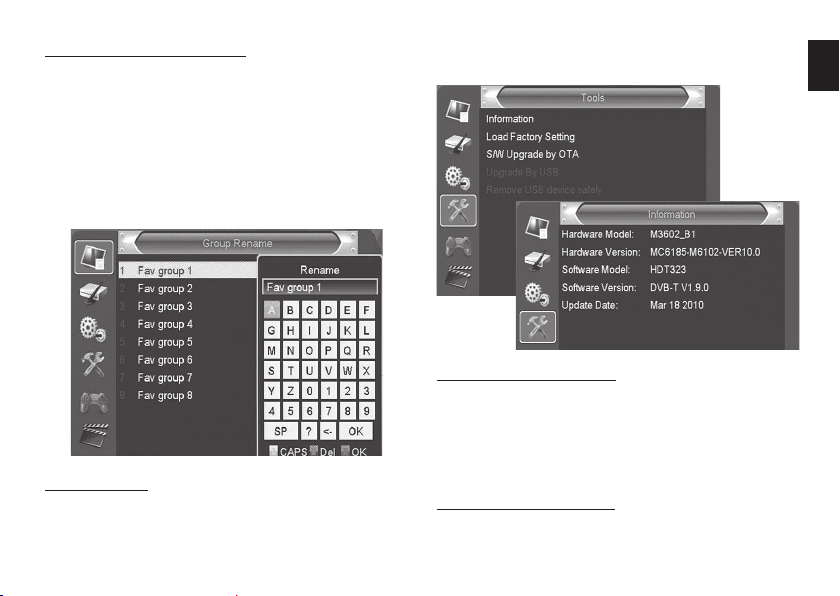

Favorite Channel Group
In this menu you can rename your favorite channel
group.
1. In the „Channel menu” select „Favorite” option and
press OK.
2. Choose the group with directional keys and press
OK. Using on-screen keyboard enter new name of
the group. Select OK on the screen.
3. To leave menu press EXIT.
Tools Menu
1. Press MENU button on remote to enter main menu.
2. Using UP/DOWN keys select the „Tools” menu and
press RIGHT button,
3. To select option use UP/DOWN keys and OK button.
4. To leave menu press EXIT.
Receiver information
This option shows information about rmware versions
of all components.
1. In the „Tools” menu select „Receiver information” and
press OK.
2. To leave menu press EXIT.
Load Factory Default
This option will set default factory settings and clear
the channel list.
11
EN
1. In the „Tools” menu select „Load Factory Default” op-
EN
tion and press OK.
2. To con rm this operation select “YES”.
3. To leave menu press EXIT.
Software Upgrade
1. In the “Tools” menu select „S/W Upgrade by OTA” or
„Upgrade by USB” option and press OK.
2. Choose „Upgrade le” and select the rmware le.
3. Select „Start” and press OK.
4. To leave menu press EXIT.
12
Removing USB Device
In the „Tools” menu select „Remove USB device safely”
option and press OK. Wait for con rmation and safely
remove USB device.
Game
1. Press MENU button on remote to enter main menu.
2. Using UP/DOWN keys select the „Game” menu, press
RIGHT button to enter menu.
3. Choose game ( Tetris / Othello / Sudoku ) and press
OK to play.
4. To leave the game press EXIT.
Recording and external Media Devices
1. Press MENU button on remote to enter main menu.
2. Highlight „REC & Media” using UP/DOWN keys, press
RIGHT button to enter.
3. Select submenu with UP/DOWN keys and press OK.
4. To leave menu press EXIT.
Media+ Explore External USB Device
1. In the „REC & Media” menu select „Media+” option
and press OK.
2.
Select the le to play with UP/DOWN keys and press OK.
3. To leave menu press EXIT.
Record Manager
1. Select „Record Manager” in the „REC & Media” menu
and press OK.
13
EN
2. Select the le you want to play and press OK to pre-
EN
view.
3. To leave menu press EXIT.
USB Storage Device Information
1. Select „DVR HDD Information” option in the „REC &
Media” menu and press OK.
2. To leave menu press EXIT.
14
USB HDD Formatting
1. Select „HDD Format” in the „REC & Media” menu and
pres OK.
2. Use UP/DOWN keys to select „Storage Partition” option and choose proper partition with RIGHT/LEFT
keys.
3. Select „Format” option with UP/DOWN keys and
press OK. Next choose „FAT32” or „NTFS” le system
and press OK to con rm.
Recording Con guration
1. Select „DVR Con guration” option in the „REC & Media” menu and press OK.
2. Using UP/DOWN keys select desired option:
„Timeshift ”- „ON” / „OFF”
„Record Type”: “TS / PS”
„TS” – recording with subtitles, teletext and EPG (vid-
eo format supported only by MT4159 device).
„PS” – recording in MPEG video format (format sup-
ported by MT4159 and PC computer).
3. Using „Record selection” option choose USB partition to recording.
4. To leave menu press EXIT.
Note! Option „PS” is available for auditions broadcasted in MPEG-2 only.
Jump Time Settings
Using this option you can set up of jump time value using PREV / NEXT buttons.
¯ Select “Jump” option in the „REC & Media” menu and
press OK.
¯ Use LEFT/RIGHT keys to choose a value of time:
30sec, 1 min, 5 min, 10 min, 30 min.
Recording with Timeshift
Timeshift option is available only for USB HDD/Flashdrive with not less than 2GB of capacity.
¯ timeshift allows rewind playback to moment of start
recording
¯ with timeshift option turned on device will be re-
cording till the end of free disk space.
Start Video Bu ering
¯ During watching TV press PAUSE button on remote.
The bu ering of video will be started.
¯ Use LEFT/RIGHT keys to watch video at the desired
time position. Press OK to con rm.
Preview with timeshift
¯ Press PAUSE button to hold on playing
¯ Press BACKWARD button to rewind playback
¯ Press FORWARD button to forward playback
Turning o timeshift function
Press STOP button to turn o timeshift function and
start to watching real-time auditions.
Recording
¯ during watching TV press RECORD button on re-
mote, recording will start.
¯ Press RECORD button again to hold on recording.
¯ Press STOP button and con rm with OK to stop re-
cording.
Note! We recommend original USB Storage devices
to prevent poor recording quality.
15
EN
Troubleshooting Technical Speci cation
EN
Trouble Cause Solution
STANDBY indicator did
not light
Out of signal Antenna is not connected
No sound or video Video source option in TV
Unclear subtitles Poor signal level Change aerial direction
Remote control doesn’t
work
Lost channel lock
password
Lost menu lock password Contact with Media-
Out of signal after installing device in other place
Power cord is not plugged in
Burnout fuse
to receiver
Incorrect direction of antenna or antenna damaged
is wrong
Receiver is turned o
Incorrect remote direction
IR receiver is not visible by
IR remote
Batteries are discharged or
incorrectly installed
Antenna with longer cord
need more power
Check the power cord
Contact with service
Check aerial cord
Change aerial direction
Choose SCART/AV
video source option
on TV
Reset channel list
Turn on receiver
Correct direction of
remote
Remove obstacle
Change or correct batteries installation
Prescan all channels
again
Tech helpdesk
Use external power
supply for antenna
Tuner RF Input (IEC-TYPE, IEC 169-2, female)
Decoder:
Video Decoder
Audio Decoder
Transfer Speed
Aspect Ratio
Audio Formats
Video Output
Connectors:
Antenna
Video
Audio
Data
Power:
Input Voltage
Power
Consumption
Note! Design and equipment speci cations are subject to change
without notice.
RF Output RF (IEC-TYPE, IEC 169-2, male)
Frequency range:
174~230MHz (VHF)
470~862MHz (UHF)
Signal Level: -15~-70dbm
MPEG-1/MPEG-2 MP@ML/MPEG-4 AVC/H.264 HP@L3
MPEG-1 Layer 1.2/PCM/HE-AAC v.1.0
Max 15 Mbit/s
4:3/16:9
MPEG Layer I & II, 32/44.1/48 kHz
CVBS, RGB
RF output x 1, RF input x 1
HDMI, SCART, CVBS Composite Video, YPbPr Component Video
Composite Audio, Coaxial Digital Audio
USB
AC 220~240V, 50/60Hz
Max 8W
Loading...
