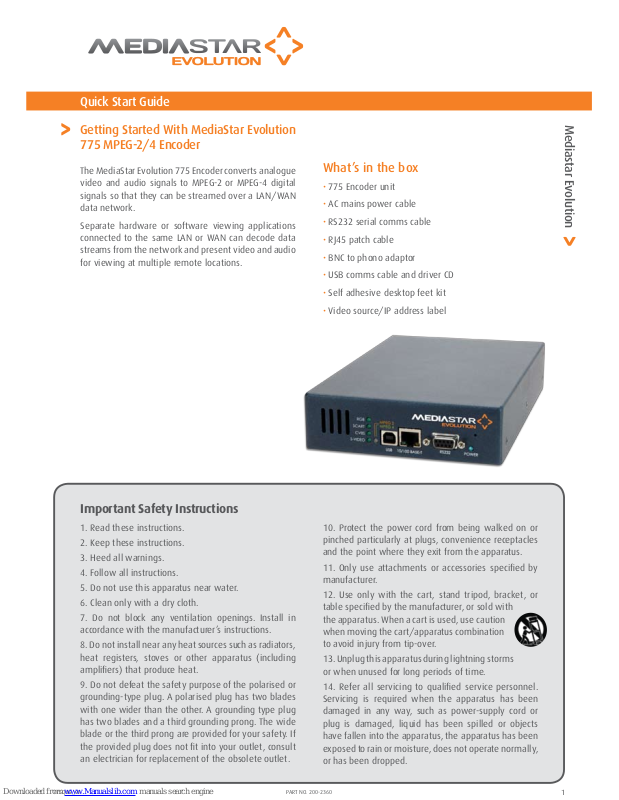

Mediastar Evolution 775 Quick Start Manual

Getting Started With MediaStar Evolution
775 MPEG-2/4 Encoder

The MediaStar Evolution 775 Encoder converts analogue
video and audio signals to MPEG-2 or MPEG-4 digital
signals so that they can be streamed over a LAN/WAN
data network.

Separate hardware or software viewing applications
connected to the same LAN or WAN can decode data
streams from the network and present video and audio
for viewing at multiple remote locations.

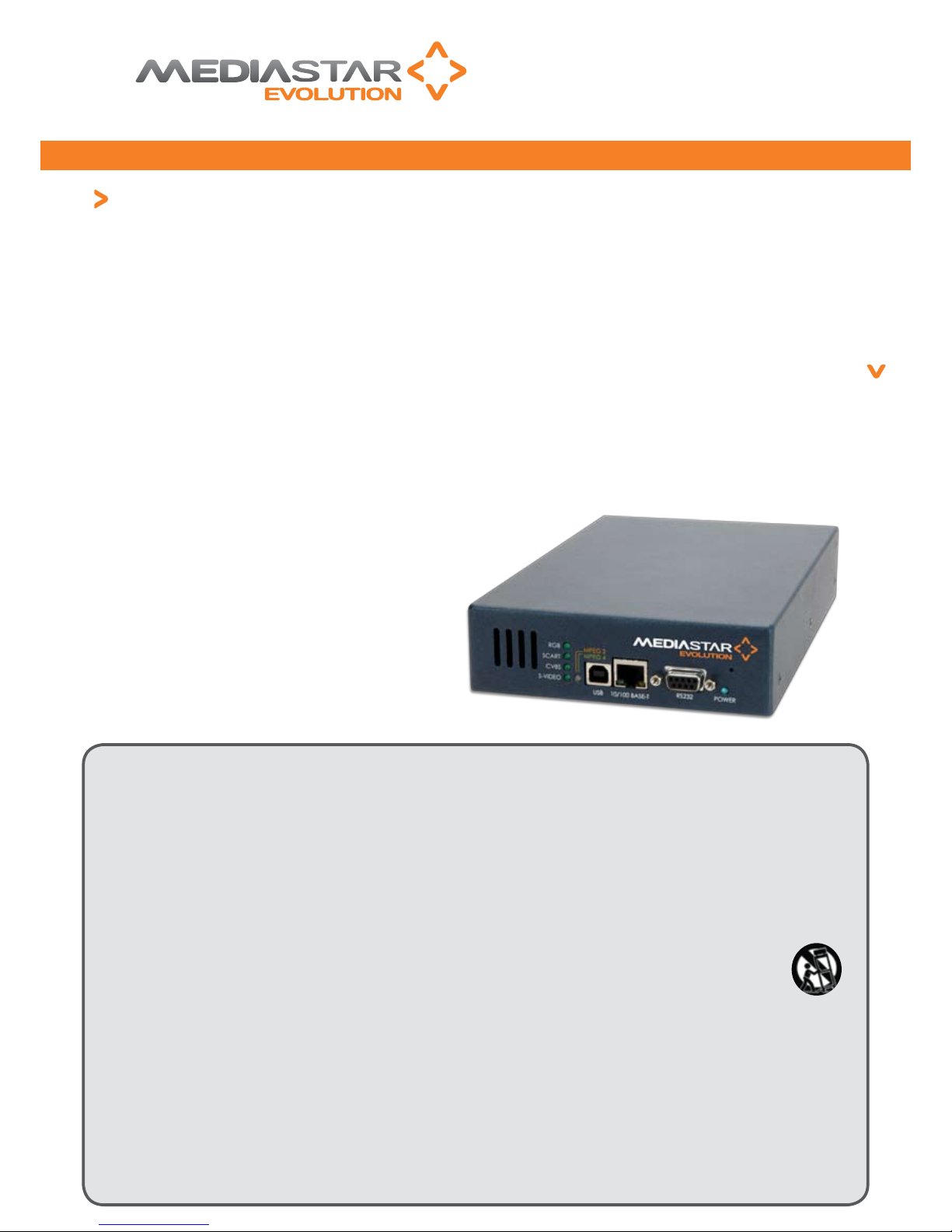

What’s in the box

• 775 Encoder unit

• AC mains power cable

• RS232 serial comms cable

• RJ45 patch cable

• BNC to phono adaptor

• USB comms cable and driver CD

• Self adhesive desktop feet kit

• Video source/IP address label

Quick Start Guide

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,
heat registers, stoves or other apparatus (including
ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarised or
grounding-type plug. A polarised plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not t into your outlet, consult
an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles
and the point where they exit from the apparatus.

11. Only use attachments or accessories specied by
manufacturer.

12. Use only with the cart, stand tripod, bracket, or
table specied by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination
to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms
or when unused for long periods of time.

14. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.

Mediastar Evolution

1

PART NO. 200-2360

775QSG_v3

Installation

WARNING: There are no user serviceable parts within
the MediaStar Evolution Encoder. This unit contains
hazardous (mains) voltages and should only be
opened by suitably qualied service personnel.

When locating the Encoder unit, ensure that a clearance
distance of 25mm (1”) is maintained at the front and
rear of the unit to allow free ventilation airow. Items
that could accidentally block the ventilation grills or
impede the cooling airow must not be located near
the unit. The Encoder must not be installed where there
is a possibility of exposure to condensation, dripping or
splashing liquids, and containers lled with uid should
not be located in the vicinity of the unit.

Using the AC mains power cable supplied, plug in the
Encoder. This device must be installed using a mains
(AC supply) plug and socket that contains a protective
earth (ground) connection. The mains socket must be
located near the equipment, remain operable and be
easily accessible to disconnect the unit in the case of
an emergency.

Ensure that the blue Power LED is lit, showing that
power is on. All the LEDs on the front will turn on and
then off after approximately 30 seconds but the blue
Power LED will stay lit, along with the video input
indicator and the MPEG stream status LEDs.

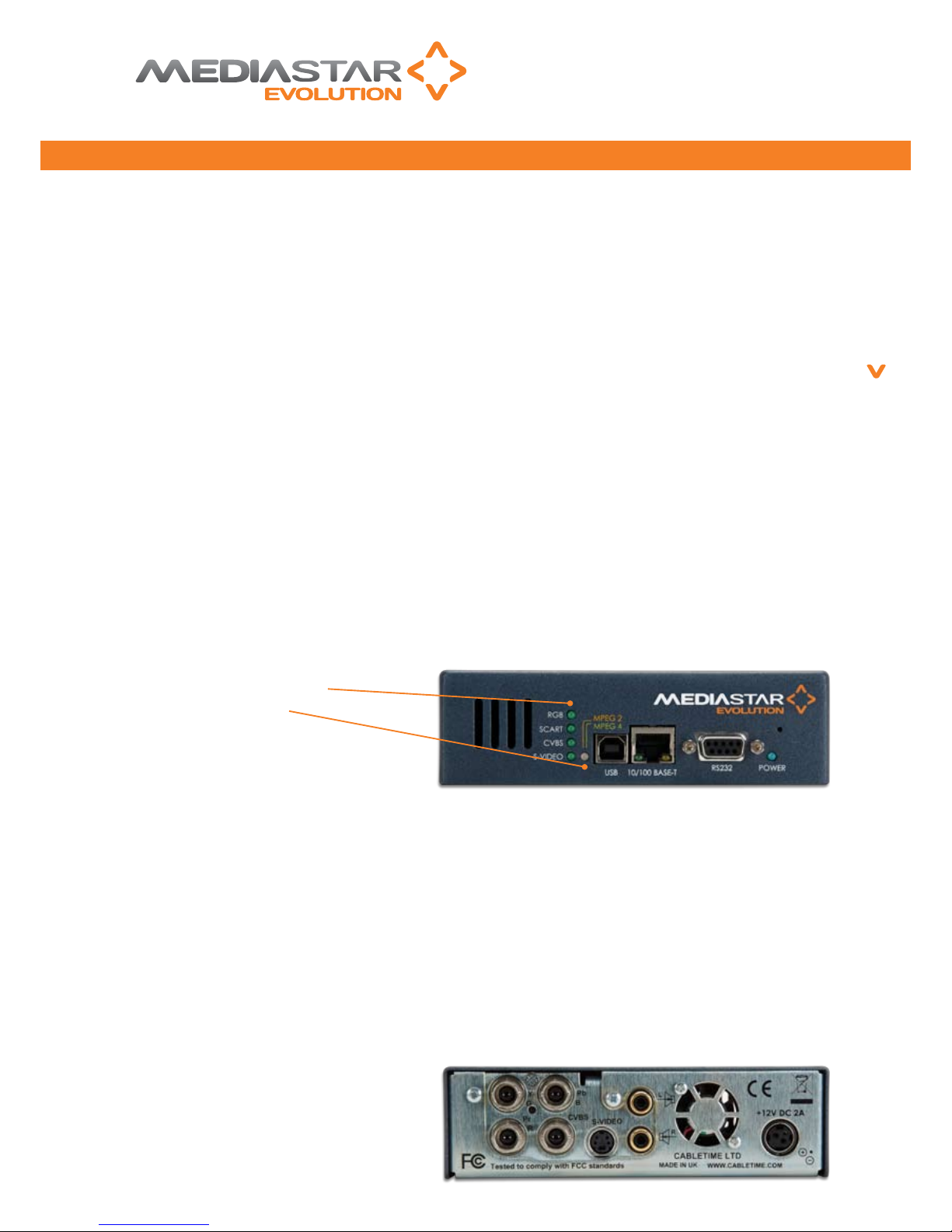

The video input indicator LED shows what type of video
input is selected: RGB/YPbPr, SCART (RGB with sync on
Composite), CVBS (Composite), or S-VIDEO. The selected
LED will ash if there is no input signal detected.

The MPEG stream status LED shows what type of
encoding standard is selected. Solid orange indicates
MPEG-2 and solid green indicates MPEG-4. This LED will
ash (orange or green depending on which is selected)
if the network data streams have been disabled. It will
ash red during a software upgrade, and will become
solid red if the Encoder requires service support.

The Encoder’s conguration is set using web pages
served by the Encoder unit. A network connection is
required to view these and a suitable IP address will
need to be assigned.

Quick Start Guide

Mediastar Evolution

Connecting Video And Audio Inputs

Only one type of video input source can be selected
at a time, either RGB/YPbPr, SCART (RGB with sync on
Composite), CVBS (Composite) or S-Video. When YPbPr is
selected, the RGB LED will be lit. Stereo audio inputs are
unbalanced with 10k ohm impedance.

Selected Video Input Indicator

MPEG Stream status LED

MPEG-2 Enabled = Orange LED

MPEG-4 Enabled = Green LED

MPEG Stream Disabled = LED Flashes

Service Required = Solid Red

Software Upgrade=Flashing Red

Y/G Pb/B

Pr/R CVBS

2

PART NO. 200-2360

775QSG_v3

Selecting IP Address

A suitable IP address for the Encoder should be selected
before it is connected to a network. The Evolution 775
Encoder is pre-congured with a static IP address of

191.53.51.208, however if this is not suitable for use
on your network the Encoder must be recongured.

Reconguring the Encoder IP address can be achieved
using the RS232, USB, or Telnet Command interface, or via
a browser application such as Internet Explorer connected
locally to a PC with a Cat-5 network crossover cable.

Conguring With A Browser Application

Using a browser such as Internet Explorer, type the IP
address (http://191.53.51.208) into the browser
window and the Evolution Encoder Admin window will
open. This allows entry and adjustment of all Encoder
operational parameters such as network setup, video
input, encoding stream, and password protection.

Conguring With RS232 Serial Or USB
Communications

Plug the supplied cable into the Encoder’s RS232
interface and connect with a laptop/PC. If this is not
available a USB interface may be used. A CD supplied
with the 770 rack contains the appropriate USB driver
software to install a USB ‘com’ port onto a Microsoft
Windows 2000 or XP platform when there is no RS232
serial port available on the laptop/PC.

Use a terminal emulator program (e.g. HyperTerminal)
to issue commands. The serial communications settings
are: 115200 Baud, 8 bits data, 1 stop bit, no parity,

no ow control.

To set the static IP address, use the command:

Setipconf, mpeg_encoder=”Encoder1”,
localaddr=192.168.66.10,
localnetmask=255.255.255.0,
gatewayaddr=0.0.0.0, dnsaddr=0.0.0.0, dscp=0

In the command response you will see that

status = “0” and statusstring = ”Success”

Connecting To The Network

Only when you are satised that the IP address of
the Encoder is suitable, plug the Encoder into the LAN
using the RJ45 patch cable supplied. The RJ45 LEDs will
illuminate to indicate a network connection.

Important : Ensure That The Encoder Is Connected To A
Network Port Congured With ‘Auto-Negotiation’ On.

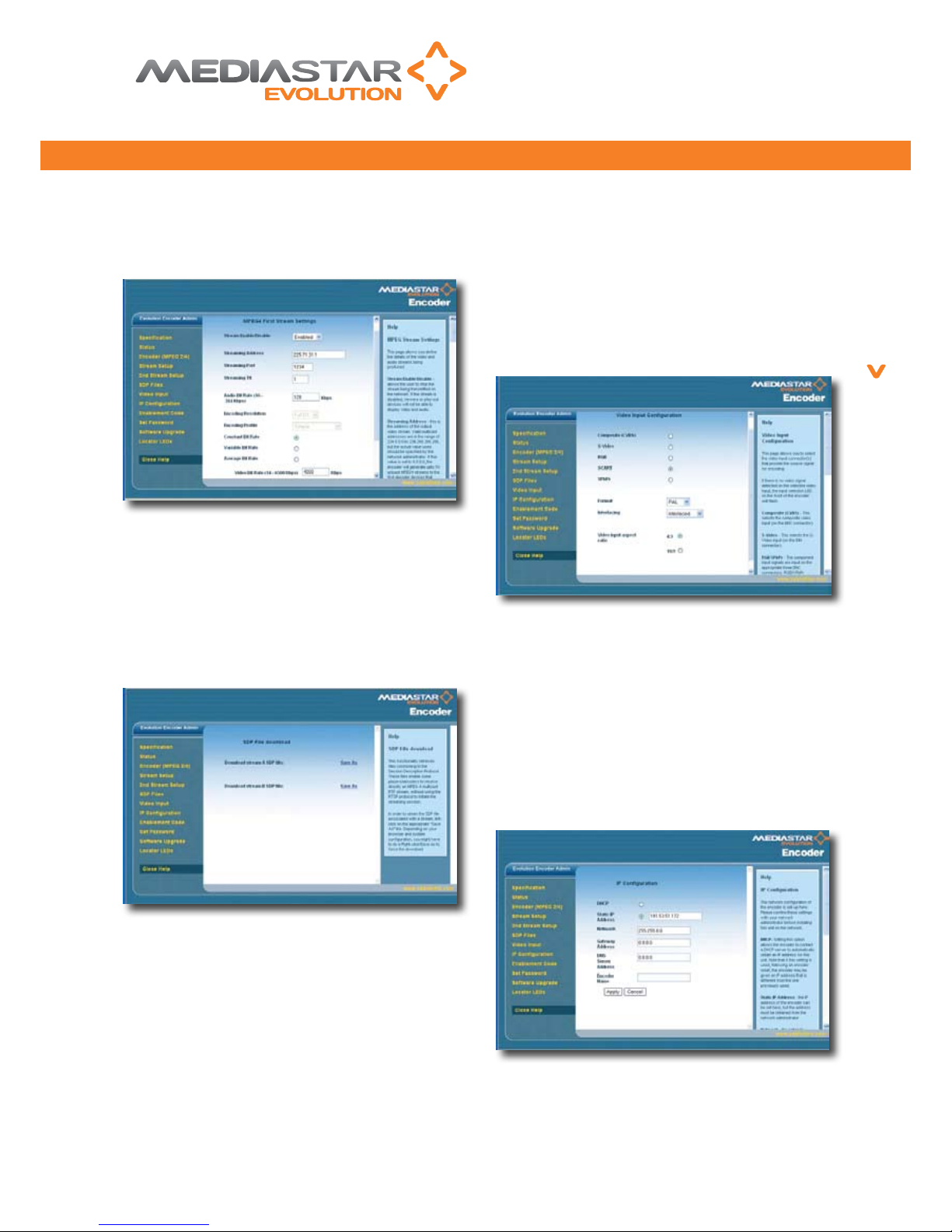

Evolution Encoder Admin

These HTML conguration menus allow you to enter
and adjust all Encoder operational parameters. Full
contextual HELP is provided on the right side of the
screen. When alterations and changes have been made,
press the APPLY button at the bottom of the page to
make these take effect. The Encoder conguration
menus include:

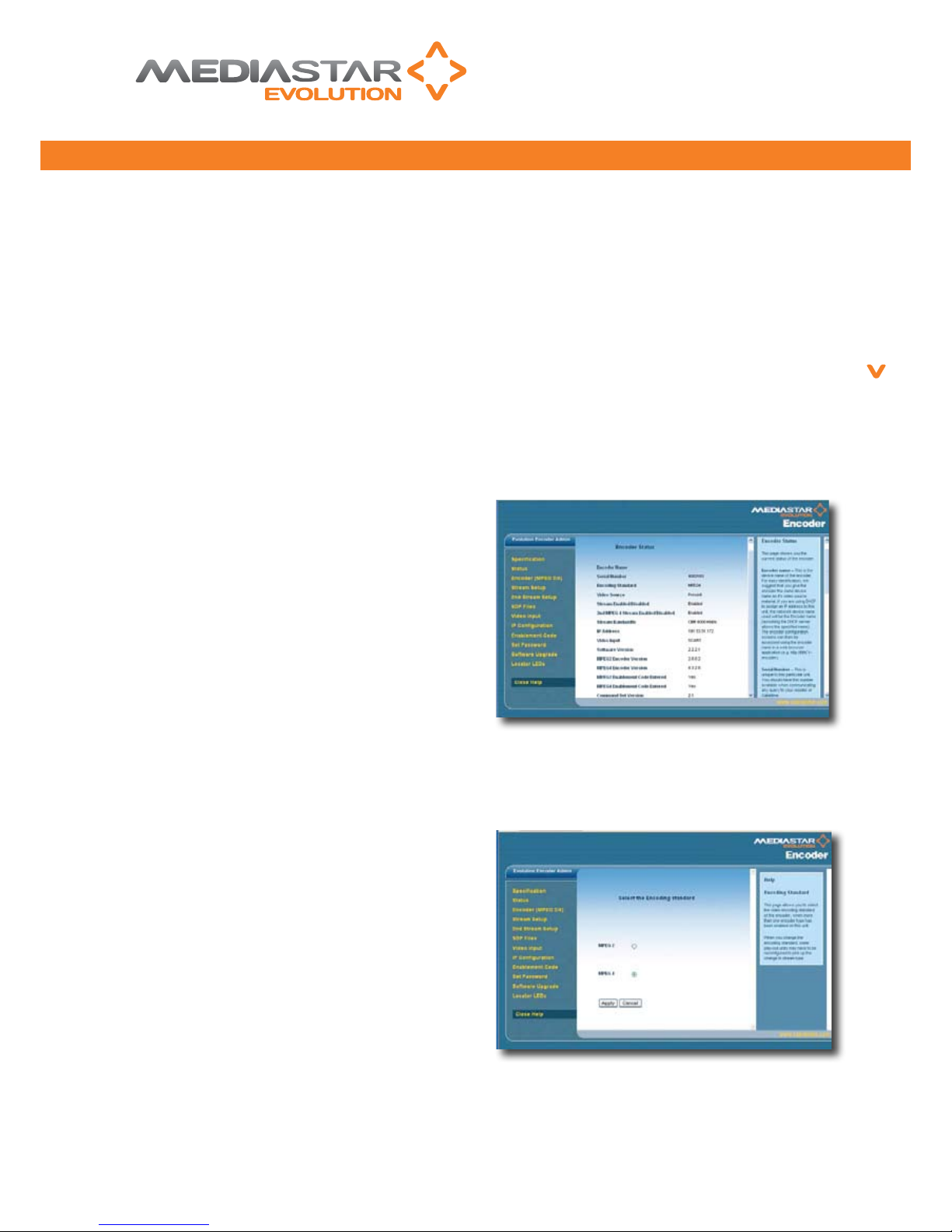

Status

Shows the current status of the Encoder, including:
encoder network name, serial number, encoding
standard, video source present status, stream details,
IP address, video input selected, software/hardware
versions, and enablement codes entered.

Encoder

Allows selection of the video encoding standard, either
MPEG-2 or MPEG-4. MPEG-4 provides a similar picture
quality as MPEG-2 but at a lower network bandwidth.

Quick Start Guide

Mediastar Evolution

3

PART NO. 200-2360

775QSG_v3

Stream Setup

Denes the details of the video and audio streams
being produced.

SDP Files

This functionality retrieves les conforming to the
Session Description Protocol (SDP). These les are
used by some players/decoders to select an MPEG-4
stream.

Video Input

Select the video input connector(s) and video
format for the source signal to be encoded:
CVBS (Composite), S-Video, RGB, SCART (RGB with sync
on Composite), YPbPr (Component).

Select the video format: PAL or NTSC
Set interlacing: Progressive or Interlaced
Set the video aspect ratio: 4:3 or 16:9

IP Conguration

Network conguration of the Encoder is set up here.
These settings should be conrmed with your network
administrator before installing this unit on the
network.

Note that if the DHCP setting is used, following an
Encoder reset, the unit may be given an IP address
that is different from the one previously used.

Quick Start Guide

Mediastar Evolution

4

PART NO. 200-2360

775QSG_v3

Quick Start Guide

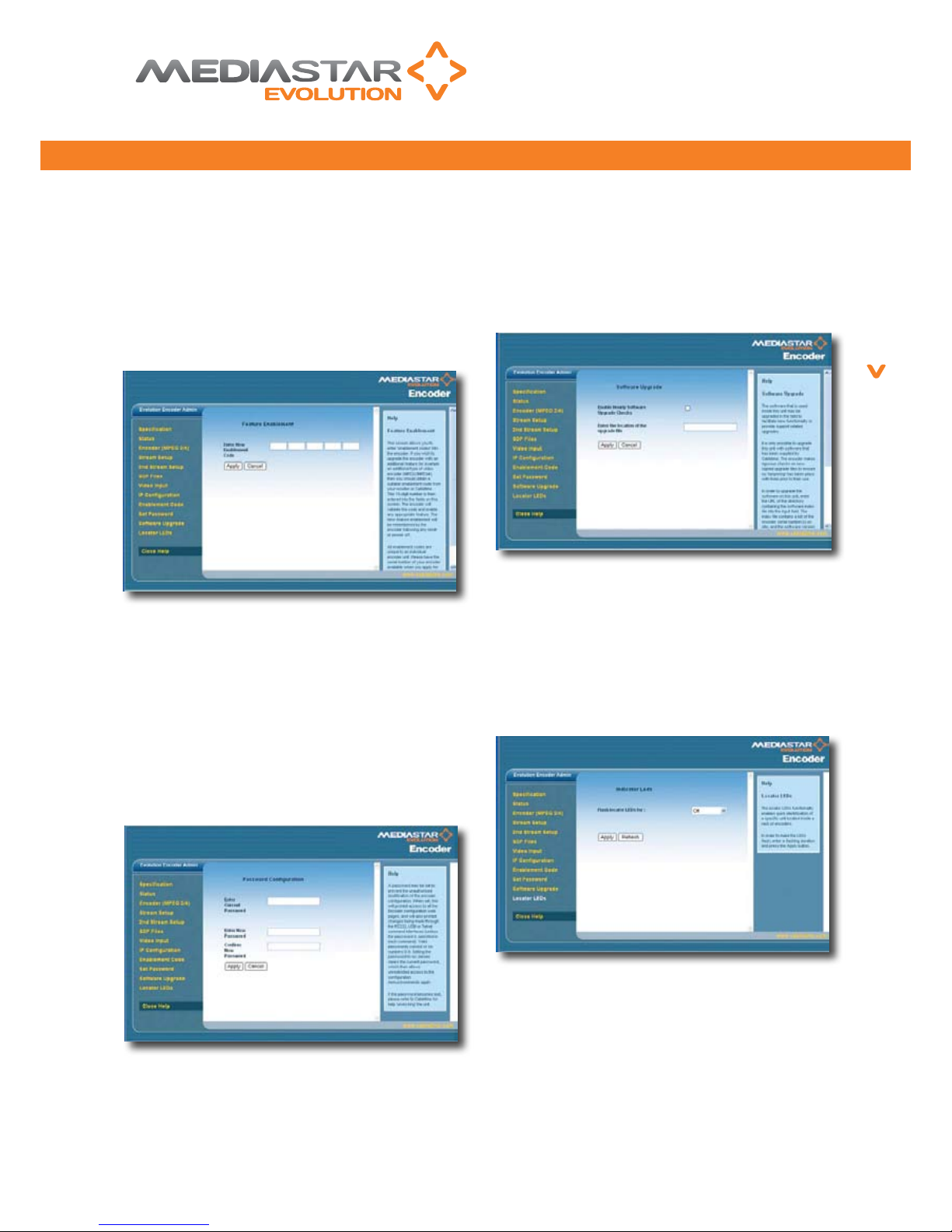

Enablement Code

To upgrade the Encoder with an additional feature (e.g.
additional type of video encoder: MPEG-2/MPEG-4) a
suitable enablement code must be obtained from your
reseller or Cabletime. This 15-digit number is entered
into the elds on this screen. The Encoder will validate
the code and enable any appropriate feature. Note that
all enablement codes are unique to an individual unit.

Set Password

A password will prohibit unauthorised access to all
the Encoder conguration web pages, and will also
prohibit changes being made through the RS232, USB
or Telnet command interfaces (unless the password is
specied in each command). Valid passwords consist
of six numbers 0-9.

Software Upgrade

Encoder software may be upgraded to facilitate new
functionality or provide support related upgrades. This
screen enables hourly upgrade checks and species
the HTP le server location that the Encoder will check
for upgrades.

Locator Leds

The locator LED functionality causes the LEDs on the
front of an Encoder to ash in a ‘rippling’ sequence.
This allows for identication of a specic Encoder in
a multi-Encoder rack system. The location LED ash
duration is: /Off /5 secs/ 2 mins/ 20 mins.

Mediastar Evolution

5

PART NO. 200-2360

775QSG_v3

Quick Start Guide

Technical Specications

Video encoding MPEG-2 MP@ML. FD1, HD1, 2CIF, CIF, and QCIF resolutions

Unicast or multicast transport streams

Constant and variable bitrate encoding

MPEG-4 ASP and SP. FD1, HD1, 2CIF, CIF and QCIF resolutions

Unicast or multicast ISMA streams

Constant, variable and average bitrate encoding

MPEG-4 Dual Encode: Two simultaneous MPEG-4 encodes of the
same source; one low bitrate (CIF resolution) and one high bitrate
(FD1 resolution)

Audio encoding MPEG-2 Layer 2

MPEG-4 AAC LC

Video inputs Composite - BNC

S-Video - Mini DIN

RGB/YPbPr - 3 x BNC

SCART (RGB + sync on CVBS)

PAL and NTSC

Audio inputs Stereo line level – 2 x RCA

Network 10/100 BaseT for streaming and control interface

Serial Port RS232 interface for control and conguration

USB USB v1.1 interface for control and conguration

Power 100 - 240VAC . 15 Watts via IEC Mains connector

Dimensions 14.3cm x 22cm x 4.1cm, 5.7” x 8.7” x 1.7”

Weight 1.1Kg

Environmental 0 - 40°C

Approvals FC Part 15, CE, CB

Mediastar Evolution

6

PART NO. 200-2360

775QSG_v3

Regulatory Requirement Notices

EUROPE

Cabletime Limited declare that the products described in this manual conform to the
requirements of the following Directives:

• 89/336/EEC amended by 92/31/EEC

• 73/23/EEC amended by 93/68/EEC Low Voltage Directive

THE STANDARDS APPLIED ARE:

EN55022:1998 Limits and methods of measurement of radio interference characteristics of information
technology equipment
EN61000-6-1:2001 Electromagnetic compatibility – generic immunity standard
IEC60950-1:2001 Specication for safety of information technology equipment, including electrical
business equipment
EN60950-1:2001

UNITED STATES OF AMERICA

Cabletime Limited declare this equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.

• This device complies with part 15 of the FCC Rules.

Operation is subject to the following conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference that may cause undesired operation.

Correct Disposal Of This Product

This marking shown on the product or its literature, indicates that it should not be disposed with
other household wastes at the end of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate this from other types of wastes
and recycle it responsibly to promote the sustainable reuse of material resources.

Whilst all reasonable care has been taken to ensure the accuracy of this publication, the publishers and authors cannot
accept responsibility for any errors and omissions. Cabletime Limited reserves the right to revise this publication and to
make changes in the content from time to time without notice.
Copyright © Cabletime 2007. All rights reserved. No part of this guide may be reproduced, stored in a retrieval system or
transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise) without prior written
permission of Cabletime Ltd.

Quick Start Guide

Head Ofce

Cabletime Ltd, 64 Greenham Road, Newbury, Berkshire, United Kingdom RG14 7HX

T: [phone] E: [e-mail] www.cabletime.com

USA Ofce

Cabletime USA T: 973 288 8010 E: [e-mail]

Asia Ofce

Cabletime ASIA T: [phone] E: [e-mail]

Brought to you by

Mediastar Evolution

7

PART NO. 200-2360

775QSG_v3
