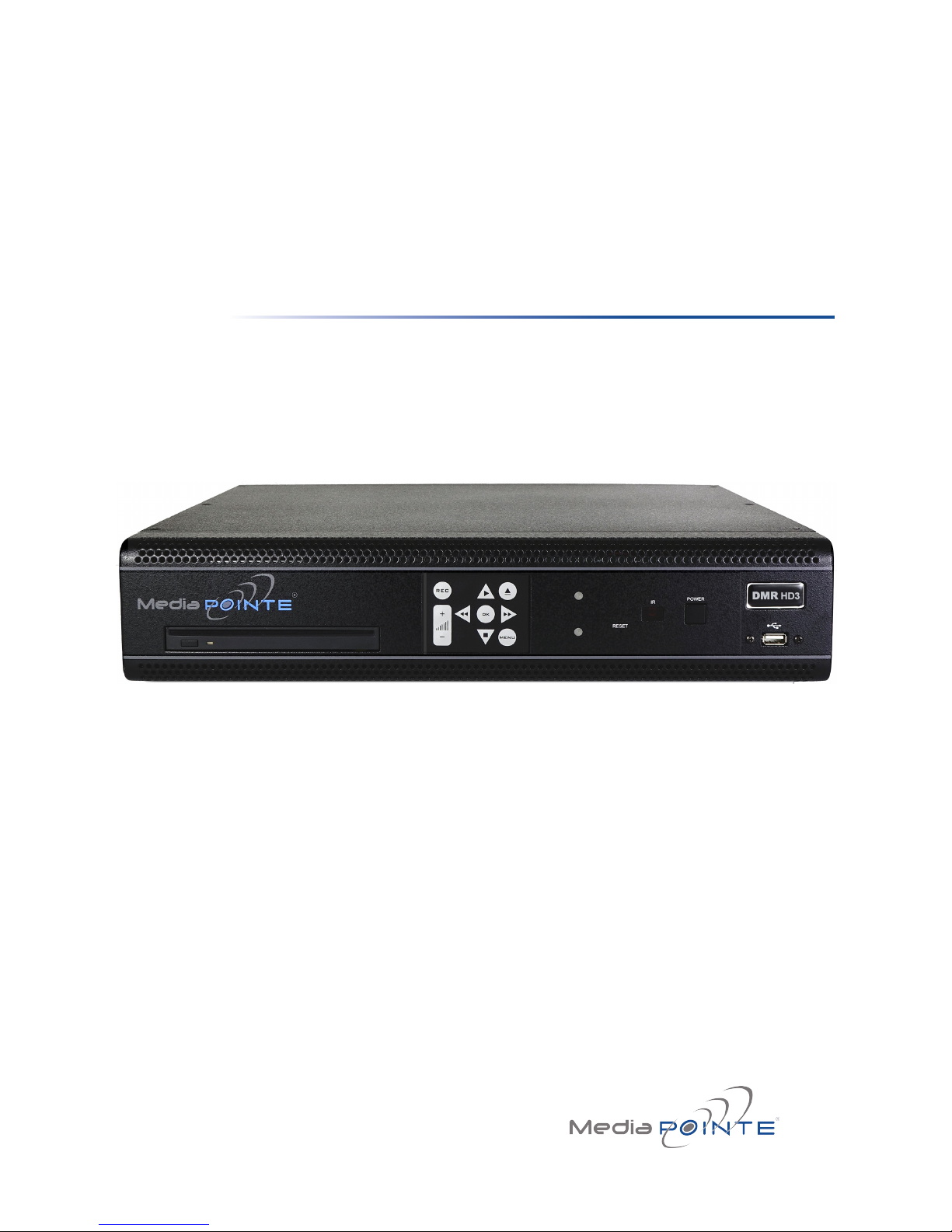

Media Pointe DMR HD3 User Manual

DMR HD3 User Manual

Version 1.0

DMR HD3

APRIL, 2015

DMR HD3 i

Digital Media Recorder HD3

©2015 MediaPOINTE, Inc

All rights reserved. This document contains information that is proprietary to MediaPOINTE, Inc. the manufacturer of
all MediaPOINTE® products. No part of this publication may be reproduced, stored in a retrieval system, or trans­mitted, in any form, or by any means, electronically, mechanically, by photocopying, or otherwise, without the prior
written permission of MediaPOINTE, Inc. Nationally and internationally recognized trademarks and trade names are the
property of their respective holders and are hereby acknowledged.
MediaPOINTE® is a registered trademark of MediaPOINTE, Inc.

Disclaimer

The information in this document is believed to be accurate and reliable; however MediaPOINTE, Inc.
assumes no responsibility or liability for any errors or inaccuracies that may appear in this document,
nor for any infringements of patents or other rights of third parties resulting from its use. No license is
granted under any patents or patent rights of MediaPOINTE, Inc.

This document was written by MediaPOINTE, Inc. We are fully committed to, and take pride in maintaining
high quality documentation. We welcome and appreciate any comments or suggestions you may have
regarding content, presentation, structure and distribution of this document. Please use the contact
information below for all correspondence:

MediaPOINTE, Inc.

667 Rancho Conejo Blvd.
Newbury Park, CA 91320
USA

[e-mail]

ii | DMR HD3 User Manual 1.0 APRIL, 2015

Safety Precautions

For your protection, please read all related safety instructions, observe all warnings and precautions, and exercise com-

mon sense while operating this electronic equipment.

♦ Always place the unit on a stable cart, stand or table.

♦ Do not use the unit near water or sources of heat.

♦ Do not drop or shake the unit. Do not place or install the unit in environments where it can be dropped or shaken.

♦ Make sure the unit is powered o while being moved even for short distances.

♦ Observe the power requirements of the unit; if you are not sure of the power available, consult your local dealer

power company.

♦ When plugging into a power outlet, insert the plug rmly into the outlet. Route the power cord so as to avoid any

activity that may result in fraying or other damage to the cord or the plug.

♦ Under no circumstances should you attempt to override the polarization or grounding protection on the plug.

♦ Do not overload wall outlets, integral convenience receptacles or extension cords.

♦ Unplug the unit from the wall before cleaning. Do not use liquid or aerosol cleaners.

♦ For proper ventilation, do not block the slots and openings. Do not install the unit in a location where the

ventilation slots and openings can be plugged during everyday use.

♦ Do not place or install the unit under, on top of or near any heat-producing equipment (i.e. radiators, stoves, or

ampliers), or in a heated place.

♦ Unplug the unit during lightning storms, when it will not be used for extended periods of time, or before you have

a scheduled power outage.

♦ If the unit is visibly damaged either by not observing the precautions above or for any other reason, contact your

local dealer immediately. If the unit does not operate to the specications set forth in this user guide, or exhibits a

distinct change in performance, this may be an indication of a problem needing repair.

Environmental Operating Limits of HD3

Operating Temperature: 0°C to 32°C (32°F to 90°F)

Relative Humidity: 10% to 90% non-condensing

Storage & Transport Temperature: -20°C to 80°C (-4°F to 140° F)

Electrical requirements

Input: 100-240V ~50/60Hz

Service Support and Training

MediaPOINTE, Inc., is committed to providing the service support and training needed to install, manage, and

maintain your MediaPOINTE® equipment. All MediaPOINTE® products are sold through a wide network of Authorized

MediaPOINTE, Inc. Dealers. For help with your products, contact your local dealer for assistance rst. If for any reason,

you would like to contact MediaPOINTE, Inc. directly for information regarding service programs and extended

warranty information, training, installation or usage, we are glad to be of assistance. You can contact us at the phone

number listed below, or visit our website.

DMR HD3 iii

Technical Support

MediaPOINTE, Inc. Technical Support

Hours: 8:30 a.m. – 5:30 p.m. Pacic Standard Time
[phone] TOLL FREE
[phone] INTERNATIONAL
[e-mail]

http://www.mediapointe.com

HD3 Package Contents

• 1 - MediaPOINTE HD3

• 1 - CAT-6 Black LAN Cable 6 ft.

• 1 - RCA Stereo Audio Cable

• 1 - AC Power Cable

• 3 – Male DVI Cables

• 1 – IR Remote Control plus 2 AAA Batteries

• 1 – Rack Mount Kit

iv | DMR HD3 User Manual 1.0 APRIL, 2015

Warranty

MediaPOINTE, Inc. warrants that the HD3 (excluding spare parts if applicable, external peripheral devices

and consumables) will be free from any defect in materials or workmanship and shall perform in accordance

with its specication for a period of 30 days for MediaPOINTE, Inc. software and 1 year for hardware, starting

on shipment date of the initial purchase of the equipment. MediaPOINTE, Inc. disclaims any and all implied

warranties of merchantability or tness for a particular purpose. MediaPOINTE, Inc.’s sole liability for breach

of this warranty will be (at its option) to provide access to software for download or to repair or replace the

defective unit or component after customer has shipped the product to MediaPOINTE, Inc. for return-to-factory

repair. Customer must obtain an RMA (return material authorization) number from MediaPOINTE, Inc. prior to

returning equipment. Replacement parts may be new or equivalent to new. Part(s) replaced will be covered for

the remaining term of the warranty. MediaPOINTE, Inc. shall not be liable for any loss of prots or incidental

or consequential loss for whatever reason. This warranty will be void if the equipment has been subject to any

unauthorized modications, improper operation, user negligence, service by an unauthorized person, accident,

neglect, misuse, tampering, acts of God, or any event other than ordinary use.

TABLE OF CONTENTS | v

Table Of Contents

About this guide

Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Safety Precautions & System Specications . . . . . . . . . . . . . . . . ii

Service Support and Support . . . . . . . . . . . . . . . . . . . . . . . ii

HD3 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv

1 Introduction and Overview

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

How It works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

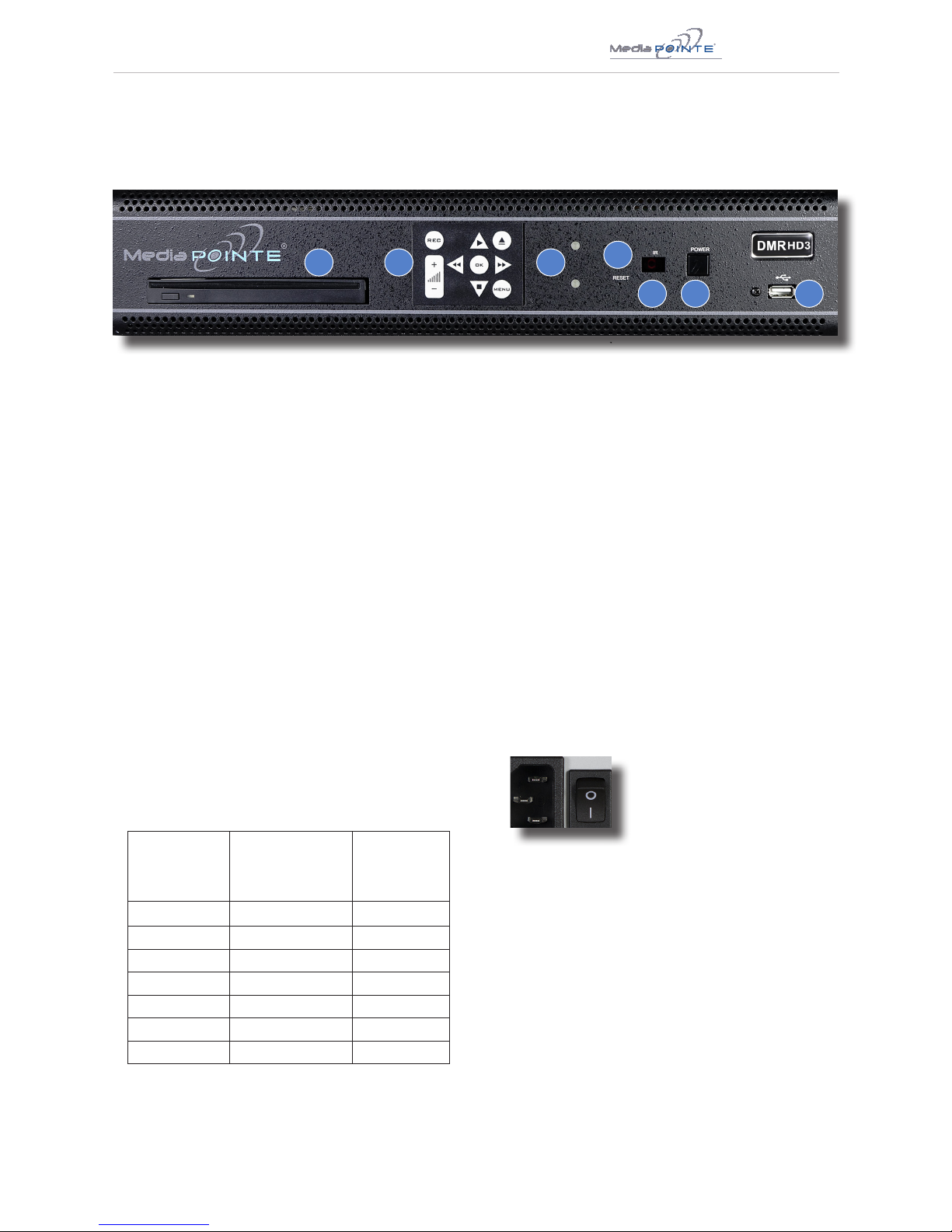

Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Optical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Front Panel Touch Keypad . . . . . . . . . . . . . . . . . . . . . . . . 3

LED Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

IR Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Power Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

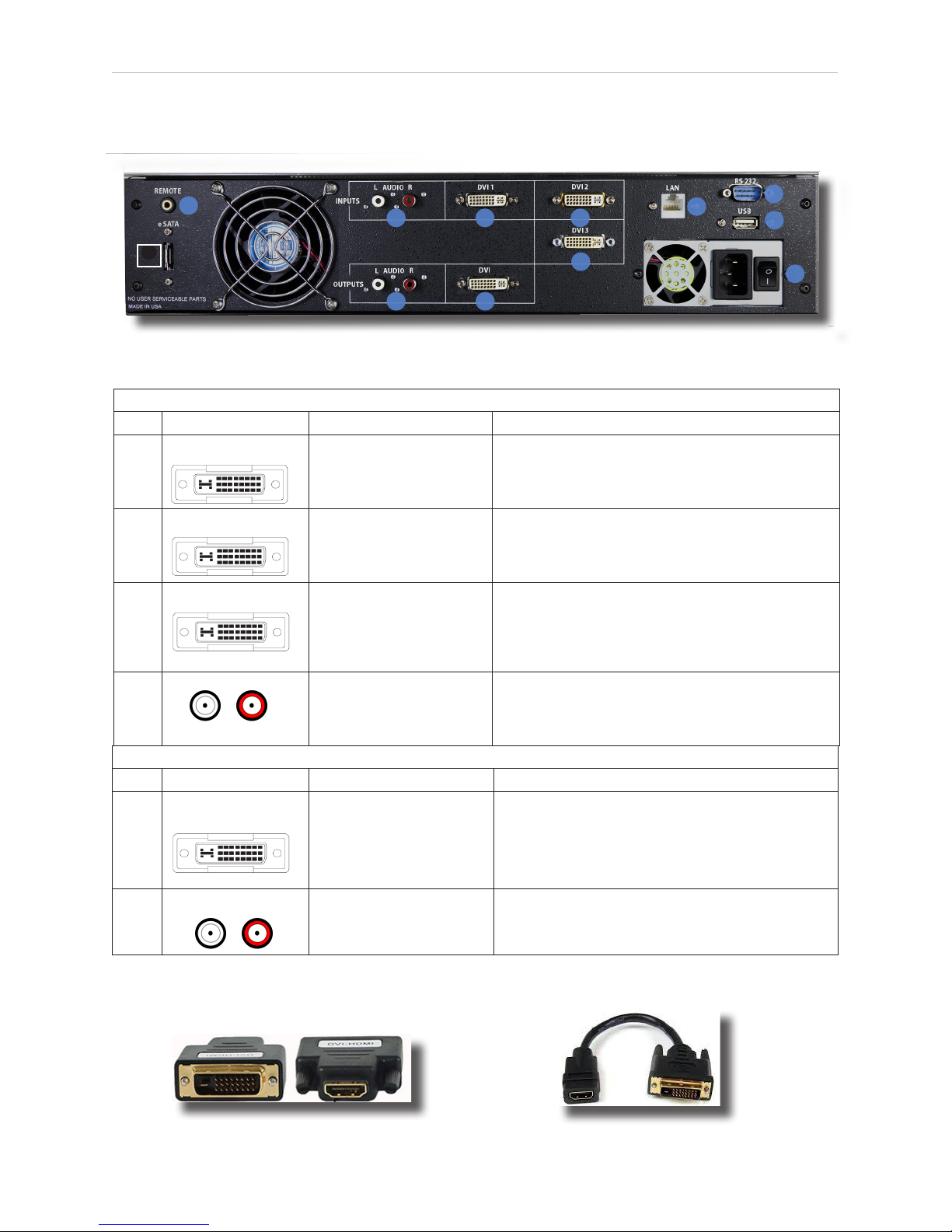

Back Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Audio/Video Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Audio/Video Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . 4

All Other Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 5

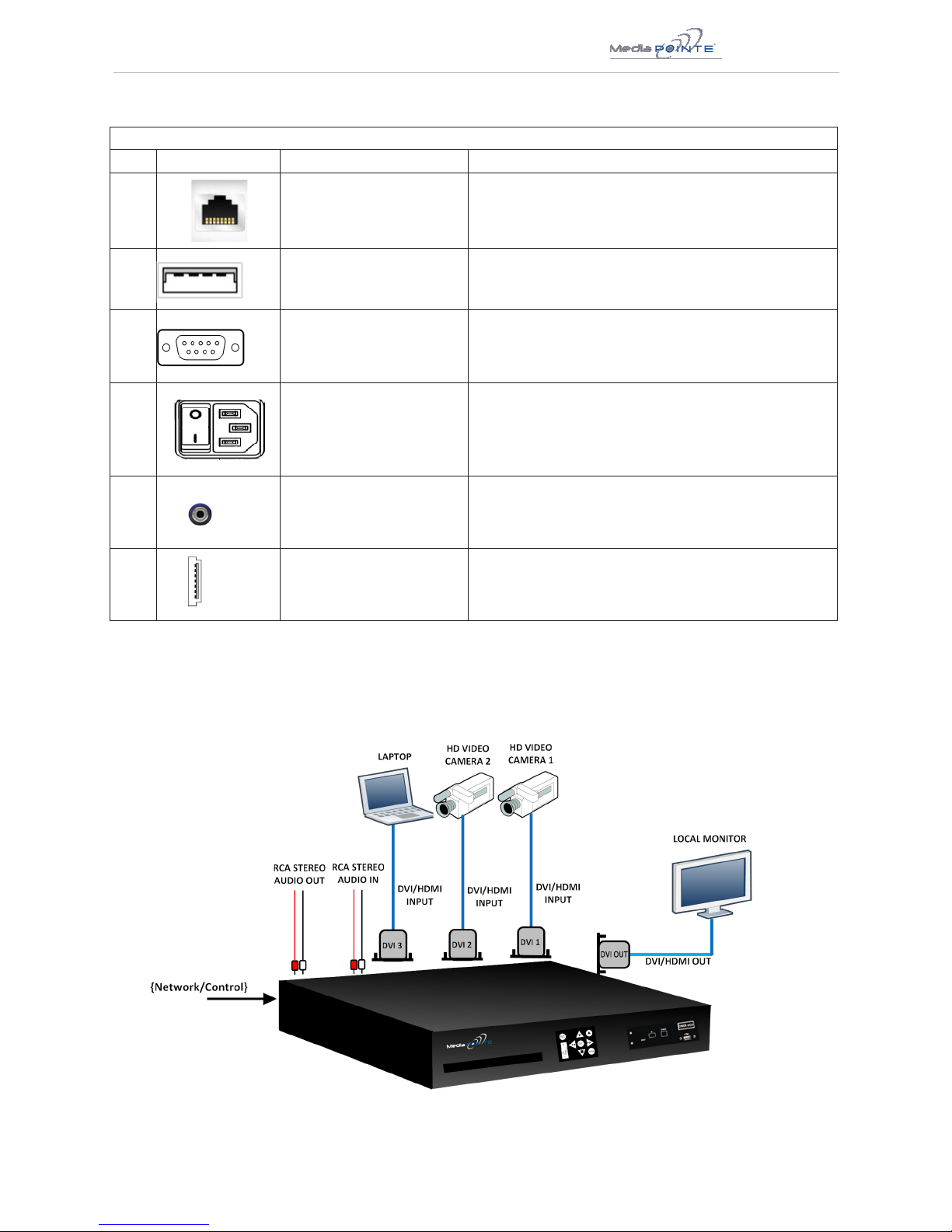

Basic Setup Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Setting Up the HD3 6

System Administration . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

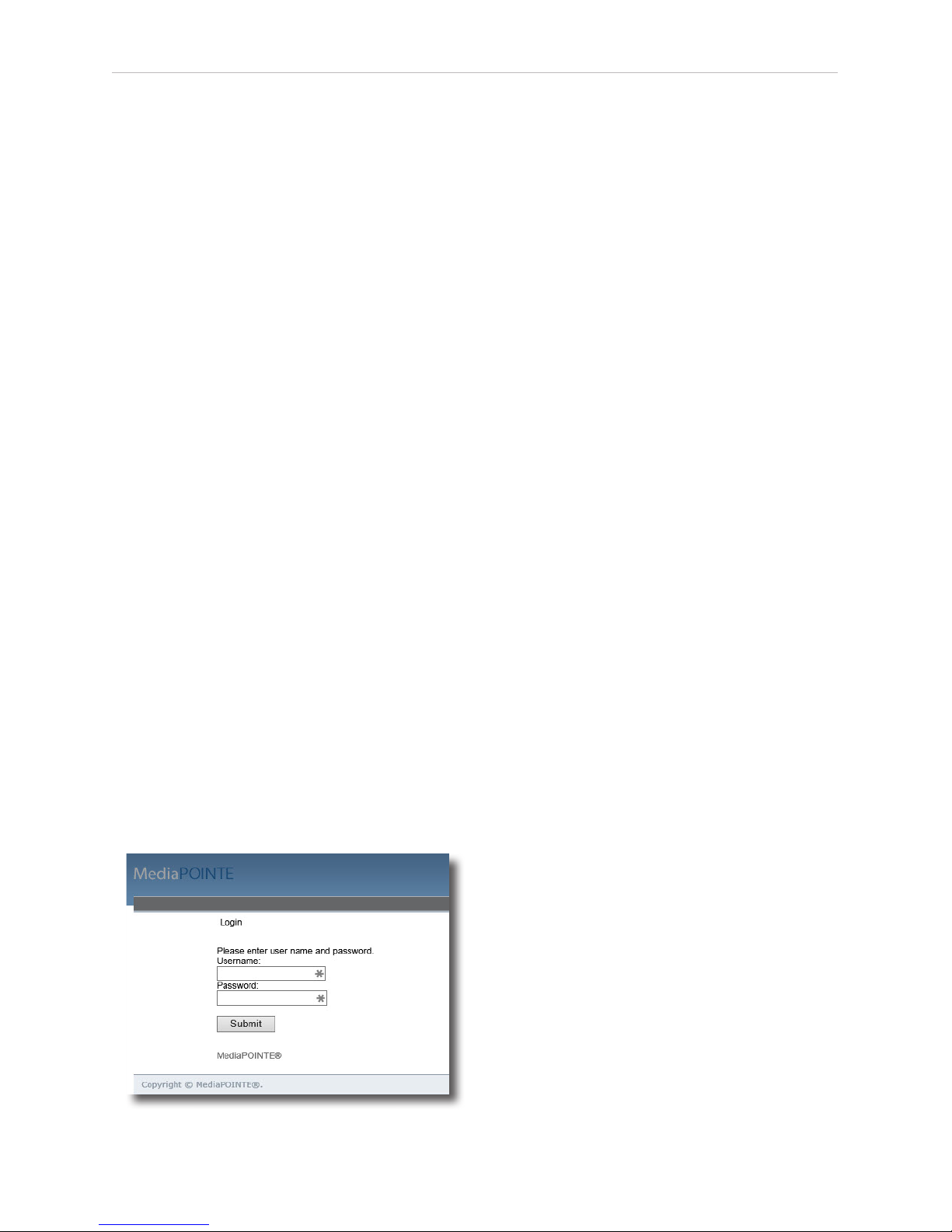

Initial Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Access Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Administrator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Author . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

vi | TABLE OF CONTENTS

Congure Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Changing Administrator Password. . . . . . . . . . . . . . . . . . . . . 6

Author Login Security . . . . . . . . . . . . . . . . . . . . . . . . . . 7

User Login Security . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Setting Date & Time . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

System Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Conguring Static IP Address . . . . . . . . . . . . . . . . . . . . . . . 8

Conguring DHCP IP Address . . . . . . . . . . . . . . . . . . . . . . . 8

USB Network Conguration . . . . . . . . . . . . . . . . . . . . . . . . . 8

SMTP Mail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Telnet (TCP/IP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3. Controlling HD3 Functions

Web Portal Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Main System Toolbar. . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Main System Toolbar Icon Table . . . . . . . . . . . . . . . . . . . . . . 9

On-Screen Menu/ Front Control Panel . . . . . . . . . . . . . . . . . . . 10

External Control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Telnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Infra-Red . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Remote Contact Closure (Relay) . . . . . . . . . . . . . . . . . . . . . . 10

4 Recording, Archiving and Streaming

Recording and Streaming . . . . . . . . . . . . . . . . . . . . . . . . . .11

Playback on HD3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Archiving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Download Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Disc Burning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

USB Ooad/Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Streaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Manual FTP Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Metadata . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Transcoding. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Titles & Credits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

TABLE OF CONTENTS | vii

Changing Proles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

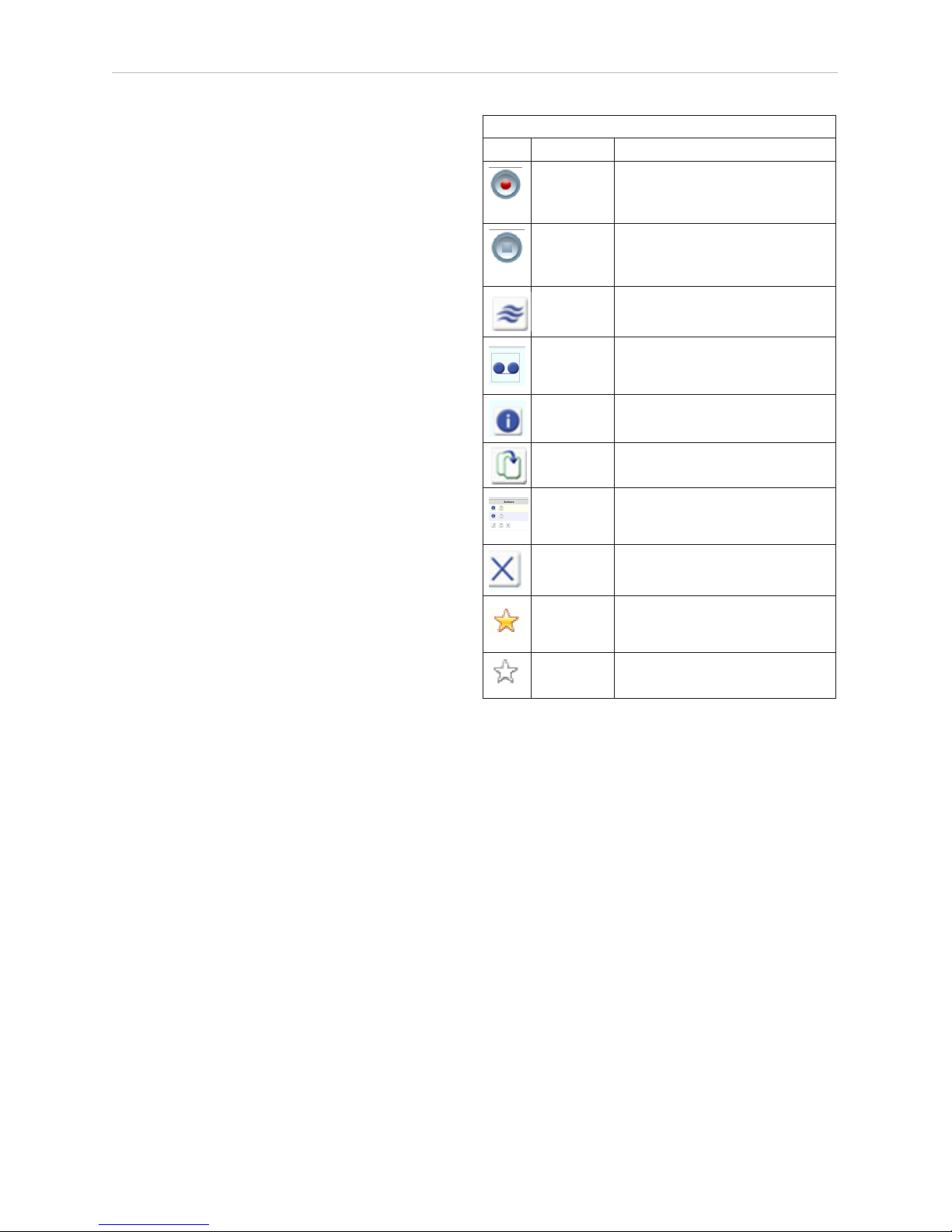

Edit Proles Icon Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5 Creating and Modifying Proles 5

Proles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

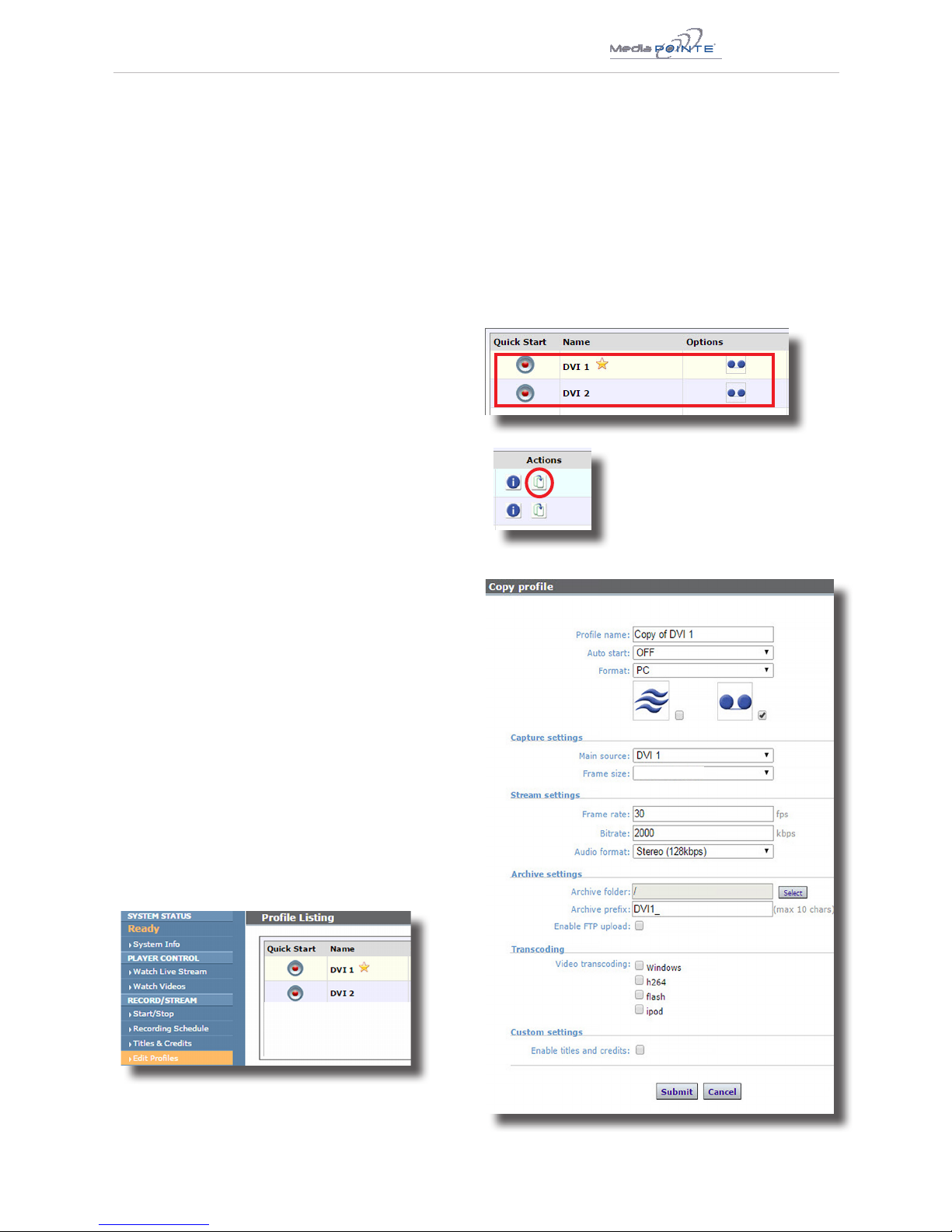

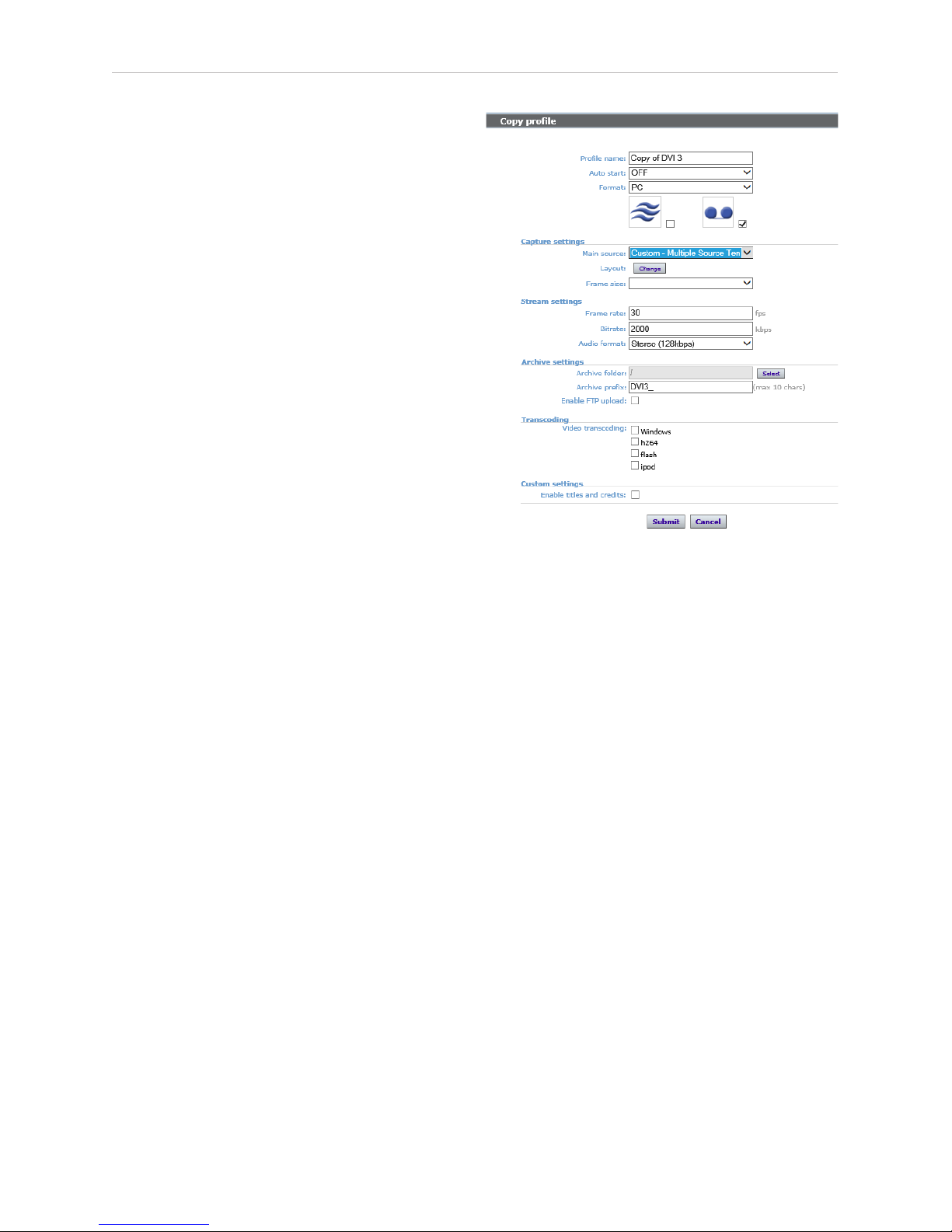

Creating/Modifying a Prole . . . . . . . . . . . . . . . . . . . . . . . . . 13

Creating a Prole . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Modifying a Prole . . . . . . . . . . . . . . . . . . . . . . . . . 15-16

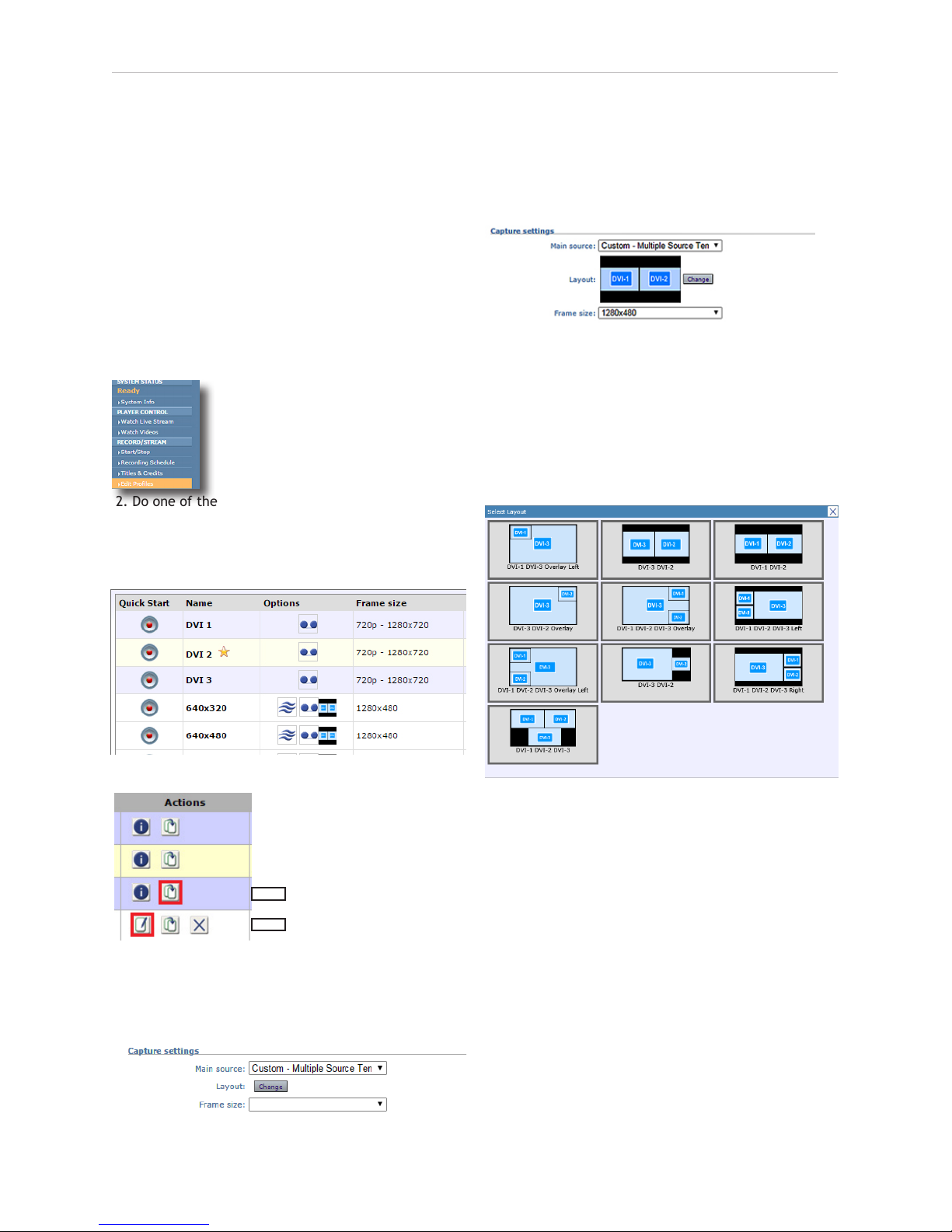

Setting Screen Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . 16

6. Management and System Tools5

AV Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

AV Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Notications Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Notication Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Job Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Upgrade System Software . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Disabling and enabling multicast . . . . . . . . . . . . . . . . . . . . . . . 18

Reset Conguration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

System Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

7 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing Upgrade Packages . . . . . . . . . . . . . . . . . . . . . . . . . 19

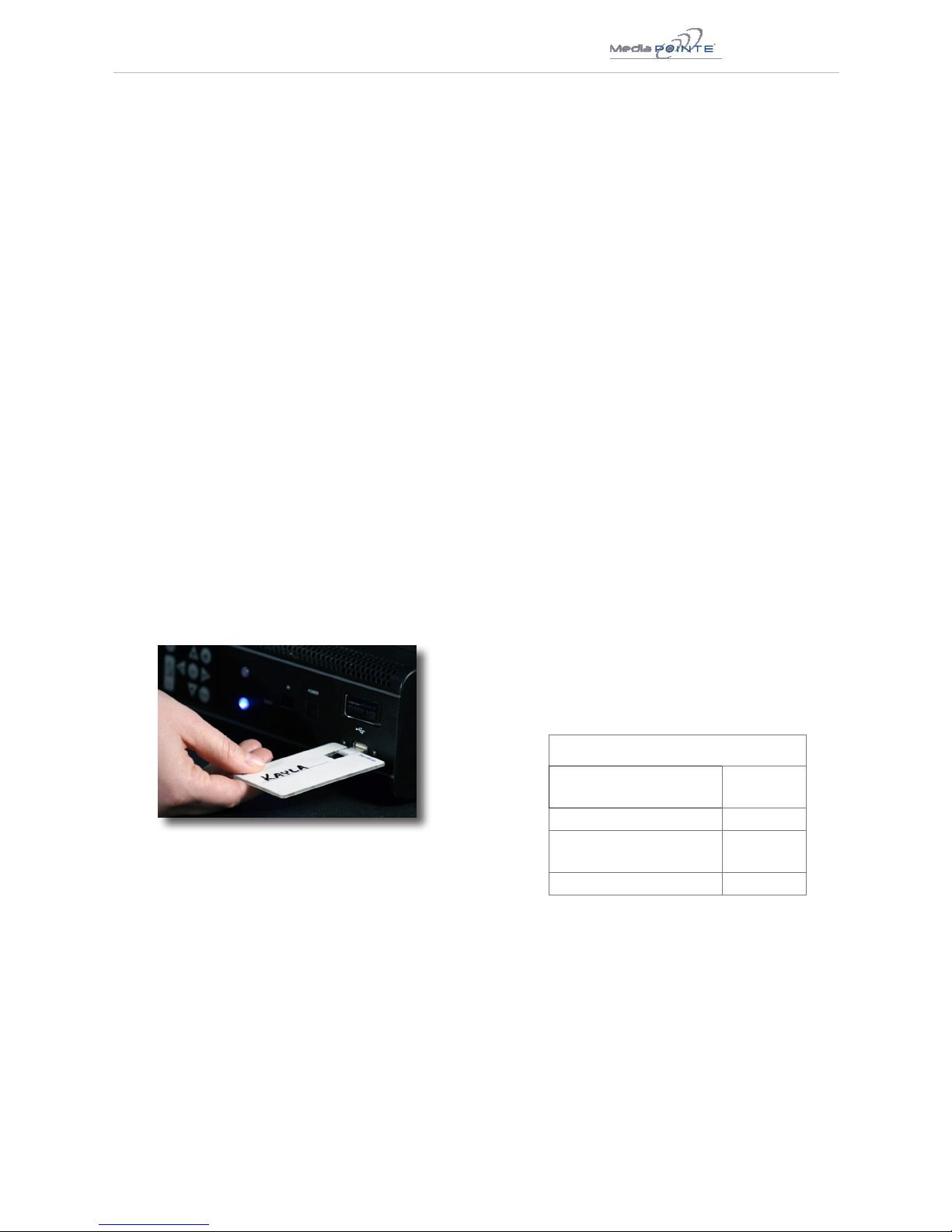

Keycard Automation Option . . . . . . . . . . . . . . . . . . . . . . . . .19

AESOP External Storage Option . . . . . . . . . . . . . . . . . . . . . . . . 19

Video On Demand (VOD). . . . . . . . . . . . . . . . . . . . . . . . . . . 19

VOD Channel Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Viewing VOD Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

DMR HD3 1

1

Introduction and Overview

Introduction

Welcome to the user’s guide for the MediaPOINTE®

HD3. The HD3 is one of the easiest to use, cost­effective and reliable capture, recording, streaming
and archiving products on the market today. It can
archive important audio, video, and graphical data
while simultaneously transmitting it anywhere on your
network.

This user’s guide describes how to set up and use the

HD3 to record and transport graphics, video and audio
content over IP networks. As with all MediaPOINTE
AV-over-IP products, you can control the HD3 by
different methods. These methods include: Web
Portal interface, remote control, contact closure, RS­232 serial port, Telnet, or from the convenient front
keypad.

This guide is written for units running 5.3 software.
If your HD3 is operating on a different version of
software, some capabilities and screen shots may be
different.

Key Features

The HD3 may be used in a variety of situations for live
communication and collaboration, including:

• Capture, record, stream and archive live events,
meetings, conferences, seminars, colloquia

in digital High Denition. All content can be

easily accessed and published with full security

privileges dened by the content owner.

• Capture, record, stream and archive up to three
separate HD sources simultaneously. Two HD
inputs support HD cameras or other HD video
sources and one HD video input supports graphics
content from computing devices such as laptops

• Archive media content from multiple independent
sources.

• Share visual information, designs, and concepts
with dispersed groups of people to gather input
during a video conference.

• Stream important video conferences to other

locations such as overow rooms or remote

conference locations over your corporate
network.

• Conduct customer or employee training across
vast geographical areas.

• Discuss research, engineering, architecture,
product design, or process analysis when the
participants are not able to meet in one central
location.

• Access a centralized data bank of expertise from

a eld location.

How It Works

(Method of Operation)

The HD3 can capture, record, stream and archive
video, graphics and audio media. The HD3 accepts
three digital DVI inputs. The selected digital video
input source along with the audio is captured into a

le which can be simultaneously streamed live over

your network and archived. The digital DVI inputs
can accept HD cameras, other HD video sources,
computer video. The audio input and output signals
are connected via RCA stereo unbalanced inputs. A
DVI output allows easy connection to a monitor. HDMI
input and output is also available via a DVI-to-HDMI
adapter or cable. Audio via the HDMI cable is not
supported.

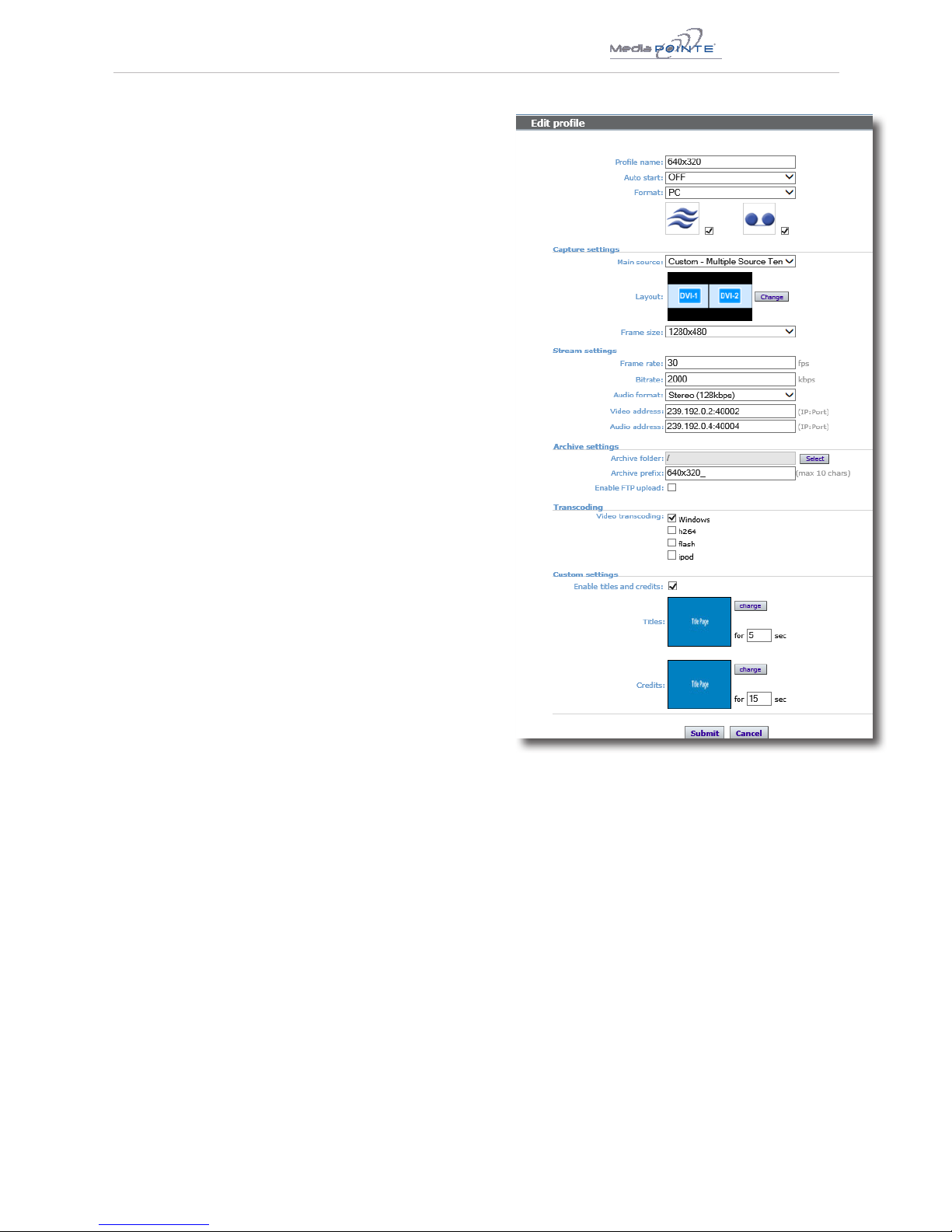

Users can select from several congurable parameters
(proles) for capturing and subsequent playback
of the recorded material. These proles are fully
congurable, allowing the user to specify the input

source, capture resolution, bit, visual layout style and
frame rates.

The archived recordings are stored on the HD3’s hard
drive. The recorded le can then be viewed on your

PC locally or replayed directly from the HD3 on a local
monitor using the DVI output connector. The content
can also be copied to a USB memory stick, burned to
DVD-R, DVD+R or CD-R disk, downloaded to a PC, or

2 | DMR HD3 User Manual 1.0 APRIL, 2015

automatically transferred (FTP) to a server after the le

has been indexed.

How It Works (cont.)

The HD3 records content in standard H.264/MPEG-4 AVC
format, which can be played on a variety of desktop
client players including QuickTime, VLAN and others.
The HD3 supports multiple resolutions up to full 1920 x
1080 HD.

DMR HD3 3

HD3 Front Panel

1

2

Front Panel Controls

The front panel consists of an Optical Drive, the main
operation Keypad, two status LEDs, a small RESET
button, IR receiver, a power switch and a USB port.
The following is a brief description of each of these
components.

1. Optical Drive

The HD3 features an optical drive capable of recording
to DVD-R, DVD+R, and CD-R media.

2. Front Panel Touch Keypad

The HD3 has a front keypad that allows the user to
start and stop recording as well as navigate the on
screen menus without using the remote control. A
local monitor is required to use this feature.

3. LED Status

The LED indicators are used to describe system states,
actions and error conditions. The valid LED states are
described in the table below.

LED 1
FUNCTION
INDICATED

Powering On Orange OFF

Ready OFF ON

Record/Stream RED ON

Indexing RED Fast Blink ON

Play OFF Slow Blink

Error YELLOW Fast Blink OFF

Disk Burn RED Slow Blink ON

(top)

RED/YELLOW/

ORANGE

LED 2

(bottom)

BLUE

3

4

5

6

7

4. RESET Button

The RESET button activates by using a small device
such as a pin or paper clip. Pressing the RESET button
will reset the Administrator Password and return the IP
settings back to the default network settings.

5. IR Receiver

The IR Receiver is for the included remote control.

6. Power Switch

The POWER button on the front of the unit will turn
the unit on and off. The MAIN power switch on the
rear of the unit must also be on.

1. Ensure the back panel power supply switch is in
the ON position by pressing down on the switch as
shown to the left.

2. To turn the unit ON press
the POWER button on the
front once.

3. To turn OFF the unit, press
the POWER button on the
front once.

7. USB Port

The USB port is used to ofoad media from and to

the HD3. It can also be used to set or capture an IP

address. See the Network Conguration section for
USB IP address conguration.

4 | DMR HD3 User Manual 1.0 APRIL, 2015

HD3 Back Panel

11

②

810

Connector Function/Name Description

DVI DIGITAL

1

DVI DIGITAL

2

4 2

6 5

AUDIO/ VIDEO INPUTS

HDMI/DVI

DVI-1 Input

1

The DVI-1 connector is for digital signals only.
NOTE: When using HDMI cables, audio is not
supported

HDMI/ DVI

The DVI-2 connector is for digital signals only.

3

7

9

8

10

DVI-2 Input

DVI DIGITAL

HDMI/DVI

3

DVI-3 Input

The DVI -3 input connector is for CONTENT ONLY.
Maxiimum resloution is 1900 x 1200. Suggested
input resolution for smaller images is 1024 x768.

L R

4

Unbalanced Inputs

Connector Function Description

DVI DIGITAL

5

L R

6

Unbalanced Outputs

HDMI to DVI Adapter (Not Supplied)

RCA STEREO

AUDIO/ VIDEO OUTPUTS

HDMI/DVI

DVI-OUT

Output

RCA STEREO

The stereo audio inputs are standard RCA
connectors. These inputs are unbalanced.

The DVI connector is for digital signals only. HDMI
output is supported through the use of an HDMI To
DVI adapter or an HDMI To DVI cable adapter When
using HDMI cables, audio is not supported

The stereo audio outputs are standard RCA
connectors. The outputs are unbalanced.

HDMI to DVI Adapter Cable (Not Supplied)

DMR HD3 5

ALL OTHER CONNECTIONS

Connector Function Description

10

11

12

7

8

9

LAN

USB

RS-232

AC Power

Remote Jack

eSATA

The RJ45 LAN connector allows the supplied LAN cable
to connect the HD3 to a network.

The Type A USB port on the back of the unit can be
used for upload or ooad of video content and for
network conguration of the HD3.

This standard serial DB9 connector allows connection
for serial control (Note: a null-modem serial cable is
required).

The IEC connector allows the included IEC AC power
cable to connect the HD3 to AC power. Make sure
the power on/o switch is in the o position before
plugging in the power cable.

The Remote Jack allows a contact closure device to be
used.

The eSATA connector is provided to connect external
storage,

Basic Setup Diagram

HD3

6 | DMR HD3 User Manual 1.0 APRIL, 2015

Setting Up the HD3

2

System Administration

Use this information when you are ready to install
the HD3 hardware at your site. First, plug in the sup­plied RJ-45 network cable to your network. Second,
turn on the unit by switching the Power Switch on the
back of the HD3 to the ON position. Third, start the
unit by pressing the front panel Power Button

Access Rights

There are three levels of access rights: admin, author
and user. The Adminstrator can control all of the
functions of the HD3. The author can record, stream
and view content. The user can only view content.
Note that the Login ID and the password are case
sensitive. It is not possible to change any of the login
names. Only the passwords can be changed.

Initial Login

This section describes the procedure for a rst time

Administrator login, and for setting the HD3 access
rights. Administrator rights are required to access or

change any of the settings under the Congure and

Manage sections in the main menu and to change all
features of the HD3.

To log into the HD3, browse to its IP address using
your Internet web browser. The default IP address
is:192.168.1.253

Once you have navigated to the website, you will be
presented with the a login page. The screen capture

below shows the login elds. For the initial login, use

the Login ID “admin” and the default password of
“MediaPOINTE”. Note that the Login ID and password
are case sensitive. The login page is shown in the
screen capture below.

Adminstrator (Username: admin)

The Administrator maintains all rights to the HD3. Ex-

clusive Administrator access allows the conguration of:

the date and time; security; IP settings; command line;

e-mail and managing notications; logging; AV controls;

AV test; jobs; and software

Author (Username: author)

The Author maintains content creation rights on the
HD3. The Author can access or change any of the
settings under the “Record/Stream” section in the main
menu. No password is required for the “author” login as
a default.

User (Username: user)

The user can watch content. No password is required
for the “user” login as a default.

Congure Security

Changing the Administrator Password

By default, the Administrator Username and Password
are set to “admin” and “MediaPOINTE” respectively.

To change the Administrator password, enter a new Ad­ministrator password in the New Admin Password eld
(10 characters maximum) reenter the new password in

the conrm password eld and click the Update button.

The next time the HD3 is accessed, the new admin
password will take effect.

Be sure to write down the new administrator
password and keep it in a safe place. If you forget
the admin password, the HD3 must be reset back to
the factory defaults to enable administrator access.

DMR HD3 7

Author Login Security

The Administrator can enable the security login for
author. Checking the Enable Author Security box will
enable the author password. Enter an author password

in the author password eld then reenter the new
password in the conrm password eld and click the

Update button.

Unchecking the Enable Author Security check box
deactivates the author login password. Press Update

to conrm the change.

Note that the Login ID and the password are case
sensitive.

User Login Security

By default, a login password for the user is disabled.
Checking Enable User Security will enable the User
password. Enter a user password in the User Password

eld, then reenter the same password in the Conrm
User Password eld and click the Update button.

Setting Description

DHCP
Client

IP

Address

IP

Subnet

Mask

Default

gateway

DNS

server

NETWORK CONFIGURATION

Enable DHCP settings for automatic address
retrieval from DHCP Server. Disabling the
DHCP client will require a static IP address
(with subnet mask and default gateway) to be
entered.

Assign a static IP address to HD3. This eld will
also display the currently assigned IP address

Assign subnet mask to HD3. This eld will also
display the currently assigned subnet mask

Assign a default gateway to the HD3. This eld
will also display the currently assigned default
gateway

If the network supports DNS, enter the DNS
Server IP address(es) here. This eld will also
display the currently assigned default gateway

Setting Date & Time

When content is recorded using the HD3 it is given a
time and date stamp. The time and date stamp can be
set in the Date & Time section of the main menu. The
date can be selected from the pop-up calendar. The
Time Zone can be selected from the drop down menu.
Current time can be selected from the drop down

menu. Conrm any changes by clicking on the Submit

button.

If desired, the NTP (Network Time Protocol) feature
can be enabled to synchronize the clock of the HD3
to an NTP server; click on the “Enable NTP” box and
enter the server information, then click on Submit.

IP Settings

System Name

The factory set system name is MediaPOINTE. You
can change the name in the IP setting menu page by

entering a new name in the text eld. A reboot is

required for the new name to take effect. The name
can be up to 15 characters long and consist of alpha­numeric characters. No special characters or symbols
will be accepted except for a hyphen.

The System Name and all network settings can be set
in the IP Settings section of the main menu. Network

settings may also be congured via USB memory stick
conguration.

NOTE: To change the default IP settings of the HD3 or

any of the other conguration settings, you must log in

with administrator rights as “admin”.

To quickly nd the system’s IP Address, connect a local

monitor to the DVI output. Use the keypad to navigate
to the System Info page of the on screen menu.

IP addresses may be assigned to the HD3 by two ways:

DHCP and Fixed (Static) IP. If your network is congured

for DHCP, the IP address will be provided automatically
and will be visible on the DVI output of the HD3. To set
a Fixed (Static) IP address, follow the procedure on the
next page.

8 | DMR HD3 User Manual 1.0 APRIL, 2015

Conguring a Static IP Address

1. On your Internet browser, enter the current
IP address of the HD3. (Note: If the unit has
factory settings, the default static IP address is:

192.168.1.253)

2. Login to the HD3 using the procedure shown in the
Logging In section.

3. Navigate to the network settings page by selecting
IP Settings.

4. To change to a Fixed or Static IP address, set the
DHCP Client check box to “Disable”. Fill in the
IP Address, IP Subnet Mask and Default Gateway

elds.

5. Once you have completed all of the above steps,
select the Apply Changes button. You will receive a
pop-up window warning you to use this option with
caution as you are changing the default address
and should remember the new settings.

Conguring a DHCP IP Address

1. Follow the rst three steps above.

2. To enable the HD3 to pick up an IP address, set the
DHCP Client check box to “Enable”.

3. If you have made any changes to the network
settings, select the Apply Changes button. You will
receive a pop-up window warning you to use this
option with caution as you are changing the default
address and should remember the new settings.

USB Network Conguration

This section describes how to congure the HD3 using a

USB memory stick. The network parameters of the HD3

can be set via a special conguration text le on a USB

memory stick. Insert the memory stick into one of the
HD3 USB ports at any time. The unit will look for the

presence of this conguration le and will implement
the settings from the le. Use a simple ASCII text editor
to create the le named dmx_ip_conf.txt.

Use this option with caution as you are changing the

default of this conguration le and will implement the
settings from the le.

If the dmx_ip_conf.txt le is intentionally left blank
with no text of any type within the body of the le, the
HD3 will write its network settings to this le. This is
an easy way to obtain the unit’s network settings.

SMTP Mail

The HD3 has the ability to send emails. To send the

emails you must enable the SMTP conguration. After

enabling it, enter the address of the SMTP server in
the appropriate text box and the e-mail account that

you use to send emails in the appropriate box. Conrm
any changes to the SMTP mail conguration by clicking

Submit.

Telnet (TCP/IP)

The Telnet port by default is not enabled. To turn on
Telnet control, set the Telnet port number (typically
Port 23) and check the TCP/IP port enable check box.
A password for the Telnet session can be activated by
entering a password in the Password for TCP/IP connec­tion text box. If a password is not desired on the Telnet
session, leave the text box blank.

RS-232

On the back of the HD3 there is a serial control port

congured as a DTE that supports the RS-232 protocol. A

Null-Modem cable should be used between the HD3 and
the COM port on your PC.

Terminal session settings required for RS-232 control
are: 9600, 8, None, 1 with No Flow Control.

There is no password protection on this interface and,
by default the RS-232 port is enabled. The administra­tor has the ability to disable the port by unchecking the
COM port enable check box.

dhcp=(bool)0

dns_1=(string)192.168.0.2

dns_2=(string) 192.168.0.3

ethernet=(string)auto

gateway=(string)192.168.1.1

ipaddress=(string)192.168.1.253

netmask=(string)255.255.255.0

DMR HD3 9

Controlling HD3 Functions

3

The HD3 can be controlled by several different methods.
These include, a Web Portal interface, IR remote control,
contact closure, RS-232 serial port, Telnet, or by the conve­nient button panel (Keypad) on the front of the unit. This
section will cover each of these controls.

Web Portal Overview

The HD3 has a fully featured Web Portal that can
be

accessed via a web browser. Enter the unit’s IP

address in the web browser’s address bar and logon.

From this portal you can start and stop a record­ing session, play or download previously archived
material, set recording preferences and move content
on,off or within the HD3.

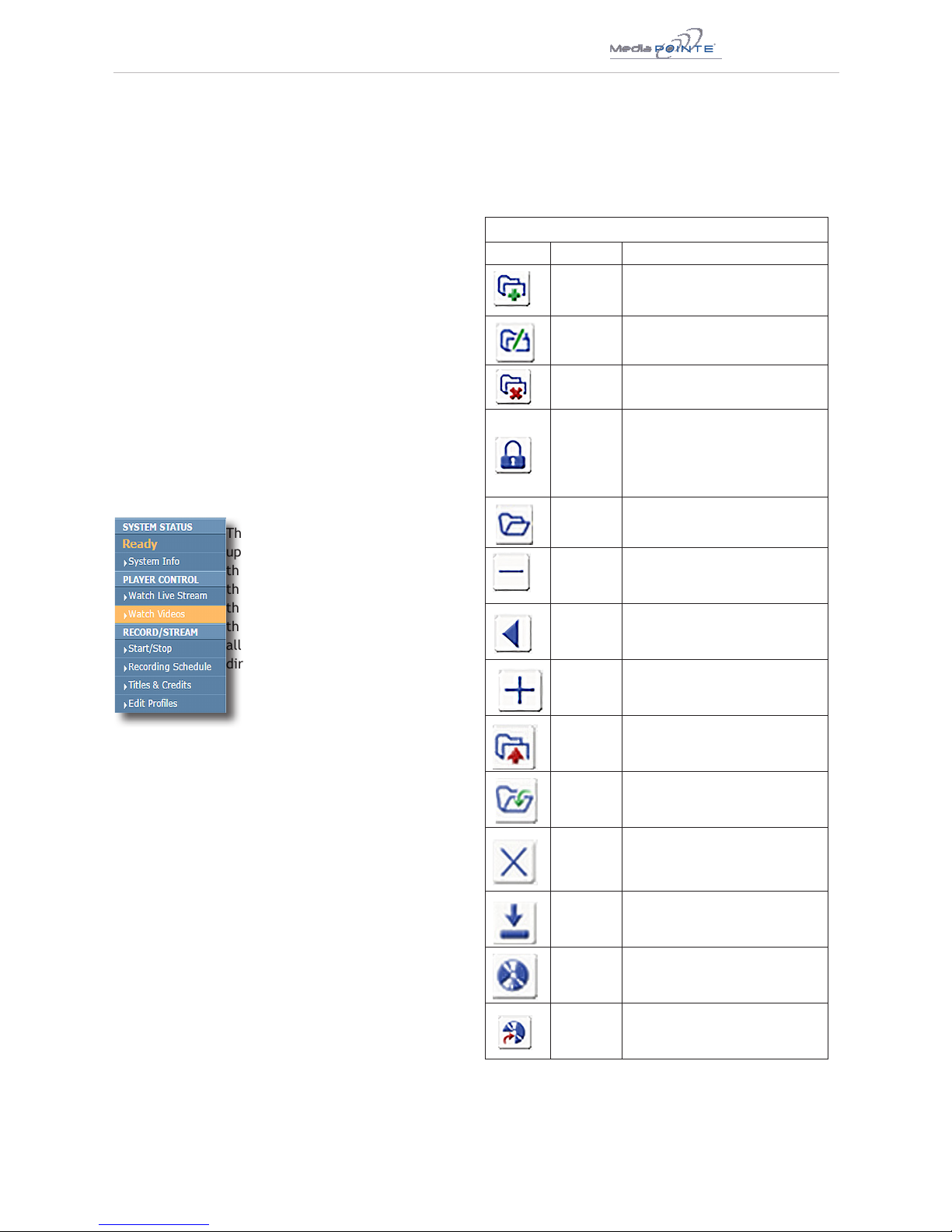

The Watch Videos page will appear
upon login. The screen capture on
the left indicates when you are in
the Watch Videos page. Selecting
the Watch Videos selection from
the main menu will show a list of
all current recordings in the Root
directory.

MAIN SYSTEM TOOLBAR TABLE

Icon Function Description

Create
New Folder

Rename
Folder

Delete
Folder

Folder
Password

Show
Folders

Close All
Folders

Close
Folder
View

Open All
Folders

Creates a new folder without
password protection.

Changes the name of the name of
the selected folder

Permanently deletes folder including
all content

Allows the user to password protect
the currently selected folder. If
the folder is already password
protected, it allows user to change
the password.

Displays the Folder management
Trees

Shows only the highest tier folder of
the folder tree.

Hides all folders on the HD3.

Shows all folders on the HD3

Main System Toolbar

When logged in, selecting the Watch Videos selection
from the main menu provides the main system
toolbar. The Main System Toolbar Icons Table on the
right shows the icons found at the top of the web
page in the Watch Videos web page.

Mo ve To

Copy to

Delete
Selected

Download
to my PC

Show DVD Plays DVD Locally on local Monitor

Eject DVD

Allows content to be moved from
one folder another.

Allows a copy of a media le to be
created in a dierent folder.

Deletes the selected content. There is
no recovery process for content that
has been deleted.

Opens Download Manager to allow
content to be moved to the local PC.

Ejects DVD from the HD3

10 | DMR HD3 User Manual 1.0 APRIL, 2015

On-Screen Menu/Front Control Panel

The On-Screen Menu is displayed on the DVI output of
the HD3. The HD3 IR remote or Front Control Panel

(keypad) will provide some of the conguration features

of the Web Portal as well as provide the ability to
navigate and playback non-password protected content
stored on the HD3.

Currently the on screen menus give the user the
following capabilities:

♦ Start/Stop Recording

♦ Browse and Play non-password protected

content

♦ Browse and Play recent content

♦ Burn content to optical disk

♦ Copy content to USB

♦ Set audio input recording level

♦ Adjust the Menu opacity, position and timeout

♦ Retrieve System Information

Note: There is a +5V on the tip

This closure can be in the form of a relay, manual
switch or semi-conductor switch. This allows for relay
control via external control systems such as AMX,
Crestron, or by a plain momentary trigger, such as a
foot switch.

Semi-conductor closures are found on AMX or Crestron
controllers in the form of a D I/O port. If using a semi­conductor closure, polarity is important. The phone
plug tip must be wired to the + or individual input of
the D I/O port, and the sleeve connected to the ground
or - connector. Note that, unlike relay connections,
these connections are not isolated and can form
grounding or hum loops.

External Control

Telnet

The telnet client within the HD3 provides access to the
Command Line Interface through the TCP/IP protocol.
By default, TCP telnet is disabled but can be activated
from the Web Portal with an optional password. The
available commands are the same as listed in the RS­232 section.

Once logged in, type ‘help’ or ‘?’ for a list of

commands.

Infra-Red

The Infra-Red (IR) receiver for the remote control is
located on the front of the HD3. It can also be used for
IR control via control systems such as AMX or Crestron.

Remote Contact Closure (Relay)

A relay contact closure connection is mounted on the
back as a 1/8th (3.5mm) phone plug. Either a mono or
stereo plug can be used, but in the case of the stereo
phone plug, short the sleeve to the ring as the negative
connection. This connection can be wired to a simple
momentary switch closure and will start or stop a
recording.

DMR HD3 11

4

Recording, Archiving and Streaming

Recording/Streaming

A recording/streaming session can be started and
stopped from the Start/Stop section of the main toolbar

and from the prole listing of the Web Portal. The
“default” prole will be used unless another prole is
selected. To select an alternate prole, use the Change
button to bring up a prole listing.

The RED LED will illuminate when the HD3 is recording/
streaming and the Web Portal will display a “Recording”
message at the top of the page. The record/stream

parameters will be as specied in the prole that was

chosen.

To stop the recording and create an archived le, press

the Stop button to begin the “indexing” process. The
RED LED on the front of the unit will blink fast during
the indexing procedure, indicating that the unit is
busy and cannot record or stream until the process is
complete. Depending on the length of the archived
material, this could take a few seconds up to several
minutes to complete.

Playback on HD3

Content stored on the HD3 can be viewed via the DVI
output connected to a local monitor. Selecting the Play
Locally button on the Watch Videos page will start the
content playback.

During playback, the pause, stop, skip forward and skip
backward controls may be selected.

In order to play les, an MPEG-4 capable playback

application (such as Quicktime Player) is required on
the viewing PC.

Archiving

Disc Burning

The disks are burned as data discs.

Content can be moved from the HD3 to an optical disk.
Insert a blank disk into the HD3 and select the Disk icon
from the main menu. This will display the Toolbar that

will provide icons for burning media les and folders

to the optical drive. Formats supported include DVD-R,
DVD+R and CD-R.

USB Ooad / Upload

The front USB port can be used to move media to or
from the HD3. Connect the USB memory stick and a
folder named USB will appear in the Folder tree in the
left pane. While the USB is connected, media can be
copied to and from this folder.

Streaming

The Watch Live Stream page allows users at their
personal computers to launch client media players,
which will receive and decode the media streams for
playback.

Manual FTP Upload

Under the actions menu for any video there is a manual
FTP icon. Clicking this icon will allow you to manually

transfer a video le and associated XML le to a remote

server. SCP, FTP, and FTPS are all available options for

transferring les. To transfer your desired le, choose

the Manual FTP icon in the actions menu. Enter the
server destination, Port number (optional for non
standard ports), Destination path, and credentials. You
can choose to delete the content after a successful
upload.

Download Manager

Files and Folders can be downloaded to the browsing
computer using the Download Manager.

Select the Download Manager icon from the Watch
Videos paging using this icon:

The Download Manager Toolbar will appear

Metadata

Metadata tagging allows you to tag a video le with

information such as Author, Title, Keywords and more.
This information is stored in the header of the Video

le. A second copy of this information is stored within
an XML le that is downloaded or transferred alongside

12 | DMR HD3 User Manual 1.0 APRIL, 2015

the le. To add metadata to the le, select the video

you wish to edit and click on the metadata icon in the

Actions Menu associated with that le. Then enter your
desired information into the available elds.

Transcoding

The HD3 supports le transcoding. This is a manual

post process procedure. To transcode a video select the
transcode icon under the actions menu for the desired
video. Select the desired formats you wish to transcode
from the pop-up menu. You can choose: H.264, iPod
and Flash formats. The transcoding will happen in the

background and appear as a new le in your media
library. The new le will have the transcoded video type
appended to the beginning of the original le name for

easy recognition. To see waiting jobs reference the Job
Management page.

Titles & Credits

JPEG images can be uploaded to the HD3 in the Titles &
Credits selection of the main menu. Images uploaded

here can be specied in the prole parameters. Images

must be in JPEG format.

To upload an image, browse to the JPEG you wish to
use and click on the Upload button. Individual images
can be viewed or deleted using the controls provided on
each graphic.

Changing Proles

EDIT PROFILE ICONS TABLE

Icon Function Description

Start

Record/

Stream

Stop

Record/

Stream

Streaming

Archive

Info

Copy

Edit Prole

Delete
Prole

Default

Prole

Set Default

Prole

Starts a recording/streaming
session using the settings specied
in Prole.

Stops both the recording and
the live stream and will begin the
indexing process.

Indicates that Streaming is enabled
on this prole.

Saves le when the Stop Record/
Stream button is clicked on the
HD3.

Provides a quick view of all
congured settings in prole.

Creates a copy of a prole that can
be customized.

Allows a user dened prole to be
edited. To create a custom prole,
copy one of the 2 Originals.

Permanently deletes a custom
prole.

Used when a recording is started
without a prole specied.
Identied by a Gold Star.

Changes the Default prole when
clicked.

On the Start/Stop page, you can click on the Change
icon and you will get a list pop-up with all available

proles. Select on the prole of your choice and the

Start/Stop page will automatically be updated.

DMR HD3 13

5

Creating and Modifying Proles

This section describes how to set up all congurable recording

options on the HD3; only author and admin users have access

to these settings.

Proles

A Prole is a collection of settings that denes the

operating characteristics for a streaming/recording
session. Parameters include:

• Prole name - The name you choose

• Auto start - Enables automatic video conference
recording

• Format - Selects the type of encoding

• Main source - Selects input or template

• Frame size - Selects capture resolution

• Frame rate - Sets maximum frame rate

• Bitrate - Sets maximum bandwidth

• Audio format - Stereo or mono

• Archive folder - Selects local le location

• Archive prex - The lename (max 10 chars)

• Enable FTP upload - When checked sets parameters

for automatic le transfer

• Transcoding selects for automatic le transcoding

• Custom settings - Enable titles and credits

The HD3 comes with two precongured proles that
cannot be modied. These can be copied to create
custom proles. The “Edit Proles” screen capture

from the HD3 Web Portal is shown below.

Creating/Modifying a Prole

To create a custom prole, you must copy one of the
two proles provided with the HD3. Choose one of the
two proles shown in red as a starting point.

Click on the Copy icon shown in red below

This creates a copy that is ready to customize.

1280X720P

14 | DMR HD3 User Manual 1.0 APRIL, 2015

Creating (Copy) a Prole

Next, using the screen capture on the right as a guide,

set parameters. You create a prole by simply copying
one of the prole templtes then ll in each section with
the information you want in that prole as outlined in

the steps below. By checking the Icons on the Copy pro-

les web page you can have streaming only, recording

only or streaming/recording simultaneously.

1. Prole name - Enter any name up to 30 characters.

It cannot contain special characters. This will

appear as a new prole on the Edit Proles page

after you press Submit. The name should be
unique.

2. Auto start- The drop down provides two choices:
OFF and ON. Select OFF for standard control.

Select ON for standard control and automatic video

conference record with specied codec

3. Format - The drop down provides six choices: PC,
iPod,WMV, DIVX, AAC audio only and WMV audio

only. Selecting PC provides standard H.264 with
selectable frame sizes. Selecting iPod sets lower
resolution frame size. Selecting AAC audio only
selects no video, audio only.

4. Main Source - The drop down provides three

choices: DVI 1, DVI 2 and Custom Multiple Source

Template. Selecting DVI 1 sets DVI 1 as input with

frame size selection. Selecting DVI 2 sets DVI 2 as
input with frame size selection. Selecting Custom

Multiple Source Template brings up a separate

window that allows you to select from a variety of
available layouts.

5. Layout - The Layout button allows you to choose

one of many screen layouts as shown on Page16.

6. Frame Size (if allowed) - The drop down provides

eight choices: VGA - 640 x 480; SVGA - 800 x 600;
XGA - 1024 x 768; 720p -1280 x 720; SXGA - 1280
x1024; SXGA+ - 1440 x 1080; UXGA -1600 x 1200;
1080p - 1920 x 1080. Choose desired frame size.

7. Frame rate - Enter the selected frame rate with a

maximum of 30 fps.

8. Bitrate - Enter the bitrate desired with a range

from 128 kbps to 5120 kbps

9. Audio format - The drop down provides four

choices: Disabled for no audio; Stereo (128 kbps)
for stereo source input; Mono (64 kbs) for 1 channel
mono source; Mono (32 kbs) for 1 channel mono
source at a lower bitrate.

10. Archive folder - The location where the les are

saved on the local machine.

1

2

3

Streaming and/or Recording

4

6

5

1280 X 720p

1280 X720

7

8

9

10

11

12

13

14

15

11. Achive prex - The beginning of the le name

saved. A maximum of ten characters is allowed
with no spaces or special characters (only
underscore and dash are allowed.)

12. Enable FTP upload - Check if you want to send the

les to an FTP server after recording. If you check

this another menu will appear.

FTP Server: Enter address of the FTP
server

FTP user name: Enter registered user of
the FTP server

FTP user password: Enter Password of the FTP
server user

FTP upload directory: Enter the path to where

the le(s) will be stored on the FTP server

Delete: Check this box if you want to delete
local media after upload.

13. Video transcoding - Makes a copy of the recorded

le in the selected format. This provides four

checkbox choices: Windows, H.264, Flash and iPod.
Check the format you want.

14. Enable titles and credits - Select if you want to

insert a JPEG image at the beginning and end of

a recording. You must upload images rst in the

Titles & Credits section of the main menu.

15. Submit or Cancel - Click Submit if you want to save

this prole. Click Cancel if you want to reject this
prole.

DMR HD3 15

Modifying (Edit) a Prole

Modifying a prole is very similar to copying one. Use

the screen capture on the right as a guide to set pa­rameters. Modify each section with the information you

want in that prole as outlined in the steps below. By
checking the Icons on the Edit proles web page.

1. Prole name - The name of the prole you are

editing.

2. Auto start- The drop down provides two choices:
OFF and ON. Select OFF for standard control.

Select ON for standard control and automatic video

conference record with specied codec

3. Format - he drop down provides six choices: PC,
iPod,WMV, DIVX, AAC audio only and WMV audio

only. Selecting PC provides standard H.264 with
selectable frame sizes. Selecting iPod sets lower
resolution frame size. Selecting AAC audio only
selects no video, audio only.

4. Main Source - The drop down provides three

choices: DVI 1, DVI 2 and Custom Multiple Source

Template. Selecting DVI 1 sets DVI 1 as input with

frame size selection. Selecting DVI 2 sets DVI 2 as
input with frame size selection. Selecting Custom

Multiple Source Template brings up a separate

window that allows you to select from a variety of
available layouts.

5. Layout - The Layout button allows you to choose

one of many screen layouts as shown on Page16.

6. Frame Size (if allowed) - The drop down provides

eight choices: VGA - 640 x 480; SVGA - 800 x 600;
XGA - 1024 x 768; 720p -1280 x 720; SXGA - 1280
x1024; SXGA+ - 1440 x 1080; UXGA -1600 x 1200;
1080p - 1920 x 1080. Choose desired frame size.

7. Frame rate - Enter the selected frame rate with a

maximum of 30 fps.

8. Bitrate - Enter the bitrate desired with a range

from 128 kbps to 5120 kbps

9. Audio format - The drop down provides four

choices: Disabled for no audio;Stereo (128 kbps) for
stereo source input; Mono (64 kbs) for 1 channel
mono source;Mono (32 kbs) for 1 channel mono
source at a lower bitrate.

10. Video Address - Enter the bitrate desired with a

range from 128 kbps to 5120 kbps

11. Audio Address - Enter the bitrate desired with a

range from 128 kbps to 5120 kbps

12. Archive folder - The location where the les are

saved on the local machine.

1

2

3

Streaming and/or Recording

4

5

6

7

8

9

10

11

12

13

14

15

16

17

13. Archive prex - The beginning of the le name

saved. A maximum of ten characters is allowed
with no spaces or special characters (only
underscore and dash are allowed.)

14. Enable FTP upload - Check if you want to send the

les to an FTP server after recording. If you check

this another menu will appear.

FTP Server: Enter address of the FTP
server

FTP user name: Enter registered user of
the FTP server

FTP user password: Enter Password of the FTP
server user

FTP upload directory: Enter the path to where

the le(s) will be stored on the FTP server

Delete: Check this box if you want to delete

local media after upload.

16 | DMR HD3 User Manual 1.0 APRIL, 2015

15. Video Transcoding -Makes a copy of the recorded

le in the selected format. The drop down provides

four choices: Windows, H.264, Flash and iPod.
Check the format you want.

16. Enable titles and credits - Select if you want to

insert a JPEG image at the beginning and end of

a recording. You must upload images rst in the

Titles & Credits section of the main menu

17. Submit or Cancel - Click Submit if you want to save

this prole. Click Cancel if you want to reject this
prole.

Setting screen layouts

1. You can choose a screen layout

while creating or editing proles. Click
the edit prole on the left menu bar

as shown to the left.

2. Do one of the following: a.) choose one of the three

default proles - DVI 1, DVI 2 OR DVI 3 (shown below

outined in red) that you want to copy and setup. or b.)

edit one of the existing proles (shown below outined

in blue.)

5. If you coose the Edit icon to change an existing

prole, click the change button below and select the

new layout from Screen Layouts popup as shown below.
Pick your new screen layout.

Screen Layouts

3. In the Actions menu click the appropriate copy or

edit prole icon.

COPY

4. If you choose the Copy Icon, you will create a new

prole. To set the screen layout, click the Change

button as shown below. The screen layout as shown
on the right will popup. After the Screen Layout

appears, choose your layout.

COPY

EDIT

DMR HD3 17

6

Management and System Tools

The Software Management section of the HD3 menu
enables the system administrator to perform several
key functions. These include upgrading the system
software to a new version; and resetting the HD3

conguration to factory default network settings

AV Controls

Audio input and output levels can be adjusted either
by sliding the pointer along the bar, or by entering a

value from 0 to 100 in the text eld. Event tones can

be turned on to alert you when an event occurs. For
example, you will hear a tone when you stop recording.

The local display resolution, aspect ratio and player
status can be selected from the drop down menu.

Conrm these settings with the Submit button. The

settings will take effect with the next reboot.

The VTC settings for auto start function can select the
connection type from the drop down menu as serial or
LAN. If LAN is selected, the IP address and password
must be entered.

Notication Action

The Administrator can determine the action to take
when the HD3 hard drive is full. Make the selection and
press the Submit button.

Job Management

The job management page will show you the progress of
all manual FTP uploads as well as transcoding jobs.

JOB MANAGEMENT TABS

Tab Description

Job queue will show you what jobs are

Job Queue

Job History

Upload
Queue

Upload
History

waiting to be completed. To cancel a job
press the cancel button on the left hand
side.

The job history tab will show you previously
transcoded jobs

The upload queue tab will show you the FTP
uploads waiting to be transferred. To cancel
a transfer press the cancel button on the
right hand side.

The upload history tab shows you previously
uploaded les.

AV Test

The HD3 has the ability to test audio and video to
connected output devices without the need for live
input sources. There are four audio test tones and

three test images for conrming video and audio output

to a locally connected monitor. Once a test tone or
image has been selected, use the Stop Test button to
end the test.

The DVI inputs can be tested to a local monitor. To
test the live video, click on the DVI image and the
source connected to that input will display on the local
monitor.

Notications Settings

The HD3 can be congured by the Administrator to
send email event notications from the “Notications”

section of the main menu by checking the Enable Event

Notications box. Enter the email address to which the
notications will be sent and select the events to track.
Conrm these settings with the Submit button.

Logging

The HD3 can be congured by the Administrator to log

events from the Logging section of the main menu.

Select the events you wish to save to a log and conrm

these settings with the Submit button. Current logs will
hold 14 days of data. Logs listed as “old” will include
the previous 14 days of data.

LOGS

Setting Description

The time and date of all recordings and live

Event
Log

Failed
Logins

SMTP
Log

Error Log

streams are captured in the event log. Also
included in this log are all actions related to the
archived media les (moving , renaming, deleting
content etc.)

All failed logins are logged and date stamped.

All emails sent from HD3 are logged and date
stamped.

The error log will provide a description of the
problem that put the HD3 into an error state ( the
Yellow LED will be on)

18 | DMR HD3 User Manual 1.0 APRIL, 2015

Upgrade System Software

MediaPOINTE’s Development Team is constantly striving
to rene and upgrade features on the HD3 to lead

technological advances in the archiving and streaming
marketplace.

In order to keep the HD3 up to date with all of the
latest features, you may want to update the system
software from time to time. Follow the following
steps to upgrade the HD3 software. 1. Contact
your MediaPOINTE dealer for the latest software

version. This le will have an *.mpup extension. The
downloaded le must be placed on the same network as

the PC that will be used to browse the web portal.

2. Go to the Software Management section of the main
menu and click on the browse button to search for the

downloaded *.mpup le. Locate the le and specify the
path to the le as shown in the window.

3. Select the Upgrade button to begin the upgrade.
Be sure to wait until the upgrade is complete before
proceeding.

4. If your HD3 doesn’t automatically reboot, manually

do this by selecting the Reboot button in the info
section. This will reboot the unit and the new software
will be in place.

Disabling and enabling multicast

By default, the HD3 will stream with unicast anytime

a prole is initiated with streaming enabled; multicast

is disabled. To enable multicast or disable unicast,
choose the Software Management tab of the Network
GUI. There you can turn on or off unicast or multicast.

Conrm changes to settings with the Submit button.

System Info

The System Info section gives the user important
information about the HD3. The system can be
rebooted from this page of the Web Portal. See the
table for more details.

SYSTEM INFORMATION

Setting Description

Product Name HD3

Model Product Series Number

Software Version

Build Number Software Build Number

Serial Number The HD3 Serial Number

Manufacturer

Copyright Copyright date of HD3

Available disk
space

Options

The installed Version number of
current software

Name of the Company that
manufactured HD3

The amount of disk space still available
for content recording

Future optional features will be listed
here

Shutdown

Select the Shutdown button on the Software
Management page to remotely power-down (shut off)
the HD3. Any access to the unit will be lost as the unit
is powered down. In order to power up the unit, the
user must physically push the power switch on the front
of the unit. No communication is possible with the HD3
when it is powered down.

Reset Conguration

Selecting the Reset Conguration button on the
Software Management page will reset all HD3 passwords
and network settings to factory default. This will not

delete any of your recorded les. This is the same as

using the reset button within the hole on the front on
the HD3.

DMR HD3 19

7

All HD3 units are shipped out to the eld with the basic

software installed. However, the software was designed
with the ability to receive multiple option upgrades.
Please contact MediaPOINTE to purchase these options.

Options

Installing Upgrade Packages

After your purchase of an upgrade option(s),

MediaPOINTE’s tech support team will walk you through
the process of enabling your specic option(s).

Keycard Automation Option

The MediaPOINTE Keycard Automation completely

automates the work ow of capturing, streaming and

distributing control based on a User I.D. The Keycard
system provides a simple, user-friendly way to initiate
capture, recording and streaming applications with
complete security and control built-in. The MediaPOINTE
Keycard Automation System, if integrated properly may
enable a system to become HIPPA compliant.

AESOP External Storage Option

Additional external storage is available for the HD3.
AESOP is the only external device that can extend the
storage space. For more information please contact your
sales representative.

Video On Demand (VOD)

A VOD channel is a way to link up to other units
simultaneously.

VOD Channel Settings

By clicking on “Add New Channel” a window will open
allowing you to enter the IP address of the device you
want to connect to.

Viewing VOD Channels

If you go to the Live Streams page you will see current
live streams from all your VOD channels. To view
the stream click on the play icon under Actions and a
window will open and display the stream. The following
table describe the HD3 play/stream VOD capabilities:

CHANNEL FEATURES HD3

View/Play recorded

content

View/Play live stream Yes

Make recorded content

available

Stream live content Yes

Yes

Yes

20 | DMR HD3 User Manual 1.0 APRIL, 2015

DMR HD3

Technical Support

805.214.7911

[e-mail]

Main Ofce

667 Rancho Conejo Blvd.

Newbury Park, CA 91320

805.480.3700

www.mediapointe.com
