Operation Manual
Syringe Pump MP-30
Please read this “Operation Manual” carefully and follow “Precautions for Use” before
using the MP-30 Syringe Pump.
Intellectual Property and Statement
The intellectual property right of this product and its Service Manual belongs to MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD. (hereinafter short as MEDCAPTAIN). ©2015-2016 All rights reserved MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD.
Without prior approval from MEDCAPTAIN in writing, this Service Manual shall not be photocopied, modified or translated, fully or partially, by any individual or organization.
, MEDCAPTAIN and are registered trademarks or trademarks of
MEDCAPTAIN.
Statements
MEDCAPTAIN reserves the right for final interpretation of this Service Manual. MEDCAPTAIN reserves the right to modify the contents of this service manual for a more accurate and effective service quality. The modified contents should be reflected in the newly published service manual version. MEDCAPTAIN is responsible for safety, reliability and performance of this equipment only in the condition that:
Use in accordance with the Operation manual. All disassembly, replacement, test, modification and repair are conducted by qualified
personnel approved by MEDCAPTAIN.
All replacement parts, supporting accessories and consumables during the
maintenance are provided by MEDCAPTAIN.
Maintenance records for product are reserved.
Version Information
V1.0
Firstly publish Publish date2014.2.28
V2.0
Registration change and content modification Publish date2014.5.30
V2.1
 Interface modification Publish date2016.3.5
Intellectual Property and Statement
V2.2
Service interval modification and writing mistake correction  Publish date2016.7.30
After Service
Thank you for using the syringe pump of MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD.
During the warranty period, we provide free after-sale services except the following causes:
Artificially damaged.  Inappropriate use.  The voltage of supply network exceeds the range.  Irresistible natural disasters.  Replace or use parts, accessories and consumables without approval of
MEDCAPTAIN. Other troubles not caused by product itself. After the warranty period, we continue to provide charged maintaining service. If you have
any question when using the syringe pump, please contact local distributor or directly contact us at any time.
The after-sales service contact details of Medcaptain Medical Technology Co., Ltd. are as
follows:
Address: 12th Floor, Baiwang Research Building, No.5158 Shahe West Road, Xili, Nanshan District, Shenzhen, P.R.China Telephone: +86-755-26953369 Fax:+86-755-26001651 Postal: 518055 Website: http://www.medcaptain.com E-mail:info@medcaptain.com
MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD. and all local dealers established
after-sales service agencies, can effectively, timely solutions to your problems.
WARNING:
The device should be operated by clinic medical staffs or under the instruction of special
clinic medical staffs. The operator should have been trained on how to use this product.
Contents
1 OVERVIEW .................................................................................................. 1
1.1 PURPOSE ...................................................................................................... 1
1.2 CONTRAINDICATION ........................................................................................ 1
1.3 PRODUCT FEATURES ...................................................................................... 1
2 PRECAUTIONS FOR USE ........................................................................... 3
3 PRODUCT SPECIFICATIONS...................................................................... 7
4 PRODUCT DESCRIPTION ......................................................................... 10
4.1 PRINCIPLE OF OPERATION .............................................................................10

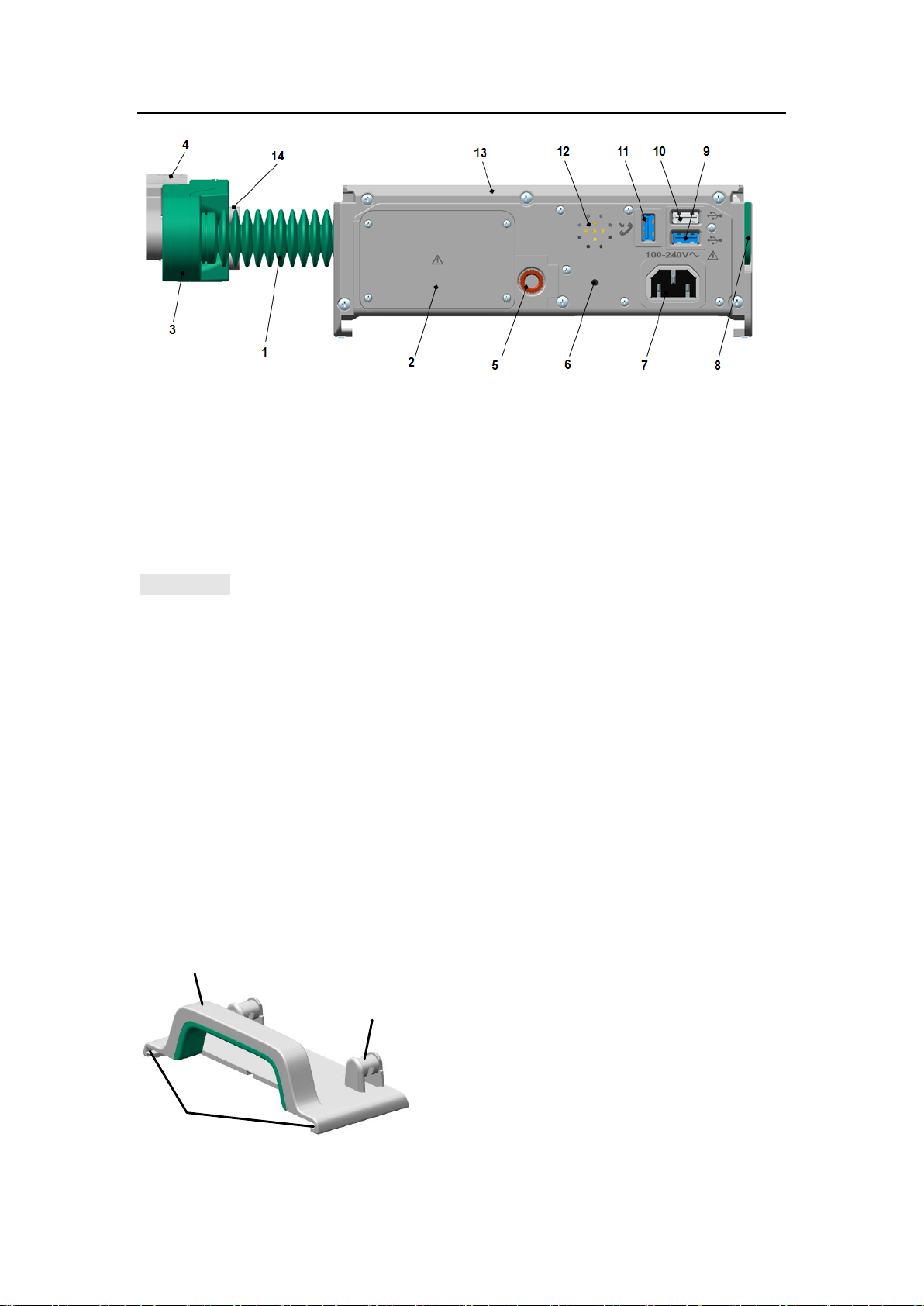

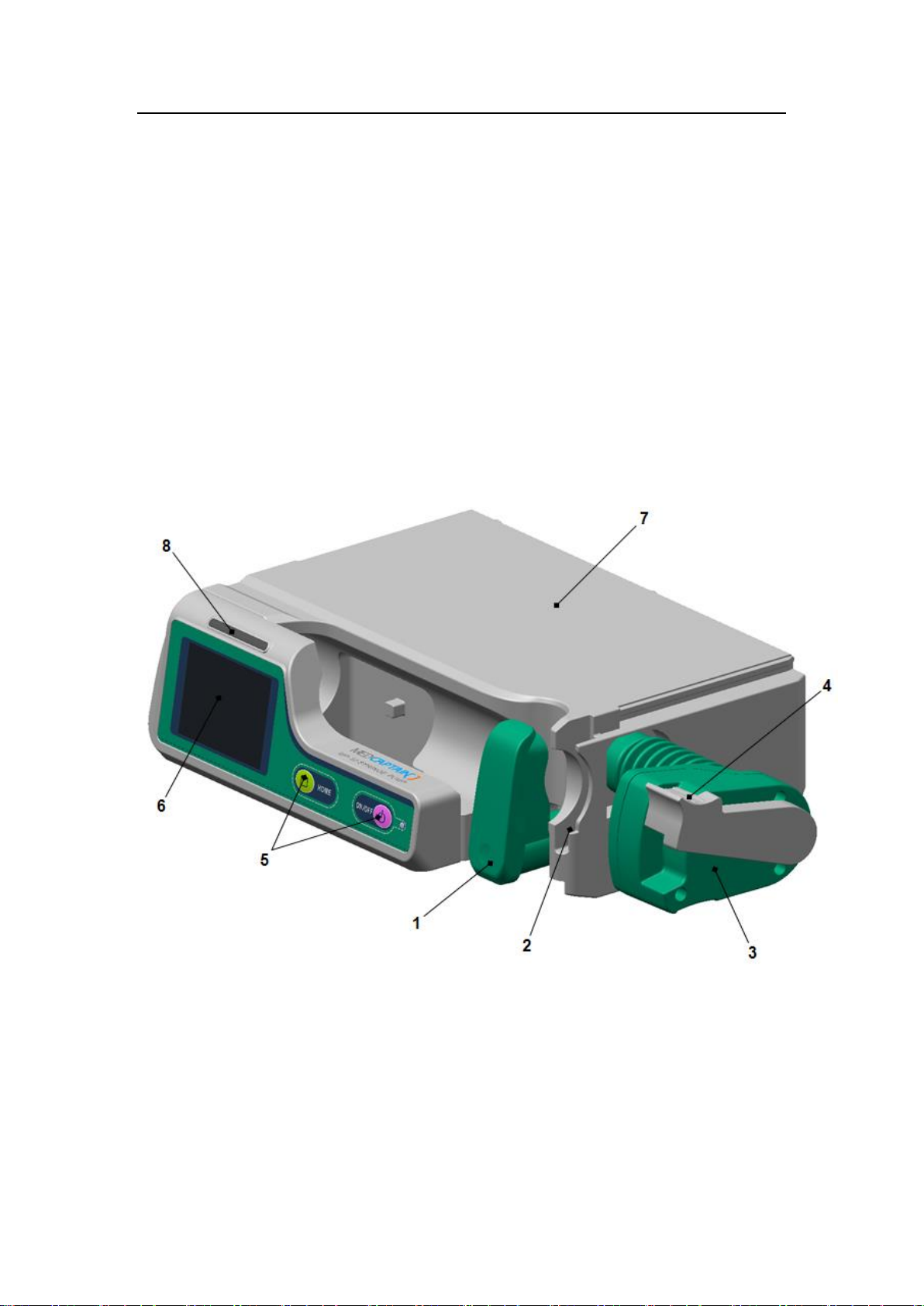

4.2 COMPOSITION OF SYRINGE PUMP ...................................................................10
4.3 HANDLE .......................................................................................................11

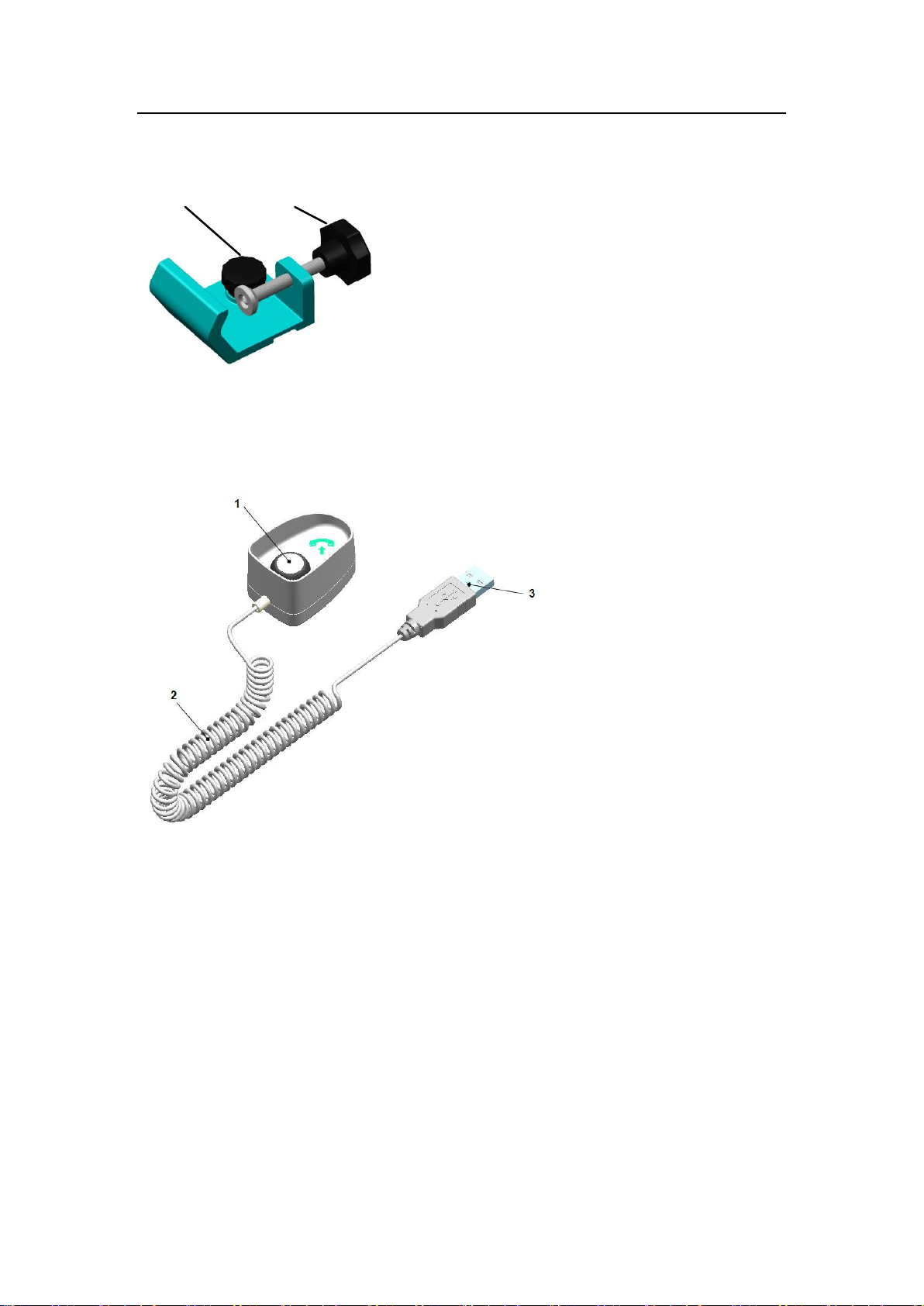

4.4 POLE CLAMP ................................................................................................12
4.5 NURSE PAGER ..............................................................................................12
4.6 ACCESSORIES ACCOMPANIED .........................................................................12
4.7 OPTIONAL ACCESSORIES ...............................................................................13
5 PREPARATIONS FOR USE ....................................................................... 14
6 OPERATING INSTRUCTIONS ................................................................... 15

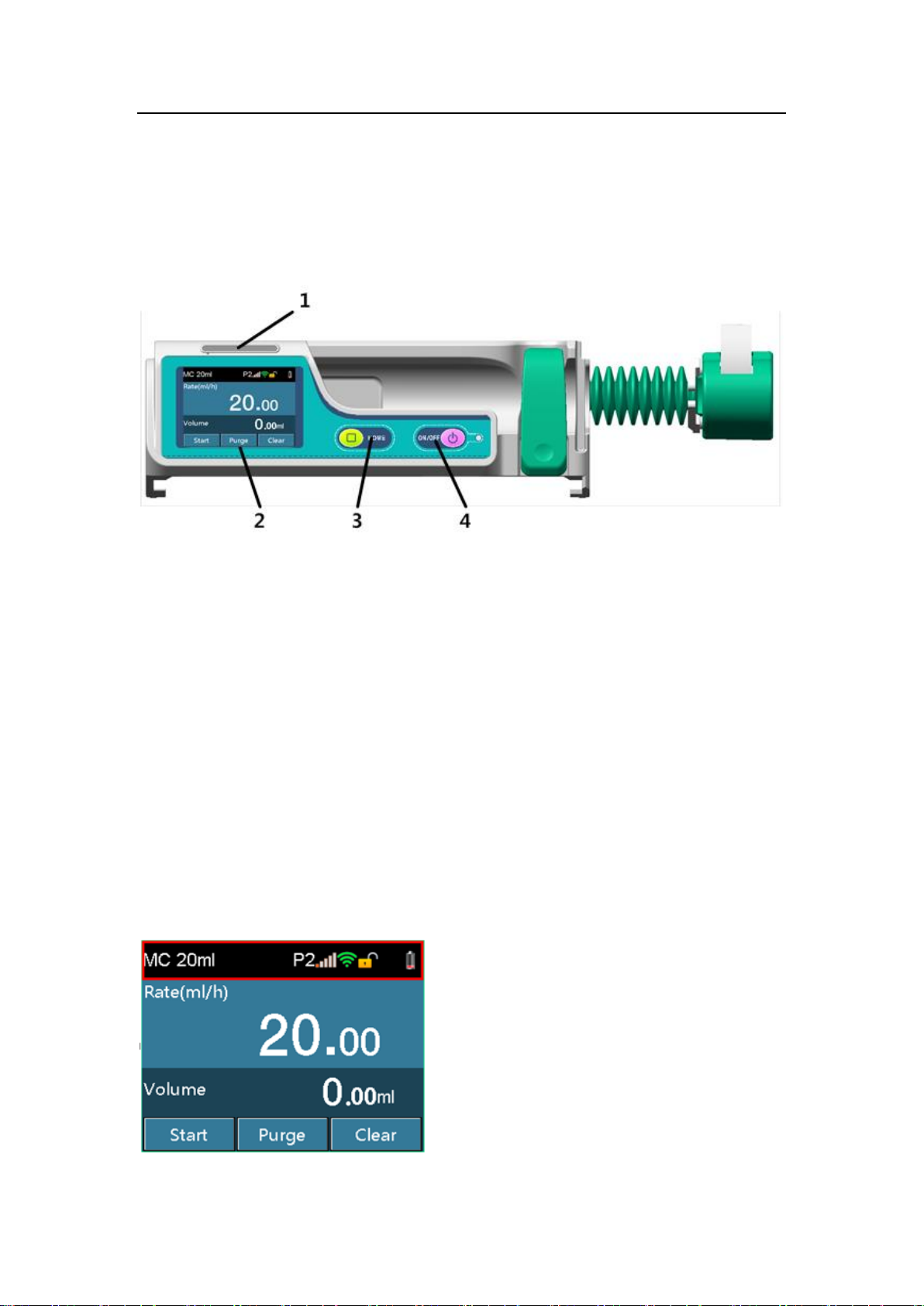

6.1 DISPLAY AND KEYS ........................................................................................15
6.2 TURNING THE POWER ON ...............................................................................17

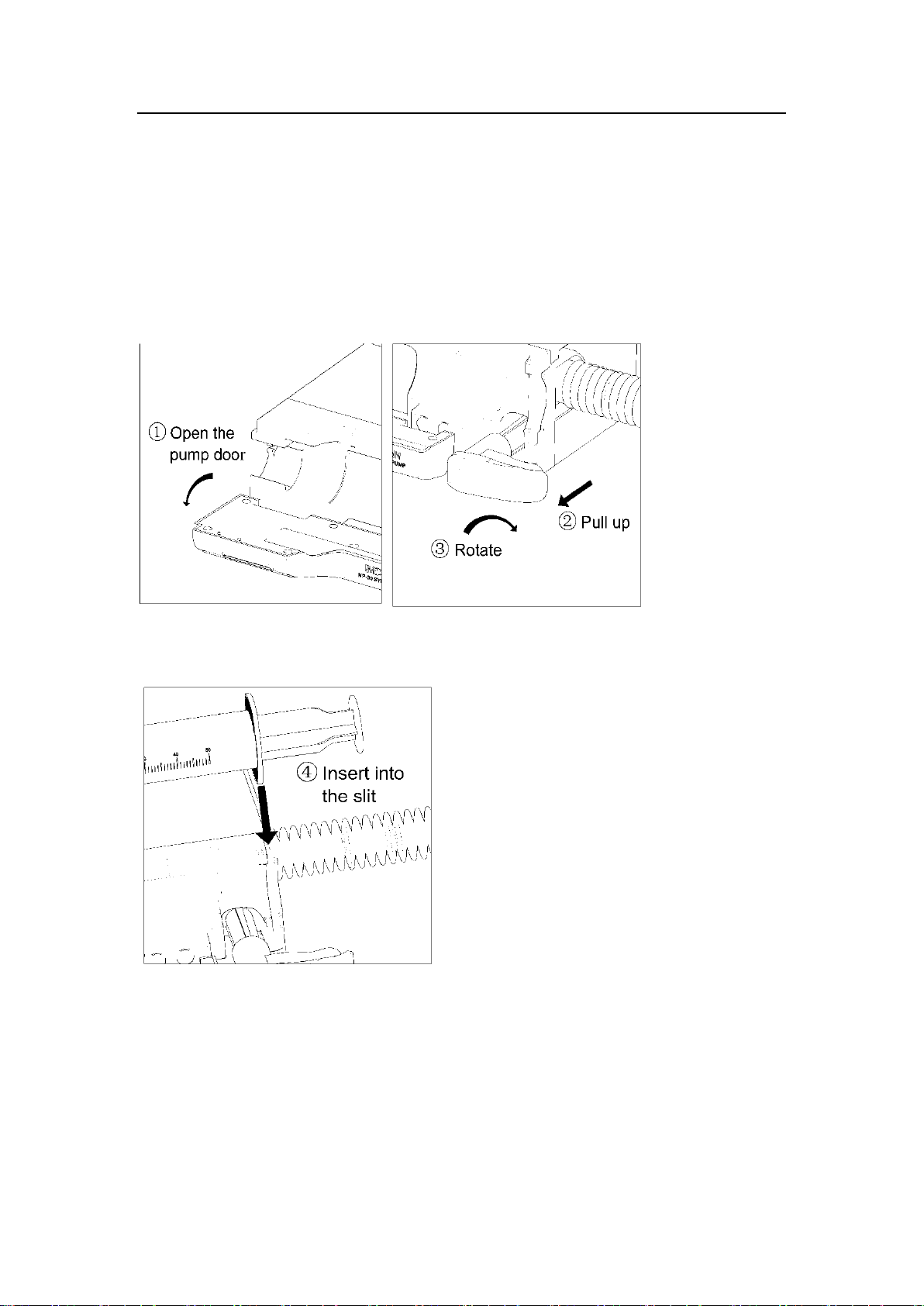

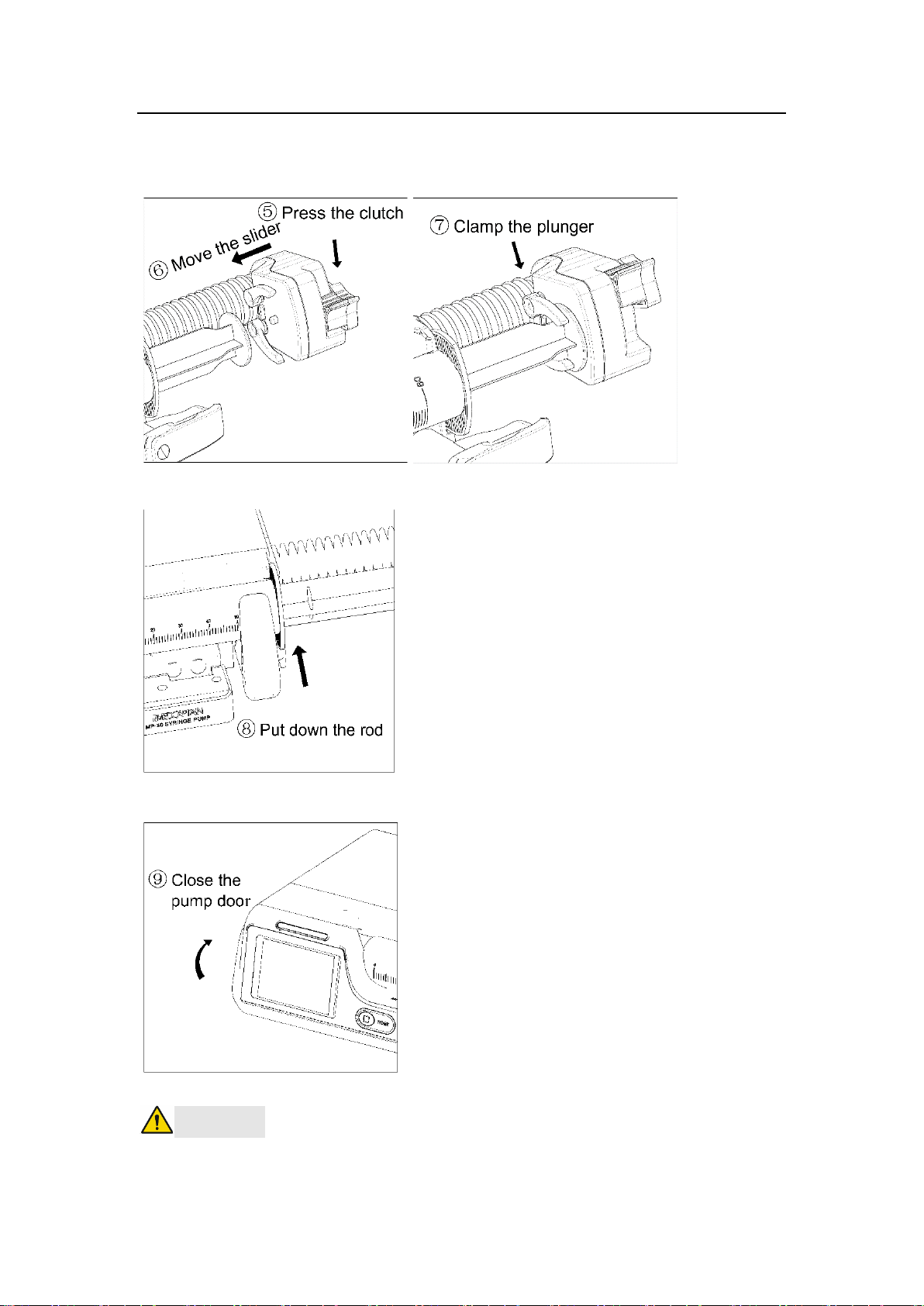

6.3 SYRINGE INSTALLATION .................................................................................18

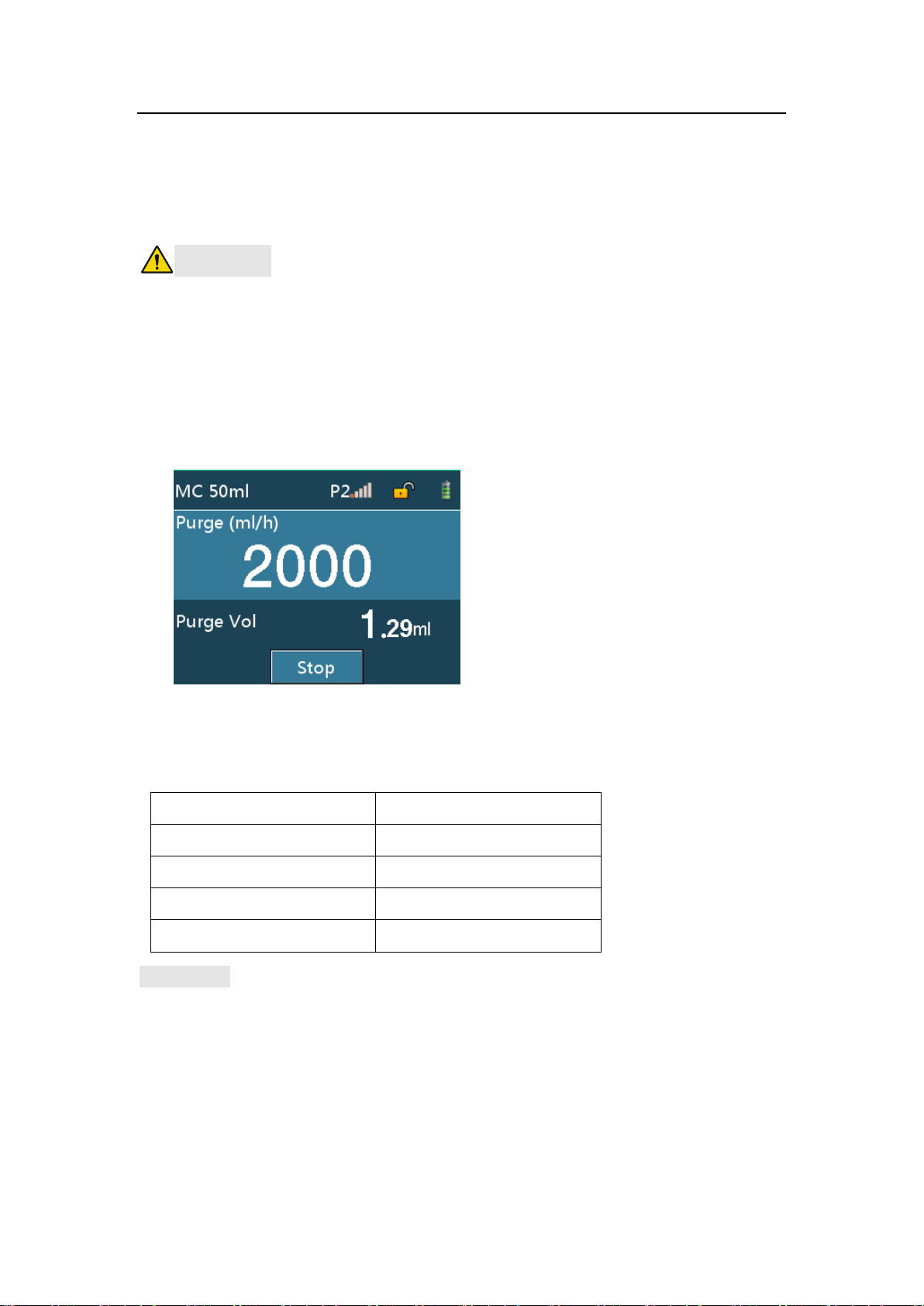

6.4 PURGING ......................................................................................................20

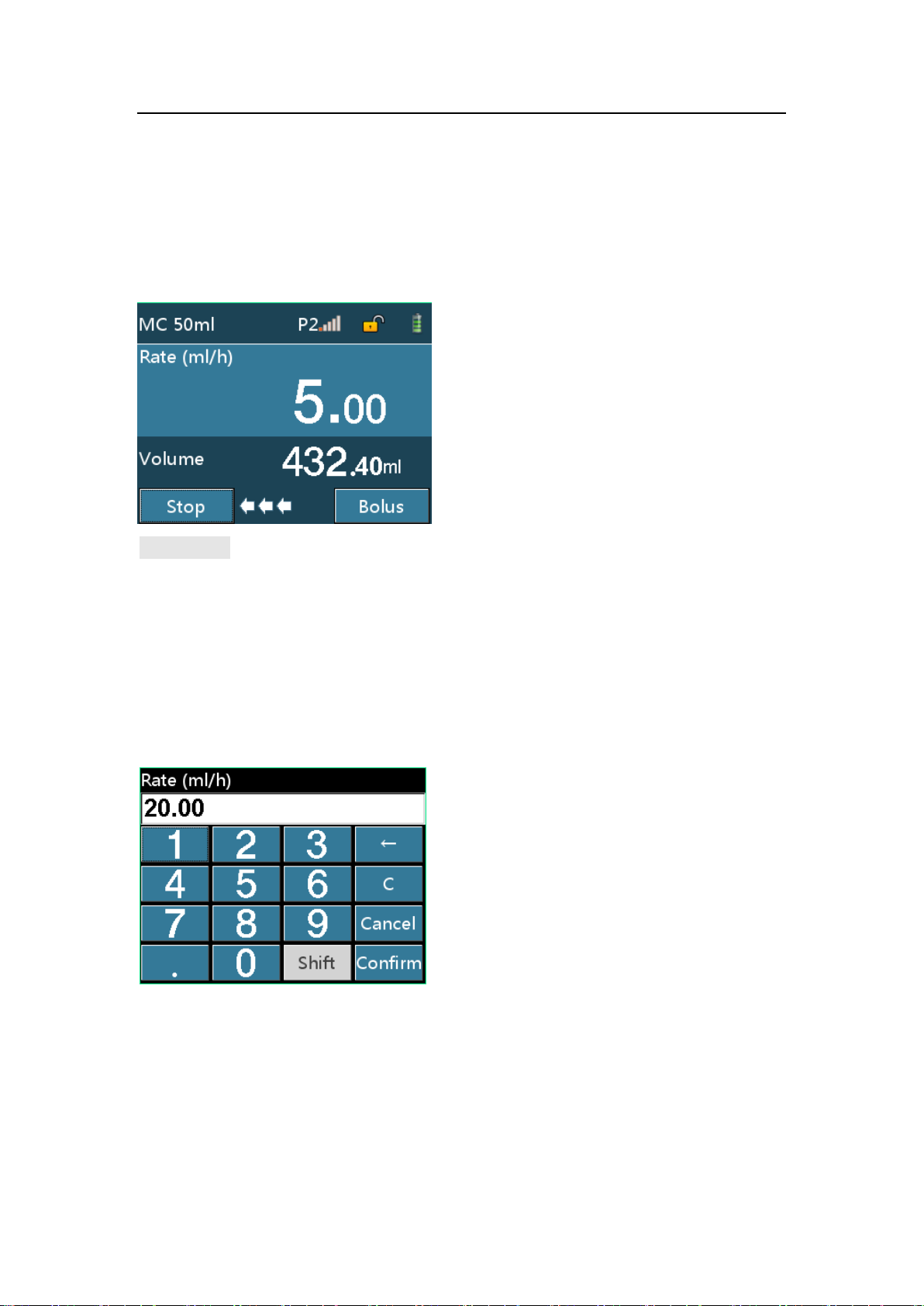

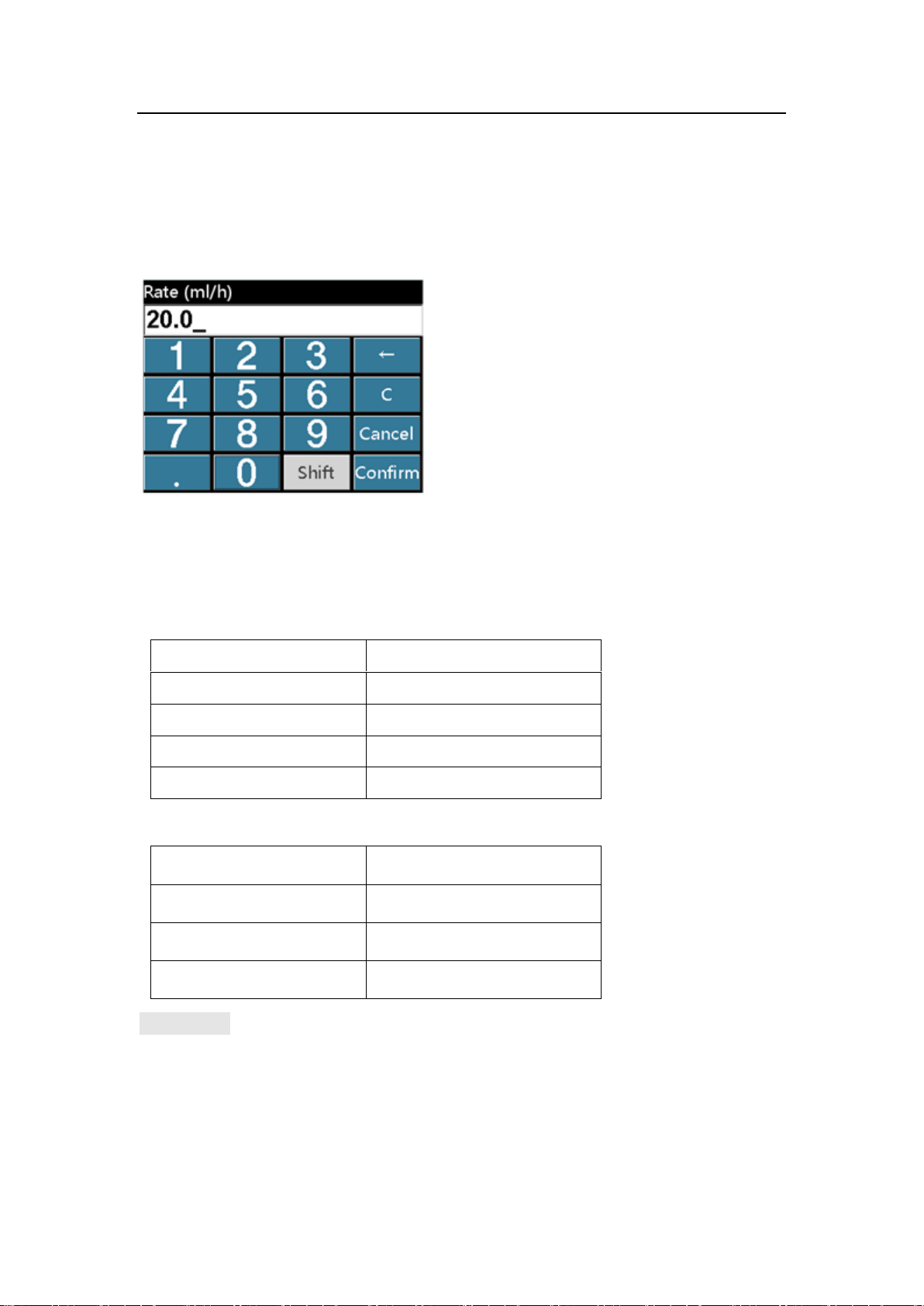

6.5 SETTING THE INFUSION RATE ..........................................................................21
Contents
6.6 PUNCTURE ...................................................................................................22
6.7 STARTING INFUSION ......................................................................................22
6.8 CHANGE RATE DURING INFUSION ....................................................................22

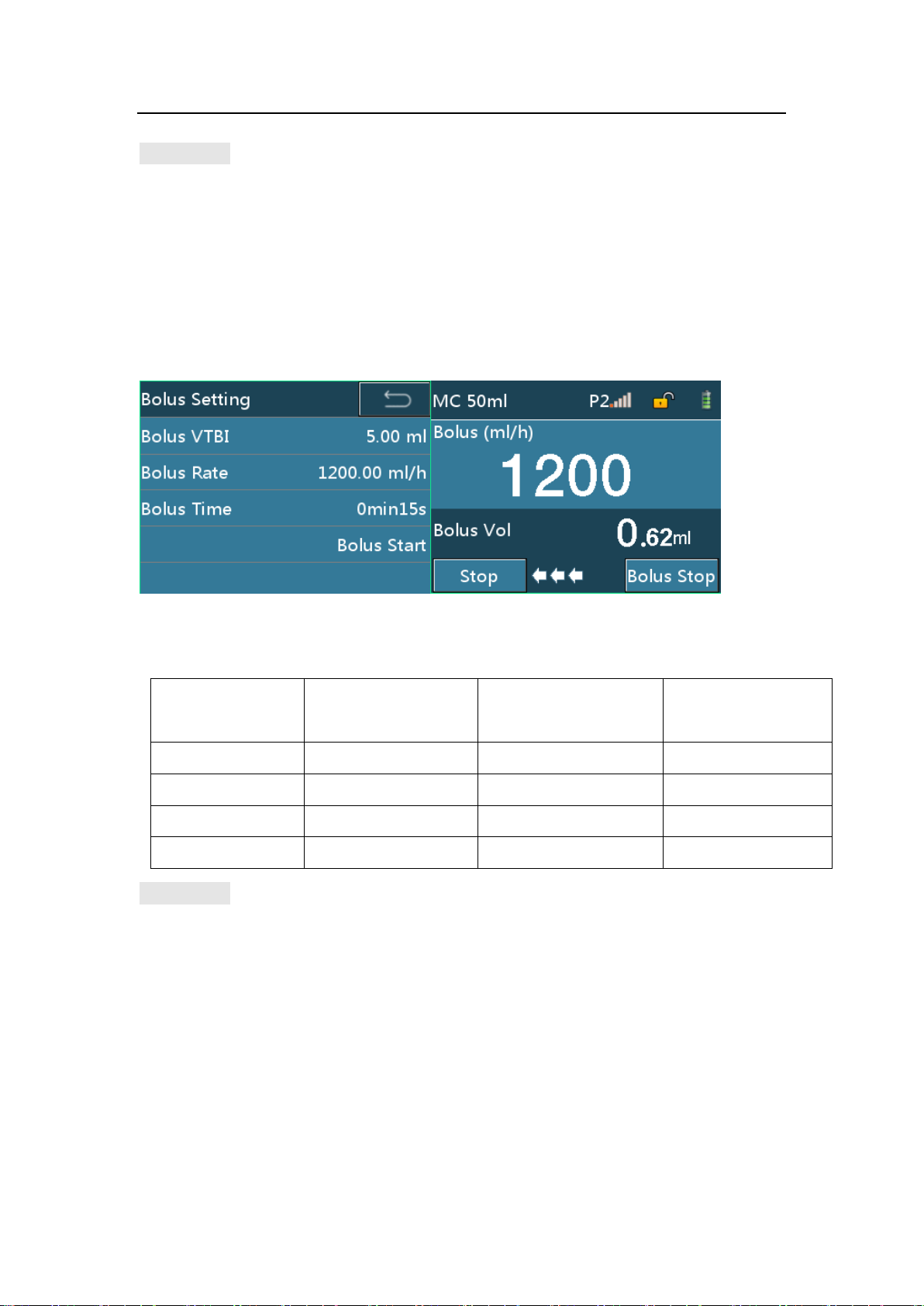

6.9 BOLUS .........................................................................................................23
6.10 STOPPING INFUSION ......................................................................................23
6.11 REPLACING SYRINGE .....................................................................................23

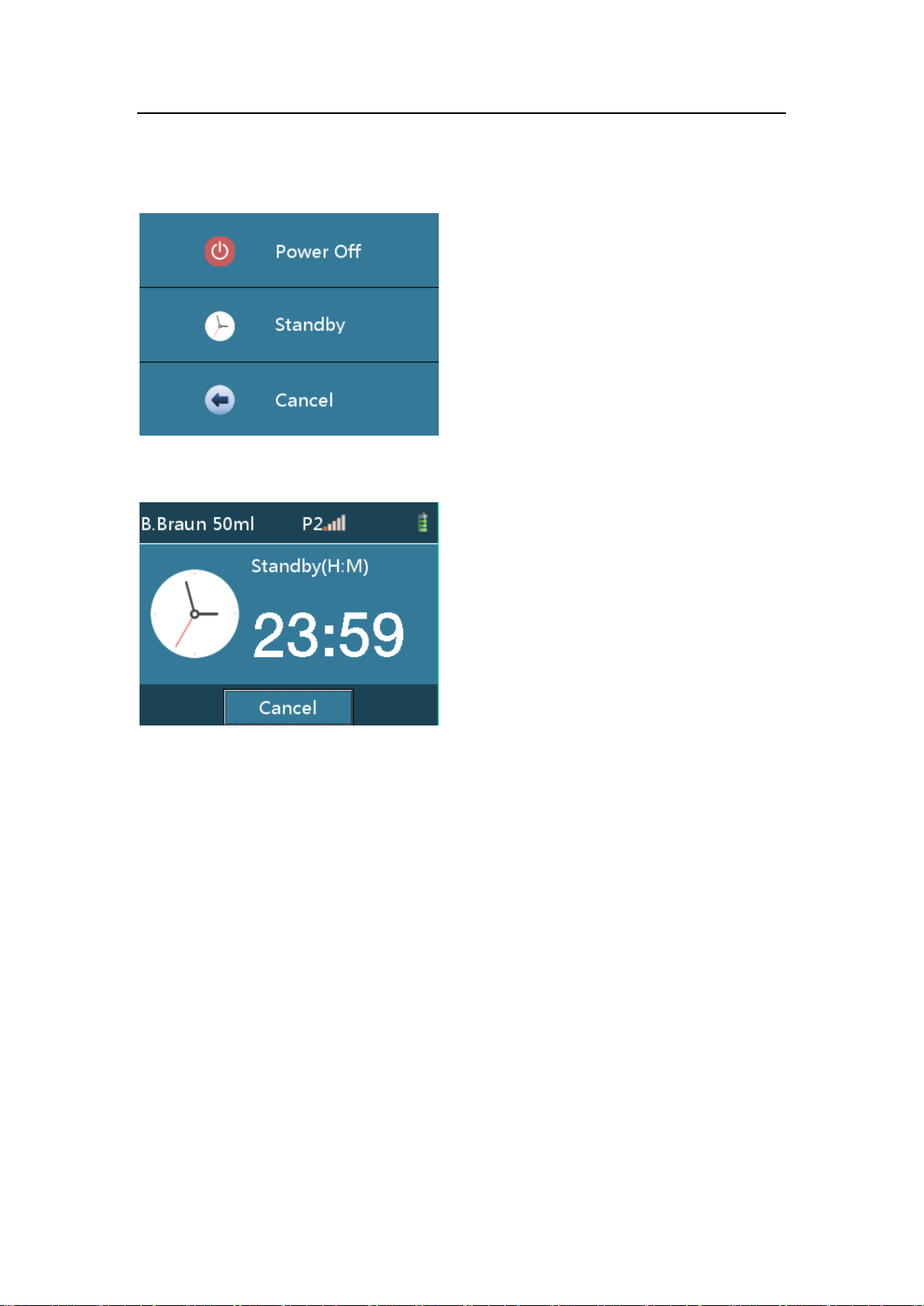

6.12 TURNING THE POWER OFF .............................................................................24
7 SETTING THE SYRINGE PUMP ................................................................ 25
7.1 INFUSION SETTING .........................................................................................25

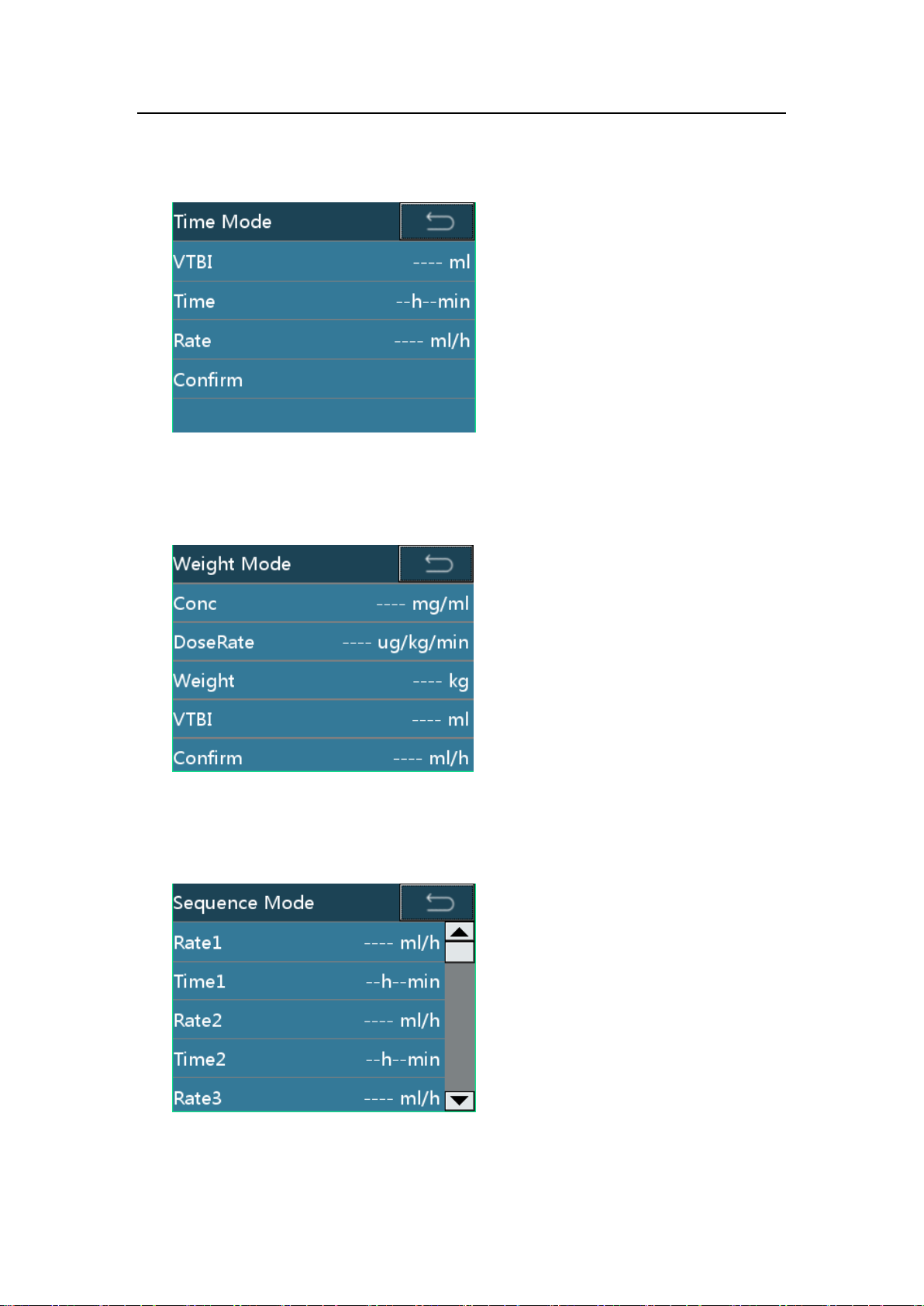

7.1.1 Infusion Mode .............................................................................................. 25
7.1.2 Occlusion Level ........................................................................................... 27
7.1.3 KVO ............................................................................................................. 27
7.1.4 Brand ............................................................................................................ 27

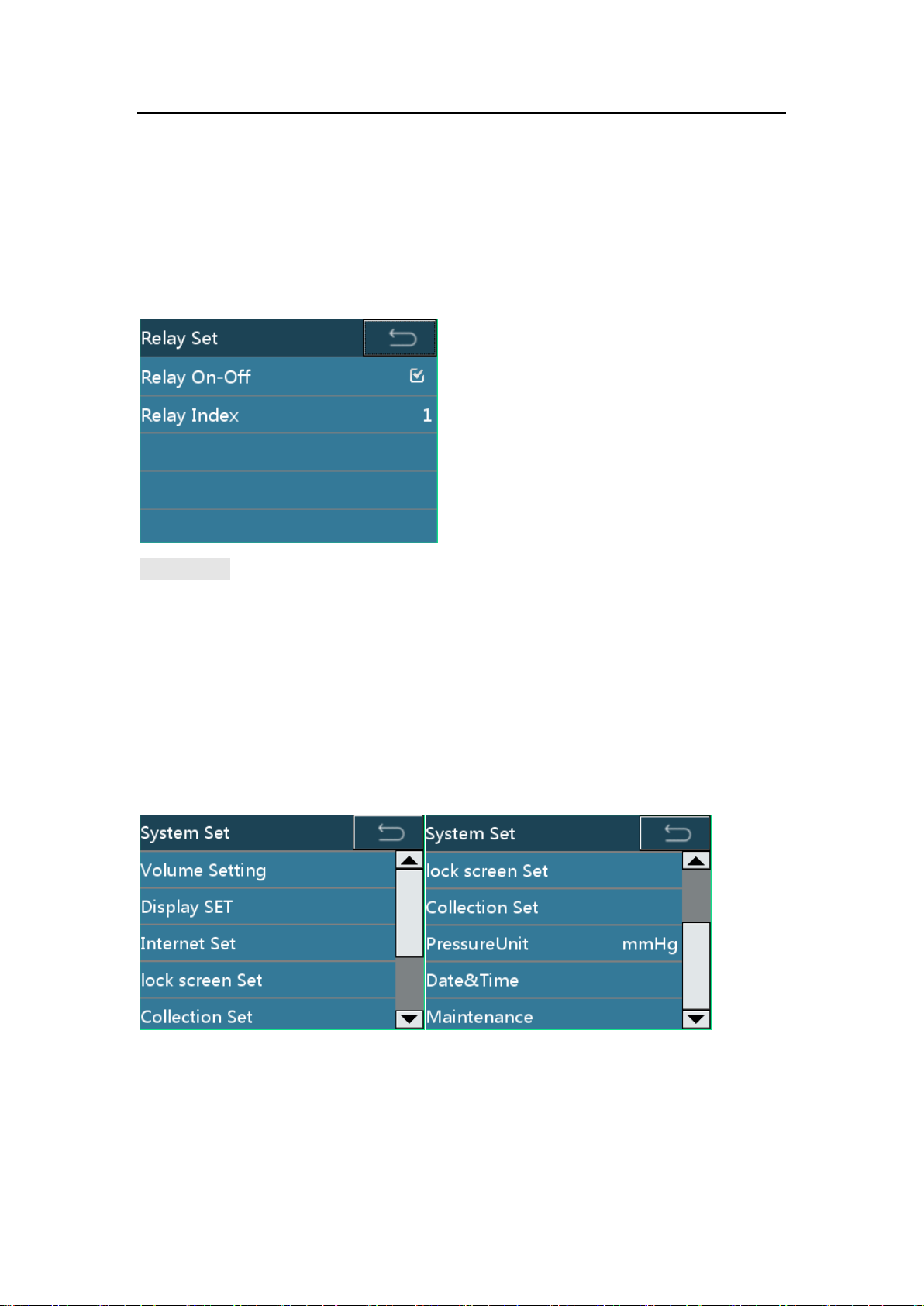

7.1.5 Relay Set ...................................................................................................... 28
7.1.6 NearFinished ................................................................................................ 28
7.2 SYSTEM SET .................................................................................................28
7.2.1 Volume Set................................................................................................... 29

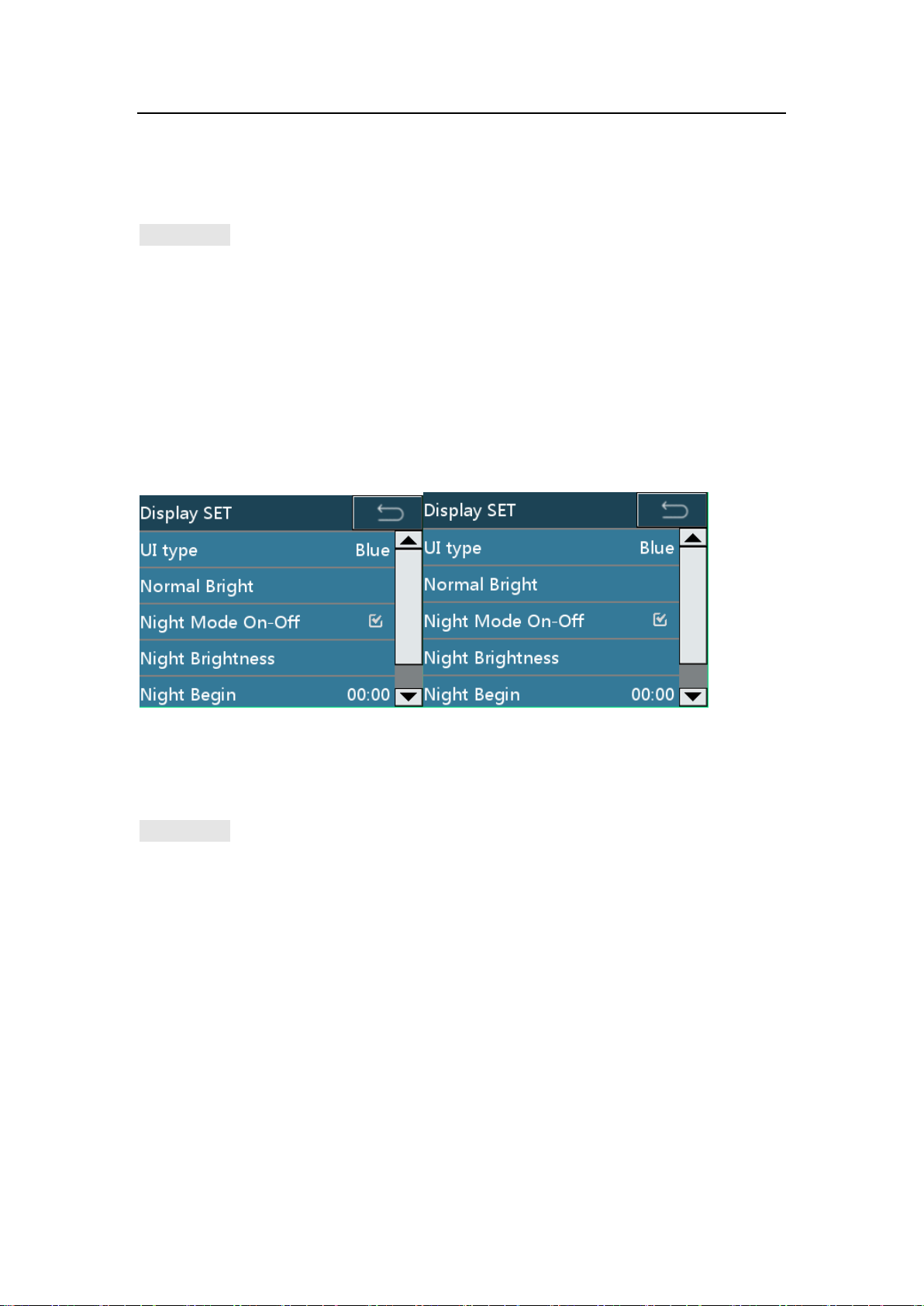

7.2.2 Display Set ................................................................................................... 29

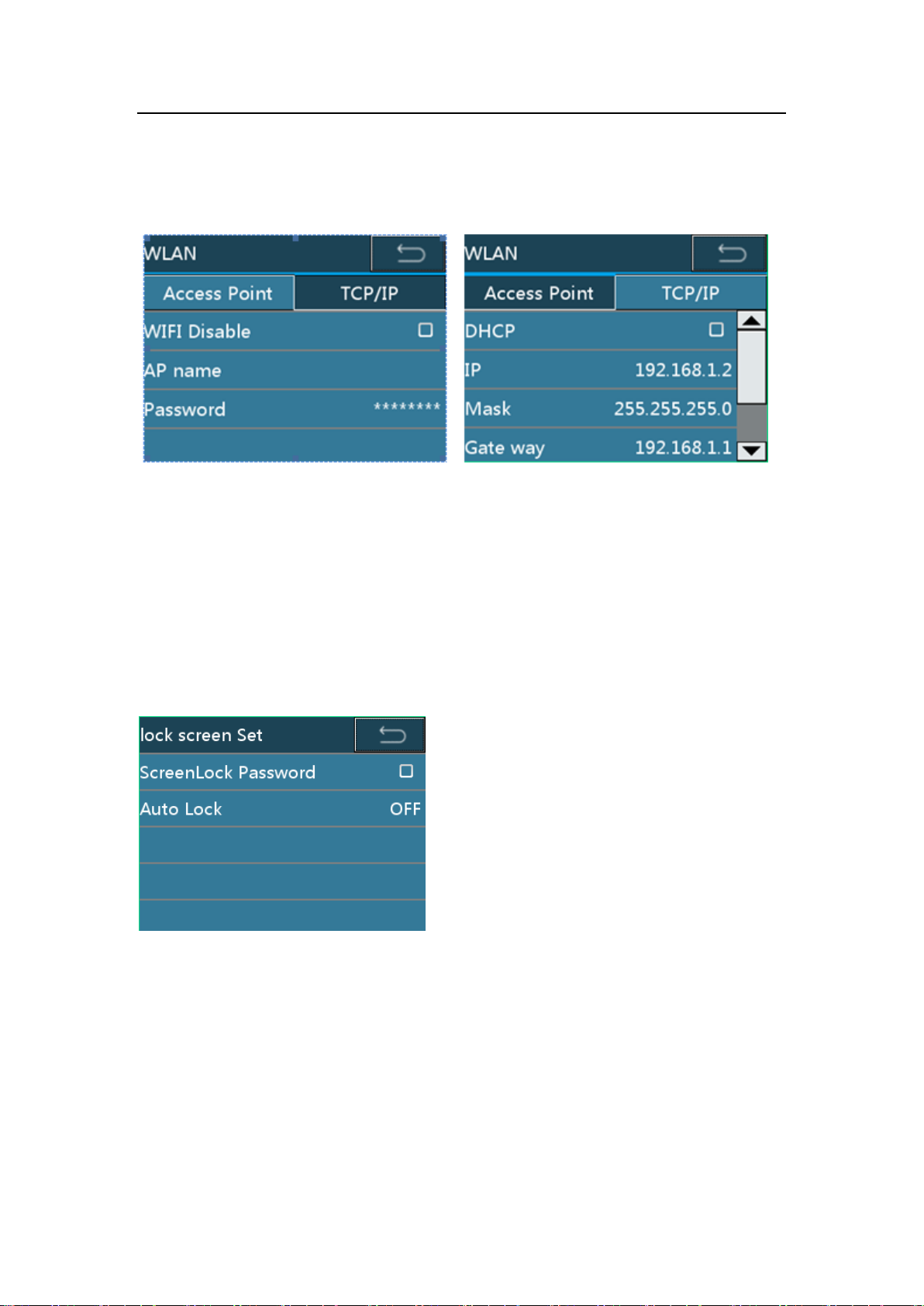

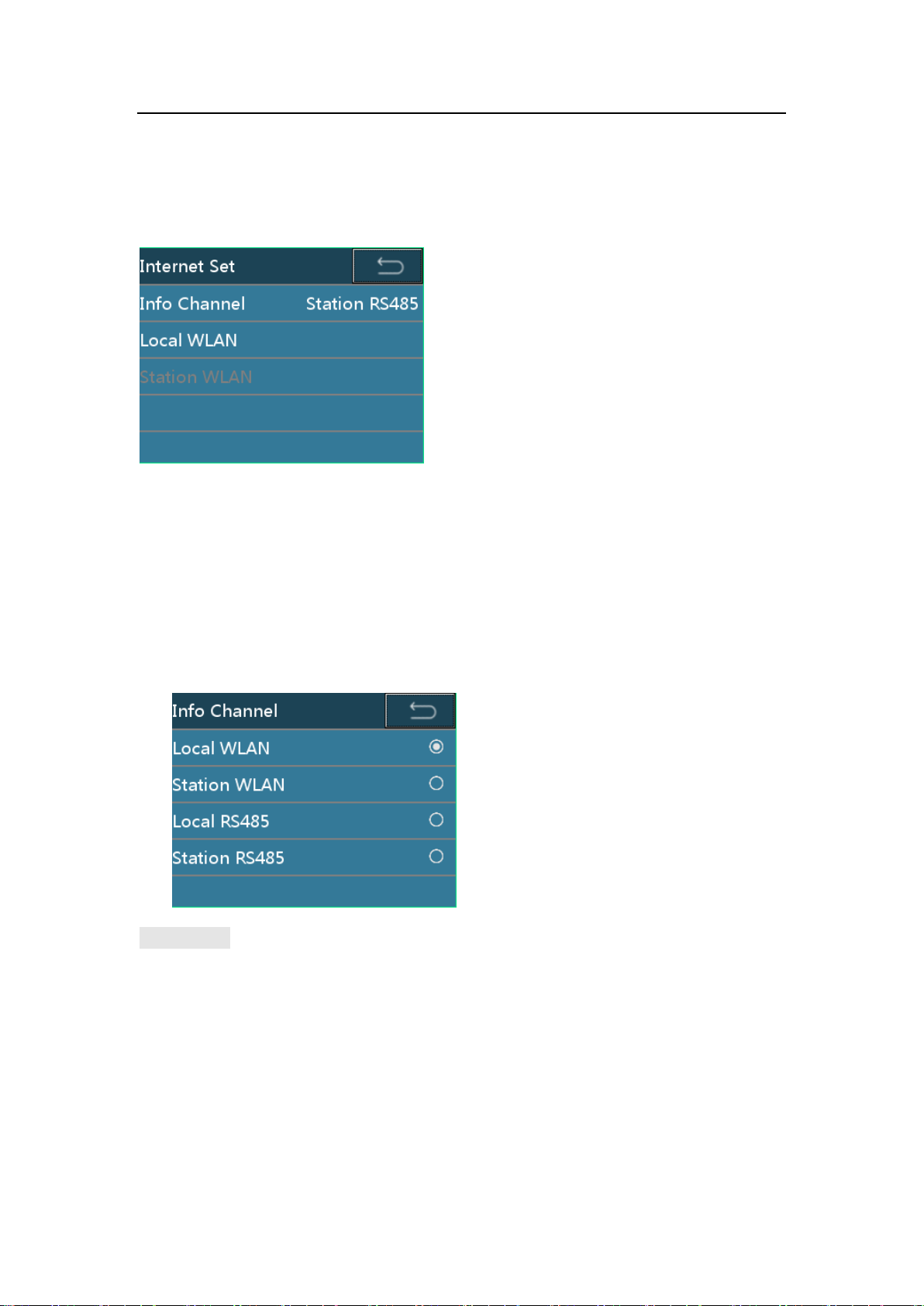

7.2.3 Internet Set ................................................................................................... 30
7.2.4 Lock screen Set ............................................................................................ 31

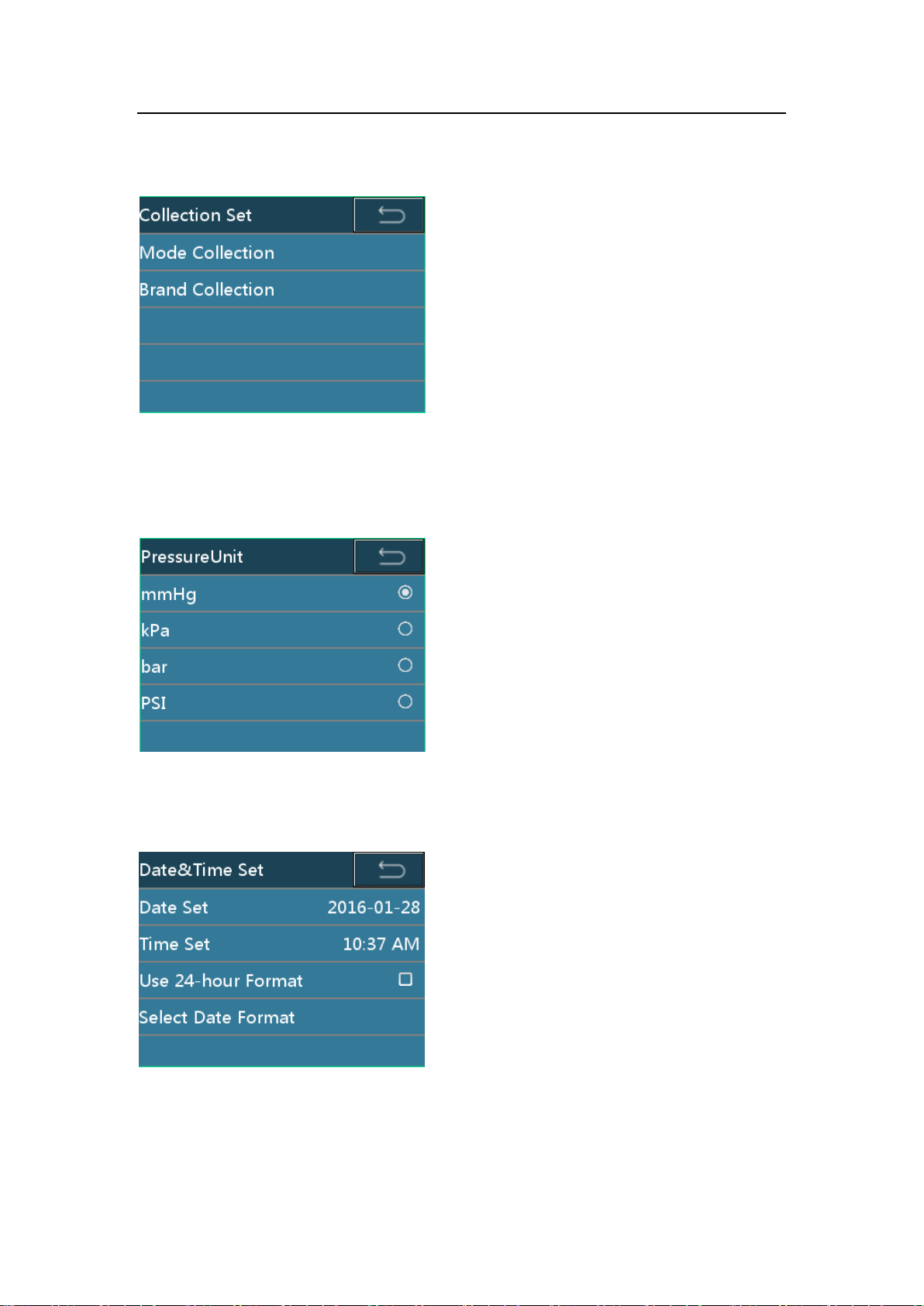

7.2.5 Collection Set ............................................................................................... 31
7.2.6 PressureUnit ................................................................................................. 32
7.2.7 Date&Time set ............................................................................................. 32
7.2.8 Maintenance ................................................................................................. 32
7.3 HISTORY ......................................................................................................33
7.4 PATIENT FILE ................................................................................................34
7.5 USE INTERNAL BATTERY ................................................................................34
Contents
7.6 CONNECTING TO THE <INFUSION CENTRAL MONITORING
SYSTEM>(OPTIONAL) ...............................................................................................36
7.7 NURSE PAGER (OPTIONAL) .............................................................................36
7.8 VOICE COMMUNICATION(OPTIONAL) ................................................................36
7.9 CONNECTING A BARCODE SCANNER (OPTIONAL) ..............................................36
7.10 USER-SPECIFIC REQUIREMENTS (OPTIONAL) ...................................................36
7.10.1 Maximum Flow rate ..................................................................................... 36
8 TROUBLESHOOTING ................................................................................ 37
8.1 ALARM .........................................................................................................37
8.2 FAULTS AND TROUBLESHOOTING ....................................................................38
8.3 TROUBLES AND TROUBLE SHOOTING ...............................................................39
9 MAINTENANCE ......................................................................................... 40
9.1 CLEANING, DISINFECTING ..............................................................................40
9.2 PERIODIC MAINTENANCE ...............................................................................40
9.2.1 Check the Appearance ................................................................................. 40
9.2.2 Check the Power Cable ................................................................................ 41
9.2.3 Check the infusion rate ................................................................................ 41
9.2.4 Alarms .......................................................................................................... 41
9.2.5 Electric and mechanical safety..................................................................... 41
9.2.6 Checking the Internal Battery ...................................................................... 41
9.2.7 Replacing the Battery ................................................................................... 42
9.3 MAINTENANCE ..............................................................................................43
9.4 STORAGE .....................................................................................................43
9.5 TRANSPORTATION .........................................................................................43
Contents
9.6 ENVIRONMENTAL PROTECTION AND RECOVERY ...............................................43

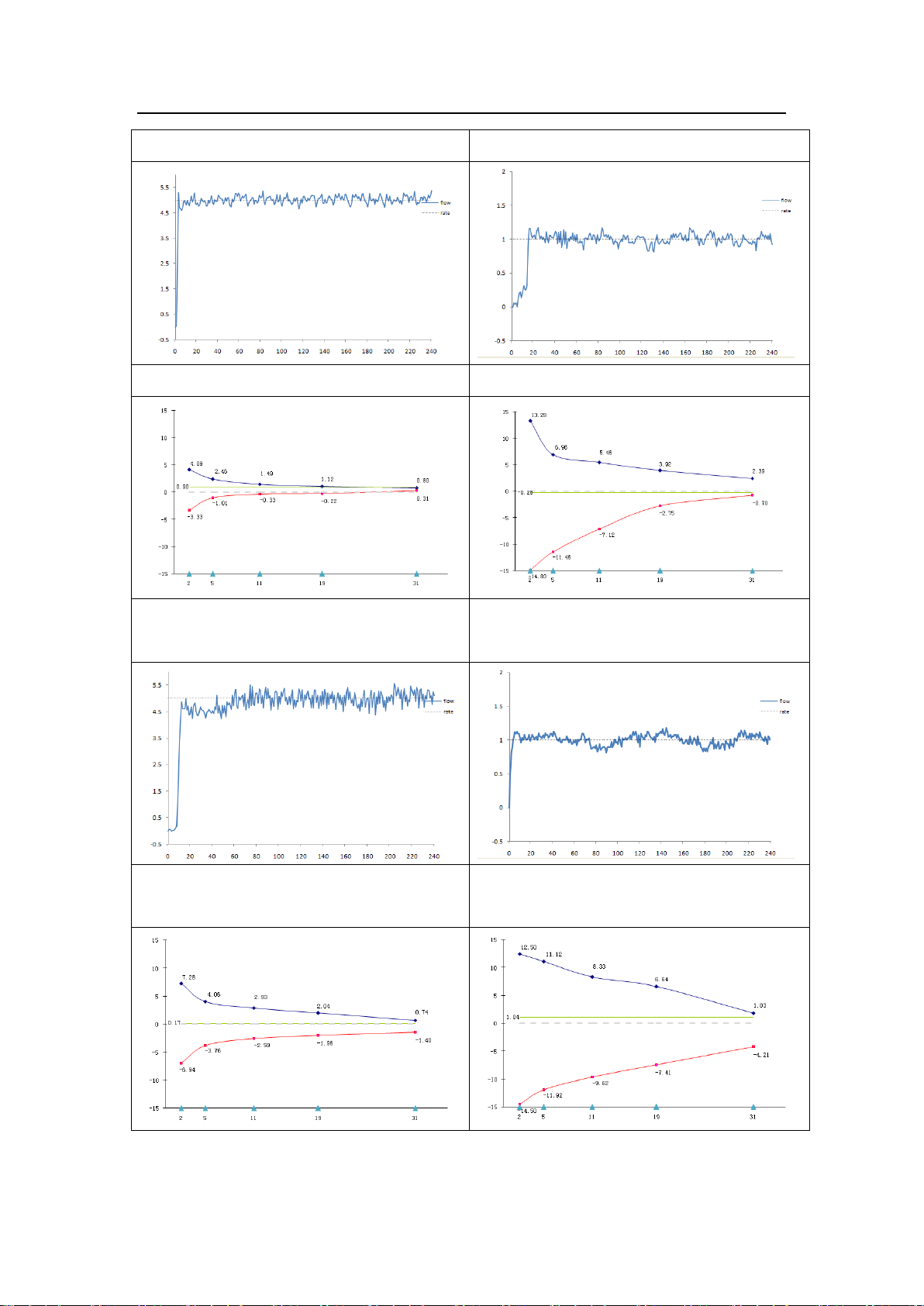

10 FLOW RATE CHARACTERISTICS ............................................................. 44
10.1 FLOW RATE CHARACTERISTICS ......................................................................44
10.2 OCCLUSION CHARACTERISTICS ......................................................................46
APPENDIX A ELECTRON MAGNETIC COMPATIBILITY (EMC) ........................... 47
APPENDIX B THE DEFAULT FACTORY SETTINGS ............................................ 53
APPENDIX CTOXIC AND HAZARDOUS SUBSTANCES OR ELEMENTS ............ 54
Overview
1 OverView
1.1 Purpose
This product is intended for hospitals to infuse at constant speed liquid or liquid
medicine through the veins of patients.
1.2 Contraindication
None.
1.3 Product Features
MEDCAPTAIN MP-30 is a micro-continuous syringe pump. It ensures constant
infusion speed and accurate dosing volume during longtime infusion.
This syringe pump is used for continuous and micro-volume infusion of liquid or liquid medicine of little volume and high concentration, for example, infusion of chemotherapeutic agents, cardiovascular drugs, antineoplastic, oxytocic, anticoagulant, anesthetic agents, etc.
All current disposable syringes conform to the standard are supportable. Automatically recognize disposable syringes of 10mL, 20mL, 30mL, and 50/60ml. Providing three occlusion levels and displaying pressure status of the tube. Having large speed range (up to 2000mL/h for 50/60ml syringe). Calibration functions for infusion accuracy. Safety design by monitoring infusion status of syringe. Multiple infusion modes. Configure with multi-channel infusion workstation, realizing relay infusion function. WIFI function, can be connected to the central station by intravenous infusion. Nurse call function. Voice Communication function. Touchscreen, providing quick and convenient man-machine interface. Display night mode, reducing light interference to patients and environment. Connection to barcode scanner function. Three types of power supply: AC power supply, DC power supply, and internal lithium
battery are available. The lithium battery can power the syringe pump for no less than
6 hours (at5ml/h rate).
Double CPU, and redundancy design for key units.
1 / 54
Overview
Two-way alarm for monitoring the main control circuit and motor drive circuit Independent motor driving CPU and motor subdivided drive chip design. Setting and automatic prompt of maintenance interval. Modular installation design enables multi-channel pumps among pumps.
Note: Handle, pole clamp, barcode scanner, WIFI communication module, voice communication, nurse call and relay infusion function are optional, depending on the user’s need.
2 / 54
Precautions For Use
2 Precautions for Use
In this manual, precautions are classified into warning and caution according to their importance. The meanings are as follows:
WARNING:
The information is about safety and efficiency. Operation against the precautions may cause injuries.
CAUTION:
The information is about guiding suggestions. Operation against the precautions may affect normal use of the product. Read carefully the warnings and cautions in this manual.
WARNING:
The syringe pump must be operated by clinical professionals. Prior to use, please check the status of the pump, power cord and other related
accessories to ensure the device could be used normally and safely.
The syringe pump does not support air-in-line detection. Always purge air from the
system before each use.
Pay extra attention to kinks of the infusion line when it is used for low-infusion. The
smaller the set infusion rate becomes, the longer it takes from the occurrence of
occlusion to its detection, which may suspend the infusion for a long time.
To avoid the risk of fire or explosion, do not use the syringe pump in a flammable or
oxygenated environment.
The altitude difference between the pump and heart position of the patient should not
be larger than 100cm. Smaller difference of the altitude will increase the accuracy of
the pressure sensor’s result.
In the event of tube twisting, filter condensation or intubation occlusion during infusion,
the internal pressure of the infusion tube will increase. Once the causes for occlusion
are removed, too much infusion liquid may be infused into the patient. Therefore,
proper actions should be taken. For example, clamp the infusion tube before
removing the occlusion causes, because the sliding syringe tube is loose.
It is recommended that you use the syringes specified by the manufacturer only. If a syringe of other brands is used or the syringe parameters are not defined
correctly, the infusion accuracy may be affected.
Only the syringe, tube, syringe needle and other medical parts complying with the
3 / 54
Precautions For Use
local regulations can be used on the syringe pump. Contact your local distributor for
more information.
Operating the syringe pump against the requirements, procedures, warnings and
cautions provided in this manual may cause infusion failure, inadequate or over
dosing, or other potential risks.
There should be a regular monitoring by clinical professionals when using the device. The power cord or other affiliated lines should be kept properly to avoid any risk of
twining on patient or electronical disturbance.
Electric equipment like high-frequency electric scalpel and mobile phone may have
electromagnetic interference on the syringe pump.
To avoid the risk of electric shock, this equipment must only be connected to a supply
mains with protective earth.
If the pump and its related accessories are reaching over the life time, they must be
crapped and disposed in accordance with the local laws or hospital
ordinances.Please contact your local representative for further details.
Do not modify this equipment without authorization of the manufacturer. When operating the pump or checking the pump's alarm system, the operator shall
be in front of the device, no farther than 1 meter.
There is no patient circuit in this device. The output of the equipment is not
allowed to be accessible to patient.
The operator shall not touch MP-30 and the patient simultaneously.
CAUTION:
The infusion set is treated as the applied part of the pump. Check the setting values on the prescription and the syringe. Infusion can start only
when the values are equal.
Ensure that the syringe pump has been fixed tightly on the stand and the stand is
stable.
Prevent the pump from collision, dropping mechanical vibration or other impact of
external forces to avoid damage on the pump.
Before pressing the [START/STOP] key, check if the infusion speed is correct,
especially the position of the decimal point.
Do not operate on the display with sharp objects. Otherwise, the display may be
damaged.
Occlusion alarm may occur when high-viscosity liquid is infused at high speed
4 / 54
Precautions For Use
through a thin intravenous needle. Increase the occlusion level or decrease the
infusion speed.
Syringe pump should be placed without the reach of patients and other irrelevant
personnel.
Avoid direct sunlight, high temperature and high humidity. Do not disinfect the syringe pump by using the high-pressure steam sterilization
method.
Before internal battery operation, check the battery to ensure that sufficient power is
available. Recharge, if required.
Ensure that the syringe pump always has a battery installed during operation.
Otherwise, the system may stop without issuing an alarm when external power is
interruption due to power failure or a short circuit, causing an unsafe condition.
If the syringe pump cannot work as described in this manual for unknown reasons,
stop it and report the details (including syringe, infusion flow, serial number of syringe
pump, and type of infusion liquid) to your local distributor or our customer service
department.
Do not disassemble or reconstruct the syringe pump. Liquid intrusion into the AC power socket, USB or nurse call socket may cause
short-circuiting. While connecting the power cable, check if the connecting parts are
dry. If liquid spills on the syringe pump, clean the pump with a dry cloth. Use after the
service engineer checking.
The maximum temperature at the applied part of the pump may reach 42.2, when
running continuously under the highest environment temperate at the highest infusion
rate.
The highest pressure at the end of the infusion tube will be no higher than
3000mmHg under the condition of occlusion.
The delay time between the onset of the alarm condition and the representation of the
alarm is no longer than 150ms.
5 / 54
Precautions For Use

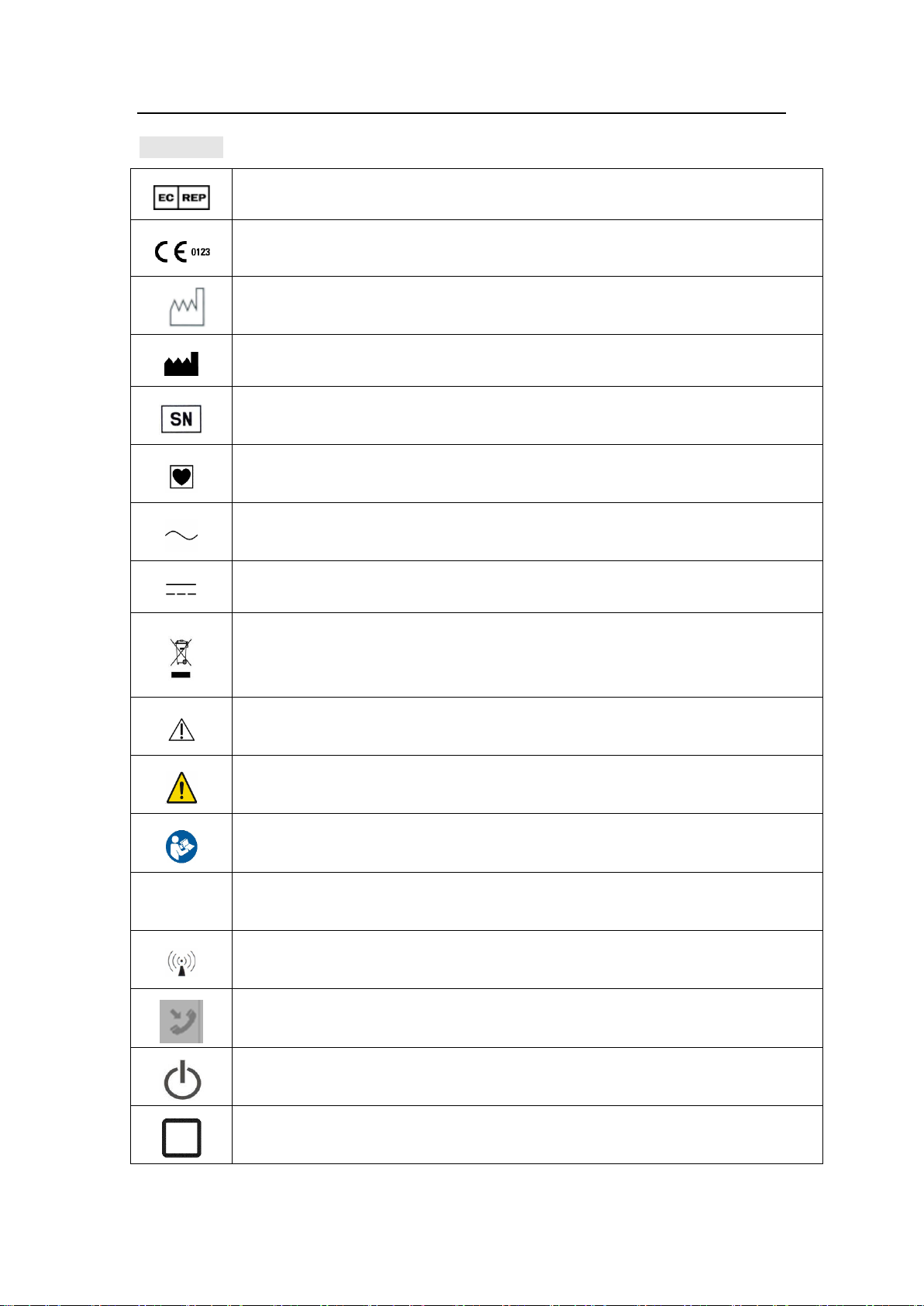

Authorized Representative in the European Community
CE Mark: conforms to essential requirements of the Medical Device Directive 93/42/EEC.
Date of manufacture.
Manufacturer
Specifies serial number
TYPE CF APPLIED PART
Alternating current
Direct current
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
CAUTION! Read the accompanying document.
General warning sign
Refer to instruction manual / booklet
IPX2
Level of protection from liquid intrusion
Interference may occur near the devices with below sign.
Nurse pager
ON/OFF
HOME
Symbols:
6 / 54
Product Specifications
Product name
Syringe pump
Model
MP-30
Power supply
AC power supply: AC 100-240V,50/60 Hz, power consumption less than 45 VA External DC power supply: DC 12 V 1A Internal battery: lithium battery 11.1 V 1500 mAh Battery model: 154457 Time of continuous use: no less than 6 hours (for infusion at 5 mL/h with a new battery)
Fuse
T1.6AL 250VAC
Compatible syringes
All syringes of 10ml,20ml,30ml,50/60ml conform to the standard
Infusion mode
Rate,Time,Weight, Sequence, Relay mode
Infusion setting range
0.1-300.0ml/h(10ml syringe)
0.1-600.0ml/h(20ml syringe)
0.1-900.0ml/h(30ml syringe)
0.1-2000.0ml/h(50/60ml syringe) See the least increment in chart 6-3
VTBI setting range
0.1 - 99.99ml(Least increment 0.01) 100 - 999.9ml(Least increment 0.1) 1000 – 9999ml(Least increment 1)
Total volume display
0-99999.99ml
Accuracy
Mechanical accuracy: ±1% Accuracy including syringe: ±2%
KVO rate
0.1~5ml/h
Occlusion level
300mmHg~900mmHg3levels are available
Purge operation
300.0ml/h(10ml syringe)
600.0ml/h(20ml syringe)
900.0ml/h(30ml syringe)
2000.0ml/h(50/60ml syringe)
3 Product Specifications
7 / 54
Product Specifications
Bolus operation
0.1-300.0ml/h(10ml syringe)
0.1-600.0ml/h(20ml syringe)
0.1-900.0ml/h(30ml syringe)
0.1-2000.0ml/h(50/60ml syringe) Automatically calculate the bolus rate by bolus amount, cannot lower than the current rate.
Alarm
Near Finished, Finished, Syringe Empty, Near empty, OCCL, Low Battery, Battery Empty, No Battery, No Power Supply, Unknow Syringe, Syringe Install Error, Standby Time Expired, Relay Index Duplicate, Syringe Start Fail, Reminder Alarm
Special function
Repeat alarming: If there is still alarm after mute alarm sound, it will alarm again in 2 minutes Event recording: can store and playback 2000 events maximum Sound volume: 11 levels are available Power supply switching: When AC/DC power supply is cut off ,the infusion automatically switch to internal battery supply Barcode scanning: Input the patient information by barcode canning
WIFI function
Connect infusion workstation, nurse pager, voice communication and syringe information network
Operating conditions
Temperature: 5 to 40 Humidity:15% to 95% RH Pressure altitude: 70.0kPa-106.0kPa
Storage and Shipping conditions
Temperature: -20 to +55 Humidity: 10% to 93% RH Pressure altitude:22.0kPa-107.4kPa
Operation Mode
Continuous operation
Classification
1. Class I / Internally powered equipment;
2. Type CF applied part;
3. IPX2;
4. No sterilization requirement for pump
5. Not category AP / APG equipment;
6. Mode of operation: continuous
Dimensions
244(W) ×74(H) ×164(D)mm
Weight
About 1.2 kg (including battery)
Service Life
10 years
Main safety standards
IEC60601-1 Medical electrical equipment-Part 1: General
8 / 54
Product Specifications
requirements for basic safety and essential performance IEC60601-2-24 Medical electrical equipment-Part 2-24: Particular requirements for the safety of infusion pumps and controllers IEC60601-1-8 Medical electrical equipment-Part 1-8: General requirements for basic safety and essential performance -­Collateral standard: General requirements, tests and guidance for alarm systems in medical electrical equipment and medical electrical systems IEC60601-1-2 Medical electrical equipment-Part 1-2: General requirements for basic safety - Collateral standard: Electromagnetic compatibility requirements and tests
9 / 54
Product Description
1 - Clamp
2 - Slit
3 –Slider
4 - Clutch
5 –Operation button
6 –Touchscreen
7 –Shell
8 –Alarm indicator
4 Product Description
4.1 Principle of Operation
The MP-30 syringe pump mainly consists of the pump shell, display and operating system, monitoring system, alarm system, motor drive system, drive module, power supply system, WIFI communication module (optional), handle (optional) and pole clamp (optional).
The syringe pump adopts the dual processor structure, controls the motor precisely, drives the peristaltic sheet to infuse through the mechanical drive device, monitors the sensors and infusion process, and provides sound and light alarms.
4.2 Composition of Syringe Pump
10 / 54
Product Description
1 –Protective cover
2 –Battery cover
3 – Slider
4 -Clutch
5 –Threaded hole
6 –Auxiliary alarm
7 –AC power inlet
8 -Multi-function connector
9 –External inlet 1
10 –External inlet 2
11 –External inlet 3
12 –Buzzer
13 –Shell
14 –Syringe clamp
1
3
2
1 –Handle
2 –Slide rail
3 –Tubing management bracket
CAUTION:
The external inlet 1, 2 and 3 could be used to connect three external accessories at
the same time: Drop sensor, scanner and DC power cord. The external inlet 1 and 2
could be used as the interface for the local WLAN.
Do not insert the accessories which are not specified by the manufacturer into the
external inlets.
The person who connects the devices and accessories to each other or who uses the
devices and accessories is responsible and liable for installation and operation that
complies with IEC/EN 60601-1-1 or clause 16 of IEC 60601-1.
Do not install the pump to the position which is not able to connect or disconnect the
AC power cord.
4.3 Handle
11 / 54
Product Description
1
2
1 - Mounting screw
2 - Mounting knob of infusion stand
1 –Button
2 –Cable
3 –Socket
1 –AC power cord 1
2 - Pole clamp 1
3 - Handle 1
4 - Operation manual 1
5 - Quick operation instruction 1
6 -Packing list1
4.4 Pole Clamp
4.5 Nurse Pager
4.6 Accessories accompanied
12 / 54
Product Description
Options
Description
Parts code
Power cable
Standard configuration by factory
7000000005
Lithium battery pack
11.1V@1500mAh
7404000006
Handle
MP-1
9113000002
Nurse pager
MP-2
9113001002
Barcode scanner
MP-4
9005000008
Pole clamp
——
9114002501
4.7 Optional Accessories
Table 4-1 List of Optional Accessories
13 / 54
Preparations For Use
5 Preparations for Use
Before using the syringe pump, read carefully the Operation Manual and precautions
in this manual.
When using the syringe pump for the first time, set up the date and time to ensure
that history can be recorded correctly.
Before using the syringe pump for the first time, set the brand of syringe pump. Before using the syringe pump for the first time, recharge the internal battery fully. If
the syringe pump is off, the battery can be charged fully at least 10 hours after being
connected to an external power supply.
Place the syringe pump on a stable platform. Or use the provided pole clamp to mount the syringe pump on an infusion stand.
Put the syringe pump on the pole clamp while aligning the retaining knob with the
threaded hole, and rotate the handle to fix the syringe pump on the pole clamp.
Clamp the pole clamp on the infusion stand, adjust the syringe pump to an
appropriate position, and tighten the retaining knob for infusion stand on the pole clamp.
Connect external power supply.
Insert the supplied AC power cord into the AC inlet on the right side of the
syringe pump. Plug the cord into an AC power outlet with grounding terminal.
To power the syringe pump with external DC power supply, contact your local
distributor for help.
14 / 54
Operating Instructions
1 –Alarm indicator
2 –TFT touchscreen
3 –Home key
4 –ON/OFF key
6 Operating Instructions
6.1 Display and keys
Display
The alarm indicator indicates alarms in three colors: red, yellow and green in three levels of high, medium and low. TFT touchscreen, resolution: 320X240
The display is divided into three areas: information area, work data area and function key area. See below for further description.
Information area: to display the syringe brand and specifications, occlusion pressure
level, pressure real-time, external power supply, battery volume, WIFI signal. Touch
the brand and specifications zone to enter a page of syringe brand adjustment. Touch
the occlusion pressure level to enter a page of occlusion level selection.
15 / 54
Operating Instructions

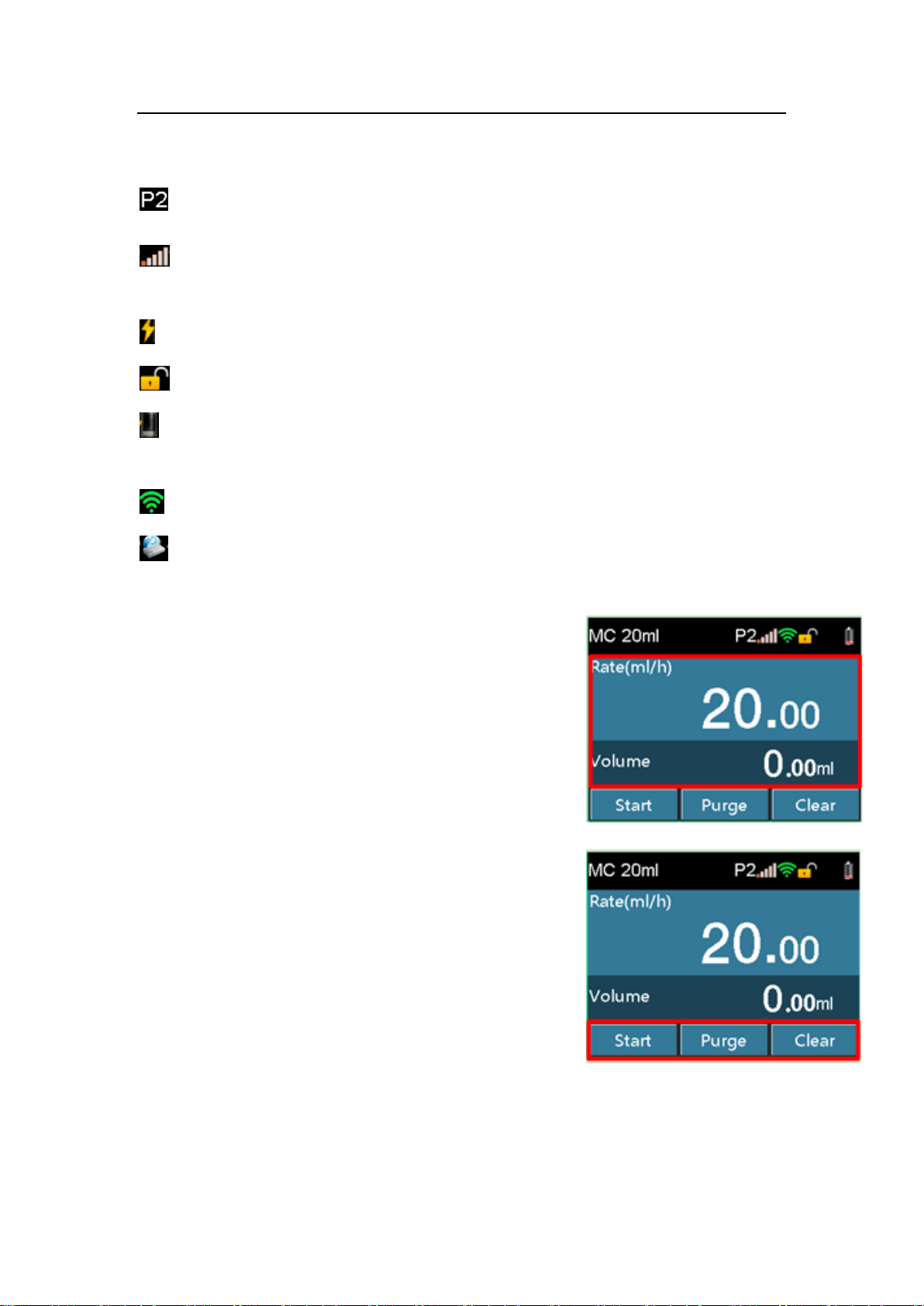

See below for further description.
Occlusion pressure level: 2
Occlusion pressure real-time: a full set of 5 bars. The more bars displayed, the larger
pressure it is.
External power source. Displays when external AC/DC power source is connected.
Screen lock symbol, consists of lock and unlock.
Battery volume and charging status: a full set of 4 bars, the more bars displayed, the
larger battery volume.
WIFI signal
Display when connecting to workstation
Work data area: Displays infusion rate, infusion volume or different infusion work data according to different infusion mode.The work data could be adjusted by touching the specific zone in difference working mode.
Function key area: Touchscreen includes keys of [Start], [Purge], [Clear], [Stop], [Bolus].Setting keys such as numbers and letters appear on corresponding interfaces.
16 / 54
Operating Instructions
Keys
Except touchscreen keys, there are also 2 keys on the key panel: [HOME]/[ON/OFF]
[HOME] :Main menu key. Before infusion, press [HOME] once to enter a setting
menu, such as patient information, IV set setting, event recall, device setting, etc. To return to the infusion preparing interface, press [HOME] once again in any setting interface.
[ON/OFF] : Switch on/off key. When the pump is off, press and hold [ON/OFF] for
1 second to switch it on. When the pump is on, press [ON/OFF], and a prompt pops up: Are you sure to shut down? Press the key on the display to shut down or press and hold for 3 seconds to force shutdown.
6.2 Turning the power on
CAUTION:
Power on and then install the syringe.
Press [ON/OFF] to switch it on.
The self-test starts.
After self-test finishes, enterinfusion preparing screen.
The screen displays patient information, infusion brand and occlusion level
stored last time the device powered off.
If the self-test is abnormal, corresponding information will appear on information
area.

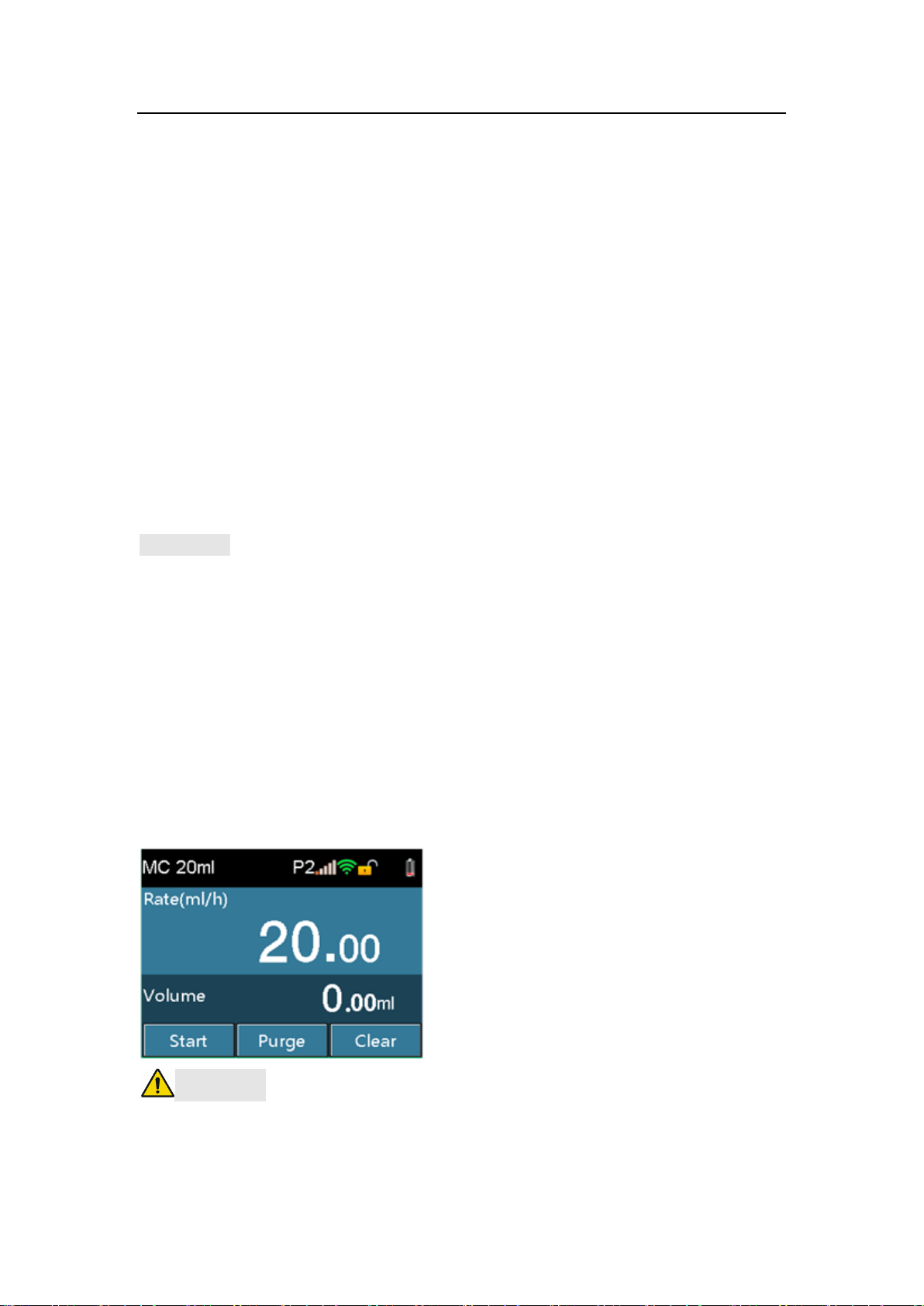

Infusion preparation interface:
WARNING
After the power switch is turned on, confirm the loudspeaker, warning indicator is
working all right, and check if the self-test is finished and no error messages appear.
17 / 54
Operating Instructions
(Refer to Chapter 8 Troubleshooting.)
Ensure the displayed syringe brand corresponds with the using syringe brand. If the syringe brand set is different from the using syringe brand, the infusion
accuracy and alarm function cannot be guaranteed.
6.3 Syringe installation
Open the pump door, pull the clamp and turn rightwards (//)
Press the clutch and move the slider fully to the right. Attach the syringe. Insert the flange of the syringe into the slit ( )
18 / 54
Operating Instructions
Press the clutch, and move the slider until the contact pin of the slider hits
the syringe plunger. (/ /)
Turn back the clamp and lower it slowly to hold the syringe securely ( ).
Close the pump door ( ).
WARNING
Ensure that there is not air bubbles in the syringe.
19 / 54
Operating Instructions
Syringe size
Purge rate (mL/h)
10
300.0
20
600.0
30
900.0
50/60
2000.0
If the syringe flange is not properly engaged in the slitflow rate accuracy and
alarmfunction cannot be guaranteed.
6.4 Purging
WARNING:
After loading a syringe on the syringe pump, remove the air bubbles from the syringe
and the IV line.
Before purging the IV line, ensure that the IV line is not connected to patients. Priming can be done only in non-infusion process. Ensure liquid has run out from the needle before stopping purging.
Press [PURGE], the purge interface pops up. Click[Stop], the purge stops.
The green indicator flashes when purging.
The purging rate varies depends on the syringe size. Refer to the Table 6-1.
Table 6-1 Relationship between syringe size and purge rate
CAUTION:
When high viscosity IV fluids are infused through thin vein needle by bolus operation,
occlusion alarm may occur. In such conditions, reduce the infusion speed to purge.
The volume used for priming will be added to the total volume delivered The fast forward function can be used to remove any mechanical gap. Otherwise,
may cause considerable delay in the start of the infusion.
Total volume cannot be cleared after infusion starts.
20 / 54
Operating Instructions
Syringe size (mL)
Setting range (mL/h)
10
0.1-300.0
20
0.1-600.0
30
0.1-900.0
50/60
0.1-2000.0
Rate range(ml/h)
Minimum increment(ml/h)
0.10 - 99.99
0.01
100 - 999.9
0.1
1000 - 2000
1
The volume under the fast forward function will not be calculated into the total
volume.
6.5 Setting the infusion rate
Press the rate area on the touchscreen to enter the setting interface.
Press [CLEAR] key f to clear total volume. The flow rate varies with different syringe sizes. See Table 6-2.The minimum
increments see Table 6-3.
Table 6-2 Relationship between syringe size and rate
Table 6-3Relationship between rate range and the minimum increment
CAUTION:
When a syringe of different size is installed, if the flow rate is out of range, please
reset the rate to maximum valid rate.
To change the flow rate in the infusion process, the flow rate can be set while the
pump is infusing.
21 / 54
Operating Instructions
6.6 Puncture
Insert the vein infusion needle into the patient’s vein.
6.7 Starting Infusion
Click [START] key to start infusion at the setting rate, the green indicator lights.
CAUTION:
Infusion can only start when the recipe value equals to the set value. If no operation is performed after syringe installation for more than 2 minutes,
START-REMINDER alarm sounds.
6.8 Change rate during infusion
Click the rate display area on the screen, click [OK] in the pop-up interface, then click
[NO] to return to original infusion interface.
After entering the rate, if click [Cancel], it will return to original infusion interface
without change; Click [Confirm], it will return to original infusion interface and
operates at the new rate.
22 / 54
Operating Instructions
Syringe size (mL)
Bolus rate (ml/h)
The minimum bolus
volume(ml)
The maximum
bolus volume(ml)
10
300.0
0.1
10.0
20
600.0
0.1
20.0
30
900.0
0.1
30.0
50/60
2000.0
0.1
50.0
CAUTION:
If no operation is performed in reference and setting rate interfaces for more than 10
seconds, it will return to infusion interface automatically.
6.9 Bolus
During infusion; click [Bolus] to enter the bolus setting interface. Set any two of Bolus VTBI, Bolus rate and Bolus Time, click [Bolus Start] to enter the bolus interface, click [Bolus Stop] to stop the bolus.
Bolus rates are different depending on the syringe specification as follows.
Table 6-4Relationship between syringes specification and flow rate
CAUTION:
Current bolus volume is displayed when bolus is running. Bolus volume will be accumulated into the total volume.
6.10 Stopping Infusion
6.11 Replacing Syringe
and 6.6 to replace the syringe.
In the infusion process or after infusion, click [STOP] to stop the operation.
If the amount of solution in the syringe is getting low, repeat the steps in sections 6.3
23 / 54
Operating Instructions
6.12 Turning the Power Off
Press [ON/OFF] key, choose Power Off, Standby or Cancel.
Click [Power Off] to shutdown. Click [Standby] to enter standby interface, the standby time can be modify.
Click [Cancel] to return to previous interface.
24 / 54
Setting the Syringe Pump
7 Setting the Syringe Pump
CAUTION:
After the pump is powered off, all parameter settings will be automatically saved. Parts of parameters will not be saved if the device is forced to shutdown.
7.1 Infusion setting
Press [HOME] key to enter the setting interface, click [Infusion Set] to enter the detailed infusion setting interface. Infusion set, occlusion level, bolus mode, KVO rate, brand, relay set, near finished could be set and adjusted here.
7.1.1 Infusion Mode
4infusion modes: Rate, Time, Weight, Sequence are available.
Rate mode
Under the Rate Mode, set therate and VTBI, click [Confirm] to operate.
25 / 54
Setting the Syringe Pump
Time mode
Under the Time Mode, set theVTBI and time, click [Confirm] to operate.
Weight mode
Under the Weight mode, set the concentration, VTBI, doserate and body weight, automatically calculate the rate, and then click [Confirm] to operate.
Sequence Mode
Under the Sequence Mode, set the 5 sequence rate and time, click [Confirm] to operate in sequence.
26 / 54
Setting the Syringe Pump
Occlusi
on level
Display
Pressure
mmHg
Pressure
Kpa
Pressure
bar
Pressure
psi
1
P 1
300
40
0.4
5.8 2 P 2
550
73
0.7
10.6 3 P 3
900
120
1.2
17.4
7.1.2 Occlusion Level
3 levels of occlusion are available (Factory setting is level 2).
Table 7-1 Relations between occlusion level and pressure
CAUTION:
When the occlusion alarm occurred, motor will reverse automatically to release the
pressure in the tube (Anti-Bolus), so that no extra bolus will be infused during the
operation of cancelling the occlusion alarm.
When you infuse viscous solution with the Occlusion Level setting under 1 and the
tubing is clear, occlusion alarm tends to be issued. Carefully watch the on the
upper information area, and change the occlusion level if above 2 bars appear.
When you operate the pump with the Occlusion Level setting over 3, the in-line
pressure builds up substantially until Occlusion alarm is issued. Always make sure
that the IV line is securely connected to the syringe.
Occlusion alarm may occur when high-viscosity liquid is infused at high speed
through a thin intravenous needle. Increase the occlusion level or decrease the
infusion speed.
7.1.3 KVO
KVO-rate could be adjusted from 0.1ml/h to 5ml/h (Step by 0.01ml/h), Default rate:
1ml/h.
7.1.4 Brand
You can choose the consumable brand by: [Home] -> [Infusion Set] -> [Brand] Several brands syringe of 5ml, 10mL, 20mL, 30mL, 50/60ml have been preset and
customized. Select the syringe accordingly for clinical uses.
CAUTION:
Users must use the consumable brand which is specified by the manufacturer.
27 / 54
Setting the Syringe Pump
To add in syringes of other brand, users are strongly recommended to contact the
manufacturer or manufacturer’s representative to set and test, so as to ensure the
infusion accuracy.
7.1.5 Relay Set
Open relay mode, set the relay number under the mode
CAUTION:
The relay number must be set in sequence from number 1 when there are
severalsyringe pumps or infusion pumps.
7.1.6 NearFinished
Near Finished Alarm: Alarm-time could be adjusted from 1min to 30min before
Finished (Step by1min), Default time: 3min before Finished
7.2 System Set
28 / 54
Setting the Syringe Pump
7.2.1 Volume Set
11 volume levels are available (The factory setting is level 5)
CAUTION:
Do not set the alarm volume lower than the ambient noise to ensure the alarm could
be recognized correctly.
If setting alarm to extreme values that can render the alarm system useless. Check
the alarm limited according to clinical condition.
If the pump is inserted to a working station, once the volume setting on the pump is
changed, the setting on the station will be synchronized at the same time.
7.2.2 Display Set
There are seven different color options for UI type The brightness could be adjusted in [Normal Bright] All the parameters of the night mode could be adjusted here
CAUTION:
Under the night mode, setting range of start time is 17:00-09:00, finish time range is
the same as start time range. By default, the start is 00:00; finish time is 00:00.
If the pump is inserted to a working station, once the display setting on the pump is
changed, the setting on the station will be synchronized at the same time.
29 / 54
Setting the Syringe Pump
7.2.3 Internet Set
[Info Channel], [Local WLAN], and [Workstation WLAN] (not available if the pump is
not connected to a workstation) could be chose and set.
Click [Info Channel] to choose the channel type
Choose [Local WLAN] to use local WLAN channel to connect to the network, and
the local WLAN parameters could be set
Choose [Station WLAN] to use station WLAN channel to connect to the network,
and the station WLAN parameters could be set
Choose [Local RS485] to use local RS485 cable to connect to the network
Choose [Station RS485] to use station RS485 cable to connect to the network
CAUTION:
The pump could communicate with working station, and the working station could
manage the alarm and implement relay function between pumps.
The setting of [Local RS485] and [Station RS485] must be done by the
manufacturer’s representatives. Please contact manufacturer or local dealer for
further information.
Only the accessory or devices supplied or specified by manufacturer allowed to be
connected with the pump. Otherwise it may cause the pump not work normally or
other unpredictable hazards.
30 / 54
Setting the Syringe Pump
Click [Local WLAN]/[Station WLAN] to set up WLAN parameters. [WIFI Disable] option should be cancelled, the AP name, Password of the network
should be inputted, and the TCP/IP’s information should be set.
7.2.4 Lock screen Set
Click [ScreenLock Password] to enable/disable the screen lock password function.
When the function is enable, a password is required to unlock the screen. When the
function is disable, there will be no require on password to unlock the screen
Click [Auto Lock] to set up the screen auto lock function. This function could be set as:
OFF, 15s, 30s, 1min, 2min, 5min, 10min, 30min. The default value is OFF, which
means the screen auto lock function is disable
7.2.5 Collection Set
[Mode Collection]: Choose the frequently used infusion mode from the [Infusion mode]
option. Once the frequently used infusion modes are chosen, the unnecessary modes
will not appear in the list of 7.1.1 [Infusion mode] option. The default setting is “all the
four infusion modes are chosen”.
[Brand Collection]: Choose the frequently used infusion set’s brand from the [Brand]
option. Once the frequently used brands are chosen, the unnecessary brands will not
31 / 54
Setting the Syringe Pump
appear in the list of 7.1.5 [Brand] option. The default setting is “all the preloaded
brands are chosen”
7.2.6 PressureUnit
Choose the measurement unit for the pressure. The optional units are: mmHg, kPa,
bar and PSI. The default setting is mmHg
7.2.7 Date&Time set
Set the date, time, and their format.
7.2.8 Maintenance
Click [Maintenance] option to do the [Language Select], [Touch Adjust], [Factory Data
Reset], and check the version information
32 / 54
Setting the Syringe Pump
Event
Record Parameters
Start up
Occurred time
Shutdown
Occurred time
Standby
Occurred time, standby set time
Start
Occurred time, rate, VTBI
Bolus
Occurred time, Bolus rate, Bolus way
Bolus stop
Occurred time, Bolus rate, Bolus accumulated volume
Stop
Occurred time, rate, accumulated volume
KVO
Occurred time, accumulated volume, KVO rate
KVO stop
Occurred time, KVO rate, KVO accumulated volume
Flow rate change
Occurred time, Flow rate before and after change
Alarm
Occurred time, alarm event, system trouble with trouble code
Purge
Occurred time, purge rate, accumulated volume
Purge stop
Occurred time, purge rate, purge accumulated volume
To check the version information, follow the route of: [Home] -> [System Set] ->
[Maintenance] -> [Version Info]
7.3 History
The history records are as Table 7-2. Table 7-2 History records
CAUTION:
The history records could be saved when power is cut. 2000 history records could be saved. When the record number reaches the storage
limit, the oldest record will be replaced by the new one.
Alarm system can’t be poweredoff separately by operator unless the pump is
powered off.The time of powering off is captured in the history records.
33 / 54
Setting the Syringe Pump

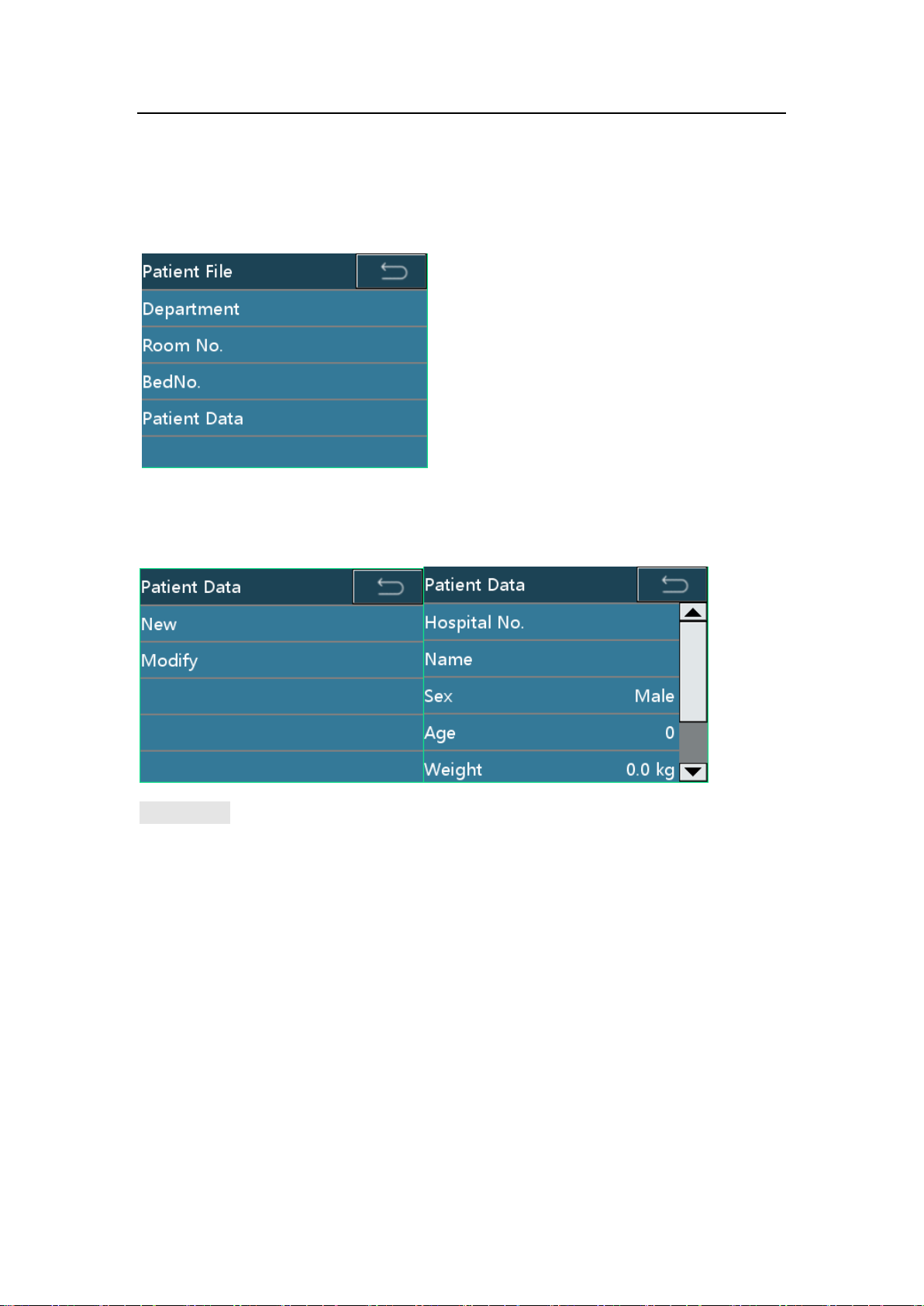

7.4 Patient File
Click [Patient File] to enter the patient file page. The [Department], [Room No.], [Bed
No.] and [Patient Data] could be set up
Click [Patient Data] option to enter patient data setting page. Choose [New] to build a
new patient data and the previous patient data will be cleared automatically. Choose
[Modify] to modify the current patient data.
CAUTION:
If the pump is inserted to a working station, once the patient file on the pump is
changed, the data on the station will be synchronized at the same time.
7.5 Use Internal battery
If there is not any AC/DC power supply, the internal battery operates. When external power stops working, the internal battery starts and the yellow indicator
lights with a short alarm sound.
Before first use or reuse before a long time, please charge at least 10 hours. The approx. remaining power in the built-in battery is displayed by [battery] indicators.
During battery operation, battery discharged is shown by a decreasing number of active indicators. For details, see Table 7-3.
34 / 54
Setting the Syringe Pump
[Battery capacity]state
The remaining capacity*1)
Four bars light
Operation will be possible for 360 minutes.
Three bars light
Operation will be possible for 240 minutes.
Two bars light
Operation will be possible for 160 minutes.
One bars light(green)
Operation will be possible for 80 minutes.
One bars light(red)
Operation will be possible for 30 minutes.
Table 7-3when battery works, the [Battery capacity] diagram state
*1) Working conditions:
New battery (within one year of manufacture). Operating at 5mL/h using a 50/60mL syringe. Close WIFI function. Room temperature of 25°C.
When the syringe pump is connected to any external AC or DC power supply, the
charge of the built-in battery starts. When battery is charging, a lightning symbol will
be displayed at the left side of the battery symbol on the screen.
CAUTION:
If AC or DC power is connected, the battery will be recharged. Use AC power to charge the battery. If recharged by an external 12 VDC power
supply, the battery cannot be fully charged (50% at most).
During infusion and the pump powered by battery, if a low-battery alarm occurs, press
[SILENCE] to silence the alarm will repeat in two minutes, connect the pump to
AC/DC power supply immediately. If battery empty alarm occurs, the silence does not
function and syringe pump will stop.
3 minutes before the battery empty, the pump will auto power off. The actual battery duration may be different and affected by the ambient temperature,
flow rate, external communication, etc.
If the battery is agingthe actual battery duration may be shorter. Periodically check
the battery.
35 / 54
Setting the Syringe Pump
7.6 Connecting to the <Infusion Central Monitoring
System>(optional)
Syringe pumps can be connected to the < Infusion Central Monitoring System >, which can obtain working states of pumps remotely.
CAUTION:
Syringe pump cannot be operated through the < Infusion Central Monitoring
System >.
7.7 Nurse pager (optional)
After syringe pump is connected to the central station, patient can press nurse pager in bed, and then the central station in nurse station would gives out sound tip and display patients information in screen, so that the nurse can take care of the patient in time.
7.8 Voice communication(optional)
After syringe pump is connected to the central station, patient can press nurse pager in bed, and then the central station in nurse station would gives out sound tip. Nurse can press the talk-listen button and communicate with patient in real time to know the information.
7.9 Connecting a barcode scanner (optional)
After a barcode scanner is connected to the pump, the patient information, such as record No. and hospital No., can be scanned, and the patient information in the pump will update automatically by pump prompts.
The barcode scanner can scan maximum 18 figures.
7.10 User-specific Requirements (optional)
7.10.1 Maximum Flow rate
Parameters the maximum flow rate is already set with the syringe pump. For any modification, contact your local distributor.
36 / 54
Troubleshooting
Alarm
Sound
Light
Low-level alarm
Give out three beeps at intervals of 25 seconds.
The yellow indicator keeps on.
Mid-level alarm
Give out three beeps at intervals of 15 seconds.
The yellow indicator flashing.
High-level alarm
Give out a series of beeps at intervals of 15 seconds.
The red indicator flashing.
8 Troubleshooting
8.1 Alarm
The syringe pump provides users with a variety of status information about itself and its injection process. If any abnormality is detected, the syringe pump sounds an alarm and notes users in the form of sound, light, and character.
All the alarms on this pump are the technical type alarm.
Considering the importance of abnormal information, alarm information is classified into three levels from the viewpoint of security: low-level, mid-level, and high-level alarms. For audio and visual expressions of alarms at three levels, see Table 8-1. The alarm volume ranges from 45 dB to 85 dB.
Table 8-1 Alarm severity and the audio and visual expressions of each level
When an alarm occurs, press [SILENCE] to silence the alarm. But the buzzer beeps again if you do not eliminate the high-level alarm within 2 minutes.
CAUTION:
The setting of the alarm will be saved when the power is cut. When the pump restarts
from a power failure situation, the alarm setting will be reloaded to the system and
remains the same as it was before the power failure.
WARNING:
There will be a potential risk if the same or similar devices are using different alarm
setting in any specialized region.
37 / 54
Troubleshooting
Alarm Symptoms
Alarm level
Causes
Troubleshooting
No Power Supply
Low-level
No external AC/DC power supply is connected.
Immediately connect the AC power supply or the external DC power supply.
No Battery
Mid-level
The syringe pump has no internal battery or the internal battery operates abnormally.
Replace the internal battery. Low Battery
Low-level
The internal battery is running critically low.
Immediately connect an AC power supply or an external DC power supply.
Battery Empty
High-level
The battery is out.
Immediately connect an AC power supply or an external DC power supply.
Near End
Low-level
The infusion is end within the Near Finished Alarm setting period.
Wait until the infusion finishes.
Occlusion Alarm
High-level
1.The syringe IV line is occluded
2.The OCCL level is too low for high viscosity drug’s infusion.
Press [STOP] to stop the injection. Check and remove the cause, continuous to inject.
Near Empty
Low-level
It takes less than three minutes to complete the infusion.
Wait till syringe is purged to be empty.
Syringe Empty
High-level
The syringe is empty.
Press [STOP] to clear the alarm.
Unknown Syringe
High-level
Syringe disengagement from slit during infusion.
Press [STOP] to clear the alarm. Check if the syringe pump clamp or syringe is installed correctly.
8.2 Faults and Troubleshooting
Table 8-2 Alarm symptom, alarm level, fault cause, and troubleshooting
38 / 54
Troubleshooting
Alarm Symptoms
Alarm level
Causes
Troubleshooting
Syringe Install Error
High-level
The slider is loosen during the infusion or the slider is not installed in a right way.
Press [STOP] to clear the alarm. Check if the holder is installed correctly.
Finished
High-level
The limit amount or the infusion time is complete
Press [STOP] to clear the alarm.
Reminder Alarm
Low-level
Forget to operate the alarm (no key operation is made two minutes after the syringe is installed).
Press any key to clear the alarm. Standby Time Expired
Mid-level
Standby mode is end
Press cancel to exit Standby mode.
Relay Index Duplicate
High-level
Relay Index Duplicate
Reset Relay Index
Syringe Start Fail
High-level
Syringe pump cannot be started under the relay mode.
Check the syringe pump, remove the problem that causes the failure of start.
Trouble code
Alarm level
Troubleshooting
Sensor Error
High-level
Record the troublecode andturn off, Contactmanufacturer or manufacturer’s representatives.
Motor Error
High-level
Circuitry Error
High-level
Driver COM Error
High-level
System Error
High-level
8.3 Troubles and trouble shooting
When the device goes wrong, a corresponding trouble code appears in the interface and gives out high-level alarm.
Table 8-3troubles and troubleshooting
39 / 54
Maintenance
9 Maintenance
9.1 Cleaning, Disinfecting
Before cleaning the pump,be sure to turn off the power and disconnect the AC or DC
power cables.
If any solution spills on the pump or the pump gets heavily soiled,wipe it with wet soft
cloth dampened with cold or lukewarm water.
Use a piece of dry soft cloth to clean the AC power supply socket, USB socket or the
nurse call socketensure that the socket is dry before using it.
If the clamp or clutch needs to be removed for cleaning,contact your local distributor. Do not use organic solvent such as alcohol or thinner. If disinfection is necessary, using the common disinfectors such as Chlorhexidine
gluconate and Benzalkonium chloride. After using the agent with a soft cloth,wipe off
it with a soft cloth dampened with water or warm water. When using the disinfecting
agentfollow the caution of each agent.
The syringe pump cannot be autoclaved. Never use a dryer or similar device to dry the syringe pump. If liquid spills onto the pump, check whether the pump still functions normally. Test
the insulation and leakage current when necessary.
Do not soak the syringe pump into water.
WARNING:
Do not clean or disinfect the pump when it is running.
9.2 Periodic Maintenance
Perform a periodic maintenance inspection to ensure safe operation and the longest possible life of the syringe pumpand check the syringe pump once every 2 years. You can maintain some items by yourself and contact your local distributor to maintain some other items. Contact manufacturer or manufacturer’s representatives for any doubt.
9.2.1 Check the Appearance
Appearance checking: There are no cracks and damages. Key operations: If you can press the keys smoothly, they are available.
40 / 54
Maintenance
Syringe
Infusion rate
Infusion time
Volume in graduate
MC /B.Braun50/60ml
60mL/h
10min
9.8-10.2mL
Syringe
Infusion rate
Occlusion level
Alarm time
MC /B.Braun50/60ml
25mL/h
P2
Within 1 min
9.2.2 Check the Power Cable
Check the appearance of the power cable. If the appearance is damaged and the
plug and the socket are in poor contact, contact manufacturer or manufacturer’s
representativesfor replacement in time.
If you connect the syringe pump to the AC/DC power and there is no indication of
powering on, contact manufacturer or manufacturer’s representatives for
maintenance in time.
9.2.3 Check the infusion rate
Check the infusion flow once every 2 years by the graduate and timer.
Checking condition:
9.2.4 Alarms
Syringe unknown
Pull of the syringe clamp during infusion, alarm information will be visible on the display and audible.
Syringe Install Error
Press of the clutch during infusion, alarm information will be visible on the display and audible.
Occlusion
Checking condition:
9.2.5 Electric and mechanical safety
To ensure safety, test the insulation voltage, leakage current and earthing resistance according to the IEC 60601-1.
9.2.6 Checking the Internal Battery
Perform the following inspections on the battery every 2 years: Connect to the AC power supply to recharge the battery for over 10 hours. Turn on the power and attach the syringe (50/60mL syringe). Set the infusion rate to 5 mL/h and start the infusion. Record the start time.
41 / 54
Maintenance
Operate the system until it stops infusing due to low battery alarm.
If the time from the start of the infusing to end of operation is 4 hours or morethe
battery condition is good.
If the time from the start of the infusing to end of operation is 1 to 2 hoursthe
battery condition is reaching its service life.
If the time from the start of the infusing to end of operation is less than 1 hour,the
battery has reached its service life. Replace the battery. You are advised to contact manufacturer or manufacturer’s representative to replace the battery.
When the battery lever check is complete, recharge the battery for next use.
9.2.7 Replacing the Battery
Remove an internal battery.
Turn the power off and disconnect the power cord.
Use a screwdriver to loosen the battery cover fixing screws at the bottom of the
pump.
Remove the battery cover.
Disconnect the battery cable connector.
Remove the battery.
Install the internal battery.
Insert the connector of the battery cable into the battery.
Insert the new battery into the battery compartment.
Attach the battery cover.
Use a screwdriver to tighten the screws securing the battery cover.
CAUTION:
Remove the battery if the infusion pump is not likely to be used for some time.
WARNING:
The battery’s replacement must be done by specialist who has been trained to finish
such operation. Otherwise there will be a risk of danger.
Please strictly follow the instruction to replace the battery, and the battery should be
provided by the manufacturer. Otherwise there will be a risk of danger.
Do not disassemble, short circuit or throw the battery into fire in case of the danger
caused by linkage or explosion.
Please follow the local low to dispose the old battery.
42 / 54
Maintenance
9.3 Maintenance
If any troubleexplain the situation to the manufacturer or manufacturer’s
representative and request for repair.
Never disassemble or try to repair the syringe pump. Doing so may cause a serious
failure. The manufacturer and the distributor shall not be responsible for any syringe
pump that has been disassembledmodified or used for any purpose other than that
for which it is intended.
If the syringe pump is dropped or subjected to impactremove it from service even if
it doesn’t appear damaged externally. Request the manufacturer or manufacturer’s
representative to inspect it for a possible internal problem.
CAUTION:
Serviceman could request for the related service manual from the manufacturer if
needed.
WARNING:
The accessories’ replacement must be done by specialist who has been trained to
finish such operation. Otherwise there will be a risk of danger.
Parts of the Pump are not serviced or maintained while in use with the patient.
9.4 Storage
Avoid water spills. Never store in a hot and humid place. Store the pump out of excessive vibrationdustand corrosive gas. Store the pump out of direct sunlight and ultraviolet ray as discoloration may result.
9.5 Transportation
The syringe pump can be transported by common vehicles and shall be protected from being clashed, shook, or wetted by rain and snow. Transportation method shall be in accordance with the order contract specifications.
9.6 Environmental Protection and Recovery
At the end of lifeplease dispose of this equipment to the distributor you purchased the product from or dispose of them by a suitable method according to the applicable environmental laws and regulations.
43 / 54
Flow Rate Characteristics
10 Flow Rate Characteristics
The following test is performed in accordance with the IEC60601-2-24:2012 standard. It is used to observe the infusion accuracy and the occlusion response. (For detailed test conditions, see the IEC60601-2-24:2012 standard.)
CAUTION:
The infusion accuracy and the occlusion response may be affected by the use
conditions including the pressure, temperature, humidity, IV set, and infusion tube.
The infusion accuracy does not reflect the clinical standards, for example, patients'
age and weight and medicine taken.
The experiment data only represents the measurement data in the lab. The max accuracy difference is ±40% under the condition of single failure.
10.1 Flow Rate Characteristics
Start-up and Trumpet curves show the characteristics of the syringe pump after the injection begins and the injection changing status after the syringe pump reaches a normal flow rate.
The following test method is accordance with the method mentioned in chapter
201.12.1.102 of the standard IEC 60601-2-24:2012 (Please check above chapter for further details.).
Accuracy test conditions:
Temperature: 21℃;
Relative humidity:60%;
Syringe type:MC10ml20ml30ml50/60ml),B.Braun 20ml50/60ml);
4 sets each.
Syringe pump: 1 set
Sampling interval: 0.5min
Test Period: 120min
44 / 54
Flow Rate Characteristics
Start-up curves of MC(50/60ml) 5ml/h
Start-up curves of MC(50/60ml) 1ml/h
Trumpet curve of MC(50/60ml) 5ml/h
Trumpet curve of MC(50/60ml) 1ml/h
Start-up curves of B.Braun(50/60ml) 5ml/h
Start-up curves of B.Braun(50/60ml) 1ml/h
Trumpet curve of B.Braun(50/60ml) 5ml/h
Trumpet curve of B.Braun(50/60ml) 1ml/h
45 / 54
Flow Rate Characteristics
Infusion rate
Occlusion pressure level
Occlusion pressure mmHg
Occlusion alarm time hh:mm:ss
Bolus (ml)
5mL/h I
300±100
00:26:28
0.86
III
900±200
00:40:06
1.97
Infusion rate
Occlusion pressure level
Occlusion pressure mmHg
Occlusion alarm time hh:mm:ss
1mL/h I
300±100
00:60:17
III
900±200
02:05:17
Infusion rate
Occlusion pressure level
Occlusion pressure mmHg
Occlusion alarm time hh:mm:ss
0.1mL/h I
300±100
06:05:00
III
900±200
11:28:00
Description
Unit
Unit conversion
Pressure kPa
1kPa=7.5mmHg
psi
1psi=51.724mmHg
bar
1bar=750mmHg
10.2 Occlusion Characteristics
The occlusion characteristics are reflected by the longest delay time to start an alarm and performance of pill amount.
The following test method is accordance with the method mentioned in chapter
201.12.4.4.104 of the standard IEC 60601-2-24:2012 (Please check above chapter for further details.).
Occlusion test conditions:
Temperature: 21;
Relative humidity: 65%;
Syringe type:MC50/60ml; 1 set
Length of the infusion tube: 1m
Table 10-1 The occlusion level, alarm delay time and pill amount under the rate of 5mL/h
Table 10-2 The occlusion level, alarm delay time and pill amount under the rate of 1mL/h
Table 10-3The occlusion level and alarm delay time under the rate of 0.1mL/h
CAUTION: Unit conversion list
46 / 54
Appendix A
Guidance and manufacturer’s declaration – electromagnetic emissions
The MP-30 syringe pump should be used under the regulation electromagnet environment. The user should operate the MP-30 syringe pump under following electromagnet environment.
Emission measurement
conformance
Electromagnet environment-instructions
Radio-frequency emission CISPR 11
Group 1
MP-30 syringe pump only use radio-frequency while operating its internal functions, therefore, the radio-frequency is much low and has little interference to the electronic devices nearby.
Radio-frequency emission CISPR 11
Class A
The MP-30 syringe pump can be used in any building including civil residence.
Harmonic emission IEC61000-3-2
Class A
Voltage fluctuation and flashing IEC 61000-3-3
conform
Appendix A Electron Magnetic Compatibility (EMC)
The MP-30 syringe pump conforms to EMC standard EN 60601-1-2.
47 / 54
Appendix A
Guidance and manufacturer’s declaration – electromagnetic immunity
The [MP-30] is intended for use in the electromagnetic environment specified below. The customer or the user of the [MP-30] should assure that it is used in such an environment.
IMMUNITYtest
IEC60601test level
Compliance level
Electromagnetic environment –guidance
Electrostatic discharge ESD IEC 61000-4-2
±8 kV contact discharge ±15 kV air discharge
±8 kV contact discharge ±15 kV air discharge
Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30 %.
Electrical fast transient EFT IEC61000-4-4
±2 kV power cable ±1 kV I/O cable
±2 kV power cable
Mains power quality should be that of a typical commercial or hospital environment. Surge IEC 61000-4-5
±1 kV difference mode ±2 kV common mode
±1 kV difference mode ±2 kV common mode
The voltage dropping, short interruption and voltage change IEC 61000-4-11
5% UT(dropping 95% UT)0.5 period
40% UT( dropping 60% UT)5 period
70% UT(dropping 30% UT)25 period
5% UT(dropping 95% UT)5seconds
5% UT(dropping95% UT)0.5
period
40% UT( dropping 60% UT)5 period
70% UT(dropping 30% UT)25 period
5% UT(dropping95% U
T
5seconds
Mains power quality should be that of a typical commercial or hospital environment. If the user of the [MP-30] requires continued operation during power mains interruptions, it is recommended that the [MP-30] be powered from an uninterruptible power supply or a battery..
Power
3 A/m
3 A/m
Power frequency magnetic
48 / 54
Appendix A
frequency magnetic fields 50/60Hz IEC 61000-4-8
fields should be at levels characteristic of a typical location in a typical commercial or hospital environment
NOTE UTis the a.c. mains voltage prior to application of the test level.
49 / 54
Appendix A
Guidance and manufacturer’s declaration – electromagnetic immunity
The [MP-30] is intended for use in the electromagnetic environment specified below. The customer or the user of the [MP-30] should assure that it is used in such an environment.
Immunity
Test
IEC 60601
test level
Compliance
level
Electromagnetic environment –guidance
Conducted RF IEC61000-4-6
3 Vrms 150k 80MHz
3 Vrms
Portable and mobile RF communications equipment should be used no closer to any part of the [MP-30], including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance:
Pd
2.1
Pd
2.1
80M800MHz
Pd
3.2
800M2.5GHz where Pis the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and dis the recommended separation distance in metres (m). Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey a, should be less than the compliance level in each frequency rangeb. Interference may occur in the vicinity of equipment marked with the following symbol:
Radiated RF IEC61000-4-3
3V/m 80M
2.5GHz
3 V/m
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
50 / 54
Appendix A
a
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment dueto fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the [MP-30] is used exceeds the applicable RF compliance level above, the [MP-30] should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the [MP-30].
b
Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [3] V/m.
51 / 54
Appendix A
Recommended separation distances between portable and mobile RF communications equipment and the [MP-30]
The [MP-30] is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the [MP-30] can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the [MP-30] as recommended below, according to the maximum output power of the communications equipment.
Rated maximum output power of transmitter W
Separation distance according to frequency of transmitter(m).
150k80MHz
Pd 2.1
80M~800MHz
Pd 2.1
800M~2.5GHz
Pd 3.2
0.01
0.12
0.12
0.23
0.1
0.38
0.38
0.73
1
1.2
1.2
2.3
10
3.8
3.8
7.3
100
12
12
23
For transmitters rated at a maximum output power not listed above, the recommended separation distance din metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where Pis the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply inall situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
52 / 54
Appendix B
Parameters setting
The default factory setting
KVO flow rate
1ml/h
Pressure unit
mmHg
Occlusion pressure
P2middle level
Near end
3min
Built-in consumable brand
MC(10, 20, 30, 50/60ml), B.Braun(20,50/60ml)
System time and date
The default factory setting
Time
00:00
Date
2014-1-1
Time form
24 hours
Date form
Year-month-day
Appendix B The Default Factory Settings
This chapter lists some default factory settings of syringe pump. Users can not modify the default factory settings, but if necessary, they can recover the syringe pump to the default factory settings state. Parameters
System time
53 / 54
Appendix C
Description
Plumbum Pb
Mercury Hg
Cadmium Cd
Chromium VI Cr(VI)
Polybromi nated biphenyls PBB
polybrominat ed diphenyl ethers PBDE
pump shell
○ ○ ○ ○ ○
key and cover
○ ○ ○ ○ ○
label
○ ○ ○ ○ ○
display
× × × × × × hardware
○ ○ ○ × ○
connection wire
○ ○ ○ ○ ○
PCBA
× ○ ○ ○ ○
packing material
×
× battery
× × × × × × accessory
× ○ ○ ○ ○
remark:
“○” shows that the content of this toxic and harmful substance in all homogeneous
materials are under the regulated limitation requirement of SJ/T11363-2006.
×”shows that he content of this toxic and harmful substance in one homogeneous
materials is over the regulated limitation requirement of SJ/T11363-2006.
Appendix CToxic and Hazardous Substances or Elements
54 / 54
Precautions for Use
MEDCAPTAIN MEDICAL TECHNOLOGY CO., LTD.
Registration address: 12th Floor, Baiwang Research Building, No.5158 Shahe West Road,
Xili, Nanshan District, Shenzhen, P.R.China
Production address: 1-4 Floor,11th Building,Nangang Industrial Park, Songbai Road, Xili,
Nanshan District, Shenzhen, P.R.China
After-sales service address: 12th Floor, Baiwang Research Building, No.5158 Shahe
West Road, Xili, Nanshan District, Shenzhen, P.R.China
EU- Representative name: WellKang Ltd
EU- Representative address: Suite B, 29 Harley Street LONDONW1G 9QR, England,
United Kingdom
Telephone: +86-755-26953369 0123
Fax: +86-755-26001651
Postal code: 518055
Website: http://www.medcaptain.com
E-mail: info@medcaptain.com
Copyright of 2016 Medcaptain Medical Technology Co., Ltd. (V2.2)
Loading...
