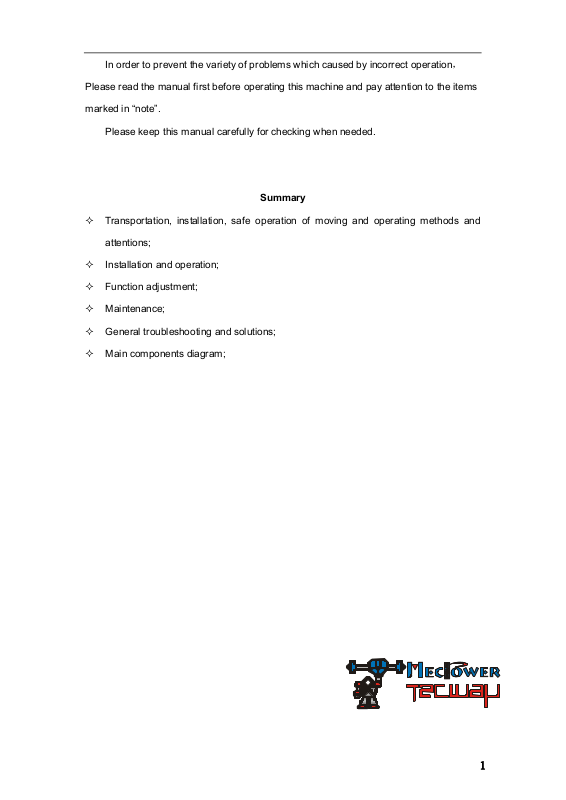

MecPower Tecway Power storm User Manual

In order to prevent the variety of problems which caused by incorrect operation
Please read the manual first before operating this machine and pay attention to the items
marked in “note”.
Please keep this manual carefully for checking when needed.
Transportation, installation, safe operation of moving and operating methods and
attentions;
Installation and operation;
Function adjustment;
Maintenance;
General troubleshooting and solutions;
Main components diagram;
1
Safety Attentions
1) Certain part of the game is with high voltage. Adjust the game by technician. Do not
open the game door unless maintenance or parts replacement is required.
2) Please switch off the power before checking and maintenance.
3) Please switch off the power before opening the game door.
4) Fire extinguisher equipment must be nearby the game.
Installation
The game must be located properly to avoid damages.
Improper Locations:
Notes of Usage
1) The voltage range of the game should be 105V~115V or 215V~225V. The proper
voltage should be 110V/220V. The specific voltage accords to the date plate on
the back door of the game. The voltage must be correct; otherwise it would be
difficult to repair the damage.
2) The plug must be plugged in tightly and keep the power cords not be too tight
and damaged in order to prevent bodily injury, short-circuit and power leakage.
3) To put the machine to normal operating, please properly adjust the coin match
2
and the game settings when use at the first time.
4) Please regularly check all the functions of the game when operate to prevent
dysfunction.
Notes of Maintenance
1) Be sure to check and maintain the game regularly.
2) Switch off the power before replacing the parts of the game.
3) The parts for replacement should be the same model as the old one.
4) Please check the connection and voltage output after replacing the power supply.
5) The voltage range of the PCB should be 5.1V-5.4V.
6) Check whether the game has creepage and the voltage before repairing the PCB.
Notes of Clean
1) Please use clean and soft cloth to clean the game.
2) Prevent damaging the surface of the game, please do not use the following
cleanser:
Alterative Cleanser
Acidic Cleanser
Insecticide, sterilized water, alcohol or other chemical cleanser.
Notes of Moving and Shipping
1) Properly disassemble the game for necessary moving and shipping.
2) Prevent the game from hitting or being attrite during movement.
3) Protecting the case when move the game.
3
GAME INTRODUCTION
Power storm with unique, beautiful and comic appearance, interesting and exciting game,
it is specially designed and developed by our company for the young people. It will be very
essential and popular in amusement center.
Power storm is an animation and motion experience as one of the machine, when guests
watch the amazing animation, can experience the visual stimulation, strong power, wind
power, high and low sounds right surround sound and so on to make it perfect, immersive
feeling.
Creative outlook
Stable computer system
Strong blower
47
47” LCD monitor
Comfortable seat
Stable pneumatic assembly
Features:
Realistic, colorful, cute outlook
Integrated main board, high-speed processing CPU, stable performance.
High definition, high-quality LCD display.
Surround sound effects
Simulate lifelike motion seats, stable and reliable dynamic components
Strong blower
Operating income can be adjusted according to the situation
4
PLAYING TIPS
Ride on the power storm and insert coin, press the button to choose what you want to
start,1)There are 4 shorts: Snow Storm ,Space Travelling , Chengdu J-20 ,The Great Wall
of China.2) Wait for a few seconds after the broadcast, the picture will be go on blizzard or
special angles such as the plane jets, in the process of forward will continue to have
amazing scenery, will bring you very exciting visual experience, combined with simulate
lifelike seat dynamic with strong and the sound of blowing around the has very good
sensory experience.3) Should hold your armrest in the process of watching, it can
alleviate strong vibration caused by tension. 4) If you need in the process of watching,
press movement to stop button, the seat will stop vibration; press movement to stop
button again, it will restart the seat to move feeling.
Movement stop button
Film selection button
Coin slot
Handrail
5
TECHNICAL PARAMETER
VOLTAGE: AC 220V/110V50/60HZ
MAX. CURRENT13A/26A
(Note: please refer to the nameplate located on the back of the games to check actual
usage of voltage.)
MAX. POWER: 2860W
STANDBY POWER: 460W
COIN SIZEφ21mm ~ φ30mm (diameter)
1.2mm ~ 2.5mm (thickness)
CAPACITY OF COIN BOX: 1200pcs of coins with coin size φ25mm*1.5mm
LOCATION REQUIRED: -5 ~ 40, humidity is less than 90%. No contact with any
corrosive liquid, no any greasiness and dirt.
DIMENSIONS: L2650mm*W2030mm*H2200mm
2030
2200
2650
1
Chassis components sizeL2030mm*W1400mm*H2200mm
1400
2030
Chassis components sizeL1900mm*W1750mm*H2200mm
2200
1750
Parts shipped with the game:
1 LED light green 2
2 micro switch 2
3 key 1285
4 key 1396
5 power cord 1
1900
2200
2
2
6 manual 1
OPERATION MANUAL
7
MOVEMENT
Direction of movement diagram
Wrong direction
Seat components movement diagram:
correct direction
Wrong direction
Wrong direction
Note: when the road surface is uneven during moving or when you tilt the machine, please
pay attention to the strength and hang the chassis in the air to prevent damage to the air
sac.
8
WARNING
Please power off the game first and pull out the cord, then move the game.
Prevent hitting, rubbing the games when move the games, otherwise it will damage
the appearance of the game.
Please do not carefully move, turnover, transport the game; otherwise it will destroy
the game.
9
INSTALLATION
Please follow the direction below to install the game.
Choose the location for installation:
1) Put the power storm in the same type of Kiddie Ride with monitor then select the
concrete placement machine according to the machine's exterior.
2) Choose the proper location for installation, please follow the below drawing to
install.
0.5m
0 . 5 m
0 . 5 m
3.7m
0.5m
3 . 1 m
NOTE: It must be placed on the flat floor to make the machine on the ground steadily.
Installation:
1) After choosing the installation position, have a good connection on chassis
components and the seat assembly.
Computer part
Seat part
10
2) Put the seat part and chassis part together again and fix with six M8 * 35 screw,
connect the connector and the seat air supply pipe joint.
M8*35 screw
M8*3 5
M8*35 screw
M8*3 5
M 8 * 3 5
M8*35 screw
线 ,
Connector for computer part and seat
part, air pipe for seat part
3) use the M4 * 20 big screw to fix the left and right sides of the yellow ring blister and
white blister.
Yellow ring blister
White wheel blister
M4*20 screw
M4*20
M4*20 screw
M4*20
11
Fix the machine:
The machine must be laid flat on the ground, fixed machine need to adjust the anchor
down, make the anchor bear the gravity of the whole machine, caster wheel off the ground
about 10 mm (note: six fixed anchor is fixed to the ground, to prevent the seat vibration
when the machine moving.
Wheel
Foundation
10mm
Foundation Wheel
约10mm
固定
Fixed Movable
12
Check and set before connecting the power:
1) Please check the machines internal structure for transportation vibration caused by
loose, line connection terminals should not drop out.
2) Check the machine grounding line should be over the ground connection.
3) Check the machine's power input at both ends of the impedance of the ground should
be greater than 100 megohm.
4) Connect the power cord. It is very important for connecting the power cord is related to
personal safety, please see the following the correct connection methods, and can't use
the wrong connection method, prevent the happening of the accident
The power for this machine is 13A, so
can not use this kind of movable
power box.
13A
Max load for socket is more than 15A.
15
10A
Max load for movable power box is 10A.
Power cord for machine
线
15A
15A socket
Plug
13
Attentions:
A Please make sure the power cord is not pressed by wheel, foundation, etc.
Otherwise, it will damage the wire to cause short circuit, even fire. Do not use
strong power to extend and wring the wires. Do not make the wire be near to the
high temperature object. Properly put the wire to avoid any kicking or treading.
AAAA
B Hold the plug to pull it out from the socket. Do not touch the plug with wet hands.
Check and Adjust after connecting the power:
1) Make sure the input voltage is same as the one stated on name plate on the back
door of the game.
2) Confirm the biggest load current is greater than 15A of the machine power
socket.
3) After connecting the power, please switch on the game.
4) Inserting coin to check if the coin machine cans work properly.
5) Visually check the game and confirm the display and light can work properly.
6) Insert coin to play the game, confirm the fire button and the machine movement
are normal.
7) Check the sound if it is ok.
14
Check before operation:
Check the game before operation to prevent the game from working improperly when
operated.
Checking item
1) Check if the cord is securely plugged in and without defects.
2) Check the location of game.
3) Check if the game case is without defects or burrs.
4) Check if the game without dirt and properly stuck on with marks.
DAILY OPERATION
Input the power
1) Turn on the machine power switch.
2) Visually check the game and confirm the display can work properly.
3) Check the sound if it is ok.
4) Confirm the coin mech, fire button and the machine movement is normal.
WarningBefore operation, please confirm all the items above are ok.
Check after operation:
1) Check the display of the game and confirm it is proper.
2) Double check the coin mech, fire button and the machine movement is normal; if
it has any problems, please solve the problem as soon as possible.
Collect coins and keep record:
1) Switch off the power and open the door of the coin box to take out the coins
2) Open the door of the coin mech to keep a record of the coins’ quantity.
15
GAME SETTINGS:
Keys for setting
Choose the content and result need to set, according to the set table toggle switch (ON or
OFF), set up the game coin.
The SW ON the motherboard has eight small switches, switch the ON to switch
conduction; To set the switch OFF to shut-off condition. Then set one of them can change
the game coin.
Main board
Main board
Setting chart:
setting
1 coin OFF OFF OFF OFF OFF OFF OFF OFF
no. of coin
per play
2 coins OFF ON OFF OFF OFF OFF OFF OFF 3 coins OFF OFF ON OFF OFF OFF OFF OFF
4 coins OFF OFF OFF ON OFF OFF OFF OFF 5 coins OFF OFF OFF OFF ON OFF OFF OFF
6 coins OFF OFF OFF OFF OFF ON OFF OFF 7 coins OFF OFF OFF OFF OFF OFF ON OFF
8 coins OFF OFF OFF OFF OFF OFF OFF ON
DIP SW1
Setting keys
SW
ON DIPON
OFF
874 5 6321
1 2 3 4 5 6 7 8
Descriptions:
1COIN[S]/1CREDIT[S]: this setting can decide how many coins for how many playing time,
if set to “1COIN[S]/1 CREDIT[S]”, it means insert 1 coins for 1 game.
16
ADJUSTMENT
adjusting chip in
adjust the coin mech
coin entrence
sample
Micro-Resistance
Port For Power/Signal Input
switch for coin signal
Adjusting Switch For Coin Signal Wavelength
coin chute
-
+
STRICT SLACK
GRAY RED WHITE BLACK GRAY
SW1 N.O.
N.C.
SW2
100ms SLOW
50ms MEDIUM 25ms FAST
Sensitivity
COUNTER(+/-) DC+12V COIN SIGNAL GROUND COUNTER(-/+)
Backward
Remove
COIN
REPLACE
coin-return pole
NOM正常MGN
精准
SW3
Descriptions:
1): Please take out the plastic coin from sample coin chute and replace it with token.
2): Remove the screws on back of coin entrance. Adjust the fixing chip on back of coin
entrance according to the token’s diameter, which prevent blocking the coin mech as
inserting the large coin in by mistake.
3): Turn the COIN Switch to “NO” (COIN Signal wire and GND should be disconnected at
usual time). Turning switch can be used as the coin mech switch when the game is power
on.
4): Adjust the adjusting switch of COIN Signal wave length to 50MS.
5): Adjust the micro-adjusting resistance of token tolerance. Clockwise: increasing the
sensitivity of token tolerance, that is, the range of accepting the token tolerance will be
larger. Counter clockwise: decrease the sensitivity, that is, the range will be smaller and
choose the token more strictly.
17
Adjust the volume:
Power amplifier plates can be adjusted to sign:
Amplifier board
Amplifier board
Bass level
Volume for right seat
Volume for left seat
Descriptions:
Adjust the volume by twisting the volume potentiometer: twist clockwisely to increase the
volume, counterclockwisely to decrease the volume.
As above drawing shown, you can select the potentiometer to adjust the volume of your
choice.
Adjust the vibration range:
Vibration regulator
Valve
气压表
Barometer
1
MP.
0.8
0
0.6
0.4
0.2
Vibration range adjustment
18
Pull up valve. Clockwisely turn the valve to increase air pressure, counterclockwisely to
decrease air pressure.
1
MP.
0.8
0
0.6
0.4
0.2
Pull up the valve.
Clockwisely turn the valve to increase air pr
essure, counterclockwisely to decrease the p
ressure.
Warning:
The proper air pressure is from 0.2 to 0.5MP. The air pressure can not be less than
0.15MP and higher than 0.55MP. If the air pressure is too low or too high, it will affect the
game and damage the air bag. Please do not adjust the air pressure of this game if not
necessary.
19
CHECK AND MAINTAIN
warning
Please check and maintain the game by technicians.
Please power off the game when check and maintain.
Please do not put any tools into cabinet, otherwise it will cause problem.
After checking, please tightly screw the screws and close the door.
Daily Check
ITEM DESCRIPTION
Coin mech Check whether the coin mech can work proper.
Fire button Check whether the button can launch
Motion Check whether the motion is proper
Sound Check whether the sound and the volume are ok.
Display Check if the displayed colors are proper.
Temperature
humidity
Daily Maintenance
ITEM DESCRIPTION
Cabinet Clean the cabinet with water and soft paper.
Monitor Clean the ABS for monitor with water and soft paper.
PCB Sweep the dust and dirty in the board with small brush
Air Tank
Check if the temperature and humidity is proper
Open the valve under the air tank to release the water.
once every three months
20
TROUBLESHOOTING
If you have any problem in installing or using the machine, we recommend that you first
check the following table for possible cause of the problem and solution before asking for
technical support:
NO. PROBLEMS CAUSES SOLUTIONS
no sample coin insert sample coin
1 Can't insert coin
sensitivity for coin was adjusted too
high
Coin mech is bad. Replace the coin mech.
Bad connection for the lights Reconnect the wires of lights.
adjust the sensitivity, screw the
resistance (turn right)
3 The lights do not light up
4
5
6 Buttons invalid.
7 no display
8 no sound
The lights of light box do
not light up
Air compressor does not
work
the lights failure replace the lights
the light driving board is bad
the lights board failure maintain or replace the lights board
the circuit of power supply is blocked check the connection of circuit
Bad connection of air compressor.
Start capacitor for air compressor is
bad.
Protection switch for air compressor is
bad.
Air compressor is bad. Replace the air compressor.
Bad connection for the button. Reconnect the wires of button.
The button is bad. Replace the button.
Signal wire for monitor not connected
yet.
the monitor power line is loose reconnect the monitor power line
the main board is bad. replace the main board.
the monitor is bad replace the monitor
The speaker is bad. Check and replace the speaker.
Volume is too low. Increase the volume.
The wire of speaker is loose. Check the connection of speaker.
Repair or replace the light driving
board
Reconnect the wires of air
compressor.
Replace the capacitor.
Replace the switch.
check the connection of signal wire.
The amplifier board is bad Repair or replace the amplifier board
no AC110V/220V input Check the connection
9
No movement after
powering on the game
no output voltage of power supply. Repair or replace the power supply.
the computer motherboard does not
work
maintain or replace the computer
motherboard
21
PARTS DRAWING AND PARTS LIST
Computer part:
22
25
24
23
21
27
26
20
19
18
17
16
15
14
NO.
01 Top trapezoid blister 1
02 LED light strip blue 0.2m
03 Fiberglass 1
04 47” LCD monitor 1
05 Blister for monitor frame 1
06
07 LED light strip blue 0.5m
08 10” fan blister 2
09 6” speaker blister 2
10 Front light blister 1
11 Foundation 4
12 Wheel 4
13 8*8 fan mesh 2
14 Cover for power box 1
15 Power box 1
16 Protection switch 1
17 6.5” speaker 2
Yellow & black blister for side
light
NAME QTY
1
13
01
02
18 15*15 fan 2
19 15*15 fan mesh 2
20 Door for fan 1
21 Service door 1
22 Lock 1285# 2
23 Fan mesh 2
24 Holder 1 for vent pipe 2
25 Vent pipe 2
26 Holder 2 for vent pipe 2
27 10” strong fan 2
NO.
12
03
11
04
05
06
07
NAME QTY
08
10
09
22
Side light:
02
01
Main board component:
05
02
03
04
07
06
03
04
NO.
01 Big wheel blister 2
02 Yellow ring blister 2
03 LED light strip white 5m
04 3-color chasing light board 10
NAME QTY
08
09
10
11
12
01
NO.
01 Transformer 220V/18V 80W 1
02 Transformer 220V/18V 150W 1
03
04 Signal amplifier 1
05 Amplifier 1
06 Main board 1
07 I/O board 1
08 Computer host 1
09 6P connector 1
10 Signal converting board 1
11 Socket box 1
12 Power supply 1
Solid relay 25A
NAME QTY
2
23
Pneumatic assembly:
02
01
Seat Part - top:
03
04
05
06
07
08
12
11
NO.
NAME QTY
01 Air compressor 780W 3
02 High-pressure air pipe 3
03
Air pipe
04 Solenoid 2L 030-08 1
05 Filter 1
06 Valve 3
07 Protection switch 1
08 Air tank 1
09
09 Protection valve 1
10
10 Barometer 1
11 AC contactor CJXZ-1810 1
12 AC capacitor CBB60 3
1M
01
02
04
03
05
06
07
NO.
NAME QTY
01 U shape blister 1
02 White light lens 1
03
7-color light strip
1.2m
04 Fiberglass 1
05 LED light strip 0.2m
06 Trapezoid blister 1
08
07 White acrylic board 1
08 LED light strip 1.3m
24
14
Seat assembly:
15
12
11
13
16
10
01
02
03
04
05
09
08
06 07
NO.
NAME QTY
01 Speaker blister 4
02 4” speaker 4
03
Seat fiberglass
2
04 Big light 4
05 Chasing light white 2
06 Acrylic 1 2
07 Acrylic 2 2
08 Acrylic 3 2
09 Right blister for seat chassis 2
10 Seat chassis 2
11 3-color chasing light board 6
12 Vibrator 2
13 LED light strip blue 0.4m
14 Left blister for seat chassis 2
15 Left handrail 2
16 Right handrail 2
Seat part – underneath:
03 02
01
04
05
06
07
08
15
20
09 10
11
12
14
19
13
16
18
NO.
NAME QTY
01 Fiberglass for control panel 1
02 Acrylic board for control panel 1
03
Round button
04 Micro switch 5
05 Lock 1285# 1
06 Coin mech 1
07 Meter 1
08 Small button 1
09 Lock 1396# 1
10 Coin box 1
11 Cover 1
12 Plastic pole 4
13 Holder for seat 1
14 Air bag 4
17
15 Solenoid 4V 210-08 4
16 Fiberglass for chassis 1
17 Back light blister 2
18 Foundation 4
19 Wheel 4
20 3-color chasing light strip 0.4m
5
25
SCHEMATIC DIAGRAM FOR AIR CIRCUIT SYSTEM
aiir compressor pressure IN
cheak calve
air tank
filter reducing valve
master air valve
pressure indicator
auto pressure switch
air valve
A
A
A
A
air sac
P
R
P
R
P
R
P
R
26
Bla/R1
R1
speaker 1 for left seat
Bla/R2
R2
speaker 2 for left seat
Bla/R3
speaker 1 for right seat
Bla/R4
speaker 2 for right seat
Bla/R5
left woofer
Bla/R6
right woofer
A1
2/T1 4/T2 6/T3 14NO
Br1-1
B1-1
AC220V IN
R3
R4
R5
R6
Bla1-1
Y/G1
SCHEMATIC DIAGRAM
Pu1-1
Pu1-2
4
5
7
13NO5/L33/L21/L1
18V
0V
18V
A2
A1
A2
POWER SUPPLY
220V
220V
E
POWER SUPPLY
220V
220V
E
J6
R1
11
Bla/R1
2332
Bla/R2
R2
4 4
J5
R3
1 1
Bla/R3
2
2
Bla/R4
3
3
R4
44
J4
R5
Bla/R5
2
Bla/R6
R6
4 4
AMPLIFIER
L
GND
AC18V1
AC18V
231234567
J3
J1
123123456
W
Bla1-1
Pu1-1
Pu1-2
TRANSFORMER
2
220V
0V
1
pressure switch
AC SOLENOID
GND
5V
12V
GND
5V
12V
FAN(1-3)
8
L+ GND GND R+
L+ GND GND R+
L+ GND GND23113 R+
NG
NG
Bla
lighted LED light
AIR COMPRESSOR
M
middle
middle
bass
NG
GND
Br1-1、2、3、4、5
B1-1、2、3、4、5
SAFE SWITCH
R
NG
7
R
Bla1-Bla7
Bla2-1,Bla2-2
O4
Bla5
Bla4
Bla3
O3
O2
R3
Bla2
Br1-4
B1-4
Br1-3
B1-3
Br1-2
B1-2
Bla1
O1
R2 R1
R1-R4
O1-09
R2-1
O2-1
coin mech
11
2 2
33
4 4
free sw
vibration on / off sw
video 1 start sw
video 2 start sw
video 3 start sw
video 4 start sw
video start button light
1-4
GND
GND
2
B
3
C
+5V
+5V
41AD
5
E
+12V
+12V
67GF
98HI
J
10
Bla
A
1
audio R
audio GNDaudio L
B
2
C
3 4
D
5
E
6
F
7
G
H
8
I
9
J
10
K
11
L
12 13
M
14
N
COMPUTER
15
MAIN BOARD
O
16
P
Q
17
R
18
S
19
T
20
U
21
V
22
W
23 24
X
25
Y
26
Z
27
A1
28
B1
29
C1
30
D1
31
E1
32
F1
33
G1
34
H1
35
I1
36
J1
W R
coin output signal
B1
video 1 start signal
Pu2
game over feedback signal
Grey2
video 2 start signal
Br1
video 3 start signal
Y1
video 4 start signal
G1
video 5 start signal
R/W1
video 6 start signal
Grey/W1
resistor 1/4W
G/W1
game start signal game over signal
B/W1
3
3
2
MONITOR2
1
1
VGA port
W/Bla1
3-color
1 1 2
2
side light 4 for monitor
3
3
4
4
side light 3 for monitor
5
5
side light 2 for monitor
6
6
side light 1 for monitor left 3-color light 3
7
7
8
8
left 3-color light 2
9
9
left 3-color light 1
CN4
11
左侧三色灯3
2
2
左侧三色灯2
3
3
左侧三色灯1
N/A
4
4
5
5
后右气阀
6
6
后左气阀
7
7
前右气阀
8
8
前左气阀
9
9
总气阀
CN3
signal amplifier for
chasing light
relay
LEFT 3-COLOR CHASING LIGHT
RIGHT 3-COLOR CHASING LIGHT
chasing light
coin meter
blower
+12V 2 2
M
G1
Br/W1
Y/W1
Pu/W1
Grey1
G/Bla1
Pi1
Bla6
O5
Pi3
Grey5
Pu4 Br/W2 R/W3 G/W3 B/W3
R/W4 G/W4 B/W4
Pu5
B3 G3 Y4 W2
O6 Bla7
O7
Br1-5
B1-5
R4
O8
0V
24V
TRANSFORMER
VIRBRATOR
2
220V
0V
1
4
3
O9
signal 7 signal 6 signal 5 signal 4
signal 3 signal 2 signal 1
signal 8 signal 7 signal 6 signal 5 signal 4 signal 3 signal 2
signal 1
R/W2
4 4
G/W2
33
B/W2
2 2
11
11GND
9 9
Pi2
8
8
Grey3
7
7
Pu3
6
6
Br/W1
5
5
N/A
4
4
R/W2
3
3
G/W2
2
2
B/W2
1 1
CN2
99 8
8
7
7
Pu4
6
6
B2
5
5
G2
4
4
Y3
3
3
N/A
2112
W1
CN1
GND
12V
1
2
1
2
Grey4
Y2
Pu1
11 2
2
3443
1 1 2
2
3
3
4 4
side chasing light 4 for monitor
side chasing light 3 for monitor
side chasing light 2 for monitor
side chasing light 1 for monitor
W/Bla1 G1
Br/W1 Y/W1 G/W1 B/W1 Pu/W1 Grey1 G/Bla1 W/Bla2 Y/G1
Pu1
R/W1 Grey/W1 Br1 Y1 G1
B1 Pu2 Grey2 Pi1
R/W3 G/W3 B/W3
R/W4 G/W4 B/W4
Pu5
Pi3
B3
Grey5
G3
Pu4
Y4
W2
Br/W2
coin sw
free button
virbration on/off sw
video 1 start sw
game start signal game over signal
video 2 start sw video 3 start sw video 4 start sw
video 5 start sw video 6 start sw
blower control signal
video 5 start output signal
video 6 start output signal
video 2 start output signal
video 3 start output signal
video 4 start output signal
coin output signal
video 1 start output signal
game over feedback signal
video start button light
CON3
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
1 2 3 4
back right valve
back left valve
front right valve
front left valve
main valve
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A1 B1 C1 D1 E1 F1 G1 H1 I1 J1
SIGNAL I/O
BOARD
293961
chasing light 1 chasing light 2 chasing light 3 chasing light 4
coin meter
virbration soleoid
main valve
valve 1 (front left)
valve 1 (front right)
valve 3 (back left)
valve 4 (back right)
12V GND GND 5V
O10
Br/W1 Pu3 Grey3 Pi2 Grey4 Y2 W1 Y3 G2 B2 Pu4
O2-1 Bla2-2 Bla2-1
R2-1
27
Loading...
