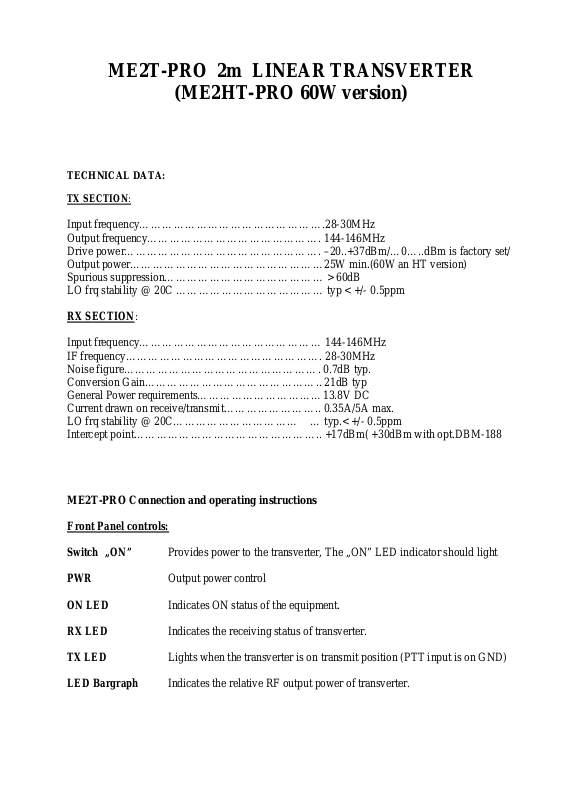

ME2T-PRO 2m LINEAR TRANSVERTER
(ME2HT-PRO 60W version)
TECHNICAL DATA:
TX SECTION:
Input frequency………………………………………….28-30MHz
Output frequency………………………………………. 144-146MHz
Drive power……………………………………………. –20..+37dBm/…0…..dBm is factory set/
Output power……………………………………………25W min.(60W an HT version)
Spurious suppression…………………………………… > 60dB
LO frq stability @ 20C ………………………………… typ < +/- 0.5ppm
RX SECTION:
Input frequency………………………………………… 144-146MHz
IF frequency……………………………………………. 28-30MHz
Noise figure……………………………………………. 0.7dB typ.
Conversion Gain……………………………………….. 21dB typ
General Power requirements……………………………13.8V DC
Current drawn on receive/transmit…………………….. 0.35A/5A max.
LO frq stability @ 20C…………………………… … typ.< +/- 0.5ppm
Intercept point………………………………………….. +17dBm( +30dBm with opt.DBM-188
ME2T-PRO Connection and operating instructions
Front Panel controls:
Switch „ON” Provides power to the transverter, The „ON” LED indicator should light
PWR Output power control
ON LED Indicates ON status of the equipment.
RX LED Indicates the receiving status of transverter.
TX LED Lights when the transverter is on transmit position (PTT input is on GND)
LED Bargraph Indicates the relative RF output power of transverter.
Page 2
Ant RF
-
out
Rear Panel connections:
ANT (UHF ) An „N” type connector is provided for 144MHz RF input & output.
PTT (RCA) This connector provides a connection to the TCVR send line. A ground
on this line places the transverter into transmit mode.(+13.8V/40mA)
IF in (BNC) Apply 28MHz drive to this connector. The input level is -10…+37dBm,
You can set the attenuator with jumpers.
On case single IF cable mode connector is common IF TX/RX.
IF out (BNC) IF (receive) output is available at this connector. Do not apply RF
power to this connector!
On case single IF cable mode this connector is open.
SND out (RCA) Send open collector output to external PA’s( 50V/200mA max)
DC SUPPLY Conn DC connector, 20A type.

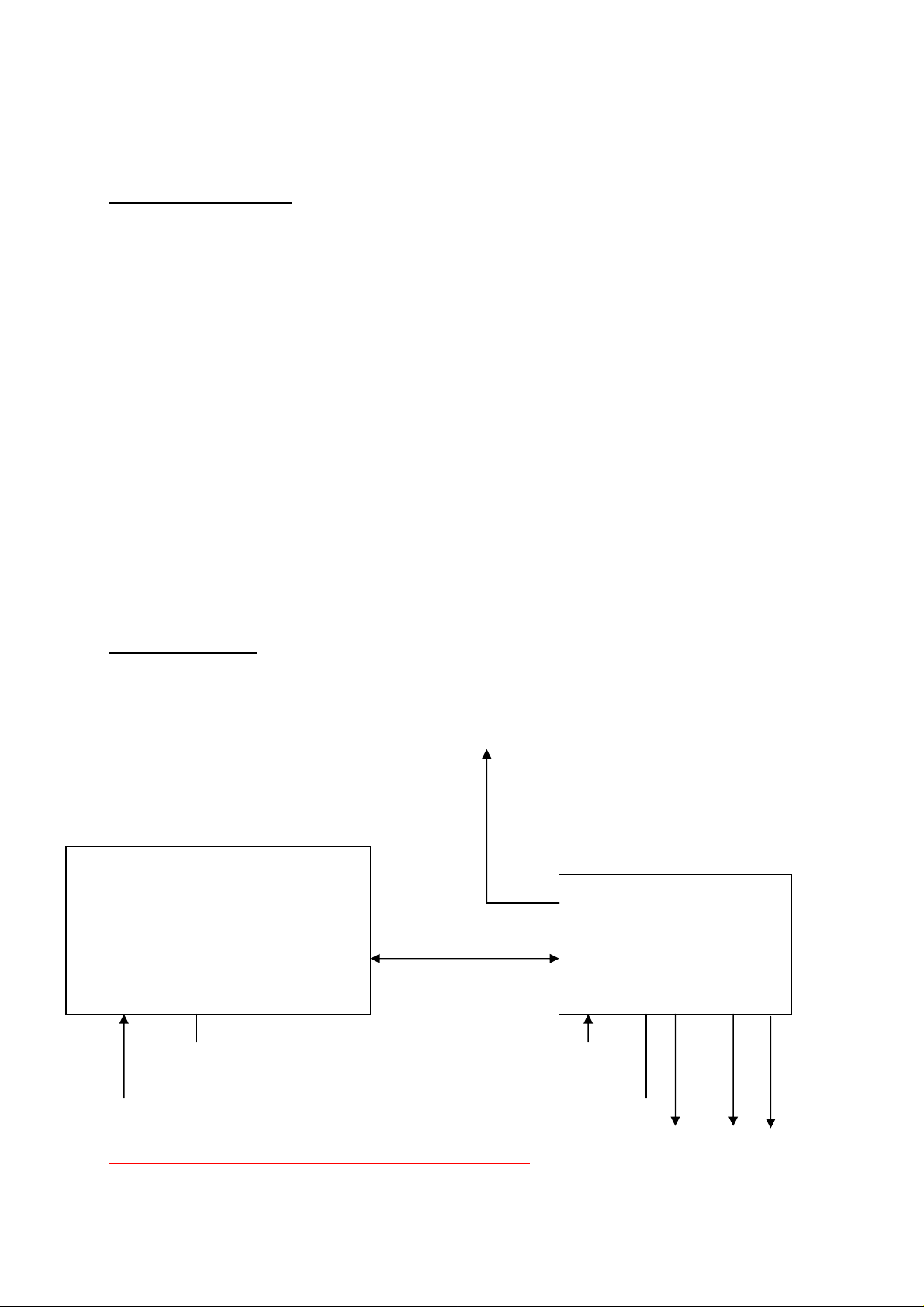

Cable connections:
Two IF cable connecting on case low or high power(max. 5W) out TCVR’s
144MHz ant
TCVR
TX-GND
ME2T-PRO
PTT
IF-in IF-out + 13.8V -
100uW to 5W max.
Switch OFF the PA of your TCVR or set to max 5W out!
13.8V/5A SND
Page 3
Ant

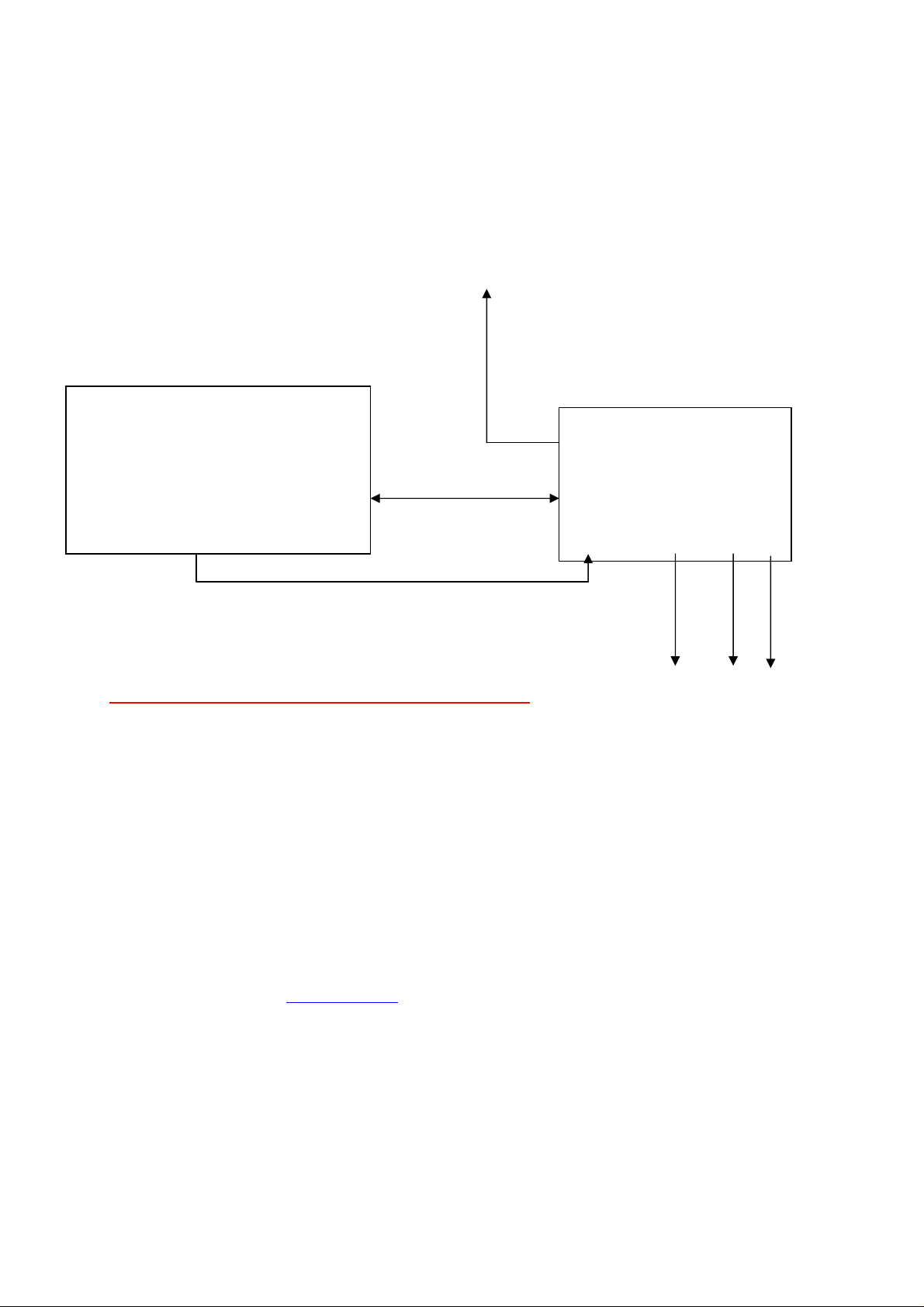

Single cable connecting on case low or high power out TCVR’s
144MHz ant
TCVR
TX-GND
ME2T-PRO
PTT
IF-in IF-out + 13.8V -
100uW to 5W max.
Switch OFF the PA of your TCVR or set to max 5W out!
13.8V/5A SND
Using transverter with high power radio(100w) is your own risk,
NEVER use higher IF in power than 5W! Another case you will lost the warranty.
Setting of 28MHz input level:
1. Set the PWR knob to right full clockwise.
2. TX cw mode set the IF poti over the top cover slots- just up to full scale(30W) on the led
bargraph.
3. You can set the output power with the PWR poti from appr. 5W to 30W output.
More technical info on: www.ha1ya.hu
Page 4
Attenuator jumper settings:
Low PWR IF input (-10..+27dBm)
2x IF cable connection
J1 ON ON
J2 OFF ON
J3 OFF OFF
J4 OFF ON
J5 ON OFF
Low PWR IF input (-10..+27dBm)
1x IF cable connection
High PWR IF input (27..+37dBm)
2x IF cable connection
J1 OFF OFF
J2 ON ON
J3 ON ON
J4 OFF ON
J5 ON OFF
J6 ON 13.8V on RX to mast head preamplifier.( 350mA max!)
The factory set is 2x IF cable, low PWR input ( 0dBm)
High PWR IF input (27..+37dBm)
1x IF cable connection
