Measurement Specialties PMD-1024HLS User Manual

PMD-1024HLS

Personal Measurement Device™ brand

USB-based Digital I/O Module

User's Guide

Document Revision 4, May, 2005

Your new Measurement Computing product comes with a fantastic extra —

Management committed to your satisfaction!

Refer to www.mccdaq.com/execteam.html for the names, titles, and contact information of each key executive at Measurement Computing.

Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our two missions:

 To offer the highest-quality, computer-based data acquisition, control, and GPIB hardware and software

available—at the best possible price.

 To offer our customers superior post-sale support—FREE. Whether providing unrivaled telephone technical and

sales support on our latest product offerings, or continuing that same first-rate support on older products and operating systems, we’re committed to you!

Lifetime warranty: Every hardware product manufactured by Measurement Computing Corporation is warranted against defects in materials or workmanship for the life of the product. Products found defective are repaired or replaced promptly.

Lifetime Harsh Environment Warranty®: We will replace any product manufactured by Measurement Computing Corporation that is damaged (even due to misuse) for only 50% of the current list price. I/O boards face some tough operating conditionssome more severe than the boards are designed to withstand. When a board becomes damaged, just return the unit with an order for its replacement at only 50% of the current list price. We don’t need to profit from your misfortune. By the way, we honor this warranty for any manufacturer’s board that we have a replacement for.

30 Day Money Back Guarantee: You may return any Measurement Computing Corporation product within 30 days of purchase for a full refund of the price paid for the product being returned. If you are not satisfied, or chose the wrong product by mistake, you do not have to keep it. Please call for an RMA number first. No credits or returns accepted without a copy of the original invoice. Some software products are subject to a repackaging fee.

These warranties are in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular application. The remedies provided herein are the buyer’s sole and exclusive remedies. Neither Measurement Computing Corporation, nor its employees shall be liable for any direct or indirect, special, incidental or consequential damage arising from the use of its products, even if Measurement Computing Corporation has been notified in advance of the possibility of such damages.

HM PMD-1024HLS.doc

Trademark and Copyright Information

Personal Measurement Device brand, TracerDAQ, Universal Library, InstaCal, Harsh Environment Warranty, Measurement Computing Corporation, and the Measurement Computing logo, are either trademarks or registered trademarks of Measurement Computing Corporation.

SoftWIRE is a registered trademark of SoftWIRE Technology, Inc.

Windows, Microsoft, and Visual Studio are either trademarks or registered trademarks of Microsoft Corporation. LabVIEW is a trademark of National Instruments. All other trademarks are the property of their respective owners.

Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.

Notice

Measurement Computing Corporation does not authorize any Measurement Computing Corporation product for use in life support systems and/or devices without the written approval of the CEO of Measurement Computing Corporation. Life support devices/systems are devices or systems which, a) are intended for surgical implantation into the body, or b) support or sustain life and whose failure to perform can be reasonably expected to result in injury. Measurement Computing Corporation products are not designed with the components required, and are not subject to the testing required to ensure a level of reliability suitable for the treatment and diagnosis of people.

iii

Table of Contents

About this User's Guide....................................................................................................................... v

What you will learn from this user's guide .........................................................................................................v

Conventions in this user's guide..........................................................................................................................v

Where to find more information.........................................................................................................................v

Chapter 1

Introducing the PMD-1024HLS......................................................................................................... 1-1

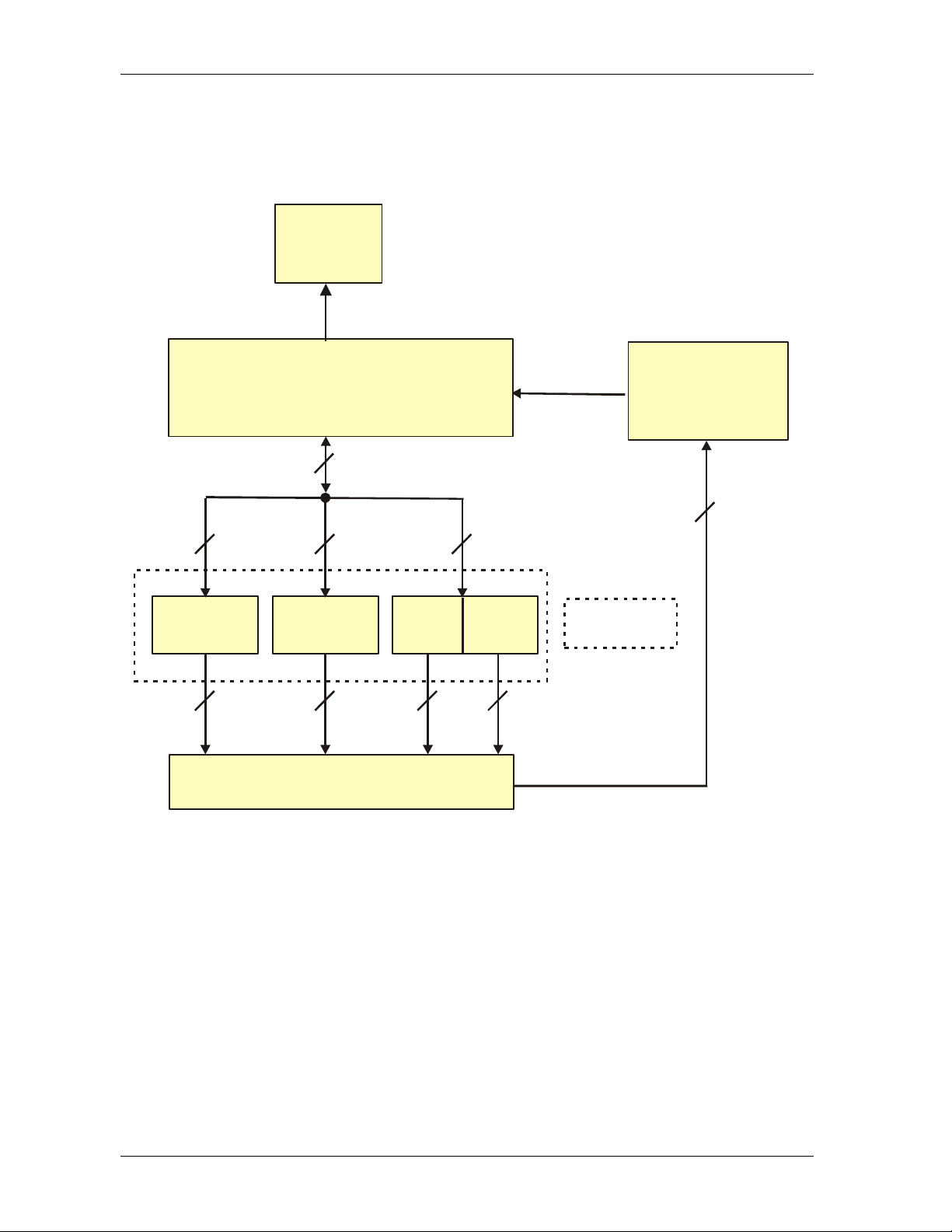

PMD-1024HLS block diagram....................................................................................................................... 1-2

Software features ............................................................................................................................................ 1-2

Connecting a PMD-1024HLS to your computer is easy................................................................................. 1-3

Chapter 2

Installing the PMD-1024HLS............................................................................................................. 2-1

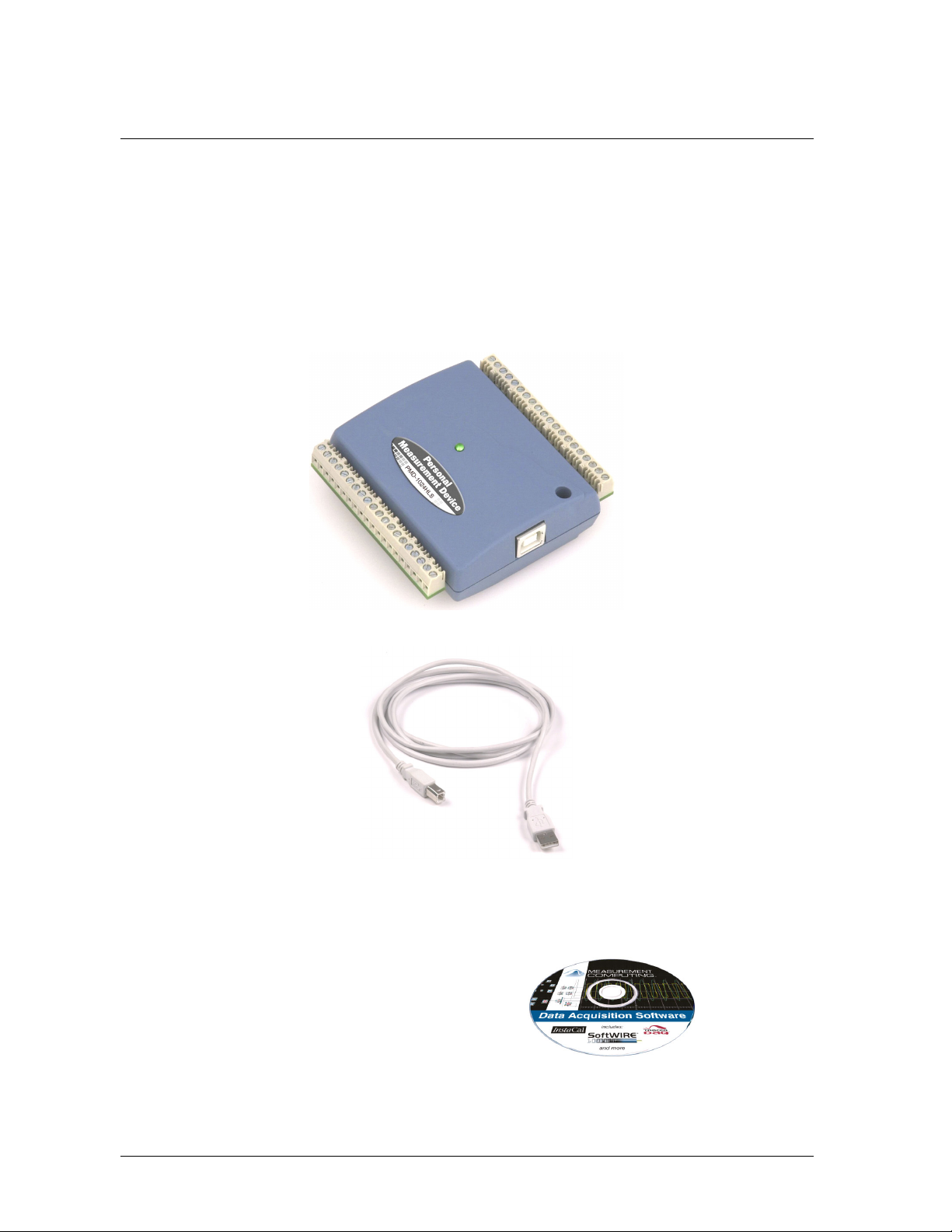

What comes with your PMD-1024HLS shipment? ........................................................................................ 2-1

Hardware ....................................................................................................................................................................... 2-1

Software......................................................................................................................................................................... 2-1

Documentation............................................................................................................................................................... 2-2

Unpacking the PMD-1024HLS ...................................................................................................................... 2-2

Installing the software..................................................................................................................................... 2-2

Installing the hardware ................................................................................................................................... 2-2

Chapter 3

Functional Details.............................................................................................................................. 3-1

External components ...................................................................................................................................... 3-1

USB connector............................................................................................................................................................... 3-1

LED ............................................................................................................................................................................... 3-1

Screw terminal wiring.................................................................................................................................................... 3-2

Main connector and pin out ........................................................................................................................................... 3-2

Digital I/O terminals (Port A0 to A7, Port B0 to B7, Port C0 to C7)............................................................................. 3-3

Power terminals ............................................................................................................................................................. 3-4

Ground terminals ........................................................................................................................................................... 3-5

Counter terminal ............................................................................................................................................................ 3-5

Pull-up/pull-down terminals .......................................................................................................................................... 3-5

Chapter 4

Specifications .................................................................................................................................... 4-1

Digital input/output......................................................................................................................................... 4-1

Counter section ............................................................................................................................................... 4-2

Power.............................................................................................................................................................. 4-2

General............................................................................................................................................................ 4-3

Environmental................................................................................................................................................. 4-3

Mechanical...................................................................................................................................................... 4-3

Main connector and pin out ............................................................................................................................ 4-3

Preface

About this User's Guide

What you will learn from this user's guide

This user's guide explains how to install, configure, and use the PMD-1024HLS so that you get the most out of its USB digital I/O features.

This user's guide also refers you to related documents available on our web site, and to technical support resources that can also help you get the most out of your PMD-1024HLS.

Conventions in this user's guide

For more information on …

Text presented in a box signifies additional information and helpful hints related to the subject matter you are reading.

Caution! Shaded caution statements present information to help you avoid injuring yourself and

others, damaging your hardware, or losing your data.

<#:#>

bold text Bold text is used for the names of objects on the screen, such as buttons, text boxes, and check

italic text

Angle brackets that enclose numbers separated by a colon signify a range of numbers, such as those assigned to registers, bit settings, etc.

boxes. For example:

1. Insert the disk or CD and click the OK button.

Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase. For example:

 The InstaCal® installation procedure is explained in the DAQ Software Quick Start.  Never touch the exposed pins or circuit connections on the board

Where to find more information

The following electronic documents provide information that can help you get the most out of your Personal Measurement Device™ brand PMD-1024HLS.

 MCC's Specifications: PMD-1024HLS (the PDF version of Chapter 4 in this guide) is available on

our web site at www.mccdaq.com/pdfs/PMD-1024HLS.pdf

 MCC's DAQ Software Quick Start is available on our web site at

www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf.

 MCC's Guide to Signal Connections is available on our web site at

www.mccdaq.com/signals/signals.pdf

 MCC's Universal Library User's Guide is available on our web site at

http://www.mccdaq.com/PDFmanuals/sm-ul-user-guide.pdf

 MCC's Universal Library Function Reference is available on our web site at

http://www.mccdaq.com/PDFmanuals/sm-ul-functions.pdf.

 MCC's Universal Library for LabVIEW

www.mccdaq.com/PDFmanuals/SM-UL-LabVIEW.pdf.

™

User’s Guide is available on our web site at

The PMD-1024HLS User’s Guide (this document) is available on our web site at

www.mccdaq.com/PDFmanuals/PMD-1024HLS.pdf.

Introducing the PMD-1024HLS

This user's guide contains all of the information you need to connect the PMD-1024HLS to your computer and to the signals you want to measure. The PMD-1024HLS is part of the Personal Measurement Device brand of USB-based data acquisition products.

Chapter 1

The PMD-1024HLS is a USB 2.0 low-speed module supported under Microsoft® Windows® 98 (2 edition), Windows ME, Windows 2000, and Window XP. It is designed for USB 1.1 ports, and was tested for full compatibility with both USB 1.1 and USB 2.0 ports.

Refer to the "Be sure you are using the latest system software" note in Chapter , " 1024HLS

The PMD-1024HLS is a high drive, 24-line digital I/O module that includes one 32-bit external event counter. The PMD-1024HLS is powered by the +5 volt USB supply from your computer. No external power is required.

An emulation of the 82C55 in mode 0 (only) sets the direction of the 24 digital I/O lines in four ports. Each digital port can be configured for either input or output. The 74FCT244 outputs are high-drive TTL, capable of sourcing 15 mA and sinking 64 mA.

The PMD-1024HLS is shown in Figure 1-1. All I/O connections are made to the screw terminals on each side of the PMD-1024HLS.

," to make sure you are using the latest USB drivers.

2 Installing the PMD-

Figure 1-1. PMD-1024HLS

1-1
