PCI-DAS64/M1/16
Multifunction Analog & Digital I/O
User's Guide
Document Revision 1, July, 2006
© Copyright 2006, Measurement Computing Corporation
Your new Measurement Computing product comes with a fantastic extra —
Management committed to your satisfaction!
Refer to www.mccdaq.com/execteam.html for the names, titles, and contact information of each key executive at Measurement
Computing.
Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy
the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our two
missions:
! To offer the highest-quality, computer-based data acquisition, control, and GPIB hardware and software available—at
the best possible price.
! To offer our customers superior post-sale support—FREE. Whether providing unrivaled telephone technical and sales
support on our latest product offerings, or continuing that same first-rate support on older products and operating
systems, we’re committed to you!
Lifetime warranty: Every hardware product manufactured by Measurement Computing Corporation is warranted against
defects in materials or workmanship for the life of the product. Products found defective are repaired or replaced promptly.
Lifetime Harsh Environment Warranty®: We will replace any product manufactured by Measurement Computing
Corporation that is damaged (even due to misuse) for only 50% of the current list price. I/O boards face some tough operating
conditionssome more severe than the boards are designed to withstand. When a board becomes damaged, just return the unit
with an order for its replacement at only 50% of the current list price. We don’t need to profit from your misfortune. By the way,
we honor this warranty for any manufacturer’s board that we have a replacement for.
30 Day Money Back Guarantee: You may return any Measurement Computing Corporation product within 30 days of
purchase for a full refund of the price paid for the product being returned. If you are not satisfied, or chose the wrong product by
mistake, you do not have to keep it. Please call for an RMA number first. No credits or returns accepted without a copy of the
original invoice. Some software products are subject to a repackaging fee.
These warranties are in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or
fitness for a particular application. The remedies provided herein are the buyer’s sole and exclusive remedies. Neither
Measurement Computing Corporation, nor its employees shall be liable for any direct or indirect, special, incidental or
consequential damage arising from the use of its products, even if Measurement Computing Corporation has been notified in
advance of the possibility of such damages.
HM PCI-DAS64_M1_16.doc
ii
Trademark and Copyright Information
TracerDAQ, Universal Library, Harsh Environment Warranty, Measurement Computing Corporation, and the Measurement
Computing logo are either trademarks or registered trademarks of Measurement Computing Corporation.
Windows, Microsoft, and Visual Studio are either trademarks or registered trademarks of Microsoft Corporation
LabVIEW is a trademark of National Instruments.
CompactFlash is a registered trademark of SanDisk Corporation.
All other trademarks are the property of their respective owners.
Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no
responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or
other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or
copyrights of Measurement Computing Corporation.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any
means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement
Computing Corporation.
Notice
Measurement Computing Corporation does not authorize any Measurement Computing Corporation product for use
in life support systems and/or devices without prior written consent from Measurement Computing Corporation.
Life support devices/systems are devices or systems which, a) are intended for surgical implantation into the body,
or b) support or sustain life and whose failure to perform can be reasonably expected to result in injury.
Measurement Computing Corporation products are not designed with the components required, and are not subject
to the testing required to ensure a level of reliability suitable for the treatment and diagnosis of people.
iii
Table of Contents
Preface
About this User's Guide ......................................................................................................................vi
What you will learn from this user's guide ........................................................................................................vi
Conventions in this user's guide ........................................................................................................................vi
Where to find more information........................................................................................................................vi
Chapter 1
Introducing the PCI-DAS64/M1/16 ................................................................................................... 1-1
Overview: PCI-DAS64/M1/16 features.......................................................................................................... 1-1
Software features............................................................................................................................................ 1-1
Chapter 2
Installing the PCI-DAS64/M1/16 ....................................................................................................... 2-1
What comes with your PCI-DAS64/M1/16 shipment?................................................................................... 2-1
Hardware ....................................................................................................................................................................... 2-1
Additional documentation.............................................................................................................................................. 2-1
Optional components ..................................................................................................................................................... 2-1
Unpacking the PCI-DAS64/M1/16................................................................................................................. 2-2
Installing the software .................................................................................................................................... 2-2
Installing the PCI-DAS64/M1/16 ................................................................................................................... 2-2
Configuring the PCI-DAS64/M1/16............................................................................................................... 2-3
Connecting the board for I/O operations ........................................................................................................ 2-3
Connectors, cables – main I/O connector....................................................................................................................... 2-3
Pinout – main I/O connector.......................................................................................................................................... 2-4
Pin out – auxiliary DIO connector ................................................................................................................................. 2-7
Field wiring, signal termination and conditioning........................................................................................ 2-10
Chapter 3
Programming and Developing Applications .................................................................................. 3-1
Programming Languages................................................................................................................................ 3-1
Packaged Applications Programs ................................................................................................................... 3-1
Register Level Programming.......................................................................................................................... 3-1
Chapter 4
Functional Description ..................................................................................................................... 4-1
Analog inputs.................................................................................................................................................. 4-1
Burst mode..................................................................................................................................................................... 4-2
Analog output ................................................................................................................................................. 4-2
Digital I/O....................................................................................................................................................... 4-2
Counter/timer I/O ........................................................................................................................................... 4-2
Chapter 5

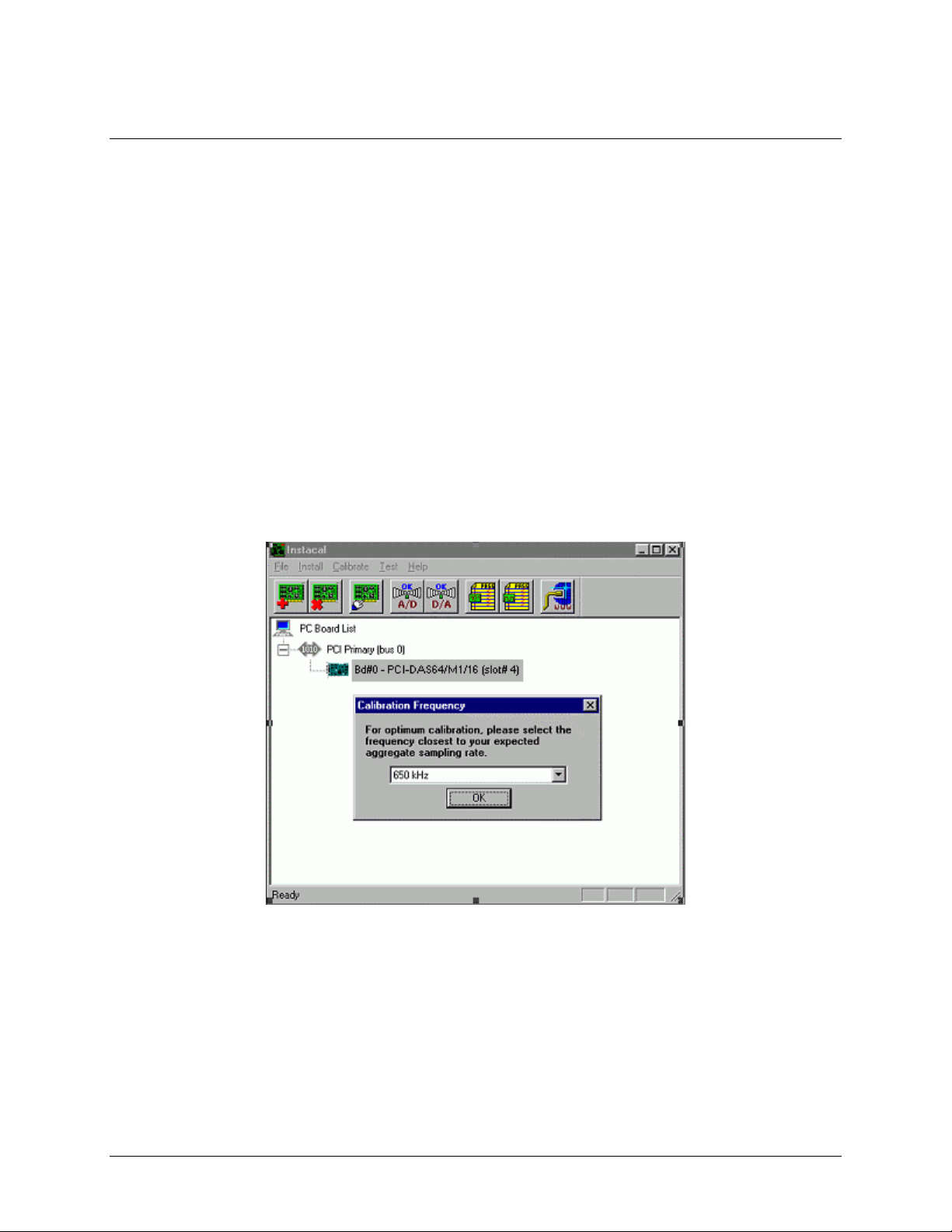

Calibrating the PCI-DAS64/M1/16 .................................................................................................... 5-1
Overview ........................................................................................................................................................ 5-1

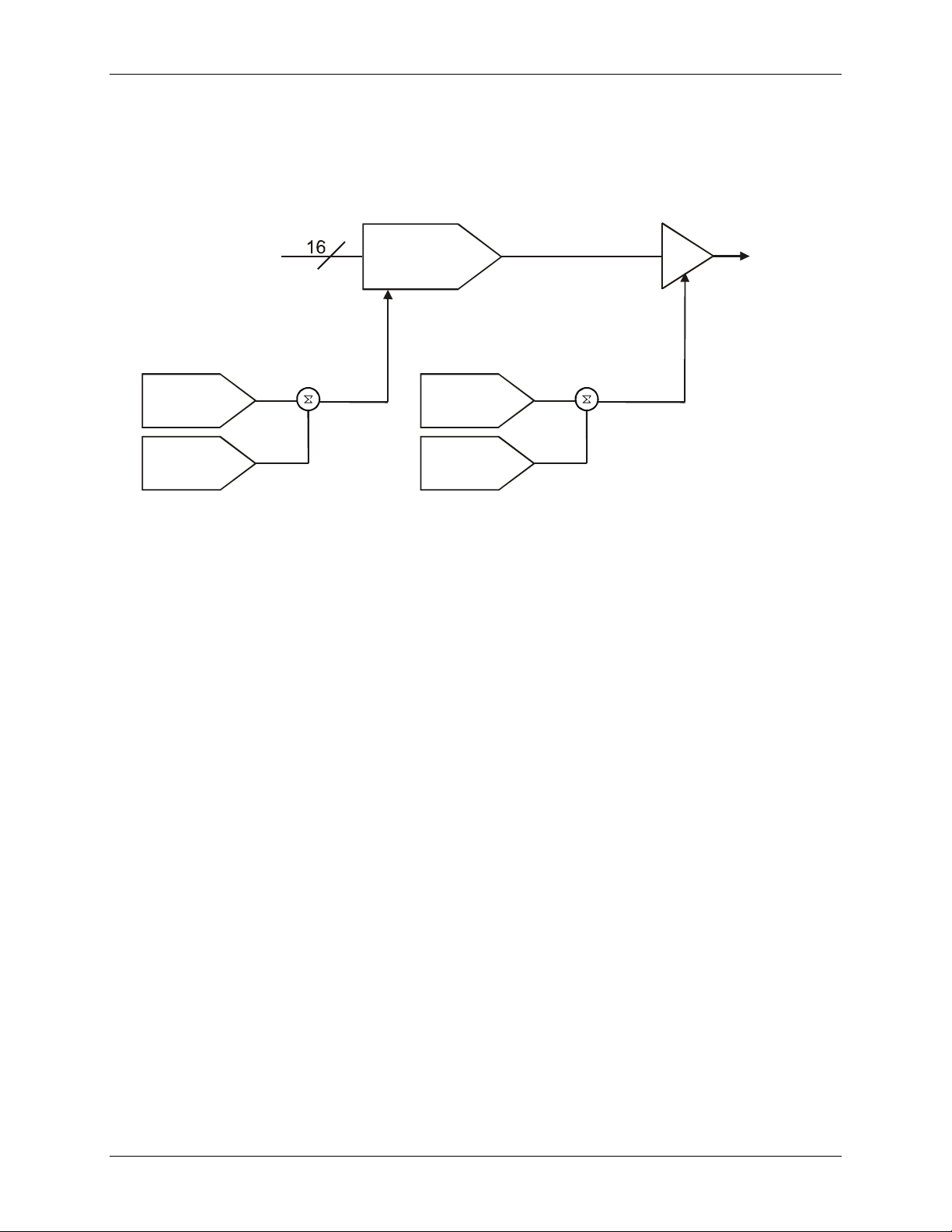

Calibration theory........................................................................................................................................... 5-2
Chapter 6
Specifications.................................................................................................................................... 6-4
Analog input ................................................................................................................................................... 6-4
System throughput ......................................................................................................................................................... 6-5
Accuracy........................................................................................................................................................................ 6-5
Crosstalk ........................................................................................................................................................................ 6-6
Noise performance......................................................................................................................................................... 6-7
iv
PCI-DAS64/M1/16 User's Guide
Analog output ................................................................................................................................................. 6-7
Accuracy........................................................................................................................................................................ 6-7
Analog output pacing and triggering.............................................................................................................................. 6-8
Digital input/output......................................................................................................................................... 6-8
Interrupts......................................................................................................................................................... 6-9
Counters.......................................................................................................................................................... 6-9
Pacer ............................................................................................................................................................. 6-10
Power consumption ...................................................................................................................................... 6-10
Environmental .............................................................................................................................................. 6-10
Mechanical ................................................................................................................................................... 6-10
Main connector and pin out.......................................................................................................................... 6-10
Differential mode pin out............................................................................................................................................. 6-11
Single-ended mode pin out .......................................................................................................................................... 6-12
Digital input/output connector and pin out................................................................................................... 6-13
v
Preface
About this User's Guide
What you will learn from this user's guide
This user's guide explains how to install, configure, and use the PCI-DAS64/M1/16 so that you get the most out
of its analog, digital, and timing I/O features.
This user's guide also refers you to related documents available on our web site, and to technical support
resources.
Conventions in this user's guide
For more information on …
Text presented in a box signifies additional information and helpful hints related to the subject matter you are
reading.
Caution! Shaded caution statements present information to help you avoid injuring yourself and others,
damaging your hardware, or losing your data.
<#:#> Angle brackets that enclose numbers separated by a colon signify a range of numbers, such as those assigned
to registers, bit settings, etc.
bold text Bold text is used for the names of objects on the screen, such as buttons, text boxes, and check boxes. For
example:
1. Insert the disk or CD and click the OK button.
italic text Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase. For
example:
The InstaCal installation procedure is explained in the Quick Start Guide.
Never touch the exposed pins or circuit connections on the board.
Where to find more information
The following electronic documents provide relevant information to the operation of your PCI-DAS64/M1/16.
! MCC's Specifications: PCI-DAS64/M1/16 (the PDF version of the Specifications chapter in this guide) is
available on our web site at www.mccdaq.com/pdfs/PCI-DAS64-M1-16.pdf
! MCC's Quick Start Guide is available on our web site at
! MCC's Guide to Signal Connections is available on our web site at
www.mccdaq.com/signals/signals.pdf
! MCC's Universal Library User's Guide is available on our web site at
! MCC's Universal Library Function Reference is available on our web site at
! MCC's Universal Library for LabVIEW
.
.
™
User’s Guide is available on our web site at
.
.
.
.
PCI-DAS64/M1/16 User's Guide (this document) is also available on our web site at
.
vi
Chapter 1
Introducing the PCI-DAS64/M1/16
Overview: PCI-DAS64/M1/16 features

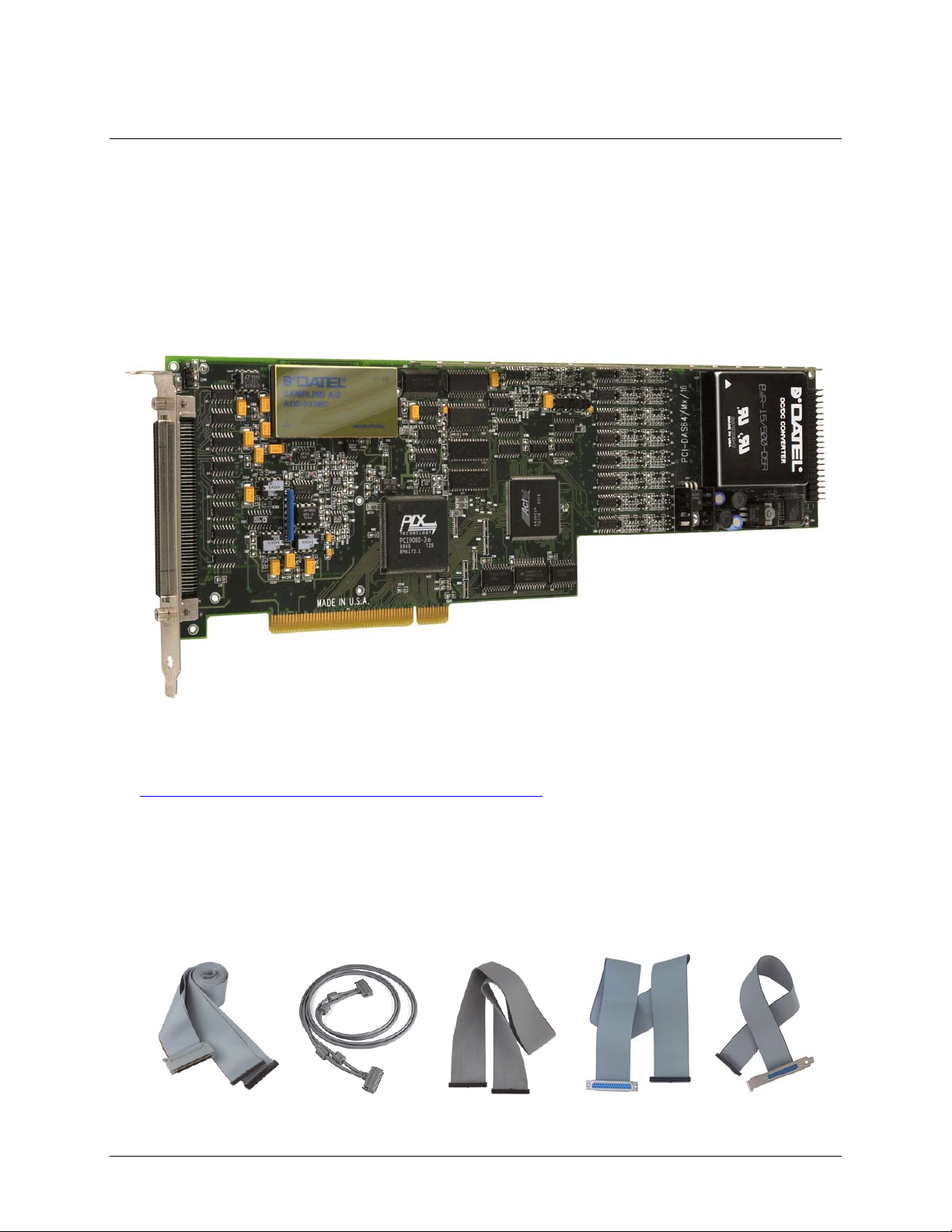

The PCI-DAS64/M1/16 board offers a combination of high speed, channel count and resolution on a single
PCI-bus data acquisition board. It offers:
! 64 single-ended or 32 differential 16-bit analog inputs
! 1 MHz sample rate
! Two 16-bit analog outputs
! 100 kHz D/A update rate (16 K FIFO)
! 32 bits of digital I/O
! One 16-bit down-counter
! A variety of analog and digital trigger modes with software-selectable trigger levels and direction
The PCI-DAS64/M1/16 board is designed with Measurement Computing’s powerful System Timing Controller
(STC) chip. The STC chip controls all A/D sampling and D/A update rates as well as controlling the 8K A/D
FIFO, the 8K gain/channel queue and the 16K D/A FIFO buffer. This functionality is based on the STC chip’s
use of an on-board 32K x 16 SRAM. The STC chip assigns functions to various parts of the SRAM, such as the
A/D FIFO buffer, and provides full-speed control and arbitration among the various functions using the various
sections of the SRAM buffer.
The STC allows simultaneous full speed A/D sampling, D/A updating and gain/channel queue sequencing, with
variable inter-sample timing if desired. The STC chip performs these functions up to 5 MHz, and is available as
an OEM component for use in your own designs. The board provides bus-mastering and scatter-gather
functionality to assure the desired system timing is maintained.
The PCI-DAS64/M1/16 is completely plug-and-play, with no switches, jumpers or potentiometers on the board.
All board addresses, interrupt channels, etc., are set by your computers plug-and-play software. Calibration is
performed via software by using on-board trim D/A converters.
Software features
For information on the features of InstaCal and the other software included with your PCI-DAS64/M1/16, refer
to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at
Check www.mccdaq.com/download.htm
under less commonly used operating systems.
for the latest software version or versions of the software supported
.
1-1
Installing the PCI-DAS64/M1/16
What comes with your PCI-DAS64/M1/16 shipment?
The following items are shipped with the PCI-DAS64/M1/16.
Hardware
! PCI-DAS64/M1/16
Chapter 2
Additional documentation
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at
the software you received with your PCI-DAS64/M1/16 and information regarding installation of that software.
Please read this booklet completely before installing any software or hardware.
). This booklet supplies a brief description of
Optional components
If you ordered any of the following products with your board, they should be included with your shipment.
! Cables
BP40-37
C100HD50-x
C100MMS-x
C40FF-x
C40-37F-x
2-1
PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16
! Signal termination and conditioning accessories
MCC provides signal termination products for use with the PCI-DAS64/M1/16. Refer to the "Field wiring,
signal termination and conditioning" section on page 2-7 for a complete list of compatible accessory
products.
Unpacking the PCI-DAS64/M1/16
As with any electronic device, you should take care while handling to avoid damage from static
electricity. Before removing the PCI-DAS64/M1/16 from its packaging, ground yourself using a wrist strap or
by simply touching the computer chassis or other grounded object to eliminate any stored static charge.
If any components are missing or damaged, notify Measurement Computing Corporation immediately by
phone, fax, or e-mail:
! Phone: 508-946-5100 and follow the instructions for reaching Tech Support.
! Fax: 508-946-9500 to the attention of Tech Support
! Email: techsupport@mccdaq.com
Installing the software
Quick-Start.pdf.
Installing the PCI-DAS64/M1/16
The PCI-DAS64/M1/16 board is completely plug-and-play, with no switches or jumpers to set. Configuration is
controlled by your system's BIOS. To install your board, follow the steps below.
Install the MCC DAQ software before you install your board
The driver needed to run your board is installed with the MCC DAQ software. Therefore, you need to install the
MCC DAQ software before you install your board. Refer to the Quick Start Guide for instructions on installing
the software.
Turn your computer off, open it up, and insert your board into an available PCI slot.
1.
Close your computer and turn it on.
2.
If you are using an operating system with support for plug-and-play (such as Windows 2000 or
Windows XP), a dialog box pops up as the system loads indicating that new hardware has been detected. If
the information file for this board is not already loaded onto your PC, you will be prompted for the disk
containing this file. The MCC DAQ software contains this file. If required, insert the Measurement
Computing Data Acquisition Software CD and click
3.
To test your installation and configure your board, run the InstaCal utility you installed in the previous
section. Refer to the Quick Start Guide that came with your board for information on how to initially set up
and load InstaCal.
If your board has been powered-off for more than 10 minutes, allow your computer to warm up for at least
60 minutes before acquiring data. This warm-up period is required for the board to achieve its rated accuracy.
The high speed components used on the board generate heat, and it takes this amount of time for a board to
reach steady state if it has been powered off for a significant amount of time.
OK.
2-2
PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16
Calibrate the PCI-DAS64/M1/16 after it has warmed up and immediately before making critical
measurements
Use the InstaCal utility to calibrate the PCI-DAS64/M1/16 after it has fully warmed up. For best results,
calibrate the board immediately before making critical measurements. The high resolution analog components
on the board are somewhat sensitive to temperature. This pre-measurement calibration insures that your board is
operating at the optimum calibration values.
Configuring the PCI-DAS64/M1/16
All hardware configuration options on the PCI-DAS64/M1/16 are software controlled. You can select some of
the configuration options using InstaCal, such as the analog input configuration (64 single-ended or
32 differential channels), and the edge used for triggering when using an external pacer.
Once configured, any program that uses Measurement Computing’s Universal Library will initialize the
hardware according to these selections.
Connecting the board for I/O operations
Connectors, cables – main I/O connector
Table 2-1
Parameter Specification
Compatible cables — main connector
Compatible cables — 40-pin auxiliary
connector
Compatible accessory products using
the C100HD50-x cable
Compatible accessory products using
the C100MMS-x cable
Compatible accessory products using
the C40FF-x cable
Compatible accessory products
with the C40-37F-x cable
or
with the BP40-37-x and the C37FF-x
or C37FFS-x cable
lists the board connectors, applicable cables and compatible accessory boards.
Table 2-1. Main board connector, cables, accessory equipment
Main connector: Shielded SCSI 100-pin D-type Connector type
Auxiliary DIO connector: 40-pin header connector
! C100HD50-x, unshielded ribbon cable. x = 3 or 6 feet.
! C100MMS-x, shielded round cable. x = 1, 2, or 3 meters.
! C40FF-x
! C40-37F-x
! BP40-37-x
CIO-MINI50 (two required)
SCB-50
CIO-TERM100
SCB-100
CIO-MINI40
SCB-37
CIO-MINI37
CIO-TERMINAL
CIO-ERB24
CIO-ERB08
SSR-RACK24
SSR-RACK08
2-3
PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
↓
Pin Signal Name
50 GND
49 CH0 IN LO
48 CH1 IN LO
47 CH2 IN LO
46 CH3 IN LO
45 CH4 IN LO
44 CH5 IN LO
43 CH6 IN LO
42 CH7 IN LO
41 CH8 IN LO
40 CH9 IN LO
39 CH10 IN LO
38 CH11 IN LO
37 CH12 IN LO
36 CH13 IN LO
35 CH14 IN LO
34 CH15 IN LO
33 LLGND
32 CH16 IN LO
31 CH17 IN LO
30 CH18 IN LO
29 CH19 IN LO
28 CH20 IN LO
27 CH21 IN LO
26 CH22 IN LO
25 CH23 IN LO
24 CH24 IN LO
23 CH25 IN LO
22 CH26 IN LO
21 CH27 IN LO
20 CH28 IN LO
19 CH29 IN LO
18 CH30 IN LO
17 CH31 IN LO
16 +12V
15 GND
14 -12V
13 GND
12 DIN0
11 DIN1
10 DIN2
9DIN3
8DOUT0
7DOUT1
6DOUT2
5DOUT3
4 CTR1 GATE
3CTR1 CLK
2 CTR1 OUT
1GND
Pinout – main I/O connector
Table 2-2.
32-channel differential
mode
Signal Name Pin
LLGND 100
CH0 IN HI 99
CH1 IN HI 98
CH2 IN HI 97
CH3 IN HI 96
CH4 IN HI 95
CH5 IN HI 94
CH6 IN HI 93
CH7 IN HI 92
CH8 IN HI 91
CH9 IN HI 90
CH10 IN HI 89
CH11 IN HI 88
CH12 IN HI 87
CH13 IN HI 86
CH14 IN HI 85
CH15 IN HI 84
LLGND 83
CH16 IN HI 82
CH17 IN HI 81
CH18 IN HI 80
CH19 IN HI 79
CH20 IN HI 78
CH21 IN HI 77
CH22 IN HI 76
CH23 IN HI 75
CH24 IN HI 74
CH25 IN HI 73
CH26 IN HI 72
CH27 IN HI 71
CH28 IN HI 70
CH29 IN HI 69
CH30 IN HI 68
CH31 IN HI 67
D/A GND 0 66
D/A OUT 0 65
D/A GND 1 64
D/A OUT 1 63
PC +5V 62
D/A EXTERNAL PACER 61
EXT. D/A TRIGGER/PACER GATE 60
SSH OUT / DAC PACER OUT 59
A/D PACER OUT 58
A/D PACER GATE 57
ANALOG TRIGGER IN 56
A/D START TRIGGER IN 55
A/D STOP TRIGGER IN 54
A/D EXTERNAL PACER 53
EXTERNAL INTERRUPT 52
GND 51
PCI slot
2-4
PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Table 2-3. 64-channel single-ended mode
Signal Name Pin
LLGND 100
CH0 IN 99
CH1 IN 98
CH2 IN 97
CH3 IN 96
CH4 IN 95
CH5 IN 94
CH6 IN 93
CH7 IN 92
CH8 IN 91
CH9 IN 90
CH10 IN 89
CH11 IN 88
CH12 IN 87
CH13 IN 86
CH14 IN 85
CH15 IN 84
LLGND 83
CH16 IN 82
CH17 IN 81
CH18 IN 80
CH19 IN 79
CH20 IN 78
CH21 IN 77
CH22 IN 76
CH23 IN 75
CH24 IN 74
CH25 IN 73
CH26 IN 72
CH27 IN 71
CH28 IN 70
CH29 IN 69
CH30 IN 68
CH31 IN 67
D/A GND 0 66
D/A OUT 0 65
D/A GND 1 64
D/A OUT 1 63
PC +5V 62
D/A EXTERNAL PACER 61
EXT. D/A TRIGGER/PACER GATE 60
SSH OUT / DAC PACER OUT 59
A/D PACER OUT 58
A/D PACER GATE 57
ANALOG TRIGGER IN 56
A/D START TRIGGER IN 55
A/D STOP TRIGGER IN 54
A/D EXTERNAL PACER 53
EXTERNAL INTERRUPT 52
GND 51
PCI slot ↓
Pin Signal Name
50 GND
49 CH32 IN
48 CH33 IN
47 CH34 IN
46 CH35 IN
45 CH36 IN
44 CH37 IN
43 CH38 IN
42 CH39 IN
41 CH40 IN
40 CH41 IN
39 CH42 IN
38 CH43 IN
37 CH44 IN
36 CH45 IN
35 CH46 IN
34 CH47 IN
33 LLGND
32 CH48 IN
31 CH49 IN
30 CH50 IN
29 CH51 IN
28 CH52 IN
27 CH53 IN
26 CH54 IN
25 CH55 IN
24 CH56 IN
23 CH57 IN
22 CH58 IN
21 CH59 IN
20 CH60 IN
19 CH61 IN
18 CH62 IN
17 CH63 IN
16 +12V
15 GND
14 -12V
13 GND
12 DIN0
11 DIN1
10 DIN2
9DIN3
8DOUT0
7DOUT1
6DOUT2
5DOUT3
4 CTR1 GATE
3CTR1 CLK
2CTR1 OUT
1GND
2-5
PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16
Pins 1-50 are on the long side
of the “D” connector.
10050
511
Pins 51-100 are on
the short side of
the “D” connector.
Strain relief is
stamped “Pins 1-50”.
Strain relief is
Stamped “Pins 51-100”.
Key
Key
50
49
2
1
The red stripe
identifies pin # 1
100
99
52
51
The red stripe
identifies pin # 51
Figure 2-1. C100HD50-x cable
10050
511
10050
511
Figure 2-2. C100MMS-x cable
2-6
PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16
Pin out – auxiliary DIO connector
The auxiliary digital connector can be accessed using a variety of cabling schemes. To bring the 40-pin header
out to a bracket at the back of the PC, use a BP40-37 adapter. This terminates in a CIO-DIO series compatible
connector to which you can connect a CIO-MINI37 or CIO-TERMINAL screw terminal board using a C37FF-x
or C37FFS-x cable. Other options include direct cabling using a C40-37F-x (which maintains CIO-DIO
compatibility), or using the C40FF-x cable with the CIO-MINI40 screw terminal board.
Table 2-4. Auxiliary digital connector pin out
NC 1
NC 3
FIRSTPORTB Bit 7 5
FIRSTPORTB Bit 6 7
FIRSTPORTB Bit 5 9
FIRSTPORTB Bit 4 11
FIRSTPORTB Bit 3 13
FIRSTPORTB Bit 2 15
FIRSTPORTB Bit 1 17
FIRSTPORTB Bit 0 19
DIG GND 21
NC 23
DIG GND 25
NC 27
DIG GND 29
NC 31
DIG GND 33
PC +5V 35
DIG GND 37
NC 39
2 PC +5V
• •
4 DIG GND
• •
6 FIRSTPORTC Bit 7
• •
8 FIRSTPORTC Bit 6
• •
10 FIRSTPORTC Bit 5
• •
12 FIRSTPORTC Bit 4
• •
14 FIRSTPORTC Bit 3
• •
16 FIRSTPORTC Bit 2
• •
18 FIRSTPORTC Bit 1
• •
20 FIRSTPORTC Bit 0
• •
22 FIRSTPORTA Bit 7
• •
24 FIRSTPORTA Bit 6
• •
26 FIRSTPORTA Bit 5
• •
28 FIRSTPORTA Bit 4
• •
30 FIRSTPORTA Bit 3
• •
32 FIRSTPORTA Bit 2
• •
34 FIRSTPORTA Bit 1
• •
36 FIRSTPORTA Bit 0
• •
38 NC
• •
40 NC
• •
2
40
40-pin Female
IDC Connector
2
40
40-pin Female
IDC Connector
The red stripe
1
39
identifies pin # 1
2
40
40-pin Female
IDC Connector
1
39
Figure 2-3. C40FF-x cable
1
39
The red stripe
identifies pin # 1
1
19
37-pin Female
Dsub Connector
20
37
Figure 2-4. C40-37F-x cable
2-7
PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16
40
19
37
Key
39
20
1
37-pin Male D Connector
with Backplate Assembly
FIRSTPORTB BIT 1
FIRSTPORTB BIT 2
FIRSTPORTB BIT 3
FIRSTPORTB BIT 4
FIRSTPORTB BIT 5
FIRSTPORTB BIT 6
FIRSTPORTB BIT 7
The red stripe and arrow
identify pin # 1
Figure 2-5. BP40-37 cable
GND
+5V
GND
NC
GND
NC
GND
NC
GND
NC
FIRSTPORTA BIT 0
FIRSTPORTA BIT 1
FIRSTPORTA BIT 2
FIRSTPORTA BIT 3
FIRSTPORTA BIT 4
FIRSTPORTA BIT 5
FIRSTPORTA BIT 6
FIRSTPORTA BIT 7
FIRSTPORTC BIT 0
FIRSTPORTC BIT 1
FIRSTPORTC BIT 2
FIRSTPORTC BIT 3
FIRSTPORTC BIT 4
FIRSTPORTC BIT 5
FIRSTPORTC BIT 6
FIRSTPORTC BIT 7
GND
+5V
2
1
40-pin Female
IDC Connector
Figure 2-6. BP40-37 cable pin out
2-8
PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16
40-pin to 37-pin signal mapping
Signal mapping on the C40-37F-x and the BP40-37 cables is not 1:1. lists the pin numbers of the
Table 2-5
signals on the 40-pin end and the pin numbers of the associated signals on the 37-pin end.
Table 2-5. Signal mapping on the C40-37F-x and BP40-37F cables
40-pin cable end 37-pin cable end
Pin Signal Name Pin Signal Name
1 INTERRUPT IN 1 INTERRUPT IN
2 +5V 20 +5V
3 INTERRUPT ENABLE 2 INTERRUPT ENABLE
4 GND 21 GND
5 Port B 7 3 Port B 7
6 Port C 7 22 Port C 7
7 Port B 6 4 Port B 6
8 Port C 6 23 Port C 6
9 Port B 5 5 Port B 5
10 Port C 5 24 Port C 5
11 Port B 4 6 Port B 4
12 Port C 4 25 Port C 4
13 Port B 3 7 Port B 3
14 Port C 3 26 Port C 3
15 Port B 2 8 Port B 2
16 Port C 2 27 Port C 2
17 Port B 1 9 Port B 1
18 Port C 1 28 Port C 1
19 Port B 0 10 Port B 0
20 Port C 0 29 Port C 0
21 GND 11 GND
22 Port A 7 30 Port A 7
23 N/C 12 N/C
24 Port A 6 31 Port A 6
25 GND 13 GND
26 Port A 5 32 Port A 5
27 N/C 14 N/C
28 Port A 4 33 Port A 4
29 GND 15 GND
30 Port A 3 34 Port A 3
31 N/C 16 N/C
32 Port A 2 35 Port A 2
33 GND 17 GND
34 Port A 1 36 Port A 1
35 +5V 18 +5V
36 Port A 0 37 Port A 0
37 GND 19 GND
38 N/C
39 N/C
40 N/C
For digital signal conditioning, you can connect the BP40-37 cable to a C37FF-x or C37FFS- x cable, and then
connect one of these cables to the 37-pin connector on MCC’s digital signal conditioning boards. Refer to page
2-10 for a list of compatible boards.
The red stripe
1
20
37
19
identifies pin # 1
Figure 2-7. C37FF-x cable
1
19
20
37
2-9
PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16
1
20
37
19
Figure 2-8. C37FFS-x cable
Field wiring, signal termination and conditioning
You can use the following accessory boards with the C100HD50-x cable.
!
CIO-MINI50 — 50-pin screw terminal board. Details are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=258
SCB-50 — 50-conductor, shielded signal connection box. Details are available on our web site at
!
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1168
You can use the following accessory boards with the C100MMS-x cable.
!
SCB-100 — 100-conductor, shielded signal connection box. Details are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1169
CIO-TERM100 — 100-pin screw terminal board with positions for pull-up resistors. Details are available on
!
our web site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=281
You can use the following screw terminal board with the C40FF-x cable.
1
20
37
19
.
.
.
.
!
CIO-MINI40 — 40-pin screw terminal board. Details are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=257
.
You can use the following screw terminal boards with the C40-37F-x cable directly, or by combining the
BP40-37 adapter and C37FF-x or C37FFS-x cable.
SCB-37 – 37 conductor, shielded signal connection/screw terminal box. Details on are available on our web
!
site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1166
CIO-MINI37 – 37-pin universal screw terminal board. Details are available on our web site at
!
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=255
CIO-TERMINAL — Universal screw terminal with prototype area and circuitry. Includes a 37-pin screw
!
.
.
terminal board. Details are available on our web site at
http://www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=282
.
For digital signal conditioning, you can connect the PCI-DAS64/M1/16 to the following boards using the
C40-37F-x cable directly or by combining the BP40-37-x cable with the C37FF-x or C37FFS-x cable.
!
CIO-ERB24 – 24 Form C, 6A relays. Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=241
CIO-ERB08 – Eight Form C, 6A relays. Details are available on our web site at
!
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=240
SSR-RACK24 – 24-channel solid state module rack. Details are available on our web site at
!
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=1193
SSR-RACK08 – 24-channel solid state module rack. Details are available on our web site at
!
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=620
.
.
.
.
2-10
Chapter 3
Programming and Developing Applications
After following the installation instructions in Chapter 2, your board should now be installed and ready for use.
Although the board is part of the larger DAS family, in general there may be no correspondence among
registers for different boards. Software written at the register level for other DAS models will not function
correctly with your board.
Programming Languages
Packaged Applications Programs
Many packaged application programs, such as SoftWIRE and HP-VEE™, now have drivers for your board. If
the package you own does not have drivers for the board, please fax or e-mail the package name and the
revision number from the install disks. We will research the package for you and advise how to obtain drivers.
or any other language, please refer to the Universal Library User's Guide (available on our web
)
Some application drivers are included with the Universal Library package, but not with the application package.
If you have purchased an application package directly from the software vendor, you may need to purchase our
Universal Library and drivers. Please contact us by phone, fax or e-mail:
! Phone: 508-946-5100 and follow the instructions for reaching Tech Support.
! Fax: 508-946-9500 to the attention of Tech Support
! Email: techsupport@mccdaq.com
Register Level Programming
You should use the Universal Library or one of the packaged application programs mentioned above to control
your board. Only experienced programmers should try register-level programming. If you need to program at
the register level in your application, refer to the STC Register Map for the PCI-DAS64/Mx/16 Series (available
at www.mccdaq.com/registermaps/RegMapSTC-PCI-DAS64-Mx-16.PDF
).
3-1
Chapter 4
Functional Description
PCI-DAS64/M1/16 block diagram
The PCI-DAS64/M1/16 is a multifunction measurement and control board that provides the following features:
! 32 differential or 64 single-ended 16-bit analog inputs
! Two 16-bit analog outputs
! 32 digital I/O channels
! One 16-bit counter
PCI-DAS64/M1/16 functions are illustrated in the block diagram shown here.
Analog In
64-CH singl e-ended
32-CH differential
TRIG_LO TRIG_HI
Analog
Trig ger
A/D Start/Stop Trigger
A/D Pacer Gate
A/D External Pacer
A/D Internal Pa cer Out
FIRSTPORTA (7:0)
FIRSTPORTB (7:0)
FIRSTPORTC (7:0)
DIN (3:0)
DOUT (3:0)
SSH Out
Gain and Offset Autocal
Mux
&
Gain
24-bits DIO
PortA
PortB
Control
PortC
Inputs
Outputs
16-bit
ADC
1 MHz
EOC
40 MHz
Boot
EEPROM
Holding
REG
Queue
Buffer
(8K)
ADC
CNTL
Tri gge r
CNTL
ADC
Pacer
Sample
CNTL
Control /
Decoder
Status
Regs
PCI Bridge
w/BUS Master
ADC
Buffer
(8K)
STC
Memory
CNTL
Queue
CNTL
16
16
DMA
C0H
DMA
CH1
DAC 0/1
Buffer
(16K)
Memory Bus
DAC
CNTL
DAC
Pacer
DAC RT
CNTL
DMA
IRQ
CTRL
CTRL
32K x 16
SRAM
Local Bus
Gain and Offset Autocal
DAC0
16-bit, 100 k zH
DAC1
16-bit, 100 k zH
External D/A Trigger/ Pacer Gate
D/A External Pacer In
DAC Pacer Out
Interrupt In
D/A OUT0
D/A OUT1
User
CNTR
0
Control
CTR1 GATE
CTR1 CLK
CTR1 OUT
PCI Bus (5V, 32-bit, 33 M z)H
Figure 4-1. PCI-DAS64/M1/16 functional bock diagram
Analog inputs
The PCI-DAS64/M1/16 provides 32 fully differential or 64 single-ended analog inputs. The input mode is
software selectable, with no switches or jumpers to set. The PCI-DAS64/M1/16 offers a 1 MHz sample rate.
The board offers full speed acquisition in single channel scans, and will perform full accuracy multi-channel
scans of up to 1.5 MHz, depending on the operating mode. An 8 K sample gain/channel queue is available
making long, complex sample sequencing simple. An 8 K sample FIFO buffer combines with Bus-Master DMA
and scatter-gather to assure data taken from the board is transferred into computer memory without missing
samples.
4-1
PCI-DAS64/M1/16 User's Guide Functional Description
Table 4-1
Range Resolution Range Resolution
±5 V
±2.5 V
±1.25 V
±0.625 V
lists the input ranges and resolutions for the available input configurations and gains.
Table 4-1. Analog input range and resolution configurations
Bipolar Unipolar
153 µV
76.3 µV
38.1 µV
19.1 µV
0 to 5 V
0 to 2.5 V
0 to 1.25 V
76.3 µV
38.1 µV
19.1 µV
Burst mode
Channel-to-channel skew is the result of multiplexing the A/D inputs. It is defined as the time between
consecutive samples. Burst mode minimizes channel-to-channel skew by clocking the A/D at a high rate
between successive samples within a scan, then waiting a specified time before starting a new scan. The PCIDAS64/M1/16 provides burst mode with a 1 µs minimum sample skew/delay.
Analog output
The PCI-DAS64/M1/16 board provides two high-speed, ±5V 16-bit analog outputs. The outputs are updated via
on-board 16 K FIFO buffer and provide a 100 kHz (max) update rate. Repetitive D/A-based waveforms can be
stored in on-board memory and generated without requiring ongoing PCI bus transfers. The outputs provide
rated accuracy to ±15 mA, are short-circuit-protected (25 mA limit) and are cleared to 0 volts on power-up or
reset. The board supports simultaneous full speed operation of both the A/D and D/A.
Digital I/O
The PCI-DAS64/M1/16 provides 32 bits of digital I/O. An 82C55 chip provides 24 bits of CMOS compatible
I/O at the board’s 40-pin auxiliary digital connector. Four LSTTL-compatible digital inputs and four outputs are
provided on the main 100-pin connector. On power up or reset, all I/O ports default to the input state (high
impedance).
Counter/timer I/O
The PCI-DAS64/M1/16 provides one 16-bit down counter (1/3 of an 82C54). Clock, gate and output
connections are available at the 100-pin user I/O connector.
4-2
Chapter 5
Calibrating the PCI-DAS64/M1/16
Overview
The PCI-DAS64/M1/16 provides self-calibration of the analog inputs and outputs, eliminating the need for
external equipment and user adjustments. All adjustments are made via 8-bit calibration DACs which are
referenced to an on-board factory-calibrated standard. The board is fully calibrated at the factory with
calibration coefficients stored in nvRAM. At run time, these calibration factors are loaded into system memory
and are automatically retrieved each time you specify a different DAC/ADC range.
You can recalibrate any time using factory voltage standards by selecting the
full calibration typically requires less than two minutes. We strongly recommend that you turn your computer
on, and allow at least 60 minutes for the internal computer case temperature to stabilize prior to calibrating (or
acquiring data with) the board.
A/D calibration is performed at user-selectable conversion frequencies to reduce any frequency-dependent
offset effects across the operating range. When you pull down the
dialog opens for you to select a calibration frequency (see ). We recommend that you select a
frequency as close as possible to the applications’ sampling frequency.
Figure 5-1
Calibrate menu option and click on A/D, a
Calibrate option in InstaCal. A
Figure 5-1. InstaCal Calibration Frequency dialog
Table 5-1 lists the available calibration frequencies and recommended sampling frequency ranges. Using this
table as a guide, a ±1 LSB offset error relative to the calibrated offset is maintained over a given sampling
frequency range. We recommend that you perform A/D calibration at 100 kHz if you intend to use the entire
sampling frequency range but do not want to re-calibrate for a given sampling frequency span. In that case, you
can expect a ±6 LSB offset drift with respect to the calibrated offset over the full 10 Hz to 2 MHz range.
5-1
PCI-DAS64/M1/16 User's Guide Calibrating the PCI-DAS64/M1/16
A
A
A
Table 5-1. A/D calibration frequencies
Calibration Frequency (kHz) Min Sampling Frequency (kHz) Max Sampling Frequency (kHz)
2 0.01 6
15 6 30
50 30 70
100 70 200
300 200 400
650 400 1000
For best results, calibrate the board immediately prior to making your measurements. The high-resolution
analog components on the board are somewhat sensitive to temperature and this pre-measurement calibration
helps assure your board operates at the same temperature at which it was calibrated.
Calibration theory
Offset calibration for the analog front end is performed via adjustments of the ADC itself. Front-end gain
adjustment is performed only via the ADC reference. This strategy was chosen since the gain tolerance of the
in-amp circuit is quite good and there is adequate gain tuning range using only the ADC.

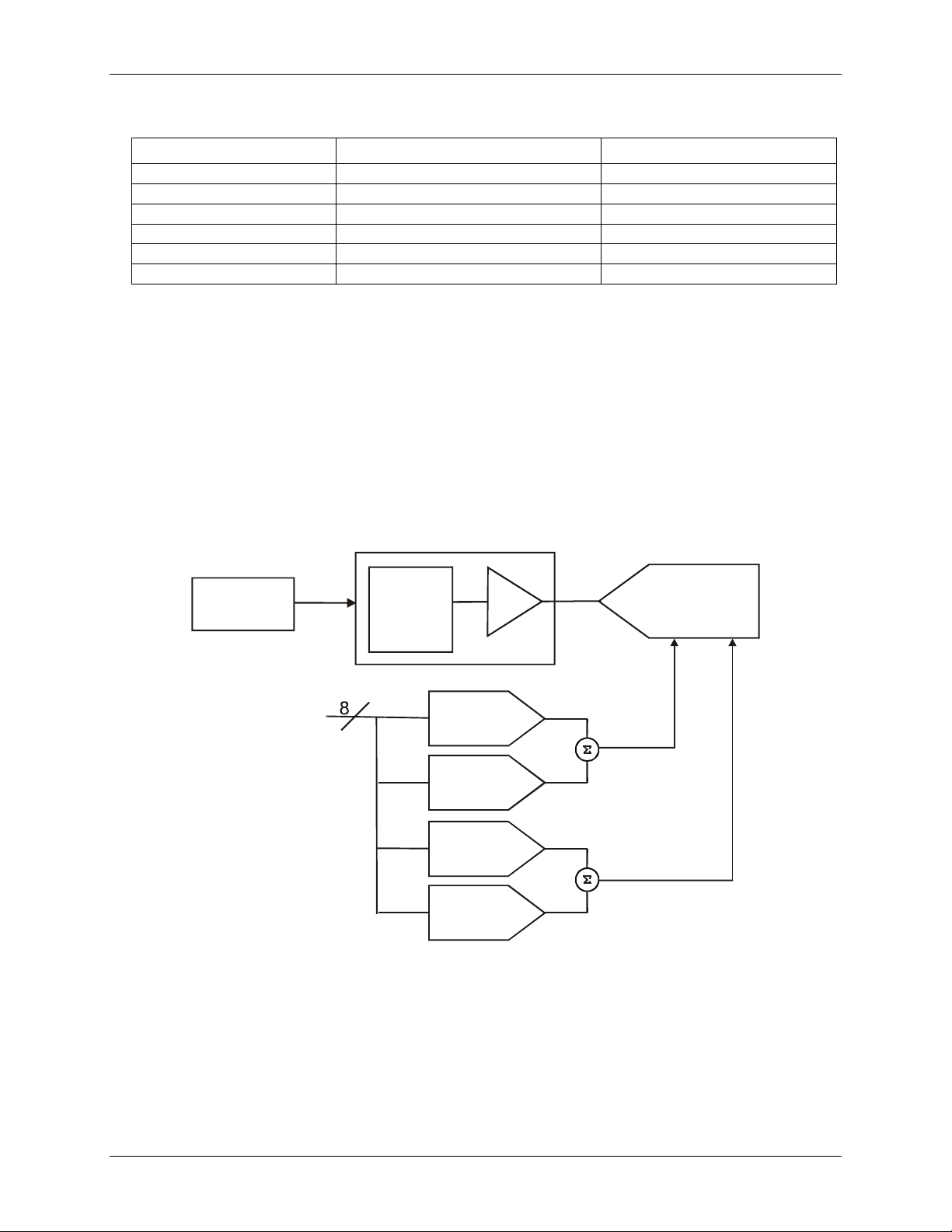

Analog input calibration is shown in . Figure 5-2
Calibration
Reference
nalog In
MUX
Trim DAC
Coarse
Trim DAC
Fine
Trim DAC
Coarse
Trim DAC
Fine
Figure 5-2. Analog front-end calibration system
Offset
Adjust
DC
Gain
djust
5-2
PCI-DAS64/M1/16 User's Guide Calibrating the PCI-DAS64/M1/16
The analog output circuits are calibrated for gain and offset. Gain calibration of the analog outputs is performed
via DAC reference adjustments. Offset adjustments for the analog outputs are made in the output buffer section.
The tuning range of this adjustment yields maximum DAC and output buffer offsets.
Analog output calibration is shown in . This circuit is duplicated for both DAC0 and DAC1 Figure 5-3
Trim DAC
Coarse
Trim DAC
Fine
DAC
Ref
Gain
Adjust
Figure 5-3. Analog out calibration
Trim DAC
Coarse
Trim DAC
Fine
Analog
Out
Offset
Adjust
5-3
Chapter 6
Specifications
Typical for 25 °C unless otherwise specified.
Specifications in italic text are guaranteed by design.
Analog input
Table 1. Analog input specifications
A/D converter type Sub-ranging sampling ADC
Resolution 16 bits
Number of channels 32 differential or 64 single-ended, software selectable
Input ranges
(software programmable)
Polarity Unipolar/bipolar, software selectable
A/D pacing
(software programmable)
Burst mode Software selectable option. Valid for a fixed input range only.
A/D gate sources
A/D trigger sources
A/D triggering modes
Data transfer
Configuration memory 8 K words
Channel/gain queue Up to 8 K elements. Programmable channel, gain, and offset.
A/D conversion time 1 µS
Calibration Auto-calibration, calibration factors for each range stored on board in non-volatile RAM.
±5 V, ±2.5 V, ±1.25 V, ±0.625 V, 0 to 5 V, 0 to 2.5 V, 0 to 1.25 V
! Internal counter – ASIC
! External source (A/D external pacer). The total number of sample clocks must be at least
5 greater than the total number of samples desired. This is required to accommodate the
pipelined architecture of the ADC.
! Software polled
Burst rate = 1 µS.
! External digital (A/D pacer gate)
! External analog (analog trigger in)
External digital: Programmable, active high or active low, level or edge A/D gating modes
External analog: Software-configurable for:
! Above or below reference
! Positive or negative hysteresis
! In or out of window.
Trigger levels set by DAC0 and/or DAC1.
! External digital (A/D start trigger in and A/D stop trigger in)
! External analog (Analog Trigger In)
! External digital: Software-configurable for rising or falling edge.
! External analog: Software-configurable for positive or negative slope. Trigger levels set
by DAC0 and/or DAC1.
! Pre-/post-trigger: Unlimited number of pre-trigger samples, 16 Meg post-trigger
samples. Compatible with both digital and analog trigger options.
! From 8 k RAM buffer via DMA (demand or non-demand mode) using scatter gather.
! Programmed I/O
6-4
PCI-DAS64/M1/16 User's Guide Specifications
System throughput
Table 2. System throughput specifications
Condition Calibration coefficients Max ADC
rate
1. Single channel, single input range.
2. Multiple-channel, single-input range: ±5 V,
±2.5 V, ±1.25 V, 0 to 5 V, 0 to 2.5 V
3. Multiple channel, single input range: ±0.625 V, 0
to 1.25 V
4. Single channel, multiple input ranges.
5. Multiple channels, multiple ranges. All samples in
unipolar or bipolar bode.
6. Multiple channels, multiple ranges. All samples in
unipolar and/or bipolar bode.
7. Multiple-channel, switching unipolar/bipolar
mode, single-input range.
Note 1: For conditions 1-3, specified accuracy is maintained at rated throughput. Conditions 4-7 apply
calibration coefficients which correspond to the range value selected in
coefficients remain unchanged throughout the scan. Errors of up to 25 counts may be incurred
when switching gains while in bipolar or unipolar mode only (conditions 4 and 5). Errors of up to
500 counts may be incurred when mixing unipolar/bipolar modes (conditions 6 and 7).
Per specified range 1.0 MS/s
Per specified range 1.0 MS/s
Per specified range 750 kS/s
Default to value for cbAInScan() range
Default to value for cbAInScan() range
Default to value for cbAInScan() range
Default to value for cbAInScan() range
cbAInScan(). These
500 kS/s
500 kS/s
500 kS/s
750 kS/s
Accuracy
A 100 kS/s sampling rate, single-channel operation and a 60-minute warm-up. Accuracies are listed for
operational temperatures within ±2ºC of internal calibration temperature. Calibrator test source high side tied to
channel 0 and low side tied to low-level ground at the user connector
Table 3. Analog input — absolute accuracy specifications
Range Absolute accuracy
±5.000 V ±6.0 LSB
±2.500 V ±8.0 LSB
±1.250 V ±8.0 LSB
±0.625 V ±10.0 LSB
0 V to +5.000 V ±8.0 LSB
0 V to +2.500 V ±11.0 LSB
0 V to +1.250 V ±13.0 LSB
Table 4. Analog input — typical accuracy specifications
Range Typical accuracy
±5.000 V ±5.5 LSB
±2.500 V ±7.5 LSB
±1.250 V ±7.5 LSB
±0.625 V ±9.5 LSB
0 V to +5.000 V ±7.5 LSB
0 V to +2.500 V ±10.5 LSB
0 V to +1.250 V ±12.5 LSB
Each PCI-DAS64/M1/16 is tested at the factory to assure the board’s overall error does not exceed accuracy
limits shown in .
Table 3
6-5
PCI-DAS64/M1/16 User's Guide Specifications
Typical accuracy is derived directly from the various component typical errors. The information in
Table 4
assumes that each of the errors contributes in the same direction.
Table 5. Analog input — accuracy components specifications
Range Gain error Offset error DLE ILE
±5.000 V ±3.0 max, ±2.0 typ ±3.0 max, ±2.0 typ ±1.0 max, ±0.5 typ ±2 max, ±1.0 typ
±2.500 V ±3.0 max, ±2.0 typ ±5.0 max, ±4.0 typ ±1.0 max, ±0.5 typ ±2 max, ±1.0 typ
±1.250 V ±3.0 max, ±2.0 typ ±5.0 max, ±4.0 typ ±1.0 max, ±0.5 typ ±2 max, ±1.0 typ
±0.625 V ±5.0 max, ±4.0 typ ±5.0 max, ±4.0 typ ±1.0 max, ±0.5 typ ±2 max, ±1.0 typ
0 to + 5.000 V ±4.0 max, ±3.0 typ ±4.0 max, ±3.0 typ ±1.0 max, ±0.5 typ ±2 max, ±1.0 typ
0 to + 2.500 V ±6.0 max, ±5.0 typ ±5.0 max, ±4.0 typ ±1.0 max, ±0.5 typ ±2 max, ±1.0 typ
0 to + 1.250 V ±6.0 max, ±5.0 typ ±5.0 max, ±4.0 typ ±1.0 max, ±0.5 typ ±2 max, ±1.0 typ
As shown in Tab , total board error is a combination of gain, offset, differential linearity error (DLE), and
le 5
integral linearity error (ILE). The theoretical worst-case error of the board can be calculated by summing these
component errors. Worst-case errors are realized only in the unlikely event that each of the component errors
are at their maximum level, and causing error in the same direction.
Crosstalk
Crosstalk is defined here as the influence of one channel upon another when scanning two channels at the
maximum rate. A full-scale 100 Hz triangle wave is input on channel 1, and channel 0 is tied to analog ground
at the 100-pin user connector. Tabl summarizes the influence of channel 1 on channel 0 with the effects of
noise removed. The residue on channel 0 is described in LSBs.
e 6
Table 6. Crosstalk specifications
Range Crosstalk (LSB
±5.000 V 15 500 1000
±2.500 V 15 500 1000
±1.250 V 20 500 1000
±0.625 V 8 375 750
0 V to +5.000 V 15 500 1000
0 V to +2.500 V 20 500 1000
0 V to +1.250 V 8 375 750
Table 7. Analog input drift specifications
Analog input full-scale gain drift +0.3 LSB/°C typical
Analog input zero drift +2.1 LSB/°C typical
Overall analog input drift ±2.4 LSB/°C typical
Common mode range ±5 V
CMRR @ 60Hz -90 dB
Input leakage current 2.3 nA
Input impedance 10 x 10
Absolute maximum input voltage ±15 V
Warm-up time 60 minutes
) Per channel rate (kS/s) ADC rate (kS/s)
pk-pk
11
Ω
6-6
PCI-DAS64/M1/16 User's Guide Specifications
Noise performance
Table 8
summarizes the worst case noise performance for the PCI-DAS64/M1/16. Noise distribution is
determined by gathering 50 K samples with inputs tied to ground at the user connector. Samples are gathered at
the maximum specified single-channel sampling rate. Specification applies to both single-ended and differential
modes of operation.
Table 8. Noise performance specifications
Range ±2 counts ±1 count MaxCounts LSBrms (Note 2)
± 5.000 V 60% 40% 22 3.3
± 2.500 V 60% 40% 24 3.6
± 1.250 V 60% 40% 26 3.9
± 0.625 V 45% 30% 32 4.8
0 to +5.000 V 60% 40% 24 3.6
0 to +2.500 V 60% 40% 26 3.9
0 to +1.250 V 45% 30% 32 4.8
Note 2: RMS noise is defined as the peak-to-peak bin spread divided by 6.6.
Analog output
Table 9. Analog output specifications
Resolution 16-bits
Number of channels 2
Voltage range ±5 V
Monotonicity Guaranteed monotonic over temperature
Analog output zero drift ±1.6 LSB/°C
Overall analog output drift ±4.0 LSB/°C
Slew rate 2.5 V/µs
Settling time FS step to .0008%: 6µs max, all ranges
Current drive ±15 mA
Output short-circuit duration Indefinite @25 mA
Output coupling DC
Output impedance 0.1 Ω
Power up and reset DACs cleared to 0 V±75 mV max
Accuracy
Table 10. Analog output — absolute accuracy specifications
Range Absolute accuracy
± 5 V ±16.0 LSB
Table 11 Analog output — accuracy components specifications
Range Gain error (LSB) Offset error (LSB) DLE (LSB) ILE (LSB)
±5.0 V ±10.0 max ±5.0 max ±1.0 max ±1.0 max
Each PCI-DAS64/M1/16 is tested at the factory to assure the board’s overall error does not exceed the absolute
accuracy limits listed in .
Table 10
6-7
PCI-DAS64/M1/16 User's Guide Specifications
Analog output pacing and triggering
Table 12. Analog output pacing and triggering specifications
D/A pacing
(software-programmable)
D/A gate sources
(software-programmable)
D/A triggering modes External digital: Software-configurable for rising or falling edge.
Data transfer
Internal counter – ASIC
External source (D/A external pacer)
Software paced
External digital (external D/A trigger/pacer gate)
External analog (analog trigger in)
External digital: Programmable, active high or active low, level or edge D/A gating modes
External analog: Software-configurable for above or below reference. Gating levels are
set by DAC0 or DAC1.
External digital (external D/A trigger/pacer gate) D/A trigger sources
Software triggered
From 16 k RAM buffer via DMA (demand or non-demand mode) using scatter gather.
Programmed I/O
100 kS/s max per channel
Digital input/output
Table 13. Digital I/O specifications
Digital type (main connector)
Configuration Four inputs, four outputs (DIN0 through DIN3; DOUT0 to DOUT3)
Output high voltage (IOH = -0.4 mA) 2.7 V min
Output low voltage (IOL = 8 mA) 0.5 V max
Input high voltage 2.0 V min, 7 volts absolute max
Input low voltage 0.8 V max, –0.5 volts absolute min
Digital type (digital I/O connector) 82C55
Number of I/O 24 (FIRSTPORTA Bit 0 through FIRSTPORTC Bit 7)
Configuration
Input high voltage 2.0 V min, 5.5 V absolute max
Input low voltage 0.8 V max, –0.5 V absolute min
Output high voltage (IOH = -2.5 mA) 3.0 V min
Output low voltage (IOL = 2.5 mA) 0.4 V max
Power-up / reset state Input mode (high impedance)
SSH output
SSH polarity HOLD high (default) or HOLD low, software selectable
Output: 74LS175
Input: 74LS244
2 banks of 8 and 2 banks of 4, or
3 banks of 8 or
2 banks of 8 with handshake
TTL compatible output, HOLD is asserted from start of the conversion for
Channel 0 through conversion of the last channel in the scan. Available at user
connector (SSH OUT / D/A PACER OUT). This pin is software selectable as
SSH OUT (default) or D/A PACER OUT.
6-8
PCI-DAS64/M1/16 User's Guide Specifications
Interrupts
Table 14. Interrupt specifications
Interrupts PCI INTA# - Mapped to IRQn via PCI BIOS at boot-time
Interrupt enable Programmable through PLX9080
ADC interrupt
DAC interrupt sources
(software-programmable)
External interrupt
DAQ_ACTIVE: Interrupt is generated when a DAQ sequence is active.
DAQ_STOP: Interrupt is generated when A/D Stop Trigger In is detected.
DAQ_DONE: Interrupt is generated when a DAQ sequence completes.
DAQ_FIFO_1/4_FULL: Interrupt is generated when ADC FIFO is ¼ full.
DAQ_SINGLE: Interrupt is generated after each conversion completes.
DAQ_EOSCAN: Interrupt is generated after the last channel is converted in
multi-channel scans.
DAQ_EOSEQ: Interrupt is generated after each interval delay during multi-
channel scans.
DAC_ACTIVE: Interrupt is generated when DAC waveform circuitry is active.
DAC_DONE: Interrupt is generated when a DAC sequence completes.
DAC_FIFO_1/4_EMPTY: Interrupt is generated DAC FIFO is ¼ empty.
DAC_HIGH_CHANNEL: Interrupt is generated when the DAC high channel output is
updated.
DAC_RETRANSMIT: Interrupt is generated when the end of a waveform sequence
has occurred in retransmit mode.
Interrupt is generated via edge-sensitive transition on the External Interrupt pin.
Rising/falling edge polarity software selectable.
Counters
Table 15. Counter specifications
User counter type 82C54
Configuration One down counter, 16-bits. Counters 2 and 3 not used.
Counter 1 source External, from connector (CTR1 CLK)
Counter 1 gate Available at connector (CTR1 GATE).
Counter 1 output Available at connector (CTR1 OUT).
Clock input frequency 10 MHz max
High pulse width
(clock input)
Low pulse width
(clock input)
Gate width high 50 nS min
Gate width low 50 nS min
Input low voltage 0.8 V max
Input high voltage 2.0 V min
Output low voltage 0.4 V max
Output high voltage 3.0 V min
30 nS min
50 nS min
6-9
PCI-DAS64/M1/16 User's Guide Specifications
Pacer
Table 16. Pacer specifications
ADC pacer type ASIC
Configuration One down counter, 24 bits (1 scan interval, 1 sample interval)
ADC pacer source 40 MHz internal source
ADC pacer gate Internally controlled by software/hardware trigger.
ADC pacer out ADC pacer clock, available at user connector (A/D PACER OUT)
DAC pacer type ASIC
Configuration One down counter, 24 bits (1 scan interval, 1 sample interval)
DAC pacer source 40 MHz or 100 kHz internal source. Software-selectable.
DAC pacer gate Internally controlled by software/hardware trigger.
DAC pacer out
Internal pacer crystal oscillator 40 MHz
Frequency accuracy 50 ppm
DAC pacer clock. Available at user connector (SSH OUT / D/A PACER OUT). This
pin is software selectable as SSH OUT (default) or D/A PACER OUT.
Power consumption
Table 17. Power specifications
+5 V 2.9 A typical, 3.3 A max
+12 V 10 mA max.
Environmental
Table 18. Environmental specifications
Operating temperature range 0 to 50 °C
Storage temperature range -40 to 100 °C
Humidity 0 to 95% non-condensing
Mechanical
Table 19. Mechanical specifications
Card dimensions 315 mm (L) x 100.6 mm (W) x 16 mm (H)
Main connector and pin out
Table 20. Main connector and pinout specifications
Parameter Specification
Connector type Shielded SCSI 100-pin D-type
C100HD50-x, unshielded ribbon cable. x = 3 or 6 feet. Compatible cables
C100MMS-x, shielded round cable. x = 1, 2, or 3 meters.
Compatible accessory products
using the C100HD50-x cable
Compatible accessory products
using the C100MMS-x cable
CIO-MINI50 (two required)
SCB-50
CIO-TERM100
SCB-100
6-10
PCI-DAS64/M1/16 User's Guide Specifications
Differential mode pin out
Table 21. 32-channel differential mode pin out
Pin Signal Name Pin Signal Name
1 GND 51 GND
2 CTR1 OUT 52 EXTERNAL INTERRUPT
3 CTR1 CLK 53 A/D EXTERNAL PACER
4 CTR1 GATE 54 A/D STOP TRIGGER IN
5 DOUT3 55 A/D START TRIGGER IN
6 DOUT2 56 ANALOG TRIGGER IN
7 DOUT1 57 A/D PACER GATE
8 DOUT0 58 A/D PACER OUT
9 DIN3 59 SSH OUT / D/A PACER OUT
10 DIN2 60 EXTERNAL D/A TRIGGER/PACER GATE
11 DIN1 61 D/A EXTERNAL PACER
12 DIN0 62 PC +5 V
13 GND 63 D/A OUT 1
14 -12 V 64 D/A GND 1
15 GND 65 D/A OUT 0
16 +12 V 66 D/A GND 0
17 CH31 IN LO 67 CH31 IN HI
18 CH30 IN LO 68 CH30 IN HI
19 CH29 IN LO 69 CH29 IN HI
20 CH28 IN LO 70 CH28 IN HI
21 CH27 IN LO 71 CH27 IN HI
22 CH26 IN LO 72 CH26 IN HI
23 CH25 IN LO 73 CH25 IN HI
24 CH24 IN LO 74 CH24 IN HI
25 CH23 IN LO 75 CH23 IN HI
26 CH22 IN LO 76 CH22 IN HI
27 CH21 IN LO 77 CH21 IN HI
28 CH20 IN LO 78 CH20 IN HI
29 CH19 IN LO 79 CH19 IN HI
30 CH18 IN LO 80 CH18 IN HI
31 CH17 IN LO 81 CH17 IN HI
32 CH16 IN LO 82 CH16 IN HI
33 LLGND 83 LLGND
34 CH15 IN LO 84 CH15 IN HI
35 CH14 IN LO 85 CH14 IN HI
36 CH13 IN LO 86 CH13 IN HI
37 CH12 IN LO 87 CH12 IN HI
38 CH11 IN LO 88 CH11 IN HI
39 CH10 IN LO 89 CH10 IN HI
40 CH9 IN LO 90 CH9 IN HI
41 CH8 IN LO 91 CH8 IN HI
42 CH7 IN LO 92 CH7 IN HI
43 CH6 IN LO 93 CH6 IN HI
44 CH5 IN LO 94 CH5 IN HI
45 CH4 IN LO 95 CH4 IN HI
46 CH3 IN LO 96 CH3 IN HI
47 CH2 IN LO 97 CH2 IN HI
48 CH1 IN LO 98 CH1 IN HI
49 CH0 IN LO 99 CH0 IN HI
50 GND 100 LLGND
6-11
PCI-DAS64/M1/16 User's Guide Specifications
Single-ended mode pin out
Table 22. 64-channel single-ended mode pin out
Pin Signal name Pin Signal name
1 GND 51 GND
2 CTR1 OUT 52 EXTERNAL INTERRUPT
3 CTR1 CLK 53 A/D EXTERNAL PACER
4 CTR1 GATE 54 A/D STOP TRIGGER IN
5 DOUT3 55 A/D START TRIGGER IN
6 DOUT2 56 ANALOG TRIGGER IN
7 DOUT1 57 A/D PACER GATE
8 DOUT0 58 A/D PACER OUT
9 DIN3 59 SSH OUT / D/A PACER OUT
10 DIN2 60 EXTERNAL D/A TRIGGER/PACER GATE
11 DIN1 61 D/A EXTERNAL PACER
12 DIN0 62 PC +5 V
13 GND 63 D/A OUT 1
14 -12 V 64 D/A GND 1
15 GND 65 D/A OUT 0
16 +12 V 66 D/A GND 0
17 CH63 IN 67 CH31 IN
18 CH62 IN 68 CH30 IN
19 CH61 IN 69 CH29 IN
20 CH60 IN 70 CH28 IN
21 CH59 IN 71 CH27 IN
22 CH58 IN 72 CH26 IN
23 CH57 IN 73 CH25 IN
24 CH56 IN 74 CH24 IN
25 CH55 IN 75 CH23 IN
26 CH54 IN 76 CH22 IN
27 CH53 IN 77 CH21 IN
28 CH52 IN 78 CH20 IN
29 CH51 IN 79 CH19 IN
30 CH50 IN 80 CH18 IN
31 CH49 IN 81 CH17 IN
32 CH48 IN 82 CH16 IN
33 LLGND 83 LLGND
34 CH47 IN 84 CH15 IN
35 CH46 IN 85 CH14 IN
36 CH45 IN 86 CH13 IN
37 CH44 IN 87 CH12 IN
38 CH43 IN 88 CH11 IN
39 CH42 IN 89 CH10 IN
40 CH41 IN 90 CH9 IN
41 CH40 IN 91 CH8 IN
42 CH39 IN 92 CH7 IN
43 CH38 IN 93 CH6 IN
44 CH37 IN 94 CH5 IN
45 CH36 IN 95 CH4 IN
46 CH35 IN 96 CH3 IN
47 CH34 IN 97 CH2 IN
48 CH33 IN 98 CH1 IN
49 CH32 IN 99 CH0 IN
50 GND 100 LLGND
6-12
PCI-DAS64/M1/16 User's Guide Specifications
Digital input/output connector and pin out
Table 23. Digital I/O connector specifications
Connector type 40-pin header
Connector compatibility Translates to standard CIO-DIO24 type using BP40-37
Compatible cable C40FF-2
Compatible accessory products CIO-MINI40
Table 24. Digital I/O connector pin out
Pin Signal name Pin Signal name
1 NC 2 PC +5 V
3 NC 4 DIG GND
5 FIRSTPORTB Bit 7 6 FIRSTPORTC Bit 7
7 FIRSTPORTB Bit 6 8 FIRSTPORTC Bit 6
9 FIRSTPORTB Bit 5 10 FIRSTPORTC Bit 5
11 FIRSTPORTB Bit 4 12 FIRSTPORTC Bit 4
13 FIRSTPORTB Bit 3 14 FIRSTPORTC Bit 3
15 FIRSTPORTB Bit 2 16 FIRSTPORTC Bit 2
17 FIRSTPORTB Bit 1 18 FIRSTPORTC Bit 1
19 FIRSTPORTB Bit 0 20 FIRSTPORTC Bit 0
21 DIG GND 22 FIRSTPORTA Bit 7
23 NC 24 FIRSTPORTA Bit 6
25 DIG GND 26 FIRSTPORTA Bit 5
27 NC 28 FIRSTPORTA Bit 4
29 DIG GND 30 FIRSTPORTA Bit 3
31 NC 32 FIRSTPORTA Bit 2
33 DIG GND 34 FIRSTPORTA Bit 1
35 PC +5 V 36 FIRSTPORTA Bit 0
37 DIG GND 38 NC
39 NC 40 NC
6-13
Declaration of Conformity
Manufacturer: Measurement Computing Corporation
Address: 10 Commerce Way
Suite 1008
Norton, MA 02766
USA
Category: Electrical equipment for measurement, control and laboratory use.
Measurement Computing Corporation declares under sole responsibility that the product
PCI-DAS64/M1/16
to which this declaration relates is in conformity with the relevant provisions of the following standards or other
documents:
EU EMC Directive 89/336/EEC: Electromagnetic Compatibility, EN55022 (1995), EN55024 (1998)
Emissions: Group 1, Class B
! EN55022 (1995): Radiated and Conducted emissions.
Immunity: EN55024
! EN61000-4-2 (1995): Electrostatic Discharge immunity, Criteria A.
! EN61000-4-3 (1997): Radiated Electromagnetic Field immunity Criteria A.
! EN61000-4-4 (1995): Electric Fast Transient Burst immunity Criteria A.
! EN61000-4-5 (1995): Surge immunity Criteria A.
! EN61000-4-6 (1996): Radio Frequency Common Mode immunity Criteria A.
! EN61000-4-8 (1994): Power Frequency Magnetic Field immunity Criteria A.
! EN61000-4-11 (1994): Voltage Dip and Interrupt immunity Criteria A.
Declaration of Conformity based on tests conducted by Chomerics Test Services, Woburn, MA 01801, USA in
September, 2001. Test records are outlined in Chomerics Test Report #EMI3053.01.
We hereby declare that the equipment specified conforms to the above Directives and Standards.
Carl Haapaoja, Director of Quality Assurance
Measurement Computing Corporation
10 Commerce Way
Suite 1008
Norton, Massachusetts 02766
(508) 946-5100
Fax: (508) 946-9500
E-mail: info@mccdaq.com
www.mccdaq.com
Loading...
