Measurement Computing MCC USB-202 (6069-410-008) User Guide

USB-202
User's Guide
Analog and Digital I/O
January 2019. Rev 4 © Measurement Computing Corporation
HM USB-202.docx
Trademark and Copyright Information
Measurement Computing Corporation, InstaCal, Universal Library, and the Measurement Computing logo are either trademarks or registered trademarks of Measurement Computing Corporation. Refer to the Copyrights & Trademarks section on mccdaq.com/legal
for more information about Measurement Computing trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies.
© 2019 Measurement Computing Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.
Notice
Measurement Computing Corporation does not authorize any Measurement Computing Corporation product for use in life support systems and/or devices without prior written consent from Measurement Computing Corporation. Life support devices/systems are devices or systems that, a) are intended for surgical implantation into the body, or b) support or sustain life and whose failure to perform can be reasonably expected to result in injury. Measurement Computing Corporation products are not designed with the components required, and are not subject to the testing required to ensure a level of reliability suitable for the treatment and diagnosis of people.
Table of Contents
Preface
About this User's Guide ....................................................................................................................... 5
What you will learn from this user's guide ......................................................................................................... 5
Conventions in this user's guide ......................................................................................................................... 5
Where to find more information ......................................................................................................................... 5
Chapter 1
Introducing the USB-202 ...................................................................................................................... 6
Functional block diagram ................................................................................................................................... 6
Chapter 2
Installing the USB-202 .......................................................................................................................... 7
Unpacking........................................................................................................................................................... 7
Installing the software ........................................................................................................................................ 7
Installing the hardware ....................................................................................................................................... 7
Calibrating the hardware..................................................................................................................................... 7
Factory calibration ............................................................................................................................................................ 7
Field calibration ................................................................................................................................................................ 7
Chapter 3
Functional Details ................................................................................................................................. 8
Analog input acquisition modes ......................................................................................................................... 8
Software paced mode ........................................................................................................................................................ 8
Hardware paced mode....................................................................................................................................................... 8
External components .......................................................................................................................................... 8
Screw terminals................................................................................................................................................................. 9
USB connector .................................................................................................................................................................. 9
LED indicators .................................................................................................................................................................. 9
Signal connections ............................................................................................................................................ 10
Analog input ....................................................................................................................................................................10
External clock I/O ............................................................................................................................................................10
Analog output ..................................................................................................................................................................10
Digital I/O ........................................................................................................................................................................10
Trigger input ....................................................................................................................................................................11
Counter input ...................................................................................................................................................................11
Voltage output .................................................................................................................................................................11
Ground .............................................................................................................................................................................11
Mechanical drawings ........................................................................................................................................ 12
Chapter 4
Specifications ...................................................................................................................................... 14
Analog input ..................................................................................................................................................... 14
Accuracy ........................................................................................................................................................... 14
Analog input DC voltage measurement accuracy ............................................................................................................14
Noise performance ...........................................................................................................................................................15
Analog input calibration ................................................................................................................................... 15
Analog output ................................................................................................................................................... 15
Digital input/output........................................................................................................................................... 16
External digital trigger ...................................................................................................................................... 16
External pacer input/output............................................................................................................................... 17
Counter ............................................................................................................................................................. 18
Memory ............................................................................................................................................................ 18
Power ................................................................................................................................................................ 18
3
USB-202 User's Guide
USB specifications ........................................................................................................................................... 19
Environmental .................................................................................................................................................. 19
Mechanical ....................................................................................................................................................... 19
Screw terminal connector ................................................................................................................................. 19
EU Declaration of Conformity ............................................................................................................ 20
4

About this User's Guide

What you will learn from this user's guide

This user's guide describes the Measurement Computing USB-202 data acquisition device and lists device specifications.

Conventions in this user's guide

For more information
Text presented in a box signifies additional information related to the subject matter.
Caution! Shaded caution statements present information to help you avoid injuring yourself and others,
damaging your hardware, or losing your data.
bold text Bold text is used for the names of objects on a screen, such as buttons, text boxes, and check boxes.
italic text Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase.
Preface

Where to find more information

Additional information about USB-202 hardware is available on our website at www.mccdaq.com. You can also contact Measurement Computing Corporation with specific questions.
Knowledgebase: kb.mccdaq.com Tech support form: www.mccdaq.com/support/support_form.aspx Email: techsupport@mccdaq.com Phone: 508-946-5100 and follow the instructions for reaching Tech Support
For international customers, contact your local distributor. Refer to the International Distributors section on our website at www.mccdaq.com/International
.
5
Chapter 1

Introducing the USB-202

The USB-202 is a USB 2.0 full-speed device that provides the following features:
Eight single-ended 12-bit analog inputs 100 kS/s max sample rate Two 12-bit analog outputs Eight individually configurable digital I/O channels 32-bit counter input Digital trigger input External pacer clock input Internal/external pacer clock output User voltage output Two screw terminal banks for field wiring connections
The USB-202 is powered by the +5 V USB supply from your computer; no external power is required. A USB cable is shipped with the device.

Functional block diagram

Device functions are illustrated in the block diagram shown here.
Figure 1. USB-202 functional block diagram
6
Chapter 2

Installing the USB-202

Unpacking

As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the device from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge.
Contact us immediately if any components are missing or damaged.

Installing the software

Refer to the MCC DAQ Quick Start and the USB-202 product page on our website for information about the software that supports the device.
Install the software before you install your device
The driver needed to run the USB-202 is installed with the software. Therefore, you need to install the software package you plan to use before you install the hardware.

Installing the hardware

Connect the USB cable to an available USB port on the computer or to an external USB hub connected to the computer. Connect the other end of the cable to the USB connector on the device. No external power is required.
When connected for the first time, a device. When the dialog closes, the installation is complete. The device successfully installed.
If the Status LED turns off
If communication is lost between the device and the computer, the Status LED turns off. To restore communication, disconnect the USB cable from the computer and then reconnect it. This should restore communication, and the Status LED should turn on.
Found New Hardware dialog opens when the operating system detects the
Status LED turns on after the device is

Calibrating the hardware

Factory calibration

The Measurement Computing Manufacturing Test department performs the initial factory calibration. Return the device to Measurement Computing Corporation when calibration is required. The recommended calibration interval is one year.

Field calibration

Field calibration is not supported.
7
1
100 2 50 3 33.33 4 25
6
16.67
7
14.29
8
12.50
1
Screw terminal pins 1 to 16
4
Activity LED
2
Screw terminal pins 17 to 32
5
USB connector
3
Status LED
Chapter 3

Functional Details

Analog input acquisition modes

The USB-202 can acquire analog input data in two different modes – software paced and hardware paced.

Software paced mode

You can acquire one analog sample at a time in software paced mode. You initiate the A/D conversion with a software command. The analog value is converted to digital and returned to the computer. You can repeat this procedure until you have the total number of samples that you want.
The maximum throughput sample rate in software paced mode is system-dependent.

Hardware paced mode

You can acquire data from up to eight channels in hardware paced mode. The analog data is continuously acquired and converted to digital values until you stop the scan. Data is transferred in blocks of 32 samples from the device to the memory buffer on your computer.
The maximum continuous scan rate is an aggregate rate. The total acquisition rate for all channels cannot exceed 100 kS/s. The following table lists the scan rate when scanning from one to eight channels.
Maximum continuous scan rate
# channels
scanned
5 20
Scan rate
(kS/s)
You can start a hardware paced continuous scan with either a software command or with an external hardware trigger event.

External components

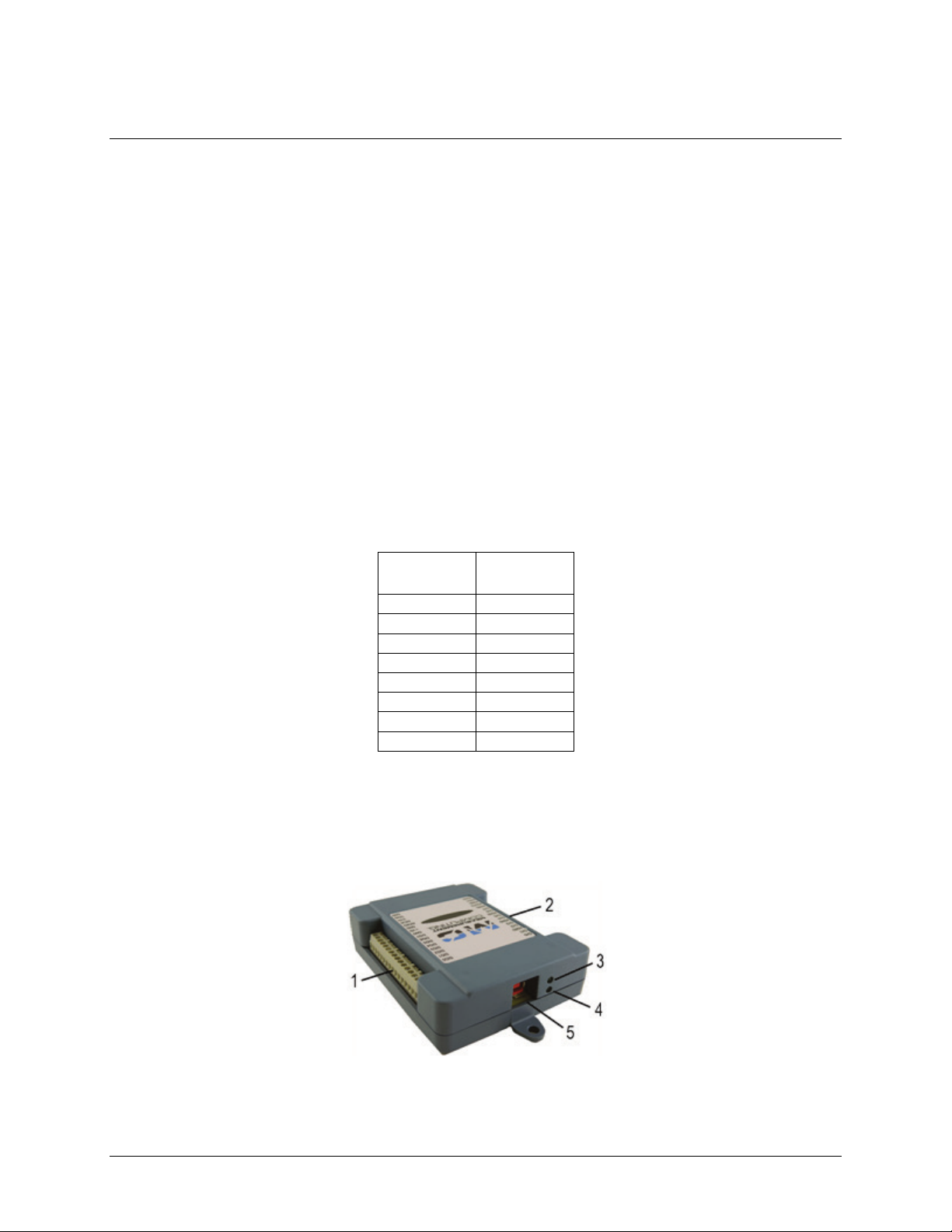

The external components on the USB-202 are shown in Figure 2.
Figure 2. USB-202 external components
8
USB-202 User's Guide Functional Details

Screw terminals

The screw terminals provide the following connections:
Eight single-ended analog inputs ( Two analog outputs ( Eight digital I/O ( External pacer clock input ( External pacer clock output ( Digital trigger input ( Counter input ( User voltage output Analog ground reference (
AOUT0 and AOUT1)
DI00 to DI07)
AICKI)
AICKO)
TRIG)
CTR)
(+VO)
AGND) and digital ground reference (GND)
CH0 to CH7)
Figure 3. USB-202 pinout

USB connector

The USB connector provides +5 V power and communication. No external power supply is required.

LED indicators

The device has two LED indicators – Status and Activity.
The The
Refer to Figure 2 on page 8 for the location of these LEDs.
Status LED turns on when the device is detected and installed on the computer. Activity LED blinks when data is transferred, and is off otherwise.
9
USB-202 User's Guide Functional Details

Signal connections

Analog input

You can connect up to 8 single-ended inputs to screw terminals CH0 to CH7. The input voltage range is ±10 V. Single-ended mode requires two wires; connect one wire to the signal you want to measure ( second wire to the analog ground reference (
AGND).

External clock I/O

The USB-202 provides one external clock input (AICKI) and one clock output (AICKO) for the analog input pacer. Connect the external clock signal to
AICKI.
CHx) and connect a
When using an external clock, When using the internal clock,
AICKO outputs the pulse generated from AICKI.
AICKO outputs the ADC scan clock.

Analog output

The USB-202 has two 12-bit analog outputs (AOUT0 and AOUT1). Both outputs can be updated simultaneously at a rate of 125 S/s per channel. One output can be updated at a rate of 250 S/s. The output range is fixed at 0 V to 5 V. The outputs default to 0 V when the host computer is shut down or suspended, or when a reset command is issued to the device.

Digital I/O

You can connect up to eight digital I/O lines to DIO0 through DIO7. The digital I/O terminals can detect the state of any TTL-level input. Refer to the schematic shown in Figure 4.
Figure 4. Schematic showing switch detection by digital channel DIO0
If you set the switch to the +5 V input, DIO0 reads TRUE (1). If you move the switch to GND, DIO0 reads FALSE (0).
Pull-up/down jumper W4
The digital port has 47 kΩ resistors that you can configure as pull-up or pull-down with internal jumper Figure 2 on page 8 for the location of this jumper).
Unconnected inputs are pulled low by default to 0 V through 47 resistors. The pull-up/pull-down voltage is common to all 47 kΩ resistors.
You must remove the cover from the device in order to access the jumper. To remove the cover, unscrew the four screws on the device bottom.
Caution! The discharge of static electricity can damage some electronic components. Before removing the
device from its housing, either ground yourself using a wrist strap or touch the computer chassis or other grounded object to eliminate any stored static charge.
10
W4 (see
USB-202 User's Guide Functional Details
Figure 5 shows the location of jumper W4 in relation to the USB connector.
Figure 5. Jumper W4 location
Jumper W4 is configured by default for pull-down; see Figure 6.
Figure 6. Jumper W4 pull-up/down configuration
To pull the digital inputs high (+5V), configure the jumper for pull-up.
Proper LED alignment
When placing the circuit board within the housing, align the board LEDs with the top of the housing before attaching the housing bottom.

Trigger input

The TRIG terminal is an external digital trigger input. The trigger mode is software-selectable for edge- or level-sensitive.

Counter input

The CTR terminal is a 32-bit event counter that can accept frequency inputs up to 1 MHz. The internal counter increments when the TTL levels transition from low to high.

Voltage output

The user voltage output (+VO) terminal can output up to 100 mA maximum at approximately +5V. You can use this terminal to supply power to external devices or circuitry.
Caution! The +VO terminal is an output. Do not connect to an external power supply or you may damage
the device and possibly the computer.

Ground

The analog ground (AGND) terminals provide a common ground for all analog channels. The digital ground
GND) terminals provide a common ground for the digital, counter, pacer I/O, and power terminal.
(
For more information about signal connections
For more information about analog and digital signal connections, refer to the Guide to DAQ Signal Connections on our website at www.mccdaq.com/support/DAQ-Signal-Connections.aspx.
11
USB-202 User's Guide Functional Details

Mechanical drawings

Figure 7. Circuit board (top) and housing dimensions
12
USB-202 User's Guide Functional Details
Figure 8. Housing bottom dimensions
13
A/D converter type
Successive approximation
Input voltage range
±10 V
Absolute maximum input voltage
±25 V max (power on) ±25 V max (power off)
1 MΩ (power on) 1 MΩ (power off)
10 V input
–12 µA
0 V input
2 µA
–10 V input
12 µA
Input bandwidth
Small signal (–3 dB)
150 kHz
10 kHz
Input coupling
DC
Internal pacer
0.016 S/s to 100 kS/s, software-selectable
Internal A/D clock
Channel queue
Up to eight unique, ascending channels
Software paced
33S to 4,000 S/s typ, system dependent
Hardware paced
100 kS/s max, system dependent
Warm-up time
15 minutes min
±10V
0.098
11
20.8
0.016
0.87

Specifications

All specifications are subject to change without notice. Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design.

Analog input

Table 1. General analog input specifications
Parameter Condition Specification
ADC resolution 12 bits
Number of channels 8 single-ended
Chapter 4
CHx relative to AGND
Input impedance
Input bias current
Maximum working voltage Input range relative to AGND ±10.1 V max
Crosstalk
Sampling rate
Sample clock source
Throughput
Adjacent channels, DC to
External pacer 100 kS/s max

Accuracy

–75 dB
  Pacer input terminal AICKI

Analog input DC voltage measurement accuracy

Range
(% of reading)
Table 2. DC Accuracy components and specifications; All values are (±)
Gain error
Offset error
(mV)
Absolute accuracy
at Full Scale
(mV)
Gain temperature
coefficient
(% reading/°C)
14
Offset
temperature
coefficient
(mV/°C)
USB-202 User's Guide Specifications
±10 V
5
0.76
Recommended warm-up time
15 minutes min
Calibration method
Factory
Calibration interval
1 year
Output range
0 V to 5.0 V
Number of channels
2
Power on and reset voltage
Initializes to 000h code
0 V, ±10 mV
Output drive
Each D/A OUT
5 mA, sourcing
Slew rate
0.8 V/ µs typ
0 V to 5.0 V
5.0 typ, 45.0 max
(Note 2)
0 V to 5.0 V
0.08 typ, 0.72 max
4.0 typ, 36.0 max
1.0 typ, 9.0 max
5.0 typ, 45.0 max

Noise performance

For the peak to peak noise distribution test, the input channel is connected to AGND at the input terminal block, and 12,000 samples are acquired at the maximum throughput.
Table 3. Noise performance specifications
Range Counts LSBrms

Analog input calibration

Table 4. Analog input calibration specifications
Parameter Specification

Analog output

Table 5. Analog output specifications
Parameter Condition Specification
Resolution
Throughput (Note 1) Software paced 250 S/s single channel typ, PC dependent
Note 1: Maximum throughput when scanning is machine dependent.
Table 6. Analog output accuracy, all values are (±); accuracy tested at no load
Range Accuracy (LSB)
Table 7. Analog output accuracy components, all values are (±)
Range % of FSR Gain Error at FS (mV) Offset (mV)
Note 2: Zero-scale offsets may result in a fixed zero-scale error producing a "dead-band” digital input code region. In this
case, changes in digital input code at values less than 0x040 may not produce a corresponding change in the output voltage. The offset error is tested and specified at code 0x040.
12 bits, 1 in 4,096
Accuracy at FS (mV)
15
USB-202 User's Guide Specifications
Digital type
TTL
Number of I/O
8
Configuration
Each bit may be configured as input (power on default) or output
Pull-up configuration
The port has 47 kΩ resistors that may be configured as pull-up or pull-down with an internal jumper. The factory configuration is pull-down.
Digital I/O transfer rate (system-paced)
Input low voltage threshold
0.8 V max
Input high voltage threshold
2.0 V min
Input voltage limits
5.5 V absolute max
0 V recommended min
3.76 V min (IOH = –24 mA)
Output low voltage
0.1 V max (IOL = 50 µA)
0.44 V max (IOL = 24 mA)
Output current
±24 mA max
Trigger source
TRIG input
level. Power on default is edge sensitive, rising edge.
Trigger latency
1 µs + 1 pacer clock cycle max
Trigger pulse width
125 ns min
Input type
Schmitt trigger, 47 kΩ pull-down to ground
1.5 V max
Input high voltage threshold
2.43 V typ
3.1 V max
2.0 V max
Input voltage limits
5.5 V absolute max
0 V recommended min

Digital input/output

Table 8. Digital input specifications
Parameter Specification
33 to 4000 port reads/writes per second typ, system dependent
–0.5 V absolute min
Output high voltage 4.4 V min (IOH = –50 µA)

External digital trigger

Table 6. External digital trigger specifications
Parameter Specification
Trigger mode
Schmitt trigger hysteresis 1.01 V typ
Input low voltage threshold 1.42 V typ
Software configurable for edge or level sensitive, rising or falling edge, high or low
0.6 V min
1.9 V min
1.0 V min
–0.5 V absolute min
16
USB-202 User's Guide Specifications
Terminal names
AICKI, AICKO
AICKO: Output, power on default is 0 V, active on rising edge
Input clock rate
100 kHz max
Clock pulse width
AICKI: 400 ns min
Input type
Schmitt trigger, 47 kΩ pull-down to ground
1.5 V max
Input high voltage
2.43 V typ
3.1 V max
Input low voltage
1.42 V typ
2.0 V max
0V recommended min
Output high voltage
4.4 V min (IOH = –50 µA)
3.80 V min (IOH = –8 mA)
Output low voltage
0.1 V max (IOL = 50 µA)
0.44 V max (IOL = 8 mA)
Output current
±8 mA max

External pacer input/output

Table 7. External pacer I/O specifications
Parameter Specification
Terminal types AICKI: Input, active on rising edge
Terminal descriptions AICKI: Receives pacer clock from external source
AICKO: Outputs internal pacer clock
AICKO: 400 ns min
Schmitt trigger hysteresis 1.01 V typ
0.6 V min
1.9 V min
1.0 V min
Input voltage limits 5.5V absolute max
-0.5V absolute min
17
USB-202 User's Guide Specifications
Pin name
CTR
Number of channels
1 channel
Resolution
32-bit
Counter type
Event counter
Input type
Schmitt trigger, 47 kΩ pull-down to ground
Schmitt trigger hysteresis
1.01 V typ
1.5 V max
3.1 V max
Input low voltage threshold
1.42 V typ
2.0 V max
Input voltage limits
5.5 V absolute max
Input frequency
1 MHz max
High pulse width
25 ns min
Low pulse width
25 ns min
Data FIFO
12 K (12,288) analog input samples
Supply current
Typical (Note 3)
150 mA
Maximum (including user voltage, DIO and AICKO loading)
500 mA
User voltage output terminal (+VO)
4.25 V min, 5.25 V max

Counter

Table 8. CTR specifications
Parameter Specification
Counter read/write rates (software paced)
Input high voltage threshold 2.43 V typ
33 to 4,000 reads/writes per second typ, system dependent
0.6 V min
1.9 V min
1.0 V min
–0.5 V absolute min 0 V recommended min

Memory

Table 9. Memory specifications
Parameter Specification
Non-volatile memory 2 KB (768 B calibration storage, 256 B UL user data, 1 KB DAQFlex user data)

Power

Parameter Condition Specification
User voltage output current 100 mA max
Note 3: This is the total quiescent current requirement for the device which includes up to 10 mA for the Status LED. This
value does not include any potential loading of the digital I/O bits, AICKO, or user voltage.
Table 10. Power specifications
18
USB-202 User's Guide Specifications
USB device type
USB 2.0 (full-speed)
Device compatibility
USB 1.1, USB 2.0
USB cable type
A-B cable, UL type AWM 2725 or equivalent. (minimum 24 AWG VBUS/GND, minimum 28 AWG D+/D–)
USB cable length
3 m (9.84 ft) max
Operating temperature range
0 °C to 55 °C max
Storage temperature range
–40 °C to 85 °C max
Humidity
0% to 90% non-condensing max
Connector type
Screw terminal
Wire gauge range
16 AWG to 30 AWG
Pin
Signal name
Pin description
Pin
Signal name
Pin description
1
GND
Digital ground
17
AGND
Analog ground
2
TRIG
Digital trigger input
18
AOUT1
Analog output 1
3
CTR
Counter input
19
AGND
Analog ground
4
AICKI
External clock pacer input
20
AOUT0
Analog output 0
6
GND
Digital ground
22
CH7
Channel 7
7
+VO
User voltage output
23
CH6
Channel 6
8
GND
Digital ground
24
AGND
Analog ground
9
DIO7
DIO bit 7
25
CH5
Channel 5
10
DIO6
DIO bit 6
26
CH4
Channel 4
11
DIO5
DIO bit 5
27
AGND
Analog ground
12
DIO4
DIO bit 4
28
CH3
Channel 3
13
DIO3
DIO bit 3
29
CH2
Channel 2
14
DIO2
DIO bit 2
30
AGND
Analog ground
15
DIO1
DIO bit 1
31
CH1
Channel 1
16
DIO0
DIO bit 0
32
CH0
Channel 0

USB specifications

Table 11. USB specifications
Parameter Specification

Environmental

Table 12. Environmental specifications
Parameter Specification

Mechanical

Table 13. Mechanical specifications
Parameter Specification
Dimensions (L × W × H) 117.86 × 82.80 × 28.96 mm (4.64 × 3.26 × 1.14 in.) max

Screw terminal connector

Table 14. Screw terminal connector specifications
Parameter Specification
Table 15. Screw terminal pinout
5 AICKO External clock pacer output 21 AGND Analog ground
19
EU Declaration of Conformity
According to ISO/IEC 17050-1:2010
Manufacturer: Measurement Computing Corporation
Address: 10 Commerce Way
Norton, MA 02766
USA
Product Category: Electrical equipment for measurement, control and laboratory use.
Date and Place of Issue: July 20, 2016, Norton, Massachusetts USA
Test Report Number: EMI6206.12
Measurement Computing Corporation declares under sole responsibility that the product
USB-202
is in conformity with the relevant Union Harmonization Legislation and complies with the essential requirements of the following applicable European Directives:
Electromagnetic Compatibility (EMC) Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
RoHS Directive 2011/65/EU
Conformity is assessed in accordance to the following standards:
EMC:
Emissions:
EN 61326-1:2013 (IEC 61326-1:2012), Class A EN 55011: 2009 + A1:2010 (IEC CISPR 11:2009 + A1:2010), Group 1, Class A
Immunity:
EN 61326-1:2013 (IEC 61326-1:2012), Controlled EM Environments EN 61000-4-2:2008 (IEC 61000-4-2:2008) EN 61000-4-3 :2010 (IEC61000-4-3:2010)
Safety:
EN 61010-1:2010 (IEC 61010-1:2010)
Environmental Affairs:
Articles manufactured on or after the Date of Issue of this Declaration of Conformity do not contain any of the restricted substances in concentrations/applications not permitted by the RoHS Directive.
Carl Haapaoja, Director of Quality Assurance
Measurement Computing Corporation NI Hungary Kft 10 Commerce Way H-4031 Debrecen, Hátar út 1/A, Hungary Norton, Massachusetts 02766 Phone: +36 (52) 515400 (508) 946-5100 Fax: +36 (52) 515414 Fax: (508) 946-9500 http://hungary.ni.com/debrecen E-mail: info@mccdaq.com
www.mccdaq.com
Loading...
