CB-7013, CB-7013D,
&
CB-7033, CB7033D
User’s Manual
Copyright Sept., 2000. All rights are reserved.
CB-7013, CB-7033 User’s Manual
1
Table of Contents
1.1 More Information .......................................4
1.2 Pin Assignment ..........................................5
1.3 Specifications .............................................7
1.4 Block Diagram ...........................................8
1.5 Wire Connection.........................................9
1.6 Quick Start ...............................................10
1.7 Default Setting .........................................10
1.8 Calibration ...............................................10
1.9 Configuration Tables ................................11
2. Command.......................................................15
2.1 %AANNTTCCFF..................................... 17
2.2 #** ...........................................................19
2.3 #AA ..........................................................20
2.4 #AAN .......................................................21
2.5 $AA0 ........................................................22
2.6 $AA1 ........................................................23
2.7 $AA2 ........................................................24
2.8 $AA4 ........................................................25
2.9 $AA8 ........................................................26
2.10 $AA8V ................................................... 27
2.11 $AA9(Data) ............................................ 28
2
CB-7013, CB-7033 User’s Manual
2.12 $AAF......................................................29
2.13 $AAM ....................................................30
2.14 ~AAO(Data)...........................................31
2.15 ~AAEV...................................................32
2.16 ~** .........................................................33
2.17 ~AA0......................................................34
2.18 ~AA1......................................................35
2.19 ~AA2......................................................36
2.20 ~AA3EVV..............................................37
3. Application Notes ..........................................38
3.1 INIT* pin Operation.................................38
3.2 Module Status .......................................... 38
3.3 Dual Watchdog Operation ........................39
HM CB COM 7013&33.p65
CB-7013, CB-7033 User’s Manual
3
1. Introduction
CB-7000 is a family of network data acquisition and control
modules. They provide analog-to-digital, digital-to-analog, digital
input/output, timer/counter and other functions. These modules can
be remote-controlled by a set of commands. Common features of
the CB-7013/13D and CB7033/33D are as follows:
l 24-bits sigma-delta ADC for excellent accuracy.
l RTD direct connection
l Software calibration
The CB-7013 is a single-channel RTD input module. The
CB-7013D is the CB-7013 with a 4½ digit LED display . The
CB-7033 is a three-channel RTD input module. The CB-7033D is
the CB-7033 with a 4½ digit LED display.
1.1 More Information
Refer to “CB-7000 Bus Converter User Manual” chap-
ter 1 for more information as following:
1.1 CB-7000 Overview
1.2 CB-7000 Related Documentation
1.3 CB-7000 Command Features
1.4 CB-7000 System Network Configuration
1.5 CB-7000 Dimension
4
CB-7013, CB-7033 User’s Manual
1.2 Pin Assignment
CB-7013, CB-7033 User’s Manual
5
6
CB-7013, CB-7033 User’s Manual
1.3 Specifications
CB-7013/CB-7013D
Analog Input
Input Channel: 1
Input Type: 2/3/4-wire RTD
RTD Type:
Pt100 α=0.00385 Pt100 α=0.003916
Ni 120
Pt1000 α=0.00385
(version B1.0 or later)
Sampling Rate:
CB-7033/CB-7033D
Analog Input
Input Channel: 3
Input Type: 2/3/4-wire RTD
RTD Type:
Pt100 α=0.00385 Pt100 α=0.003916
Ni 120
Pt1000 α=0.00385
Sampling Rate:
15/12.5 Samples/Second
10 Samples/Second
Bandwidth: 5.24 Hz
Accuracy: ±0.05%
Zero Drift: 0.5µV/°C
Span Drift: 1.0µV/°C
CMR@50/60 Hz: 150dB min
NMR@50/60 Hz: 100dB min
Displayed LED
4½ digits (CB-7013D only)
Power Supply
Input: +10 to +30VDC
with filter at 60/50Hz
Bandwidth: 15.7 Hz
Accuracy: ±0.1%
Zero Drift: 0.5µV/°C
Span Drift: 1.0µV/°C
CMR@50/60 Hz: 150dB min
NMR@50/60 Hz: 100dB min
Displayed LED
4½ digits (CB-7033D only)
Power Supply
Input: +10 to +30VDC
Consumption:
0.7 W. for CB-7013
1.3 W. for CB-7013D
Consumption:
1.0 W. for CB-7033
1.6 W. for CB-7033D
CB-7013, CB-7033 User’s Manual
7

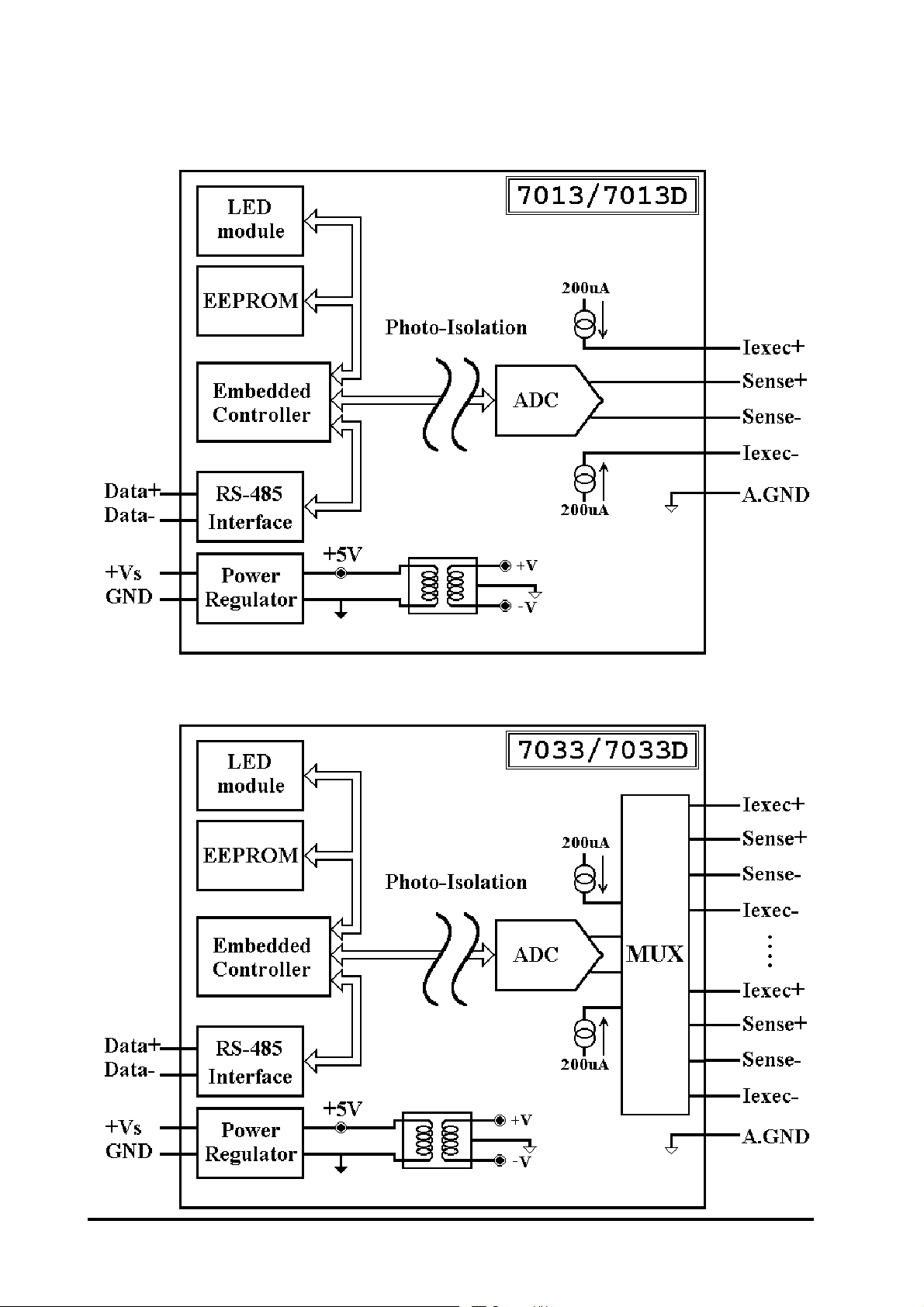

1.4 Block Diagram
8
CB-7013, CB-7033 User’s Manual
1.5 Wire Connection
2-wire RTD connection
3-wire RTD connection
4-wire RTD connection
CB-7013, CB-7033 User’s Manual
9
1.6 Quick Start
Refer to “CB-7000 Bus Converter User Manual ” and
“Getting Start” for more detail.
1.7 Default Setting
Default setting for CB-7013/13D, CB-7033/33D:
l Address: 01
l RTD Type: Type 20, Pt100, -100°C to 100°C
l Baud rate: 9600 bps
l Checksum disable, engineering unit format l Filter for 60 Hz rejection
1.8 Calibration
Don’t Do Calibration Until You Understand the Procedure.
Calibration Requirement for CB-7013/13D version A1.x or A2.x.
epyTrotsiseRnoitarbilaCoreZrotsiseRnoitarbilaCnapS
92ot02mho55mho0.573
Calibration Requirement for CB-7013/13D version B1.0 or later
and CB-7033/33D.
epyTrotsiseRnoitarbilaCoreZrotsiseRnoitarbilaCnapS
10
92ot02mho0mho0.573
A2mho0mho0.0023
CB-7013, CB-7033 User’s Manual
Calibration Sequence:
1. Connect calibration resistor to module by 4-wire R TD
connection. For CB-7033/33D, connect to channel 0.
2. Warm-Up for 30 minutes.
3. Set Type to 20- Ref. Sec .2.1.
4. Enable Calibration - Ref. Sec. 2.15.
5. Install Zero Calibration Resistor.
6. Preform Zero Calibration Command - Ref. Sec. 2.6.
7. Install Span Calibration Resistor.
8. Perform Span Calibration Command - Ref. Sec. 2.5.
9. Repeat step 4 to step 8 three times.
Note:
1. Step 4 is not needed for CB-7013/13D, version A1.x or A2.x.
2. Same for type 2A only different for set different type (step 3),
and install different Zero/Span Calibration Resistor (step 5, 7).
1.9 Configuration Tables
edoCetarduaB
300021
400042
edoCetarduaB
7000291
8000483
500084
600069
9000675
A0002511
CB-7013, CB-7033 User’s Manual
11
Configuration Table of CB-7013/13D, CB-7033/33D
edoCepyTepyTDTRegnaRerutarepmeT
0258300.0=a,001munitalP001ot001-
1258300.0=a,001munitalP001ot0
22,001munitalP 58300.0=α 002ot0 32,001munitalP 58300.0=α 006ot0 42,001munitalP 619300.0=α 001ot001- 52,001munitalP 619300.0=α 001ot0 62,001munitalP 619300.0=α 002ot0 72,001munitalP 619300.0=α 006ot0
82021lekciN001ot08-
92021lekciN001ot0
A2,0001munitalP 58300.0=α 006ot002-
Baud rate Setting (CC)
RTD Type Setting (TT)
76543210
1*2* 0000 3*
Note: Type 2A is only for CB-7013/13D version B1.0 or later and
CB-7033/33D.
Data Format Setting (FF)
12
*1: Filter Setting 0 = 60 Hz rejection
1 = 50 Hz rejection
*2: Checksum Bit: 0 = Disable, 1 = Enable
*3: 00 = Engineering Unit Format
CB-7013, CB-7033 User’s Manual
01 = Percent Format
epyT
edoC
α 58300.0=
02
eerged
suisleC
α 58300.0=
12
eerged
suisleC
α 58300.0=
22
eerged
suisleC
epyTDTRtamroFataD.S.F+.S.F-
001munitalP
RSFfo%00.001+00.001-
001ot001-
XEH
mhO05.831+06.060+
001munitalP
RSFfo%00.001+00.000+
001ot0
XEH
mhO05.831+00.001+
001munitalP
RSFfo%00.001+00.000+
002ot0
XEH
mhO48.571+00.001+
tinUreenignE00.001+00.001-
tnemelpmocs'2
tinUreenignE00.001+00.000+
tnemelpmocs'2
tinUreenignE00.002+00.000+
tnemelpmocs'2
FFF70008
FFF70000
FFF70000
001munitalP
α 58300.0=
32
α 619300.0=
42
α 619300.0=
52
006ot0
eerged
suisleC
001munitalP
001ot001-
eerged
suisleC
001munitalP
001ot0
eerged
suisleC
XEH
mhO95.313+06.060+
XEH
mhO61.931+06.060+
XEH
mhO61.931+00.001+
RSFfo%00.001+00.000+
RSFfo%00.001+00.001-
RSFfo%00.001+00.000+
tinUreenignE00.006+00.000+
tnemelpmocs'2
FFF70008
tinUreenignE00.001+00.001-
tnemelpmocs'2
FFF70008
tinUreenignE00.001+00.000+
tnemelpmocs'2
FFF70000
CB-7013, CB-7033 User’s Manual
13
edoCepyTepyTDTRtamroFataD.S.F+.S.F-
tinUreenignE00.002+00.000+
001munitalP
62
α 619300.0=
002ot0
suisleCeerged
mhO31.771+00.001+
001munitalP
α 619300.0=
72
006ot0
suisleCeerged
mhO82.713+00.001+
RSFfo%00.001+00.000+
XEHtnemelpmocs'2FFF70000
tinUreenignE00.006+00.000+
RSFfo%00.001+00.000+
XEHtnemelpmocs'2FFF70000
tinUreenignE00.001+00.080-
021lekciN
82
92
α 58300.0=
A2
001ot08-
suisleCeerged
mhO46.002+06.660+
021lekciN
001ot0
suisleCeerged
mhO46.002+06.021+
0001munitalP
006ot002-
suisleCeerged
mhO1.7313+02.581+
RSFfo%00.001+00.080-
XEHtnemelpmocs'2FFF7A999
tinUreenignE00.001+00.000+
RSFfo%00.001+00.000+
XEHtnemelpmocs'2FFF70000
tinUreenignE00.006+00.002-
RSFfo%00.001+33.330-
XEHtnemelpmocs'2FFF7AAAA
14
10 = 2’s Complement HEX Format
egnaRrevOegnaRrednU
tinUs'reenignE9999+0000-
RSFfotnecreP9999+0000-
XEHtnemelpmoCs'2FFF70008
CB-7013, CB-7033 User’s Manual
11 = Ohms
2. Command
Command Format; (Leading)(Address)(Command)[CHK](cr)
Response Format: (Leading)(Address)(Data)[CHK](cr)
[CHK] 2-character checksum
(cr) end-of-command character, character return (0x0D)
Calculate Checksum:
1. Calculate ASCII sum of all characters of command (or
response) string except the character return (cr).
2. Mask the sum of string with 0ffh.
Example:
Command string: $012(cr)
Sum of string = ‘$’+‘0’+‘1’+‘2’ = 24h+30h+31h+32h = B7h.
The checksum is B7h, and [CHK] = “B7”.
Command string with checksum: $012B7(cr).
Response string: !01200600(cr).
Sum of string: ‘!’+‘0’+‘1’+‘2’+‘0’+‘0’+‘6’+‘0’+‘0’
= 21h+30h+31h+32h+30h+30h+36h+30h+30h = 1AAh
The checksum is AAh, and [CHK] = “AA”.
Response string with checksum: !01200600AA(cr).
CB-7013, CB-7033 User’s Manual
15
steSdnammoClareneG
dnammoCesnopseRnoitpircseDnoitceS
FFCCTTNNAA%AA!noitarugifnoCeludoMteS 1.2.ceS
**#esnopseRoNgnilpmaSdezinorhcnyS 2.2.ceS
AA#)ataD(>tupnIgolanAdaeR 3.2.ceS
NAA#)ataD(>
morftupnIgolanAdaeR
Nlennahc
0AA$AA!noitarbilaCnapSmrofreP 5.2.ceS 1AA$AA!noitarbilaCoreZmrofreP 6.2.ceS 2AA$FFCCTTNNAA!noitarugifnoCdaeR 7.2.ceS 4AA$)ataD(SAA>ataDdezinorhcnySdaeR 8.2.ceS 8AA$VAA!noitarugifnoCDELdaeR 9.2.ceS
V8AA$AA!noitarugifnoCDELteS 01.2.ceS
)ataD(9AA$AA!ataDDELteS 11.2.ceS FAA$)ataD(AA!noisreVerawmriFdaeR 21.2.ceS MAA$)ataD(AA!emaNeludoMdaeR 31.2.ceS
4.2.ceS
)ataD(OAA~AA!emaNeludoMteS 41.2.ceS
VEAA~AA!noitarbilaCelbasiD/elbanE 51.2.ceS
steSdnammoCgodhctaWtsoH
dnammoCesnopseRnoitpircseDnoitceS
**~esnopseRoNKOtsoH 61.2.ceS
0AA~SSAA!sutatSeludoMdaeR 71.2.ceS 1AA~AA!sutatSeludoMteseR 81.2.ceS
godhctaWtsoHdaeR
2AA~TTAA!
eulaVtuoemiT
godhctaWtsoHteS
TTE3AA~AA!
eulaVtuoemiT
91.2.ceS
02.2.ceS
16
CB-7013, CB-7033 User’s Manual
2.1 %AANNTTCCFF
Description: Set module configuration
Syntax: %AANNTTCCFF[CHK](cr)
% A delimiter character.
AA Address of setting module(00 to FF).
NN New address for setting module(00 to FF).
TT New type for setting module (Ref Sec. 1.9). CC New baud rate for setting module (Ref Sec. 1.9). It is
needed to short the INIT* to ground while change baud
rate. (Ref Sec. 3.1).
FF New data format for setting module (Ref Sec. 1.9). It is
needed to short the INIT* to ground to change checksum
setting (Ref Sec. 3.1).
Response: Valid Command: !AA[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no re-
sponse.
! Delimiter for valid command.
? Delimiter for invalid command. While change baudrate
or checksum setting without short INIT* to ground, the
module will return invalid command.
AA Address of response module(00 to FF)
Example:
Command: %0102200600 Receive: !02
Change address from 01 to 02, return successful.
CB-7013, CB-7033 User’s Manual
17
Command: %0202200603 Receive: !02
Change data format from 00 to 03, return successful.
Related Command:
Sec. 2.7 $AA2
Related Topics:
Sec. 1.9 Configuration Tables, Sec. 3.1 INIT* pin Operation.
18
CB-7013, CB-7033 User’s Manual
2.2 #**
Description: Synchronized Sampling
Syntax: #**[CHK](cr)
# A delimiter character.
** Synchronized sampling command.
Response: No response
Example:
Command: #** No response
Send synchronized sampling command.
Command: $014 Receive: >011+025.123
First read, get status=1
Command: $014 Receive: >010+025.123
Second read, get status=0
Related Command:
Sec. 2.8 $AA4
Note: The command is for CB-7013/13D only.
CB-7013, CB-7033 User’s Manual
19
2.3 #AA
Description: Read Analog Input
Syntax: #AA[CHK](cr)
# Delimiter character
AA Address of reading module(00 to FF)
Response: Valid Command: >(Data)[CHK](cr)
Syntax error or communication error may get no
response.
> Delimiter for valid command.
(Data) Analog input value, reference Sec. 1.9 for its format
While using #AA command to CB-7033/33D, the data is
the combination for each channel respectively.
Example:
Command: #01 Receive: >+026.35
Read address 01, get data successfully.
Command: #02 Receive: >4C53
Read address 02, get data in HEX format successfully.
Command: #03 Receive: >-0000
Read address 03, get data underrange.
Command: #04 Receive: >+025.12+054.12+150.12
Read address 04, is I7033/I7033D, get 3 channel data.
Related Command:
Sec2.1 %AANNTTCCFF, Sec. 2.7 $AA2
Related Topics:
Sec. 1.9 Configuration Tables
20
CB-7013, CB-7033 User’s Manual
2.4 #AAN
Description: Read Analog Input from channel N
Syntax: #AAN[CHK](cr)
# Delimiter character
AA Address of reading module (00 to FF).
N Channel to read.
Response: Valid Command: >(Data)[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no re-
sponse.
> Delimiter for valid command.
(Data) Analog input value, reference Sec. 1.9 for its format.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
Example:
Command: #032 Receive: >+025.13
Read address 03 channel 2, get data successfully.
Command: #024 Receive: ?02
Read address 02 channel 4, return error channel number
Related Command:
Sec2.1 %AANNTTCCFF, Sec. 2.7 $AA2
Related Topics:
Sec. 1.9 Configuration Tables
Note: The command for CB-7033/33D only.
CB-7013, CB-7033 User’s Manual
21
2.5 $AA0
Description: Perform Span Calibration
Syntax: $AA0[CHK](cr)
$ Delimiter character
AA Address of setting module (00 to FF)
0 Command for span calibration
Response: Valid Command: !AA[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no re-
sponse.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
Example:
Command: $010 Receive: !01
Perform address 01 span calibration, return successful.
Command: $020 Receive: ?02
When performing address 02 zero calibration, return was not
enabled before performing calibration command.
Related Command:
Sec2.6 $AA1, Sec. 2.15 ~AAEV
Related Topics:
Sec. 1.8 Calibration
22
CB-7013, CB-7033 User’s Manual
2.6 $AA1
Description: Perform Zero Calibration
Syntax: $AA1[CHK](cr)
$ Delimiter character.
AA Address of setting module (00 to FF)
1 Command for zero calibration.
Response: Valid Command: !AA[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no
response.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
Example:
Command: $011 Receive: !01
Preform address 01 zero calibration, return successful.
Command: $021 Receive: ?02
When performing address 02 zero calibration, return was
not enabled before performing calibration command.
Related Command:
Sec2.5 $AA0, Sec. 2.15 ~AAEV
Related Topics:
Sec. 1.8 Calibration
CB-7013, CB-7033 User’s Manual
23
2.7 $AA2
Description: Read Configuration
Syntax: $AA2[CHK](cr)
$ Delimiter character
AA Address of reading module (00 to FF)
2 Command for read configuration
Response: Valid Command:
!AATTCCFF[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no re-
sponse.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
TT Type code of module (reference Sec. 1.9). CC Baud rate code of module (reference Sec. 1.9). FF Data format of module (reference Sec. 1.9).
Example:
Command: $012 Receive: !01200600
Read address 01 configuration, return successful
Command: $022 Receive: !02230602
Read address 02 configuration, return successful.
Related Command:
Sec2.1 %AANNTTCCFF
Related Topics:
Sec. 1.9 Configuration Tables, Sec3.1 INIT* pin Operation.
24
CB-7013, CB-7033 User’s Manual
2.8 $AA4
Description: Read Synchronized Data Note: This command is for CB-7013/13D only. Syntax: $AA4[CHK](cr)
$ Delimiter character. AA Address of reading module (00 to FF). 4 Command for read synchronized data. Response: Valid Command: >AAS(Data)[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no re-
sponse. ! Delimiter for valid command. ? Delimiter for invalid command.
AA Address of response module (00 to FF).
S Status of synchronized data, 1 = first read, 0 = been readed
(Data) Synchronized data, format reference Sec.1.9.
Example:
Command: $014 Receive: ?01
Read address 01 synchronized data, return no data valid
Command: #** No response
Perform synchronized sampling
Command: $014 Receive: >011+025.56
Read address 01 synchronized data, return status 1 and data.
Command: $014 Receive: >010+25.56
Read address 01 synchronized data, return status 0 and data.
Related Command:
Sec2.2 #**
.
CB-7013, CB-7033 User’s Manual
25
2.9 $AA8
Description: Read LED Configuration
Note: This command is for CB-7013D/CB-7033D only.
Syntax: $AA8[CHK](cr)
$ delimiter character
AA address of reading module (00 to FF)
8 command for set LED configuration
Response: Valid Command: !AAV[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no re-
sponse.
! Delimiter for valid command
? Delimiter for invalid command
AA Address of response module (00 to FF)
V LED configuration
For CB-7013D, 1=module control, 2=host control
For CB-7033D, 0~2=LED show channel 0~2,
3=LED is host control
Example:
Command: $018 Receive: !011
Read address 01 LED configuration, return 1.
Command: $028 Receive: !012
Read address 02 LED configuration, return 2
Related Command:
Sec. 2.10 $AA8V, Sec. 2.11 $AA9(Data)
26
CB-7013, CB-7033 User’s Manual
2.10 $AA8V
Description: Set LED Configuration
Note: This command is for CB-7013D/CB-7033D only.
Syntax: $AA8V[CHK](cr)
$ Delimiter character.
AA Address of setting module (00 to FF).
8 Command for set LED configuration.
V For CB-7013D, 1=Set LED to module, 2=Set LED to
host.
For CB-7033D, 0~2=Set LED to show channel 0~2
3=Set LED to host.
Response: Valid Command: !AA[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no
response.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
Example:
Command: $0180 Receive: !01
Set address 01 LED to 0, return successful
Command: $0281 Receive: !02
Set address 02 LED to 1, return successful
Related Command:
Sec. 2.9 $AA8, Sec. 2.11 $AA9(Data)
CB-7013, CB-7033 User’s Manual
27
2.11 $AA9(Data)
Description: Set LED Data
Note: The command is for CB-7013D/33D only.
Syntax: $AA9(Data)[CHK](cr)
$ Delimiter character
AA Address of setting module (00 to FF)
9 Command for set LED data
(Data) Data for display on the LED, from −19999. to +19999.
The data needs a sign, five digits and a decimal point.
Response: Valid Command: !AA[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no
response.
! Delimiter for valid command.
? Delimiter for invalid command or LED not set to host
control.
AA Address of response module (00 to FF)
Example:
Command: $019+123.45 Receive: !01
Send address 01 LED data +123.45, return successful
Command: $029+512.34 Receive: ?02
Send address 02, LED data +512.34. Return indicates the LED
is not in the host mode.
Related Command:
Sec. 2.9 $AA8, Sec. 2.10 $AA8V
28
CB-7013, CB-7033 User’s Manual
2.12 $AAF
Description: Read Firmware Version
Syntax: $AAF[CHK](cr)
$ Delimiter character
AA Address of reading module (00 to FF)
F Command for read firmware version
Response: Valid Command: !AA(Data)[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no
response.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF)
(Data) Firmware version of module.
Example:
Command: $01F Receive: !01A2.0
Read address 01 firmware version, returns version A2.0.
Command: $02F Receive: !01B1.1
Read address 02 firmware version, returns version B1.1.
CB-7013, CB-7033 User’s Manual
29
2.13 $AAM
Description: Read Module Name
Syntax: $AAM[CHK](cr)
$ Delimiter character
AA Address of reading module (00 to FF)
M Command for read module name
Response: Valid Command: !AA(Data)[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no re-
sponse.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF)
(Data) Name of module.
Example:
Command: $01M Receive: !017013
Read address 01 module name, returns name 7013.
Command: $03M Receive: !037033D
Read address 03 module name, returns name 7033D.
Related Command:
Sec. 2.14 ~AAO(Data)
30
CB-7013, CB-7033 User’s Manual
2.14 ~AAO(Data)
Description: Set Module Name
Syntax: ~AAO(Data)[CHK](cr)
~ Delimiter character
AA Address of setting module (00 to FF)
O Command for set module name
(Data) New name for module, maximum six characters
Response: Valid Command: !AA[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no re-
sponse.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
Example:
Command: ~01O7013 Receive: !01
Set address 01 module name to 7013, returns successful.
Command: $01M Receive: !017013
Read address 01 module name, returns 7013.
Related Command:
Sec. 2.12 $AAM
CB-7013, CB-7033 User’s Manual
31
2.15 ~AAEV
Description: Enable/Disable Calibration
Syntax: ~AAEV[CHK](cr)
~ Delimiter character
AA Address of setting module (00 to FF)
E Command for enable/disable calibration
V 1=Enable/0=Disable calibration
Response: Valid Command: !AA[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no
response.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
Example:
Command: $010 Receive: ?01
Perform addreess 01 span calibration, return not enable
calibration.
Command: ~01E1 Receive: !01
Set address 01 to enable calibration, returns successful.
Command: $010 Receive: !01
Preform address 01 span calibration, returns successful.
Related Command:
Sec. 2.5, $AA0; Sec. 2.6, $AA1
Related Topic:
Sec. 1.8, Calibration
32
CB-7013, CB-7033 User’s Manual
2.16 ~**
Description: Host OK.
Host send this command to all modules for send the information
“Host OK”.
Syntax: ~**[CHK](cr)
~ delimiter character.
** command for all modules.
Response: No response.
Example:
Command: ~** No response
Send Host OK to all modules.
Related Command:
Sec. 2.17 ~AA0, Sec. 2.18 ~AA1, Sec. 2.19 ~AA2, Sec. 2.20
~AA3EVV
Related Topic:
Sec. 3.2, Module Status; Sec. 3.3, Dual Watchdog Operation
CB-7013, CB-7033 User’s Manual
33
2.17 ~AA0
Description: Read Module Status
Syntax: ~AA0[CHK](cr)
~ Delimiter character
AA Address of reading module (00 to FF)
0 Command for read module status
Response: Valid Command: !AASS[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or comm. error may get no response.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
SS host watchdog time-out status, 00=status is clear ,
04=status is set. The status will store into EEPROM and
only may reset by the command ~AA1.
Example:
Command: ~010 Receive: !0100
Read address 01 module status, return 00.
Command: ~020 Receive: !0204
Read address 02 module status. A return of 04, means the
host watchdog time-out status is set; module is in safe mode.
Related Command:
Sec. 2.16 ~**, Sec. 2.18 ~AA1, Sec. 2.19 ~AA2, Sec. 2.20 ~AA3EVV
Related Topic: Sec. 3.2, Module Status; Sec. 3.3, Dual Watchdog
Operation
34
CB-7013, CB-7033 User’s Manual
2.18 ~AA1
Description: Reset Module Status
Syntax: ~AA1[CHK](cr)
~ Delimiter character
AA Address of setting module (00 to FF)
1 Command for reset module status
Response: Valid Command: !AA[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or comm. error may get no response.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
Example:
Command: ~010 Receive: !0104
Read address 01 module status, return 04, host watchdog
time-out.
Command: ~011 Receive: !01
Reset address 01 module status, return successful.
Command: ~010 Receive: !0100
Read address 01 module status, return 00, no host watchdog
time-out.
Related Command:
Sec. 2.16 ~**, Sec. 2.17 ~AA0, Sec. 2.19 ~AA2, Sec. 2.20
~AA3EVV
Related Topic:
Sec. 3.2, Module Status; Sec. 3.3, Dual Watchdog Operation
CB-7013, CB-7033 User’s Manual
35
2.19 ~AA2
Description: Read Host Watchdog Time-out Value
Syntax: ~AA2[CHK](cr)
~ Delimiter character.
AA Address of reading module (00 to FF).
2 Command for read host watchdog time-out value.
Response: Valid Command: !AAVV[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no
response.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
VV Time-out value in HEX format, count for 0.1 second
01=0.1 second and FF=25.5 second.
Example:
Command: ~012 Receive: !01FF
Read address 01 host watchdog time-out value. On return of
FF, the host watchdog time-out value is 25.5 second.
Related Command:
Sec. 2.16 ~**, Sec. 2.17 ~AA0, Sec. 2.18 ~AA1, Sec. 2.20
~AA3EVV
Related Topic:
Sec. 3.2, Module Status; Sec. 3.3, Dual Watchdog Operation
36
CB-7013, CB-7033 User’s Manual
2.20 ~AA3EVV
Description: Set Host Watchdog Time-out Value
Syntax: ~AA3EVV[CHK](cr)
~ Delimiter character.
AA Address of setting module (00 to FF).
3 command for set host watchdog time-out value.
E 1=Enable/0=Disable host watchdog.
VV Time-out value, from 01 to FF, each for 0.1 second.
Response: Valid Command: !AA[CHK](cr)
Invalid Command: ?AA[CHK](cr)
Syntax error or communication error may get no
response.
! Delimiter for valid command.
? Delimiter for invalid command.
AA Address of response module (00 to FF).
Example:
Command: ~013164 Receive: !01
Set address 01 enables host watchdog and time-out value is
set to 64 (10.0 seconds); returns successful.
Command: ~012 Receive: !0164
Read address 01 host watchdog time-out value. Return 64,
the time-out value is 10.0 seconds.
Related Command:
Sec. 2.16 ~**, Sec. 2.17 ~AA0, Sec. 2.18 ~AA1, Sec. 2.19 ~AA2
Related Topic:
Sec. 3.2 Module Status; Sec. 3.3, Dual Watchdog Operation
CB-7013, CB-7033 User’s Manual
37
3. Application Note
3.1 INIT* pin Operation
Each CB-7000 module has a build-in EEPROM to store
configuration information such as address, type, baud rate, and other
information. Sometimes, a user may forget the configuration of the
module. Therefore, the CB-7000 modules have a special mode
named “INIT mode”, to help user to resolve the problem. The
“INIT mode” is setting as Address=00, baud rate=9600 bps, no
checksum
To enable INIT mode, do the following steps:
Step 1. Power-off the module.
Step 2. Connect the INIT* pin to the GND pin.
Step 3. Turn power on.
Step 4. Send command $002(cr) at 9600 bps to read the
configuration stored in the module’s EEPROM.
Refer to “7000 Bus Converter User Manual” Sec. 5.1
and “Getting Started” for more information.
3.2 Module Status
Power-On Reset or Module Watchdog Reset will put all
outputs to Power-On Value. And the module may accept the host’s
command to change the output value.
Host Watchdog Time-out will cause all digital outputs to
go to their Safe Value. The module’s status (read by command
~AA0) will be 04, and the output command will be ignored.
38
CB-7013, CB-7033 User’s Manual
3.3 Dual Watchdog Operation
Dual Watchdog = Module Watchdog + Host Watchdog
The Module Watchdog is a hardware reset circuit to
monitor the module’s operating status. While working in harsh or
noisy environment, the module may go down by the external noise
signal. The circuit may let the module to work continues and never
halt.
The Host Watchdog is a software function to monitor the
host’s operating status. Its purpose is to detect a network/communi-
cation problem or host halt. When a time-out occurs, the
module changes all outputs to the safe state to prevent
possible dangerous problems of a controlled unit/process.
The CB-7000 module with Dual W atchdog makes the
control system more reliable and stable.
CB-7013, CB-7033 User’s Manual
39
For your notes.
40
CB-7013, CB-7033 User’s Manual
For your notes.
CB-7013, CB-7033 User’s Manual
41
For your notes.
42
CB-7013, CB-7033 User’s Manual
EC Declaration of Conformity
We, Measurement Computing Corporation, declare under sole responsibility that the product:
CB-7013/CB-7013D, RTD Input Modules CB-7033/CB-7033D
Part Number Description
to which this declaration relates, meets the essential requirements, is in conformity with, and CE marking has been applied accord­ing to the relevant EC Directives listed below using the relevant section of the following EC standards and other normative docu­ments:
EU EMC Directive 89/336/EEC: Essential requirements relat­ing to electromagnetic compatibility.
EU 55022 Class B: Limits and methods of measurements of radio interference characteristics of information technology equipment.
EN 50082-1: EC generic immunity requirements.
IEC 801-2: Electrostatic discharge requirements for industrial
process measurement and control equipment.
IEC 801-3: Radiated electromagnetic field requirements for in­dustrial process measurements and control equipment.
IEC 801-4: Electrically fast transients for industrial process mea­surement and control equipment.
Carl Haapaoja, Director of Quality Assurance
CB-7013, CB-7033 User’s Manual
43
Measurement Computing Corporation
10 Commerce Way
Suite 1008
Norton, Massachusetts 02766
(508) 946-5100
Fax: (508) 946-9500
E-mail: info@mccdaq.com
www.mccdaq.com
