Measurement USB-1608GX-2AO-OEM User Manual

USB-1602HS-2AO

Multifunction Synchronous Data

Acquisition Board

User's Guide

Document Revision 3, March, 2010

© Copyright 2010, Measurement Computing Corporation

HM USB-1602HS-2AO.docx

Your new Measurement Computing product comes with a fantastic extra —

Management committed to your satisfaction!

Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy
the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our mission:

 To provide PC-based data acquisition hardware and software that will save time and save money.

Simple installations minimize the time between setting up your system and actually making measurements. We offer quick and
simple access to outstanding live FREE technical support to help integrate MCC products into a DAQ system.

Limited Lifetime Warranty: Most MCC products are covered by a limited lifetime warranty against defects in materials or
workmanship for the life of the product, to the original purchaser, unless otherwise noted. Any products found to be defective in
material or workmanship will be repaired, replaced with same or similar device, or refunded at MCC’s discretion. For specific
information, please refer to the terms and conditions of sale.

Harsh Environment Program: Any Measurement Computing product that is damaged due to misuse, or any reason, may be
eligible for replacement with the same or similar device for 50% of the current list price. I/O boards face some harsh
environments, some harsher than the boards are designed to withstand. Contact MCC to determine your product’s eligibility for
this program.

30 Day Money-Back Guarantee: Any Measurement Computing Corporation product may be returned within 30 days of
purchase for a full refund of the price paid for the product being returned. If you are not satisfied, or chose the wrong product by
mistake, you do not have to keep it.

These warranties are in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or

fitness for a particular application. The remedies provided herein are the buyer’s sole and exclusive remedies. Neither

Measurement Computing Corporation, nor its employees shall be liable for any direct or indirect, special, incidental or
consequential damage arising from the use of its products, even if Measurement Computing Corporation has been notified in
advance of the possibility of such damages.

3

Trademark and Copyright Information

TracerDAQ, Universal Library, Measurement Computing Corporation, and the Measurement Computing logo are either
trademarks or registered trademarks of Measurement Computing Corporation.

Windows, Microsoft, and Visual Studio are either trademarks or registered trademarks of Microsoft Corporation
LabVIEW is a trademark of National Instruments.
CompactFlash is a registered trademark of SanDisk Corporation.
XBee and XBee-PRO are trademarks of MaxStream, Inc.
All other trademarks are the property of their respective owners.
Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no

responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or
other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or
copyrights of Measurement Computing Corporation.

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any
means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement
Computing Corporation.

Notice

Measurement Computing Corporation does not authorize any Measurement Computing Corporation product for use
in life support systems and/or devices without prior written consent from Measurement Computing Corporation.
Life support devices/systems are devices or systems which, a) are intended for surgical implantation into the body,
or b) support or sustain life and whose failure to perform can be reasonably expected to result in injury.
Measurement Computing Corporation products are not designed with the components required, and are not subject
to the testing required to ensure a level of reliability suitable for the treatment and diagnosis of people.

4

Table of Contents

Preface

About this User’s Guide ....................................................................................................................... 7

What you will learn from this user’s guide ......................................................................................................... 7

Conventions in this user’s guide ......................................................................................................................... 7

Where to find more information ......................................................................................................................... 7

Chapter 1

Introducing the USB-1602HS-2AO ...................................................................................................... 8

Overview: USB-1602HS-2AO features .............................................................................................................. 8

Software features ................................................................................................................................................ 8

Chapter 2

Installing the USB-1602HS-2AO .......................................................................................................... 9

What comes with your USB-1602HS-2AO shipment? ....................................................................................... 9

Hardware .......................................................................................................................................................................... 9

Optional components ........................................................................................................................................................ 9

Additional documentation ................................................................................................................................................10

Signal conditioning accessories .......................................................................................................................................10

Unpacking the USB-1602HS-2AO ................................................................................................................... 10

Installing the software ...................................................................................................................................... 11

Installing the hardware ..................................................................................................................................... 11

Connecting the external power supply .............................................................................................................................11

Connecting the USB-1602HS-2AO to your system .........................................................................................................11

Configuring the USB-1602HS-2AO ................................................................................................................. 11

Connecting the board for I/O operations .......................................................................................................... 11

Connectors, cables, and accessory products .....................................................................................................................11

Cabling ............................................................................................................................................................. 13

Field wiring and signal termination .................................................................................................................................13

TB-102 screw terminal board connector to SCSI connector pin out ................................................................................14

Chapter 3

Functional Details ............................................................................................................................... 15

Front panel ........................................................................................................................................................ 15

BNC connectors ...............................................................................................................................................................15

Status LEDs .....................................................................................................................................................................15

Rear panel ......................................................................................................................................................... 15

SCSI connector ................................................................................................................................................................15

External power connector (EXT PWR) ...........................................................................................................................16

USB connector .................................................................................................................................................................16

Analog common ...............................................................................................................................................................16

Mechanical drawing ......................................................................................................................................... 16

Block diagram .................................................................................................................................................. 17

Synchronous analog, digital, and counter sampling ......................................................................................... 17

Input clock pacing ............................................................................................................................................................17

Output clock pacing ................................................................................................ .........................................................18

Analog inputs .................................................................................................................................................... 18

Analog outputs .................................................................................................................................................. 18

Digital I/O ......................................................................................................................................................... 18

Digital input scanning ......................................................................................................................................................18

Internal pull-up/pull-down capability (J14) .....................................................................................................................18

Digital outputs and pattern generation .............................................................................................................................19

5

USB-1602HS-2AO User's Guide

Triggering ......................................................................................................................................................... 20

Hardware-based triggering ...............................................................................................................................................20

Software-based triggering ................................................................................................................................................20

Stop trigger modes ...........................................................................................................................................................21

Pre-triggering and post-triggering modes ........................................................................................................................21

Counter inputs .................................................................................................................................................. 21

Mapped channels .............................................................................................................................................................22

Counter input modes ........................................................................................................................................................22

Debounce function ...........................................................................................................................................................23

Quadrature detectors ......................................................................................................................................... 26

Overview .........................................................................................................................................................................26

Maximizing encoder accuracy .........................................................................................................................................27

Connecting the USB-1602HS-2AO to an encoder ...........................................................................................................27

Timer/pulse generators ..................................................................................................................................... 28

Using detection setpoints for output control ..................................................................................................... 29

Setpoint configuration ......................................................................................................................................................30

Examples of control outputs ............................................................................................................................................31

Controlling analog and digital outputs .............................................................................................................................35

Update latency .................................................................................................................................................................35

Using the setpoint status register......................................................................................................................................36

Chapter 4

Calibrating the USB-1602HS-2AO ..................................................................................................... 37

Chapter 5

Specifications ...................................................................................................................................... 38

Analog input ..................................................................................................................................................... 38

Analog output ................................................................................................................................................... 39

Analog input calibration ................................................................................................................................... 40

Digital inputs .................................................................................................................................................... 40

Digital outputs .................................................................................................................................................. 40

Trigger sources ................................................................................................................................................. 41

Pacing sources .................................................................................................................................................. 42

Counters ............................................................................................................................................................ 43

Timers ............................................................................................................................................................... 43

Quadrature decoders ......................................................................................................................................... 44

Power ................................................................................................................................................................ 44

USB specifications ........................................................................................................................................... 44

Environmental .................................................................................................................................................. 44

Mechanical ....................................................................................................................................................... 45

I/O cables, connectors and accessories ............................................................................................................. 45

Signal I/O connectors ....................................................................................................................................... 45

BNC connectors ...............................................................................................................................................................45

68-pin SCSI connector .....................................................................................................................................................46

Declaration of Conformity .................................................................................................................. 47

6

Preface

About this User’s Guide

What you will learn from this user’s guide

This user’s guide explains how to install, configure, and use the USB-1602HS-2AO so that you get the most out
of its synchronous data acquisition features.

This user’s guide also refers you to related documents available on our web site, and to technical support
resources.

Conventions in this user’s guide

For more information on …

Text presented in a box signifies additional information and helpful hints related to the subject matter you are
reading.

Caution! Shaded caution statements present information to help you avoid injuring yourself and others,

damaging your hardware, or losing your data.

< : > Angle brackets that enclose numbers separated by a colon signify a range of numbers, such as those assigned

to registers, bit settings, etc.

bold text Bold text is used for the names of objects on the screen, such as buttons, text boxes, and check boxes. For

example:

1. Insert the disk or CD and click the OK button.

italic text Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase. For

example:
The InstaCal installation procedure is explained in the Quick Start Guide.
Never touch the exposed pins or circuit connections on the board.

Where to find more information

For additional information relevant to the operation of your hardware, refer to the Documents subdirectory
where you installed the MCC DAQ software (C:\Program Files\Measurement Computing\DAQ by default), or
search for your device on our website at www.mccdaq.com.

7

Chapter 1

Introducing the USB-1602HS-2AO

Overview: USB-1602HS-2AO features

The USB-1602HS-2AO is a multifunction high-speed measurement and control board supported under popular
Microsoft® Windows® operating systems. The device is compatible with both USB 1.1 and USB 2.0 ports,
(although the speed of the module maybe limited when using USB 1.1 ports).

The USB-1602HS-2AO provides the following features:
 Two single-ended 16-bit analog inputs, with one A/D converter per channel.

The maximum sampling rate is 2 MS/s per channel.
The input range is software programmable for ±10 V, ±2.5 V, or ±500 mV.

 Two synchronous 16-bit ±10 V analog outputs can generate waveforms at 1 MS/s per channel.
 16 synchronous digital inputs and 16 synchronous digital outputs
 Four 16-bit or 32-bit counters (can be configured to be gated)
 Two timer/pulse generators with pulse width (duty cycle) control
 Three 16-bit or 32-bit quadrature detectors to measure linear and rotary position

A 68-pin SCSI connector provides connections for all inputs and outputs except for the two analog inputs. Four
BNC connectors provide connections for the two analog inputs, and alternate connections for the external pacer
clock and external digital trigger input.

The USB-1602HS-2AO samples all analog inputs, digital inputs, and counter inputs simultaneously. You can
synchronize AI, AO, and DIO operations at rates of up to 1 MS/s (million samples per second), with aggregate
throughput up to 8 MS/s.

You can pace operations with an internal or external clock.
A 500 VDC isolation barrier between the field wiring and USB interface reduces signal noise and protects the

board and your computer from ground spikes. The USB 2.0 high-speed driver transfers data at rates up to
480 Mbps.

The device is powered by a 10 Watt regulated external power supply that is included with shipment. Factory
and self-calibration tables are stored onboard in EEPROM.

Software features

For information on the features of InstaCal and the other software included with your USB-1602HS-2AO, refer
to the Quick Start Guide that shipped with your device.

8

Installing the USB-1602HS-2AO

What comes with your USB-1602HS-2AO shipment?

Hardware

 USB-1602HS-2AO

 USB cable (2-meter length)

Chapter 2

 External power supply and cord – 5 volts, 10 watt AC power adapter. MCC part number PS-5V2AEPS

Optional components

Cables

 Standard BNC cable
 CA-68-3R cable
 CA-68-3S (3 foot shielded cable)
 CA-68-6S (6 foot shielded cable)

9

USB-1602HS-2AO User's Guide Installing the USB-1602HS-2AO

CA-68-3R (3-feet)

CA-68-3S (3-feet)

CA-68-6S (6-feet)

Screw termination board with screw terminals

 TB-102

Additional documentation

In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at

www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of

the software you received with your USB-1602HS-2AO and information regarding installation of that software.
Please read this booklet completely before installing any software or hardware.

Signal conditioning accessories

MCC provides signal termination products for use with the USB-1602HS-2AO. Refer to the "Field wiring and
signal termination" section for a complete list of compatible accessory products.

Unpacking the USB-1602HS-2AO

As with any electronic device, take care while handling to avoid damage from static electricity. Before
removing the USB-1602HS-2AO from its packaging, ground yourself using a wrist strap or by simply touching
the computer chassis or other grounded object to eliminate any stored static charge.

If the USB-1602HS-2AO is damaged, notify Measurement Computing Corporation immediately by phone, fax,
or e-mail.

 Phone: [phone] and follow the instructions for reaching Tech Support.
 Fax: [phone] to the attention of Tech Support
 Email: [e-mail]

For international customers, contact the local distributor where you purchased the USB-1602HS-2AO. Click on
this link www.measurementcomputing.com/sales.asp to locate your distributor.

10

USB-1602HS-2AO User's Guide Installing the USB-1602HS-2AO

Parameter

Specification

Connector types

 Four standard BNC female connectors for analog input, clock

input, and digital trigger input

 68-pin SCSI connector

Compatible cable for the BNC connectors

Standard BNC cable

Compatible cables for the 68-pin SCSI connector

 CA-68-3R
 CA-68-3S or CA-68-6S shielded cable

Compatible accessory products using the
CA-68-3R, CA-68-3S, or CA-68-6S cables

TB-102 screw terminal board

Installing the software

Refer to the Quick Start Guide for instructions on installing the software on the Measurement Computing Data
Acquisition Software CD. This booklet is available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-

Quick-Start.pdf.

Installing the hardware

Power to the USB-1602HS-2AO is provided with the 10 watt AC power adapter (PS-5V2AEPS). The power
supply ships with a U.S. plug. Optional interchangeable plugs for international locations are available.

Connecting the external power supply

Connect the AC power adapter cord to the EXT. PWR connector on the device's rear panel, and plug the adapter
into an electrical outlet.

The POWER LED on the front panel turns on when the device is detected by the system.

Connect external power before connecting the USB cable to the computer

Connect the external power cable to the USB-1602HS-2AO before connecting the USB cable to the computer.
This allows the USB-1602HS-2AO to inform the host computer (when the USB cable is connected) that the
board requires minimal power from the computer’s USB port.

Connecting the USB-1602HS-2AO to your system

To connect the USB-1602HS-2AO to your system, turn the computer on, and connect a USB cable from the

USB connector on the rear panel to either a USB port on the computer or external USB hub connected to the

computer.
When you connect the USB-1602HS-2AO for the first time, a Found New Hardware message opens as the

device is detected. When the message closes, the installation is complete.

Configuring the USB-1602HS-2AO

All hardware configuration options on the USB-1602HS-2AO are software controlled with the exception of the
digital pull-up / pull-down (described below), which is set for pull-up by default. You can select some of the
configuration options using InstaCal, such as the analog input range and the trigger source. Once selected, any
program that uses the Universal Library will initialize the hardware according to these selections.

Connecting the board for I/O operations

Connectors, cables, and accessory products

The following table lists the board connectors, applicable cables, and compatible accessory products for the
USB-1602HS-2AO.

Board connectors, cables, and compatible hardware

11

USB-1602HS-2AO User's Guide Installing the USB-1602HS-2AO

BNC Label

Signal connection

CH0

Analog input 0

CH1

Analog input 1

EXT TRG

External digital trigger input

EXT CLK

External pacer clock input

Signal name

Pin Pin

Signal name

DGND

68

34

DGND

(external pacer clock output) XDPCR

67

33

CTR6 Z

(external pacer clock input) XAPCR

66

32

CTR6 B

DIG TRIG

65

31

CTR6 A

TMR/PWM1

64

30

CTR5 Z

TMR/PWM0

63

29

CTR5 B

CTR3

62

28

CTR5 A

CTR2

61

27

CTR4 Z

CTR1

60

26

CTR4 B

CTR0

59

25

CTR4 A

DOUT15

58

24

DIN15

DOUT14

57

23

DIN14

DOUT13

56

22

DIN13

DOUT12

55

21

DIN12

DOUT11

54

20

DIN11

DOUT10

53

19

DIN10

DOUT9

52

18

DIN9

DOUT8

51

17

DIN8

DOUT7

50

16

DIN7

DOUT6

49

15

DIN6

DOUT5

48

14

DIN5

DOUT4

47

13

DIN4

DOUT3

46

12

DIN3

DOUT2

45

11

DIN2

DOUT1

44

10

DIN1

DOUT0

43

9

DIN0

AGND

42

8

AGND

DAC 1

41

7

+5VPWR

DAC 0

40

6

VCAL (reserved for calibration)

AGND

39

5

AGND

Reserved

38

4

Reserved

AGND

37

3

AGND

Reserved

36

2

Reserved

AGND

35

1

AGND

BNC connectors

The USB-1602HS-2AO has four BNC connectors used to connect the analog input signals, external pacer clock
input, and external digital trigger input.

Figure 1. BNC connectors

The signal names for the BNC connectors are listed below:

EXT TRG is equivalent to the DIG TRIG signal on the SCSI connector. EXT CLK is equivalent to the XAPCR
signal on the SCSI connector. Connect your signals using a standard BNC cable.

68-pin SCSI connector

The signals that are available on the 68-pin SCSI connector are listed below.

68-pin SCSI connector pin out

Connect your signals using a CA-68-3R cable, or CA-68-3S or CA-68-6S shielded cable.

12

USB-1602HS-2AO User's Guide Installing the USB-1602HS-2AO

Cabling

Use a CA-68-3R 68-pin ribbon expansion cable (Figure 2), or a CA-68-3S (3-foot) or CA-68-6S (6-foot) 68-pin
shielded expansion cable (Figure 3) to connect signals to the USB-1602HS-2AO's 68-pin SCSI connector.

Figure 2. CA-68-3R cable

Figure 3. CA-68-3S and CA-68-6S shielded cable

Details on these cables are available at www.mccdaq.com/usb-data-acquisition/USB-1604HS-2AO.aspx.

Field wiring and signal termination

You can use the following Measurement Computing screw terminal board to terminate field signals and route
them into the USB-1602HS-2AO board using the CA-68-3R, CA-68-3S, or CA-68-6S cable:

 TB-102: Termination board with screw terminals. Details on this product are available on our web site at

www.mccdaq.com/products/screw_terminal_bnc.aspx.

A 19-inch rack mount kit (RM-TB-102) for the TB-102 termination board is also available.

13

USB-1602HS-2AO User's Guide Installing the USB-1602HS-2AO

TB1 screw

terminals

SCSI
pin

TB2 screw

terminals

SCSI
pin

AGND

1

AGND

35

Reserved

2

Reserved

36

AGND

3

AGND

37

Reserved

4

Reserved

38

AGND

5

AGND

39

VCAL

6

DAC0

40

+5VOUT

7

DAC1

41

AGND

8

AGND

42

DIN0

9

DOUT0

43

DIN1

10

DOUT1

44

DIN2

11

DOUT2

45

DIN3

12

DOUT3

46

DIN4

13

DOUT4

47

DIN5

14

DOUT5

48

DIN6

15

DOUT6

49

DIN7

16

DOUT7

50

DIN8

17

DOUT8

51

DIN9

18

DOUT9

52

DIN10

19

DOUT10

53

DIN11

20

DOUT11

54

DIN12

21

DOUT12

55

DIN13

22

DOUT13

56

DIN14

23

DOUT14

57

DIN15

24

DOUT15

58

CTR4A

25

CTR0

59

CTR4B

26

CTR1

60

CTR4Z

27

CTR2

61

CTR5A

28

CTR3

62

CTR5B

29

TMR/PWM0

63

CTR5Z

30

TMR/PWM1

64

CTR6A

31

DIGTRIG

65

CTR6B

32

XAPCR

66

CTR6Z

33

XDPCR

67

DGND

34

DGND

68

DGND

*

DGND

*

EGND

**

EGND

**

TB-102 screw terminal board connector to SCSI connector pin out

The TB-102 terminal board is shown here. The table below lists how signals on the TB-102 are mapped to the
signals on the 68-pin SCSI connector.

Pin mapping between the TB-102 terminal board and the 68-pin SCSI connector

* Extra digital ground connectors
** EGND is connected to the SCSI connector shell.

14

Functional Details

Front panel

Figure 4. USB-1602HS-2AO front panel

BNC connectors

The USB-1602HS-2AO has four BNC connectors that provide connections for the following signals:

 Two single-ended analog inputs
 External digital trigger input
 External pacer clock input

These signals are also available on the 68-pin SCSI connector.

Chapter 3

Status LEDs

The POWER LED lights up after the device is enumerated by the system. The ACTIVE LED lights up when the
USB-1602HS-2AO is transmitting or receiving data.

Rear panel

Figure 5. USB-1602HS-2AO rear panel

SCSI connector

The 68-pin SCSI connector provides connections for all I/O signals except for analog input: Refer to page 12
for the connector pin out.

 Two analog outputs (DAC0 and DAC1)
 16 digital inputs (DIN1 to DIN15)
 16 digital outputs (DOUT1 to DOUT15)
 Four counters (CTR0 to CTR3). Two counters may be gated.
 Three quadrature detectors (CTR4 A, B, and Z to CTR6 A, B, and Z)
 Two timer/pulse outputs (TMR/PWM0 to TMR/PWM1)
 Digital trigger input (DIG TRIG)
 Input pacer clock (XAPCR)
 Output pacer clock (XDPCR)
 Analog ground (AGND)
 Digital ground (DGND)
 Calibration (VCAL)
 +5V PWR

15

USB-1602HS-2AO User's Guide Functional Details

External power connector (EXT PWR)

The USB-1602HS-2AO requires external power. Connect the PS-5V2AEPS power supply to the EXT PWR
connector. This power supply provides 5 VDC, 2 A power, and plugs into a standard 120 VAC outlet.

USB connector

The USB connector provides communication with the host PC.

Analog common

The analog ground reference for the analog inputs and analog outputs.

Mechanical drawing

Figure 6. USB-1602HS-2AO case dimensions

16

USB-1602HS-2AO User's Guide Functional Details

Block diagram

USB-1602HS-2AO functions are illustrated in the block diagram shown here.

Figure 7. USB-1602HS-2AO functional block diagram

Synchronous analog, digital, and counter sampling

The USB-1602HS-2AO samples all analog, digital, and counter inputs simultaneously, while also generating up
to two analog outputs and digital pattern outputs at the same time.

The maximum analog input sampling rate is 2 MS/s. Digital channels (digital input and counter channels) can
be sampled at rates up to 8 MS/s for one channel when no analog channels are sampled, and rates of up to
2 MS/s when analog channels are also sampled.

Input clock pacing

Analog, digital, and counter inputs can be sampled based on either an internal programmable input pacer or
with an external clock source (XAPCR pin on the SCSI connector or the EXT CLK BNC connector). Analog
channels can be paced from 0. 5 µs to 1000 seconds in 20.83 ns steps. Digital and counter inputs can be paced
from 250 ns to 1 second in 20.83 ns steps.

17

USB-1602HS-2AO User's Guide Functional Details

The clock rate is 8 MHz maximum for both the internal pacer clock and external input scan clock.

Output clock pacing

Analog, digital, and timer operations can be paced using the internal output pacer clock (independent of the
internal pacer clock), an external output pacer clock connected to the XDPCR pin on the SCSI connector, the
internal programmable input pacer, or an external input pacing clock connected to either the XAPCR pin on the
SCSI connector or the EXT CLK BNC connector.

The clock rate is 1 MHz maximum for analog output operations, and 8 MHz maximum for digital operations in
which no analog channels are enabled.

Analog inputs

The USB-1602HS-2AO has two single-ended analog inputs. Each input has a dedicated 16 bit A/D converter
that provides true simultaneous sampling at rates of up to 2 MHz per channel. The input range is software
selectable for ±10 V, ±2.5 V, or ±500 mV.

You can pace analog input operations with the internal A/D pacer clock or with an external clock source. When
using an external input scan clock, connect the clock source to the XAPCR pin on the SCSI connector or the

EXT CLK BNC connector.

Analog outputs

The USB-1602HS-2AO has two independent, 16-bit, analog output channels. The analog output range is -10V
to +10V.

Each DAC channel can continuously output a waveform at up to 1 MHz. You can clock the DAC channels with
the internal DAC scan clock or with an external DAC input clock. The internal analog input pacer clock can
pace both the DAC output and the analog input simultaneously.

When using an external output scan clock, connect the clock source to the XDPCR pin on the SCSI connector or
the EXT CLK BNC connector.

Digital I/O

The USB-1602HS-2AO has 32 CMOS digital I/O lines configured as 16 digital inputs and 16 digital outputs.
You can pace digital operations with the onboard scan clock or an external source. The maximum DIO transfer
rate is 8 MS/s (software paced).

Digital input scanning

Digital input ports can be read synchronously along with analog channels in a scan, or asynchronously before,
during, or after an analog input scan.

The digital inputs can sustain rates of up to 8 MS/s for one channel when no analog channels are sampled, and
rates of up to 2 MS/s when analog channels are also sampled.

Internal pull-up/pull-down capability (J14)

Unconnected inputs are pulled high to +3.3V through 100 k resistors via a 4-pin jumper on the PCB board
(J14). To configure these inputs to pull low (0 V), do the following:

1. Remove the 4 screws from the rear panel.

18

USB-1602HS-2AO User's Guide Functional Details

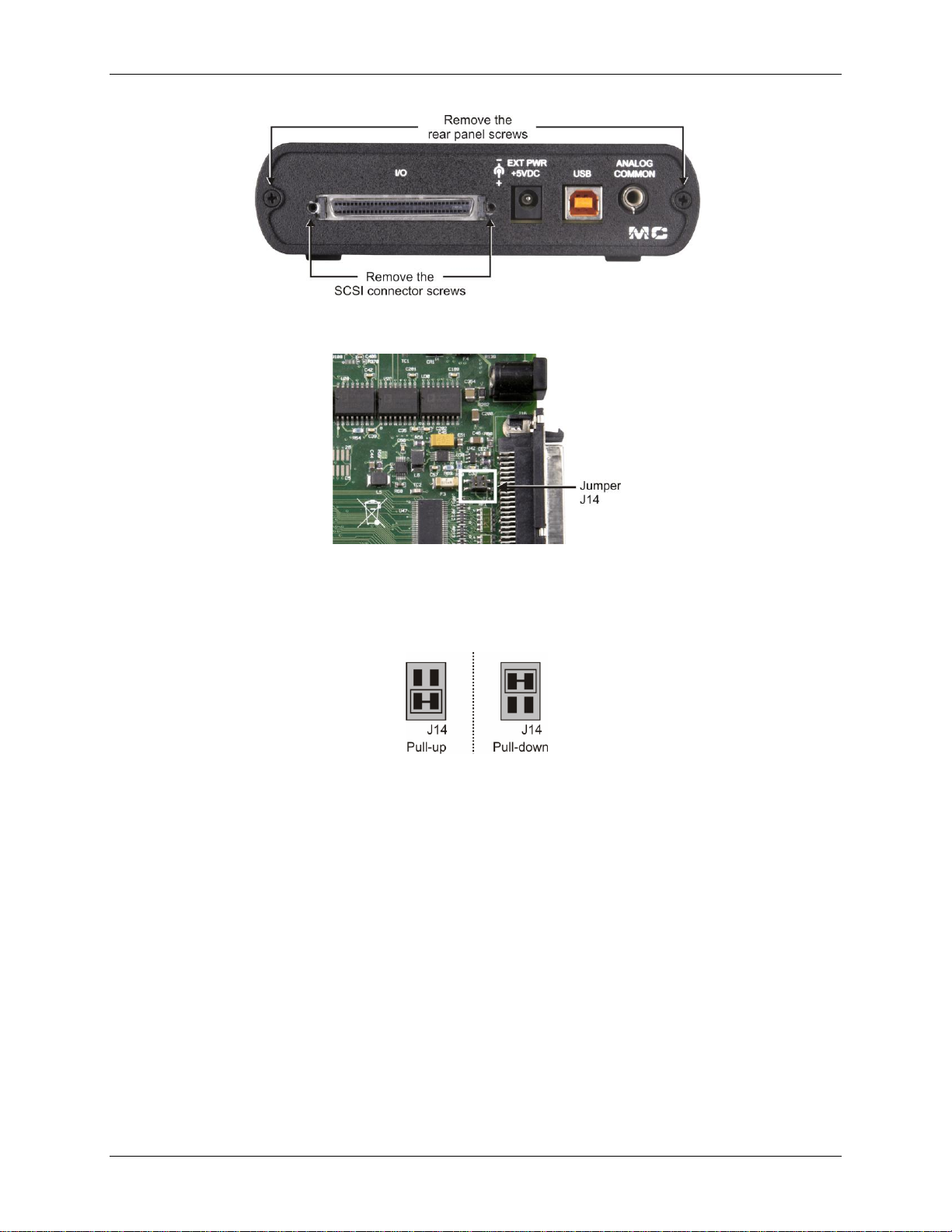

Figure 8. Location of rear panel screws

2. Slide the board out of the housing and locate jumper J14.

Figure 9. Location of J14

3. Configure jumper J14 for either pull-up or pull-down configuration (refer to Figure 10).

o For pull-up, place the J14 shorting block across pins 1 and 2.
o For pull-down, place the J14 shorting block across pins 3 and 4.

Figure 10. J14 configuration

4. Slide the board into the housing.

5. Replace the 4 screws on the rear panel.

Digital outputs and pattern generation

Digital outputs can be updated asynchronously at any time before, during, or after an acquisition. The USB­1602HS-2AO can generate a digital pattern at up to 4 MS/s.

Digital pattern generation is clocked with either the internal D/A scan clock or with an external D/A input
clock. Digital patterns can be generated along with D/A waveforms. They are paced by the same selected clock.
The on-board programmable clock generates updates ranging from once every 1000 seconds to 1 MHz,
independent of the acquisition rate.

The digital outputs are driven low at power up and reset.

19

USB-1602HS-2AO User's Guide Functional Details

Triggering

Triggering can be the most critical aspect of a data acquisition application. A trigger event occurs and data
acquisition begins when specified conditions are met. You select the trigger mode and set up its parameters with
software.

The USB-1602HS-2AO supports both hardware-based and software-based triggers. With a hardware-based
trigger, an output value is compared in hardware to an input level on a specified channel. With software-based
triggers, the analog, digital, and/or counter readings are checked by the PC in order to detect the trigger event.

The USB-1602HS-2AO supports the following trigger sources:
 Hardware-based triggers:

o Analog input hardware
o External digital trigger input

 Software-based triggers:

o Analog software trigger
o Digital pattern
o Counter/totalizer

Hardware-based triggering

With a hardware-based trigger, an output value is compared in hardware to an input level on a specified
channel.

Analog input hardware

In this mode, the acquisition is triggered when a specified input level is achieved. The USB-1602HS-2AO uses
true analog triggering in which the trigger level you program sets an analog DAC, which is then compared in
hardware to the analog input level on the selected channel. This ensures an analog trigger latency that is less
than 1.5 µs.

You can select any analog channel as the trigger channel, but the selected channel must be the first channel in
the scan. You can program the trigger level, the rising or falling edge, and hysteresis level. The trigger level can
be any value within the voltage range for the selected trigger channel.

External digital trigger input

A separate digital trigger input line (DIG TRIG) allows TTL-level triggering with latencies guaranteed to be no
less than 100 nS. The acquisition is triggered when a rising or falling edge is detected .

The trigger level is set at TTL sensitive. Latency is one sample period, maximum. The input signal range is
±15 V. The trigger edge, logic level (1 or 0), and the rising or falling edge for the discrete trigger input are
software selectable.

Software-based triggering

The three software-based trigger modes differ from hardware analog triggering and digital triggering because
the analog, digital, or counter readings are checked by the PC in order to detect the trigger event.

Analog software

The acquisition is triggered when the computer issues a software command. You can select any analog channel
in the scan as the trigger channel. The trigger level, the rising or falling edge, and hysteresis are software
programmable. The trigger level can be any value within the range of the trigger channel. Latency is one sample
period, maximum.

Digital pattern

The acquisition is triggered with a digital input channel pattern. You can select any scanned digital input
channel pattern to trigger an acquisition, including the ability to mask or ignore specific bits.

You can program to trigger the conversion when equal to, not equal to, above, or below a value. Latency is one
sample period, maximum.

20

USB-1602HS-2AO User's Guide Functional Details

Counter/Totalizer

The acquisition is triggered with the counter/totalize inputs. You can program triggering to occur on a
frequency, or on total counts that are equal, not equal, above, below, or below a value, or that are within/outside
of a window rising/falling edge. Latency is one sample period, maximum. You can select of the included
counter channels as the trigger source.

Software-based triggering usually results in a long period of inactivity between the trigger condition being
detected and the data being acquired. However, the USB-1602HS-2AO avoids this situation by using pre-trigger
data. When software-based-triggering is used, and the PC detects the trigger condition — which may be
thousands of readings after the actual occurrence of the signal — the USB-1602HS-2AO driver automatically
looks back to the location in memory where the actual trigger-causing measurement occurred, and presents the
acquired data that begins at the point where the trigger-causing measurement occurs. The maximum inactive
period in this mode equals one scan period.

Set the trigger value > 0 when using a counter input as the trigger source

When using a counter for a trigger source, set the trigger value to 1 or greater. Since all counters start at zero
with the first scan, there is no valid reference in regard to rising or falling edge. Setting the trigger value to 1 or
greater ensures that a valid reference value is present, and that the first trigger will be legitimate.

Stop trigger modes

You can use any of the software trigger modes explained previously to stop an acquisition. For example, you
can program an acquisition to begin on one event, such as a voltage level, and then stop on another event, such
as a digital pattern.

Pre-triggering and post-triggering modes

The USB-1602HS-2AO supports four modes of pre-triggering and post-triggering. When using pre-trigger, you
must use software-based triggering to initiate an acquisition.

No pre-trigger, post-trigger stop event

In this mode, data acquisition starts when the trigger is received, and the acquisition stops when the stop-trigger
event is received.

Fixed pre-trigger with post-trigger stop event

In this mode, you set the number of pre-trigger readings to acquire. The acquisition continues until a stop­trigger event occurs.

No pre-trigger, infinite post-trigger

In this mode, no pre-trigger data is acquired. Instead, data is acquired beginning with the trigger event, and is
terminated when you issue a command to halt the acquisition.

Fixed pre-trigger with infinite post-trigger

You set the amount of pre-trigger data to acquire. Then, the system continues to acquire data until the program
issues a command to halt acquisition.

Counter inputs

The USB-1602HS-2AO has four counters that can accept frequency inputs up to 20 MHz. The counter channels
can be read as 16 or 32-bit counters. A counter can also be configured to be gated by one of the other counter
inputs mapped as a gate input (refer to Mapped channels, on page 22). The input type is TTL, rising-edge
triggered.

The counters can concurrently monitor time periods, frequencies, pulses, and other event driven incremental
occurrences directly from pulse-generators, limit switches, proximity switches, and magnetic pick-ups.

Counter inputs can be read asynchronously under program control, or synchronously as part of an analog or
digital scan group.

21

USB-1602HS-2AO User's Guide Functional Details

When reading synchronously, all counters are set to zero at the start of an acquisition. When reading
asynchronously, counters may be cleared on each read, count up continually, or count until the 16-bit or 32-bit
limit has been reached. See the counter mode descriptions below.

Figure 11. Typical USB-1602HS-2AO counter channel

Mapped channels

A mapped channel is one of four counter input signals (CTR0 to CTR3) that can get multiplexed into a counter
module. The mapped channel can participate with the counter's input signal by gating the counter, latching the
counter, and so on. The four possible choices for the mapped channel are the four counter input signals (post­debounce).

A mapped channel can be used to:

 gate the counter
 decrement the counter
 latch the current count to the count register

Usually, all counter outputs are latched at the beginning of each scan within the acquisition. However, you can
use a second channel — known as the mapped channel — to latch the counter output.

Counter input modes

The USB-1602HS-2AO supports the following modes:

 Counter
 Period
 Pulse width measurement
 Timing

Program the counter operation mode with software.

Counter mode

A counter can be asynchronously read with or without clear on read. The asynchronous read-signals strobe
when the lower 16-bits of the counter are read by software. The software can read the counter's high 16-bits
some time later after reading the lower 16-bits. The full 32-bit result reflects the timing of the first
asynchronous read strobe.

The following counter mode options are selectable with software.

22

USB-1602HS-2AO User's Guide Functional Details

Counter mode

Description

Totalize

This mode allows the basic use of a 32-bit counter. The channel input increments the counter
upward.

 When used as a 16-bit counter (counter low), one channel can be scanned up to an 8 MHz rate.
 When used as a 32-bit counter (counter high), two sample times are used to return the full 32-bit

result. Therefore, a 32-bit counter can only be sampled at a 4 MHz maximum rate.

The counter counts up and does not clear on every new sample. However, it does clear at the start of
a new scan command. The counter rolls over on the 16-bit (counter low) boundary, or on the 32-bit
(counter high) boundary.

Clear on read

The counter counts up and is cleared after each read. By default, the counter counts up and only
clears the counter at the start of a new scan command. The value of the counter before it was cleared
is latched and returned.

Rollover

The counter continues to count upward, rolling over on the 16 or 32-bit boundary.

Stop at top

The counter stops at the top of its count. The top of the count is FFFF hex (65,535) for the 16-bit
mode, and FFFFFFFF hex (4,294,967,295) for the 32-bit mode.

16-bit or 32-bit

Sets the counter type to either 16-bits or 32-bits. The type of counter only matters if the counter is
using the Stop at all FFFFs mode; otherwise, this option is ignored. The 16 bit mode requires less
bandwidth for higher channels count and higher sample rates.

Period mode

This mode allows for period measurement of the channel input.
You can measure x1, x10, x100 or x1000 periods, and 16-bit (counter low) or 32-bit (counter high) values. Four

timebase, or tick-size, values are available (20.83 ns, 208.3 ns, 2.083 µs, or 20.83 µs). These values are based
on the 48 MHz system clock. Any other channel can gate the period measurement. All period mode options are
selectable with software.

Pulse width measurement mode

This mode is used to measure a channel's pulse width.
You can measure 16-bit or 32-bit values. Four timebase, or tick-size, values are available (20.83 ns, 208.3 ns,

2.083 µs, or 20.83 µs). These values are based on the 48 MHz system clock. Any other channel can gate the
pulse width measurement. All pulse width options are selectable with software.

Timing mode

This mode is used to measure the time between two subsequent events, such as the edge of one channel with
respect to the edge of another channel.

You can measure 16-bit or 32-bit values. Four timebase, or tick-size, values are available (20.83 ns, 208.3 ns,

2.083 µs, or 20.83 µs) . All timing options are selectable with software.

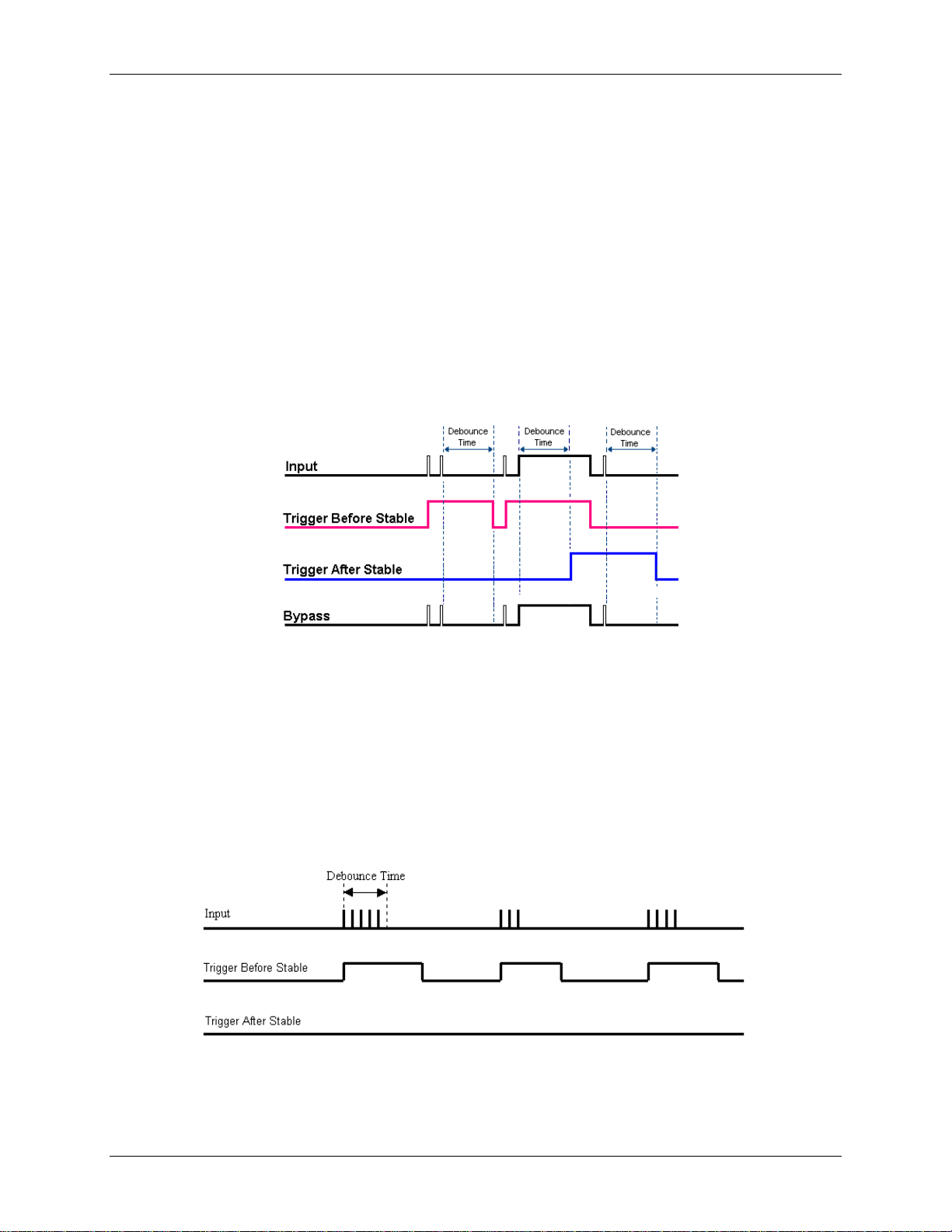

Debounce function

The USB-1602HS-2AO has debounce circuitry which eliminates switch-induced transients that are typically
associated with electro-mechanical devices including relays, proximity switches, and encoders.

All debounce options are selectable with software. You can select a debounce time, debounce mode, and rising­edge or falling-edge sensitivity.

Each channel's output can be debounced with 16 programmable debounce times in the range of 500 ns to

25.5 ms).
There are two debounce modes, as well as a debounce bypass, as shown in Figure 12. The signal from the

buffer can be inverted before it enters the debounce circuitry. The inverter is used to make the input rising-edge
or falling-edge sensitive.

Edge selection is available with or without debounce. In this case the debounce time setting is ignored and the
input signal goes straight from the inverter or inverter bypass to the counter module.

The two debounce modes are trigger after stable and trigger before stable. In either mode, the selected
debounce time determines how fast the signal can change and still be recognized.

23

USB-1602HS-2AO User's Guide Functional Details

Figure 12. Debounce model block diagram

Trigger after stable mode

In the trigger after stable mode, the output of the debounce module does not change state until a period of
stability has been achieved. This means that the input has an edge, and then must be stable for a period of time
equal to the debounce time.

Figure 13. Debounce module – trigger after stable mode

T1 through T5 indicate time periods. In trigger after stable mode, the input signal to the debounce module is
required to have a period of stability after an incoming edge, in order for that edge to be accepted (passed
through to the counter module.) For this example, the debounce time is equal to T2 and T5.

 T1 – In Figure 13, the input signal goes high at the beginning of time period T1, but never stays high for a

period of time equal to the debounce time setting (equal to T2 for this example.)

 T2 – At the end of time period T2, the input signal has transitioned high and stayed there for the required

amount of time—therefore the output transitions high. If the input signal does not stabilize in the high state
long enough, no transition would have appeared on the output and the entire disturbance on the input would
have been rejected.

 T3 – During time period T3, the input signal remained steady. No change in output is seen.
 T4 – During time period T4, the input signal has more disturbances and does not stabilize in any state long

enough. No change in the output is seen.

 T5 – At the end of time period T5, the input signal has transitioned low and stayed there for the required

amount of time—therefore the output goes low.

Trigger before stable mode

In the trigger before stable mode, the output of the debounce module immediately changes state, but will not
change state again until a period of stability has passed. For this reason the mode can be used to detect glitches.

Figure 14. Debounce module – Trigger before stable mode

T1 through T5 indicate time periods.
 T1 – In Figure 14, the input signal is low for the debounce time (equal to T1); therefore when the input

edge arrives at the end of time period T1, it is accepted and the output (of the debounce module) goes high.
Note that a period of stability must precede the edge in order for the edge to be accepted.

24

USB-1602HS-2AO User's Guide Functional Details

 T2 – During time period T2, the input signal is not stable for a length of time equal to T1 (the debounce

time setting for this example.) Therefore, the output stays "high" and does not change state during time
period T2.

 T3 – During time period T3, the input signal is stable for a time period equal to T1, meeting the debounce

requirement. The output is held at the high state. This is the same state as the input.

 T4 – At anytime during time period T4, the input can change state. When this happens, the output will also

change state. At the end of time period T4, the input changes state, going low, and the output follows this
action [by going low].

 T5 – During time period T5, the input signal again has disturbances that cause the input to not meet the

debounce time requirement. The output does not change state.

 T6 – After time period T6, the input signal has been stable for the debounce time and therefore any edge on

the input after time period T6 is immediately reflected in the output of the debounce module.

Debounce mode comparisons

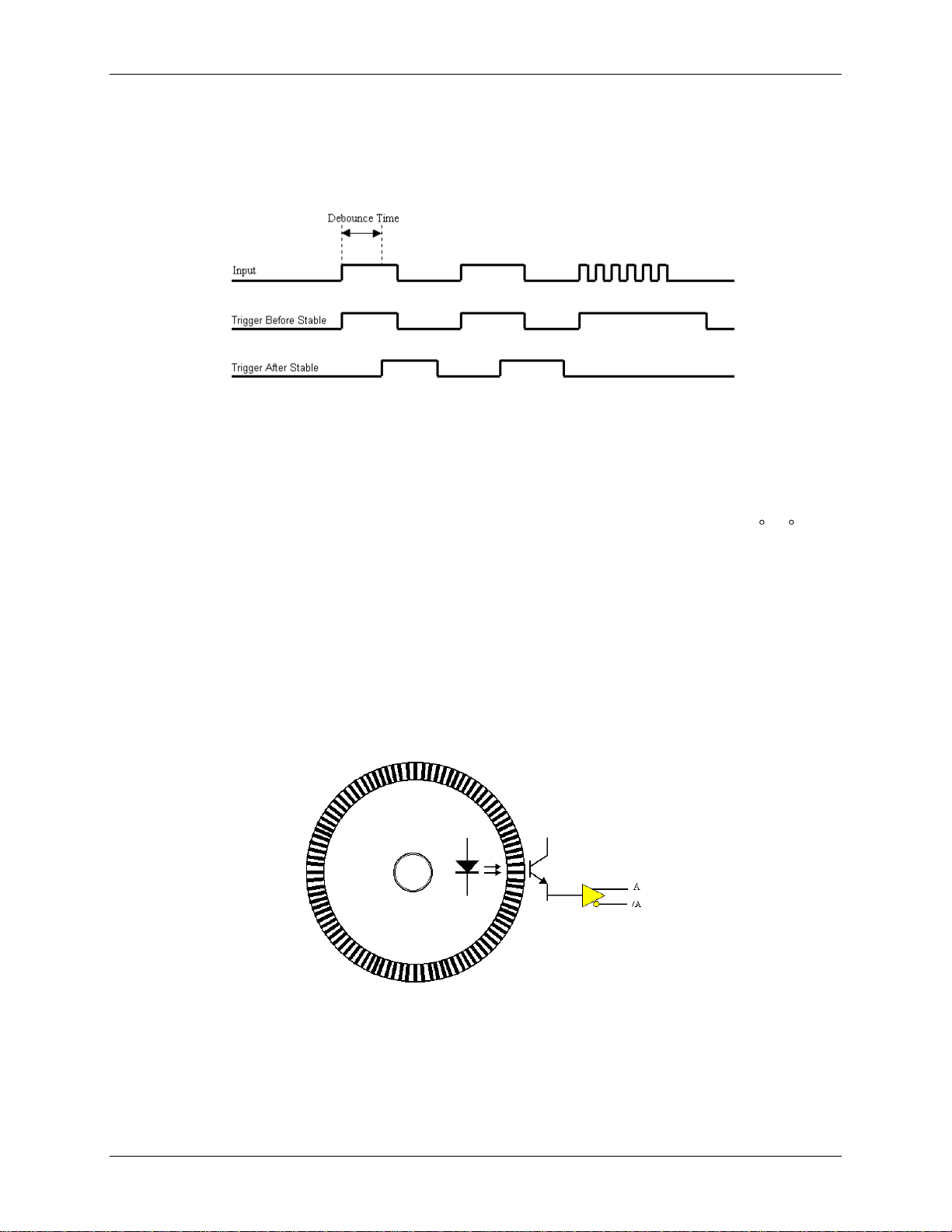

Figure 15 shows how the two modes interpret the same input signal, which exhibits glitches. Notice that the
trigger before stable mode recognizes more glitches than the trigger after stable mode. Use the bypass option to
achieve maximum glitch recognition.

Figure 15. Example of two debounce modes interpreting the same signal

Set the debounce time according to the amount of instability expected in the input signal. Setting a debounce
time that is too short may result in unwanted glitches clocking the counter. Setting a debounce time that is too
long may result in an input signal being rejected entirely. Some experimentation may be required to find the
appropriate debounce time for a particular application.

To see the effects of different debounce time settings, view the analog waveform along with the counter output.
This can be done by connecting the source to an analog input.

Use trigger before stable mode when the input signal has groups of glitches and each group is to be counted as
one. The trigger before stable mode recognizes and counts the first glitch within a group but rejects the
subsequent glitches within the group if the debounce time is set accordingly. The debounce time should be set
to encompass one entire group of glitches as shown in the following diagram.

Figure 16. Optimal debounce time for trigger before stable mode

25

USB-1602HS-2AO User's Guide Functional Details

Trigger after stable mode behaves more like a traditional debounce function: rejecting glitches and only passing

state transitions after a required period of stability. Trigger after stable mode is used with electro-mechanical
devices like encoders and mechanical switches to reject switch bounce and disturbances due to a vibrating
encoder that is not otherwise moving. The debounce time should be set short enough to accept the desired input
pulse but longer than the period of the undesired disturbance as shown in Figure 17.

Figure 17. Optimal debounce time for trigger after stable mode

Quadrature detectors

Overview

Quadrature detectors are used to calculate the relative or absolute position of a quadrature encoder, and to
determine its rotational speed. Each quadrature detector supports phase A, B, and Z input signals (0 , 90 , and
zero). When reading phase A, phase B, and index Z signals, the positioning, direction, and velocity data can be
calculated.

Quadrature encoders generally have three outputs: A, B, and Z. The A and B signals are pulse trains driven by
an optical sensor inside the encoder. As the encoder shaft rotates, a laminated optical shield rotates inside the
encoder. The shield has three concentric circular patterns of alternating opaque and transparent windows
through which an LED shines. There is one LED and one phototransistor for each of the concentric circular
patterns. One phototransistor produces the A signal, another phototransistor produces the B signal and the last
phototransistor produces the Z signal. The concentric pattern for A has 512 window pairs (or 1024, 4096, etc.)

When using a counter for a trigger source, use a trigger value of at least 1. Since all counters start at zero with
the initial scan, there is no valid reference in regard to rising or falling edge. Setting a pre-trigger to 1 or more
ensures that a valid reference value is present, and that the first trigger is legitimate.

Figure 18. Concentric pattern for output A

The concentric pattern for B has the same number of window pairs as A, except that the entire pattern is rotated
by ¼ of a window-pair. Thus the B signal is always 90º out of phase from the A signal. The A and B signals
pulse 512 times (or 1024, 4096, etc.) per complete rotation of the encoder.

The concentric pattern for the Z signal has only one transparent window and therefore pulses only once per
complete rotation. Representative signals are shown in Figure 19.

26

USB-1602HS-2AO User's Guide Functional Details

A
B

Z

Figure 19. Representation of quadrature encoder outputs A, B, and Z

As the encoder rotates, the A (or B) signal indicates the distance the encoder has traveled. The frequency of A
(or B) indicates the velocity of rotation of the encoder. If the Z signal is used to zero a counter (that is clocked
by A) then that counter gives the number of pulses the encoder has rotated from its reference. The Z signal is a
reference marker for the encoder. It should be noted that when the encoder is rotating clockwise (as viewed
from the back), A will lead B and when the encoder is rotating counterclockwise, A lags behind B. If the
counter direction control logic is such that the counter counts upward when A leads B and counts downward
when A lags B, then the counter gives direction control as well as distance from the reference.

Maximizing encoder accuracy

If there are 512 pulses on A, then the encoder position is accurate to within 360°/512.
You can get even greater accuracy by counting not only rising edges on A but also falling edges on A, giving

position accuracy to 360°/1024.
You get maximum accuracy counting rising and falling edges on A and on B (since B also has 512 pulses.) This

gives a position accuracy of 360°/2048. These different modes are known as X1, X2, and X4.

Connecting the USB-1602HS-2AO to an encoder

You can connect up to three quadrature encoders to the USB-1602HS-2AO. Quadrature encoders with a 16-bit
(counter low) or a 32-bit (counter low + counter high) counter, 6 MHz maximum pulse frequency, and X1, X2,
and X4 count modes are supported.

The SCSI connector provides six counter pins that are dedicated to performing encoder functions:

 CTR4 A, CTR4 B, CTR4 Z
 CTR5 A, CTR5 B, CTR5 Z
 CTR6 A, CTR6 B, CTR6 Z

The encoder input pins are dedicated for encoder counting, and cannot be mapped for other functions. Input A is
a direct counter input. Input B functions as the B phase for encoder counting, and Input Z functions as the
Z phase of the encoder.

Each A and B signal is made as a single-ended connection with respect to common ground. To connect an
encoder to the USB-1602HS-2AO, do the following:

 Connect signals A, B, and Z to the CTR4 A, B, and Z through CTR6 A, B, and Z pins on the SCSI

connector.

 Connect each encoder ground to GND.
Figure 20 shows the connections for one encoder to the 68-pin SCSI connector on a USB-1602HS-2AO.

27

USB-1602HS-2AO User's Guide Functional Details

Ground (to DGND pin)

Encoder

CTR4 A to Encoder “A”

CTR4 B to Encoder “B”

CTR4 Z to Encoder “ Z”

+5V PWR

Figure 20. Encoder connections to the SCSI connector*

* Connections can alternately be made to the associated screw-terminals of a connected TB-102 terminal
connector.

You can get the relative position and velocity from the encoder. However, during an acquisition, you cannot get
data that is relative to the Z-position until the encoder locates the Z-reference.

Debounce feature

Each input can be debounced from 500 ns to 25.5 ms (total of 16 selections) to eliminate extraneous noise, or to
switch induced transients. Encoder input signals must be within 0 and 5.5 volts and the switching threshold is
typically 1.5 volts. If the encoder stops rotating, but continues to generate signals (due to it being mounted to a
vibrating or noisy machine), you can use the debounce feature to eliminate false edges. Choose an appropriate
debounce time and apply it to each encoder channel. Refer to the "Debounce function" section on page 23 for
additional information regarding debounce times.

Scan period values

The USB-1602HS-2AO clears all counter channels at the beginning of the acquisition, so the values returned
during scan period 1 are always zero. The values returned during scan period 2 reflect what happened during
scan period 1. In general, the output of each channel’s counter is latched at the beginning of each scan period
(called the start-of-scan.) Every time the USB-1602HS-2AO receives a start-of-scan signal, the counter values
are latched and are available to the USB-1602HS-2AO.

The scan period defines the timing resolution for the USB-1602HS-2AO. If you need a higher timing resolution,
shorten the scan period.

Timer/pulse generators

The USB-1602HS-2AO has two timer/pulse generator signals (TMR/PWM0 and TMR/PWM1) with
programmable duty cycle. Each timer is capable of generating a programmable pulse width wave with a
programmable frequency in the range of 0.01123 Hz to 24 MHz. The pulse and period range is 20.83 ns to
89 seconds.

28

USB-1602HS-2AO User's Guide Functional Details

Criteria – input signal is equal to X

Action - driven by condition

Compare X to:

Setpoint definition

Update conditions

Limit A or Limit B

 Equal to A (X = A)
 Below A (X < A)
 Above B (X > B)

(choose one)

True only:

 If True, then output value 1
 If False, then perform no action

True and False:

 If True, then output value 1
 If False, then output value 2

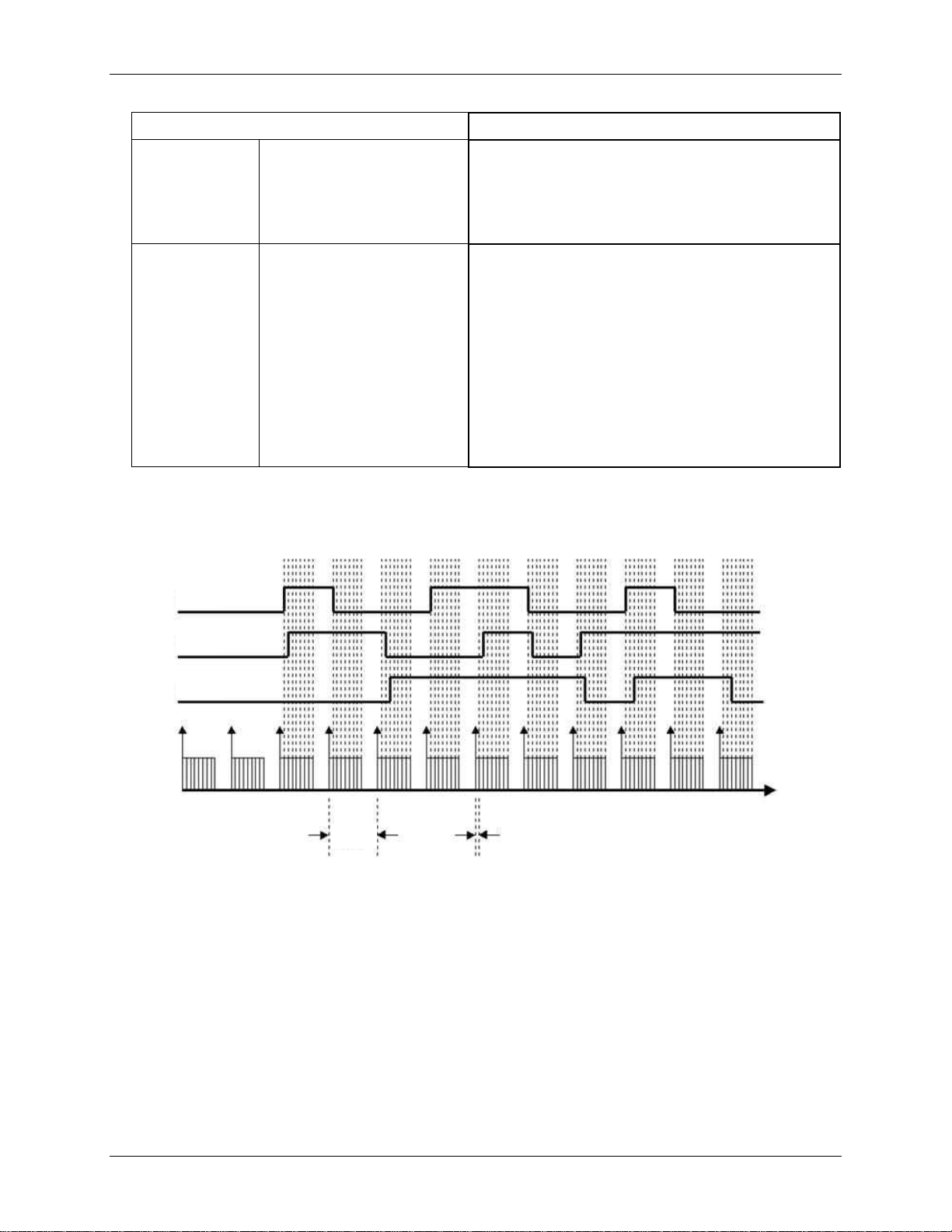

Figure 21. Typical timer/pulse generator channel

The timer outputs can be updated asynchronously at any time, however, doing so results in a pulse stream that is
not seamless.

Using detection setpoints for output control

You can configure a detection setpoint for each analog input channel. Each setpoint can update the following
channels, allowing for real-time control based on acquisition data:

 The upper 8-bits of the digital output port with a data byte and mask byte
 analog outputs (DAC 0, DAC 1)

You can configure each detection setpoint as one of the following:

 Single point referenced – Above, below, or equal to the defined setpoint.
 Window (dual point) referenced – Inside or outside the window.
 Window (dual point) referenced, hysteresis mode – Outside the window high forces one output

(designated as Output 2); outside the window low forces another output (designated as Output 1).

Figure 22. Setpoint configuration

A digital detect signal is used to indicate when a signal condition is True or False. A signal condition is true if
the signal has met defined criteria, and false if the signal has not met defined criteria. The detect signals can be
measured as any other input channel, thus allowing real time data analysis during an acquisition.

The detection module looks at the 16-bit data being returned on a channel and generates another signal for each
channel with a setpoint applied (Detect1 for Channel 1, Detect2 for Channel 2, and so on; see Figure 23). These
signals serve as data markers for each channel's data. It does not matter whether that data is volts or counts.

A channel's detect signal shows a rising edge and is True (1) when the channel's data meets the setpoint criteria.
The detect signal shows a falling edge and is False (0) when the channel's data does not meet the setpoint
criteria. The True and False states for each setpoint criteria appear in the setpoint status register; refer to "Using

the setpoint status register" section on page 36 for more information.

29

USB-1602HS-2AO User's Guide Functional Details

Criteria – input signal is equal to X

Action - driven by condition

Window*
(non-hysteresis
mode)

 Inside (B < X < A)
 Outside: B > X; or X > A

(choose one)

True only:

 If True, then output value 1
 If False, then perform no action

True and False:

 If True, then output value 1
 If False, then output value 2

Window*
(hysteresis mode)

 Above A (X > A)
 Below B (X < B)

(both conditions are checked in
hysteresis mode)

Hysteresis mode (forced update):
 If X > A is True, then output value 2 until X < B is True,

then output value 1.

 If X < B is True, then output value 1 until X > A is True,

then output value 2.
This is saying:
(a) If the input signal is outside the window high, then output

value 2 until the signal goes outside the window low,
and
(b) if the signal is outside the window low, then output value 1
until the signal goes outside the window high.
There is no change to the detect signal while within the
window.

Detect1

Detect2

Detect3

Acquisition stream
Scan Group

Sampling
Period

1s

* Value A defines the upper limit of the Window, and Value B defines the lower limit.
The detect signal has the timing resolution of the scan period, as shown in Figure 23. The detect signal can

change no faster than the scan frequency (1/sampling period.)

Figure 23. Detection signals for channels 1, 2, and 3

Each channel in the scan group can have one detection setpoint. There can be no more than 16 total setpoints
total applied to channels within a sampling group.

Detection setpoints act on 16-bit data only. When reading the counters as 32-bit, data is returned 16-bits at a
time. The lower word, the higher word, or both lower and higher words can be part of the scan group. Each
counter input channel can have one detection setpoint for the counter's lower 16-bit value, and one detection
setpoint for the counter's higher 16-bit value.

Setpoint configuration

You program all setpoints as part of the pre-acquisition setup, similar to setting up an external trigger. Each
setpoint acts on 16-bit data, so each has two 16-bit compare values: a high limit (limit A) and a low limit (limit
B). These limits define the setpoint window.

You can set the 16-bit high limit (limit A) and the 16-bit low limit (limit B) with software.

30

USB-1602HS-2AO User's Guide Functional Details

Inside window

The signal is below the 16-bit high limit (limit A) and above the 16-bit low limit (limit B).

Outside window

The signal is above the 16-bit high limit (limit A), or below the 16-bit low limit (limit B).

Greater than value

The signal is above the 16-bit low limit. The 16-bit high limit (limit A) is not used.

Less than value

The signal is below the 16-bit high limit. The 16-bit low limit (limit B) is not used.

Equal to value

The signal is equal to the 16-bit high limit. The 16-bit low limit (limit B) is not used.
This mode is intended for use when the counter or digital input channels are the source channel.
Only use this mode with counter or digital input channels as the channel source. To have similar

functionality for analog channels, use the inside window mode.

Hysteresis mode

Outside the window high forces output 2 until an outside the window low condition exists, then
output 1 is forced. Output 1 continues until an outside the window high condition exists. This
cycle repeats as long as the acquisition is running in hysteresis mode.

Channel

Condition

State of
detect signal

Action

1

Below limit A
(for channel 1)

True

When the channel 1 analog input voltage is below limit A, update
DAC1 with the output value 0.0 V.

False

When the above condition is false, update DAC1 with the output value
of minus 1.0 V.

The setpoint conditions (criteria) and update modes are summarized below.

Setpoint criteria

Setpoint output channel

 None
 Update the upper 8-bits of the digital output port
 Update the analog output channels (DAC0, DAC1)

Update modes

 Update on True only
 Update on True and False
 None – Do not update

Setpoint values for output

 16-bit DAC value or the most significant byte (MSB) of the digital output port when the input does meets

criteria.

 16-bit DAC value or the most significant byte (MSB) of the digital output port when the input does not

meet criteria.

Note: When using setpoints with triggers other than immediate, hardware analog, or TLL, the setpoint criteria

evaluation begins immediately upon triggering the acquisition.

Examples of control outputs

Detection on analog input, DAC, and digital port MSB updates

Example 1:

Update mode: Update on True and False
Criteria: Channel 1 — below limit

In this example, channel 1 is programmed with reference to one setpoint (limit A), defining a low limit.

31

USB-1602HS-2AO User's Guide Functional Details

Channel

Condition

State of
detect signal

Action

0

Within window
(between limit
A and limit B)
for channel 0

True

When Channel 0 analog input voltage is within the window, update the
digital output port's MSB with 70h.

False

When the above condition is false (channel 0 analog input voltage is
outside the window), update the digital output port's MSB with 30h.

Figure 24. Channel 1 input with setpoint update on True and False

The setpoint placed on analog Channel 1 updated DAC1 with 0.0 V. The update occurred when the channel 1
input was less than setpoint limit A. When the value of the channel 1 input was above setpoint limit A, the
condition of less than limit A was false, and DAC1 was updated with –1.0 V.

Example 2:

Update mode: Update on True and False
Criteria: Channel 0 — inside window

In this example, Channel 0 is programmed with reference to two setpoints (limit A and limit B) which define a
window for that channel.

Figure 25. Channel 0 input with setpoint update on True and False

You can program control outputs on each setpoint. Detection for channel 0 can be used to update the digital
output port's most significant byte with one value when the analog input voltage is within the shaded region
(70 h), and update with a different value when the analog input voltage is outside the shaded region (30 h).

Using the hysteresis function

Update mode: N/A, the hysteresis option has a forced update built into the function

32

USB-1602HS-2AO User's Guide Functional Details

Criteria used: Window criteria for above and below the set limits
Figure 26 shows analog input Channel 1 with a setpoint which defines two 16-bit limits — Limit A (High) and

Limit B (Low). These limits are applied in the hysteresis mode and DAC channel 0 is updated accordingly.
In this example, Channel 1's analog input voltage is used to update DAC0, as follows:
 When outside the window, low (below limit B) DAC0 is updated with 3.0 V. This update remains in effect

until the analog input voltage goes above Limit A.

 When outside the window, high (above limit A), DAC0 is updated with 7.0 V. This update remains in

effect until the analog input signal falls below limit B. At that time we are again outside the limit "low" and
the update process repeats itself.

Hysteresis mode can also be done with the digital output port's most significant byte instead of a DAC.

Figure 26. Channel 1 in hysteresis mode

Using multiple inputs to control one DAC output

Update mode: Rising edge, for each of two channels
Criteria used: Inside window, for each of two channels

Figure 27 shows how multiple inputs can update one output. In this figure, analog output channel DAC1 is
being updated. Analog input Channel 1 has an inside-the-window setpoint applied. Whenever Channel 1's input
goes inside the programmed window, DAC1 will be updated with 3.0 V.

Analog input Channel 2 also has an inside-the-window setpoint applied. Whenever channel 2's input goes inside
the programmed window, DAC1 is updated with –7.0 V.

33

USB-1602HS-2AO User's Guide Functional Details

Figure 27. Using two criteria to control an output

The update on True only mode was selected, and therefore the updates for DAC1 only occur when the criteria is
met. However, in the above figure we see that there are two setpoints acting on one DAC. We can also see that
the two criteria can be met simultaneously. When both criteria are True at the same time, the DAC1 voltage is
associated with the criteria that has been most recently met.

Setpoint detection on a totalizing counter

In Figure 28, CTR1 is a counter channel in totalize mode. Two setpoints define a point of change for Detect 1 as
the counter counts upward. The detect output is high when inside the window (greater than limit B (low limit))
but less than limit A (the high limit).

In this case, the CTR1 setpoint is defined for the 16 lower bits of channel 1's 32-bit value. The digital output
port's MSB could be updated on a True condition (the rising edge of the detection signal). You can also update
one of the DAC output channels with a value.

34

USB-1602HS-2AO User's Guide Functional Details

Figure 28. CTR1 in totalizing counter mode, inside the window setpoint

Controlling analog and digital outputs

You can program each setpoint with an 8-bit digital output byte and corresponding 8-bit mask byte. When the
setpoint criteria is met, the digital output port's most significant byte (MSB) can be updated with the given byte
and mask. You can also program each setpoint with a 16-bit DAC update value. Either DAC output can be
updated in real time.

In hysteresis mode, each setpoint has two forced update values. Each update value can drive one DAC or the
digital output port's most significant byte. In hysteresis mode, the outputs do not change when the input values
are inside the window. One update value gets applied when the input values are less than the window, and a
different update value gets applied when the input values are greater than the window.

Update on True and False uses two update values. The update values can drive DACs or the digital output port's
most significant byte.

The digital output port's most significant byte is updated one sample period after the detection setpoint channel
is sampled, plus up to 250 ns for data transfer from the detection setpoint channels. DAC output is updated one
sample period after the detection setpoint channel is sampled, plus up to 1 µs for data transfer from the
detection setpoint channels and data shifting out to the D/A converter. Update latencies can be improved with
an increased sample rate.

When using setpoints to control the DAC outputs, increased latencies may occur if attempting to stream data to
DACs or pattern digital output at the same time. The increased latency can be as long as the period of the DAC
pacer clock. For these reasons, avoid streaming outputs on any DAC or pattern digital output when using

setpoints to control DACs.

Update latency

USB-1602HS-2AO channels are read almost immediately. The response for a channel input detection does not
occur until the next reading is taken, during the next tick of the acquisition clock. The maximum update latency
is one sample period plus 250 ns for the most significant byte (MSB) of the digital output port, and 1 µs for
DAC updates.

The detection circuit works on data that is put into the acquisition stream at the sample rate. This data is
acquired according to the pre-acquisition setup (sampling group, sample period, etc.) and returned to the PC.
Counters are latched into the acquisition stream when sampling begins. The actual counters may be counting
much faster than the sample rate, and therefore only every 10th, 100th, or nth count shows up in the acquisition
data.

As a result, you can set a small detection window on a totalizing counter channel and have the detection setpoint
"stepped over" since the sample period was too long. Even though the counter value stepped into and out of the
detection window, the actual values going back to the PC may not. This is true no matter what mode the counter
channel is in.

35

USB-1602HS-2AO User's Guide Functional Details

Setpoint #

15

14

13

12

11

10 9 8 7 6 5 4 3 2 1 0

True (1)
False (0)

0 0 0 0 0 0 0 0 0 0 0 1 0 0 1

1

<<< Most significant bit

Least significant bit >>>

When setting a detection window, keep a sample period in mind. This applies to analog inputs and counter
inputs. Quickly changing analog input voltages can step over a setpoint window if not sampled often enough,
resulting in missed setpoint event.

There are three possible solutions for overcoming this problem:

 Shorten the sample period to give more timing resolution on the counter values or analog values.
 Widen the setpoint window by increasing limit A and/or lowering limit B.
 A combination of both of the above solutions could be made.

Using the setpoint status register

You can use the setpoint status register to check the current state of the 16 possible setpoints. In the register,
Setpoint 0 is the least significant bit, and setpoint 15 is the most significant bit. Each setpoint is assigned a value
of 0 or 1.

 A value of 0 indicates that the setpoint criteria is not met — the condition is False.
 A value of 1 indicates that the criteria is met — the condition is True.

In the following example, the criteria for setpoints 0, 1, and 4 is satisfied (True), but the criteria for the other
13 setpoints is not met.

From the above table we have 10011 binary, or 19 decimal; it is derived as follows:

 Setpoint 0, having a True state, shows 1, giving us decimal 1.
 Setpoint 1, having a True state, shows 1, giving us decimal 2.
 Setpoint 4, having a True state, shows 1, giving us decimal 16.

For proper operation, the setpoint status register must be the last channel sampled.

36

Chapter 4

Calibrating the USB-1602HS-2AO

Every range of a USB-1602HS-2AO device is calibrated at the factory using a NIST traceable calibration
process. Correction factors for each range are stored on the unit at the time of calibration.

The analog input calibration can be adjusted in the field without destroying the factory calibration. This is
accomplished by having two independent calibration tables in the on-board EPROM: one table contains the
original factory calibration, and the other table is used to store field calibration constants.

You can perform field calibration automatically in seconds with InstaCal and without the use of external
hardware or instruments. Field calibration traceability is derived through an on-board reference which has a
stability of 0.005% per year. A two-year calibration period is recommended for the USB-1602HS-2AO.

Calibrate the USB-1602HS-2AO using InstaCal after the board has fully warmed up. The recommended warm­up time is 15 minutes. For best results, calibrate the board immediately before making critical measurements.
The high resolution analog components on the board are somewhat sensitive to temperature. Pre-measurement
calibration ensures your board is operating at peak accuracy.

37

Parameter

Conditions

Specification

A/D converter type

16-bit successive approximation type

Number of AI channels

2 SE simultaneous

Input configuration

Single-ended

Sampling method

Simultaneous; individual A/D per channel

Input ranges

±10 V, ±2.5 V, ±500 mV

Absolute maximum input
voltage

±30 V maximum (power on)
±20 V maximum (power off)

Input impedance

10 MΩ (typical, power on)

Input bias current

< 2 µA

Input bandwidth (-3 dB)

3 MHz, typical

Crosstalk

Remaining inputs grounded

100 dB (at 100 kHz )

Pacer sources

 Onboard A/D clock or external digital source

(XAPCR or EXT CLK BNC)

 External pacing (XAPCR or EXT CLK BNC)
See Table 12 for additional information.

Trigger sources and modes

See Table 11

Sampling rate

0.01 S/s to 2 MS/s each channel, software
programmable

Clock sources

Internal, software programmable or external pacing

Resolution

16-bits

INL (integral non-linearity)

±2.0 LSB

DNL (differential non-linearity)

±1.0 LSB

Range

Accuracy

±10 V

±1 mV

±2.5 V

±0.5 mV

±500 mV

±0.15 mV

Range

Typical counts

LSB rms

±10 V

8

1.3

±2.5 V

11

1.6

±500 mV

17

2.5

Specifications

All specifications are subject to change without notice.
Typical for 25 °C unless otherwise specified.
All signal names refer to 68 pin SCSI connector, unless otherwise specified.

Analog input

Table 1. Analog input specifications

Chapter 5

Note 1: Noise distribution is determined by gathering 50,000 samples with inputs tied to ground at the

BNC connectors. Samples are gathered at the maximum specified rate.

Table 2. Calibrated accuracy

Table 3. Noise performance, note 1

38

USB-1602HS-2AO User's Guide Specifications

Range

Typical SINAD, dB

±10 V

84

±2.5 V

82

±500 mV

77

Range

Typical ENOB, Bits

±10 V

14

±2.5 V

13

±500 mV

13

Range

Typical SFDR, dB

±10 V

95

±2.5 V

95

±500 mV

95

Parameter

Conditions

Specification

Number of channels

Two independent

Resolution

16-bits

Output range

±10 V

Throughput

Two channel

1 MS/s each channel

Pacer sources

 Internal pacing
 External pacing
 Pacing slaved to analog input pacing

See Table 12 for additional information.

Monotonicity

16-bits

Glitch energy

< 12 nV/s

Current output

±5 mA maximum

Output coupling

DC

Power up state

DACs clear to midscale, (0 V, ±20 mV)

Output noise

3 mV rms maximum

Settling time (to .01%FS)

10 V output step,
(RL=5 kΩ, CL=200 pf)

5 µS
Slew rate

10 V/µs

Gain error

±0.01% of FSR

Zero error

±0.0045 V maximum

INL < 2 LSBs

DNL

< 1 LSB

Offset error drift

±10 ppm/°C

Gain error drift

±10 ppm/°C

Table 4. SINAD (signal to noise and distortion) performance, note 2

Note 2: Calibrated and measured with a 10 kHz signal at 0.95 FSR, at the maximum sampling rate.

Table 5. ENOB (effective number of bits) performance, note 3

Note 3: Calibrated and measured with a 10 kHz signal at 0.95 FSR, at the maximum sampling rate.

Table 6. SFDR (spurious-free dynamic range) performance, note 4

Note 4: SFDR is measured at the maximum sampling rate.

Analog output

Table 7. Analog output specifications

39

USB-1602HS-2AO User's Guide Specifications

Parameter

Specification

Recommended warm-up time

15 minutes minimum

Calibration methods

Software system calibration and self-calibration

Self-calibration

yes

System calibration interval

1 year

System calibration references

+8.192 V, +2.048 V, +0.4096 V ±5 mV.
Actual measured values stored in EEPROM

Tempco: 5 ppm/°C maximum

Long term stability: 30 ppm/1000 h

Parameter

Specification

Number

16 inputs (DIN0-DIN15)

Digital type

3.3V CMOS (5V tolerant)

Digital input transfer rate (H/W-paced)

Up to 8 MHz — DIO-only operation
2 MHz — if configured for AI operations

Input high voltage

2.0 V minimum, 5.5 V maximum

Input low voltage

0.8 V maximum, 0 V minimum

Absolute maximum input voltage

15 V (power-on and power-off conditions)

DIN pacing

On-board or external clock (XAPCR)

Pacer sources

 Internal pacer clock or external digital source (XAPCR or EXT CLK BNC).
 External pacer clock (XAPCR or EXT CLK BNC)

See Table 12 for additional information.

DIN trigger modes and sources

See Table 11

Input pull-ups

100 kΩ (consult factory for alternative options)

Latency, software paced

115 ms, typical (system dependant)

Parameter

Specification

Number

16 outputs (DOUT0-DOUT15)

Digital output rate

8 MHz maximum if no analog outputs are enabled, (1 MHz maximum if analog
outputs are enabled)

Digital type

3.3 V CMOS

Output high voltage (IOH = –2.5 mA)

2.4 V minimum, 3.4 V maximum

Output low voltage (IOL = 2.5 mA)

0.4 V maximum, 0 V minimum

Output current

2.5 mA maximum per pin

DOUT pacing

On-board or external clock (XDPCR)

Pacer sources

 Internal pacing
 External pacing
 Pacing slaved to analog input pacing

See table 12 for additional information.

Outputs at power on and reset

Low

Latency, software paced

115 ms, typical (system dependant)

Analog input calibration

Table 8. Analog input calibration specifications

Digital inputs

Table 9. Digital input specifications

Digital outputs

Table 10. Digital output specifications

40

USB-1602HS-2AO User's Guide Specifications

Parameter

Specification

Available trigger sources

 Analog input hardware
 Analog software trigger
 External digital input
 Digital pattern
 Counter/totalizer

Trigger source details

Analog input (hardware) trigger
(CH0 – CH1)

Input signal range: entire span of selected voltage range
Channel selectable
Trigger level: Programmable (12-bit resolution)
Hysteresis: Programmable (12-bit resolution)
Latency: 1.25 uS typical
Accuracy: ±2% of reading, ±10 mV offset maximum

Analog software trigger
(CH0 – CH1)

Trigger range: Anywhere within range of the trigger channel
Trigger level: Programmable (16-bit resolution)
Latency: one sample period (maximum)

External digital:
 (EXT TRIG — BNC
or
 DIG TRIG — SCSI

Input signal range: –15 V to +15 V maximum
Trigger level: TTL level sensitive
Minimum pulse width: 50 ns high, 50 ns low
Latency: 100ns maximum

Digital pattern triggering
DIN0-15

 16-bit pattern triggering on the digital port, DIN0-DIN15
 Programmable for trigger on equal, not equal, above, or below a value.
 Individual bits can be masked for "don’t care" condition.
 Latency: One sample period, maximum

Counter/totalizer triggering:
(CTR0-3)

Counter/totalizer inputs (CTR0-3) can trigger an acquisition. User can select to
trigger on a frequency or on total counts that are equal, not equal, above, or
below a value, or within/outside of a window rising/falling edge.

Latency: One sample period, maximum

Trigger sources

Table 11. External trigger specifications

41

USB-1602HS-2AO User's Guide Specifications

Parameter

Specification

Pacer clocks (2)

 Input pacer
 Output pacer

Input pacer:

 For pacing A/D, DIN and Counter signals
 Can be internally generated or externally supplied (XAPCR)
 XAPCR is accessible from front BNC or rear SCSI connector

Output pacer:

 For pacing DAC, DOUT and Timer/PWM signals
 Can be internally generated or externally supplied (XDPCR)

Input pacer clock sources (2)

 Internal, programmable
 External (XAPCR)

Internal, programmable:

 Analog channels from 500 ns to 1000s in 20.83 ns steps.
 DIN channels and counters from 125 ns* to 100 s in 20.83 ns steps.
 Can be configured to pace AO and/or DOUT channels

External, TTL level input (XAPCR):

 A/D channels down to 500 ns minimum
 DIN channels and counters down to 125 ns* minimum
 Can be configured to pace DAC and/or DOUT channels

Input pacer rate
Internal or external, (XAPCR) source

Analog: 2 MHz maximum
Digital: 8 MHz if no analog channels are enabled. 2 MHz with

analog channels enabled.

Pacer input high voltage

2.0 V minimum, 5.5 V maximum

Pacer input low voltage

0.8 V maximum, 0 V minimum

Minimum pulse width

50 ns high, 50 ns low

Output pacer clock sources (4)

 Internal output pacer clock, (independent of input pacer clock)
 External output pacer clock, XDPCR
 Internal input pacing clock
 External input pacing clock, XAPCR

Output pacer rate
Internal or external, (XDPCR) source

Analog: 1.0 MHz maximum
Digital: 8 MHz, if no analog outputs are enabled, (1 MHz if

DAC outputs are enabled)

Internal pacer routed to BNC or SCSI conn.

 Output high voltage (IOH = –2.5 mA):
 Output low voltage (IOL = 2.5 mA):

XAPCR or XDPCR

 2.4 V minimum
 0.4 V maximum

Pacing sources

Table 12. Pacing specifications

42

USB-1602HS-2AO User's Guide Specifications

Parameter

Specification

Number of channels

4 independent CTRL 0,1,2,3 (may be configured as gated if desired)

Modes

Counter, Period, Pulse width, Timing

Counter mode options

Totalize, Clear on Read, Rollover, Stop at top, 16-bit or 32-bit, any other channel can
decrement the counter

Period mode options

Measure x1, x10, x100, or x1000 periods, 16-bit or 32-bit, 4 time bases to choose from
(20.83 ns, 208.3 ns, 2.083 μs, 20.83 μs), any other channel can gate the period measurement

Pulse width mode options

16-bit or 32-bit values, 4 time bases to choose from (20.83 ns, 208.3 ns, 2.083 μs, 20.83 μs),
any other channel can gate the pulse width measurement

Timing mode options

16-bit or 32-bit values, 4 time bases to choose from (20.83 ns, 208.3 ns, 2.083 μs, 20.83 μs)

Resolution

16 or 32-bits

Maximum input frequency

20 MHz

Input type

TTL, rising edge triggered

Absolute maximum input
voltage

15V
De-bounce function

16 selections, from 500ns to 25.5ms, pos or neg edge, glitch detect and/or de-bounce modes

Required input current

±5 µA

Minimum pulse width

25 nS high, 25 ns low

Input high voltage

2.0 V minimum, 5.5 V maximum

Input low voltage

0.8 V maximum, 0 V minimum

Parameter

Conditions

Specification

Number of channels

Two: TMR/PWM0, TMR/PWM1

Effective frequency range

0.0112 Hz to 24 MHz

Period resolution

20.83 nS

Pulse width resolution

20.83 nS

Output high voltage
(IOH = –2.5 mA)

2.4 V minimum
Output low voltage (IOL = 2.5 mA)

0.4 V maximum

Output current

2.5 mA maximum per pin

Counters

Table 13. Counter specifications

Timers

Table 14. Timer specifications

43

USB-1602HS-2AO User's Guide Specifications

Parameter

Conditions

Specification

Number of decoders

3 (CTR4A, B, Z; CTR5 A, B, Z; CTR6 A, B, Z)

Signals per decoder

A, B and Z

Resolution

16 or 32-bits

Maximum frequency

6 MHz

Minimum pulse width

25 nS high, 25 ns low

De-bounce function

16 selections, from 500 ns to 25.5 ms, positive or
negative edge, glitch detect, and/or de-bounce
modes

Input high voltage

2.0 V minimum, 5.5 V maximum

Input low voltage

0.8 V maximum, 0 V minimum

Absolute maximum input voltage

15 V

Parameter

Conditions

Specification

Supply current

Continuous mode

1.5 Amp maximum

+5V EXT output voltage range

4.75 V to 5.25 V

Isolation

Measurement system to PC

500 VDC minimum

AC power adapter specifications (MCC part number PS-5V2AEPS)

Output voltage

5V, ±5%

Output power

10 watts

Power jack configuration

Two conductor, barrel

Power jack barrel diameter

6.3 mm

Power jack pin diameter

2.0 mm

Power jack polarity

Center positive

Parameter

Specification

USB device type

USB 2.0 (high-speed)

USB device compatibility

USB 1.1, 2.0

USB cable length

Three meters maximum.

USB cable type

A-B cable, UL type AWM 2527 or equivalent (minimum 24 AWG VBUS/GND,
minimum 28 AWG D+/D-).

Parameter

Specification

Operating temperature range

0 to 55 °C maximum

Storage temperature range

-40 to 85 °C maximum

Humidity

0 to 90% non-condensing

Quadrature decoders

Table 15. Quadrature decoder specifications

Power

Table 16. Power specifications

USB specifications

Table 17. USB specifications

Environmental

Table 18. Environmental specifications

44

USB-1602HS-2AO User's Guide Specifications

Parameter

Specification

Dimensions

142.2 mm W x 180.3 mm D x 38.1 mm H (5.6" x 7.1" x 1.5")

Weight

675 g (1.5 lbs)

Parameter

Specification

I/O connector type

68-pin standard "SCSI TYPE III" female connector

Compatible cables
(for the 68-pin SCSI connector)

 CA-68-3R — 68-pin ribbon cable; 3 feet.
 CA-68-3S — 68-pin shielded round cable; 3 feet.
 CA-68-6S — 68-pin shielded round cable; 6 feet.

Compatible accessory products
(for the 68-pin SCSI connector)

 TB-102 termination board with screw terminals
 RM-TB-100, 19-inch rack mount kit for TB-102

BNC signals

Function

CH0

Analog input CH0

CH1

Analog input CH1

EXT TRIG

BNC connection for DIG TRIG*

EXT CLK

BNC connection for XAPCR clock*

Mechanical

Table 19. Mechanical specifications

I/O cables, connectors and accessories

Table 20. Cables, connectors and accessory specifications

Signal I/O connectors

BNC connectors

Table 21. BNC connectors pin out

*These signals also available at SCSI connector

45

USB-1602HS-2AO User's Guide Specifications

Pin
No.

Signal

Pin No.

Signal

1

AGND

35

AGND

2

RESERVED

36

RESERVED

3

AGND

37

AGND

4

RESERVED

38

RESERVED

5

AGND

39

AGND

6

VCAL

40

DAC 0

7

+5V PWR

41

DAC 1

8

AGND

42

AGND

9

DIN0

43

DOUT0

10

DIN1

44

DOUT1

11

DIN2

45

DOUT2

12

DIN3

46

DOUT3

13

DIN4

47

DOUT4

14

DIN5

48

DOUT5

15

DIN6

49

DOUT6

16

DIN7

50

DOUT7

17

DIN8

51

DOUT8

18

DIN9

52

DOUT9

19

DIN10

53

DOUT10

20

DIN11

54

DOUT11

21

DIN12

55

DOUT12

22

DIN13

56

DOUT13

23

DIN14

57

DOUT14

24

DIN15

58

DOUT15

25

CTR4 A

59

CTR0

26

CTR4 B

60

CTR1

27

CTR4 Z

61

CTR2

28

CTR5 A

62

CTR3

29

CTR5 B

63

TMR/PWM0

30

CTR5 Z

64

TMR/PWM1

31

CTR6 A

65

DIG TRIG

32

CTR6 B

66

XAPCR

33

CTR6 Z

67

XDPCR

34

DGND

68

DGND

68-pin SCSI connector

Table 22. 68-pin SCSI connector pin out

46

Declaration of Conformity

Manufacturer: Measurement Computing Corporation
Address: 10 Commerce Way
Suite 1008
Norton, MA 02766
USA

Category: Electrical equipment for measurement, control and laboratory use.
Measurement Computing Corporation declares under sole responsibility that the product

USB-1602HS-2AO

to which this declaration relates is in conformity with the relevant provisions of the following standards or other
documents:

EC EMC Directive 2004/108/EC: General Requirements, EN 61326-1:2006 (IEC 61326-1:2005).
Emissions:

 EN 55011 (2007) / CISPR 11(2003): Radiated emissions: Group 1, Class A
 EN 55011 (2007) / CISPR 11(2003): Conducted emissions: Group 1, Class A

Immunity: EN 61326-1:2006, Table 3.

 IEC 61000-4-2 (2001): Electrostatic Discharge immunity.
 IEC 61000-4-3 (2002): Radiated Electromagnetic Field immunity.
 IEC 61000-4-4 (2004): Electric Fast Transient Burst Immunity.
 IEC 61000-4-5 (2001): Surge Immunity.
 IEC 61000-4-6 (2003): Radio Frequency Common Mode Immunity.
 IEC 61000-4-11 (2004): Voltage Interrupts.

To maintain compliance to the standards of this declaration, the following conditions must be met.

 The host computer, peripheral equipment, power sources, and expansion hardware must be CE

compliant.

 All I/O cables must be shielded, with the shields connected to ground.
 I/O cables must be less than 3 meters (9.75 feet) in length.
 The host computer must be properly grounded.
 Equipment must be operated in a controlled electromagnetic environment as defined by Standards EN

61326-1:2006, or IEC 61326-1:2005.

Declaration of Conformity based on tests conducted by Chomerics Test Services, Woburn, MA 01801, USA in
February, 2009. Test records are outlined in Chomerics Test Report #EMI5276.09.

We hereby declare that the equipment specified conforms to the above Directives and Standards.

Carl Haapaoja, Director of Quality Assurance

Measurement Computing Corporation

10 Commerce Way

Suite 1008

Norton, Massachusetts 02766

[phone]

Fax: [phone]

E-mail: [e-mail]

www.mccdaq.com
