USB-1024HLS
High Drive, 24-bit Digital I/O Low-speed USB 2.0 device
User’s Guide
USB-1024HLS
User's Guide
Document Revision 2, May, 2006
© Copyright 2006, Measurement Computing Corporation™
Your new Measurement Computing product comes with a fantastic extra
Management committed to your satisfaction!
Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our mission:
To provide data acquisition hardware and software that will save time and save money.
Simple installations minimize the time between setting up your system and actually making measurements. We offer quick and simple access to outstanding live FREE technical support to help integrate MCC products into a DAQ system.
Limited Lifetime Warranty: Most MCC products are covered by a limited lifetime warranty against defects in materials or
workmanship for the life of the product, to the original purchaser, unless otherwise noted. Any products found to be defective in material or workmanship will be repaired, replaced with same or similar device, or refunded at MCC’s discretion. For specific information, please refer to the terms and conditions of sale.
Harsh Environment Program: Any Measurement Computing product that is damaged due to misuse, or any reason, may be
eligible for replacement with the same or similar device for 50% of the current list price. I/O boards face some harsh environments, some harsher than the boards are designed to withstand. Contact MCC to determine your product’s eligibility for this program.
30 Day Money-Back Guarantee: Any Measurement Computing Corporation product may be returned within 30 days of
purchase for a full refund of the price paid for the product being returned. If you are not satisfied, or chose the wrong product by mistake, you do not have to keep it.
These warranties are in lieu of all other warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular application. The remedies provided herein are the buyer’s sole and exclusive remedies. Neither Measurement Computing Corporation, nor its employees shall be liable for any direct or indirect, special, incidental or consequential damage arising from the use of its products, even if Measurement Computing Corporation has been notified in advance of the possibility of such damages.
Trademark and Copyright Information
Measurement Computing Corporation, InstaCal, Universal Library, and the Measurement Computing logo are either trademarks or registered trademarks of Measurement Computing Corporation. Refer to the Copyrights & Trademarks section on
mccdaq.com/legal for more information about Measurement Computing trademarks. Other product and company names
mentioned herein are trademarks or trade names of their respective companies.
© 2012 Measurement Computing Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.
Notice
Measurement Computing Corporation does not authorize any Measurement Computing Corporation product for use in life support systems and/or devices without prior written consent from Measurement Computing Corporation. Life support devices/systems are devices or systems that, a) are intended for surgical implantation into the body, or b) support or sustain life and whose failure to perform can be reasonably expected to result in injury. Measurement Computing Corporation products are not designed with the components required, and are not subject to the testing required to ensure a level of reliability suitable for the treatment and diagnosis of people.
iii
Table of Contents
About this User's Guide .......................................................................................................................v
What you will learn from this user's guide .........................................................................................................v
Conventions in this user's guide .........................................................................................................................v
Where to find more information.........................................................................................................................v
Chapter 1
Introducing the USB-1024HLS......................................................................................................... 1-1
USB-1024HLS block diagram........................................................................................................................ 1-2
Software features............................................................................................................................................ 1-2
Connecting a USB-1024HLS to your computer is easy ................................................................................. 1-3
Chapter 2
Installing the USB-1024HLS............................................................................................................. 2-1
What comes with your USB-1024HLS shipment? ......................................................................................... 2-1
Hardware ....................................................................................................................................................................... 2-1
Additional documentation.............................................................................................................................................. 2-1
Unpacking the USB-1024HLS ....................................................................................................................... 2-1
Installing the software .................................................................................................................................... 2-2
Installing the hardware ................................................................................................................................... 2-2
Chapter 3
Functional Details ............................................................................................................................. 3-1
External components ...................................................................................................................................... 3-1
USB connector............................................................................................................................................................... 3-1
LED ............................................................................................................................................................................... 3-1
Screw terminal wiring.................................................................................................................................................... 3-2
Main connector and pin out ........................................................................................................................................... 3-2
Digital I/O terminals (Port A0 to A7, Port B0 to B7, Port C0 to C7)............................................................................. 3-3
Power terminals ............................................................................................................................................................. 3-4
Ground terminals ...........................................................................................................................................................3-5
Counter terminal ............................................................................................................................................................ 3-5
Pull-up/pull-down terminals .......................................................................................................................................... 3-5
Chapter 4
Specifications.................................................................................................................................... 4-1
Digital input/output......................................................................................................................................... 4-1
Counter section............................................................................................................................................... 4-2
Power.............................................................................................................................................................. 4-2
General ........................................................................................................................................................... 4-3
Environmental ................................................................................................................................................ 4-3
Mechanical ..................................................................................................................................................... 4-3
Main connector and pin out............................................................................................................................ 4-3
iv

Preface

About this User's Guide

What you will learn from this user's guide

This user's guide explains how to install, configure, and use the USB-1024HLS so that you get the most out of its USB digital I/O features.
This user's guide also refers you to related documents available on our web site, and to technical support resources.

Conventions in this user's guide

For more information on …
Text presented in a box signifies additional information and helpful hints related to the subject matter you are reading.
Caution! Shaded caution statements present information to help you avoid injuring yourself and others,
damaging your hardware, or losing your data.
<#:#> Angle brackets that enclose numbers separated by a colon signify a range of numbers, such as those assigned
to registers, bit settings, etc.
bold text Bold text is used for the names of objects on the screen, such as buttons, text boxes, and check boxes. For
example:
1. Insert the disk or CD and click the OK button.
italic text Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase. For
example: The InstaCal® installation procedure is explained in the Quick Start Guide. Never touch the exposed pins or circuit connections on the board.

Where to find more information

Additional information about E-1608 hardware is available on our website at www.mccdaq.com. You can also contact Measurement Computing Corporation by phone, fax, or email with specific questions.
Knowledgebase: kb.mccdaq.com Tech support form: www.mccdaq.com/support/support_form.aspx Email: techsupport@mccdaq.com Phone: 508-946-5100 and follow the instructions for reaching Tech Support
v
Chapter 1

Introducing the USB-1024HLS

This user's guide contains all of the information you need to connect the USB-1024HLS to your computer and to the signals you want to measure.
The USB-1024HLS is a USB 2.0 low-speed module supported under popular Microsoft systems. It is designed for USB 1.1 ports, and was tested for full compatibility with both USB 1.1 and USB 2.0 ports.
Refer to the "Be sure you are using the latest system software" note in Chapter , " 1024HLS
The USB-1024HLS is a high drive, 24-line digital I/O module that includes one 32-bit external event counter. The module is powered by the +5 volt USB supply from your computer. No external power is required.
An emulation of the 82C55 in mode 0 (only) sets the direction of the 24 digital I/O lines in four ports. Each digital port can be configured for either input or output. The 74FCT244 outputs are high-drive TTL, capable of sourcing 15 mA and sinking 64 mA.
The USB-1024HLS is shown in Figure 1-1. All I/O connections are made to the screw terminals on each side of the USB-1024HLS.
," to make sure you are using the latest USB drivers.
2 Installing the USB-
®
Windows® operating
Figure 1-1. USB-1024HLS
1-1
USB-1024HLS User's Guide Introducing the USB-1024HLS

USB-1024HLS block diagram

USB-1024HLS functions are illustrated in the block diagram shown here.
USB 2.0
compliant
interface
USB
Microcontroller
8
Port A
Port B
Screw terminal I/O connector
Figure 1-2. USB-1024HLS functional block diagram
888
Port CHIPort C
LO
4488
event counter
Discrete, low-
Discrete, low­power drivers
power drivers
32-bit
1 channel
1

Software features

For information on the features of InstaCal and the other software included with your USB-1024HLS, refer to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at
. www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf
Check www.mccdaq.com/download.htm under less commonly used operating systems.
for the latest software version or versions of the software supported
1-2
USB-1024HLS User's Guide Introducing the USB-1024HLS

Connecting a USB-1024HLS to your computer is easy

Installing a data acquisition device has never been easier.
! The USB-1024HLS relies upon the Microsoft Human Interface Device (HID) class drivers. The HID class
drivers ship with every copy of Windows that is designed to work with USB ports. We use the Microsoft HID because it is a standard, and its performance delivers full control and maximizes data transfer rates for your USB-1024HLS. No third-party device driver is required.
! The USB-1024HLS is plug-and-play. There are no jumpers to position, DIP switches to set, or interrupts to
configure.
! You can connect the USB-1024HLS before or after you install the software, and without powering down
your computer first. When you connect an HID to your system, your computer automatically detects it and configures the necessary software. You can connect and power multiple HID peripherals to your system using a USB hub.
! You can connect your system to various devices using a standard four-wire cable. The USB connector
replaces the serial and parallel port connectors with one standardized plug and port combination.
! You do not need a separate power supply module. The USB automatically delivers the electrical power
required by each peripheral connected to your system.
! Data can flow two ways between a computer and peripheral over USB connections.
1-3

Installing the USB-1024HLS

What comes with your USB-1024HLS shipment?

The following items are shipped with the USB-1024HLS.

Hardware

! USB-1024HLS
Chapter 2
! USB cable (2 meter length)

Additional documentation

In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at
www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf
the software you received with your USB-1024HLS and information regarding installation of that software. Please read this booklet completely before installing any software or hardware.
). This booklet supplies a brief description of

Unpacking the USB-1024HLS

As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the USB-1024HLS from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge.
If your USB-1024HLS is damaged, notify Measurement Computing Corporation immediately by phone, fax, or e-mail. For international customers, contact your local distributor where you purchased the USB-DIO24/37.
! Phone: 508-946-5100 and follow the instructions for reaching Tech Support. ! Fax: 508-946-9500 to the attention of Tech Support ! Email: techsupport@mccdaq.com
2-1
USB-1024HLS User's Guide Installing the USB-1024HLS

Installing the software

Refer to the Quick Start Guide for instructions on installing the software on the Measurement Computing Data Acquisition Software CD. This booklet is available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-
Quick-Start.pdf.

Installing the hardware

Be sure you are using the latest system software
Before you connect the USB-1024HLS, make sure that you are using the latest versions of the USB drivers.
Before installing the USB-1024HLS, download and install the latest Microsoft Windows updates. In particular, when using Windows XP, make sure you have XP Hotfix KB822603 installed. This update is intended to address a serious error in Usbport.sys when you operate a USB device. You can run Windows Update or download the update from www.microsoft.com/downloads/details.aspx?familyid=733dd867-56a0-4956-b7fe-
e85b688b7f86&displaylang=en. For more information, refer to the Microsoft Knowledge Base article
"Availability of the Windows XP SP1 USB 1.1 and 2.0 update." This article is available at
support.microsoft.com/?kbid=822603.
To connect the USB-1024HLS to your system, turn your computer on, and connect the USB cable to a USB port on your computer or to an external USB hub that is connected to your computer. The USB cable provides power and communication to the USB-1024HLS.
When you connect the USB-1024HLS for the first time, a or dialog (other Windows versions) appear as the USB-1024HLS is detected.
Another Found New Hardware balloon or dialog opens that identifies the USB-1024HLS as a USB Human Interface Device.
When the balloon or dialog closes, the LED on the USB-1024HLS should flash and then remain lit. This indicates that communication is established between the USB-1024HLS and your computer
Caution! Do not disconnect any device from the USB bus while the computer is communicating with the
USB-1024HLS, or you may lose data and/or your ability to communicate with the USB-1024HLS.
If the LED turns off
If the LED is lit but then turns off, the computer has lost communication with the USB-1024HLS. To restore communication, disconnect the USB cable from the computer, and then reconnect it. This should restore communication, and the LED should turn back on.
Found New Hardware popup balloon (Windows XP)
2-2

Functional Details

External components

The USB-1024HLS has the following external components, as shown in Figure 3-1.
! USB connector ! LED ! Screw terminal banks (2)
Chapter 3
LED
Screw terminal
Pins 21 to 40
connector / cable
Figure 3-1. USB-1024HLS external components
Screw terminal
Pins 1 to 20
USB

USB connector

The USB connector is on the right side of the USB-1024HLS housing. This connector provides +5 V power and communication. The voltage output is system-dependent, and may be less than +5 V. No external power supply is required.
LED
The LED on the front of the housing indicates the communication status of the USB-1024HLS. It uses up to 5 mA of current and cannot be disabled. explains the function of the USB-1024HLS LED. Table 3-1
Table 3-1 LED illumination
LED Illumination Indication
Steady green The USB-1024HLS is connected to a computer or external USB hub.
Blinks continuously Data is being transferred.
Blinks three times Initial communication is established between the USB-1024HLS and the computer.
3-1
USB-1024HLS User's Guide Functional Details

Screw terminal wiring

The USB-1024HLS has two rows of screw terminals—one row on the top edge of the housing, and one row on the bottom edge. Each row has 20 connections. Pin numbers are identified here.
Figure 3-2. USB-1024HLS screw terminal pin numbers
Screw terminal – pins 1 to 20
The screw terminals on the top edge of the USB-1024HLS (pins 1 to 20) provide the following connections:
! Eight digital I/O connections ( ! One counter connection ( ! Two power connections ( ! Three pull-up and pull-down connections (
C Pull-up/Pull-down)
! Six ground connections (
Port C0 to Port C7) CTR) USB +5 V)
Port A Pull-up/Pull-down, Port B Pull-up/Pull-down and Port
GND)
Screw terminal – pins 21 to 40
The screw terminals on the bottom edge of the USB-1024HLS (pins 21 to 40) provide the following connections:
! 16 digital I/O connections ( ! One power connection ( ! Three ground connections (
Port A0 to Port A7, and Port B0 to Port B7)
USB +5 V)
GND)

Main connector and pin out

Connector type Screw terminal
Wire gauge range 16 AWG to 30 AWG
3-2
USB-1024HLS User's Guide Functional Details
Port A Pull-up / Pull-down
Port B Pull-up / Pull-down
20 CTR
19 GND
18 GND
17 GND
16 GND1514 USB +5 V1312 GND
11 Port C Pull-up / Pull-down
10 USB +5 V
9GND
8Port C7
7Port C6
6Port C5
5Port C4
4Port C3
3Port C2
2Port C1
1Port C0
GND 40
Port B7 39
Port B6 38
Port B5 37
Port B4 36
Port B3 35
GND 31
USB +5 V 30
GND 29
Port B2 34
Port B1 33
Port B0 32
Port A7 28
Port A6 27
Port A5 26
Port A4 25
Port A3 24
Port A2 23
Port A1 22
Port A0 21

Digital I/O terminals (Port A0 to A7, Port B0 to B7, Port C0 to C7)

Connect up to 24 digital I/O lines to the screw terminal containing pins 1 to 8 (Port C0 to Port C7), pins 21 to
Port A0 to Port A7), and pins 32 to 39 (Port B0 to Port B7). Refer to the pinout diagram on page 3-2 for the
28 ( location of these pins. You can configure each digital port for either input or output.
When configured for input, you can use the USB-1024HLS digital I/O terminals to detect the state of any TTL level input. Refer to the switch shown in Fi and the schematic shown in . If you set the
gure 3-3
switch to the +5 V input, Port A0 reads TRUE (1). If you move the switch to GND, Port A0 reads FALSE.
Figure 3-4
Figure 3-3. Digital connection of Port A0 detecting the state of a switch
3-3
USB-1024HLS User's Guide Functional Details
Port A0
+GND +5 V
Figure 3-4. Schematic showing switch detection by digital channel Port A0
For more information on digital signal connections
For more information on digital signal connections and digital I/O techniques, refer to the Guide to Signal Connections (available on our web site at www.mccdaq.com/signals/signals.pdf).

Power terminals

The USB +5V connection (pin 30) is on the bottom screw terminal of the USB-1024HLS. Refer to the pinout diagram on page 3-2 for the location of this terminal. This terminal draws power from the USB connector. The +5 volt screw terminal is a +5 volt output that is supplied by the connected computer.
Caution! The USB +5 V terminal is an output. Do not connect to an external power supply or you may
damage the USB-1024HLS and possibly the computer.
Once you start running applications with the USB-1024HLS, each DIO bit can draw up to 15 mA. The maximum amount of +5 V current available for external use, over and above that required by the USB­1024HLS, is the difference between the total current requirement of the USB-1024HLS (based on the application), and the allowed current draw of the computer platform.
The following power limits depend on whether you are sourcing current out of the USB-1024HLS, or you are sinking current into the USB-1024HLS.
Output (source) current limits: desktop computers and self-powered hubs
The maximum allowed current draw for a typical desktop computer and self-powered hub is 500 mA. You must account for the supply current drawn from the USB supply for the USB-1024HLS itself, plus the current used by each DIO line. Since each DIO line can output 15 mA maximum, 24 DIO × 15 mA = 360 mA (maximum rating for the chips).
Output (source) current limits: notebook computers and bus-powered hubs
The maximum allowed current draw for a typical notebook computer and bus-powered hub is 100 mA. Because the USB-1024HLS would use a significant portion of this available current, this leaves you with little or no current for the DIO lines. For this reason, the USB-1024HLS is not supported for this configuration. To overcome this limitation, an external self-powered hub can be used to supply the proper current level required for full output capability as noted above.
Output (sink) current limits
Each USB-1024HLS DIO output can sink up to 64 mA. For an individual line, this is not a problem. But if you were to apply this maximum load to all 24 DIO lines, you may damage the USB-1024HLS because the total amount of current is well over the maximum for the USB supply.
If you want to sink the maximum of 64 mA per DIO line, you can only do so with up to six lines. To sink current with all 24 DIO outputs at any one time, you can sink a maximum of 18 mA per line.
3-4
USB-1024HLS User's Guide Functional Details

Ground terminals

The nine ground (GND) connections are identical, and provide a common ground for all USB-1024HLS functions. Refer to the pinout diagram on page 3-2 for the location of the
GND terminal.

Counter terminal

Pin 20 (CTR) is the input to the 32-bit external event counter. Refer to the pinout diagram on page 3-2 for the location of this terminal. The internal counter increments when the TTL levels transition from low to high. The counter can count frequencies of up to 1 MHz.

Pull-up/pull-down terminals

You can wire pin 11 (Port C Pull-up/Pull-down), pin 13 (Port B Pull-up/Pull-down), and pin 15 (Port A Pull-
up
/Pull-down) to support a pull-up or pull-down connection. These terminals configure the internal 47K resistors on the USB-1024HLS. Refer to the pinout diagram on page 3-2 for the location of these terminals. These terminals are configured as open by default.
! To configure a pull-up connection for a specific port, wire the pull-up/pull-down terminal to a
USB +5 V
terminal.

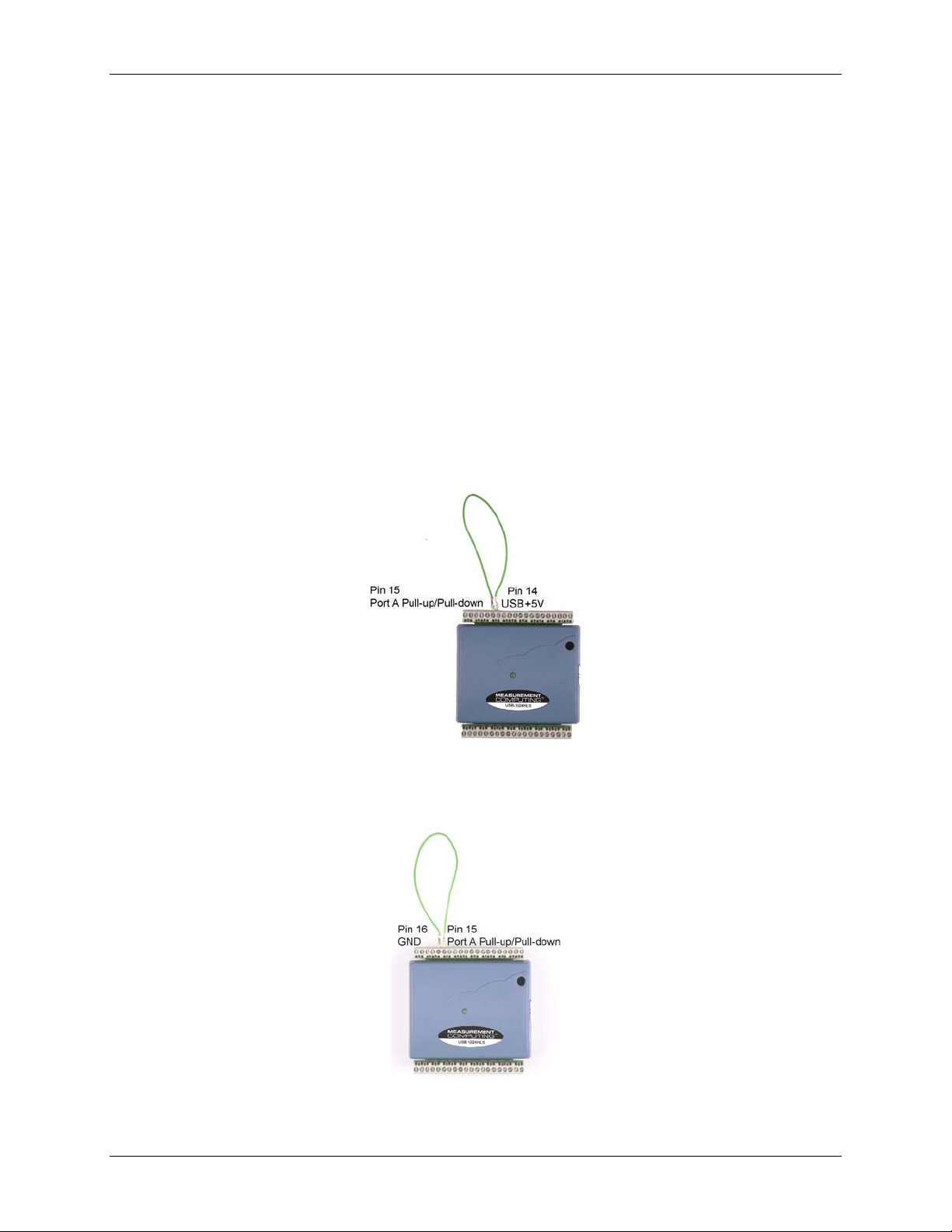

Figure 3-5. Pull-up connection for Port A
! To configure a pull-down connection for a specific port, wire the pull-up/pull-down terminal to a GND
terminal.
Figure 3-6. Pull-down connection for Port A
3-5
USB-1024HLS User's Guide Functional Details
Wiring schematics are shown here for each pull-up/pull-down terminal. Dotted lines represent a pull-up or pull-down connection.
USB +5 V
Pull-up
Pin 15
Pull-down
GND
Figure 3-7. Schematic showing Port A pull-up/pull-down wiring options
USB +5 V
Pull-up
Pin 13
Pull-down
GND
DIO 0 (Port A0)
DIO 1 (Port A1) DIO 2 (Port A2)
DIO 3 (Port A3) DIO 4 (Port A4) DIO 5 (Port A5) DIO 6 (Port A6) DIO 7 (Port A7)
DIO 0 (Port B0)
DIO 1 (Port B1) DIO 2 (Port B2)
DIO 3 (Port B3) DIO 4 (Port B4) DIO 5 (Port B5) DIO 6 (Port B6) DIO 7 (Port B7)
Port A
Port B
Figure 3-8. Schematic showing Port B pull-up/pull-down wiring options
USB +5 V
Pull-up
Pin 11
Pull-down
GND
DIO 0 (Port C0)
DIO 1 (Port C1) DIO 2 (Port C2)
DIO 3 (Port C3) DIO 4 (Port C4) DIO 5 (Port C5) DIO 6 (Port C 6) DIO 7 (Port C7)
Port C
Figure 3-9. Schematic showing Port C pull-up/pull-down wiring options
3-6

Specifications

Typical for 25 °C unless otherwise specified.
Specifications in italic text are guaranteed by design.

Digital input/output

Table 1. Digital I/O specifications
Digital input type 74ACT373
Digital output type 74FCT244
Number of I/O 24 (port A0 through port C7)
Configuration 2 banks of 8 and 2 banks of 4 or
3 banks of 8
Pull up/pull-down configuration
Input high voltage 2.0 V min, 5.5 V absolute max
Input low voltage 0.8 V max, –0.5 V absolute min
Output high voltage (IOH = -15 mA) 2.4 V min
Output low voltage (IOL= 64 mA) 0.55 V max
Source current – (Note 1)
! Self -powered hub ! Externally-powered root port hub
Source current – (Note 2)
! Bus-powered hub ! Battery-powered root port hub.
Sink current - (Note 3)
Power up/reset state Input mode (high impedance)
Note 1:
"Self-powered hub" refers to a USB hub with an external power supply. Self-powered hubs allow a connected USB device to draw up to 500 mA. "Root port hubs" reside in the PC’s USB Host Controller. The USB port(s) on your PC are root port hubs. All externally powered root port hubs (i.e. desktop PC’s) provide up to 500 mA of current for a USB device. In this configuration, all 24 digital outputs of the USB-1024HLS can source their per-pin maximum of 15 mA. This provides a total requirement of 15 mA*24 = 360 mA. Combining this with the USB-1024HLS operating current of 135 mA a fully-loaded current draw of 495 mA is realized.
Internal 47K resistors may be user configured for pull-up or pull-down via external connection of "Port x Pull-up / Pull-down" to "USB +5 V" or “GND”. Ports A, B, and C are independently configurable.
Maximum = 15 mA per output
Not supported
Current sink max: 365 mA / [number of outputs]. 64 mA max sink current for any single output.
Chapter 4
Note 2:
Note 3:
"Bus-powered hub" refers to a USB hub that derives power directly from the USB +5 V and does not have its own power supply. These hubs allow a connected USB device to draw up to 100 mA. Battery­powered root port hubs provide 100 mA or 500 mA, depending upon the manufacturer. A laptop PC that is not connected to an external power adapter is an example of a battery-powered root port hub. If your laptop is constrained to the 100 mA maximum a USB-1024HLS is not guaranteed to work. In order to use the product you will need to purchase a self-powered hub.
A low-side resettable fuse protects the USB-1024HLS. This is designed to protect the host PC or hub from an over current condition. Assuming all
return currents in sinking applications return via the USB cable ground signal, the maximum allowable return current is 500 mA. Please include the USB­1024HLS unloaded operating current (135 mA) in your power budget.
4-1
USB-1024HLS User's Guide Specifications

Counter section

Table 2. Counter specifications
Pin name (Note 4) CTR
Counter type Event counter
Number of channels 1
Input source CTR screw terminal
Input type TTL, rising edge triggered
Resolution 32 bits
Schmidt trigger hysteresis 20 mV to 100 mV
Input leakage current ±1 µA
Maximum input frequency 1 MHz
High pulse width 500 ns min
Low pulse width 500 ns min
Input low voltage 0 V min, 1.0 V max
Input high voltage 4.0 V min, 15.0 V max
Note 4: CTR is a Schmitt trigger input

Power

Table 3. Power specifications
Parameter Conditions Specification
Supply current (Note 5) No load 80mA typ, 135 mA max
Input power requirements (Note 6) 4.75 V min, 5.25 V max
USB +5 V power available
USB +5 V power output current (Note 7)
USB +5 V over-current protection Resettable fuse
Note 5:
Note 6:
This is the total (no load) current requirement for the USB-1024HLS.
Bus-powered hubs are allowed to provide downstream USB power as low as 4.4 V. Although your
Measured at "USB +5 V" screw terminals (pins 10, 14, and 30)
Connected to:
! Self-powered hub ! Externally-powered root port hub
USB-1024HLS will typically function at this 4.4 V minimum, guaranteed performance requires a minimum power supply voltage of 4.75 V. All self-powered and root port hubs will meet this 4.75 V minimum.
Note 7:
See available source/sink current level in the "Digital input/output" section.
4.4 V min, 5.25 V max
[350 mA] – [total output source current]
Hold current: 350 mA, typical
Trip current: 700 mA typical
Trip/recovery time: 100 mS, max
On resistance: 1.3 Ohms max
4-2
USB-1024HLS User's Guide Specifications

General

Table 4. General specifications
Parameter Conditions Specification
25 °C ±30 ppm max USB controller clock Error
0 to 70 °C ±50 ppm max
Device type USB 1.1 low-speed
Device compatibility USB 1.1, USB 2.0

Environmental

Table 5. Environmental specifications
Operating temperature range Storage temperature range -40 to 70 °C Humidity 0 to 90% non-condensing
0 to 70 °C

Mechanical

Table 6. Mechanical specifications
Dimensions 79 mm (L) x 82 mm (W) x 25 mm (H)
USB cable length 3 meters max
USB cable type
User connection length 3 meters max
A-B cable, UL type AWM 2527 or equivalent. (min 24 AWG VBUS/GND, min 28 AWG D+/D-)

Main connector and pin out

Table 7. Connector specifications
Connector type Screw terminal
Wire gauge range 30-16 AWG
Table 8. Connector pin out
Pin Signal Name Pin Signal Name
1 Port C0 21 Port A0 2 Port C1 22 Port A1 3 Port C2 23 Port A2 4 Port C3 24 Port A3 5 Port C4 25 Port A4 6 Port C5 26 Port A5 7 Port C6 27 Port A6 8 Port C7 28 Port A7 9 GND 29 GND 10 USB +5 V 30 USB +5 V 11 Port C Pull-up / Pull-down 31 GND 12 GND 32 Port B0 13 Port B Pull-up / Pull-down 33 Port B1 14 USB +5 V 34 Port B2 15 Port A Pull-up / Pull-down 35 Port B3 16 GND 36 Port B4 17 GND 37 Port B5 18 GND 38 Port B6 19 GND 39 Port B7 20 CTR 40 GND
4-3
Declaration of Conformity
Manufacturer: Measurement Computing Corporation Address: 10 Commerce Way Suite 1008 Norton, MA 02766 USA
Measurement Computing Corporation declares under sole responsibility that the product
USB-1024HLS
to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents:
EU EMC Directive 89/336/EEC: Electromagnetic Compatibility, EN 61326 (1997) Amendment 1 (1998)
Emissions: Group 1, Class A
! EN 55011 (1990)/CISPR 11: Radiated and Conducted emissions.
Immunity: EN61326, Annex A
! IEC 1000-4-2 (1995): Electrostatic Discharge immunity, Criteria C. ! IEC 1000-4-3 (1995): Radiated Electromagnetic Field immunity Criteria A. ! IEC 1000-4-8 (1994): Power Frequency Magnetic Field immunity Criteria A.
Power line and I/O tests to IEC 1000-4-4, IEC 1000-4-5, IEC 1000-4-6, and IEC 1000-4-11 were not required. The device is DC powered from an I/O cable which is less than three meters long.
Declaration of Conformity based on tests conducted by Chomerics Test Services, Woburn, MA 01801, USA in June, 2004. Test records are outlined in Chomerics Test Report #EMI3902.04.
We hereby declare that the equipment specified conforms to the above Directives and Standards.
Carl Haapaoja, Director of Quality Assurance
Measurement Computing Corporation
10 Commerce Way
Suite 1008
Norton, Massachusetts 02766
(508) 946-5100
Fax: (508) 946-9500
E-mail: info@mccdaq.com
www.mccdaq.com
Loading...
