Measurement PostView User Manual

PointScan/100 Series

User’s Manual

Ethernet Distributed I/O

the smart approach to instrumentation

™

IOtech, Inc.

25971 Cannon Road

Cleveland, OH 44146-1833

Phone: [phone]

Fax: [phone]

E-mail (sales): [e-mail]

E-mail (post-sales): [e-mail]

Internet: www.iotech.com

PointScan/100 Series

User’s Manual

Ethernet Distributed I/O

p/n

1085-0901

Rev.

1.0

© 2001 by IOtech, Inc. September 2001 Printed in the United States of America

Warranty Information

Your Iotech warranty is as stated on the product warranty card. You may contact IOtech by phone,
fax machine, or e-mail in regard to warranty-related issues.

Phone: [phone], fax: [phone], e-mail: [e-mail]

Limitation of Liability

IOtech, Inc. cannot be held liable for any damages resulting from the use or misuse of this product.

Copyright, Trademark, and Licensing Notice

All IOtech documentation, software, and hardware are copyright with all rights reserved. No part of this product may be
copied, reproduced or transmitted by any mechanical, photographic, electronic, or other method without IOtech’s prior written
consent. IOtech product names are trademarked; other product names, as applicable, are trademarks of their respective
holders. All supplied IOtech software (including miscellaneous support files, drivers, and sample programs) may only be used
on one installation. You may make archival backup copies.

FCC Statement

IOtech devices emit radio frequency energy in levels compliant with Federal Communications Commission rules (Part 15)
for Class A devices. If necessary, refer to the FCC booklet How To Identify and Resolve Radio-TV Interference Problems
(stock # 004-000-00345-4) which is available from the U.S. Government Printing Office, Washington, D.C. 20402.

CE Notice

Many IOtech products carry the CE marker indicating they comply with the safety and emissions standards of the
European Community. As applicable, we ship these products with a Declaration of Conformity stating which
specifications and operating conditions apply.

Warnings, Cautions, Notes, and Tips

Refer all service to qualified personnel. This warns of possible personal injury or equipment damage under noted
conditions. Follow all safety standards of professional practice and the recommendations in this manual. Using this
equipment in ways other than described in this manual can present serious safety hazards or cause equipment damage.

This warning symbol is used in this manual or on the equipment to warn of possible injury or death from electrical
shock under noted conditions.

Use proper ESD handling guidelines when handling equipment or components sensitive to damage from electrostatic
discharge. Proper handling guidelines include the use of grounded anti-static mats and wrist straps, ESD-protective
bags and cartons, and related procedures.

Specifications and Calibration

Specifications are subject to change without notice. Significant changes will be addressed in an addendum or revision to the
manual. As applicable, IOtech calibrates its hardware to published specifications. Periodic hardware calibration is not
covered under the warranty and must be performed by qualified personnel as specified in this manual. Improper calibration
procedures may void the warranty.

Quality Notice

IOtech has maintained ISO 9001 certification since 1996. Prior to shipment, we thoroughly test our products and
review our documentation to assure the highest quality in all aspects. In a spirit of continuous improvement, IOtech
welcomes your suggestions.

These products must not be used to replace proper safety interlocking. No software based device (or other solid
state device) should ever be designed to be responsible for the maintenance of consequential equipment or
personal safety. In particular, IOtech disclaims any responsibility for damages, either direct or consequential, that
result from the use of this equipment in any application.

Installation and Hazardous Area Warnings

PointScan/100 series I/O modules should not be used to replace proper safety interlocking. No software­based device (or any other solid-state device) should ever be designed to be responsible for the maintenance
of consequential equipment or personnel safety. In particular, IOtech disclaims any responsibility for
damages, either direct or consequential, that result from the use of this equipment in any application.

All power, input and output (I/O) wiring must be in accordance with Class I, Division 2 wiring methods and
in accordance with the authority having jurisdiction.

WARNING – EXPLOSION HAZARD – SUBSTITUTION OF COMPONENTS MAY IMPAIR
SUITABILITY FOR CLASS 1, DIVISION 2.

WARNING – EXPLOSION HAZARD – WHEN IN HAZARDOUS LOCATIONS, DISCONNECT
POWER BEFORE REPLACING OR WIRING MODULES.

WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS
BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NONHAZARDOUS.

Note: Refer to the IO Toolkit software’s online help for product specifications and configuration settings.

Table of Contents

1 - General Information

Overview ...... 1-1

General Specifications ...... 1-1

I/O Module Components ...... 1-2

DC Power Overview ...... 1-2

PointScan/100 LEDs ...... 1-3

I/O Module Status LED …… 1-3

Status LED Wink Feature ...... 1-3

Isolation ...... 1-4

Local Diagnostics ...... 1-4

Hot Swap Feature ...... 1-4

Calibration ...... 1-4

Getting Started ...... 1-5

nMount the Hardware ...... 1-5

oInstall Ethernet/RS485 Wiring Between

Modules ...... 1-5

pConnect Power and I/O Wiring to the

Modules ...... 1-5

qInstall Communication Cabling ...... 1-5

r Apply Power ...... 1-5

s Configure Using IO Toolkit ...... 1-5

t Test the System …… 1-5
u Configure Your Computer …… 1-5
v Run the Software …… 1-5
w If You Have Difficulty …… 1-5

2 - Ethernet, RS485 Wiring

PointScan/127

Module

...... 4-3

Overview ...... 4-3

Input Wiring ...... 4-3

I/O Registers ...... 4-3

High Speed Counter

5 - Discrete Output Modules

PointScan/142

Module

...... 5-1

Overview ...... 5-1

Wiring ...... 5-1

TPO Feature ...... 5-1

I/O Registers ...... 5-1

High Density Discrete Output

6 - Discrete / Analog Modules

PointScan/130

8 4-20 mA Inputs

Overview ...... 6-1

Wiring and Jumpers ...... 6-1

Current Shunts ...... 6-1

I/O Registers ...... 6-1

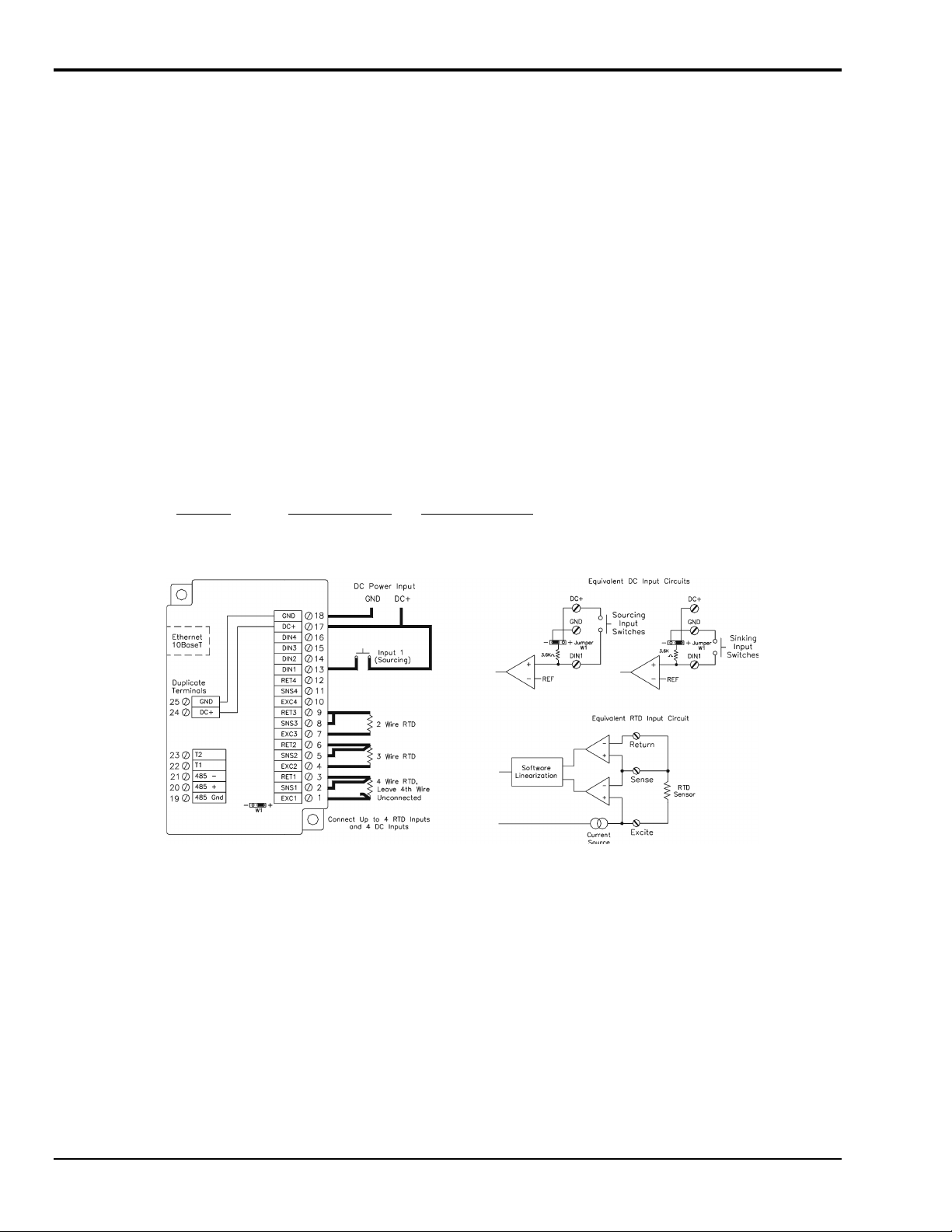

PointScan/109

4 Discrete Inputs

Overview ...... 6-2

Wiring and Jumpers ...... 6-2

I/O Registers ...... 6-2

8 Discrete Inputs and

...... 6-1

4 RTD Inputs and

...... 6-2

Ethernet Wiring Guidelines ...... 2-1

RS485 Wiring Guidelines ...... 2-1

PointScan/100 Series Panel

Assembly ...... 2-2

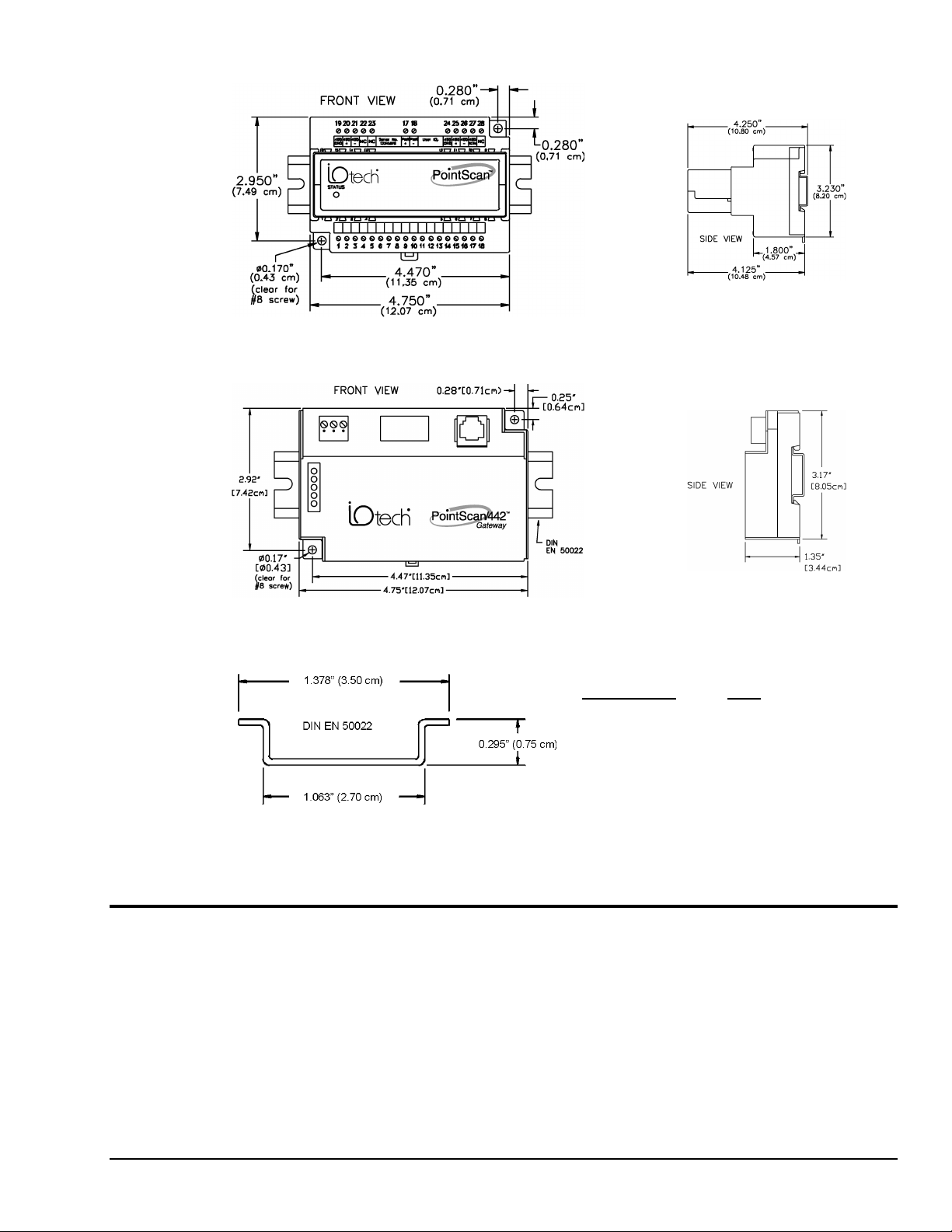

Dimmension Drawings …… 2-3

Screw Torque ...... 2-3

3 - Configuring PointScan/100 I/O

PointScan/440

Overview

...... 3-1

RS232 Wiring ...... 3-1

RS232 Mode Selection ...... 3-2

IO Toolkit ...... 3-2

Remote I/O Setup Module

4 - Discrete I/O Modules

PointScan/129

8 Discrete Outputs

Overview ...... 4-1

Wiring and Jumpers ...... 4-1

TPO Feature ...... 4-1

PointScan/122

Overview ...... 4-2

Wiring and Jumpers ...... 4-2

I/O Registers ...... 4-2

8 Discrete Inputs and

...... 4-1

16 Discrete Inputs

...... 4-2

7 - Analog Input Modules

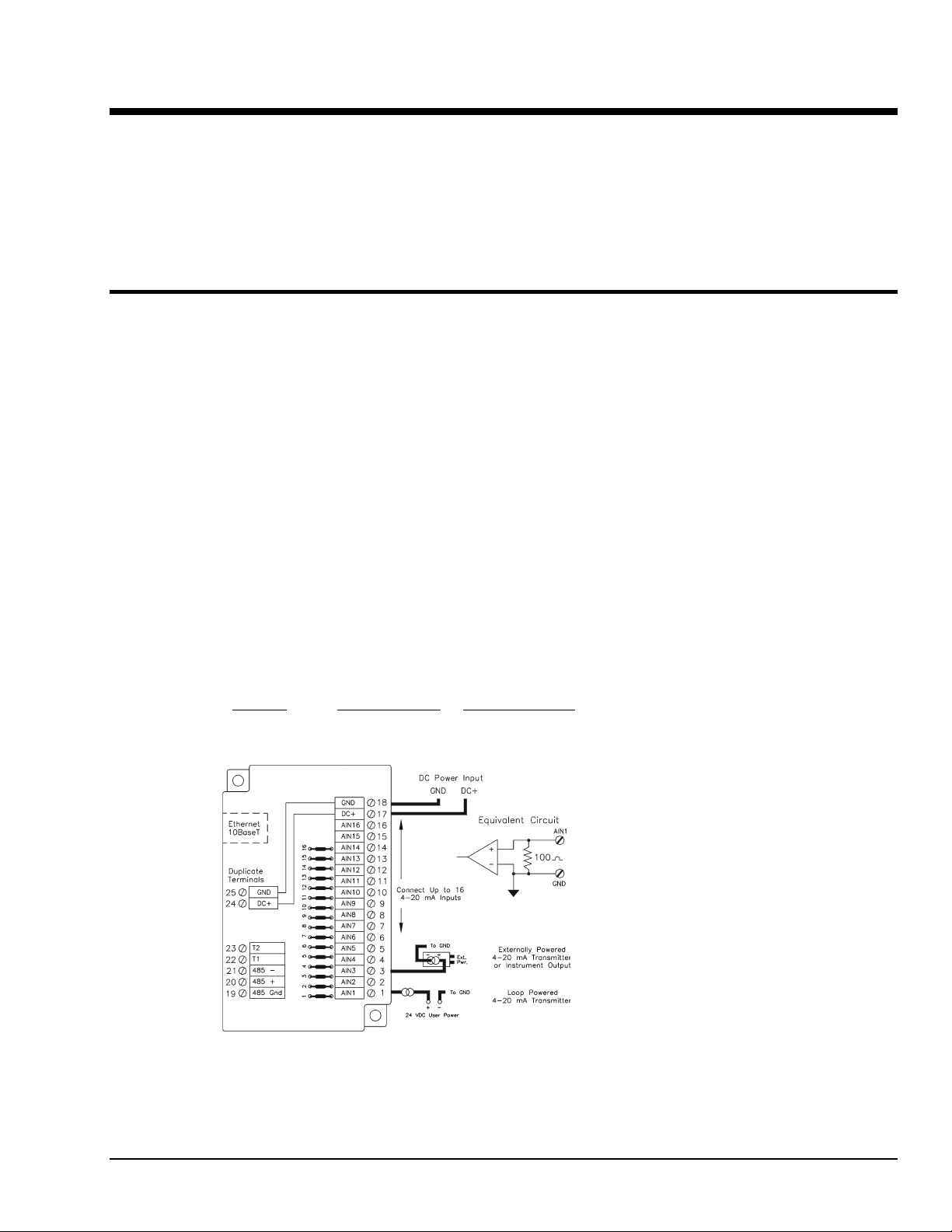

PointScan/102

Input Module

Overview ...... 7-1

Wiring ...... 7-1

Current Shunts ...... 7-1

I/O Registers ...... 7-1

PointScan/104

Input Module

Overview ...... 7-2

Wiring ...... 7-2

4-20 mA Input Jumpers ...... 7-2

Current Shunts ...... 7-2

I/O Registers ...... 7-2

High Density 4-20 mA Analog

...... 7-1

Instrumentation Analog

...... 7-2

8 - Analog I/O Module

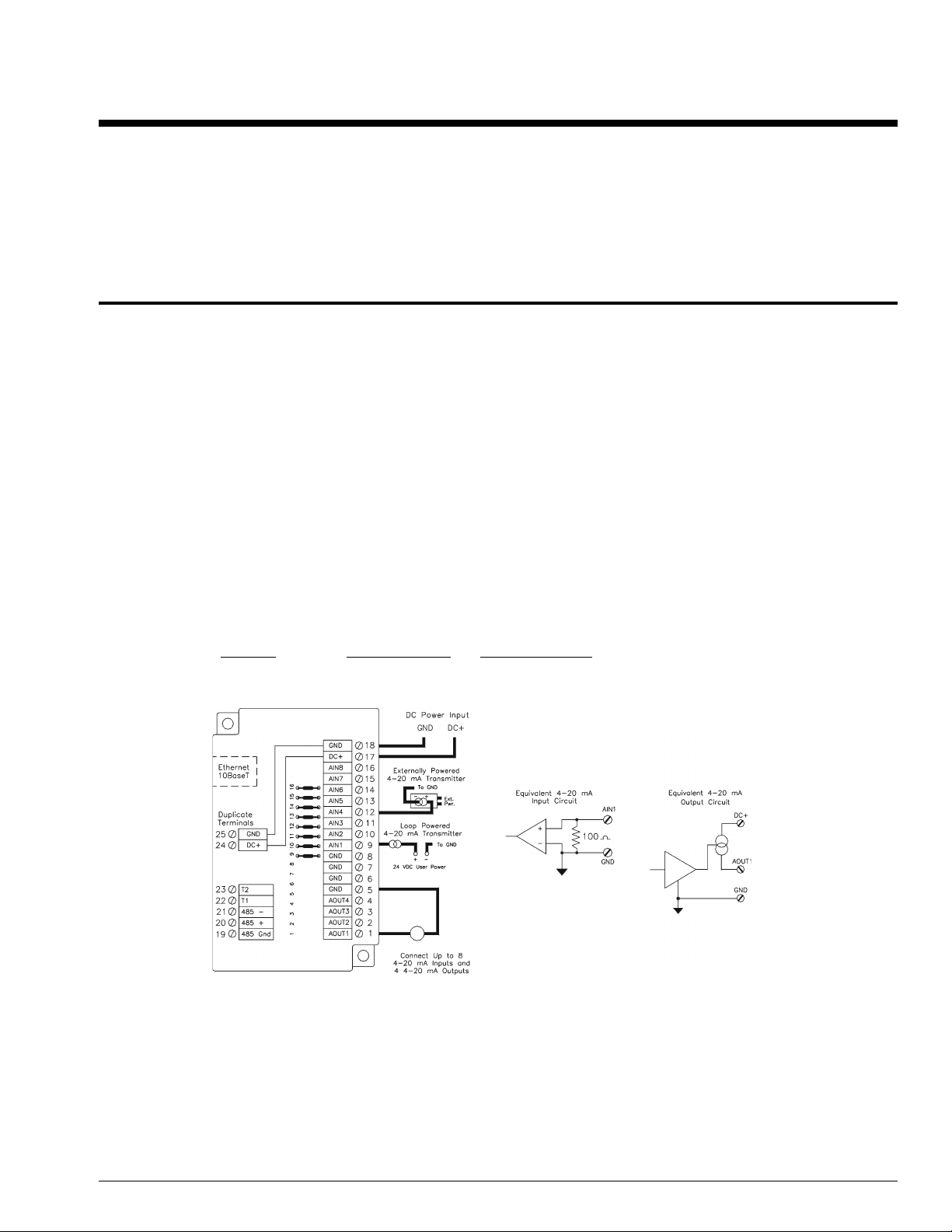

PointScan/108

Output Module

Overview ...... 8-1

Wiring ...... 8-1

I/O Registers ...... 8-1

Combined Analog Input and

...... 8-1

Appendix A – Table of PointScan I/O

Modules and Accessories

PointScan/100 User’s Manual

9-12-01

v

vi

9-12-01

PointScan/100 User’s Manual

General Information 1

Overview

This manual will help you install and maintain PointScan/100 I/O modules. In summary, wiring for power,
communications and I/O is connected to each module’s base. Then, setup choices are entered using the
IO Toolkit software and the system will be ready to run. Shown below are some typical system
configurations using PointScan/100 I/O:

Using Ethernet based PointScan/100 I/O with (RS485) PointScan/200 expansion I/O

General Specifications

These general specifications apply to all PointScan/100 I/O modules. More detailed product specifications
may be found in the online help system of the IO Toolkit configuration software.

Supply Voltage

RS485 Expansion

Ethernet Isolation 1200 Volts RMS (for 1 minute)
Operating Temperature
Storage Temperature
Humidity 5 to 95% (non-condensing)

PointScan/100 User’s Manual

10 - 30 VDC, 1.2 Watt typical per module
(48 mA @ 24 VDC – varies by module and load).

Connect up to 32 PointScan/200 modules or Modbus
devices using RS485

-30 to 70 °C

-40 to 85 °C

9-12-01

General Information 1-1

I/O Module Components

A PointScan/100 Series I/O module consists of a base assembly and a removable logic module. All base
assemblies have a hinged door that is accessible when the logic module is removed. In 4-20 mA analog
input modules (PointScan/102, /104, /108, and /130) the hinged door provides access to jumpers and/or 100
ohm replaceable shunts.

A logic module may be removed by lightly squeezing the top and bottom locking tabs and pulling the logic
module straight out. To reinstall, insert the logic module into the base and press firmly until it snaps into
place. The logic module is fully seated when the innermost row of ventilation slots are just covered by the
top surface of the base cover.

DC Power Overview

PointScan/100 modules can be powered from the same DC source that is used to power your I/O devices.
No separate power supply is required. Typically, 10 to 30 VDC power is applied to terminals 24 and 25 on
the base of each module.

The PointScan/443 is used to power up to seven PointScan modules of any type, instrumentation loops, and
other devices. It operates on 85-264 VAC (47-63 Hz) or 120-370 VDC and outputs 24 VDC at up to 1 A.
Refer to the figure below for the proper power connections.

1-2 General Information

9-12-01

PointScan/100 User’s Manual

DC Power Wiring PointScan/443

PointScan/442 gateways, and user instrumentation loops may be powered from the PointScan/443 power
supply. The PointScan/443 supplies 24 volts DC at a maximum of two amps.

DC Power Wiring (User DC Source)

PointScan/442 gateways, and user instrumentation loops may be powered from a single DC source. The
user DC power source must be between 18 to 30 volts.

Current Requirements

To calculate the current requirements, add the wattage required for the I/O modules in use, then divide the
total wattage by the DC power source voltage. Then add any current needed for user instrumentation loops.

PointScan/100 LEDs

Every PointScan/100 module has a number of LEDs. These LEDs can be useful for system diagnostics.
These LEDs can be observed in the following states:

I/O Module Status LED

On, with a quick “OFF” BLINK [Long Blink](1.9 seconds ON, .1 seconds OFF) - The module is
configured and fully operational, but has not received a valid request from the host for a time longer than
the specified time out period. A communication time out has occurred.

Full ON [On] - The module is configured, fully operational, and has received communication from the host
device before the timeout period expired. This is the desired LED indication during system operation.

HALF BLINK [Long Blink] (1 second ON, 1 second OFF) - The module is not adequately configured and
requires a download from the IO Toolkit program.

Full OFF [Off] - There is no power to the module, or the status LED is being turned off intentionally by
the IO Toolkit during the module loading operation.

Off, with a quick “ON” BLINK [Short Blink] (1.9 seconds OFF, .1 seconds ON ) - The module failed
self-test at initialization. It will not attempt communication and should be replaced.

Status LED Wink Feature

The “Status” LED may be intentionally winked (10 blinks/second) by the IO Toolkit program to visually
identify the module when other modules are present.

PointScan/100 User’s Manual

9-12-01

General Information 1-3

Isolation

Every PointScan/100 Series I/O module is isolated from ground and other modules for fault-free operation.
Additional levels of isolation (e.g. 500V channel to channel isolation) are provided with some modules.
Refer to the product specifications in the IO Toolkit online help system for more information.

Local Diagnostics

Local diagnostics can be performed through any available port while the gateway is responding to
messages from the other port. Diagnostic software, such as IO Toolkit, can be used to display the status of
the I/O registers.

Hot Swap Feature

I/O modules may be unplugged from their bases, even in live systems. PointScan/100 Series I/O modules
automatically self-configure from system memory. Analog I/O logic modules will automatically upload
and self-adjust to user calibration settings (if any are present) from the module base.

Calibration

All PointScan/100 Series analog I/O logic modules are factory calibrated over all supported ranges using a
regularly maintained set of standards. Factory calibration data is stored in permanent memory in the logic
module, and cannot be altered. User recalibration may be performed, but is necessary only if inaccuracy in
your field device is observed, or if any of the 100 ohm input shunts are replaced with low tolerance
resistors.

Each analog channel has span and offset calibration settings. Span is the "range" or "gain" of the channel.
Offset is the "zero" setting. Each reported analog I/O value is the product of the factory calibration value
times the user calibration value. The user calibration value is defined as:

(user span value * raw value) + user offset

The user span is a unity value (1) by default. The user offset is zero by default.

Note: All factory and user calibrations are performed in software. There are no adjustment
potentiometers inside the logic modules.

User calibrations are performed using the IO Toolkit utility. Refer to the IO Toolkit on-line help system for
information on calibrating PointScan/100 Series analog I/O.

1-4 General Information

9-12-01

PointScan/100 User’s Manual
