Chapter 1

Introducing the PCI-CTR10

The PCI-CTR10 is a high-performance, low-cost counter/timer board for PCI bus-compatible computers.
The PCI-CTR10 is based on the 9513 counter/timer device. The PCI-CTR10 has two 9513 devices installed. Each 9513 has five independent 16-bit counters (65,536 counts). An input source, count register, load register, hold register, alarm register, output, and gate are associated with each counter.
The 9513 is software-programmable for event counting, pulse and frequency measurement, alarm comparisons, and other input functions. The 9513 can generate frequencies with either complex duty cycles, or with one-shot and continuous-output modes. You can chain up to five 9513 devices together using software to enable a 32-, 48-, 64-, or 80-bit counter that does not require hardware connections. The gate source and gating functions are software-programmable.
An eight-bit, high-current digital output port provides logic-level control, and can be used to switch solid state relays. An eight-bit digital input port can be used to sense contact closures. The 9513 device also provides access to the PCI bus interrupts.
For more information on the 9513 counter/timer, refer to the 9513 data sheet. This document is available at
www.mccdaq.com/PDFmanuals/9513A.pdf
.

Software features

For information on the features of InstaCal and the other software included with your PCI-CTR10, refer to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at
. www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf
Check www.mccdaq.com/download.htm under less commonly used operating systems.
for the latest software version or versions of the software supported
1-1
PCI-CTR10 User's Guide Introducing the PCI-CTR10

PCI-CTR10 block diagram

PCI-CTR10 functions are illustrated in the block diagram shown here.
Counter A
AMD9513 (equivalent)
Input Clock0
Gate0
Output Clock0
Input Clock1
Gate1
Output Clock1
Input Clock2
Gate2
Output Clock2
Input Clock3
Gate3
Output Clock3
Input Clock4
Gate4
Output Clock4
Port_A OUTPUT(7:0)
Port_A INPUT(7:0)
Input Clock0
Gate0
Output Clock0
Input Clock1
Gate1
Output Clock1
Input Clock2
Gate2
Output Clock2
Input Clock3
Gate3
Output Clock3
Input Clock4
Gate4
Output Clock4
Port_B OUTPUT(7:0)
Port_B INPUT(7:0)
16 BIT COUNTERS
Counter 0
Counter 1
Counter 2
Counter 3
Counter 4
Digital I/O
Output Port
Input
Port
Counter B
AMD9513 (equivalent)
16 BIT COUNTERS
Counter 0
Counter 1
Counter 2
Counter 3
Counter 4
Digital I/O
Output Port
Input
Port
Control
Control
Control
Control
1/3.33/5 MHz
1/3.33/5 MHz
CONTROL
BUS
CONTROL
BUS
LOCAL BUS
Boot
EEPROM
PCI-CTR10
Block Diagram
CONTROLLER FPGA and LOGIC
Control
Registers
Decode/Status
Bus
Timing
PCI
CONTROLLER
PCI BUS (5V, 32-BIT, 33 MHZ)
Clock
Divider
Int Ctl
BADR1
BADR2
Interrupt
CLOCK SELECT
1/3.33/5 MHz
IRQ_A_Enable IRQ_A_In IRQ_B_Enable IRQ_B_In
CLOCK SELECT
10 MHz
Oscillator
Figure 1-1. PCI-CTR10 functional block diagram
1-2

Installing the PCI-CTR10

What comes with your PCI-CTR10 shipment?

The following items are shipped with the PCI-CTR10.

Hardware

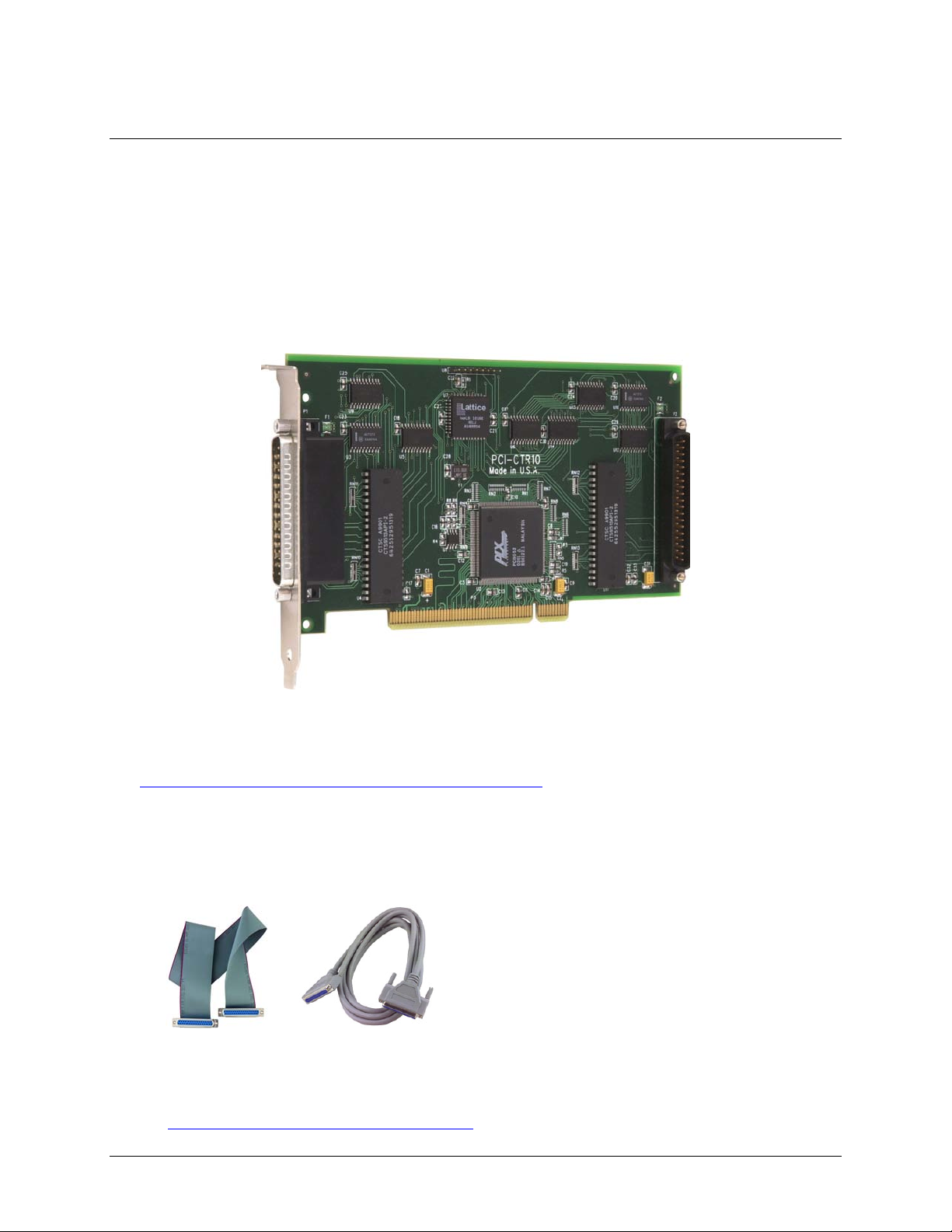

! PCI-CTR10
Chapter 2

Additional documentation

In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at
www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf
the software you received with your PCI-CTR10 and information regarding installation of that software. Please read this booklet completely before installing any software or hardware.
). This booklet supplies a brief description of

Optional components

! Cables
C37FF-x
! Signal termination and conditioning accessories
MCC provides signal termination and signal conditioning products for use with the PCI-CTR10. Refer to
Field wiring, signal termination and conditioning
C37FFS-x
for a complete list of compatible accessory products.
2-1
PCI-CTR10 User's Guide Installing the PCI-CTR10

Unpacking the PCI-CTR10

As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the PCI-CTR10 from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge.
If any components are missing or damaged, notify Measurement Computing Corporation immediately by phone, fax, or e-mail:
! Phone: 508-946-5100 and follow the instructions for reaching Tech Support. ! Fax: 508-946-9500 to the attention of Tech Support ! Email: techsupport@mccdaq.com

Installing the software

Refer to the Quick Start Guide for instructions on installing the software on the Measurement Computing Data Acquisition Software CD. This booklet is available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-
Quick-Start.pdf.

Installing the PCI-CTR10

The PCI-CTR10 board is completely plug-and-play, with no switches or jumpers to set. Configuration is controlled by your system's BIOS. To install your board, follow the steps below.
Install the MCC DAQ software before you install your board
The driver needed to run your board is installed with the MCC DAQ software. Therefore, you need to install the MCC DAQ software before you install your board. Refer to the Quick Start Guide for instructions on installing the software.
Turn your computer off, open it up, and locate two adjacent PCI expansion slots.
1.
From the rear of the computer, place the PCI-CTR10 in the left hand of the two empty slots, so that the
2.
empty slot is on the component side of the PCI-CTR10. Cabling is easier when there is an empty slot on the component side of the board.
3.
Close your computer and turn it on.
If you are using an operating system with support for plug-and-play (such as Windows 2000 or Windows XP), a dialog box opens as the system loads, indicating that new hardware has been detected. If the information file for this board is not already loaded onto your PC, you are prompted for the disk containing this file. The Measurement Computing Data Acquisition Software CD supplied with your board contains this file. If required, insert the disk or CD and click
To test your installation and configure your board, run the InstaCal utility you installed in the previous section. Refer to the Quick Start Guide that came with your board for information on how to initially set up and load InstaCal.
OK.
2-2
PCI-CTR10 User's Guide Installing the PCI-CTR10

Connecting the board for I/O operations

Connectors, cables – main I/O connector

Table 2-1
lists the board connectors, applicable cables and compatible accessory boards.

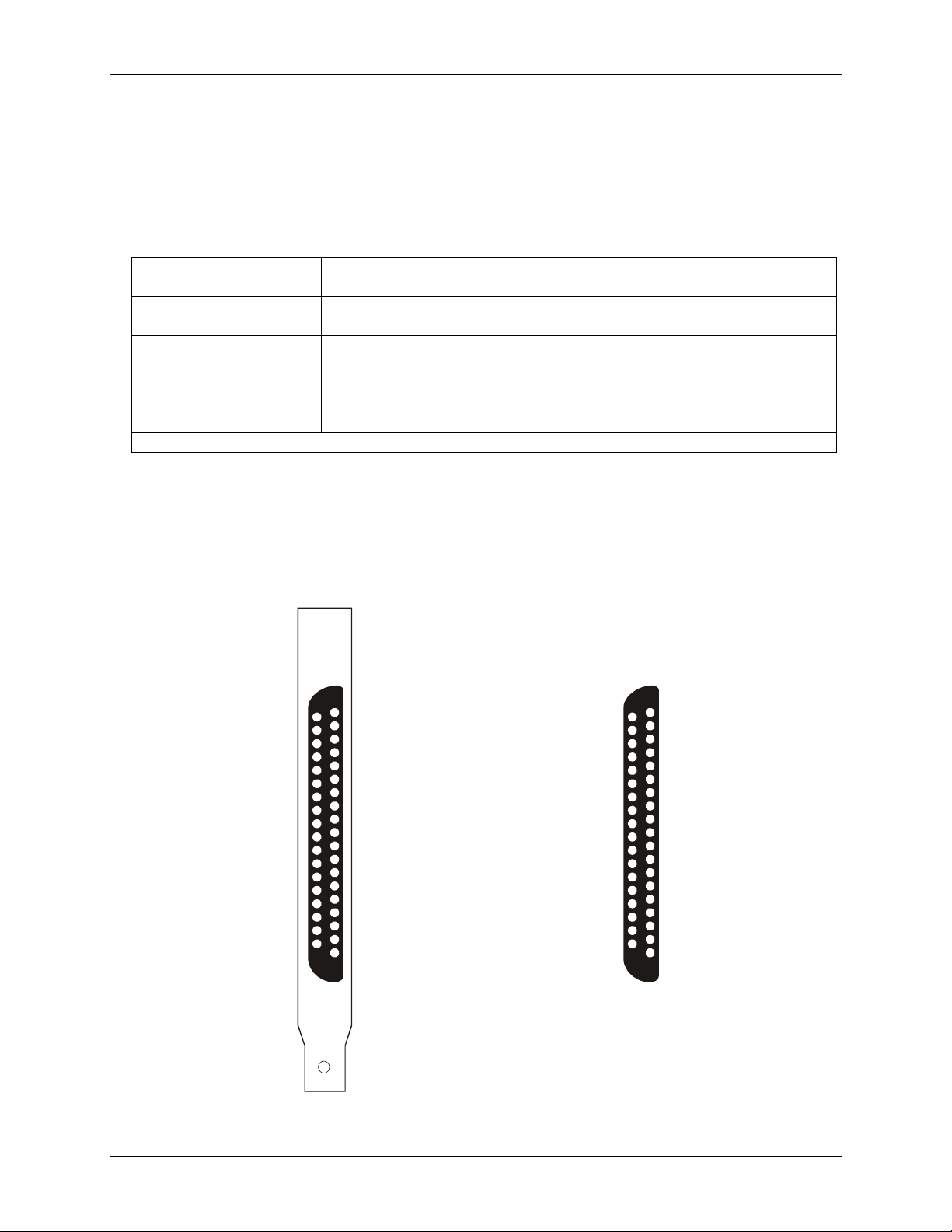

Table 2-1. Board connectors, cables, accessory equipment
Connector type
! P1: 37-pin shielded, D-type, right angle ! P2: 37-pin unshielded, D-type, straight
Compatible cables C37FF-x, unshielded ribbon cable (Figure 2-2)
C37FFS-x, shielded round cable (Figure 2-3)
Compatible accessory products
CIO-MINI37 CIO-MINI37-VERT CIO-TERMINAL SCB-37 BP-37/P (Note 1)
Note 1: The BP-37/P is required to cable all CTR B signals from connector P2 to the PC bulkhead.

Pinout – main I/O connector

The PCI-CTR10 has two male, 37-pin D-type connector - P1 and P2 (see .) Digital input, digital output and interrupt signals from the 9513 are all accessible on these connectors.
The signals on both connectors are identical. The second 9513 device on the PCI-CTR10 is accessible via connector P2 at the rear of the board, and is wired identically to the 9513 device on connector P1.
Figure 2-1
PC +5V
DIN STROBE_A
DIN7_A DIN6_A DIN5_A DIN4_A DIN3_A DIN2_A DIN1_A DIN0_A
OSC OUT_A CTR5OUT_A CTR4OUT_A CTR3OUT_A CTR2OUT_A CTR1OUT_A
CTR1CLK_A
CTR1GATE_A
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
P1 (Counter A)
IRQ_A INPUT
1
IRQ_A ENABLE
2
DOUT7_A
3
DOUT6_A
4 5
DOUT5_A
6
D4 OUT _A
7
D3 OUT _A
8
D2 OUT _A
9
D 1 OUT _A
10
D0 OUT _A
11
GND
12
CTR5GATE _A
13
CTR5CLK _A
14
CTR4GATE _A
15
CTR4CLK _A
16
CTR3GATE _A
17
CTR3CLK _A
18
CTR2GATE _A
19
CTR2CLK _A
PC +5V
DIN STROBE_B
DIN7_B DIN6_B DIN5_B DIN4_B DIN3_B DIN2_B DIN1_B DIN0_B
OSC OUT_B CTR5OUT_B CTR4OUT_B CTR3OUT_B CTR2OUT_B CTR1OUT_B
CTR1CLK_B
CTR1GATE_B
Figure 2-1. Board connectors P1 and P2
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
P2 (Counter B)
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
IRQ_B INPUT IRQ_B ENABLE D7_B OUT
D6 OUT _B D5 OUT _B D4 OUT _B D3 OUT _B
D2 OUT _B
D 1 OUT _B
D0 OUT _B GND CTR5GATE _B CTR5CLK _B CTR4GATE _B CTR4CLK _B CTR3GATE _B CTR3CLK _B
CTR2GATE _B
CTR2CLK _B
2-3
PCI-CTR10 User's Guide Installing the PCI-CTR10
Information on signal connections
For general information regarding digital I/O techniques, including signal conditioning and low pass filters, refer to the Guide to Signal Connections. This document is available on our web site at
www.mccdaq.com/signals/signals.pdf).
The red stripe
1
20
37
19
identifies pin # 1
Figure 2-2. C37FF-x cable
1
20
19
37
Figure 2-3. C37FFS-x cable

Field wiring, signal termination and conditioning

1
19
20
37
1
20
37
19
You can use the following MCC screw terminal boards and relay racks with the PCI-CTR10 board using the C37FF-x or C37FFS-x cable.
!
SCB37 — 37-conductor, shielded signal connection/screw terminal box that provides two independent 37-
pin connections. Details on this product are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1166
CIO-MINI37 — 4 x 4, 37-pin screw terminal board. Details on this product are available at
!
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=255
CIO-MINI37-VERT — 37-pin screw terminal accessory with vertical 37-pin male D connector. Details on
!
.
.
this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=256
CIO-TERMINAL — 16 X 4 universal screw terminal board with on-board prototype area and circuitry.
!
.
Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=282
BP-37/P— PCI backplate with 37-pin connector/cable. Details on this product are available on our web site
!
at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=103&pf_id=1520
.
.
2-4
Chapter 3

Programming and software applications

Programming languages

Measurement Computing’s Universal Library™ provides access to board functions from a variety of Windows programming languages. If you are planning to write programs, or would like to run the example programs for Visual Basic site at www.mccdaq.com/PDFmanuals/sm-ul-user-guide.pdf

Packaged applications programs

Many packaged application programs, such as SoftWIRE and HP-VEE™, now have drivers for your board. If the package you own does not have drivers for your board, please fax or e-mail the package name and the revision number from the install disks. We will research the package for you and advise how to obtain drivers.
Some application drivers are included with the Universal Library package, but not with the application package. If you have purchased an application package directly from the software vendor, you may need to purchase our Universal Library and drivers. Please contact us by phone, fax or e-mail:
or any other language, please refer to the Universal Library User's Guide (available on our web
).
! Phone: 508-946-5100 and follow the instructions for reaching Tech Support. ! Fax: 508-946-9500 to the attention of Tech Support ! Email: techsupport@mccdaq.com

Register-level programming

We recommend that you use the Universal Library or one of the packaged application programs mentioned above for controlling your board. Only experienced programmers should attempt register level-programming.
If you must use register-level programming in your application, refer to the Register Map for the PCI-CTR10. This document is available on our web site at www.mccdaq.com/registermaps/RegMapPCI-CTR10.pdf
3-1
Chapter 4

Specifications

Typical for 25 °C unless otherwise specified.
Specifications in italic text are guaranteed by design.

Counters

Refer to CTS9513-2 data sheet for complete 9513 specifications and operating modes. The SAVE command for the CTS9513 device does not behave predictably when using clocks which are not synchronous with the logic timing. If the SAVE command must be used, we strongly recommend that the 3.3 MHz clock derived from the 33 MHz PCI clock be selected as the clock source. The CTS9513-2 data sheet is available on our web site at
www.mccdaq.com/PDFmanuals/9513A.pdf
Parameter Conditions
Counter type CTS9513
Configuration Two 9513 devices. Five up/down counters per 9513, 16-bits each.
Compatibility 5V/TTL
Each 9513 device is programmable for:
Clock source Software selectable:
External:
! Counter 1-5 clock inputs ! Counter 1-5 gate inputs
Internal:
! Terminal count of previous counter ! X2 clock frequency scaler
Gate Software selectable source:
External:
! Active high or low level or edge, counter 1 – 5 gate input ! Active high level previous gate or next gate ! All external gate signals (CTRnGATE) individually pulled up through 10K resistors to
+5V.
Internal:
! Active high previous counter terminal count ! No gating.
Output
Osc Out Software selectable source:
Clock input frequency 6.8 MHz max (145 nS min period)
X2 clock input sources Software selectable:
Software selectable:
! Always low ! High pulse on terminal count ! Low pulse on terminal count ! Toggle on terminal count ! Inactive, high impedance at user connector counter # output.
! Counter # input ! Gate # input ! Prescaled clock source (X2 clock frequency scaler)
Software selectable divider: ! Division by 1-16 Software selectable enable:
! On or low impedance to ground.
! 1.0 MHz (10 MHz Xtal divided by 10) ! 5.0 MHz (10 MHz Xtal divided by 2) ! 3.3 MHz (33 MHz PCI clock divided by 10)
.
Table 1. Counter specifications
4-1
PCI-CTR10 User's Guide Specifications
Parameter Conditions
X2 clock frequency scaler
High pulse width (clock input)
Low pulse width (clock input)
Gate width high 145 ns min
Gate width low 145 ns min
Input low voltage -0.5 V min, 0.8 V max
Input high voltage 2.2 V min, Vcc max
Output low voltage @ IIl = 3.2 mA
Output high voltage @ IIH = -200 µA
Crystal oscillator frequency
Frequency accuracy 50 ppm
Data transfer Programmed I/O, interrupt
Power-up / reset state CTRnOUT_x: low impedance
BCD scaling (X2 divided by 10, 100, 1000 or 10000) or Binary scaling (X2 divided by 16, 256, 4096 or 65536)
70 ns min
70 ns min
0.4 V max
2.4 V min
10 MHz
OSCOUT_x: enabled

Digital input / output

Table 2. Digital I/O specifications
Digital type
Number of I/O 8 input, 8 output per 37-pin D connector
Configuration, per connector 1 bank of 8 as output, 1 bank of 8 as strobed input
Input high voltage 2.0 V min, 7.0 V absolute max
Input low voltage 0.8 V max, –0.5 V absolute min
Output high voltage 3.94 volts min @ -24 mA (Vcc = 4.5 V)
Output low voltage 0.36 volts max @ 24 mA (Vcc = 4.5 V)
Data transfer Programmed I/O
Power-up / reset state Digital outputs power on and Reset to TTL low
Din Strobe Active low latch enable input, internally pulled high through 10 Kohm resistor
Din Strobe pulse width high/low 15 nS min
Data setup to Din Strobe 5 nS min
Data hold from Din Strobe 20 nS min
Discrete, 5V/TTL compatible
Output:74ACT273
Input: 74LS373
4-2
PCI-CTR10 User's Guide Specifications

Interrupts

Table 3. Interrupt specifications
Number of user interrupts Two
PCI interrupt PCI INTA# - mapped to IRQn via PCI BIOS at boot-time
Interrupt enables
Interrupt sources
External: IRQ_A ENABLE, IRQ_B ENABLE, active low, disabled by default through internal resistor to TTL high) and programmable through PCI9052-1;
0 = disabled 1 = enabled (default)
External: IRQ_A IN, IRQ_B IN, polarity programmable through PCI9052-1; 1 = active high
0 = active low (default)
IRQ_A IN maps to PLX 9052 LINT1
IRQ_B IN maps to PLX 9052 LINT2

Power consumption

Table 4. Power consumption specifications
+5V
+5V available at each I/O connector 1A max, protected with a resettable fuse
Resettable fuse Raychem type miniSMDC110.
550 mA typical, 800 mA max. Does not include power consumed through the I/O connector.
! Hold Current: 1.1 A max ! Series resistance 0.21 Ohms max.

Environmental

Table 5. Environmental specifications
Operating Temperature Range 0 to 55°C Storage Temperature Range -20 to 70°C Humidity 0 to 90% non-condensing

Mechanical

Table 6. Mechanical specifications
Card dimensions PCI half card: 174.4 mm(L) x 106.7 mm(W) x11.65 mm(H)
Form factor PCI 5V keying. Compatible with 5V, 32-bit. 33 MHz back planes
4-3
PCI-CTR10 User's Guide Specifications

Main connector and pin out

The P1 connector is compatible with the CIO-CTR05 and the PCI-CTR05. Both P1 and P2 are compatible with the CIO-CTR10.
Table 7. Main connector specifications
Connector types P1: 37-pin shielded D-type, right angle.
P2: 37-pin unshielded D-type, straight.
C37FF-x, unshielded ribbon cable. Compatible Cables
C37FFS-x, shielded round cable
Compatible accessory products BP37/P (Note 1)
CIO-MINI37 CIO-MINI37-VERT CIO-TERMINAL SCB-37
Note 1: BP37/P is required in order to cable all CTR B signals from P2 to the PC bulkhead.
Table 8. P1 pin out (Counter A) Table 9. P2 pin out (Counter B)
Pin Signal Name
1 IRQ_A INPUT 2 IRQ_A ENABLE 3 DOUT7_A 4 DOUT6_A 5 DOUT5_A 6 DOUT4_A 7 DOUT3_A 8 DOUT2_A 9 DOUT1_A 10 DOUT0_A 11 GND 12 CTR5GATE_A 13 CTR5CLK_A 14 CTR4GATE_A 15 CTR4CLK_A 16 CTR3GATE_A 17 CTR3CLK_A 18 CTR2GATE_A 19 CTR2CLK_A 20 PC +5V 21 DIN STROBE_A 22 DIN7_A 23 DIN6_A 24 DIN5_A 25 DIN4_A 26 DIN3_A 27 DIN2_A 28 DIN1_A 29 DIN0_A 30 OSC OUT_A 31 CTR5OUT_A 32 CTR4OUT_A 33 CTR3OUT_A 34 CTR2OUT_A 35 CTR1OUT_A 36 CTR1CLK_A
37 CTR1GATE_A
Pin Signal Name
1 IRQ_B INPUT 2 IRQ_B ENABLE 3 DOUT7_B 4 DOUT6_B 5 DOUT5_B 6 DOUT4_B 7 DOUT3_B 8 DOUT2_B 9 DOUT1_B 10 DOUT0_B 11 GND 12 CTR5GATE_B 13 CTR5CLK_B 14 CTR4GATE_B 15 CTR4CLK_B 16 CTR3GATE_B 17 CTR3CLK_B 18 CTR2GATE_B 19 CTR2CLK_B 20 PC +5V 21 DIN STROBE_B 22 DIN7_B 23 DIN6_B 24 DIN5_B 25 DIN4_B 26 DIN3_B 27 DIN2_B 28 DIN1_B 29 DIN0_B 30 OSC OUT_B 31 CTR5OUT_B 32 CTR4OUT_B 33 CTR3OUT_B 34 CTR2OUT_B 35 CTR1OUT_B 36 CTR1CLK_B
37 CTR1GATE_B
4-4
Declaration of Conformity
Manufacturer: Measurement Computing Corporation Address: 10 Commerce Way Suite 1008 Norton, MA 02766 USA
Category: Electrical equipment for measurement, control and laboratory use.
Measurement Computing Corporation declares under sole responsibility that the product
PCI-CTR10
to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents:
EU EMC Directive 89/336/EEC: Electromagnetic Compatibility, EN55022 (1995), EN55024 (1998)
Emissions: Group 1, Class B
! EN55022 (1995): Radiated and Conducted emissions.
Immunity: EN55024
! EN61000-4-2 (1995): Electrostatic Discharge immunity, Criteria A. ! EN61000-4-3 (1997): Radiated Electromagnetic Field immunity Criteria A. ! EN61000-4-4 (1995): Electric Fast Transient Burst immunity Criteria A. ! EN61000-4-5 (1995): Surge immunity Criteria A. ! EN61000-4-6 (1996): Radio Frequency Common Mode immunity Criteria A. ! EN61000-4-8 (1994): Power Frequency Magnetic Field immunity Criteria A. ! EN61000-4-11 (1994): Voltage Dip and Interrupt immunity Criteria A.
Declaration of Conformity based on tests conducted by Chomerics Test Services, Woburn, MA 01801, USA in September, 2001. Test records are outlined in Chomerics Test Report #EMI3053.01.
We hereby declare that the equipment specified conforms to the above Directives and Standards.
Carl Haapaoja, Director of Quality Assurance
Measurement Computing Corporation
10 Commerce Way
Suite 1008
Norton, Massachusetts 02766
(508) 946-5100
Fax: (508) 946-9500
E-mail: info@mccdaq.com
www.mccdaq.com
Loading...
