USER’S MANUAL

DBK Options

Option Cards and Modules

DBK41 through DBK609

Part 2 of 2

DBK Option Cards & Modules

457-0912 rev 8.3 (Part 2 of 2)

*372414B-01*

372414B-01

IOtech

25971 Cannon Road

Cleveland, OH 44146-1833

(440) 439-4091

Fax: (440) 439-4093

sales@iotech.com

productsupport@iotech.com

www.iotech.com

DBK Cards & Modules

Part 2 of 2

DBK Cards & Modules

DBKs Covered in Part 2 of 2 (with exception of DBK70)

DBK41, 10-Slot Expansion Module DBK42, 16-Slot 5B Signal Conditioning Module DBK43A and DBK43B, 8-Channel Strain-Gage Modules DBK44, 2-Ch. 5B Signal-Conditioning Card DBK45, 4-Ch. SSH and Low-Pass Filter Card DBK46, 4-Channel Analog Output Card DBK48, Multipurpose Isolated Signal-Conditioning Module (supports up to 16 8B Modules) DBK50 and DBK51, Voltage Input Modules DBK55, 8-Channel Frequency-to-Voltage Input Module DBK60, 3-Slot Expansion Chassis DBK65, 8-Channel Transducer Interface Module DBK70, Vehicle Network Interface, Analog Multiplexer Module (see p/n 1056-0901) DBK80, 16-Ch. Differential Voltage Input Card with Excitation Output DBK81, 7-Ch. T/C Card DBK82, 14-Ch. T/C Card DBK83, 14-Ch. T/C Card, uses external connection pod DBK84, 14-Ch. T/C Module DBK85, 16-Ch. Differential Voltage Module DBK90, 56-Ch. T/C Module DBK100 Series, (DBK100/D, 100/T,101)

In-Vehicle Thermocouple Measurement System

DBK200 Series Matrix DBK200, P4-to-P1 Adapter Board DBK202, DBK203, DBK204 Series

P4-to-P1/P2/P3 Adapters

DBK206, P4-to-P1/P2/P3 Adapter Board with Screw Terminals DBK207 and DBK207/CJC, 16-Channel,

5B Carrier Boards

DBK208, Relay Carrier Board, Opto-22 Compatible

DBK209, P4 to P1/P2/P3 Mini-Adapter Board DBK210, 32-Ch. Digital I/O Carrier Board DBK213, Screw-Terminal & Expansion Module

3-Card Slot, P1/P2/P3/P4 Compatibility

DBK214, 16-Connector BNC Interface Module

P1/P2/P3/P4 Compatibility

DBK215, 16-Connector BNC Connection Module

with 68-Pin SCSI Adaptability

DBK601 thru DBK609, Termination Panels

967194 DBK Cards & Modules

Discontinued DBKs

The following DBKs have been discontinued.

However, documentation for them may be read or downloaded from our website.

DBK12 and DBK13, A/I Multiplexer Cards DBK19, 14-Channel Thermocouple Card DBK33, Triple-Output Power Supply Card DBK34, Vehicle UPS Module DBK40, 18-Connector BNC Analog Interface DBK52, 14-Ch. Thermocouple Input Module DBK53 and DBK54, Analog Multiplexing Modules DBK201, P4-to-P1/P2/P3 Adapter Board DBK603, Termination Panel, Safety Jacks, SE DBK605-B, Termination Panel, T/C, B Type, DE DBK605-R, Termination Panel, T/C, R Type, DE DBK605-S, Termination Panel, T/C, S Type, DE DBK605-U, Termination Panel, T/C, U Type, DE DBK609, Termination Panel, 5-Pin DIN

iv 917594 DBK Option Cards & Modules User’s Manual

DBK41 10-Slot Expansion Module

Overview …… 1 Hardware Setup …… 2

Card Configuration …… 2 Power Configuration …… 2 Card Insertion …… 3

EMI Shield Plates for CE Compliance …… 4 System Connection …… 5 DBK41 – Specifications …… 5

Overview

The DBK41 is a metal enclosure that holds up to 10 DBK cards. The exterior front panel has a male DB37 connector that leads to the LogBook or Daq device or further expansion via a CA-37-x cable. On the inside of the front panel, a backplane printed circuit board (PCB) uses 10 female DB37s with their pins connected in parallel to distribute the P1 interface (can also be used with P2 or P3). From the rear panel, the DBKs’ signal input lines exit to their respective transducers.

Reference Notes:

o Chapter 2 includes pinouts for P1, P2, P3, and P4. Refer to pinouts applicable to your

system, as needed.

o In regard to calculating system power requirements, refer to DBK Basics located near

the front of this manual.

An optional EMI kit provides shield plates for the rear panel to make the DBK41 CE-compliant and prevent EMI from DBKs entering the test environment (or vice-versa). The EMI kit also functions as an electrical safety barrier.

Some DBK cards require a lot of power, in relation to other cards, and the use of power is an important concern. DBK cards can obtain power externally from a LogBook, DaqBook, DaqBoard; or internally from a DBK32A or DBK33 card. Refer to Power Requirements in the DBK Basics section, as well as the sections for the DBK32A and/or DBK33, as applicable.

A power card in any slot (other than the slot leftmost from rear view) will power the other cards via the backplane. A front panel LED will light whenever power from any source is on the backplane. DBK41’s JP1 jumper can be positioned to disable the +5 V power line from the external DB37. This prevents a DBK33 power supply from interfering with other devices.

DBK Option Cards and Modules 877095 DBK41, pg. 1

Hardware Setup

Setup concerns include card and power configuration, proper card insertion, the use of EMI shields for CE compliance, and mounting [or stacking] of hardware components.

In regard to mounting: metal splice plates can be used to rigidly mount a LogBook or DaqBook on top of a DBK41 or other device that shares the same footprint. For applications in which temporary mounting is convenient: a LogBook, DaqBook or notebook PC can be temporarily mounted to a DBK41 with the use of industrial-strength dual-lock pads or strips.

Card Configuration

Each DBK card should be checked for proper configuration, and re-configured if needed, before being inserted into the DBK41. Refer to the individual DBK Document Modules that are applicable to your system.

Power Configuration

Power must be configured to prevent multiple power supplies from interfering with each other via the P1 interface. DBK41, LogBook/360, DaqBook/100 Series & /200 Series, and ISA-type DaqBoard each have JP1 jumpers that must be properly configured in regard to power. Details for each follow.

JP1 in the DBK41

On the DBK41 backplane, JP1 is a 3-pin jumper positioned between DB37 connectors for card number 4 (CN4) and card number 5 (CN5). Two settings are possible, as follows:

ENABLE +5 VDC JP1 1-2 When JP1 pins 1 and 2 are jumpered, the +5 VDC line to the external P1 connector is enabled. The 5 V (VCC) is externally supplied to pin 1 for cards 1 through 10 (CN1 through CN10). The +5 VDC power can come from a LogBook, DaqBook, or DaqBoard through a CA-37-x cable on pin 1 of P1. If not using a DBK33, JP1 should be enabled.

DISABLE +5 VDC JP1 2-3 When JP1 pins 2 and 3 are jumpered, the +5 VDC line to the external P1 connector is disabled. When using a DBK33 power card in the DBK41, the JP1 jumper must be set on pin 2 and 3. The JP1 2-3 setting prevents the DBK33’s +5 V from interfering with external devices via the P1 interface.

JP1 in the DaqBook/100 Series & /200 Series and DaqBoard [ISA type]

CAUTION

DBK power cards must not be connected until JP1 jumpers have been removed. Otherwise, equipment damage could result.

If a DBK32A or DBK33 is used, you must remove the shunt jumpers from the JP1 header located inside the DaqBook/100 Series & /200 Series device or DaqBoard [ISA type]. DaqBook/100 Series & /200 Series devices and DaqBoards [ISA type] are shipped with these shunts positioned to deliver ±15 V analog power to P1.

Note: The jumpers can be placed on the -OCTOUT and -OCLKIN pins but should be removed if there is

interference with card operation (counter-timer).

DBK41, pg. 2 877095 DBK Option Cards and Modules

JP1 and JP2 in LogBook/360

Proper jumper configuration limits LogBook/360’s P1 bus to one power source. There should never be more than one power source. The jumpers are located inside the chassis, on the unit’s P1 Interconnect

Board.

JP1. Only remove LogBook/360’s JP1 jumper if a DBK33 is used with the system. JP2. Only remove the LogBook/360’s JP2 jumper if DBK cards are to be powered from LogBook/360’s

DaqBook/2000 Series & DaqBoard/2000 Series Configuration

No jumper configurations are required for these /2000 series devices.

Card Insertion

Each DBK card has a DB37 male connector which mates with the DB37 female connectors inside the DBK41 chassis. To insert DBK cards into the DBK41 chassis, refer to the figure and perform the following steps.

Note: Cards using screw-connectors for signal input lines must be wired before insertion.

1. Disconnect power from all units to be connected.

internal PCB.

Reference Note:

Refer to the LogBook User’s Manual, 461-0901 for information regarding LogBook systems.

2. Place the DBK41 on a flat surface; loosen the two thumbscrews on rear of the case; and remove the top cover by sliding it off.

3. Align the DBK card with the DBK41 connector to be used (CN1 to CN10). The first slot must always be occupied; however, a DBK32A or DBK33 power card may not occupy the first slot. Any of the remaining 9 slots can be used or unused.

4. To clear the lip on the rear panel, tilt the rear of the card upward. Engage the P1 connectors of the card and chassis, and press together gently to avoid damage to the pins.

5. Press down the rear of the card, aligning it within the metal dimples at the rear of the DBK41.

6. After cards are in place, reassemble the DBK41’s top cover and attach optional shield plates (described next); then re-connect and power up the system.

DBK Option Cards and Modules 877095 DBK41, pg. 3

EMI Shield Plates for CE Compliance

To reduce electro-magnetic interference (EMI) escaping from (or entering into) the enclosure, a CE kit provides shield plates that attach to the rear of the DBK41. The kit also functions as an electrical safety barrier. With shield plates attached (a combination of 3 types supplied), the system meets CE standards. The kit includes:

• Full shield plates to cover empty (unused) slots

• Partial shield plates to surround DBKs in a slot (except a power card)

• Partial shield plates to surround a DBK32A or DBK33 power card

• Screws and star washers to secure the shields to the chassis

Note: The CE kit is included with the DBK41/CE and an optional accessory for a DBK41.

The shields have a support tab that slides over the edge of the bottom plate and a screw hole for attachment to the top plate. When tightened, the screws cause the washers to pierce the surface coating into the metal to make a good contact with chassis ground.

Reference Note: The Signal Management chapter contains additional information pertaining to CE Compliance.

DBK41, pg. 4 877095 DBK Option Cards and Modules

System Connection

A short ribbon cable (CA-37-x) attaches the DBK41 to the main unit. Connecting the DBK41 to any port other than P1 may damage devices in the system. Likewise, only analog expansion cards may be installed in the DBK41.

Note: For CE compliance, the CA-37-x cable must be replaced with a CA-143-7 or

CA-143-18. Multiple chassis require a “T” connector (part # CN-143) for branching.

Examples of DBK41 Connections [with DBK32A] and Cascading Power

DBK41 - Specifications

Name/Function: 10-Slot Analog Expansion Module

Card Capacity: 10 slots to hold standard DBK option cards

Weight: 4 lb (with no cards installed)

Cable (optional): 8" ribbon with DB37 female to DB37 female (CA-37-x)

Power Indicator: LED powered by external device’s 5 VDC

Connection: Male DB37, mates via CA-37-x cable with P1

DBK Option Cards and Modules 877095 DBK41, pg. 5

DBK41, pg. 6 877095 DBK Option Cards and Modules

DBK42 16-Slot 5B Signal Conditioning Module

Overview …… 1 Hardware Setup …… 2

DBK42 Connection …… 2 DBK42 Configuration …… 2 5B Module Connection …… 2 Power Considerations …… 2 Terminal Block Connections …… 3 DaqBoard/2000 Series and cPCI DaqBoard/2000c Series Connections …… 5 DaqBook/100 Series & /200 Series and ISA-Type DaqBoard Configuration …… 5 DaqBook/2000 Series and DaqBoard/2000 Series Configuration …… 5

Software Setup …… 6 DBK42 – Specifications …… 8

Reference Notes:

o Chapter 2 includes pinouts for P1, P2, P3, and P4. Refer to pinouts applicable to your

Overview

The DBK42 allows LogBook or Daq device systems to work with up to 16 5B signal conditioning modules. Modules are available for various signal types (e.g., low-level thermocouple signals, strain-gage signals, etc). The DBK42 offers 500 V isolation from the system and between channels. The DBK42 is compatible with all 5B output modules, and the configuration is very flexible. You can select the type of signal attached to each channel.

system, as needed.

o In regard to calculating system power requirements, refer to DBK Basics located near

the front of this manual.

An accessory cable connects the DBK42’s output to the P1 analog input connector. One LogBook or Daq device can support up to 16 DBK42 units with a maximum of 256 isolated analog input channels. The

LogBook or Daq device scans the DBK42 channels at the same 10 µs/channel rate as other DBKs (256 scans in 2.56 ms in a full system).

The DBK42 can obtain power from an included AC adapter, an optional DBK30A rechargeable battery module, or directly from a 12 VDC source (such as a car battery). The built-in power supply can serve a fully-configured system using bridge excitation.

For DaqBoard/2000 Series applications, DBK42 is typically powered from an included AC adapter. The unit’s built in power supply can serve a fully-configured system using bridge excitation.

DBK Option Cards and Module 967694 DBK42, pg. 1

Each terminal block contains 4 terminals (per channel) for access to input and excitation features of 5B modules.

The optional CN-71 and CN-72 signal connection blocks provide a convenient way of connecting analog signals to the DBK42.

• The CN-71 is for non-thermocouple use.

• The CN-72 (with cold junction sensors) is for thermocouple use. The CN-72 has a clear

Hardware Setup

DBK42 Connection

The DBK42 has screw-terminal connectors for easy access to the analog inputs. 2-wire and 4-wire hookups are shown later in this section.

Note: Analog channels are isolated from each other, and no analog ground is provided.

DBK42 Configuration

Up to 16 DBK42s can connect to a LogBook or a Daq device. As a daisy-chain interface, each module must appear unique and use a different channel.

To configure the module, locate the 16×2-pin header (JP1) near the front of the DBK42 board. Note the 16 jumper locations labeled CH0 through CH15 representing the base Analog Input Channels. Place the jumper on the channel you wish to use.

plastic shield over its screw terminals to protect you from high voltage on the input terminals.

Only one jumper is used on a single DBK42. No two cards in a system can use the same JP1 setting.

5B Module Connection

Each input of the DBK42 is processed through a user-installed 5B signal-conditioning module. Different 5B modules are used with different transducer and signal sources. To install the modules:

1. Match the footprint of the module with the footprint on the circuit board (see figure).

2. Gently place the module into the footprint, and screw it down.

3. When installing current input modules (SC-5B32 series), install the supplied current-sense resistor (SC-AC-1362) in the resistor footprint adjacent to the module mounting footprint.

4. Record the module’s channel number; label all units and connectors for identification.

Power Considerations

The DBK42 has an internal, isolated switching-type power supply that operates on 10-20 VDC at varying input currents depending on the input voltage and 5B-module loading. The power drain at a given output load is constant; input current will vary inversely with the input voltage.

DBK42, pg. 2 967694 DBK Option Cards and Modules

A DBK42 populated with strain-gage modules will draw more current than with other types of input modules. The table shows the DC input requirements for the worst-case setup (with 16 strain-gage modules or 16 thermocouple modules).

Input Volts

With Strain-Gage Modules With Thermocouple Modules

10 VDC 3.0 A 0.60 A

11 VDC 2.7 A 0.54 A

12 VDC 2.4 A 0.48 A

13 VDC 2.2 A 0.44 A

14 VDC 2.0 A 0.40 A

15 VDC 1.9 A 0.38 A

16 VDC 1.8 A 0.36 A

17 VDC 1.7 A 0.34 A

18 VDC 1.6 A 0.32 A

19 VDC 1.5 A 0.30 A

20 VDC 1.4 A 0.28 A

Input Amperes

Power sources include:

• The standard TR-25 AC plug-in power pack (provided with the DBK42) can supply 900 mA at 15 VDC. The optional TR-40U can supply 2700 mA at 15 VDC.

• The DBK30A battery pack can supply power for a typical DBK42 configuration; however, in a fully-populated strain-gage configuration, the battery run-time will be limited to about 1½ hours.

• A 12 V lead-acid gel-cell type battery can easily power a fully-populated strain-gage configuration. The battery drain will be about 2.4 A-hr; battery size should be considered for systems with long run-times. (For example, a common-size 5.0 A-hr battery will operate for about 2 hours). A typical automotive 12-V lead-acid battery (e.g., 60 A-hr) can easily power a DBK42 for long run-times (about 24 hours).

The input fuse is a 4-A Slo-Blo 1-1/4" × 1/4" glass-type such as Littelfuse 313004 or Bussman MDL-4.

Terminal Block Connection

Input signals (and excitation leads) must be wired to the DBK42 signal termination panel. Sixteen 4-terminal blocks accept up to 16 inputs. These connectors are located on a removable PC board that plugs into two DIN96 rectangular connectors on the rear panel.

Terminal blocks are connected internally to their corresponding signal conditioning module. The terminal blocks accept up to 14-gage wire into quick-connect screw terminals. Terminals on each block are numbered 1 through 4. Each type of input signal or transducer (such as a thermocouple or strain gage) should be wired to its terminal block as shown in the figure. Wiring is shown for RTDs, thermocouples, 20 mA circuits, mV/V connections, and for full- and half-bridge strain gages.

DBK Option Cards and Module 967694 DBK42, pg. 3

WARNING

Shock Hazard! The DBK42 is designed to sense signals that may carry dangerous voltages. De-energize circuits connected to the DBK42 before changing the wiring or configuration.

P1 Connection. The DBK42 attaches to the P1 analog I/O connector or to a DBK200 series P4-Adapter

P1 analog I/O connector. (Up to 16 units can be attached to one LogBook or Daq device.) Connect the appropriate ribbon cable (with -x indicating the number of cards to be connected) from the LogBook, Daq device, or adapter P1 port to the DB37 connector at the end of the option card.

Note: A series of interface cables are available for connecting up to sixteen DBK42s.

DBK42, pg. 4 967694 DBK Option Cards and Modules

DaqBoard/2000 Series and cPCI DaqBoard/2000c Series Connections

DBK42 can be connected to the P1 connector of DaqBoard/2000 Series P4-adapters. Up to 16 units can be attached to one DaqBoard/2000 Series board.

Connect the appropriate ribbon cable (with -x indicating the number of cards to be connected) from the adapter’s P1 port to the DB37 connector at the end of the option card.

Note: A series of interface cables is available for connecting up to 16 DBK42s.

DaqBook/100 Series & /200 Series and ISA-Type DaqBoard Configuration

The DBK42 requires two setup steps in DaqBook/100 Series & /200 Series devices and DaqBoards [ISA type]—jumpers JP1 and JP4.

1. If not using auxiliary power, place the JP1 jumper in the expanded analog mode.

Note: This default position is necessary to power the interface circuitry of the DBK42 via the internal

±15 VDC power supply. If using auxiliary power (DBK32A, or DBK33), you must remove both JP1 jumpers. Refer to Power Requirements in the DBK Basics section of the manual. Also, refer to the DBK32A and DBK33 sections as applicable.

2. For DaqBook/100, /112, and /120 only, place the JP4 jumper in the DaqBook/100 & /200 or ISA-type DaqBoard in single-ended mode. Analog expansion cards convert all input signals to single-ended voltages referenced to analog common.

DaqBook/2000 Series and DaqBoard/2000 Series Configuration

No Jumper configurations are required for these /2000 series devices.

DBK Option Cards and Module 967694 DBK42, pg. 5

Software Setup

You will need to set several parameters so DaqView can best meet your application requirements. After the 5B module type is identified, DaqView figures out the m and b (of the mx+b equation) for proper engineering units scaling. An example of the mx + b equation follows shortly.

The mx + b calculations for most 5B modules are included within LogView software.

PDF Note:

Reference Note:

o For DaqView information refer to chapter 3, DBK Setup in DaqView and to the DaqView

PDF included on your data acquisition CD.

o For LogView information refer to chapter 4, DBK Setup in LogView and to the LogView

section of the LogBook PDF included on your data acquisition CD.

o The API includes functions applicable to the DBK42. Refer to related material in the

Programmer’s Manual (p/n 1008-0901) as needed.

During software installation, Adobe

PDF versions of user manuals automatically install onto

your hard drive as a part of product support. The default location is in the Programs group, which can be accessed from the Windows Desktop. Refer to the PDF documentation for details regarding both hardware and software. Note that you can also access PDF documents directly from the data acquisition CD via the <View PDFs> button on the CD’s opening screen.

mX +b, an Example

The Customize Engineering Units dialog box can be accessed via the DaqView Configuration main window by activating the Units cell [for the desired channel], then clicking to select mX+b.

From the Customize Engineering Units dialog box (see figure at right), you can enter values for m and b components of the equation that will be applied to the data. There is also an entry field that allows you to enter a label for the new units that may result from the mX+b calculation.

An example of mX + b equation use follows.

DBK42, pg. 6 967694 DBK Option Cards and Modules

Engineering Units Conversion Using mx + b

Most of our data acquisition products allow the user to convert a raw signal input (for example, one that is in volts) to a value that is in engineering units (for example, pressure in psi). The products accomplish this by allowing the user to enter scale and offset numbers for each input channel, using the software associated with the product. Then the software uses these numbers to convert the raw signals into engineering units using the following “mx + b” equation:

(1) Engineering Units = m(Raw Signal) + b

The user must, however, determine the proper values of scale (m) and offset (b) for the application in question. To do the calculation, the user needs to identify two known values: (1) the raw signal values, and (2) the engineering units that correspond to the raw signal values. After this, the scale and offset parameters can be calculated by solving two equations for the two unknowns. This method is made clear by the following example.

Example

An engineer has a pressure transducer that produces a voltage output of 10.5 volts when the measured pressure is 3200 psi. The same transducer produces an output of 0.5 volt when the pressure is 0 psi. Knowing these facts, m and b are calculated as follows.

A - Write a pair of equations, representing the two known points:

(2) 3200 = m(10.5) + b

(3) 0 = m(0.5) + b

B - Solve for m by first subtracting each element in equation (3) from equation (2):

(4) 3200 - 0 = m(10.5 – 0.5) + (b - b)

(5)

Simplifying gives you: 3200 = m(10)

(6)

This means: m = 320

C - Substitute the value for m into equation (3) to determine the value for b:

(7) 0 = 320 (0.5) + b

(8)

Therefore: b = - 160

Now it is possible to rewrite the general equation (1) using the specific values for m and b that we just determined:

(9) Engineering Units = 320(Raw Signal) - 160

The user can then enter the values of m and b into the appr opriate location using the facilities provided by compatible data acquisition software, for example: WaveView, DaqView, Personal DaqView, LogView, and TempView. The software uses equation (9) to calculate signal values in engineering units from that point on.

DBK Option Cards and Module 967694 DBK42, pg. 7

DBK42 – Specifications

Name/Function: 16-Slot 5B Signal Conditioning Module

Module Capacity: 16 (input only) 5B modules

Size: 8.5" × 11" × 3.5" (11" × 11" × 3.5" with optional CN-71 or CN-72)

Weight: 4 lb (with no modules installed)

Cable (optional): CA-37-1

Power Requirements: 10-24 VDC @ 2.6 - 0.3 A

With 16 thermocouple-type modules:

12 VDC @ 0.50 A 15 VDC @ 0.40 A 18 VDC @ 0.35 A

With 16 strain-gage type modules:

12 VDC @ 1.9 A 15 VDC @ 1.5 A 18 VDC @ 1.3 A

DC Input Fuse: 3A Power Indicator: LED powered by internal 5 VDC Power Connection: DIN5 ×2 for daisy-chaining AC Power Pack::

120 VAC to 15 VDC converter 120 VAC to 15 VDC @ 2.0 A (optional)

Input Connections: DIN96 rectangular, standard, screw terminal adapter (optional)

Connection: Male DB37 mates via CA-37-1 cable with P1

DC/DC Converter: 10-24 VDC to 5 VDC (isolated)

Isolation:

Input Power to System: 500 VDC Signal Inputs to System: 1500 VDC Input Channel-to-Channel: 500 VDC

DBK42, pg. 8 967694 DBK Option Cards and Modules

DBK43A and DBK43B 8-Channel Strain Gage Modules

Overview …… 1 Hardware Connection …… 3

Power Connection …… 3 Signal Connection …… 3

Hardware Configuration …… 4

Bridge Applications …… 5 AC Coupling and Low-Pass Filter Options …… 11 P1 Output Channel and Card Address Selection …… 12 DaqBook/100 Series & /200 Series and DaqBoard [ISA type] Configuration …… 12 DaqBook/2000 Series and DaqBoard/2000 Series Configuration …… 13

Hardware Adjustment …… 13

Trimpots …… 13 CAL/NORM, CAL1/RUN, and CAL2/RUN Switches …… 13

Software-Controlled Setup …… 14

Selecting Channel Types in DaqView, or <odes in LogView ……14 A Typical Setup Procedure with Embedded Examples ……16

GageCal, Calibration Program for DBK16, DBK43A, & DBK43B in Daq Applications ……21 Calibrating DBK16, DBK43A, & DBK43B for LogBook Applications ……25

Overview …… 25 Calibration Methods …… 26 Procedures Common to All Calibration Steps (Required) …… 27 Nameplate Calibration and Manual Calibration …… 30 Channel Calibration Procedure …… 33 2-Point Calibration …… 36 Shunt Calibration …… 38 Creating a Units Conversion Transfer Function …… 40 Periodic Calibration Without Trimpots …… 41

Specifications …… 42

Reference Notes:

o In regard to calculating system power requirements, refer to the section Power

Requirements in the DBK Basics section located at the beginning of the manual.

o Chapter 2, System Connections and Pinouts, includes pinouts for P1, P2, P3, and

P4. Refer to the pinouts that are applicable to your system, as needed.

Note: Due to flexibility in configuration, please review the entire section before attempting setup and

operation.

Overview

The DBK43A and DBK43B will condition signals from most bridge-circuit transducers that have a signal output of less than 50 mV. Strain gages and load cells are common types. We will use the terms: module(s), gage module(s), and strain gage module(s) to refer to both units, except when a feature or function is exclusive to a specific module.

Primary Differences between the DBK43A and DBK43B

• Time Stamping – Can be used with DBK43B; Stamping should not be used for DBK43A*

• Event Marking – Can be used with DBK43B; Marking should not be used for DBK43A*

• Input Signal Connectors – DBK43A uses a mini-DIN6 connector for each channel.

DBK43B uses a removable screw terminal block for each channel.

• Calibration Switches – DBK43B has a two calibration slide switches (CAL1 and CAL2). The

DBK43A has one CAL/NORM switch.

• Power LED – The DBK43A and DBK43B have different locations for the Power LED.

In DBK43A – Time Stamping and Event Marking result in erroneous readings at the time of the stamping or marking.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 1

For half-bridge and quarter-bridge strain gages, the modules can accommodate usersupplied BCRs (bridge-completion resistors) that complete the bridge circuit. The bridge circuit must be complete for the strain gage module to operate correctly.

Each channel of the strain gage module offers a selectable 3-pole, low-pass filter with a user-set cut-off frequency. Remote-sense terminals are provided to make 6-wire Kelvin connections. Up to two modules can be connected to each of 16 analog base channels for up to 256 input signals.

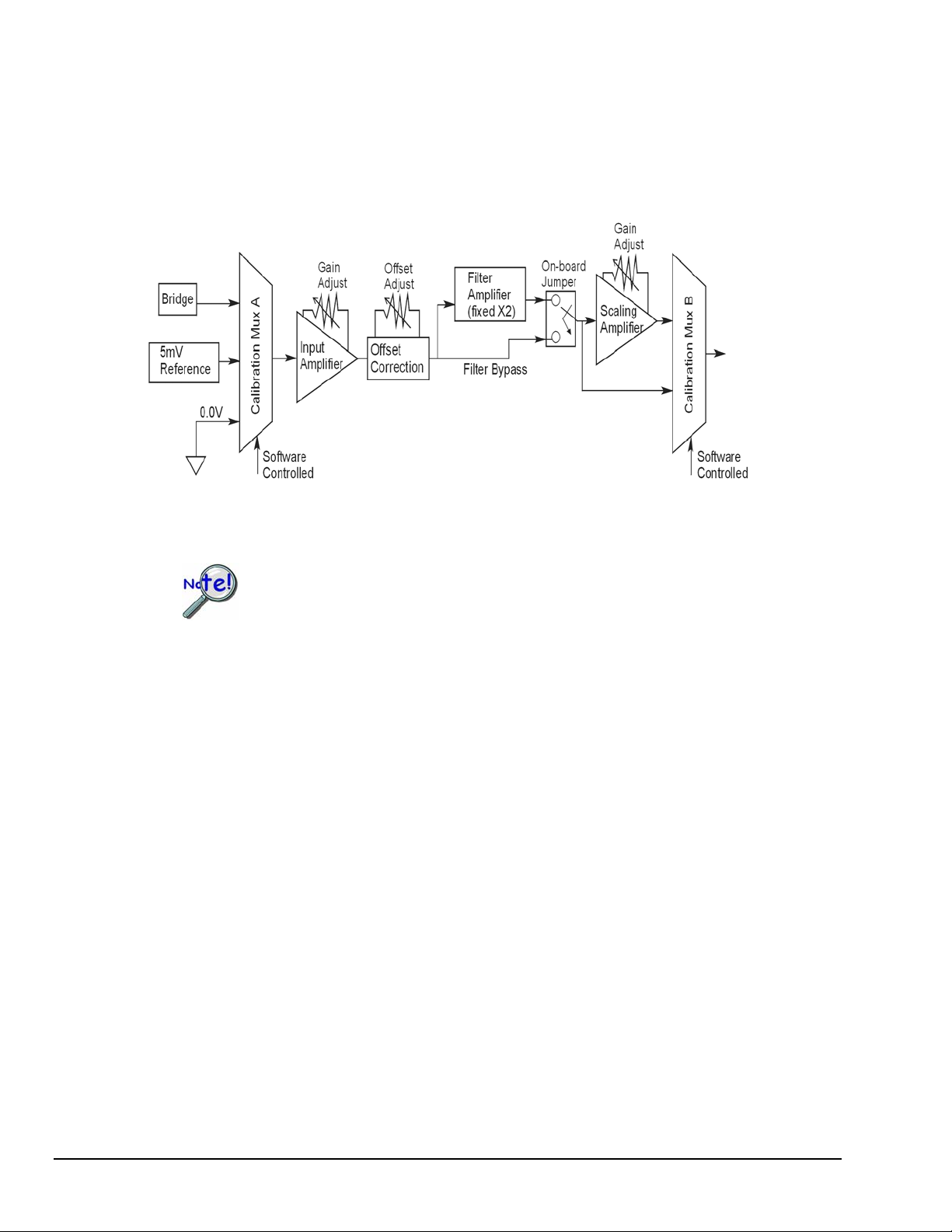

DBK43A and DBK43B Block Diagram

Note A: DBK43A uses Mini DIN-6 connectors for signal inputs. DBK43B uses removable screw-terminal blocks.

Note B: Channels 0 through 7 correspond with circuit board channels 100 to 800, as discussed in the Hardware

Configuration section.

Both strain gage modules provide an amplifier gain range of ×100 to ×1250 for use with strain gages having

0.4 to 10 mV/V sensitivities. Most strain gages are specified for a full-scale value of weight, force, tension, pressure, or deflection with an output of mV/V of excitation. For example, a strain gage with a full-scale rating of 1000 lb of tension might output 2 mV/V of excitation at full load. With an excitation of 10 VDC, 1000 pounds of load would produce an output of 20 mV.

The module’s 0 to 5 VDC offset and output-scaling permit nulling of large quiescent (inactive or motionless) loads and expansion of the dynamic range for maximum resolution. Typically, the quiescent output is non-zero. Prior to a force being applied, a mounted strain gage can be in a state of partial deflection resulting in an output. In the case of a tension gage, this output may be due to the weight of a hook or empty container.

The modules include an internal excitation voltage source. The wide-range excitation regulator is adjustable from

1.5 to 10.5 VDC with a current limit of 50 mA.

DBK43A & DBK43B, pg. 2 899892 DBK Option Cards and Modules

Hardware Connection

Power Connection

The strain gage modules each require an input voltage between +9 and +18 VDC. The DC source should be filtered but not necessarily regulated — a DBK30A Rechargeable Battery/Excitation Module is recommended for portable use. The DBK43A and DBK43B strain gage modules have an isolated DC/DC converterbased power supply which provides all excitation voltages and biasing for the amplifier circuits. For both modules, each of eight on-board excitation regulators can be adjusted from 1.5 to

10.5 VDC. These outputs have remote sensing terminals and feature 50 mA current limiting to prevent damage from short-circuit or overload. The regulators’ wide voltage range can accommodate any resistive or semi-conductive gage type.

The DBK43A and DBK43B can be powered with an AC adapter or from any isolated 9-18 VDC source of 16 W (see figure). Before plugging unit in, make sure the power switch is in the “0” (OFF) position.

If using an AC power adapter, plug it into an AC outlet and attach the low voltage end to the jack

on the DBK43A or DBK43B, as applicable.

If using a different 9 VDC to 18 VDC source, make sure the leads are connected to the proper

DIN terminals. Power connections for DBK43A and DBK43B are the same.

Signal Connection

CAUTION

POWER IN : The power connectors are rated at 5 amps maximum DC current. The power supply provided with the module can power the unit but not any auxiliary devices. If using the unit’s power supply, do not use the POWER OUT terminal.

If using another power supply to power auxiliary devices from the POWER OUT terminal, make sure that power supply is current-rated for the units connected (up to 5 amps DC).

POWER OUT : Maximum output current is 3 amps DC. Use a power supply capable of supplying 5 amps DC at POWER IN.

CAUTION

The maximum channel signal input from plus Voltage (+V) to minus Voltage (-V) is 50 mV. There is no common-mode isolation between inputs (common-mode voltage between inputs must be 0 V).

The following two figures (next page) each represent one of the 6-pin signal connectors located on the back of a DBK43A (left figure) and DBK43B (right figure). Both configurations are for a full-bridge with remote sensing.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 3

DBK43A uses a mini-DIN6 connector with pre-defined wire color coding based on a CA-132 cable. Color coding of wires for DBK43B is user-defined.

DBK43A

DBK43B

Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6

- Sense - Exc. - V + V + Exc. + Sense

+ Sense - Sense + V - V + Exc. - Exc.

DBK43A Connection Example

Full-Bridge with Remote Sensing

*Colors in this schematic are determined by the Mini-DIN6 connector pin and the color code of the CA-132 cable.

DBK43B Connection Example

Full-Bridge with Remote Sensing

Colors in this schematic are arbitrary. Actual wiring color is user defined.

The connectivity aspect of DBK43A and DBK43B differs, as indicated in the two wiring diagrams. Be sure to use the correct diagram for your specific hardware.

The DBK43B pinout and diagram above supersede the one found in the DBK Option Cards and Modules User’s Manual rev 8.2.

Hardware Configuration

Factory Defaults:

Bridge configuration: Full

Coupling: DC

Low pass filter: Disabled (bypassed)

Unless special arrangements have been made, the cutoff frequency is disabled (bypassed) when the strain gage module is shipped from the factory. If the low pass filter is enabled it will have a default value of 3.7 Hz.* You can enable the low pass filter [on an individual channel basis] by orienting the associated channel’s Filter Jumper (JP104 for channel 0 through JP804 for channel

7) to the vertical position. Refer to the following board layout in regard to jumper location and orientation.

*DBK43A and DBK43B are shipped with a 100 kΩ resistor in each of eight channel filter locations. The

resistors are installed in locations R105-106-107 through R805-806-807 (for channels 0 through 7 respectively). Refer to the following board layouts.

Configuration options:

Bridge Applications using various bridge-completion resistors and jumpers

AC Coupling and Low-Pass Filter Options

P1 Output Channel and Card Address Selection

The following board layout can be referred to for jumper, switch, and resistor locations.

DBK43A & DBK43B, pg. 4 899892 DBK Option Cards and Modules

CH7 CH6 CH5 CH4 CH3 CH2 CH1 CH0

Power CAL1 CAL2 LED

BK43B Board (Rear PanelSection)**

DBK43B (Rear Panel)**

** With exception of the rear panel area, the DBK43B has the same board layout as the DBK43A. On the DBK43B the Power

LED is located between the Power switch and the Power In connector. Another difference is that the DBK43B has a two calibration slide switches (CAL1 and CAL2). The DBK43A has one CAL/NORM switch. In regard to channel connectors, DBK43B employs removable screw terminal blocks; DBK43A uses mini-DIN6 connectors.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 5

Bridge Applications

There are several ways to hook-up strain gages—all are configured into a 4-element bridge (the 4 legs in a bridge circuit). The quarter-, half- or full- designation for a strain gage refers to how many elements in the bridge are strain-variable.

quarter bridges - have 1 strain-variable element half bridges - have 2 strain-variable elements full bridges - have 4 strain-variable elements

DBK43A and DBK43B boards include a silkscreen pictorial aid, as indicated in the following figure. On the boards, the image appears between the channel inputs and Headers H100 through H400.

FULL BRIDGE

DEFAULT

Each channel of the strain gage module has locations for bridge-completion resistors when using quarterand half-bridge strain gages. These resistors are fixed values necessary to fill out the 4-element bridge configuration.

FULL BRIDGE

WITH REMOTE

EXCITATION SENSING

3 WIRE QUARTER

BRIDGE

3 WIRE QUARTER

BRIDGE

FULL BRIDGE

WITH REMOTE

SHUNT CAL RESISTOR

On-Board Silkscreen Aid for Configuring Jumper Headers H100 through H800.

The following is a standard symbol for a 4-element bridge type strain gage. The figure makes use of bridge-completion resistor designations for a module’s channel.

Any or all of the 4 resistive elements may be strainvariable. Where an element is a fixed resistor, the fixed resistor may be installed in the internal location provided. Note that n is the channel number +1. For an internal resistor on channel 7, the location is R800E.

If R1-R4 is a fixed resistor it may be placed internally in the Rn locations on the resistor plug. “n” is the channel number + 1. R1 = Rn00F; R2 = Rn00C; R3 = Rn00E; R4 = Rn00B. Example: R3 in channel 7 = R800E location.

Bridge Completion Resistors

Connections are provided for Kelvin-type excitation. The excitation regulators stabilize the voltage at the points connected to the on-board sampling dividers. Unless you run separate sense leads to the excitation terminals of the strain gage, the voltage regulation is most accurate at the terminal blocks on the DBK43A or DBK43B. In a Kelvin-type connection, six wires run to a 4-element strain gage, and the excitation regulation is optimized at the strain gage rather than at the terminal blocks. This connection works with as little as 10 feet of 22 gauge lead wire if accuracy is critical. (See Full-Bridge with Remote Excitation Sensing Configuration in full-page figure.)

Kelvin-type Excitation Leads

DBK43A & DBK43B, pg. 6 899892 DBK Option Cards and Modules

The Kelvin connection using the remote sensing lines performs best when the entire bridge is localized (no bridge-completion resistors inside the DBK43A or DBK43B) and all leads are contained in a multiconductor cable. If individual wire leads are used, the two sense wires should be tightly twisted to form a pair. Likewise, the two excitation wires and the two bridge-output wires should be twisted together).

The internal excitation source is attached to a voltage regulator in the strain gage module’s circuitry. The regulator provides the excitation to the actual transducer (there is a separate regulator for each transducer, hence 8 regulators per strain gage module). Each regulator has a maximum current of 50 mA. The maximum excitation voltage that can be provided by the module’s excitation regulator is:

MAX[EXC]

= 0.05 × R (where R = the resistance in ohms of 1 element in the bridge circuit).

CAUTION

The following full-page figure shows various strain-gage configurations.

Setting the excitation voltage above the maximum voltage allowed can cause the DBK43A or DBK43B to fail. The maximum allowable excitation voltage is determined by the following equation.

MAX[EXC]

= 0.05 x R

R is the resistance in ohms of 1 element in the bridge circuit.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 7

Bridge Configuration Settings for DBK43A and DBK43B

DBK43A & DBK43B, pg. 8 899892 DBK Option Cards and Modules

Input Configuration Headers

Eight 2×6 pin-headers with pin numbers 1 to 12 are on the board, 1 for each channel designated H100 (channel 0) to H800 (channel 7). The user can position jumpers on this header to configure inputs from a variety of bridge types.

Jumping header pins 1-to-2 and 3-to-4 connects the +Vin and -Vin to the calibration MUX for different

bridge configurations.

Jumping pins 5-to-7 and 9-to-11 allows internal sense regulation of the excitation regulator.

Jumping pins 5-to-6 and 11-to-12 allows for remote excitation sensing.

Jumping pin 10-to-12 allows the use of a remote shunt-calibration resistor.

See previous figure for header configurations that correspond with different bridge-wiring schemes.

Resistor Sockets and Adapter Plugs

Eight 2×8 resistor sockets with rows numbered A to H are on the board; 1 socket for each channel and designated R100 (channel 0) to R800 (channel 7). An adapter plug for soldering resistors is included for each channel; usersoldered plugs facilitate changing configurations as needed.

Bridge-completion resistors include: Rn00B, Rn00C, Rn00E, and Rn00F. Resistors Rn00A and Rn00G are

used to complete 3-wire strain-gage configurations.

Rn00D and Rn00H are internal shunt resistors from +V in and -V in respectively to -excitation.

Match the proper row as shown in the figure, Bridge-Configuration Settings for DBK43A and DBK43B (previous page).

DO NOT just insert resistors into sockets. Such connections are unreliable.

To achieve a reliable connection, solder resistors to the adapter plug

Soldering should be done with the plug inserted into the resistor socket; otherwise, heat from soldering can distort the shape of the plug.

After soldering, the resistor leads should be snipped off close to the support to prevent contact with other components.

Handle the adaptor plugs with care to prevent pin damage.

Shunt-Calibration Resistors

DBK43A and DBK43B provide physical locations for internal shunt-calibration resistors. Each channel has resistor locations that can be shunted across one or the other of the lower bridge arms by a hardware and software-accessible solid state switch (FET transistor) to create a repeatable bridge imbalance with a precision resistor.

For any balanced bridge, a resistance value can be applied in parallel with one of the four bridge elements to create a predictable imbalance and output voltage. For example, a 350Ω 2mV/V strain gage will deliver full output if one arm drops by 0.8% (about 2.80Ω) to 347.2Ω. A 43.4 KΩ resistance shunted across one or the other lower bridge elements will result in full-positive (Rn00H) or full-negative (Rn00D) output. For best results, Rn00H and Rn00D should be across the strain element when it is switched in.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 9

A formula used to calculate the shunt-cal resistance value is:

Shunt

Where:

= [R

Shunt

Gage

Gage / FG

= the shunt calibration resistor value

= the resistance of the gage

(ε) ] - R

Gage

FG = the gage factor ε = the strain value of the gage

Example:

An engineer wants to know the shunt calibration resistor value for a strain gage with the following parameters.

resistance: 120 Ω gage factor: 2.0 strain: 5000 micro-strain, i.e., 5000 x 10

Plugging the values into the equation, we get:

Shunt

In all cases, the resistance of the solid-state switch will be negligible when compared to the shunt resistance. Changing the CAL/NORM switch (on the rear panel) to the CAL position while reading the bridge will activate the shunt-calibration resistors. After reading the offset, return the switch to the NORM position for normal bridge readings.

= [R

Gage / FG

= [120 / 2.0(5000 x 10-6)] - 120

= [120 / .01] – 120

= 12000 – 120

= 11,880 Ω

(ε) ] - R

Gage

-6

DBK43A & DBK43B, pg. 10 899892 DBK Option Cards and Modules

AC Coupling and Low-Pass Filter Options

Per channel, the strain gage modules each accommodate coupling and low-pass filter options including:

• AC-coupling or DC-coupling

• Using or bypassing the filter

• Choice of the filter’s corner frequency via a SIP resistor network

• Filter gain (default of ×2 can be changed to ×1).

The AC-coupling or DC-coupling choice on each channel is set by the presence or absence of shunt jumpers on 2-pin headers. If the shunt jumper is in place, the coupling is DC. If the shunt jumper is absent, the coupling is AC. See table for channels and corresponding headers.

The choice of using or bypassing the low-pass filter for each channel is made by the orientation of two shunt jumpers on a 2×2 pin header. When the shunt jumpers are oriented horizontally (like the “bypass” symbol on the circuit board) the filter is bypassed. When the shunt jumpers are oriented vertically (like the “filter” symbol), the filter is in the signal path.

Channel Header

0 JP103 1 JP203 2 JP303 3 JP403 4 JP503 5 JP603 6 JP703 7 JP803

Channel Header

0 JP104 1 JP204 2 JP304 3 JP404 4 JP504 5 JP604 6 JP704 7 JP804

The corner frequency of a low-pass filter is determined by three resistor values in each filter circuit. The resistors are listed in the following table. These resistor locations have been physically arranged to allow the use of a 6-pin SIP network as a convenient means of changing all 3 resistors. The machined-pin socket will also allow you to insert individual resistors.

Channel Resistors

0 R105-R106-R107 1 R205-R206-R207 2 R305-R306-R307 3 R405-R406-R407 4 R505-R506-R507 5 R605-R606-R607 6 R705-R706-R707 7 R805-R806-R807

The next table is a list of some common frequencies, the nominal resistance value, and a Bourns part number for a suitable network.

Frequency

133kHz 10 4606X-102-100

66.7kHz 20 4606X-102-200

26.6kHz 50 4606X-102-500

13.3kHz 100 4606X-102-101

6.67kHz 200 4606X-102-201

2.66kHz 500 4606X-102-501

1.33kHz 1K 4606X-102-102 667Hz 2K 4606X-102-202 266Hz 5K 4606X-102-502 133Hz 10K 4606X-102-103

66.7Hz 20K 4606X-102-203

26.6Hz 50K 4606X-102-503

13.3Hz 100K 4606X-102-104

Resistance (Ω)

Bourns P/N

The active low-pass filters have a gain of ×2. This gain can be factored into the setup calculations, or the filter gain can be changed to ×1. To change the gain to ×1 (unity) for the corresponding channels, de-solder (or snip leads) and remove the resistors shown in the table.

Note: The default ×2 gain option meets the needs of most applications.

Channel R (10K)

0 R144 1 R244 2 R344 3 R444 4 R544 5 R644 6 R744 7 R844

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 11

P1 Output Channel and Card Address Selection

All 8 channels on the strain gage module are multiplexed into 1 of the LogBook or Daq Device base channels (0 to 15). The base channel (that the DBK43A or DBK43B is multiplexed into) is set by the shunt jumper on the 16×2 header designated JP1.

Each base channel can have up to 16 expansion channels multiplexed into it. Since the strain gage module represents 8 expansion channels, two modules can be multiplexed into each LogBook base channel. To distinguish channels, there is a 3-pole header (designated J2) with a shunt jumper that can be placed in one of two positions for either LOWER (0 to 7) or UPPER (8 to 15) expansion channels.

With the LogBook or Daq device’s 16 base channels, up to 32 DBK43A [or DBK43B] modules can be used for a maximum of 256 channels. These channels are identified differently in the API for custom programming and in DaqView and GageCal.

For the API, the base channels are designated 0 to 15; and expansion channels are designated 16 to 271. Channel 16 is the first channel on the first expansion board (for DBK43A and DBK43B channel 0 on lower module with JP1 set to CH0) and channel 271 is the last channel on the last expansion board (for DBK43A [and DBK43B], channel 7 on upper module with JP1 set to CH15). The table shows the base channel and the first expansion channel number (N) associated with that particular base channel. To calculate the actual input channel, add “N” to “n”. (If J2 is set to LOWER, the n-values for input channels 0 to 7 range from n = 0 to n = 7; if J2 is set to UPPER, the n-values range from n = 8 to n = 15.) This expansion channel number is also needed when writing a program to read from that particular channel.

Daq Device

Base

Channel

0 16 1 32 2 48 3 64 4 80 5 96 6 112 7 128 8 144

9 160 10 176 11 192 12 208 13 224 14 240 15 256

First Expansion

Channel Number (N)

For DaqView , LogView and GageCal, these same 256 channels are identified from ch0-0-0 to ch15-2-7. The first field (0 to 15) is the base channel; the second field is the lower (1) or upper (2) sub-channel selected on J2; and the third field (0 to 7) is the 8 channels on a single DBK43A or DBK43B module.

Reference Note: For more information on channel multiplexing, refer to Chapter 1, Signal Management.

DaqBook/100 Series & /200 Series and DaqBoard [ISA type] Configuration

Use of the DBK43A or DBK43B requires setting jumpers in DaqBooks/100 Series & /200 Series devices

and ISA-type DaqBoards.

1. If not using auxiliary power, place the JP1 jumper in the expanded analog mode.

Note: This default position is necessary to power the interface circuitry of the DBK43A [or DBK43B]

via the internal ±15 VDC power supply. If using auxiliary power (DBK32A or DBK33), you must remove both JP1 jumpers. Refer to Power Management in the DBK Basics section [at the front of the manual] and to the DBK32A and DBK33 document modules as needed.

DBK43A & DBK43B, pg. 12 899892 DBK Option Cards and Modules

2. For DaqBook/100, DaqBook/112 and DaqBook/120, place the JP4 jumper in single-ended mode

Note: To use a DBK43A [or DBK43B] with a Daq PC-Card, you must an appropriate power module must

be used.

DaqBook/2000 Series and DaqBoard/2000 Series Configuration

No Jumper configurations are required for these /2000 series devices.

Hardware Adjustment

Bridge circuit transducers are used for many different applications, and the DBK43A and DBK43B modules are flexible enough to support most of them. Each channel circuit has an excitation regulator, a high gain (100-1250) input amplifier with offset adjustment, a low-pass filter, a scaling (1-10) amplifier, and a calibration multiplexer.

Trimpots

The front of the strain gage modules have a slot to allow access to 4 potentiometers to trim (adjust) the accuracy for each channel circuit. The trimpots are labeled to represent the following adjustments:

EXC for adjusting the excitation voltage to the transducer

GAIN for setting the gain of the input amplifier

OFFSET for adjusting the circuit offset for quiescent loads or bridge imbalance

SCALE for setting the gain of the scaling amplifier

Trimpot

EXC

GAIN

OFFSET

SCALE

CH0 CH1 CH2 CH3 CH4 CH5 CH6 CH7

TP101 TP201 TP301 TP401 TP501 TP601 TP701 TP801

TP104 TP204 TP304 TP404 TP504 TP604 TP704 TP804

TP103 TP203 TP303 TP403 TP503 TP603 TP703 TP803

TP105 TP205 TP305 TP405 TP505 TP605 TP705 TP805

Channel Number

The following figure shows trimpot locations for both the DBK43A and DBK43B.

Trim Pot Locations

CAL/NORM, CAL1/RUN, and CAL2/RUN Switches

DBK43A has a single CAL/NORM switch. DBK43B has two switches, CAL1/RUN and CAL2/RUN. The switches are easy to see on the rear panel of the associated DBK module.

• The NORM and RUN positions are for normal running operations, as indicated in the following

tables.

• In the CAL position, the shunt calibration offset and the excitation voltage can be read depending on

the software function control. This is discussed in the next section.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 13

Software-Controlled Setup

Proper setup includes the use of software to control the calibration multiplexer in each circuit. The calibration multiplexer is used to switch the bridge circuit out and apply internal reference voltages to the input for use in the DBK43A or DBK43B setup. The calibration multiplexer also allows the recording of the individual adjustments.

The next two tables identify functions available through DaqView and LogView, respectively. Note that DaqView uses the term “Channel Type;” and LogView uses the term “Mode.” The tables include equations in which “V LogBook, DaqBook, DaqBoard, or other Daq device.

” (voltage out) represents the voltage recorded by the primary data acquisition device, i.e., a

OUT

Selecting Channel Types in DaqView, or Modes in LogView

DBK43A Channel Types and Modes - Switch Positions

Channel Type (Mode) 1

Bridge

Offset (SetOffset)

Input Gain (SetInputGain)

Scaling Gain (SetScalingGain)

Excitation

Shunt Cal

Reference Notes:

Typical setup steps with embedded examples begin on page 16 of this DBK43 document. The steps can be used for both LogBook and Daq device applications.

Selecting Channel Type

In DaqView

CAL/NORM

Switch

NORM

CAL

for DBK43A

Function and Associated V

Sets the channel to read the value of the bridge circuit with all gains and offsets in effect. This is the normal

operation.

Vout = (Scaling Gain)(Filter Gain*)[(InputGain)(bridge circuit voltage) - offset voltage]

Applies a grounded input to the channel. Sets the channel to read the circuit offset voltage multiplied by the

input amplifier and the low-pass filter gain.

Vout = (Filter Gain*)(Input Gain) - offset voltage

Applies 5 mV to the input channel. Sets the channel to read the voltage out of the circuit through the input

gain amplifier and the low-pass filter [if enabled].

Vout = (Filter Gain*)(Input Gain)(5 mV) - offset voltage

Applies 5 mV to the input channel. Sets the channel to read the voltage out of the circuit through the input

gain amplifier, the low-pass filter [if enabled], and the scaling gain amplifier.

Vout = Filter Gain*(Scaling Gain[(Input Gain)(5 mV) - offset voltage])

Sets excitation.

Vout = (Excitation Voltage)

Activates shunt-cal resistors.

Vout = (Scaling Gain)(Filter Gain*)[(Input Gain)( bridge circuit voltage with shunt) - offset voltage]

OUT

Selecting Channel Mode

Equation

for DBK43A

In LogView

DBK43A has one CAL/NORM switch. The “Up” position puts the switch in the “calibration” state. The “Down” position puts the

switch in the “Run” (Normal) state. DBK43B has two switches; for that module refer to the following table.

*In the equations, the asterisk indicates the conditional clause, “if the filter is enabled.”

DaqView uses the term “Channel Type.” LogView uses the term “Mode.” In the first column the “type” and “mode” names are

often the same for DaqView and LogView. When there are differences the LogView “Mode” name appears in parenthesis, for example (SetInputGain) is LogView’s mode equivalent of DaqView’s “Input Gain.”

DBK43A & DBK43B, pg. 14 899892 DBK Option Cards and Modules

DBK43B Channel Types and Modes - Switch Positions

Channel Type (Mode) 1

Bridge

Offset (SetOffset)

Input Gain (SetInputGain)

Scaling Gain (SetScalingGain)

Excitation

Shunt Cal

DBK43B has two switches: CAL1/RUN and CAL2/RUN. DBK43A only has one switch; for that module refer to the previous table.

* In the equations, the asterisk indicates the conditional clause, “if the filter is enabled.”

DaqView uses the term “Channel Type.” LogView uses the term “Mode.” In the first column the “type” and “mode” names

are often the same for DaqView and LogView. When there are differences the LogView “Mode” name appears in parenthesis, for example (SetInputGain) is LogView’s mode equivalent of DaqView’s “Input Gain.”

CAL1

Switch

RUN

(Down)

RUN

(Down)

RUN

(Down)

RUN

(Down)

CAL1

(Up)

CAL1

(Up)

CAL2

Switch

RUN

(Down)

CL2

(Up)

CAL2

(Up)

CAL2

(Up)

CAL2

(Up)

CAL2

(Up)

Function and Associated V

Sets the channel to read the value of the bridge circuit with all gains and offsets in

effect. This is the normal operation.

Vout = (Scaling Gain)(Filter Gain*)[(InputGain)(bridge circuit voltage) - offset voltage]

Applies a grounded input to the channel. Sets the channel to read the circuit offset

voltage multiplied by the input amplifier and the low-pass filter gain.

Vout = (Filter Gain*)(Input Gain) - offset voltage

Applies 5 mV to the input channel. Sets the channel to read the voltage out of the

circuit through the input gain amplifier and the low-pass filter [if enabled].

Vout = (Filter Gain*)(Input Gain)(5 mV) - offset voltage

Applies 5 mV to the input channel. Sets the channel to read the voltage out of the

circuit through the input gain amplifier, the low-pass filter [if enabled], and the scaling gain amplifier.

Vout = Filter Gain*(Scaling Gain[(Input Gain)(5 mV) - offset voltage])

Sets excitation.

Vout = (Excitation Voltage)

Activates shunt-cal resistors.

Vout = (Scaling Gain)(Filter Gain*)[(Input Gain)( bridge circuit voltage with shunt) -

offset voltage]

Equation

OUT

DBK43B - Notes regarding CAL1 and CAL2

Mode CAL1 CAL2 Comments

Unlike the DBK43A, this run mode for the DBK43B allows for time

RUN &

SET BRIDGE

SET INPUT GAIN,

SET OFFSET, &

SET SCALING GAIN

SET EXCITATION &

SET SHUNT CAL

RUN

(Down)

CAL1

(Up)

RUN

(Down)

CAL1

(Up)

RUN

(Down)

RUN

(Down)

CAL2

(Up)

CAL2

(Up)

stamping and event marking without signal error. Both switches “down” adds a grounded input to the channel and sets the channel to read the circuit offset voltage multiplied by the input amplifier and the low-pass filter gain.

Not used. An invalid switch position.

Would simulate a DBK43A run mode. Used for setting input gain, scaling gain, or offset.

With both switches up, the calibration mode is enabled. The mode is identical to that of the DBK43A when its single CAL/NORM switch is positioned to “CAL.”

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 15

A Typical Setup Procedure, with Embedded Examples

Reference Notes:

Prior to using DBK43A or DBK43B with DaqView, you must select the module from

DaqView’s Configure Hardware Settings screen. If needed, refer to Chapter 3, DBK Setup in DaqView.

Prior to using DBK43A or DBK43B with LogView, you must select the module from

LogView’s Hardware Configuration screen. If needed, refer to Chapter 4, DBK Setup in LogView.

The board layouts in this DBK section can be referred to for jumper locations, jumper

setting orientations, and trimpot locations.

For Calibration – DaqView users should refer to the GageCal segment beginning on page

21 of this section. LogView users should refer to the section titled Calibrating DBK16, DBK43A, and DBK43B for LogBook Applications, beginning on page 25.

1. Verify that the low-pass filters are set to BYPASS. The filters are set via jumpers JPn04 where n is

the channel number (1 through 8); for example, JP104 sets the filter for channel 1, and JP804 sets the filter for channel 8.

Note:

If you plan to use filters during your acquisition, you should still select BYPASS at this point. Enabling the filters comes into play later in the procedure. However, if you do plan to enable filters, note the gain in the filter stage (default ×2, or ×1 with resistor removed) and allow for it in your setup.

2. Coupling is set via jumpers JPn03 where n is the channel number (1 through 8). Verify that the

“Coupling” jumpers are installed. When installed, the channels are set for DC coupling.

Note:

If you plan to use AC Coupling during your acquisition, you should still select DC Coupling at this point. Selecting AC Coupling comes into play later in the procedure.

3. Determine the excitation for the transducer. This is based on the transducer specifications and from

the current limitations of the DBK43 module’s excitation regulator.

4. Determine the maximum voltage that can result from the transducer for a strain gage or for a load

cell. The values can be calculated as follows:

Strain Gage Example

Most strain gages come with Gage Factors (GF). To calculate the approximate output of the bridge circuit with a typical strain value, use the formula:

()Excitation Voltage)(Gage Factor)(Strain in strain units

*Bridge circuit output voltage

In this strain gage example, lets assume the following:

• We have a 120 ohm strain gage.

• The gage factor is 2.1.

• The excitation voltage is 5 V. This is due to the current limitation of the excitation regulator

on the DBK43 module [note that the excitation voltage must be less than 6 V]

• We are measuring 4000 micro-strain

By applying these values to the preceding equation we find that the bridge output voltage is 10.5 mV.

-6

Bridge output voltage for 4000 microstrain =

(5)(2.1)(4000 10 )

10.5 mV

*linear estimate (some strain gages are not linear); refer to strain-gage theory for more information.

DBK43A & DBK43B, pg. 16 899892 DBK Option Cards and Modules

Load Cell Example

Load cells come with a mV/V specification; for each volt of excitation at maximum load, the load cell will output a specific millivolt level. The following equation applies:

Load Cell Output Voltage = (Load

Applied

/Load

)(Excitation Voltage)(Load Cell Rating)

Rated

For this example, lets assume the following:

•

We have a 350 ohm, 3000 pound load cell.

•

The load cell is rated at 2.05 mV/V

•

We are using an excitation of 10 V

By applying these values to the preceding equation we find that the Load Cell Output Voltage is 20.5 mV.

Load Cell Output Voltage = (3000/3000)(10)(2.05×10-3) = 20.5 mV

For 1000 pounds applied load, the Load Cell Output Voltage would be one third of the 20.5 mV value, i.e., 20.5 mV/3 = 6.833 mV. If we used the entire equation we would see:

Load Cell Output Voltage = (1000/3000)(10)(2.05×10-3) = 6.833 mV

Now that we know our sensor’s full-scale voltage, we can calculate the DBK43 module’s voltage gain. The proper voltage gain allows the full-scale sensor output to correspond to the full-scale input of the data acquisition device. Full-scale device inputs are:

-5 to +5 V for DaqBook and DaqBoard [ISA type] in bipolar mode 0 to +10 V for DaqBook, DaqBoard [ISA type], and DaqBoard/2000 Series

in unipolar mode

-10 to +10 V for DaqBoard/2000 Series in bipolar mode and for Daq PC-Card

-10 to +10V for LogBooks in bipolar mode 0 to +20 V for LogBooks in unipolar mode

Calculate the channel total gain based on the full-scale LogBook or Daq device.

The following equation is used to calculate DBK43 total gain.

Gain

= (Sensor Output Voltage

TOTAL

FULL-SCALE

– Voltage

) / Strain or Load Voltage

OFFSET

OUTPUT

In this example we will use:

•

a full-scale sensor output voltage of +5 V [for a DaqBook in bipolar mode].

•

a 0.5 V offset (from full-scale) to prevent saturation

•

the 10.5 mV Bridge Output Voltage [for 4000 microstrain] from Example 1.

Using the gain equation we get:

Gain

= (5.0 V – 0.5 V) / 10.5 mV = 4.5 V / 0.0105 V = 428.6

TOTAL

6. Determine how the total gain will be distributed between the input amplifier gain, filter gain, and

scaling amplifier gain.

An Example of Total Gain Distribution: If we round the gain of x428.6 [calculated in the previous

step] down to ×420, then the gain distributions indicated by the following table are possible.

Gain Distribution Options for a Total Gain of x420

Gain Stage & Associated Range

Input Gain

x100 to x1250

Filter Gain

x1 or x2

Scaling Gain

x1 to x10

Total Gain

Option A Option B Option C Option D

×420 ×100 ×240 ×300

Disabled ×2 ×1 Disabled

×1 ×2.1 ×1.75 ×1.4

×420 ×420 ×420 ×420

Possible Gain Distributions

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 17

After we decide on a distribution option, the sensor can be hooked up to the DBK43 module, the bridge completion resistors can be installed, the excitation voltage set, followed by setting the gains. In this example we will be using DaqView. Steps for other programs will be similar.

Connect the transducer to the DBK43 module according to the figures in the Signal Connection

7. (page 3) and

Bridge Applications (page 5). Install the appropriate bridge-completion resistors if

applicable.

Adjust the Excitation voltage.

Note: For DaqView versions 5.05 and higher the reading will already be correctly scaled.

DBK43A users: Place CAL/NORM switch to “CAL.”

(a)

DBK43B users

(b)

DBK43A users:LogView users set the software CAL/NORM switch, in Hardware

: Place CAL1 and CAL2 “Up.”

Configuration, to “CAL.” DBK43B users: LogView users set the software switch parameter to 1’CAL+2’CAL.

(c)

Select “Excitation” for the Channel Type.

(d)

With the Reading column enabled, set the excitation voltage for the transducer by adjusting

the trimpot labeled EXC. Note that each of the eight channels has a channel-specific trimpot for excitation.

After the excitation voltage is set, stop the Readings.

(e)

DBK43A users: Return the CAL/NORM switch to the NORM position.

(f)

DBK43B users

: Return CAL1 to RUN “Down” and CAL2 “Up” (CAL).

(g) DBK43A users: LogView users set the software CAL/NORM switch to “NORM.”

DBK43B users

Adjust the Offset.

: LogView users set the software switch parameter to 1’RUN+2’CAL.

(a) DBK43A users: Place CAL/NORM switch in the NORM position.

DBK43B users

(b)

DBK43A users: LogView users verify that the software CAL/NORM switch is selected to

: Place CAL1 “Down” (RUN) and CAL2 “Up (CAL.).

“NORM.” DBK43B users

: LogView users verify the software switch parameter is set to

1’RUN+2’CAL.

(c)

DaqView user’s: select “Offset” for the Channel Type.

LogView users: select “SetOffset” for the Mode.

(d)

With the Reading column enabled, adjust the OFFSET trimpot (OFST) to obtain a channel

reading of 0.00 volts. This removes all offset from the DBK43 module’s channel circuit. Note that each of the eight channels has a designated, channel-specific, trimpot for offset.

(e)

After the Offset is adjusted to 0.00, stop the Readings.

Adjust the Input Gain.

10.

DBK43A users: CAL/NORM switch remains in the NORM position.

(a)

DBK43B users

: Position CAL1 “Down” (Run) and position CAL2 “Up.”

(b) DaqView users: select “Input Gain” for the Channel Type.

LogView users: select “SetInputGain” for the Mode.

(c)

With the Reading column enabled, adjust the GAIN trimpot to obtain a voltage reading

equal to 0.005 x G

, where “GI” is the desired input amplifier gain. Note that each of the

eight channels has a channel-specific trimpot for Input Gain.

Stop the Readings.

(d)

For very high system gains you may need to first, set the Input Gain low, then set the Scaling Gain, and then reset the Input Gain.

DBK43A & DBK43B, pg. 18 899892 DBK Option Cards and Modules

Typical input gain settings are shown in the following table.

Input Gains and Typical Readings

Input Gain Reading

x100 0.5 volts

x200 1.0 volts

x300 1.5 volts

x400 2.0 volts

x500 2.5 volts

x600 3.0 volts

x700 3.5 volts

x750 3.75 volts

x800 4.0 volts

x900 4.5 volts

x1000 5.0 volts

x1200 6 volts *

* requires primary acquisition device to be in unipolar mode.

11. Adjust the Scaling Gain.

(a)

DBK43A users: CAL/NORM switch remains in the NORM position.

DBK43B users

(b)

DaqView users: select “Scaling Gain” for the Channel Type.

: CAL1 remains “Down” (Run) and CAL2 remains “Up.”

LogView users: select “SetScalingGain” for the Mode.

(c)

With the Reading column enabled, adjust the SCALE trimpot (SCA) for a voltage reading

equal to .005 x G

x G

where “GI” is the desired input amplifier gain and “GS” is the

desired scaling amplifier gain. Note that each of the eight channels has a channel-specific, trimpot for Scaling Gain.

(d)

Stop the Readings.

Scaling Gains Typical with an Input Gain of x200

Scaling Gain Reading

x2 2.0 volts x4 4.0 volts x6 6.0 volts* x8 8.0 volts*

x10 10.0 volts*

* requires primary acquisition device to be in unipolar mode.

12.

Adjust the Offset while the bridge circuit is being read.

DBK43A users: CAL/NORM switch remains in the NORM position.

(a)

DBK43B users

: CAL1 remains “Down” (Run). Position CAL2 “Down” (Run).

(b) Select “Bridge.” (c)

With the Reading column enabled, and with the quiescent (normal or inactive) load or strain

applied, adjust the OFFSET trimpot for a reading of 0.00 volts. This adds offset to the circuit to compensate for the quiescent load and allows maximum resolution for the measurement.

(d)

After adjusting the Offset to 0.00, stop the Readings.

The Offset adjustment is unipolar 0 to 5 V on the input amplifier output. If the Offset can not be adjusted to 0.00 V at the end of the setup procedure, swap the V wire connections, or reduce the Input Gain and increase the Scaling Gain.

+ (4) and Vin- (3)

13.

If required for your application, enable the low-pass filters. The filters are set via jumpers JPn04

where n is the channel number (1 through 8); for example, JP104 sets the filter for channel 1, and JP804 sets the filter for channel 8.

If required for your application, set AC Coupling. Coupling is set via jumpers JPn03 where n is the

14. channel number (1 through 8). To set AC Coupling, remove the JPn03 jumpers.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 19

15. Calculate the LogBook or Daq device voltage/transducer units. Do this using the transducer

specifications and the total gain of the DBK43 module’s channel. Apply the units to your readings.

Verify the software settings by using a known load or strain and comparing the value to that

16. observed in DaqView’s Reading column.

Note:

Gain adjustments can be made by activating a shunt-cal resistor that is calculated to be at maximum load.

To enable shunt-cal resistors:

(a)

Select “Shunt Cal” as the Channel Type.

(b)

DBK43A users: Set CAL/NORM switch to CAL.

DBK43B users

(c)

DBK43A users: LogView users: set the software CAL/NORM switch, in Hardware

: Place CAL1 and CAL2 “Up.”

Configuration, to “CAL.” DBK43B users

: : LogView users verify the software switch parameter is set to

1’CAL+2’CAL.

Settings can be verified via shunt-calibration.

After the final offset is made, the gain readings will be incorrect unless the circuit offset is removed.

DBK43A & DBK43B, pg. 20 899892 DBK Option Cards and Modules

GageCal, Calibration Program for DBK16, DBK43A, and DBK43B in Daq Applications

GageCal is intended for DBK16, DBK43, DBK43A, and DBK43B load cell applications in conjunction with Daq devices.

GageCal is not used for LogBook applications.

GageCal is a calibration aid for use with DBK16, DBK43, DBK43A, and DBK43B devices that are being used in Daq device data acquisition systems. The program, which is independent of DaqView, provides an on-screen walk-through for setting jumpers, switches and adjusting trimpots.

With GageCal you can:

•

Use a graphic representation of a strain-gage board as a guide to configure switches, jumpers,

and other hardware settings.

•

Enter all the parameters pertaining to your strain gage application.

•

Follow step by step prompting to adjust trimpots for scale gain, input gain, and offset to ensure

the channel provides the desired input range.

GageCal is installed from the Master Setup screen of the data-acquisition CD-ROM as part of the DaqBook/DaqBoard Support option. After your DaqBook/DaqBoard support has been installed you can access and use GageCal as follows.

Access GageCal from a desktop shortcut, or by navigating from the desktop as follows:

1. Start ⇒ Programs ⇒ IOtech DaqXSoftware [or Omega DaqXSoftware] ⇒ GageCal A Select Device window will appear, similar to that shown in the following figure.

GageCal – Select Device

2. From the Select Device window, highlight the applicable DaqBook or DaqBoard, thin click the <OK> button. The Strain Gage Calibration window will appear.

GageCal’s Strain Gage Calibration Window

3. Click the <AddCard> button. Then select one of the following, as applicable: DBK16, DBK43, DBK43A, or DBK43B. See following figure.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 21

Selecting DBK43A

Click the <OK> button. The Strain Gage Calibration window will provide 3 digit channel

numbers in the form of “n card, and n

is the channel number. See following figure.

;” where n1 is the card number, n2- is the bank number on the

1-n2-n3

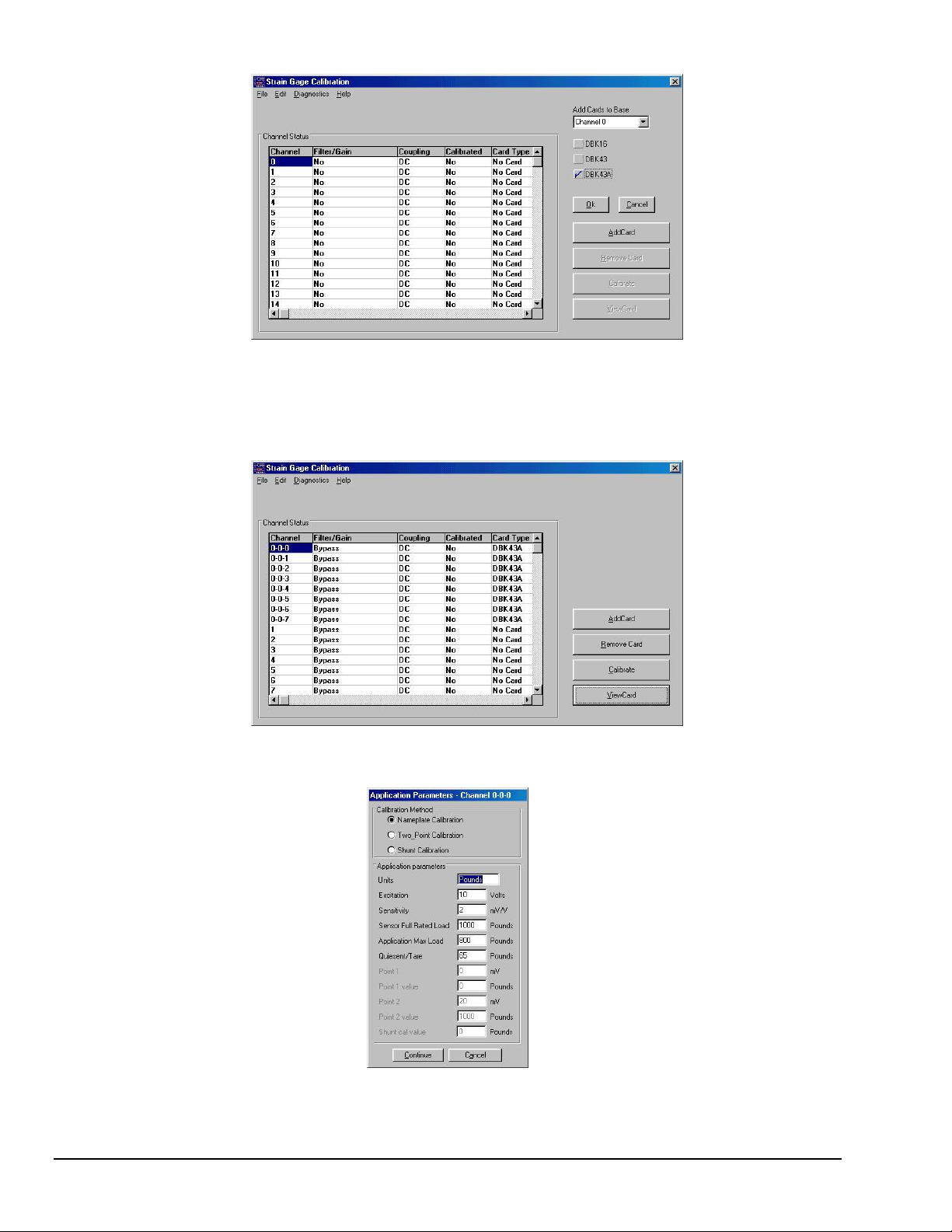

Strain Gage Calibration Window after Adding a Card

5. Click the <Calibrate> button. An Applications Parameter box appears. See following figure.

Application Parameters for Channel 0-0-0

DBK43A & DBK43B, pg. 22 899892 DBK Option Cards and Modules

Select the type of calibration to be performed, i.e., Nameplate, Two-Point, or Shunt. Then

6. edit the Application Parameters, if applicable. A brief description of the three calibration methods follows. When done, click the <Continue> button.

•

Nameplate calibration provides a way to enter parameters for your strain gage

and its application. The final step of the procedure includes attaching the strain gage (load cell).

•

Two-Point calibration provides a way to calibrate a DBK16, DBK43,

DBK43A, or DBK43B that is using a strain gage with unknown specifications. In this method, the user enters two points of transducer output [milli-volts] vs. engineering units, e.g., pounds. GageCal provides set up instructions based on the parameters entered. The final step of the procedure includes attaching the strain gage (load cell).

•

Shunt calibration provides a means calibrating channels with use of user-

supplied shunts to simulate a physical load. With this method, 1 or 2 shunt resistors (Rn00D and Rn00H) are added for each of the 8 channels to be calibrated. You must set J3 to the position closest to TP9 for the shunt calibration to work correctly. Shunt calibration is performed with the load-cell attached.

Follow GageCal’s screen prompts to complete the calibration.

Example Screen Shot from GageCal

Note: You can use GageCal’s “Diagnostics” feature to view a graphic representation

of the strain gage and the card’s gain stages.

GageCal Diagnostics

After completion, go to DaqView and convert ±5 V to engineering units using mx+b.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 23

DBK43A & DBK43B, pg. 24 899892 DBK Option Cards and Modules

Calibrating DBK16, DBK43A, or DBK43B for LogBook Applications

Overview …… 25 Calibration Methods …… 26 Procedures Common to All Calibration

Steps (Required) ……27

Nameplate Calibration and Manual Calibration ……30

Overview

Calibrating a strain gage channel includes:

One-time adjusting of the bridge excitation. One-time tuning of the electronic gains and offset via trimpots to maximize performance and

dynamic range.

Applying a transfer function to the voltage output to convert it to engineering units, e.g., pounds,

kilograms.

Executing a software scale and offset adjustment periodically to maintain accuracy.

Channel Calibration Procedure ……33 2-Point Calibration ……36 Shunt Calibration ……38 Creating a Units Conversion Transfer Function ……40

Periodic Calibration Without Trimpots ……41

Example of a Unit Conversion from Voltage to Pounds

The trimpots provide course tuning so large quiescent offsets can be nulled and the bridge signal can be amplified to match the A/D input range. Once these adjustments are made, the operator can periodically fine-tune the calibration via software using LogView’s 2-Point calibration feature. LogView’s scale and offset features provide a simple means to apply a transfer function that converts the voltage to user units, for example, pounds, as in the above block diagram.

Bridge circuit transducers are used for many different applications, and the strain gage signal conditioning modules are flexible enough to support most of them. Each channel circuit has an excitation regulator, a high gain (x100 to x1250) input amplifier with offset adjustment, a low-pass filter, a scaling (x1 to x10) amplifier, and a calibration multiplexer.

By using software-controlled multiplexers, on-board reference voltages can be read by the data acquisition system so that precise gains and offsets can be set. LogView provides a means of easily controlling the calibration multiplexers so that the reference voltages can be displayed while the trimpots are being adjusted.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 25

There are four trimpots to set up each channel circuit. The trimpots are labeled to represent the following adjustments:

•

EXC - for adjusting the excitation voltage to the transducer

• GAIN - for setting the gain of the input amplifier

• OFFSET - for adjusting the circuit offset for quiescent loads or bridge imbalance

• SCALE - for setting the gain of the scaling amplifier

Signal-FlowRelationship of Software Controlled Multiplexers and On-Board Reference Voltages

Calibration Methods

Several different calibration techniques are supported by strain gage signal conditioning modules. Calibration methods include; Nameplate, 2-Point, Shunt, and Manual. From the following discussion, select the calibration method that is best for your application.

Nameplate – Used to setup the channel using the transducer’s published specs.

Nameplate calibration is typically used with packaged load cells with millivolt-per-volt (mV/V) transfer functions. Using the mV/V spec of the load cell or a strain gage’s Gage Factor (GF), the necessary system gain can be calculated and applied to a channel.

2-Point – Used to setup the channel using 2 known loads, one of which might be “no load.”

The 2-Point calibration method requires the operator to apply two known loads to the load cell or strain gage, one at a time, while the data acquisition system takes measurements. Typically, the first point is with no load applied and the second point is close to the maximum load capacity of the gage. While measuring the first point the offset is nulled, and while measuring the second point the gain is adjusted to span the majority of the input range of the A/D. No gain calculations are required to perform this calibration method.

This calibration procedure can only be executed while LogBook is attached to a PC that is running LogView.

To adjust trimpots, use one of the following calibration methods, as appropriate.

DBK43A & DBK43B, pg. 26 899892 DBK Option Cards and Modules

Shunt – Used to setup the channel using a shunt resistor applied to the bridge to simulate a load.

Shunt calibration is identical to 2-Point calibration except that the second point is simulated so that applying a load near the gage’s maximum load is unnecessary. To simulate a bridge imbalance, a shunt resistor is placed across one leg of the bridge. Once the shunt resistor value has been calculated, it is applied to the bridge to provide the desired simulated load. No gain calculations are required to perform this calibration method.

Manual – Used to assign specific gains and offsets.

If a particular gain and offset are already known, these values can be used to setup a strain gage channel.

Procedures Common to All Calibration Steps (Required)

Set the Selected Channel(s) to DC Coupling

Since the applied calibration-signals are DC, set DC coupling for all the channels that are being adjusted.

If your application requires AC coupling, don’t forget to remove the jumpers when the adjustment

procedure has been completed.

Determine Channel Parameters

Before adjusting the trimpots, the excitation needs to be determined. Typically, the supplier of the gage of load cell will recommend a suitable value, but make sure that the maximum output current of the excitation regulator is not exceeded.

Initialize LogView

Launch LogView and use the LogBook Hardware Configuration window (hardware tree) to configure all of the DBK options that are to be used in the system. If needed, refer to the LogView chapter of the LogBook User’s Manual (p/n 461-0901).

LogBook Hardware Configuration, Button and Screen

Open the Analog Input Channel Configuration Window. Click the User Scaling Tab and verify that all of the strain gage channels that are to be adjusted have scale and offset values of 1 and 0, respectively.

Analog Input Channel Configuration Window, Button and Screen … “User Scaling” Tab Selected

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 27

For all of the strain gage channels that are to be adjusted, set their ranges to +5V.

Click the

DBK Parameters tab to expose the strain gage signal conditioning programmable settings.

Click the Attach button to substantiate a connection between the PC and the LogBook.

Adjust the Excitation - DBK16

For DBK16, set the excitation voltage for the transducer by adjusting the trimpot labeled EXC and measuring the voltage with a voltmeter across the +EXC and -EXC on the bridge or at the terminals of the signal conditioning module.

Adjust the Excitation - DBK43A - DBK43B

DBK43A and DBK43B are equipped with a switch that allows the excitation voltage to be read by the LogBook and displayed in LogView. For a

DBK43A users: Reposition the DBK43A’s “physical” calibration switch to the CAL position.

1. DBK43B users

Select CAL in LogView. Open the LogBook Hardware Configuration window and select the

: Position DBK43B’s CAL1 and CAL2 to the calibration position.

DBK43A orDBK43B to be adjusted, you must:

appropriate DBK43A (see following figure).

DBK43A users

: In the Configurations settings box, set the CAL/NORM Switch to CAL. If the DBK43A is not displayed click the + to the left of the base channel (to which it is attached), this action expands the hardware tree in the

LogBook Hardware Configuration window. Repeat this process for

all DBK43A units that are to be adjusted. Click OK to lock in the changes.

DBK43B users

: In the Configurations settings box set the software switch parameter to

1’CAL+2’CAL.

Setting a DBK43A Cal/Norm Switch to “CAL”

3. In the Param1 column (see next figure for location), select all of the DBK43 channels that are to be

adjusted.

Set Mode equal to Excitation from the drop down list (located above the DBK Parameters tab).

Turn off all the channels in the system except for those DBK43A channels that are to be adjusted.

DBK43A & DBK43B, pg. 28 899892 DBK Option Cards and Modules

Selecting “Mode = Excitation” for DBK Parameter 1

: The Param2 column will show two switch positions for DBK43B applications.

Note

Click the Download button to send the current configuration to the LogBook.

Select Indicators \ Enable Input Reading Column from the menu bar to display the

7. excitation values for each channel.

Selecting “Enable Input Reading Column”

(from the Indicators Pull-Down Menu)

8. Set the excitation voltage for each transducer by adjusting the trimpot labeled EXC for the

associated channel while reading their values in LogView.

Select Indicators \ Disable Input Reading Column from the menu bar.

Selecting “Disable Input Reading Column”(from the Indicators Pull-Down Menu)

DBK43A users: Return the physical calibration switches (of the applicable DBK43As) to the

10. NORM position. DBK43B users

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 29

: Return CAL1 to RUN (Down); and CAL2 to CAL (Up).

11. DBK43A users: In LogView, open the LogBook Hardware Configuration Window (hardware

tree) and select NORM for each DBK43A. DBK43B users

: In LogView, open the LogBook Hardware Configuration Window (hardware

tree) and select RUN for the CAL1 switch and select CAL for CAL2.

This completes the section entitled: “Procedures Common to All Calibration Steps (Required)”

Nameplate Calibration and Manual Calibration

To properly calibrate a strain gage channel using the Nameplate method, the required gain must first be calculated. If the desired gain and offset are already know [as in the the section,

The following examples outline the necessary steps for determining the required gain for

Nameplate calibration. Both strain gage and load cell examples are provided.

Calculating the Required Gain

Determining a Strain Gage’s Maximum Output Voltage

Most strain gages come with Gage Factors (GF) used to calculate the approximate output of the bridge circuit with a typical strain value. The formula is:

Determining the Gain of Each Amplification Stage.

Manual calibration method] skip to

VBR = (V

Where:

= Excitation Voltage

EXC

* G * S * B) / 4 [See following important notice.]

EXC

= Bridge output voltage

G = Gage Factor S = Strain in user units (in uStrain) B = Configuration factor (1 for ¼ bridge, 2 for ½ bridge, 4 for full bridge)

The equation, V

= (V

* G * S * B) / 4 produces a linear estimate. If you are

EXC

using a non-linear strain gage you should refer to strain gage theory for additional information as needed.

For a 120 ohm strain gage with a gage factor of 2.1 and excitation voltage of 5 V, applying 4000 microstrain would produce an bridge output of 10.5mV for a ¼ bridge configuration.

= (5 * 2.1 * 4000x10-6) / 4 = 10.5 mV

Determining a Load Cell’s Maximum Output Voltage

Load cells come with a mV/V specification—for each volt of excitation at maximum load, the load cell will output a specific millivolt level.

= R * V

EXC

Where: VLC = Load cell output voltage

R = Load cell spec (mv/V)

= Excitation voltage

EXC

Consider a 3000 pound load cell rated at 2.05 mV/V using 10 V of excitation (assume a 350Ω load cell). When 3000 pounds is applied, the voltage out of the load cell is 20.5mV.

DBK43A & DBK43B, pg. 30 899892 DBK Option Cards and Modules

VLC = (10 * 2.05×10-3) = 20.5 mV

If 1000 pounds were applied, we would see 6.833 mV. This is arrived at as follows:

-3

(1000/3000) * 10 * 2.05×10

= 6.833 mV

Using the Calculated Maximum Voltage to Determine the Necessary Gain

To maximize the resolution and dynamic performance of the system, the sensor’s output should be amplified to correspond to the data acquisition system’s input range.

Using the LogBook’s +

5V input range, the required gain is calculated by dividing 5V by the maximum output voltage of the sensor. Before performing the calculation, it is typically a good idea to pad the maximum sensor voltage by about 5% so that, once amplified, it won’t bump into the limit of the 5V range.

G = VLB / (VGO + VGO * 5%)

Where: G = Gain

= LogBook input range

= Maximum gage output

For the strain gage in the previous example with a maximum output of 10.5mV, the required gain is:

G = 5.0V / (0.0105V + 0.0105V * 0.05) = 453.5

For the above load cell with a maximum output of 20.5mV, the required gain is:

G = 5.0V / (0.0205V + 0.0205V * 0.05) = 232.3

Determining the Gain of Each Amplification Stage

The system’s total gain is:

GT = GI * GF * G

Where: GT = Total gain

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 31

= Input amplifier gain

= Filter gain

= Scaling amplifier gain

Note: Maximum gain calibration is x1000 for +5V range.

The majority of the gain should be assigned to the Input Amplifier, with the Scaling Amplifier used for fine-tuning. If the filter is enabled, a gain of x2 is automatically introduced.

The input amplifier has a gain range of ×100 to ×1250; the filter gain ×1 or ×2; and the scaling amplifier has a range of ×1 to ×10. For the strain gage example, if we round off our gain to ×420, any of these possible settings will work.

Input Gain

Filter Gain (enabled)

Scaling Gain

Total Gain

Option A Option B Option C Option D

×420 ×100 ×240 ×300

No Yes (×2) Yes (×2) *See Note No

×1 ×2.1 ×1.75 ×1.4

×420 ×420 ×420 ×420

For Option C, the LPF gain is typically x2. For gains of x1 (if the filter is enabled), the following apply:

DBK16

- For a gain of x1 (if the filter is enabled),10KΩ resistors R44 and R46 must have been

previously removed (for the low and high channels, respectively).

DBK43A and DBK43B - For a gain of x1 (if the channel filters are enabled), removal of the

following 10 KΩ resistors applies: Ch0 – R144, Ch1 – R244, Ch3 – R444, Ch4 – R544, Ch5 – R644, Ch6 – R744, Ch7 – R844.

DBK43A & DBK43B, pg. 32 899892 DBK Option Cards and Modules

Channel Calibration Procedure

Adjust the Offset

The following steps are used to adjust the offset.

In the Param1 column (see page 29 for location), select all of the DBK43A channels that are

to be adjusted.

Select Mode = SetOffset from the drop down list above the grid. This selection commands

the calibration multiplexer to route the 0.0V reference through the entire analog path (see following figure).

“Mode = Offset” 0.0 Volt Reference is Routed

3. Turn off all the channels in the system except for those DBK43A channels that are to be

adjusted.

Click the Download button. This sends the current configuration to the LogBook.

Select Indicators \ Enable Input Reading Column from the menu bar. This displays the offset

5. values for the enabled channels.

Set the offset voltage to 0.0V for each transducer by adjusting the trimpot labeled OFFSET

6. for the associated channel.

Select Indicators \ Disable Input Reading Column from the menu bar.

Adjust the Input Amplifier Gain

Perform the following steps to adjust the Input Amplifier Gain.

In the Param1 column (see page 27 for location), select all of the DBK43A channels that are

1. to be adjusted.

Select Mode = SetInputGain from the drop down list above the grid. This selection

commands the calibration multiplexer to route a 5mV reference through the Input Amplifier and bypass the Scaling amplifier (see following figure).

Note: If the filter is enabled (not bypassed) accommodate an additional x2 gain stage.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 33

“Mode = SetInputGain,” 5 milli-Volt Reference Route

Turn off all the channels in the system except for those DBK43A channels that are to be

adjusted.

Click the Download button to send the current configuration to the LogBook.

Select Indicators \ Enable Input Reading Column from the menu bar to display the values for

5. each channel.

For the associated channel, set the voltage to [G

6. adjusting the trimpot labeled GAIN. Use the Input Amplifier Gain (G

Note: If the filter is enabled, the filter gain (G

Example 1: If G

trimpot would be adjusted to obtain 1.25V.

Example 2: If G

trimpot would be adjusted to obtain 2.50V.

Select Indicators \ Disable Input Reading Column from the menu bar.

Adjust the Scaling Amplifier Gain

Adjust the Scaling Amplifier Gain as follows:

In the Param1 column (see page 27 for location), select all of the DBK43A channels that are

to be adjusted.

Select Mode = SetScalingGain from the drop down list above the grid. This selection

2. commands the calibration multiplexer to route a 5mV reference through all of the amplification stages as shown below.

* GF * 0.005] for each transducer by

) calculated earlier.

) is 2; otherwise GF = 1.

= 250 and the filter is disabled; the GAIN

= 250 and the filter is enable; the GAIN

“Mode = ScalingGain,” 5 milli-Volt Reference Route

DBK43A & DBK43B, pg. 34 899892 DBK Option Cards and Modules

Turn off all the channels in the system except for those DBK43A channels that are to be

3. adjusted.

Click the Download button to send the current configuration to the LogBook.

Select Indicators \ Enable Input Reading Column from the menu bar to display the values for

5. each channel.

For the associated channel, set the voltage to [G

6. the trimpot labeled SCALE. Use the total system gain (G

Example: If G

Select Indicators \ Disable Input Reading Column from the menu bar.

= 435.5, the SCALE trimpot would be adjusted to obtain 2.17 V.

* 0.005] for each transducer by adjusting

) calculated earlier.

Trimming Bridge Quiescent Load

Most bridges have some level of offset, even if no quiescent load is present. In quarter and half bridge situations, use of 1% bridge completion resistors can cause up to 1mV/V of offset. If the bridge has 4mV of offset and the Input Amplifier is set to x100, the Offset potentiometer would need to nullify 400mV.

DBK16 – For DBK16s, the Offset Potentiometer can adjust out 0 to +5V of offset amplified by the

Input Amplifier.

DBK43A and DBK43B

offset amplified by the Input Amplifier.

– For these two modules, the Offset Potentiometer can adjust out -1.25 to +5V of

Trimming Bridge Quiescent Load

If a significant amount of quiescent offset is present and the Input Amplifier gain is set too high, the Offset Potentiometer will not have enough range to adequately nullify the offset. In this case, the gain of the Input Amplifier must be reduced while the gain of the Scaling Amplifier is increased proportionately.

Use the following steps to trim bridge quiescent load (unload the bridge).

DBK43A users: Place the unit’s physical switch to NORM position.

DBK43B users

In the Param1 column (see page 27 for location), select all of the DBK43A [or DBK43B]

: Place the physical CAL1 and CAL2 switches to the RUN position.

channels that are to be adjusted.

Select Mode = Bridge from the drop down list above the grid. This selection commands the

calibration multiplexer to route the transducer output through the analog path as shown below.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 35

2-Point Calibration

“Mode = Bridge,” Reference Route

Turn off all the channels in the system except for those DBK43A [or DBK43B] channels that

are to be adjusted.

Click the Download button to send the current configuration to the LogBook.

Select Indicators \ Enable Input Reading Column from the menu bar to display the offset

values for each channel.

For the associated channel, set the offset voltage to 0.0V for each transducer by adjusting the

trimpot labeled OFFSET.

Note: If you are unable to nullify the quiescent offset of the bridge, your Input Amplifier

gain may be too high. Information regarding gain redistribution can be found in the section entitled,

Select Indicators \ Disable Input Reading Column from the menu bar.

This 2-point calibration method makes use of trimpot adjustments. It should not be confused with the LogView software 2-Point Calibration (discussed in the LogView chapter in the LogBook User’s Manual).

Determining the Gain of Each Amplification Stage.

In the 2-Point calibration method, the user places two known loads on the gage, one at a time, then adjust the trimpots until the expected value is reached. Typically, the first of loads is “no load.” In the case of a weight scale, the scale would first be unloaded to adjust the offset, then a known load (near maximum expected) would be applied to adjust the gain.

Shunt calibration (discussed immediately after this method, except the second load is applied in a simulated fashion by shunting 1 leg of the bridge with a shunt resistor. Shunt calibration is preferred in cases where applying a real load (near the maximum expected) is not practical.

2-Point Calibration section) is the same as the 2-Point

Initialize the System

1. DBK43A users: Verify that the unit’s physical switch is in the NORM position.

DBK43B users RUN position.

Download a single setup and continuously display data in LogView. The continuous display

2. can remain throughout the procedure since the calibration multiplexers do not need reset between steps.

In the Param1 column (see page 29 for location), select all of the DBK43A [or DBK43B]

3. channels that are to be adjusted.

DBK43A & DBK43B, pg. 36 899892 DBK Option Cards and Modules

: Verify that the unit’s physical CAL1 and CAL2 switches are both in the

4. Select Mode = Bridge from the drop down list above the grid. This selection commands the

calibration multiplexer to route the transducer voltage through the analog path.

Turn off all the channels in the system, except for those DBK43A [or DBK43B] channels that

5. are to be adjusted.

Click the Download button to send the current configuration to the LogBook.

Select Indicators \ Enable Input Reading Column from the menu bar to display the offset

7. values for each channel.

Adjust the Offset

For the associated channel, apply the first calibrated load to each gage (typically no-load) and set the voltage to 0.0V for each transducer. This is accomplished by adjusting the trimpot labeled OFFSET. If the first point is actually a calibrated load, you will need to move the load to each gage, one at a time, to adjust its associated offset.

Adjust the Input and Scale Amplifier Gain

Complete the following steps to adjust the channel gain.

Apply the second load to each gage channel. The value of this load should approximate that

of the maximum expected load. For the best results, a gain should be selected so that the bridge’s maximum output equals 90% of the A/D’s input range.

Calculate the desired voltage for the second point using the following equation:

VD = (LA/LM) * VI * 90%

Where: VD = Desired voltage for 2nd point of calibration

= Applied load used in calibrating the 2nd point

= Maximum load expected during usage

= Input voltage range

Example: The load standard that will be applied to the gage as the 2

calibration is 100lbs. The maximum expected load during usage is 150lbs. The programmable input range of the data acquisition system is set for + The desired output voltage of the strain gage signal conditioning electronics is:

VD = (100/150) * 5 * 0.90 = 3V

In this example, we should adjust the GAIN and SCALE trimpots until a value of 3V is measured.

If 150 lbs is applied to the gage, a voltage of 4.5V will be measured.

VD = (150/150) * 5 * 0.90 = 4.5V

3. Apply the second calibrated load to each gage and set the voltage to VD, as derived in step 2. Do this for each transducer by adjusting the trimpots labeled GAIN and SCALE for the associated channel. Note that the GAIN trimpot provides most of the amplification (course adjustment), while the SCALE trimpot allows for fine-tuning.

point in the 2-Point

5V.

Repeating the Process

Since adjusting the gain for the first time will have an affect on the offset, it is recommended that offset and gain adjustment be performed twice for each channel.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 37

Shunt Calibration

Shunt calibration is virtually identical to the 2-Point method just discussed, except that the second point is simulated. The simulated load is achieved by shunting one leg of the bridge with a shunt resistor. Shunt calibration is the preferred calibration method when applying a real load (of a value approximating the maximum expected load) is not practical. To adjust the channel gain, the shunt must be applied to the bridge.

Adjust the Offset

Calculate and install the necessary shunt resistor before continuing.

DBK43A has direct support for shunt calibration, accommodating the

resistor in its enclosure and allowing the software to apply it when requested.

DBK16 does not have direct support, so the shunt resistor must be applied

externally and switched in manually.

1. DBK43A users: Verify that the unit’s physical switch is in the NORM position.

DBK43B users

: Verify that the unit’s physical CAL1 and CAL2 switches are both in the

RUN position.

In the Param1 column, select all of the DBK43A [or DBK43B] channels that are to be

2. adjusted.

Select Mode = Bridge from the drop down list above the grid. This selection commands the

calibration multiplexer to route the transducer voltage through the analog path.

Turn off all the channels in the system except for those DBK43A [or DBK43B] channels that

4. are to be adjusted.

Click the Download button to send the current configuration to the LogBook.

Select Indicators \ Enable Input Reading Column from the menu bar to display the offset

6. values for each channel.

For the associated channel, apply the first calibrated load to each gage (typically no-load) and

7. set the voltage to 0.0V for each transducer by adjusting the trimpot labeled OFFSET.

If the first point is an actual calibrated load, you must move the load to each gage, one at a time, to adjust its associated offset.

Adjust the Input and Scale Amplifier Gain

For the best results, a gain should be selected so that the bridge’s maximum output equals 90% of the A/D’s input range.

1. Use the following equation to calculate the desired shunt voltage (V

= (Ls/LM) * VI * 90%

Where: VD = Desired voltage from the after amplification when the shunt is applied

Example: The simulated load produced by the shunt 100lbs. The maximum expected load during

= Simulated load produced by shunt

= Maximum load expected during usage

= Input voltage range

usage is 150 lbs. The programmable input range of the data acquisition system is set

5V. The desired output voltage of the strain gage signal conditioning electronics

for +

VD = (100/150) * 5 * 0.90 = 3V

is:

In this example, we would adjust the GAIN and SCALE trimpots until a value of 3V is measured. If 150lbs is applied to the gage, a voltage of 4.5V will be measured.

DBK43A & DBK43B, pg. 38 899892 DBK Option Cards and Modules

VD = (150/150) * 5 * 0.90 = 4.5V

For DBK16, only … Externally apply the shunt resistor and set the voltage to VD, as derived above for each transducer. This is done by adjusting the trimpots labeled GAIN and SCALE for the associated channel. The GAIN trimpot is used for course adjustment; and the SCALE trimpot for fine-tuning.

For DBK43A only … For each DBK43A to be adjusted, move the physical switch from NORM to CAL.

For DBK43B only … For each DBK43B to be adjusted, move the two physical switches from RUN to

CAL1 and CAL2 respectively.

2. In LogView, open the LogBook Hardware Configuration window and select the DBK43A.

LogBook Hardware Configuration, Button and Screen

Select the DBK43A [or DBK43B] from the LogBook Hardware Configuration window’s hardware

3. tree.

Set the list box to the right to CAL. If the DBK43A [or DBK43B] is not displayed click the + to the

left of the base channel to which it is attached to expand the hardware tree.

Setting a DBK43A Cal/Norm Switch to “CAL”

Repeat this process for each DBK43A [or DBK43B] that is to be adjusted.

Click OK to lock in the changes.

Open the Analog Input Channel Grid. In the Param1 column (see page 27 for location), select all of

7. the DBK43A [or DBK43B] channels that are to be adjusted. Select

Mode = Shunt from the drop

down list above the grid. Turn off all the channels in the system except for those DBK43A [or DBK43B] channels that are to be adjusted.

Click the Download button to send the current configuration to the LogBook.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 39

9. Select Indicators \ Enable Input Reading Column from the menu bar to display the excitation values for each channel.

Set the voltage to V

10.

, as derived above, for each transducer. This is accomplished by

adjusting the trimpots labeled GAIN and SCALE for the associated channel. The GAIN trimpot provides for course adjustment. The SCALE trimpot provides for fine tuning.

Select Indicators \ Disable Input Reading Column from the menu bar.

11.

DBK43A users: Return the physical NORM/CAL switches to the NORM position.

12. DBK43B users: Return CAL1 and CAL2 to the RUN position.

DBK43A users: In LogView, open the LogBook Hardware Configuration window and return

13. each DBK43A to NORM. DBK43B users

: In LogView, open the LogBook Hardware Configuration window and return

each DBK43B to a software switch parameter status of: 1’RUN+2’RUN.

14.

Change the mode to Bridge.

Repeating the Process

Since adjusting the gain for the first time will have an affect on the offset, it is recommended that offset and gain adjustment be performed twice for each channel.

Creating a Units Conversion Transfer Function

To make the data from your gage more useful, it should be recorded in terms of units appropriate to your application, such as pounds, kilograms, inches, mm, or Hg. A transfer function is needed to convert volts to these more meaningful units.

For this purpose, LogView provides a means of assigning a mathematical scale and offset to each channel. Scale and offset information from that chapter has been repeated below for convenience.

User Scaling, you can create a transfer function. The function allows LogView to display units that could

be more useful to you than volts. For example, you could obtain readings with pounds as the designated

Units.

The reading (in pounds) will be based on the raw input value, typically Volts, and the indicated Scale and Offset adjustment.

To create the transfer function:

Type the desired unit name in the Units column.

Select an appropriate range (e.g. unipolar).

Enter the linear scale relation to Volts (e.g. 25 pounds per Volt).

Enter any offset from 0, for example, an empty basket used in an

4. application reads 0.1 V.

The reading and range columns will automatically change to the adjusted values.

DBK43A & DBK43B, pg. 40 899892 DBK Option Cards and Modules

Periodic Calibration Without Trimpots

Once the trimpots have been adjusted during initial installation, periodic trimming can be performed through LogView’s 2-Point software calibration. The LogView procedure does not require the use of trimmpots and should not be confused with the 2-point method discussed in this section of the manual.

Refer to the LogView chapter in the LogBook User’s Manual for information regarding 2-point calibration via software.

DBK Option Cards and Module 899892 DBK43A & DBK43B, pg. 41

Specifications - DBK43A and DBK43B Strain Gage Modules

The following specifications apply to both strain gage modules, with exception to the connectors, as noted.

Name/Function: Strain-Gage Module

Connectors:

DBK43A: P1 DB37; mini-DIN6 for strain-gage or external excitation connections DBK43B: P1 DB37; removable screw terminal blocks for strain-gage or external excitation connections

Number of Channels: 8

Excitation Voltage Adjustment Ranges: 1.50 to 10.50 VDC @ 50 mA

Input Gain Range: ×100-1250; separate instrumentation amplifier for each channel with gain adjustable via

externally accessible 15-turn trimpot

Accommodated Bridge Types:

Full bridge, Kelvin excitation (6-wire) Full bridge (4-wire) Half bridge (3-wire) Quarter bridge (3-wire)

Bridge-Completion Resistors: On-board resistor socket locations (Rn00A, Rn00B, Rn00C, Rn00E, Rn00F,

and Rn00G) for 6 bridge-completion resistors per channel

Input Type: Differential

Input Impedance: 100 MΩ || 100 pF

CMMR: 115 dB (DC to 60Hz)

Excitation Current Output: 50 mA max (current limited @ 60 mA)

Excitation Sensing: Local or remote

Excitation Regulation

Line Regulation: 0.01% typical 0.1% max Load Regulation: 0.03% typical 0.2% max

Gain Calibration Reference: 5 mVDC

Gain Calibration Reference Accuracy: 0.2%

Gain Calibration Reference Drift: 20 ppm/°C

Gain Accuracy: 0.5%

Gain Drift: 50 ppm/°C

Input Offset: 40 µV typical 200 µV max (offset adjustable to zero)

Input Offset Drift: 1 µV/ºC typical 4 µV/°C max

Output Offset: 2mV typical 8mV max (offset adjustable to zero)

Output Offset Drift: 100 µV/°C 200 µV/°C max

Offset Adjustment: 0-100% of range, 0-5 VDC (15-turn trimpot)

Full-Scale Sensitivity Range

5.00 VDC Excitation: 0.8-10 mV/V

10.00 VDC Excitation: 0.4-5 mV/V

Scaling Amplifier Gain Range: ×1-10 (15-turn trimpot)

Low-Pass Filter:

3-pole, user-selected Corner frequency (Fc) set by user component Attenuation -3 dB at Fc Gain ×2

Power: 9 to 18 VDC, external supply provided, 16 Watts maximum

Note 1: Total drift (referred to input) is:

DriftOffsetInput +

DriftOffsetOutput

)( trimpotbysetasGainInput

DBK43A & DBK43B, pg. 42 899892 DBK Option Cards and Modules

DBK44 2-Channel 5B Signal-Conditioning Card

Overview ….. 1 Hardware Setup ….. 2

Power Considerations ….. 2 Card Configuration ….. 3 5B Module Connection ….. 3 Terminal Block Connection ….. 4 P1 Connection ….. 4 CE Compliance ….. 5 DaqBook/100 Series & /200 Series and DaqBoard [ISA type] Configuration …… 5 DaqBook/2000 Series and DaqBoard/2000 Series Configuration …… 6

Software Setup ….. 6 mx+b Values for 5B Modules ….. 7 DBK44 – Specifications ….. 7

Reference Notes:

o Chapter 2 includes pinouts for P1, P2, P3, and P4. Refer to pinouts applicable to your

system, as needed.

o In regard to calculating system power requirements, refer to DBK Basics located near

the front of this manual.

Reference Note:

Users of the DBK44 signal-conditioning card may be interested in the DBK207 and DBK207/CJC, Carrier Boards for 5B Compatible Analog I/O Modules. Each DBK207 and DBK207/CJC board includes a 100-pin P4 connector for DaqBoard/2000 Series and /2000c Series compatibility, two P1 connectors for analog expansion, a power connection terminal, and 16 signal terminal blocks. In addition, the DBK207/CJC board includes CJC (Cold Junction Compensation) for thermocouple applications. DBK207 and DBK207/CJC can be mounted in Nema-type panels.

Overview

The 2-channel DBK44 allows LogBook or Daq device systems to use any combination of 5B signalconditioning modules. 5B modules can accommodate a variety of signals (low-level thermocouple signals to strain-gage signals, etc). Configuration options are flexible. You can select the type of signal attached to each channel. One LogBook or Daq device can support up to 128 DBK44 cards, providing up to 256 isolated, analog input channels.

DBK Option Cards and Modules 877095 DBK44, pg. 1

The LogBook or Daq device scans the DBK44’s channels at the same 10 µs/channel rate as other DBKs (256 scans in 2.56 ms in a full system). Each user-installed 5B module offers 500 V isolation from the system and between channels. The DBK44 has convenient screw-terminal blocks for signal inputs and excitation outputs (for use with a strain gage or RTD). Cold junction compensators (CJC) are installed and ready to use with thermocouple 5B modules. Sockets are provided for AC1362 current-sense resistor modules.

Hardware Setup

Power Considerations

The DBK44 requires +5 and ±15 VDC from a LogBook, Daq device P1 connector, or auxiliary power supply. In some applications, the DBK44 can draw enough power from the LogBook’s internal power supply via the P1 connector. However, the 5B power requirements (+5 VDC only) may be greater than the LogBook or DaqBook/DaqBoard can provide (see table).

For applications with more than 4 channels, it may be better to use the DBK42 instead of the DBK44. The DBK42 is a 16-channel module with a built-in power supply.

External power can be obtained from any regulated 5 V source or from a TR-4 power supply. External power attaches to the DBK44 via onboard screw-terminal connections (the Auxiliary Power Input J9 Combicon terminal at the rear of the board).

Model

5B30 30 mA 5B31 30 mA 5B32 30 mA 5B34 30 mA 5B37 30 mA 5B38 200 mA 5B39 *170 mA 5B40 30 mA 5B41 30 mA 5B47 30 mA

* Maximum output load

resistance is 750 Ω

Current

Required

The 5B38 series strain-gage modules with excitation output require an external power source. Auxiliary power is also necessary in systems equipped with more than one DBK44. Prior to using auxiliary power, you must select AUXL on the Power Source Select Jumper (J10).

CAUTION

DBK44, pg. 2 877095 DBK Option Cards and Modules

Auxiliary power input must not exceed +5 VDC. DBK44 does not regulate auxiliary power input.

Card Configuration

Up to 128 DBK44s may connect to a LogBook or a Daq device system. Since this is a daisy-chain interface, each module must appear unique and use a different analog input channel. To configure the card’s channel, you must set the JP1 jumper and the SW1 DIP switch to your chosen channel as follows.

1. Locate the 16×2-pin header (labeled JP1) near the front of the card. Note the 16 jumper locations labeled CH0 through CH15 to match the main channel.

2. Place the JP1 jumper on the channel you wish to use. Only one jumper is used per card, but up to 8 DBK44s can occupy one main channel and use the same JP1 setting (but with different SW1 settings).

3. Locate the SW1 DIP switch that serves as a channel group select switch and can distinguish up to 8 cards on a channel.

4. Place the 3 mini switches (CBA) in the position that corresponds to your chosen channel as shown in the table below. For each JP1 setting, there are 8 possible SW1 settings to allow two input channels per card).

Channel Pair Determined by JP1 and SW1

JP1

Jumper

CH0 16-17 18-19 20-21 22-23 24-25 26-27 28-29 30-31 CH1 32-33 34-35 36-37 38-39 40-41 42-43 44-45 46-47 CH2 48-49 50-51 52-53 54-55 56-57 58-59 60-61 62-63 CH3 64-65 66-67 68-69 70-71 72-73 74-75 76-77 78-79 CH4 80-81 82-83 84-85 86-87 88-89 90-91 92-93 94-95 CH5 96-97 98-99 100-101 102-103 104-105 106-107 108-109 110-111 CH6 112-113 114-115 116-117 118-119 120-121 122-123 124-125 126-127 CH7 128-129 130-131 132-133 134-135 136-137 138-139 140-141 142-143 CH8 144-145 146-147 148-149 150-151 152-153 154-155 156-157 158-159

CH9 160-161 162-163 164-165 166-167 168-169 170-171 172-173 174-175 CH10 176-177 178-179 180-181 182-183 184-185 186-187 188-189 190-191 CH11 192-193 194-195 196-197 198-199 200-201 202-203 204-205 206-207 CH12 208-209 210-211 212-213 214-215 216-217 218-219 220-221 222-223 CH13 224-225 226-227 228-229 230-231 232-233 234-235 236-237 238-239 CH14 240-241 242-243 244-245 246-247 248-249 250-251 252-253 254-255 CH15 256-257 258-259 260-261 262-263 264-265 266-267 268-269 270-271

CBA CBA CBA CBA CBA CBA CBA CBA

0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 11 0 1 1 1

5B Module Connection

Each input of the DBK44 is processed through a user-installed 5B signal-conditioning module. Different 5B modules are used with different transducer and signal sources. To install the modules:

1. Remove all power from the DBK44.

SW1 DIP Switch Setting

2. Match the footprint of the module with the footprint on the circuit board (see figure).

3. Gently place the module into the footprint, and screw it down.

4. Record the channel the module was placed in.

DBK Option Cards and Modules 877095 DBK44, pg. 3

When installing current input modules (SC-5B32 series), be sure to install the current-sense resistor (SC-AC-1362 shipped with the SC-5B32) in the resistor socket (J4 for ch 0, J3 for ch 1) near the input screw-terminal block (see figure).

Terminal Block Connection

WARNING

Shock Hazard! De-energize circuits connected to the DBK44 before changing the wiring or configuration. The DBK44 is designed to sense signals that may carry dangerous voltages.

Input signals (and excitation leads) must be wired to the DBK44 via the 4-contact terminal blocks at the end of the card. These terminal blocks connect internally to their corresponding signal conditioning module. The terminal blocks accept up to 14-gage wire into quick-connect screw terminals that are labeled as to their function. Each type of input signal or transducer (such as a thermocouple or strain gage) should be wired to its terminal block as shown in the figure. Wiring is shown for RTDs, thermocouples, 20 mA circuits, mV/V connections, and for full- and half-bridge strain gages.

P1 Connection

Reference Notes: Chapter 2 includes pinouts for P1, P2, P3, and P4. Refer to pinouts applicable to your

system, as needed.

The DBK44 attaches to the LogBook’s or Daq Device’s P1 analog I/O connector. Connect the CA-37-x accessory ribbon cable (with x indicating the number of cards to be connected) from P1 to the DB37 connector at the end of the DBK44 card.

DBK44, pg. 4 877095 DBK Option Cards and Modules

Note: A series of interface cables are available to connect up to 128 DBK44s. You can also use a DBK41

DBK44 can be connected to the P1 connector of DBK200, DBK201, DBK202, or DBK203. Connect the CA-37-x accessory ribbon cable (with x indicating the number of cards to be connected) from P1 to the DB37 connector at the end of the DBK44 card.

Note: Interface cables are available to connect up to 128 DBK44s.

CE Compliance

10-slot expansion chassis.

Reference Notes: Should your data acquisition system need to comply with CE standards, refer to

the CE Compliance section of the chapter Signal Management.

DaqBook/100 Series & /200 Series and DaqBoard [ISA type] Configuration

The DBK44 requires two setup steps in DaqBooks/100 Series & /200 Series devices and DaqBoards [ISA type]—jumpers JP1 and JP4.

1. If not using auxiliary power, ensure the JP1 jumper is configured for Analog Option Card Use (expanded analog mode).

Note: This default position is necessary to power the interface circuitry of the DBK44 via the

internal ±15 VDC power supply. If using auxiliary power from a DBK32A or DBK33 card, you must remove both JP1 jumpers. Refer to Power Requirements in the DBK Basics section. Also refer to the DBK32A and DBK33 sections as applicable.

2. For DaqBook/100, /112, and /120 only, place the JP4 jumper in the DaqBook or DaqBoard [ISA type] in single-ended mode. Note that analog expansion cards convert all input signals to single- ended voltages referenced to analog common.

Note: The configuration of the JP3 jumper depends on the output range of the 5B module. For

example, a 5B31 volt input module has an output range of -5 to +5 V in bipolar mode. A 5B47 T/C module (output 0 to +5 V) could use bipolar mode, but unipolar mode is more appropriate.

DBK Option Cards and Modules 877095 DBK44, pg. 5

DaqBook/2000 Series and DaqBoard/2000 Series Configuration

No jumper configurations are required for these 2000 series devices.

Software Setup

Reference Notes:

o DaqView users - Refer to chapter 3, DBK Setup in DaqView. o LogView users - Refer to chapter 4, DBK Setup in LogView.

DBK44, pg. 6 877095 DBK Option Cards and Modules

mx+b Values for 5B Modules

The mx+b calculations for most 5B modules are included within LogView software. The table shows the m and b values for various 5B modules.

5B Module m Value b Value Engineering

Isolated Voltage Input (5 V Current Requirement, 30 mA)

SC-5B31-01 1/5 0 mV, V SC-5B31-02 1 0 mV, V SC-5B31-03 2 0 mV, V SC-5B31-04 2/5 -1 mV, V SC-5B31-05 2 -5 mV, V SC-5B31-06 4 -10 mV, V

Isolated Wideband Voltage (5 V Current Requirement, 30mA) SC-5B41-01 1/5 0 V SC-5B41-02 1 0 V SC-5B41-03 2 0 V SC-5B41-04 2/5 -1 V SC-5B41-05 2 -5 V SC-5B41-06 4 -10 V

Isolated Millivolt Input (5 V Current Requirement, 30 mA) SC-5B30-01 2 0 mV SC-5B30-02 10 0 mV SC-5B30-03 20 0 mV SC-5B30-04 4 -10 mV SC-5B30-05 20 -50 mV SC-5B30-06 40 -100 mV

Isolated Wideband Millivolt (5 V Current Requirement, 30 mA) SC-5B40-01 2 0 mV SC-5B40-02 10 0 mV SC-5B40-03 20 0 mV SC-5B40-04 4 -10 mV SC-5B40-05 20 -50 mV SC-5B40-06 40 -100 mV

Isolated Linearized T/C Input (5 V Current Requirement, 30 mA) SC-5B47-J-01 152 0 °C SC-5B47-J-02 80 -100 °C SC-5B47-J-03 100 0 °C

SC-5B47-K-04 200 0 °C SC-5B47-K-05 100 0 °C

SC-5B47-T-06 100 -100 °C SC-5B47-T-07 40 0 °C

SC-5B47-E-08 200 0 °C SC-5B47-R-09 250 +500 °C SC-5B47-S-10 250 +500 °C SC-5B47-S-11 260 +500 °C

Isolated RTD Input (5 V Current Requirement, 30 mA) SC-5B34-01 40 -100 °C SC-5B34-02 20 0 °C SC-5B34-03 40 0 °C SC-5B34-04 120 0 °C

SC-5B34-C-01 24 0 °C SC-5B34-C-02 24 0 °C SC-5B34-N-01 24 0 °C

Isolated Current Input (5 V Current Requirement, 30 mA) SC-5B32-01 3.2 4 mA SC-5B32-02 4 0 mA

Voltage Switch Input

SC-AC-1367 1 0 V

Unit(s)

DBK Option Cards and Modules 877095 DBK44, pg. 7

DBK44 – Specifications

Name/Function: 2-Channel 5B Signal Conditioning Card

Module Capacity: 2 “input only” 5B modules

Weight: 0.25 kg (8 oz.) with no modules installed

Cable (optional): CA-37-x

DC Input Fuse: 4 A

Connections:

Male DB37 mates via CA-37-1 cable with P1 on the LogBook, DaqBook, ISA-type DaqBoard*, or Daq PC-Card.

User connections include 8 screw-terminals (4 per channel). Screw terminations, per channel, are: +EXC, +Vin, -Vin, -EXC

Isolation to Primary Acquisition Device (LogBook or Daq Device):

Input Power: 0 VDC Signal Inputs: 1500 VDC Input Channel-to-Channel: 500 VDC

Environmental:

Operating Temperature: 0 to 50°C Humidity: 0 to 80% RH @ 30°C; de-rate 3%/°C Altitude: 0 to 2000 m

*Note: For DaqBoard/2000 Series and /2000c Series boards, the use of a

DBK200 Series P4-to-P1 adapter is required.

DBK44, pg. 8 877095 DBK Option Cards and Modules

DBK45 4-Channel SSH and Low-Pass Filter Card

Overview …… 1 Hardware Setup …… 2

Card Connection …… 2 Card Configuration …… 2 Configuring DBK45 Filter Sections …… 3 DaqBook/100 Series & /200 Series and DaqBoard [ISA type] Configuration …… 5 DaqBook/2000 Series and DaqBoard/2000 Series Configuration …… 5

Software Setup …… 5 DBK45 – Specifications …… 6

Reference Notes:

o Chapter 2 includes pinouts for P1, P2, P3, and P4. Refer to pinouts applicable to your

Overview

The DBK45 combines the features of the DBK17 (SSH) and the DBK18 (low-pass filter) cards. Each DBK45 provides 4 input channels to a LogBook or Daq device system. Each of the main 16 analog input channels can accept four DBK45s, for a maximum of 64 DBK45s and 256 analog input channels. The simultaneous sample-hold function is activated at the beginning of each channel scan and freezes all signals present on DBK45 inputs for the duration of the scan, allowing for non-skewed readings of all channels.

system, as needed.

o In regard to calculating system power requirements, refer to DBK Basics located near

the front of this manual.

You should never set a DBK45 channel as the 1st channel in a scan due to timing of the SSH line.

For each of the four channels, a separate filter and a sample-hold stage follow the input stage. The outputs are connected to a 4-channel multiplexer stage. The enabled-output MUX allows four DBK45s to share a common analog input channel.

The DBK45 has an instrumentation amplifier for each channel, with switch-selected gains of ×1, ×10, ×100, ×200 and ×500. A socket is provided for a gain resistor for custom gain-selection instead of the 5 factory-default gains. Gain for any channel can be set to any value between unity and ×500 by installing an appropriate resistor. Four separate filter stages follow the 4 input stages. The outputs are connected to a 4-channel multiplexer stage. The enabled output MUX allows four DBK45s to share a common analog base channel.

Input can be connected to a channel’s BNC or terminal block connector. The differential inputs are provided with switchable 100 kΩ bias resistors to analog common.

DBK Option Cards and Modules 987696 DBK45, pg. 1

Hardware Setup

Card Connection

DBK45 Block Diagram

DBK45 is equipped with a BNC connector for each of the four differential analog inputs. The card includes terminal block connections, which can be used instead of the BNC connectors if desired.

Card Configuration

Factory Defaults:

Input Termination

DBK45 provides two 100 KΩ bias resistors for each analog input. For balanced 200 KΩ input impedance, both resistors should be switched in. An 8-position DIP switch (SW5) can selectively engage the bias resistors. The switches must be in the closed position to engage the termination resistors. For unbalanced high input, only the (-) resistor should be used. If neither resistor is used, some external bias current path is required. Examples of SW5 switch positions and the resulting impedance selection follows.

CAUTION

Input voltage levels must not exceed ±5 V bipolar or 10 V unipolar.

• 100K bias resistors – Enabled

• Low pass filter – Disabled (bypassed)

• Gain – x1

• SSH - Enabled

Examples of Bias Resistor Selection Options

Gain Settings

On the printed circuit board, each channel has one gain-set switch. The switches are labeled GAIN 1, GAIN 2, GAIN3, and GAIN 4. Each channel also has holes in the board for gain resistors labeled RG1 to RG4. The 5 gain values for switch settings 0 to 4 are provided in the following figure. If a custom gain is desired, the switch is set to position 0; and a gain resistor must be mounted and soldered onto the board. The gain resistor’s value is determined by the formula: R

DBK45, pg. 2 987696 DBK Option Cards and Modules

= [40,000 / (Gain -1)] - 50 Ω

GAIN

Address Configuration

Up to four DBK45s can be connected to each analog channel. With 16 main channels and 4 inputs per DBK45, 256 inputs are possible. Since this is a daisy-chain interface, each DBK45 must have a unique address (channel and card number). Note that the default setting of SW6 is Card 1.

To configure the module, locate the 16 × 2-pin header (labeled J1) near the front of the board (near P1). The 16 jumper locations on this header are labeled CH0 through CH15. Place the jumper on the channel you wish to use. Only one jumper is used.

Note: Two DBK45s in the daisy-chain can have the same channel number as

long as their card number is unique.

Set switch SW6 for each DBK45 on a single channel. Verify that only one card in the system is set to a particular channel and card number.

Configuring DBK45 Filter Sections

There are 4 low-pass, 3-pole active filters on the DBK45. Each filter can be enabled (EN) or bypassed (BY) by placement of the jumper on J3 for channel 0, J4 for channel 1, J5 for channel 2, J6 for channel 3. The factory-default setting is enabled (EN) for each channel. Each filter can be configured as a Butterworth, Bessel, or Chebyshev filter with corner frequencies up to 50 kHz. Filter properties depend on the values of resistors and capacitors installed in several circuit locations. Above 10 Hz, installing capacitors is unnecessary because capacitors in the ICs are sufficient. In all cases, three resistors are required to complete the active filter circuits contained mostly within the UAF42 ICs.

The following circuit diagram shows the active filter IC in a typical section of the DBK45. The resistors and capacitors outside the IC have a physical location in a DIP-16 socket (dual in-line, 16 pins) with an RCnn designator. The RC indicates the needed part is a resistor or capacitor; the 3rd character is the channel number; and the 4th character corresponds to the socket position (A-H).

Filter Circuit Diagram

A machined-pin IC socket in each filter RC location can accept resistors and capacitors that plug directly into the socket; however, this is not recommended. Two much better approaches exist. The first is to use pre-configured plug-in filter modules; the second is to configure your own plug-in module using a blank CN-115. Both of these options are illustrated on the following page.

The use of plug-in modules provides excellent “gold-to-gold” contact between the components of the plugin module and the on-board header.

DBK Option Cards and Modules 987696 DBK45, pg. 3

The right-hand figure shows the DIP-16 component pattern typical of the 4 filter sections.

Note: “n” corresponds to “channel number.” Pin 7 of the DIP-16 socket:

• connects to pin 8 for low-pass filtering

• connects to pin 6 for band-pass filtering

DIP-16 Component Pattern

The following table lists values of components for common corner frequencies in Butterworth filters. If designing your own filter, software from Burr-Brown provides the component values to create the desired filter. Note that the design math is beyond the scope of this manual.

3-Pole Butterworth Filter Components

3dB (Hz)

0.05

0.10

0.20

0.50 1 2 5* 10* 20 50 100* 200 500* 1000* 2000 5000 10000 *These pre-configured Butterworth frequency modules are available from the manufacturer.

RCnA RCnB RCnC RCnD RcnE RCnF RCnG RCnH

3.16 MΩ

1.58 MΩ 787 kΩ

3.16 MΩ

1.58 MΩ 787 kΩ

3.16 MΩ

1.58 MΩ 787 kΩ

3.16 MΩ

1.58 MΩ 787 kΩ 316 kΩ 158 kΩ

78.7 kΩ

31.6 kΩ

15.8 kΩ

1 µF none 1 µF none 1 µF none

0.1 µF none

0.01 µF none

0.001 µF none

3.16 MΩ

1.58 MΩ 787 kΩ

3.16 MΩ

1.58 MΩ 787 kΩ

3.16 MΩ

1.58 MΩ 787 kΩ

3.16 MΩ

1.58 MΩ 787 kΩ 316 kΩ 158 kΩ

78.7 kΩ

31.6 kΩ

15.8 kΩ

1 µF 1 µF 1 µF

0.1 µF

0.01 µF

0.01 µF none none none none none none none none

3.16 MΩ

1.58 MΩ 787 kΩ

3.16 MΩ

1.58 MΩ 787 kΩ

3.16 MΩ

1.58 MΩ 787 kΩ

3.16 MΩ

1.58 MΩ 787 kΩ 316 kΩ 158 kΩ

78.7 kΩ

31.6 kΩ

15.8 kΩ

none 1 µF none 1 µF none 1 µF none 0.1 µF none 0.1 µF none 0.1 µF none 0.01 µF none 0.01 µF none 0.01 µF none none none none none none none none none none none none none none none none

You have the option to configure the filter sections as b and-pass filters rather than low-pass filters. The component selection program provides band-pass component values. The program also computes and displays phase and gain characteristics of the filter sections as a function of freq uency.

DBK45, pg. 4 987696 DBK Option Cards and Modules

DaqBook/100 Series & /200 Series and DaqBoard [ISA type] Configuration

Use of the DBK45 requires setting jumpers in DaqBooks/100 Series & /200 Series devices and ISA-type DaqBoards.

1. If not using auxiliary power, set the JP1 jumper for Analog Option Card Use (also referred to as Analog Expansion Mode).

Note: These jumpers do not apply to /2000 Series devices.

Jumpers on DaqBook/100 Series, DaqBook/200 Series, and ISA-type DaqBoards

The JP1 default position (Analog Option Card Use) is necessary to power the interface circuitry of the DBK45 via the internal ±15 VDC power supply. If using auxiliary power, e.g., DBK32A or DBK33, you must remove both JP1 jumpers. Refer to Power Requirements in the DBK Basics section and the DBK32A and DBK33 sections for more information, as applicable.

2. Place the JP2 jumper in the SSH position.

Do not use an external voltage reference for DAC1. Applying an external voltage

CAUTION

reference for DAC1, when using the SSH output, will result in equipment damage due to a conflict on P1, pin #26.

3. For DaqBook/100, DaqBook/112 and DaqBook/120

only, place the JP4 jumper in

single-ended mode.

DaqBook/2000 Series and DaqBoard/2000 Series Configuration

No hardware configuration is required for DaqBook/2000 Series or DaqBoard/2000 Series devices.

Software Setup

Reference Notes:

o DaqView users - Refer to chapter 3, DBK Setup in DaqView. o LogView users - Refer to chapter 4, DBK Setup in LogView.

DBK Option Cards and Modules 987696 DBK45, pg. 5

DBK45 – Specifications

Name/Function: Simultaneous Sample and Hold and

Low-Pass Filter Card

Number of Channels: 4

Input Connections: 4 BNC connectors; 4 screw-terminal sets

Output Connector: DB37 male,

mates with P1 using CA-37-x cable

Number of Cards Addressable: 64

Dimensions: 8.25” × 3.25”

Input Type: Differential

Voltage Input Ranges:

0 to ±5000 mVDC 0 to ±500 mVDC 0 to ±50 mVDC 0 to ±25 mVDC 0 to ±10 mVDC

For Custom Gains: R

Input Amplifier Slew Rate: 12 V/µs minimum

Acquisition Time:

0.6 µs (10 V excursion to 0.1%)

0.7 µs (10 V excursion to 0.01%)

Channel-to-Channel Aperture Uncertainty: 50 ns

Output Droop Rate: 0.1 µV/µs

Input Gains: ×1, ×10, ×100, ×200, x500, and

user-set up to ×500

Input Offset Voltage: 500 µV + 5000/G maximum (nullable)

Input Offset Drift: ±5 + 100/G µV/°C maximum

Input Bias Current: 100 pA maximum

Input Offset Currents: 50 pA maximum

Input Impedance: 5 × 10

Switchable Bias Resistors: 100 KΩ each to analog common

= [40,000/(Gain-1)] - 80 Ω

GAIN

Ω parallel with 6 pF

Gain Errors:

0.04% @ ×1

0.1% @ ×10

0.2% @ ×100

0.4% @ ×200

1.0% @ ×500

Temperature vs Gain:

±20 ppm/°C @ ×1 ±20 ppm/°C @ ×10 ±40 ppm/°C @ ×100 ±60 ppm/°C @ ×200 ±100 ppm/°C @ ×500

Non-Linearity:

±0.015 % full-scale @ ×1 ±0.015 % full-scale @ ×10 ±0.025 % full-scale @ ×100 ±0.025 % full-scale @ ×200 ±0.045 % full-scale @ ×500

Common-Mode Rejection:

70 dB minimum @ ×1 87 dB minimum @ ×10 100 dB minimum @ ×100 100 dB minimum @ ×200 100 dB minimum @ ×500

Active Filter Device: UAF42 (Burr-Brown)

Number of Poles/Filter: 3

Types of Filters: Bessel, Butterworth,

Chebyshev

Frequency Range: 0.1 Hz to 50 kHz

The frequency is set by installation of 4-6 resistors and/or capacitors in provided socket locations.

Frequency Modules: Optional frequency

module kits are available that consist of 4 plug-in resistor/capacitor (RC) headers. These RC headers are preconfigured for any of the following frequencies: 5 Hz, 10 Hz, 100 Hz, 500 Hz, or 1 kHz—all are Butterworthtype filters.

DBK45, pg. 6 987696 DBK Option Cards and Modules

DBK46 4-Channel Analog Output Card

Daq

Overview

Overview ...... 1

Hardware Setup ...... 3

Software Setup ...... 3

For use with: DaqBook/2000A

DaqBook/2000E DaqBook/2000X

DBK46 – Specifications ......4

Reference Notes:

o Chapter 2 includes pinouts for P1, P2, P3, and P4. Refer to pinouts applicable to your

system, as needed.

o The P3 connector’s DAC related pins [31, 32, 33, and 34] apply to the DaqBook/2000 Series

Device only when a DBK46 is installed. For WBK41, DAC related connections are made via a front panel screw terminal block.

The DBK46 is a factory-installed option currently available for DaqBook/2000A, DaqBook/2000E, DaqBook/2000X, and WBK41. JP1 plugs into a 40-pin header on the primary acquisition device. Analog DAC Output is then available, as follows:

•

For DaqBook/2000 Series devices, from the device’s P3 connector.

•

For WBK41, from a front panel terminal block.

WBK41

The 37-pin P3 connector is on the DaqBook/2000

Internal Acquisition Pacer Clock

External Acquisition Pacer Clock Pin 20 on P1; Pin B26 on P4

Internal DAC Pacer Clock

External DAC Pacer Clock Pin 21 on P3; Pin A26 on P4

Series device front panel.

DBK46 Block Diagram,

Book/2000 Series Applications

DBK Option Cards and Modules 967194 DBK46, pg. 1

WBK41 Front Panel, Right-Edge Terminal Block

Internal DAC Pacer Clock

Internal Acquisition Pacer Clock

External DAC Pacer Clock (DPCR)

DBK46 Block Diagram, WBK41 Application

The DBK46 has a 256K sample buffer that can be used for one to four DACs. If only one DAC is enabled for waveform output, then the entire 256K sample memory can be used to store a waveform for that DAC. If two DACs are enabled for waveform output, then 128K of sample memory is available for each of the two DACs. Use of all four DACs drops the available memory down to 64K per DAC.

Software loads the waveform(s) into all, or a portion of, the 256K sample buffer. The waveform data drives the DACs at the rate of the specified DAC Pacer Clock. The waveforms will repeat until the DACs are disabled by software.

The DBK46 provides an output range of -10V to +10V. The card’s 256 Kbyte of sample buffer memory can store waveforms from the PC.

When used to generate waveforms for a

DaqBook/2000 Series device, each DAC can be independently

clocked in one of four modes. These are:

Internal DAC Pacer Clock - The on-board programmable clock can generate updates ranging

•

from 1.5 Hz to 100 kHz, independent of any acquisition rate.

•

Internal Acquisition Pacer Clock - Using the on-board programmable clock, the analog output rate of update can be synchronized to the acquisition rate derived from 100 kHz to once every 5.96 hours.

•

External DAC Pacer Clock - A user-supplied external input clock can be used to pace the DAC, entirely independent of other analog inputs.

•

External Acquisition Pacer Clock - A user-supplied external input clock can simultaneously pace the DAC and the analog input.

When used to generate waveforms in a

WBK41, the DACs can be clocked in one of three modes.

These are:

Internal DAC Pacer Clock - The WBK41 programmable clock can generate updates ranging

•

from 1.5 Hz to 100 kHz, independent of any acquisition rate.

DBK46, pg. 2

•

Internal Acquisition Pacer Clock – By using the WBK41 programmable clock, the analog output rate of update can be synchronized to the acquisition rate derived from 100 kHz to once every 5.96 hours.

•

External DAC Pacer Clock (DPCR) - A user-supplied external input clock can be used to pace the DAC, entirely independent of other analog inputs. This external clock input connects to the DPCR connector, located on the Counter/Timer Terminal Block.

967194 DBK Option Cards and Modules

Hardware Setup

DBK46 is installed at the factory. To verify that a DBK46 is installed, simply check the acquisition software’s Analog Output Window for the presence of DAC0, DAC1, DAC2, and DAC3.

Software Setup

DBK46 does not require setup in software.

Reference Notes:

o DaqView Users: In regard to the out-of-the-box software and analog output channels, refer to the

DaqView and DaqViewXL Document Module, especially the following two sections: Analog Output Window, and Waveform and Digital Pattern Output Window.

o WaveView Users: In regard to the out-of-the-box software, refer to the WaveView Document

Module.

o PDF versions of the documents are included on the data acquisition CD and can be accessed via the

<View PDFs> button, which is located on the CD’s intro-screen.

DBK Option Cards and Modules 967194 DBK46, pg. 3

DBK46 – Specifications

The four analog output channels are updated synchronously relative to scanned inputs, and are clocked from either an internal clock on the primary acquisition device, such as a DaqBook/2000A; or from a usersupplied external clock source. Analog outputs can also be updated asynchronously, independent of any other scanning in the system.

Channels: 4

Resolution: 16 bits

Data Buffer: 256 K sample FIFO

Output Voltage Range: ±10V

Output Current: ±10 mA

Offset Error: ±0.0045V max

Gain Error: ±0.01%

Update Rate: 100 kHz max, 1.5 Hz min (no minimum with external clock)

Settling Time: 10 µsec max to 1 LSB for full-scale step

Digital Feed-thru: a spike of up to 50 mV may occur on the DAC output

each time the DAC output is updated

Clock Sources: 4 programmable clock sources:

•

The primary acquisition device’s onboard D/A input clock, independent of the scanning input clock

•

The primary acquisition device’s onboard scanning input clock

An external D/A input clock, independent of an external scanning input clock

•

An external scanning input clock

•

Note: Specifications are subject to change without notice.

DBK46, pg. 4

967194 DBK Option Cards and Modules

DBK48 Multipurpose Isolated Signal-Conditioning Module

Supports up to Sixteen 8B Modules

Description …… 1 Safety Concerns …… 2

Hardware Setup …… 2

Installing 8B Modules …… 4 Installing Plug-in Resistors to Create 4 to 20 mA Loops …… 5 Making Terminal Block Connections …… 6 Setting DBK48 Module Addresses …… 7 Configuring the Primary Data Acquisition Device …… 8 CE Compliance …… 9 Connecting the DBK48 to the Primary Data Acquisition Device …… 9 Using the DB25 Signal Output Connector …… 10 Powering the System …… 13

Software Setup …… 13 Specifications …… 16

Description

The DBK48 module can accommodate up to sixteen 8B isolated-input signal-conditioning modules for use with Daq systems. A single cable connects the DBK48 output to the P1 analog input connector on the primary device. One Daq system can support up to 16 DBK48 modules, providing a total of 256 isolated analog input channels. The A/D converter scans the DBK48 channels at the same 5 µs/channel rate that it scans all other channels from DBK series analog expansion and signal conditioning cards.

Other features of DBK48 include:

• Built-in power supply that operates from 10 to 30 VDC and can power a full complement of

8B modules (even with bridge excitation).

• Removable, plug-in screw-terminal blocks for convenient connection of 8B modules.

• On-board cold-junction sensing for thermocouple 8B modules.

• For each 8B module, 250 V isolation from the system and from other channels.

Note 1: Only channels 0, 2, 4, 6, 8, 10, 12, and 14 can be connected

to excitation. For example, in the above block diagram Channel 0 could be connected to Excitation; Channel 1 could not.

Note 2: Each channel can accept a plug-in resistor to serve as a

8B Isolated Signal Conditioning Module 967792 DKB48, pg. 1

current shunt. In the above diagram, Channel 0 has a current shunt installed, Channel 1 does not. Only currentinput type modules require the plug-in resistors. The plug-in resistors must be removed for all other module types.

Safety Concerns

DBK48 has a 250 VDC isolation specification. This is in a normal environment free of conductive pollutants and condensation. The 250 VDC rating requires a proper earth ground connection to the chassis and treatment of adjacent inputs as potentially hazardous.

Input cables must be rated for the isolation potential in use. Line voltage ratings are much lower than the DC isolation values specified due to transients that occur on power lines. Never remove the cover unless all inputs with potentially hazardous voltages are removed. The cover must be securely screwed on during use.

Some things to remember:

WARNING

Shock Hazard! Voltages above 50 Vrms AC and voltages above 100 VDC are considered hazardous. Safety precautions are required when 8B modules are used in situations that require high-voltage isolation from the rest of the system. Failure to practice electrical safety precautions could lead to injury or death.

• Properly tighten all chassis screws before system use.

• Never plug in or unplug potentially hazardous connections with power applied to any

connected equipment.

• Never attempt to change 8B modules or remove the cover plate while power is applied to

the DBK48. You could short out internally exposed circuits and cause personal injury or equipment damage.

• Disconnect power, all equipment, and signal lines from the DBK48 prior to installing

8B modules.

Reference Note:

Refer to user manual that is associated with your primary Daq device.

DBK48, pg. 2 967792 8B Isolated Signal Conditioning Module

Hardware Setup

DBK48 Circuit Board Layout

8B Isolated Signal Conditioning Module 967792 DKB48, pg. 3

Installing 8B Modules

Electric shock hazard! Turn off power to the DBK48 and all connected modules and devices before inserting or removing modules. Failure to do so could lead to injury or death due to electric shock.

CAUTION

WARNING

Handle the 8B module carefully while inserting pins into the circuit board. Do not over-tighten the mounting screw.

CAUTION

The discharge of static electricity can damage some electronic components. Semiconductor devices are especially susceptible to ESD damage. You should always handle components carefully, and you should never touch connector pins or circuit components unless you are following ESD guidelines in an appropriate ESD controlled area. Such guidelines include the use of properly grounded mats and wrist straps, ESD bags and cartons, and related procedures.

If the DBK48 is not connected to a Daq device via the P1 connector, then remove the Rnets from S01 and S02. These resistor networks connect each 8B module’s output to the multiplexer for P1.

Up to sixteen 8B modules can be installed onto the DBK48 circuit board. The preceding figure indicates module locations.

To install 8B modules:

1. Turn off power to the DBK48 and all

connected modules and devices.

2. Disconnect power, all equipment, and signal

lines from the DBK48 prior to installing 8B modules. Be aware that isolated measurements can present lethal voltages!

3. Remove the DBK48 top cover plate and set aside.

4. Align the 8B module’s retaining screw and pins

with the holes in the circuit board (see figure).

5. Gently press the module into place.

6. Tighten the retaining screw snug, but DO NOT OVERTIGHTEN.

7. Repeat steps 3, 4, and 5 for each additional module.

8. Return and secure the cover plate to the unit.

DBK48, pg. 4 967792 8B Isolated Signal Conditioning Module

Installing Plug-in Resistors to Create 4 to 20 mA Loops with 8B Voltage-Input Modules

Electric shock hazard! Turn off power to the DBK48 and all connected modules and devices before inserting or removing resistors. Failure to do so could lead to injury or death due to electric shock.

CAUTION

Current Shunt Resistors

WARNING

Shown with shunt resistors plugged-in for Channel 0 (at R0) and Channel 2 (at R2)

Location of Shunt Resistor Plug-In

Only voltage-input type modules require the plug-in shunt resistors. The plug-in resistors must be removed for all other module types, including current-input type.

Inputs to monitor the commonly used 4 to 20mA current loops most often employ a 250Ω precision resistor to develop a 1 to 5 VDC voltage drop.

Ideally, a resistor for such purpose should have a 0.1% tolerance (or better) with a minimum power rating of 0.25W and a temperature coefficient of at least 25ppm/°C.

Lower values of resistance, for example, 62.5Ω [for a lower voltage drop within the loop of 0.25 to 1.25 VDC] will require that the host data acquisition device use a gain o f x4 to maximize the signal resolution.

To create a 4 to 20mA current loop:

1. Turn off power to the DBK48 and all connected modules and devices.

2. Disconnect power, all equipment, and signal lines from the DBK48 prior to installing the

resistors. Be aware that isolated measurements can present lethal voltages!

3. Remove the DBK48 top cover plate and set aside.

4. Carefully plug the shunt resistor into the applicable plug-in location for the designated channel;

for example, R0 for Channel 0, R1 for Channel 1, R2 for Channel 2, etc. Repeat for each channel as applicable.

DO NOT

Only voltage-input type modules require these resistors. The plug-in resistors must be removed for all other module types, including current-input type.

solder the shunt resistors in place.

5. Reinstall the DBK48 top cover plate and secure in place.

8B Isolated Signal Conditioning Module 967792 DKB48, pg. 5

Making Terminal Block Connections

Input signals (and excitation when applicable) are wired to removable terminal blocks. Eight such blocks can accept 2 channel inputs each. However, only channels 0, 2, 4, 6, 8, 10, 12, and 14 can be connected to excitation. Thus the DBK48 is limited to 8 strain gages or 8 RTDs as only the even numbered channels can be connected to excitation.

Each terminal block connects to a signal conditioning module within the DBK48. The blocks accept up to 14-gage wire into quick-connect screw terminals. Wiring schematics are provided below for RTDs, thermocouples, 20 mA circuits, voltage (mV and V), and for full-bridge and half-bridge strain gages.

WARNING

Shock Hazard! The DBK48 is designed to sense signals that may carry dangerous voltages. De-energize circuits connected to the DBK48 before changing the wiring or configuration.

CH 0 is connected to a Full-Bridge Strain Gage. CH 1 is shown not connected.

CH 0 is connected to a Half-Bridge Strain Gage. CH 1 is connected for voltage input (mV or V).

CH 0 has a 3-wire connection to a potentiometer. CH 1 is shown not connected.

CH 0 has a 3-wire connection to an RTD. CH 1 is connected to a Thermocouple.

Only current-input type modules require the plug-in resistors. The plug-in resistors must be removed for all other module types.

CH 0 has a 2-wire connection to an RTD. CH 1 is shown not connected.

CH 0 is shown not connected. CH 1 is connected to a current shunt resistor resulting in a 4 to 20 mA current loop.

DBK48, pg. 6 967792 8B Isolated Signal Conditioning Module

Setting DBK48 Module Addresses

Up to sixteen DBK48 modules can be attached to a single LogBook or Daq device. Each DBK48 module must have a unique channel address because they connect to the primary data acquisition device via parallel interface.

Adjustment of the channel address must only be performed when the system power is OFF. Failure to do so may result in equipment damage.

To assign a channel address to the DBK48 module, first locate the DIP switch on the right side of the rear panel. Four micro-switches [on the DIP switch] are used to set the module’s channel address in binary. After ensuring that the system power is OFF, adjust the micro-switches to set the desired address. The 16 possible addresses are illustrated in the following figure.

Each module in the system must have a unique primary device channel address.

CAUTION

The 16 Possible Address Settings for DBK48 Modules

8B Isolated Signal Conditioning Module 967792 DKB48, pg. 7

Configuring the Primary Data Acquisition Device

DaqBook/100 Series & /200 Series and DaqBoard [ISA type] Configuration

Use of a DBK48 with a DaqBook/100 Series, /200 Series devices, or with an ISA-type DaqBoard requires the configuration of jumpers JP1 and JP4. These jumpers are located on the DaqBook/100 Series, /200

Series devices, and DaqBoard [ISA type] board.

1. If not using auxiliary power, set the JP1 jumper for Analog Option Card Use,

also referred to as the expanded analog mode.

Required Jumper Settings in DaqBook/100 Series & /200 Series and ISA-Type DaqBoards

Note: These jumpers do not apply to /2000 Series Devices.

2. For DaqBook/100, DaqBook /112, and DaqBook /120 only, place the JP4 jumper in the single-ended

DaqBook/2000 Series, DaqBoard/2000 Series, DaqLab, and DaqScan

No jumper configurations are required on these Daq devices in regard to connecting a DBK48.

LogBooks

No jumper configurations are required on LogBook devices in regard to connecting a DBK48.

mode.

The JP1 default position (above) is necessary to power the interface circuitry of the DBK48 via the internal ±15 VDC power supply. If using auxiliary power (e.g., DBK32A or DBK33) you must remove both JP1 jumpers. For additional information refer to Power Requirements in the DBK Basics section and to the DBK32A and DBK33 sections, as applicable.

DBK48, pg. 8 967792 8B Isolated Signal Conditioning Module

CE Compliance

If your data acquisition system needs to comply with CE standards, the DBK48 must be connected to the LogBook or Daq device by a CA-143-x cable. In addition, the CE compliant operating conditions must be met as specified on the DBK48 module’s Declaration of Conformity card, which is shipped with the module.

Reference Notes: If your data acquisition system needs to comply with CE standards, refer to the following:

o the DBK48 Declaration of Conformity o the CE Compliance section of Signal Management chapter of this manual

Connecting the DBK48 to the Primary Data Acquisition Device

Connect the DBK48 module as follows. Note that if your system needs to be CE Compliant, be sure to read the preceding CE Compliance section prior to connecting the DBK48.

1. For a single DBK48 module, connect one end of the P1 cable to the module’s male DB37 output

connector.

• For DaqBook applications - use a CA-37-x cable or a CA-255-xT cable.*

• For DaqBoard/2000 Series or /2000c Series boards - use a CA-37-x with a DBK200 Series

adapter.*

• For DaqBoard [ISA type] boards - use a CA-131-x cable.*

* CA-37-x and CA-131-x cables do not meet CE compliance requirements. Refer to the

preceding CE section if CE compliance must be met.

2. Connect the free end of the cable to the P1 port of the LogBook or Daq device. For multiple DBK48

modules, use a CA-37-x (or CA-131-x) cable to daisy-chain several modules or an expansion module. For example, three DBK48 modules could be connected to a LogBook or a Daq device via a CA-37-3 cable.

Note: For longer cable runs you can use a CA-113 cable to add 6 ft of length.

8B Isolated Signal Conditioning Module 967792 DKB48, pg. 9

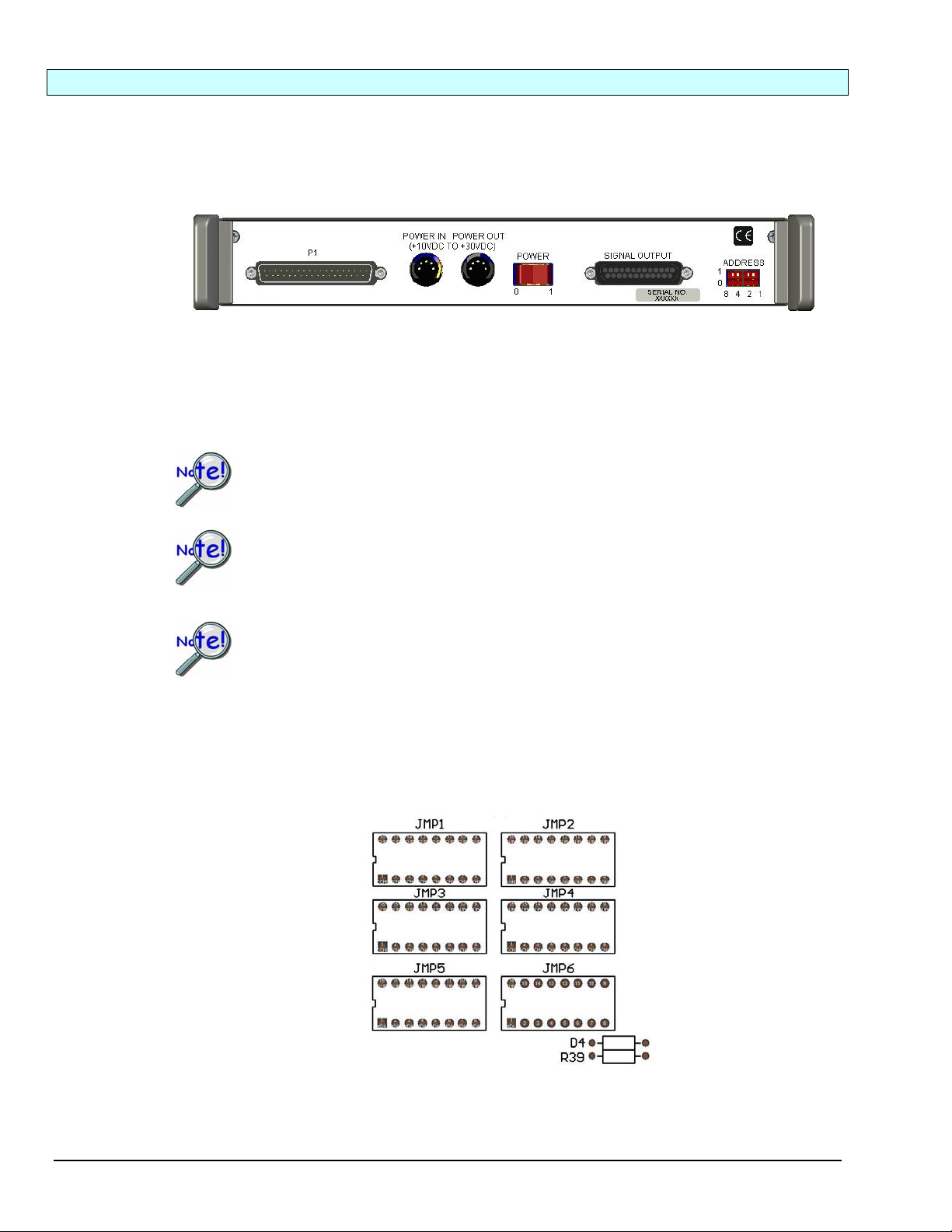

Using the DB25 Signal Output Connector

Important Notes Regarding the Signal Output Connector

The signal output connector on the rear panel of the DBK48 can be used to directly measure the output voltage of each 8B module. This applies to input-type modules, i.e., volts, millivolts, thermocouple, potentiometer, frequency, strain gage, RTD, etc.

DBK48 Rear Panel

The signal output connector can also be used with output-type 8B modules, e.g., current output and voltage output. In this case a voltage is applied to the signal output connector. This voltage is converted to an isolated current or isolated voltage by the 8B module which is installed in that channel. The isolated current or voltage is available on the front panel terminal block.

Be careful when mixing 8B input modules and 8B output modules. If possible, do not mix 8B input modules and 8B output modules within the same DBK48.

When applying voltages to the rear panel signal output connector [for 8B outputmodules] it can be easy to short to an adjacent pin on the 25 pin DSUB connector. If there is an 8B input-module on that channel, damage may occur to that 8B module.

If a voltage source is being applied to a front panel terminal block for an 8B input-type module and there is an 8B output-type module mistakenly installed in that channel, damage to the 8B output module may occur.

Configuring the SIGNAL OUTPUT

The signal output connector on the rear panel of the DBK48 can be configured in one of two ways via jumper networks that are placed in sockets JMP1, 2, 3, 4, 5, and 6.

Signal Output Configuration Jumpers

as Oriented on PCB

DBK48, pg. 10 967792 8B Isolated Signal Conditioning Module

Jumper Assignments

JMP1 JMP2 JMP3

For JMP1 through JMP6:

CCHx = Single-ended I/O

JMP4

DSUBx = Pin x of the DB25

JMP5 and JMP6

Bringing all Sixteen 8B Module Outputs to the DB25 Signal Output Connector

With three CA-19-8 jumper networks installed [one per socket] in JMP3, JMP4, and JMP5 the signal output connector is pinned out as shown in the following figure. This brings the outputs of all sixteen 8B modules to the 25-pin DSUB Signal Output connector on the rear panel.

channel of 8B Module.

Signal Output connector.

DB25 SIGNAL OUTPUT Pinout with JMP3, JMP4, JMP5 Installed

This configuration brings all 16 channel outputs to the DB25 Signal Output Connector.

8B Isolated Signal Conditioning Module 967792 DKB48, pg. 11

Bringing Eight 8B Module Outputs to the DB25 Signal Output Connector

With 3 jumper networks installed [one per socket] in JMP1, JMP2, and JMP6 the signal output connector is pinned out as shown in the following figure. This only brings the outputs of eight of the 8B modules, i.e., Ch 0, 2, 4, 6, 8, 10, 12, and 14.

When the Signal Output connector is pinned-out in this manner it can be used with a CA-208-3 cable to bring the 8 channels out to the cable’s BNC connectors for easy connection to other measuring equipment.

DB25 SIGNAL OUTPUT Pinout with JMP1, JMP2, JMP6 Installed

This configuration brings channel 0, 2, 4, 6, 8, 10, 12 and 14 outputs to the DB25 Signal Output Connector.

If the DBK48 is not connected to a Daq device via the P1 connector, then remove the Rnets from S01 and S02. These resistor networks connect each 8B module’s output to the multiplexer for P1.

Use the CA-208-3 cable as follows:

1. Connect the DB25-end of the CA-208-3 cable

directly to DBK48’s 25-pin Signal Output connector.

2. Connect the CA-208-3 analog common banana

plug to the local ground of the measuring equipment.

3. Connect the CA-208-3 BNC connectors (for

channels 1 through 8) to the measuring equipment.

Note 1: CA-208-3 connects directly to the signal output connector. However, another cable, which looks virtually the

same, is the CA-208 (with no”-3” extension). If you are using a CA-208 you must first connect a CA-35-18 cable to the DB25 connector on the DBK48; then connect the CA-208 to the CA-35-18 cable. For CA-208 users, a wiring diagram is provided immediately following the DBK48 specifications section.

DBK48, pg. 12 967792 8B Isolated Signal Conditioning Module

Powering the System

The DBK48 contains an internal power supply. The unit can be powered by an AC power adapter or any 10 to 30 VDC source, such as a 12 V car battery. For portable or field applications, DBK48 and the primary Daq device can be powered by a DBK30A rechargeable battery module or DBK34 vehicle UPS module. The supply input is fully isolated from the measurement system. If the fuse requires replacement, use a 2 Amp Mini ATO Fuse, factory part number FU-8-2 (Littelfuse # 297-002).

Software Setup

You will need to set several parameters so DaqView can best meet your application requirements. After the 8B module type is identified, DaqView figures out the m and b (of the mx+b equation) for proper engineering units scaling. An example of the mx + b equation follows shortly.

DBK48 Rear Panel

DBK48’s internal power supply supplies power to the 8B modules only. The DIN5 Power Out connector is a pass-through to allow for a power daisy-chain.

Prior to daisy-chaining from one module’s power connector to another, be sure to compute the power consumption for the entire system. Some modules may need independent power adapters. See chapter 2 for information regarding power supply issues.

LogView does not include the means to directly select the DBK48.

To use a DBK48 and its 8B modules with LogBook: Select DBK42 in LogView. This will recognize the DBK48, but will identify it as a DBK42. For each 8B module, select the 5B module that exhibits the same measurement ranges; three examples follow:

For SC-8B30-01 select SC-5B30-01 as both have an Input Range of ±10 mV; and an Output Range of ±5V.

For SC-8B34-02 select with an Input Range of 0°C to +100°C.

For SC-8B47-T-07 select with an Input Range of 0°C to +200°C.

SC-5B34-02 as both are Type 100 Ohm Pt;

SC-5B47-T-07 as both are a Type T Thermocouple,

Reference Note:

o For DaqView information refer to chapter 3, DBK Setup in DaqView and to the DaqView

PDF included on your data acquisition CD.

o For LogView information refer to chapter 4, DBK Setup in LogView and to the LogView

section of the LogBook PDF included on your data acquisition CD. Also, see above note.

o The API includes functions applicable to the DBK48. Refer to related material in the

Programmer’s Manual (p/n 1008-0901) as needed.

PDF Note:

During software installation, Adobe

PDF versions of user manuals automatically install onto

8B Isolated Signal Conditioning Module 967792 DKB48, pg. 13

DaqView Configuration Main Window

mX +b, an Example

The Customize Engineering Units dialog box can be accessed via the DaqView Configuration main window by activating the Units cell [for the desired channel], then clicking to select mX+b.

An example of mX + b equation use follows.

DBK48, pg. 14 967792 8B Isolated Signal Conditioning Module

Engineering Units Conversion Using mx + b

(1) Engineering Units = m(Raw Signal) + b

Example

A - Write a pair of equations, representing the two known points:

(2) 3200 = m(10.5) + b

(3) 0 = m(0.5) + b

B - Solve for m by first subtracting each element in equation (3) from equation (2):

(4) 3200 - 0 = m(10.5 – 0.5) + (b - b)

(5)

Simplifying gives you: 3200 = m(10)

(6)

This means: m = 320

C - Substitute the value for m into equation (3) to determine the value for b:

(7) 0 = 320 (0.5) + b

(8)

Therefore: b = - 160

Now it is possible to rewrite the general equation (1) using the specific values for m and b that we just determined:

(9) Engineering Units = 320(Raw Signal) - 160

8B Isolated Signal Conditioning Module 967792 DKB48, pg. 15

Specifications – DBK48

Name/Function: DBK48, 16-slot Multi-Purpose Isolated Signal Conditioning Module Operating Environment:

Temperature: -30°C to 70°C Relative Humidity: 95% RH, non-condensing

Connectors:

System Connector: DB37 male, mates with P1 connector on primary acquisition device ( Signal Connector: DB25, 5V output signals from the 8B modules Power Connectors: Two DIN5 connectors; “Power In” and “Power Out” for daisy-chaining Input Connections:

8 sets of removable screw terminal blocks, each with 6 connection points as follows:

1 1 2

Shunt-Resistor Socket: R0 through R15, plug-in resistor sockets.

Cold-Junction Sensor: Enabled or disabled per channel via jumpers JP0 through JP15.

8B Module Capacity:

o Up to 16 voltage input o Up to 16 thermocouple o Up to 8 modules which require excitation; i.e.

strain gauge, potentiometer, RTD

See latest catalog or contact your sales representative in regard to the types of 8B Modules available for your application.

Power Requirements: 10 to 30 VDC; or 120 VAC with AC-to-DC adapter

With 16 thermocouple-type modules (0.03 amps each):

10 VDC @ 0.30 A 15 VDC @ 0.20 A 25 VDC @ 0.12 A

With 8 strain-gage-type modules (0.2 amps each):

10 VDC @ 1.000 A 15 VDC @ 0.667 A 25 VDC @ 0.400 A

Power Consumption: 750 mW from P1, typical

Channel-to-Channel Settling: ±0.05%, typical at 200kHz; ±0.025%, typical at 100kHz DC Input Fuse: 2 Amp, Mini ATO Fuse, FU-8-2 (Littelfuse #297-002); at board location F3 Isolation

Input Power to System: 250 VDC Signal Inputs to System: 250 VDC

Input Channel-to-Channel: 250 VDC Dimensions: 285 mm W × 220 mm D × 45 mm H (11” x 8.5” × 1.75”) Weight: 1.13 kg (2.5 lb) with no modules installed

channel voltage in (+V in, -V in)

channel excitation (+E, -E) (Note 2)

channel voltage in (+V in, -V in)

One socket per channel for current loop inputs.

(±15V @ 25mA)

Note 1)

Note 1: If attachment to the primary device is through a 100-pin P4 connector, a DBK200 series adapter must be used to

Note 2: Input devices that require excitation can only be connected to the following channels:

DBK48, pg. 16 967792 8B Isolated Signal Conditioning Module

obtain the mating P1 connector.

0, 2, 4, 6, 8, 10, 12, 14. The odd-numbered channels do not connect to excitation.

8B Module Ranges

Voltage Input Modules (3 Hz BW)

Part No. Input Range Output Range

SC-8B30-01 ±10 mV ±5V SC-8B30-02 ±50 mV ±5V SC-8B30-03 ±100 mV ±5V SC-8B31-01 ±1 V ±5V SC-8B31-02 ±5 V ±5V SC-8B31-03 ±10 V ±5V SC-8B31-04 ±1 V 0 to +5V SC-8B31-05 ±5 V 0 to +5V SC-8B31-06 ±10 V 0 to +5V SC-8B31-07 ±20 V ±5V SC-8B31-08 ±20 V 0 to +5V SC-8B31-09 ±40 V ±5V SC-8B31-10 ±40 V 0 to +5V SC-8B31-12 ±60 V ±5V SC-8B31-13 ±60 V 0 to +5V

Current Input Modules (3 Hz)

Part No. Input Range Output Range

SC-8B32-01 4 to 20 mA 0 to +5V SC-8B32-02 0 to 20 mA 0 to +5V

Linearized 2-wire or 3-wire RTD Modules (0 to +5V Output, 3 Hz BW) Type: 100Ω Pt RTD

[Available June 2005]

Part No. Input Range in ˚C ˚F

SC-8B34-01 SC-8B34-02 0 ˚C to +100˚C +32˚F to +212˚F SC-8B34-03 0˚C to +200˚C +32˚F to +392˚F SC-8B34-04 0 ˚C to +600˚C

-100˚C to +100˚C -148˚F to +212˚F

+32˚F to +1112˚F

Potentiometer Input Modules (0 to +5V Output, 3 Hz BW)

[Available June 2005]

Part No. Input Range Output Range

SC-8B36-01 0 to 100Ω SC-8B36-02 0 to 500Ω 0 to +5V SC-8B36-03 0 to 1 kΩ 0 to +5V SC-8B36-04 0 to 10 kΩ 0 to +5V

0 to +5V

Specifications are subject to change without notice.

8B Isolated Signal Conditioning Module 967792 DKB48, pg. 17

Voltage Input Modules (1 kHz BW)

Part No. Input Range Output Range

SC-8B40-01 ±10 mV ±5V SC-8B40-02 ±50 mV ±5V SC-8B40-03 ±100 mV ±5V SC-8B41-01 ±1 V ±5V SC-8B41-02 ±5 V ±5V SC-8B41-03 ±10 V ±5V SC-8B41-04 ±1 V 0 to +5V SC-8B41-05 ±5 V 0 to +5V SC-8B41-06 ±10 V 0 to +5V SC-8B41-07 ±20 V ±5V SC-8B41-08 ±20 V 0 to +5V SC-8B41-09 ±40 V ±5V SC-8B41-10 ±40 V 0 to +5V SC-8B41-12 ±60 V ±5V SC-8B41-13 ±60 V 0 to +5V

Linearized Thermocouple Input Modules (0 to +5V Output, 3 Hz BW)

Part No. Type Input Range in ˚C ˚F

SC-8B47-J-01 J SC-8B47-J-02 J -100˚C to +300˚C -148˚F to +572˚F SC-8B47-J-03 J 0˚C to +500˚C +32˚F to +932˚F SC-8B47-J-12 J -100˚C to +760˚C SC-8B47-K-04 K 0˚C to +1000˚C SC-8B47-K-05 K 0˚C to +500˚C SC-8B47-K-13 K -100˚C to +1350˚C SC-8B47-K-14 K 0˚C to +1200˚C SC-8B47-T-06 T -100˚C to +400˚C SC-8B47-T-07 T 0˚C to +200˚C

0˚C to +760˚C 32˚F to +1400˚F

-148˚F to +1400˚F +32˚F to +1832˚F

+32˚F to +932˚F

-148˚F to +2462˚F +32˚F to +2192˚F

-148˚F to +752˚F +32˚F to +392˚F

Specifications are subject to change without notice.

DBK48, pg. 18 967792 8B Isolated Signal Conditioning Module

A NOTE FOR USERS OF CABLE CA-208

The following applies to customers using a CA-208 instead of a CA-208-3 cable.

Users of CA-208-3 are to ignore this material

If the DBK48 is not connected to a Daq device via the P1 connector, then remove the Rnets from S01 and S02. These resistor networks connect each 8B module’s output to the multiplexer for P1.

DO NOT connect the CA-208 cable directly to the Signal Output connector. First connect a CA-35-18 cable to the DB25; then connect the CA-208 to the CA-35-18 cable. Both cables are required.

Wiring Diagrams

Use the two cables (CA-208 and CA-35-18) as follows:

1. Connect the CA-35-18 expansion cable to DBK48’s 25-pin Signal Output connector.

2. Connect DB25 end of the CA-208 cable to the CA-35-18 expansion cable.

3. Connect the CA-208 analog common banana plug to the local ground of the measuring equipment.

4. Connect the CA-208 BNC connectors (for channels 1 through 8) to the measuring equipment.

8B Isolated Signal Conditioning Module 967792 DKB48, pg. 19

This page is intentionally blank.

DBK48, pg. 20 967792 8B Isolated Signal Conditioning Module

Measurement DBK Part 2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
