Preface
About this User's Guide
What you will learn from this user's guide
This user's guide explains how to install, configure, and use the CIO-DDA06/JR board so that you get the most
out of its analog output features. This user's guide also refers you to related documents available on our web
site, and to technical support resources.
Conventions in this user's guide
The following conventions are used in this manual to convey special information:
For more information on …
Text presented in a box signifies additional information and helpful hints related to the subject matter you are
reading.
Caution! Shaded caution statements present information to help you avoid injuring yourself and others,
damaging your hardware, or losing your data.
<#:#> Angle brackets that enclose numbers separated by a colon signify a range of numbers, such as those assigned
to registers, bit settings, etc.
bold text Bold text is used for the names of objects on the screen, such as buttons, text boxes, and check boxes. For
example:
1. Insert the disk or CD and click the OK button.
italic text Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase. For
example:
The InstaCal installation procedure is explained in the Quick Start Guide.
Never touch the exposed pins or circuit connections on the board.
Where to find more information
The following electronic documents provide information relevant to the operation of the CIO-DDA06/JR.
MCC's Specifications: CIO-DDA06/JR (the PDF version of the Specificatio
available on our web sit
MCC's Quick Start Guide is available on our web site at
www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf
MCC's Guide to Signal Connections is available on our web site at
www.mccdaq.com/signals/signals.pdf
MCC's Universal Library User's Guide is available on our web site at
www.mccdaq.com/PDFmanuals/sm-ul-user-guide.pdf
MCC's Universal Library Function Reference is available on our web site at
www.mccdaq.com/PDFmanuals/sm-ul-functions.pdf
MCC's Universal Library for LabVIEW
www.mccdaq.com/PDFmanuals/SM-UL-LabVIEW.pdf
e at www.mccdaq.com/pdfs/CIO-DDA06_JR.pdf
.
.
.
™
User’s Guide is available on our web site at
.
.
ns chapter in this guide) is
.
CIO-DDA06/JR User's Guide (this document)
www.mccdaq.com/PDFma
nuals/CIO-DDA06_JR.pdf
is also available on our web site at
.
5
Chapter 1
Introducing the CIO-DDA06/JR
Overview: CIO-DDA06/JR features
The CIO-DDA06/JR can have a maximum of six analog ±5Volt output channels (two are installed) and 24
digital inputs and/or outputs. The analog outputs are dual-DAC AD7237s. The CIO-DDA06/JR is 100%
register-compatible with the CIO-DDA06.
The analog outputs may be set for simultaneous update in groups of two, four or all six. Analog outputs are
grouped as 0 and 1, 2 and 3, and 4 and 5. By selecting XFER on the jumper beside the DAC, each pair can be
set for simultaneous transfer. In this way the CIO-DDA06/JR may be set to hold new values until all channels
are loaded, then update any two, any four, or all six channels simultaneously. This is a very useful feature for
multi-axis motor control.
The CIO-DDA06/JR digital I/O lines are an emulation of the 82C55 chip in mode 0. The digital I/O is
equivalent to a CIO-DDIO24H high drive digital I/O board. This is sufficient to switch other TTL or similar
inputs, as well as relays, LEDs or solid state relays.
Software features
For information on the features of InstaCal and the other software included with your CIO-DDA06/JR, refer to
the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at
www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf
Check www.mccdaq.com/download.htm
for the latest software version.
.
6
CIO-DDA06/JR User's Guide Introducing the CIO-DDA06/JR
CIO-DDA06/JR block diagram
CIO-DDA06/JR functions are illustrated in the block diagram shown here.
P/O
37-pin D conn.
AD7237KN
AD7237KN
AD7237KN
AD7237KN
AD7237KN
AD7237KN
9 8 7 6 5 4
ADDRESS
Address Decode
Bus Interface
High Drive Digital I/O
FIRSTPORTAFIRSTPORTB
Data
Path
and
Control
FIRST
PORTC
FIRST
PORTC
Works like
8255 mode 0
FIRSTPORTA Bit 0
FIRSTPORTB Bit 0
FIRSTPORTC Bit 0
LO
FIRSTPORTC Bit 4
HI
Note:
pin assignments are
the same as for
the CIO-DIO24
P/O
37-pin D conn.
37
Bit 1
36
Bit 2
35
Bit 3
34
Bit 4
33
Bit 5
32
Bit 6
31
Bit 7
30
10
Bit 1
9
Bit 2
8
Bit 3
7
Bit 4
6
Bit 5
5
Bit 6
4
Bit 7
3
29
Bit 1
28
Bit 2
27
Bit 3
26
25
Bit 5
24
Bit 6
23
Bit 7
22
DGND
11
Digital I/O
ISA Bus
Figure 1. CIO-DDA06/JR Functional block diagram
7
Installing the CIO-DDA06/JR
What comes with your CIO-DDA06/JR shipment?
The following items are shipped with the CIO-DDA06/JR.
Hardware
CIO-DDA06/JR
Chapter 2
Additional documentation
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at
www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf
the software you received with your CIO-DDA06/JR and information regarding installation of that software.
Please read this booklet completely before installing any software or hardware.
). This booklet supplies a brief description of
Optional components
Cables
C37FF-x
Signal termination and conditioning accessories
MCC provides signal conditioning and termination products for use with the CIO-DDA06/JR. Refer to
Field wiring, signal termination, and conditioning
products.
C37FFS-x
on page 13 for a complete list of compatible accessory
8
CIO-DDA06/JR User's Guide Installing the CIO-DDA06/JR
Unpacking the CIO-DDA06/JR
As with any electronic device, you should take care while handling to avoid damage from static
electricity. Before removing the CIO-DDA06/JR from its packaging, ground yourself using a wrist strap or by
simply touching the computer chassis or other grounded object to eliminate any stored static charge.
If any components are missing or damaged, notify Measurement Computing Corporation immediately by
phone, fax, or e-mail:
Phone: 508-946-5100 and follow the instructions for reaching Tech Support.
Fax: 508-946-9500 to the attention of Tech Support
Email: techsupport@mccdaq.com
Installing the software
Refer to the Quick Start Guide for instructions on installing the software on the Measurement Computing Data
Acquisition Software CD. This booklet is available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-
Quick-Start.pdf.
Configuring the CIO-DDA06/JR

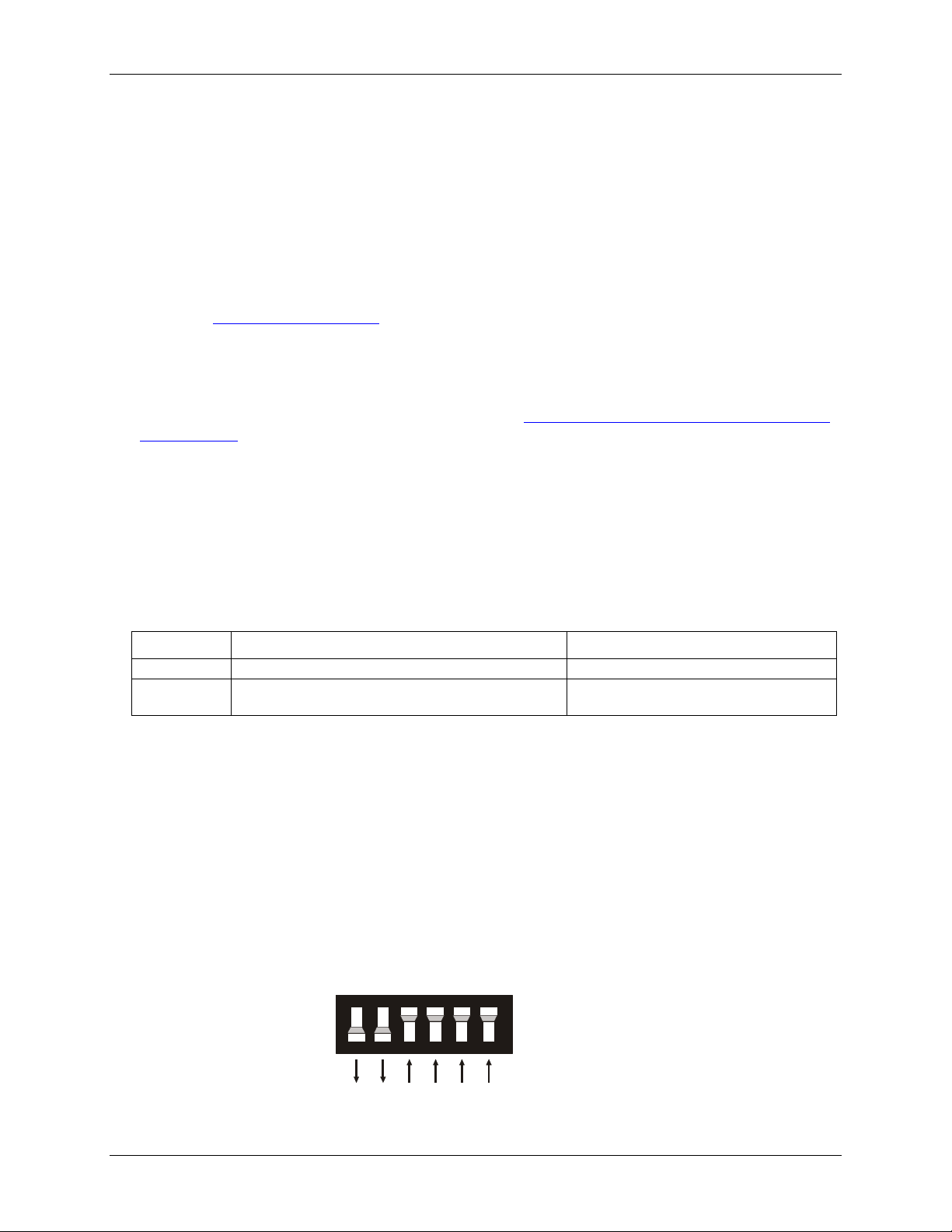

The CIO-DDA06/JR has one base address switch and a simultaneous update jumper for each DAC pair. The
InstaCal calibration and test program will show you how to set the switches. Run InstaCal before you open
your computer and install the board. The CIO-DDA06/JR is shipped with the factory-default settings listed in
the table below.
Factory-configured default settings
Board label Switch/jumper description Default setting
ADDRESS
J1, J2, or J3
DIP switch for setting the base address 300h (768 decimal)
Jumpers to select simultaneous or single channel update
for each DAC channel pair
UPDATE position (single channel update)
Before installing the CIO-DDA06/JR in the computer, verify that the board is configured with the settings that
you want. Review the following information to change the default configuration of a jumper or switch on the
CIO-DDA06/JR board.
Base address switch
Set the base address with the dip switch labeled ADDRESS located on the board. The easiest way to set the base
address switch is to let InstaCal show you the correct settings. However, if are already familiar with setting ISA
base addresses, you may use the base address switch description below to guide your base address selection.
Unless there is already another board in your system using address 300 hex (768 decimal), leave the switches as
they are set at the factory. shows the base address switch set to its default base address of 300 hex. Figure 2
987654
Figure 2. Base address switch
9
SW
A9
A8
A7
A6
A5
A4
HEX
200
100
80
40
20
10
CIO-DDA06/JR User's Guide Installing the CIO-DDA06/JR
In the default configuration shown in Fi , addresses 9 and 8 are DOWN, and all others are UP.
Address 9
= 200 hex (512 decimal), and address 8 = 100 hex (256 decimal). When added together they equal
gure 2
300 hex (768 decimal).
Disregard the numbers printed on the switch
When setting the base address, refer to the numbers printed in white on the printed circuit board.
Individual / simultaneous transfer jumper
The analog outputs can be jumpered so that new output data is held until several DACs are loaded with new
digital data. Then, as a group, the data for each DAC is simultaneously transferred and the DAC voltage
outputs are updated when any of the addresses BASE + 0 to BASE + B are read.
The analog output chips are dual DACs (two analog outputs per chip). A single jumper sets both DACs on a
single chip to be either simultaneously transferred on a read, or individually updated when the control register
is written. The jumpers are labeled J1, J2 or J3 on the board.
J1 sets the transfer mode for channels 0 and 1.
J2 sets the transfer mode for channels 2 and 3.
J3 sets the transfer mode for channels 4 and 5.
Figure 3 shows the jumper block configured for each update mode.
XFER
XFER UPDATE
Jx
Jx
XFER
XFER UPDATE
Jx
Jx
Individual updates
per channel
Figure 3. Individual / simultaneous update jumper
Simultaneous updates
of both channel
When the jumpers are in the XFER position, new output data is held until one or more DACs have been
loaded with new digital data. The new data transfers to the voltage outputs as a group. The simultaneous
transfers occur when any of the CIO-DDA06/JR addresses are read (and the jumpers are in the
XFER
position).
When the jumpers are in the
UPDATE ## position, the DAC channel pair is individually updated when the
control register is written.
Installing the CIO-DDA06/JR
After you configure the board's switches and jumpers, you can install the CIO-DDA06/JR into your computer.
To install your board, follow the steps below.
Install the MCC DAQ software before you install your board
The driver needed to run your board is installed with the MCC DAQ software. Therefore, you need to install
the MCC DAQ software before you install your board. Refer to the Quick Start Guide for instructions on
installing the software.
1.
Turn your computer off, open it up, and insert your board into an available ISA slot.
2.
Close your computer and turn it on.
3.
To test your installation and configure your board, run the InstaCal utility you installed in the previous
section. Refer to the Quick Start Guide that came with your board www.mccdaq.com/PDFmanuals/DAQ-
Software-Quick-Start.pdf for information on how to initially set up and load InstaCal.
10
CIO-DDA06/JR User's Guide Installing the CIO-DDA06/JR
Connecting the board for I/O operations
Connectors, cables – main I/O connector
The table below lists the board connector type, applicable cables, and compatible accessory products.
Board connector, cables, and accessory equipment
Connector type 37-pin male "D" connector
Compatible cables C37FF-x
C37FFS-x
DFCON-37 (D-connector, D-shell, and termination pins to construct your own cable)
Compatible accessory products
with the C37FF-x cable or
C37FFS-x cable
Information on signal connections
General information regarding signal connection and configuration is available in the Guide to Signal
Connections (available at www.mccdaq.com/signals/signals.pdf).
CIO-MINI37
CIO-TERMINAL
CIO-SPADE50
SCB-37
SSR-RACK24
ENC-MINI37
Pinout – main I/O connector
The CIO-DDA06/JR I/O connector is a standard 37-pin male connector that is accessible through the PC/AT
expansion bracket. Pin assignments of 8255 digital signals are identical to those on the CIO-DIO24.
LLGND 19
D/A OUT 0 18
LLGND 17
D/A OUT 1
LLGND 15
D/A OUT 2
LLGND 13
D/A OUT 3
FIRSTPORT B Bit 0 10
FIRSTPORT B Bit 1
FIRSTPORT B Bit 2
FIRSTPORT B Bit 3
FIRSTPORT B Bit 4
FIRSTPORT B Bit 5
FIRSTPORT B Bit 6
FIRSTPORT B Bit 7
DGND 11
D/A OUT 4
D/A OUT 5
16
14
12
9
8
7
6
5
4
3
2
1
37
FIRSTPORT A Bit 0
36
FIRSTPORT A Bit 1
35
FIRSTPORT A Bit 2
34
FIRSTPORT A Bit 3
33
FIRSTPORT A Bit 4
32
FIRSTPORT A Bit 5
31
FIRSTPORT A Bit 6
30
FIRSTPORT A Bit 7
29
FIRSTPORT C Bit 0
28
FIRSTPORT C Bit 1
27
FIRSTPORT C Bit 2
26
FIRSTPORT C Bit 3
25
FIRSTPORT C Bit 4
24
FIRSTPORT C Bit 5
23
FIRSTPORT C Bit 6
22
FIRSTPORT C Bit 7
21 LLGND
20 LLGND
Figure 4. I/O connector pin-out
The analog outputs of the CIO-DDA06/JR are two-wire hook-ups. Always use low-level ground (LLGND) as
the ground reference for all analog hook-ups. The output range of the CIO-DDA06/JR is ±5 volts and cannot be
changed. There are no trimming pots on the board so no hardware calibration is necessary or possible.
11
CIO-DDA06/JR User's Guide Installing the CIO-DDA06/JR
All the digital outputs inputs on the CIO-DDA06/JR connector are TTL level. Before connecting external
devices, review the specifications in this manual to avoid damage to the CIO-DDA06/JR.
Cabling
The red stripe
1
20
37
19
identifies pin # 1
Figure 5. C37FF-x cable
1
20
37
19
Figure 6. C37FFS-x cable
Field wiring, signal termination, and conditioning
1
19
20
37
1
20
37
19
You can use the following cabling, screw termination, and signal conditioning products with the CIODDA06/JR.
DFCON37 – Connector kit that includes a 37-pin female D-connector, D-shell, 37 crimp pins, and cable
termination kit to construct your own cable.
CIO-MINI37 – 37-pin screw terminal board.
CIO-TERMINAL – 37-pin screw term
CIO-SPADE50 — 16" X 4" terminat
SCB-37 – 37-conductor, shiel
ded signal connection/screw terminal box.
SSR-RACK24 – 24-channel, sol
inal board with on-board prototyping area.
ion panel which mates with both 37-pin and 50-pin connectors.
id-state relay mounting rack for digital signal conditioning.
ENC-MINI37– Enclosure for the MINI37.
12
Chapter 3
Programming and Developing Applications
After following the installation instructions in Chapter 2, your board should now be installed and ready for use.
In general there may be no correspondence among registers for different boards. Software written at the register
level for other models will not function correctly with your board.
Programming languages
Measurement Computing's Universal Library provides access to board functions from a variety of Windows
programming languages. If you are planning to write programs, or would like to run the example programs for
Visual Basic
site at www.mccdaq.com/PDFmanuals/sm-ul-user-guide.pdf
Packaged applications programs
Many packaged application programs now have drivers for your board. If the package you own does not have
drivers for your board, please fax or e-mail the package name and the revision number from the install disks.
We will research the package for you and advise how to obtain drivers.
or any other language, please refer to the Universal Library User's Guide (available on our web
).
Some application drivers are included with the Universal Library package, but not with the application package.
If you have purchased an application package directly from the software vendor, you may need to purchase our
Universal Library and drivers. Please contact us by phone, fax or e-mail:
Phone: 508-946-5100 and follow the instructions for reaching Tech Support.
Fax: 508-946-9500 to the attention of Tech Support
Email: techsupport@mccdaq.com
Register-level programming
You should use the Universal Library or one of the packaged application programs mentioned above to control
your board. Only experienced programmers should try register-level programming.
If you need to program at the register level in your application, refer to the Register Map for the CIO-
DDA06/JR. This document is available on our website at www.mccdaq.com/registermaps/RegM
DDA06-JR.pdf.
apCIO-
13
Specifications
Typical for 25 °C unless otherwise specified.
Specifications in italic text are guaranteed by design.
Analog output
Table 1. Analog output specifications
D/A type AD7237KN
Resolution 12 bits
Number of channels 6 max, 2 installed
Voltage ranges ±5
Offset error ±3 LSB max
Gain error ±5 LSB max
Differential nonlinearity ±0.9 LSB max
Integral nonlinearity ±0.5 LSB
Monotonicity guaranteed
Gain drift ±25 ppm/°C
Settling time (10V step to .01%) 10 µs max
Slew rate 3 V/µs
Current drive ±5 mA min
Output short-circuit current 80 mA typ
D/A pacing Software paced
Data transfer Programmed I/O
Throughput PC dependent
Miscellaneous
Double buffered output latches
Update DACs individually or simultaneously (jumper selectable)
Chapter 4
Digital input / output
Table 2. DIO specifications
Digital type 8255 emulation
Output 74S244
Input 74LS373
Number of channels 24 I/O
Configuration 2 banks of 8, 2 banks of 4, programmable by bank as input or output
Output high 2.4 volts min @ –15 mA
Output low 0.5 volts max @ 64 mA
Input high 2.0 volts min, 7 volts absolute max
Input low 0.8 volts max, –0.5 volts absolute min
Power-up / reset state Input mode (high impedance)
14
CIO-DDA06/JR User's Guide Specifications
Power consumption
Table 3. Power consumption specifications
+5 V 650 mA typ, 1196 mA max
+12 V 33 mA typ, 45 mA max (for each pair of D/A channels installed)
–12 V 9 mA typ, 15 mA max (for each pair of D/A channels installed)
Environmental
Table 4. Environmental specifications
Operating temperature range 0 to 70 °C
Storage temperature range –40 to 100 °C
Humidity 0 to 90% non-condensing
Main connector and pin out
Table 5. Connector specifications
Connector type 37-pin male "D" connector
Compatible cables C37FF-x
C37FFS-x
DFCON-37 (D-connector, D-shell, and termination pins to construct your own cable)
Compatible accessory
products with the C37FF-x
cable or C37FFS-x cable
CIO-MINI37
CIO-TERMINAL
CIO-SPADE50
SCB-37
SSR-RACK24, CIO-ERB24, SSR-RACK08, CIO-ERB08
ENC-MINI37
Table 6. Connector pin out
Pin Signal Name Pin Signal Name
1 D/A OUT 5 20 LLGND
2 D/A OUT 4 21 LLGND
3 FIRSTPORTB Bit 7 22 FIRSTPORTC Bit 7
4 FIRSTPORTB Bit 6 23 FIRSTPORTC Bit 6
5 FIRSTPORTB Bit 5 24 FIRSTPORTC Bit 5
6 FIRSTPORTB Bit 4 25 FIRSTPORTC Bit 4
7 FIRSTPORTB Bit 3 26 FIRSTPORTC Bit 3
8 FIRSTPORTB Bit 2 27 FIRSTPORTC Bit 2
9 FIRSTPORTB Bit 1 28 FIRSTPORTC Bit 1
10 FIRSTPORTB Bit 0 29 FIRSTPORTC Bit 0
11 DGND 30 FIRSTPORTA Bit 7
12 D/A OUT 3 31 FIRSTPORTA Bit 6
13 LLGND 32 FIRSTPORTA Bit 5
14 D/A OUT 2 33 FIRSTPORTA Bit 4
15 LLGND 34 FIRSTPORTA Bit 3
16 D/A OUT 1 35 FIRSTPORTA Bit 2
17 LLGND 36 FIRSTPORTA Bit 1
18 D/A OUT 0 37 FIRSTPORTA Bit 0
19 LLGND
15
Declaration of Conformity
Manufacturer: Measurement Computing Corporation
Address: 10 Commerce Way
Suite 1008
Norton, MA 02766
USA
Category: Electrical equipment for measurement, control and laboratory use.
Measurement Computing Corporation declares under sole responsibility that the product
CIO-DDA06/JR
to which this declaration relates is in conformity with the relevant provisions of the following standards or
other documents:
EU EMC Directive 89/336/EEC: Electromagnetic Compatibility, EN55022 (1987), EN50082-1
Emissions: Group 1, Class B
EN55022 (1987): Radiated and Conducted emissions.
Immunity: EN50082-1
IEC 801-2 (1987): Electrostatic Discharge immunity, Criteria B.
IEC 801-3 (1984): Radiated Electromagnetic Field immunity Criteria A.
IEC 801-4 (1988): Electric Fast Transient Burst immunity Criteria B.
Declaration of Conformity based on tests conducted by Chomerics Test Services, Woburn, MA 01801, USA in
December, 1995. Test records are outlined in Chomerics Test Report #EMI0168B.95.
We hereby declare that the equipment specified conforms to the above Directives and Standards.
Carl Haapaoja, Director of Quality Assurance
Measurement Computing Corporation
10 Commerce Way
Suite 1008
Norton, Massachusetts 02766
(508) 946-5100
Fax: (508) 946-9500
E-mail: info@mccdaq.com
www.mccdaq.com
Loading...
