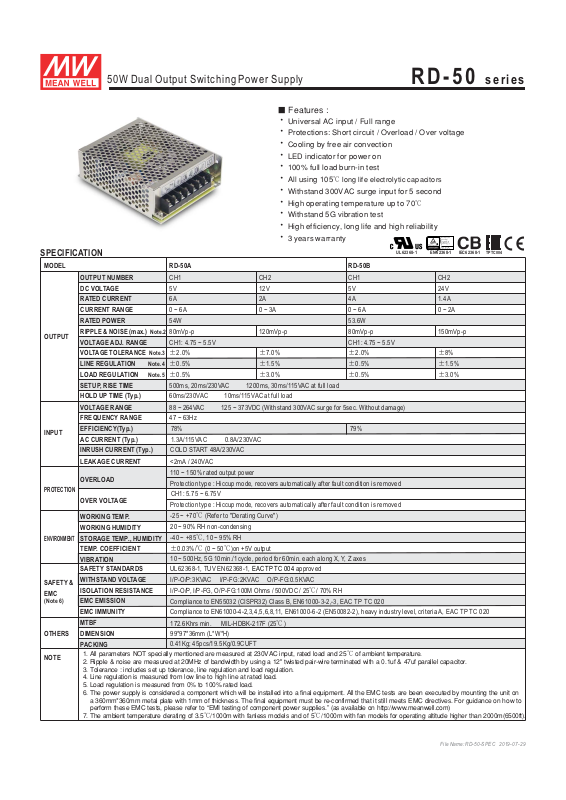

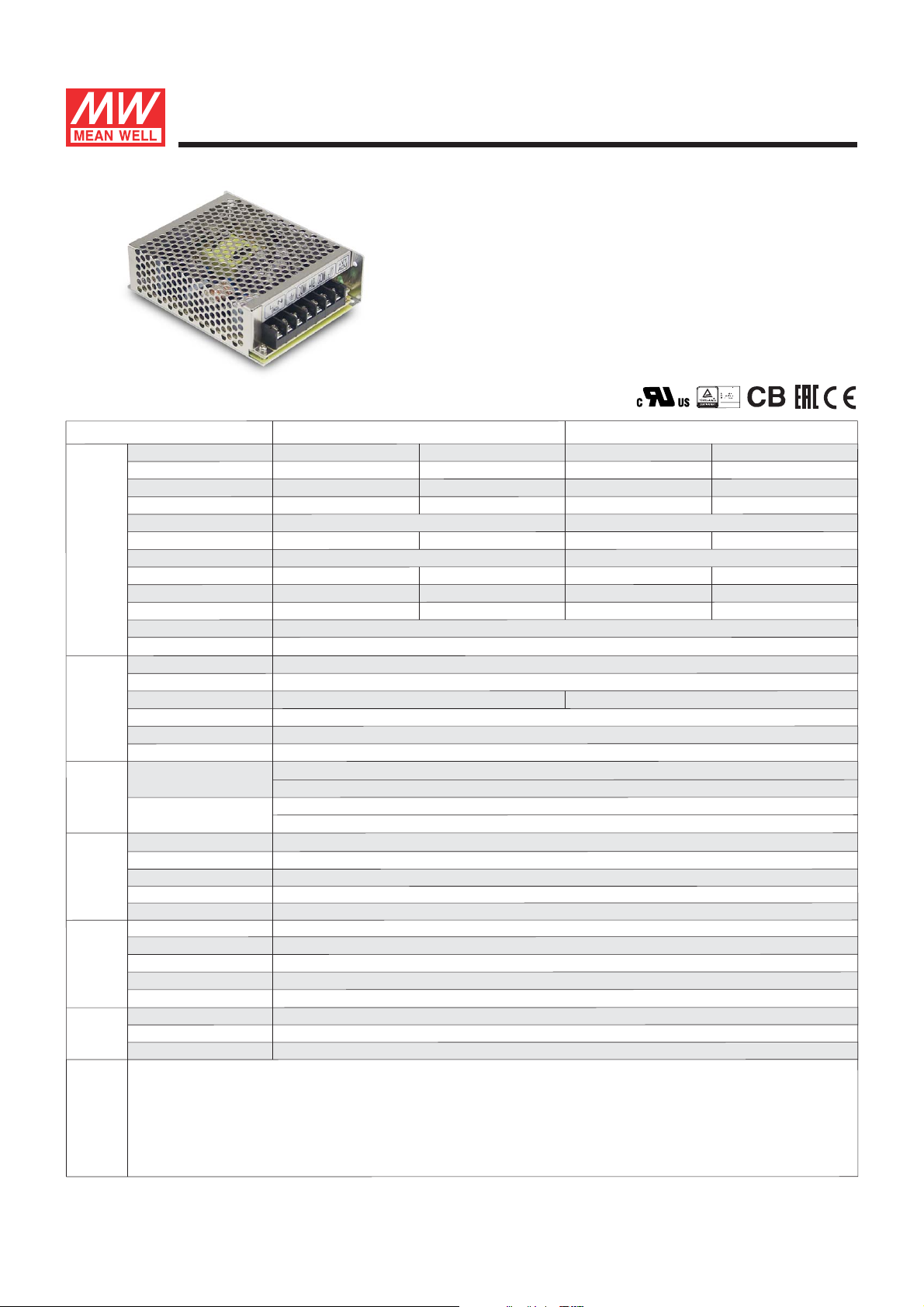

50W Dual Output Switching Power Supply
Features :
■
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty
SPECIFICATION
MODEL RD-50A RD-50B
OUTPUT NUMBER
DC VO LTAG E
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
RIPPLE & NOISE (max.)
VOLTAGE ADJ. RANGE
VOLTAGE TOLERANCE Note.3
LINE REGULATION
LOAD REGULATION Note.5
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY(Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
ENVIRONMENT
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
SAFETY &
EMC
(Note 6)
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
DIMENSIONOTHERS
PACKING
NOTE
CH1
CH2
5V 12V
6A 2A 4A 1.4A
0 ~ 6A 0 ~ 3A 0 ~ 6A 0 ~ 2A
54W 53.6W
Note.2
80mVp-p 120mVp-p 80mVp-p 150mVp-p
CH1: 4.75 ~ 5.5V CH1: 4.75 ~ 5.5V
±2.0% ±7.0% ±2.0% ±8%
Note.4
±0.5% ±1.5% ±0.5% ±1.5%
±0.5% ±3.0% ±0.5% ±3.0%
500ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
60ms/230VAC 10ms/115VAC at full load
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
47 ~ 63Hz
78% 79%
1.3A/115VAC 0.8A/230VAC
COLD START 48A/230VAC
<2mA / 240VAC
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
CH1: 5.75 ~ 6.75V
Protection type : Hiccup mode, recovers automatically after fault condition is removed
-25 ~ +70 (Refer to "Derating Curve")℃
20 ~ 90% RH non-condensing
-40 ~ +85 , 10 ~ 95% RH℃
±℃ ℃0.03%/ (0 ~ 50 )on +5V output
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL62368-1, TUV EN62368-1 approved
, EAC TP TC 004
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH℃
Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020
172.6Khrs min. MIL-HDBK-217F (25 )℃
99*97*36mm (L*W*H)
0.41Kg; 45pcs/19.5Kg/0.9CUFT
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a mm* mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives.360 360 For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
7. The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude higher than 2000m(6500ft).℃℃
CH1
5V
RD-50 series
Bauar
tgepruft
Sicherheit
egel gema
od
os
be
wac g
www.
tuv.com
UL62368-1
ID2000000000
EN62368-1
CH2
24V
IEC62368-1
TPTC004
File Name:RD-50-SPEC 2019-07-29
Page 2
50W Dual Output Switching Power Supply
RD-50 series

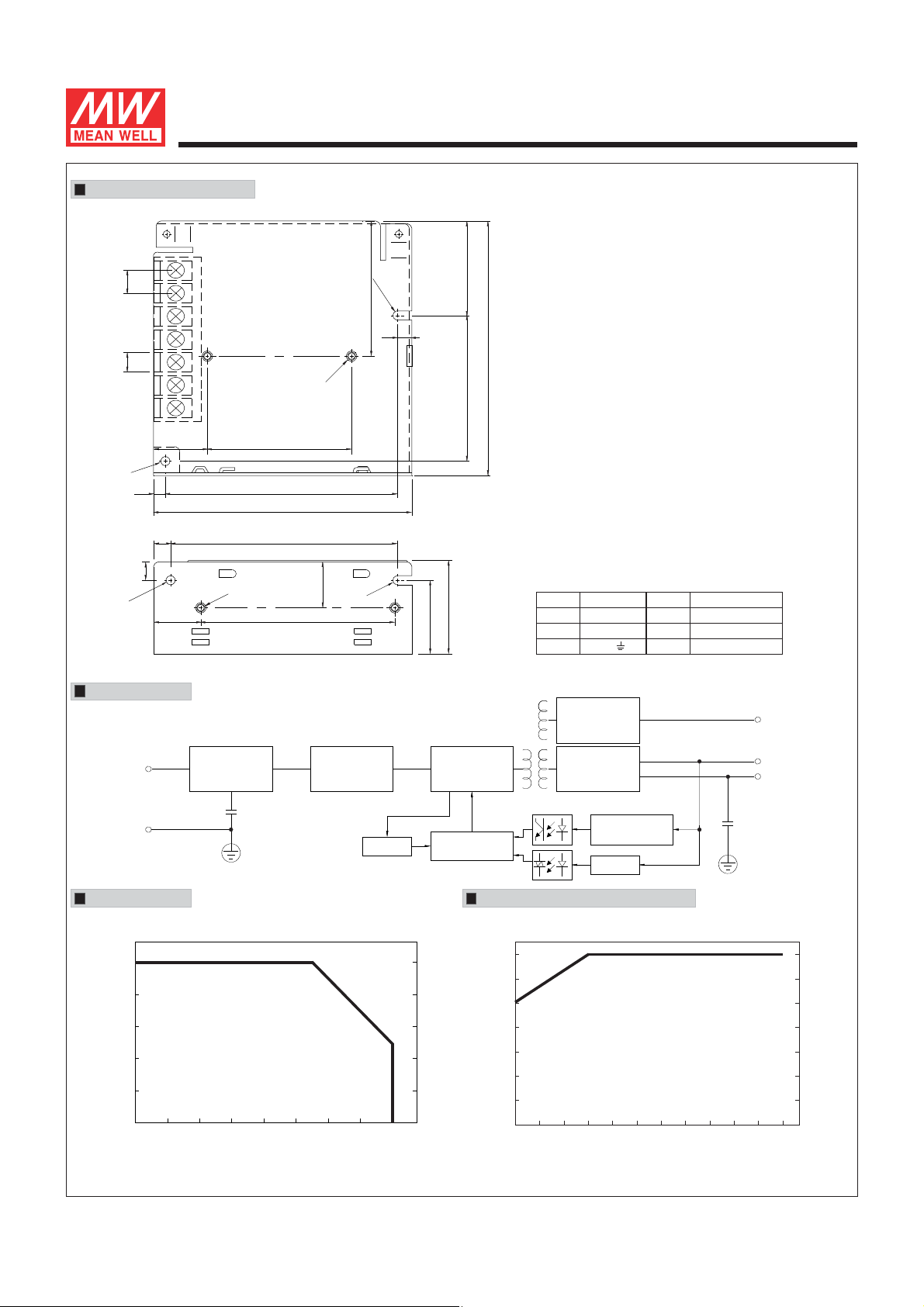

Mechanical Specification
9.5
8.2
ψ3.5
4.5
6.5
7
ψ3.5
1
2
3
4
5
6
7
20.5
2-M3
18
Case No. 905B Unit:mm
ψ3.5
51.5
5.5
2-M3
55
89
99
87
17.5
ψ3.5
74
36
97
55.5
Terminal Pin No. Assignment
Pin No. Pin No.
36
28
Assignment Assignment
1
AC/L
2
AC/N
3
FG
4,6
5
7
DC OUTPUT COM
DC OUTPUT +V2
DC OUTPUT +V1
Block Diagram
I/P
FG
FILTER
Derating Curve
100
80
60
40
LOAD (%)
20
-25 0 2010 30 40
EMI
RECTIFIERS
&
FILTER
6050
O.L.P.
70 (VERTICAL)
RECTIFIERS
&
FILTER
POWER
SWITCHING
CONTROL
RECTIFIERS
&
FILTER
DETECTION
O.V.P.
Output Derating VS Input Voltage
100
90
80
70
60
50
LOAD (%)
40
88 10095 120115 160140 200180 240220 264
fosc : 60KHz
+V2
+V1
COM
CIRCUIT
AMBIENT TEMPERATURE ( )℃
INPUT VOLTAGE (VAC) 60Hz
File Name:RD-50-SPEC 2019-07-29
