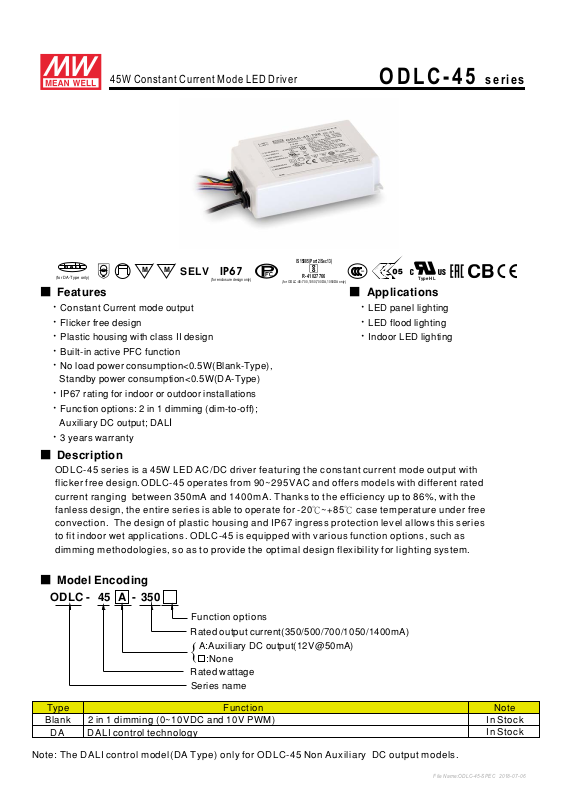

MEANWELL ODLC-45-1050DA Datasheet

Download

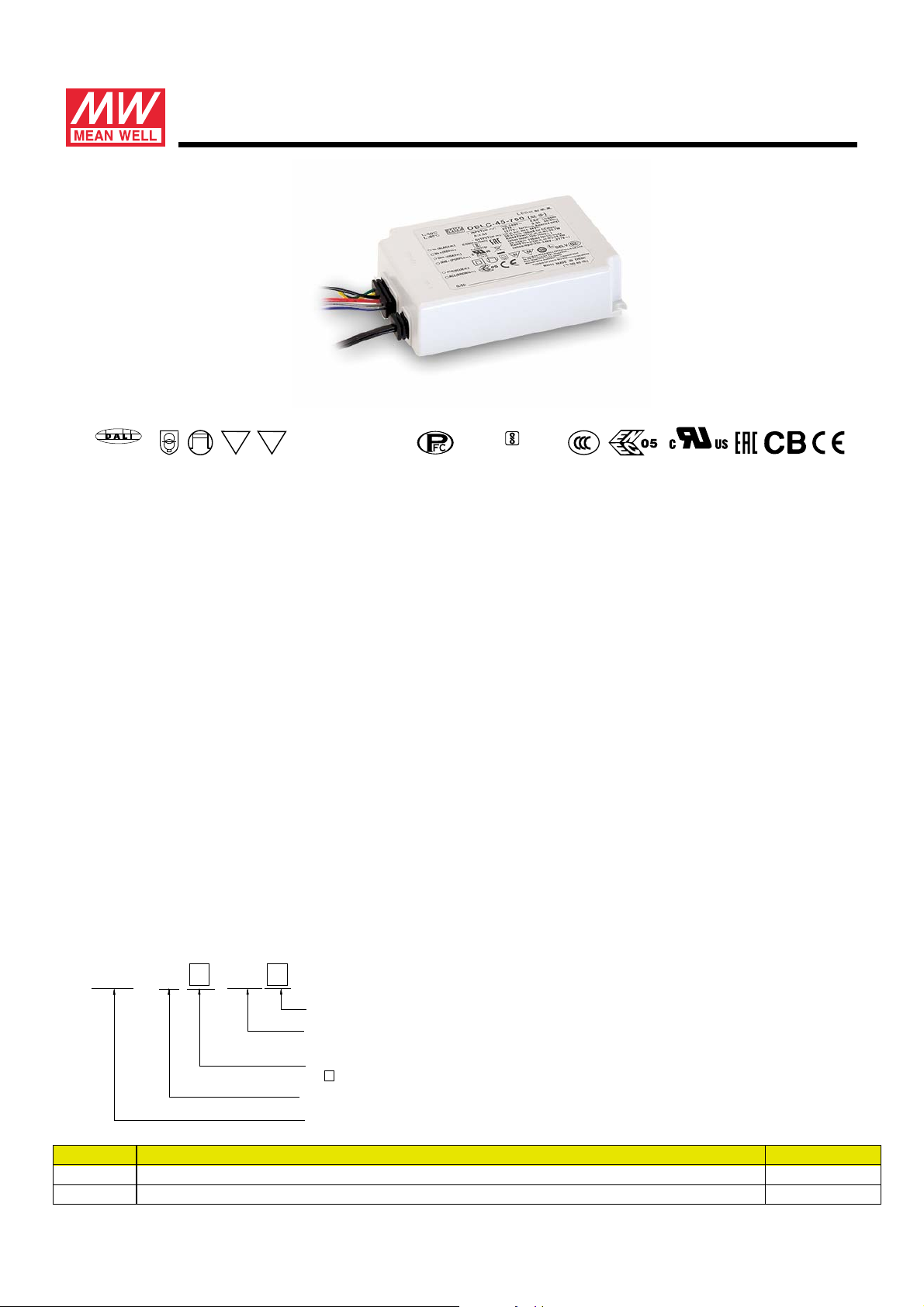

Page 1

(for DA-Type only)

45W Constant Current Mode LED Driver

M M

SELV

IP67

(for enclosure design only)

( for ODLC-45-700,1050,700DA,1050DAonly)

IS 15885(Part 2/Sec13)

THOMAS SAMUEL

R-41027766

ODLC-45 series

Type HL

■ Features ■ Applications Constant Current mode output Flicker free design Plastic housing with class II design

LED panel lighting

 LED flood lighting

Indoor LED lighting Built-in active PFC function No load power consumption<0.5W(Blank-Type),

Standby power consumption<0.5W(DA-Type)

IP67 rating for indoor or outdoor installations Function options: 2 in 1 dimming (dim-to-off);

Auxiliary DC output; DALI

3 years warranty

■ Description

ODLC-45 series is a 45W LED AC/DC driver featuring the constant current mode output with flicker free design.ODLC-45 operates from 90~295VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the efficiency up to 86%, with the fanless design, the entire series is able to operate for -20 ~+85 case temperature under free℃℃ convection. The design of plastic housing and IP67 ingress protection level allows this series to fit indoor wet applications. ODLC-45 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for lighting system.

■ Model Encoding

ODLC

Type

Blank

2 in 1 dimming (0~10VDC and 10V PWM)

DALI control technology

350

Function options

Rated output current(350/500/700/1050/1400mA)

A:Auxiliary DC output(12V@50mA)

{

:None

Rated wattage

Series name

Function Note

In Stock In Stock

Note: The DALI control model(DA Type) only for ODLC-45 Non Auxiliary DC output models.

File Name:ODLC-45-SPEC 2018-07-06

Page 2

SPECIFICATION

45W Constant Current Mode LED Driver

ODLC-45 series

MODEL

OUTPUT

INPUT

PROTECTION

RATED CURRENT

RATED POWER

CONSTANT CURRENT REGION

OPEN CIRCUIT VOLTAGE

Note.2

(max.)

CURRENT RIPPLE

CURRENT TOLERANCE

SETUP TIME

AUXILIARY DC OUTPUT

Note.4

Note.5

VO LTAGE RANG E Note.3

FREQUENCY RANGE

POWER FACTOR

(Typ.)

TOTALHARMONIC DISTORTION

EFFICIENCY (Typ.)

AC CURRENT

INRUSH CURRENT

(Typ.)

MAX. No. of PSUs on 16A

CIRCUIT BREAKER

LEAKAGE CURRENT

NO LOAD/STANDBY POWER CONSUMPTION

SHORT CIRCUIT

ODLC-45 -350

350mA

33.25W

57 ~ 95V

118V

ODLC-45 -500

500mA

45W

54 ~ 90V

115V

ODLC-45 -700

700mA

44.8W

38 ~ 64V 19 ~ 32V

84V

ODLC-45 -1050

1050mA

45.15W

26 ~ 43V

63V

5% max. @rated current

±7.0%

500ms / 230VAC 1200ms/115VAC

Nominal 12V(deviation 11.4~12.6)@50mA for ODLC-45A only

90 ~ 295VAC 127 ~ 417VDC

(Please refer to "STATIC CHARACTERISTIC" section)

47 ~ 63Hz

PF>0.95/115VAC, PF>0.92/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)

THD< 20%(@load 60%/230VAC; @load 75%/277VAC)≧≧ (Please refer to “TOTAL HARMONIC DISTORTION” section)

86%

85%

85% 83%

84%

0.6A/115VAC 0.4A/230VAC 0.3A/277VAC

COLD START 30A(twidth= s measured at 50% Ipeak) at 230VAC100μ;Per NEMA 410

32 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC

<0.75mA / 277VAC

No load power consumption<0.5W for Blank-Type,<1.2W for ODLC-45A Standby power consumption<0.5W for DA-Type

Hiccup mode,auto-recovery after fault condition is removed for DAtype； Hiccup mode,re-power on to recovery for other type

ODLC-45 -1400

1400mA

44.8W

50V

WORKING TEMP.

MAX. CASE TEMP.

WORKING HUMIDITY

ENVIRONMENT

STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

DALI STANDARDS

SAFETY & EMC

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY

MTBF

OTHERS

DIMENSION

PACKING

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25 of ambient temperature.℃

NOTE

2. Please refer to "DRIVING METHODS OF LED MODULE".

3. De rating may be needed under low input voltages. Please .- refer to STATIC CHARACTERISTIC sections for details

4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.

5. Aux. 12V will be damaged with short circuit; It will not be available when output voltage is not in constant current region or output no load condition.

6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be

7.The DALI version driver does not support the bit 1: Lamp failure in the Command 144 Query status of the DALI standard.

8. The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude higher than 2000m(6500ft).℃℃

Tcase=-20 ~ +85 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)℃

Tcase=+85℃

20 ~ 90% RH non-condensing

-40 ~ +80 , 10 ~ 95% RH℃

±℃ ℃0.03%/ (0 ~ 40 )

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

UL8750 ,CSA C22.2 NO.250.13-12;(type”HL”) ENEC EN61347-1 & EN61347-2-13 independent, EN62384,GB19510.1,GB19510.14; BIS IS15885( for ODLC-45-700,1050,700DA,1050DAonly), EAC TP TC 004,IP67 approved

Compliance to IEC62386-101, 102 for DA-Type only

I/P-O/P:3.75KVAC

I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH℃

Compliance to EN55015, EN61000-3-2 Class C ( ) ; EN61000-3-3,GB17743,GB17625.1,EAC TP TC 020@load 60%≧

Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level( ),EAC TPTC 020surge immunity:Line-Line:1KV

408.8Khrs min. MIL-HDBK-217F (25 )℃

111*77*28.5mm(L*W*H)

0.42Kg; 24pcs/ 11Kg/ 0.72CUFT

affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

File Name:ODLC-45-SPEC 2018-07-06

Page 3

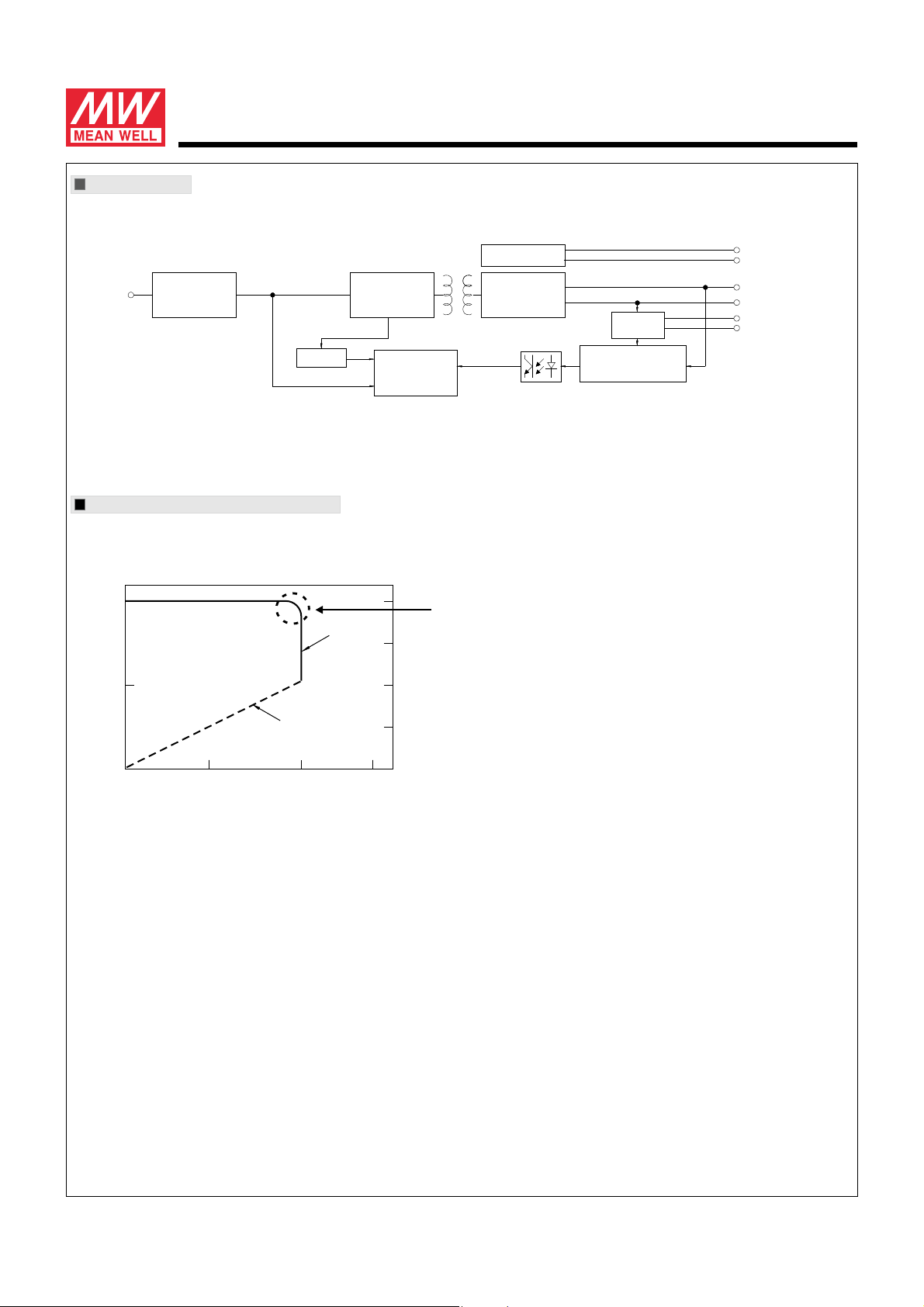

Block Diagram

45W Constant Current Mode LED Driver

ODLC-45 series

fosc : 70KHz

I/P

EMI FILTER

RECTIFIERS

O.L.P.

POWER

SWITCHING

PWM&PFC

CONTROL

DRIVING METHODS OF LED MODULE

※ This series works in constant current mode to directly drive the LEDs.

100

Constant

Vo(%)

(min.)

Current area

Hiccup

Protection

RECTIFIERS

FILTER

CURRENT

LIMIT

DETECTION

CIRCUIT

AUX+(for ODLC-45A) AUX-(for ODLC-45A)

Vo+ Vo-

DIM+(DA+) DIM-(DA-)

In the constant current region, the highest voltage at the output of the driver depends on the configuration of the end systems.

Should there be any compatibility issues, please contact MEAN WELL.

100

Io(%)

Typical output current normalized by rated current (%)

File Name:ODLC-45-SPEC 2018-07-06

Page 4

45W Constant Current Mode LED Driver

ODLC-45 series

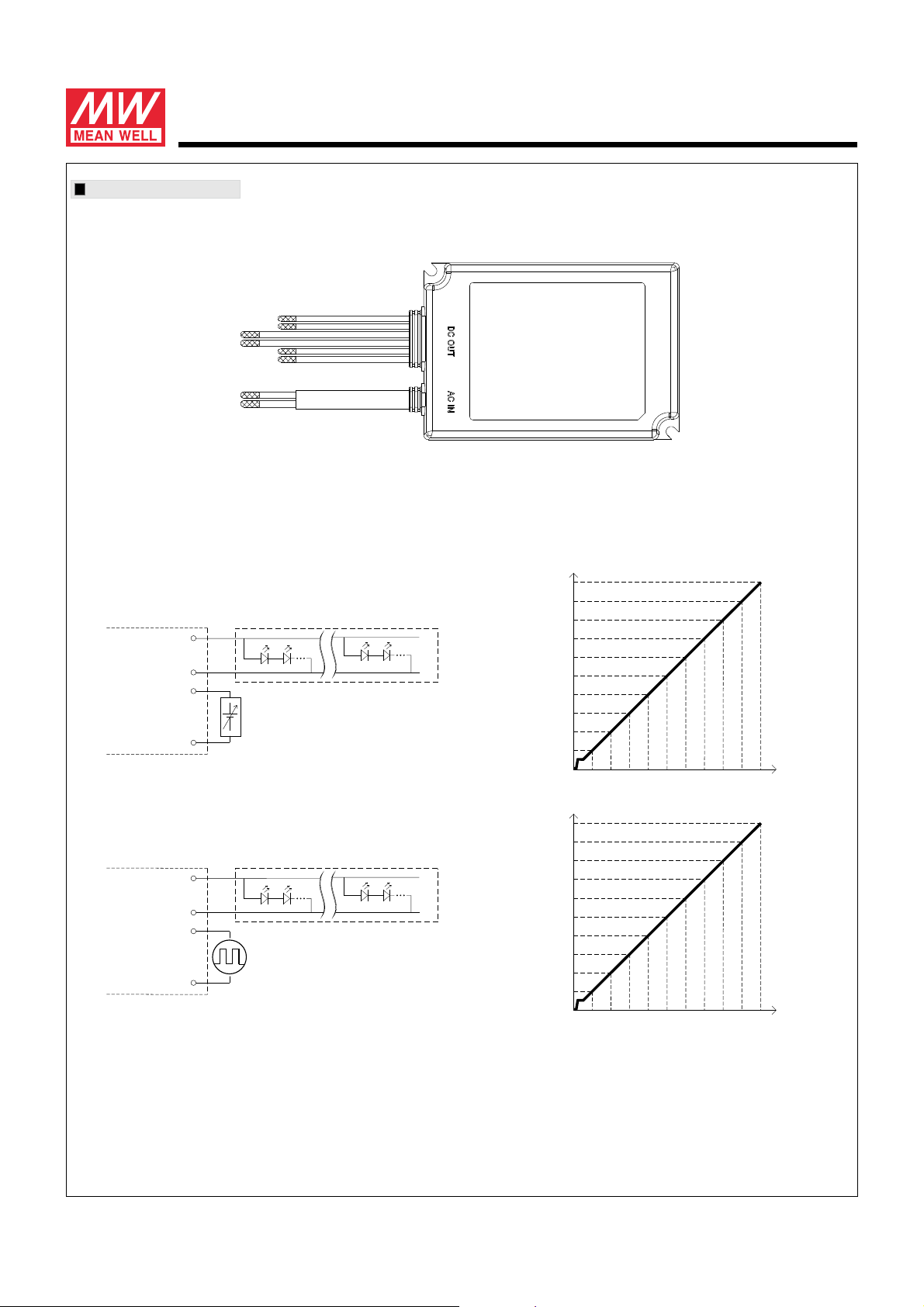

DIMMING OPERATION

AUX-(Green)* AUX+(Yellow)*

Vo-(Black) Vo+(Red) DIM-/DA-(Gray) DIM+/DA+(Purple)

ACN(Blue) ACL(Brown)

*AUX-/AUX+ only for ODLC-45A

※ 2 in 1 dimming function

Output constant current level can be adjusted by applying one of the two methodologies between DIM+ and DIM-:

0 ~ 10VDC, or 10V PWM signal.

Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.

◎ Applying additive 0 ~ 10VDC

-V

DIM+

DIM-

“DO NOT connect "DIM- to Vo-"

Additive Voltage

◎ Applying additive 10V PWM signal (frequency range 300Hz ~ 3KHz):

-V

DIM+

DIM-

“DO NOT connect "DIM- to Vo-"

Additive PWM signal

※ DALI Interface (primary side; for DA-Type) Apply DALI signal between DA+ and DA-.

DALI protocol comprises 16 groups and 64 addresses. First step is fixed at 8% of output.

100%

90%

80%

70%

60%

50%

40%

Output current (%)

30%

20%

10%

0V 1V 2V 3V 4V 5V 6V 7V 8V 9V 10V

Dimming input:Additive voltage

100%

90%

80%

70%

60%

50%

40%

Output current (%)

30%

20%

10%

10% 20% 30% 40% 50% 60% 70% 80% 90% 100%

Duty cycle of additive 10V PWM signal dimming input

Note : 1. Min. dimming level is about 8% and the output current is not defined when 0%< out<8%.I

2. The output current could drop down to 0% when dimming input is about 0Vdc or 10V PWM signal with 0% duty cycle.

File Name:ODLC-45-SPEC 2018-07-06

Page 5

50% 60% 70% 80% 90% 100%

277V

230V

115V

50% 60% 70% 80% 90% 100%

277V

230V

115V

0.7

0.75

0.8

0.85

0.9

0.95

50% 60% 70% 80% 90% 100%

277V

230V

115V

45W Constant Current Mode LED Driver

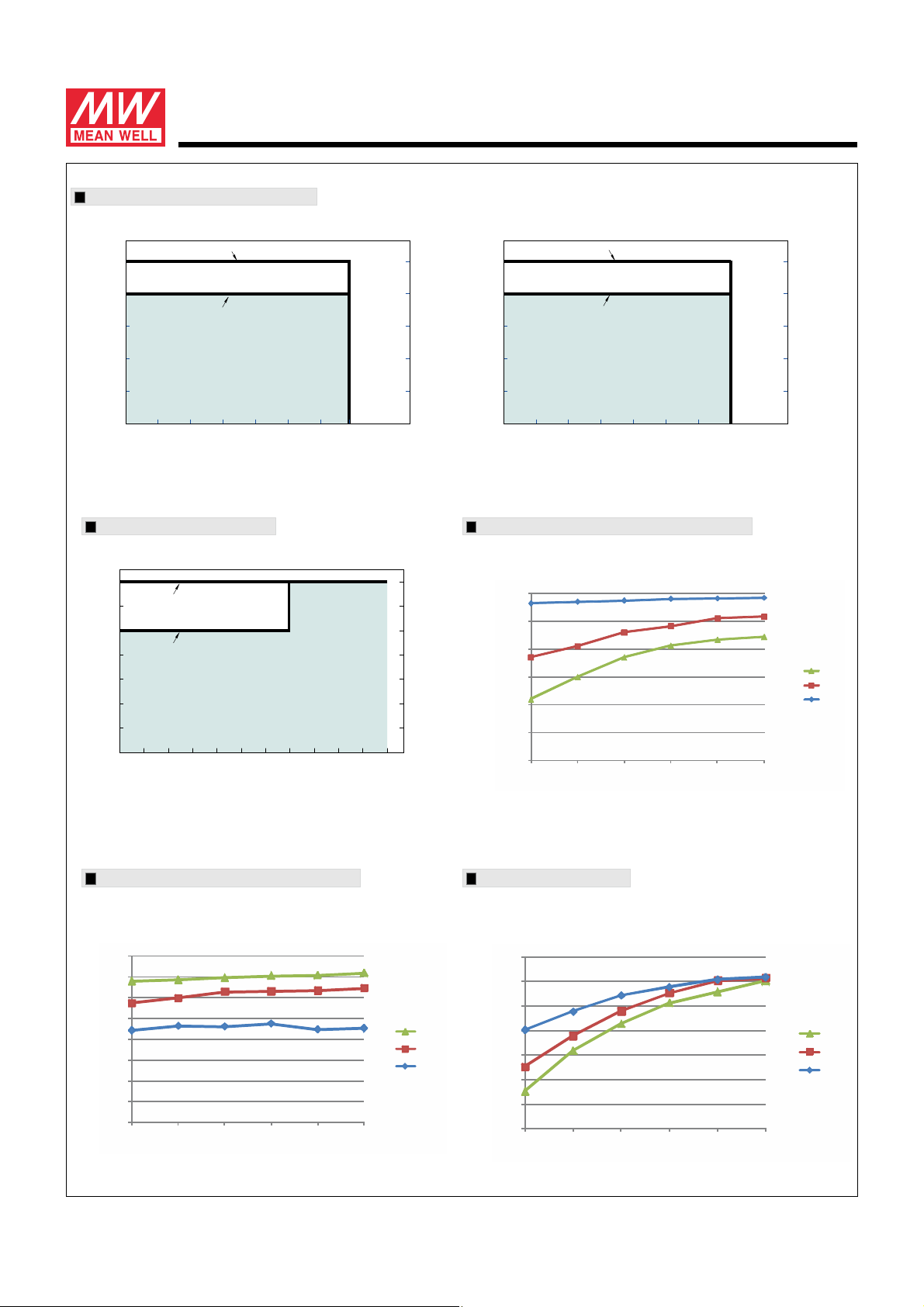

OUTPUT LOAD vs TEMPERATURE

ODLC-45 series

90~295VAC for 350mA Model,200~295VAC for others

100

90~200VAC for models other

than 350mA Model

LOAD (%)

-20 -10 0 10 20 30 40

AMBIENT TEMPERATURE,Ta ( )℃

STATIC CHARACTERISTIC

100

for 350mA Model

for others

LOAD (%)

90~295VAC for 350mA Model,200~295VAC for others

100

90~200VAC for models other

than 350mA Model

LOAD (%)

(HORIZONTAL)

-20-100 1530456085

(HORIZONTAL)

CASE TEMPERATURE ( )℃

POWER FACTOR (PF) CHARACTERISTIC

※ Tcase at 75℃

90 295

135 180

INPUT VOLTAGE (V)

※De-rating is needed under low input voltage.

TOTAL HARMONIC DISTORTION (THD)

※ 350mAModel,Tcase at 75℃

THD(%)

LOAD

200

(45W)

LOAD

EFFICIENCY vs LOAD

ODLC-45 series possess superior working efficiency that up to 86% can be reached in field applications.

※ 350mAModel,Tcase at 75℃

EFFICIENCY(%)

LOAD

File Name:ODLC-45-SPEC 2018-07-06

Page 6

45W Constant Current Mode LED Driver

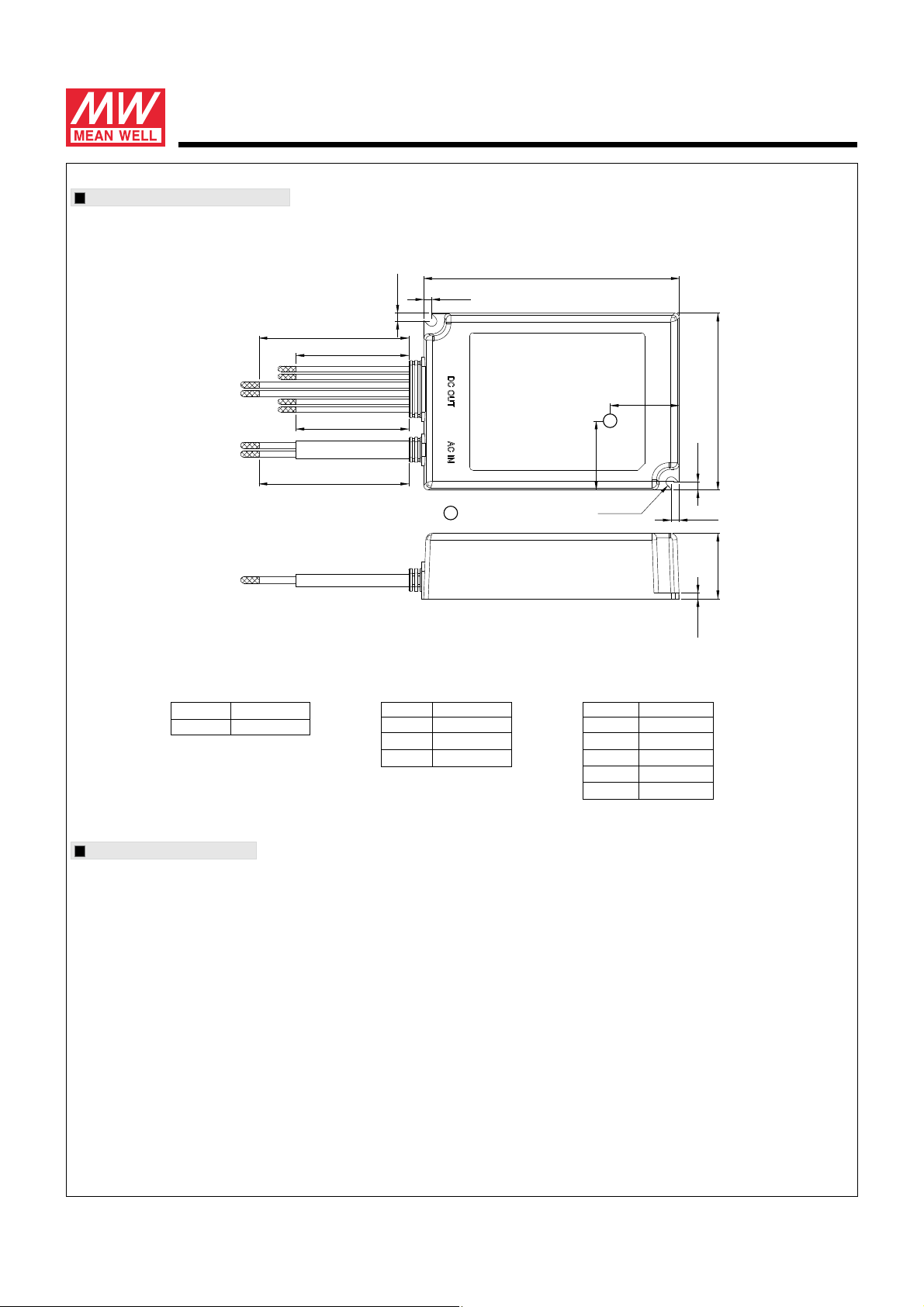

MECHANICAL SPECIFICATION

AUX-(Green)* AUX+(Yellow)*

Vo-(Black) Vo+(Red) DIM-/DA-(Gray) DIM+/DA+(Purple)

ACN(Blue) ACL(Brown)

*AUX-/AUX+ only for ODLC-45A

200±10

150±10

3.5

 : Max. Case Temperature

111

ODLC-45 series

Case No.ODLC -45 Unit:mm

2* 4.5ψ

3.5

28.5

AC wire No.Assignment(AC IN)

ACN(Blue)

ACL(Brown)

SVT 18AWG

INSTALLATION MANUAL

Please refer to : http://www.meanwell.com/manual.html

ODLC-45 DC wire No.Assignment(DC OUT)

Vo-(Black)

Vo+(Red)

DIM-/DA-(Gray)

DIM+/DA+(Purple)

UL1007 18AWG

UL1007 22AWG

2.5

ODLC-45A

DC wire No.Assignment(DC OUT)

Vo-(Black)

Vo+(Red)

DIM-(Gray)

DIM+(Purple)

AUX-(Green)

AUX+(Yellow)

UL1007 18AWG

UL1007 22AWG

File Name:ODLC-45-SPEC 2018-07-06
