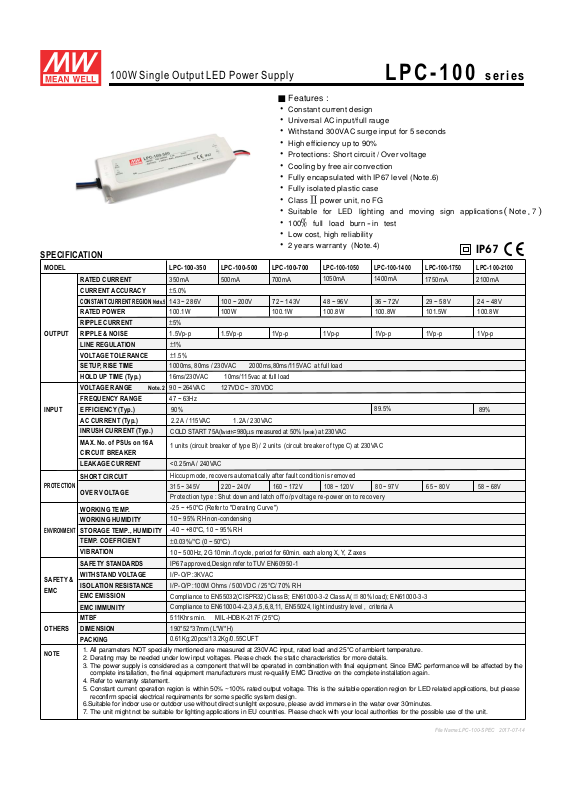

MEANWELL MW LPC-100-700 Datasheet

SPECIFICATION

MODEL

RATED CURRENT

CURRENT ACCURACY ±5.0%

CONSTANT CURRENT REGION

RATED POWER

RIPPLE CURRENT

OUTPUT

INPUT

PROTECTION

ENVIRONMENT

SAFETY &

EMC

NOTE

RIPPLE & NOISE

LINE REGULATION

VOLTAGE TOLERANCE

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

FREQUENCY RANGE

EFFICIENCY (Typ.)

AC CURRENT (Typ.)

INRUSH CURRENT (Typ.)

MAX. No. of PSUs on 16A
CIRCUIT BREAKER

LEAKAGE CURRENT

SHORT CIRCUIT

OVER VOLTAGE

WORKING TEMP.

WORKING HUMIDITY

STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY
MTBF

DIMENSIONOTHERS

PACKING

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃

2. Derating may be needed under low input voltages. Please check the static characteristics for more details.

3. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

4. Refer to warranty statement.

5. Constant current operation region is within 50% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please
reconfirm special electrical requirements for some specific system design.

6.Suitable for indoor use or outdoor use without direct sunlight exposure, please avoid immerse in the water over 30minutes.

7. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.

100W Single Output LED Power Supply

■ Features :

Constant current design
Universal AC input/full rauge
Withstand 300VAC surge input for 5 seconds
High efficiency up to 90%
Protections: Short circuit / Over voltage
Cooling by free air convection
Fully encapsulated with IP67 level (Note.6)
Fully isolated plastic case
ⅡClass power unit, no FG
(.)Suitable for LED lighting and moving sign applications Note 7
% -100 full load burn in test
Low cost, high reliability
2 years warranty (Note.4)

LPC-100-350 LPC-100-500 LPC-100-700

350mA

Note.5

143 ~ 286V

100.1W

±5%

1.5Vp-p

±1%

±1.5%

1000ms, 80ms / 230VAC 2000ms,80ms/115VAC at full load

16ms/230VAC 10ms/115vac at full load

90 ~ 264VAC 127VDC ~ 370VDC

Note.2

47 ~ 63Hz

90%

2.2 A / 115VAC 1.2A / 230VAC

COLD START 75A(t =980 s measured at 50% I ) at 230VAC

1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC

<0.25mA / 240VAC

Hiccup mode, recovers automatically after fault condition is removed

315 ~ 345V

Protection type : Shut down and latch off o/p voltage re-power on to recovery

-25 ~ +50 (Refer to "Derating Curve")℃

10 ~ 95% RH non-condensing

-40 ~ +80 , 10 ~ 95% RH℃

±0.03%/ (0 ~ 50 )℃℃

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

IP67 approved,Design refer to TUV EN60950-1

I/P-O/P:3KVAC

I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH℃

Compliance to EN55032(CISPR32) Class B; EN61000-3-2 Class A( 80% load); EN61000-3-3

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level , criteria A

511Khrs min. MIL-HDBK-217F (25 )℃

190*52*37mm (L*W*H)

0.61Kg;20pcs/13.2Kg/0.55CUFT

500mA 700mA

100 ~ 200V

100W

1.5Vp-p

width peakμ

220 ~ 240V

72 ~ 143V

100.1W

1Vp-p

160 ~ 172V

LPC-100-1050

1050mA

48 ~ 96V

100.8W

1Vp-p

108 ~ 120V

≦

LPC-100 series

IP67

LPC-100-1400

1400mA

36 ~ 72V

100.8W

1Vp-p

89.5%

80 ~ 97V

LPC-100-1750

1750mA 2100mA

29 ~ 58V

101.5W

1Vp-p

65 ~ 80V

LPC-100-2100

24 ~ 48V

100.8W

1Vp-p

89%

58 ~ 68V

File Name:LPC-100-SPEC 2017-07-14

100W Single Output LED Power Supply

LPC-100 series

Mechanical Specification

300±10

AC/L(Brown)
AC/N(Blue)

UL 1015 18AWG

3.5

2.5

Recommend Mounting Direction

Block Diagram

190

Tcase

52

17

3.5

※ Tcase: Max. CaseTemperature.

Case No. LPC-100 Unit:mm

3.5

ψ4.5

96

300±10

3.5

UL 1015 18AWG

+V(Red)

-V(Black)

37

fosc : 65KHz

fosc : 67KHz

I/P

Derating Curve

Derating Curve Static Characteristics

LOAD (%)

LOAD (%)

LOAD (%)

EMI FILTER

RECTIFIERS

100

80

60

40

20

-15 0 15 30

&

O.L.P.

04050-25 60 70

POWER

SWITCHING

PWM

CONTROL

(HORIZONTAL)

RECTIFIERS

&

FILTER

100

90

80

70

60

50

LOAD (%)

LOAD (%)

40

90 100 125 135 145 155 165 175 180 200 230 264

+V

-V

DETECTION

CIRCUIT

O.V.P.

175

AMBIENT TEMPERATURE ( )℃

INPUT VOLTAGE (V) 60Hz
