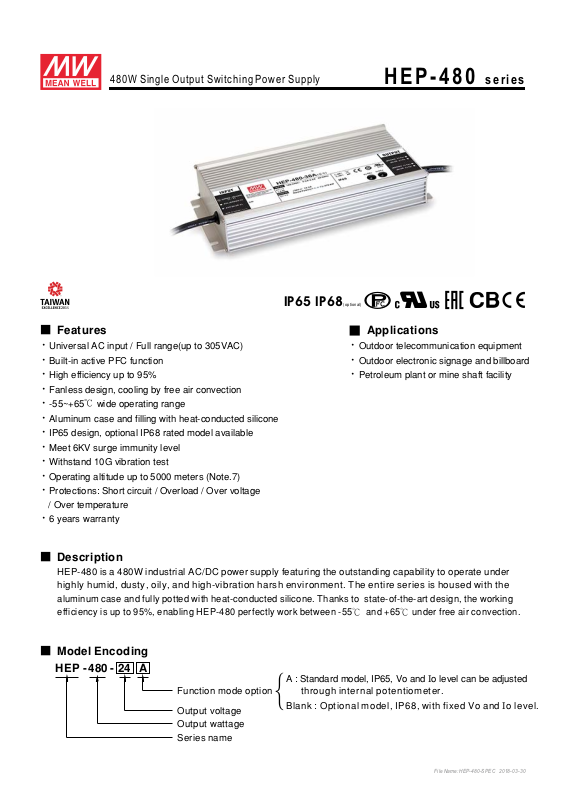

MEANWELL MW HEP-480-36A Datasheet

480W Single Output Switching Power Supply

HEP-480 series

5

■ Features ■ Applications
Universal AC input / Full range(up to 305VAC)
Built-in active PFC function
High efficiency up to 95%
Fanless design, cooling by free air convection
-55~+65 wide operating range℃
Aluminum case and filling with heat-conducted silicone
IP65 design, optional IP68 rated model available
Meet 6KV surge immunity level
Withstand 10G vibration test
Operating altitude up to 5000 meters (Note.7)
Protections: Short circuit / Overload / Over voltage

/ Over temperature

6 years warranty

■ Description

HEP-480 is a 480W industrial AC/DC power supply featuring the outstanding capability to operate under
highly humid, dusty, oily, and high-vibration harsh environment. The entire series is housed with the
aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the working
efficiency is up to 95%, enabling HEP-480 perfectly work between -55 and +65 under free air convection.℃℃

IP65

IP68

(optional)

Outdoor telecommunication equipment
Outdoor electronic signage and billboard
Petroleum plant or mine shaft facility

■ Model Encoding

HEP -- 480 24 A

Function mode option

Output voltage
Output wattage
Series name

A : Standard model, IP65, Vo and o level can be adjustedI

through internal potentiometer.

{

Blank : Optional model, IP68, with fixed Vo and o level.I

File Name:HEP-480-SPEC 2018-03-30

SPECIFICATION

MODEL

DC VO LTAG E

RATED CURRENT

RATED POWER

RIPPLE & NOISE (max.)

VOLTAGE ADJ. RANGE

OUTPUT

INPUT

PROTECTION

ENVIRONMENT

SAFETY &

EMC

NOTE

CURRENT ADJ. RANGE

VOLTAGE TOLERANCE

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

FREQUENCY RANGE

POWER FACTOR (Typ.)

EFFICIENCY (Typ.)

AC CURRENT (Typ.) 5A / 115VAC 2.45A / 230VAC 2A/277VAC

INRUSH CURRENT(Typ.)

LEAKAGE CURRENT

OVER CURRENT

SHORT CIRCUIT

OVER VOLTAGE

OVER TEMPERATURE

WORKING TEMP.

WORKING HUMIDITY

STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY

MTBF

DIMENSIONOTHERS

PACKING

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the setup time.

5. Derating may be needed under low input voltages. Please refer to the STATIC CHARACTERISTICS for more details.

6. The power supply shall be regarded as one component of the final system. The EMC performance will be affected by the complete system installation
and/or configuration, the final system manufacturers must re-verify overall EMC directive with the complete installation and/or configuration.

7. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.

8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

9. The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude higher than 2000m(6500ft).℃℃

480W Single Output Switching Power Supply

HEP-480-24 HEP-480-36 HEP-480-48 HEP-480-54

24V 36V 48V 54V

20A 13.3A 10A 8.9A

480W 478.8W 480W 480.6W

Note.2

200mVp-p 250mVp-p 250mVp-p 350mVp-p

Adjusted forA-type only (via built-in potentiometer)

Note.5

20.4 ~ 25.2V 30.6 ~ 37.8V 40.8 ~ 50.4V 45.9 ~ 56.7V

Adjusted forA-type only (via built-in potentiometer)

10 ~ 20A 6.6 ~ 13.3A 5 ~ 10A 4.4 ~ 8.9A

Note.3

±1.0% ±1.0% ±1.0% ±1.0%
±0.5% ±0.5% ±0.5% ±0.5%
±0.5% ±0.5% ±0.5% ±0.5%

Note.4

500ms, 80ms 115VAC/230VAC

16ms 115VAC/230VAC

Note.5

90 ~ 305VAC 127 ~ 431VDC

47 ~ 63Hz

PF 0.98/115VAC, PF 0.97/230VAC, PF 0.95/277VAC at full load≧≧≧

94% 95% 94.5% 95%

COLD START 35A at 230VAC

<0.75mA / 277VAC

105 ~ 125%

Constant current limiting, recovers automatically after fault condition is removed

Constant current limiting, recovers automatically after fault condition is removed

27 ~ 33V 40 ~ 50V 53 ~ 63V 60 ~ 70V

Shut down output voltage, re-power on to recover

Shut down voltage,output re-power on to recover

-55 ~ +65 (Refer to "Derating Curve")℃

20 ~ 95% RH non-condensing

-60 ~ +80 , 10 ~ 95% RH non-condensing℃

0.02%/ (0 ~ 60 )

±℃ ℃

20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

Note.7

UL60950-1 EAC TP TC 004, IP65 (or IP68 for HEP-480 Blank-Type), approved ; design refer to TUV EN60950-1

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH

Compliance to ,EN55032 (CISPR32) Class B, EN61000-3-2,-3 EAC TP TC 020

Compliance to , industry level (surge 6KV), criteria A,

89.8K hrs min. MIL-HDBK-217F (25 )

262*125*43.8mm (L*W*H)

2.8Kg;4pcs/11.5Kg/0.55CUFT

EN61000-4-2,3,4,5,6,8,11, EN55024 light EAC TP TC 020

℃

HEP-480 series

℃

File Name:HEP-480-SPEC 2018-03-30

Block Diagram

480W Single Output Switching Power Supply

HEP-480 series

PFC fosc : 45KHz

PWM fosc : 55KHz

RECTIFIERS

&

FILTER

FG

I/P

EMI FILTER

&

RECTIFIERS

PFC

CIRCUIT

O.L.P.

PFC

CONTROL

O.T.P.

POWER

SWITCHING

PWM

CONTROL

Derating Curve Static Characteristics

LOAD (%)

100

230VAC

80

60

40

20

1VAC10

LOAD (%)

100

90

80

70

60

50

40

+V

-V

O.L.P.

DETECTION

CIRCUIT

O.V.P.

-55 -25 -10 0 15 30 50 60 65 70

AMBIENT TEMPERATURE ( )℃ INPUT VOLTAGE (V) 60Hz

(HORIZONTAL)

90 110 125 135 145 155 165 175 180 200 230 305

File Name:HEP-480-SPEC 2018-03-30

480W Single Output Switching Power Supply

HEP-480 series

Mechanical Specification

A-Type (standard model)

For 24V,36V

FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)

SJOW 17AWG 3C & H05RN-F××3 1.0mm

300 20±

13.4

8.9

15

78

125

2

15

tc

 : Max. Case Temperature

262

235.2

tc

58

113.8

Vo

ADJ.

Io

ADJ.

Case No. 251 Unit:mm

ψ×4.5 4PL

300 20±

SJO W 17AWG 2C & H05RN -F××2 1.0mm

SJO W 17AWG 2C & H05RN -F××2 1.0mm

Vo+(Brown)
Vo-(Blue)

2

Vo+(Brown)
Vo-(Blue)

2

43.8

For Others

FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)

SJOW 17AWG 3C & H05RN-F××3 1.0mm

300 20±

13.4

8.9

15

78

125

2

15

tc

 : Max. Case Temperature

262

235.2

tc

58

113.8

Vo

ADJ.

Io

ADJ.

ψ×4.5 4PL

300 20±

SJO W 17AWG 2C & H05RN -F××2 1.0mm

Vo+(Brown)
Vo-(Blue)

2

43.8

File Name:HEP-480-SPEC 2018-03-30

Blank-Type (optional model)

For 24V,36V

FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)

SJOW 17AWG 3C & H05RN-F××3 1.0mm

480W Single Output Switching Power Supply

262

235.2

tc

58

300 20±

13.4

8.9

15

78

125

2

15

tc

 : Max. Case Temperature

113.8

HEP-480 series

ψ×4.5 4PL

300 20±

Vo+(Brown)
Vo-(Blue)

SJO W 17AWG 2C & H05RN -F××2 1.0mm

SJO W 17AWG 2C & H05RN -F××2 1.0mm

2

Vo+(Brown)
Vo-(Blue)

2

43.8

For Others

13.4

8.9

15

FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)

SJOW 17AWG 3C & H05RN-F××3 1.0mm

300 20±

2

 : Max. Case Temperature

INSTALLATION MANUAL

Please refer to : http://www.meanwell.com/manual.html

262

235.2

ψ×4.5 4PL

78

125

15

tc

tc

58

113.8

300 20±

SJO W 17AWG 2C & H05RN -F××2 1.0mm

Vo+(Brown)
Vo-(Blue)

2

43.8

File Name:HEP-480-SPEC 2018-03-30
