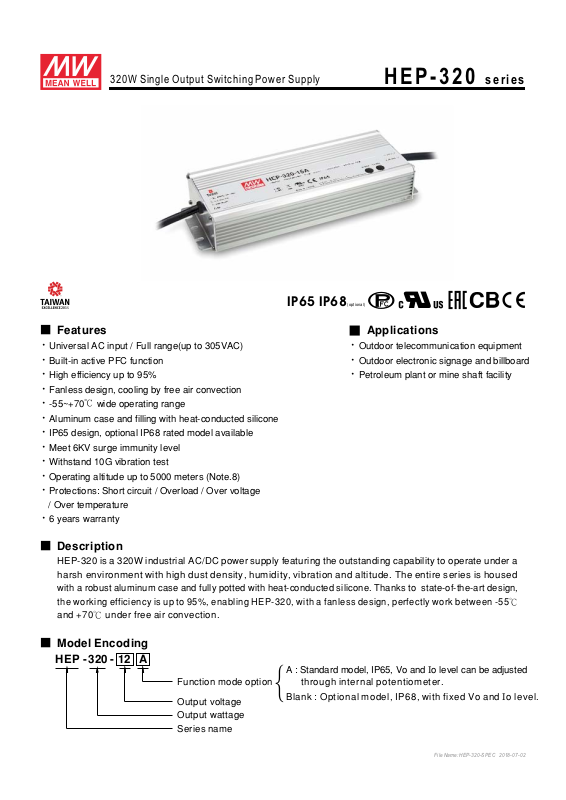

MEANWELL MW HEP-320-24A Datasheet

320W Single Output Switching Power Supply

HEP-320 series

5

IP65 IP68

(optional)

■ Features ■ Applications
Universal AC input / Full range(up to 305VAC)
Built-in active PFC function
High efficiency up to 95%

Outdoor telecommunication equipment


Outdoor electronic signage and billboard

Petroleum plant or mine shaft facility
Fanless design, cooling by free air convection
-55~+70 wide operating range℃
Aluminum case and filling with heat-conducted silicone
IP65 design, optional IP68 rated model available
Meet 6KV surge immunity level
Withstand 10G vibration test
Operating altitude up to 5000 meters (Note.8)
Protections: Short circuit / Overload / Over voltage

/ Over temperature

6 years warranty

■ Description

HEP-320 is a 320W industrial AC/DC power supply featuring the outstanding capability to operate under a
harsh environment with high dust density, humidity, vibration and altitude. The entire series is housed
with a robust aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design,
the working efficiency is up to 95%, enabling HEP-320, with a fanless design, perfectly work between -55℃
and +70 under free air convection.℃

■ Model Encoding

HEP -- 320 12 A

Function mode option

Output voltage
Output wattage
Series name

A : Standard model, IP65, Vo and o level can be adjustedI

through internal potentiometer.

{

Blank : Optional model, IP68, with fixed Vo and o level.I

File Name:HEP-320-SPEC 2018-07-02

SPECIFICATION

MODEL

DC VO LTAG E

RATED CURRENT

RATED POWER

RIPPLE & NOISE (max.)

VOLTAGE ADJ. RANGE

OUTPUT

INPUT

PROTECTION

ENVIRONMENT

SAFETY &

EMC

OTHERS

NOTE

CURRENT ADJ. RANGE Note.5

VOLTAGE TOLERANCE

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

FREQUENCY RANGE

POWER FACTOR (Typ.)

EFFICIENCY (Typ.)

AC CURRENT (Typ.) 3.5A / 115VAC 1.65A / 230VAC 1.45A/ 277VAC

INRUSH CURRENT(Typ.)

LEAKAGE CURRENT

OVER CURRENT

SHORT CIRCUIT

OVER VOLTAGE

OVER TEMPERATURE

WORKING TEMP.

WORKING HUMIDITY

STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY

MTBF

DIMENSION

PACKING

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. Derating may be needed under low input voltages. Please check the static characteristics for more details.

5. A-type only.

6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.

7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the

complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

8. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.

9. The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude higher than 2000m(6500ft).℃℃

320W Single Output Switching Power Supply

HEP-320-12 HEP-320-15 HEP-320-24 HEP-320-36 HEP-320-48 HEP-320-54

12V 15V 24V 36V 48V 54V

22A 19A 13.34A 8.9A 6.7A 5.95A

264W 285W 320.16W 320.4W 321.6W 321.3W

150mVp-p 150mVp-p 150mVp-p 250mVp-p 250mVp-p 350mVp-p

Note.2

10.8 ~ 13.5V 13.5 ~ 17V 21 ~ 26V 32 ~ 39V 43 ~ 52V 49 ~ 58V

Note.5

11 ~ 22A 9.5 ~ 19A 6.67 ~ 13.34A 4.45 ~ 8.9A 3.35 ~ 6.7A 2.97 ~ 5.95A

Note.3

±3.0% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0%
±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%

±2.0% ±1.5% ±0.5% ±0.5% ±0.5% ±0.5%

Note.6

2500ms,80ms/115VAC 500ms,80ms/230VAC at full load

15ms at full load 230VAC /115VAC

Note.4

90 ~ 305VAC 127 ~ 431VDC

47 ~ 63Hz

PF>0.98/115VAC, PF>0.95/230VAC, PF>0.94/277VAC at full load

91% 92.5% 94% 94% 94.5% 95%

COLD START 70A at 230VAC

<0.75mA / 277VAC

105 ~ 125%

Protection type : Hiccup mode, recovers automatically after fault condition is removed

Hiccup mode, recovers automatically after fault condition is removed

14 ~ 17V 17.5 ~ 21V 27 ~ 33V 40 ~ 46V 53.5 ~ 60V 59 ~ 65V

Protection type : Shut down and latch off o/p voltage, re-power on to recover

Shut down and latch off o/p voltage, re-power on to recover

-55 ~ +70 (Refer to "Derating Curve")℃

20 ~ 95% RH non-condensing

℃ non-condensing

-60 ~ +80 , 10 ~ 95% RH

±℃ ℃0.03%/ (0 ~ 60 )

20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

Note.8

UL60950-1 , EAC TPTC 004, IP65 (or IP68 for HEP-320 Blank-Type) approved ; design refer to TUV EN60950-1

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH

Compliance to ,EN55032 (CISPR32) Class B, EN61000-3-2,-3 EAC TP TC 020

Compliance to , industry level (surge 6KV), criteria A,

154.2K hrs min. MIL-HDBK-217F (25 )

252*90*43.8mm (L*W*H)

1.88Kg

EN61000-4-2,3,4,5,6,8,11, EN55024 light EAC TP TC 020

℃

; 8pcs/16Kg/0.92CUFT

HEP-320 series

℃

File Name:HEP-320-SPEC 2018-07-02

Block Diagram

320W Single Output Switching Power Supply

HEP-320 series

PFC fosc : 47KHz

PWM fosc : 65KHz

RECTIFIERS

&

FILTER

FG

I/P

EMI FILTER

&

RECTIFIERS

PFC

CIRCUIT

O.L.P.

PFC

CONTROL

POWER

SWITCHING

PWM & P FC

CONTROL

Derating Curve Static Characteristics

100

80

60

40

LOAD (%)

20

-55 -25 -10 0 15 30 50 60 70

AMBIENT TEMPERATURE ( )℃ INPUT VOLTAGE (V) 60Hz

230VAC

115VAC

(HORIZONTAL)

100

90

80

70

60

50

LOAD (%)

40

90 115 125 135 145 155 165 175 180 200 230 305

+V

-V

O.L.P.

DETECTION

CIRCUIT

O.V.P.

File Name:HEP-320-SPEC 2018-07-02

320W Single Output Switching Power Supply

HEP-320 series

Mechanical Specification

A-Type: HEP-320-_A(standard model)

FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)

300 20±

SJTW 18AWG 3C×

※ IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer.

(Can access by removing the rubber stopper on the case.)

13.4

8.9

17

40

90

17

tc

 : Max. Case Temperature

25 2±

252

225.2

tc

45

112.6

Io

ADJ.VoADJ.

Case No.202A Unit:mm

ψ4.5 4PL×

300 20±

SJTW 14AWG 2C×

+V(Red)

-V(Black)

43.8

Blank-Type: HEP-320(optional model)

13.4

8.9

17

FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)

300 20±

SJTW 18AWG 3C×

 : Max. Case Temperature

25 2±

※IP68 rated. Cable for I/O connection.

Installation Manual

Please refer to : http://www.meanwell.com/manual.html

252

225.2

40

90

17

tc

tc

45

112.6

ψ×4.5 4PL

SJTW 14AWG 2C×

300 20±

+V(Red)

-V(Black)

43.8
