Page 1

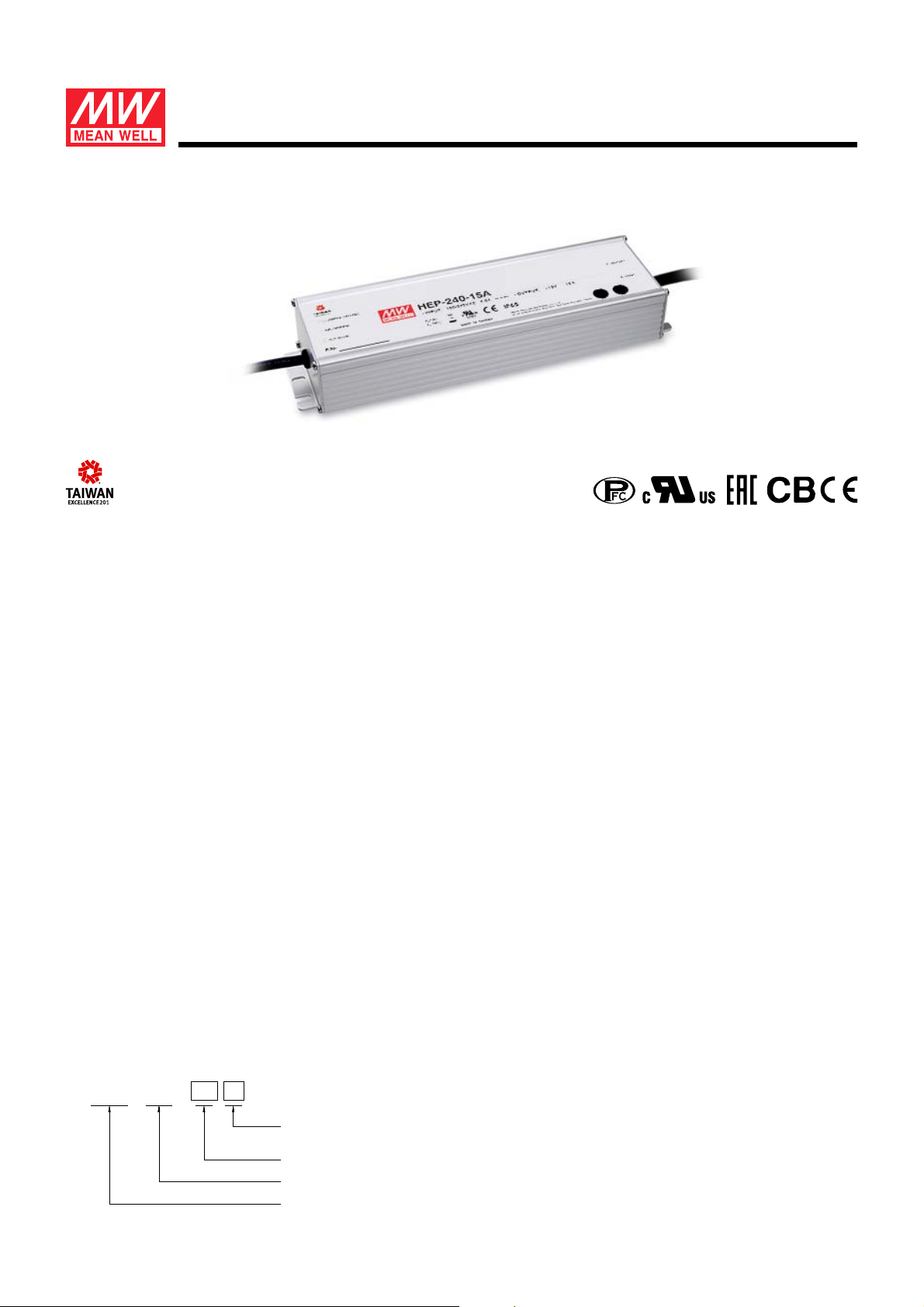

240W Single Output Switching Power Supply
HEP-240 series
5
■ Features ■ Applications
Universal AC input / Full range(up to 305VAC)
Built-in active PFC function
High efficiency up to 93.5%
Fanless design, cooling by free air convection
-55~+70 wide operating range℃
Aluminum case and filling with heat-conducted silicone
IP65 design, optional IP68 rated model available
Meet 6KV surge immunity level
Withstand 10G vibration test
Operating altitude up to 5000 meters (Note.8)
Protections: Short circuit / Overload / Over voltage
/ Over temperature
6 years warranty (Note.10)
■ Description
HEP-240 is a 240W industrial AC/DC power supply featuring the outstanding capability to operate under a
harsh environment with high dust density, humidity, vibration and altitude. The entire series is housed
with a robust aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design,
the working efficiency is up to 93.5%, enabling HEP-240, with a fanless design, perfectly work between -55℃
and +70 under free air convection.℃
IP65
IP68
(optional)
Outdoor telecommunication equipment
Outdoor electronic signage and billboard
Petroleum plant or mine shaft facility
■ Model Encoding
HEP -- 240 15 A
Function mode option
Output voltage
Output wattage
Series name
A : Standard model, IP65, Vo and o level can be adjustedI
through internal potentiometer.
{
Blank : Optional model, IP68, with fixed Vo and o level.I
File Name:HEP-240-SPEC 2018-01-15
Page 2
SPECIFICATION
MODEL
DC VO LTAG E
RATED CURRENT
RATED POWER
RIPPLE & NOISE (max.)
VOLTAGE ADJ. RANGE
OUTPUT
INPUT
PROTECTION
ENVIRONMENT
SAFETY &
EMC
NOTE
CURRENT ADJ. RANGE
VOLTAGE TOLERANCE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT(Typ.)
LEAKAGE CURRENT
OVER CURRENT
SHORT CIRCUIT
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
DIMENSIONOTHERS
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
5. A-Type only.
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.
9. Refer to warranty statement.
10. The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude higher than 2000m(6500ft).℃℃
240W Single Output Switching Power Supply
HEP-240-12 HEP-240-15 HEP-240-24 HEP-240-36 HEP-240-48 HEP-240-54
12V 15V 24V 36V 48V 54V
16A 15A 10A 6.7A 5A 4.45A
192W 225W 240W 241.2W 240W 240.3W
150mVp-p 150mVp-p 150mVp-p 250mVp-p 250mVp-p 350mVp-p
Note.2
11.2 ~ 12.8V 14 ~ 16V 22.4 ~ 25.6V 33.5 ~ 38.5V 44.8 ~ 51.2V 50 ~ 57V
Note.5
Can be adjusted by internal potentiometer for A type only
8 ~ 16A 7.5 ~ 15A 5 ~ 10A 3.3 ~ 6.7A 2.5 ~ 5A 2.23 ~ 4.45A
Note.3
±2.5% ±2.0% ±1.0% ±1.0% ±1.0% ±1.0%
±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
±2.0% ±1.5% ±0.5% ±0.5% ±0.5% ±0.5%
Note.6
1000ms,80ms/115VAC 500ms,80ms/230VAC at full load
15ms at full load 230VAC /115VAC
Note.4
90 ~ 305VAC 127 ~ 431VDC
47 ~ 63Hz
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load
90% 90% 92.5% 92.5% 93% 93.5%
2A / 115VAC 1.05A / 230VAC 0.9A/277VAC12V
15~54V 2.5A / 115VAC 1.3A / 230VAC 1.1A/277VAC
COLD START 75A at 230VAC
<0.75mA / 277VAC
105 ~ 125%
Protection type : Constant current limiting, recovers automatically after fault condition is removed
Constant current limiting, recovers automatically after fault condition is removed
13.5 ~ 18V 17.5 ~ 21.5V 27 ~ 34V 43 ~ 49V 55 ~ 63V 60 ~ 67V
Protection type : Shut down and latch off o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
-55 ~ +70 (Refer to "Derating Curve")℃
20 ~ 95% RH non-condensing
-60 ~ +80 , 10 ~ 95% RH non-condensing℃
0.03%/ (0 ~ 60 )
±℃ ℃
20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes
Note.8
UL60950-1 , EAC TPTC 004, IP65 (or IP68 for HEP-240 Blank-Type) approved; design refer to TUV EN60950-1
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
Compliance to ,EN55032 (CISPR32) Class B, EN61000-3-2,-3 EAC TP TC 020
Compliance to , industry level (surge 6KV), criteria A,
171.3K hrs min. MIL-HDBK-217F (25 )
244.2*68*38.8mm (L*W*H)
1.3Kg; 12pcs/16.6Kg/0.84CUFT
EN61000-4-2,3,4,5,6,8,11, EN55024 light EAC TP TC 020
℃
HEP-240 series
℃
File Name:HEP-240-SPEC 2018-01-15
Page 3

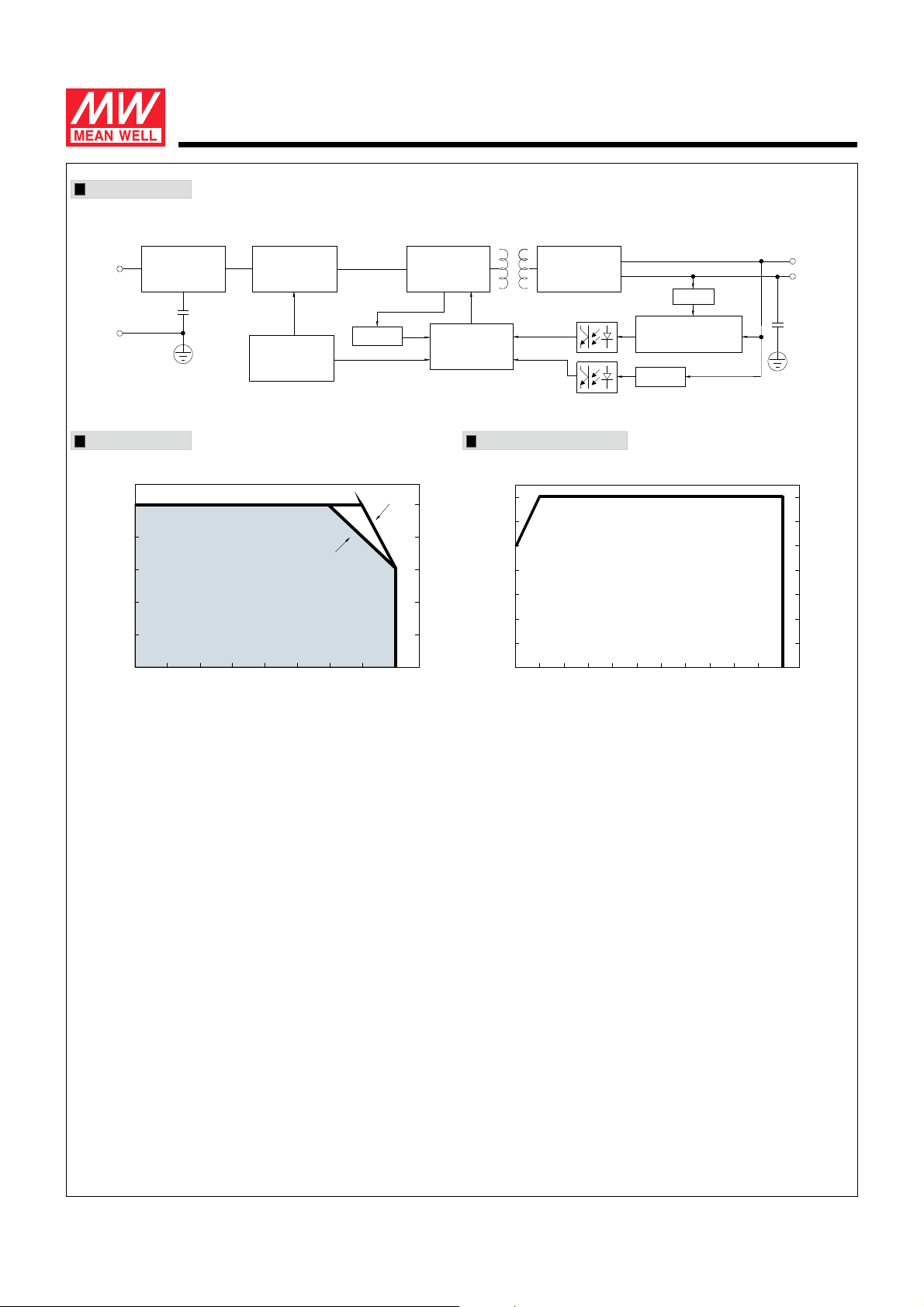

Block Diagram
240W Single Output Switching Power Supply
HEP-240 series
fosc : 100KHz
RECTIFIERS
&
FILTER
FG
I/P
EMI FILTER
&
RECTIFIERS
PFC
CIRCUIT
O.L.P.
PFC
CONTROL
POWER
SWITCHING
PWM & P FC
CONTROL
Derating Curve Static Characteristics
100
80
60
40
LOAD (%)
20
-55 -25 -10 0 15 30 50 60 70
110VAC
AMBIENT TEMPERATURE ( )℃ INPUT VOLTAGE (V) 60Hz
230VAC
(HORIZONTAL)
100
90
80
70
60
50
LOAD (%)
40
90 100 125 135 145 155 165 175 180 200 230 305
+V
-V
O.L.P.
DETECTION
CIRCUIT
O.V.P.
File Name:HEP-240-SPEC 2018-01-15
Page 4
240W Single Output Switching Power Supply
HEP-240 series

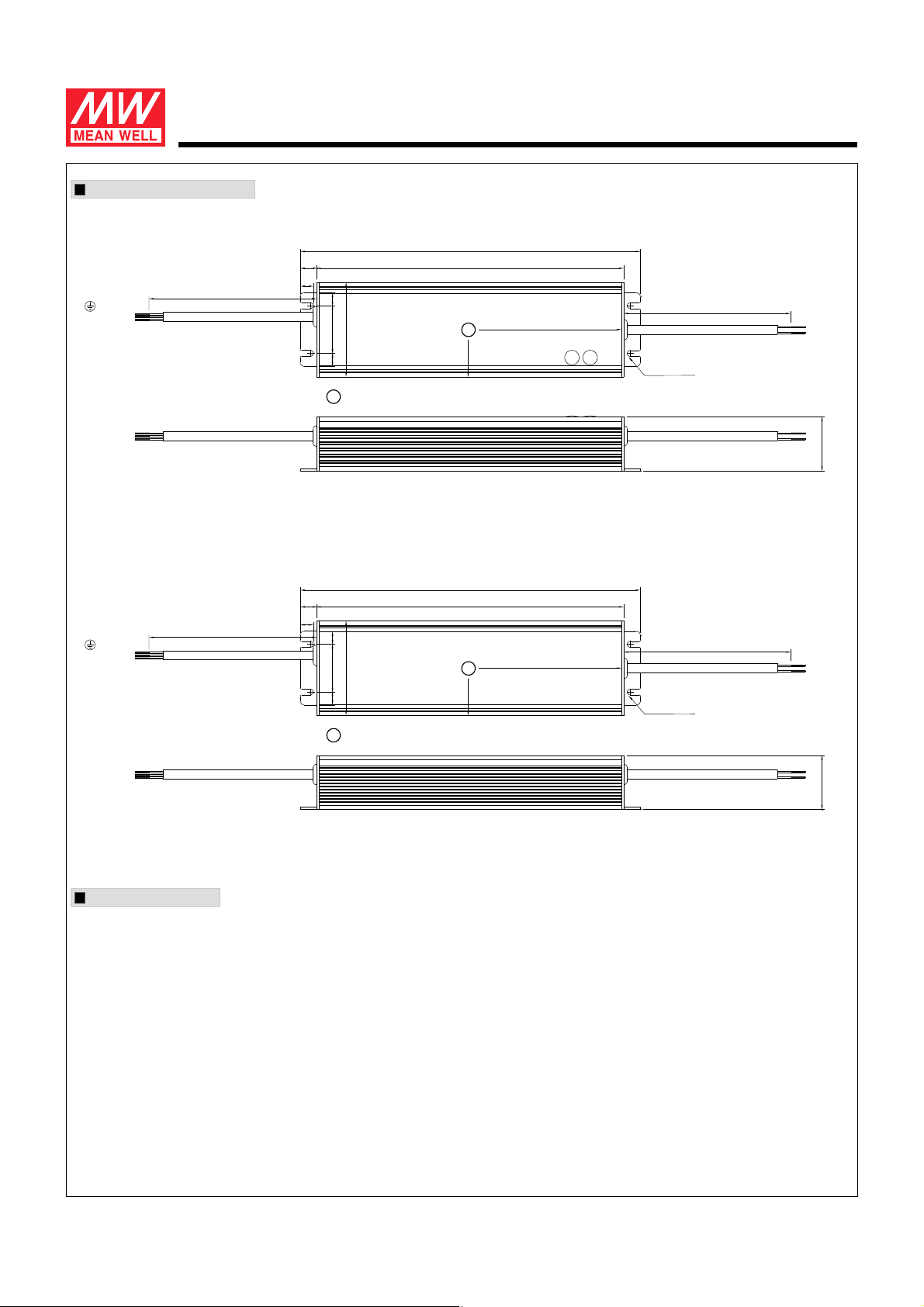

Mechanical Specification
A-Type: HEP-240-_A(standard model)
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
※ IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
Blank-Type: HEP-240(optional model)
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
300 20±
SJTW 18AWG 3C×
(Can access by removing the rubber stopper on the case.)
300 20±
SJTW 18AWG 3C×
12
9.6
9.4
68
34.2
9.4
tc
: Max. Case Temperature
12
9.6
9.4
68
34.2
9.4
244.2
220.2
tc
34
244.2
220.2
tc
34
110.1
ADJ.
110.1
Case No.994H Unit:mm
300 20±
Vo
Io
ADJ.
SJTW 14AWG 2C×
ψ×4.2 4PL
300 20±
SJTW 14AWG 2C×
ψ×4.2 4PL
-V(Black)
+V(Red)
38.8
-V(Black)
+V(Red)
tc
: Max. Case Temperature
※IP68 rated. Cable for I/O connection.
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
38.8
File Name:HEP-240-SPEC 2018-01-15
