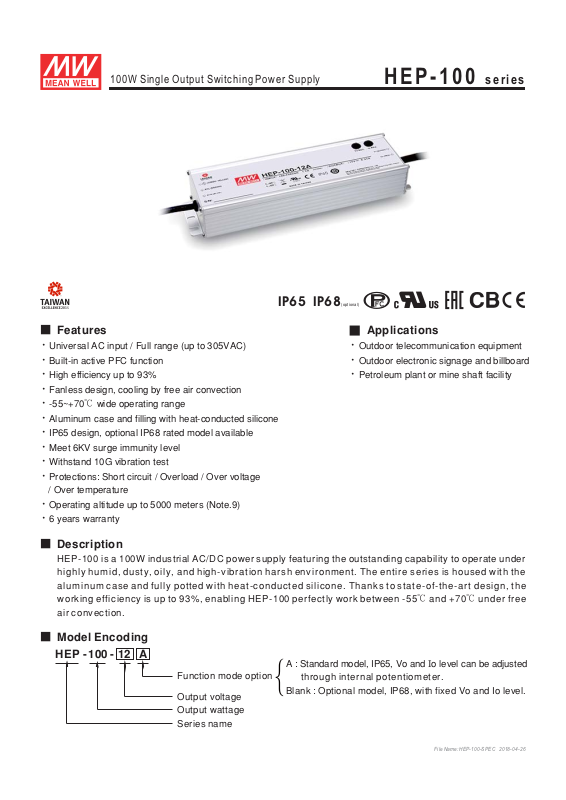

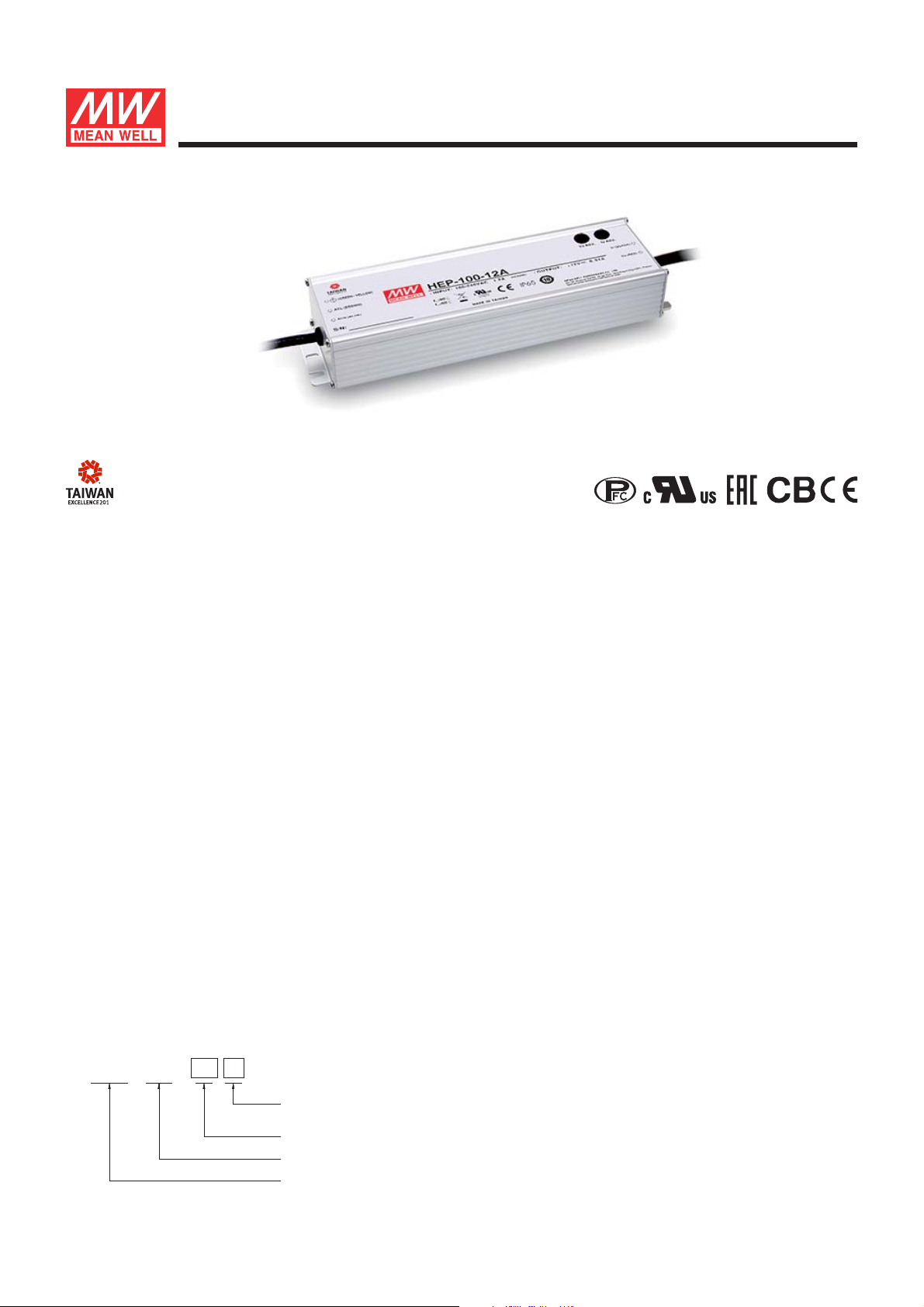

MEANWELL MW HEP-100-48A Datasheet

100W Single Output Switching Power Supply

HEP-100 series

5

IP65 IP68

(optional)

■ Features ■ Applications
Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
High efficiency up to 93%

Outdoor telecommunication equipment
Outdoor electronic signage and billboard

Petroleum plant or mine shaft facility
Fanless design, cooling by free air convection
-55~+70 wide operating range℃
Aluminum case and filling with heat-conducted silicone
IP65 design, optional IP68 rated model available
Meet 6KV surge immunity level
Withstand 10G vibration test
Protections: Short circuit / Overload / Over voltage

/ Over temperature

Operating altitude up to 5000 meters (Note.9)
6 years warranty

■ Description

HEP-100 is a 100W industrial AC/DC power supply featuring the outstanding capability to operate under
highly humid, dusty, oily, and high-vibration harsh environment. The entire series is housed with the
aluminum case and fully potted with heat-conducted silicone. Thanks to state-of-the-art design, the
working efficiency is up to 93%, enabling HEP-100 perfectly work between -55 and +70 under free
air convection.

℃℃

■ Model Encoding

HEP -- 100 12 A

Function mode option

Output voltage
Output wattage
Series name

A : Standard model, IP65, Vo and o level can be adjusted I

through internal potentiometer.

{

Blank : Optional model, IP68, with fixed Vo and Io level.

File Name:HEP-100-SPEC 2018-04-26

SPECIFICATION

MODEL

DC VO LTAGE

RATED CURRENT

RATED POWER

RIPPLE & NOISE (max.) Note.2

VOLTAGE ADJ. RANGE Note.5

OUTPUT

INPUT

PROTECTION

ENVIRONMENT

SAFETY &

EMC

NOTE

CURRENT ADJ. RANGE

VOLTAGE TOLERANCE Note.3

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME Note.7

HOLD UP TIME (Typ.)

VOLTAGE RANGE Note.4

FREQUENCY RANGE

POWER FACTOR (Typ.)

EFFICIENCY (Typ.)

AC CURRENT (Typ.)

INRUSH CURRENT(Typ.)

LEAKAGE CURRENT

OVERLOAD

SHORT CIRCUIT

OVER VOLTAGE

OVER TEMPERATURE

WORKING TEMP.

WORKING HUMIDITY

STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

SAFETY STANDARDS Note.6,9

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

EMC EMISSION

EMC IMMUNITY

MTBF

DIMENSIONOTHERS

PACKING

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. Derating may be needed under low input voltages. Please check the static characteristics for more details.

5. A type only.

6. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18.

7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.

8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will
be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation
again.

9. The water protection level test for the IP68 rating is performed 1000mm below the surface of the water for 1 month.

10. ℃℃The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude
higher than 2000m(6500ft).

100W Single Output Switching Power Supply

HEP-100-12 HEP-100-15 HEP-100-24 HEP-100-36 HEP-100-48 HEP-100-54

12V 15V 24V 36V 48V 54V

8.34A 6.67A 4A 2.65A 2A 1.77A

100.08W 100.05W 96W 95.4W 96W 95.58W

120mVp-p 150mVp-p 150mVp-p 200mVp-p 200mVp-p 200mVp-p

10.8 ~ 13.5V 13.5 ~ 17V 22 ~ 27V 33 ~ 40V 43 ~ 53V 49 ~ 58V

Can be adjusted by internal potentiometer for A type only

5 ~ 8.34A 4 ~ 6.67A 2.5 ~ 4A 1.65 ~ 2.65A 1.25 ~ 2A 1.1 ~ 1.77A

±2.0% ±1.5% ±1.0% ±1.0% ±1.0% ±1.0%
±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
±2.0% ±1.5% ±0.5% ±0.5% ±0.5% ±0.5%

1200ms,50ms/115VAC 500ms,50ms/230VAC at full load

16ms at full load 230VAC /115VAC

90 ~ 305VAC 127 ~ 431VDC

47 ~ 63Hz

PF>0.98/115VAC, PF>0.95/230VAC, PF>0.91/277VAC at full load

92% 92% 93% 93% 93% 93%

1.2A / 115VAC 0.55A / 230VAC 0.5A/ 277VAC

COLD START 60A at 230VAC

<0.75mA / 277VAC

105 ~ 125%

Protection type : Constant current limiting, recovers automatically after fault condition is removed

Constant current limiting, recovers automatically after fault condition is removed

14 ~ 17V 18 ~ 21V 28 ~ 34V 41 ~ 46V 54 ~ 63V 59 ~ 65V

Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery

Shut down o/p voltage, recovers automatically after temperature goes down

-55 ~ +70 (Refer to "Derating Curve")℃

20 ~ 95% RH non-condensing

-60 ~ +85 , 10 ~ 95% RH non-condensing℃

±℃ ℃0.03%/ (0 ~ 60 )

20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes

UL60950-1 EAC TP TC 004

I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH℃

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level (surge 6KV), criteriaA, EAC TPTC 020

164.7K hrs min. MIL-HDBK-217F (25 )℃

220*68*38.8mm (L*W*H)

1.12Kg; 12pcs/14.4Kg/0.8CUFT

HEP-100 series

,, IP65 (or IP68 for HEP-100 Blank type) approved ; design refer to TUV EN60950-1

File Name:HEP-100-SPEC 2018-04-26

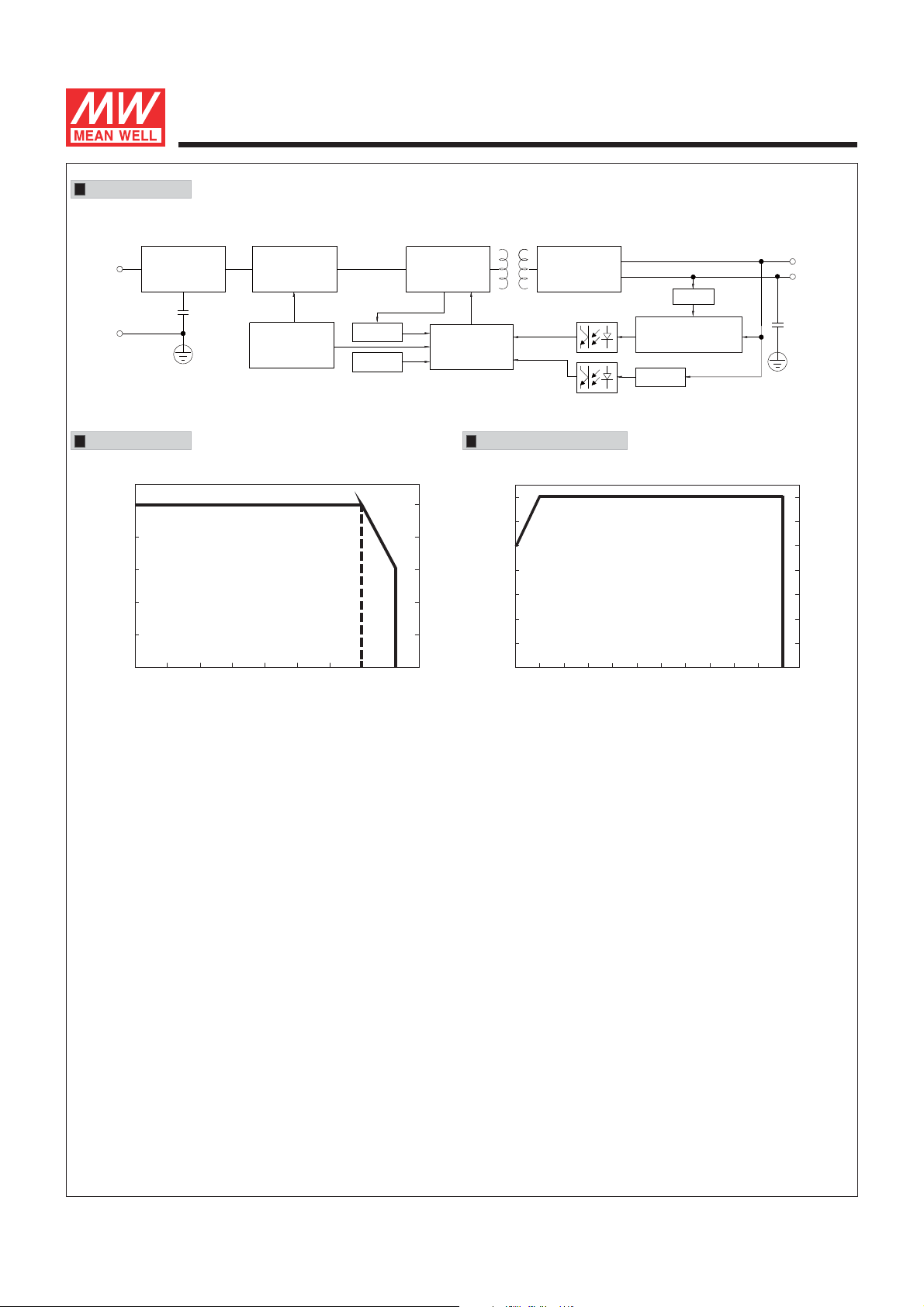

Block Diagram

100W Single Output Switching Power Supply

HEP-100 series

Fosc : 100KHz

RECTIFIERS

&

FILTER

FG

I/P

EMI FILTER

&

RECTIFIERS

PFC

CIRCUIT

PFC

CONTROL

O.L.P.

O.T.P.

POWER

SWITCHING

PWM

CONTROL

Derating Curve Static Characteristics

100

80

60

40

LOAD (%)

20

-55 -25 -10 0 15 30 50 60 70

AMBIENT TEMPERATURE ( )℃ INPUT VOLTAGE (V) 60Hz

(HORIZONTAL)

100

90

80

70

60

50

LOAD (%)

40

90 100 125 135 145 155 165 175 180 200 230 305

+V

-V

O.L.P.

DETECTION

CIRCUIT

O.V.P.

File Name:HEP-100-SPEC 2018-04-26

100W Single Output Switching Power Supply

HEP-100 series

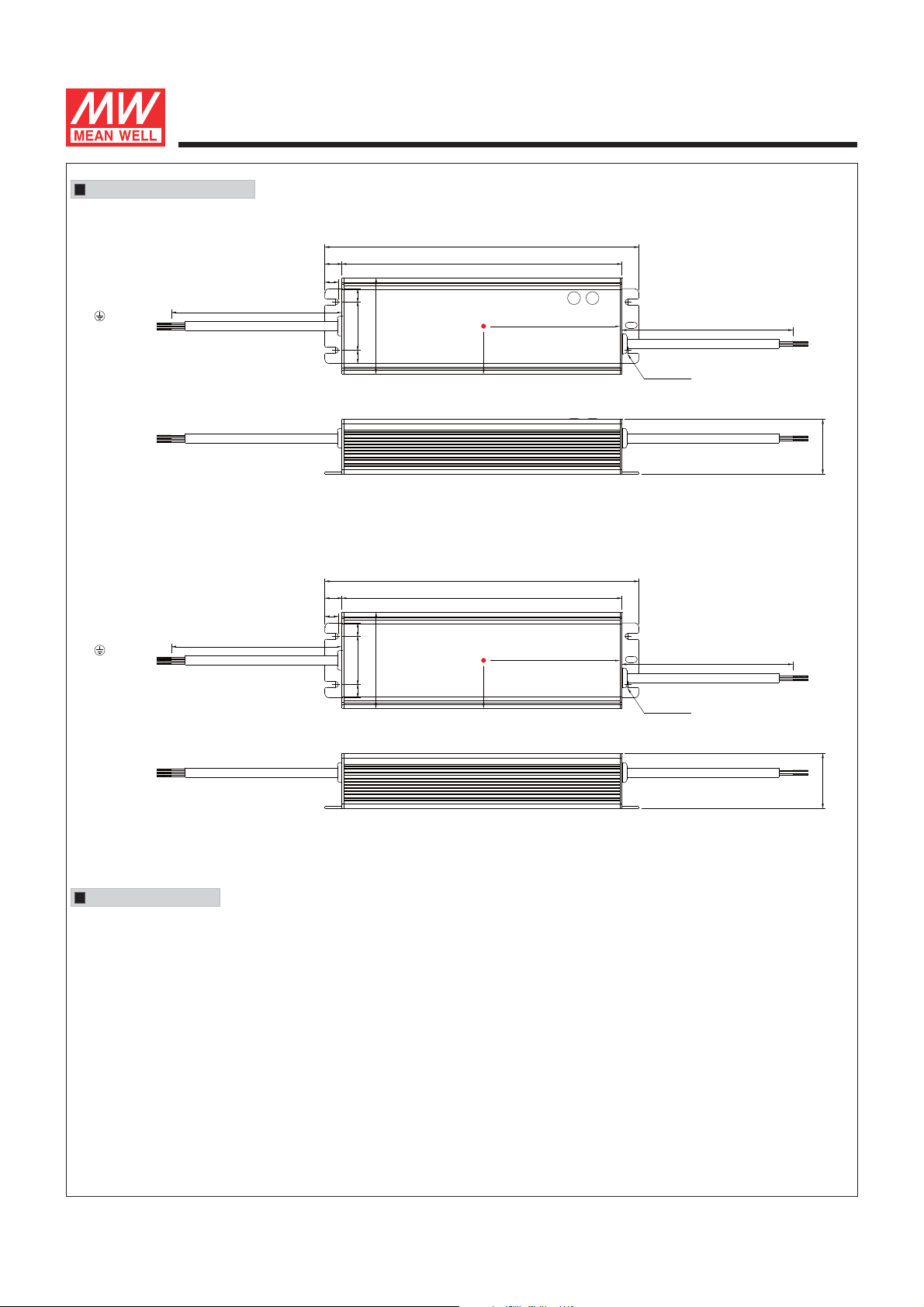

Mechanical Specification

A Type: HEP-100-_A(standard model)

FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)

※ IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer.

(Can access by removing the rubber stopper on the case.)

Blank: HEP-100(optional model)

FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)

300 20±

SJTW 18AWG 3C×

300 20±

SJTW 18AWG 3C×

12

9.6

9.49.4 34.2

68

Tcase

※ T case: Max. Case Temperature.

12

9.6

9.49.4 34 .2

68

Tcase

220

196

220

196

Case No.994A Unit:mm

Vo

ADJ.

98

34

98

34

Io

ADJ.

SJTW 14AWG 2C×

ψ×4.2 4PL

SJTW 14AWG 2C×

ψ×4.2 4PL

300 20±

300 20±

-V(Black)
+V(Red)

38.8

-V(Black)
+V(Red)

※ T case: Max. Case Temperature.

※IP68 rated. Cable for I/O connection.

Installation Manual

Please refer to : http://www.meanwell.com/manual.html

38.8
