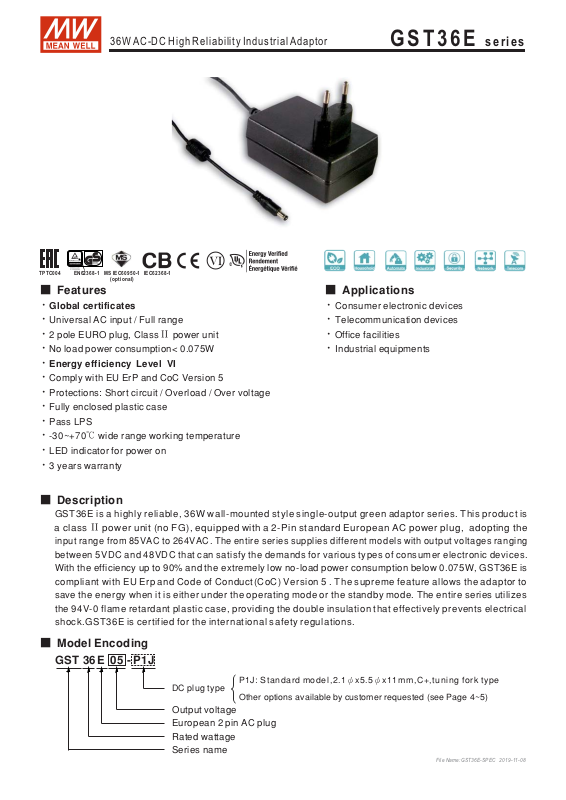

Page 1
36WAC-DC High Reliability IndustrialAdaptor
GST36E series
TPTC004 EN62368-1
(optional)
IEC62368-1MS IEC60950-1
■ Features ■ Applications
Global certificates
Universal AC input / Full range
2 pole EURO plug, Class power unit Ⅱ
No load power consumption< 0.075W
Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments
Energy efficiency Level VI
Comply with EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Pass LPS
℃-30~+70 wide range working temperature
LED indicator for power on
3 years warranty
■ Description
GST36E is a highly reliable, 36W wall-mounted style single-output green adaptor series. This product is
a class power unit (no FG), equipped with a 2-Pin standard European AC power plug, adopting the Ⅱ
input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging
between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With the efficiency up to 90% and the extremely low no-load power consumption below 0.075W, GST36E is
compliant with EU Erp and Code of Conduct(CoC) Version 5 . The supreme feature allows the adaptor to
save the energy when it is either under the operating mode or the standby mode. The entire series utilizes
the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical
shock.GST36E is certified for the international safety regulations.
■ Model Encoding
-E05GST P1J36
DC plug type
Output voltage
European 2 pin AC plug
Rated wattage
Series name
P1J: Standard model,2.1 x5.5 x11mm,C+,tuning fork typeψψ
Other options available by customer requested (see Page 4~5)
{
File Name:GST36E-SPEC 2019-11-08
Page 2
SPECIFICATION
ORDER NO.
SAFETY MODEL NO.
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
OUTPUT
INPUT
PROTECTION
ENVIRONMENT
SAFETY &
EMC
(Note. 9)
OTHERS
CONNECTOR
NOTE
RATED POWER (max.)
RIPPLE & NOISE (max.)
VOLTAGE TOLERANCE
LINE REGULATION Note.5
LOAD REGULATION Note.6
SETUP, RISE, HOLD UP TIME
VOLTAGE RANGE
FREQUENCY RANGE
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT (max.)
LEAKAGE CURRENT(max.)
OVERLOAD
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
DIMENSION
PACKING
PLUG
CABLE
1.All parameters are specified at 230VAC input, rated load, 25 70% RH ambient. ℃
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1 f & 47 f capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The demand for Malaysia safety is processed with the order no. GST36E -SIRIM by request. Please contact MEAN WELL for details.
9.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
36WAC-DC High Reliability IndustrialAdaptor
GST36E05-P1J GST36E09-P1J GST36E12-P1J GST36E24-P1J GST36E48-P1J
GST36E05
Note.2
5V
4.3A 3.11A
0 ~ 4.3A 0 ~ 3.11A
21.5W 28W
90mVp-p 90mVp-p 100mVp-p 150mVp-p 200mVp-p
Note.3
Note.4
±5.0% ±5.0% ±3.0% ±2.0% ±2.0%
±1.0% ±1.0% ±1.0% ±1.0% ±1.0%
±5.0% ±5.0% ±3.0% ±2.0% ±2.0%
1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 13ms/115VAC at full load
85 ~ 264VAC
Note.7
47 ~ 63Hz
82% 86% 87.5% 88.5% 90%
0.8A / 115VAC 0.45A / 230VAC
Cold start 35A/ 115VAC 70A / 230VAC
0.25mA / 240VAC
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
110 ~ 140% rated output voltage
Protection type : Clamp by zener diode
-30 ~ +70 (Refer to "Derating Curve")℃
20% ~ 90% RH non-condensing
-40 ~ +85 , 10 ~ 95% RH non-condensing℃
±℃℃0.03% / (0 ~ 50 )
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
TUV EN62368-1 approved, EAC TPTC 004 approved; SIRIM MS IEC60950-1 (optional)
Note. 8
I/P-O/P:4242VDC
I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH℃
Parameter
Conducted emission
Radiated emission
Harmonic current
Voltage flicker
Parameter
ESD
RF field
susceptibility
EFT bursts
Surge susceptibility
Conducted susceptibility
Magnetic field
immunity
Voltage dips , interruption
692.3Khrs min. MIL-HDBK-217F(25 )℃
79*54*33mm (L*W*H)
209g; 60pcs/13.5Kg/1.22CUFT
See page 4~5 ; Other type available by customer requested
See page 4~5 ; Other type available by customer requested
GST36E09
9V
Standard
EN55032
(CISPR32),
EN55032
(CISPR32),
EN61000-3-2
EN61000-3-3
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
GST36E12
12V
3A
0 ~ 3A
36W
EAC TP TC 020
EAC TP TC 020
μ
μ
GST36E series
GST36E24
24V
1.5A 0.75A
0 ~ 1.5A
36W 36W
Test Level / Note
Class B
Class B
Class A
-------
Test Level /Note
Level 3, 8KV air; Level 2, 4KV contact
Level 2, 3V/m
Level 2, 1KV
Level 3, 1KV/Line-Line
Level 2, 3V
Level 2, 3A/m
＞.95% dip 0 5 periods, 30% dip 25 periods,
95% interruptions 250 periods＞
GST36E48
48V
0 ~ 0.75A
File Name:GST36E-SPEC 2019-11-08
Page 3
36WAC-DC High Reliability IndustrialAdaptor
Derating Curve Static Characteristics
100
LOAD (%)
100
50
230VAC
Input only
LOAD (%)
85
80
70
60
50
40
GST36E series
-30 10 20 30 40
AMBIENT TEMPERATURE ( )℃ INPUT VOLTAGE (VAC) 60Hz
Mechanical Specification
38
Name Plate
50 60 7010-20
Power LED
35 10mm±
85 10095 120110 160140 200180 240220 264
Unit:mm
UL2468 16AWG 1000 50mm±
70 10mm±
79
54
33
2 pole EURO plug
File Name:GST36E-SPEC 2019-11-08
Page 4
DC output plug
◎ Standard plug: P1J◎
36WAC-DC High Reliability IndustrialAdaptor
GST36E series
◎ Optional DC plug:◎
P1J
5.5
2.1
Tuning Fork Style
A
B
Barrel Style
A
B
Lock Style
A
B
SWITCHCRAFT original or equivalent
Min. Pin Style
A
B
C
(Right-angled)
C
(Right-angled)
Locking
EIAJ equivalent
11 0.5mm±
C
(Straight)
C
(Straight)
C
C
Type No.
P1I
P1L
P1M
P1IR
P1JR
P1LR
P1MR
Type No.
P2I
P2J
P2L
P2M
P2IR
P2JR
P2LR
P2MR
Type No.
P2S(S761K)
P2K(761K)
P2C(S760K)
P2D(760K)
Type No.
P3A
P3B
P3C
Pin Assignment
C"+"
A
OD ID
5.5
5.5
5.5
5.5
5.5
5.5
5.5
A
OD ID
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
A
OD ID
5.53
5.53
5.53
5.53
A
OD ID
InsideOutside
B
2.1
2.5
2.5
2.1
2.1
2.5
2.5
B
2.1
2.1
2.5
2.5
2.1
2.1
2.5
2.5
B
2.03
2.54
2.03
2.54
B
0.7 11.02.35
1.7 11.04.0
1.7 11.04.75
C
L
9.5
9.5
11.0
9.5
11.0
9.5
11.0
C
L
9.5
11.0
9.5
11.0
9.5
11.0
9.5
11.0
C
L
12.06
12.06
9.52
9.52
C
L
File Name:GST36E-SPEC 2019-11-08
Page 5
36WAC-DC High Reliability IndustrialAdaptor
GST36E series
Center Pin Style
A
B
D
EIAJ equivalent
Min. DIN 3 Pin with Lock (male)
1
2
3
KYCON KPPX 3P equivalent-
Min. DIN 4 Pin with Lock (male)
2143
KYCON KPPX 4P equivalent-
Min. DIN 4 Pin with Lock (female)
3
2
4
1
KYCON KPJX-CM-4S equivalent
DIN 5 Pin (male)
3
1
5
4
2
Stripped and tinned leads
Type No.
A
B
OD ID
C
P4A
P4B
P4C
Type No.
55.
6.5
7.4
3.4
4.4
5.1
Pin Assignment
PIN No.
1
R6B
2
3
Type No.
Pin Assignment
PIN No.
1
R7B
2
3
4
Type No.
Pin Assignment
PIN No.
1
R7BF
2
3
4
C
L
11.0
11.0
11.0
Output
+Vo
-Vo
+Vo
Output
+Vo
-Vo
-Vo
+Vo
Output
+Vo
-Vo
-Vo
+Vo
D
Center Pin
1.0
1.4
0.6
Pin Assignment
Type No.
R1B
PIN No.
1
2
3
4
5
Output
-Vo
-Vo
+Vo
-Vo
+Vo
Pin Assignment
Type No.
PIN No.
Output
Length of Land L1 by request
( ’s standard length, L: mm, L1: mm)
MW
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
25 5
L
(red)
1
1
+Vo
2
(black)
by customer
2
-Vo
File Name:GST36E-SPEC 2019-11-08
L1
