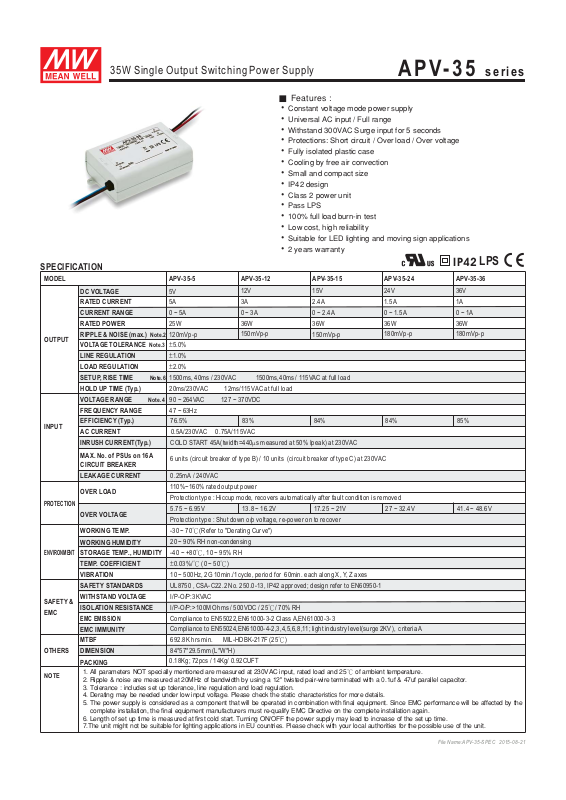

Page 1
35W Single Output Switching Power Supply
SPECIFICATION
MODEL APV-35-5
DC VO LTAG E
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
INPUT
PROTECTION
ENVIRONMENT
SAFETY &
EMC
NOTE
RIPPLE & NOISE (max.)
VOLTAGE TOLERANCE Note.3
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
EFFICIENCY (Typ.)
AC CURRENT
INRUSH CURRENT(Typ.)
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
LEAKAGE CURRENT
OVER LOAD
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
DIMENSIONOTHERS
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7.The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.
5V
5A
0 ~ 5A
25W
Note.2
120mVp-p
±5.0%
±1.0%
±2.0%
Note.6
1500ms, 40ms / 230VAC 1500ms,40ms / 115VAC at full load
20ms/230VAC 12ms/115VAC at full load
Note.4
90 ~ 264VAC 127 ~ 370VDC
47 ~ 63Hz
76.5%
0.5A/230VAC 0.75A/115VAC
COLD START 45A(twidth=440 s measured at 50% Ipeak) at 230VACμ
6 units (circuit breaker of type B) / 10 units (circuit breaker of type C) at 230VAC
0.25mA / 240VAC
110%~160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
5.75 ~ 6.95V
Protection type : Shut down o/p voltage, re-power on to recover
-30 ~ 70 (Refer to "Derating Curve")℃
20 ~ 90% RH non-condensing
-40 ~ +80 , 10 ~ 95% RH℃
±℃ ℃0.03%/ (0 ~ 50 )
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
UL8750 , CSA-C22.2 No. 250.0-13, IP42 approved; design refer to EN60950-1
I/P-O/P:3KVAC
I/P-O/P:>100M Ohms / 500VDC / 25 / 70% RH℃
Compliance to EN55022,EN61000-3-2 ClassA,EN61000-3-3
Compliance to EN55024,EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A
692.8K hrs min. MIL-HDBK-217F (25 )℃
84*57*29.5mm (L*W*H)
0.18Kg; 72pcs / 14Kg/ 0.92CUFT
APV-35-12
12V
3A
0 ~ 3A
36W
150mVp-p
83%
13.8 ~ 16.2V
APV-35 series
Features :
■
Constant voltage mode power supply
Universal AC input / Full range
Withstand 300VAC Surge input for 5 seconds
Protections: Short circuit / Over load / Over voltage
Fully isolated plastic case
Cooling by free air convection
Small and compact size
IP42 design
Class 2 power unit
ass LPSP
100% full load burn-in test
Low cost, high reliability
Suitable for LED lighting and moving sign applications
2 years warranty
IP42
APV-35-15
15V
2.4A
0 ~ 2.4A
36W
150mVp-p
84%
17.25 ~ 21V
APV-35-24
24V
1.5A
0 ~ 1.5A
36W
180mVp-p
84%
27 ~ 32.4V
APV-35-36
36V
1A
0 ~ 1A
36W
180mVp-p
85%
41.4 ~ 48.6V
File Name:APV-35-SPEC 2015-08-21
LPS
Page 2
35W Single Output Switching Power Supply
APV-35 series
Mechanical Specification
AC/N(Blue)
AC/L(Brown)
150 10±
UL1569 18AWG
15.3
84
7.3
3
57
※ Tcase: Max. CaseTemperature.
Tcase
Case No.PCD16A Unit:mm
150 10±
UL1569 18AWG
7.3
2- 3.6ψ
2- 8.9ψ
5
5
15.3
3
1.9
V+(RED)
V-(BLACK)
29.5
Block Diagram
I/P
EMI FILTER
RECTIFIERS
POWER
SWITCH-
ING
PWM
CONTROL
RECTIFIERS
&
FILTER
Derating Curve Static Characteristics
100
LOAD (%)
90
80
70
60
50
40
90
100
200
210
LOAD (%)
100
80
60
50
40
20
-30 0
10 20
30 40
60
50
(HORIZONTAL)
70
DETECTION
CIRCUIT
230
220
fosc : 60KHz
250
240 264
+V
-V
AMBIENT TEMPERATURE ( )℃
INPUT VOLTAGE (VAC) 60Hz
File Name:APV-35-SPEC 2015-08-21
