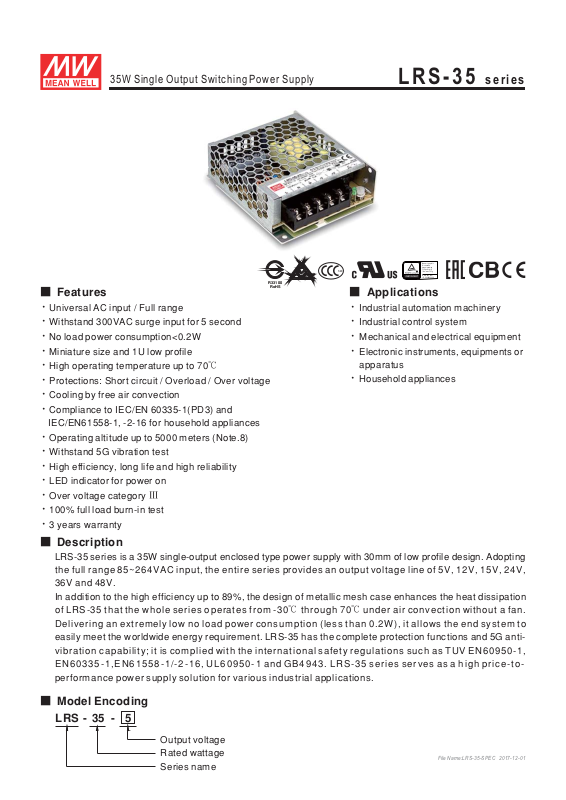

Page 1
35W Single Output Switching Power Supply
R33100
RoHS
S
&
E
LRS-35 series
Bauar
tgepruft
Sicherheit
egel gema
od
os
be
wac g
www.
tuv.com
ID 2000000000
■ Features ■ Applications
Universal AC input / Full range
Withstand 300VAC surge input for 5 second
No load power consumption<0.2W
Miniature size and 1U low profile
High operating temperature up to 70℃
Protections: Short circuit / Overload / Over voltage
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or
apparatus
Household appliances
Cooling by free air convection
Compliance to IEC/EN 60335-1(PD3) and
IEC/EN61558-1, -2-16 for household appliances
Operating altitude up to 5000 meters (Note.8)
Withstand 5G vibration test
High efficiency, long life and high reliability
LED indicator for power on
Over voltage category Ⅲ
100% full load burn-in test
3 years warranty
■ Description
LRS-35 series is a 35W single-output enclosed type power supply with 30mm of low profile design. Adopting
the full range 85~264VAC input, the entire series provides an output voltage line of 5V, 12V, 15V, 24V,
36V and 48V.
In addition to the high efficiency up to 89%, the design of metallic mesh case enhances the heat dissipation
of LRS-35 that the whole series operates from -30 through 70 under air convection without a fan. ℃℃
Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to
easily meet the worldwide energy requirement. LRS-35 has the complete protection functions and 5G antivibration capability; it is complied with the international safety regulations such as
EN60335-1,EN61558-1/-2-16, UL60950-1
and GB4943. LRS-35 series serves as a hi gh price-to-
TUV EN60950-1,
performance power supply solution for various industrial applications.
■ Model Encoding
LRS --35 5
Output voltage
Rated wattage
Series name
File Name:LRS-35-SPEC 2017-12-01
Page 2
35W Single Output Switching Power Supply
SPECIFICATION
MODEL
DC VO LTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
RIPPLE & NOISE (max.)
OUTPUT VOLTAGE ADJ. RANGE
VOLTAGE TOLERANCE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VO LTAGE RANG E
FREQUENCY RANGE
INPUT
PROTECTION
ENVIRONMENT
SAFETY &
EMC
(Note 9)
OTHERS
NOTE
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVER LOAD
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
OVER VOLTAGE CATEGORY
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
DIMENSION
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up
time.
7. 5V when the load factor 0~50%, the switching power less is reduced by burst operation, which will cause ripple and ripple noise to go
beyond the specifications.
8. The ambient temperature derating of 5 /1000m is needed for operating altitude greater than 2000m(6500ft).
9. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by
mounting the unit on a mm* mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets 360 360
EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
LRS-35 series
LRS-35-5 LRS-35-12 LRS-35-15 LRS-35-24 LRS-35-36 LRS-35-48
5V
7A
0 ~ 7A
35W
Note.2
80mVp-p
4.5 ~ 5.5V
Note.3
±2.0%
Note.4
±0.5%
Note.5
±1.0%
1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load
30ms/230VAC 12ms/115VAC at full load
85 ~ 264VAC 120 ~ 373VDC
47 ~ 63Hz
82%
0.7A/115VAC 0.42A/230VAC
COLD START 45A/230VAC
<0.75mA / 240VAC
110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
5.75 ~ 6.9V 13.8 ~ 16.2V 18.75 ~ 21.75V 28.8 ~ 33.6V 41.4 ~ 48.6V 55.2 ~ 64.8V
Protection type : Shut down o/p voltage, re-power on to recover
-30 ~ +70℃ (Refer to "Derating Curve")
20 ~ 90% RH non-condensing
-40 ~ +85 , 10 ~ 95% RH non-condensing℃
±℃ ℃0.03%/ (0 ~ 50 )
10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
Ⅲ; According to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters
UL60950-1, TUV EN60950-1, EN60335-1, EN61558-1 2 16 .1, BSMI CNS14336-1,/- - ,CCC GB4943
EAC TPTC 004,AS/NZS 60950.1(by CB) approved
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH℃
Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteriaA, EAC TP TC 020
763.6K hrs min. MIL-HDBK-217F (25 )℃
99*82*30mm (L*W*H)
0.23Kg ; 60pcs/14.8Kg/0.88CUFT
12V
3A
0 ~ 3A
36W
120mVp-p
10.2 ~ 13.8V
±1.0%
±0.5%
±0.5%
86%
℃
15V
2.4A
0 ~ 2.4A
36W
120mVp-p
13.5 ~ 18V
±1.0%
±0.5%
±0.5%
86%
24V
1.5A
0 ~ 1.5A
36W
150mVp-p
21.6 ~ 28.8V
±1.0%
±0.5%
±0.5%
88%
36V
1A
0 ~ 1A
36W
200mVp-p
32.4 ~ 39.6V
±1.0%
±0.5%
±0.5%
88%
48V
0.8A
0 ~ 0.8A
38.4W
200mVp-p
43.2 ~ 52.8V
±1.0%
±0.5%
±0.5%
89%
File Name:LRS-35-SPEC 2017-12-01
Page 3
35W Single Output Switching Power Supply
LRS-35 series

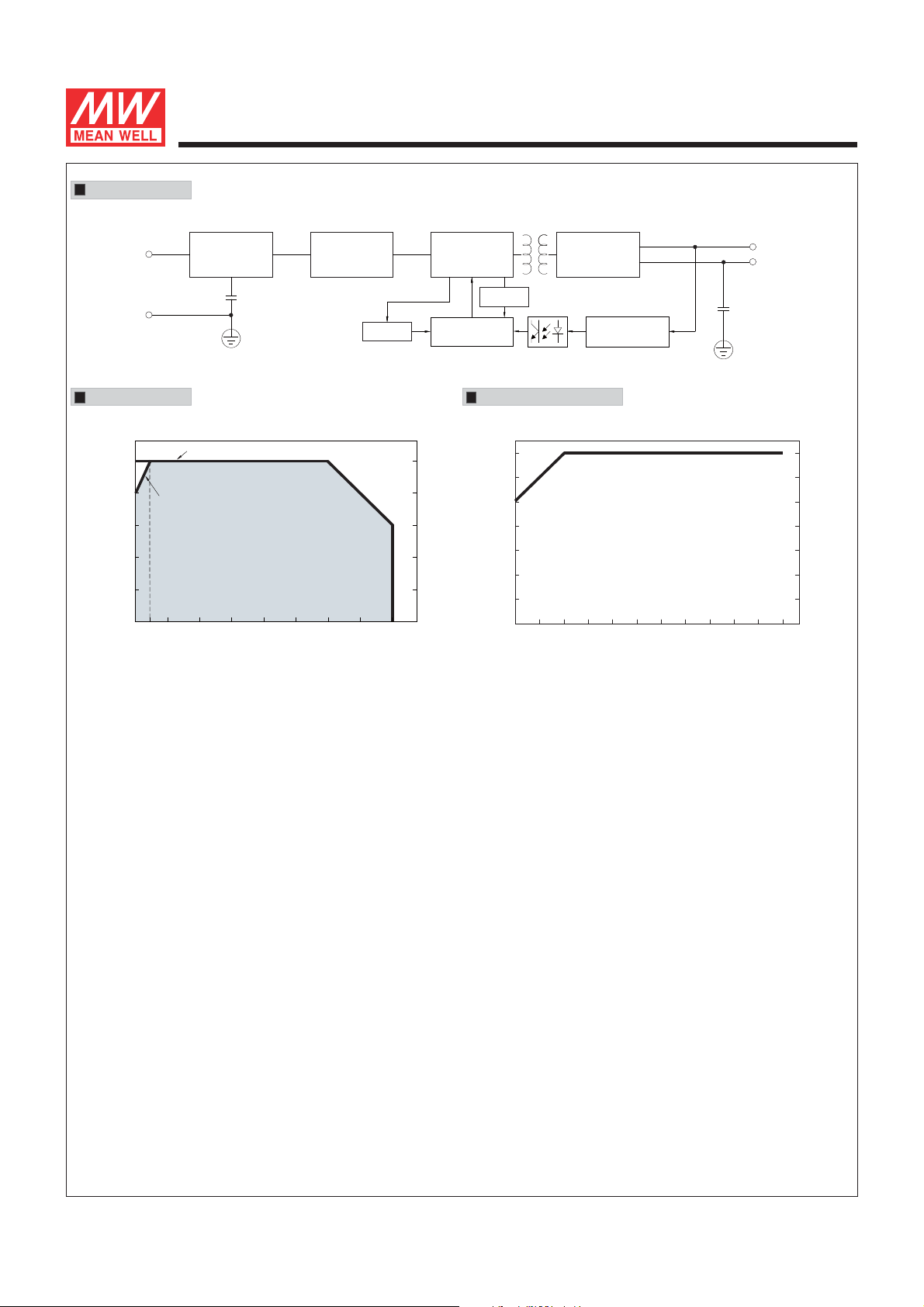

Block Diagram
I/P
FG
FILTER
Derating Curve
100VAC
Input only
230VAC
100
75
60
40
LOAD (%)
20
-30 0-25 2010 30 40
EMI
RECTIFIERS
&
FILTER
6050
O.L.P.
70 (HORIZONTAL)
POWER
SWITCHING
O.V.P.
CONTROL
Static Characteristics
100
90
80
70
60
50
LOAD (%)
40
85 10095 120115 160140 200180 240220 264
RECTIFIERS
&
FILTER
DETECTION
CIRCUIT
fosc : 115Vac : 75KHz
230Vac :110KHz
+V
-V
AMBIENT TEMPERATURE ( )℃
INPUT VOLTAGE (VAC) 60Hz
File Name:LRS-35-SPEC 2017-12-01
Page 4
35W Single Output Switching Power Supply
LRS-35 series

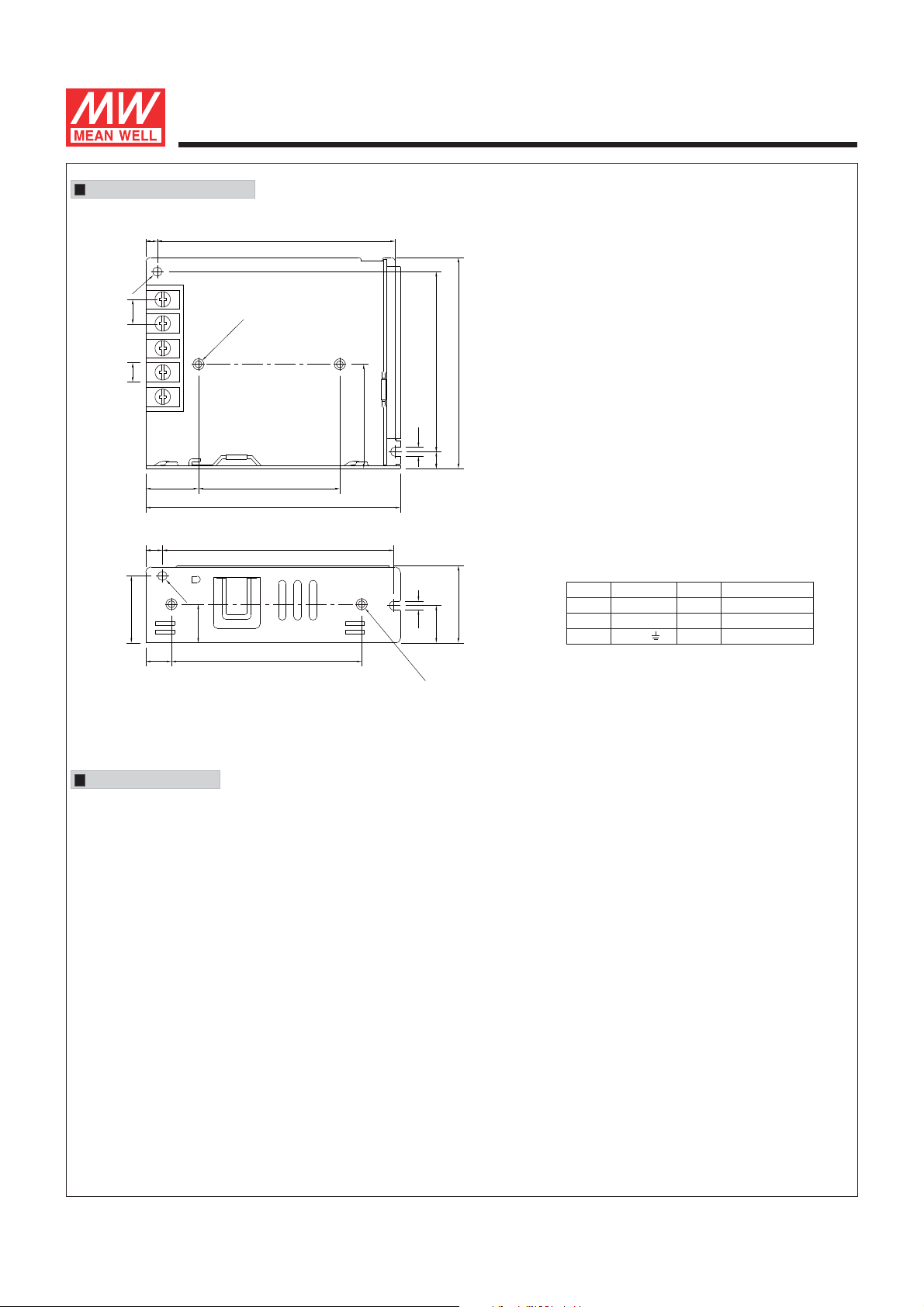

Mechanical Specification
4.5
ψ3.5
9.5
8
26
1
2
2-M3 L=3.0
3
4
5
20.5 55
6.5
ψ3.5
15
10
74
92.5
99
Case No.239A Unit:mm
82
70
40.5
90
3.5
6.5
Terminal Pin No. Assignment
Pin No. Pin No.
Assignment Assignment
1
2
3
AC/L
AC/N
FG
4
5
DC OUTPUT -V
DC OUTPUT +V
3.5
2-M3 L=5
30
14.5
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
