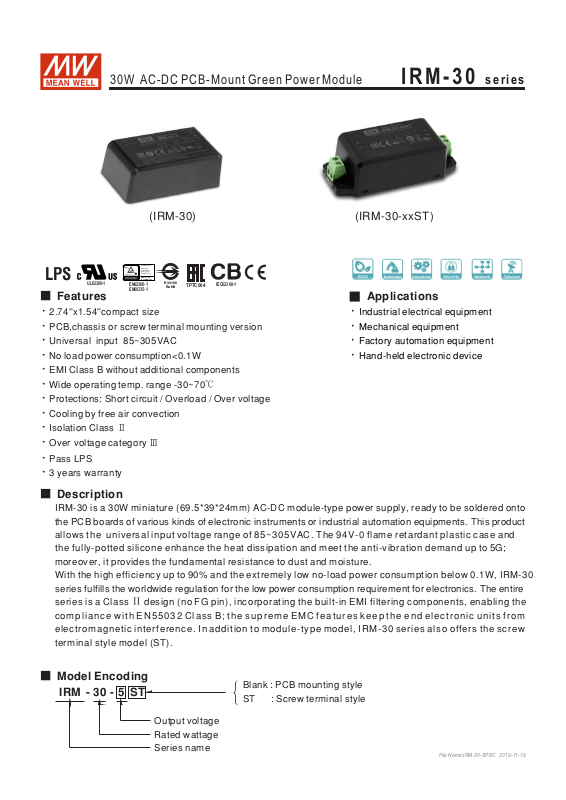

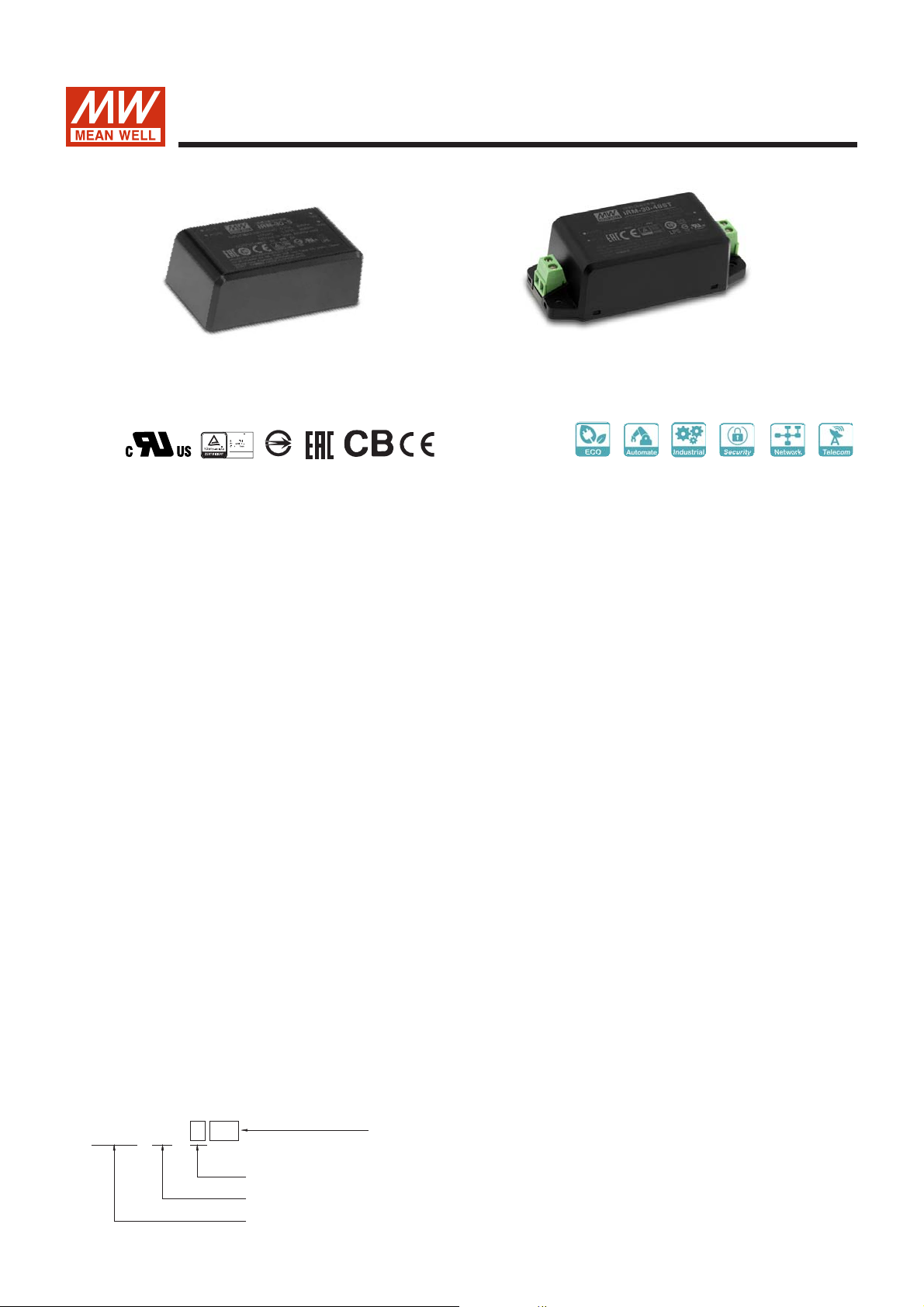

Page 1
30W AC-DC PCB-Mount Green Power Module
IRM-30 series
(IRM-30-xxST)(IRM-30)
Bauar
tgepruf t
Sicherheit
egel gema
od
os
be
wac g
www.
tuv.com
LPS
UL62368-1
ID 2000000000
EN62368-1 IEC62368-1
EN60335-1
R33100
RoHS
TPTC004
■ Features ■ Applications
2.74''x1.54''compact size
PCB,chassis or screw terminal mounting version
Universal input 85~305VAC
No load power consumption<0.1W
Industrial electrical equipment
Mechanical equipment
Factory automation equipment
Hand-held electronic device
EMI Class B without additional components
Wide operating temp. range -30~70℃
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Isolation Class Ⅱ
Over voltage category Ⅲ
Pass LPS
3 years warranty
■ Description
IRM-30 is a 30W miniature (69.5*39*24mm) AC-DC module-type power supply, ready to be soldered onto
the PCB boards of various kinds of electronic instruments or industrial automation equipments. This product
allows the universal input voltage range of 85~ VAC. The flame retardant plastic case 305 94V-0 and
the fully-potted silicone enhance the heat dissipation and meet the anti-vibration demand up to 5G;
moreover, it provides the fundamental resistance to dust and moisture.
With the high efficiency up to 90% and the extremely low no-load power consumption below 0.1W, IRM-30
series fulfills the worldwide regulation for the low power consumption requirement for electronics. The entire
series is a Class design (no FG pin), incorporating the built-in EMI filtering components, enabling the Ⅱ
compliance with EN55032 Class B; the supreme EMC features keep the end electronic units from
electromagnetic interference. In addition to module-type model, IRM-30 series also offers the screw
terminal style model (ST).
■ Model Encoding
-5IRM - 30
ST
Output voltage
Rated wattage
Series name
Blank : PCB mounting style
ST : Screw terminal style
{
File Name:IRM-30-SPEC 2019-11-19
Page 2
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
RIPPLE & NOISE (max.)
VOLTAGE TOLERANCE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
LEAKAGE CURRENT
OVERLOAD
PROTECTION
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
ENVIRONMENT
TEMP. COEFFICIENT
VIBRATION
LEAD TEMPERATURE
OVER VOLTAGE CATEGORY
OPERATINGALTITUDE Note.4
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
SAFETY &
EMC
(Note.5)
EMC EMISSION
EMC IMMUNITY
MTBF
DIMENSIONOTHERS
PACKING
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude higher than 2000m(6500ft).℃℃
5. The power supply is considered as an independent unit ,but the final equipment still need to re-confirm that the whole system complies with the EMC
directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
30W AC-DC PCB-Mount Green Power Module
IRM-30-5 IRM-30-12 IRM-30-15 IRM-30-24 IRM-30-48
5V
6A 2.5A 2A 1.3A 0.63A
0 ~ 6A 0 ~ 2.5A 0 ~ 2A 0 ~ 1.3A 0 ~ 0.63A
30W 30W 30W 31.2W 30.2W
Note.2
120mVp-p 150mVp-p 200mVp-p 240mVp-p 300mVp-p
Note.3
±2.5% ±2.5% ±2.5% ±2.5% ±2.5%
±0.5%
±1.0%
1000ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load
40ms/230VAC 12ms/115VAC at full load
85 ~ 305VAC
47 ~ 440Hz
0.75A/115VAC 0.5A/230VAC 0.375A/277VAC
COLD START 2 A/115VAC 4 A/230VAC55
< 0. 5mA/2 VAC277
105% ~ 160% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
5.25 ~ 6.75V
Protection type : Shut off o/p voltage, clamping by zener diode
-30 ~ +70 (Refer to "Derating Curve")℃
20 ~ 90% RH non-condensing
-40 ~ +85 , 10 ~ 95% RH℃
±℃ ℃0.03%/ (0 ~ 50 )
Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
260 5 ,5s (max.)± ℃
Ⅲ; According to EN62368-1;altitude up to 2000 meters
2000 meters
IEC62368-1, UL6 -1, TUV EN6 -1 EN60335-1, EAC TP TC 004 BSMI CNS14336 approved2368 2368 , , -1
I/P-O/P:3KVAC
I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH℃
Parameter
Conducted
Radiated
Harmonic Current (Note 5)
Voltage Flicker
EN55035, EN61000-6-2
Parameter
ESD
Radiated Susceptibility
EFT/Burest
Surge
Conducted
Magnetic Field
Voltage Dips and interruptions
593.3 ℃Khrs min. MIL-HDBK-217F (25 )
PCB mounting style : 69.5*39*24mm (L*W*H) Screw terminal style : 91*39.5*28.5mm (L*W*H)
PCB mounting style : 0.094Kg;144pcs/14.5Kg/0.97CUFT Screw terminal style :0.113Kg;120pcs/14.6Kg/0.74CUFT
12V 15V 24V 48V
±0.5%
±0.5%
±0.5%
±0.5%
8%88%3 88%
12.6 ~ 16.2V
Standard
EN55032(CISPR32), CNS13438
EN55032(CISPR32), CNS13438
EN61000-3-2
EN61000-3-3
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
15.75 ~ 20.25V
IRM-30 series
±0.5% ±0.5%
±0.5% ±0.5%
88.5%
25.2 ~ 32.4V 50.4 ~ 64V
Test Level / Note
Class B
Class B
Class A
-------
Test Level /Note
Level 3, 8KV air; Level 2, 4KV contact, criteria A
Level 3, criteriaA
Level 3, criteriaA
Level 4,2KV/L-N, criteriaA
Level 3, criteriaA
Level 4, criteriaA
＞.95% dip 0 5 periods, 30% dip 25 periods,
95% interruptions 250 periods＞
90%
File Name:IRM-30-SPEC 2019-11-19
Page 3
30W AC-DC PCB-Mount Green Power Module
IRM-30 series

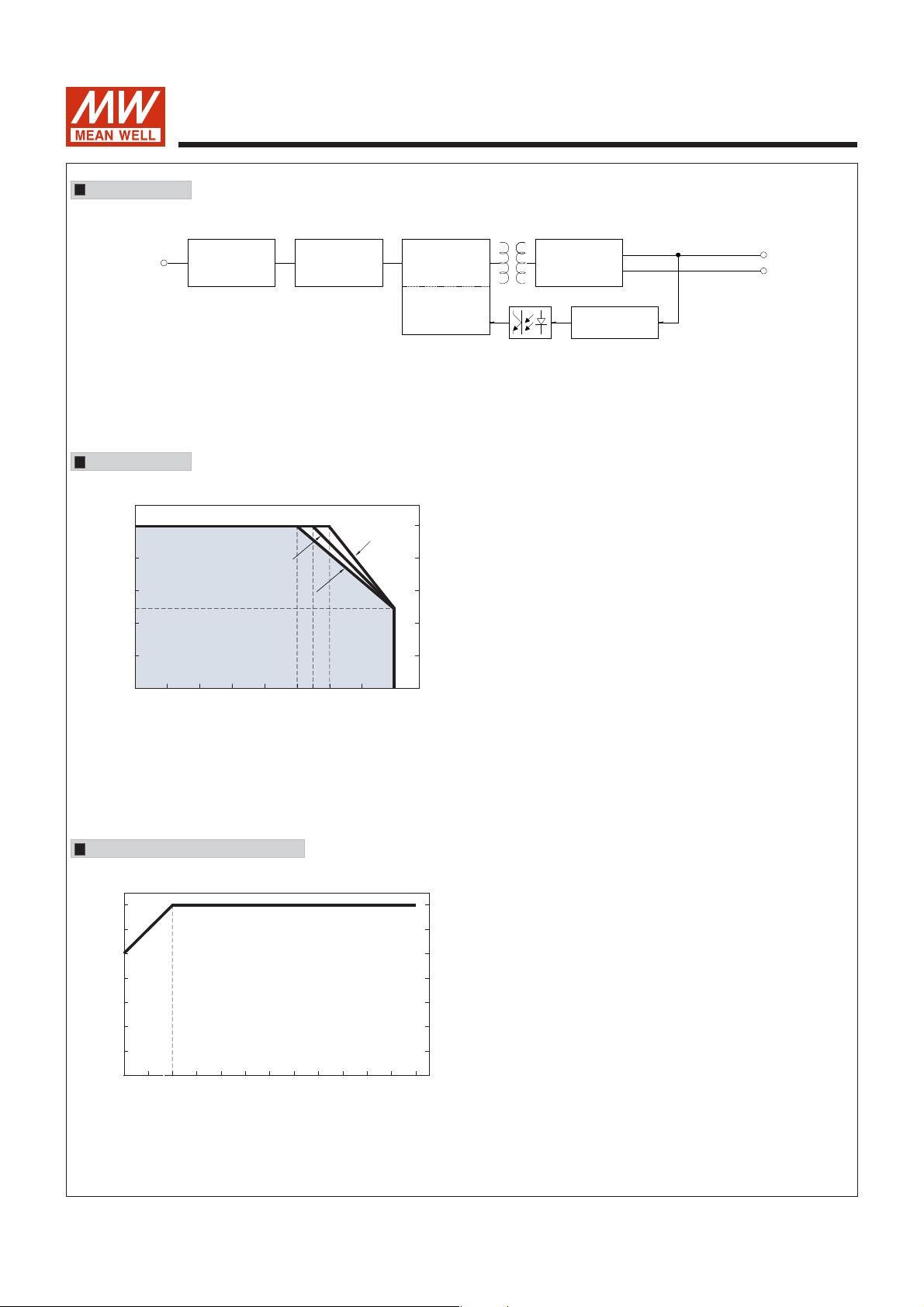

Block Diagram
I/P
Derating Curve
100
80
60
50
40
EMI
FILTER
230VAC for 5V
100VAC for 5V
RECTIFIERS
&
FILTER
100VAC & 230VAC
for others
POWER
SWITCHING
PWM
CONTROL
RECTIFIERS
&
FILTER
DETECTION
fosc : 65KHz
+V
-V
CIRCUIT
LOAD (%)
20
-3001020304045506070
AMBIENT TEMPERATURE ( )℃
Output Derating VS Input Voltage
100
90
80
70
60
50
LOAD (%)
40
85 10095 120115 160140 200180 240220 264
(HORIZONTAL)
305
INPUT VOLTAGE (VAC) 60Hz
File Name:IRM-30-SPEC 2019-11-19
Page 4
30W AC-DC PCB-Mount Green Power Module
IRM-30 series

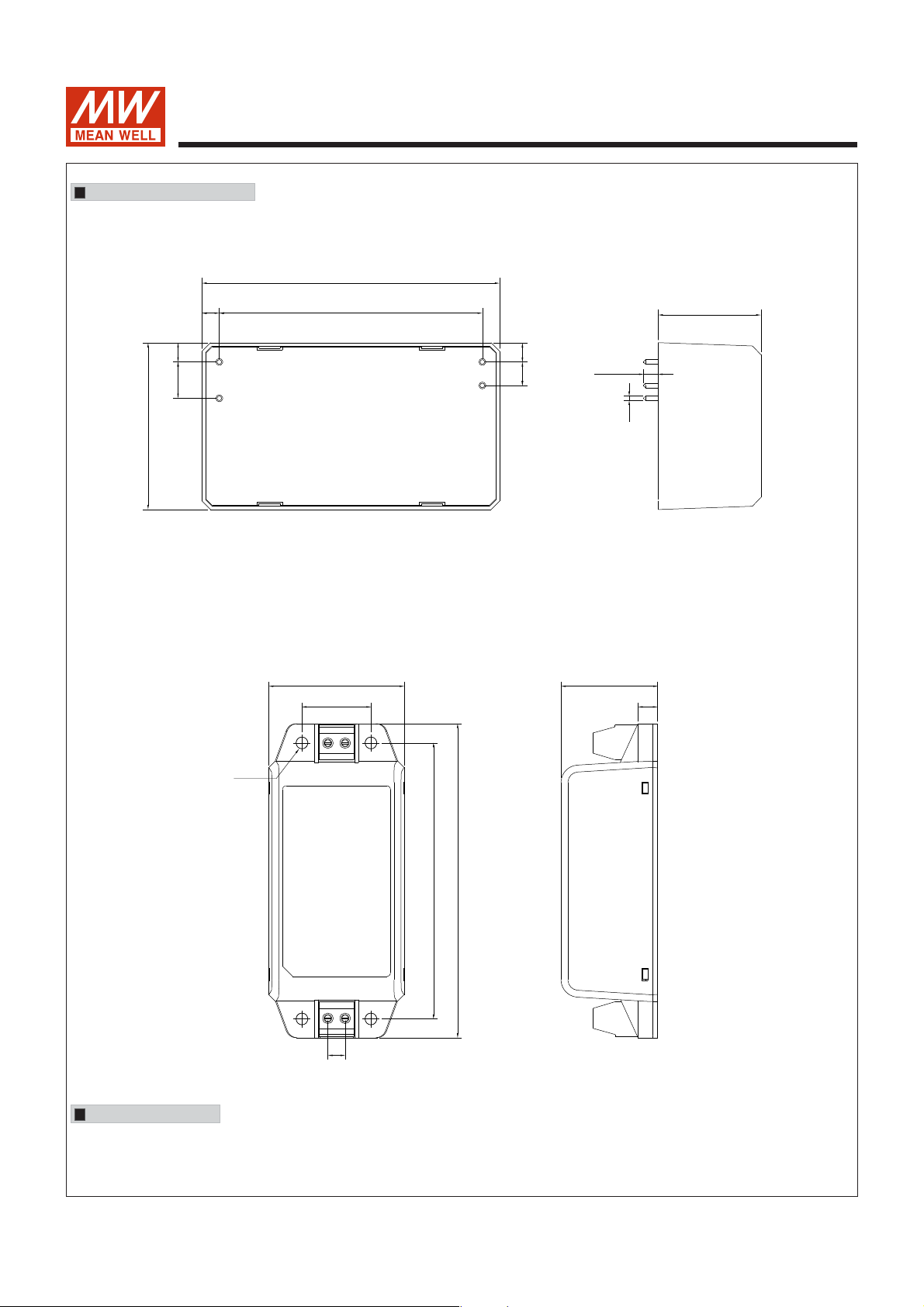

Mechanical SpecificationMechanical Specification
PCB mounting style
(IRM-30)
4
4.59
39
-V
+V
69.5
61.5
BOTTOM
VIEW
AC/L
AC/N
4.5
5.5
Case No. Unit:mm
24
3.5 1mm±
1.04
P/N diameter:1.04
Screw terminal style
(IRM-30-xxST)
4- 3.4ψ
39.5
23
AC/L AC/N
+V -V
5
28.5
6.4
91
80
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
File Name:IRM-30-SPEC 2019-11-19
