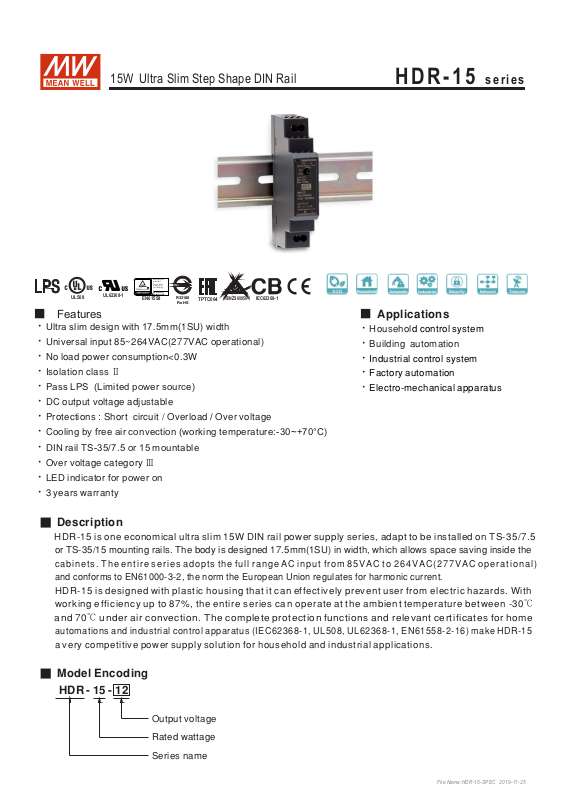

Page 1
15W Ultra Slim Step Shape DIN Rail
Bauar
tgepruft
Sicherheit
egel gema
od
os
be
wac g
www.
tuv.com
UL508
UL62368 1-
■ Features
Ultra slim design with 17 5mm.(1SU width)
Universal input 85 264VAC 277VAC perational ~ ( )o
No load power consumption<0.3W
Isolation class Ⅱ
Pass LPS (Limited power source)
DC output voltage adjustable
Protections : Short circuit / Overload Over voltage/
Cooling by free air convection (working temperature:-30~+70 C°)
DIN rail TS 35 7 5 or 15 mountable-/.
Over voltage category Ⅲ
ED indicator for power onL
3 years warranty
ID 2000000000
EN61558
R33100
RoHS
TPTC004
AS/NZS60950-1
IEC62368-1
HDR-15 series
■ Applications
Household control system
Building automation
Industrial control system
Factory automation
Electro-mechanical apparatus
■ Description
HDR-15 is one economical ultra slim 15W DIN rail power supply series, adapt to be installed on TS-35/7.5
or TS-35/15 mounting rails. The body is designed 17.5mm(1SU) in width, which allows space saving inside the
cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC perational) o
and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-15 is designed with plastic housing that it can effectively prevent user from electric hazards. With
working efficiency up to 87%, the entire series can operate at the ambient temperature between -30 ℃
and 70 under air convection. The complete protection functions and relevant certificates for home ℃
automations and industrial control apparatus (IEC62368-1, UL508, UL62368-1, EN61558-2-16) make HDR-15
a very competitive power supply solution for household and industrial applications.
■ Model Encoding
-12HDR - 15
Output voltage
Rated wattage
Series name
File Name:HDR-15-SPEC 2019-11-25
Page 2
SPECIFICATION
15W Ultra Slim Step Shape DIN Rail
HDR-15 series
MODEL
DC VOLTAG E
RATED CURRENT
CURRENT RANGE
RATED POWER
RIPPLE & NOISE (max.)
OUTPUT VOLTAGE ADJ. RANGE
VOLTAGE TOLERANCE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VO LTAG E R ANGE
FREQUENCY RANGE
INPUT
PROTECTION
ENVIRONMENT
SAFETY &
EMC
(Note 4)
NOTE
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (Typ.)
OVERLOAD
OVER VOLTAGE
WORKING TEMP.
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
OPERATINGALTITUDE
OVER VOLTAGE CATEGORY
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EMC EMISSION
EMC IMMUNITY
MTBF
DIMENSIONOTHERS
PACKING
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.℃
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 f & 47 f parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC
directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
(as available on http://www.meanwell.com)
5. The ambient temperature derating of 3.5 /1000m with fanless models and of 5 /1000m with fan models for operating altitude higher than 2000m(6500ft).℃℃
HDR-15-5
5V
2.4A
0 ~ 2.4A
12W
Note.2
80mVp-p
4.5 ~ . V5 5
Note.3
±2.0%
±1.0%
±1.0%
2000ms, 80ms/230VAC 2000ms, 80ms/115VAC at full load
30ms/230VAC 12ms/115VAC at full load
85 2 VAC ( ) 120 3 VDC ( )
~~64 277VAC operational 70 390VDC operational
~
47 63Hz
80%
0.5A/115VAC 0.25A/230VAC
COLD START 25A/115VAC 45A/230VAC
~
110 145%
H , recovers automatically after fault condition is removediccup mode when output voltage 50<%
Constant current limiting recovers automatically after fault condition is removed within 50% ~100% rated output voltage,
5 75 6 75. . V~
Protection type : Shut off o/p voltage, clamping by zener diode
-30 +70 (Refer to "Derating Curve")
20 90% RH non-condensing
-40 +85 , 10 95% RH non-condensing
±℃ ℃0.03%/ (0 ~ 50 ) RH non-condensing
10 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
2000 meters
UL62368-1, U 508, TUV EN61558-2-16 IEC62368-1, , BSMI CNS14336-1 aL , pproved; Design refer to TUV EN62368-1EAC TP TC 004
I/P-O/P:4KVAC
I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH℃
Parameter
Conducted
Radiated
Harmonic Current
Voltage Flicker
EN55024, EN55035, EN61000-6-2, EN61204-3
Parameter
ESD
Radiated Susceptibility
EFT/Burest
Surge
Conducted
Magnetic Field
Voltage Dips and interruptions
1166K hrs min. MIL-HDBK-217F (25 )℃
17.5*90*54.5mm (W*H*D)
78g;160pcs/13.5Kg/1.19CUFT
rated output power
~
℃
~
~~
℃
~
According to E 61558, EN50178,EN60664-1, EN62477-1 altitude up to 2000Ⅲ;;N meters
HDR-15-12 HDR-15-15 HDR-15-24
12V 15V 24V
1.25A 1A 0.63A
0 ~ 1.25A 0 ~ 1A 0 ~ 0.63A
15W 15W 15.2W
120mVp-p 120mVp-p 150mVp-p
10.8 ~ 1 . V3 8
±1.0% ±1.0% ±1.0%
±1.0% ±1.0% ±1.0%
±1.0% ±1.0% ±1.0%
85% 85.5% 86%
1 . 1 . V4 2 6 2~ 18.8 22.5V~ 30 36V~
Standard
EN55032(CISPR32), CNS13438
EN55032(CISPR32), CNS13438
EN61000-3-2
EN61000-3-3
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
13.5 ~ 18V
21.6 ~ 29V
Test Level / Note
Class B
Class B
Class A
-------
Test Level /Note
Level 3, 8KV air; Level 2, 4KV contact, criteriaA
Level 3, criteriaA
Level 3, criteriaA
Level 4,2KV/L-N, criteriaA
Level 3, criteriaA
Level 4, criteriaA
＞.95% dip 0 5 periods, 30% dip 25 periods,
95% interruptions 250 periods＞
μμ
HDR-15-48
48V
0.32A
0 ~ 0.32A
15.4W
240mVp-p
43.2 ~ 55.2V
±1.0%
±1.0%
±1.0%
87%
5 . 6 . V6 5 4 8~
File Name:HDR-15-SPEC 2019-11-25
Page 3
Block Diagram
15W Ultra Slim Step Shape DIN Rail
HDR-15 series
I/P
Derating Curve
100
80
EMI
FILTER
RECTIFIERS
&
FILTER
O.L.P.
POWER
RECTIFIERS
SWITCHING
FILTER
CONTROL
Output Derating VS Input Voltage
100
90
80
&
DETECTION
CIRCUIT
O.V.P.
+V
-V
60
50
40
LOAD (%)
20
-30010203040506070(VERTICAL)
AMBIENT TEMPERATURE ( )℃
70
60
50
LOAD (%)
40
85 10095 120115 160140 200180 240220 277
INPUT VOLTAGE (VAC) 60Hz
264
(operational)
File Name:HDR-15-SPEC 2019-11-25
Page 4
15W Ultra Slim Step Shape DIN Rail
Mechanical Specification
(Unit: mm , tolerance ± 0.5mm)
HDR-15 series
58.4
17.5
132
54.5
90
4
63.65
45.15
35
ADMISSIBLE DIN-RAIL:TS35/7.5 OR TS35/15
Terminal Pin No. Assignment
1
2
Assignment
+V
-V
Pin No.
3
4
Assignment
AC/N
AC/L
Pin No.
Installation Manual
Please refer to : http://www.meanwell.com/manual.html
File Name:HDR-15-SPEC 2019-11-25
