ƤAC input 115/230 selectable by switch
ƤUL508 listed
ƤInstalled on DIN rail TS35 / 7.5 or 15
ƤWith passive PFC function compliance
to EN61000-3-2 (230Vin only)
ƤProtections: Short circuit / Overload /
Over voltage / Over temp.
Ƥ89% high efficiency
ƤEN61000-6-2 (EN50082-2) industrial
immunity level
ƤCooling by free air convection
Ƥ3 years warranty
AC input voltage range
AC inrush current
DC adjustment range
Overload protection
Over voltage protection
Setup, rise, hold up time
Withstand voltage
Working temperature
Safety standards
EMC standards
Connection
Packing
90~132VAC / 180~264VAC selectable by switch
Cold start, 45A at 230VAC
24~28V for 24V model, 48~55V for 48V model
105%~150% constant current limiting,
auto-recovery
30~36V for 24V model, 59~66V for 48V model
1200ms, 40ms, 23ms at full load and 230VAC
I/P-O/P:3KVAC, I/P-FG:1.5KVAC, 1minute
-20~50OC@100%, 70OC@60% load
UL508, UL60950-1, TUV EN60950-1 approved
EN55022 class B, EN61000-3-2,3,
EN61000-6-2, EN61000-4-2,3,4,5,6,8,11,
ENV50204, EN61204-3
I/P: 3 poles, O/P: 4 poles screw DIN terminal
2.6kg ; 6pcs / 16.6kg / 1.75CUFT

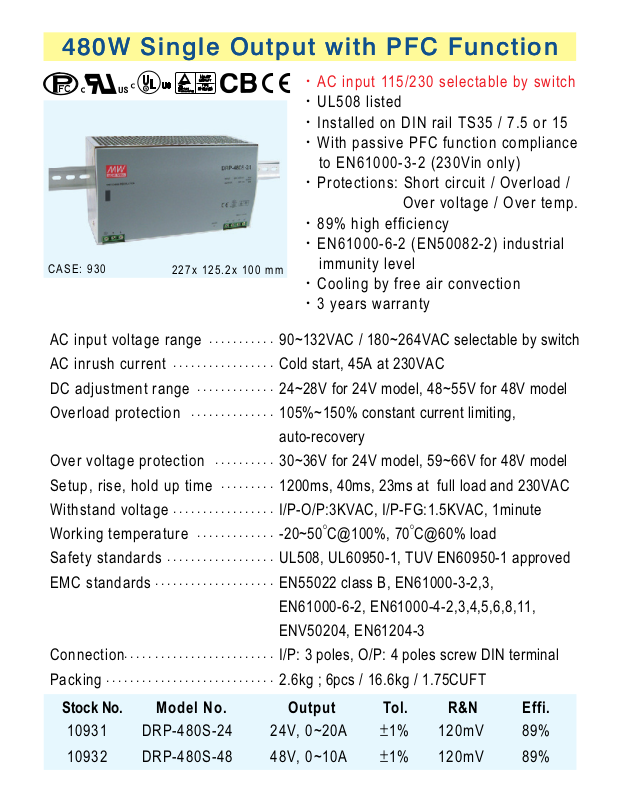

480W Single Output with PFC Function480W Single Output with PFC Function
227x 1 2 5.2x 1 0 0 mm
CASE : 9 30
. . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . . .
. . . . . . . . . .
. . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stock No. Model No. Output Tol. R&N Effi.
10931
10932
DRP-480S-24
DRP-480S-48
24V, 0~20A
48V, 0~10A
²1%
²1%
120mV
120mV
89%
89%
