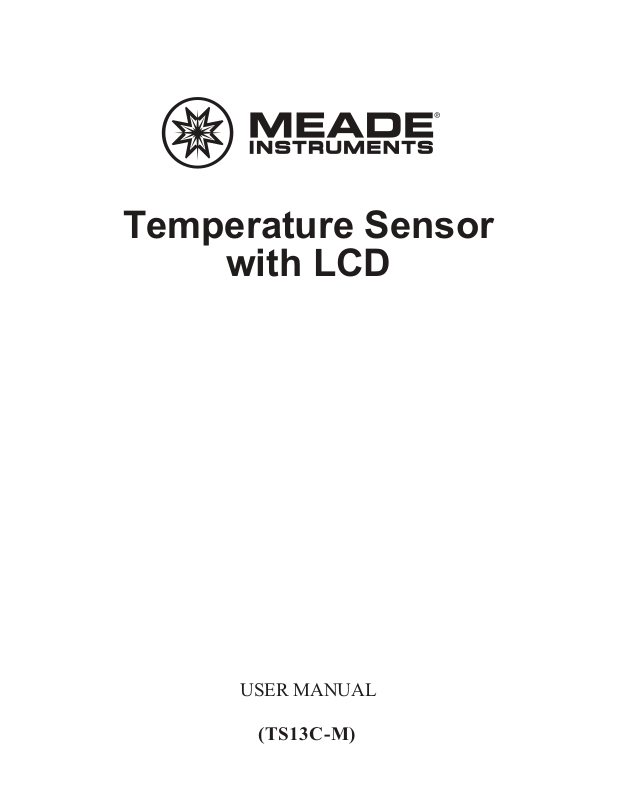

Meade TS13C-M User Manual
Temperature Sensor
with LCD
USER MANUAL
(TS13C-M)
TABLE OF CONTENTS
INTRODUCTION 3
PRODUCT OVERVIEW 4
BEFORE YOU BEGIN 5
BATTERY INSTALLATION 6
LOW BATTERY WARNING 6
PLACEMENT OF THE REMOTE SENSOR 6
GETTING STARTED 6
TRANSMISSION COLLISION 7
PRECAUTIONS 7
SPECIFICATIONS 8
FCC STATEMENT 8
DECLARATION OF CONFORMITY 9
BATTERY SAFETY INSTRUCTIONS 10
STANDARD WARRANTY INFORMATION 11
2
INTRODUCTION
Thank you for selecting a Meade Instruments temperature
sensor!
Meade Instruments is the world’s leading designer and
manufacturer of telescopes for professional and amateur
astronomers – famous for its innovative, high performance
telescopes at affordable prices. Meade Instruments now
brings that same passion innovation and high performance to
its own line of precision, feature rich weather stations.
In this package you will find:
• One remote sensor (transmitter) TS13C-M
• One User Manual
Please keep this manual handy as you use your new item.
It contains practical step-by-step instructions, as well as
technical specifications and precautions you should know.
3
PRODUCT OVERVIEW
FEATURES
• Remote temperature transmission to the main unit via
433 MHz signal
• Temperature LCD display
• Case can be wall mounted using built-in hanger
• 100 feet (30 meters) transmission range without interference
• Selection of the temperature display in Celsius or Fahrenheit
• 3 available channels for temperature transmission
• Reset for all previous readings
• Low Battery Indication
A LED INDICATOR
• Flashes once when the remote sensor transmits a reading
to the main unit.
• Flashes twice when battery power is low.
B BATTERY COMPARTMENT
• Holds two AA-size batteries.
C RESET
• Resets all readings.
D CHANNEL SWITCH
• Selects the desired channel.
E WALL-MOUNT RECESSED HOLE
• Keeps the remote sensor on the wall.
F °C/ °F SWITCH
• Selects the temperature display in Celsius or Fahrenheit.
THERMO – SENSOR
433MHz WIRELESS
1
A
C
B
D
E
F
RESET
˚C/˚F
CHANNEL
123
MADE IN CHINA
TM
4
